Quantitative T1 mapping under precisely controlled graded hyperoxia at 7T

Abstract

Increasing the concentration of oxygen dissolved in water is known to increase the recovery rate (R1 = 1/T1) of longitudinal magnetization (T1 relaxation). Direct T1 changes in response to precise hyperoxic gas challenges have not yet been quantified and the actual effect of increasing arterial oxygen concentration on the T1 of brain parenchyma remains unclear. The aim of this work was to use quantitative T1 mapping to measure tissue T1 changes in response to precisely targeted hyperoxic respiratory challenges ranging from baseline end-tidal oxygen (PetO₂) to approximately 500 mmHg. We did not observe measureable T1 changes in either gray matter or white matter parenchymal tissue. The T1 of peripheral cerebrospinal fluid located within the sulci, however, was reduced as a function of PetO₂. No significant T1 changes were observed in the ventricular cerebrospinal fluid under hyperoxia. Our results indicate that care should be taken to distinguish actual T1 changes from those which may be related to partial volume effects with cerebrospinal fluid, or regions with increased fluid content such as edema when examining hyperoxia-induced changes in T1 using methods based on T1-weighted imaging.

Keywords

Brain imaging cerebral hemodynamics cerebrospinal fluid magnetic resonance imaging neurophysiology

Introduction

Interest in the effect of inhaled oxygen (O₂) on MR image contrast in T1-weighted images began with the observation of cerebrospinal fluid (CSF) hyper-intensity in fluid-attenuated inversion recovery (FLAIR) images taken of patients under general anesthesia. Initially thought to be the result of hemorrhage or abnormal protein content, CSF hyper-intensity was later shown to be due to the administration of supplemental O₂.^1,2 CSF mainly consists of unbound water molecules, and increasing the concentration of O₂ dissolved in water causes a decrease longitudinal magnetization: defined by the T1 relaxation time constant.³ In the context of FLAIR images, T1 shortening results in a shift of the inversion time required to null the CSF, thereby resulting in unexpected MR signal. Subsequent in vivo studies examining the effect of increased O₂ inhalation (defined herein as hyperoxia) have reported further O₂-dependent T1 changes in various peripheral organs and tissues,^4–6 blood,^7–9 cerebral tissue¹⁰ and in CSF.^11,12

The notion that dissolved O₂ can modulate MR relaxivity in vivo has spurred the development of MR methods with the aim of quantifying changing tissue oxygenation properties under varying gas inhalation challenges. Recent studies have used steady-state MR imaging¹³ as well as saturation-recovery-based methods¹⁰ to investigate changes in the T1-recovery-induced via high-flow hyperoxic gas mixtures, as potential surrogate markers of tissue oxygenation status. It has been suggested that monitoring changes in relaxivity parameters can help identify brain regions in which metabolic homeostasis is perturbed, or where O₂ supply has been compromised.^13,14 This is of particular interest for oncological studies since tissue hypoxia has been associated with negative treatment outcome.^15,16

While studies in the parametric assessment of tissue oxygenation have shown initial promise, potential confounds relating to image acquisition and respiratory challenge delivery, mean that uncertainties remain regarding the actual extent by which parenchymal tissue (consisting of a majority extravascular tissue fraction and minority blood fraction) T1 is changed under hyperoxia. The use of T1-weighted imaging provides only an indirect measure of T1 changes which may be influenced by global susceptibility effects related to large volumes of inspired O₂¹⁷ or partial volume effects with CSF, and perhaps to a lesser extent, residual blood oxygenation level-dependent (BOLD) T₂* weighting or inflow effects. In terms of gas delivery, the use of high-flow gas mixtures such as carbogen or pure O₂ provides a stimulus whose amplitude and temporal characteristics may vary between subjects. This makes investigation of T1 changes as function of inspired gas concentration challenging.

To date, direct T1 changes in response to precise hyperoxic gas challenges have not been quantified in healthy human parenchyma. This is likely due to the extended scan duration required, combined with the need to perform repeated measurements under various hyperoxic states. Thus, the actual effect of increasing arterial O₂ concentration on cerebral tissue T1 remains uncertain. The aim of this work was to use fast, high-resolution direct T1 mapping at 7T to measure brain tissue and CSF T1 changes in response to precisely controlled hyperoxic respiratory challenges.

Materials and methods

Breathing protocol

This study was approved by the Medical Research Ethics Committee (MREC) of our institution and written informed consent was obtained from all subjects. The experiments were performed according to the guidelines and regulations of the WMO (Wet Medisch Wetenschappelijk Onderzoek). Ten Healthy subjects (3 female, 30 ± 7 years) were scanned on a Philips 7T magnetic resonance imaging (MRI) scanner using a dual-transit head coil in combination with a 32 channel receive coil (Nova Medical, Wilmington Ma, USA). Precise targeting of end-tidal O₂ partial pressure (PetO₂) was accomplished using a RespirAct™ system (Thornhill Research, Toronto, CAN). The RespirAct device consists of a computer controlled gas blender which connected to four input gases: medical air, 100% oxygen, 10%/20%/70% CO₂/O₂/N₂ mixture and 10%/90% O₂/N₂ mixture. An output line connects the blender to a rebreathing circuit which is taped to the subject to ensure an airtight seal using Tegaderm film (3 M, Maplewood, MN, USA). Two sensor lines are connected which monitor end-tidal gas values and breathing pressure. The rebreathing circuit described in ensures that all gas delivered to the subject is inhaled, facilitating precise targeting of end-tidal gas values. An in-depth description of the breathing circuit and the theory behind the sequential gas delivery system can be found in Slessarev et al.¹⁸

Separate whole brain T1 maps were acquired during four targeted PetO₂ levels. PetO₂ targets were randomized and included baseline (approximately 110 mmHg), 250 mmHg, 350 mmHg, and 500 mmHg (see Figure 1). To examine potential time-dependent T1 changes in response to a large hyperoxic stimulus, two additional T1 maps were acquired during hyperoxic stimulus targeted with PetO₂ targeted at 500 mmHg. Including the initial time allowed for the PetO₂ values to stabilized, acquisition of the three consecutive T1 maps was completed after approximately 6, 10, and 14 minutes. Throughout the course of the imaging protocol, end-tidal CO₂ (PetCO₂) was maintained at individual subject baseline levels in order to minimize vasodilation-related flow effects.

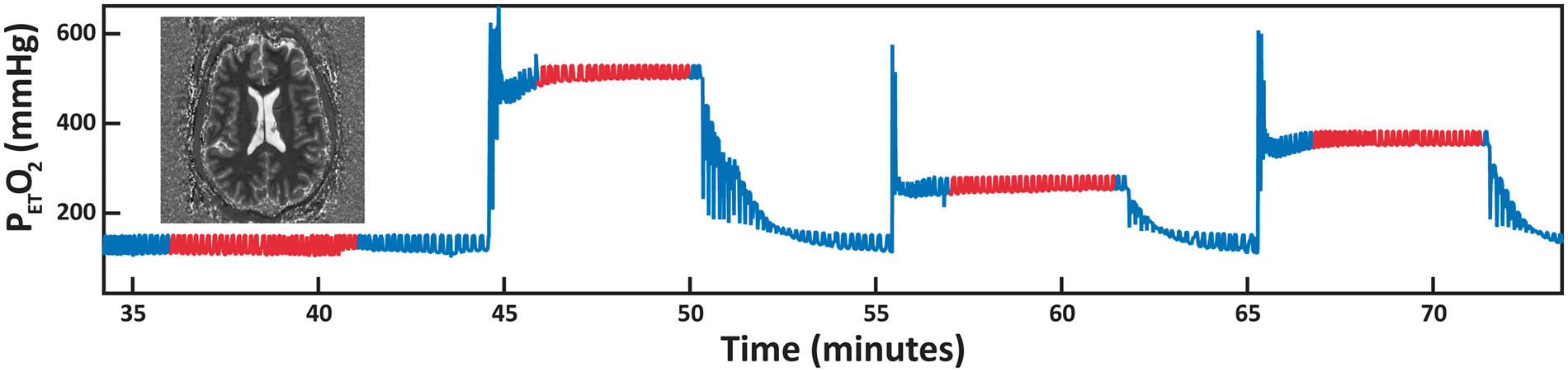

Figure 1.

PetO₂ breathing trace for a representative subject. Four separate T1 maps are acquired at different PetO₂ levels. Targeted values include baseline PetO₂, 250 mmHg, 350 mmHg and 500 mmHg. Image acquisition is performed when PetO₂ values reach a stable plateau – this is highlighted by the red traces.

Image acquisition & T1 fitting

Prior to T1 mapping, a B₀ map was acquired (3D gradient-echo, TR/TE: 4/1.54 ms, scan duration: 11.4 s, reconstructed resolution: 3.75 mm³, slices: 29, FOV: 240 × 112.5 × 180 mm³, flip angle: 10°). This map was used to perform third-order image-based B₀ shimming. T1 maps were acquired using a non-slice selective adiabatic inversion pulse, which served to minimize inflow effects relating to limited transmit coil volume, followed by sequential acquisition of slices at increasing inversion times along the T1 recovery curve. This process was repeated over 23 scans. For each repetition, the acquired slice order was shifted such that each slices were acquired at 23 distinct inversion times – for details see Polders et al.¹⁹ Scan parameters were as follows: multi-slice single-shot echo planar imaging (EPI), inversion time range: 132.2–5074.4 ms, inversion time spacing: 224.6 ms, TR/TE: 10,000/9.42 ms, scan duration: 4 min, reconstructed resolution: 1 × 1 × 1.5 mm³, slices: 46, FOV: 224 × 224 × 91.5 mm³, flip angle: 150°, SENSE factor: 3.6 (AP), Halfscan factor: 0.61. Post processing was done using an IDL tool whereby slices were re-ordered and temporally consistent image volumes were reconstructed. From here, a voxel-wise T1 fit was performed assuming complete inversion (i.e. a two parameter fit) to generate whole brain, high-resolution T1 maps. Further details pertaining to this T1 mapping method are described in literature.^19–21

Data processing

Brain tissue was extracted from each T1 map by manual delineation (10 subjects × 4 O₂ levels = 40 T1 maps in total). A whole brain probability density histogram was generated from each brain extracted T1 map. Normalized histograms representing T1 values at each O₂ level were then averaged together such that global T1 changes in response to hyperoxia could be investigated. The approximate histogram bin-width was 7 ms. To examine regional changes, binary ROI masks were created by thresholding of individual T1 maps using the following T1 values derived from the mean whole brain histogram: white matter (WM): 800–1300 ms, gray matter (GM): 1300–1900 ms, and total cerebrospinal fluid (CSF_Total): 3000 ms+). The CSF_Total masks (see Figure 2(a)) were manually segmented to isolate CSF located in the ventricles (CSF_v) and sulci (CSF_s). ROI masks were eroded using a 2D diamond-shaped kernel with a center-to-edge width of one voxel to reduce partial volume effects at tissue interfaces. T1 changes were investigated in regions showing an observable T1 response to hyperoxia and resulted in an estimate of relaxivity (r1) for O₂ dissolved in CSF via linear regression of R1 (R1 = 1/T1) as a function of PetO₂. An additional R1 value was fitted based on the single subject T1 data in which three T1 maps were acquired at a targeted PetO₂ of 500 mmHg. This fit was performed using the T1 data acquired during the baseline period and the average T1 data from the T1 maps acquired during the two final hyperoxic periods (approximately 6–15 min after onset of hyperoxic stimulus).

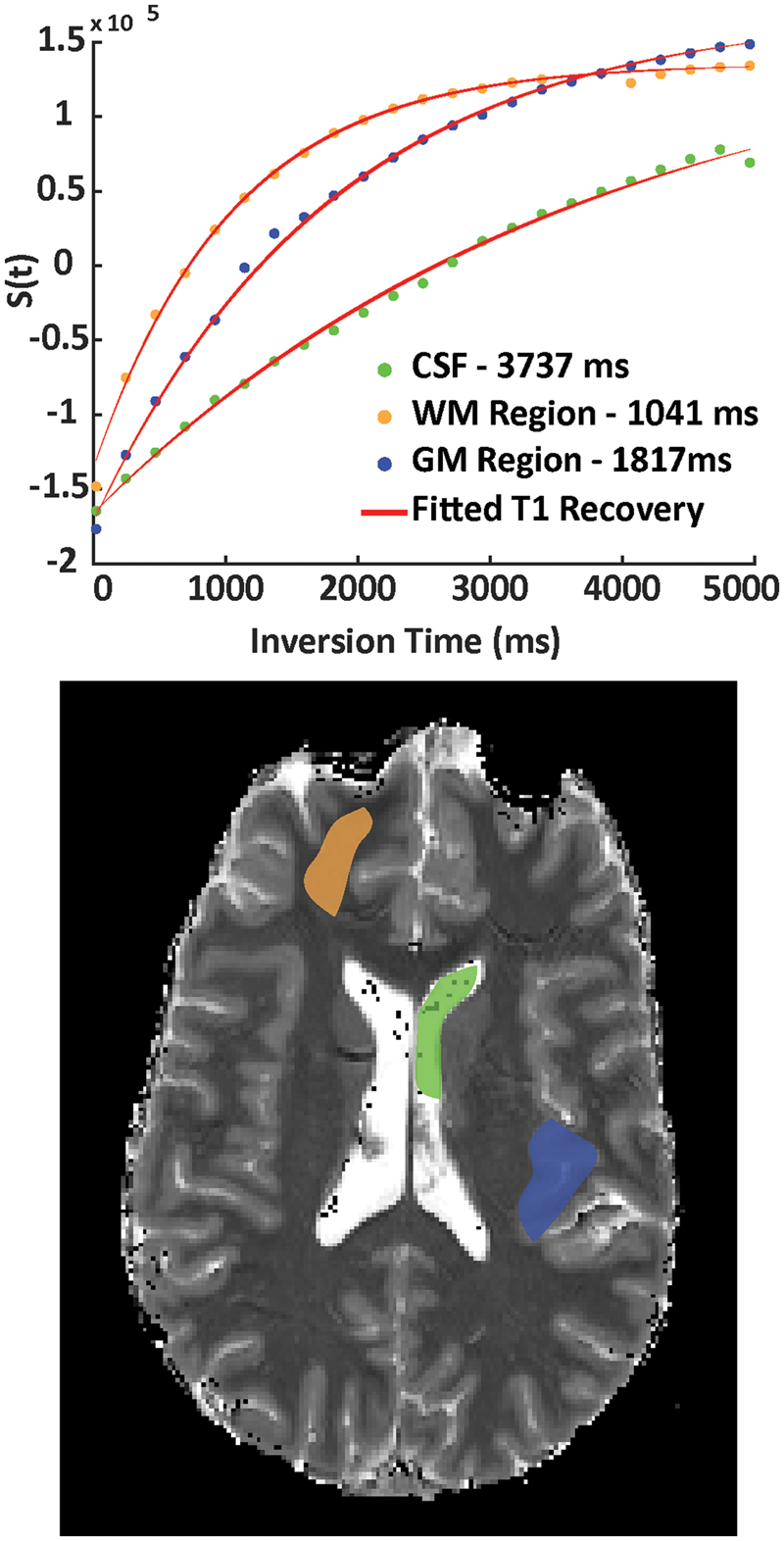

Figure 2.

Examples of fitted T1 recovery curves (top panel) are shown for respective CSF (green), GM (blue) and WM (orange) ROIs taken from a single slice to illustrate the quality of the T1 inversion recovery data. ROIs are overlaid on the corresponding T1 map (bottom panel) which was obtained during a PetO₂ target of 350 mmHg.

Statistical analysis

The average and standard deviation of median T1 values were calculated for all subjects in each GM, WM, and CSF ROI. Median values were chosen to alleviate the effect of outlying T1 values and also due to the fact that regional T1 values were not normally distributed. Other measured data is reported as mean ± standard deviation. T1 changes in response to hyperoxic challenges from each ROI were tested for significance using a one-way ANOVA with three degrees of freedom.

Results

Subjects reported no discomfort relating to the hyperoxic breathing challenges. Aside from the mean inter-subject baseline PetO₂ (mean ± standard deviation: 109 ± 2 mmHg), achieved PetO₂ values averaged across all 10 subjects were 247 ± 2 mmHg, 349 ± 1 mmHg, and 487 ± 1 mmHg for the three respective hyperoxic challenges. Each subjects PetCO₂ were maintained at their individual baseline value. The average PetCO₂ across all subjects was 36 ± 2.5 mmHg and the average intra-individual standard deviation (of baseline PetCO₂ over the duration of a hyperoxic challenge) was 1.4 ± 0.5 mmHg.

In general, the data quality associated with the T1 fitting procedure was high (Figure 2). This facilitated robust fitting of voxel-wise T1 values; average probability density histograms for whole brain at each O₂ level are shown in Figure 4. Corresponding box plots generated based on ROIs indicated in Figure 3(a) are shown in Figure 5. No significant differences were observed in GM (p = 0.98, F(3) = 0.06) or WM (p = 0.99, F(3) = 0.01) T1 (Table 1). T1 values in CSF_Total were significantly different (p < 1 × 10⁻⁶, F(3) = 15.9) and became shorter with increasing PetO₂. This shortening was mainly due to T1 changes in CSF_S (p < 1 × 10⁻¹⁰, F(3) = 24.19), as limited changes were seen in CSF_V (p = 0.7, F(3) = 0.28). The fitted r1 of O₂ in CSF_S and CSF_V were 3.3e⁻⁵s⁻¹/mmHg (adj. R²= 0.97, RMSE = 1.2e⁻³) and 3.8e⁻⁶s⁻¹/mmHg (adj. R²= 0.35, RMSE = 6.1e⁻⁴), respectively (Table 1, Figure 5). The average number of voxels included in the CSF_S and CSF_V masks across all subjects and O₂ levels were 12854 and 2476, respectively.

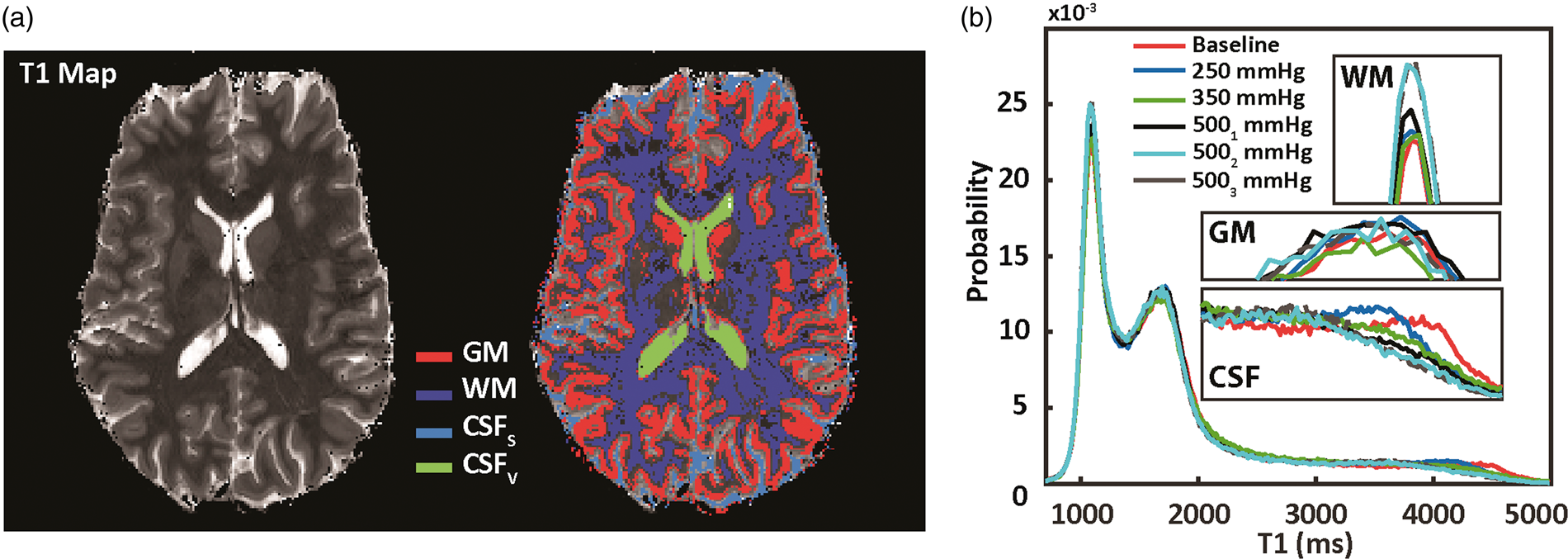

Figure 3.

(a) Left is a single slice from a T1 map obtained at baseline PetO₂. T1 values are thresholded (tissue specific intensity peaks are shown in Figure 3(b)) to obtain tissue/region specific masks (right). These include GM and WM parenchymal tissue as well as CSF. The CSF mask is manually divided into ventricle and sulci CSF. Figure 3(b): Whole probability density histograms (bin-width = 16 ms) from a single subject for all different PetO₂ levels are overlaid. No observable change in GM or WM parenchymal T1 are apparent (middle and top inset: 3(b)). CSF T1 values become shorter as a function of PetO₂ (bottom inset: 3(b)). Two additional T1 maps were obtained at a targeted PetO₂ of 500 mmHg (500₁ and 500₂mmHg) which illustrate a time-dependence on T1 changes in the CSF, confirming results presented in (11).

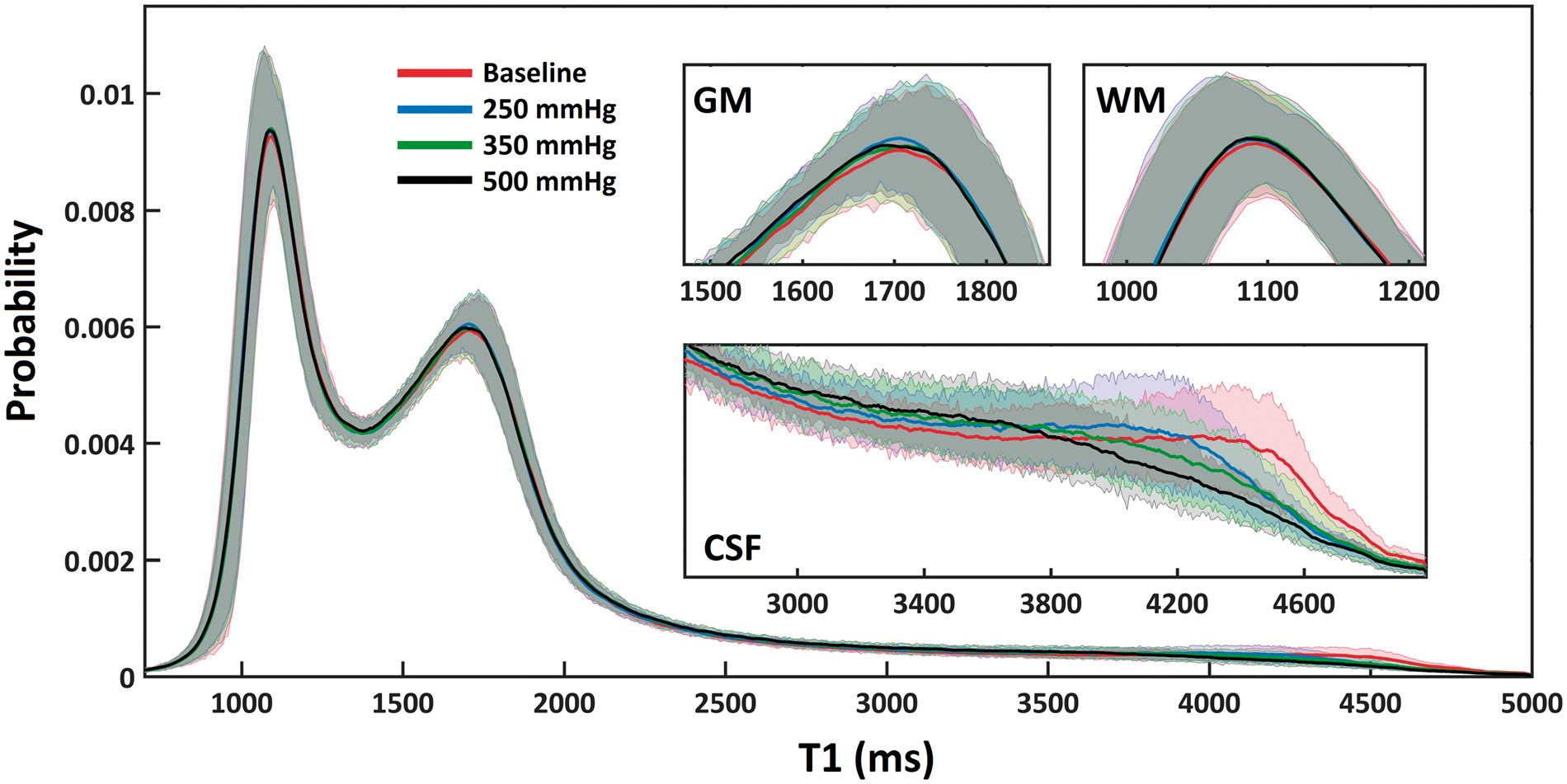

Figure 4.

Whole brain probability density histograms (bin-width = 7 ms) created by averaging T1 data across 10 subjects. The mean and standard deviation of T1 probability values are provided. No changes were detected in GM or WM (inset: top left and right). T1 shortening was observed in CSF (inset: bottom). This was the case in all subjects.

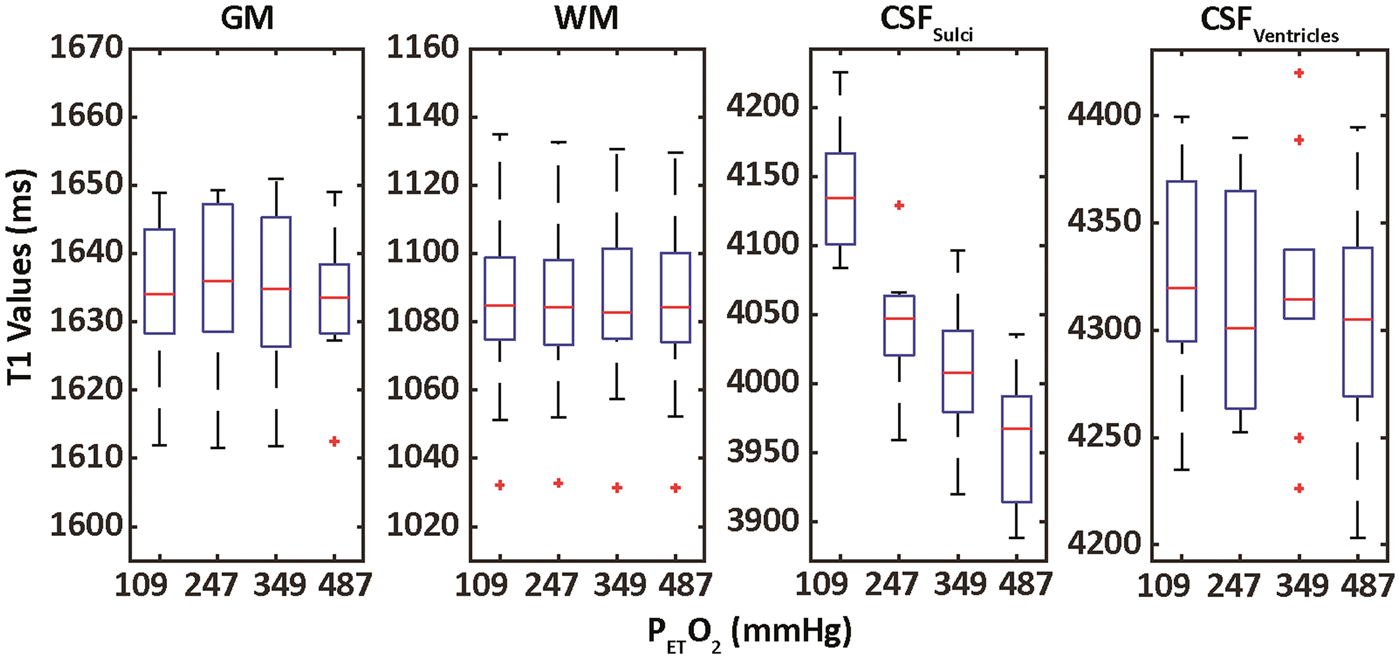

Figure 5.

Box plots generated from median T1 values across all subjects based on ROIs depicted in Figure 2(a). No significant changes were observed in GM, WM or CSF_V. The observed T1 shortening in total CSF was mainly determined by changes measured in the CSF_S. The red bars indicate median values, the whiskers define the range of the data while red crosses represent outliers. The boxes top and bottom of each box represent the 75th and 25th percentile for the dataset, respectively.

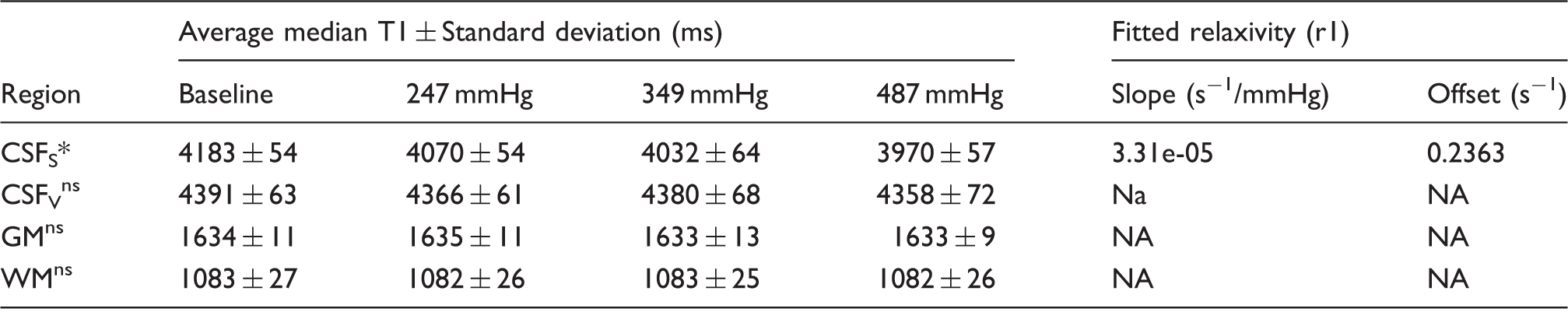

Table 1.

Average regional T1 values at each PetO₂ level. Results of fitting relaxivity (r1) for CSF_V is provided (left).

	Average median T1 ± Standard deviation (ms)				Fitted relaxivity (r1)
Region	Baseline	247 mmHg	349 mmHg	487 mmHg	Slope (s⁻¹/mmHg)	Offset (s⁻¹)
CSF_S*	4183 ± 54	4070 ± 54	4032 ± 64	3970 ± 57	3.31e-05	0.2363
CSF_V^ns	4391 ± 63	4366 ± 61	4380 ± 68	4358 ± 72	Na	NA
GM^ns	1634 ± 11	1635 ± 11	1633 ± 13	1633 ± 9	NA	NA
WM^ns	1083 ± 27	1082 ± 26	1083 ± 25	1082 ± 26	NA	NA

GM: gray matter; WM: white matter; CSF: cerebrospinal fluid.

Whole brain probability density histograms of T1 values calculated at each O₂ level are shown for a single subject in Figure 3(b). Comparison of intra-subject T1 histograms highlights the robustness of the T1 mapping procedure. T1 values associated with GM and WM tissue appear unchanged, while those of CSF were notably shortened. In this particular subject, an additional two T1 maps were acquired during the 500 mmHg PetO₂ target in order to investigate potential delays in O₂-induced T1 effects. While a further decrease in CSF T1 was observed in the second T1 map, limited changes were observed in the third T1 map (Figure 3(b): inset bottom). The baseline (105.7 ± 2 mmHg) and actual PetO₂ measured in the single subject during the 500 mmHg target (actual PetO₂: 493.8 ± 0.8 mmHg), along with the corresponding median CSF_S R1 values of 0.2521 s⁻¹ (baseline PetO₂) and 0.2571 s⁻¹ (average of CSF_S R1 between second and third T1 maps) yielded a r1 for dissolved O₂ of 1.306 × 10⁻⁵s⁻¹/mmHg (see Figure 6). The fit offset was 0.2507 s⁻¹, which corresponds to an O²-free CSF_S T1 of approximately 3851 ms in this particular subject.

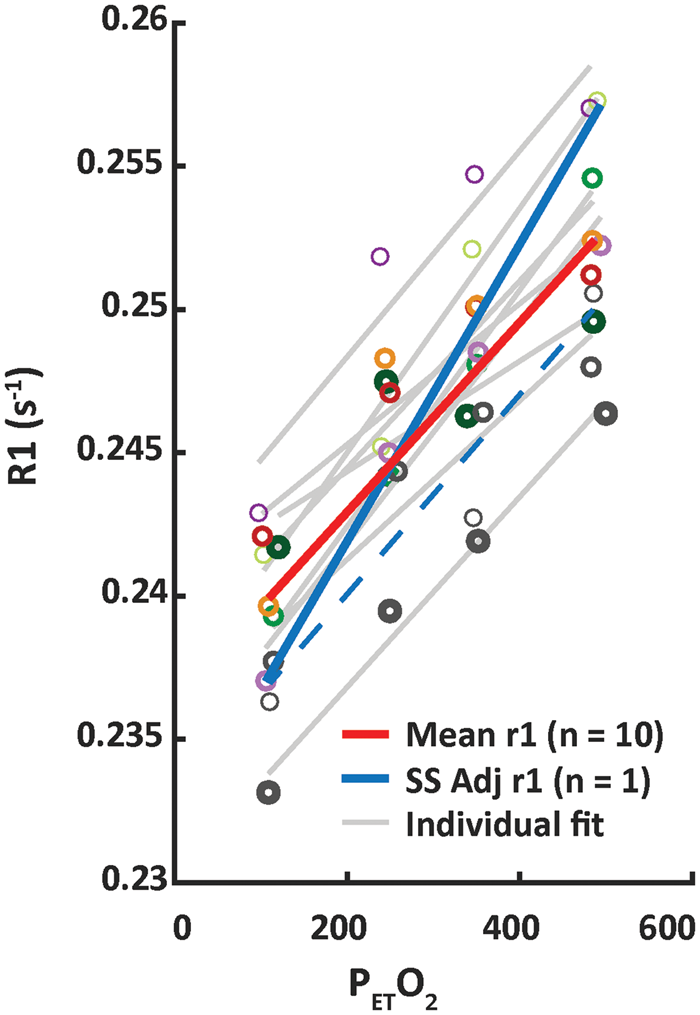

Figure 6.

The solid red line depicts the CSF_S relaxivity (r1–s⁻¹/mmHg PetO₂) fitted based on the median T1 values averaged across 10 subjects in CSF_S (adj R²= 0.94). For reference, individual subject data points and associated fit results for individual subjects are shown in grey. Additional T1 maps were acquired at high PetO₂ in a single subject to investigate whether there was a time dependency on T1 changes. An additional relaxivity calculated based on single subject (Figure 3(b)) T1 values at baseline and after approximately 10 min of hyperoxia with PetO₂ targeted at 500 mmHg is depicted by the solid blue line. The fit result based on this single subject across the increasing PetO₂ values is highlighted by the dashed blue line (rather than solid grey as with the remaining 9 subjects). Changes in CSF_V were not significant, and are not shown.

Discussion

Main findings

We did not observe significant changes in either GM, WM T1 values as a function of PetO₂. There was an inverse relationship between PetO₂ and T1 in the CSF_S, however. Reductions in T1 of the ventricles were not significant, confirming previous results from the literature.^3,11,12 However, baseline T1 in the CSF_V was higher than in the CSF_S. CSF_Total T1 values were in line with those reported by Hopkins et al.,²² who found an average T1 in CSF (including CSF_V and CSF_S) of approximately 4.3 s for measurements made between 0.15 and 1.4 T. Furthermore, our CSF_Total T1 results follow those reported by Rooney et al.²³ who measured a CSF_Total T1 at 7T of 4425 ± 137, thus lending further support to the observation that CSF T1 is relatively field strength independent. This does not seem to be the case for the r1 of dissolved oxygen, however. Our fitted r1 of O₂ in CSF_S (3.3e⁻⁵s⁻¹/mmHg) was an order of magnitude smaller than that found by Zaharchuk et al.²⁴ for the r1 of dissolved O₂ in distilled water (2.49 e⁻⁴s⁻¹/mmHg)²⁴ and artificial CSF (2.7 e⁻⁴s⁻¹/mmHg)¹¹ measured at 1.5 T. This discrepancy is likely due to the fact that we used a surrogate measure of oxygenation changes in PetO₂, and that our measurements were performed in vivo at a higher field strength. Finally, the time required to reach peak CSF_Total T1 changes in response to the most prolonged hyperoxic step used in our experiments was on the order of 10–12 min. These time-to-peak values are in agreement with those reported in literature^25–27 of approximately 10–15 minutes.

Potential factors, in addition to baseline pO₂, which could lead to variations in CSF T1 include differences in temperature or CSF protein content. It is unlikely, however, that significant temperature variations exist between peripheral and central regions of the head. Furthermore, the T1 relaxivity of proteins contained within the CSF, along with their concentrations, is low. Variations in CSF protein content large enough to cause significant signal effects are only likely in disease situations.²⁵ Thus, we do not expect variations in temperature or protein content to explain the regional T1 differences measured in our healthy subject group. Variation between CSF_S and CSF_V may be partially attributed to differences in O₂ content. The CSF compartment provides a considerable reservoir of unbound water, into which plasma O₂ is able to diffuse from the vasculature. Due to the large network of vessels located on the cortical surface, effectively increasing the surface area through which O₂ can diffuse, it stands to reason that the amount of O₂ diffusing into the CSF_S is higher than that to the CSF_V. Conclusions drawn from previous animal studies have indicated direct diffusion of O₂ between arteries and CSF,^26,28 and this mechanism has also been discussed in the context of T1 changes in human studies by Mehemed et al.¹² The large volume occupied by the ventricles may also explain the elevated baseline T1 in CSF_V. It is likely CSF_S mask erosion did not completely eliminate partial volume effects between CSF_S and the surrounding vasculature and tissues that have much lower T1 values; especially since our volunteer group consisted of young subjects. Thus, CSF_S voxels may have contained a larger tissue/vasculature fraction than those selected in the CSF_V. Small changes in blood volume fraction due to hyperoxia-mediated vasoconstriction could lead to a local reduction in CBV which may raise intra-voxel T1 via a higher fractional CSF T1 contribution. However, this effect was not observed in our data. Subsequent studies using varying voxels size can aid elucidating what the exact contribution is of partial volume effects of CSF_S with the pial vasculature and adjacent tissues. The lack of T1 changes in CSF_V may be explained by the ratio of CSF to vessel density in that region compared to CSF_S. The ventricles compose a large reservoir of CSF where the slow dilution of O₂ could mitigate O₂-dependent T1 reduction.

An interesting result in our study was the absence of detectable T1 changes in the brain parenchyma despite studies reporting tissue pO₂ increases under hyperoxia directly using oxygen probes in the healthy brain tissue of comatose patients²⁹ or those suffering from severe traumatic brain injury.^30,31 In these cases, changes in cerebral hemodynamics may have played a role in the tissue response to hyperoxia. Our results support findings in healthy subjects which are reported in Anzai et al.,³ where comparison of FLAIR image signal intensity changes under hyperoxia did not identify O₂-related effects in the brain parenchyma or in the lateral ventricles. Our findings are also in line with the work of Zaharchuk et al.,¹¹ who also failed to identify O₂-dependent tissue T1 changes, reporting only changes in the sulci and basilar cisterns. It should be noted, however, that the sequences used in these studies were optimized for sensitivity to changes at the higher T1 values of CSF than those typically found in tissues.

For the levels of O₂ used in our study, arterial oxygen saturation in our healthy volunteers was presumably between 98 and100%.³² Notwithstanding potential vasoactive effects, it is known that hyperoxia results in a BOLD signal due to increased venous hemoglobin saturation.³³ This suggests that, under hyperoxia, the extravascular tissue O₂ demand is partially satisfied by a larger proportion of plasma-dissolved O₂ rather than O₂ that would normally have been released from hemoglobin. If we also consider the amount of O₂ that diffuses into the CSF,²⁶ it could be that the blood-tissue O₂ gradient is simply not as large as might be expected. For this reason, no significant increases in O₂ diffusion across the blood–brain barrier would occur and extravascular tissue T1 would remain largely unchanged. Or, the increased O₂ which enters the tissues is immediately metabolized and does not contribute to T1 shortening. This would mean CMRO₂ would slightly increase under hyperoxia. Direct measurements of tissue CMRO₂ under hyperoxia, for instance using PET or O¹⁷ imaging, seem warranted to unequivocally rule out this effect.

This interpretation of our results challenges the results presented in literature;^10,13 however, these studies did not employ quantitative imaging methods or precise gas control. It is conceivable that in-flow effects as well as residual BOLD T2* weighting at short TE, partial volume effects with CSF or global susceptibility effects relating to increasing oxygen gas concentration¹⁷ may have resulted in apparent tissue-O₂-related signal changes. Note, however, that inflow effects by vasoconstriction or a drop in end-tidal pCO₂ under hyperoxia and global susceptibility effects would result in an apparent T1 increase in T1-weighted sequences instead of the reported T1 decreases. This leaves residual BOLD T2* effects and partial volume effects with CSF as the most likely candidates for confounding apparent T1 reductions seen in tissue. Inversion recovery T1 mapping is insensitive to such confounds, since they are constant throughout the acquisition and are negated when fitting the T1 decay curve. On a voxel level, the error associated with T1 mapping method we have used is on the order of 1–1.5%.¹⁹ This translates to T1 variance of approximately 15–25 ms in GM. If tissue T1 does in fact shorten in response to hyperoxia, then changes must be under the threshold (∼15 ms) of our ability to detect them using our T1 mapping method. A similar conclusion can be made with regard to changes in blood water T1. Shortening of blood T1 due to dissolved O₂ in the plasma is expected, however, since the blood fraction in a voxel is small (∼2–5%³⁴), blood T1 changes are presumably diluted by extravascular tissue T1 contributions.

Direct measurement of pO₂ in human CSF has been limited due to the invasive nature of the oxygenation measurements.^35–37 Nevertheless, there is evidence that reduced CSF oxygen partial pressure in patients can be used as a possible biomarker to identify cerebral disease and brain injury. While we did not measure tissue T1 changes in response to hyperoxia, the changes observed in the CSF may serve as a benchmark from which to identify anomalies in CSF T1 stemming from cerebral metabolic dysfunction.

Considerations

Both animal²⁶ and human¹¹ studies have quoted time-to-peak delays of approximately 10–12 min for T1 changes in the CSF. This was also apparent in our study and is illustrated in Figure 3(b), where CSF T1 values continue to decrease during subsequent T1 map acquisitions at high PetO₂. This indicates that T1 values were changing throughout our acquisition; this likely lead to an increased variance within our data. Furthermore, the relatively short scan-time (∼4 min) of our T1 mapping sequence has likely resulted in an underestimation of actual O₂-dependent T1 changes. The extent of this effect can be inferred based on the additional single subject relaxivity estimations provided in Figure 6. Ideally, future experiments should allow for up to 15 min for pO₂ levels in the CSF to equilibrate.

Notwithstanding the normal inter-subject variation in baseline values, the variance in PetCO₂ remained minimal throughout the hyperoxic challenges. Thus, potential arterial oxygenation changes due to vasodilatory increases in CBF were minimal. This may not be true in experiments relying on free-breathing gas delivery methods that do not clamp arterial CO₂. The potential vasoconstrictive effect of hyperoxia remains a topic of debate and it is uncertain how small reductions in CBF would affect our results given that oxygen saturation and the concentration of plasma-dissolved O₂ will nevertheless remain high.

Conclusion

Despite the fact that we did not detect tissue T1 changes, we provided a reference point for T1 values is CSF as a function of PetO₂. Future human studies examining potential tissue T1 changes under targeted hyperoxia in tissues with metabolic disorder are required. Moreover, care should be taken to distinguish actual parenchymal tissue T1 changes from those which may be related to partial volume effects with CSF or regions with increased fluid content such as edema.

Footnotes

Funding

This study was part of the EU Artemis High Profile Project and supported by the European Research Council, ERC grant agreement n°337333 (JJMZ).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ contributions

AAB: designed the protocol, acquired the data, analyzed the data, interpreted the data, and drafted the manuscript; JCW: acquired the data, interpreted the data, and revised the manuscript; PRL; revised the manuscript; JZ, MEPP, and HH interpreted the data and revised the manuscript.
