Detecting Linked Data quality issues via crowdsourcing: A DBpedia study

Abstract

In this paper we examine the use of crowdsourcing as a means to detect Linked Data quality problems that are difficult to uncover automatically. We base our approach on the analysis of the most common errors encountered in the DBpedia dataset, and a classification of these errors according to the extent to which they are likely to be amenable to crowdsourcing. We then propose and study different crowdsourcing approaches to identify these Linked Data quality issues, employing DBpedia as our use case: (i) a contest targeting the Linked Data expert community, and (ii) paid microtasks published on Amazon Mechanical Turk. We secondly focus on adapting the Find-Fix-Verify crowdsourcing pattern to exploit the strengths of experts and lay workers. By testing two distinct Find-Verify workflows (lay users only and experts verified by lay users) we reveal how to best combine different crowds’ complementary aptitudes in Linked Data quality issue detection. Empirical results show that a combination of the two styles of crowdsourcing is likely to achieve more effective results than each of them used in isolation, and that human computation is a promising and affordable way to enhance the quality of DBpedia.

1. Introduction

Many would consider Linked Data (LD) to be one of the most important technological trends in data management of the last decade [20]. However, seamless consumption of LD in applications is still very limited given the varying quality of the data published in the Linking Open Data (LOD) Cloud [22,59]. Data quality is commonly conceived as “fitness for use” [24] for a certain application or use case. In particular, data quality issues in LOD are the result of a combination of data- and process-related factors. The datasets being released into the LOD Cloud are – apart from any factual flaws that they may contain – very diverse in terms of formats, structure, and vocabulary. This heterogeneity and the fact that some kinds of data tend to be more challenging to lift to RDF than others make it hard to avoid errors, especially when the translation happens automatically. Simple issues like syntax errors or duplicates can be easily identified and repaired in a fully automatic fashion [13,18,19,32,37,38]. However, certain data quality issues in LD are more challenging to detect. Current approaches to tackle these problems still require expert human intervention, e.g., for specifying rules [18] or test cases [27], or fail due to the context-specific nature of quality assessment, which does not lend itself well to general workflows and rules that could be executed by a computer program. In this paper, we explore an alternative data curation strategy, which is based on crowdsourcing.

Crowdsourcing [23] refers to the process of solving a problem formulated as a task by reaching out to a large network of (often previously unknown) people. One of the most popular forms of crowdsourcing are ‘microtasks’ (or ‘microwork’), which consists in dividing a task into several smaller subtasks that can be independently solved. Depending on the tackled problem, the level of task granularity can vary (microtasks – whose results need to be aggregated – vs. macrotasks – which require filtering to identify the most valuable contributions) as can the incentive structure (e.g., payments per unit of useful work vs. prizes for top participants in a contest).

Another major design decision in the crowdsourcing workflow is the selection of the crowd. While many (micro)tasks can be performed by untrained workers, others might require more skilled human participants, especially in specialized fields of expertise, such as LD. Of course, expert intervention usually comes at a higher price either in monetary rewards or in the form of effort to recruit participants in another setting, such as volunteer work. Microtask crowdsourcing platforms such as Amazon Mechanical Turk (MTurk),1

¹

https://www.mturk.com/.

on the other hand, offer a formidable and readily available workforce at relatively low fees.

In a previous work of ours [58] we investigated common quality problems encountered in the DBpedia dataset [6]. We analyzed the detected quality issues and classified them according to the extent to which they could be amenable to crowdsourcing. Based on these results, in this work we study the assessment via crowdsourcing of three specific LD quality issues in DBpedia: incorrect object, incorrect datatype or language tag, and incorrect link. In the following, we explain the research questions investigated in this work and present our proposed approach.

The first research question explored is hence RQ1: Is it feasible to detect the studied LD quality issues via crowdsourcing mechanisms? This question aims at providing insights whether crowdsourcing approaches can be applied to find the selected quality issues in LD sets – specifically in DBpedia – and if so, to what degree they are an efficient and effective solution.

Secondly, given the option of different crowds, we formulate RQ2: In a crowdsourcing approach, can we employ unskilled lay users to identify the studied LD quality issues and to what extent is expert validation needed and desirable? As a subquestion to RQ2, we also examine which type of crowd is most suitable to detect which type of quality issue (and, conversely, which errors they are prone to make). With these questions, we are interested in learning to what extent we can exploit the cost-efficiency of lay users, or if the quality of error detection is prohibitively low. We also investigate how well LD experts perform in a crowdsourcing setting and if and how they outperform lay users. And lastly, it is of interest whether one of the two distinct crowd (experts vs. lay users) performs well in areas that might not be a strength of the other crowd.

To answer these questions, we first launched a contest that acquired 58 experts knowledgeable in LD to find and classify erroneous RDF triples from DBpedia (Section 4.1). They inspected 33,404 triples in total. These triples were then submitted as paid microtasks on the MTurk platform to be examined by laymen or ‘workers’ in a similar way (Section 4.2). Each approach (contest and paid microtasks) made several assumptions about the audiences they address (the ‘crowd’) and their skills. This is reflected in the design of the crowdsourcing tasks and the related incentive mechanisms. The results of both crowds were then compared to a manually created gold standard. The comparison of experts and workers, as discussed in Section 5, indicates that (i) untrained workers are in fact able to spot certain quality issues with satisfactory precision; (ii) experts perform well detecting two but not the third type of quality issues given, and lastly (iii) the two approaches reveal complementary strengths.

Given these insights, RQ3 is formulated: How can we design better crowdsourcing workflows (in terms of accuracy) using lay users or experts for detecting LD quality issues, beyond one-step solutions for pointing out quality flaws? To do so, we adapted the crowdsourcing pattern known as Find-Fix-Verify, originally proposed by Bernstein et al. [4]. Specifically, we want to know: (i) Can we enhance the results of the LD quality issue detection through lay users by adding a subsequent step of cross-checking (Verify) to the initial Find stage? (ii) Or is it even more promising to combine experts and lay workers by letting the latter Verify the results of the experts’ Find step, hence drawing on the crowds’ complementary skills for detecting quality issues we had recognized before?

Accordingly, the results of both Find stages (expert and workers) – in the form of sets of triples identified as incorrect, marked with the respective errors – were fed into a subsequent Verify step, carried out by MTurk workers (Section 4.3). The task consisted solely of the rating of a formerly indicated quality issue for a triple as correctly or wrongly assigned. This Verify step was, in fact, able to improve the precision of both Find stages substantially. In particular, the experts’ Find stage results could be improved to precision levels of around 0.9 in the Verify stage for two quality issues which showed to score much lower for an expert-only Find approach. The worker-worker Find-Verify strategy yielded also better results than the Find-only worker approach, and for one quality issue type even reached slightly better precision than the expert-worker model. All in all, our empirical results show that (i) a Find-Verify combination of experts and lay users is likely to produce the best results, but that (ii) they are not superior to expert-only evaluation in all cases. We demonstrated also that (iii) worker-worker Find-Verify approaches are a viable alternative for detection of the studied LD quality issues if experts are not available and that they certainly outperform Find-only lay user workflows.

Note that in this work we did not implement a Fix step from the Find-Fix-Verify pattern, as correcting the greatest part of the found errors via crowdsourcing is not the most cost-efficient method of addressing these issues. Thus, we argue in Section 4, a majority of errors can and should be addressed already at the level of individual wrappers leveraging datasets to LD.

To understand the strengths and limitations of crowdsourcing in the studied scenario, we further executed the semi-automatic RDFUnit framework [27] and a simple automatic baseline and compared their outcomes to the results of our crowdsourcing experiments. We showed that while these (semi-)automatic approaches may be amenable to identifying ontological inconsistencies in RDF data (thus potentially decreasing the amount of cases necessary to be browsed in the Find stage), a substantial part of quality issues can only be addressed via human intervention.

Contributions

This paper is an extension to previous work of ours [2], in which we presented the results of combining LD experts and lay users from MTurk when detecting quality issues in DBpedia. The novel contributions of our current work are summarized as follows:

Definition of the problem of classifying RDF triples into quality issues.

Formalization of the proposed approach: The adaptation of the Find-Fix-Verify pattern is formalized for the problem of detecting quality issues in RDF triples.

Introduction of a new crowdsourcing workflow that solely relies on microtask crowdsourcing to detect LD quality issues.

Analysis of the properties of our approaches to generate microtasks for triple-based quality assessment.

Empirical evaluation of the proposed workflows.

Inclusion of a new empirical study by executing the state-of-the-art solution RDFUnit [27], a test-based approach to detect LD quality issues either manually or (semi-)automatically.

Structure of the paper

In Section 2, we discuss the type of LD quality issues that are studied in this work. Section 3 briefly introduces the crowdsourcing methods and related concepts that are used throughout the paper. Our approach is presented in Section 4, and is empirically evaluated in Section 5. In Section 6 we summarize the findings of our experimental study and provide answers to the formulated research questions. Related work is discussed in Section 7. Conclusions and future work are presented in Section 8.

2. Linked Data quality issues

Data quality is commonly conceived as “fitness for use” [24] for a certain application or use case. The Web of Data spans a network of data sources of varying quality. There are a large number of high-quality datasets, for instance, in the life-science domain, which are the result of decades of thorough curation and have been recently made available as Linked Data.2

²

For example, http://beta.bio2rdf.org/.

Other datasets, however, have been (semi-)automatically translated into RDF from their primary sources, or via crowdsourcing in a decentralized process involving a large number of contributors, for example DBpedia [6]. While the combination of machine-driven extraction and crowdsourcing was a reasonable approach to produce a baseline version of a greatly useful resource, it was also the cause of a wide range of quality problems, in particular in the mappings between Wikipedia attributes and their corresponding DBpedia properties.

Our analysis of LD quality issues focuses on DBpedia due to the diversity of the vast domain and scope of the dataset. In our previous work [59], we surveyed existing literature and identified a total of 18 data quality dimensions (criteria) applicable to LD quality assessment. We classified these dimensions into four groups: (i) intrinsic, those that are independent of the user’s context; (ii) contextual, those that highly depend on the context of the task at hand, (iii) representational, those that capture aspects related to the design of the data, and (iv) accessibility, those that involve aspects related to the access, authenticity and retrieval of data to obtain either the entire or some portion of the data (or from another source) for a particular use case. In our previous experiment [58], we identified the quality dimensions applicable to DBpedia and found that four dimensions are particularly prevalent: Accuracy, Relevancy, Representational-Consistency and Interlinking. To provide a comprehensive analysis of DBpedia quality, we further divided these four quality dimensions into 7 categories and 17 sub-categories [58].

For the purpose of this paper, from these sub-categories we chose the following three triple-level quality issues belonging to two dimensions: (i) Incorrect/incomplete object belonging to the Accuracy dimension; (ii) Incorrect datatype or language tag belonging to the Accuracy dimension; and (iii) Incorrect link belonging to the Interlinking dimension. While (i) and (ii) belong to the intrinsic group, (iii) is part of the accessibility group. These categories of quality problems were specifically chosen because, according to our previous study [58], these were highly frequent occurring problems in DBpedia (version 3.9). In particular, out of the 521 distinct resources that were evaluated, there were a total of 2,928 distinct incorrect triples identified. Of these 2,928 triples, (i) a total of 550 triples had an incorrect object, (ii) 363 triples had an incorrect datatype and (iii) 596 triples had incorrect external links. The selected quality issues are described with examples below.3 ³

The prefix dbpedia corresponds to http://dbpedia/resource and the remaining prefixes used in the examples throughout this paper are defined at http://dbpedia.org/sparql?nsdecl.

Incorrect object values Consider the following RDF triple: (dbpedia:Rodrigo_Salinas, dbo:birthPlace, dbpedia:Puebla_F.C.). This RDF triple states that “Rodrigo Salinas” was born in “Puebla F.C.”; however, this birth place is incorrect since “Puebla F.C.” corresponds to a soccer club. The right object value for this RDF triple should be the city Apizaco or the country Mexico.

Incorrect datatype or language tag This category refers to triples with an incorrect datatype or language tag for a typed literal in the object position. For example, consider the RDF triple: (dbpedia:Vicks, rdfs:label, “Vicks”@de). The language tag of the literal is considered incorrect since the correct spelling in German for this company/brand is “Wick”.4 ⁴

https://de.wikipedia.org/wiki/Vicks.

Incorrect link This category refers to RDF triples whose association between the subject and the object is incorrect. This occurs when objects do not show any related content pertaining to the subject of the triple. Erroneous interlinks can associate resources within a dataset or between several data sources. This category of quality issues also includes faulty links to external Web sites or other external data sources such as Wikipedia, Freebase, GeoSpecies, among others.

Given the diversity of situations in which the selected quality issues can be instantiated (broad range of object values and datatypes) and their semantic character, assessing them automatically is challenging. Current automatic approaches apply different mechanisms to detect various types of errors in LD datasets, for example: inconsistencies with ontological definitions [27,53], assigning missing classes to RDF resources [38], or abnormal numerical values [13,32]. Also semi-automatic solutions [27] have been proposed that rely on domain experts to specify customized rules that are tested against the dataset. Further details about these approaches and other relevant works are presented in Section 7. Although these approaches are able to reliably identify certain issues in LD, there are still a considerable amount of errors that are missed, in particular those related to semantic correctness of facts. We therefore theorize that human-based appraisal can constitute an effective solution to detect the selected quality flaws in many instances. In particular, these three quality issues require different cognitive skills in terms of evaluation, i.e., from examining the values of different attributes to identifying whether the links between two resources is appropriate. In this way, we can study whether it is feasible to evaluate these types of quality issues via crowdsourcing mechanisms where lay users can detect erroneous triples without having knowledge about the underlying RDF structure. This allows us for identifying which types of skills are most cost-effective to be employed with regards to utilizing crowdsourcing.

3. Crowdsourcing preliminaries

The term crowdsourcing was first proposed by Howe [23] and consists of a problem-solving mechanism in which a task is performed by an “an undefined (and generally large) network of people in the form of an open call”. Nowadays, many different forms of crowdsourcing have emerged, e.g., microtask, contest, macrotask, crowdfunding, among others. Each form of crowdsourcing is designed to target particular types of problems and reaching out to different crowds. Crowdsourcing tasks can be executed in a single iteration, where tasks are submitted to the crowd and the outcome is directly considered the solution of the given problem. However, in order to produce reliable results from crowds, the Find-Fix-Verify pattern has been proposed [4], in which tasks are carried out in successive verification stages. In the following we briefly describe the two crowdsourcing methods studied in this work – contest-based and microtask crowdsourcing – as well as the Find-Fix-Verify pattern.

3.1. Types of crowdsourcing employed in this work

3.1.1. Contest-based crowdsourcing

A contest reaches out to a crowd to solve a given problem and rewards the best ideas. In a crowdsourcing setting, contests exploit competition and intellectual challenge as main drivers for participation. The idea, originating from open innovation, has been employed in many domains, from creative industries to sciences, for tasks of varying complexity (from designing logos to building sophisticated algorithms) [31,50]. In particular, contests as means to successfully involve experts in advancing science have a long-standing tradition in research, e.g., the Darpa challenges5

⁵

http://www.darpa.mil/About/History/Archives.aspx.

and Netflix.6 ⁶

http://www.netflixprize.com/.

Usually, contests as crowdsourcing mechanisms are open for a medium to long period of time in order to attract high quality contributions. Contests may apply different reward models, but a common modality is to define one main prize for the contest winner.

We applied this contest-based model in the ‘DBpedia Evaluation Campaign’7 ⁷

http://nl.dbpedia.org:8080/TripleCheckMate/.

to mobilize an expert crowd consisting of researchers and Linked Data enthusiasts to discover and classify quality issues in DBpedia. The reward mechanism applied in this contest was “one-participant gets it all”. The winner was the participant who evaluated the highest number of DBpedia resources. Further details about this contest are explained in Section 4.1.

3.1.2. Microtask crowdsourcing

This form of crowdsourcing is applied to problems which can be broken down into smaller units of work (called ‘microtasks’) [23]. Microtask crowdsourcing works best for tasks that rely primarily on basic human abilities, such as audio and visual cognition or natural language understanding, and less on acquired skills (such as subject-matter knowledge).

To be more efficient than traditional outsourcing (or even in-house resources), microtasks need to be highly parallelized. This means that the actual work is executed by a high number of contributors in a decentralized fashion.8

⁸

More complex workflows, though theoretically feasible, require additional functionality to handle task dependencies.

This not only leads to significant improvements in terms of response time, but also offers a means to cross-check the accuracy of answers (as each task is typically assigned to more than one person). Collecting answers from different contributors (or ‘workers’) allows for automatically identifying accurate responses using techniques such as majority voting (or other aggregation methods). The reward model in microtasks implies small monetary payments for each worker who has solved a task successfully.

In our work, we used microtask crowdsourcing as a fast and cost-efficient way to examine the three types of DBpedia errors described in Section 2. We provided specific instructions to workers about how to perform each microtask according to the type of studied quality issues. We reached out to the crowd of the microtask marketplace Amazon Mechanical Turk (MTurk). In the following we present a summary of the relevant MTurk terminology:9 ⁹

http://docs.aws.amazon.com/AWSMechTurk/latest/RequesterUI/mechanical-turk-concepts.html.

• Requester: User that submits tasks to the platform (MTurk).

• Human Intelligence Task (HIT): Work unit in MTurk and refers to a single microtask. A HIT is a self-contained task submitted by a requester.

• Worker: Human contributor who solves HITs.

• Assignments: Number of different workers to be assigned to solve each HIT. This allows for collecting multiple answers for each question. A worker can solve a HIT only once.

• Question: A HIT can be composed of several questions. In the remainder of this paper, we refer to task granularity as the number of questions contained within a HIT.

• Payment: Monetary reward granted to a worker for completing a HIT successfully. Payments are defined by the requester, taking into consideration the complexity of the HIT, mainly defined as the time that workers have to spend to solve the task.

• Qualification type or worker qualification: Requesters may specify parameters to prohibit certain workers to solve tasks. MTurk provides a fixed set of qualification types, including “Approval Rate” defined as the percentage of tasks solved by a worker successfully. Requesters can also create customized qualification types.

3.2. Crowdsourcing pattern Find-Fix-Verify

The Find-Fix-Verify pattern [4] consists in dividing a complex human task into a series of simpler tasks that are carried out in a three-stage process. Each stage in the Find-Fix-Verify pattern corresponds to a verification step over the outcome produced in the immediate previous stage. The first stage of this crowdsourcing pattern, Find, asks the crowd to identify portions of data that require attention depending on the task to be solved. In the second stage, Fix, the crowd corrects the elements belonging to the outcome of the previous stage. Lastly, the Verify stage corresponds to a final quality control iteration.

The Find-Fix-Verify pattern has proven to produce reliable results since each stage exploits independent agreement to filter out potential low-quality answers from the crowd [4]. In addition, this approach is efficient in terms of the number of questions asked to the paid microtask crowd, therefore the costs remain competitive with other crowdsourcing alternatives.

In scenarios in which crowdsourcing is applied to validate results of machine computation tasks, question filtering relies on specific thresholds or historical information about the likelihood that human input will significantly improve the results generated algorithmically. Find-Fix-Verify addresses tasks that initially can be very complex (or very large), like in our case the discovery and classification of various types of errors in DBpedia. The Find-Fix-Very pattern is highly flexible, since each stage can employ different crowds, as they require different skills and expertise [4].

4. Our approach: Crowdsourcing Linked Data quality assessment

Our work on human-driven Linked Data quality assessment focuses on applying crowdsourcing techniques to annotate RDF triples with their corresponding quality issue. Given a set of quality issues $\mathcal{Q}$ and a set $\mathcal{T}$ of RDF triples to be assessed, we formally define the annotation of triples with their corresponding quality issues as follows.

Definition 1 (Mapping RDF Triples to Quality Issues).

Given a set $\mathcal{T}$ of RDF triples and a set $\mathcal{Q}$ of quality issues, a mapping of triples to quality issues is defined as a partial function $\mathit{\varphi }:\mathcal{T}\mapsto 2^{\mathcal{Q}}$ . $\mathit{\varphi }\mathrm{(}\mathit{t}\mathrm{)}$ denotes the quality issues associated with $\mathit{t}\in \mathcal{T}$ . In particular, when $\mathit{\varphi }\mathrm{(}\mathit{t}\mathrm{)}\ne \varnothing$ the triple t is considered ‘incorrect’ (with respect to $\mathcal{Q}$ ), otherwise it can be affirmed that t is ‘correct’ (with respect to $\mathcal{Q}$ ).

Table 1

Comparison between the proposed crowdsourcing mechanisms to perform LD quality assessment

Characteristic	Contest-based Crowdsourcing	Microtask Crowdsourcing
Participants	Controlled group: LD experts	Anonymous large group
Time duration	Long (weeks)	Short (days)
Reward	A final prize	Micropayments
Reward mechanism	“One participant gets it all”: The contest winner gets the final prize	“Each participant receives a payment”: Each participant receives a micropayment per solved task
Tool/platform	TripleCheckMate	Amazon Mechanical Turk (MTurk)

In order to provide an efficient crowdsourcing solution to the problem presented in Definition 1, we applied a variation of the crowdsourcing pattern Find-Fix-Verify [4]. As discussed in Section 3, this crowdsourcing pattern allows for increasing the overall quality of the results while maintaining competitive monetary costs when applying other crowdsourcing approaches. Our adaptation of the Find-Fix-Verify pattern consists in executing only the Find and Verify stages. The Fix stage originally proposed in the Find-Fix-Verify pattern is out of the scope of this paper, since the main goal of this work is identifying quality issues. Furthermore, our adaptation of the Find-Fix-Verify pattern is tailored to assess the quality of LD datasets that are (semi-)automatically created from other sources. Such is the case of DBpedia [30], a dataset created by extracting knowledge from Wikipedia via declarative wrappers or mappings. The DBpedia wrappers are the result of a crowdsourced community effort of contributors to the DBpedia project. When datasets are extracted via wrappers or mappings, it is highly probable that the quality issues detected for a certain triple might also occur in the set of triples that were generated with the same wrapper. Therefore, a more efficient solution to implement the Fix stage could consist of adjusting the wrappers that caused the issue in the first place, instead of crowdsourcing the correction of each triple which increases the overall monetary cost.

We devise a two-fold approach to crowdsource triple-based quality assessment of (semi-)automatically extracted LD datasets. Our approach relies on the Find and Verify stages of the Find-Fix-Verify crowdsourcing pattern. In the Find stage, the crowd is requested to detect LD quality issues in a set of RDF triples, and annotate them with the corresponding issue(s) if applicable. We define the Find stage as follows:

Definition 2 (Find Stage).

Given a set $\mathcal{T}$ of RDF triples and a set $\mathcal{Q}$ of quality issues, the Find stage consists in crowdsourcing mappings $\dot{\mathit{\varphi }}:\mathcal{T}\mapsto 2^{\mathcal{Q}}$ . The input of the Find stage is represented as ${\mathcal{F}}_{\mathit{i}}=\mathrm{(}\mathcal{T}\mathrm{,}\mathcal{Q}\mathrm{)}$ , and the output ${\mathcal{F}}_{\mathit{o}}=\mathrm{(}\mathcal{T}\mathrm{,}\dot{\mathit{\varphi }}\mathrm{)}$ .

The outcome of this stage – triples judged as ‘incorrect’ – is then assessed in the Verify stage, in which the crowd confirms/denies the presence of quality issues in each RDF triple processed in the previous stage. We define the Verify stage as follows:

Definition 3 (Verify Stage).

Given a set $\mathcal{T}$ of RDF triples and mappings $\dot{\mathit{\varphi }}$ , the Verify stage consists in crowdsourcing mappings as follows $\ddot{\mathit{\varphi }}:\dot{\mathit{\varphi }}\mapsto 2^{\mathcal{Q}}$ , where $\ddot{\mathit{\varphi }}\mathrm{(}\dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}\mathrm{)}\subseteq 2^{\dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}}$ , for $\mathit{t}\in \mathcal{T}$ . The input of the Verify stage is represented as, ${\mathcal{V}}_{\mathit{i}}=\mathrm{(}\mathcal{T}\mathrm{,}\dot{\mathit{\varphi }}\mathrm{)}$ which corresponds to the output of the Find stage ( ${\mathcal{V}}_{\mathit{i}}={\mathcal{F}}_{\mathit{o}}$ ), and the output of the Verify stage is denoted ${\mathcal{V}}_{\mathit{o}}=\mathrm{(}\mathcal{T}\mathrm{,}\ddot{\mathit{\varphi }}\mathrm{)}$ .

In the implementation of the Find and Verify stages in our approach, we explore two different crowdsourcing workflows combining different types of crowds. The first workflow combines experts and lay users. This workflow leverages the expertise of LD experts in the Find stage, carried out as a contest, to find and classify erroneous triples according to a pre-defined quality taxonomy; workers from a microtask platform then assess the outcome of the contest in Verify stage. The second workflow entirely relies on microtask crowdsourcing to perform both the Find and the Verify stages. As discussed in Section 3, these crowdsourcing approaches exhibit different characteristics in terms of the types of tasks they can be applied to, the way the results are consolidated and exploited, and the audiences they target. Therefore, in this work we study the impact on involving different types of crowds to detect quality issues in RDF triples: LD experts in the contest and workers in the microtasks. Table 1 presents a summary of the two approaches as they have been used in this work for LD quality assessment purposes.

Figure 1 depicts the steps carried out in each of the stages of the two crowdsourcing workflows studied in this work. In the following sections, we provide more details about the implementation of the variants of the Find and Verify stages.

Fig. 1.

Studied workflows to crowdsource LD quality assessment. The first workflow combines LD experts reached via a contest with laymen from microtask crowdsourcing. The second workflow solely relies on microtask crowdsourcing.

4.1. Find stage: Contest-based crowdsourcing

In this implementation of the Find stage, we reached out to an expert crowd of researchers and LD enthusiasts via a contest. The tasks in the contest consisted of identifying and classifying specific types of LD quality problems in DBpedia triples. To collect the contributions from this crowd, in previous work [58], we developed a Web-based tool called TripleCheckMate10

¹⁰

http://github.com/AKSW/TripleCheckMate.

 [28] (cf. Fig. 2). TripleCheckMate allows human contributors to select RDF resources, identify issues related to RDF triples of the resources and classify these issues according to a pre-defined taxonomy of data quality problems. We configured TripleCheckMate to use the DBpedia dataset (version 3.9) and the taxonomy of quality issues presented in Zaveri et al. [58]. However, TripleCheckMate can be easily configured to work with any dataset. In the contest, a prize was announced for the user submitting the highest number of quality issues detected in DBpedia.

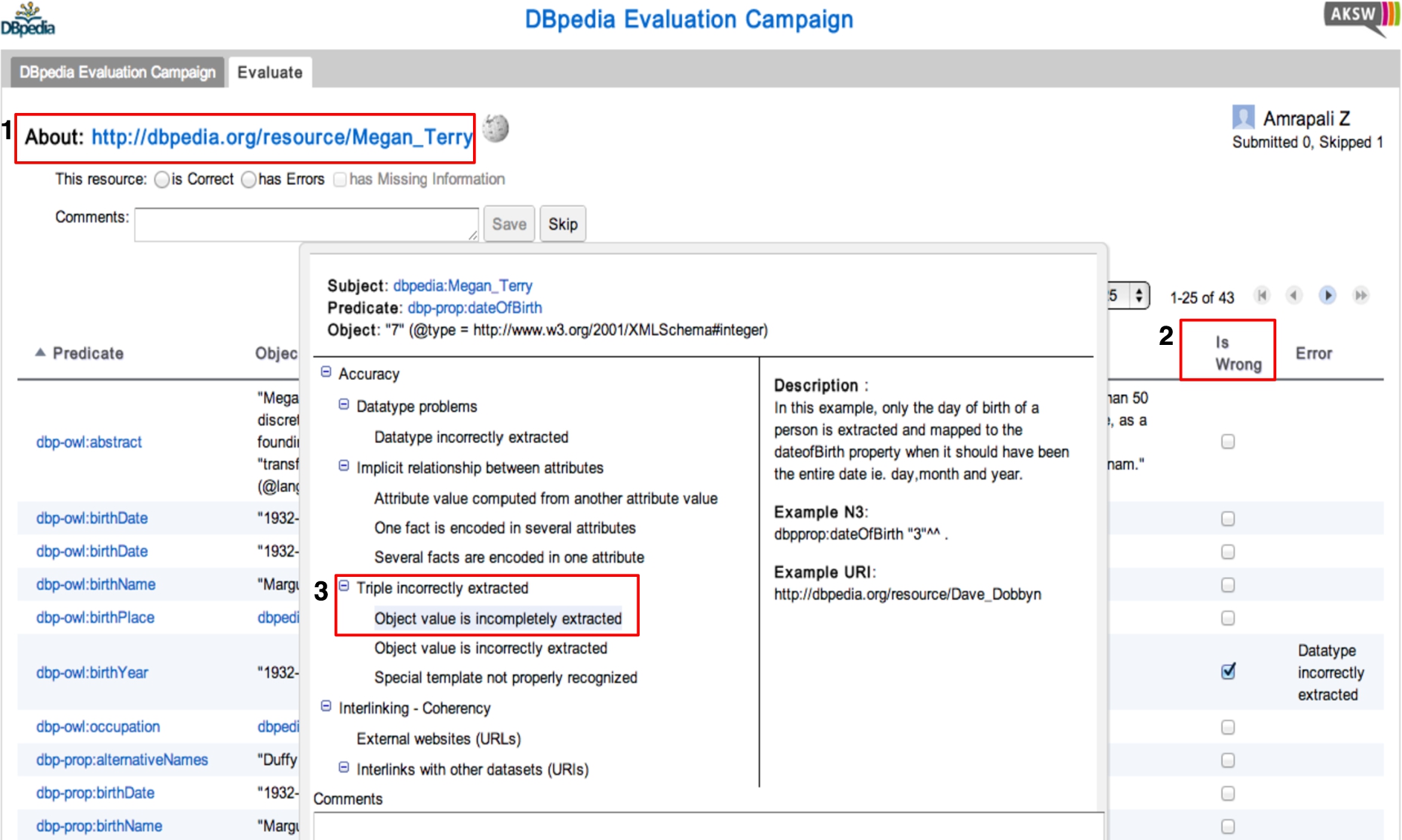

Fig. 2.

Interface of the TripleCheckMate crowdsourcing data quality assessment tool. (1) Displays the RDF resource that is currently being assessed; (2) Users can specify that a triple is erroneous by checking the box ‘Is Wrong’; (3) Users select the quality issues present in the triple from a pre-defined taxonomy, which contains a hierarchy of quality issues including detailed descriptions and examples for each issue.

The Find stage starts when a user signs into the TripleCheckMate tool to participate in the contest, as shown in Fig. 2. As a basic means to avoid spam, each user first has to login with a Google account through OAuth2. Then the user is presented with three options to choose a resource from the dataset: (i) ‘Any’, for random selection; (ii) ‘Per Class’, where a resource belonging to a particular class may be chosen; and (iii) ‘Manual’, where the user may provide a URI of a resource. Once a resource is selected following one of these alternatives, the user is presented with a table in which each row corresponds to an RDF triple of that resource. The next step is the actual quality assessment at triple level. In our implementation, the user is provided with the link to the corresponding Wikipedia page of the given resource in order to offer further information for the evaluation. If the user detects a triple containing a problem, she checks the box ‘Is Wrong’. Moreover, the user assigns specific quality problems (according to the classification devised in [58]) to erroneous triples, as depicted in Fig. 2. The user can assess as many triples from a resource as desired, or select another resource to evaluate.

The TripleCheckMate tool only records the triples that are identified as ‘incorrect’. This is consistent with the definition of the Find stage from the original Find-Fix-Verify pattern, where the crowd exclusively detects the problematic elements while the remaining data is not taken into consideration. In addition, this tool measures inter-rater agreement for RDF resources that are checked multiple times. Inter-rater agreement allows for (i) analyzing the performance of the users (as compared with each other), (ii) detecting unwanted behavior (as users are not ‘rewarded’ unless their assessments are ‘consensual’) and (iii) ensuring the quality of the assessment (i.e. when there is an agreement and several workers detect the same quality issue). The outcome of this contest corresponds to a set of triples $\mathcal{T}$ judged as ‘incorrect’ by LD experts and classified according to the detected quality issues in  $\mathcal{Q}$ .

4.2. Find stage: Paid microtask crowdsourcing

This Find stage applies microtasks that are solved by lay users from a crowdsourcing platform. In this variant of the Find stage we aimed at implementing a similar workflow for the crowd workers as the one provided to the LD experts. However, given that crowd workers are not necessarily knowledgeable about RDF or complex taxonomies of LD issues [44], we restricted the scope of LD quality assessment to the issues presented in Section 2. In addition, following the guidelines presented by Sarasua et al. [44], each microtask was augmented with human-readable information that could be dereferenced from RDF triples. Formally, in our approach, a microtask is defined as follows.

Definition 4 (Microtask for LD Quality Assessment).

A microtask m is a set of 3-tuples $\mathrm{(}\mathit{t}\mathrm{,}{\mathit{h}}_{\mathit{t}}\mathrm{,}\mathcal{Q}\mathrm{)}$ , where t is an RDF triple, ${\mathit{h}}_{\mathit{t}}$ corresponds to human-readable information that describes t, and $\mathcal{Q}$ is the set of quality issues to be assessed on triple t.

Following the MTurk terminology (cf. Section 3), each 3-tuple ( $\mathit{t}\mathrm{,}{\mathit{h}}_{\mathit{t}}\mathrm{,}\mathcal{Q}$ ) corresponds to a question while m is a HIT (Human Intelligence Task) with granularity (number of questions) equals to $|\mathit{m}|$ .

Algorithm 1

Microtask Generator for Find Stage

The execution of this stage, as depicted in Fig. 1, starts by generating the microtasks from ${\mathcal{F}}_{\mathit{i}}$ , i.e., the sets of RDF triples $\mathcal{T}$ and quality issues $\mathcal{Q}$ to crowdsource. In addition, a parameter α can be specified as a threshold on the number of questions to include in a single microtask. Algorithm 1 presents the procedure to create the microtasks. The algorithm firstly performs a pruning step (line 2) to remove triples that do not require human assessment. The pruning function in our approach is generic and can be implemented differently according to specific use cases. For instance, in our experiments, the function $\mathit{prune}$ simply discards RDF triples whose URIs could not be dereferenced. After the pruning step, the remaining triples are stored in ${\mathcal{T}}^{\prime }$ . The algorithm then proceeds to build microtasks such that each microtask only contains triples associated with a specific resource, similar to the interfaces of the TripleCheckMate tool used in the contest. The set $\mathcal{S}$ contains all the resources that appear as subjects in the set of triples ${\mathcal{T}}^{\prime }$ (line 3). For each subject, the algorithm builds the set of triples ${\mathcal{T}}^{″}$ associated with the subject (line 5), and the creation of microtasks begins (line 6). From the pool ${\mathcal{T}}^{″}$ , a triple t is selected (line 8) and the corresponding human-readable information is extracted (line 9). In this stage, similar to the TripleCheckMate, each microtask requires the workers to browse all the possible quality issues, therefore, the set of issues to assess on triple t is equal to $\mathcal{Q}$ in each microtask created (line 10). In case that the number of questions in the current microtask exceeds the threshold α, a new microtask is then created. The definition of the parameter α allows for avoiding the construction of very long tasks, i.e., when the number of triples with the same subject is large. Appropriate values of α enable the creation of tasks that can still be solved in a reasonable time, consistent with the concept of microtask (a short task). The algorithm continues creating microtasks for all the triples of a resource (lines 7–16), for all the resources (lines 4–18). The output of Algorithm 1 is a set $\mathcal{M}$ of microtasks to assess the quality of triples in $\mathcal{T}$ according to the issues in $\mathcal{Q}$ .

The generated microtasks are then submitted to the crowdsourcing platform. When a worker accepts a microtask or HIT, she is presented with a table that contains triples associated to an RDF resource, as shown in Fig. 3. For each triple, the worker determines whether the triple is ‘incorrect’ with respect to the fixed set of quality issues $\mathcal{Q}$ . In our implementation, $\mathcal{Q}$ was composed of the following LD quality issues (cf. Section 2): incorrect object, incorrect datatype or language tag, or incorrect link, abbreviated as ‘Value’, ‘Datatype’, and ‘Link’, respectively. The crowd has the possibility to select one or several quality issues per triple. Once the worker has assessed all the triples within a microtask, she proceeds to submit the HIT. Consistently with the Find stage implemented with the contest, the outcome of the microtasks corresponds to a set of triples $\mathcal{T}$ judged as ‘incorrect’ by workers and classified according to the detected quality issues in $\mathcal{Q}$ .

Fig. 3.

Interface of a microtask generated in the Find stage. (1) Displays the RDF resource that is currently assessed and also a link to the Wikipedia page of the resource; (2) Users select the corresponding quality issues present in the triple; (3) Displays contextual information: In our implementation, we extracted values from the infobox of the Wikipedia article associated with the resource – not all the properties of DBpedia resources are available in the infobox, in this case the microtask interface displays ‘Not specified’ in the Wikipedia column.

An important aspect when generating microtasks from RDF data (or machine-readable data in general) is developing useful human-understandable interfaces (Algorithm 1, line 9) for the target non-expert crowds. In microtasks, effective user interfaces reduce ambiguity as well as the probability to retrieve erroneous answers from the crowd due to a misinterpretation of the task. Therefore, before starting to resolve one of our tasks, the crowd workers were instructed with details and examples about each quality issue. After reading the instructions, workers proceed to resolve the given task. Figure 3 depicts the interface of a microtask generated for the Find stage in our approach. To display each RDF triple, we retrieved the values of the foaf:name or rdfs:label properties for subjects, predicates, and datatypes. The name of languages in language-tagged strings were parsed using the conversion from the best current practices BCP 47 [39], as suggested by the RDF specification.11 ¹¹

http://www.w3.org/TR/rdf11-concepts/.

Language tags and datatypes of objects were highlighted, such that workers can easily identify them.12 ¹²

Datatype and language tag errors do not occur simultaneously in an RDF triple and both are associated with literals in the object position. To simplify the instructions, datatypes and language tags are introduced as a single issue to workers, therefore our interfaces display “datatype” even for language tags.

In addition, contextual information can be displayed in the microtasks in order to assists the workers in successfully solving the task.

Depending on the human-readable data available in the dataset, line 9 from Algorithm 1 could be implemented differently in order to provide contextual information. For constructing our microtasks, we implemented a simple wrapper which extracts data encoded in the infobox of the Wikipedia article version from which DBpedia triples were generated (depicted in the first column of Fig. 3). To do so, we crawled the Wikipedia page for the version specified via the property prov:wasDerivedFrom. In the instructions of the microtasks we explained workers that the Wikipedia column should be considered as a guideline; we clarified that these values are not strictly correct13 ¹³

The implemented wrapper could introduce certain errors in the values while parsing the Wikipedia articles’ infoboxes.

or sometimes are not even available.14 ¹⁴

Certain predicates in DBpedia triples cannot be found in Wikipedia infoboxes, in particular predicates of RDF/S or OWL, e.g., rdfs:label, rdf:type and owl:sameAs. Therefore, the Wikipedia column is usually less complete than the DBpedia one.

Therefore, to make a better judgement (in case that data in the Wikipedia column is not understandable or not available) workers could visit the corresponding Wikipedia page version by clicking on the provided link in the microtask.

Further microtask design criteria related to quality control is presented in the experimental settings (cf. Section 5.2.2). We used different mechanisms to discourage low-effort behavior which leads to random answers and to identify accurate answers.

The outcome of this stage corresponds to a set of triples $\mathcal{T}$ judged as ‘incorrect’ by lay users and annotated it with the detected quality issues in $\mathcal{Q}$ .

4.3. Verify stage: Paid microtask crowdsourcing

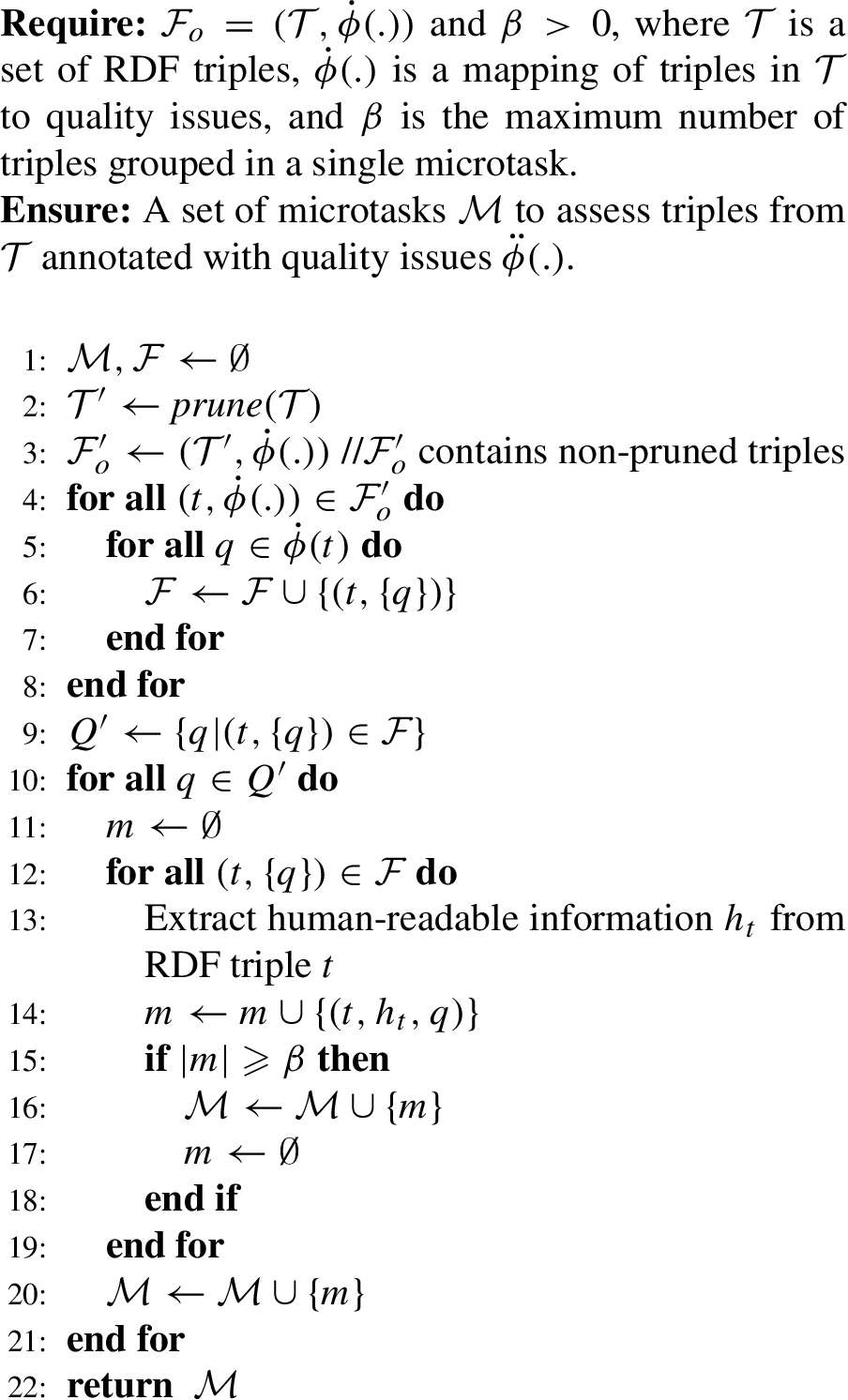

Algorithm 2

Microtask Generator for Verify Stage

In this stage, we applied microtask crowdsourcing in order to verify quality issues in RDF triples identified as problematic during the Find stage (see Fig. 1). To ensure that in this stage a proper validation is performed on each triple, the microtasks are simplified with respect to the ones from the Find stage such that: (i) each microtask focuses on a specific quality issue, and (ii) the number of triples per microtask is reduced.

The generation of microtasks in this stage is presented in Algorithm 2. This algorithm groups triples in $\mathcal{T}$ obtained from the previous stage per quality issue, which enables workers to focus on one quality issue at a time. The input of this stage is the set of triples to assess $\mathcal{T}$ and their mappings to quality issues $\dot{\mathit{\varphi }}\mathrm{(}.\mathrm{)}$ . The parameter β specifies the number of questions to include in a single microtask. The algorithm firstly performs a pruning step (line 2) to remove certain triples. For instance, a triple t that was considered ‘correct’ in the Find stage ( $\dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}=\varnothing$ ) is discarded, consistently with the definition of the Find-Fix-Verify pattern [4]. Further implementations of the $\mathit{prune}$ function could consider agreement or confidence values obtained in the Find stage in order to crowdsource a triple in the Verify stage.15 ¹⁵

For instance, a low agreement value might suggest that the triple has no quality issues and hence it should not be crowdsourced. On the other hand, a high agreement value could be an indicator that the triple is indeed incorrect and no further verification is needed. Setting appropriate thresholds for agreement in $\mathit{prune}$ might also depend on the expertise of the crowd. However, exploring optimal configurations of the $\mathit{prune}$ function is out of the scope of this work.

In our second workflow, the function $\mathit{prune}$ discards answers whose inter-rater agreement values were not higher than a certain threshold. The algorithm then proceeds to build microtasks such that each microtask only contains triples associated with a specific quality issue. For each answer from the previous stage, the algorithm decomposes the set of quality issues $\dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}$ of a triple t into singletons (lines 4–8). The set $\mathcal{Q}$ contains all the quality issues present in the set of triples $\mathcal{T}$ (line 9). For each quality issue q (line 10), the algorithm processes all triples associated with that quality issue (line 12). The algorithm extracts human-readable information about the triples (line 13) and appends it to the microtask (line 14). In case the number of questions in the current microtask exceeds the threshold β, a new microtask is then created. The outcome of the algorithm is a set $\mathcal{M}$ of microtasks to assess the quality of the triples in $\mathcal{T}$ according to the issues $\dot{\mathit{\varphi }}\mathrm{(}.\mathrm{)}$ identified in the Find stage.

Based on the classification of LD quality issues explained in Section 2, Algorithm 2 creates three different interfaces for the microtasks. Each microtask contains the description of the procedure to be carried out to complete the task successfully. We provided workers examples of incorrect and correct triples along with four options (as shown in Fig. 1): (i) ‘Correct’; (ii) ‘Incorrect’; (iii) ‘I cannot tell/I don’t know’; (iv) ‘Data doesn’t make sense’. The third option was meant to allow users to specify when they could not provide a reliable answer. The fourth option referred to those cases in which the presented data was truly unintelligible. Furthermore, workers were not aware that the presented triples were previously identified as ‘incorrect’ in the Find stage and the questions were designed such that workers could not foresee the right answer. We describe the particularities of the microtask interfaces generated for the Verify stage in the following.

Incorrect object values In this type of task, we asked workers to evaluate whether the value of a given RDF triple is semantically correct or not. Human-readable information is displayed by dereferencing URIs of the subject and predicate of triples. In particular, we retrieved values of foaf:name or rdfs:label properties for each subject and predicate. Additionally, we extracted values from Wikipedia article infobox associated with the subject of the triple using the wrapper implemented in the Find stage (cf. Section 4.2). Figure 4 depicts the interface of the resulting tasks.

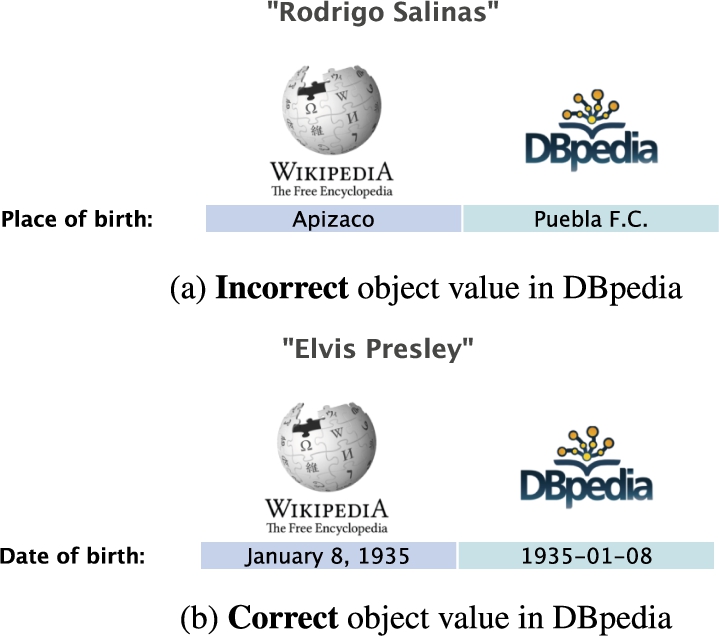

Fig. 4.

Incorrect object value: The crowd must compare the DBpedia and Wikipedia values and decide whether the DBpedia entry is correct or not for a given subject and predicate.

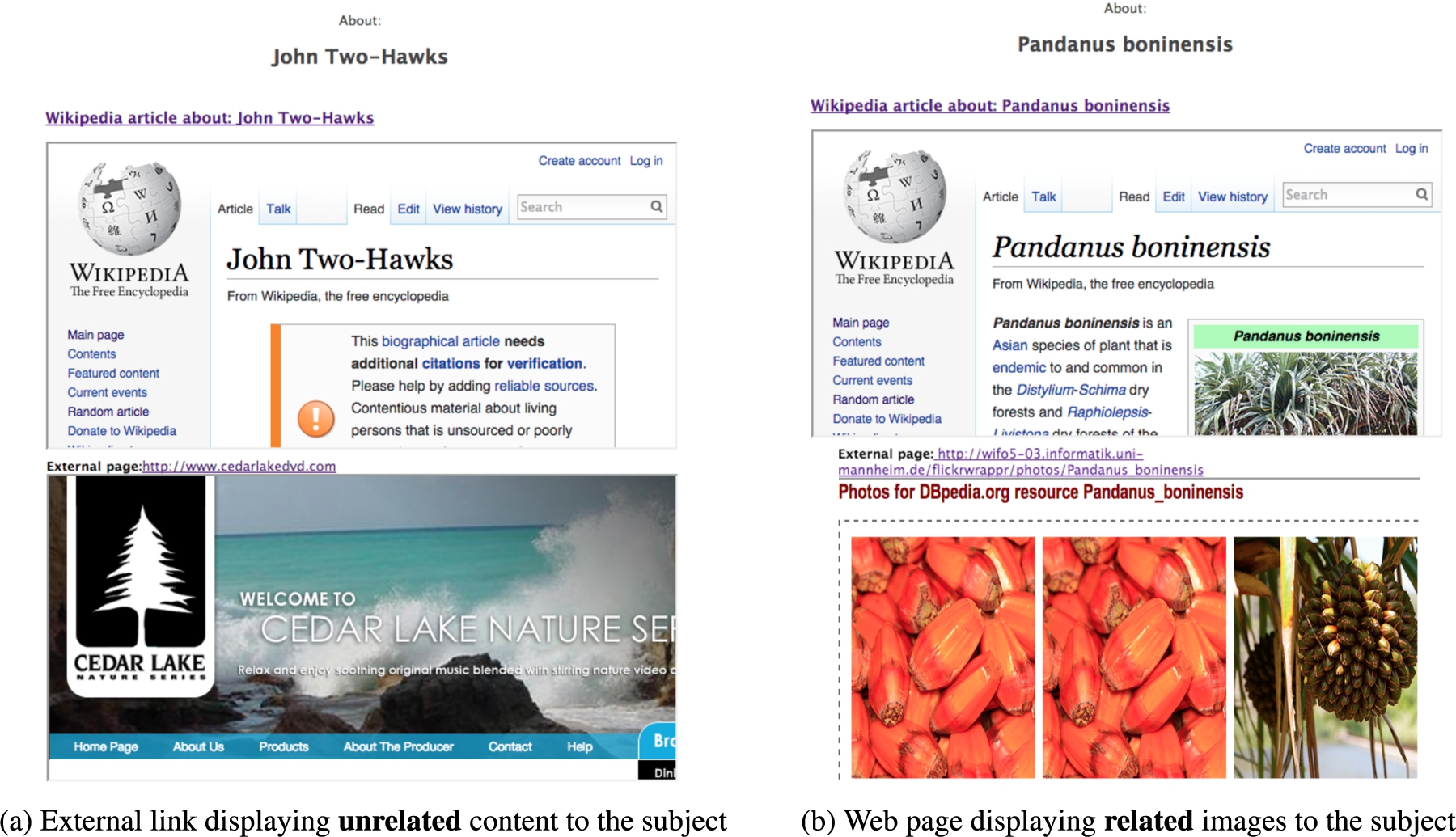

Fig. 5.

Incorrect link: The crowd must decide whether the content of a link (indicated as “External page” in the user interface) is related to the subject. When assessing links between RDF resources, the preview of the “External page” displays the resource’s page (most of the datasets linked from DBpedia – Wikidata, YAGO – support Linked Data browsers).

In the task presented in Fig. 4(a), workers must decide whether the place of birth of Rodrigo Salinas is correct. According to the DBpedia triple, the value of this property is Puebla F.C. However, the information extracted from Wikipedia suggests that the right value is Apizaco, which is actually correct. In this case, the right answer to this task is: the DBpedia data is incorrect.16 ¹⁶

In case that DBpedia correctly extracted Apizaco but Rodrigo Salinas was born in a different place, then the right answer to the task is: the DBpedia triple is incorrect.

An example of a DBpedia triple whose value is correct is depicted in Fig. 4(b). In this case, the worker must analyze the date of birth of Elvis Presley. According to the information extracted from Wikipedia, the date of birth of Elvis Presley is January 8, 1935, while the DBpedia value is 1935-01-08. Despite the dates are represented in different formats, semantically the dates are indeed the same, thus the DBpedia value is correct.

Incorrect datatypes or language tags This type of microtask consists of detecting those DBpedia triples whose object datatype or language tags were not correctly assigned. The generation of the interfaces for these tasks was very straightforward, by dereferencing the URIs of the subject and predicate of each triple and displaying the values of foaf:name or rdfs:label.

In the description of the task, we introduced the concept of datatype of a value and provided two simple examples to the crowd. The first example illustrates when the language tag (rdf:langString) is incorrect while analyzing the entity Torishima Izu Islands: Given the property “name”, is the value ““鳥島”” of type “English”? . A worker does not need to understand that the name of this island is written in Japanese, since it is evident that the language type “English” in this example is incorrect. In a similar fashion, we provided an example where the language tag is assigned correctly by looking at the entity dbpedia:Dragon: Given the property “name”, is the value “Dragon” of type “English”? . According to the information from DBpedia, the value of name is written in English and the type is correctly identified as English.

Incorrect links In this type of microtask, we asked the workers to verify whether the object of an RDF triple is associated with the subject. Incorrect subject-object associations may be due to several reasons: erroneous links referenced from Wikipedia articles, wrong associations between RDF resources (e.g., via the dbp:wordnet_type predicate) within DBpedia, or incorrect extraction of links via the DBpedia wrappers. In the latter case, wrongly extracted links that result in broken links can be automatically detected and are not crowdsourced. For the interface of the HITs, we provided workers a preview of the Wikipedia article and the triple object by implementing HTML iframe tags. In addition, we retrieved the foaf:name of the subject and the link to the corresponding Wikipedia article using the predicate foaf:isPrimaryTopicOf.

Examples of this type of task are depicted in Fig. 5. In the first example (see Fig. 5(a)), workers must decide whether the content in the given external Web page is related to John Two-Hawks. It is easy to observe that in this case the content is not associated with the person “John Two-Hawks”. Therefore, the right answer is that the link is incorrect. On the other hand, we also exemplified the case when an interlink presents relevant content to the given subject. Consider the example in Fig. 5(b), where the subject is the plant Pandanus boninensis and the external link is a Web page generated by the DBpedia Flickr wrapper. The Web page indeed shows pictures of the subject plant. Therefore, the right answer is that the link is correct.

4.4. Properties of our approach

Given that the contest settings are handled through the TripleCheckMate tool, in this section we expose the properties of the proposed microtask crowdsourcing approaches. First, we demonstrate that the algorithms for microtask generation in the Find and Verify stages are efficient in terms of time.

Proposition 1.

The time complexity of the microtask generators is $\mathcal{O}\mathrm{(}|\mathcal{T}|\mathrm{)}$ for the Find stage and $\mathcal{O}\mathrm{(}|\mathcal{T}||\mathcal{Q}|\mathrm{)}$ for the Verify stage.

Proof.

The algorithm of the Find stage iterates over all the triples associated with each distinct triple subject in $\mathcal{T}$ , therefore the complexity of this stage is $\mathcal{O}\mathrm{(}|\mathcal{T}|\mathrm{)}$ . In the Verify stage, the algorithm firstly iterates over the answers obtained from the previous stage, which corresponds to $\mathcal{T}$ . Next, the algorithm iterates over the quality issues detected in the Find stage; in the worst case, each quality issue is found in at least one triple, then, the set ${\mathit{Q}}^{\prime }$ is equal to $\mathcal{Q}$ . For each quality issue, the algorithm processes the triples annotated with that quality issue, which again in the worst case is $\mathcal{T}$ (all the triples present all the quality issues). Therefore, the complexity of the Verify stage is calculated as $\mathcal{O}\mathrm{(}|\mathcal{T}|+|\mathcal{T}||\mathcal{Q}|\mathrm{)}$ , then $\mathcal{O}\mathrm{(}|\mathcal{T}||\mathcal{Q}|\mathrm{)}$ .  □

One important aspect when applying paid microtask crowdsourcing is the number of generated tasks, since this directly impacts the scalability of the approach in terms of the time required to solve all the tasks and the overall monetary cost. The following proposition states the complexity of Algorithms 1 and 2 in terms of the number of crowdsourced microtasks.

Proposition 2.

The number of microtasks generated in each stage is linear with respect to the number of triples assessed.

Table 2

Comparison between microtask generators for the Find and Verify stages in our approach. $\mathcal{T}$ is the set of RDF triples subject to crowdsourcing in each stage; $\mathcal{Q}$ corresponds to the set of quality issues; $\mathcal{S}$ is the set of distinct subjects of the triples in $\mathcal{T}$ ; α, β are the parameters that define the number of questions per microtask in the Find and Verify stages, respectively

Characteristic	Find Stage	Verify Stage
Goal per task	Detecting and classifying LD quality issues in RDF triples	Confirming LD quality issues in RDF triples
Task generation complexity	$\mathcal{O}\mathrm{(}|\mathcal{T}|\mathrm{)}$	$\mathcal{O}\mathrm{(}|\mathcal{T}||\mathcal{Q}|\mathrm{)}$
Total tasks generated (only for microtask crowdsourcing)	${\sum }_{{\mathit{s}}_{\mathit{i}}\in \mathcal{S}}\lceil \frac{|\{\mathrm{(}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}|\mathrm{(}{\mathit{s}}_{\mathit{i}}\mathrm{,}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}\in \mathcal{T}\}|}{\mathit{\alpha }}\rceil$	${\sum }_{{\mathit{q}}_{\mathit{i}}\in \mathcal{Q}}\lceil \frac{|\{\mathit{t}|\mathit{t}\in \mathcal{T}\wedge {\mathit{q}}_{\mathit{i}}\in \dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}\}|}{\mathit{\beta }}\rceil$
Task difficulty	High: Each task requires knowledge on data quality issues; participants have to browse large number of triples	Medium-low: Each task consists of validating pre-processed and classified triples; each task focuses on one quality issue

Proof.

In the Find stage, a microtask is generated when the number of triples within task exceeds the threshold α. Since in this stage each microtask groups triples by subjects, then the number of microtasks per subject is given by $\lceil \frac{|\{\mathrm{(}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}|\mathrm{(}{\mathit{s}}_{\mathit{i}}\mathrm{,}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}\in \mathcal{T}\}|}{\mathit{\alpha }}\rceil$ , where $\{\mathrm{(}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}|\mathrm{(}{\mathit{s}}_{\mathit{i}}\mathrm{,}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}\in \mathcal{T}\}$ corresponds to triples with subject ${\mathit{s}}_{\mathit{i}}$ . In total, in the Find stage, the exact number of microtasks generated is ${\sum }_{{\mathit{s}}_{\mathit{i}}\in \mathcal{S}}\lceil \frac{|\{\mathrm{(}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}|\mathrm{(}{\mathit{s}}_{\mathit{i}}\mathrm{,}\mathit{p}\mathrm{,}\mathit{o}\mathrm{)}\in \mathcal{T}\}|}{\mathit{\alpha }}\rceil$ , which is less than $|\mathcal{T}|$ (for $\mathit{\alpha }\mathrm{>}1$ ). In the Verify stage, each microtask groups RDF triples with the same quality issue. When considering β as the maximum number of triples contained within a microtask, then the number of microtasks created per quality issue ${\mathit{q}}_{\mathit{i}}\in \mathcal{Q}$ is $\lceil \frac{|\{\mathit{t}|\mathit{t}\in \mathcal{T}\wedge {\mathit{q}}_{\mathit{i}}\in \dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}\}|}{\mathit{\beta }}\rceil$ . Therefore, the exact number of microtasks generated in the Verify stage is ${\sum }_{{\mathit{q}}_{\mathit{i}}\in \mathcal{Q}}\lceil \frac{|\{\mathit{t}|\mathit{t}\in \mathcal{T}\wedge {\mathit{q}}_{\mathit{i}}\in \dot{\mathit{\varphi }}\mathrm{(}\mathit{t}\mathrm{)}\}|}{\mathit{\beta }}\rceil$ , which is $⩽|\mathcal{T}||\mathcal{Q}|$ (for $\mathit{\beta }\mathrm{>}1$ ). Considering that the set $\mathcal{Q}$ is considerably smaller than $\mathcal{T}$ , we can affirm that the number of microtasks generated in the Verify stage is linear with respect to $\mathcal{T}$ .  □

When analyzing the number of microtasks generated in each stage, the Verify stage in theory produces more tasks than the Find stage. This is a consequence of simplifying the difficulty of the microtasks in the Verify stage, where workers have to assess only one type of quality issue at the time. However, in practice, the number of microtasks generated in the Verify stage is not necessarily larger. For instance, in our experiments with LD experts and crowd workers, we observed that large portions of the triples are not annotated with quality issues in the Find stage. Since Algorithm 2 prunes triples with no quality issues (consistently with the definition of the Find-Fix-Verify pattern), the subset of triples crowdsourced in the Verify stage is considerably smaller than the original set, hence the number of microtasks to verify is reduced.

A summary of our microtask crowdsourcing approach implemented for the Find and Verify stages is presented in Table 2.

5. Evaluation

We empirically analyzed the performance of the two crowdsourcing workflows described in Section 4. The first workflow combines LD experts in the Find stage with microtask (lay) workers from MTurk in the Verify stage. The second workflow consists of executing both Find and Verify stages with microtask workers. It is important to highlight that, in the experiments of the Verify stage, workers did not know that the data provided to them was previously classified as problematic. The main goal of our experiments is studying the applicability of crowdsourcing as a solution to the problem of detecting quality issues in LD datasets. Specifically, we formulated the following research questions:

RQ1:

Is it feasible to detect the studied LD quality issues via crowdsourcing mechanisms?

RQ2:

In a crowdsourcing approach, can we employ unskilled lay users to identify the studied LD quality issues and to what extent is expert validation needed and desirable?

RQ3:

How can we design better crowdsourcing workflows (in terms of accuracy) using lay users or experts for detecting LD quality issues, beyond one-step solutions for pointing out quality flaws?

In addition, we executed (semi-)automatic approaches to detect quality issues which allowed us to understand the strengths and limitations of applying crowdsourcing in this scenario. We used the semi-automatic RDFUnit tool [27] for assessing ‘object value’ and ‘datatype’ issues, and implemented a simple automatic baseline for detecting incorrect ‘links’.

5.1. Experimental settings

5.1.1. Dataset and implementation

In our experiments, the assessed triples were extracted from the DBpedia dataset (version 3.9).17

¹⁷

http://wiki.dbpedia.org/Downloads39.

As described in Section 4.1, the TripleCheckMate tool was used in the contest. For the microtask crowdsourcing approaches, Algorithms 1 and 2 were implemented in Python 2.7.2. During the experiments, we processed a total of 38,633 RDF triples from DBpedia and pruned 5,230 triples that contained non-dereferenceable URIs. A URI was considered non-dereferenceable if after ten retries of performing HTTP GET operations, we did not obtain a successful response (HTTP codes 2xx or 3xx in the response header). Non-dereferenceable URIs corresponded to external datasets or Web pages, i.e., DBpedia URIs were dereferenced successfully. In our experiments, we aim at gaining insights on the type of misclassifications performed by experts and laymen, therefore, besides pruning broken links no further RDF triples were removed from our study. With Algorithms 1 and 2, we generated the corresponding microtasks for the Find and Verify stages, respectively. Resulting microtasks were submitted as HITs to Amazon Mechanical Turk using the MTurk SDK for Java.18 ¹⁸

http://aws.amazon.com/code/695.

5.1.2. Metrics

The task in our experiments is to detect whether RDF triples are incorrect. Based on this, we define:

• True Positive ( $\mathit{TP}$ ): Incorrect triple classified as incorrect.

• False Positive ( $\mathit{FP}$ ): Correct triple classified as incorrect.

• True Negative ( $\mathit{TN}$ ): Correct triple classified as correct.

• False Negative ( $\mathit{FN}$ ): Incorrect triple classified as correct.

To measure the performance of the studied crowdsourcing approaches (contest and microtasks), we report on:

• Inter-rater agreement computed with the Fleiss’ kappa [14] metric to measure the consensus degree between raters (experts or MTurk workers).

• Precision to measure the proportions of positive results of each crowd, computed as $\frac{\mathit{TP}}{\mathit{TP}+\mathit{FP}}$ .

• Sensitivity to measure the true positive rate, computed as $\frac{\mathit{TP}}{\mathit{TP}+\mathit{FN}}$ .

• Specificity to measure the true negative ratio, computed as $\frac{\mathit{TN}}{\mathit{TN}+\mathit{FP}}$ .

The inter-rater agreement of the experts is reported by TripleCheckMate for the overall results of the contest in the Find stage. Therefore, we also report on the inter-rater agreement of the overall results for microtask workers in the Find stage. Inter-rater agreement is computed per quality issue for the Verify stages.

Precision values were computed for all stages of the studied workflows with respect to the gold standard explained below. In our Find stages, the crowd – expert or layman – was not enquired for annotating triples as ‘correct’ (in conformance with the definition of the Find-Fix-Verify pattern [4]); i.e., the outcome of our Find stages does not contain true or false negatives. Therefore, sensitivity and specificity values were computed only for the Verify stages.

5.1.3. Gold standard

Two of the authors of this paper (MA, AZ) generated a gold standard for two samples of the crowdsourced triples. To generate the gold standard, each author independently evaluated the triples. After an individual assessment, the raters compared their results and resolved conflicts via mutual agreement. The first sample evaluated contains 1,073 triples that corresponds to the set of triples obtained from the contest in the experts’ Find stage and submitted to MTurk. The inter-rater agreement between the authors for this first sample was 0.4523 for object values, 0.5554 for datatypes/language tags, and 0.5666 for interlinks. For the second sample, we analyzed a subset of 1,073 triples that have been identified in the Find stage by the crowd as ‘incorrect’. This subset has the same distribution of triples per quality issues as the one assessed in the first sample: 509 triples for object values, 341 for datatypes/language tags, and 223 for interlinks. We measured the inter-rater agreement for this second sample and was 0.6363 for object values, 0.8285 for datatypes, and 0.7074 for interlinks. The inter-rater agreement values were calculated using the Cohen’s kappa measure [9], designed for measuring agreement among two annotators. Disagreement arose in the object of triples where number values are rounded up to the next integer number. For example, the course length of the 1949 Ulster Grand Prix is 26.5 Km in Wikipedia but rounded up to 27 Km in DBpedia. In case of datatypes, most disagreements considered the datatype “number” of the value for the property “year” as correct. For the links, Web pages containing unrelated content were marked as correct by one of the reviewers since the link existed in the Wikipedia article. Given the effort and careful process (resolution of conflicts and discussion of disputed triples) carried out during our assessment, we consider that the produced gold standard is sufficiently reliable to evaluate the outcome of the different crowdsourcing approaches. We are however making the gold standard available and encourage the community to assess and expand it further.

The tools used in our experiments and the results are available online, including the outcome of the contest,19

¹⁹

http://nl.dbpedia.org:8080/TripleCheckMate/.

the gold standard and microtask data (HITs and results).20 ²⁰

http://people.aifb.kit.edu/mac/DBpediaQualityAssessment/.

5.2. Evaluation of combining LD experts (Find stage) and microtasks (Verify stage)

5.2.1. Contest settings: Find stage

The contest was open from November to December in 2012, and was configured as follows.

Participant expertise: We relied on the expertise of members of the Linked Data and the DBpedia communities who were willing to take part in the contest.

Task complexity: In the contest, each participant was assigned the concise bound description of a DBpedia resource. All triples belonging to that resource were displayed and the participants had to validate each triple individually for quality problems. Moreover, when a quality issue was detected, the participant had to map it to one of the issue types from a quality problem taxonomy.

Monetary reward: We awarded the participant who evaluated the highest number of resources a Samsung Galaxy Tab 2 worth 300 EU.

Assignments: Each resource was evaluated by at most two different participants.

5.2.2. Microtask settings: Verify stage

The microtasks for this experiment were submitted to MTurk in May 2013 using the following settings.

Worker qualification: In MTurk, the requester can filter workers according to different qualification metrics. In this experiment, we recruited workers with “Approval Rate” greater than $50\mathrm{\%}$ .

HIT granularity: In each HIT, we asked workers to solve five different questions ( $\mathit{\beta }=5$ ). Each question corresponded to an RDF triple and each HIT contained triples classified into one of the three quality issue categories discussed earlier.

Monetary reward: The micropayments were fixed to 4 US dollar cents. Considering the HIT granularity, we paid 0.04 US dollar per 5 triples. At the time of submitting the tasks, 0.04 was one of the most popular HIT rewards in MTurk as reported by Difallah et al. [11].

Assignments: The number of assignments was set up to five and the answer was selected applying majority voting. We additionally compared the quality achieved by a group of workers vs. the resulting quality of the worker who submitted the first answer, in order to test whether collecting more than our answer actually increases the quality of the results.

Table 3

Overall results in each type of crowdsourcing approach in the expert-worker crowdsourcing workflow: Combining LD experts (Find stage) and microtask workers (Verify stage)

	Contest-based	Paid microtasks
Number of distinct participants	Total: 58	Object values: 35
		Datatypes/Language tags: 31
		Links: 31
		Total: 80
Total no. of microtasks generated	–	216
Total time	3 weeks (predefined)	4 days
Total triples	Browsed: 33,404
	Marked as ‘incorrect’: 1,512	Evaluated: 1,073
Object values	550		509
Datatype/Language tags	363	341
Interlinks	599	223

Table 4

Inter-rater agreement and metrics (computed against the gold standard) achieved in the expert-worker crowdsourcing workflow: Combining LD experts (Find stage) and microtask workers (Verify stage)

Stage and Crowd	Object Values	Datatypes/Language Tags	Links
	Inter-rater agreement
Find: LD experts	Calculated for all the triples: 0.38
Verify: MTurk workers	0.5348	0.4960	0.7396
	Precision
Find: LD experts	0.7151	0.8270	0.1525
Verify: MTurk workers (first answer)	0.8595	0.8889	0.6111
Verify: MTurk workers (majority voting)	0.8977	0.9116	0.7674
	Sensitivity
Verify: MTurk workers (first answer)	0.8056	0.5161	0.8800
Verify: MTurk workers (majority voting)	0.8899	0.4802	0.9705
	Specificity
Verify: MTurk workers (first answer)	0.6693	0.6897	0.8947
Verify: MTurk workers (majority voting)	0.7482	0.7759	0.9450

5.2.3. Overall results

The contest was open for a predefined period of time of three weeks. During this time, 58 LD experts analyzed 521 distinct DBpedia resources and we determined that the experts browsed around 33,404 triples. They detected a total of 1,512 triples as erroneous and classified them using the given taxonomy. After obtaining the results from the experts, we filtered out duplicates and triples whose objects were broken links. In total, we submitted 1,073 triples to the crowd. A total of 80 distinct workers assessed all the RDF triples in four days. The average time per microtask spent by the crowd was 94.55 sec. for incorrect objects, 71.69 sec. for incorrect datatypes or language tags, and 116.11 sec. for incorrect links. We then computed the effective hourly rate per type of task: 1.52 US$ for incorrect values, 2.01 US$ for incorrect datatypes or language tags, and 1.24 US$ for incorrect links. A summary of these observations is shown in Table 3.

We compared the common 1,073 triples assessed in each crowdsourcing approach against our gold standard and measured inter-rater agreement as well as precision, sensitivity, and specificity values for each task (see Table 4). For the contest-based approach, the tool allowed two participants to evaluate a single resource. In total, there were 268 inter-evaluations for which TripleCheckMate calculated triple-based inter-agreement (adjusting the observed agreement with agreement by chance) to be 0.38. For the microtasks, for each type of task we measured the inter-rater agreement values among a maximum of five workers using Fleiss’ kappa measure. While the inter-rater agreement between workers for the link task was high (0.7396), the ones for object and datatype tasks were moderate to low with 0.5348 and 0.4960, respectively. Table 4 reports on the precision achieved by the LD experts and crowd in each stage. In the following we present further details on the results for each type of task.

5.2.4. Results: Incorrect object values

As reported in Table 4, our crowdsourcing experiments reached a precision of 0.8977 for MTurk workers (majority voting) and 0.7151 for LD experts. Most of the incorrect values that are extracted from Wikipedia occur with predicates related to dates, for example: (dbpedia:2005_Six_Nations_Championship, dbp:date, “12”). In these cases, the experts and workers presented a similar behavior, classifying 110 and 107 triples correctly, respectively, out of the 117 assessed triples for this class. In this type of task, the experts were able to detect more true positives than the crowd (365 for the experts vs. 307 for the crowd workers in majority voting). However, the difference in precision between the two approaches is due to the large amount of false positives generated by the experts (144 in total). Most of the false positives from the experts correspond to triples with values that might seem semantically erroneous, although they were syntactically and semantically correct. For instance, the triple (dbpedia:Durango-class_patrol_vessel, dbp:shipCrew, “Crew of81”)21

²¹

In DBpedia, the property dbp:shipCrew is used to describe the crew of vessels or ships, however, there are no restrictions on the object. Some examples of other DBpedia triples with this predicate are: (dbpedia:Chilean_ship_Lautaro_(1818), dbp:shipCrew, “Chilean Navy: 288”) and (dbpedia:Histria_Giada, dbp:shipCrew, “Romanian”@en).

was marked as erroneous by the LD experts. On the other hand, the crowd workers generated false negatives when the data was correctly extracted from Wikipedia but it was semantically incorrect, e.g., the triple (dbpedia:Oncorhynchus,dbp:subdivision, “See text”).22 ²²

Wikipedia page version from which this data was extracted: https://en.wikipedia.org/w/index.php?title=Oncorhynchus&oldid=551701016.

We found out that in these cases the LD experts classified the triples as incorrect.

Furthermore, crowd workers obtained higher values of sensitivity than specificity (0.8899 vs. 0.7482 in majority voting) in both microtask settings. This suggests that workers perform better when detecting incorrect values (true positives) than correct values (true negatives) in RDF triples.

Fig. 6.

Results for the “Incorrect datatype/language tag” task in the first crowdsourcing workflow (combining experts and crowd workers).

5.2.5. Results: Incorrect datatypes or language tags

As shown in Table 4, both crowdsourcing mechanisms achieved high values of precision: 0.8270 precision for experts on finding this type of quality issue, while the crowd achieved 0.9116 precision on verifying these triples. However, a closer inspection to the results revealed that the crowd generated a large number of false negatives, obtaining low sensitivity values (0.4802 with majority voting). In particular, the first answers submitted by the crowd were slightly better in terms of sensitivity than the results obtained with majority voting. A detailed study of these cases showed that 28 triples that were classified correctly in the first answer from the crowd, later were misclassified, and most of these triples refer to a language tag. The low performance of the MTurk workers in terms of sensitivity is not surprising, since this particular task requires certain technical knowledge about datatypes and their specification in RDF.

In order to understand the previous results, we analyzed the performance of experts and workers at a more fine-grained level. We calculated the frequency of occurrences of datatypes and language tags in the assessed triples (see Fig. 6(a)) and reported on precision, sensitivity, and specificity achieved by the crowdsourcing methods per datatype or language tag. Figure 6(b) depicts these results. The most notorious result in this task is the assessment performance for the datatype “number”. The experts effectively identified triples where the datatype was incorrectly assigned as “number”,23

²³

This error is very frequent when extracting dates from Wikipedia as some resources only contain partial data, e.g., only the year is available and not the whole date.

for instance, in the DBpedia triple (dbpedia:Walter_Flores, dbp:dateOfBirth, “1933”) the value “1933” was typed as number instead of year. These are the cases where the crowd was confused and determined that the datatype ‘number’ was correct, thus generating a large number of false negatives, hence the low values of sensitivity for this datatype. Nevertheless, it could be argued that the data type “number” in the previous example is not completely incorrect, when being unaware of the fact that there are more specific data types for representing time units. Under this assumption, the sensitivity of the crowd would have been 0.85 and 0.82 for first answer and majority voting, respectively.

While looking at the language-tagged strings in “English” (in RDF @en), Fig. 6(b) shows that the experts perform very well when discerning whether a given value is an English text or not. Although the precision achieved by the crowd in this language tag is high, we identified that the crowd is less successful in the following two situations: (i) The value corresponds to a number and the remaining data was specified in English, e.g., (dbpedia:Middelburg, dbo:utcOffset, ‘+1”@en). (ii) The value is a text without special characters, but in a different language than English – for example German – as in the following triple (dbpedia:Woellersdorf-Steinabrueckl, dbp:art, “Marktgemeinde”@en). The performance of both crowdsourcing approaches for the remaining datatypes were similar or not relevant due the low number of triples processed.

5.2.6. Results: Incorrect links

Table 4 displays the precision for each studied quality assessment mechanism. The extremely low precision of 0.1525 of the contest’s participants was unexpected. We inspected in detail the 189 misclassifications of the experts:

• The 95 Freebase links24

  ²⁴

  http://www.freebase.com.

  connected via owl:sameAs were marked as incorrect, although both the subject and the object were referring to the same real-world entity.

  There were 77 triples whose objects were Wikimedia uploads (composed mostly by images hosted for Wikipedia); 74 of these triples were also classified incorrectly. Within the 74 misclassified triples, the images of 21 triples directly depict the triple subject. In 30 triples, the subjects correspond to geographical entities, and the images correctly depicted either maps (12 triples), landscapes (12 triples), or their corresponding coat of arms (6 triples). In another 13 triples, the images depicted examples of abstract concepts.25 ²⁵

  For instance, Symmetry in biology with the image available at http://upload.wikimedia.org/wikipedia/commons/a/af/20_petit_paon_de_nuit.jpg.

  Only in 9 triples, the images were not directly associated with the subject but the images depict something closely related to the subject, e.g., a book of a writer,26 ²⁶

  For instance, Ern Malley and http://upload.wikimedia.org/wikipedia/commons/1/1f/Ern_Malley.jpg.

  or a bus of a bus company.27 ²⁷

  Arriva London and https://upload.wikimedia.org/wikipedia/commons/3/3f/London_Bus_route_59_01.jpg.

  In total, 58 pictures (out of the 74 misclassified triples by the experts) still appear in the latest version of their corresponding Wikipedia article.28 ²⁸

  As of January 2016.

  20 links (to blogs, Web pages, etc.) referenced from the Wikipedia article of the subject were also misclassified, regardless of the language of the content in the Web page. Furthermore, 16 out of these 20 links are still present in the corresponding Wikipedia articles.²⁸ Only 3 links has slightly changed over time but they were correctly extracted from the Wikipedia articles.

  On the other hand, MTurk workers achieved high values in both settings, in particular when applying majority voting: 0.7674 for precision, 0.9705 for sensitivity, and 0.9450 for specificity, as shown in Table 4. The links that were not properly classified by the crowd correspond to Web pages whose content is in a different language than English or, despite they are referenced from the Wikipedia article of the subject, their association with the subject is not straightforward. Examples of these cases are the following subjects and links: the resource dbpedia:Frank_Stanford with the website http://nw-ar.com/drakefield, and the resource dbpedia:Forever_Green with http://www.stirrupcup.co.uk. We hypothesize that the design of the user interface of the HITs – displaying a preview of the web pages to analyze – helped the workers to easily identify those links containing related content to the triple subject.

  5.3. Evaluation of using microtask crowdsourcing in Find and Verify stages

  5.3.1. Microtask settings: Find and Verify stages

  The microtasks crowdsourced in the Find stage were submitted to MTurk in February 2014 and configured as follows.

  Worker qualification: We recruited workers whose “Approval Rate” is greater than $50\mathrm{\%}$ .

  HIT granularity: In each HIT, we asked the workers to assess a maximum of 30 different triples with the same subject ( $\mathit{\alpha }=30$ ).

  Monetary reward: The micropayments were fixed to 6 US dollar cents.

  Assignments: Assignments were set up to three and we applied majority voting to aggregate the answers.

  Table 5

  Overall results in the worker-worker crowdsourcing workflow: Employing microtask workers in both stages Find and Verify

  	Paid microtasks: Find stage	Paid microtasks: Verify stage
  Number of distinct participants	Total: 187	Object values: 77
  		Datatypes/Language tags: 29
  		Links: 46
  		Total: 141
  Total no. of microtasks generated	2,339	216
  Total time	14 days	7 days
  Total triples	Browsed: 33,404
  	Crowdsourced: 30,658
  	Marked as ‘incorrect’: 26,835	Evaluated: 1,073
  Object values	8,691		509
  Datatypes/Language tags	13,194	341
  Interlinks	13,732	223

  All triples identified as erroneous by at least two workers in the Find stage were candidates for crowdsourcing in the Verify stage. The microtasks generated in the subsequent stage were crowdsourced in February 2014 with the exact same configurations used in the Verify stage from the first workflow (cf. Section 5.2.2).

  5.3.2. Overall results

  In order to replicate the approach followed in the contest, we crowdsourced in the Find stage all the triples associated with resources that were explored by the LD experts. In total, we submitted to the crowd 33,404 RDF triples and the crowd processed 30,658 triples in 14 days. The microtasks from the Find stage were resolved by 187 distinct workers in 83.29 secs. on average at an hourly rate of 2.59 US$. In total, 26,835 triples were identified as erroneous, and classified into the three quality issues studied in this work. Then, we selected random samples from triples identified as erroneous in the Find stage from the crowd using majority voting. For sampling, we used the same distribution obtained from the first experiment, i.e., each sample contains the exact same number of triples that were crowdsourced in the Verify stage in the first workflow. This allowed us to compare the outcome of the Verify stage from both workflows. We crowdsourced then 509 triples for the task of incorrect values, 341 for incorrect datatype or language tag, and 223 for incorrect links. All triples crowdsourced in the Verify Stage were assessed by 141 distinct workers in seven days. On average, workers spent 95.59 sec. on resolving a microtask for detecting incorrect values, 53.05 sec. on a microtask for incorrect datatypes or language tags, and 131.48 sec. on a microtask for assessing incorrect links. The effective hourly rates in each type of task were: 1.51 US$ for assessing object values, 2.71 US$ for assessing datatypes or language tags, and 1.10 US$ for assessing links. For the incorrect object and incorrect datatype or language tag tasks, all submitted microtasks were finished in the first two days. Regarding the incorrect link tasks, 86% of the microtasks were resolved within four days (consistently with the behavior observed in the first experiment), and the remaining 14% of these tasks were completed after seven days of the beginning of the experiment. A summary of these results and further details are presented in Table 5.

  Similar to the first experiment, we measured the inter-rater agreement achieved by the crowd in both stages using the Fleiss’ kappa metric. In the Find stage the inter-rater agreement of workers was 0.2695, while in the Verify stage, the crowd achieved substantial agreement for all the types of tasks: 0.6300 for object values, 0.7957 for data types or language tags, and 0.7156 for links. In comparison to the first workflow, the crowd in the Verify stage achieved higher agreement. This suggests that triples identified as erroneous in the Find stage were easier to interpret or process by the crowd. Table 6 reports the precision achieved by the crowd in each stage as well as sensitivity and specificity values for the Verify stage. It is important to notice that in this workflow we crowdsourced all the triples that could have been explored by the LD experts in the contest. In this way, we evaluate the performance of lay user and experts under similar conditions. During the Find stage, the crowd achieved low values of precision for the three types of tasks, which suggests that this stage is still very challenging for lay users. In the following we present further details on the results for each type of task.

  Table 6

  Inter-rater agreement and metrics (computed against the gold standard) achieved in the worker-worker crowdsourcing workflow: Employing microtask workers in both stages Find and Verify

  Stage and Crowd	Object Values	Datatypes/Language Tags	Links
  	Inter-rater agreement
  Find: MTurk workers	Calculated for all the triples: 0.2695
  Verify: MTurk workers	0.6300	0.7957	0.7156
  	Precision
  Find: MTurk workers	0.3713	0.1466	0.2422
  Verify: MTurk workers (first answer)	0.4980	0.5510	0.3391
  Verify: MTurk workers (majority voting)	0.5072	0.8723	0.3442
  	Sensitivity
  Verify: MTurk workers (first answer)	0.4549	0.7714	0.8478
  Verify: MTurk workers (majority voting)	0.9615	0.9111	1.0000
  	Specificity
  Verify: MTurk workers (first answer)	0.5432	0.9223	0.4967
  Verify: MTurk workers (majority voting)	0.4371	0.9793	0.3916

  5.3.3. Results: Incorrect object values

  In the Find stage, the crowd achieved a precision of 0.3713 for identifying ‘incorrect values’, as reported in Table 6. In the following we present relevant observations derived from this evaluation:

6. Final discussions

Referring back to the research questions formulated in Section 5, our experiments let us identify the strengths and weaknesses of applying crowdsourcing mechanisms for assessing the studied data quality issues, adapting the Find-Fix-Verify pattern. Regarding the precision achieved in both workflows, we compared the outcomes produced in each stage by the different crowds against a manually defined gold standard. The precision reached by both crowds showed that crowdsourcing is a feasible solution to detect the studied LD quality issues in DBpedia (RQ1).

In each type of task, the LD experts and MTurk workers applied different skills and strategies to solve the assignments successfully (RQ2). The data collected for each type of task suggested that the effort of LD experts must be applied on tasks demanding specific-domain skills beyond common knowledge. For instance, LD experts successfully identified issues on very specific datatypes, e.g., when time units were annotated as numbers (xsd:Integer or xsd:Float). In the same type of task, workers focused on assessing triples annotated with language tags, instead of datatypes like the experts. The MTurk crowd proved to be very skilled at verifying whether literals were written in a certain language. In addition, workers were exceptionally good and efficient at performing comparisons between data values when some contextual information was provided. This was corroborated by the outcome of the “incorrect object value” task where workers compared values from DBpedia and Wikipedia.

Furthermore, we were able to detect common cases in which none of the two forms of crowdsourcing we studied seemed to be feasible. The most problematic task for the LD experts was the one about discerning whether an external link was related to an RDF resource. Although the experimental data did not provide insights into this behavior, we are inclined to believe that this was due to the relatively higher effort required by this specific type of task, which involved checking an additional site outside the TripleCheckMate tool. Although the crowd outperformed the experts in finding incorrect ‘links’, the MTurk crowd was not sufficiently capable of assessing links that correspond to RDF resources. Furthermore, MTurk workers did not perform so well on tasks about datatypes where they recurrently confused numerical datatypes with time units.

The observed results suggest that LD experts and crowd workers offer complementary strengths that can be exploited not only in different assessment iterations or stages (RQ3) but also in particular subspaces of quality issues. LD experts exhibited a good performance when finding incorrect object values and datatypes (in particular, numerical datatypes). In turn, microtask crowdsourcing can be effectively applied to: i) verify whether objects values are incorrect, ii) verify literals annotated with language tags, and iii) find and verify incorrect links of RDF resources to Web pages.

One of the goals of our work is to investigate how the contributions of crowdsourcing approaches can be integrated into automatic LD curation processes, by evaluating the performance of two crowdsourcing workflows in a cost-efficient way. In microtask settings, the first challenge is then to reduce the amount of tasks submitted to the crowd and the number of requested assignments (different answers), since both of these factors determine the overall cost of crowdsourcing projects. For the Find stage, Algorithm 1 generated 2,339 HITs to crowdsource 68,976 RDF triples, consistently with the property stated by Proposition 2. In our experiments, we approved a total of 2,294 assignments in the Find stage and, considering the payment per HIT (US$ 0.06), the total cost of this evaluation resulted in US$ 137.58. Furthermore, in the Verify stage, the cost of submitting to MTurk the problematic triples found by the experts was only US$ 43.

In summary, our experimental results confirm that crowdsourcing-based workflows are a feasible solution for detecting the studied LD quality issues. However, since triples are assessed individually, the scalability of the approach is compromised when issuing large datasets. Therefore, we consider that our proposed approach could reach its full potential when it is combined with automatic approaches in two ways: i) Automatic approaches can help to significantly reduce the number of triples that resort to crowdsourcing; ii) The outcome of the crowd can be used as training sets consumed by automatic approaches to detect quality issues in further portions of a given LD dataset. Building hybrid human-machine architectures will allow for devising efficient and effective solutions for LD quality assessment able to scale up to large datasets.

7. Related work

We focus on investigating two types of related work: crowdsourcing in Linked Data management and Web data quality assessment.

7.1. Crowdsourcing in Linked Data management

There is wide agreement in the community that specific aspects of Linked Data management are inherently human-driven [3]. This holds true most notably for those Linked Data tasks which require a substantial amount of domain knowledge or detailed, context-specific insight that go beyond the assumptions and natural limitations of algorithmic approaches.

Like any Web-centric community of its kind, Linked Data has had its share of volunteer initiatives, including the Linking Open Data Cloud itself and DBpedia [6], and competitions such as the yearly Semantic Web Challenge36

³⁶

http://challenge.semanticweb.org/.

and the European Data Innovator Award.37 ³⁷

http://2013.data-forum.eu/tags/european-data-innovator-award.html.

From a process point of view, Villazón-Terrazas and Corcho [55] introduced a methodology for publishing Linked Data. The authors discussed activities, which theoretically could be subject to crowdsourcing, but did not discuss such aspects explicitly. Similarly, Luczak-Rösch et al. [33] mapped ontology engineering methodologies to Linked Data practices, drawing on insights from interviews with practitioners and quantitative analysis. A more focused account of the use of human and crowd intelligence in Linked Data management is offered in the work by Siorpaes and Simperl [49]; the authors investigated several technically oriented scenarios in order to identify lower-level tasks and analyze the extent to which they can be feasibly automated. In this context, feasibility referred primarily to the trade-off between the effort associated with the usage of a given tool targeting automation – including aspects such as getting familiar with the tool, but more importantly creating training datasets and examples, configuring the tool and validating (intermediate) results – and the quality of the outcomes. The fundamental question the work by Siorpaes and Simperl [49] attempted to answer was related to ours, though not focused on quality assurance and repair – their aim was come up with patterns for human and machine-driven computation, which could service semantic data management scenarios effectively. This was also at the core of the work by Simperl et al. [47], which took the main findings of this analysis a step further and proposed a methodology to build incentivized Semantic Web applications, including guidelines for mechanism design which are compatible to our Find-Verify workflow. They have also analyzed motivations and incentives for several types of Semantic Web tasks, from ontology population to semantic annotation.

An important prerequisite to any participatory exercise is the ability of the crowd – experts or laymen – to engage with the given data management tasks. This has been subject to several user experience design studies [25,40,45,46,54], which informed the implementation of our crowdsourcing projects, both the contest, and the paid microtasks running on Amazon Mechanical Turk. For instance, microtasks have been used for entity linking in ZenCrowd [10], entity resolution in CrowdER [57], ontology alignment in CrowdMap [43] and completing missing values in RDF data in HARE [1].

At a more technical level, many Linked Data management tasks have already been subject to human computation, be that in the form of Games With a Purpose (GWAP) [34,51,56] or, closer to our work, paid microtasks. GWAP, which capitalize on entertainment, intellectual challenge, competition, and reputation, offer another mechanism to engage with a broad user base. In the field of semantic technologies, the OntoGame series [48] propose several games that deal with the task of data interlinking, be that in its ontology alignment instance (SpotTheLink [51]), multimedia interlinking (SeaFish [52]) or spotting inconsistencies in data (WhoKnows? [56]). Similar ideas are implemented in GuessWhat?! [34], a selection-agreement game which uses URIs from DBpedia, Freebase and OpenCyc as input to the interlinking process. While OntoGame looks into game mechanics and game narratives and their applicability to finding similar entities and other types of correspondences, our research studies an alternative crowdsourcing strategy that is based on a contest and financial rewards in a microtask platform. Most relevant for our work are the experiments comparing games with a purpose and paid microtasks, which showed the complementarity of the two forms of crowdsourcing [12,42].

A similar study is discussed in the work by McCann et al. [35] for ontology alignment. This work investigated a combination of volunteer and paid user involvement to validate automatically generated alignments formulated as natural language questions. While this proposal shares many commonalities with the CrowdMap [43] approach, the evaluation of their solution is based on a much more constrained experiment that did not rely on a real-world labor marketplace and associated work force.

Also in the context of Linked Data management, a human-enabled approach to execute queries against RDF datasets has been proposed. Acosta et al. presented HARE [1], a hybrid SPARQL query processing engine to enhance the quality of query answers. HARE relies on microtask crowdsourcing to complete missing values that are detected during query execution. Experimental results of HARE confirmed that laymen are able to assess RDF data from diverse knowledge domains including Life Sciences. While HARE focuses on data completeness, our approach is tailored for assessing quality issues that affect data accuracy.

7.2. Web data quality assessment

Existing frameworks for quality assessment of the Web of Data, including Linked Data, can be broadly classified as automated [13,18,19,32,37,38], semi-automated [8,15,29,53] and manual [5,36].

In particular, regarding the quality issues studied in our work, the approach presented by Guéret et al. [19] performs quality assessment on link sets in an automated fashion based on a set of quality metrics. However, this approach does not take the semantics of the links into account. On the other hand, the framework SWIQA proposed by Fürber and Hepp [18] can be applied for detecting accuracy quality issues including incorrect object values, datatypes and literals. However, these approaches either lack specific syntactical rules to detect all of the errors and require knowledge of the underlying schema by the user to specify these rules. Other automatic solutions rely on clustering or statistical-based algorithms to detect different quality issues in LD sets [13,32,37,38]. Fleischhacker et al. [13] proposed a two-fold approach that relies on unsupervised outlier detection methods to identify numerical errors in objects of RDF triples. Similarly, Li et al. [32] presented a probabilistic framework that predicts arithmetic relations (equal, greater than, less than) between multiple RDF predicates in order to detect inconsistencies in numerical and date values. Other works have also proposed automatic approaches to improve the quality of LD in terms of completeness and accuracy. In this regard, Paulheim and Bizer presented two algorithms SDType [37,38] and SDValidate [38] that rely on statistical distributions of predicates and objects in RDF datasets. SDType predicts classes of RDF resource thus completing missing values of rdf:type properties. SDValidate detects incorrect links between resources within a dataset. These solutions [13,32,37,38] are tailored to detect very specific errors in RDF triples, however, they can be used in combination with our approach to prune RDF triples or quality issues that do not require human assessment.

Semi-automatic approaches to tackle quality assessment have been also proposed. Flemming [15] provides a form-based interface where users can specify the SPARQL endpoint and exemplary URIs of the dataset to obtain an overall quality score of the dataset. However, in this case, the results are difficult to interpret and require the user to specify different weights for different quality metrics at each step of the assessment, which makes it challenging especially when users may not know the dataset in much detail. CROCUS [8] is a clustering-based framework that identify outliers at ontologies’ instance-level to detect inconsistencies in LD sets. Outliers are then assessed by non-experts denominated quality raters. CROCUS is able to detect violations in cardinality constraints or value ranges. In the context of ontology enriching, Lehmann and Bühmann presented ORE [29], a tool to detect ontology modeling problems. ORE implements reasoning as well as semi-automatic supervised learning to provide suggestions to users (knowledge engineers) for enriching ontologies. Töpper et al. [53] proposed an approach to enrich ontologies with class disjointness as well as property domain and range restrictions. The latter approach is able to detect semantic errors that cannot be detected with syntactic validators or reasoners. The outcome of this approach is a set of suggestions to correct inconsistencies that are processed manually. Except for CROCUS, these solutions [29,53] require either domain or ontology experts since implementing changes in ontological constructs could generate further inconsistencies. Unlike the solutions previously described, our approach is tailored to assess the semantic correctness of RDF triples.

In case of manual assessment methodologies or frameworks, the WIQA quality assessment framework [5] consists of a set of software components for filtering information from the Web using a range of different filtering policies or metrics. In case of Sieve [36], the definition of metrics has to be done by creating an XML file, which contains specific configurations for a quality assessment task. Even though these frameworks introduce useful methodologies to assess the quality of a dataset, the results are difficult to interpret and mandate a considerable amount of user prior knowledge and involvement.

Other studies analyzed the quality of Web [7] and RDF [21] data. The latter study focuses on errors occurred during the publication of LD datasets. Furthermore, a study by Hogan et al. [22] looked into four million RDF/XML documents to analyze Linked Data conformance. These studies performed large-scale quality assessment on LD but are often limited in their ability to produce interpretable results, demand user expertise or are bound to a given dataset.

SPARQL Inferencing Notation (SPIN)38

³⁸

http://www.w3.org/Submission/spin-overview/.

is a W3C submission aiming at representing rules and constraints on Semantic Web models using SPARQL. The approach described in [17] advocates the use of SPARQL and SPIN for RDF data quality assessment. In a similar way, Fürber et al. [16] define a set of generic SPARQL queries to identify missing or illegal literal values and datatypes and functional dependency violations. Another related approach is the Pellet Integrity Constraint Validator (ICV).39 ³⁹

http://clarkparsia.com/pellet/icv/.

Pellet ICV translates OWL integrity constraints into SPARQL queries. A more lightweight RDF constraint syntax, decoupled from SPARQL, is offered from Shape Expressions (ShEx) [41] and IBM Resource Shapes.40 ⁴⁰

http://www.w3.org/Submission/2014/SUBM-shapes-20140211/.

Unlike our approach, these solutions demand high expertise on the dataset knowledge domain as well as SPARQL or other languages to specify the assessed rules.

In summary, our work is situated at the intersection of the previously discussed research areas. In Section 7.1, we explained how crowdsourcing in various forms, e.g., contests, games with a purpose, microtasks, have been successfully applied to resolve diverse aspects of LD management. However, our work studies novel applications of crowdsourcing to detect specific LD quality issues with crowds composed by experts and non-experts. Furthermore, unlike the solutions presented in Section 7.2 for assessing the quality of Web Data, our approach solely relies on human intervention to detect semantic errors in LD.

8. Conclusions and future work

In this paper, we proposed and compared crowdsourcing mechanisms to evaluate the quality of Linked Data (LD); the study was conducted in particular on the DBpedia dataset. Two different types of crowds and mechanisms were investigated for the initial detection of quality issues: object values, datatypes and language tags, and links. We focused on adapting the Find-Fix-Verify crowdsourcing pattern to exploit the strengths of experts and lay workers and leverage the results from the Find-only approaches.

For the first part of our study, the Find stage was implemented with a contest to engage with a community of LD experts. The task of the contest consists in discovering and classifying quality issues of DBpedia resources using the TripleCheckMate tool. Contributions obtained through the contest (referring to flawed object values, incorrect datatypes or language tags, and incorrect links) were submitted to Amazon Mechanical Turk (MTurk), where we asked workers to Verify them. For the second part of our study, only microtask crowdsourcing was used to perform the Find and Verify stages on the same set of DBpedia resources used in the first part.

The evaluation of the results showed that it is feasible to crowdsource the detection of the studied LD issues in DBpedia. In particular, the experiments revealed that (i) lay workers are in fact able to detect certain quality issues with satisfactory precision; (ii) experts perform well in identifying triples with ‘object value’ or ‘datatype’ issues, and lastly, (iii) the two approaches reveal complementary strengths. The empirical results of our experiments could serve as a base for further studies in the area of LD quality assessment using human computation. Our findings could also inform the design of the DBpedia extraction tools and related community processes, which already make use of contributions from volunteers to define the underlying mapping rules in different languages.

The methodology proposed in this work is applicable to other LD datasets and can be expanded to cover different types of quality issues. The TripleCheckMate tool can be configured to assess any LD dataset using different taxonomies of quality issues. In addition, the proposed algorithms to generate microtasks can also be adapted to build different user interfaces that assist workers in assessing further LD issues. However, the scope of our empirical observations is circumscribed to the studied quality issues within DBpedia.

Finally, as with any form of computing, our work will be most useful as part of a broader architecture, in which crowdsourcing is brought together with automatic quality assessment and repair components and integrated into existing data governance frameworks.

Future work will first focus on conducting new experiments to test the value of the crowd for further different types of quality problems as well as for different LD sets from other knowledge domains. In the longer term, we will also investigate on how to efficiently integrate crowd contributions – by implementing the Fix stage – into hybrid human-machine curation processes and tools, in particular with respect to the trade-offs of costs and quality between manual and automatic approaches. Another area of research is the integration of baseline approaches before the crowdsourcing step in order to filter out errors that can be detected automatically to further increase the productivity of the crowd.

Acknowledgements

This work was supported by grants from the European Union’s 7th Framework Programme provided for the projects GeoKnow (GA no. 318159), Aligned (GA no. 644055) and LOD2 (GA no. 257943).
