Effects of hyperbaric oxygen therapy on patients with spinal cord injury: A systematic review and meta-analysis of Randomized Controlled Trials

Abstract

BACKGROUND:

The effects of hyperbaric oxygen therapy (HBO) for spinal cord injury (SCI) are controversial.

OBJECTIVE:

The purpose of this study was to evaluate the effects of HBO therapy on motor function, sensory function, and psychology after SCI.

METHOD:

We searched the following databases: Medline, Embase, PubMed, Ovid, Cochrane library, China National Knowledge Infrastructure (CNKI), Wan Fang, and VIP up to May 2020. We included Randomized Controlled Trials (RCTs) which investigated patients with SCI received HBO during hospitalization. Motor function, sensory function, and psychology status were measured by commonly used scales including American Spinal Injury Association (ASIA) motor score, Modified Barthel Index (MBI), ASIA sensory score, Hamilton Depression Scale (HAMD), and Hamilton Anxiety Scale (HAMA). We performed a meta-analysis by calculating mean difference (MD) to determine the effect of HBO on three levels of function on patients with SCI. We evaluated heterogeneity by I ${}^2$ test, and I ${}^2$ $>$ 50% was significant.

RESULTS

: A total of 1746 studies were identified initially, and 11 studies were included, involving 875 participants. HBO therapy significantly improved the ASIA motor score (MD 15.84, 95% CI 9.04 to 22.64, I ${}^2$ $=$ 87%). Six trails suggested that HBO therapy statistically promoted ASIA sensory score (MD 66.30, 95% CI 53.44 to 79.16, I ${}^2$ $=$ 95%). The other four trails suggested that HBO therapy statistically increased the light touch score (MD 9.27, 95% CI 3.89 to 14.65, I ${}^2$ $=$ 91%) and needling score (MD 10.01, 95% CI 8.60 to 11.43, I ${}^2$ $=$ 95%), respectively. HBO therapy was implicated in the significant improvement of MBI (MD 13.80, 95% CI 10.65 to 16.94, I ${}^2$ $=$ 0%). HBO therapy also decreased the HAMA (MD $-$ 2.37, 95% CI $-$ 2.72 to $-$ 2.02, I ${}^2$ $=$ 0%) and HAMD (MD $-$ 3.74, 95% CI $-$ 5.82 to $-$ 1.65, I ${}^2$ $=$ 90%).

CONCLUSIONS:

HBO therapy may improve motor function, sensory function and psychology after SCI compared to conventional treatments. More high-quality, large sample size RCTs are needed to support these perspectives.

1. Introduction

Spinal cord injury (SCI) is usually caused by vehicle accidents, accidental falls, tumor, infection, and other traumatic events [1], which refers to various dysfunctions involving motor, sensory and sphincter dysfunction, abnormal muscle tone and pathological reflex, and other corresponding changes in the injury segments. Severe SCI may lead to paraplegia or tetraplegia ultimately. After SCI, two pathological progressions of the spine would occur: primary injuries and secondary injuries. First, for primary injuries, plentiful neuronal and glial cells go through apoptosis and axonal membrane damage. Then, for secondary injuries, astrocytes and microglia activation, glial scar formation and inflammatory response [2]. It is reported that 3 million people suffer from SCI, and there are 16–40/100,000,000 new cases in developed countries and 34.3–60/100,000,000 new cases in China [3, 4]. However, the treatment effects of surgery and drugs are not very satisfactory. Many patients still have a very poor prognosis and low quality of life after receiving spinal decompression surgery, neurotrophic drugs, or corticosteroids. Hyperbaric oxygen therapy (HBO) is used for hypoxic diseases by suppling pure oxygen or high concentration oxygen with a mask or in an environment with over 1 atmosphere pressure. The pathological change such as tissue edema, neuro-necrosis and blood-spinal barrier disorder, are all related to the overactive inflammatory response in the injured spinal cord [6, 7]. HBO may inhibit the production of inflammatory factors and promote the repair and regeneration of neurons [8]. Meanwhile, studies have shown that HBO may have many other functions including relieving hypoxia, protecting surrounding tissues, inhibiting apoptosis by control of caspase-3 expression, reducing mitochondrial dysfunction in the SCI area, and reducing bleeding area and edema [9].

Holbach et al. first found that HBO therapy could improve the postoperative dysfunction in patients with traumatic SCI [5]. Although the application of HBO therapy in traumatic SCI has a long history, the therapeutic effects of HBO therapy on SCI are controversial. To identify the effects of HBO therapy on motor function, sensory function, and psychological status in SCI patients, we summarized Randomized Controlled Trials (RCTs) of patients with SCI receiving HBO published up to May 2020.

2. Method

This meta-analysis was performed on the basis of the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [10] (Table S1).

2.1 Search strategy

We selected the following databases and search engines for retrieval: Medline, Embase, PubMed, Ovid, Cochrane library, CNKI, Wan Fang and VIP. Search strategy: (Spinal cord injury OR spinal cord injuries OR spinal cord trauma OR spinal cord traumas OR spinal cord transection OR spinal cord transections OR spinal cord laceration OR spinal cord lacerations OR spinal cord contusion OR spinal cord contusions) AND (hyperbaric oxygenations OR hyperbaric oxygen therapy OR hyperbaric oxygen therapies). The references of previous systematic reviews were also thoroughly screened to identify potential relevant articles.

2.2 Study selection

Studies were included if they met the following criteria: (1) RCT; (2) participants with SCI confirmed by computed tomography (CT) or magnetic resonance imaging (MRI); (3) interventions were HBO, including oxygen mask and hyperbaric oxygen chamber; (4) the study provided at least one of the following clinical outcomes: American Spinal Injury Association (ASIA) motor score [11], ASIA sensory score [11], Hamilton Depression Scale (HAMD) [12], Hamilton Anxiety Scale (HAMA) [12], or Modified Barthel Index (MBI) [13]. Studies in languages other than English or Chinese were excluded. Two independent researchers excluded unmatched studies by reading all titles and abstracts after duplicate removal. Then researchers downloaded the full text of the remaining articles and conducted further screening in accordance with the inclusion criteria. Two researchers discussed and decided when disagreements arose. When necessary, a third researcher participated in the selection progress.

2.3 Data extraction

Data of the included studies were extracted using a preset standard form (author, year of publication, number of patients, age and gender of patients, clinical characteristics, details of treatment and control, and outcomes). We contacted the authors if there was incomplete or uncertain information in the studies. Data of Sun was estimated from graphic presentation.

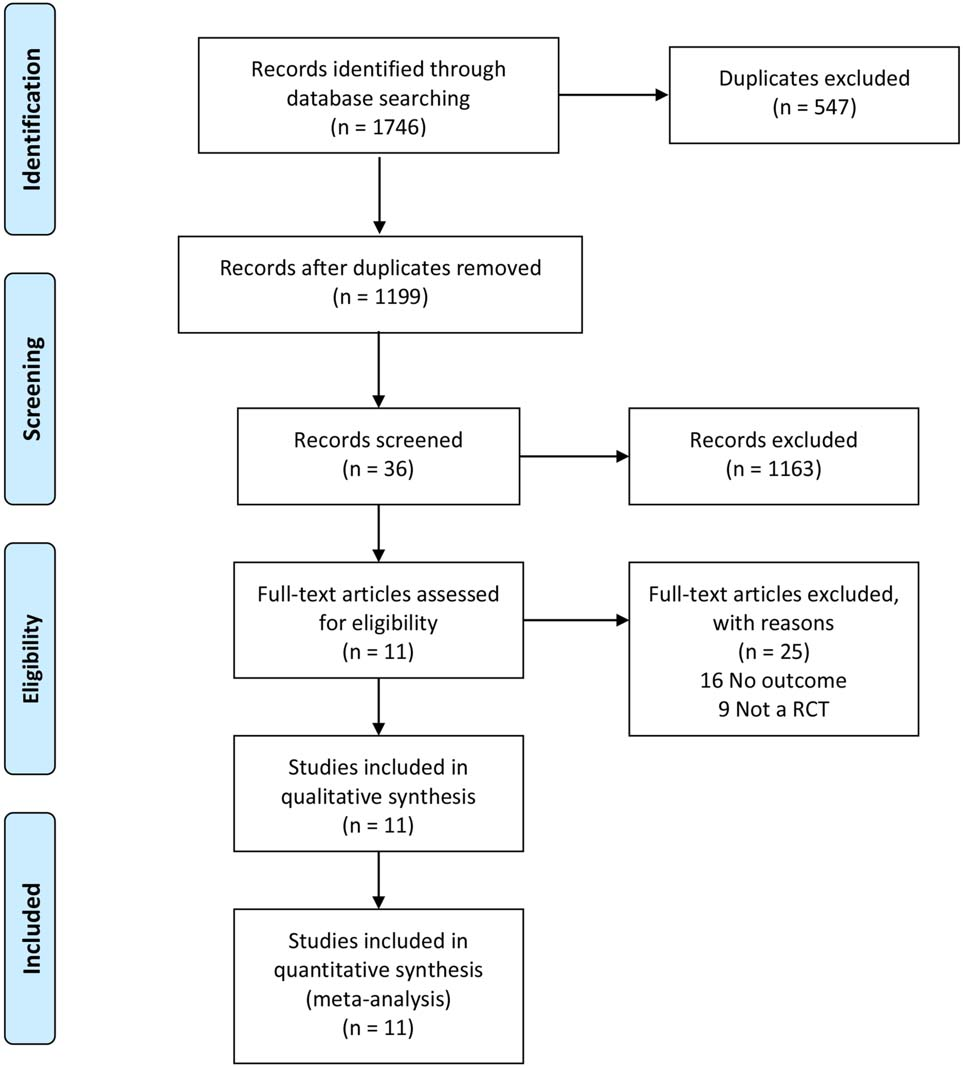

Figure 1.

Flowchart of the study selection.

2.4 Assessment of bias risk

Bias risk was independently assessed by two researchers using the Cochrane Collaboration risk of bias tool, including random sequence generation, allocation concealment, blinding of participants and personal, blinding of outcome assessment, incomplete outcome data, selective reporting and other bias. Two researchers would discuss and decide when disagreements arose. If necessary, a third researcher would participate in the assessment progress.

2.5 Outcome measures

The primary outcomes were motor function and sensory function of patients, ASIA motor score, MBI, ASIA sensory score, HAMD and HAMA, which were measured by ASIA motor score and ASIA sensory score (light touch/needling), respectively. ASIA motor score evaluated 10 representative muscles and the bilateral total score is 100. ASIA sensory score includes light touch and needling of 28 representative sensory flat. Bilateral total score of touch and needling is 224. A higher score represents better motor function/sensory function.

The secondary outcomes were activity of daily living (ADL) and psychological status. ADL was measured by MBI. Personal hygiene, bathing self, feeding, toilet, stair climbing, dressing, bowel control, bladder control, ambulation, or wheelchair, chair/bed transfers were taken into account. 0 $\sim$ 24 means total dependency needs, 25 $\sim$ 49 means severe dependency needs, 50 $\sim$ 74 means moderate dependency needs, 75 $\sim$ 90 means mild dependency needs and 91 $\sim$ 99 means minimal dependency needs.

Psychological status was assessed by the level of depression and anxiety. Depression was measured by HAMD. A score less than 7 means that there is no depression symptom. Anxiety was measured by HAMA. HAMA includes 14 assessment items and the total score is 56. No anxiety symptoms are present when the score is less than 7. The comparison groups were experimental groups (received HBO and conventional therapy) and control groups (received conventional therapy only).

2.6 Statistical analyses

Statistical analyses were performed by RevMan 5.3 (The Cochrane Collaboration) and Stata 15. We calculated mean difference (MD) and corresponding 95% confidence intervals (CI). A $P$ value lower than 0.05 indicated significant difference. Heterogeneity was evaluated by I ${}^2$ test, and fixed models were selected if heterogeneity was not significant (I ${}^2$ $<$ 50%), otherwise random models were selected. A funnel plot was performed to investigate the probability of small study effects. Meta-regression analysis and sensitivity analysis were performed by Stata 15.

Table 1

Characteristics of the included studies

Studies	Participants (E/C)	Experimental group	Control group	Main outcomes	Follow-up
Sun et al. 2019	41/38	Chamber, 2.0ATA, 60 min, daily,30 d	Conventional drug treatment, with (or without) surgical treatment	Plasma HMGB1 and NF- $\kappa$ B, ASIA motor scale, ASIA sensory scale	30 days
Feng et al. 2017	20/20	Oxygen mask, 2.0ATA, 60 min, daily, 6 times per week, 8 weeks	Drugs and rehabilitation therapy	ASIA motor scale, ASIA sensory scale, HAMD, HAMA	56 days
Tian et al. 2011	31/31	Chamber, 0.2 MPa (2.1ATA), 60 min, daily, 10 times/course, 2 courses	Drugs and rehabilitation therapy	ASIA motor scale, ASIA sensory scale	20 days
Sun et al. 2017	82/82	Chamber, 0.2 Mpa, 60 min, daily, 10 times/course, 4 courses	Routine surgical treatment	ASIA motor scale, ASIA sensory scale, MBI	40 days
Xiao et al. 2018	28/28	Oxygen mask, 90 min, daily, 10 times/course, 3 courses	Surgical treatment, drugs and rehabilitation therapy	HAMD, HAMA	30 days
Jiang et al. 2016	43/43	Oxygen mask, 0.2 Mpa, 60 min, daily, 10 times/course, 2 courses	Drugs	ASIA motor scale, ASIA sensory scale, Frankel motor scale, Frankel sensory scale	20 days
Ma et al. 2015	64/64	Chamber, 0.2 Mpa, 60 min, daily, 10 times/course	Surgical treatment, drugs and rehabilitation therapy	ASIA motor scale, ASIA sensory scale	N/A
Liu et al. 2019	21/21	Oxygen mask, 0.25 Mpa, 90 min, daily, 10 times/course, 3 courses	Surgical treatment, drugs and rehabilitation therapy	ASIA motor scale, ASIA sensory scale	30 days
Gao et al. 2015	40/40	Chamber, 0.2 Mpa, 80 min, daily, 10 times/course, 3 courses	Decompression and spinal fixation	ASIA motor scale, ASIA sensory scale	30 days
Hu et al. 2014	40/40	Oxygen mask, 2.0ATA, 90 min, daily, 10 times/course, 3 courses	Surgical treatment, drugs, rehabilitation therapy and methylprednisolone	ASIA motor scale, ASIA sensory scale	30 days
Lei et al. 2011	32/26	Chamber, 0.23 MPa(2.3ATA), 70 min, 10 times/course, 4 courses	Drugs and rehabilitation therapy	ASIA motor scale, ASIA sensory scale, MBI	40 days

E: Experimental group; C: Control group; Chamber: Hyperbaric oxygen chamber; MBI: Modified Barthel Index; HAMD: Hamilton Depression Scale; HAMA: Hamilton Anxiety Scale; MAS: Modified Ashworth Scale; BBS: Berg Balance Scale; FAC: Functional Ambulation Category Scale.

3. Results

3.1 Eligible studies and assessment of bias risk

A total of 1746 studies were initially identified, and 11 studies were included in the meta-analysis (Fig. 1). Two of these studies were English articles [11, 12] and 9 of them were Chinese [13, 14, 15, 16, 17, 18, 19, 20, 21]. The total number of participants was 442 in the treatment group and 433 in the control group. Results of bias risk are shown in Fig. 2.

3.2 Study characteristics

As shown in Table 1, HBO therapy treatment was delivered in the hospital. The HBO parameters were as follows: 0.2 Mpa were used in eight studies, and 0.23 Mpa and 0.25 MPa was used in two studies respectively. Five studies performed HBO therapy by oxygen mask while in six other studies this was performed by hyperbaric oxygen chamber. The single time of HBO therapy lasted from 60 min to 90 min with the treatment period ranging from 20 to 48 days. There were short intervals during the entire treatment.

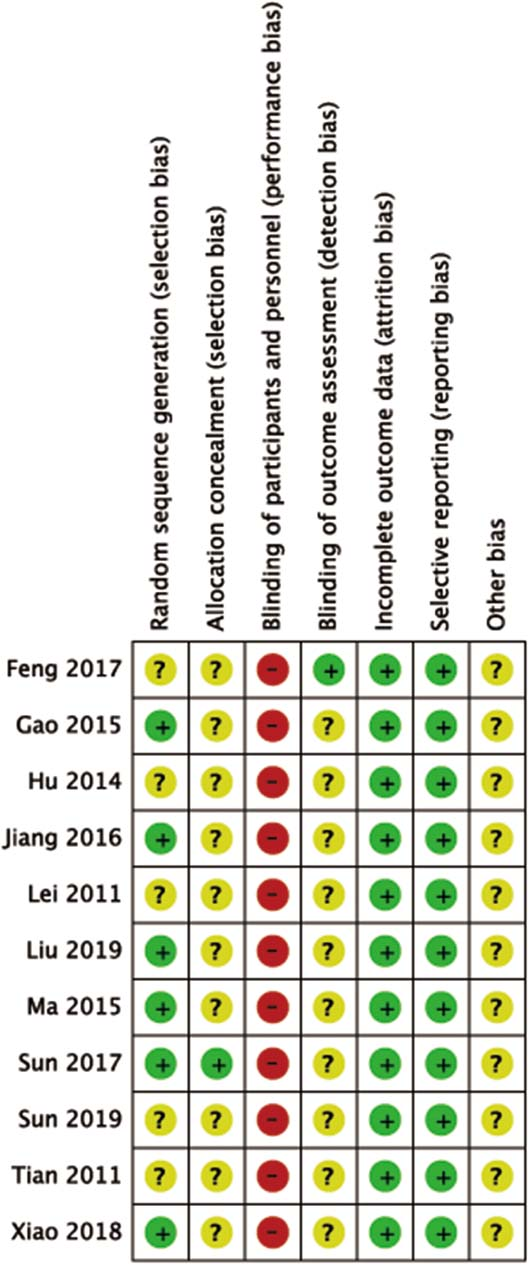

Figure 2.

The risks of bias assessment results of the Cochrane library assessment tool: (+) indicates low risk of bias, (?) means unclear, and (–) a high risk of bias on an item.

3.3 Primary outcomes

3.3.1 ASIA motor

A total of 10 trials demonstrated motor function score with the ASIA motor scale. The random effect model was chosen for the analysis due to the high heterogeneity. Results demonstrated that HBO therapy significantly improved motor function (MD 15.84, 95% CI 9.04 to 22.64, I ${}^2$ $=$ 87%; Fig. 3a) and the funnel plot suggested there was no selective publication (Fig. 3b). The sensitivity analysis was also performed to explain the large heterogeneity, but the results demonstrated that there was no significant source of heterogeneity (Fig. S1).

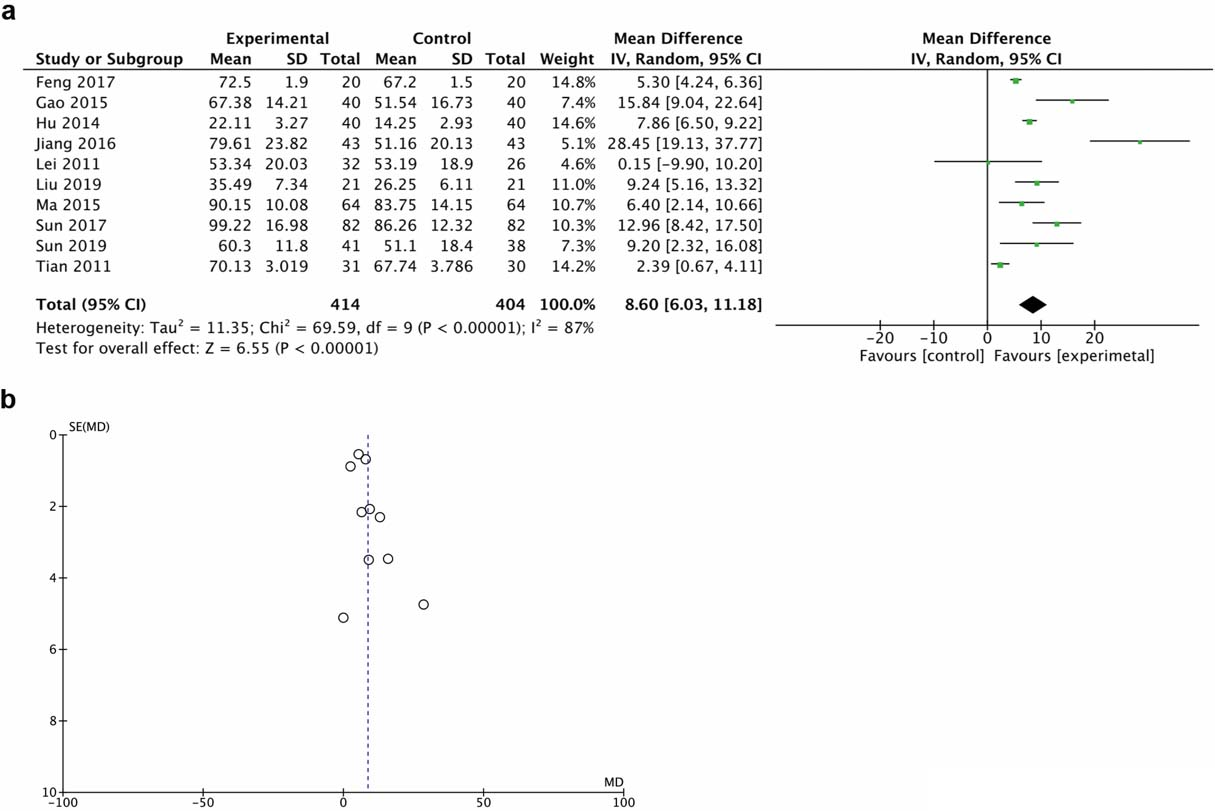

Figure 3.

Forest plot (a) and funnel plot (b) of ASIA motor score of the included studies comparing the effects of the HBO and control groups.

3.3.2 ASIA sensor

A total of 6 trials reported the ASIA sensor score (total) while 4 trials reported light touch and needling respectively. The random effect model was chosen for the analysis due to the high heterogeneity. Results of 6 trials suggested that HBO therapy statistically promoted sensory function (MD 66.30, 95% CI 53.44 to 79.16, I ${}^2$ $=$ 95%; Fig. 4a). For the other 4 trails, HBO therapy statistically increased the light touch score (MD 9.27, 95% CI 3.89 to 14.65, I ${}^2$ $=$ 91%; Fig. 4b) and needling score (MD 10.01, 95% CI 8.60 to 11.43, I ${}^2$ $=$ 95%; Fig. 4c). Sensitivity analysis showed that the systematic exclusion of each study did not significantly affect the pooled results of the sensory score, but slightly affected the results of sensory score-light touch and needling (Fig. S2). The funnel plot suggested that there was no selective publication (Fig. S3).

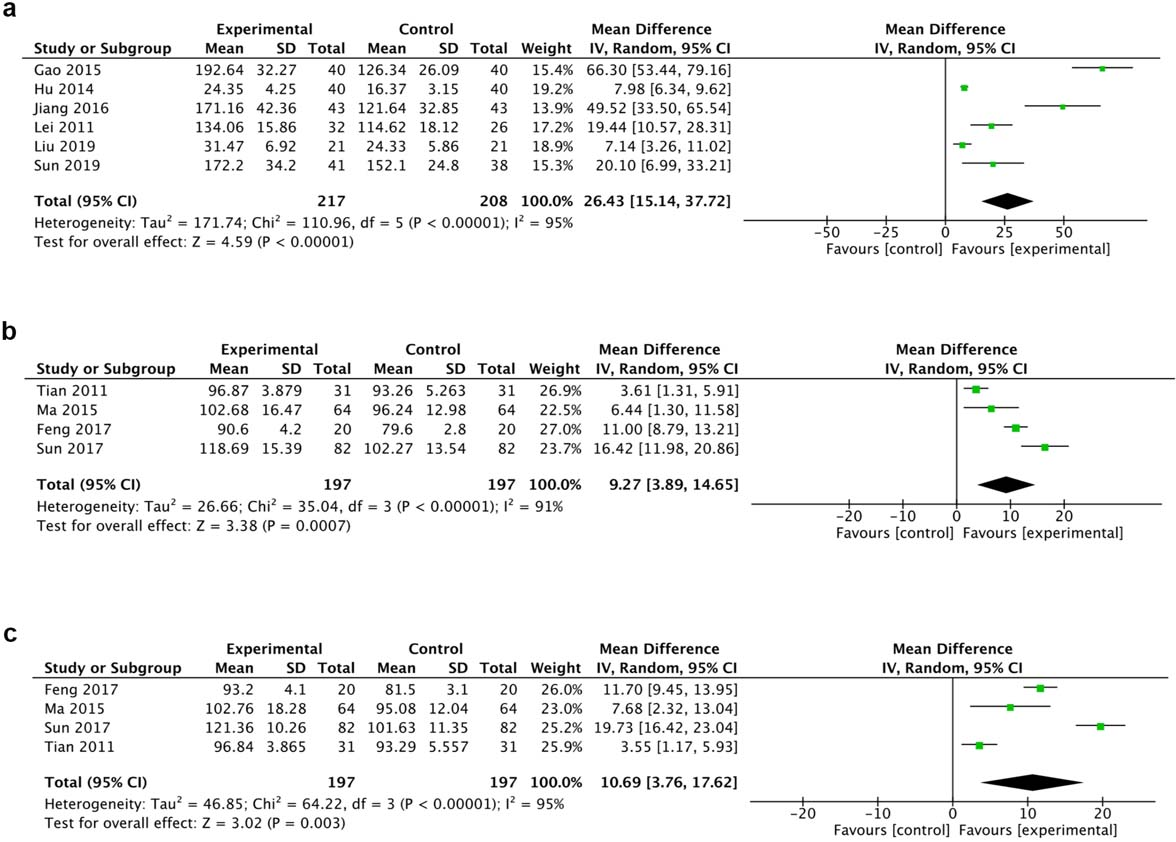

Figure 4.

Forest plot of ASIA sensory score (a), ASIA sensory light touch score (b) and ASIA needling score (c) of the included studies comparing the effects of the HBO and control groups.

3.4 Secondary outcomes

3.4.1 MBI, HAMA and HAMD

A total of 2 trials reported MBI and 2 reported HAMD and HAMA. The fixed effect model was chosen for the analysis of MBI and HAMA because there was no heterogeneity. HBO therapy was implicated in the significant improvement of MBI (MD 13.80, 95% CI 10.65 to 16.94, I ${}^2$ $=$ 0%; Fig. 5a). HBO therapy also decreased the HAMA (MD $-$ 2.37, 95% CI $-$ 2.72 to $-$ 2.02, I ${}^2$ $=$ 0%; Fig. 5b) and HAMD (MD $-$ 3.74, 95% CI $-$ 5.82 to $-$ 1.65, I ${}^2$ $=$ 90%; Fig. 5c).

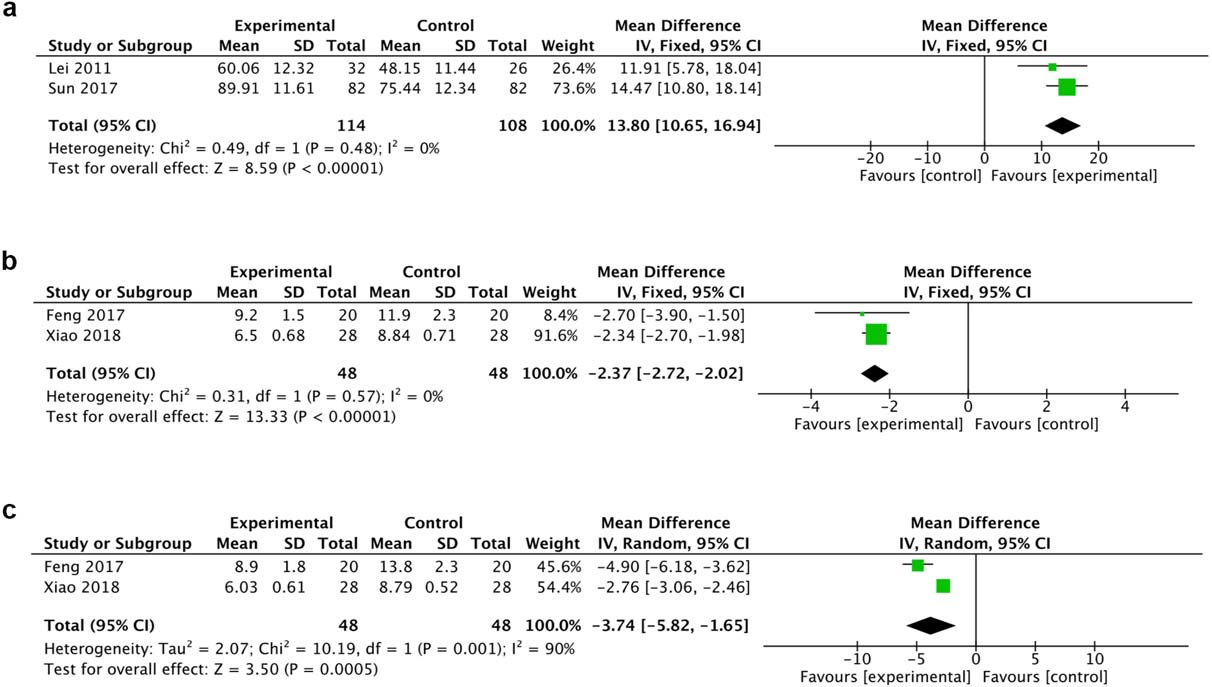

Figure 5.

Forest plot of MBI (a), HAMA (b) and HAMD (c)of the included studies comparing the effects of the HBO and control groups.

4. Discussion

To evaluate the role of HBO on the treatment of SCI, we performed a systematic review of RCTs and found that HBO could improve the ASIA motor score, ASIA sensory score, MBI score, HAMA and HAMD. Our study suggested that HBO may positively affect the motor function and sensory function, improve the ADL, and decrease depression and anxiety of patients with SCI. Although patients with SCI in clinical practice are heterogeneous and thus may respond differently to HBO therapy, the results demonstrated that HBO therapy statistically promoted the motor and sensory function as well as the ADL.

HBO therapy shows encouraging neuroprotective effects in previous experimental research, however, the mechanism of HBO on SCI was unclear. The major reasons for the intractability of SCI involve the edema of nerve cells, lipid peroxide and oxygen free radicals, resulting in a series of reaction such as obstacle of spinal marrow micro loop, activation of neural protease, cytotoxicity and apoptosis [13, 14]. Consequent secondary injuries block the regeneration of nerve fibers and axon so that SCI becomes ‘irreversible’ with a range of motor and sensory impairments [2, 15]. Treatment of SCI should focus on inhibiting inflammation, reducing cytotoxicity and apoptosis, and promoting the regeneration of nerve fibers and axon [16]. Firstly, HBO therapy could decrease apoptosis after traumatic SCI by downregulating the hypoxia-induced iNOS gene expression, inflammatory cytokines such as interleukin IL-1 $\beta$ and tumor necrosis factor (TNF- $\alpha$ ) [17, 18], apoptosis-associated speck-like protein containing a CARD (ASC), and ER-stress-induced apoptotic pathway. Secondly, HBO therapy could regulate oxidative stress. HBO may decrease the level of lipid peroxidation and this mechanism refers to several makers, malondialdehyde (MDA) [19], catalase and superoxide dismutase, heat shock protein (HSP32) [20], and nuclear factor erythroid 2-related factor 2 (Nrf2) [21]. Thirdly, HBO therapy could reduce inflammation through handling the balance of anti-inflammatory M2 phenotype and inflammatory M1 phenotype [22], declining NALP3 inflammasome [23], adjusting MMP-2 and MMP-9 [24], governing the expression of high-mobility group protein B1 (HMGB1) [25, 26], and regulating gap junctions [27]. Fourthly, HBO therapy could promote angiogenesis which may be associated with vascular endothelial growth factor (VEGF) [28]. HBO therapy could also reduce water access into the spinal cord by downregulating the expression of aquaporin 4 (AQP4), reduce metalloproteinases, and ultimately decrease the spinal cord edema. Autophagy upregulation induced by HBO therapy could encourage repair and protection after SCI [29].

Although SCI in clinical practice is heterogeneous and thus may respond differently to HBO therapy, the results demonstrated that HBO therapy statistically promoted the motor and sensory function as well as ADL. The mechanism may be that HBO therapy could regulate microcirculation, improve blood oxygen tension, and increase the content of physically dissolved oxygen in the blood, thus enabling the body to complete cell metabolism with sufficient oxygen support [30] and relieve spinal edema. HBO therapy could also prevent nerve cells from apoptosis after SCI, regulate oxidative stress and lipid peroxidation, and ultimately boost the recovery of nerve function. Based on the above mechanism, the earlier hyperbaric oxygen therapy is applied, the better the recovery of SCI will be.

However, we did not identify the heterogeneity source after meta-regression for ASIA motor score and ASIA sensory score by methods of HBO therapy, treatment duration and treatment course (data not shown). Sensitivity analysis showed that systematic exclusion of each study did not significantly affect the pooled results (Fig. S1). For sensory score-light touch and needling, studies by Sun et al. and Tian et al. indicate potential heterogeneity source (Fig. S1). Because these studies had difficulty in being divided into subgroups, we conjectured that high heterogeneity may be implicated in the divergent severity of SCI.

Due to sudden changes of physiological condition and social status, paralysis could not be fully cured, the gap between expectations and clinical treatment effect, patients with SCI take unbearable psychological pressure and are prone to generating a series of non-specific psychological reactions, such as anxiety, depression and other psychological emotional problems of a different level [31]. Approximately 60% of SCI patients suffer from depression [32]. HBO can relieve anxiety and depression in patients and this effect may benefit a virtuous cycle, in which patients are more willing to cooperate with the rehabilitation treatment after their functions have restored utilizing HBO and their depression or anxiety have also been alleviated.

Due to the small sample size included in this study, more high-quality and large-sample size RCTs are necessary to confirm the results demonstrated in the present study. Moreover, the results of all studies were positive, indicating a possible publication bias. Besides, HBO therapy treatment duration and treatment course had some differences, and this might be one of the reasons why the present study did not determine a consistent treatment parameter. In short, current clinical treatments only achieve limited efficacy, so the prognosis for patients with SCI remains poor. Restoration of the motor functions after SCI remains an elusive goal. Over the years, many studies have shown that HBO therapy possesses desirable effects on the tissue edema, local inflammation, secondary injury and functional recovery for SCI. Therefore, HBO therapy may be useful for clinical treatment as a safe, promising and effective treatment.

4.1 Limitations

Our study has some limitations. First, we did not identify the heterogeneity source after meta-regression for ASIA motor score and ASIA sensory score by methods of HBO therapy, treatment duration and treatment course (data not shown). Sensitivity analysis showed that systematic exclusion of each study did not significantly affect the pooled results (Fig. S1). For sensory score-light touch and needling, the studies by Sun et al. and Tian et al. indicated the potential heterogeneity source (Fig. S1). Because these studies had difficulty in dividing subgroups, we conjectured that high heterogeneity may be implicated in the divergent severity of SCI. Second, the credibility of the results should be taken with caution because the number of studies was only two, so more RCTs are needed to determine HBO’s performance in anxiety and depression.
