Evaluation of the toxicity of WS-5 in a 90-days nose-only exposure in sprague-dawley rats

Abstract

Introduction

WS-5 is a flavor ingredient that provides a cooling sensation similar to that of menthol but without the characteristic menthol flavor. In the available toxicological evaluations of WS-5 there was no data specific to inhalation exposure.

Methods

A 90-days nose-only inhalation study was conducted using Sprague Dawley rats exposed to Filtered air, propylene glycol/glycerin (40/60 by weight; vehicle control), or one of three WS-5 concentrations (0.2, 0.4, or 0.8% by weight) to assess the inhalation toxicity of WS-5. The study design was consistent with the Organization for Economic Development and Cooperation test guideline 413 and included a 28-day and 6-week recovery sacrifices, in addition to the 13-week assessment.

Results

Food consumption and body weights were unaffected by WS-5 exposure compared to vehicle control or Filtered air. No WS-5 exposure related alterations were observed in serum chemistry, hematology, coagulation, urinalysis or bronchoalveolar lavage fluid cytology and clinical chemistry. Macroscopic examinations and terminal organ weights revealed no observations associated with exposure to WS-5.

Discussion

Histopathology findings of alveolar hemorrhage and mixed cell infiltration at the 28-day necropsy were either not present in the WS-5 exposed groups or were present at similar frequencies in the vehicle control and/or Filtered air groups at the 13-weeks necropsy and thus, were not considered to be vehicle control or WS-5 related.

Conclusion

Based on the absence of adverse effects, the no-observed-adverse effect concentration was considered to be 2.5 mg/L of aerosolized 0.8 w% WS-5 that achieved a mean measured exposure concentration of approximately 18 μg WS-5/L

Keywords

Inhalation toxicology WS-5 ends aerosols

Introduction

WS-5 has a chemical name of N-((Ethoxycarbonyl)methyl)-p-menthane-3-carboxamide with a CAS Number of 68489-14-5 (FEMA number 4309) and was developed in the 1970s by Wilkinson Sword, Ltd as an alternative to menthol for toiletries and cosmetic products.¹ Subsequently, WS-5 and similar compounds have been called synthetic cooling compounds and have been used in numerous different types of consumer products.¹ In comparison to menthol, WS-5 has four times the cooling strength with a similar duration of cooling effect,¹ but without the characteristic menthol taste.^2,3 Cell receptor binding studies indicate that the cooling effect of WS-5 occurs via the transient receptor potential (TRP) channels, specifically TRPA-1 and TRPM-8.⁴

Recently, several authors have identified various synthetic cooling compounds in Electronic Nicotine Delivery Systems (ENDS) and noted the lack of inhalation toxicology data for these chemicals.^2,5–7 The available toxicology data on synthetic cooling compounds, including WS-5, has been summarized by the European Food Safety Authority,^8–10 Flavor Extract Manufacturers Association and Joint FAO/WHO Expert Committe on Food Additives.^11–13 None of these summaries and toxicological evaluations of synthetic cooling compounds included inhalation toxicology studies. Recently Wu et al.,¹⁴ published results of a 28-days nose-only inhalation study using an ENDS device for aerosol generation with an e-liquid containing 10% WS-23. The study used an Organization for Economic Cooperation (OECD) compliant study design and was conducted in accordance with Good Laboratory Practice guidelines. Although there were sporadic statistically significant differences in a few endpoints among the three WS-23 dose groups compared to the vehicle control group, the authors determined a No Observed Adverse Effect Level (NOAEL) to be at least 342.85 mg/m³, the highest dose tested.¹⁴ The objective of this study was to evaluate the toxicity of WS-5 in a 90-day nose-only rodent inhalation study.

Materials and methods

The 90-day nose-only inhalation study was conducted using the standard OECD guideline 413¹⁵ study design (90-days [13-weeks] of exposure with a 28-day [4-weeks] time point followed by 42-day [6-weeks] of recovery) and was conducted in compliance with U.S. Good Laboratory Practices (21 CFR Part 58) by a contract research organization (Charles River Laboratories, Ashland, Ashland, OH). This study is being published in accordance with the Animal Research: Reporting of In Vivo Experiments guidelines.¹⁶

Animals

All care and use of Sprague-Dawley rats (Crl:CD[SD]) were performed in facilities that were accredited by the Association for Assessment and Accreditation of Laboratory Animal Care International (AAALAC International), and all animal experiments were approved by the Charles River Ashland Institutional Animal Care and Use Committee. Male and Female (nulliparous) Sprague-Dawley rats bred under specific pathogen-free conditions were obtained from a commercial supplier (Charles River Laboratories, Raleigh, NC). Animals were individually identified via subcutaneous transponders and housed two to four animals (same sex) per polycarbonate cage (Bed-o’ Cobs®, ScottPharma Solutions) during non-exposure periods. Certified rodent diet (PMI Nutrition International, LLC) and fresh drinking water (municipal tap water, reverse osmosis and ultraviolet irradiated) was supplied ad libitum to each cage. Enrichment items (e.g., treats, gnawing device, and/or nesting material) were provided in each cage. A 12-hr. Light/12-hr. Dark cycle was used for the animal rooms. Laboratory air was fresh filtered and conditioned (20–26°C; 30–70% relative humidity). The animal housing set-up was in accordance with the Guide for the Care and Use of Laboratory Animals (National Research Council, 2011). Animals were acclimated for a minimum of 6 days to laboratory conditions and were subsequently acclimated to the nose-only exposure tubes over 4 days. No food or water was available during acclimation to the nose-only exposure tubes or inhalation exposures. Animals were approximately 7 weeks of age at the beginning of exposures.

Test article

WS-5 is a white powder with a molecular weight of 269.38, a melting point of 80–82°C, a boiling point of 151°C and a vapor pressure of 0.00023 Pa at 25°C. WS-5 is soluble in propylene glycol (11.5 gm/100 gm at 20°C) and insoluble in water.^17,18 Based upon these physical data, WS-5 was expected to be in the particle phase of the aerosol. A single lot of WS-5 (100% purity; Vigon, International, Inc.) that was within its shelf-life period was used for all WS-5 formulations. Each of the WS-5 formulations consisted of a base of a single lot of USP grade propylene glycol and USP grade, Food Chemical Codex compliant glycerin that were mixed in a 40%/60% ratio (w/w). WS-5 was added to the 40%/60% base of propylene glycol/glycerin at 0.2%, 0.4%, and 0.8% on a weight basis (w/w). At the target aerosol concentration of 2.5 mg/L this equates to 5.0, 10.0, and 20.0 μg/L of WS-5 for the low, mid and high exposure groups, respectively. The highest inclusion level was limited by solubility of WS-5, so all WS-5 formulations were heated to 38 ± 1.2°C in a water bath and stirred during use in their aerosol generation systems to maintain WS-5 solubility. The vehicle control consisted of the base formulation; 40%/60% (w/w) propylene glycol/glycerin without any WS-5. When not being used for aerosol generation, formulations were stored at room temperature (18–24°C). A 40-day room temperature stability study of the 0.2% and 0.8% WS-5 formulations was performed. WS-5 concentration was measured using a validated gas chromatograph with a flame ionization detector (GC-FID) technique. After 40-days the mean post-storage WS-5 concentrations were 96.3% and 99.0% of the pre-storage values (N = 2), respectively. These results were within the a-priori acceptance criteria of ±10% of the pre-storage value. Vehicle control and WS-5 formulations were made weekly.

Exposures

Animals were exposed 6 h/d, 5 days/week for 28 or 90 days (4 or 13 weeks).¹⁵ A continuous aerosol stream was created for vehicle control and WS-5 exposure groups using a Capillary Aerosol Generator (CAG). Details of the CAG have been previously published^19–25 and its use as an aerosol generator for inhalation studies has also been established.^26–28 Briefly, the vehicle control or WS-5 formulation was pumped through the CAG, which heats the liquid to a defined temperature creating a vapor that is subsequently cooled with dilution air. For the vehicle control and WS-5 formulations the CAG temperature was set to 270 ± 10°C, which mimicked the coil temperature of an Electronic Nicotine Delivery System.^24,29,30 A temperature controller that used a thermocouple to measure CAG temperature and resistive heaters was used to control the CAG temperature. Dilution air was introduced into two places prior to the nose-only exposure towers. First, approximately 90 L/min of room temperature HEPA filtered air diluted the vapor as it exited the CAG creating an aerosol. Second, up to approximately 37 L/min of room temperature HEPA filtered air was introduced at the top of the stainless-steel nose-only exposure towers (14.1 L internal volume) to control the target aerosol exposure concentration to 2.5 mg/L for the vehicle control and the three WS-5 exposure groups. A Filtered Air exposure group was included as a negative control for comparison. Separate stainless-steel nose-only exposure towers (Charles River Laboratories, Ashland, OH) were used for each exposure group (Table 1). Nose-only exposures were used to maximize respiratory tract exposure to WS-5 and minimize non-inhalation routes of exposure.^31,32 Animal position on the nose-only exposure towers was changed daily. Exposure atmosphere temperature and relative humidity were monitored at least 5 times/daily in each nose-only exposure tower using a Vaisala temperature and humidity probe (Model No. HMT120, Vaisala, Helsinki, Finland). Targeted mean temperature and relative humidity of the exposure atmospheres were 19°C–25°C and 30%–70%, respectively. To assess reversibility of any potential changes (e.g., hematology, clinical chemistry, histopathology, etc.), a 43-days post-inhalation period (recovery) was used for sub-groups of rats (Table 1). To accommodate necropsy capacity limitations, exposure initiation was staggered so that the necropsy after 28 days of exposure occurred on days 29 and 30, necropsy after 90-days of exposure occurred on days 92, 93, and 94, and the recovery necropsy occurred on days 134 and 135 of the study.

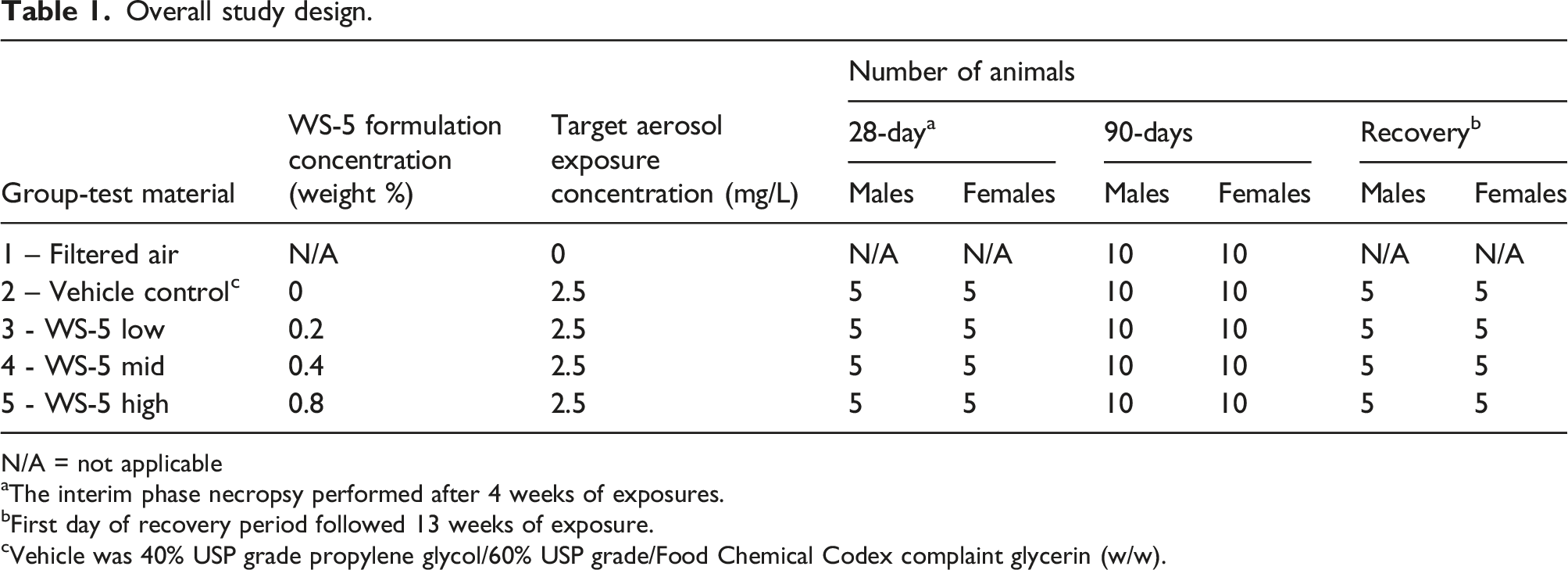

Table 1.

Overall study design.

Group-test material	WS-5 formulation concentration (weight %)	Target aerosol exposure concentration (mg/L)	Number of animals
			28-day^a		90-days		Recovery^b
			Males	Females	Males	Females	Males	Females
1 – Filtered air	N/A	0	N/A	N/A	10	10	N/A	N/A
2 – Vehicle control^c	0	2.5	5	5	10	10	5	5
3 - WS-5 low	0.2	2.5	5	5	10	10	5	5
4 - WS-5 mid	0.4	2.5	5	5	10	10	5	5
5 - WS-5 high	0.8	2.5	5	5	10	10	5	5

N/A = not applicable

^aThe interim phase necropsy performed after 4 weeks of exposures.

^bFirst day of recovery period followed 13 weeks of exposure.

^cVehicle was 40% USP grade propylene glycol/60% USP grade/Food Chemical Codex complaint glycerin (w/w).

To assess exposure to vehicle control and WS-5 formulations, validated analytical chemistry assays were used to measure WS-5, propylene glycol and glycerin using GC-FID and water using Karl Fischer Titration analysis in the formulations and filter samples collected twice weekly from the nose-ports of the nose-only inhalation towers used for each group. Actual exposure concentrations were determined gravimetrically at least five times daily by collecting aerosol on pre-weighed 44 mm glass fiber filters (Whatman, GE Healthcare, UK) and dividing the accumulated mass by the sample volume. The aerosol particle size distribution (mass median aerodynamic diameter – MMAD and geometric standard deviation – GSD) was determined weekly using a cascade impactor (InTox, Moriarty, NM; model 02-001-A in brass).

Biological endpoints

Twice daily in-life observations (before and after exposure with animals in their cages) were performed on exposure days and once per day on non-exposure days. Detailed clinical observations were conducted weekly for all exposed animals. Body weights (non-fasted) and feed consumption were measured weekly for each animal upon arrival through termination. Ophthalmic examinations were performed by a board-certified veterinary ophthalmologist prior to exposure, during week 4 and 13 of exposure, and near the end of the recovery period.

Confirmation of exposure was performed by measuring the amount of propylene glycol in rat plasma using a validated analytical assay²⁸ for all exposure groups, except Filtered Air, on days 3, 28, and last day of exposure. Blood samples were obtained within 10 min post exposure from the recovery group animals (5 animals/sex/group) via jugular vein. An anticoagulant tube (K₂EDTA) was used to collect the plasma, which was gently mixed and centrifuged within 2-h of collection. The resultant plasma was transferred to a polypropylene tube and stored at −70°C until analysis.

Respiratory physiology measurements (tidal volume and frequency) were measured twice during the study (days 43–50 and 82–90) using a single-chamber restraint plethysmograph (Buxco Electronics, Inc., Wilmington, NC). After 42-days of exposure five animals/sex/group from the vehicle control and high (0.8%) WS-5 groups were assessed. In the last week of exposure (days 82–90), five animals/sex/group in all exposure groups except Filtered Air were evaluated. Baseline measurements started 10 min prior to exposure and measurements continued for 30 min of exposure with only the last 15 min used for data analysis. Data acquisition logging rate was set to 5 s and respiratory data were sampled at 500 Hz. Any data indicating more than 350 breaths/minute or a tidal volume of greater than 5.0 mL was considered physiologically unlikely and excluded from analysis. Minute volume was calculated as the product of the measured tidal volume and respiratory frequency.

Terminal endpoints

Animals were fasted for at least 8 h prior to blood collection while housed in metabolism cages for urine collection. Blood was collected via the jugular vein and placed into tubes with potassium K₂EDTA for hematology, and tubes with no anticoagulant for clinical chemistry. Blood was collected from anesthetized animals (using isoflurane via inhalation) into tubes with sodium citrate for coagulation parameters at the time of euthanasia via the vena cava. The euthanasia was completed by exsanguinating the anesthetized animals.

Urinary volume, pH, and specific gravity as well as glucose, ketone and protein concentration were measured. The hematology endpoints included red blood cell indices (mean corpuscular hemoglobin concentration, mean corpuscular volume, red blood cell and reticulocyte count and hematocrit), platelet count, mean platelet volume, white blood cell count, differential count, as well as coagulation parameters (function included prothrombin time, activated partial thromboplastin and fibrinogen). Clinical chemistry endpoints included: Total Protein, Albumin, Globulin, Albumin/Globulin ratio, Alkaline phosphatase, Alanine aminotransferase, Aspartate aminotransferase, Gamma glutamyltransferase, Cholesterol, Creatine kinase, Creatine, Glucose, Triglycerides, Total bilirubin Direct and Indirect bilirubin, Sodium, Calcium, Potassium, Chloride, Phosphorus and Urea Nitrogen.

Three bronchoalveolar lavages (BALF) were performed on the right lung of all animals after lung weight was recorded and before the lungs were inflated with fixative. The supernatant of the first lavage was evaluated for protein concentration, lactate dehydrogenase, and alkaline phosphatase enzyme activities using automated methods. The cell pellets from the three lavages per animal were combined and resuspended for counting. Total cell counts were obtained using a hemocytometer (Hausser Scientific, Pa.). For differential counts (cytology), at least 200 cells per slide (cytospin preparation) were identified (if possible) as macrophages, neutrophils, lymphocytes, eosinophils, basophils, or others.

Macroscopic evaluation for gross lesions was conducted on all animals at all necropsies (Supplemental Table 1). Organ weights (absolute) were obtained for all organs (Supplemental Table 1) at each necropsy (after 28 and 90 days of exposure and following the 42-days of recovery). Paired organs were weighed together. Organ weight to final (fasted) body weight and organ weight to brain weight ratios were calculated from animals at each scheduled necropsy. After 29 and 90 days of exposure histopathological evaluation was performed on respiratory tract tissues (including six different sections of the nose from oropharynx to nasopharynx, larynx, trachea, main carina-intersection of trachea and two major bronchi, extrapulmonary bronchus, and lung) from all groups and organs from the high WS-5 dose (0.8%) group (Supplemental Table 1) by a board-certified veterinary pathologist using a 5-level severity grade scale of minimal, mild, moderate, marked and severe. If histopathological examination of the high WS-5 dose (0.8%) group after 90-days of exposure revealed concerns, organs from the low (0.2%) and mid (0.4%) WS-5 groups were examined. After recovery, histopathology was only performed on animals exhibiting gross lesions and on potential target tissues.

Statistical analysis

The use of statistical comparisons between WS-5 groups and vehicle control was performed to indicate where toxicologically significant differences were most likely to be present. A statistical difference between groups may or may not be a toxicologically significant difference, depending upon expert interpretation which included analysis of factors such as dose-response and coherence among findings. The 5% level (p < 0.05) for statistical significance was used throughout the evaluations. SAS®, ver. 9.4 (SAS International, Cary, NC) was used for statistical analysis.

In general, means, standard deviations (or % coefficient of variation or standard error, when deemed appropriate), ratio, percentages, numbers, and/or incidences were reported depending on the dataset.

The pairwise comparisons for statistical analysis were: Filtered Air versus Vehicle Control; Low dose WS-5 (0.2%) vs. Vehicle Control; Mid dose WS-5 (0.4%) vs. Vehicle Control; and High dose WS-5 (0.8%) vs. Vehicle Control. Any group with less than three observations were excluded from analysis. Levene’s test was used to assess the homogeneity of group variances. The groups were compared using an overall one-way ANOVA F-test if Levene’s test was not significant or the Kruskal-Wallis test if it was significant. If the overall F-test or Kruskal-Wallis test was significant, then pairwise comparisons using two sided tests were conducted using Dunnett’s or Dunn’s test (equivalent to Wilcoxon Rank-Sum test in Nevis 2012 tables), respectively.

Respiratory physiology data were tabulated within each summary time interval and the arithmetic mean (Mean), number of subjects (N), least squares mean (LS Mean), and standard error of the LS Mean (LSM SE) determined. The effect of treatment during each analysis segment was evaluated using an analysis of covariance. Factors in the model included treatment and the covariate (average of 10 min prior to exposure). If the treatment main effect was significant, step-down adjusted t-tests were used to compare each active treatment to the vehicle control treatment using the overall segment means. Step-down simulated adjustment was used to adjust t-tests for pair-wise comparisons. All pair-wise comparisons were evaluated at the 0.05 level of significance, using two-tailed tests.

Results

Characterization of inhalation exposures

The mean temperature and relative humidity measured at the nose-port of each nose-only exposure tower were within the target temperature (19°C–25°C) and relative humidity (30%–70%) ranges (Table 2). The mean measured aerosol exposure concentrations presented to the animals were within 4% of the target exposure concentration of 2.5 mg/L (Table 2) with no statistically significant difference between the groups. Based upon the target aerosol exposure concentration of 2.5 mg/L and WS-5% in the formulations (0.2, 0.4, and 0.8%), calculations would estimate that 5.0, 10.0, and 20.0 μg/L of WS-5 would be presented to the animals for the low, mid, and high WS-5 groups, respectively. These estimates of WS-5 aerosol concentration assume no losses within the aerosol delivery system. The mean measured concentration of WS-5 presented to the animals were below the calculated target WS-5 values for each group and the high dose group demonstrated higher variability (Table 2). The measured WS-5 concentrations (Table 2) were approximately 92%, 85%, and 90% of target values for the low, mid, and high WS-5 dose groups primarily due to the amount of water measured in the aerosol (Table 3). The mean MMAD met the OECD guideline criteria of being less than 2 microns, however there were slight differences between the exposure groups (Table 2).

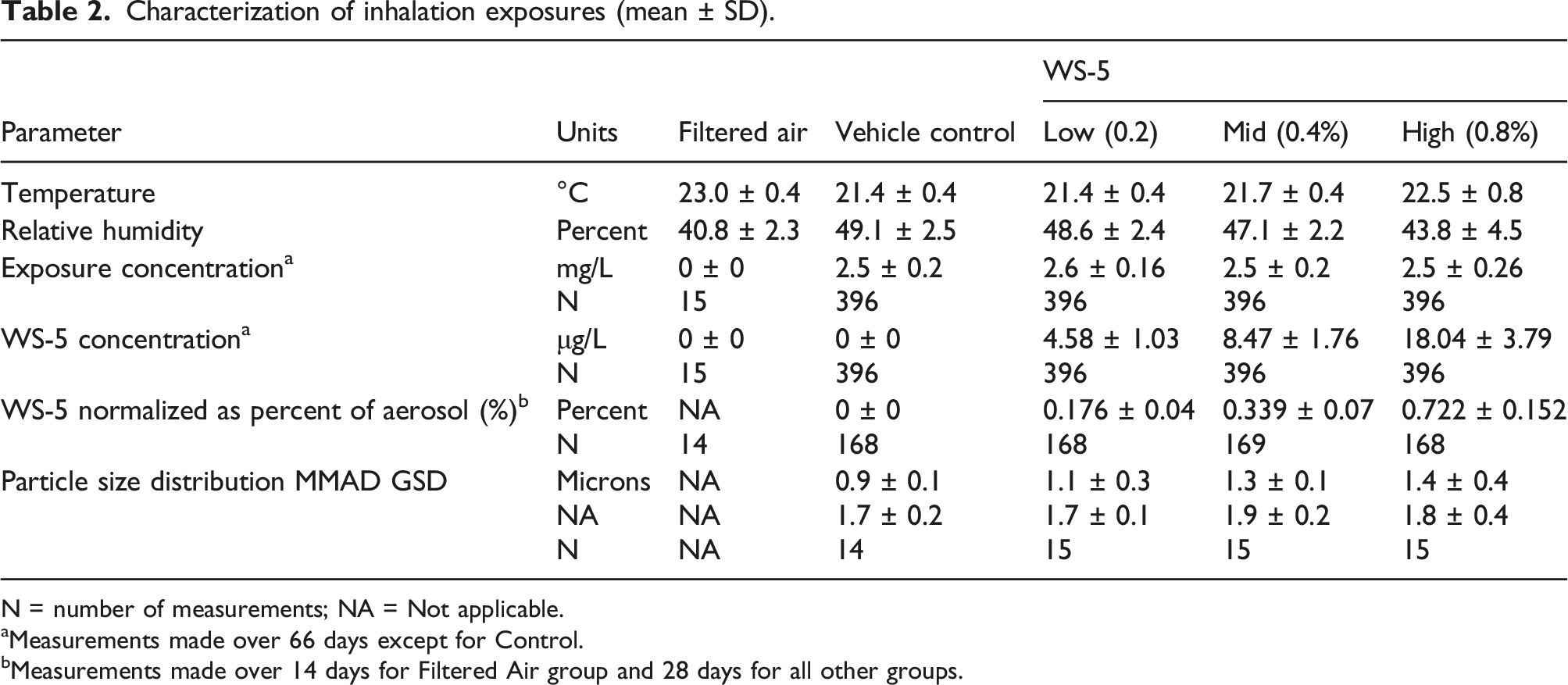

Table 2.

Characterization of inhalation exposures (mean ± SD).

Parameter	Units	Filtered air	Vehicle control	WS-5
Parameter	Units	Filtered air	Vehicle control	Low (0.2)	Mid (0.4%)	High (0.8%)
Temperature	°C	23.0 ± 0.4	21.4 ± 0.4	21.4 ± 0.4	21.7 ± 0.4	22.5 ± 0.8
Relative humidity	Percent	40.8 ± 2.3	49.1 ± 2.5	48.6 ± 2.4	47.1 ± 2.2	43.8 ± 4.5
Exposure concentration^a	mg/L	0 ± 0	2.5 ± 0.2	2.6 ± 0.16	2.5 ± 0.2	2.5 ± 0.26
Exposure concentration^a	N	15	396	396	396	396
WS-5 concentration^a	μg/L	0 ± 0	0 ± 0	4.58 ± 1.03	8.47 ± 1.76	18.04 ± 3.79
WS-5 concentration^a	N	15	396	396	396	396
WS-5 normalized as percent of aerosol (%)^b	Percent	NA	0 ± 0	0.176 ± 0.04	0.339 ± 0.07	0.722 ± 0.152
WS-5 normalized as percent of aerosol (%)^b	N	14	168	168	169	168
Particle size distribution MMAD GSD	Microns	NA	0.9 ± 0.1	1.1 ± 0.3	1.3 ± 0.1	1.4 ± 0.4
	NA	NA	1.7 ± 0.2	1.7 ± 0.1	1.9 ± 0.2	1.8 ± 0.4
	N	NA	14	15	15	15

N = number of measurements; NA = Not applicable.

^aMeasurements made over 66 days except for Control.

^bMeasurements made over 14 days for Filtered Air group and 28 days for all other groups.

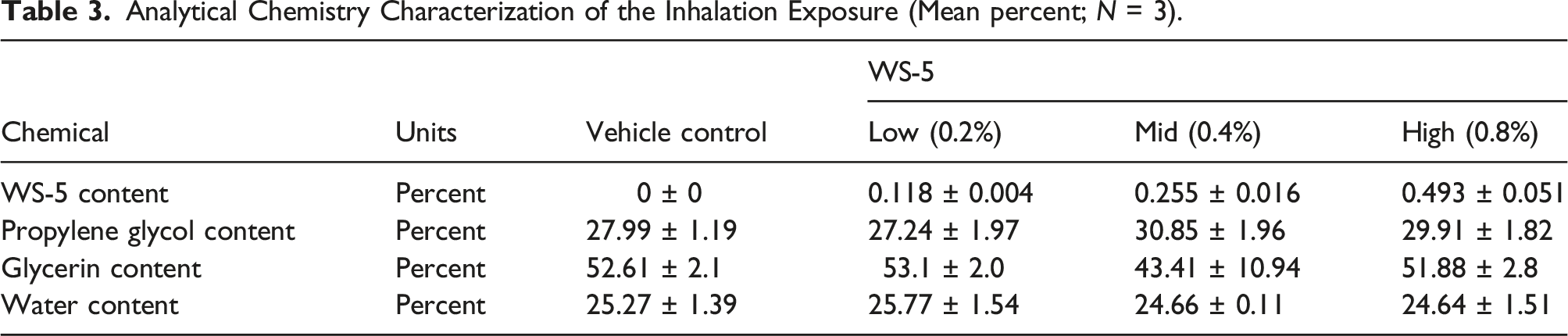

Table 3.

Analytical Chemistry Characterization of the Inhalation Exposure (Mean percent; N = 3).

Chemical	Units	Vehicle control	WS-5
Chemical	Units	Vehicle control	Low (0.2%)	Mid (0.4%)	High (0.8%)
WS-5 content	Percent	0 ± 0	0.118 ± 0.004	0.255 ± 0.016	0.493 ± 0.051
Propylene glycol content	Percent	27.99 ± 1.19	27.24 ± 1.97	30.85 ± 1.96	29.91 ± 1.82
Glycerin content	Percent	52.61 ± 2.1	53.1 ± 2.0	43.41 ± 10.94	51.88 ± 2.8
Water content	Percent	25.27 ± 1.39	25.77 ± 1.54	24.66 ± 0.11	24.64 ± 1.51

Analytical chemistry analysis of aerosol samples from the nose-ports also demonstrated that approximately 25% of the aerosol mass was water. Water could have been absorbed by the humectants, propylene glycol and glycerin, from the humidified air-supply and/or deposited on the 44 mm glass fiber filter pads used for the gravimetric determination of exposure concentration (Table 3). Analysis of rat plasma for propylene glycol, a main component of the vehicle control and WS-5 formulations, confirmed exposure and was consistent within time points for each group (Table 4). Propylene glycol concentrations in rat plasma at day 3 were slightly higher than those measured at days 28 and 91 (Table 4).

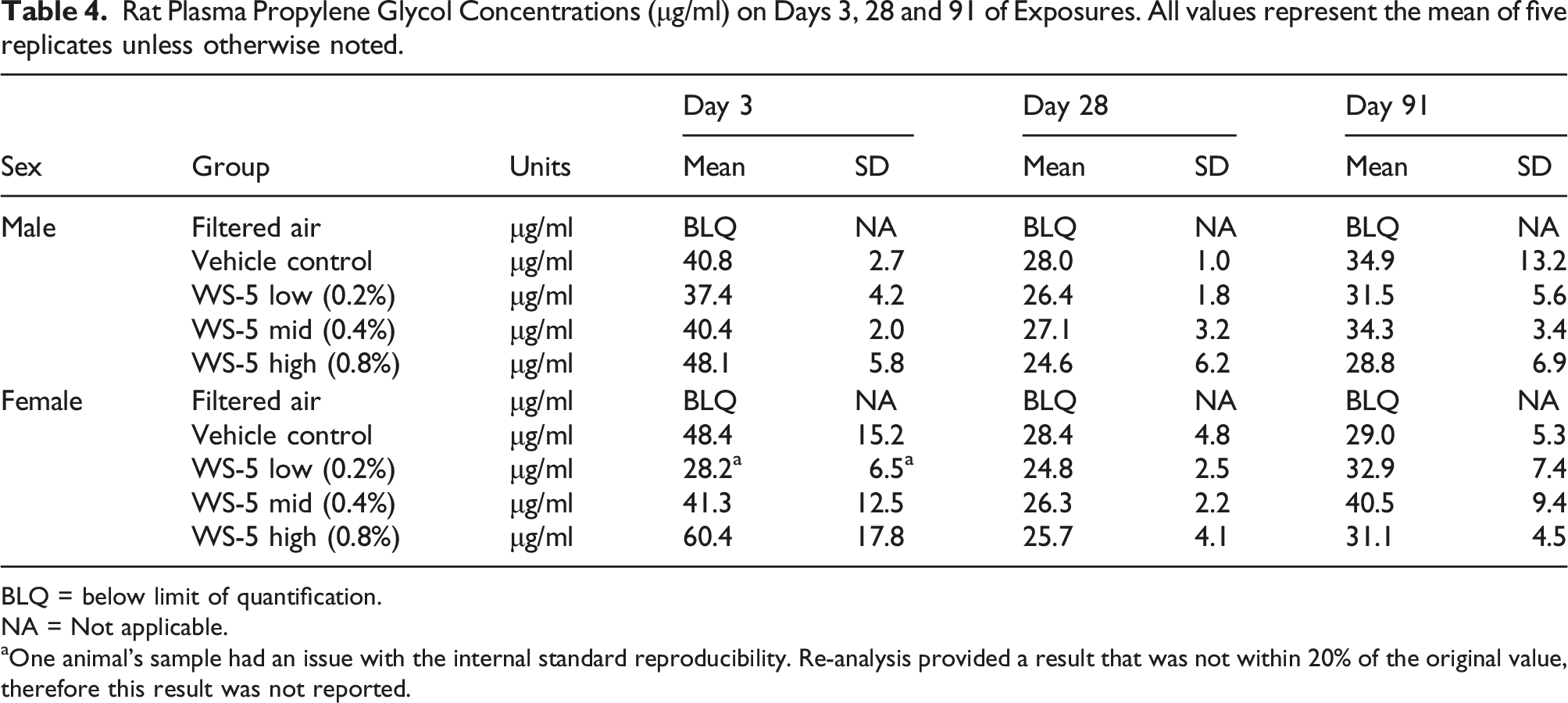

Table 4.

Rat Plasma Propylene Glycol Concentrations (μg/ml) on Days 3, 28 and 91 of Exposures. All values represent the mean of five replicates unless otherwise noted.

Sex	Group	Units	Day 3		Day 28		Day 91
Sex	Group	Units	Mean	SD	Mean	SD	Mean	SD
Male	Filtered air	μg/ml	BLQ	NA	BLQ	NA	BLQ	NA
	Vehicle control	μg/ml	40.8	2.7	28.0	1.0	34.9	13.2
	WS-5 low (0.2%)	μg/ml	37.4	4.2	26.4	1.8	31.5	5.6
	WS-5 mid (0.4%)	μg/ml	40.4	2.0	27.1	3.2	34.3	3.4
	WS-5 high (0.8%)	μg/ml	48.1	5.8	24.6	6.2	28.8	6.9
Female	Filtered air	μg/ml	BLQ	NA	BLQ	NA	BLQ	NA
	Vehicle control	μg/ml	48.4	15.2	28.4	4.8	29.0	5.3
	WS-5 low (0.2%)	μg/ml	28.2^a	6.5^a	24.8	2.5	32.9	7.4
	WS-5 mid (0.4%)	μg/ml	41.3	12.5	26.3	2.2	40.5	9.4
	WS-5 high (0.8%)	μg/ml	60.4	17.8	25.7	4.1	31.1	4.5

BLQ = below limit of quantification.

NA = Not applicable.

^aOne animal’s sample had an issue with the internal standard reproducibility. Re-analysis provided a result that was not within 20% of the original value, therefore this result was not reported.

Mortality/morbidity/in-life observations

All animals survived to their scheduled necropsies. There were no WS-5-related clinical observations. All clinical observations noted were considered incidental as they were either, only noted in a single animal, were of similar incidence in Filtered Air, vehicle control, and WS-5-exposed animals, and/or were common findings for laboratory rats of this age. No ophthalmic lesions indicative of toxicity were observed in any of the WS-5 exposed groups. All ophthalmic findings observed were typical in prevalence and appearance for laboratory rats of this age and strain.

The only statistically significant difference in body weights were for female rats in the recovery group that had been exposed to the high level (0.8%) of WS-5 (Figure 1). These differences were considered to be due to biological variability and not WS-5-exposure related due to lack of a dose-response trend with the mid and low dose groups (0.4% and 0.2% WS-5, respectively). The body weight data were consistent with the food consumption data (Supplemental Tables 2 and 3).

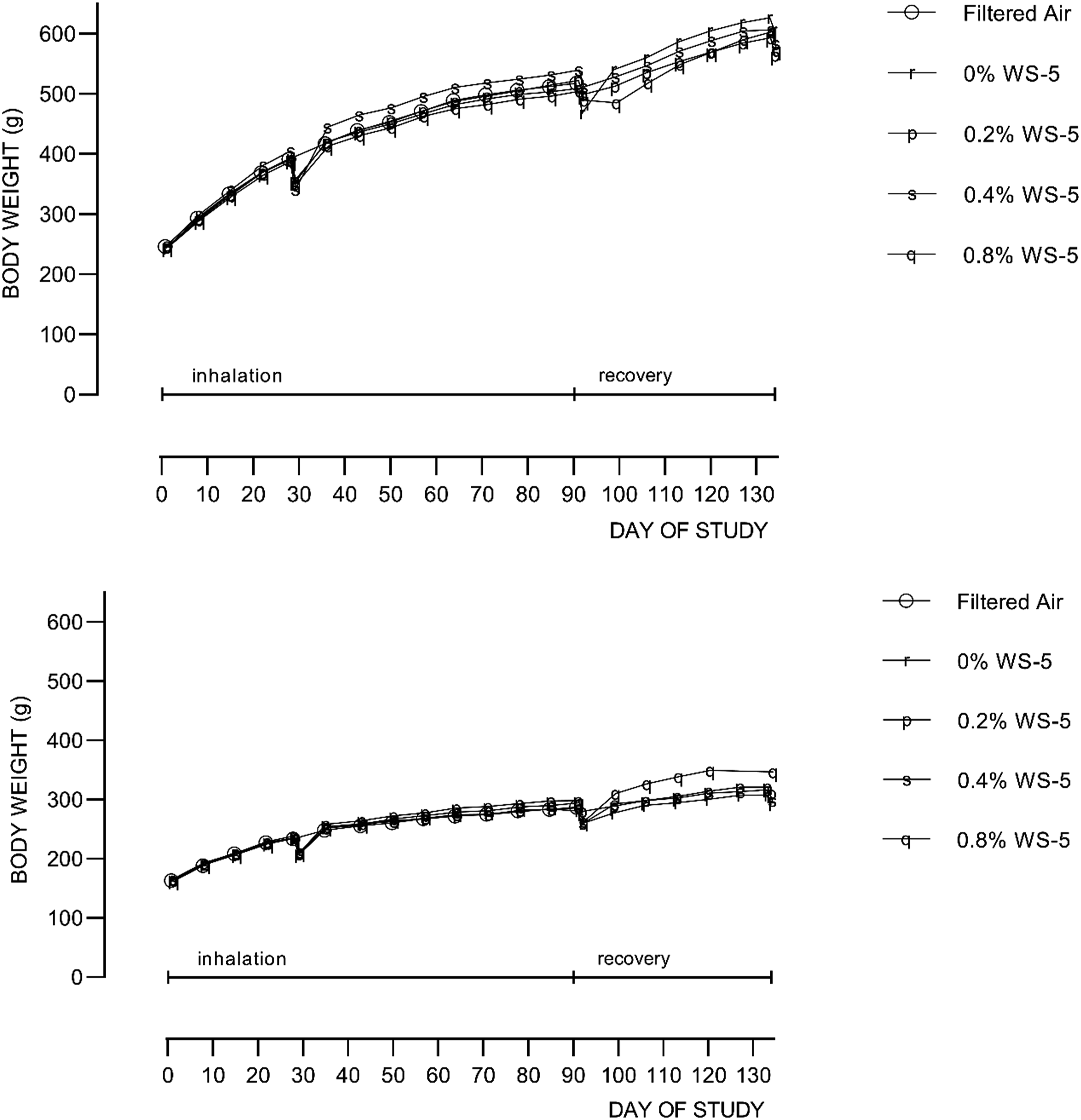

Figure 1.

Mean bodyweight as function of exposure day for males (top panel) and females (bottom panels).

For respiratory physiology, the only statistically significant measured difference was a mean lower tidal volume in males (adjusted p = 0.0087) from the high WS-5 (0.8%) group compared to vehicle control at 16–30 min postdosing after 42 days of exposure (Table 5). This statistically significant measured mean difference in tidal volume resulted in a statistically significant difference in calculated minute volume for males (adjusted p = 0.0031) from the high WS-5 (0.8%) group compared to vehicle control after 42 days of exposure. The measured lower tidal volume and calculated minute volume in males were not considered to be WS-5-related based on absence of change from baseline, and absence of relevant changes after 82 days of exposure for any WS-5 exposure group. There was also a statistically significant lower calculated minute volume noted in females (adjusted p = 0.0499) from the high WS-5 (0.8%) group compared to vehicle control at 16–30 min postdosing after 42 days of exposure (Table 5). The change in calculated minute volume were not considered to be WS-5-related based on absence of change from baseline, and absence of changes after 82 days of exposure (Table 5). There were no other statistically significant changes in minute volume after 42 or 82 days of exposure in either males or females (Table 5).

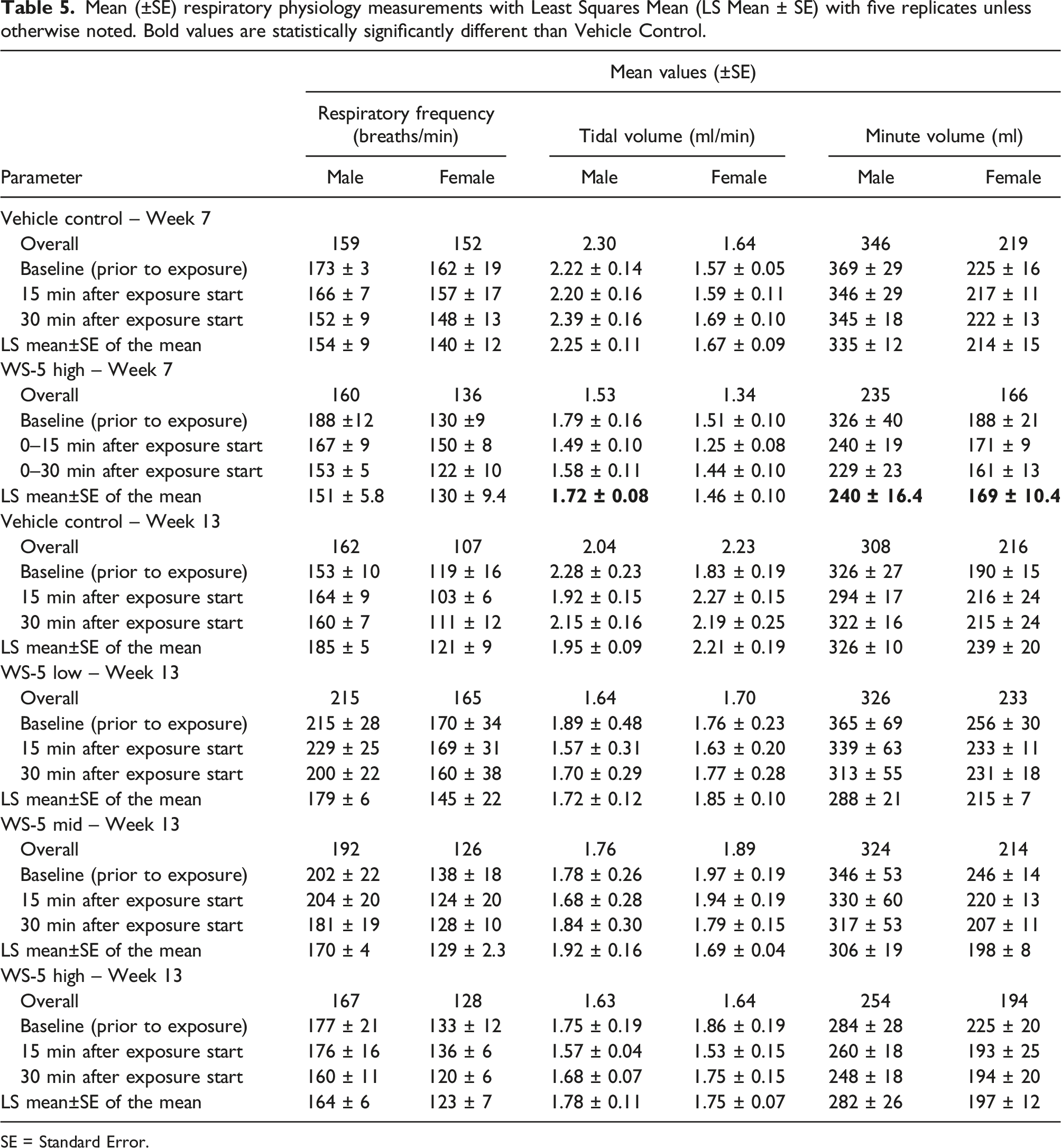

Table 5.

Mean (±SE) respiratory physiology measurements with Least Squares Mean (LS Mean ± SE) with five replicates unless otherwise noted. Bold values are statistically significantly different than Vehicle Control.

Parameter	Mean values (±SE)
	Respiratory frequency (breaths/min)		Tidal volume (ml/min)		Minute volume (ml)
	Male	Female	Male	Female	Male	Female
Vehicle control – Week 7
Overall	159	152	2.30	1.64	346	219
Baseline (prior to exposure)	173 ± 3	162 ± 19	2.22 ± 0.14	1.57 ± 0.05	369 ± 29	225 ± 16
15 min after exposure start	166 ± 7	157 ± 17	2.20 ± 0.16	1.59 ± 0.11	346 ± 29	217 ± 11
30 min after exposure start	152 ± 9	148 ± 13	2.39 ± 0.16	1.69 ± 0.10	345 ± 18	222 ± 13
LS mean±SE of the mean	154 ± 9	140 ± 12	2.25 ± 0.11	1.67 ± 0.09	335 ± 12	214 ± 15
WS-5 high – Week 7
Overall	160	136	1.53	1.34	235	166
Baseline (prior to exposure)	188 ±12	130 ±9	1.79 ± 0.16	1.51 ± 0.10	326 ± 40	188 ± 21
0–15 min after exposure start	167 ± 9	150 ± 8	1.49 ± 0.10	1.25 ± 0.08	240 ± 19	171 ± 9
0–30 min after exposure start	153 ± 5	122 ± 10	1.58 ± 0.11	1.44 ± 0.10	229 ± 23	161 ± 13
LS mean±SE of the mean	151 ± 5.8	130 ± 9.4	1.72 ± 0.08	1.46 ± 0.10	240 ± 16.4	169 ± 10.4
Vehicle control – Week 13
Overall	162	107	2.04	2.23	308	216
Baseline (prior to exposure)	153 ± 10	119 ± 16	2.28 ± 0.23	1.83 ± 0.19	326 ± 27	190 ± 15
15 min after exposure start	164 ± 9	103 ± 6	1.92 ± 0.15	2.27 ± 0.15	294 ± 17	216 ± 24
30 min after exposure start	160 ± 7	111 ± 12	2.15 ± 0.16	2.19 ± 0.25	322 ± 16	215 ± 24
LS mean±SE of the mean	185 ± 5	121 ± 9	1.95 ± 0.09	2.21 ± 0.19	326 ± 10	239 ± 20
WS-5 low – Week 13
Overall	215	165	1.64	1.70	326	233
Baseline (prior to exposure)	215 ± 28	170 ± 34	1.89 ± 0.48	1.76 ± 0.23	365 ± 69	256 ± 30
15 min after exposure start	229 ± 25	169 ± 31	1.57 ± 0.31	1.63 ± 0.20	339 ± 63	233 ± 11
30 min after exposure start	200 ± 22	160 ± 38	1.70 ± 0.29	1.77 ± 0.28	313 ± 55	231 ± 18
LS mean±SE of the mean	179 ± 6	145 ± 22	1.72 ± 0.12	1.85 ± 0.10	288 ± 21	215 ± 7
WS-5 mid – Week 13
Overall	192	126	1.76	1.89	324	214
Baseline (prior to exposure)	202 ± 22	138 ± 18	1.78 ± 0.26	1.97 ± 0.19	346 ± 53	246 ± 14
15 min after exposure start	204 ± 20	124 ± 20	1.68 ± 0.28	1.94 ± 0.19	330 ± 60	220 ± 13
30 min after exposure start	181 ± 19	128 ± 10	1.84 ± 0.30	1.79 ± 0.15	317 ± 53	207 ± 11
LS mean±SE of the mean	170 ± 4	129 ± 2.3	1.92 ± 0.16	1.69 ± 0.04	306 ± 19	198 ± 8
WS-5 high – Week 13
Overall	167	128	1.63	1.64	254	194
Baseline (prior to exposure)	177 ± 21	133 ± 12	1.75 ± 0.19	1.86 ± 0.19	284 ± 28	225 ± 20
15 min after exposure start	176 ± 16	136 ± 6	1.57 ± 0.04	1.53 ± 0.15	260 ± 18	193 ± 25
30 min after exposure start	160 ± 11	120 ± 6	1.68 ± 0.07	1.75 ± 0.15	248 ± 18	194 ± 20
LS mean±SE of the mean	164 ± 6	123 ± 7	1.78 ± 0.11	1.75 ± 0.07	282 ± 26	197 ± 12

SE = Standard Error.

Terminal endpoints

Although there were several differences (statistically significant and non-statistically significant) in hematology, clinical chemistry, and urinalysis, these were sporadic in nature, consistent with biological variation with no consistency across doses, sexes or time points (Data are presented in the Supplemental Tables 4-17). For example, there was a statistically significant difference in eosinophil levels measured in Male rats at after 28 days of exposure for the low WS-5 (0.2%) exposure group compared to vehicle control, with no dose response evident in the mid or high WS-5 exposure groups (0.4 and 0.8%, respectively). There was also a non-statistically significant lower neutrophil count in the high WS-5 (0.8%) group females compared to vehicle control at after 28 days of exposure, but these were considered unlikely to be associated with WS-5 exposure due to a few higher individual animal counts in the vehicle control group and no dose response relationship. There was also a single female rat in the high WS-5 (0.8%) exposure group after 28 days of exposure with a moderately decreased platelet count with minimal (1+) platelet clumping, however due to the single incidence and presence of platelet clumps, the decreased platelet count was considered unrelated to WS-5 exposure. As another example of a non-statistically significant difference, two female rats in the high WS-5 (0.8%) exposure group were observed with increased urine volume and markedly decreased urine specific gravity. These changes lacked correlating clinical chemistry findings, were most consistent with water contamination of the urine sample and were therefore considered unrelated to WS-5 exposure.

There were no statistically significant changes in BALF cytology, total protein, lactate dehydrogenase, or alkaline phosphatase for any WS-5 exposure group at any necropsy (Supplemental Tables 18-23). After 90 days of exposure and recovery necropsies, many of the BALF cytospin smears collected contained numerous extracellular bacteria. This was consistent with contamination at necropsy; however, the presence of bacteria did not compromise the cytological evaluation.

No statistically significant differences in absolute organ weight, organ weight normalized to body or brain weight were found at the necropsy after 28-days of exposure (Supplemental Tables 24-41). After 90-days of exposure, there were two statistically significant differences from vehicle control group mean value for female rats in the absolute weight of the thyroid/parathyroid, one for the Filtered Air group and the other for the low WS-5 (0.2%) exposure group, however there was no difference between these two group mean values. There was also no dose response with the mid or high WS-5 exposure group (0.4 and 0.8%, respectively) and no correlation with histopathology (Supplemental Table 31). When organ weights were normalized to body or brain weight, the statistically significant difference shifted to the mid WS-5 (0.4%) exposure group for the thyroid/parathyroid, again with no dose response and no correlation to histopathology (Supplemental Table 33). At the recovery necropsy, there were no statistically significant differences in absolute thyroid/parathyroid weight or when normalized to body weight or brain weight (Supplemental Tables 37, 39, and 41). There was a statistically significant decrease in brain weight when normalized to body weight for females in the high WS-5 (0.8%) exposure group, however there was no dose response nor any correlation to histopathology (Supplemental Table 39). Therefore, the few organ weight differences observed were considered incidental and unrelated to exposure to WS-5 at any of the necropsies.

Macroscopic evaluation revealed no gross lesions after 28 or 90 days of exposure to WS-5 or at recovery (Supplemental Tables 42-44). Histopathology findings after 28-days of exposure were noted in the lungs of WS-5-exposed group males and females that were not noted in the control or vehicle control group animals (Table 6; Supplemental Table 45). These included minimal to mild alveolar hemorrhage with and without mixed cell infiltration. After 90-days of exposure incidences of alveolar hemorrhage and mixed cell infiltration occurred at lower incidences and lacked a dose response (Table 7). Further, these findings did not occur in WS-5 exposure groups after 90-days of exposure but were found in the vehicle control group.

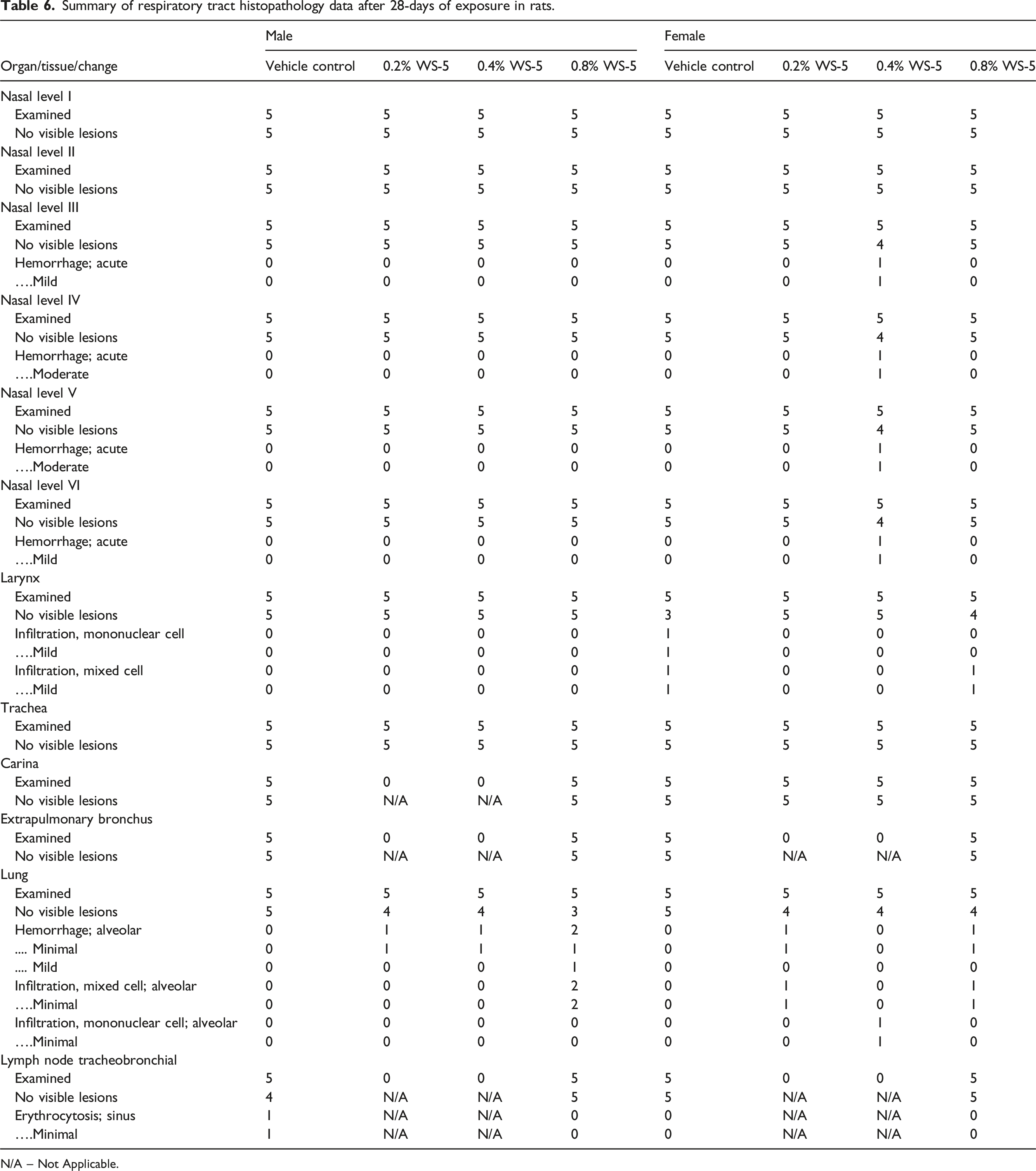

Table 6.

Summary of respiratory tract histopathology data after 28-days of exposure in rats.

Organ/tissue/change	Male				Female
Organ/tissue/change	Vehicle control	0.2% WS-5	0.4% WS-5	0.8% WS-5	Vehicle control	0.2% WS-5	0.4% WS-5	0.8% WS-5
Nasal level I
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	5	5
Nasal level II
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	5	5
Nasal level III
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	4	5
Hemorrhage; acute	0	0	0	0	0	0	1	0
….Mild	0	0	0	0	0	0	1	0
Nasal level IV
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	4	5
Hemorrhage; acute	0	0	0	0	0	0	1	0
….Moderate	0	0	0	0	0	0	1	0
Nasal level V
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	4	5
Hemorrhage; acute	0	0	0	0	0	0	1	0
….Moderate	0	0	0	0	0	0	1	0
Nasal level VI
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	4	5
Hemorrhage; acute	0	0	0	0	0	0	1	0
….Mild	0	0	0	0	0	0	1	0
Larynx
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	3	5	5	4
Infiltration, mononuclear cell	0	0	0	0	1	0	0	0
….Mild	0	0	0	0	1	0	0	0
Infiltration, mixed cell	0	0	0	0	1	0	0	1
….Mild	0	0	0	0	1	0	0	1
Trachea
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	5	5	5	5	5	5	5
Carina
Examined	5	0	0	5	5	5	5	5
No visible lesions	5	N/A	N/A	5	5	5	5	5
Extrapulmonary bronchus
Examined	5	0	0	5	5	0	0	5
No visible lesions	5	N/A	N/A	5	5	N/A	N/A	5
Lung
Examined	5	5	5	5	5	5	5	5
No visible lesions	5	4	4	3	5	4	4	4
Hemorrhage; alveolar	0	1	1	2	0	1	0	1
.... Minimal	0	1	1	1	0	1	0	1
.... Mild	0	0	0	1	0	0	0	0
Infiltration, mixed cell; alveolar	0	0	0	2	0	1	0	1
….Minimal	0	0	0	2	0	1	0	1
Infiltration, mononuclear cell; alveolar	0	0	0	0	0	0	1	0
….Minimal	0	0	0	0	0	0	1	0
Lymph node tracheobronchial
Examined	5	0	0	5	5	0	0	5
No visible lesions	4	N/A	N/A	5	5	N/A	N/A	5
Erythrocytosis; sinus	1	N/A	N/A	0	0	N/A	N/A	0
….Minimal	1	N/A	N/A	0	0	N/A	N/A	0

N/A – Not Applicable.

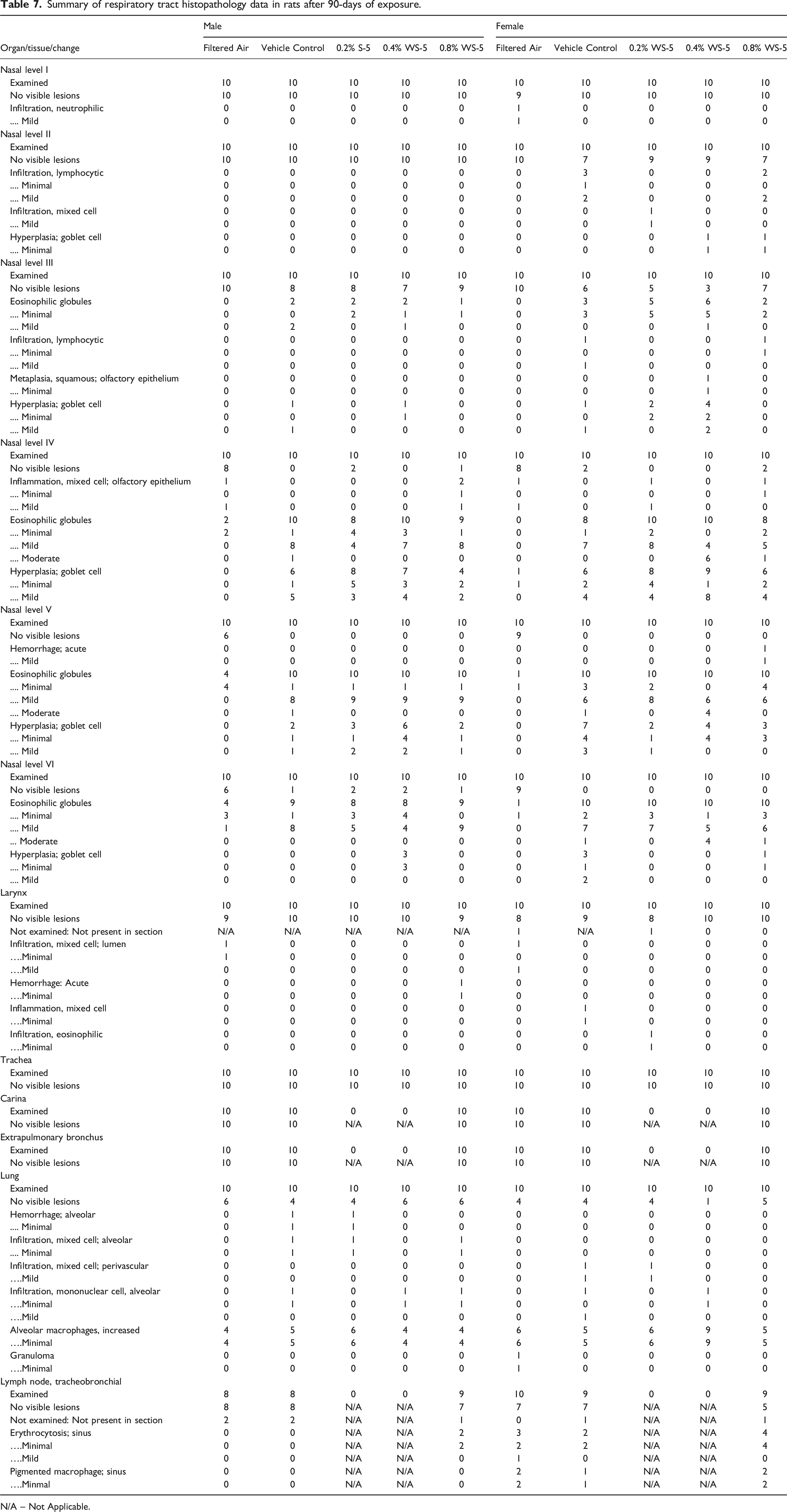

Table 7.

Summary of respiratory tract histopathology data in rats after 90-days of exposure.

Organ/tissue/change	Male					Female
Organ/tissue/change	Filtered Air	Vehicle Control	0.2% S-5	0.4% WS-5	0.8% WS-5	Filtered Air	Vehicle Control	0.2% WS-5	0.4% WS-5	0.8% WS-5
Nasal level I
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	10	10	10	10	10	9	10	10	10	10
Infiltration, neutrophilic	0	0	0	0	0	1	0	0	0	0
.... Mild	0	0	0	0	0	1	0	0	0	0
Nasal level II
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	10	10	10	10	10	10	7	9	9	7
Infiltration, lymphocytic	0	0	0	0	0	0	3	0	0	2
.... Minimal	0	0	0	0	0	0	1	0	0	0
.... Mild	0	0	0	0	0	0	2	0	0	2
Infiltration, mixed cell	0	0	0	0	0	0	0	1	0	0
.... Mild	0	0	0	0	0	0	0	1	0	0
Hyperplasia; goblet cell	0	0	0	0	0	0	0	0	1	1
.... Minimal	0	0	0	0	0	0	0	0	1	1
Nasal level III
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	10	8	8	7	9	10	6	5	3	7
Eosinophilic globules	0	2	2	2	1	0	3	5	6	2
.... Minimal	0	0	2	1	1	0	3	5	5	2
.... Mild	0	2	0	1	0	0	0	0	1	0
Infiltration, lymphocytic	0	0	0	0	0	0	1	0	0	1
.... Minimal	0	0	0	0	0	0	0	0	0	1
.... Mild	0	0	0	0	0	0	1	0	0	0
Metaplasia, squamous; olfactory epithelium	0	0	0	0	0	0	0	0	1	0
.... Minimal	0	0	0	0	0	0	0	0	1	0
Hyperplasia; goblet cell	0	1	0	1	0	0	1	2	4	0
.... Minimal	0	0	0	1	0	0	0	2	2	0
.... Mild	0	1	0	0	0	0	1	0	2	0
Nasal level IV
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	8	0	2	0	1	8	2	0	0	2
Inflammation, mixed cell; olfactory epithelium	1	0	0	0	2	1	0	1	0	1
.... Minimal	0	0	0	0	1	0	0	0	0	1
.... Mild	1	0	0	0	1	1	0	1	0	0
Eosinophilic globules	2	10	8	10	9	0	8	10	10	8
.... Minimal	2	1	4	3	1	0	1	2	0	2
.... Mild	0	8	4	7	8	0	7	8	4	5
.... Moderate	0	1	0	0	0	0	0	0	6	1
Hyperplasia; goblet cell	0	6	8	7	4	1	6	8	9	6
.... Minimal	0	1	5	3	2	1	2	4	1	2
.... Mild	0	5	3	4	2	0	4	4	8	4
Nasal level V
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	6	0	0	0	0	9	0	0	0	0
Hemorrhage; acute	0	0	0	0	0	0	0	0	0	1
.... Mild	0	0	0	0	0	0	0	0	0	1
Eosinophilic globules	4	10	10	10	10	1	10	10	10	10
.... Minimal	4	1	1	1	1	1	3	2	0	4
.... Mild	0	8	9	9	9	0	6	8	6	6
.... Moderate	0	1	0	0	0	0	1	0	4	0
Hyperplasia; goblet cell	0	2	3	6	2	0	7	2	4	3
.... Minimal	0	1	1	4	1	0	4	1	4	3
.... Mild	0	1	2	2	1	0	3	1	0	0
Nasal level VI
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	6	1	2	2	1	9	0	0	0	0
Eosinophilic globules	4	9	8	8	9	1	10	10	10	10
.... Minimal	3	1	3	4	0	1	2	3	1	3
.... Mild	1	8	5	4	9	0	7	7	5	6
... Moderate	0	0	0	0	0	0	1	0	4	1
Hyperplasia; goblet cell	0	0	0	3	0	0	3	0	0	1
.... Minimal	0	0	0	3	0	0	1	0	0	1
.... Mild	0	0	0	0	0	0	2	0	0	0
Larynx
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	9	10	10	10	9	8	9	8	10	10
Not examined: Not present in section	N/A	N/A	N/A	N/A	N/A	1	N/A	1	0	0
Infiltration, mixed cell; lumen	1	0	0	0	0	1	0	0	0	0
….Minimal	1	0	0	0	0	0	0	0	0	0
….Mild	0	0	0	0	0	1	0	0	0	0
Hemorrhage: Acute	0	0	0	0	1	0	0	0	0	0
….Minimal	0	0	0	0	1	0	0	0	0	0
Inflammation, mixed cell	0	0	0	0	0	0	1	0	0	0
….Minimal	0	0	0	0	0	0	1	0	0	0
Infiltration, eosinophilic	0	0	0	0	0	0	0	1	0	0
….Minimal	0	0	0	0	0	0	0	1	0	0
Trachea
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	10	10	10	10	10	10	10	10	10	10
Carina
Examined	10	10	0	0	10	10	10	0	0	10
No visible lesions	10	10	N/A	N/A	10	10	10	N/A	N/A	10
Extrapulmonary bronchus
Examined	10	10	0	0	10	10	10	0	0	10
No visible lesions	10	10	N/A	N/A	10	10	10	N/A	N/A	10
Lung
Examined	10	10	10	10	10	10	10	10	10	10
No visible lesions	6	4	4	6	6	4	4	4	1	5
Hemorrhage; alveolar	0	1	1	0	0	0	0	0	0	0
.... Minimal	0	1	1	0	0	0	0	0	0	0
Infiltration, mixed cell; alveolar	0	1	1	0	1	0	0	0	0	0
.... Minimal	0	1	1	0	1	0	0	0	0	0
Infiltration, mixed cell; perivascular	0	0	0	0	0	0	1	1	0	0
….Mild	0	0	0	0	0	0	1	1	0	0
Infiltration, mononuclear cell, alveolar	0	1	0	1	1	0	1	0	1	0
….Minimal	0	1	0	1	1	0	0	0	1	0
….Mild	0	0	0	0	0	0	1	0	0	0
Alveolar macrophages, increased	4	5	6	4	4	6	5	6	9	5
….Minimal	4	5	6	4	4	6	5	6	9	5
Granuloma	0	0	0	0	0	1	0	0	0	0
….Minimal	0	0	0	0	0	1	0	0	0	0
Lymph node, tracheobronchial
Examined	8	8	0	0	9	10	9	0	0	9
No visible lesions	8	8	N/A	N/A	7	7	7	N/A	N/A	5
Not examined: Not present in section	2	2	N/A	N/A	1	0	1	N/A	N/A	1
Erythrocytosis; sinus	0	0	N/A	N/A	2	3	2	N/A	N/A	4
….Minimal	0	0	N/A	N/A	2	2	2	N/A	N/A	4
….Mild	0	0	N/A	N/A	0	1	0	N/A	N/A	0
Pigmented macrophage; sinus	0	0	N/A	N/A	0	2	1	N/A	N/A	2
….Minmal	0	0	N/A	N/A	0	2	1	N/A	N/A	2

N/A – Not Applicable.

After 90-days of exposure, goblet cell hyperplasia and eosinophilic globules were noted in the nasal cavity of vehicle control and WS-5-exposed group animals at similar incidences and severities, while both of these findings were also noted in Filtered Air group animals, they were present at lower incidences and severities as compared to the vehicle control and/or WS-5-treated groups. Goblet cell hyperplasia is considered an adaptive response to foreign substances and are non-adverse.³³ Eosinophilic globules are thought to be dilated endoplasmic reticulum containing proteinaceous material that may result from tissue irritation, but often their incidence increases with age and are generally not considered to be dysplastic or an adverse observation.^33,34 All other histopathology findings observed were considered incidental including those in non-respiratory tract organs (Supplemental Table 46), of the nature commonly observed in this strain and age of rat, and/or were of similar incidence in Filtered Air or vehicle control and WS-5 exposed animals and, therefore, were considered unrelated to exposure to WS-5, therefore organs from the low and mid WS-5 (0.2% and 0.4%, respectively) groups were not evaluated. At the recovery necropsy, the microscopic findings observed were considered incidental, of the nature commonly observed in this strain and age of rats, and/or were of similar incidence in control and treated animals and, therefore, were considered unrelated to exposure of WS-5 (Table 8).

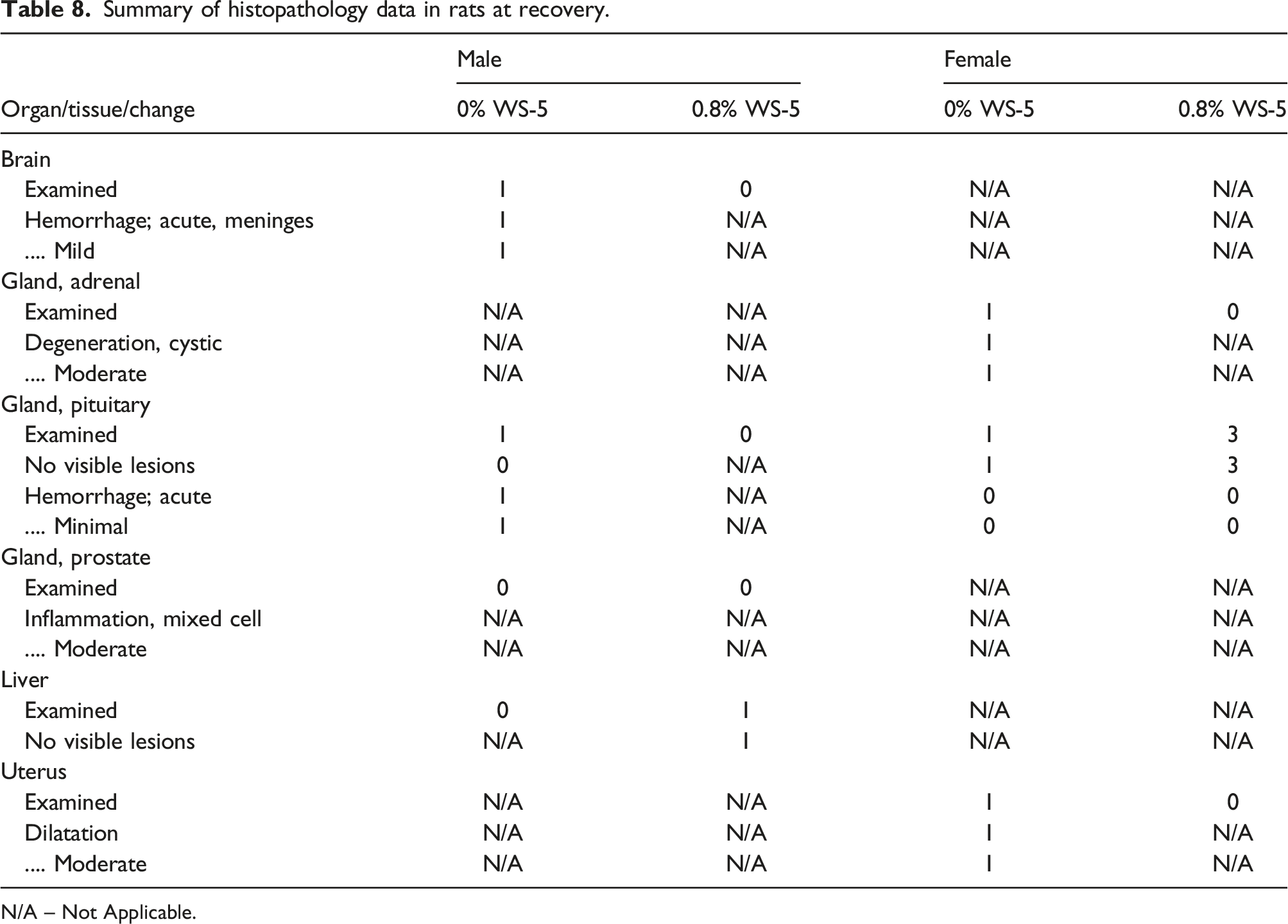

Table 8.

Summary of histopathology data in rats at recovery.

Organ/tissue/change	Male		Female
Organ/tissue/change	0% WS-5	0.8% WS-5	0% WS-5	0.8% WS-5
Brain
Examined	1	0	N/A	N/A
Hemorrhage; acute, meninges	1	N/A	N/A	N/A
.... Mild	1	N/A	N/A	N/A
Gland, adrenal
Examined	N/A	N/A	1	0
Degeneration, cystic	N/A	N/A	1	N/A
.... Moderate	N/A	N/A	1	N/A
Gland, pituitary
Examined	1	0	1	3
No visible lesions	0	N/A	1	3
Hemorrhage; acute	1	N/A	0	0
.... Minimal	1	N/A	0	0
Gland, prostate
Examined	0	0	N/A	N/A
Inflammation, mixed cell	N/A	N/A	N/A	N/A
.... Moderate	N/A	N/A	N/A	N/A
Liver
Examined	0	1	N/A	N/A
No visible lesions	N/A	1	N/A	N/A
Uterus
Examined	N/A	N/A	1	0
Dilatation	N/A	N/A	1	N/A
.... Moderate	N/A	N/A	1	N/A

N/A – Not Applicable.

Discussion

The measured exposure WS-5 concentrations being within 4% of the target exposure concentrations and the similarity in the particle size distribution among the exposure groups facilitates comparison of biological responses among the groups. The amount of water measured in the analytical aerosol measurements was not surprising due to use of humectants (propylene glycol and glycerin) in the vehicle control and WS-5 formulations, the humidified dilution air used in inhalation studies, and the rapid water absorption of ENDS aerosols recently reported by.³⁵ There was no statistically significant difference in measured rat plasma propylene glycol levels between groups within time points. Although sporadic statistically significant differences from vehicle control were noted for some endpoints in the WS-5 exposed groups (e.g., high dose WS-5 male tidal volume; etc.), no dose-response or consistency in response between sexes was noted. Addition of WS-5 at up to 0.8% resulted in no WS-5-related clinical observations or effects on body weight, food consumption, respiratory physiology, hematology, coagulation, clinical chemistry, urinalysis, bronchoalveolar lavage fluid parameters, organ weights, ophthalmic, or macroscopic observations.

The histopathology finding of alveolar hemorrhage and mixed cell infiltration after 28-days of exposure were either not present in the WS-5 exposed groups or were present at similar frequencies in the vehicle control and/or control groups after 90-days of exposure. Histopathology findings of alveolar hemorrhage and mixed cell infiltration are not unique to this study and have been reported in control and test article groups in previous inhalation studies with equivalent incidences,^26,28,36 therefore, they were not considered to be vehicle control or WS-5 related. Thus, no WS-5-related histopathology findings were noted at any necropsy. This 13-week subchronic nose-only inhalation study demonstrated that daily exposures to WS-5 up to 2.5 mg/L TPM for 6 h/day did not induce biologically meaningful adverse effects in rats.

One of the limitations of this study is that measurements of WS-5 in rat plasma were not performed, meaning the bioavailability of WS-5 via the inhalation route could not be calculated. This study did measure one of the three formulation constituents, propylene glycol using a validated analytical method to confirm exposure. The lack of toxicity from exposure to WS-5 observed in this study might be due to a lack of WS-5 bioavailability from the inhalation route, or a lack of toxicity from WS-5 at the concentrations used in this study.

In summary, administration of WS-5 by nose-only inhalation to Crl:CD(SD) rats at a target concentration of 2.5 mg/L of aerosolized formulations containing 0, 0.2, 0.4, and 0.8 w% (corresponding to 0, and approximately 5, 10, and 20 μg WS-5/L) for 6 h per day for 5 days per week for 13 weeks was well tolerated at all WS-5 concentrations. Based on the absence of adverse effects, the no-observed-adverse effect concentration (NOAEC) was considered to be 2.5 mg/L of aerosolized 0.8 w% WS-5 that achieved a mean measured concentration of approximately 18 μg WS-5/L.

Supplemental Material

Supplemental Material - Evaluation of the toxicity of WS-5 in a 90-days nose-only exposure in sprague-dawley rats

Supplemental Material for Evaluation of the toxicity of WS-5 in a 90-days nose-only exposure in sprague-dawley rats by Michael Jerome Oldham, Rahat Wadhwa Desai, James Randazzo, Guy Lalonde and Roxana Weil in Toxicology Research and Application.

Footnotes

Acknowledgments

Acknowledgements: The authors would like to thank the staff at Charles River Laboratories for a well-conducted study and Maleeha Agha for assistance with data presentation.

Author Contributions

MJO and RW conceived the study, RW obtained funding for the study, MJO, RWD, JR, and GL designed the study, RWD monitored the study, JR was the study director, MJO wrote the first draft and all authors reviewed and edited the manuscript and approved the final version of the manuscript.

Declaration of conflicting interests

All authors are employees of Juul Labs, Inc. or the contract research organization that was compensated for performing the work.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work was funded by Juul Labs, Inc.

ORCID iD

Michael Jerome Oldham

Supplemental Material

Supplemental material for this article is available online.

References

Leffingwell

Rowsell

. Wilkenson sword cooling compounds: from beginning to now. Perfumer Flavorist 2014; 39: 34–44.

Erythropel

Anastas

Krishnan-Sarin

, et al. Differences in flavourant levels and synthetic coolant use between USA, EU and Canadian Juul products. Tob Control 2020; 30: 453–455. DOI: 10.1136/tobaccocontrol-2019-055500

Watson

Hems

Rowsell

, et al. New compounds with menthol cooling effect. J Soc Cosmet Chem 1978; 29:185–200.

Johnson

Tian

Sheldon

, et al. trigeminal receptor study of high-intensity cooling agents. J Agric Food Chem 2018; 66: 2319–2323.

Omaiye

Luo

McWhirter

, et al. Flavour chemicals, synthetic coolants and pulegone in popular mint-flavoured and menthol-flavoured e-cigarettes. Tob Control 2022; 31: e3–e9. DOI: 10.1136/tobaccocontrol-2021-056582

Jabba

Jordt

S-E

. Turbocharged Juul device challenges European tobacco regulators. Eur Respir J 2020; 56: 2002430.

Jabba

Erythropel

Torres

, et al. Synthetic cooling agents in US-marketed e-cigarette refill liquids and popular disposable E-cigarettes: chemical analysis and risk assessment. Nicotine Tob Res 2022; 24: 1037–1046. DOI: 10.1093/ntr/ntac046

European Food Safety Authority (EFSA) . scientific opinion on flavouring group evaluation 94: Consideration of aliphatic amines and amides evaluated in addendum to the JECFA group aliphatic and aromatic amines and amides by JECFA. EFSA Panel on Food Contact Materials, Enzymes, Flavourings and Processing Aids (CEF). EFSA J 2010; 8(5): 1–26.

European Food Safety Authority (EFSA) . Scientific opinion on flavouring group evaluation 94, Revision 1 (FGE.94Rev1): Consideration of aliphatic amines and amides evaluated in an addendum to the group of aliphatic and aromatic amines and amides evaluated by the JECFA (68th meeting). EFSA Panel on Food Contact Materials, Enzymes, Flavourings and Processing Aids (CEF). EFSA J 2012; 10(6): 1–30.

10.

European Food Safety Authority (EFSA) . scientific opinion on flavouring group evaluation 94, Revision 2 (FGE.94Rev2): Consideration of aliphatic amines and amides evaluated in an addendum to the group of aliphatic and aromatic amines and amides evaluated by the JECFA (68th meeting). EFSA Panel on Food Contact Materials, Enzymes, Flavourings and Processing Aids (CEF). EFSA J 2014; 12(4): 1–34.

11.

Waddell

Cohen

Feron

, et al. GRAS flavoring substances 23. Food Technol 2007; 61(8):22–61.

12.

Joint FAO/WHO Expert Committee on Food Additives (JECFA) . evaluation of certain food additives and contaminants: sixty-eighth report of the joint FAO/who expert committee on food additives. Geneva, Switzerland: World Health Organization, 2007. https://apps.who.int/iris/bitstream/handle/10665/43870/9789241209472_eng.pdf;sequence=1 (Accessed 19 October 2020).

13.

Joint FAO/WHO Expert Committee on Food Additives (JECFA) . Safety evaluation of certain food additives and contaminants: Prepared by the sixty-eighth meeting of the joint FAO/WHO expert committee on food additives (JECFA). Geneva, Switzerland: World Health Organization, 2008. http://www.inchem.org/documents/jecfa/jecmono/v59je01.pdf (Accessed 19 October 2020).

14.

Z-H

Liu

Y-S

X-D

, et al. Acute and subacute inhalation toxicity assessment of WS-23 in Sprague-Dawley rats. J Appl Tox 2021; 41: 1826–1838. DOI: 10.1002/jat4166

15.

OECD . guidelines for the testing of chemicals, 90-Day (Subchronic) inhalation toxicity study, Paris, France: OECD, 2018.

16.

Percie du Sert

Hurst

Ahluwalia

, et al. The ARRIVE guidelines 2.0: updated guidelines for reporting animal research. PLoS Biol 2020; 18: e3000410. DOI: 10.1371/journal.pbio.3000410

17.

Burdock

. N-[(ethoxycarbonyl)methyl-p-menthane-3-carboxamide. In: Fenaroli’s handbook of flavor ingredients. Boca Raton, Fl: CRC Press Inc., 2009, pp. 553–554.

18.

Symrise . N-[(ethoxycarbonyl)methyl-p-menthane-3-carboxamide (symcool WS-5): Determination of physicochemical properties. [unpublished; RIFM Reference No. 74678].

19.

Gupta

Hindle

Byron

, et al. Investigation of a novel condensation aerosol generator: Solute and solvent effects. Aerosol Sci Technol 2003; 37: 672–681.

20.

Howell

Sweeney

. Aerosol and a method and apparatus for generating an aerosol. US Patent No. 5,743,251, 1998.

21.

Nichols

Cox

Nguyen

. Dual capillary fluid vaporizing device. US Patent 6,715,487, 2004.

22.

Shen

Hindle

Byron

. Effect of energy on propylene glycol aerosols using the capillary aerosol generator. Int J Pharm 2004; 275: 249–258.

23.

Pham

Nguyen

. The aerosolization of cromolyn sodium using a capillary aerosol generator. WIPO patent PCT/US2004/013897, 2005.

24.

Werley

Miller

Kane

, et al. Prototype e-cigarette and the capillary aerosol generator (CAG) comparison and qualification for use in subchronic inhalation exposure testing. Aerosol Sci Technol 2016; 50: 1284–1293.

25.

Goedertier

Weber

S.S.

Lucci

, et al. Use of capillary aerosol generator in continuous production of controlled aerosol for non-clinical studies. J Vis Exp 2022; 182: e61021. DOI: 10.3791/61021

26.

Werley

McDonald

Lilly

, et al. Non-clinical safety and pharmacokinetic evaluations of propylene glycol aerosol in Sprague-Dawley rats and Beagle dogs. Toxicology 2011; 287: 76–90. DOI: 10.1016/j.tox.2011.05.015

27.

Szostak

Wong

Titz

, et al. A 6-month systems toxicology inhalation study in ApoE-/- mice demonstrates reduced cardiovascular effects of E-vapor aerosols compared with cigarette smoke. Am J Physiol Heart Circ Physiol 2020; 318: H604–H631. DOI: 10.1152/ajpheart.00613.2019

28.

Langston

Randazzo

Kogel

, et al. Thirteen-week nose-only inhalation exposures of propylene glycol aerosols in Sprague Dawley rats with a lung systems toxicology analysis, Toxicol Res Appl 2021; 5. DOI: 10.1177/23978473211021072

29.

Black

Alston

Holloway

, et al. Computational simulation of aerosol generation and temperature regulation performance of nicotine salt pod system, CORESTA Conference (Smoke – technology Joint Study Groups). Hamburg, Germany: Coopertion Centre for Scientific Research Relative to Tobacco, 2019.

30.

Talih

Salman

El-Hage

, et al. Characteristics and toxicant emissions of JUUL electronic cigarettes. Tob Control 2019; 28: 678–680, DOI: 10.1136/tobaccocontrol-2018-054616

31.

Langard

Nordhagen

A-L

. Small animal inhalation chambers and the significance of dust ingestion from the contaminated coat when exposing rats to zinc chromate. Acta Pharmacol Toxicol 1980; 46: 43–46.

32.

Phalen

. Methods for Exposing Animals, Ch. 5. In: Phalen RF, inhalation studies: Foundations and techniques. 1st ed. Boca Raton, FL: CRC Press, 1984, pp. 123–150.

33.

Renne

Brix

Harkema

, et al. Proliferative and nonproliferative lesions of the rat and mouse respiratory tract. Toxicol Path 2009; 37(7_suppl): 5S–73S.

34.

Chamanza

Wright

. A review of the comparative anatomy, histology, physiology and pathology of the nasal cavity of rats, mice, dogs and non-human primates. Relevance to inhalation toxicology and human health risk assessment. J Comp Pathol 2015; 153(4): 287–314. DOI: 10.1016/j.jcpa.2015.08.009

35.

David

Parmentier

Taurino

, et al. Tracing the composition of single e-cigarette aerosol droplets in situ by laser-trapping and Raman scattering. Sci Rep 2020; 10: 7929, DOI: 10.1038/s41598-020-64886-5

36.

Lee

Hoeng

Harbo

, et al. Biological changes in C57BL/6 mice following 3 weeks of inhalation exposure to cigarette smoke or e-vapor aerosols, Inhal Toxicol 2018; 30:553–567. DOI: 10.1080/08958378.2019.1576807

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

2.05 MB

0.00 MB
