Instrumentation Techniques to Prevent Proximal Junctional Kyphosis and Proximal Junctional Failure in Adult Spinal Deformity Correction: A Systematic Review of Clinical Studies

Abstract

Study Design:

Systematic review.

Objectives:

To summarize the results of clinical studies investigating spinal instrumentation techniques aiming to reduce the postoperative incidence of proximal junctional kyphosis (PJK) and/or failure (PJF) in adult spinal deformity (ASD) patients.

Methods:

EMBASE and Medline® were searched for articles dating from January 2000 onward. Data was extracted by 2 independent authors and methodological quality was assessed using ROBINS-I.

Results:

18 retrospective- and prospective cohort studies with a severe or critical risk of bias were included. Different techniques were applied at the upper instrumented vertebra (UIV): tethers in various configurations, 2-level prophylactic vertebroplasty (2-PVP), transverse process hooks (TPH), flexible rods (FR), sublaminar tapes (ST) and multilevel stabilization screws (MLSS). Compared to a pedicle screw (PS) group, significant differences in PJK incidence were found using tethers in various configurations (18% versus 45%, P = 0.001, 15% versus 38%, P = 0.045), 2-PVP (24% vs 36%, P = 0.020), TPH (0% vs. 30%, P = 0.023) and FR (15% versus 38%, P = 0.045). Differences in revision rates for PJK were found in studies concerning tethers (4% versus 18%, P = 0.002), 2-PVP (0% vs 13%, P = 0.031) and TPH (0% vs 7%, P = n.a.).

Conclusion:

Although the studies are of low quality, the most frequently studied techniques, namely 2-PVP as anterior reinforcement and (tensioned) tethers or TPH as posterior semi-rigid fixation, show promising results. To provide a reliable comparison, more controlled studies need to be performed, including the use of clinical outcome measures and a uniform definition of PJF.

Keywords

long-segment spinal fusion adult spinal deformity spine surgery proximal junctional kyphosis proximal junctional failure systematic review topping-off transition zone semi-rigid junctional fixation

Introduction

Over the past decades, the number of surgical procedures for correction and treatment of adult spinal deformity (ASD) has increased enormously. However, long segment spinal fusion constructs are rigid and induce high stresses at the transitional vertebrae, possibly resulting in proximal junctional kyphosis (PJK) and proximal junctional failure (PJF).^1-20 PJK is a radiographic observation which often manifests within the first 6 to 8 weeks following surgical correction of ASD, with reported rates ranging from 20%-40%.^1,7,11,12,21 PJF is defined in various ways, including: a fracture of the upper instrumented vertebra (UIV) or the vertebra above (UIV+1), the need for proximal extension of the fusion, and/or pullout or failure of the UIV fixation (UIV and UIV defined as in Figure 1A).¹¹ Incidence rates reported in literature vary widely (1%-35%) due to lack of a standardized definition.⁷ Whereas the correlation between the incidence of PJK and clinical outcome has been questioned, PJF has been associated with a worse clinical outcome and a higher need for revision surgery.^9,11,19,22 Similar to PJK, PJF is reported to occur early in the postoperative period and often occurs within the first 6 months following surgery. Several authors have suggested that PJF is part of the spectrum of PJK and shares the same multifactorial etiology and surgical-, radiographic-, and patient-specific risk factors.^1,7,8,12,21 Both PJK and PJF are a growing challenge with which many spinal surgeons, treating the commonly fragile patient with ASD, are faced nowadays.

In the past years, a number of instrumentation techniques aiming to prevent PJK and PJF have been developed.^7,8,11 These techniques utilize a semi-rigid fixation at the proximal end of a rigid spinal construct to create a more gradual transition of motion, thereby decreasing peak stresses at junctional levels. This concept has also been referred to as “topping-off.” Alternatively, techniques such as vertebroplasty aim to increase the load carrying capacity of the anterior column.^8,11

To date, no systematic comparison on the effectiveness of clinically investigated surgical techniques for the prevention of PJK and PJF in the ASD population exists. Therefore, the purpose of this study is to provide an overview of all clinically investigated instrumentation techniques intended to reduce the incidence of PJK and PJF and to evaluate their effectiveness.

Methods

This systematic review was performed according to the Preferred Reporting Items for Systematic Reviews and Meta-Analysis Statement (PRISMA-statement).²³

Search

A literature search was performed in Medline® and EMBASE for full-text studies, published from January 2000 until April 19th 2021. The search terms and strategy are reported in Supplemental Table 1. Authors of included studies were contacted for any missing full-texts or data if needed. No language restrictions were imposed and the reference lists from the included studies were manually checked for additional eligible studies. Duplicates were removed using the Bramer method in EndNoteX8.²⁴

Study Selection

Using the Rayyan application (Qatar Computing Research Institute),²⁵ 2 researchers (TV, RD) independently screened the titles and abstracts applying the following inclusion criteria: clinical study, ≥6 months follow up, degenerative/adult (≥18years) spinal deformity, upper instrumented vertebrae in the thoracic spine, >4 segments fused or prophylactic technique for PJK and/or PJF. Exclusion criteria were: case reports, case series with <5 patients, fusion constructs ending proximally in the cervical spine, tuberculous spine, adolescent idiopathic scoliosis (<18 years), spinal trauma, spinal tumor or congenital spinal deformities. Any disagreement was resolved by discussion and consultation of a third reviewer (PW). Full-text analysis was performed using the same criteria.

Data Collection

For each included study, data was extracted independently by 2 authors (TV, RD) and reported using a standardized form. The form included; the applied PJK or PJF prophylactic surgical technique, study design, number of patients, patient population (gender, age, body mass index (BMI)), fusion characteristics (UIV, lower instrumented vertebrae, rod material, levels fused) and concomitant surgical procedures performed.

Quality Assessment

The risk of bias of the included articles was evaluated independently by 2 authors (TV, RD) using the Risk Of Bias In Non-randomized Studies-of Interventions (ROBINS-I) tool.²⁶

Data Extraction

Studies were classified according to the prophylactic technique used. Throughout this review, PJK was defined as a postoperative proximal junction sagittal Cobb angle (PJA) ≥10° and/or a proximal junction sagittal Cobb angle ≥10° compared to the preoperative measurement, as defined by Glattes et al.⁴ Due to inconsistent reporting in the literature, no standardized definition for PJF was used. Incidences of PJK, and incidences and definitions of PJF were extracted. Next, we reported clinical outcomes and complications following surgery, as converted to the classification of Glassman et al.²⁷ Revision surgery for PJK was not included as a complication, but was categorized separately.

Results

Study Characteristics

A total of 11,144 unique articles were identified following the search strategy. After preliminary selection based on title and abstract, 32 full text articles were screened for the in- and exclusion criteria. Fourteen articles were excluded and 18 articles, published between 2008-2021, were included (Figure 2). Of the included studies, 4 were prospective- and 14 were retrospective cohort studies. The studies that were included reported on tether fixation,^28-34 prophylactic 2-level vertebroplasty (2-PVP),^32,35-40 transverse process hooks (TPH),^32,41,42 flexible rods (FR),⁴³ multilevel stabilization screw (MLSS),⁴⁴ and sublaminar tapes (ST).⁴⁵ These surgical techniques are schematically illustrated in Figure 1. Thirteen of the studies compared the intervention to a control group, consisting of patients treated with pedicle screws at the UIV (PS).^{28,29,31-37,40-43} The minimal follow-up duration was 12 months. All study characteristics are presented in Table 1.

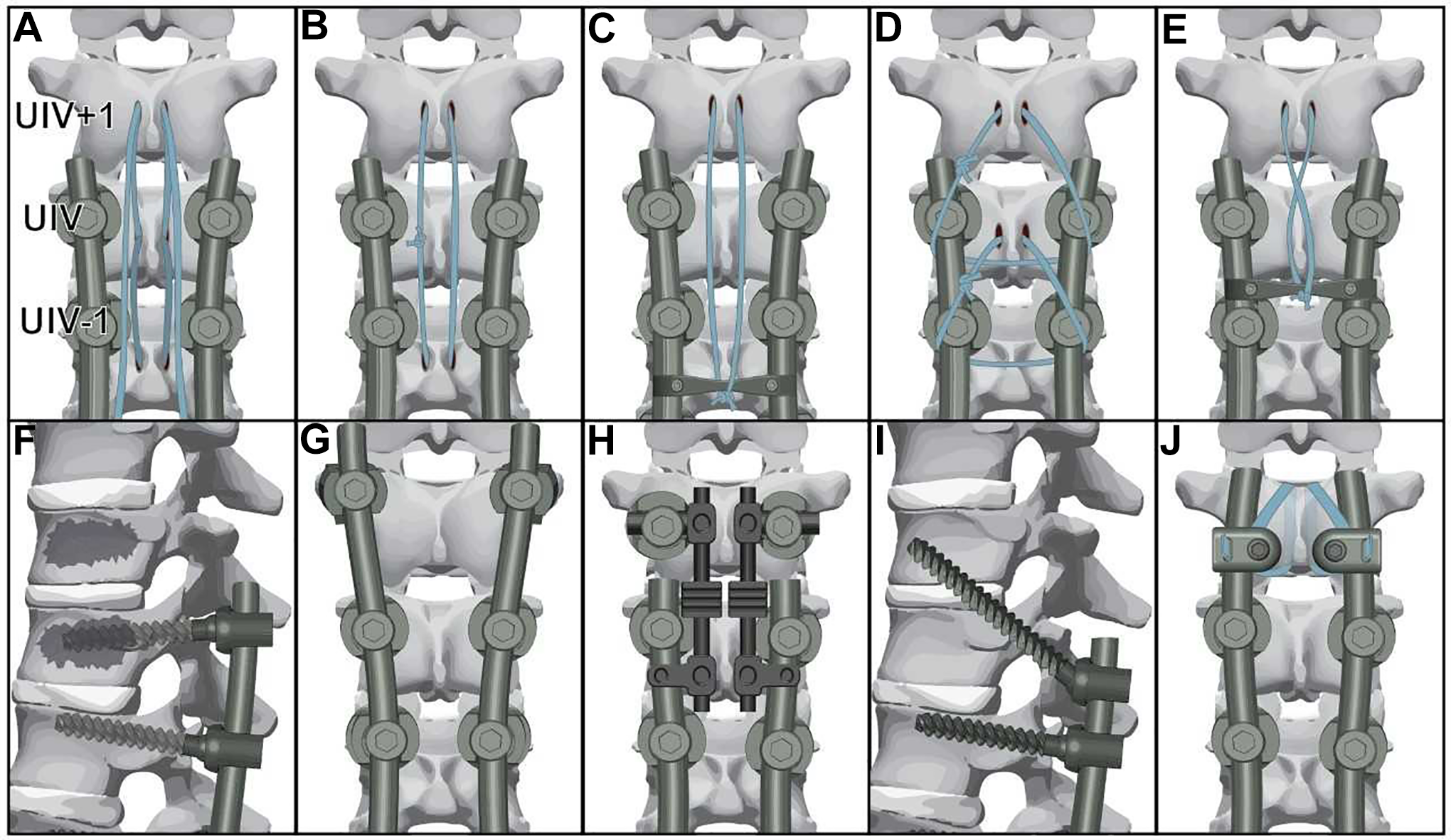

Figure 1.

Surgical prophylactic techniques for PJK and PJF as reported in Table 1, (A) tether-connectors (TO) 28, 33; (B) tether only (TO) 29, 30, 32; (C) tether-crosslink (TC) 29, 30; (D) tether-pedicle loop (TO) 31; (E) tether in a figure 8 way (TO) 34; (F) prophylactic 2-level vertebroplasty (2-PVP) 32, 35-40; (G) transverse process hooks (TPH) 32, 41, 42; (H) flexible rods (FR) 43; (I) multilevel stabilization screw (MLSS) 44; (J) sublaminar tapes (ST) 45.

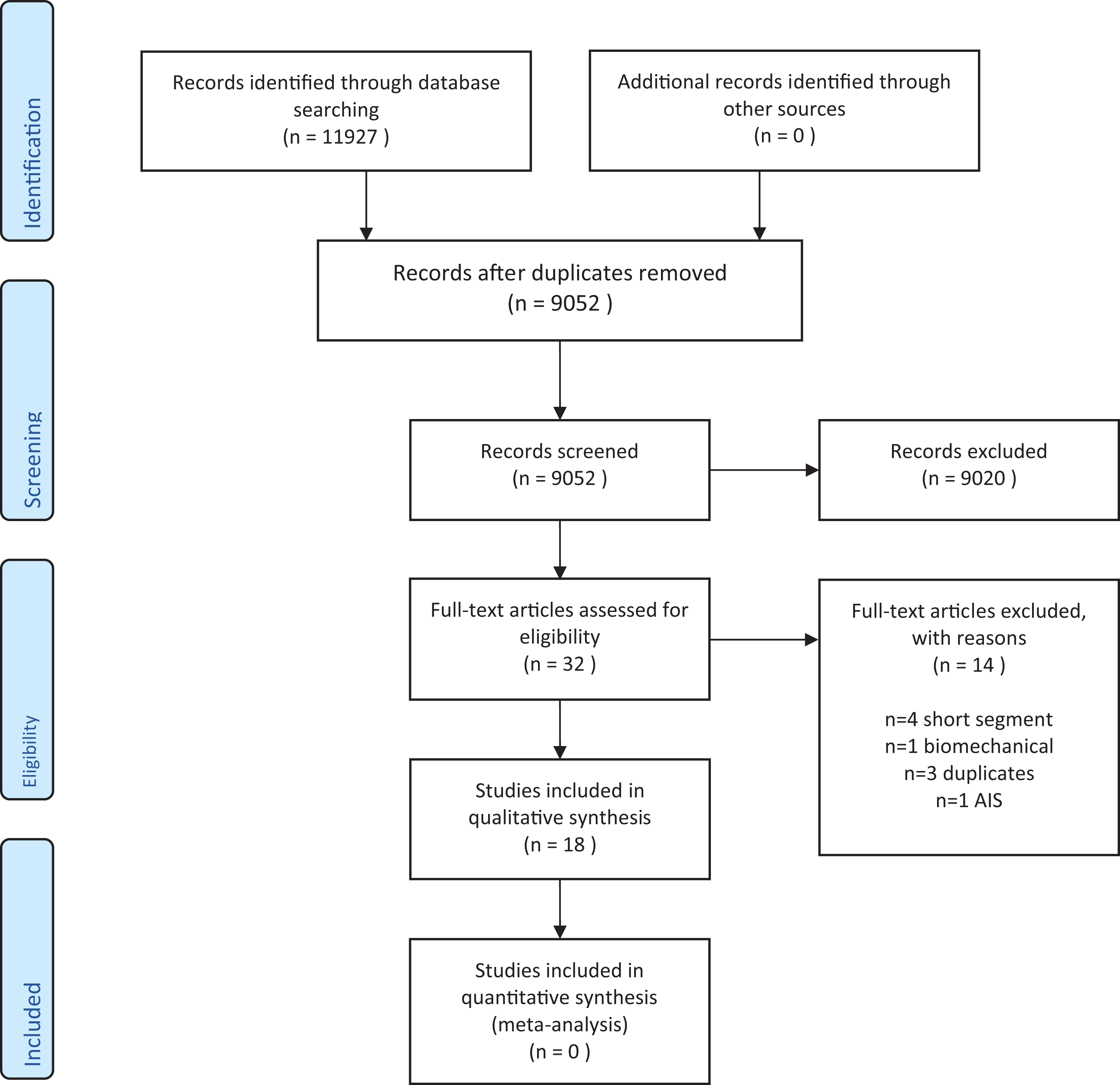

Figure 2.

PRISMA 2009 flow diagram of the included studies. AIS = adult idiopathic scoliosis.

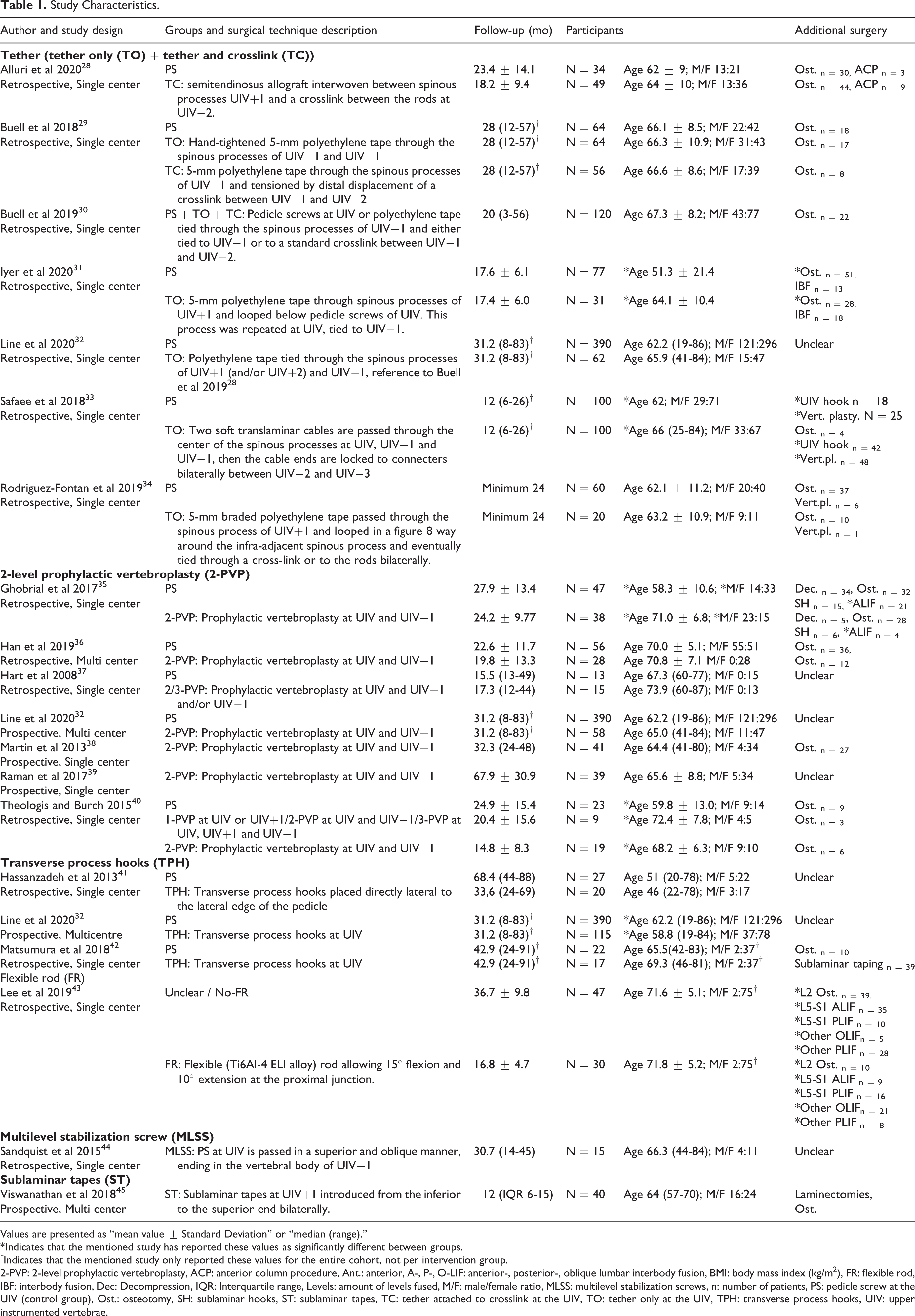

Table 1.

Study Characteristics.

Author and study design	Groups and surgical technique description	Follow-up (mo)	Participants		Additional surgery
Tether (tether only (TO) + tether and crosslink (TC))
Alluri et al 2020²⁸ Retrospective, Single center	PS	23.4 ± 14.1	N = 34	Age 62 ± 9; M/F 13:21	Ost. _{n = 30,} ACP _{n = 3}
Alluri et al 2020²⁸ Retrospective, Single center	TC: semitendinosus allograft interwoven between spinous processes UIV+1 and a crosslink between the rods at UIV−2.	18.2 ± 9.4	N = 49	Age 64 ± 10; M/F 13:36	Ost. _{n = 44,} ACP _{n = 9}
Buell et al 2018²⁹ Retrospective, Single center	PS	28 (12-57)^†	N = 64	Age 66.1 ± 8.5; M/F 22:42	Ost. _{n = 18}
	TO: Hand-tightened 5-mm polyethylene tape through the spinous processes of UIV+1 and UIV−1	28 (12-57)^†	N = 64	Age 66.3 ± 10.9; M/F 31:43	Ost. _{n = 17}
	TC: 5-mm polyethylene tape through the spinous processes of UIV+1 and tensioned by distal displacement of a crosslink between UIV−1 and UIV−2	28 (12-57)^†	N = 56	Age 66.6 ± 8.6; M/F 17:39	Ost. _{n = 8}
Buell et al 2019³⁰ Retrospective, Single center	PS + TO + TC: Pedicle screws at UIV or polyethylene tape tied through the spinous processes of UIV+1 and either tied to UIV−1 or to a standard crosslink between UIV−1 and UIV−2.	20 (3-56)	N = 120	Age 67.3 ± 8.2; M/F 43:77	Ost. _{n = 22}
Iyer et al 2020³¹ Retrospective, Single center	PS	17.6 ± 6.1	N = 77	*Age 51.3 ± 21.4	*Ost. _{n = 51,} IBF _{n = 13}
Iyer et al 2020³¹ Retrospective, Single center	TO: 5-mm polyethylene tape through spinous processes of UIV+1 and looped below pedicle screws of UIV. This process was repeated at UIV, tied to UIV−1.	17.4 ± 6.0	N = 31	*Age 64.1 ± 10.4	*Ost. _{n = 28,} IBF _{n = 18}
Line et al 2020³² Retrospective, Single center	PS	31.2 (8-83)^†	N = 390	Age 62.2 (19-86); M/F 121:296	Unclear
Line et al 2020³² Retrospective, Single center	TO: Polyethylene tape tied through the spinous processes of UIV+1 (and/or UIV+2) and UIV−1, reference to Buell et al 2019²⁸	31.2 (8-83)^†	N = 62	Age 65.9 (41-84); M/F 15:47	Unclear
Safaee et al 2018³³ Retrospective, Single center	PS	12 (6-26)^†	N = 100	*Age 62; M/F 29:71	UIV hook n = 18 Vert. plasty. N = 25
Safaee et al 2018³³ Retrospective, Single center	TO: Two soft translaminar cables are passed through the center of the spinous processes at UIV, UIV+1 and UIV−1, then the cable ends are locked to connecters bilaterally between UIV−2 and UIV−3	12 (6-26)^†	N = 100	*Age 66 (25-84); M/F 33:67	Ost. _{n = 4} UIV hook _{n = 42} Vert.pl. _{n = 48}
Rodriguez-Fontan et al 2019³⁴ Retrospective, Single center	PS	Minimum 24	N = 60	Age 62.1 ± 11.2; M/F 20:40	Ost. _{n = 37} Vert.pl. _{n = 6}
Rodriguez-Fontan et al 2019³⁴ Retrospective, Single center	TO: 5-mm braded polyethylene tape passed through the spinous process of UIV+1 and looped in a figure 8 way around the infra-adjacent spinous process and eventually tied through a cross-link or to the rods bilaterally.	Minimum 24	N = 20	Age 63.2 ± 10.9; M/F 9:11	Ost. _{n = 10} Vert.pl. _{n = 1}
2-level prophylactic vertebroplasty (2-PVP)
Ghobrial et al 2017³⁵ Retrospective, Single center	PS	27.9 ± 13.4	N = 47	Age 58.3 ± 10.6; M/F 14:33	Dec. _{n = 34}, Ost. _{n = 32} SH _{n = 15,} *ALIF _{n = 21}
Ghobrial et al 2017³⁵ Retrospective, Single center	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	24.2 ± 9.77	N = 38	Age 71.0 ± 6.8; M/F 23:15	Dec. _{n = 5}, Ost. _{n = 28} SH _{n = 6}, *ALIF _{n = 4}
Han et al 2019³⁶ Retrospective, Multi center	PS	22.6 ± 11.7	N = 56	Age 70.0 ± 5.1; M/F 55:51	Ost. _{n = 36,}
Han et al 2019³⁶ Retrospective, Multi center	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	19.8 ± 13.3	N = 28	Age 70.8 ± 7.1 M/F 0:28	Ost. _{n = 12}
Hart et al 2008³⁷ Retrospective, Single center	PS	15.5 (13-49)	N = 13	Age 67.3 (60-77); M/F 0:15	Unclear
Hart et al 2008³⁷ Retrospective, Single center	2/3-PVP: Prophylactic vertebroplasty at UIV and UIV+1 and/or UIV−1	17.3 (12-44)	N = 15	Age 73.9 (60-87); M/F 0:13	Unclear
Line et al 2020³² Prospective, Multi center	PS	31.2 (8-83)^†	N = 390	Age 62.2 (19-86); M/F 121:296	Unclear
Line et al 2020³² Prospective, Multi center	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	31.2 (8-83)^†	N = 58	Age 65.0 (41-84); M/F 11:47	Unclear
Martin et al 2013³⁸ Prospective, Single center	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	32.3 (24-48)	N = 41	Age 64.4 (41-80); M/F 4:34	Ost. _{n = 27}
Raman et al 2017³⁹ Prospective, Single center	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	67.9 ± 30.9	N = 39	Age 65.6 ± 8.8; M/F 5:34	Unclear
Theologis and Burch 2015⁴⁰ Retrospective, Single center	PS	24.9 ± 15.4	N = 23	*Age 59.8 ± 13.0; M/F 9:14	Ost. _{n = 9}
	1-PVP at UIV or UIV+1/2-PVP at UIV and UIV−1/3-PVP at UIV, UIV+1 and UIV−1	20.4 ± 15.6	N = 9	*Age 72.4 ± 7.8; M/F 4:5	Ost. _{n = 3}
	2-PVP: Prophylactic vertebroplasty at UIV and UIV+1	14.8 ± 8.3	N = 19	*Age 68.2 ± 6.3; M/F 9:10	Ost. _{n = 6}
Transverse process hooks (TPH)
Hassanzadeh et al 2013⁴¹ Retrospective, Single center	PS	68.4 (44-88)	N = 27	Age 51 (20-78); M/F 5:22	Unclear
Hassanzadeh et al 2013⁴¹ Retrospective, Single center	TPH: Transverse process hooks placed directly lateral to the lateral edge of the pedicle	33,6 (24-69)	N = 20	Age 46 (22-78); M/F 3:17	Unclear
Line et al 2020³² Prospective, Multicentre	PS	31.2 (8-83)^†	N = 390	*Age 62.2 (19-86); M/F 121:296	Unclear
Line et al 2020³² Prospective, Multicentre	TPH: Transverse process hooks at UIV	31.2 (8-83)^†	N = 115	*Age 58.8 (19-84); M/F 37:78	Unclear
Matsumura et al 2018⁴² Retrospective, Single center	PS	42.9 (24-91)^†	N = 22	Age 65.5(42-83); M/F 2:37^†	Ost. _{n = 10} Sublaminar taping _{n = 39}
Matsumura et al 2018⁴² Retrospective, Single center	TPH: Transverse process hooks at UIV	42.9 (24-91)^†	N = 17	Age 69.3 (46-81); M/F 2:37^†	Ost. _{n = 10} Sublaminar taping _{n = 39}
Flexible rod (FR)
Lee et al 2019⁴³ Retrospective, Single center	Unclear / No-FR	36.7 ± 9.8	N = 47	Age 71.6 ± 5.1; M/F 2:75^†	L2 Ost. _{n = 39,} L5-S1 ALIF _{n = 35} L5-S1 PLIF _{n = 10} Other OLIF_{n = 5} *Other PLIF _{n = 28}
Lee et al 2019⁴³ Retrospective, Single center	FR: Flexible (Ti6Al-4 ELI alloy) rod allowing 15° flexion and 10° extension at the proximal junction.	16.8 ± 4.7	N = 30	Age 71.8 ± 5.2; M/F 2:75^†	L2 Ost. _{n = 10} L5-S1 ALIF _{n = 9} L5-S1 PLIF _{n = 16} Other OLIF_{n = 21} *Other PLIF _{n = 8}
Multilevel stabilization screw (MLSS)
Sandquist et al 2015⁴⁴ Retrospective, Single center	MLSS: PS at UIV is passed in a superior and oblique manner, ending in the vertebral body of UIV+1	30.7 (14-45)	N = 15	Age 66.3 (44-84); M/F 4:11	Unclear
Sublaminar tapes (ST)
Viswanathan et al 2018⁴⁵ Prospective, Multi center	ST: Sublaminar tapes at UIV+1 introduced from the inferior to the superior end bilaterally.	12 (IQR 6-15)	N = 40	Age 64 (57-70); M/F 16:24	Laminectomies, Ost.

Values are presented as “mean value ± Standard Deviation” or “median (range).”

* Indicates that the mentioned study has reported these values as significantly different between groups.

^†Indicates that the mentioned study only reported these values for the entire cohort, not per intervention group.

2-PVP: 2-level prophylactic vertebroplasty, ACP: anterior column procedure, Ant.: anterior, A-, P-, O-LIF: anterior-, posterior-, oblique lumbar interbody fusion, BMI: body mass index (kg/m²), FR: flexible rod, IBF: interbody fusion, Dec: Decompression, IQR: Interquartile range, Levels: amount of levels fused, M/F: male/female ratio, MLSS: multilevel stabilization screws, n: number of patients, PS: pedicle screw at the UIV (control group), Ost.: osteotomy, SH: sublaminar hooks, ST: sublaminar tapes, TC: tether attached to crosslink at the UIV, TO: tether only at the UIV, TPH: transverse process hooks, UIV: upper instrumented vertebrae.

The rod-material used for the spinal fusion was not reported in 15 studies,^{28-31,33-42,44} and for the remaining 3 studies this was cobalt chromium, stainless steel or titanium.^32,43,45 Five studies did not mention if other surgical interventions were performed concomitantly.^{32,37,39,41,44} In the remaining 13 studies, additional interventions were performed (osteotomies, hooks, vertebroplasty, sublaminar taping, additional fusion or decompression).^{28-31,33-36,38,40,42,43,45} The mean number of fused segments in the included studies ranged between 6.7 and 16.0 levels, and the constructs ended distally in the sacrum for the majority of patients.

Mean age of the included patients was between 46 and 73.5 years, with 2 studies that reported a mean age below 60 years.^31,41 All studies reported the gender of the included patients. Typically, the male-female ratio was skewed, with more female patients. BMI was mentioned in 10 studies, ranging from 21.9 to 31.8 kg/m².^{29-32,34,35,38,39,44,45} Preoperative radiographic parameters are presented in Supplementary Table 2.

Risk of Bias

Nine of the studies were judged to hold severe risk of bias and 9 studies at critical risk of bias (see ROBINS-1 score in Table 2). Other major risks of bias found, but not included in the ROBINS-1 score, were: 1) Two studies by Buell et al,^29,30 both reporting on the use of tethers, were published within the same time period, so patient populations may be overlapping. 2) Safaee et al³³ analyzed the use of tethers at the UIV compared to a PS control group, however, various combinations of tethers and hook fixation or vertebroplasty at the UIV segment were included in the experimental group. 3) Hassanzadeh et al⁴¹ reported on TPH, in which the follow-up duration in the PS control group was twice as long as in the TPH group (68 versus 34 months). 4) Lee et al⁴³ reported on the use of FR, but again the follow-up duration of the PS control group was twice as long as in the intervention group (37 versus 17 months). Moreover, major significant differences were found for the patient characteristics between groups for “concomitant surgical procedures” (Table 1).

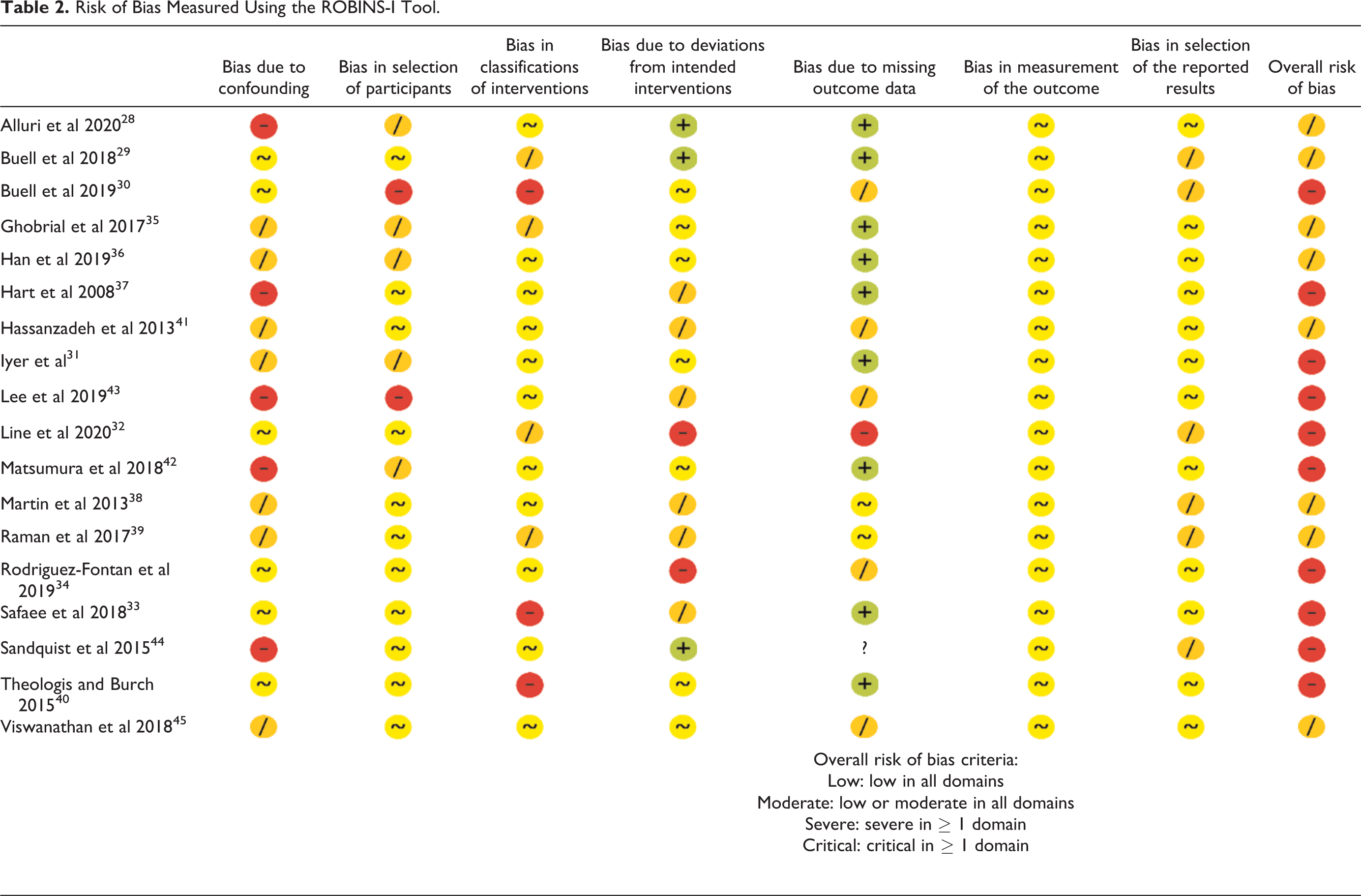

Table 2.

Risk of Bias Measured Using the ROBINS-I Tool.

	Bias in classifications of interventions	Bias due to missing outcome data
Alluri et al 2020²⁸
Buell et al 2018²⁹
Buell et al 2019³⁰
Ghobrial et al 2017³⁵
Han et al 2019³⁶
Hart et al 2008³⁷
Hassanzadeh et al 2013⁴¹
Iyer et al³¹
Lee et al 2019⁴³
Line et al 2020³²
Matsumura et al 2018⁴²
Martin et al 2013³⁸
Raman et al 2017³⁹
Rodriguez-Fontan et al 2019³⁴
Safaee et al 2018³³
Sandquist et al 2015⁴⁴		?
Theologis and Burch 2015⁴⁰
Viswanathan et al 2018⁴⁵
	Overall risk of bias criteria:Low: low in all domainsModerate: low or moderate in all domainsSevere: severe in ≥ 1 domainCritical: critical in ≥ 1 domain

Outcomes

For each study, PJK incidence, Revision Rate for PJK (RR), PJF incidence, reported clinical outcomes and complications were reported in Table 3. Twelve of the included studies reported on PJK incidence,^{28-31,33-36,38,39,41,43} 10 on revision rate for PJK,^{28-31,33,35,36,38,39,41} 13 on PJF incidence,^{29,32,34-40,42-45} 5 on any clinical outcome measure^{28,38,40,41,45} and 10 on complications.^{28-30,35-39,41,45} Four studies^28-30,37,45 did not elaborate on the type of complications, and could thus not be converted to the classification of Glassman et al.²⁷ If reported, the clinical outcome measures were further elucidated in Table 4.

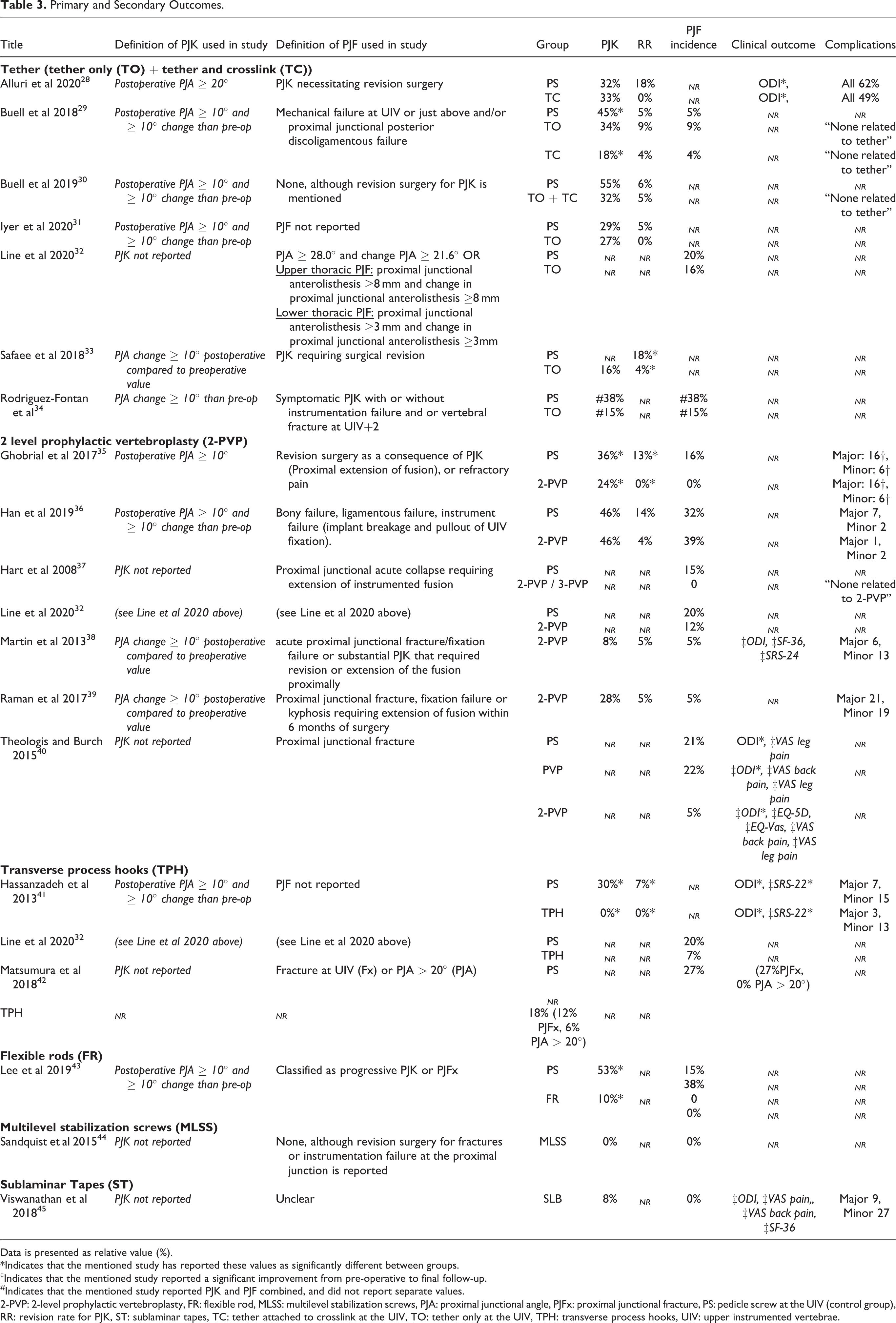

Table 3.

Primary and Secondary Outcomes.

Title	Definition of PJK used in study	Definition of PJF used in study	Group	PJK	RR	PJF incidence	Clinical outcome	Complications
Tether (tether only (TO) + tether and crosslink (TC))
Alluri et al 2020²⁸	Postoperative PJA ≥ 20°	PJK necessitating revision surgery	PS	32%	18%	_NR	ODI*,	All 62%
Alluri et al 2020²⁸	Postoperative PJA ≥ 20°	PJK necessitating revision surgery	TC	33%	0%	_NR	ODI*,	All 49%
Buell et al 2018²⁹	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	Mechanical failure at UIV or just above and/or proximal junctional posterior discoligamentous failure	PS	45%*	5%	5%	_NR	_NR
			TO	34%	9%	9%	_NR	“None related to tether”
			TC	18%*	4%	4%	_NR	“None related to tether”
Buell et al 2019³⁰	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	None, although revision surgery for PJK is mentioned	PS	55%	6%	_NR	_NR	_NR
Buell et al 2019³⁰	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	None, although revision surgery for PJK is mentioned	TO + TC	32%	5%	_NR	_NR	“None related to tether”
Iyer et al 2020³¹	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	PJF not reported	PS	29%	5%	_NR	_NR	_NR
Iyer et al 2020³¹	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	PJF not reported	TO	27%	0%	_NR	_NR	_NR
Line et al 2020³²	PJK not reported	PJA ≥ 28.0° and change PJA ≥ 21.6° ORUpper thoracic PJF: proximal junctional anterolisthesis ≥8 mm and change in proximal junctional anterolisthesis ≥8 mmLower thoracic PJF: proximal junctional anterolisthesis ≥3 mm and change in proximal junctional anterolisthesis ≥3mm	PS	_NR	_NR	20%	_NR	_NR
Line et al 2020³²	PJK not reported		TO	_NR	_NR	16%	_NR	_NR
Safaee et al 2018³³	PJA change ≥ 10° postoperative compared to preoperative value	PJK requiring surgical revision	PS	_NR	18%*	_NR	_NR	_NR
Safaee et al 2018³³		PJK requiring surgical revision	TO	16%	4%*	_NR	_NR	_NR
Rodriguez-Fontan et al³⁴	PJA change ≥ 10° than pre-op	Symptomatic PJK with or without instrumentation failure and or vertebral fracture at UIV+2	PS	#38%	_NR	#38%	_NR	_NR
Rodriguez-Fontan et al³⁴	PJA change ≥ 10° than pre-op		TO	#15%	_NR	#15%	_NR	_NR
2 level prophylactic vertebroplasty (2-PVP)
Ghobrial et al 2017³⁵	Postoperative PJA ≥ 10°	Revision surgery as a consequence of PJK (Proximal extension of fusion), or refractory pain	PS	36%*	13%*	16%	_NR	Major: 16†, Minor: 6†
Ghobrial et al 2017³⁵	Postoperative PJA ≥ 10°		2-PVP	24%*	0%*	0%	_NR	Major: 16†, Minor: 6†
Han et al 2019³⁶	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	Bony failure, ligamentous failure, instrument failure (implant breakage and pullout of UIV fixation).	PS	46%	14%	32%	_NR	Major 7, Minor 2
Han et al 2019³⁶	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op		2-PVP	46%	4%	39%	_NR	Major 1, Minor 2
Hart et al 2008³⁷	PJK not reported	Proximal junctional acute collapse requiring extension of instrumented fusion	PS	_NR	_NR	15%	_NR	_NR
Hart et al 2008³⁷	PJK not reported		2-PVP / 3-PVP	_NR	_NR	0	_NR	“None related to 2-PVP”
Line et al 2020³²	(see Line et al 2020 above)	(see Line et al 2020 above)	PS	_NR	_NR	20%	_NR	_NR
Line et al 2020³²	(see Line et al 2020 above)	(see Line et al 2020 above)	2-PVP	_NR	_NR	12%	_NR	_NR
Martin et al 2013³⁸	PJA change ≥ 10° postoperative compared to preoperative value	acute proximal junctional fracture/fixation failure or substantial PJK that required revision or extension of the fusion proximally	2-PVP	8%	5%	5%	‡ODI, ‡SF-36, ‡SRS-24	Major 6, Minor 13
Raman et al 2017³⁹	PJA change ≥ 10° postoperative compared to preoperative value	Proximal junctional fracture, fixation failure or kyphosis requiring extension of fusion within 6 months of surgery	2-PVP	28%	5%	5%	_NR	Major 21, Minor 19
Theologis and Burch 2015⁴⁰	PJK not reported	Proximal junctional fracture	PS	_NR	_NR	21%	ODI*, ‡VAS leg pain	_NR
			PVP	_NR	_NR	22%	‡ODI, ‡VAS back pain, ‡VAS leg pain*	_NR
			2-PVP	_NR	_NR	5%	‡ODI, ‡EQ-5D, ‡EQ-Vas, ‡VAS back pain, ‡VAS leg pain*	_NR
Transverse process hooks (TPH)
Hassanzadeh et al 2013⁴¹	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	PJF not reported	PS	30%*	7%*	_NR	ODI, ‡SRS-22	Major 7, Minor 15
Hassanzadeh et al 2013⁴¹	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	PJF not reported	TPH	0%*	0%*	_NR	ODI, ‡SRS-22	Major 3, Minor 13
Line et al 2020³²	(see Line et al 2020 above)	(see Line et al 2020 above)	PS	_NR	_NR	20%	_NR	_NR
Line et al 2020³²	(see Line et al 2020 above)	(see Line et al 2020 above)	TPH	_NR	_NR	7%	_NR	_NR
Matsumura et al 2018⁴²	PJK not reported	Fracture at UIV (Fx) or PJA > 20° (PJA)	PS	_NR	_NR	27% (27%PJFx,0% PJA > 20°)	_NR	_NR
Matsumura et al 2018⁴²	PJK not reported	Fracture at UIV (Fx) or PJA > 20° (PJA)	TPH	_NR	_NR	18% (12% PJFx, 6% PJA > 20°)	_NR	_NR
Flexible rods (FR)
Lee et al 2019⁴³	Postoperative PJA ≥ 10° and ≥ 10° change than pre-op	Classified as progressive PJK or PJFx	PS	53%*	_NR	15%	_NR	_NR
			PS	53%*	_NR	38%	_NR	_NR
			FR	10%*	_NR	0	_NR	_NR
			FR	10%*	_NR	0%	_NR	_NR
Multilevel stabilization screws (MLSS)
Sandquist et al 2015⁴⁴	PJK not reported	None, although revision surgery for fractures or instrumentation failure at the proximal junction is reported	MLSS	0%	_NR	0%	_NR	_NR
Sublaminar Tapes (ST)
Viswanathan et al 2018⁴⁵	PJK not reported	Unclear	SLB	8%	_NR	0%	‡ODI, ‡VAS pain,, ‡VAS back pain, ‡SF-36	Major 9, Minor 27

Data is presented as relative value (%).

*Indicates that the mentioned study has reported these values as significantly different between groups.

^‡Indicates that the mentioned study reported a significant improvement from pre-operative to final follow-up.

^#Indicates that the mentioned study reported PJK and PJF combined, and did not report separate values.

2-PVP: 2-level prophylactic vertebroplasty, FR: flexible rod, MLSS: multilevel stabilization screws, PJA: proximal junctional angle, PJFx: proximal junctional fracture, PS: pedicle screw at the UIV (control group), RR: revision rate for PJK, ST: sublaminar tapes, TC: tether attached to crosslink at the UIV, TO: tether only at the UIV, TPH: transverse process hooks, UIV: upper instrumented vertebrae.

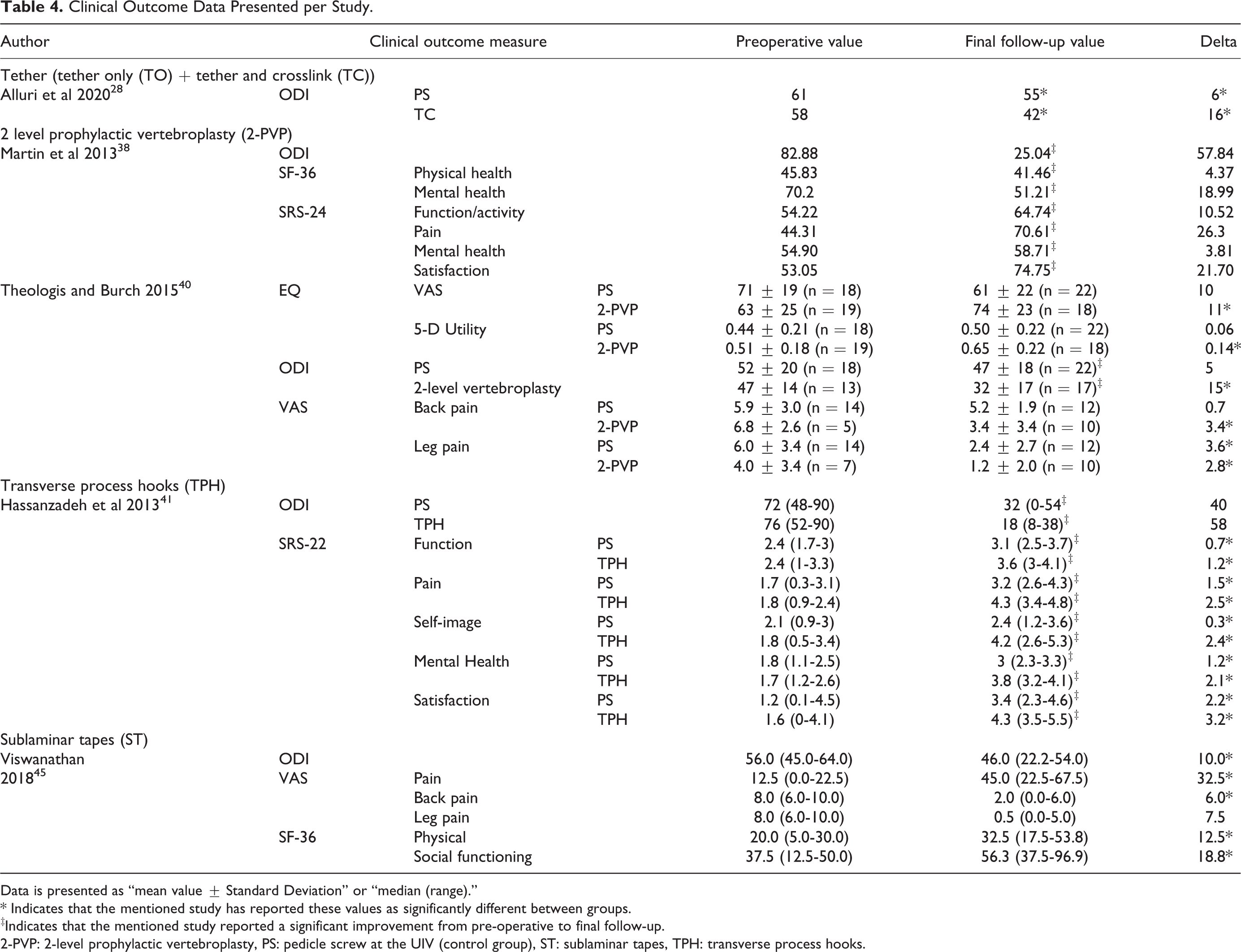

Table 4.

Clinical Outcome Data Presented per Study.

Author	Clinical outcome measure			Preoperative value	Final follow-up value	Delta
Tether (tether only (TO) + tether and crosslink (TC))
Alluri et al 2020²⁸	ODI	PS		61	55*	6*
Alluri et al 2020²⁸	ODI	TC		58	42*	16*
2 level prophylactic vertebroplasty (2-PVP)
Martin et al 2013³⁸	ODI			82.88	25.04^‡	57.84
	SF-36	Physical health		45.83	41.46^‡	4.37
	SF-36	Mental health		70.2	51.21^‡	18.99
	SRS-24	Function/activity		54.22	64.74^‡	10.52
		Pain		44.31	70.61^‡	26.3
		Mental health		54.90	58.71^‡	3.81
		Satisfaction		53.05	74.75^‡	21.70
Theologis and Burch 2015⁴⁰	EQ	VAS	PS	71 ± 19 (n = 18)	61 ± 22 (n = 22)	10
		VAS	2-PVP	63 ± 25 (n = 19)	74 ± 23 (n = 18)	11*
		5-D Utility	PS	0.44 ± 0.21 (n = 18)	0.50 ± 0.22 (n = 22)	0.06
		5-D Utility	2-PVP	0.51 ± 0.18 (n = 19)	0.65 ± 0.22 (n = 18)	0.14*
	ODI	PS		52 ± 20 (n = 18)	47 ± 18 (n = 22)^‡	5
	ODI	2-level vertebroplasty		47 ± 14 (n = 13)	32 ± 17 (n = 17)^‡	15*
	VAS	Back pain	PS	5.9 ± 3.0 (n = 14)	5.2 ± 1.9 (n = 12)	0.7
		Back pain	2-PVP	6.8 ± 2.6 (n = 5)	3.4 ± 3.4 (n = 10)	3.4*
		Leg pain	PS	6.0 ± 3.4 (n = 14)	2.4 ± 2.7 (n = 12)	3.6*
		Leg pain	2-PVP	4.0 ± 3.4 (n = 7)	1.2 ± 2.0 (n = 10)	2.8*
Transverse process hooks (TPH)
Hassanzadeh et al 2013⁴¹	ODI	PS		72 (48-90)	32 (0-54^‡	40
	ODI	TPH		76 (52-90)	18 (8-38)^‡	58
	SRS-22	Function	PS	2.4 (1.7-3)	3.1 (2.5-3.7)^‡	0.7*
		Function	TPH	2.4 (1-3.3)	3.6 (3-4.1)^‡	1.2*
		Pain	PS	1.7 (0.3-3.1)	3.2 (2.6-4.3)^‡	1.5*
		Pain	TPH	1.8 (0.9-2.4)	4.3 (3.4-4.8)^‡	2.5*
		Self-image	PS	2.1 (0.9-3)	2.4 (1.2-3.6)^‡	0.3*
		Self-image	TPH	1.8 (0.5-3.4)	4.2 (2.6-5.3)^‡	2.4*
		Mental Health	PS	1.8 (1.1-2.5)	3 (2.3-3.3)^‡	1.2*
		Mental Health	TPH	1.7 (1.2-2.6)	3.8 (3.2-4.1)^‡	2.1*
		Satisfaction	PS	1.2 (0.1-4.5)	3.4 (2.3-4.6)^‡	2.2*
		Satisfaction	TPH	1.6 (0-4.1)	4.3 (3.5-5.5)^‡	3.2*
Sublaminar tapes (ST)
Viswanathan2018⁴⁵	ODI			56.0 (45.0-64.0)	46.0 (22.2-54.0)	10.0*
	VAS	Pain		12.5 (0.0-22.5)	45.0 (22.5-67.5)	32.5*
		Back pain		8.0 (6.0-10.0)	2.0 (0.0-6.0)	6.0*
		Leg pain		8.0 (6.0-10.0)	0.5 (0.0-5.0)	7.5
	SF-36	Physical		20.0 (5.0-30.0)	32.5 (17.5-53.8)	12.5*
	SF-36	Social functioning		37.5 (12.5-50.0)	56.3 (37.5-96.9)	18.8*

Data is presented as “mean value ± Standard Deviation” or “median (range).”

* Indicates that the mentioned study has reported these values as significantly different between groups.

^‡Indicates that the mentioned study reported a significant improvement from pre-operative to final follow-up.

2-PVP: 2-level prophylactic vertebroplasty, PS: pedicle screw at the UIV (control group), ST: sublaminar tapes, TPH: transverse process hooks.

Tether

Seven studies investigated the use of tethers at the proximal junction in various configurations (Figure 1A-E). Alluri et al²⁸ (n = 83) applied a semitendinosus allograft in an interwoven manner between the spinous processes of the UIV+1 and a crosslink at UIV−2, and compared this to a PS control group (Figure 1A). No differences were found in PJK incidence (33% versus 32% resp., P = 0.766), but the reoperation rate for PJK was found to be significantly higher for PS group (18% versus 0%, P = 0.01). Moreover, the postoperative ODI (42% versus 55%, P = 0.02) and preoperative versus postoperative difference in ODI (+16 versus +6%, P = 0.007) were significantly in favor of the tether group. There was no significant difference in post-operative complication incidence.

Buell et al²⁹ (n = 184) compared 2 different Mersilene tape configurations to a PS control group (Figure 1B and C). Hand-tightening Mersilene tape threaded through the spinous processes of UIV+1 and UIV−1, compared to a PS control group, provided no significant differences. However, Mersilene tape threaded through the spinous process of UIV+1 and tensioned by caudal displacement of a crosslink fixated between UIV−1 and UIV−2, led to a significant decrease in PJK incidence (18% versus 45%, P = 0.001). No effect on the revision rate for PJK was observed when compared to the PS control group. Another study by Buell et al³⁰ (n = 120) used similar groups and found no significant effect on PJK and revision rate. Moreover, Line et al³² (n = 452) used the same technique as Buell et al,²⁹ hand-tightening Mersilene tape through the spinous processes of UIV+1 and UIV−1, and found no significant beneficial effect on PJF incidence.

In a retrospective single surgeon series (n = 108), Iyer et al³¹ instrumented 31 patients with Mersilene tape passed through the spinous processes of UIV+1 and looped below the pedicle screws of the UIV as a tether construct. This tether was repeated between the spinous processes of UIV and the pedicle screws of UIV−1 (Figure 1D). No significant difference in PJK incidence at final follow-up was found between the intervention group (28.6%) and the control group (27.3%).

Safaee et al³³ (n = 200) described another tether configuration, in which 2 cables are passed through the center of the spinous process at UIV, UIV+1 and UIV−1. The individual cable ends were bilaterally locked between UIV−2 and UIV−3 (Figure 1A). A significantly lower revision rate was found when compared to a PS control group, (4% versus 18%, P = 0.002). Unfortunately, the PJK incidence was only mentioned for the tether group (16%) and not for the PS control group. The majority of the included subjects was additionally instrumented with hooks or vertebroplasty at the UIV, with a significantly higher proportion in the tether group.

Lastly, Rodriguez-Fontan et al³⁴ (n = 80) passed Mersilene tape through the spinous process of UIV+1 and looped this in a figure-8 manner around the infra-adjacent spinous process (Figure 1E). The authors combined the PJK and PJF incidence as their outcome, and found a significant decrease in incidence following their technique (15% versus 38%, P = 0.045).

2-Level Prophylactic Vertebroplasty

Seven studies investigated 2-PVP at UIV and UIV+1 (Figure 1F). Ghobrial et al³⁵ (n = 85) reported a significantly higher PJK incidence (24% vs 36%, P = 0.020) and revision rate (0 vs 13%, P = 0.031) compared to a PS control group. However, the age was significantly higher in the 2-PVP group and significantly more anterior lumbar interbody fusions had been performed in the PS control group. Another controlled study³⁶ (n = 84) showed no significant differences between groups, and 2 uncontrolled studies showed an incidence of 8% (n = 41) and 28% (n = 39).^38,39 PJF is reported in 5 controlled studies (Ghobrial et al,³⁵ Han et al,³⁶ Hart et al³⁷ (n = 28), Line et al³² (n = 448) and Theologis and Burch⁴⁰ (n = 32)), and 2 uncontrolled studies (Martin et al,³⁸ Raman et al). In all of these studies, no significant differences were found for PJF incidence between groups.^32,35-40

Theologis and Burch⁴⁰ reported a significantly better outcome on ODI scale following 2-PVP placement versus the PS control group (P = 0.04) at final follow-up. The other studies did not address clinical outcome. Two studies showed no significant differences in the number of complications between groups,^35,36 and an uncontrolled study by Raman et al,³⁹ which included patients with severe sagittal imbalance, reported relatively high complication rates.

Application of PVP at 1- or 3 levels was investigated in a small group of 9 patients by Theologis and Burch,⁴⁰ and showed a similar PJK incidence compared to the PS control group (22% versus 21%). This study with a low number of subjects and significantly younger patients in the PS control group, also reported a significantly higher ODI score for the PVP group (1-PVP and 3-PVP).

Transverse Process Hooks

TPHs at the UIV were investigated in 3 of the included studies (Figure 1G). Hassanzadeh et al⁴¹ (n = 47) found that the PJK incidence and revision rate were significantly lower compared to a PS control group (0 vs. 30%, P = 0.023 and 0 vs 7%, P = n.a. respectively). Moreover, significantly higher ODI and SRS-22 scores were found in the TPH group. The follow-up duration was twice as long for the PS control group and the mean age of the subject in both groups was relatively low (46-51 years). Two other studies on TPH (Line et al³² (n = 505) and Matsumura et al⁴² (n = 39)), found no significant difference with regard to PJF incidence.

Flexible Rods

Lee et al⁴³ (n = 77) investigated the use of a flexible (Ti6Al-4 ELI alloy) rod allowing 15° flexion and 10° extension at the proximal junction (Figure 1H). Following FR placement, PJK incidence was significantly lower compared to the PS control group (15% versus 38%, P = 0.045). However, follow-up duration of the PS control group was twice as long as in the FR group, and various other surgical interventions were applied with significant differences between the groups. Moreover, based on the preoperative radiographic measurements, the study subjects were relatively sagittally imbalanced compared to the measurements of other studies.

Multilevel Stabilization Screws

In an uncontrolled study by Sandquist et al⁴⁴ with a low number of patients (n = 15), MLSS was applied at the UIV. For this technique, the multi-level screws were passed in a superior and oblique manner from UIV to the vertebral body of UIV+1. A PJK and PJF incidence of 0% was found (Figure 1I).

Sublaminar Tapes

Viswanathan et al⁴⁵ (n = 40) investigated ST at UIV+1, bilaterally placed in a caudal to cranial fashion, and found a PJK incidence of 8% and a PJF incidence of 0% (Figure 1J). The authors found a significant increase of ODI, VAS pain, VAS back pain and SF-36 scores at the final follow-up, with 9 reported major- and 27 minor complications.

Discussion

This systematic review showed that a variety of PJK and PJF prophylactic spinal instrumentation techniques have been clinically investigated. The most frequently evaluated techniques were posterior tether application (varying configurations) or 2-PVP at the UIV. TPH, FR, MLSS and ST have also been clinically assessed.

Tethers have been applied in multiple studies in various attachment methods, as a means to reinforce the posterior ligamentous complex (PLC). Tethers often seemed to provide a beneficial effect on the occurrence of PJK and the need for revision surgery for PJK. Interestingly, Buell et al²⁹ reported a beneficial effect on PJK incidence after using a crosslink between UIV−1 and UIV−2 as distal fixation for the tether, instead of fixation to the spinous process of UIV−2. Presumably, the added tension induced by distally moving the crosslink compared to hand tensioned tethers, resulted in a beneficial effect on PJK incidence. This finding is supported by Cho et al,⁴⁶ who found significant reductions in flexion range of motion with pretension of 250 N and 350 N in an ex vivo biomechanical test (42% and 57% of native condition respectively). A finite-element analysis by Bess et al⁴⁷ reported more gradual transitions in kinematics and lower stresses on the posterior elements after using tethers at UIV+1 in comparison to PS. In the same study, applying tethers at multiple levels further improved these results compared to constructs with TPH or PS at UIV. Additional in vitro biomechanical research is required to determine the optimal magnitude of pretension of the tether at the proximal segment. Moreover, controlled studies assessing the optimal configuration of the tethers are needed.

2-PVP provided a significantly lower revision rate and PJK incidence in comparison to PS fixation in one study,³⁵ and lower overall PJF incidences were seen compared to the PS group. 1-PVP and 3-PVP were also assessed in a very small sub-group, but no difference in PJF incidence was observed in comparison to the PS control group.⁴⁰ Although the clinical evidence is meager, the authors speculated that 1-PVP is likely to increase stress on the proximal segment, and 2-PVP may provide a larger transitional zone for axial forces.⁴⁸ One of the studies found a beneficial effect on PJK incidence and revision rate after 2-PVP in elderly patients compared to PS in younger patients, suggesting a protective effect in patients with lower BMD.³⁵ Moreover, 2-PVP could prevent progressive vertebral height loss in case a proximal junctional fracture (PJFx) would occur, and seemed to limit the post-operative kyphotic progression of the proximal junction, possibly also contributing to the lower revision rate for PJK.³⁶ Nevertheless, this was not reflected in the clinical outcome. Only one of the studies found a significant beneficial effect of 2-PVP on any of the reported HRQoL scores (ODI). Due to the uncontrolled designs of the included studies, controlled trials incorporating 2-PVP as PJK and PJF prophylactic method are needed to support these promising findings.

TPH was shown to achieve a lower incidence of PJK, revision rates, and PJF. In a single study with a small patient population with a relatively low mean age, and major differences in follow-up duration between groups, it was found that application of TPH demonstrated a 0% PJK incidence and 0% revision rates for PJK.⁴¹ However, 2 other studies found no significant difference in PJF incidence compared to the PS group. Finally, Matsumura et al⁴² found that if a PJFx occurred, the vertebral body collapse and PJA increase was less severe following TPH compared to pedicle screws. For future research, it is important to consider the bone mineral density (BMD), and its effect on the success rate of TPH. It is known that in the adult patient, BMD in the transverse process is lowest and highest in the lamina.⁴⁹ Despite lacking a control group, one of the included studies assessing ST found promising results expressed by a lower PJK incidence.⁴⁵ We therefore recommend future clinical studies assessing TPH and ST to report the incidence of instrumentation breakout in their analysis, especially in patients presenting with osteopenia or osteoporosis.

A single low quality study analyzing MLSS found a PJK and PJF incidence of 0%. Sandquist et al⁴⁴ argue that placement of MLSS is safe in the upper thoracic spine and minimizes dissection and disruption of the cephalad posterior elements. Similarly, flexible rods were found to lower incidences of PJK (10%) compared to PS fixation (53%) in a low quality study with major risk of bias. Moreover, if PJK occurred, it seemed to be of less progressive nature.⁴³ Further research is needed for more reliable outcome data on both techniques.

Although most studies reported a favorable effect of the investigated technique on PJK and PJF incidence, few studies reported on clinical outcome and only 2 studies (on TPH and 2-PVP) found a significantly better clinical outcome compared to the control group.^40,41 Previous studies have shown that clinical outcome in PJK and non-PJK patients is similar.^19,20 However, unlike PJK, multiple studies show that the occurrence of PJF correlates with a worse clinical outcome.^7,11 For this reason, the clinical relevance of assessing the success of PJK and PJF prophylactic techniques based on radiographic measurements seems questionable. Future studies should consider clinical outcome measures in the evaluation of prophylaxis success.

Most of the techniques addressed in this review have also been assessed biomechanically.^50,51 However, to determine the optimal PJK and PJF prophylactic technique, the relationship between biomechanical findings and clinical performance must be further elucidated. Also, patient demographics such as a higher age (>60 years), low BMD, and pre-existing comorbidities, and surgical characteristics such as a higher number of fused levels, use of bilateral pedicle screws at UIV, fusion to S1, revision surgery, anterior or combined anteroposterior approaches, additional osteotomies and UIV in the lower thoracic spine must be carefully controlled in clinical trials. The large number of possible confounding factors warrant the design of large multi-center trials. Likewise, it is advised to carefully report radiographic parameters indicating the extend of pre- and postoperative sagittal imbalance, and incorporate the amount of sagittal correction in the decision making process of the surgeon.^17,18,52-54 Furthermore, some low-quality studies suggest that a combination of tethers, hooks and/or vertebroplasty may provide further reduction of PJK and revision rates for PJK.^32,33 However, we advise to first assess the effect per technique in, for example, a matched-cohort study.

Strengths and Limitations

Several limitations should be considered when interpreting the results of the current review. Major differences in reported outcomes were found between different studies that investigated similar interventions. We were only able to include nonrandomized cohort studies, with severe or critical risk of bias. Moreover, the included studies were heterogeneous with regard to the investigated intervention, study design, patient characteristics, follow-up duration and reported outcomes. The effect of differences in follow-up duration on the reported PJK and PJF incidence rates could be limited, since only studies with >12 months of follow-up duration were included, and both PJK and PJF typically present within the first 3 months after surgery. Furthermore, we have included studies that involved constructs ending proximally at the higher thoracic spine and the thoracolumbar junction. However, it seems that the mode of failure in the thoracic spine differs between the upper- and the lower-region. Generally, a higher incidence of PJK is found if the UIV is in the lower thoracic spine or thoracolumbar region compared to the upper thoracic spine.⁶ Our goal was to provide a clear overview of the and clinically investigated techniques. Unfortunately, due to the heterogeneity of the studies and used techniques, quantitative comparison of the data was not considered feasible.

Conclusion

Although the clinical relevance of preventing PJK and PJF in the ASD population is eminent, the exact etiology of PJK and PJF remain unclear. The prophylactic techniques identified, focus on creating a semi-rigid transition proximal to the instrumented vertebrae in an effort to reduce junctional level stresses, or reinforcement of the anterior column to increase the fracture resistance of vertebrae. Although the studies included in this review are of low quality, current literature provides insight into the potential effectiveness of these interventions. The most frequently studied techniques, namely 2-PVP as anterior reinforcement and tethers or TPH as posterior semi-rigid fixation, show promising results. More controlled studies are required to provide a reliable comparison, including the use of clinical outcome measures and a uniform definition of PJF.

Supplemental Material

Supplemental Material, sj-docx-1-gsj-10.1177_21925682211034500 - Instrumentation Techniques to Prevent Proximal Junctional Kyphosis and Proximal Junctional Failure in Adult Spinal Deformity Correction: A Systematic Review of Clinical Studies

Supplemental Material, sj-docx-1-gsj-10.1177_21925682211034500 for Instrumentation Techniques to Prevent Proximal Junctional Kyphosis and Proximal Junctional Failure in Adult Spinal Deformity Correction: A Systematic Review of Clinical Studies by Timon F. G. Vercoulen, Remco J. P. Doodkorte, Alex Roth, Rob de Bie and Paul C. Willems in Global Spine Journal

Footnotes

Authors’ Note

This research was performed within the Chemelot InSciTe framework and the authors have no financial or competing interests related to this work. The devices that are subject in the included studies of this manuscript may be investigational or products not FDA-approved for the indication. Moreover, not all products are commercially available in the United States.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Timon F. G. Vercoulen, MD

Supplemental Material

Supplemental material for this article is available online.

References

Arlet

Aebi

. Junctional spinal disorders in operated adult spinal deformities: present understanding and future perspectives. Eur Spine J. 2013;22(suppl 2):S276–S295. doi:10.1007/s00586-013-2676-x

Bridwell

Lenke

Cho

, et al. Proximal junctional kyphosis in primary adult deformity surgery: evaluation of 20 degrees as a critical angle. Neurosurgery. 2013;72(6):899–906 doi:10.1227/NEU.0b013e31828bacd8

Faundez

Richards

Maxy

Price

Léglise

Le Huec

. The mechanism in junctional failure of thoraco-lumbar fusions. Part II: analysis of a series of PJK after thoraco-lumbar fusion to determine parameters allowing to predict the risk of junctional breakdown. Eur Spine J. 2018;27(suppl 1):139–148. doi:10.1007/s00586-017-5426-7

Glattes

Bridwell

Lenke

Kim

Rinella

Edwards

. Proximal junctional kyphosis in adult spinal deformity following long instrumented posterior spinal fusion: incidence, outcomes, and risk factor analysis. Spine (Phila Pa 1976). 2005;30(14):1643–1649. doi:10.1097/01.brs.0000169451.76359.49

Hart

McCarthy

Ames

Shaffrey

Hamilton

Hostin

. Proximal junctional kyphosis and proximal junctional failure. Neurosurg Clin N Am. 2013;24(2):213–218. doi:10.1016/j.nec.2013.01.001

Hostin

McCarthy

O’Brien

, et al. International Spine Study Group. Incidence, mode, and location of acute proximal junctional failures after surgical treatment of adult spinal deformity. Spine (Phila Pa 1976). 2013;38(12):1008–1015. doi:10.1097/BRS.0b013e318271319c

Hyun

Lee

Park

Kim

Jahng

Kim

. Proximal junctional kyphosis and proximal junctional failure following adult spinal deformity surgery. Korean J Spine. 2017;14(4):126–132. doi:10.14245/kjs.2017.14.4.126

Kim

Iyer

. Proximal junctional kyphosis. J Am Acad Orthop Surg. 2016;24(5):318–326. doi:10.5435/jaaos-d-14-00393

Kim

Lenke

Shaffrey

Van Alstyne

Skelly

. Proximal junctional kyphosis as a distinct form of adjacent segment pathology after spinal deformity surgery: a systematic review. Spine (Phila Pa 1976). 2012;37(22 suppl):S144–S164. doi:10.1097/BRS.0b013e31826d611b

10.

Kim

Bridwell

Lenke

Glattes

Rhim

Cheh

. Proximal junctional kyphosis in adult spinal deformity after segmental posterior spinal instrumentation and fusion: minimum five-year follow-up. Spine (Phila Pa 1976). 2008;33(20):2179–2184. doi:10.1097/BRS.0b013e31817c0428

11.

Lau

Clark

Scheer

, et al. SRS Adult Spinal Deformity Committee. Proximal junctional kyphosis and failure after spinal deformity surgery: a systematic review of the literature as a background to classification development. Spine (Phila Pa 1976). 2014;39(25):2093–2102. doi:10.1097/brs.0000000000000627

12.

Lee

Park

. Proximal junctional kyphosis: diagnosis, pathogenesis, and treatment. Asian Spine J. 2016;10(3):593–600. doi:10.4184/asj.2016.10.3.593

13.

Lee

Kim

Jang

Lee

. Analysis of the incidence and risk factors for the progression of proximal junctional kyphosis following surgical treatment for lumbar degenerative kyphosis: minimum 2-year follow-up. Br J Neurosurg. 2014;28(2):252–258. doi:10.3109/02688697.2013.835369

14.

Liu

Yang

Huo

Wang

Yang

Ding

. Incidence and risk factors for proximal junctional kyphosis: a meta-analysis. Eur Spine J. 2016;25(8):2376–2383. doi:10.1007/s00586-016-4534-0

15.

Nguyen

N-LM

Kong

Hart

. Proximal junctional kyphosis and failure-diagnosis, prevention, and treatment. Curr Rev Musculoskelet Med. 2016;9(3):299–308. doi:10.1007/s12178-016-9353-8

16.

Segreto

Passias

Lafage

, et al. Incidence of acute, progressive, and delayed proximal junctional kyphosis over an 8-year period in adult spinal deformity patients. Oper Neurosurg (Hagerstown). 2020;18(1):75–82. doi:10.1093/ons/opz128

17.

Smith

Annis

Lawrence

Daubs

Brodke

. Early proximal junctional failure in patients with preoperative sagittal imbalance. Evid Based Spine Care J. 2013;4(2):163–164. doi:10.1055/s-0033-1357366

18.

Smith

Annis

Lawrence

Daubs

Brodke

. Acute proximal junctional failure in patients with preoperative sagittal imbalance. Spine J. 2015;15(10):2142–2148. doi:10.1016/j.spinee.2015.05.028

19.

Yagi

Akilah

Boachie-Adjei

. Incidence, risk factors and classification of proximal junctional kyphosis: surgical outcomes review of adult idiopathic scoliosis. Spine (Phila Pa 1976). 2011;36(1):E60–E68. doi:10.1097/BRS.0b013e3181eeaee2

20.

Yagi

King

Boachie-Adjei

. Incidence, risk factors, and natural course of proximal junctional kyphosis: surgical outcomes review of adult idiopathic scoliosis. Minimum 5 years of follow-up. Spine (Phila Pa 1976). 2012;37(17):1479–1489. doi:10.1097/BRS.0b013e31824e4888

21.

Diebo

Shah

Stroud

Paulino

Schwab

Lafage

. Realignment surgery in adult spinal deformity: prevalence and risk factors for proximal junctional kyphosis. Orthopade. 2018;47(4):301–309. doi:10.1007/s00132-018-3536-5

22.

Park

Lee

Chung

Lee

Kang

Park

. Different risk factors of proximal junctional kyphosis and proximal junctional failure following long instrumented fusion to the sacrum for adult spinal deformity: survivorship analysis of 160 patients. Neurosurgery. 2017;80(2):279–286. doi:10.1227/neu.0000000000001240

23.

Shamseer

Moher

Clarke

, et al. PRISMA-P Group. Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015: elaboration and explanation. BMJ. 2015;350:g7647. doi:10.1136/bmj.g7647

24.

Bramer

Giustini

de Jonge

Holland

Bekhuis

. De-duplication of database search results for systematic reviews in EndNote. J Med Libr Assoc. 2016;104(3):240–243. doi:10.3163/1536-5050.104.3.014

25.

Ouzzani

Hammady

Fedorowicz

Elmagarmid

. Rayyan—a web and mobile app for systematic reviews. Syst Rev. 2016;5(1):210. doi:10.1186/s13643-016-0384-4

26.

Sterne

Hernán

Reeves

, et al. ROBINS-I: a tool for assessing risk of bias in non-randomised studies of interventions. BMJ. 2016;355:i4919. doi:10.1136/bmj.i4919

27.

Glassman

Hamill

Bridwell

Schwab

Dimar

Lowe

. The impact of perioperative complications on clinical outcome in adult deformity surgery. Spine (Phila Pa 1976). 2007;32(24) 2764–2770. doi:10.1097/BRS.0b013e31815a7644

28.

Alluri

Kim

Ton

Kang

Acosta

Hah

. Semitendinosus tendon augmentation for prevention of proximal junctional failure. Spine (Phila Pa 1976). 2021;46(4):241–248. doi:10.1097/brs.0000000000003765

29.

Buell

Buchholz

Quinn

, et al. A pilot study on posterior polyethylene tethers to prevent proximal junctional kyphosis after multilevel spinal instrumentation for adult spinal deformity. Oper Neurosurg (Hagerstown). 2019;16(2):256–266. doi:10.1093/ons/opy065

30.

Buell

Chen

Quinn

, et al. Alignment risk factors for proximal junctional kyphosis and the effect of lower thoracic junctional tethers for adult spinal deformity. World Neurosurg. 2019;121:e96–e103. doi:10.1016/j.wneu.2018.08.242

31.

Iyer

Lovecchio

Elysée

, et al. Posterior ligamentous reinforcement of the upper instrumented vertebrae +1 does not decrease proximal junctional kyphosis in adult spinal deformity. Global Spine J. 2020;10(6):692–699. doi:10.1177/2192568219868472

32.

Line

Bess

Lafage

, et al. International Spine Study Group. Effective prevention of proximal junctional failure in adult spinal deformity surgery requires a combination of surgical implant prophylaxis and avoidance of sagittal alignment overcorrection. Spine (Phila Pa 1976). 2020;45(4):258–267. doi:10.1097/BRS.0000000000003249

33.

Safaee

Deviren

Dalle Ore

, et al. Ligament augmentation for prevention of proximal junctional kyphosis and proximal junctional failure in adult spinal deformity. J Neurosurg Spine. 2018;28(5):512–519. doi:10.3171/2017.9.SPINE1710

34.

Rodriguez-Fontan

Reeves

Noshchenko

, et al. Strap stabilization for proximal junctional kyphosis prevention in instrumented posterior spinal fusion. Eur Spine J. 2020;29(6):1287–1296 doi:10.1007/s00586-020-06291-0

35.

Ghobrial

Eichberg

Kolcun

JPG

, et al. Prophylactic vertebral cement augmentation at the uppermost instrumented vertebra and rostral adjacent vertebra for the prevention of proximal junctional kyphosis and failure following long-segment fusion for adult spinal deformity. Spine J. 2017;17(10):1499–1505. doi:10.1016/j.spinee.2017.05.015

36.

Han

Hyun

Kim

, et al. Effect of vertebroplasty at the upper instrumented vertebra and upper instrumented vertebra +1 for prevention of proximal junctional failure in adult spinal deformity surgery: a comparative matched-cohort study. World Neurosurg. 2019;S1878–S8750(18)32936–X. doi:10.1016/j.wneu.2018.12.113

37.

Hart

Prendergast

Roberts

Nesbit

Barnwell

. Proximal junctional acute collapse cranial to multi-level lumbar fusion: a cost analysis of prophylactic vertebral augmentation. Spine J. 2008;8(6):875–881. doi:10.1016/j.spinee.2008.01.015

38.

Martin

Skolasky

Mohamed

Kebaish

. Preliminary results of the effect of prophylactic vertebroplasty on the incidence of proximal junctional complications after posterior spinal fusion to the low thoracic spine. Spine Deform. 2013;1(2):132–138. doi:10.1016/j.jspd.2013.01.005

39.

Raman

Miller

Martin

Kebaish

. The effect of prophylactic vertebroplasty on the incidence of proximal junctional kyphosis and proximal junctional failure following posterior spinal fusion in adult spinal deformity: a 5-year follow-up study. Spine J. 2017;17(10):1489–1498. doi:10.1016/j.spinee.2017.05.017

40.

Theologis

Burch

. Prevention of acute proximal junctional fractures after long thoracolumbar posterior fusions for adult spinal deformity using 2-level cement augmentation at the upper instrumented vertebra and the vertebra 1 level proximal to the upper instrumented vertebra. Spine (Phila Pa 1976). 2015;40(19):1516–1526. doi:10.1097/brs.0000000000001043

41.

Hassanzadeh

Gupta

Jain

El Dafrawy

Skolasky

Kebaish

. Type of anchor at the proximal fusion level has a significant effect on the incidence of proximal junctional kyphosis and outcome in adults after long posterior spinal fusion. Spine Deform. 2013;1(4):299–305. doi:10.1016/j.jspd.2013.05.008

42.

Matsumura

Namikawa

Kato

, et al. Effect of different types of upper instrumented vertebrae instruments on proximal junctional kyphosis following adult spinal deformity surgery: pedicle screw versus transverse process hook. Asian Spine J. 2018;12(4):622–631. doi:10.31616/asj.2018.12.4.622

43.

Lee

Kang

Shin

Cho

. Preliminary report on the flexible rod technique for prevention of proximal junctional kyphosis following long-segment fusion to the sacrum in adult spinal deformity. J Neurosurg Spine. 2019:1–8. doi:10.3171/2019.4.SPINE1915

44.

Sandquist

Carr

Tong

Gonda

Soo

. Preventing proximal junctional failure in long segmental instrumented cases of adult degenerative scoliosis using a multilevel stabilization screw technique. Surg Neurol Int. 2015;6:112. doi:10.4103/2152-7806.159383

45.

Viswanathan

Kukreja

Minnema

Farhadi

. Prospective assessment of the safety and early outcomes of sublaminar band placement for the prevention of proximal junctional kyphosis. J Neurosurg Spine. 2018;28(5):520–531. doi:10.3171/2017.8.Spine17672

46.

Cho

Caridi

Kim

Cheung

Gandhi

Inzana

. Attenuation of proximal junctional kyphosis using sublaminar polyester tension bands: a biomechanical study. World Neurosurg. 2018;120:e1136–e1142. doi:10.1016/j.wneu.2018.08.244

47.

Bess

Harris

Turner

, et al. The effect of posterior polyester tethers on the biomechanics of proximal junctional kyphosis: a finite element analysis. J Neurosurg Spine. 2017;26(1):125–133. doi:10.3171/2016.6.SPINE151477

48.

Kebaish

Martin

O’Brien

LaMotta

Voros

Belkoff

. Use of vertebroplasty to prevent proximal junctional fractures in adult deformity surgery: a biomechanical cadaveric study. Spine J. 2013;13(12):1897–1903. doi:10.1016/j.spinee.2013.06.039

49.

Hohn

Chu

Martin

, et al. The pedicles are not the densest regions of the lumbar vertebrae: implications for bone quality assessment and surgical treatment strategy. Global Spine J. 2017;7(6):567–571. doi:10.1177/2192568217694141

50.

Shay

Jeffrey

Alexander

WLT

51.

Doodkorte

RJP

Roth

Arts

Lataster

LMA

van Rhijn

Willems

. Instrumentation techniques to prevent proximal junctional kyphosis and proximal junctional failure in adult spinal deformity correction—a systematic review of biomechanical studies. Spine J. 2021;21(5):855–864. doi:10.1016/j.spinee.2021.01.011

52.

Kim

Bridwell

Lenke

, et al. Patients with proximal junctional kyphosis requiring revision surgery have higher postoperative lumbar lordosis and larger sagittal balance corrections. Spine (Phila Pa 1976). 2014;39(9):E576–E580. doi:10.1097/brs.0000000000000246

53.

Watanabe

Lenke

Bridwell

Kim

Koester

Hensley

. Proximal junctional vertebral fracture in adults after spinal deformity surgery using pedicle screw constructs: analysis of morphological features. Spine (Phila Pa 1976). 2010;35(2):138–145. doi:10.1097/BRS.0b013e3181c8f35d

54.

Yagi

Rahm

Gaines

, et al. Complex Spine Study Group. Characterization and surgical outcomes of proximal junctional failure in surgically treated patients with adult spinal deformity. Spine (Phila Pa 1976). 2014;39(10):E607–614. doi:10.1097/brs.0000000000000266

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.03 MB
