Molecular bacterial load assay versus culture for monitoring treatment response in adults with tuberculosis

Abstract

The lack of rapid, sensitive, and deployable tuberculosis diagnostic tools is hampering the early diagnosis of tuberculosis and early detection of treatment failures. The conventional sputum smear microscopy or Xpert MTB/RIF assay cannot distinguish between alive and dead bacilli and the culture method delays providing results. Tuberculosis molecular bacterial load assay is a reverse transcriptase real-time quantitative polymerase chain reaction that quantifies viable tuberculosis bacillary load as a marker of treatment response for patients on anti-tuberculosis therapy. However, results are not synthesized enough to inform its comparative advantage to tuberculosis culture technique which is yet the gold standard of care. With this review, we searched electronic databases, including PubMed, Embase, and Web of Science, from March 2011 up to February 2021 for clinical trials or prospective cohort studies that compared tuberculosis molecular bacterial load assay with tuberculosis culture in adults. We included eight studies that meet the inclusion criteria. Tuberculosis molecular bacterial load assay surpasses culture in monitoring patients with tuberculosis during the first few weeks of anti-tuberculosis treatment. It is more desirable over culture for its shorter time to results, almost zero rates of contamination, need for less expertise on the method, early rate of decline, lower running cost, and reproducibility. Its rapid and specific tuberculosis treatment monitoring competency benefits patients and healthcare providers to monitor changes of bacillary load among isolates with drug-susceptible or resistance to anti-tuberculosis regimens. Despite of the high installing cost of the tuberculosis molecular bacterial load assay method, molecular expertise, and a well-equipped laboratory, tuberculosis molecular bacterial load assay is a cost-effective method with comparison to culture in operational running. To achieve maximum utility in high tuberculosis burden settings, an intensive initial investment in nucleic acid extraction and polymerase chain reaction equipment, training in procedures, and streamlining laboratory supply procurement systems are crucial. More evidence is needed to demonstrate the potential large-scale and sustainable use of tuberculosis molecular bacterial load assay over culture in resource-constrained settings.

Introduction

Tuberculosis (TB) remains a worldwide threatening and one of the top 10 causes of death, with an estimated 10 million people fell ill with TB annually. The lack of rapid, sensitive, and deployable TB diagnostic tools is hampering the early diagnosis of the disease and early detection of treatment failures. The accuracy of diagnostic tests and the time taken to provide results were proven to impact TB treatment outcomes.^1–4 As a result, novel diagnostic tools for monitoring treatment response and early identifying treatment failure are desperately needed.^5–7 Methods of monitoring response to anti-TB treatment would be desirable during treatment especially in identifying cases failing therapy and those at risk of relapse. There is difficulty in TB treatment, regardless of the type of TB, drug-susceptible or drug-resistant, as the treatments require 6–12 months or more time, with four or more drug-combination to provide the desired outcome.

A reduction in bacterial load is the most vital currently available marker for TB treatment response. ⁸ For different disease conditions, pharmacodynamic biomarkers are objectively measured and assessed as a sign of pharmacologic responses to therapeutic interventions. ⁹ TB biomarkers can either be in a two-dimensional matrix, according to the clinical outcome (failure vs relapse) and level of surrogacy (patient vs trial),^10,11 while other promising TB biomarkers are emerging. Such biomarkers, including time-to-positivity (TTP), sputum culture conversion, smear conversion, therapeutic drug monitoring (TDM), pharmacokinetics (PK), minimum inhibitory concentration (MIC), and whole blood bactericidal assay (WBA) could facilitate the development of alternative treatment strategies.

So far, no specific molecular method has been superiorly recommended as a biomarker for monitoring TB treatment response, necessitating the continued use of phenotypic methods.^12,13 The conventional sputum smear microscopy or Xpert MTB/RIF assay cannot distinguish between alive and dead bacilli and the culture method delays providing results. Sputum smear microscopy as one of the phenotypic methods remains the most commonly used test for diagnosis and monitoring of treatment, despite being less sensitive and non-specific for Mycobacterium tuberculosis (M. tb), while mycobacterial culture, being identified and applied as the gold standard for TB diagnosis, has the disadvantage of providing results after a substantial period (3–4 weeks).^14–17

The tuberculosis molecular bacterial load assay (TB-MBLA) is a reverse transcriptase quantitative real-time polymerase chain reaction (RT-qPCR) of 16S rRNA detection test that quantifies TB bacillary load and is used as a marker of treatment response for patients on anti-TB therapy. ¹⁸ The assay is rapid, free of contamination, and can inform the elimination rate of M. tb during treatment.^8,18,19 Comparing to culture principles, which usually involves culturing mycobacteria species on either solid-based Lowenstein–Jensen medium (LJ) or liquid mycobacterial growth indicator tube (MGIT), it yields timely results. ²⁰ However, results are not synthesized enough to inform its comparative advantage to the conventional culture methods for monitoring response to anti-TB treatment, including failures to anti-TB treatment.

We aimed to contemplate the potential of TB-MBLA over solid and liquid culture as biomarkers for monitoring treatment response. And in this review, we searched electronic databases, including PubMed, Embase, and Web of Science, from March 2010 up to February 2021 for clinical trials or prospective cohort studies that compared TB-MBLA with TB culture in adults. The search included a combination of the terms, “Tuberculosis,” “biomarkers,” “molecular bacterial load assay,” “outcome,” “treatment monitoring,” “culture,” “sputum smear microscopy” and “tuberculosis molecular methods.” We also manually searched the references of the included studies. Table 1 summarizes the glossary of research terms that we considered in the review.

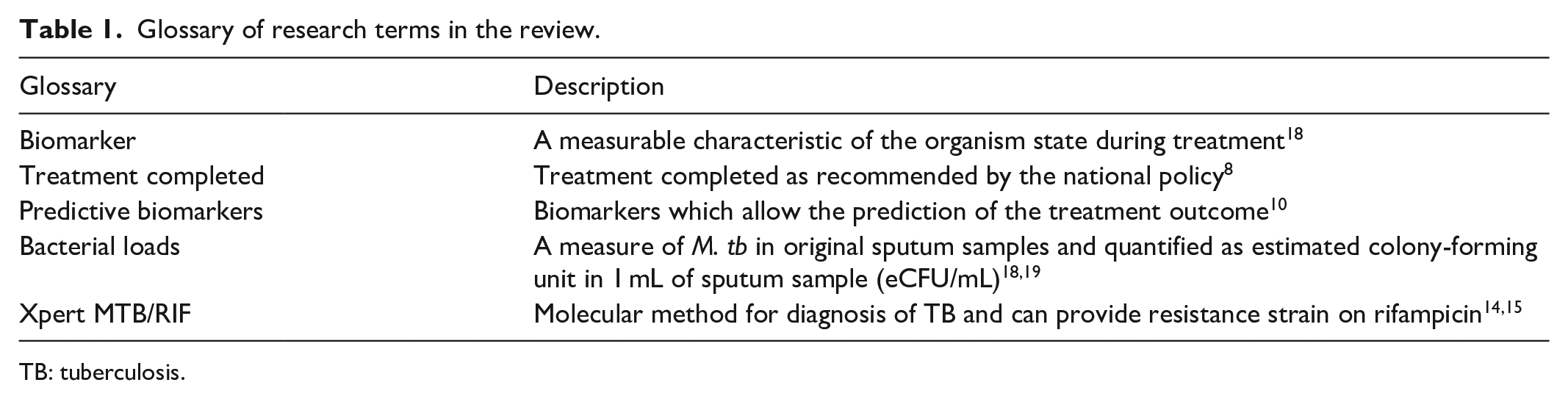

Table 1.

Glossary of research terms in the review.

Glossary	Description
Biomarker	A measurable characteristic of the organism state during treatment 18
Treatment completed	Treatment completed as recommended by the national policy 8
Predictive biomarkers	Biomarkers which allow the prediction of the treatment outcome 10
Bacterial loads	A measure of M. tb in original sputum samples and quantified as estimated colony-forming unit in 1 mL of sputum sample (eCFU/mL)18,19
Xpert MTB/RIF	Molecular method for diagnosis of TB and can provide resistance strain on rifampicin14,15

TB: tuberculosis.

Results

With this review, we found eight eligible clinical trial and prospective cohort studies that compared TB-MBLA with liquid or solid TB culture as a biomarker for monitoring treatment of patients with TB. Figure 1 summarizes the flow diagram of the study.

Figure 1.

Study flow diagram.

Table 2 summarizes the overall characteristics of the eight studies selected for the review and their major findings.

Table 2.

Characteristics of included studies (n = 8).

Characteristics	Description of preferred methods	Studies
Shorter time to results	TB-MBLA gives rapid bacillary load count and takes a short time to results, turnaround time for TB-MBLA is early as within 2 days compared to 2–8 weeks of Culture	8,21,22
Rate of contamination	TB-MBLA is not affected by contamination and does not need a decontamination process when conducting while culture has about 10% rate of contamination	18,19,22,23
Need for less expertise on the method	Culture is more preferable while TB-MBLA needs training on how to perform the test, comparing to a culture where it learned from normal formal skills.	22,24
Early rate of decline	TB-MBLA shows precise evidence on the decline of bacterial load in response to antimicrobial treatment	18,24–26
Lower running cost	TB-MBLA is a preferred cost-effective method in terms of cost reduction in TB trials by speeding up drug development considering having higher utility for making clinical decisions with comparison to culture operational cost as it uses high-level biosafety containment laboratories despite both using Biosafety Laboratory level 3	22,27
Reproducibility	TB-MBLA shows the degree of agreement when the experiment is repeated in different laboratory settings	21,8
Sensitivity	TB-MBLA is more sensitive than culture in picking bacilli, even small bacilli amount	19

TB-MBLA: tuberculosis molecular bacterial load assay.

Table 3 summarizes the technical and operational pros and cons of TB-MBLA versus TB culture based on the evidence compiled from the studies included in the review.

Table 3.

Summarizing technical and operational pros and cons of TB-MBLA versus culture.

	Pros	Cons	Reference
Technically	Culture: available and used in clinical settings compared to TB-MBLA with regular formal skills	TB-MBLA: mostly used in clinical trial settings, and it requires more expertise with training to conduct the test.	8,19
Operationally	TB-MBLA: rapidly quantifies viable M. tb, reproducible and may be appropriate in treatment monitoring and drug efficacy	Culture: methods are time-exhausting and usually have a risk of contamination TB-MBLA: has a higher operational cost	19,22,23,26,27

TB-MBLA: tuberculosis molecular bacterial load assay.

Discussion

TB-MBLA is among new technological advances in diagnostics and there are many opportunities for TB-MBLA to function preferably as a biomarker for monitoring TB treatment response. The TB-MBLA functions are based on 16S rRNA and the RT-qPCR technology, with the potential to quickly quantify viable bacilli and detect potential failures in anti-TB treatment in contrast to DNA-based techniques like Xpert MTB/RIF which is also a quick method of identifying bacilli that do not offer information on viable bacterial load. ¹³ TB-MBLA is capable of detecting a 16S rRNA of dormant and replicating TB cells while continuously measuring and quantifying bacterial load in the sputum of a patient. TB-MBLA process in a protocol has a three-step consisting of (1) extraction of total RNA, (2) enzymatic genomic DNA removal, and (3) RT-qPCR where cycle threshold is transformed to bacterial load.^24,28 When mycobacterial cells are killed by anti-TB drugs, there is a decrease in rRNA amount and thus easily estimates the number of viable cells in a patient’s sputum sample. A decline in rRNA has been defined as a surrogate biomarker of microbial viability and bactericidal activity for anti-TB regimen, due to a cellular abundance of 16S rRNA and half-life being shorter than that of DNA. This 16S rRNA measurement has been used in the quantification of bacterial load.

TB-MBLA surpasses and has clinical importance over culture in monitoring patients with TB during the first few weeks of anti-TB treatment. It is more desirable over the culture for its shorter time to results, and it has been reported to have a superior advantage that regardless of bacterial load present in sputum, one can obtain results within 24 h after sputum expectoration. ⁸ Solid or liquid TB culture methods are time-consuming and are susceptible to contaminations that compromise their potential use for monitoring ant-TB treatment. The currently available culture-based methods require a delayed turnaround time of laboratory results for low-burden samples compared to TB-MBLA that rapidly give M. tb load count in a consistent pattern as shown in a model presented by Svensson et.al. ²³

In the first week and the first month of treatment, TB-MBLA has demonstrated zero rates of contamination, early and rapid rate of decline of M. tb bacilli, and suitable outcomes to adjust the anti-TB regimen.^21,26 Reproducibility factors of the TB-MBLA test make it robust and thus applicable in different laboratory settings.^8,18 While solid or liquid TB culture methods remain time-consuming and susceptible to contaminations that compromise their potential use for monitoring ant-TB treatment, TB-MBLA has a unique potential to monitor changes in bacterial load and response to TB therapy, with the ability to show the early rate of decline of the viable M. tb count in low-burden samples.^24,25 In response to therapy, TB-MBLA can rapidly give M. tb load count in a consistent pattern when compared to the culture which takes a prolonged time to provide results.

Studies demonstrated that TB-MBLA can deliver data on the number of viable bacteria as little as 4 h, and this can be used to evaluate disease severity at the initial anti-TB treatment. It yields reproducibility and robustness with regard to bacilli quantification, which would be of great help in measuring response to treatment continuously. Culture with drug susceptibility testing is considered the gold standard of care for the diagnosis of TB and its drug-resistance strains; however, it is time-taking, less precise, and is exposed to missing data that hinder its potential use for monitoring treatment as compared to TB-MBLA.

Recently, the World Health Organization (WHO) attests to the potential use of TB-MBLA for monitoring ant-TB treatment response and its potential substituting culture that has suffered from some practical limitations. ²⁹ However, TB-MBLA is yet mostly applied in research settings because its implementation needs more training and availability and of some important equipment with needs of intensive investments for maximum implementation in resource-constrained high-burden countries. TB-MBLA is still under evaluation in some high-burden countries and the results need to be synthesized with existing literature to provide broader evidence that can be done in normal clinical areas since most of these studies in this review have been done under clinical trial settings.

Limitations

There are some limitations to this review. Most of the included studies have been done in Eastern Africa, providing a few such studies comparing TB-MBLA against culture. This was mainly because there were a few studies conducted on this particular subject. Despite this, available studies are sourced and discussed utmost with included reviews.

Conclusion

TB-MBLA surpasses culture in monitoring patients with TB during the first few weeks of anti-TB treatment. It is more desirable over the culture for its shorter time to results by providing early information on the rate of decline in bacterial load. TB-MBLA still requires molecular expertise and a well-equipped laboratory to perform. To achieve maximum utility in high TB burden settings, an intensive initial investment in nucleic acid extraction and PCR equipment, training in procedures, and streamlining laboratory supply procurement system are crucial. More evidence is needed to demonstrate the potential large-scale and sustainable use of TB-MBLA over culture in resource-constrained settings.
