Abstract

Objective

The purpose of this systematic review is to determine (1) current reported treatment options for isolated tibial plateau (TP) cartilage lesions, (2) patient reported outcomes following various treatments, and (3) complication rate and survivorship following various treatments.

Design

A literature search of PubMed, the Cochrane Library, and CINAHL was conducted adhering to PRISMA guidelines. Patients were included if they had TP cartilage lesions treated with surgery. Lesion characteristics, surgical procedure details, patient reported outcomes, complication, and failure rates were collected.

Results

Thirteen studies yielded 205 knees with TP cartilage lesions treated surgically. Ages ranged from 12 to 77 years. Surgical techniques included 138 treated with osteochondral allograft transplantation (OCA), 37 treated with osteochondral autograft transfer system (OATS), 11 treated with microfracture, 11 treated with an osteochondral scaffold, and 8 treated with autologous chondrocyte implantation (ACI). The patient-reported outcome measures were heterogeneous, but all reported improvements with the notable exception of one study evaluating microfracture. The rate of complications ranged from 0% to 4.6%. Failure rate ranged from 22% to 46% for OCA and 0% to 16% for OATS. No failures were reported for the additional techniques.

Conclusions

Various surgical techniques have been utilized for the treatment of TP cartilage lesions. Patient-reported outcome measures were heterogeneous, but improvements were reported following all surgical treatments except for microfracture, which resulted in decreased scores at mid-term follow-up. The complication rate was low for all techniques described. However, the failure rate was higher following unicondylar OCA for salvage treatment of posttraumatic deformities.

Keywords

tibial plateau cartilage lesion osteochondral allograft osteochondral autograft

Introduction

Cartilage defects involving the knee were found in 63% of 31,516 patients undergoing knee arthroscopy by Curl et al.¹ between 1991 and 1995. It is suspected that the incidence is only increasing.² Unfortunately, these defects can be difficult to treat due to their low healing potential.³ Lesions of the femur and patella articular surfaces have been reported as the most common and a variety of surgical treatments exist.^1,4 Autologous chondrocyte implantation (ACI) and osteochondral allograft transplantation (OCA) are good options for lesions larger than 2 cm².^4,5 Osteochondral autograft transfer system (OATS) has demonstrated improved results compared to microfracture for smaller lesions.^6,7 These treatments have been thoroughly studied for cartilage lesions involving the femur, but there is limited data available regarding the use of these modalities for cartilage lesions isolated to the tibial plateau (TP).

Surgical treatment of TP cartilage lesions is fraught with unique challenges primarily associated with achieving adequate exposure.⁸ Hannon et al.⁵ recently demonstrated improvements in outcomes with OCA of the femur for tibiofemoral bipolar lesions regardless of whether the reciprocal TP lesion was treated. Bugbee⁸ further emphasized the need to determine when and how TP cartilage lesions should be treated in his editorial commentary. Although the proper management of bipolar lesions is still unsolved, even less is understood about the optimal approach to isolated TP cartilage lesions. Yabumoto et al.⁹ reported improvements in International Knee Documentation Committee (IKDC) scores for osteochondral TP lesions treated with retrograde OATS. OCA has demonstrated mixed results when used as a salvage procedure for treatment of posttraumatic TP cartilage lesions.^10,11 Kreuz et al.¹² reported generally poor results at 3 years postoperatively following microfracture for TP lesions. ACI with concurrent high tibial osteotomy (HTO) has demonstrated quality outcomes in a small series of 8 patients at minimum 2-year follow-up.¹³ At this time, it is unclear whether TP cartilage lesions should be treated and which surgical treatment option is best.

The purpose of this systematic review of the literature is to determine (1) current reported treatment options for isolated TP cartilage lesions, (2) patient-reported outcomes following various treatments, and (3) complication rate and survivorship following various treatments.

Methods

Literature Search

A comprehensive search of the available literature was performed on September 17, 2018 following the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) guidelines ( Fig. 1 ). The databases that were searched include PubMed (MEDLINE), the Cochrane Central Register of Controlled Trials & Cochrane Library, and CINAHL (Cumulative Index for Nursing and Allied Health Literature) and the search period parameters were set from January 1, 1995 to September 17, 2018. A Boolean search was performed utilizing the following terms: (proximal tibia cartilage) OR (tibial plateau chondral) OR (tibial plateau lesions) OR (bipolar chondral) and articles were catalogued using Microsoft Excel (2010; Microsoft Corp, Redmond, WA). The initial search yielded 797 articles from PubMed, 3 articles from CINAHL, and 23 articles from the Cochrane Library. The reference list of articles was reviewed for any missed articles and an additional 5 articles were included. After removal of duplicates, 818 articles underwent screening for inclusion in this study.

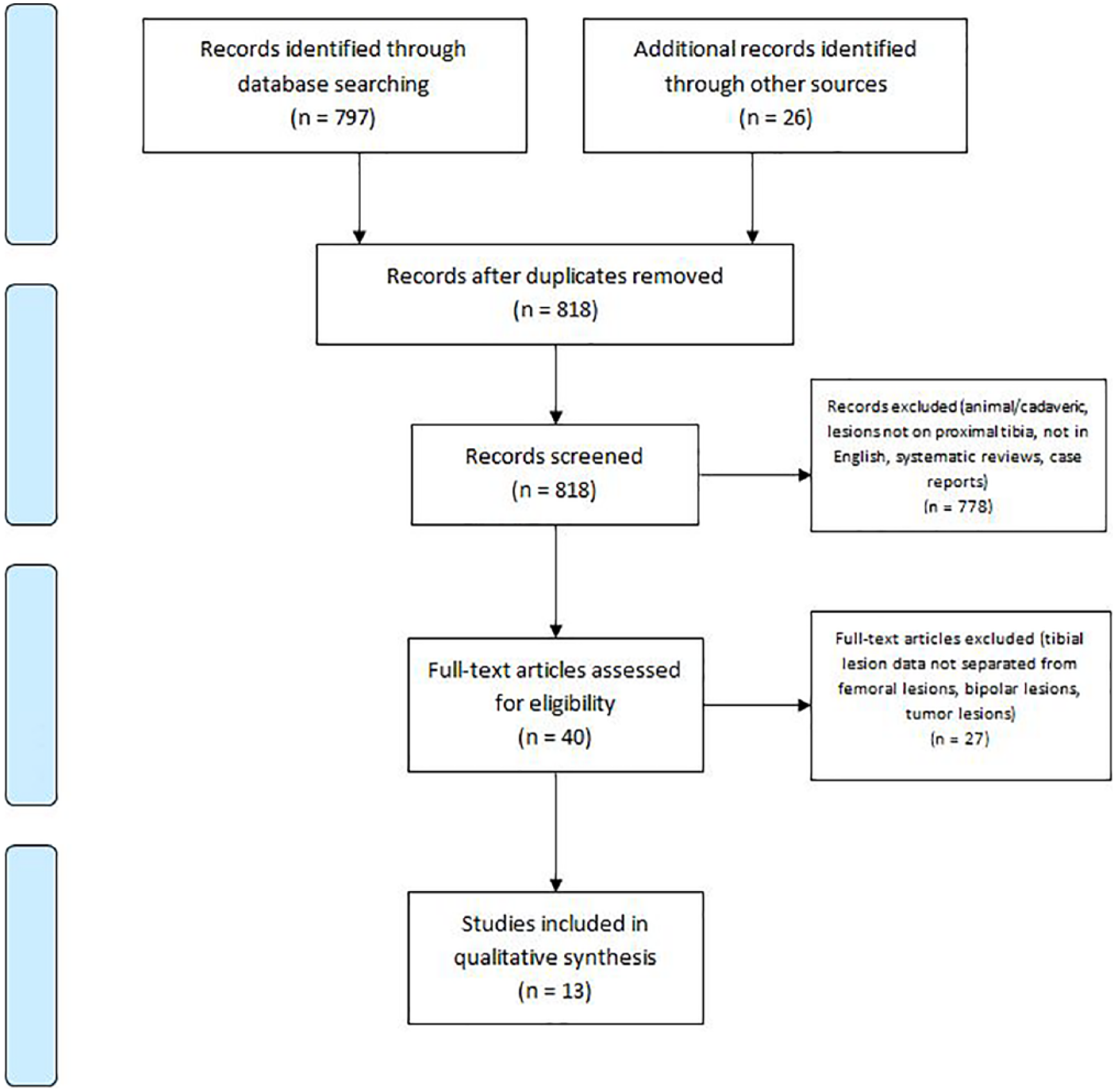

Figure 1.

PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analysis) flow diagram demonstrating the study selection process.

Selection Criteria

Titles and abstracts of these 818 studies were independently reviewed by 2 authors (CDB, HPM) and only studies eliminated in consensus were removed from the list with any disagreements being resolved by consensus discussion between those authors.

Inclusion criteria for the evaluation of full-text articles were the following: a confirmed series or cohort of patients with a tibial plateau cartilage lesion, operative treatment of the lesion and documented patient reported, clinical, functional, and/or radiographic outcome measures. Exclusion criteria included systematic reviews, case reports, cadaveric and animal studies, studies not pertaining to the TP, studies with unavailable full English texts, bipolar lesions, lesions created due to tumor resection, and isolated osteotomy procedure of the knee.

Several studies contained cohorts of patients that included both cartilage lesions of the tibial plateau as well as other cartilage lesions of the knee. Only cohorts of patients that explicitly fulfilled the inclusion/exclusion criteria were reported in our analysis. If a study provided a table containing individual patient demographics, surgical treatment, and outcomes, those individual patients were included for analysis. In the case that a study failed to distinguish between patient cohorts and a table with each individual patient’s data were not provided, it was excluded.

Quality Assessment

As there were no randomized controlled trials identified throughout the search, each study was assessed using the methodologic index for nonrandomized studies (MINORS) scoring system. MINORS is a validated tool designed for assessing the quality of nonrandomized surgical studies based on a scoring scale. This scoring scale allows for a maximum score of 16 for noncomparative studies (8-item checklist scored from 0 to 2) and a maximum score of 24 for comparative studies (12-item checklist scored from 0 to 2) in which higher scores represent a lower level of bias. Each study was independently reviewed and scored by 2 authors (CDB, HPM) and any disagreements were resolved by consensus discussion. MINORS score results of each study are displayed in Table 1 and are presented as percentages for normalization between comparative and noncomparative studies. Level of evidence was determined based on criteria from the Oxford Centre for Evidence-Based Medicine.

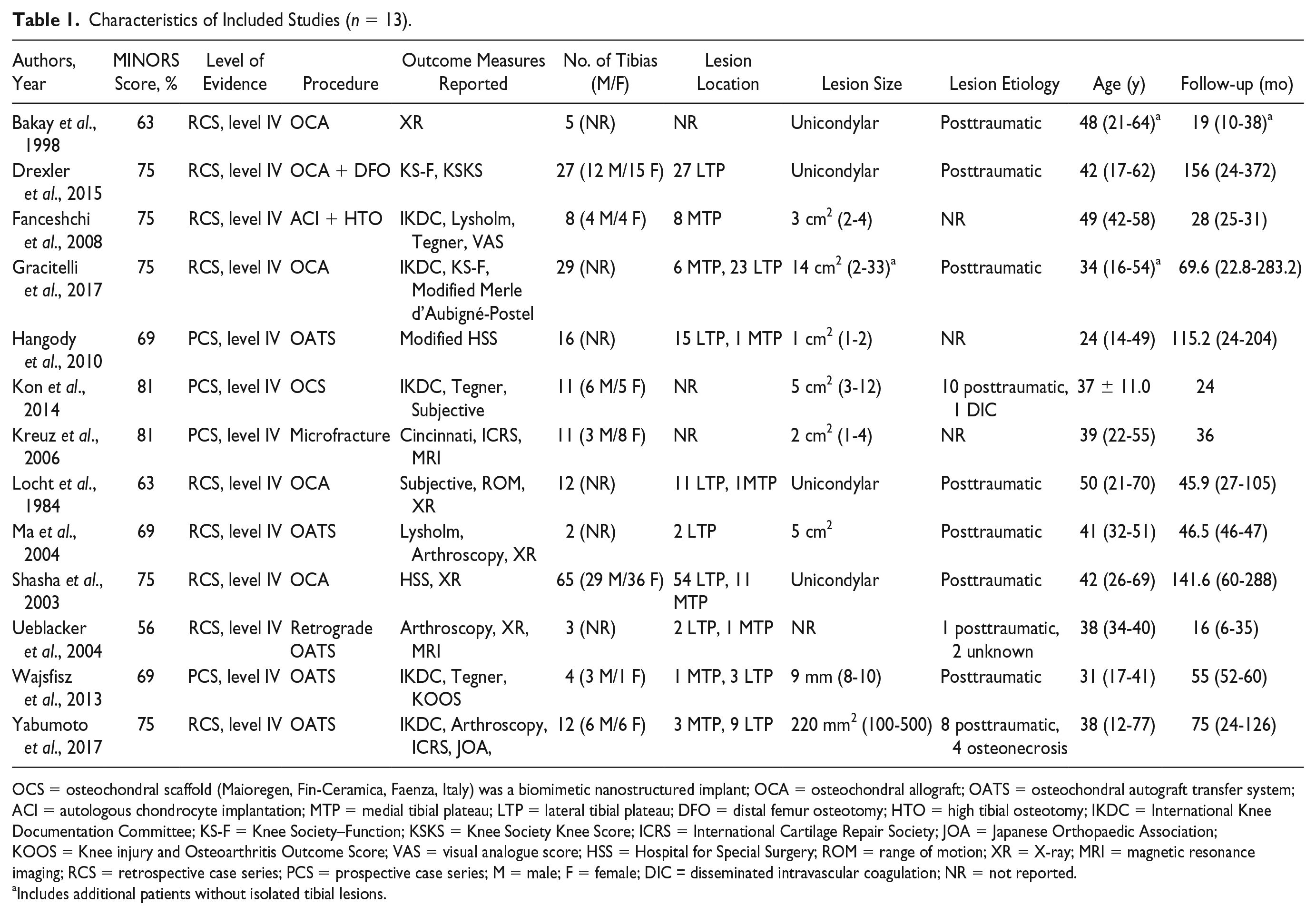

Table 1.

Characteristics of Included Studies (n = 13).

Authors, Year	MINORS Score, %	Level of Evidence	Procedure	Outcome Measures Reported	No. of Tibias (M/F)	Lesion Location	Lesion Size	Lesion Etiology	Age (y)	Follow-up (mo)
Bakay et al., 1998	63	RCS, level IV	OCA	XR	5 (NR)	NR	Unicondylar	Posttraumatic	48 (21-64)^a	19 (10-38)^a
Drexler et al., 2015	75	RCS, level IV	OCA + DFO	KS-F, KSKS	27 (12 M/15 F)	27 LTP	Unicondylar	Posttraumatic	42 (17-62)	156 (24-372)
Fanceshchi et al., 2008	75	RCS, level IV	ACI + HTO	IKDC, Lysholm, Tegner, VAS	8 (4 M/4 F)	8 MTP	3 cm² (2-4)	NR	49 (42-58)	28 (25-31)
Gracitelli et al., 2017	75	RCS, level IV	OCA	IKDC, KS-F, Modified Merle d’Aubigné-Postel	29 (NR)	6 MTP, 23 LTP	14 cm² (2-33)^a	Posttraumatic	34 (16-54)^a	69.6 (22.8-283.2)
Hangody et al., 2010	69	PCS, level IV	OATS	Modified HSS	16 (NR)	15 LTP, 1 MTP	1 cm² (1-2)	NR	24 (14-49)	115.2 (24-204)
Kon et al., 2014	81	PCS, level IV	OCS	IKDC, Tegner, Subjective	11 (6 M/5 F)	NR	5 cm² (3-12)	10 posttraumatic, 1 DIC	37 ± 11.0	24
Kreuz et al., 2006	81	PCS, level IV	Microfracture	Cincinnati, ICRS, MRI	11 (3 M/8 F)	NR	2 cm² (1-4)	NR	39 (22-55)	36
Locht et al., 1984	63	RCS, level IV	OCA	Subjective, ROM, XR	12 (NR)	11 LTP, 1MTP	Unicondylar	Posttraumatic	50 (21-70)	45.9 (27-105)
Ma et al., 2004	69	RCS, level IV	OATS	Lysholm, Arthroscopy, XR	2 (NR)	2 LTP	5 cm²	Posttraumatic	41 (32-51)	46.5 (46-47)
Shasha et al., 2003	75	RCS, level IV	OCA	HSS, XR	65 (29 M/36 F)	54 LTP, 11 MTP	Unicondylar	Posttraumatic	42 (26-69)	141.6 (60-288)
Ueblacker et al., 2004	56	RCS, level IV	Retrograde OATS	Arthroscopy, XR, MRI	3 (NR)	2 LTP, 1 MTP	NR	1 posttraumatic, 2 unknown	38 (34-40)	16 (6-35)
Wajsfisz et al., 2013	69	PCS, level IV	OATS	IKDC, Tegner, KOOS	4 (3 M/1 F)	1 MTP, 3 LTP	9 mm (8-10)	Posttraumatic	31 (17-41)	55 (52-60)
Yabumoto et al., 2017	75	RCS, level IV	OATS	IKDC, Arthroscopy, ICRS, JOA,	12 (6 M/6 F)	3 MTP, 9 LTP	220 mm² (100-500)	8 posttraumatic, 4 osteonecrosis	38 (12-77)	75 (24-126)

OCS = osteochondral scaffold (Maioregen, Fin-Ceramica, Faenza, Italy) was a biomimetic nanostructured implant; OCA = osteochondral allograft; OATS = osteochondral autograft transfer system; ACI = autologous chondrocyte implantation; MTP = medial tibial plateau; LTP = lateral tibial plateau; DFO = distal femur osteotomy; HTO = high tibial osteotomy; IKDC = International Knee Documentation Committee; KS-F = Knee Society–Function; KSKS = Knee Society Knee Score; ICRS = International Cartilage Repair Society; JOA = Japanese Orthopaedic Association; KOOS = Knee injury and Osteoarthritis Outcome Score; VAS = visual analogue score; HSS = Hospital for Special Surgery; ROM = range of motion; XR = X-ray; MRI = magnetic resonance imaging; RCS = retrospective case series; PCS = prospective case series; M = male; F = female; DIC = disseminated intravascular coagulation; NR = not reported.

Includes additional patients without isolated tibial lesions.

Data Extraction and Analysis

Following final selection of studies for inclusion the data extracted included study properties (year, level of evidence, number of knees), patient demographics (age, lesion etiology, lesion location, lesion size, follow-up period), surgical procedure, concomitant procedures, outcomes (patient-reported, functional, clinical, radiographic), complications, failures, survivorship, and reoperation. Because of an inadequate number of comparative studies and heterogeneity of reported outcomes, pooling of results was not performed and instead ranges were reported. In studies with cohorts of both cartilage lesions of the TP and other regions of the knee, only patients with cartilage lesions of the TP were included in our analysis and any data which utilized a combination of those cohorts was excluded or noted.

Results

Forty full texts were manually reviewed for inclusion. Ultimately, 13 studies met all inclusion criteria and were analyzed in this systematic review. Characteristics related to these studies are reported in Table 1 . MINORS scores ranged from 56% to 81% and all studies (13/13) were best classified as level of evidence IV. The 13 studies yielded 205 knees with isolated TP cartilage lesions that were treated surgically. Patient age ranged from 12 to 77 years. A variety of surgical techniques were utilized including 138 treated with OCA, 37 treated with OATS, 11 treated with microfracture, 11 treated with OCS (osteochondral scaffold; Maioregen, Fin-Ceramica, Faenza, Italy), and 8 treated with ACI.

Surgical Treatments and Indications

Surgical treatments and lesion etiology are reported in Table 1 . The most commonly studied techniques were OCA and OATS, with 5 studies for each (n = 138 knees and n = 37 knees, respectively). All cases of OCA were bulk allografts replacing entire hemi-plateaus rather than small dowels.

Patient-Reported Outcomes

There was significant heterogeneity in patient reported outcomes as shown in Table 2 . All studies reported postoperative improvements in subjective outcome scores at follow up ranging from 6 to 372 months except for 1 study evaluating microfracture at 36-month follow-up, which reported decreased scores. Across all treatment types, 4 studies reported IKDC subjective outcome scores with a mean improvement ranging from 17.4 to 41.9 points ( Fig. 2 ).

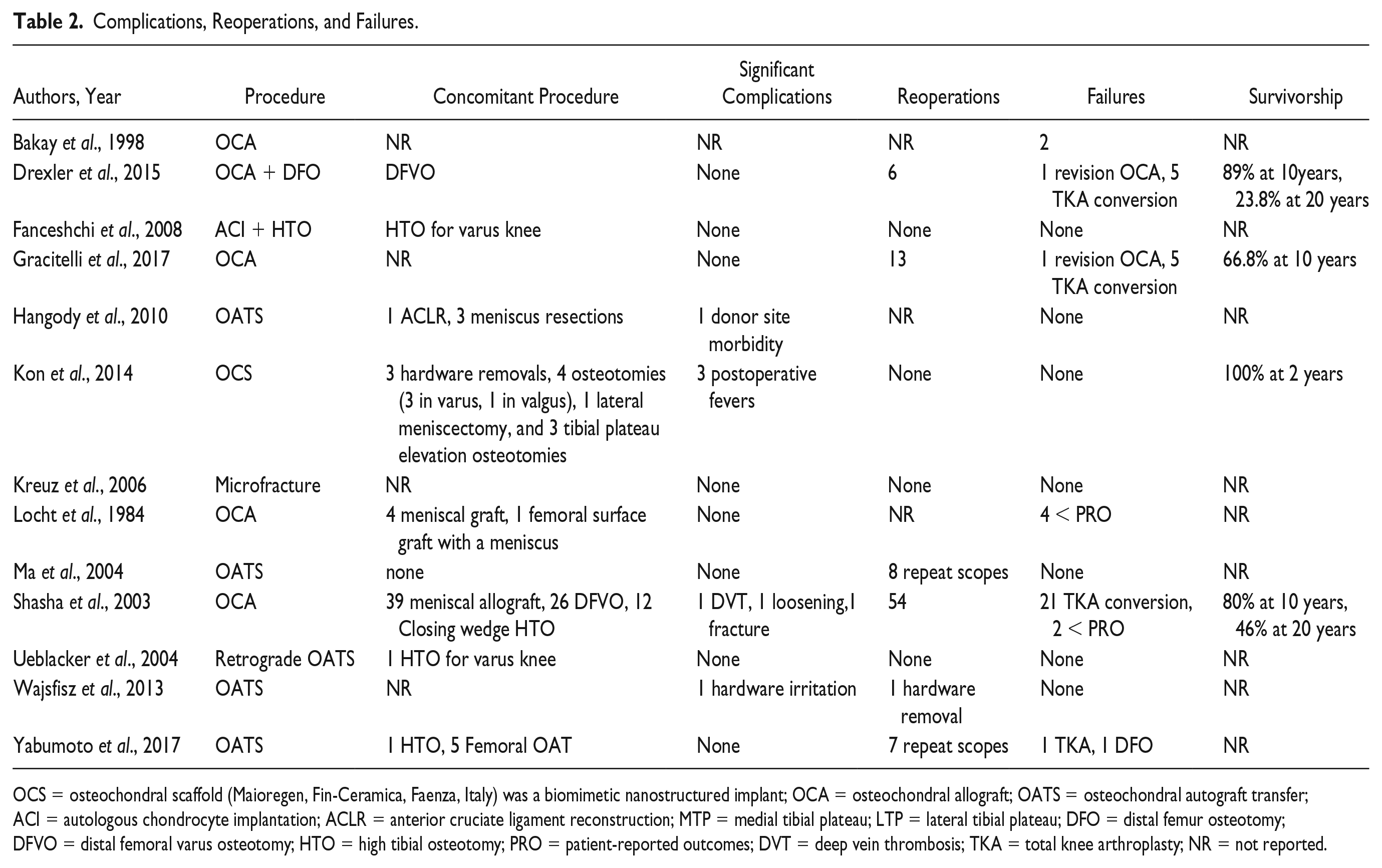

Table 2.

Complications, Reoperations, and Failures.

Authors, Year	Procedure	Concomitant Procedure	Significant Complications	Reoperations	Failures	Survivorship
Bakay et al., 1998	OCA	NR	NR	NR	2	NR
Drexler et al., 2015	OCA + DFO	DFVO	None	6	1 revision OCA, 5 TKA conversion	89% at 10years, 23.8% at 20 years
Fanceshchi et al., 2008	ACI + HTO	HTO for varus knee	None	None	None	NR
Gracitelli et al., 2017	OCA	NR	None	13	1 revision OCA, 5 TKA conversion	66.8% at 10 years
Hangody et al., 2010	OATS	1 ACLR, 3 meniscus resections	1 donor site morbidity	NR	None	NR
Kon et al., 2014	OCS	3 hardware removals, 4 osteotomies (3 in varus, 1 in valgus), 1 lateral meniscectomy, and 3 tibial plateau elevation osteotomies	3 postoperative fevers	None	None	100% at 2 years
Kreuz et al., 2006	Microfracture	NR	None	None	None	NR
Locht et al., 1984	OCA	4 meniscal graft, 1 femoral surface graft with a meniscus	None	NR	4 < PRO	NR
Ma et al., 2004	OATS	none	None	8 repeat scopes	None	NR
Shasha et al., 2003	OCA	39 meniscal allograft, 26 DFVO, 12 Closing wedge HTO	1 DVT, 1 loosening,1 fracture	54	21 TKA conversion, 2 < PRO	80% at 10 years, 46% at 20 years
Ueblacker et al., 2004	Retrograde OATS	1 HTO for varus knee	None	None	None	NR
Wajsfisz et al., 2013	OATS	NR	1 hardware irritation	1 hardware removal	None	NR
Yabumoto et al., 2017	OATS	1 HTO, 5 Femoral OAT	None	7 repeat scopes	1 TKA, 1 DFO	NR

OCS = osteochondral scaffold (Maioregen, Fin-Ceramica, Faenza, Italy) was a biomimetic nanostructured implant; OCA = osteochondral allograft; OATS = osteochondral autograft transfer; ACI = autologous chondrocyte implantation; ACLR = anterior cruciate ligament reconstruction; MTP = medial tibial plateau; LTP = lateral tibial plateau; DFO = distal femur osteotomy; DFVO = distal femoral varus osteotomy; HTO = high tibial osteotomy; PRO = patient-reported outcomes; DVT = deep vein thrombosis; TKA = total knee arthroplasty; NR = not reported.

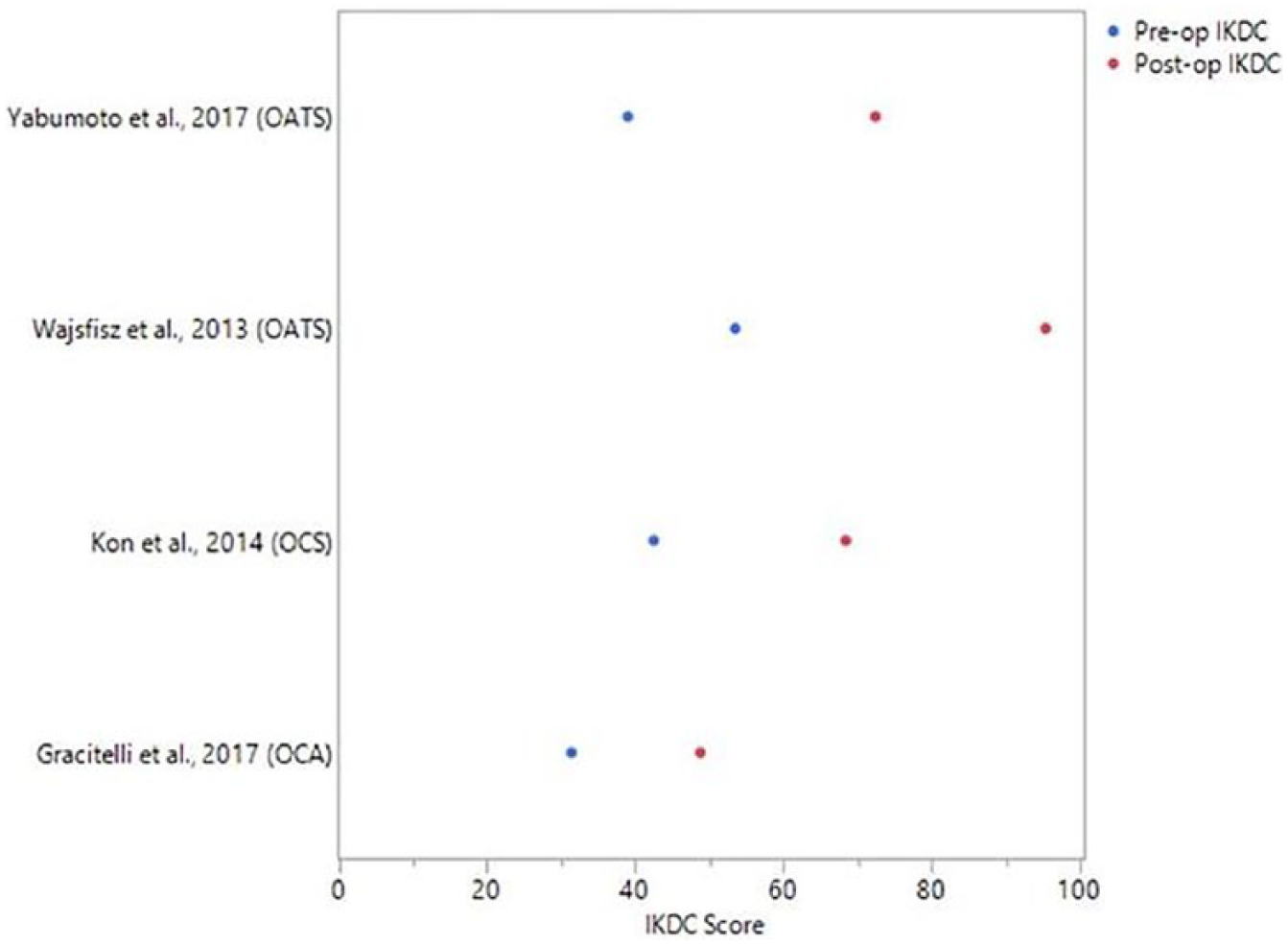

Figure 2.

Reported International Knee Documentation Committee (IKDC) scores. Blue dots represent mean preoperative IKDC scores and red dots represent mean postoperative IKDC scores. Surgical treatment is listed in parentheses.

Complications and Survivorship

The rate of complications ranged from 0% to 4.6% following any surgical treatment of TP cartilage lesions as presented in Table 3 . Three studies reported survivorship ranging from 66.8% to 89% 10 years following treatment with OCA ( Fig. 3 ). One study reported 2 failures following treatment with OATS, while the additional 4 studies evaluating OATs demonstrated no failures. No failures were reported for all remaining surgical treatments ( Table 3 ).

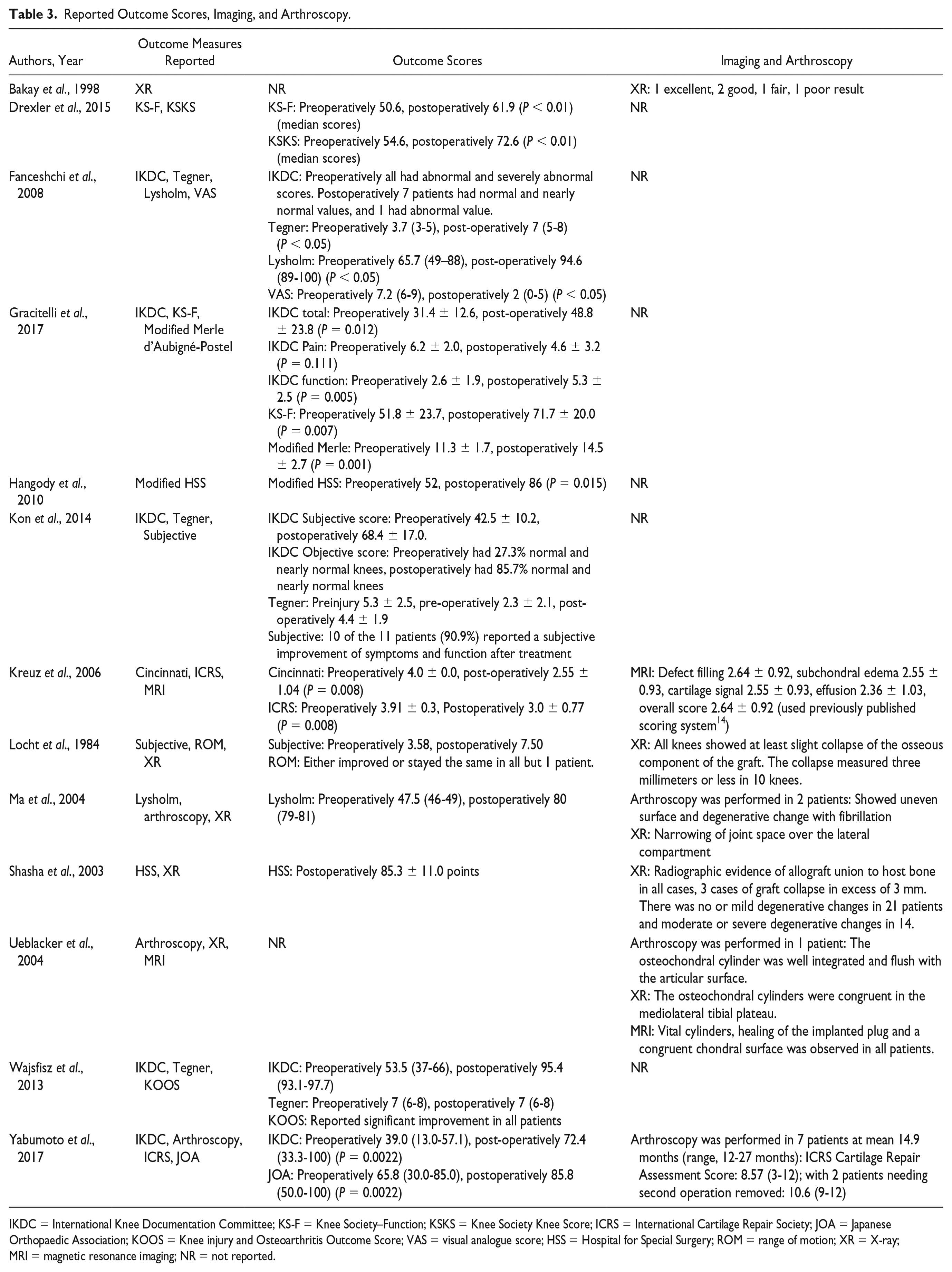

Table 3.

Reported Outcome Scores, Imaging, and Arthroscopy.

Authors, Year	Outcome Measures Reported	Outcome Scores	Imaging and Arthroscopy
Bakay et al., 1998	XR	NR	XR: 1 excellent, 2 good, 1 fair, 1 poor result
Drexler et al., 2015	KS-F, KSKS	KS-F: Preoperatively 50.6, postoperatively 61.9 (P < 0.01) (median scores) KSKS: Preoperatively 54.6, postoperatively 72.6 (P < 0.01) (median scores)	NR
Fanceshchi et al., 2008	IKDC, Tegner, Lysholm, VAS	IKDC: Preoperatively all had abnormal and severely abnormal scores. Postoperatively 7 patients had normal and nearly normal values, and 1 had abnormal value. Tegner: Preoperatively 3.7 (3-5), post-operatively 7 (5-8) (P < 0.05) Lysholm: Preoperatively 65.7 (49–88), post-operatively 94.6 (89-100) (P < 0.05) VAS: Preoperatively 7.2 (6-9), postoperatively 2 (0-5) (P < 0.05)	NR
Gracitelli et al., 2017	IKDC, KS-F, Modified Merle d’Aubigné-Postel	IKDC total: Preoperatively 31.4 ± 12.6, post-operatively 48.8 ± 23.8 (P = 0.012) IKDC Pain: Preoperatively 6.2 ± 2.0, postoperatively 4.6 ± 3.2 (P = 0.111) IKDC function: Preoperatively 2.6 ± 1.9, postoperatively 5.3 ± 2.5 (P = 0.005) KS-F: Preoperatively 51.8 ± 23.7, postoperatively 71.7 ± 20.0 (P = 0.007) Modified Merle: Preoperatively 11.3 ± 1.7, postoperatively 14.5 ± 2.7 (P = 0.001)	NR
Hangody et al., 2010	Modified HSS	Modified HSS: Preoperatively 52, postoperatively 86 (P = 0.015)	NR
Kon et al., 2014	IKDC, Tegner, Subjective	IKDC Subjective score: Preoperatively 42.5 ± 10.2, postoperatively 68.4 ± 17.0. IKDC Objective score: Preoperatively had 27.3% normal and nearly normal knees, postoperatively had 85.7% normal and nearly normal knees Tegner: Preinjury 5.3 ± 2.5, pre-operatively 2.3 ± 2.1, post-operatively 4.4 ± 1.9 Subjective: 10 of the 11 patients (90.9%) reported a subjective improvement of symptoms and function after treatment	NR
Kreuz et al., 2006	Cincinnati, ICRS, MRI	Cincinnati: Preoperatively 4.0 ± 0.0, post-operatively 2.55 ± 1.04 (P = 0.008) ICRS: Preoperatively 3.91 ± 0.3, Postoperatively 3.0 ± 0.77 (P = 0.008)	MRI: Defect filling 2.64 ± 0.92, subchondral edema 2.55 ± 0.93, cartilage signal 2.55 ± 0.93, effusion 2.36 ± 1.03, overall score 2.64 ± 0.92 (used previously published scoring system¹⁴)
Locht et al., 1984	Subjective, ROM, XR	Subjective: Preoperatively 3.58, postoperatively 7.50 ROM: Either improved or stayed the same in all but 1 patient.	XR: All knees showed at least slight collapse of the osseous component of the graft. The collapse measured three millimeters or less in 10 knees.
Ma et al., 2004	Lysholm, arthroscopy, XR	Lysholm: Preoperatively 47.5 (46-49), postoperatively 80 (79-81)	Arthroscopy was performed in 2 patients: Showed uneven surface and degenerative change with fibrillation XR: Narrowing of joint space over the lateral compartment
Shasha et al., 2003	HSS, XR	HSS: Postoperatively 85.3 ± 11.0 points	XR: Radiographic evidence of allograft union to host bone in all cases, 3 cases of graft collapse in excess of 3 mm. There was no or mild degenerative changes in 21 patients and moderate or severe degenerative changes in 14.
Ueblacker et al., 2004	Arthroscopy, XR, MRI	NR	Arthroscopy was performed in 1 patient: The osteochondral cylinder was well integrated and flush with the articular surface. XR: The osteochondral cylinders were congruent in the mediolateral tibial plateau. MRI: Vital cylinders, healing of the implanted plug and a congruent chondral surface was observed in all patients.
Wajsfisz et al., 2013	IKDC, Tegner, KOOS	IKDC: Preoperatively 53.5 (37-66), postoperatively 95.4 (93.1-97.7) Tegner: Preoperatively 7 (6-8), postoperatively 7 (6-8) KOOS: Reported significant improvement in all patients	NR
Yabumoto et al., 2017	IKDC, Arthroscopy, ICRS, JOA	IKDC: Preoperatively 39.0 (13.0-57.1), post-operatively 72.4 (33.3-100) (P = 0.0022) JOA: Preoperatively 65.8 (30.0-85.0), postoperatively 85.8 (50.0-100) (P = 0.0022)	Arthroscopy was performed in 7 patients at mean 14.9 months (range, 12-27 months): ICRS Cartilage Repair Assessment Score: 8.57 (3-12); with 2 patients needing second operation removed: 10.6 (9-12)

IKDC = International Knee Documentation Committee; KS-F = Knee Society–Function; KSKS = Knee Society Knee Score; ICRS = International Cartilage Repair Society; JOA = Japanese Orthopaedic Association; KOOS = Knee injury and Osteoarthritis Outcome Score; VAS = visual analogue score; HSS = Hospital for Special Surgery; ROM = range of motion; XR = X-ray; MRI = magnetic resonance imaging; NR = not reported.

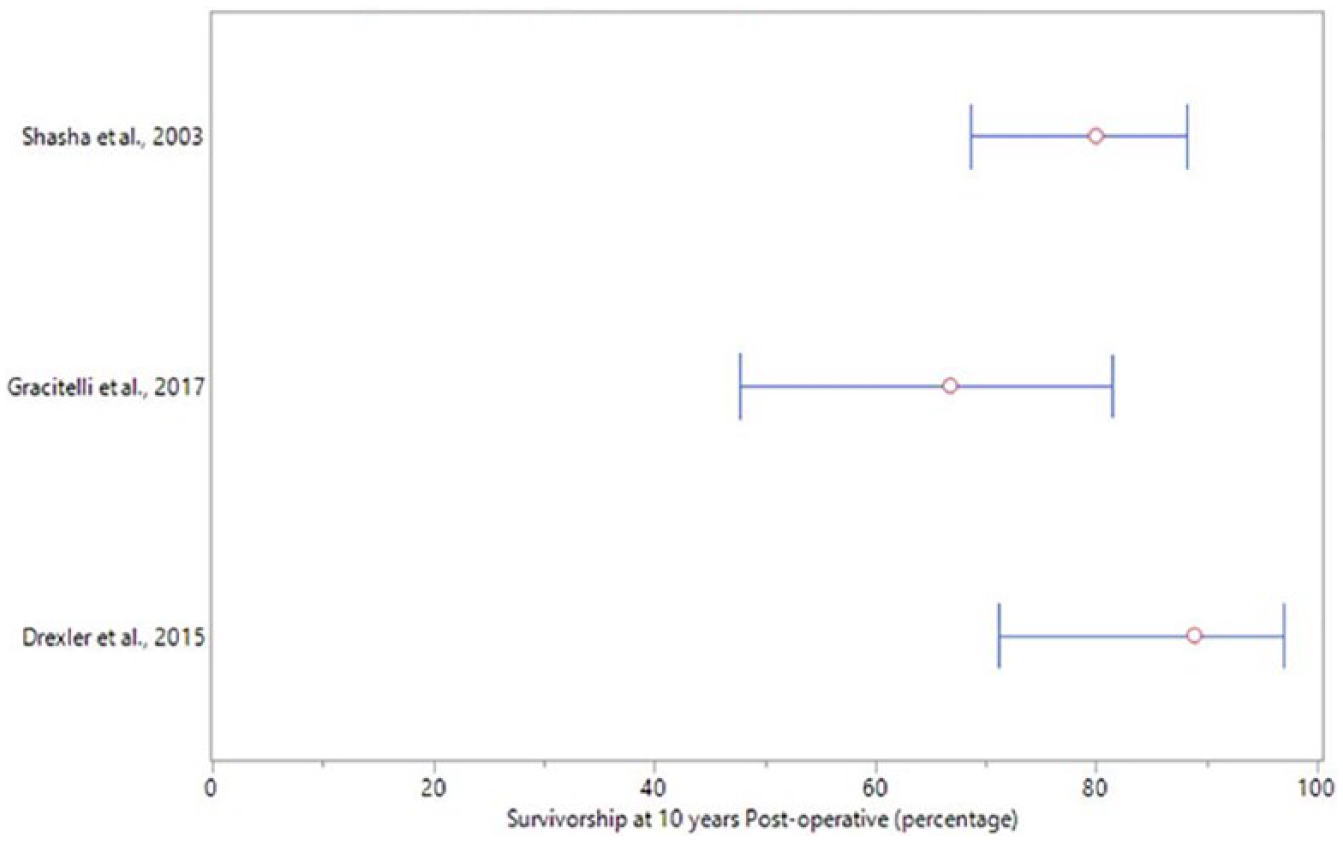

Figure 3.

Survivorship at 10 years. The red circle represent the survivorship rate of the osteochondral allograft at 10 years postoperatively for each study that reported this outcome. The 95% confidence intervals were calculated using the adjusted Wald method.

Postoperative imaging or second-look arthroscopy was performed and reported in 7 studies ( Table 3 ). Five studies reported radiographic results, 3 studies reported second-look arthroscopy findings, and 2 studies reported MRI results.

Discussion

The main finding in this systematic review was that a variety of surgical techniques to address TP cartilage lesions have been described. Reported outcome measures were very heterogeneous, but in general, patient-reported outcomes increased postoperatively for all techniques with the exception of microfracture. The failure rate was highest when unicondylar OCA was used as a salvage procedure for treatment of posttraumatic deformities.

Osteochondral allograft transplantation was the most common technique utilized in the studies included in this review. This technique was used in 5 studies including 138 patients and all lesions were unicondylar requiring transplant of an entire hemi-tibial plateau.^10,11,15-17 OCA is more commonly used on the femoral articular surface but often times does not include transplant of the entire hemi-articular surface.¹⁸ Our review of the literature suggests that when OCA is used on the tibia for an isolated tibial lesion it consists of an entire hemi-plateau. OATS was the next most common technique used in 5 studies including 37 patients with lesions ranging from 9 mm to 5 cm².^9,19-22 Lesions treated with OATS were smaller than those treated with OCA. Larger lesions are more appropriately treated with OCA to avoid donor site morbidity. This is consistent with the indications for femoral OCA and OATS.^4,6 Yabumoto et al.⁹ found the reoperation rate following retrograde OATs for TP lesions to be significantly higher for lesions ≥400 mm². Microfracture and ACI are 2 surgical procedures that have been extensively studied for treatment of femoral cartilage defects.²³ Only 1 study evaluating each technique was identified for treatment of TP cartilage lesions.^12,13 Finally, 1 study followed 11 patients after treatment of TP cartilage lesions with a cell-free biomimetic osteochondral scaffold (OCS).²⁴ This technique previously led to successful treatment of osteochondritis dissecans (OCD) lesions involving the femoral condyles.^25,26

The patient reported outcomes evaluated by the studies included in this systematic review varied significantly. This is likely related to many factors. The studies were published over many years ranging from 1984 to 2017. Patient-reported outcome measures have changed considerably during this time. Additionally, procedures were performed for multiple indications including focal and contained cartilage lesions and entire hemi-plateau posttraumatic deformities. Gauging a successful outcome following each of these may differ and require variable outcome measures. Overall, follow-up ranged from 6 to 372 months and a mean improvement in subjective outcome scores was observed following all surgical treatments except microfracture. Kreuz et al.¹² observed a decrease in International Cartilage Repair Society (ICRS) and modified Cincinnati knee scores at a mean 36 months postoperatively following microfracture. In this study, worse outcomes were noted for lesions involving the patellofemoral or TP surfaces. Interestingly, this decrease has not been observed at mid- and long-term follow up of microfracture for treatment of other cartilage lesions throughout the knee.²³ The decrease may be related to the relatively increased age (mean 39.7 years) and larger defect size (mean 2.39 cm²) in the study by Kreuz et al.¹² Following their study, the authors now consider larger defects (>2 cm²) in older patients to be a contraindication for use of microfracture. Five studies included in this review evaluated outcomes following OATS and all reported postoperative improvements. Unfortunately, there were not 3 studies evaluating OATS that reported the same outcome measures. Postoperative improvements were seen for the 5 studies evaluating OCA as a surgical treatment, but again, there were not 3 studies evaluating OCA that reported the same outcome measures. Franceschi et al¹³ reported mean postoperative Lysholm scores of 94.6 following combined ACI and HTO at a mean of 28 months. These results are comparable to or better than additional studies evaluating ACI for treatment of cartilage lesions throughout the knee.^27,28 More research is needed to fully evaluate the long-term efficacy of ACI for treatment of TP cartilage lesions. Additionally, there is a need for more uniform patient-reported outcome measures, especially when evaluating surgical treatment options for a particular pathology.

There was a low rate of complications for surgical treatment of isolated TP cartilage lesions. For the 5 studies evaluating OCA, no major intraoperative complications were reported. Three studies reported a 10-year survivorship ranging from 66.8% to 89%. Variability may be attributed to concomitant procedures. For example, Drexler et al.¹⁶ reported a survivorship of 89% at 10 years, but this was the only study that included concomitant distal femoral osteotomy in all patients. Additionally, definition of failure varied across studies. The majority of studies defined failure as need for revision or conversion to total knee arthroplasty. Two studies included low patient-reported outcomes as failure.^11,17 Complications following OATS included 1 case of hardware irritation and 1 case of donor site morbidity. No intraoperative complications were reported. Yabumoto et al.⁹ disclosed 2 cases of failure while no other studies reported failures for OATS. In each of these, the lesion size was ≥400 mm², which the authors consider a relative contraindication for OATS. In the remaining studies evaluating OCS, microfracture, and ACI no failures or complications were reported, and all had a presumed survivorship of 100%. There are multiple possibilities that could explain why OCA resulted in more failures. In most cases, OCA was chosen due to more severe pathology involving the articular surface as a result of posttraumatic deformities. Additionally, there were more concomitant procedures. For example, Shasha et al.¹¹ performed 65 OCA procedures with multiple concomitant procedures consisting of 39 meniscal allografts, 26 distal femoral osteotomies, and 12 closing wedge HTOs. All cases of OCA were bulk hemi-plateau allografts, which requires a significant amount of creeping substitution as opposed to cases involving a smaller defect requiring a single dowel with only 5 to 6 mm of composite bone and cartilage thickness that would be expected to incorporate sooner.²⁹

Limitations

A number of limitations should be considered for this systematic review. Although PRISMA guidelines were strictly adhered to, it is possible that studies evaluating surgical treatment of isolated tibial plateau cartilage lesions were excluded during the selection process. Possibly due to the relative infrequency of isolated TP lesions, all included studies were level IV case series lacking randomization, blinding, or comparative control groups. The cartilage lesion type and size, outcome measures, and follow-up time were very heterogeneous. Additionally, the definition of treatment failure was variable across studies. Because of this, data were not pooled, making it difficult to draw widely applicable conclusions regarding indications and surgical management.³⁰ Nevertheless, this systematic review does provide the first comprehensive presentation of available data evaluating surgical management of TP cartilage lesions.

Conclusions

A variety of surgical techniques have been utilized for the treatment of isolated tibial plateau cartilage lesions. Patient reported outcome measures were heterogeneous in nature, but improvements were reported following all surgical treatments except for microfracture, which resulted in decreased scores at mid-term follow-up. In general, the complication rate was low for all techniques described. However, the failure rate was higher following unicondylar allograft transplantation for salvage treatment of posttraumatic deformities.

Footnotes

Acknowledgments and Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Declaration of Conflict of Interest

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: Christopher L. Camp: Arthrex Inc.: travel and lodging. Michael J. Stuart: Arthrex, Inc.: consultancy, IP royalties; Stryker: research support; American Journal of Sports Medicine: board membership. Norimasa Nakamura: Biomet: paid consultant; International Cartilage Repair Society: board or committee member; International Society of Arthroscopy, Knee Surgery, and Orthopaedic Sports Medicine: board or committee member; Journal of Experimental Orthopaedics (Springer): editorial or governing board; Journal of Orthopaedic Science (Springer): editorial or governing board; Novartis: paid consultant; Cartilage (Sage): editorial or governing board. Daniel B.F. Saris: Cartilage: editorial or governing board; International Cartilage Repair Society, Dutch Orthopaedic Society: board or committee member; Knee Surgery, Sports Traumatology, Arthroscopy: editorial or governing board; Smith & Nephew: paid presenter or speaker; Smith & Nephew, Genzyme, Tigenix: paid consultant. Aaron J. Krych: Aesculap/B.Braun: research support; American Journal of Sports Medicine: editorial or governing board; Arthrex, Inc.: IP royalties; paid consultant; Arthritis Foundation: research support; Ceterix: research support; Histogenics: research support; International Cartilage Repair Society: board or committee member; International Society of Arthroscopy, Knee Surgery, and Orthopaedic Sports Medicine: board or committee member; Minnesota Orthopedic Society: board or committee member; Musculoskeletal Transplantation Foundation: board or committee member; Vericel: paid consultant; Open Payments Database: General Payments from Arthrex Inc., Musculoskeletal Transplant Foundation, Ceterix, Orthopedics, Inc., Gemini Medical LLC, and Gemini Mountain Medical.

ORCID iDs

Christopher L. Camp

Aaron J. Krych

References

Curl

Krome

Gordon

Rushing

Smith

Poehling

GG.

Cartilage injuries: a review of 31,516 knee arthroscopies. Arthroscopy. 1997;13(4):456-60.

Mithoefer

McAdams

Scopp

Mandelbaum

BR.

Emerging options for treatment of articular cartilage injury in the athlete. Clin Sports Med. 2009;28(1_suppl):25-40.

Mankin

HJ.

The response of articular cartilage to mechanical injury. J Bone Joint Surg Am. 1982;64(3):460-6.

Camp

Stuart

Krych

AJ.

Current concepts of articular cartilage restoration techniques in the knee. Sports Health. 2014;6(3):265-73.

Hannon

Weber

Gitelis

Meyer

Yanke

Cole

BJ.

Does treatment of the tibia matter in bipolar chondral defects of the knee? clinical outcomes with greater than 2 years follow-up. Arthroscopy. 2018;34(4):1044-51.

Krych

Harnly

Rodeo

Williams

3rd . Activity levels are higher after osteochondral autograft transfer mosaicplasty than after microfracture for articular cartilage defects of the knee: a retrospective comparative study. J Bone Joint Surg Am. 2012;94(11):971-8.

Lynch

Patel

Benedick

Amin

Jones

Miniaci

Systematic review of autogenous osteochondral transplant outcomes. Arthroscopy. 2015;31(4):746-754.

Bugbee

Editorial Commentary: To treat or not to treat? Are we any closer to knowing what to do with cartilage lesions of the tibia?

Arthroscopy. 2018;34(4):1052-3.

Yabumoto

Nakagawa

Mukai

Saji

Nakamura

Surgical technique and clinical outcomes of retrograde osteochondral autograft transfer for osteochondral lesions of the tibial plateau. Arthroscopy. 2017;33(6):1241-7.

10.

Gracitelli

Tirico

McCauley

Pulido

Bugbee

WD.

Fresh osteochondral allograft transplantation for fractures of the knee. Cartilage. 2017;8(2):155-61.

11.

Shasha

Krywulak

Backstein

Pressman

Gross

AE.

Long-term follow-up of fresh tibial osteochondral allografts for failed tibial plateau fractures. J Bone Joint Surg Am. 2003;85-A(Suppl 2):33-39.

12.

Kreuz

Steinwachs

Erggelet

Krause

Konrad

Uhl

, et al. Results after microfracture of full-thickness chondral defects in different compartments in the knee. Osteoarthritis Cartilage. 2006;14(11):1119-25.

13.

Franceschi

Longo

Ruzzini

Marinozzi

Maffulli

Denaro

Simultaneous arthroscopic implantation of autologous chondrocytes and high tibial osteotomy for tibial chondral defects in the varus knee. Knee. 2008;15(4):309-13.

14.

Henderson

Tuy

Connell

Oakes

Hettwer

WH.

Prospective clinical study of autologous chondrocyte implantation and correlation with MRI at three and 12 months. J Bone Joint Surg Br. 2003;85(7):1060-6.

15.

Bakay

Csönge

Papp

Fekete

Osteochondral resurfacing of the knee joint with allograft. Clinical analysis of 33 cases. Int Orthop. 1998;22(5):277-81.

16.

Drexler

Gross

Dwyer

Safir

Backstein

Chaudhry

, et al. Distal femoral varus osteotomy combined with tibial plateau fresh osteochondral allograft for post-traumatic osteoarthritis of the knee. Knee Surg Sports Traumatol Arthrosc. 2015;23(5):1317-23.

17.

Locht

Gross

Langer

Late osteochondral allograft resurfacing for tibial plateau fractures. J Bone Joint Surg Am. 1984;66(3):328-35.

18.

Gortz

Bugbee

WD.

Allografts in articular cartilage repair. Instr Course Lect. 2007;56:469-80.

19.

Hangody

Dobos

Baló

Pánics

Hangody

Berkes

Clinical experiences with autologous osteochondral mosaicplasty in an athletic population: a 17-year prospective multicenter study. Am J Sports Med. 2010;38(6):1125-33.

20.

Hung

Wang

Chang

Chen

TH.

Osteochondral autografts transfer for post-traumatic osteochondral defect of the knee-2 to 5 years follow-up. Injury. 2004;35(12):1286-92.

21.

Ueblacker

Burkart

Imhoff

AB.

Retrograde cartilage transplantation on the proximal and distal tibia. Arthroscopy. 2004;20(1_suppl):73-8.

22.

Wajsfisz

Makridis

Djian

Arthroscopic retrograde osteochondral autograft transplantation for cartilage lesions of the tibial plateau: a prospective study. Am J Sports Med. 2013;41(2):411-5.

23.

Kraeutler

Belk

Purcell

McCarty

EC.

Microfracture versus autologous chondrocyte implantation for articular cartilage lesions in the knee: a systematic review of 5-year outcomes. Am J Sports Med. 2018;46(4):995-9.

24.

Kon

Filardo

Venieri

Perdisa

Marcacci

Tibial plateau lesions. Surface reconstruction with a biomimetic osteochondral scaffold: results at 2 years of follow-up. Injury. 2014;45(Suppl 6):S121-S125.

25.

Filardo

Kon

Di Martino

Busacca

Altadonna

Marcacci

Treatment of knee osteochondritis dissecans with a cell-free biomimetic osteochondral scaffold: clinical and imaging evaluation at 2-year follow-up. Am J Sports Med. 2013;41(8):1786-93.

26.

Perdisa

Kon

Sessa

Andriolo

Busacca

Marcacci

, et al. Treatment of knee osteochondritis dissecans with a cell-free biomimetic osteochondral scaffold: clinical and imaging findings at midterm follow-up. Am J Sports Med. 2018;46(2):314-21.

27.

Ossendorf

Steinwachs

Kreuz

Osterhoff

Lahm

Ducommun

, et al. Autologous chondrocyte implantation (ACI) for the treatment of large and complex cartilage lesions of the knee. Sports Med Arthrosc Rehabil Ther Technol. 2011;3:11.

28.

Peterson

Vasiliadis

Brittberg

Lindahl

Autologous chondrocyte implantation: a long-term follow-up. Am J Sports Med. 2010;38(6):1117-24.

29.

Khan

Cammisa

Jr Sandhu

Diwan

Girardi

Lane

JM.

The biology of bone grafting. J Am Acad Orthop Surg. 2005;13(1_suppl):77-86.

30.

Cote

Lubowitz

Rossi

Brand

JC.

Reviews pooling heterogeneous, low-evidence, high-bias data result in incorrect conclusions: but heterogeneity is an opportunity to explore. Arthroscopy. 2018;34(12):3126-8.
