Abstract

Face masks are loose-fitting masks that cover the nose and mouth and have ear ties at the back of the head whereas respirators are tight-fitting face covering devices which filter the air during inhalation and exhalation. Guidelines issued by the US Centers for Disease Control and Prevention (CDC) regarding proper design, filtration process and wearing should be followed. The mask equipment provides protection against the infections caused by particulate matters (PM), especially PM2.5, and biological pathogens such as bacteria and viruses. Although face masks offer benefits to a greater extent, it is not recommended to wear them for a long period of time. As N95 masks closely fit with the face, it may result in negative impact on respiratory and dermal mechanisms of human thermoregulation. In this article, currently available face masks including cloth masks, their filtration mechanisms, manufacturing methods and decontamination methods are reviewed for the purpose of helping with the coronavirus pandemic (COVID-19).

Keywords

Filtration facemasks N95 respirator particulate matters (PMs)viruses COVID-19

Introduction

Filtration may be defined as the process of separating solid particles present in a solid-fluid mixture to ameliorate the purity of filtered material by directing the flow of the mixture through a supported mesh or cloth, called filter [1]. The most common filtration types are solid-gas and solid-liquid separation. A membrane or filter is required to reduce the concentration of unwanted particles. These particles may be nanosized such as viruses, micro-sized such as bacteria (Staphylococcus, Pseudomonas) as well as macro-sized particles such as dust, pollen, etc. [2].

Atmospheric air contains various fine particulate matters (PM) and pathogens which can be easily inhaled by humans and hence they are a threat to global public health [3]. Such potential threats can be alleviated through use of disposable face masks or respirators which filter the potential contaminants from the air. Wearing masks and respirators can have positive impacts on health such as short-term reductions in high blood pressure [4].

A series of serious viral respiratory infectious agent outbreaks (e.g. severe acute respiratory syndrome (SARS), avian influenza, pandemic influenza, and pandemic COVID-19) has stimulated the use of protective face masks (PFMs) including filtering facepiece respirators (FFRs, it is simply called respirators), surgical/medical face masks (FM) for health workers and public [5]. Based on the previous experiences with respiratory viruses like SARS, it was found that handwashing more than 10 times daily reduces the virus transmission by 55%, wearing masks by 68%, wearing N95 masks by 91%, wearing gloves by 57%, wearing gowns by 77%, and handwashing, masks, gloves, and gowns combined by 91% [6]. For the influenza outbreak, Yan et al. performed an analysis for four different types of respiratory protective devices (RPD). The four RPDs, they used, are adult fit-tested respirators, unfitted adult respirators, high-filtration surgical masks, and low-filtration surgical masks. They found that when there was no protection, then 35% of all people got infected, with the maximum cases occurring around day 15. When 20% of all people wore fit-tested respirator and high-filtration masks, the infection rate decreased by 50% and delayed the peak of the epidemic to around day 25. For 50% of people wearing RPD, the protection equipment except low filtration masks reduced the infection rate to about 5% and for 80% of people wearing RPD, the infection rate was negligible for all sorts of RPDs except low ﬁltration masks [7]. Therefore, wearing masks is very important to prevent the spread of viruses.

The U.S. Centers for Disease Control and Prevention (CDC) advises wearing of cloth masks in public (e.g., grocery stores and pharmacies) amid the coronavirus pandemic (COVID-19) [8]. Almost all the other countries also advised their citizens to wear masks in public places where social distancing is difficult to maintain [9–11].

This paper analyzes the filtration mechanisms of various masks and their filtration efficiencies for filtering out different size bacteria, viruses, and particulate matters.

Filtration spectrum and particle arrest mechanisms

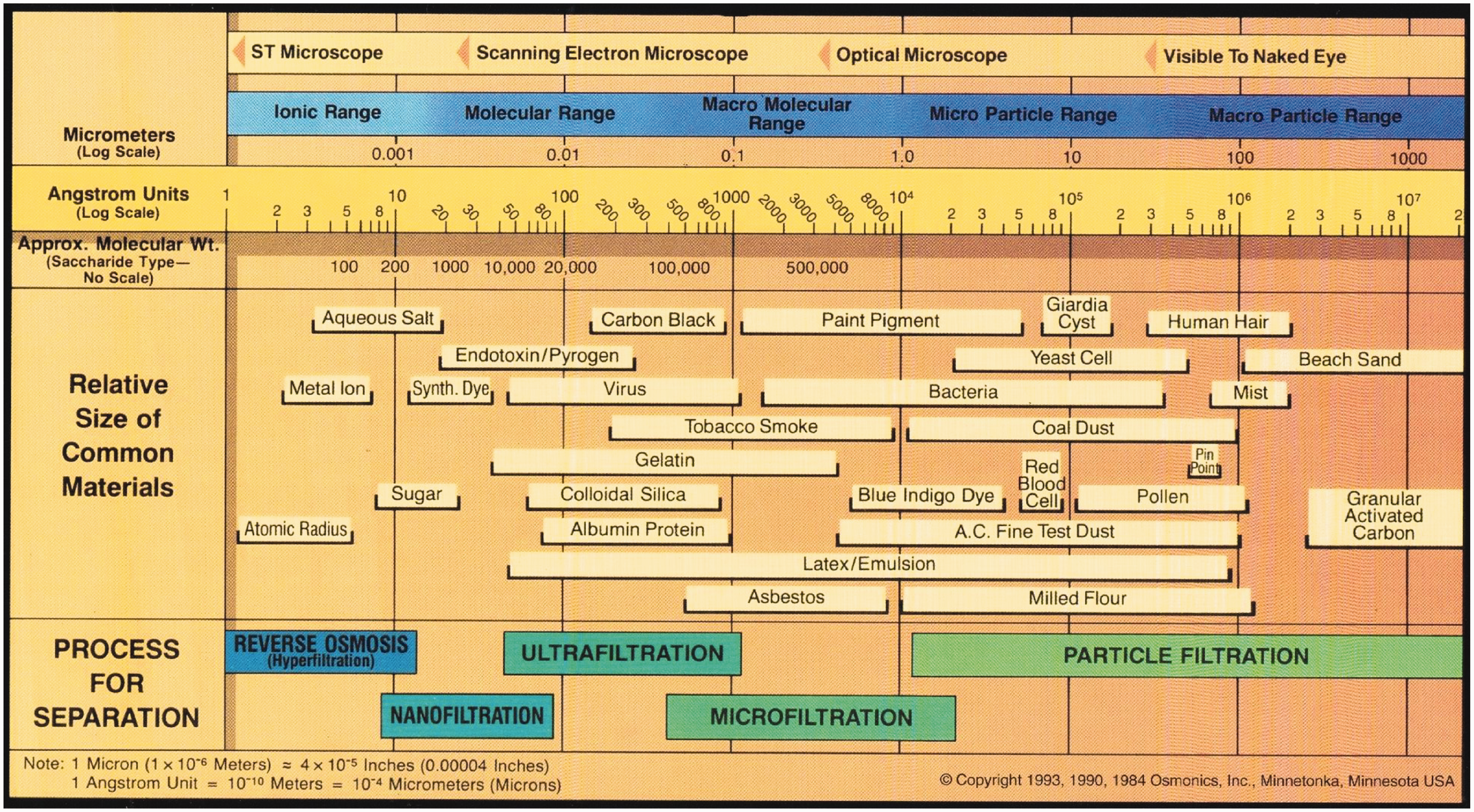

Figure 1 summarizes the relative size of common particles and processes for separation of those particles while listing the equipment necessary to be able to observe the particles. Particles of different sizes encounter with the surfaces of filters which are made of fibers. It is obvious that if the particle size is larger than the pore size of the fabric filter, it is stopped easily but if the particles are smaller than the pores, then there are other ways in which a bed of ﬁbers can stop a particle moving towards and through it. The main particle arrest mechanisms are as follows (Figure 2):

Figure 1.

Particle size distribution of common contaminants and associated filtration processes [12] (copyright by Osmonics, Inc.).

Figure 2.

Filtration mechanisms [12,13] (copyright Shirley Institute/British Textile Technology Group).

(a) Direct interception: When a particle carried by the streamlines is taken to a distance of less than its radius from the fiber surface, it gets attracted by forces of attraction between the fiber and the particle such as Van der Waal’s forces, which is called direct interception [12–14]. The capture efficiency due to interception for R < 0.2 and α < 0.5 is given by [15]:

η_{R} = \frac{1 - α}{K} (\frac{R^{2}}{1 + R})

(1)

where, α is the packing density or solidity, R is the interception parameter and K is the Kuwabara hydrodynamic factor which is given by:

K = - \frac{1}{2} \ln α - 0.75 + α - \frac{1}{4} α^{2}

(2)

(b) Inertial deposition: Aerosols or dust particles (typically 1 micron or larger in size) moving with high velocity carries inertia and while making a turn to pass by the fiber, it crosses the streamlines and collide with the fiber. This makes the particles to be trapped, which is termed as inertial deposition [12–14,16]. The capture efficiency due to inertial deposition is calculated by [17,18]:

η_{i} = \frac{Stk}{2 K^{2}} [(29.6 - 28 α^{0.62}) R^{2} - 27.5 R^{2.8}]

(3)

where, R (= $d_{p} / d_{f}$ ) is the interception parameter. This equation is valid for 0.01 < R <0.4 and 0.0035 < α < 0.111. The stokes number, Stk (for Reynolds number of particle, ${R e}_{p}$ <1) is given by:

Stk = \frac{ρ_{p} {d_{p}}^{2} C U_{p}}{9 µ d_{f}} = \frac{2 B m U_{p}}{d_{f}}

(4)

where, $ρ_{p} is the particle density, d_{p}$ is the particle diameter, C is the slip correction factor, $U_{p}$ is the particle velocity relative to gas flow, µ is the gas viscosity, $d_{f}$ is the fiber diameter, B is the mechanical mobility of the particle, and m is the particle mass. For a spherical particle, the mechanical mobility of particle B is given by

B = \frac{C}{3 π µ d_{p}}

(5)

where

C = 1 + \frac{λ}{d_{p}} [2.33 + 0.966 \exp (- 0.4985 \frac{d_{p}}{λ})]

(6)

where λ is the mean free path.

(c) Diffusion: Due to Brownian motion of the fluid, a carried particle moves in a zigzag motion, comes out of the streamline due to random collision with other particles and hence is caught by the fiber. This mainly happens to the particles smaller than 1 micron (usually 0.1 micron or smaller) that are not subject to inertia [12–14,16]. The fiber efficiency (fraction of particles collected by a unit length of a clean fiber) due to convective Brownian diffusion for submicron particles is calculated by the following equation [15]:

η_{D} = 2.6 {(\frac{1 - α}{K})}^{1 / 3} {P e}^{- 2 / 3}

(7)

where, the Peclet number, $P_{e}$ , is $\frac{d_{f} U}{D}$ , in which U is the flow velocity and D is the particle diffusion coefficient.

(d) Electrostatic deposition: When the particles and fibers carry the opposite charges, an electrostatic attraction appears between them. This results in attraction of particles to the walls of fibers, which is an especially useful mechanism for very fine particles. This mechanism employs electrocharged polymer or resin fibers that attract both large and small oppositely charged particles and trap them [12–14,16]. The single fiber efficiency due to coulombic forces and interception is given by the following expression [18]:

η_{C R} = η_{R} + K_{C} [\frac{1}{1 + R} - \frac{η_{R}}{(1 + R) η_{R} + K_{C}}]

(8)

where, $η_{R}$ is the capture efficiency due to interception. $K_{C} is given by :$

K_{C} = \frac{C n_{p} e σ}{6 ε_{0} (1 + ε_{f}) µ d_{p} U}

(9)

where,

n_{p}

is the number of electronic charge on the particles, e is the charge of electron, σ is the average charge density on fiber,

ε_{0}

is the vacuum permittivity, and

ε_{f}

is the dielectric constant of fiber.

(e) Gravitational forces: The larger particles moving with the stream can be filtered due to gravitational forces [12–14].

Except the electrostatic deposition, all the other mechanisms are known as mechanical capture mechanisms.

Equations for performance evaluations of mask filters

A fibrous filter is comprised of many randomly oriented fibers which are arranged in such a way that they restrict the penetration of aerosols and prevent the flow of contaminants through the mouth and nose of the wearer. These fibers form a dense material or mat which captures and retains particles throughout its depth or thickness. Different mechanisms are needed for a mask to capture the particles and clean the filtrate. The thickness, fiber diameter and density of the mat are critical in designing the proper face mask which affect the mask’s performance.

The important parameters that determine the performance of the face masks and respirators are porosity, pressure drop, collection efficiency, and flow velocity [18]. Porosity is the volume fraction of air contained in the fabric filter that can be expressed as [12]:

Porosity = \frac{Volume of voids}{Total fabric volume}

(10)

It is necessary to measure the air flow through the fabric, called air permeability, to construct the fabric filter to perform as desired. This is because, air permeability is an estimation of how much fluid can be transmitted through open space between the fibers in a fabric. It is the rate of air flow under a certain pressure differential across an area of the filter fabric. Filter performance increases as the pore size decreases; however, more back pressure can be required to achieve the same flow rate through the filter. This effect is shown in Figure 3.

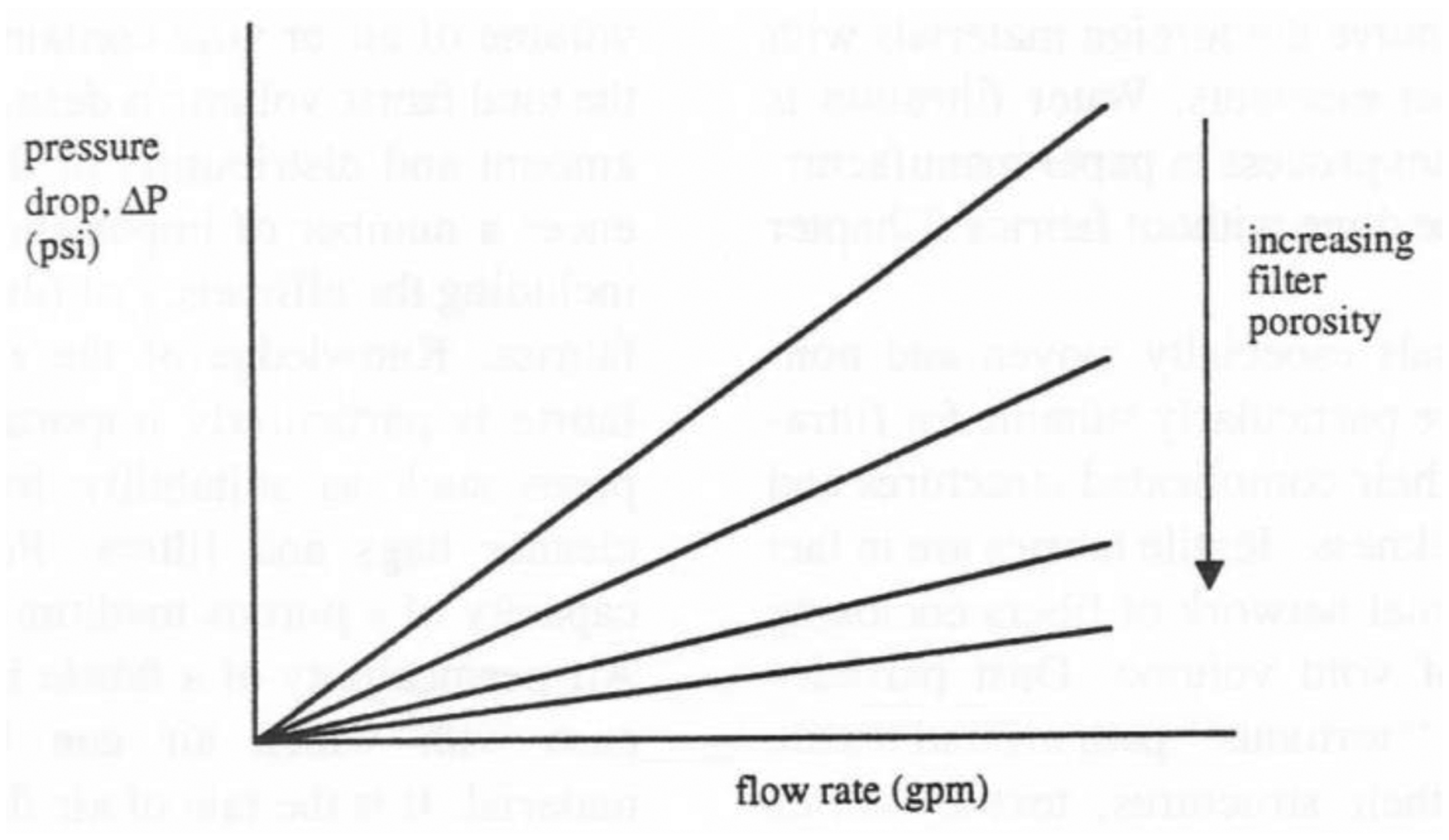

Figure 3.

Relationship between flow rate and pressure drop for different pore sizes [12].

Darcy’s law describes the pressure drop across porous media as a function of flow rate and is valid for small pressure differentials. According to Darcy’s Law, the relationship between the fluid flow rate and pressure drop across the porous media is linear [19]:

Q = \frac{k A (P_{1} - P_{2})}{µ L}

(11)

where, P₁−P₂ (or ΔP) is the pressure drop of a fluid with viscosity µ, flowing at a volumetric flow rate Q over a bed of porous media of a given thickness L, cross-sectional area A and permeability k.

P_{1} and P_{2}

represent the pressures at high-side and low-side pressures, respectively. At higher velocities, this law becomes invalid and hence Reynold’s number is used to characterize the deviation point of Darcy’s law [20]. Reynold’s number, Re, is defined as the ratio of fluid density ρ, particle diameter

d_{p}

, and fluid velocity V, to the fluid viscosity µ:

Re = \frac{ρ d_{p} V}{µ}

(12)

It follows from equations (11) and (12) that pressure drop is proportional to the filter thickness and inversely proportional to the cross-sectional area. Pressure drop is also proportional to the face velocity because the flow in a filter is usually laminar.

The collection efficiency, E, is defined as the ratio of the number of particles stopped by the filter to the number of particles passing through the projected area of the fibrous filter is given by [18]:

E = \frac{N_{0} - N}{N_{0}}

(13)

where,

N_{0}

and N are the particle number concentration at the inlet and outlet, respectively.

The packing density or solidity α is the volume fraction of fibers in a filter. It is an important parameter to be considered which influences the performance of a filter. Generally, the values of α ranges between 0.01 and 0.3. The flow velocity in a filter, V, is given by

V = \frac{V_{0}}{1 - α}

(14)

where,

V_{0}

is the flow velocity at the filter face.

The overall filter efficiency can be calculated based on the single fiber efficiency and other parameters as well:

E = 1 - \exp [\frac{- 4 α η L}{π d_{f} (1 - α)}]

(15)

where, η is the single fiber efficiency, L is the filter thickness and

d_{f}

is the fiber diameter (Figure 4).

Figure 4.

The assumptions made in the derivation of filter efficiency are: (i) all fibers are uniform (ii) the packing density remains unchanged throughout the filter, (iii) flow direction is normal to the fibers, and (iv) the single fiber efficiency remains the same throughout the filter. To rank any filter based on filtration performance, the filter should possess a high efficiency and quality factor (QF), which is defined as [21]:

Q F = \frac{- \ln (1 - E)}{Δ P}

(16)

where,

E

and

Δ P

are filtration efficiency and pressure drop, respectively.

Pore characteristics

A membrane or filter allows some particles to pass through depending upon the size of its pores. The particles with diameters larger than those of pores are stopped easily. The pores are formed at yarn interstices in woven fabric filters while they are formed by small spaces between the individual fibers in nonwoven filters. By adjusting the size and volume characteristics of pores, the design and manufacture of filtration media with the desired properties can be achieved. The performance of filtration media can be predicted by measuring the pore characteristics. The Washburn equation (based on the Young-Laplace equation) establishes the relationship between the pressure drop and the size of the capillary, or pore, as follows [22,23]:

P_{c} = \frac{4 k_{s} γ \cos θ}{D_{p}}

(17)

where

P_{c}

is capillary pressure, D_p is the pore diameter, γ is the surface tension between the fluid and filter wall, θ is the contact angle of fluid-wall interface and k_s is the shape factor. To correlate the pressure and pore size, it is necessary to know how the fluid wets the material, the surface tension of the fluid, and an estimate of the pore geometry. This technique is simple, fast, and provides an accurate assessment of pores in filtration media, and therefore ideally suited for both research and product control purposes.

Depending on different pore sizes, different terminologies have been developed and accordingly various types of filtration processes are defined as shown in Figure 1 and Table 1. For instance, if the pore size is greater than 50 nm, then it is called macropore and the filtration technologies may be used are ultra filtration (UF) and micro filtration (MF) [24].

Table 1.

General terminology of pores [2], (National Institute of Standards and Technology).

Macropore	Width > 50 nm	UF, MF
Mesopore	2 nm < width < 50 nm	UF, NF
Micropore	Width < 2 nm	NF
Supermicropore	0.7 nm < width < 2 nm	RO, NF
Ultramicropore	Width < 0.7 nm	RO, GS, dialysis
Ultrapore	Width < 0.35 nm	RO, GS, dialysis

(UF – Ultra Filtration, MF – Micro Filtration, NF – Nano Filtration, RO - Reverse Osmosis, GS – Gas and Vapor separation).

Depending on the pore size of a filter, different particles either enter or are restricted from entering the inner structure of the filter. Figure 5 gives a visual comparison of various particles (for example, coronavirus, bacteria and PM2.5) that can be restricted from entering using appropriate masks or filters.

Figure 5.

Size of different elements [25] (reprinted with permission from SmartAir Filters).

Pore size assessment methods

Depending on size and geometry of textile fabrics such as woven, knitted and nonwoven fabrics, three different types of pores can be detected: (i) pores between the yarns of the woven and knitted fabrics, (ii) pores between fibers of the yarn, and (iii) micropores in the fibers themselves [26]. The dimensions and distribution of micropores affect the porosity of the fabric and they are important in face masks to filter the small particles as well as to allow adequate breathing. There are several methods developed for measuring porosity such as geometrical methods, liquid intrusion methods, liquid extrusion methods, air permeability methods, etc.

Jaksics [26] developed a new method called immersion method to assess the porosity of fabrics. In this method, the fluid is squeezed out from the pores of wet fabrics by air pressure. They were able to estimate the porosity parameters such as hydraulic diameter of pores, distribution of pores, open area for fluid flow and the number of hydraulic pores. The parameters found were based on the air velocity through dry and wet fabrics as a function of air pressure. This method is appropriate to measure the porosity if the average hydraulic diameters are in the interval of 5 to 200 µm.

Owczarek [27] presented an innovative method for morphometrical structural analysis of inter-thread pores (ITP) in plain and twill woven fabrics. The structural analysis of ITPs was conducted by using computer image analysis module in 5 steps: (i) image acquisition, (ii) pre-processing – elimination of distortions, (iii) segmentation, (iv) representation and description, and (v) recognition and interpretation. The author performed fabric image acquisition by a stereoscopic microscope MST Zoom 1302 CB and a CCD-4012 camera. The pre-processing step was carried out where radiometric and geometric distortions were eliminated, which resulted in higher image quality.

These methods can be useful for pore size assessment of masks and other fabric filters.

Classification of masks

Masks are developed by considering the size of pores and particles needed to be filtered out, which are determined by the health and medical professionals. Some types of masks according to their specific uses and characteristics are explained below.

Dust Mask: Dust masks are flexible and disposable masks designed to protect against dust, pollens, molds and other irritants (Figure 6). They do not provide protection against any chemicals or viruses and hence they should not be used for COVID-19.

Figure 6.

Dust mask.

Single-Use Face Mask: These masks are disposable masks used for single application. They are made of a single layer nonwoven fabric or wood pulp tissue paper and are very thin. They are generally used for protection against larger dust particles, at construction sites and in other similar industries. It is not recommended to use such type of masks for protection against viruses.

Surgical Mask (Medical mask): According to the U.S. Food & Drug Administration (FDA) “a surgical mask is a loose-fitting, disposable device that creates a physical barrier between the mouth and nose of the wearer and potential contaminants in the immediate environment” [28]. The surgical mask is made of 3 layers (Figure 7). The innermost layer is made of an absorbent material that absorbs moisture from the wearer’s breath. The middle layer is made of a meltblown material that acts as a filter, and the outermost layer is made of a material that repels liquids [29]. A surgical mask is designed to prevent the large-particle droplets, splashes, sprays, or splatter with a diameter of >100 µm from reaching the mouth and nose. It also helps to reduce the spread of a person’s saliva and respiratory secretion to others. The Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2 virus) is essentially spherical, albeit slightly pleomorphic, with a diameter of 60–140 nm [30–32]. A surgical mask cannot prevent inhalation of very small particles present in the air and hence it does not provide complete protection against germs and other contaminants [28].

Figure 7.

Surgical mask.

N95 Respirator (N95 Respirator Mask or N95 Mask): A respirator is a device designed to achieve a very close facial fit and very efficient filtration of airborne particles and protect the wearer from inhaling toxic chemicals and infectious particles [28,33]. This includes airborne particles that may contain biological material, e.g. mold, Bacillus anthracis, Mycobacterium tuberculosis, the virus that causes Severe Acute Respiratory Syndrome (SARS), Avian Flu, Ebola Virus etc., or even PM2.5 (particulate matter with diameter of 2.5 micron or less) [34]. N type respirators means they are ‘not oil resistant’. Depending on their filtration effectiveness, they are classified into N95 (Figure 8), N99 and N100. For instance, N95 mask can filter off at least 95% of particles that are larger than 0.3 microns in size, while N99 masks can filter off at least 99% of these particles. However, filtration efficiency of N95 masks for particles smaller than 300 nm is around 85% due to its wider pore size (∼300 nm) [35]. Millions of microfibers of polypropylene added on top of each other and permanently electrostatically charged constitutes the N95 mask filter. This electrical charge is mandatory to maintain the mask’s potential to filter microorganisms or micro particles. The most penetrating particle size is 0.3 µm and the size of coronavirus is in between 0.06–0.14 µm (60–140 nm) in diameter. Counterintuitively, viruses of 0.3 µm size are easier to filter than those that are larger than 0.3 µm, because 0.3 µm particles follow a Brownian motion (random, zigzag) and therefore trap more easily into filters by diffusion mechanism. N95, N99, N100, FFP2, and FFP3 masks filter the corona virus effectively [29].

Figure 8.

N95 respirator mask (3 M).

International guidance recommends that surgical masks should not be worn for more than 4 hours and a P2/N95 respirator not more than 8 hours continuously unless it is damaged, soiled or contaminated. The use of one mask for longer than 4 hours is risky and has the chances of self-contamination and hence is not advised [36].

Nasal Mask: Nasal masks are used for the treatment of patients suffering from sleep apnea as shown in Figure 9. Such patients are prescribed for continuous positive airway pressure (CPAP) therapy which includes a mask that fits over the nose or nose/mouth and a machine that supplies a continuous flow of air through a tube to the mask. This continuous flow of air helps to prevent the disturbance in overnight breathing and reduce snoring, fatigue, daytime drowsiness and improves the quality of life by optimizing nocturnal oxygen saturation [37,38]. Different forms of nasal masks are available based on the CPAP delivery requirements and they can be divided into 3 categories: nasal masks which cover the nose and leave the mouth free; nasal pillows which is inserted directly into the nostrils; and oronasal (i.e., full face) masks, which cover the nose and the mouth.

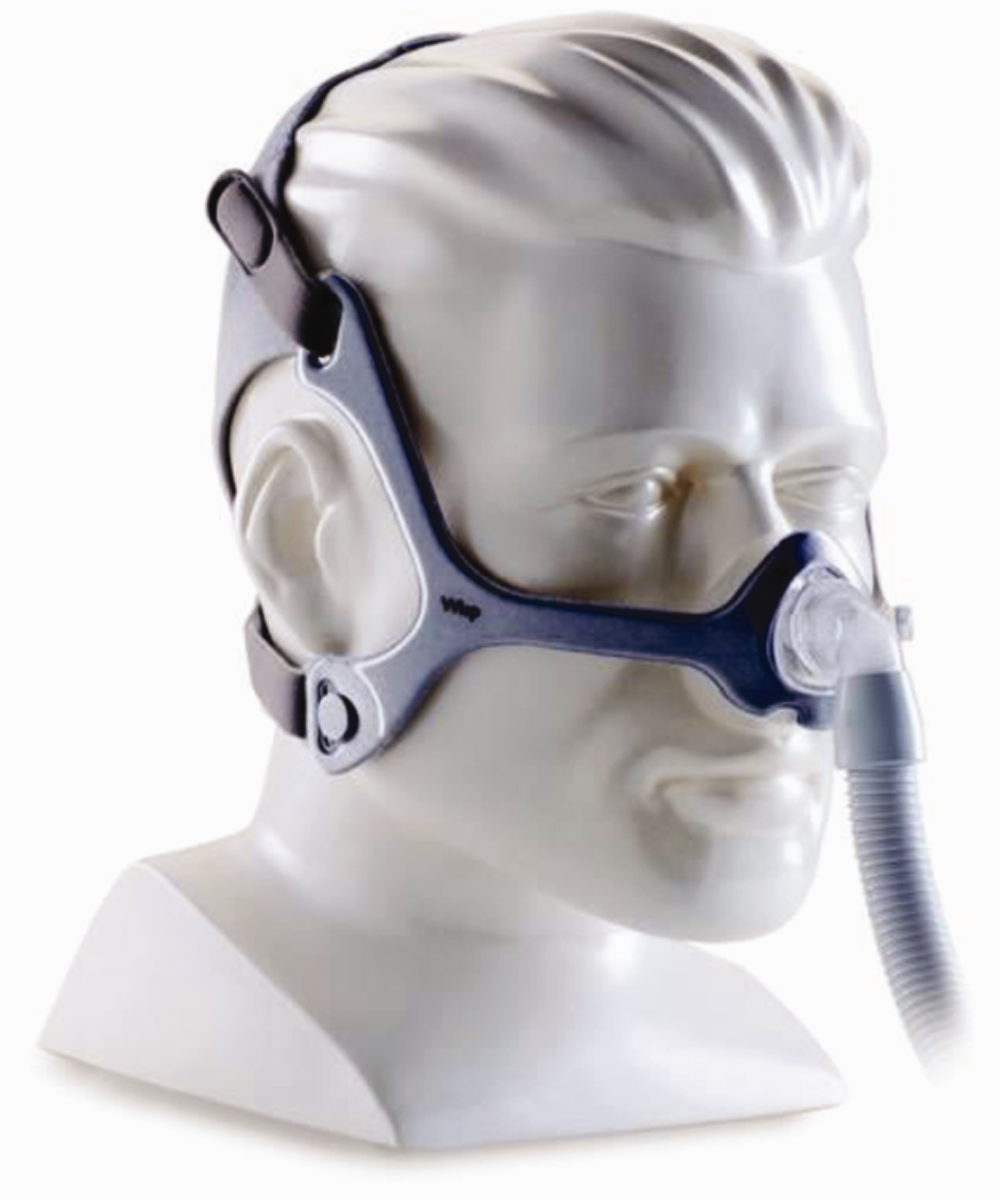

Figure 9.

Nasal mask [39].

Table 2 presents different types of masks based on their standards and filtration effectiveness.

Table 2.

Comparison of different types of masks [25, 40, 41] (modified and reprinted with permission from Smart Air Filters).

Mask type	Standards	Filtration effectiveness
Single-Use Face Masks [25]	China: YY/T0969 $^{*}$	3.0 micron: ≥95% 0.1 micron: X
Surgical Masks [42]	China: YY 0469 $^{*}$	3.0 micron: ≥95% 0.1 microns: ≥30%
	USA: ASTM F2100 $^{*}$	Level 1	Level 2	Level 3
	USA: ASTM F2100 $^{*}$	3.0 micron: ≥95%0.1micron: ≥95%	3.0 micron: ≥98%0.1micron: ≥98%	3.0 micron: ≥98%0.1 micron: ≥ 98%
	Europe: EN 14683 $^{*}$	Type I	Type II	Type III
	Europe: EN 14683 $^{*}$	3.0 micron: ≥95%0.1 micron: X	3.0 micron: ≥98%0.1 micron: X	3.0 micron: ≥98%0.1 micron: X
Respirator Mask [25]	USA: NIOSH 42 CFR 84 ${^{},}^{Ψ};$ OSHA 29CFR1910.134 $^{Ϯ}$ China: GB2626 $^{};$ GB/T 18664-2002 $^{Ϯ}$	N95/KN95	N99/KN99	N100/KN100
		0.3 micron: ≥95%	0.3 micron: ≥99%	0.3 micron: ≥99.97%
	Europe: EN 149:2001 $^{*};$ EN 529:2005 $^{Ϯ}$	FFP1	FFP2	FFP3
	Europe: EN 149:2001 $^{*};$ EN 529:2005 $^{Ϯ}$	0.3 micron: ≥80%	0.3 micron: ≥94%	0.3 micron: ≥99%
	Australia: AS/NZS 1716:2012 $^{*};$ AS/NZS 1715:2009 $^{Ϯ}$ [43,44]	P2	P3
		0.3 to 0.6 micron: ≥94%	P3
		Protection Factor ≥10
	Brazil: ABNT/NBR 13698:2011 $^{*};$ Fundacentro CDU 614.894 $^{Ϯ}$	PFF2	PFF3
		Protection Factor ≥10
	Korea: KMOEL-2017-64 $^{*};$ KOSHA GUIDE H-822015 $^{Ϯ}$	Special 1st
	Korea: KMOEL-2017-64 $^{*};$ KOSHA GUIDE H-822015 $^{Ϯ}$	Protection Factor ≥10
	Japan: JMHLW-2000 $^{*};$ JIS T8150: 2006 $^{Ϯ}$	DS/DL2	DS/DL3
	Japan: JMHLW-2000 $^{*};$ JIS T8150: 2006 $^{Ϯ}$	Protection Factor ≥10

3.0 microns Bacteria Filtration Efficiency standard (BFE).

0.1 micron: Particle Filtration Efficiency standard (PFE).

0.3 micron: Used to represent the most-penetrating particle size (MPPS).

X: No requirements.

*: Performance Standard.

$Ϯ$ : Standards/Guidance Documents.

$Ψ$ : Canada is not listed because it allows self-declaration to NIOSH or equivalent standards.

P3: P3 filters are currently not part of the standards or readily available for use in Australian healthcare [36].

It is important to examine the efficiency of a mask in lab after its fabrication. The tests include leakage test, permeability test, virus filtration efficiency test, comfort test, life-time test and its impact on health. The following standard test methods are necessary to qualify a mask for use:

ASTM F2100 – Standard specification for performance of materials used in medical face masks

ASTM F2102 – Standard test method for evaluating the bacterial filtration efficiency (BFE) of medical face mask materials, using a biological aerosol of staphylococcus aureus.

ASTM F2299 – Standard test method for determining the initial efficiency of materials used in medical face masks to penetration by particulates using latex spheres (PFE test)

ASTM F1862 – Standard test method for resistance of medical face masks to penetration by synthetic blood (horizontal projection of fixed volume at a known velocity)

Comparison of different N type and FFP type respirator masks based on their filtration efficiency and use are presented in Table 3.

Table 3.

Comparison of different types of N and FFP type masks [29], (reprinted with permission from PURE Foundation).

	N95	N99	N100	FFP1	FFP2	FFP3
% of ≥0.3 μm particles filtered	At least 95%	At least 99%	At least 99.97%	At least 80%	At least 94%	At least 99 – 99.95%
Breathing resistance	+	++	+++	+	++	++ to +++
Internal leakage rate permitted	−	−	−	22%	8%	2%
Protection against	PMs, bacteria, viruses, fungi	PMs, bacteria, viruses, fungi, oil (8 hrs)	PMs, bacteria, viruses, fungi, oil (40 hrs)	Low levels of dust (e.g. sands)	Moderate level of dusts (e.g. construction), PMs, bacteria, viruses, fungi	High level of dusts (e.g. asbestos), PMs, bacteria. viruses, fungi
Suitable for COVID-19	Yes	Yes	Yes	No	Yes	Yes

N95 respirator with smart valve

The threat to public health due to aerosolized pathogens (viruses, bacteria, mycobacteria, non-tuberculous mycobacteria, etc.) and environmental pollutants (allergens and particulates) can be mitigated through the personal use of disposable face masks. The efficacy of such masks for eliminating pathogens and pollutants is increased by improving the resisting capacity of masks against the penetration by airborne particulates (such as PM2.5) and infectious agents. To do this, a tight-fitting device over the mouth and nose having very small pore size should be developed. As a consequence, this may result in negative impact on respiratory and dermal mechanisms of human thermoregulation through impairment of convection, evaporation, and radiation processes [5,45]. Hence, an alternative way to improve the wearer comfort and minimize the impact on health is to include some features in the face masks such as the Micro Ventilator (comprising a Smart Valve and ventilation fan) as shown in Figure 10. The Micro Ventilator enhances the flow of exhaled gas out of the mask. The purpose of one-way Smart Valve is to limit the air flow into the mask through the valve such that all the air must pass through the filter material. On the other hand, exhaled air may pass out of the mask through the valve. The purpose of the fan is to aid in the removal of exhaled air from the interior of the mask [46]. N95 respiratory mask is comprised of various layers, from outer to inner as shown in Figure 11. The outer layer is made of hydrophobic nonwoven polypropylene that prevents external moisture from entering the mask material. It is followed by a filter layer made of meltblown nonwoven polypropylene that arrests non-oil based particles through different particle arrest mechanisms as discussed earlier. The next layer is a modacrylic support layer that provides rigidity and adds thickness to the mask. The innermost layer is also hydrophobic nonwoven polypropylene layer which minimizes moisture within the mask from entering the mask material and adversely impacting filtration efficiency.

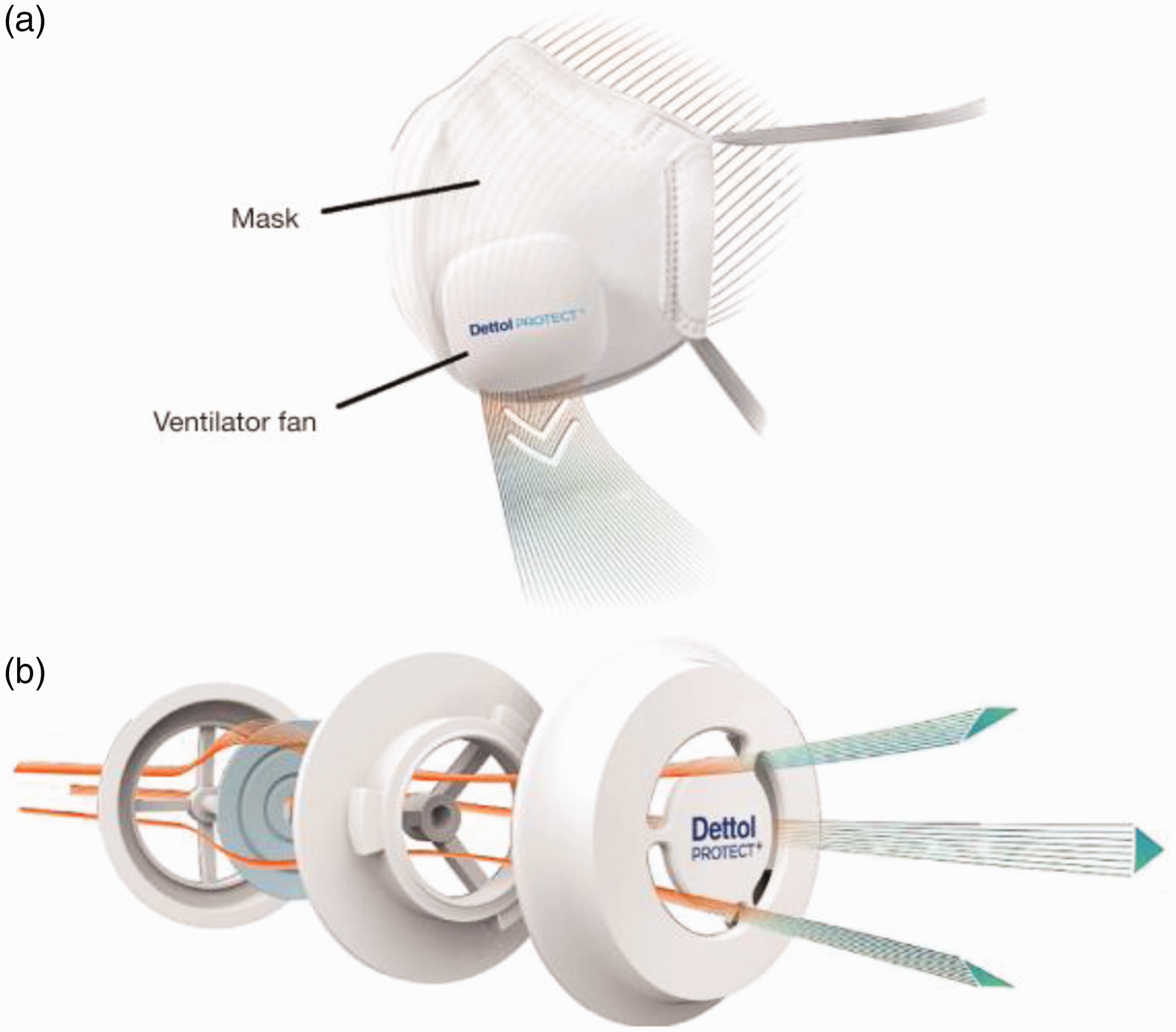

Figure 10.

Schematic representation of N95 respirator, (a) Airflow through the respirator during exhalation; (b) Detail of Smart Valve (located beneath the ventilator fan) showing the permitted air flow from inside to outside of the respirator [46], (reprinted with permission of AME Publishing Co.).

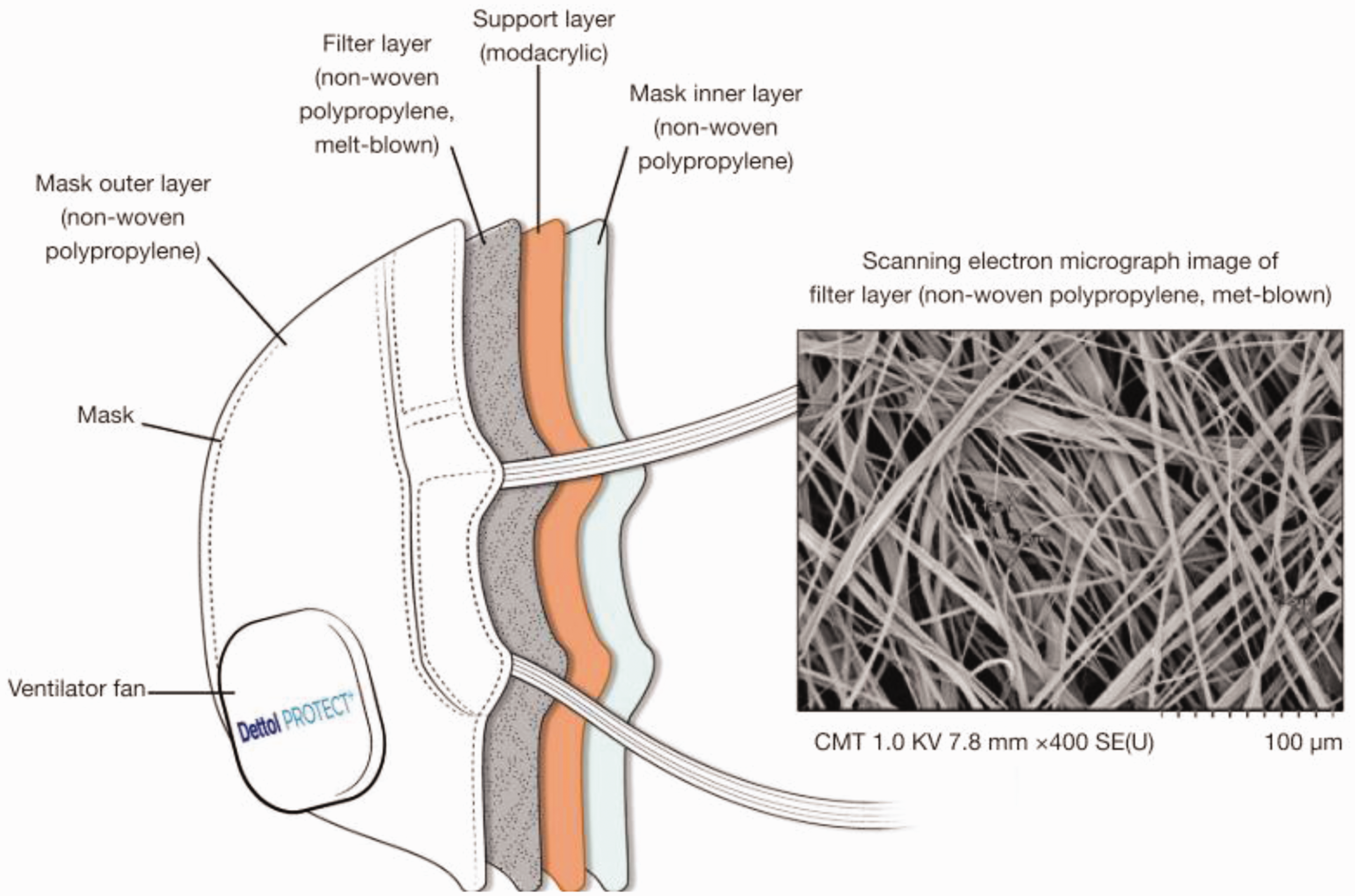

Figure 11.

Schematic of the N95 respirator showing various layers [46] (reprinted with permission of AME Publishing Co.).

Filtration mechanism and effectiveness of N95 respirators

The occurrence of Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) disease (COVID-19) at the end of 2019 has caused a global outbreak and has been a major public health issue at the current scenario. It spreads by human-to-human transmission via droplets or direct contact. Hence, it is crucial to slow the spread of the virus to decrease the infections among people especially health care providers. This target can be achieved by the proper use of N95 respirators and handwashing.

Zhou et al. examined the efficiencies of various configurations of N95 masks (masks with operational or nonoperational ventilation fans or masks with sealed Smart Valves); their results are shown in Table 4. They found out that the average efficiencies of masks without Micro Ventilator for filtration of Staphylococcus aureus and bacteriophage ΦΧ174 are 99.8% ± 0.1% and 99.7% ± 0.2%, respectively. Similarly, the average efficiencies of the masks with Micro Ventilator for filtration of particulates are 99.9% ± 0% for sodium chloride (solid) and 99.6% ± 0.1% for paraffin oil (liquid) [46]. The nominal size of S. aureus is ∼2,000 × 500 nm and of bacteriophage is ∼34 nm. Influenza virus is a relatively large (80–120 nm) enveloped virus, while the rhinovirus is a small (27–30 nm) non-enveloped virus [47]. Despite the large size difference of particulates, the mask did not show any significant difference in its performance; therefore, it can be interpreted that N95 respirators are effective in filtering out the SARS-Cov-2 virus that causes COVID-19.

Table 4.

Efficiency of test mask configurations for filtration of influenza A virus and rhinovirus 14 [46] (reprinted with permission of AME Publishing Co.).

Test mask configuration $^{*}$	Influenza A (H1N1) virus (Strain A/PR/8/34)		Rhinovirus type 14 (Strain 1059)
Test mask configuration $^{*}$	% Filtration by infectivity†	% Filtration by RT-PCR†	% Filtration by infectivity†	% Filtration by RT-PCR†
1	99.7% ± 0.5%	100% ± 0.0%	99.6% ± 0.5%	97.0% ± 5.2%
2	99.9% ± 0.1%	99.3% ± 1.0%	99.8% ± 0.2%	99.5% ± 0.9%
3	99.6% ± 0.5%	98.9% ± 1.8%	99.9% ± 0.2%	99.6% ± 0.5%

This work was performed by Microbac Laboratories (Sterling, VA, USA). *Configurations: 1-test mask with Smart Valve and without Micro Ventilator; 2-test mask with covered/sealed Smart Valve and without Micro Ventilator; 3-test mask with Smart Valve and operating Micro Ventilator. † mean ± standard deviation (N = 3).

The filtration efficacy of masks depends on fiber diameter and pore size. The use of microfibers and nanofibers produced by different manufacturing methods, described in the following section, helps to achieve the desired efficiency. As the fiber diameter gets smaller, the pore size also becomes smaller; as a result, the uniform distribution of fibers per unit area is improved, which increases the filtration efficiency [48]. The pore size should be small enough to trap the particles; however, too small pore sizes can obstruct breathing. Therefore, filters are manufactured with a limited pore diameter (∼300 nm) [35]. The size of coronavirus diameter is between 0.06–0.14 µm (60–140 nm) which makes it difficult to be filtered out. Hence, N95 masks operate on various filtration mechanisms to fulfil the requirements, which include direct interception, diffusion, inertial impaction, and electrostatic interaction.

Electrostatic attraction plays a particular role in filtration mechanism of N95 masks. When particulates pass through the pores of electrostatically charged filters, they get attracted by the fibers due to electrostatic charge (ESC) difference between the particulates and fibers. ESC provides an extra mechanism to the fiber in addition to its mechanical filtration mechanisms. Thus, the combination of these two mechanisms in N95 respirators allows them to show higher filter qualities than mechanical filters made of the same materials but without fiber charge. The addition of electrostatic attraction does not increase pressure drop across the filter medium, which increases the overall filtration quality [48–50].

Manufacturing methods of mask filters

Natural randomness of the textile structures increases the probability of the particles being caught by the fibers. The filtration efficiency of a mask depends on the fiber type, manufacturing method, web’s structure and fiber’s cross-section. There are different methods to manufacture fibrous structures that can be used as filters in masks. Medical face masks are usually made of nonwoven fabrics because nonwoven fabrics generally provide higher filtration efficiencies than woven or knit fabrics due to their randomness and three-dimensional structure which allows larger thickness that increases the distance for the particle to travel. It is also possible to have layered nonwoven structures [12]. The main nonwoven manufacturing methods for face masks are meltblowing, spunbonding and electrospinning. Meltblowing and electrospinning provide the finest fiber diameters and therefore smallest pore sizes.

Meltblowing

In this process, a high-velocity air blows a molten thermoplastic resin from an extruder die with hundreds of small nozzles onto a conveyor or take-up screen to form a fine fibrous and self-bonding fabric web (Figure 12) [51]. The resulting fibers have relatively small diameters (1–5 µm) and therefore, the pore size of the nonwoven is much smaller, which makes them superior in separation performance [52]. Therefore, this method is mostly used for the production of nonwoven fabrics for filtration purposes which include surgical face masks, respirators, liquid filtration, gas filtration, cartridge filters, and clean room filters. The filtration efficiency, air moisture sorption capacity and hygienic comfort can be improved by the introduction of electrostatic charges and superabsorbent polymer (SAP) in meltblown polymer fibers [53].

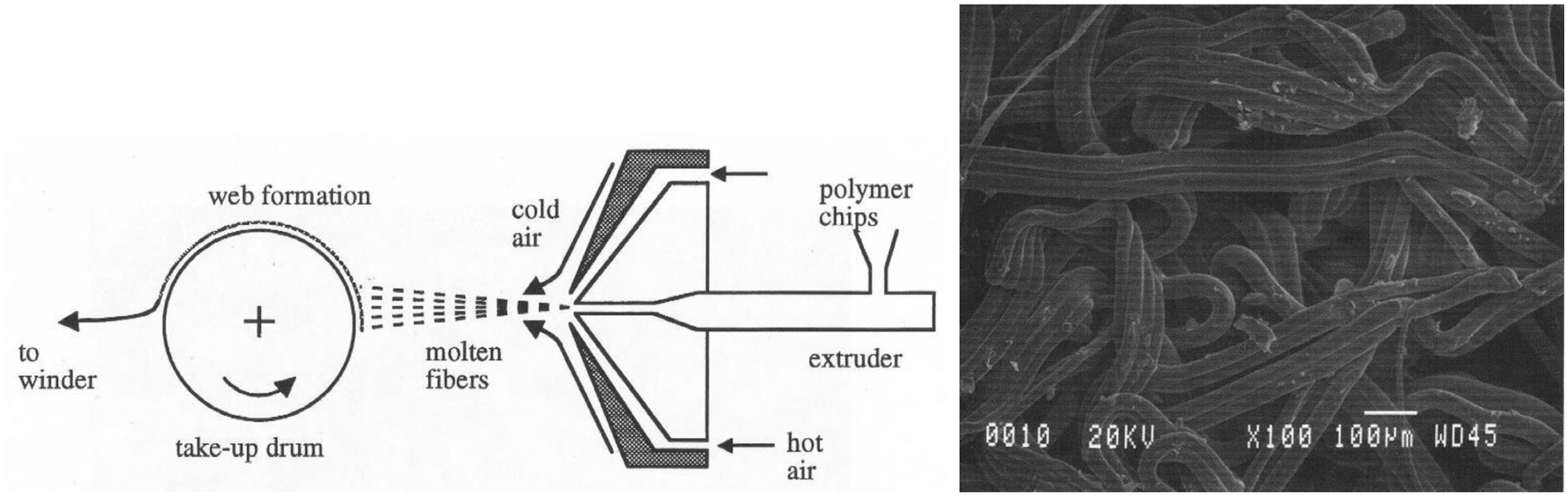

Figure 12.

Schematic of meltblowing process and the resulting nonwoven fabric structure [51] (courtesy of AstenJohnson).

Pu et al. used an external charging device to directly apply electrostatic field to the meltblown (MB) spinning head and hence a combination of meltblown and electric field effect called electrostatic-assisted meltblown (ESAMB) was gained. The mean diameter of polypropylene microfibers produced using this method decreased from 1.69 to 0.96 µm, which also resulted in a narrower fiber size distribution. The average pore size of ESAMB fabric and conventional meltblown were 29.285 µm and 33.415 µm, respectively. The decrease in pore size and mean fiber diameter for ESAMB fabric is due to the application of electrostatic force. They also found that ESAMB fabric had better filtration efficiency than conventional meltblown fabric. For particle size of 0.3 µm, the filtration efficiencies of conventional MB and ESAMB fabrics were 40.65% and 50.82%, respectively. Similarly, for 1 µm particles, the efficiencies were 73.98% and 86.44% and for 2.5 µm particles, the efficiencies were 95.35% and 98.96%, respectively [54]. With the decrease in fiber diameter, the pore size also decreases and the uniform distribution of fibers per unit area increases which gives the particles more chance to adhere to the fabric [48]. It was reported that ESAMB fabric also has adsorption ability, which allows the fabric to filter the particles at a better rate [50].

N95 respirator mask filters (Figure 11) and surgical mask filters (Figure 13) are produced by this method. The meltblown nonwoven fabrics are used as the main filter of masks that stops the pathogens from entering or exiting the mask. Fiber structures of different layers of surgical masks are shown in Figure 13. The most common material used to make surgical masks is polypropylene [55], with 20–25 grams per square meter (gsm) in density. The basis weight of polypropylene web is around 5–1000 g/m² and its porosity is 75 to 95% [56]. Masks can also be made from polystyrene, polycarbonate, polyethylene, or polyester composition. The 20 gsm mask material is made with spunbonding process whereas 25 gsm fabric is made with meltblowing technology, i.e., although the meltblown fibers are finer, the meltblown layer is thicker [57–59].

Figure 13.

SEM images of surgical mask showing different layers [59] (reprinted with permission from Nanoscience Instruments).

Spunbonding

In spunbonding process, molten polymer is extruded onto a conveyor belt through a spinneret (Figure 14) [51,60]. Extrusion is a process in which polymer chips are fed into an extruder that contains a rotating screw inside a heated barrel where the chips are mixed, melted and pumped through a die, which gives the uniform thin shape to the fibers and can withstand high temperatures. The spun fibers are quenched by cool air, after which, the fibers are collected on a conveyor belt and then are further bonded together through heat, chemical or mechanical means to form the spunbonded nonwoven fabric; then, the fabric is wound on a roll by the winder. The nonwoven fabric formed has a random fibrous structure having a basis weight ranging from 5 to 800 g/m², web thickness ranging from 0.1 to 4.0 mm, and fiber diameter ranging from 1 to 50 µm [61]. As the fiber diameter is decreased, the pore size of the fabric becomes smaller; this results in more uniform distribution of the fibers which increases the filtration efficacy.

Figure 14.

Schematic of spunbonding process and the resulting fabric structure [51] (courtesy of AstenJohnson).

Many polymers including polypropylene, polyester, polyethylene, polyamide, polyurethane, etc. are suitable for the spunbonding process [51]. Among various polymers, isotactic polypropylene (PP) is the most widely used polymer for spunbonded nonwoven production because polypropylene is relatively inexpensive and provides the highest yield (fiber per kilogram) [62]. The product has the lowest specific gravity and the highest versatility for nonwovens [60]. Spunbonding process is suitable for manufacturing of medical face masks.

Electrospinning

Electrospinning is a process in which a polymer solution is discharged through an electric field (Figure 15). As it passes through the electromagnetic field, it becomes thinner and is deposited on a plate resulting in the formation of nanofibrous nonwoven web [63,64]. In electrospinning, positive charge is supplied at the nozzle and negative charge at the collector [16]. This causes the fluid jet to get charged at the tip of the nozzle which results in the formation of well-known Taylor cone. The charged polymer jet is extruded through the nozzle and pulled by the action of applied electrostatic force [65]. As the jet accelerates and thins in the electric field, radial charge repulsion results in splitting the primary jet into multiple filaments, in a process known as ‘‘splaying’’ [66], producing polymeric nanofibers that are electrically charged and collected at the collector [16]. The final fiber size is determined primarily by the number of subsidiary jets formed. It has been reported that the mean diameter of electrospun fibers ranges from 100 nm –500 nm and the production of nanofibers is influenced by the electrostatic forces and the viscoelastic behavior of the polymer [67].

Figure 15.

Schematic of electrospinning process and the resulting nonwoven fabric.

Fridrikh et al. [68] developed a model for the fluid jet inside the electric field to examine the relationship between the fiber diameter and volume charge density. The model predicts a terminal jet diameter, which is a consequence of balance between normal stresses due to surface tension and surface charge repulsion and can be determined from the flow rate, electrical current, and the surface tension of the fluid.

Lou et al. [21] developed patterned nanofibrous membranes using Polyacrylonitrile (PAN) polymers in electrospinning. They used bulged bubble template as collector to produce the patterned membrane. They showed that although the pressure drop was reduced significantly from 151.7 to 24.7 mm $H_{2}$ O, the corresponding filtration efficiency dropped only from 99.94% to 96.33% compared to conventional electrospun nanofibrous membranes. Reducing the pressure drop and maintaining filtration efficiency in patterned nanofibers can play an important role in air filtration.

These studies suggest that electrospinning could be a viable alternative to manufacture nanofibrous membranes which can be used in filters to control hazardous ultrafine particles such as viruses. The filtration of submicron and nanoparticles for better health protection from various contaminants (e.g. coronavirus) can be achieved using electrospun nanofibrous nonwoven mats in face masks. Lackowski et al. found out that such mats have high filtration efficiency for nano and submicron particles, better than High Efficiency Particulate Air (HEPA) filters which have a filtration efficiency of 99.97% for 0.3 micron particles [69]. The filter fabricated by an electrospinning process is charged and has high filtration efficiency due to electrostatic force. The most widely used polymers are poly(vinyl chloride) (PVC) and poly(vinylidene fluoride) (PVDF).

Table 5 shows the comparison of various manufacturing methods of nonwovens which are suitable for the manufacture of micro and nano fiber webs for face masks.

Table 5.

Comparison of meltblowing, spunbonding, and electrospinning methods.

Factors	Meltblowing	Spunbonding	Electrospinning
Extrusion	A high-velocity air blows a molten thermoplastic resin from an extruder die.	Rotating screw forces the melt to extrude.	The charged polymer jet is extruded through the nozzle and pulled by the action of applied electrostatic force.
Bonding	Self-bonding of fabric web in the air.	Bonding through mechanical, chemical or thermal means.	Thermal bonding used as a post-processing treatment can improve the strength of fibers [70].
Die	Hot air converges with the fiber as it emerges from the die [71].	Hot air flow is at a cross flow to the emerging fiber [71].	Positive charge is applied at extruder.
Fiber diameter	Ranging from 1–5 µm.	Ranging from 15 to 50 µm	Ranging from 100 nm –500 nm.
Applications	Surgical face masks, liquid filtration, gas filtration, cartridge filters, and clean room filters.	Disposable diapers, hygiene and healthcare textiles, filtration, automotive industry, civil engineering, packaging, carpet backings.	Drug delivery, tissue engineering, wound dressing and cosmetics, filters, protective clothing and smart textiles.

Cloth and homemade masks

According to the Centers for Disease Control and Prevention (CDC) estimate, the health sector would require about 1.5 billion face masks plus 90 million respirators, and the public would need around 1.1 billion masks for a six-week influenza pandemic [57,72]. The increase in global demand of face masks during the current COVID-19 pandemic has caused the shortage of supplies [73]. In such a scenario, cloth masks can be a viable alternative because they are cheap and easily available although they are not as effective as surgical or N95 masks. These masks can reduce the spread of aerosols coming from the nose and mouth to some extent [74]. Many researches have attempted to fabricate masks using the household materials. Despite the relatively low effectiveness, it is suggested that wearing a homemade mask might sufficiently reduce viral exposure [75]. These typically include cotton fabrics, clothing, silk, tissue paper, kitchen towels, pillowcase, and tea cloths [76].

Shakya et al. examined the filtration efficacy of cloth masks and compared the results with standard surgical masks [77]. They found that a cloth mask had a filtration efficiency of 39–65% for polystyrene latex (PSL) particle sizes, and they performed better as the particle size increased. When the cloth masks were tested against lab-generated whole diesel particles, the filtration efficiency for three particle sizes (30, 100, and 500 nm) ranged from 15% to 57%.

Konda et al. evaluated the filtration efficiencies of various commonly available fabrics used in cloth masks [49]. They used several fabrics including cotton, silk, chiffon, flannel, various synthetics, and their combinations. They found that filtration efficiencies ranged from 5% to 80% and 5% to 95% for particle sizes of <300 nm and >300 nm, respectively when a single layer of fabric was used. However, the efficiencies improved when multiple layers and specific combinations of different fabrics were used. The combinations such as cotton−silk, cotton−chiffon, cotton−flannel had efficiencies >80% for particles <300 nm and >90% for particles >300 nm. Their study suggests that cotton performs better at higher weave densities (i.e., thread count) and the enhanced performance of the combinations was probably due to the combined effect of mechanical and electrostatic-based filtration.

Woven and knitted masks

Although woven and knitted fabrics can be used as filter media in masks, in general, they are not as efficient as nonwoven filters for fine particle filtration. Therefore, in general, woven and knitted fabrics are not used for medical masks. A comparison of nonwoven, woven and knitted fabrics for the suitability as filters is given in Table 6.

Table 6.

Comparison of nonwoven, woven and knitted fabrics for masks.

Factors	Nonwoven masks	Woven masks	Knitted masks
Efficiency	N95 respirators: 85% ± 15% for particles < 300 nm [35,49]and ≥ 95% for 0.3 μm particles [57]. Surgical mask: > 60% for particles below 300 nm and close to 100% for particles above 300 nm [49].	Plain woven cotton fabric (600 threads per inch (TPI), 1 layer): 79% ± 23% for < 300 nm and 98.4% ± 0.2% for > 300 nm [49].Plain woven cotton fabric (600 TPI, 2 layers): 82% ± 19% for < 300 nm and 99.5% ± 0.1% for > 300 nm [49].4 layers plain woven natural silk fabric (used as a scarf): 86% ± 5% for < 300 nm and 88% ± 1% for > 300 nm [49].Combination of one layer of 600 TPI plain woven cotton fabric and two layers of plain woven chiffon fabric: 97% ± 2% for <300 nm and 99.2% ± 0.2% for > 300 nm particles [49].Combination of one layer of 600 TPI plain woven cotton fabric and two layers of plain woven silk fabric (no gap): 94% ± 2% for <300 nm and 98.5% ± 0.2% for >300 nm [49].Combination of one layer of 600 TPI plain woven cotton fabric and one layer of plain woven flannel fabric: 95% ±2% for <300 nm and 96% ± 1% for >300 nm [49].	3 layers knitted fabric: 70.12% against a bacteria, S. aureus [86].Note: The average thickness of 3 layers of fabric: 0.69 mm, average pore diameter: 22.31 μm, and air permeability: 31.26 cm³/s/cm² [86].
Filtration Mechanism	Electrostatic, interception, diffusion, inertial deposition.	Electrostatic-based filtration to improve efficiency.	Electrostatic attraction to improve efficiency.
Protection against	COVID-19, viruses, bacteria, aerosols, PMs.	Aerosol particle sizes of 10 nm to 10 μm range with combinations of fabrics [49].	Dust, pollen, bacteria.
Examples	N-type, FFP type respirators and surgical masks.	Cloth masks.	Knitted cloth masks

Note: The composition of plain cotton fabric of 600 TPI used is 100% cotton, flannel fabric is 65% cotton & 35% polyester, chiffon is 90% polyester & 10% spandex, and natural silk is 100% silk.

Reusability of face masks

Generally, the masks are designed for single use or limited use only. However, with the need for increasing number of face masks, there is concern with the cost and shortage of mask supply, as well as environmental concerns. Therefore, research has been done for the reuse of masks after sterilization and/or decontamination without compromising the fit and filtration effectiveness. Different procedures have been suggested for decontamination of masks and most of them require special equipment and facilities such as laboratory or industrial steam autoclave, radioactive material, and ethylene oxide which are not suitable for general public use [78–83]. The most common methods include irradiation, fumigation, heating in hot water, steaming or baking [84]. According to a technical bulletin from 3 M, there are four factors that should be considered while decontaminating the masks: (i) be as effective as new mask against the pathogen such as SARS-Cov-2 that causes COVID-19, (ii) should not damage the fibers and filters of the respirators, (iii) respirator should be of a good fitting, and (iv) safe for the wearer [85].

A procedure was developed at the University of Nebraska to disinfect the masks using ultraviolet (UV) radiation [87]. They placed two towers, each containing 8 ultraviolet C (UVC) bulbs with a capacity of 90 masks, in a room where the walls are coated with reflective paints. Testing showed that the viruses can be killed by 15 minutes exposure to UV rays. Duke University Hospital has developed a fumigation method to decontaminate the masks [88]. In this method, the used masks are exposed to vaporized hydrogen peroxide for 20 minutes and then the masks would be ready to reuse. However, one concern is that it takes about 4 hours to degasify the room for the staff to enter to get the masks. It is reported that this process can disinfect 1250 masks per cycle, and 2500 per 12 hours shift. Beijing University of Chemical Technology has developed a ‘‘regeneration treatment” for reusing disposable masks [89,90]. In this process, the masks are kept in hot water at a temperature of >56°C (typically 60–80°C) for 30 minutes and then to restore the electrostatic charge, the masks are dried with a standard -but non-static- hair dryer for 10 minutes. The restoration of charge is confirmed by sprinkling the mask with small scraps of paper: if the paper sticks, it means that the electrostatic charge has been restored. Ma et al. demonstrated that both medical masks and N95 masks can be reused for up to 7 to 10 days after decontamination with steam over boiling water for 2 hours, if they are kept clean and are not damaged by other factors [91]. They kept the used masks in a plastic bag during the steaming process such that the masks were dry and ready for use immediately thereafter. They also found that filtration efficacy of both medical masks and N95 masks declined in a negligible amount even after they were steamed for 2 hours. In their experiment, they used avian coronavirus of infectious bronchitis virus which mimics SARS‐CoV‐2. With 5 minutes of steaming, the avian coronavirus was completely inactivated.

Future perspectives

Due to recurring of epidemics and pandemics, there is a need for better preparedness by all the countries in the world since no country is immune to the spread of the pandemic. Therefore, the need to produce face masks in a rapid and efficient way will continue in the future.

Due to the skyrocketing increase in the number of infections due to SARS-Cov-2, many institutions have suggested that even basic face masks can be effective in reducing the spread of the virus, by reducing the range and volume of exhaled water droplets containing SARS-CoV-2, which has caused a huge demand of any type of face masks by the public. As a result, the use of face masks can make negative impact on the environment. According to the research conducted by Allison et al. [92], if the U.K. government brings a policy of wearing face masks in public, it would generate 66,000 tons of contaminated plastic mask waste. Additionally, it may also cause shortage of masks supplies; therefore, the employment of reusable masks and not single-use masks is suggested. This would significantly reduce plastic waste and its possible effects on the environment and climate change. This scenario can be applied to all other countries who plan to implement single-use masks wearing policy.

Considering the COVID-19 pandemic and shortage of masks, three-dimensionally (3 D) printed masks can be designed to overcome the shortage and protect the frontline health workers and the public. Swennen et al. [93] have proposed a 3 D printed mask design which consists of two 3 D-printed reusable polyamide composite components (a face mask and a filter membrane support) and two disposable components (a head fixation band and a filter membrane). Computer-aided design (CAD) software was used to design the reusable components of the masks and the disposable nonwoven meltblown fabric was used as filter membrane. However, they have not performed the leakage and virological testing of the masks which is highly recommended.

Conclusions

This investigation was carried out to present the details of filtration mechanisms and different types of masks in use. An explanation of filtration and particle capture mechanisms, which allow the environmental contaminants such as particulate matters (PMs) and pathogens such as bacteria and viruses to be filtered out and help maintain the public health in good condition, is given. An overview of N95 respirator and surgical mask is given with their structure and performance in filtering out different size bacteria, viruses such as SARS-Cov-2 and PMs. N95 masks with smart valve or without valve performs very well and their filtration effectiveness are almost the same. Surgical masks can also provide protection against viruses and bacteria to some extent. Nonwovens are the main fabric structures for masks. Comparison of nonwoven, woven and knit structures for filtration purposes is given. Different combinations of cotton fabric masks can also have potential protection against the transmission of aerosol particle sizes.

Declaration of conﬂicting interests

The author(s) declare no potential conﬂict of interest with respect to the research, authorship and/or publication of this article.

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research is funded by Auburn University, Department of Mechanical Engineering, which is appreciated.

ORCID iDs

Sabit Adanur

Ajay Jayswal

References

Tien

Principles of filtration. Amsterdam: Elsevier, 2012.

Pellegrino

Filtration and ultrafiltration equipment and techniques. Sep Purif Methods 2000; 29: 91–118.

Brook

Newby

Rajagopalan

The global threat of outdoor ambient air pollution to cardiovascular health: Time for intervention. JAMA Cardiol 2017; 2: 353–354.

Cherrie

Apsley

Cowie

, et al. Effectiveness of face masks used to protect Beijing residents against particulate air pollution. Occup Environ Med 2018; 75: 446–452.

Roberge

Kim

Coca

Protective facemask impact on human thermoregulation: an overview. Ann Occup Hyg 2012; 56: 102–112.

Jefferson

Del Mar

Dooley

, et al. Physical interventions to interrupt or reduce the spread of respiratory viruses: systematic review. BMJ 2009; 339: b3675.

Yan

Guha

Hariharan

, et al. Modeling the effectiveness of respiratory protective devices in reducing influenza outbreak. Risk Anal 2019; 39: 647–661.

Centers for Disease Control and Prevention. Recommendation regarding the use of cloth face coverings, especially in areas of significant community-based transmission, www.cdc.gov/coronavirus/2019-ncov/prevent-getting-s (accessed 22 June 2020).

Lee HK. South Korea takes new measures to have enough face masks domestically amid coronavirus. ABC News, https://abcnews.go.com/International/south-korea-takes-measures-face-masks-domestically-amid/story?id=69254114 (accessed 22 June 2020).

10.

Government of Canada. Non-medical masks and face coverings: about, www.canada.ca/en/public-health/services/diseases/2019-novel-coronavirus-infection/prevention-risks/about-non-medical-masks-face-coverings.html, (accessed 22 June 2020).

11.

Government of Czech Republic. The government requires the wearing of protective equipment and reserved time for pensioners to do their food shopping, www.vlada.cz/en/media-centrum/aktualne/the-government-has-decided-to (accessed 22 June 2020).

12.

Adanur

Wellington sears handbook of industrial textiles. USA: Technomic Publishing Co. Inc., 1995.

13.

Floyd KL. Textiles in filtration . Textiles 1975; 4.

14.

Maduna

Patnaik

Textiles in air filtration. Text Prog 2017; 49: 173–247.

15.

Lee

Liu

BYH.

Theoretical study of aerosol filtration by fibrous filters. Aerosol Sci Technol 1982; 1: 147--161.

16.

Bandi MM. N95-electrocharged filtration principle based face mask design using common materials, https://groups.oist.jp/nnp/diy-face-mask (accessed 9 September 2020).

17.

Stechkina

Kirsch

Fuchs

NA.

Studies on fibrous aerosol filters−IV, calculation of aerosol deposition in model filters in the range of maximum penetration. Ann Occup Hyg 1969; 12: 1–8.

18.

Sen Wang

Otani

Removal of nanoparticles from gas streams by fibrous filters: a review. Ind Eng Chem Res 2013; 52: 5–17.

19.

Scheidegger

AE.

The physics of flow through porous media. 3rd ed. Toronto, Canada: University of Toronto Press, 1974.

20.

Okruch MW. Experimental observation of the relationship between the pressure drop and flow rate of radial flow through porous media. Electronic Theses and Dissertations, University of Louisville, 2016.

21.

Lou

L-H

Qin

X-H

Zhang

Preparation and study of low-resistance polyacrylonitrile nano membranes for gas filtration. Text Res J 2017; 87: 208–215.

22.

Hubbard

Pore size characterization of filtration materials. International Filtration News, www.filtnews.com/pore-size-characterization-filtration-materials (2016, accessed 20 May 2020).

23.

Masoodi

Pillai

KM.

A general formula for capillary suction-pressure in porous media. J Porous Media 2012; 15: 775–783.

24.

Zdravkov

Čermák

Šefara

, et al. Pore classification in the characterization of porous materials: a perspective. Cent Eur J Chem 2007; 5: 385–395.

25.

Robertson

Comparison of mask standards, ratings, and filtration effectiveness. Smart Air, https://smartairfilters.com/en/blog/comparison-mask-standards-rating-effectiveness (accessed 14 May 2020).

26.

Jakšic´

Jakšic

Assessment of porosity of flat textile fabrics. Text Res J 2007; 77: 105–110.

27.

Owczarek

Morphometrical structural analysis of inter-thread pores in woven fabrics with the use of computer image analysis. Text Res J 2019; 89: 4858–4874.

28.

U. S. FDA, N95 respirators and surgical masks (face masks), www.fda.gov/medical-devices/personal-protective-equipment-infection-control/n95-respirators-and-surgical-masks-face-masks#s2 (accessed 19 May 2020).

29.

Salvi SS. In this pandemic and panic of COVID-19 what should doctors know about masks and respirators?, http://apiindia.org/wp-content/uploads/pdf/corona-virus/review-article-on-mask.pdf (accessed 2 December 2020).

30.

Derrick

Gomersall

CD.

Protecting healthcare staff from severe acute respiratory syndrome: filtration capacity of multiple surgical masks. J Hosp Infect 2005; 59: 365–368.

31.

Sandaradura

Goeman

Pontivivo

, et al. A close shave? Performance of P2/N95 respirators in health care workers with facial hair: results of the BEARDS (adequate respiratory DefenceS) study. J Hosp Infect. 2020; 104: 529–533.

32.

Smereka

Ruetzler

Szarpak

, et al. Role of mask/respirator protection against SARS-CoV-2. Int Anesth Res Soc 2020; 131: e33--e34.

33.

Akduman

Akcakoca Kumbasar

EP.

Nanofibers in face masks and respirators to provide better protection. IOP Conf Ser Mater Sci Eng 2018; 460: 1--5.

34.

Pathak

Respirators for protection against PM2.5. 3M Personal Safety Division, https://multimedia.3m.com/mws/media/1313143O/respirators-for-protection-agains.pdf (accessed 19 May 2020).

35.

El-Atab

Qaiser

Badghaish

, et al. Flexible nanoporous template for the design and development of reusable anti-COVID-19 hydrophobic face masks. ACS Nano 2020; 14: 7659–7665.

36.

Infection Prevention and Control. Application of PPE during COVID-19. Version 2.3, www.cec.health.nsw.gov.au/__data/assets/pdf_file/0006/590307/Application-of-PPE-in-COVID-19.pdf (accesssed 6 September 2020).

37.

Deshpande

Joosten

Turton

, et al. Oronasal masks require a higher pressure than nasal and nasal pillow masks for the treatment of obstructive sleep apnea. J Clinical Sleep Med 2016; 12: 1263–1268.

38.

Patel

White

Malhotra

, et al. Continuous positive airway pressure therapy for treating sleepiness in a diverse population with obstructive sleep apnea: results of a meta-analysis. Arch Intern Med 2003; 163: 565–571.

39.

CPAPdirect. Philips respironics wisp CPAP mask w/headgear fitpack, www.cpapdirect.com/masks/philips-respironics-wisp-cpap-mask-w-headgear-fitpack (accessed 13 September 2020).

40.

Food and Drug Administration. Stakeholders for non-NIOSH-approved imported FFRs, www.fda.gov/media/136403/download (accessed 6 September 2020).

41.

Food and Drug Administration. Stakeholders for non-NIOSH-approved imported FFRs made in China, www.fda.gov/media/136664/download (accessed 6 September 2020).

42.

Ihealth. LivocareTM ear loop face masks, https://ihealthlabs.com/product/livocare-ear-loop-face-masks-50-count-box. (accessed 6 June 2020).

43.

National Health and Medical Research Council (NHMRC). Australian guidelines for the prevention and control of infection in healthcare, Canberra: National, www.nhmrc.gov.au/about-us/publications/australian-guidelines-prevention-and-control-infection-healthcare-2019 (accessed 6 September 2020).

44.

NSW Government Clinical Excellence Commission. Properties of different types of masks, http://cec.health.nsw.gov.au/__data/assets/pdf_file/0007/567394/Properties-of-different-types-of-masks.pdf (accessed 6 September 2020).

45.

DiLeo

Roberge

Kim

JH.

Effect of wearing an N95 filtering facepiece respirator on superomedial orbital infrared indirect brain temperature measurements. J Clin Monit Comput 2017; 31: 67–73.

46.

Zhou

Lukula

Chiossone

, et al. Assessment of a respiratory face mask for capturing air pollutants and pathogens including human influenza and rhinoviruses. J Thorac Dis 2018; 10: 2059–2069.

47.

Jiang

Liu

H-C

, et al. Picornavirus morphogenesis. Microbiol Mol Biol Rev 2014; 78: 418–437.

48.

Liu

Cheng

Wang

, et al. Development and performance study of polypropylene/polyester bicomponent melt-blowns for filtration. J Appl Polym Sci 2012; 124: 296–301.

49.

Konda

Prakash

Moss

, et al. Aerosol filtration efficiency of common fabrics used in respiratory cloth masks. Am Chem Soc 2020; 14: 6339–6347.

50.

Weimin

Bowen

Xupin

, et al. Electrospun nano-fiber composite membrane and its filtration properties. J Text Res 2006; 27: 6.

51.

Adanur S. Paper machine clothing. USA: Technomic Publishing Co., Inc., 1997.

52.

Soltani

Macosko

CW.

Influence of rheology and surface properties on morphology of nano fibers derived from islands-in-the-sea meltblown nonwovens. Polymer 2018; 145: 21–30.

53.

Brochocka

Filtration properties of nonwoven structures with superabsorbents for respiratory protective devices. Fibers Text East Eur 2017; 25: 62–67.

54.

Zheng

Chen

, et al. Preparation of polypropylene micro and nanofibers by Electrostatic-Assisted melt blown and their application. Polymers 2018; 959: 1--12.

55.

Brochocka

Nowak

Majchrzycka

, et al. Multifunctional polymer composites produced by melt-blown technique to use in filtering respiratory protective devices. Materials 2020; 712: 1--15.

56.

Dutton

KC.

Overview and analysis of the meltblown process and parameters. J Text Apparel Technol Manage 2018; 6: 1--24.

57.

Rossettie

Perry

Pourghaed

, et al. Effectiveness of manufactured surgical masks, respirators, and home-made masks in prevention of respiratory infection due to airborne microorganisms. Southwest Respir Crit Care Chronicles 2020; 8: 11–26.

58.

Henneberry

How surgical masks are made, Thomas, www.thomasnet.com/articles/other/how-surgical-masks-are-made (accessed 11 June 2020).

59.

Verma

Effectiveness of masks: fast answers with automated SEM analysis. Nanoscience Instruments, www.nanoscience.com/applications/materials-science/effectiveness-of-masks-fast-answers-with-automated-sem-analysis (accessed 11 June 2020).

60.

Lim

A review of spun bond process. J Text Apparel Technol Manag 2010; 6: 1–13.

61.

Midha

Dakuri

Spun bonding technology and fabric properties: a review. J Text Eng Fashion Technol 2017; 1: 126–133.

62.

Wilhelm A, Hilmar F and Walter K. Nonwoven Fabrics: Raw Materials, Manufacture, Applications, Characteristics, Testing Processes. Weinheim: Wiley -VCH, 2002, pp. 772.

63.

Adanur

Ascioglu

Nanocomposite fiber based web and membrane formation and characterization. J Ind Text 2007; 36: 311–327.

64.

Lou

Osemwegie

Ramkumar

SS.

Functional nanofibers and their applications. Ind Eng Chem Res 2020; 59: 5439–5455.

65.

Meng

Investigation on compound field of electrospinning and melt blowing for producing nanofibers. Int J Numer Methods Heat Fluid Flow 2017; 27: 282–286.

66.

Hohman

Shin

Rutledge

, et al. Electrospinning and electrically forced jets. I. Stability theory. Phys Fluids 2001; 13: 2201–2220.

67.

Subbiah

Bhat

Tock

, et al. Electrospinning of nanoﬁbers. J Appl Polym Sci 2005; 96: 557–569.

68.

Fridrikh

Brenner

, et al. Controlling the fiber diameter during electrospinning. Phys Rev Lett 2003; 90: 144502.1--144502.4.

69.

Lackowski

Krupa

Jaworek

Nonwoven filtration mat production by electrospinning method. J Phys Conf Ser 2011; 301: 1–4.

70.

Ramaswamy

Clarke

Gorga

RE.

Morphological, mechanical, and electrical properties as a function of thermal bonding in electrospun nanocomposites. Polymer 2011; 52: 3183–3189.

71.

Hutten

IM.

Handbook of nonwoven filter media. Elsevier Science, 2007.

72.

Institute of Medicine. Reusability of facemasks during an influenza pandemic: facing the flu. Washington, DC: The National Academies Press, 2006.

73.

Carias

Rainisch

Shankar

, et al. Potential demand for respirators and surgical masks during a hypothetical influenza pandemic in the United States. Clin Infect Dis 2015; 60: S42–S51.

74.

Ramakrishnan

COVID-19 and face masks – to use or not to use!

Indian J Community Health 2020; 32: 240–243.

75.

Davies

Thompson

K-A

Giri

, et al. Testing the efficacy of homemade masks: would they protect in an influenza pandemic? Disaster Med Public Health Prep 2013; 7: 413–418.

76.

Chua

Cheng

Goh

, et al. Face masks in the new COVID-19 normal: materials, testing, and perspectives, research, Research 2020; 2020: Article 7286735.

77.

Shakya

Noyes

Kallin

, et al. Evaluating the efficacy of cloth facemasks in reducing particulate matter exposure. J Expo Sci Environ Epidemiol 2017; 27: 352–357.

78.

Centers for Disease Control and Prevention (CDC). Recommended guidance for extended use and limited reuse of N95 filtering facepiece respirators in healthcare settings, www.cdc.gov/niosh/topics/hcwcontrols/recommendedguidanceextuse.html (accessed 5 September 2020).

79.

European Centre for Disease Prevention and Control (ECDC). Cloth masks and mask sterilisation as options in case of shortage of surgical masks and respirators, www.ecdc.europa.eu/sites/default/files/documents/Cloth-face-masks-in-case-shortagesurgical-masks-respirators2020-03-26.pdf (accessed 9 May 2020].

80.

Heimbuch

Wallace

Kinney

, et al. A pandemic influenza preparedness study: use of energetic methods to decontaminate filtering facepiece respirators contaminated with H1N1 aerosols and droplets. Am J Infect Control 2011; 39: e1–e9.

81.

Feldmann

Shupert

Haddock

, et al. Gamma irradiation as an effective method for inactivation of emerging viral pathogens. Am J Trop Med Hyg 2019; 100: 1275–1277.

82.

Viscusi

Bergman

Eimer

, et al. Evaluation of five decontamination methods for filtering facepiece respirators. Ann Occup Hyg 2009; 53: 815–827.

83.

de Man

van Straten

van den Dobbelsteen

, et al. Sterilization of disposable face masks by means of standardized dry and steam sterilization processes; an alternative in the fight against mask shortages due to COVID-19. J Hosp Infect 2020; 105: 356–357.

84.

Mackenzie

Reuse of N95 masks. Engineering (Beijing) 2020; 6: 593–596.

85.

Decontamination methods for 3M filtering facepiece respirators such as N95 respirators. Technical Bulletin, 3M, March 2020. https://multimedia.3m.com/mws/media/1824869O/decontamination-methods-for-3m-filtering-facepiece-respirators-technical-bulletin.pdf

86.

Ramratan, Kumar A, Kumar R. Reusable face mask for the knitted fabric with finishes treatment. J Text Eng Fashion Technol 2020; 6: 61–69.

87.

Lowe

Paladino

Farke

, et al. N95 filtering facepiece respirator ultraviolet germicidal irradiation (UVGI) process for decontamination and reuse. Nebraska Medicine, 2020, https://www.nebraskamed.com/sites/default/files/documents/covid-19/n-95-decon-process.pdf.

88.

Schwartz

Stiegell

Greeson

, et al. Decontamination and reuse of N95 respirators with hydrogen peroxide vapor to address worldwide personal protective equipment shortages during the SARS-CoV-2 (COVID-19) pandemic. J ABSA Int 2020; 25: 67--70.

89.

Cheng W. Can't buy mask? It can be reused after regeneration treatment! Beijing: ScienceNet; http://news.sciencenet.cn/htmlnews/2020/2/435754.shtm (2020, accessed 9 June 2020).

90.

Zhang

Xing

New reusable face masks in production, Hong Kong. China Daily, 2 March 2020, www.chinadailyhk.com/article/122864 (accessed 6 September 2020).

91.

Q-X

Shan

Zhang

C-M

, et al. Decontamination of face masks with steam for mask reuse in fighting the pandemic COVID‐19: experimental supports. J Med Virol 2020; 92: 1971–1974.

92.

Allison

Ambrose-Dempster

Aparsi

, et al. The environmental dangers of employing single-use face masks as part of a COVID-19 exit strategy. UCL Open: Environment Preprint, 2020.

93.

Swennen GRJ, Pottel L and Haers PE. Custom-made 3D-printed face masks in case of pandemic crisis situations with a lack of commercially available FFP2/3 masks. Int J Oral Maxillofac Surg 2020; 49: 673–677.

Filtration mechanisms and manufacturing methods of face masks: An overview

Abstract

Keywords

Introduction

Filtration spectrum and particle arrest mechanisms

Equations for performance evaluations of mask filters

Pore characteristics

Pore size assessment methods

Classification of masks

N95 respirator with smart valve

Filtration mechanism and effectiveness of N95 respirators

Manufacturing methods of mask filters

Meltblowing

Spunbonding

Electrospinning

Cloth and homemade masks

Woven and knitted masks

Reusability of face masks

Future perspectives

Conclusions

Declaration of conﬂicting interests

Footnotes

Funding

ORCID iDs

References
