Abstract

With the recent emergence of highly transmissible variants of the novel coronavirus SARS-CoV-2, the demand for N95 respirators is expected to remain high. The extensive use of N95 respirators by the public is susceptible to demand‐supply gaps and raises concern about their disposal, threatening the environment with a new kind of plastic pollution. Herein, we investigated the filtration performance of the N95 respirator by specifically analyzing the structure in the key filtration layers of meltblown nonwoven after decontamination with one and five cycles of liquid hydrogen peroxide, ultraviolet radiation, moist heat, and aqueous soap solution treatments. With the aid of X-ray microcomputed tomography (microCT) analysis, the local structural heterogeneity of the meltblown nonwoven has been unfolded and subsequently correlated with their filtration performance at a face velocity that matched with speaking conditions (∼3.89 m/s). The filtration efficiency results of the N95 respirator remain unaltered after performing one cycle of treatment modalities (except autoclave).

Keywords

N95 respirator decontamination treatments meltblown nonwovens X-ray microCT analysis

Introduction

With the recent emergence of highly transmissible SARS-CoV-2 variants 501Y.V1 (B.1.1.7) in the United Kingdom [1], 501Y.V2 (B.1.351), B.1.1.529 in South Africa [2,3], and B.1.617 in India [4], the World Health Organization (WHO) has strongly recommended the use of face masks for the general public [5,6]. Specifically, the use of N95 respirators has become an essential component to protect the front-line workers from contracting the deadly virus. Therefore, the demand for N95 respirators is expected to remain high, increasing the susceptibility to the demand‐supply gaps and an environmental threat from a new kind of plastic pollution [7]. N95 respirators are multi-layered textile materials with key filtration layers of meltblown nonwoven material comprising fine polypropylene fibers that are cost-effective, chemically robust, and easily scalable to multiple fiber length scales [8]. Therefore, it is highly pertinent that the healthcare community continues to uncover innovative ways to overcome the short supply of N95 respirators [9]. Sterilization and decontamination of face masks have recently emerged as highly resourceful methods to fulfill the limited supply of masks and respirators [10,11]. Several decontamination methods and chemical treatments, including ultraviolet radiation, hydrogen peroxide vapor, liquid hydrogen peroxide, ethylene oxide, moist heat incubation, ethanol, microwave-generated steam, rice-cooker steam, and many others, have been reported as potential ways to treat N95 respirators for their re-usability [12–22]. Although all the decontamination methods have not been tested for filtration performance or against SARS-CoV-2, the expired N95 masks reprocessed using ethylene oxide sterilization maintained excellent filtration efficiency under laboratory conditions [10].

Recently, seven different methods, including autoclave treatment, ethylene oxide gas treatment, low-temperature hydrogen peroxide gas plasma treatment, vaporous hydrogen peroxide exposure, peracetic acid dry fogging, ultraviolet C irradiation, and moist heat treatment, were used to decontaminate a range of N95 masks after contamination with SARS-CoV-2 virus as a surrogate [23]. Surprisingly, most of these treatments have not only successfully deactivated the SARS-CoV-2 virus, but all N95 masks sustained one cycle of all treatment modalities without loss of functional or structural integrity. However, the structural integrity of decontaminated N95 respirators should be assessed by analyzing the internal structure of key filtration layers and/or via understanding the particle penetration and capture mechanisms. Recently, Vejerano and Ahn [24] suggested that the filtration performance of decontaminated N95 respirators should be carried out under velocities representative of normal to active breathing conditions. Significant proportions of infectious particles are generated and spread by speaking or coughing at velocities up to 100 times greater than set under the standard test conditions [25]. Various testing methods and publications do not clearly specify the face velocity but instead provide a volumetric flow rate for generating particles [25]. Therefore, it is essential to evaluate the filtration performance of decontaminated N95 respirators at a face velocity that emulates speaking or coughing conditions and simultaneously analyze the structure of the key filtration layers.

Therefore, the central aim of this work was to investigate the morphology of the meltblown nonwoven layers present in an N95 respirator after decontaminating with one and five cycles of liquid hydrogen peroxide, ultraviolet radiation, moist heat, and aqueous soap solution and subsequently correlating with their filtration performance at a face velocity (∼3.89 m/s) that emulates speaking conditions [26]. With the aid of X-ray microcomputed tomography (microCT) analysis, the variation in the morphological characteristics has been analyzed to monitor the local inhomogeneities, which has not been investigated in the literature. Specifically, X-ray microCT served to quantify various fiber and structural parameters of decontaminated meltblown nonwoven layers, namely, three-dimensional (3D) fiber orientation distribution, porosity, and pore size distribution. The multifold novel aspects of the present work can be realized by proposing strategies that mitigate the short supply of N95 respirators and assist in choosing the facile, scalable, and inexpensive decontamination treatment. Another merit of this work can be construed as an alternative solution to overcome the challenges of single-use plastics creating the most serious environmental threat [27].

Materials and methods

This in vitro study was carried out on a commercially available National Institute for Occupational Safety and Health (NIOSH)‐approved Venus V-4400 disposable N95 flat-fold respirator. This N95 flat-fold respirator is composed of a single layer of needlepunched, two layers of spunbonded, and four layers of meltblown nonwoven materials (see Figure 1). The meltblown nonwoven layers comprising polypropylene fibers sandwiched between the inner and outer layers act as the ultra-fine microfilter, and thus, are key functional components of the N95 respirators. Further details of the meltblown nonwoven layers have been provided in Table 1. The control (untreated) and treated respirators were evaluated by carefully separating various layers of the respirators.

Figure 1.

Constituent nonwoven layers of N95 respirator.

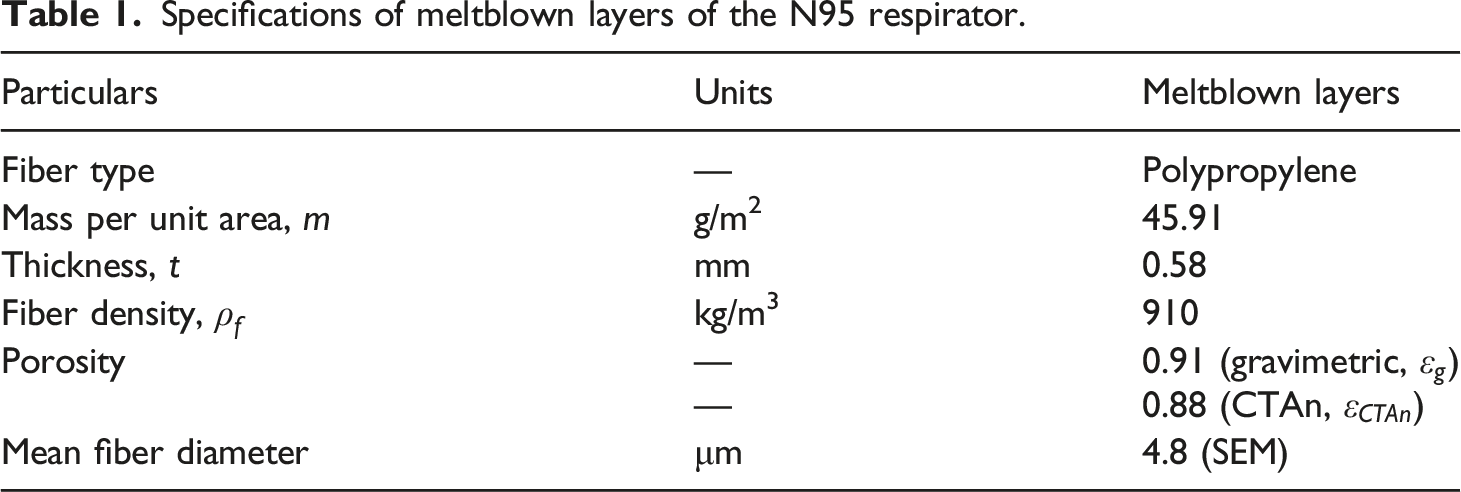

Table 1.

Specifications of meltblown layers of the N95 respirator.

Particulars	Units	Meltblown layers
Fiber type	—	Polypropylene
Mass per unit area, m	g/m²	45.91
Thickness, t	mm	0.58
Fiber density, $ρ_{f}$	kg/m³	910
Porosity	—	0.91 (gravimetric, $ε_{g}$ )
Porosity	—	0.88 (CTAn, $ε_{C T A n}$ )
Mean fiber diameter	μm	4.8 (SEM)

As aforementioned, the filtration performance of the N95 respirators was assessed after treating with one and five cycles of various decontamination methods, including treatment with an aqueous solution of hydrogen peroxide (H₂O₂), aqueous soap solution, autoclaving, and ultraviolet (UV) light. The details of decontamination methods are given below.

Decontamination by H₂O₂: Here, the N95 respirator was decontaminated using an aqueous solution of H₂O₂. Samples were dipped in 3 wt.% aqueous H₂O₂ (Y K Laboratories, India) for 30 min, followed by drying at room temperature.

Decontamination by soap solution: N95 respirators were immersed in warm soapy water solution of a concentration of 1 g/L (made using Dettol bar soap, Reckitt Benckiser, India) for 10 min at 40°C followed by 72 h of drying.

Decontamination by UV treatment: N95 respirators were irradiated with 15 W ultraviolet C (UV-C) light at 254 nm for 15 min per surface. Respirators were placed on the working surface of the UV-C sterilization chamber (S K Dent, India) fitted with a 15-W ultraviolet light for decontamination.

Decontamination by autoclaving: N95 respirators were sealed in an autoclave bag and treated in a steam pressure sterilizer (Sting II Class B autoclave) at 121°C for 15 min, followed by drying at room temperature.

The sample IDs were assigned based on the type of treatment (H₂O₂ denotes hydrogen peroxide, SO refers to soap, UV indicates ultraviolet light, and AU implies the autoclave) followed by the number of cycles. For instance, sample ID AU-5X denotes that the sample was treated with five cycles of autoclave treatment.

Filtration efficiency was measured at three distinct regions of each sample on the equipment shown schematically in Figure 2(a), using the particle size distribution shown in Figure 2(b). Here, the N95 respirator was mounted on a circular sample port of 1.65 cm diameter (area of 2.14 cm²), which was connected to the particle counter (Model 9350-03, TSI Inc., USA). The ambient air was passed through the sample at a rate of 50 L/min for 5 min, and the particle counts for sizes of 0.3, 0.5, 1, 3, and 5 μm were recorded. To determine the filtration efficiency, the particle counts in the room were recorded before and after the filtration test under the same conditions. The filtration efficiency (η) of N95 flat-fold respirators was determined by measuring the change in particle concentration with and without filter medium using the equation [28]

η (%) = (1 - \frac{N_{o}}{N_{i}}) * 100 %

(1)

where

N_{o}

and

N_{i}

are the total number of particles of a particular size measured with and without filter medium in the filter holder, respectively.

Figure 2.

(a) Schematic of the apparatus used for the measurement of filtration efficiency and (b) particle size distribution used for filtration efficiency measurement.

The difference in filtration efficiency due to changes in counts in the air remained within ± 0.5%. Further, the differential pressure was measured on a pressure drop analyzer (Model NFA, New York Instruments, USA) separately so that there is no particle loss at the time of particle counting. Note that the face velocity of air used for filtration efficiency and differential pressure test was kept at 3.89 m/s, which matches well with the speaking conditions [26].

X-ray microcomputed tomography analysis

3D structural analysis of the swatches of meltblown nonwoven layers of N95 respirators before and after decontamination treatments was performed using the state-of-the-art Bruker Skyscan 2211 X-ray nano-computed tomography system. Here, the scans were performed while the sample stage was rotated for 180° in 0.12° steps to obtain 2300–2400 images with a resolution of 0.5 μm/pixel. The X-rays were made to focus on the mounted specimen for 450 ms at each step using a tungsten target with a 40-kV source voltage and 800 μA current. Subsequently, various attributes of the scanned images were enhanced by employing defect pixel masking and ring artefact reduction techniques, which were performed in NRecon^® (SkyScan, Bruker, Belgium). Further analysis was carried out by rotating the sample in one of the principal directions and binarizing the image dataset, using DATAVIEWER^® (Bruker, Belgium) and CTAn^® (Bruker, Belgium), respectively. The three-dimensional (3D) volumes were generated from the binarized dataset using CTVox^® (Bruker, Belgium). A volume of interest (VOI) was chosen judiciously in order to avoid boundary irregularities [29,30].

The “structure thickness” employed under the “3D analysis” module on CTAn^® provided the number-based distribution of the object diameter. In the binarized image dataset, the white-colored material was referred to as fibers, and the values of fiber diameters were obtained from the structure thickness values by applying “3D analysis” module on binarized VOI [29,30]. The pore diameters were obtained in a similar manner after converting the pore phase into the material phase and vice-versa. The number-based distributions were subsequently converted into frequency distributions to obtain the pore diameters and their corresponding distributions of the meltblown nonwoven layers [29,30]. The percentage object volume returned by the “3D analysis” module in CTAn^® is the ratio of the number of voxels occupied by the fibers to the total number of voxels in the selected VOI [29,30]. This percentage object volume, therefore, corresponds to the fiber volume fraction $(V_{f})$ of the meltblown layers. Thus, the porosity (ε) was subsequently computed using the well-known relationship, i.e., $ε = 1 - V_{f}$ . The porosity values of control and decontaminated meltblown layers have also been ascertained using the Digital Materials Laboratory Software (GeoDict®). Further details of Geodict based analysis can be obtained from ref. [31]. In general, the porosity values of control and decontaminated samples obtained via CTAn and Geodict analyses are in good agreement. The “individual 3D object analysis” module on CTAn^® provided the in-plane and out-of-plane orientation angles of the individual objects (fibers in our case). These values of fiber orientation angles were translated into frequency distributions using Microsoft Excel and MATLAB R2020a to obtain the corresponding fiber orientation distributions.

Results and discussion

N95 respirators are multi-layered materials comprising meltblown, needlepunched, and spunbonded nonwovens, as shown in Figure 1. While the outer layer of spunbonded nonwoven materials is designed to be hydrophobic in order to repel pathogen-containing droplets, the inner layer is made hydrophilic through surfactant treatment for enhanced wearer comfort. The thicker and stiffer needlepunched nonwoven layer can be molded into the desired shapes and is expected to perform as a pre-filter. The filtration performance is spearheaded by the multiple layers of meltblown nonwoven material comprising low-cost and chemically resistant polypropylene fibers [8]. The filtration efficiency and pressure drop values of the N95 respirator for particle size of 0.3 μm, determined before and after performing the decontamination treatments, are depicted in Figure 3.

Figure 3.

(a) Filtration efficiency of the N95 respirator for particle size of 0.3 μm. (b) Pressure drop across N95 respirator determined before and after performing the decontamination procedure. Note that the sample area used for the measurement of pressure drop was 2.14 cm².

Meltblown nonwovens are highly porous media composed of a three-dimensional (3D) network of fibers having diameters in the range of 1‐10 μm [32]. The structural integrity of the meltblown nonwoven layers after decontamination is instrumental in maintaining the filtration performance of N95 respirators [15]. This demands a comprehensive evaluation of the local structural parameters of meltblown layers of N95 respirators before and after decontamination treatments. The three-dimensional (3D) structure of the meltblown layers of the N95 respirators before and after the first and fifth cycles of H₂O₂, soap, UV, and autoclave treatments has been unfolded using the state-of-the-art X-ray microCT analysis, as depicted in Figure 4. These volumes were generated using the data obtained from the X-ray microCT scans. In particular, Figure 4 illustrates a visual comparison between the control (untreated) and treated samples that endured one and five cycles of various decontamination methods. Our visual results revealed that the structural integrity appears to be preserved in autoclave-treated meltblown nonwovens followed by ultraviolet treatment. Liquid hydrogen peroxide delaminated the meltblown layers after five treatment cycles, whereas the loss of structural integrity was evident after the first cycle of aqueous soap treatment. However, our data also indicated modest variations in the magnitudes of filtration efficiency of the N95 respirator for particle sizes of 0.5, 1, 3 and 5 μm after treatment with various decontamination methods, as shown in Table 2. With the aid of scanning electron microscopy (SEM), a visual comparison between the control (untreated) and treated samples that endured one and five cycles of various decontamination methods has also been made, as illustrated in Figure 5. Intriguingly, the entrapment of soap particles can be seen after soap decontamination cycles.

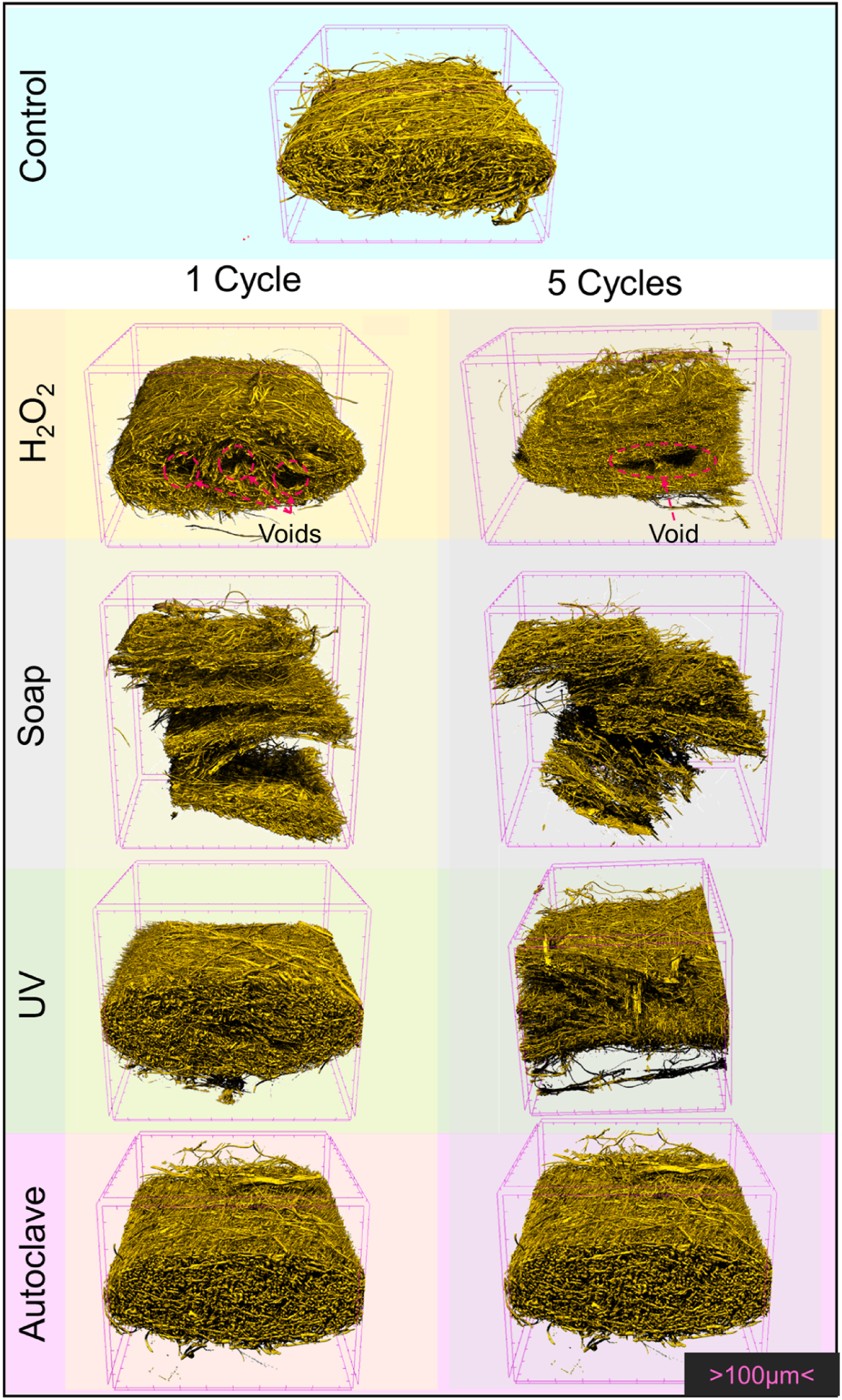

Figure 4.

3D-rendered volumes of meltblown nonwoven layers of N95 respirator before (control) and after one and five cycles of H₂O₂, soap, UV, and autoclave treatments. Here, one division in the bounding box of figures indicates 100 µm.

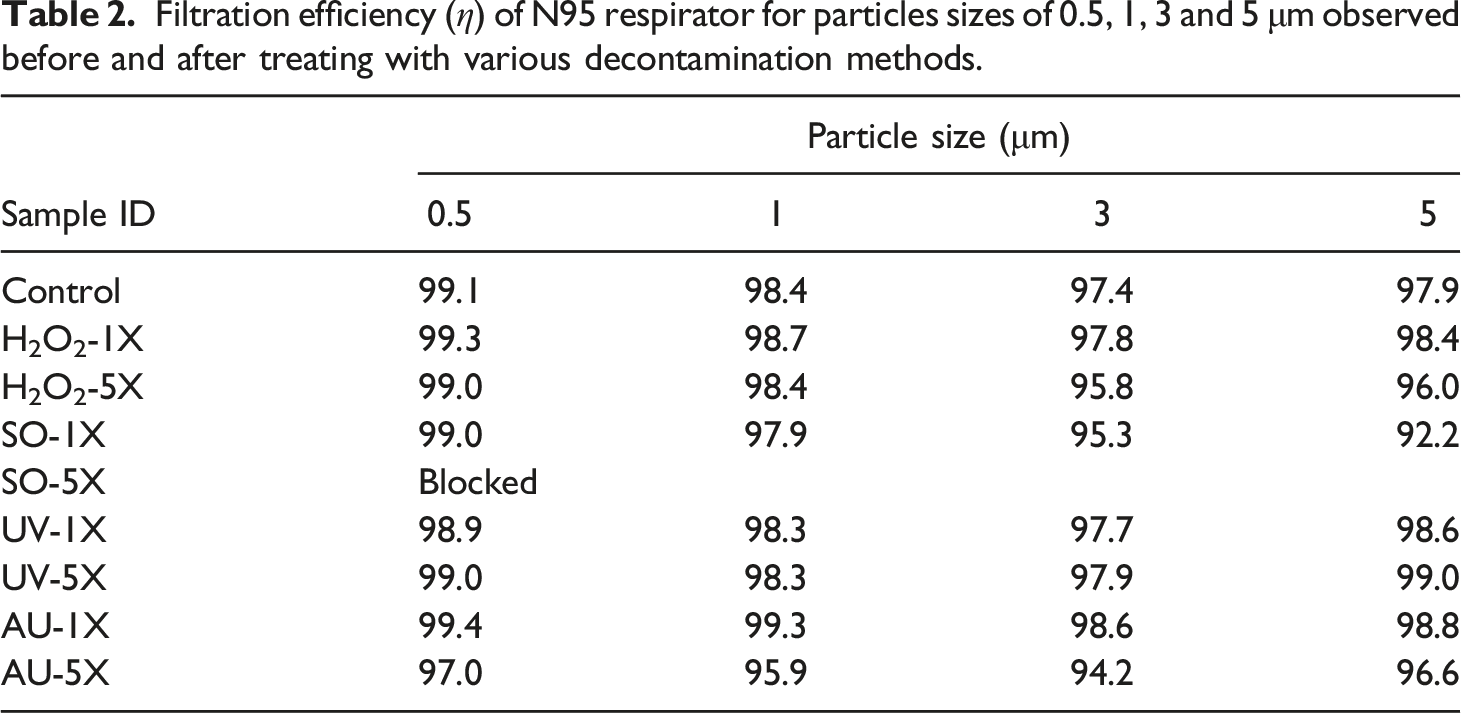

Table 2.

Filtration efficiency (η) of N95 respirator for particles sizes of 0.5, 1, 3 and 5 μm observed before and after treating with various decontamination methods.

Sample ID	Particle size (μm)
Sample ID	0.5	1	3	5
Control	99.1	98.4	97.4	97.9
H₂O₂-1X	99.3	98.7	97.8	98.4
H₂O₂-5X	99.0	98.4	95.8	96.0
SO-1X	99.0	97.9	95.3	92.2
SO-5X	Blocked
UV-1X	98.9	98.3	97.7	98.6
UV-5X	99.0	98.3	97.9	99.0
AU-1X	99.4	99.3	98.6	98.8
AU-5X	97.0	95.9	94.2	96.6

Figure 5.

SEM micrographs of meltblown specimens of control and decontaminated samples. Here (a) refers to the control sample, whereas (b), (d), (f), and (h) refer to one cycle of decontamination treatment of H₂O₂, soap, UV, and autoclave decontamination treatments, respectively. Similarly, (c), (e), (g), and (i) refer to five cycles of decontamination treatment of H₂O₂, soap, UV, and autoclave decontamination treatments, respectively.

Effect of H₂O₂ decontamination treatment

In the literature, contrary views have emerged on whether solution-based treatments can affect the structure and filtration performance of meltblown nonwoven materials [13,32]. One of the ways to determine the variations in the solution-treated meltblown was suggested on the basis of structural integrity and its relationship with the pressure drop [32]. Figure 4 illustrates the creation of voids in the meltblown layers after the first cycle of H₂O₂ treatment. Such voids yielded an increase in the overall porosity and enhanced local pore sizes, as shown in Figures 6(a) and (b). However, the rise in voids did not significantly deteriorate the overall filtration efficiency and pressure drop of the N95 respirator after the first cycle of H₂O₂ treatment (see Figure 3). Viscusi et al. [33] also reported insignificant differences in the filtration performance of N95 respirator after being treated with 3% liquid hydrogen peroxide solution. Further, the in-plane fiber orientation distribution after the first treatment cycle did not show any significant variation compared to the control sample (see Figure 6(c)). However, the spatial movement of fibers in the Z-direction led to a realignment of the fibers in the thru-thickness direction, as evident from the out-of-plane fiber orientation distributions after treatment cycles (see Figure 6(d)).

Figure 6.

Elucidating the role of H₂O₂ treatment on (a) porosity, (b) pore size distribution, (c) in-plane fiber orientation distribution, and (d) out-of-plane fiber orientation distribution. Here, 90° angle in the out-of-plane fiber orientation distribution refers to the planar or in-plane direction and X-ray microCT implies the use of CTAn^® software.

After performing five cycles of H₂O₂ treatment, there was a significant reduction in porosity and local pore sizes. The experimental filtration efficiency showed a significant deterioration after five cycles of H₂O₂ treatment. This can be ascribed to delamination of certain layers of meltblown nonwoven material after five cycles of H₂O₂ treatment, as depicted in Figure 4. The loss of structural integrity also corroborates well with the rise in the magnitudes of pressure drop of the respirator (see Figure 3(b)). Further, the realignment of fibers in the thru-thickness direction can reduce the filtration efficiency, as demonstrated in simulations earlier [34]. These results demonstrated that the filtration performance of the N95 respirator after treating with five cycles of liquid hydrogen peroxide could be compromised by the loss of structural integrity of the meltblown layer.

Effect of soap decontamination treatment

Decontaminating the layers of N95 respirators with soap treatment was detrimental to their structural integrity. It can be seen that the structural damage after the repeated cycles of soap treatment amounted to the separation of layers (see Figure 4). Even a single cycle of soap treatment resulted in a higher pressure drop and the delamination of the meltblown layers, as evident from Figures 3(b) and 4. The separation of layers gave rise to larger voids leading to higher porosity and broader pore size distribution, as shown in Figures 7(a) and (b).

Figure 7.

Elucidating the role of soap treatment on (a) porosity, (b) pore size distribution, (c) in-plane fiber orientation distribution, and (d) out-of-plane fiber orientation distribution. Here, 90° angle in the out-of-plane fiber orientation distribution refers to the planar or in-plane direction and X-ray microCT implies the use of CTAn^® software.

Surprisingly, no significant variation in the fiber orientation of meltblown layers was observed even after five cycles of soap treatment (see Figures 7(c) and (d)). However, the filtration performance of the N95 respirators after five cycles of soap treatment could not be determined experimentally due to a very high pressure drop. To identify plausible reasons, we analyzed individual layers of the N95 respirators that revealed the entrapment of the soap particles in the meltblown layers after five cycles (see Figure 5). In general, our findings revealed that the filtration performance of the N95 respirator was significantly compromised after soap treatment, which also matched well with the results reported in the literature [20,35].

Effect of UV decontamination treatment

Exposure to UV radiation can be a promising way to decontaminate the N95 respirator, though it kills the SARS-CoV-2 slowly [23,36]. The number of disinfection cycles and UV dosage levels play a pivotal role in inactivating pathogens [13,37,38]. In this research work, ultraviolet light utilized the short electromagnetic waves (254 nm), a well-established concept to kill viruses [38]. Similar to the results reported by Liao et al. [32], the filtration efficiency remains unaffected after one cycle of UV treatment, as depicted in Figure 3(a). The filtration performance after treating with UV corroborated well with the visual observation that revealed insignificant changes within the meltblown layers (see Figure 4). Although a narrow pore size distribution of single-cycle UV-treated meltblown layers was observed, there was no change in the overall porosity and in-plane fiber orientation distribution compared to the control sample, as depicted in Figures 8(a)–(c).

Figure 8.

Elucidating the role of UV treatment on (a) porosity, (b) pore size distribution, (c) in-plane fiber orientation distribution, and (d) out-of-plane fiber orientation distribution. Here, 90° angle in the out-of-plane fiber orientation distribution refers to the planar or in-plane direction and X-ray microCT implies the use of CTAn^® software.

With the aid of X-ray microCT analysis, the meltblown layers have been unfolded after five cycles of UV treatment, as illustrated in Figure 4. It can be clearly observed that the layers of meltblown nonwoven disintegrated, which resulted in reducing the filtration efficiency and enhancing the pressure drop (see Figure 3). Such a disintegration of the layers resulted in the dilation of the structure leading to a slight increase in porosity while maintaining the local pore sizes within the layers. Although the fragmentation of layers tended to alter the out-of-plane direction of fibers, the spatial orientation of in-plane fibers remained the same (see Figures 8(c) and (d)). Historically, the UV radiation with distinct dosage levels has been effective in neutralizing the viruses but primarily on the surface of the masks [38–41]. Polypropylene fibers are UV absorbers, which transcends uncertainty about the deactivation of the smaller viral particles present in the inner layers of the respirator [32]. Moreover, higher magnitudes of UV dosage have been found to deteriorate the layers of the respirators [32,37,38].

Effect of autoclave decontamination treatment

Sterilization by steam is a well-established non-toxic, cost-effective, and scalable method successfully deployed in healthcare settings for microbial destruction [38,42]. Recently, some reports have demonstrated the complete inactivation of SARS-CoV-2 by moist heat treatment [23,43]. Several types of N95 respirators did not reveal any apparent degradation or loss of fit even at a temperature set at 121°C in the autoclave [44]. In this work, autoclaving has emerged as one of the least damaging decontaminating methods that resulted in the limited degradation of the meltblown layers of the N95 respirator. Through X-ray microCT analysis, the layers of meltblown nonwoven were stratified, and intriguingly, no notable damage was visible even after several cycles of treatment (see Figure 4). There was a decrease in the filtration efficiency of the respirator along with the reduction in the overall porosity and the pore size of meltblown layers after one cycle of autoclave treatment, as shown in Figures 3, 9(a) and 9(b). It should be noted that the morphological changes of meltblown layers can also be observed via the repositioning of fibers in the out-of-plane direction. Unexpectedly, the porosity and pore size distribution matched those of the control sample after five cycles of autoclave treatment, as shown in Figures 9(a) and (b). However, minimal changes were observed in the alignment of the in-plane fibers compared to the control sample (see Figure 9(c)). On the other hand, the alignment of the out-of-plane fibers has deteriorated, which plausibly resulted in a significant reduction in the filtration efficiency after five cycles of autoclave treatment (see Figures 3 and 9(d)).

Figure 9.

Elucidating the role of autoclave treatment on (a) porosity, (b) pore size distribution, (c) in-plane fiber orientation distribution, and (d) out-of-plane fiber orientation distribution. Here, 90° angle in the out-of-plane fiber orientation distribution refers to the planar or in-plane direction and X-ray microCT implies the use of CTAn^® software.

Polypropylene is a key constituent used in meltblown layers with a melting temperature range of 130–171°C. The semi-crystalline structure of polypropylene can attain a relaxed state, which inevitably affects the filtration performance via charge relaxation or other means [43]. Since the autoclave treatment in this study was performed at 125°C, its repeated cycling caused local structural variations due to the morphological changes occurring in polypropylene fibers. The poor filtration performance of the five-cycle autoclave-treated N95 respirator corresponds to a three-cycle autoclave-treated 3 M 1870/1870+ at 121°C for 30 min, whereby the mean retention of aerosolized particles with 0.3 μm was significantly reduced [44].

Conclusions

The meltblown layers of a commercially available N95 respirator have been analyzed for filtration performance after decontaminating it with one and five cycles of liquid hydrogen peroxide, ultraviolet radiation, moist heat, and aqueous soap solution treatments. Specifically, this work assisted in simulating the significant proportions of infectious particles generated and spread under speaking conditions, exceedingly with velocities up to 100 times greater than set under the standard test conditions. X-ray microCT analysis unraveled the local structural heterogeneities of the meltblown nonwoven that tended to grow with various treatment modalities. It was also revealed that the structural integrity obtained merely via visual observation might not truly represent the filtration performance in certain decontamination treatments. Although the structural integrity was found to be preserved in autoclave-treated meltblown nonwovens after the first treatment cycle, the filtration performance of the decontaminated N95 respirator was severely affected. On the other hand, five cycles of solution-based treatments (liquid H₂O₂ and aqueous soap) were most detrimental to the structure of the meltblown layers and significantly reduced the filtration efficiency of N95 respirators. After treating with one and five cycles of UV radiation, the filtration performance corroborated well with the structural information obtained via X-ray microCT analysis. It is worth mentioning that UV radiation may not decontaminate the inner layers of N95 respirators [45]. Accordingly, the UV treatment may be suitable for the sanitation of lightly contaminated rather than soiled N95 respirators. The outcomes of our work assist us in recommending that the local structural inhomogeneities created after repeated treatment cycles limit the use of repeated decontamination cycles of the N95 respirators. Particularly, the aqueous soap solution treatment should be avoided entirely in view of the structural delamination and entrapment of soap particles observed even in the initial cycles. In the past, some of the investigated decontamination methods have successfully deactivated the SARS-CoV-2 virus [23]. Future research efforts can be directed towards correlating our results with the virus inactivation especially using the decontamination methods at lower cycles.
