Modeling the optimal deceleration for asymmetric rigid body motion under the influence of a gyrostatic moments and viscous friction

Abstract

This study focuses on determining the required minimum-time (MT) for the spatial motion of a free rigid body (RB) experiencing gyrostatic moments (GMs) and viscous friction. The study assumes that the body’s center of mass coincides with the original point of two Cartesian systems of coordinates. An optimal control law for slow motion is established, and the corresponding time and phase pathways are analyzed. The innovative results are presented for two new cases through various graphs highlighting the positive effects of the GMs. A comparison is achieved between the obtained results and previous outcomes that did not consider gyrostatic moments, showing remarkable consistency with slight deviations that are discussed. The practical applications of this study, which limits itself to using gyroscopic theory to maintain the stability and balance of vehicles in which gyroscopes are used, as well as figuring out the trajectory of aircraft and marine vehicles, are what make it noteworthy.

Keywords

Rigid body optimal control gyrostatic moment nonlinear dynamics Euler-Poisson’s equations

Introduction

The problem of RB has been a source of fascination for researchers for over two centuries due to its diverse practical applications, such as the utilization of gyroscopes in controlling the movements of aircraft, submarines, and spaceships to maintain their stability and determine their paths. The approach to studying this issue varies depending on the initial conditions imposed, particularly concerning the center of mass coordinates and the principal moments of inertia, as well as the initial angular velocity. Additionally, the impact of external factors, such as the gravitational pull of various centers (both symmetrical and asymmetrical) and external moments, leads to different methodologies being employed to address this problem in each unique case.

Therefore, researchers have been intrigued by the quest for a comprehensive solution to this issue, which has historically only been achievable through the imposition of specific constraints. These constrained scenarios are commonly referred to as integrable cases. Due to the complexity or impossibility of attaining a universal solution, approximate solutions have also been explored in previous studies. Additionally, an investigation into determining the optimal control law for this problem has been undertaken.

In Ref. [1], Leimanis provided an introduction to the fundamentals of RB motion, including its governing system, first integrals, and various special cases. The next section delved into the classical path, which explored the integrability of the system for individual RBs and its topological implications. The author then examined the dynamics of symmetric self-excited RBs and coupled RBs. In Ref. [2], Yehia directed his research towards investigating the integrability of RB motion, the motion of heavy gyrostats, and Brun’s problem. Specific solutions for the gyrostat problem were also explored. The study elaborated on how an object could move within a theoretical incompressible fluid that extended infinitely in all directions. Additional insightful analyses regarding RB dynamics were extensively discussed in Ref. [2] and its cited sources. In Ref. [3], the discussion focused on the rapid spinning movement of a rotating RB around a fixed origin point of two Cartesian frames in a uniform gravitational field. The solutions for the equations of motion (EOM) were approximated using the Poincaré small parameter (PSP) approach. The geometric interpretations of these solutions were provided in relation to the considered parameter. These solutions were further analyzed in Ref. [4] when the problem’s natural frequency is equal to $(1 / 3)$ , showcasing limited dependency cases on the body’s principal moments. The problem in a central Newtonian force field (NFF) for the disc case was investigated in Ref. [5]. In Ref. [6], the solution strategy was generally applied taking into consideration the actions of the NFF and the GM, resulting in Amer’s frequency which differs from the natural frequency based on the GM. The solutions generated were valid for any frequency value. The overall impact of the GM on the body’s rotational movement in a gravitational field was explored in Ref. [7], showing no singular point in the obtained solutions. In Ref. [8], the RB solutions according to Kovalevskaya’s criteria when the body rotates in the presence of the GM are derived. Ref. [9] and Ref. [10] derived the analytical solutions for a RB under the impact of the GM with the body fixed torques. A general case for charged RB motion under the influence of the NFF and the GM based on Lagrange’s and Bobylev-Steklov’s conditions has been studied in Refs. [11,12]. The controlling nonlinear system of the EOM was simplified to a suitable quasi-linear system consisting of two second-order differential equations (DEs) and a single integral. The solutions to this system were obtained and plotted based on varying values of the body’s parameters. Alternatively, in Ref. [13], the motion of a symmetric RB in a gravitational field was investigated from a different standpoint, taking into account a slight offset in the center of mass from the body’s symmetry axis. The PSP method was utilized to solve the EOM for cases involving irrational frequencies. These solutions are viewed as constraints compared to the findings in Ref. [14] when the non-conservative forces and the gravitational moments were ignored. The approximate formulas for Euler’s angles were provided, and the results were analyzed in terms of the impact of the effective applied force and moments. It was determined that the results do not exhibit chaotic behavior.

In general, optimal control based on nonlinear DEs is widely recognized as a highly effective tool for the design of feedback control systems. This procedure allows for quick response to disturbances and the maintenance of stability across a range of applications, from aerospace and transportation systems to industrial processes and more. It is worth noting that, until recently, the control of rotational motion of quasi-RBs under specific effective moments had not been thoroughly explored in relation to impact forces at any given moment, aside from the studies referenced in Refs. [15–17]. In Ref. [18], an investigation was conducted on the MT of three-dimensional asymmetrical free RB undergoing decreasing rotational motions, considering both gyrostatic and viscous resistive rotatory moments. An optimal control law was developed to manage the slow rotation of the body, with calculations of the required time and phase paths. Similarly, Ref. [19] delved into the required MT for a dynamic system with asymmetrical characteristics to decelerate its rotation, akin to Euler’s conditions, yielding outcomes consistent with those in Refs. [20,21] when the GM is omitted. In Ref. [22], a vector depicting the angular momentum is created in a 3D space for various system parameter values. The findings suggest that specific ratios of the parameters are required to achieve optimal deceleration of the RB. Furthermore, Ref. [23] examined the MT for a RB with a viscous flexible material attached as a concentrated mass at a specific point on the symmetry axis, aiming to control the deceleration of the body’s rotation and compute the necessary time and phase paths. The numerical results of quasi-optimal braking for symmetric RBs’ rotational movements were explored in Refs. [24,25], accounting for the motion of a point mass fixed at a certain position along the body’s symmetry axis and the impact of medium resistance on braking torque.

Ji-Huan pioneered the homotopy perturbation technique (HPT) and was highly regarded in the field of analytical methods, overshadowing traditional methods. In Ref. [26], primarily highlights He’s concepts and the previous work of the current authors on HPM. In Ref. [27], it is found that the classical HPT is inadequate for analyzing Klein-Gordon equation, leading to a recommendation for a modified approach incorporating an exponential decay parameter. This modified method reveals that the amplitude exhibits exponential decay based on the damping parameter, and it also establishes a frequency equation and determines the stability condition. The work in Ref. [28] utilizes the amplitude-frequency formulation for nonlinear oscillators in order to uncover the crucial mechanism behind pseudo-periodic motion. It is showed that the quadratic nonlinear force plays a key role in causing the pull-down phenomenon during each cycle of the periodic motion. Once the force exceeds a certain threshold value, the system experiences pull-down instability. The study in Ref. [29] revisits the widely recognized Toda oscillator, commonly believed to exhibit periodic motion. The investigation focuses on its pseudo-periodic nature and reveals the discovery of pull-down instability, a previously undocumented phenomenon. In Ref. [30], the vibration of a circular sector in a porous medium is examined, and a fractal-fractional oscillator is created using the two-scale fractal derivative. He’s frequency and Ma’s modification are applied to clarify the periodic behavior of the circular sector in a porous medium.

Moatimid and Amer,^31–34 have made significant contributions to the field of nonlinear dynamics and stability analysis through their series of research papers. Each study focuses on the analytical and numerical investigation of complex oscillatory systems and their stability properties under various conditions. In Ref. [31], they explored the dynamic behavior of a pendulum attached to a rolling wheel. An analytical solution for the system’s motion is derived using the HPT. A comprehensive stability analysis is provided. In Ref. [32], the authors addressed the challenge of controlling nonlinear oscillations in a Van-der Pol-Duffing oscillator using a time-delayed feedback controller. The HPT and its modification are used to obtain the analytic approximate solution. In Ref. [33], the authors presented a detailed analysis of a magnetic spherical pendulum, a system characterized by complex interactions between magnetic forces and pendulum motion using the same approach of homotopy. The dynamics of a magnetic inverted pendulum subject to vibrations is investigated in Ref. [34]. Combining analytical and numerical methods, the authors examined the stability and response of the system, providing valuable insights for designing and controlling magnetic-based oscillatory systems.

It is important to point out that the rotation of a quasi-rigid body without a specific effective moment has not been officially regulated from the viewpoint of impacted forces. In a study by Ref. [35], control stages were utilized without considering resulting errors, along with the use of perturbation techniques. Conversely, Ref. [36] examined the slowing of time-optimal symmetric free RB motion. The body is believed to contain a globular chamber filled with viscous liquid, which moves slowly due to frictional resistance from viscous elements. Furthermore, Ref. [37] has enhanced the achievement of slowing down a restricted body to the best possible extent by utilizing torque and viscous friction.

The GM, also known as the gyroscopic or gyroscopic effect, significantly influences the main characteristics of a RB, particularly when compared to another that moves without such a moment.³⁸ Here is an explanation of these influences. The RB with GM exhibits gyroscopic stability, meaning that it resists changes to its axis of rotation. This results in precession, where the axis of rotation moves around another axis due to an applied torque, maintaining stability. For instance, a spinning top remains upright due to this gyroscopic effect. However, the RB without GM does not experience this stabilizing effect. As a result, it is more susceptible to tumbling or changing its orientation when subjected to external forces or torques.⁶

Moreover, the presence of the GM means that the angular momentum vector of the body is significant and affects its motion. The body will tend to maintain its orientation unless acted upon by an external torque. This is utilized in applications such as gyroscopes and reaction wheels in spacecraft for orientation control.⁷ On the other hand, the absence of a significant gyroscopic effect means that the body’s angular momentum does not significantly influence its motion. Changes in orientation are more direct and less resisted, leading to potentially less predictable motion under varying external forces.

The rotational dynamics of the body are more complex in the presence of the GM which is due to the conservation of angular momentum. The EOM include terms that account for the gyroscopic effect, leading to phenomena such as nutation and precession. These effects need to be carefully managed in engineering applications to ensure desired performance. Whereas the rotational dynamics are simpler in the absence of this moment as the EOM do not need to account for gyroscopic effects. The body’s rotation can be described more straightforwardly by Newton’s laws without additional terms for gyroscopic influences.³⁹

Control systems need to account for the GM to effectively manage the orientation and stability of the body. This can be advantageous in providing stable control in aerospace and marine applications where maintaining a specific orientation is crucial.⁴⁰ On the other hand, control is simpler since the gyrostatic effects are absent. However, the body may be less stable and require more frequent adjustments to maintain a desired orientation or trajectory.

The aim of this study is to investigate the required MT for a free rotating RB to move in the presence of GM and viscous friction. It is proposed that the origin of the two coordinate frames coincides with the body’s center of mass. The study identifies the most efficient control law for the slow movement of the body, evaluates the corresponding phase and time trajectories, and presents innovative results in various graphical formats to demonstrate the advantages of GM. The results show consistent patterns when compared to previous studies without GM, with no minor differences being explained. The presence of the GM in the RB introduces significant stability and resistance to changes in orientation, which can be beneficial for applications requiring precise control and stability. In contrast, a rigid body without a gyrostatic moment is more susceptible to external forces and torques, leading to less stable and potentially more unpredictable motion. Therefore, the outcomes of this research build upon prior knowledge and apply gyroscopic theory to practical problems such as vehicle balance and stability.

Problem’s formulation

This section of the study provides an overview of the handled problem. The motion of a RB around point $O$ , influenced by the first component of the GM $\underline{ℓ} = (ℓ_{1}, 0, 0)$ and the resulting torque $\underline{Γ}$ from the resistance forces of a linear medium is examined. These forces control and limit the body’s rotation. Taking into consideration two Cartesian frames at $O$ , as investigated in Figure 1: a revolving one $x y z$ that is fixed within the body and rotates with the body, and a space fixed frame $X Y Z$ .

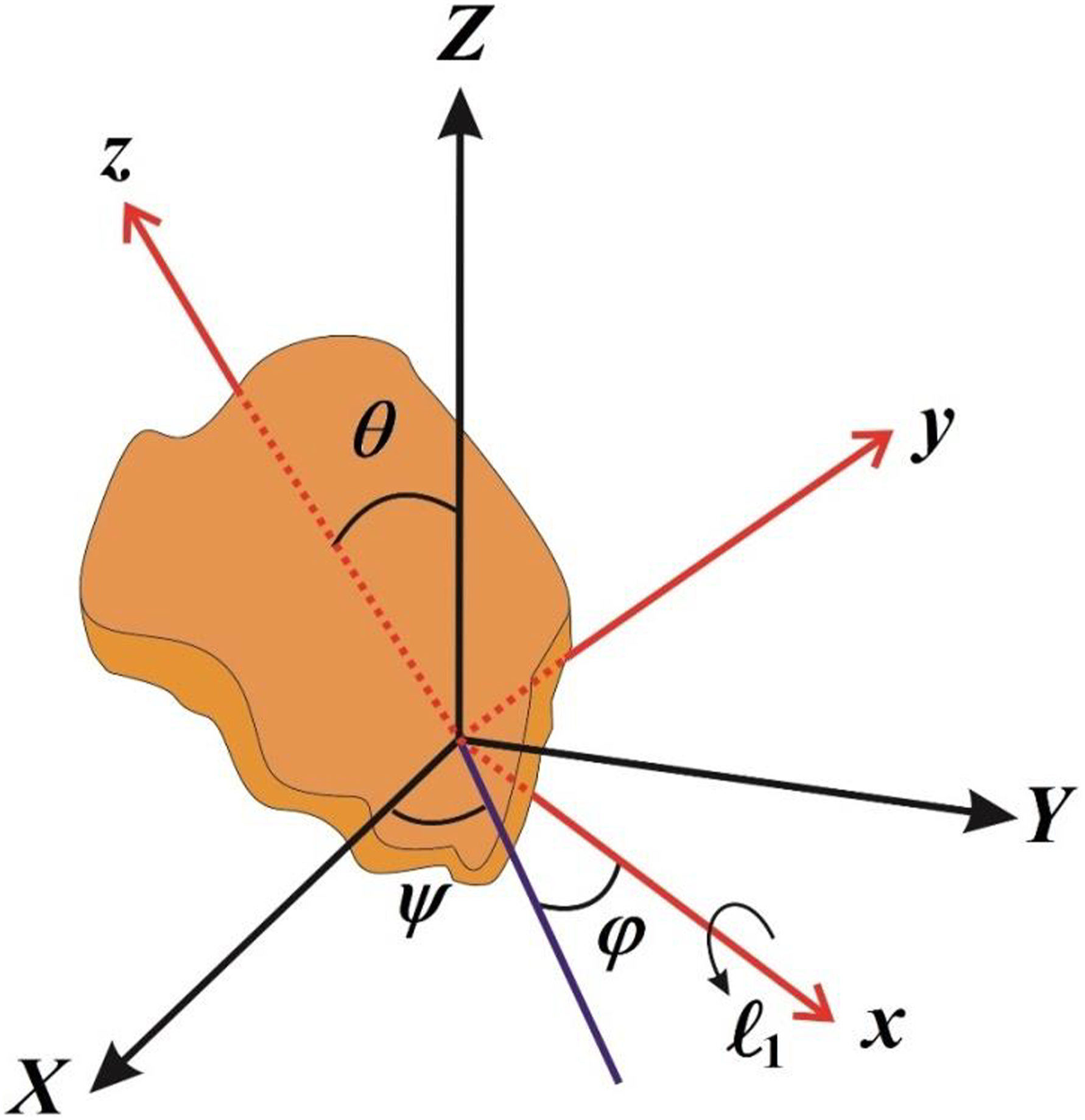

Figure 1.

Sketches the RB’s model.

Let’s examine the conditions outlined in Euler’s case,41,42 where the center of mass of the body coincides with point $O$ . Consequently, the governing equations for the motion of the body under consideration are expressed as follows43:

A^{0} (1 + ε δ_{1}) \dot{p} + [C - A^{0} (1 + ε δ_{2})] r q = Γ_{p} - λ [A^{0} (1 + ε δ_{1}) p + ℓ_{1}],

A^{0} (1 + ε δ_{2}) \dot{q} + [A^{0} (1 + ε δ_{1}) - C] r p + r ℓ_{1} = Γ_{q} - λ A^{0} (1 + ε δ_{2}) q, C \dot{r} + A^{0} ε (δ_{2} - δ_{1}) p q - q ℓ_{1} = Γ_{r} - λ C r,

(1)

where

\underline{Γ} = (Γ_{p}, Γ_{q}, Γ_{r})

denote the torque of the external control,

J = d i a g (A^{0} (1 + ε δ_{1}), A^{0} (1 + ε δ_{2}), C)

is the inertia moments tensor,

λ

is a constant, and dot notation indicates the rate of change regarding time

t

. The projections of the angular velocity

\underline{ω}

along the inertia’s main axes

(O x, O y, O z)

are represented by

(p, q, r)

Let $\underline{R} = \underline{L} + \underline{ℓ}$ represents the total angular momentum of the body

R = | \underline{L} + \underline{ℓ} | = {[{(A^{0} (1 + ε δ_{1}) p + ℓ_{1})}^{2} + {(A^{0} (1 + ε δ_{2}) q)}^{2} + {(C r)}^{2}]}^{\frac{1}{2}},

(2)

where

\underline{L} = J \underline{ω}

, and

R = | \underline{R} |

is the absolute value of

\underline{R}

It’s crucial to acknowledge that (1) includes a deliberate constraint as a fundamental aspect of the problem’s simplicity. Thus, we posit that the moment of inertia is directly proportional to the linear resistance moment exerted by the force. Moreover, building upon the earlier information, we propose a hypothesis regarding the allowable torque magnitudes $\underline{Γ}$ associated with a spherical object.17 This conjecture aligns with the mass distribution and the shape of the RB, without contradiction. We proceed with the assumption that

\underline{Γ} = d \underline{u}, | \underline{u} | \leq 1;

(3)

d = d (t, \underline{L} + \underline{ℓ}), 0 < d_{*} \leq d < d^{*} < \infty .

(4)

As noted in (3) and (4), the variable $d$ is defined as a scalar function confined to the range of the variables $t$ and $\underline{L}$ . The domain of these variables can be either predefined or estimated based on the initial values of $\underline{L}$ . Equation (1) formulates the mathematical model for the controlled rotations of the given body. We present a problem focused on achieving the deceleration of rotational motion in the shortest possible time.

\underline{ω} (t_{0}) = \underline{ω_{0}}, \underline{ω} (T) = 0, T - t_{0} \to \min_{u}, | \underline{u} | \leq 1 .

(5)

The objective at hand is to attain a precise solution to the problem posed by equations (1)–(5) without resorting to any perturbing assumptions regarding the various physical parameters of the body. Therefore, in order to forecast the relevant path $ω (t, t_{0}, ω_{0})$ and to obtain both time $T = T (t_{0}, {\underline{ω}}_{0})$ and the Bellman’s function $W = T (t, \underline{ω}) - t$ , it is necessary to formulate an ideal control law $u = u (t, \underline{ω})$ .

The solution’s procedure

In this specific section, our focus shifts towards examining the solution for synthesizing optimal control, taking into account the external impact of linear resistance forces. As demonstrated in Refs. [15,17], through dynamic programming and Schwartz’s inequality, we can devise a control law aimed at minimizing the time required

Γ_{p} = - \frac{d}{R} (A^{0} (1 + ε δ_{1}) p + ℓ_{1}), Γ_{q} = - \frac{d}{R} A^{0} (1 + ε δ_{2}) q, Γ_{r} = - \frac{d}{R} C r, d = d (t, R) .

(6)

To streamline this problem, we can approximate value $d$ regarding $t$ and $R$ . In other words, $d = d (t, R)$ specifically into the range $0 < d_{1} \leq d < d_{2} < \infty$ .

Thus, we may obtain the resulting scalar equation and the $T$ equation by multiplying the equations of system (1) with $[A^{0} (1 + ε δ_{1}) p + ℓ_{1}], A^{0} (1 + ε δ_{2}) q,$ and $C r$ , respectively, and then combining the results.

\dot{R} = - d (t, R) - λ R, R (t_{0}) = R_{0}, R (T, t_{0}, R_{0}) = 0, T = T (t_{0}, R_{0}), W (t, R) = T (t, R) - t .

(7)

If we presume that the variable $d = d (t)$ depends on the parameter $t$ , we can derive the subsequent solution along with the condition $T$

R (t) = R_{0} e^{- λ (t - t_{0})} - e^{- λ t} \int_{t_{0}}^{T} d (t) e^{- λ (t - τ)} d τ, T = T (t_{0}, R_{0}) .

(8)

Considering that $t$ and $T$ denote the current time for deceleration and its minimum value, respectively. There is consistently a method that facilitates the creation of a resolution to the challenge of attaining the shortest duration, presented through synthesis. In cases where $d$ remains constant, it becomes viable to articulate the solutions for both $R$ in equation (7) and the boundary value problem (8) in the subsequent manner

R (t) = \frac{1}{λ} [(R_{0} λ + d) e^{- λ t} - d], T = \frac{1}{λ} l n (R_{0} \frac{λ}{d} + 1) .

(9)

This aspect can be thoroughly scrutinized and expanded upon subsequently. Regarding the kinetic energy of the gyrostat, designated as $H$ ⁴⁴, and its derivative,²⁰ we possess the capability to represent both quantities in a comparable way

\dot{H} = - 2 H (\frac{d}{R} + λ), 2 H = [A^{0} (1 + ε δ_{1}) p + 2 ℓ_{1}] p^{2} + A^{0} (1 + ε δ_{2}) q^{2} + C r^{2} .

(10)

Recalling the explicit expression of $R$ in equation (9) as a function of time $t$ , we can seize the opportunity to integrate equation (10) to yield the below outcome

{H = H_{0} R_{0}^{- 2} λ^{- 2} [(R_{0} λ + d) e^{- λ t} - d]}^{2} .

(11)

Now, we proceed to determine the value of the modulus $π$ 1 for the elliptic function as depicted below. By combining equations (2) and (10), we can derive

q^{2} = \frac{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}{A^{0} (1 + ε δ_{2}) [A^{0} (1 + ε δ_{2}) - C]} \{z^{2} - {[p + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]}^{2}\}, r^{2} = \frac{{(A^{0})}^{2} ε (1 + ε δ_{1}) (δ_{1} - δ_{2})}{C [C - A^{0} (1 + ε δ_{2}])} \{f^{2} - {[p + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]}^{2}\},

(12)

where

z^{2} = \frac{R^{2} - 2 H C - L_{1}}{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}, f^{2} = \frac{R^{2} - 2 H A^{0} (1 + ε δ_{2}) - L_{2}}{{(A^{0})}^{2} ε (1 + ε δ_{1}) (δ_{1} - δ_{2})}; L_{1} = \frac{C}{A^{0} (1 + ε δ_{1})} ℓ_{1}^{2}, L_{2} = \frac{(1 + ε δ_{2})}{(1 + ε δ_{1})} ℓ_{1}^{2} .

Taking into account the information provided, the function $π$ has the following structure

π^{2} = \frac{f^{2}}{z^{2}} = \frac{[A^{0} (1 + ε δ_{1}) - C]}{A^{0} ε (δ_{1} - δ_{2})} \frac{[R^{2} - 2 H A^{0} (1 + ε δ_{2}) - L_{2}]}{(R^{2} - 2 H C - L_{1})}, 0 \leq π^{2} \leq 1 .

(13)

It is clear by looking at $π$ expression that $H$ and $R$ are strongly related to it. Rotation about the main axis of the inertia ellipsoid is achieved, specifically, when $π = 0$ . On the other hand, the motion takes the separatrix path when $π = 1$ .

Making use of (1), (6), (9), (11) and (13), we can differentiate $π^{2}$ with respect to time $t$ to get

\frac{d π^{2}}{d t} = - \frac{2 (d + λ R) {[C - A^{0} (1 + ε δ_{1})]}^{2}}{A^{0} ε R (δ_{2} - δ_{1})} \{\frac{[R^{2} - 2 A^{0} (1 + ε δ_{2}) H_{0} R_{0}^{- 2} R^{2}]}{R^{2} - 2 C H_{0} R_{0}^{- 2} R^{2} - L_{2}} - \frac{[R^{2} - 2 A^{0} (1 + ε δ_{2}) H_{0} R_{0}^{- 2} R^{2} - L_{1}] (R^{2} - 2 C H_{0} R_{0}^{- 2} R^{2})}{{(R^{2} - 2 C H_{0} R_{0}^{- 2} R^{2} - L_{2})}^{2}}\}, π^{2} (0) = {π^{0}}^{2} .

(14)

The preceding equation (14) can be solved in $π^{2}$ as a result of the information provided regarding the variables $π^{2}$ and $t$ .

The required controlled and optimized motion

In this section, we embark on an alternative processes to solving system (1). Thus, we can express this system in vector formula as follows

\underline{\dot{L}} + \underline{ω} \land (\underline{L} + \underline{ℓ}) = \underline{Γ} - λ (\underline{L} + \underline{ℓ}); \underline{L} = J \underline{ω},

(15)

As previously described, the notations $\underline{L}, \underline{ω},$ and $J$ denote that the components of $\underline{L}$ are oriented along the principal axes of inertia, $O x, O y,$ and $O z$ , and they have the form

L_{x} = A^{0} (1 + ε δ_{1}) p + ℓ_{1}, L_{y} = A^{0} (1 + ε δ_{2}) q, L_{z} = C r .

(16)

Subsequently, one can express

{\dot{L}}_{x} = A^{0} (1 + ε δ_{1}) \dot{p}, {\dot{L}}_{y} = A^{0} (1 + ε δ_{2}) \dot{q}, {\dot{L}}_{z} = C \dot{r} .

(17)

Utilizing the aforementioned equations, we can articulate system (15) as follows

\underline{\dot{L}} + J^{- 1} \underline{L} \land (\underline{L} + \underline{ℓ}) = - \frac{d}{R} (\underline{L} + \underline{ℓ}) - λ (\underline{L} + \underline{ℓ}) .

(18)

Taken into consideration the substitution $\underline{L} + \underline{ℓ} = R \underline{\hat{I}}$ , where $R$ is previously defined and $\underline{\hat{I}}$ is the unit vector pointing in the direction of increasing $\underline{L} + \underline{ℓ}$ . Therefore, we get

L (0) = L_{0}, L (T) = 0, \underline{\dot{L}} = \dot{R} \underline{\hat{I}} + R \underline{\dot{\hat{I}}} .

(19)

Bringing that $\dot{R} = - (d + λ R)$ and substituting (19) into (18) to get

R^{- 1} \underline{\dot{\hat{I}}} + [J^{- 1} \underline{\hat{I}} \land \underline{\hat{I}}] - R^{- 1} (J^{- 1} \underline{ℓ} \land \underline{\hat{I}}) = 0 .

(20)

Using

τ

as a new time parameter, which the formula

τ = R t

determines. Thus, equation (20) becomes

\underline{{\hat{I}}^{'}} + [J^{- 1} \underline{\hat{I}} \land \underline{\hat{I}}] - R^{- 1} (J^{- 1} \underline{ℓ} \land \underline{\hat{I}}) = 0, d τ = R (t) d t, I (0) = \frac{L_{0}}{R_{0}} .

(21)

The prime notation is employed to denote differentiation regarding the variable $τ$ . Displaying the next notation

\underline{Π} = J^{- 1} \underline{\hat{I}}; \underline{Π} = (π_{x}, π_{y}, π_{z})

(22)

into (21), to get

J \underline{Π^{'}} + [\underline{Π} \land J \underline{Π}] - R^{- 1} (J^{- 1} \underline{ℓ} \land J \underline{Π}) = 0 .

(23)

Upon scrutinizing this system, it becomes evident that it shares similarities with Euler’s dynamic system governing the unrestricted motion of the RB. Consequently, it can be seamlessly integrated. To achieve this goal, we employ the inner product of this system with the variable $Π$ , yielding

(\underline{Π}, J \underline{Π^{'}} - R^{- 1} (J^{- 1} \underline{ℓ} \land J \underline{Π})) = 0 .

(24)

Upon integrating the aforementioned equation, we attain a comparable expression of the kinetic energy44

H_{π} = \frac{1}{2} (\underline{Π}, J \underline{Π} + 2 \underline{ℓ}) = c o n s t .

(25)

Similarly, computing the inner product of equation (23) with

\underline{\hat{I}}

yields

R_{π}^{2} = (J \underline{Π} + \underline{ℓ}, J \underline{Π} + \underline{ℓ}) = 1,

(26)

where

R_{π}

denotes the magnitude of the angular momentum.

Now, we will proceed to derive the analytical solution of equation (23), taking into account the given condition $A^{0} (1 + ε δ_{1}) \approx A^{0} (1 + ε δ_{2}) > C$ .

Based on (25) and (26), the expressions of $π_{y}^{2}$ and $π_{z}^{2}$ in view of $π_{x}^{2}, A^{0} (1 + ε δ_{1}), A^{0} (1 + ε δ_{2}), C, H_{π},$ and $R_{π}$ are given by

π_{y}^{2} = \frac{1}{A^{0} (1 + ε δ_{2}) (A^{0} (1 + ε δ_{2}) - C)} \{R^{2} - C (2 H_{π} + A^{- 1} ℓ_{1}^{2}) - A^{0} (1 + ε δ_{1}) \times [A^{0} (1 + ε δ_{1}) - C] {[π_{x} + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]}^{2}\}, π_{z}^{2} = \frac{1}{C (C - A^{0} (1 + ε δ_{2}))} \{R^{2} - A^{0} (1 + ε δ_{2}) [2 H_{π} + {(A^{0} (1 + ε δ_{1}))}^{- 1} ℓ_{1}^{2}] - {(A^{0})}^{2} ε (1 + ε δ_{1}) (δ_{1} - δ_{2}) {[π_{x} + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]}^{2}\} .

(27)

From the second equation of system (23), we can readily obtain the following first derivative of $π_{x}$

\frac{d π_{x}}{d τ} = \frac{C - A^{0} (1 + ε δ_{2})}{A^{0} (1 + ε δ_{1})} π_{y} π_{z},

(28)

Substituting equations (27) into (28) to get an explicit first-order DE regarding $π_{x}$ as

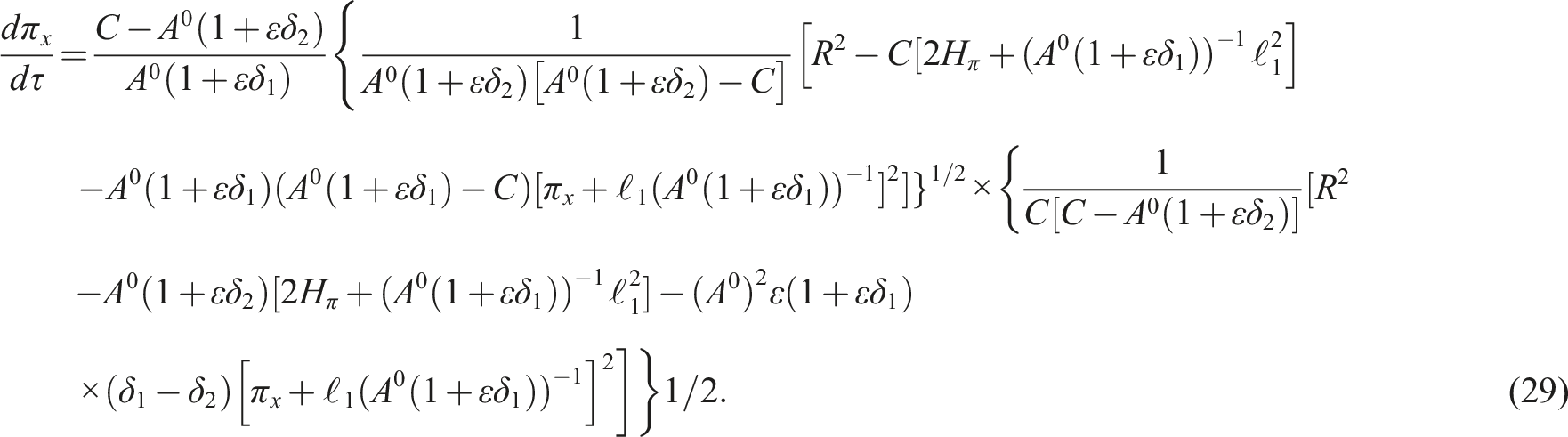

\frac{d π_{x}}{d τ} = \frac{C - A^{0} (1 + ε δ_{2})}{A^{0} (1 + ε δ_{1})} {\frac{1}{A^{0} (1 + ε δ_{2}) [A^{0} (1 + ε δ_{2}) - C]} [R^{2} - C [2 H_{π} + {(A^{0} (1 + ε δ_{1}))}^{- 1} ℓ_{1}^{2}] - A^{0} (1 + ε δ_{1}) (A^{0} (1 + ε δ_{1}) - C) [π_{x} + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]^{2}]}^{1 / 2} \times {\frac{1}{C [C - A^{0} (1 + ε δ_{2})]} [R^{2} - A^{0} (1 + ε δ_{2}) [2 H_{π} + {(A^{0} (1 + ε δ_{1}))}^{- 1} ℓ_{1}^{2}] - {(A^{0})}^{2} ε (1 + ε δ_{1}) \times (δ_{1} - δ_{2}) {[π_{x} + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1}]}^{2}]} 1 / 2 .

(29)

Now, let’s consider two potential cases that exhibit distinct relations between $H_{π}$ and $R_{π}$ .

The first case

Let’s look at the case $2 A^{0} (1 + ε δ_{1}) H_{π} \geq R_{π}^{2} > 2 A^{0} (1 + ε δ_{2}) H_{π}$ , and utilizing the variable-changing process to incorporate (29) into the form

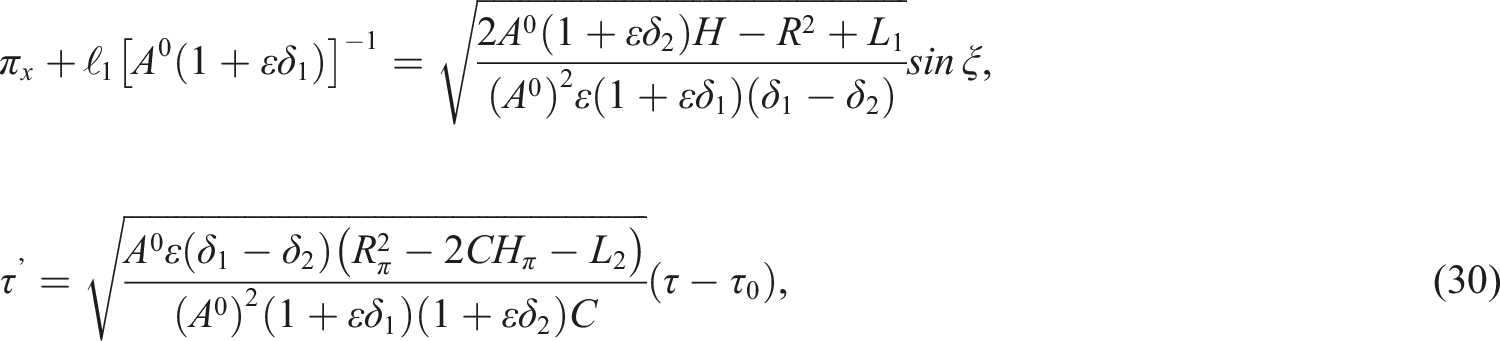

π_{x} + ℓ_{1} {[A^{0} (1 + ε δ_{1})]}^{- 1} = \sqrt{\frac{2 A^{0} (1 + ε δ_{2}) H - R^{2} + L_{1}}{{(A^{0})}^{2} ε (1 + ε δ_{1}) (δ_{1} - δ_{2})}} \sin ξ, τ^{'} = \sqrt{\frac{A^{0} ε (δ_{1} - δ_{2}) (R_{π}^{2} - 2 C H_{π} - L_{2})}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}} (τ - τ_{0}),

(30)

where an arbitrary constant is represented by

τ_{0}

. Using the formula below, we can determine the positive value of

0 \leq π^{2} < 1

from equation (13)

π^{2} = \frac{(C - A^{0} (1 + ε δ_{1})) [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} - L_{1}]}{A^{0} ε (δ_{2} - δ_{1}) [R_{π}^{2} - 2 C H_{π} - L_{2}]} .

By differentiating the first equation in (30) and substituting into equation (28), yields

\frac{C - A^{0} (1 + ε δ_{2})}{A^{0} (1 + ε δ_{1})} π_{y} π_{z} = \sqrt{\frac{2 A^{0} (1 + ε δ_{2}) H - R^{2} + L_{1}}{{(A^{0})}^{2} ε (1 + ε δ_{1}) (δ_{1} - δ_{2})}} \sin ξ,

(31)

Substituting $π_{y}$ and $π_{z}$ from (27) into (31) to get

\frac{d ξ}{d τ} = \sqrt{\frac{A^{0} ε (δ_{2} - δ_{1}) (R^{2} - 2 C H - L_{1})}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}} \sqrt{1 - π^{2} \sin^{2} ξ};

(32)

where

τ^{'} = \sqrt{\frac{A^{0} ε (δ_{2} - δ_{1}) (R^{2} - 2 C H - L_{1})}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}} .

Hence, equation (29) can be expressed in terms of the new variables as

\frac{d ξ}{d τ^{'}} = \sqrt{1 - π^{2} \sin^{2} ξ} .

(33)

At $t = 0$ , one obtains $π_{x} = - \frac{ℓ_{1}}{[A^{0} (1 + ε δ_{1})]}$ . Then $ξ = a m τ^{'}$ where $a m$ is the modulo of elliptic amplitude $π$ . The solution of system (23) can now be determined according to the examined case using Jacobi functions

π_{x} = \sqrt{\frac{R^{2} - 2 A^{0} (1 + ε δ_{2}) H - L_{1}}{ε {(A^{0})}^{2} (1 + ε δ_{1}) (δ_{1} - δ_{2})}} s n (τ^{'}, π) - \frac{ℓ_{1}}{A^{0} (1 + ε δ_{1})}, π_{y} = \sqrt{\frac{R^{2} - 2 C H - L_{2}}{A^{0} (1 + ε δ_{2}) [A^{0} (1 + ε δ_{2}) - C]}} d n (τ^{'}, π), π_{z} = \sqrt{\frac{R^{2} - 2 A^{0} (1 + ε δ_{2}) H - L_{1}}{C [C - A^{0} (1 + ε δ_{2})]}} c n (τ^{'}, π) .

(34)

Combining (16) and (22) with $\underline{\hat{I}} = (\underline{L} + \underline{ℓ}) / R_{π}$ yields

J \underline{Π} = \frac{\underline{L} + \underline{ℓ}}{R_{π}} .

Therefore, we get

A^{0} (1 + ε δ_{1}) π_{x} = \frac{A^{0} (1 + ε δ_{1}) p + ℓ_{1}}{R_{π}}, A^{0} (1 + ε δ_{2}) π_{y} = \frac{A^{0} (1 + ε δ_{2}) q}{R_{π}}, C π_{z} = \frac{C r}{R_{π}} .

Upon carefully reviewing the previously given investigation, we can obtain the following expressions of $p, q,$ and $r$ in the forms

p = R_{π} \sqrt{\frac{R_{π}^{2} - 2 B H_{π} - L_{1}}{ε {(A^{0})}^{2} (1 + ε δ_{1}) (δ_{1} - δ_{2})}} s n (τ^{'}, π) - \frac{2 ℓ_{1}}{A^{0} (1 + ε δ_{1})}, q = R_{π} \sqrt{\frac{R_{π}^{2} - 2 C H_{π} - L_{2}}{A^{0} (1 + ε δ_{2}) (A^{0} (1 + ε δ_{2}) - C)}} d n (τ^{'}, π), r = R_{π} \sqrt{\frac{R_{π}^{2} - 2 B H_{π} - L_{1}}{ε {(A^{0})}^{2} (1 + ε δ_{1}) (δ_{1} - δ_{2})}} c n (τ^{'}, π) .

(35)

Based on the angles $θ$ and φ, that shows how the projection of the angular momentum onto the body’s main axes of inertia, we can express $p, q,$ and $r$ as follows

p = \frac{R_{π} \sin θ \sin φ - ℓ_{1}}{A^{0} (1 + ε δ_{1})}, q = \frac{R_{π}}{A^{0} (1 + ε δ_{2})} \sin θ \cos φ, r = \frac{R_{π} \cos θ}{C} .

(36)

Making use of equations (35) and (36) to get

α = \sin θ \sin φ = \sqrt{\frac{A^{0} (1 + ε δ_{1}) [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} - L]}{A^{0} ε (δ_{1} - δ_{2})}} s n (τ^{'}, π) - ℓ_{1}, β = \sin θ \cos φ = \sqrt{\frac{A^{0} (1 + ε δ_{2}) (R_{π}^{2} - 2 C H_{π} - L_{2})}{[A^{0} (1 + ε δ_{2}) - C]}} d n (τ^{'}, π), γ = \cos θ = \sqrt{\frac{C [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} + L_{1}]}{[C - A^{0} (1 + ε δ_{2})]}} c n (τ^{'}, π) .

(37)

The second case

Let’s analyze the RB motion when $2 A^{0} (1 + ε δ_{2}) H_{π} > R_{π}^{2} \geq 2 C H_{π}$ is applied, where $π_{z} \neq 0$ . By using the change of variables procedures, the following expressions can be obtained

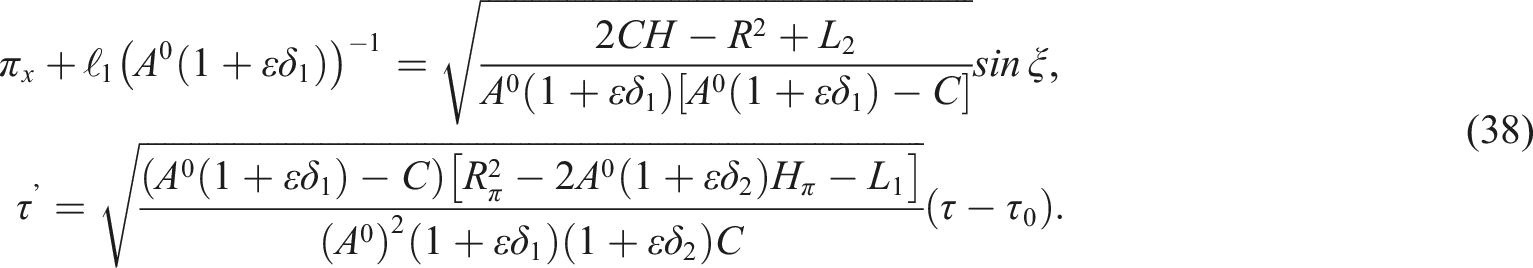

π_{x} + ℓ_{1} {(A^{0} (1 + ε δ_{1}))}^{- 1} = \sqrt{\frac{2 C H - R^{2} + L_{2}}{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}} \sin ξ, τ^{'} = \sqrt{\frac{(A^{0} (1 + ε δ_{1}) - C) [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} - L_{1}]}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}} (τ - τ_{0}) .

(38)

In view of the inequality $0 \leq π^{2} < 1$ , the below formula is used

π^{2} = \frac{A^{0} ε (δ_{2} - δ_{1}) (R_{π}^{2} - 2 C H_{π} - L_{2})}{[C - A^{0} (1 + ε δ_{1})] [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} - L_{1}]} .

By differentiating the first equation in equation (38) and replacing it with (28), we may get

\frac{C - A^{0} (1 + ε δ_{2})}{A^{0} (1 + ε δ_{1})} π_{y} π_{z} = \sqrt{\frac{2 C H - R^{2} + L_{2}}{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}} \sin ξ,

(39)

Using (27) to substitute the expressions of $π_{y}$ and $π_{z}$ into (39), we obtain

\frac{d ξ}{d τ} = \sqrt{\frac{[C - A^{0} (1 + ε δ_{1})] [R^{2} - 2 A^{0} (1 + ε δ_{2}) H - L_{2}]}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}} \sqrt{1 - π^{2} \sin^{2} ξ};

(40)

where

τ^{'} = \sqrt{\frac{[C - A^{0} (1 + ε δ_{1})] [R^{2} - 2 A^{0} (1 + ε δ_{2}) H - L_{2}]}{{(A^{0})}^{2} (1 + ε δ_{1}) (1 + ε δ_{2}) C}},

to get the below formula, which is based on equation (28)

\frac{d ξ}{d τ^{'}} = \sqrt{1 - π^{2} \sin^{2} ξ} .

(41)

The following is one way to express the responses to the included equations in system (23)

π_{x} = \sqrt{\frac{R_{π}^{2} - 2 C H_{π} - L_{2}}{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}} s n (τ^{'}, π) - \frac{ℓ_{1}}{A^{0} (1 + ε δ_{1})}, π_{y} = \sqrt{\frac{R_{π}^{2} - 2 C H_{π} - L_{2}}{A^{0} (1 + ε δ_{2}) [A^{0} (1 + ε δ_{2}) - C]}} c n (τ^{'}, π), π_{z} = \sqrt{\frac{R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} - L_{1}}{C [C - A^{0} (1 + ε δ_{2})]}} d n (τ^{'}, π) .

(42)

Similarly, the angular velocity components have the following forms

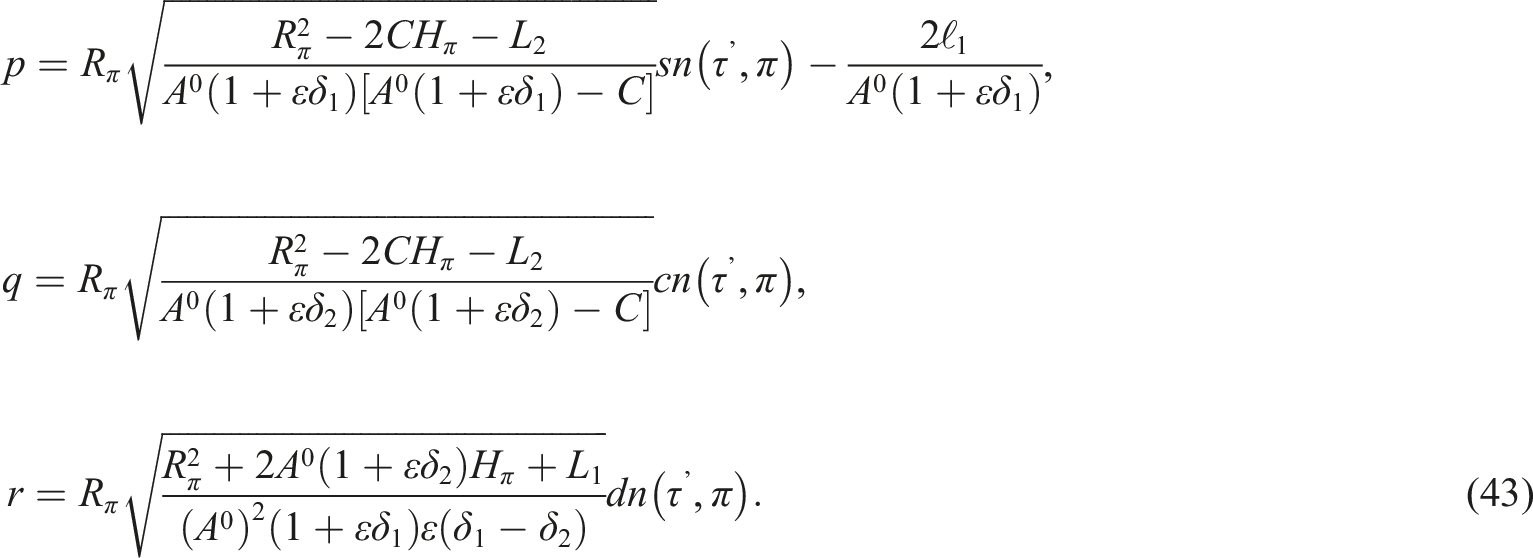

p = R_{π} \sqrt{\frac{R_{π}^{2} - 2 C H_{π} - L_{2}}{A^{0} (1 + ε δ_{1}) [A^{0} (1 + ε δ_{1}) - C]}} s n (τ^{'}, π) - \frac{2 ℓ_{1}}{A^{0} (1 + ε δ_{1})}, q = R_{π} \sqrt{\frac{R_{π}^{2} - 2 C H_{π} - L_{2}}{A^{0} (1 + ε δ_{2}) [A^{0} (1 + ε δ_{2}) - C]}} c n (τ^{'}, π), r = R_{π} \sqrt{\frac{R_{π}^{2} + 2 A^{0} (1 + ε δ_{2}) H_{π} + L_{1}}{{(A^{0})}^{2} (1 + ε δ_{1}) ε (δ_{1} - δ_{2})}} d n (τ^{'}, π) .

(43)

Considering that $\underline{\hat{I}} = (\underline{L} + \underline{ℓ}) / R_{π}$ and combining (16), (22), and (43) to get

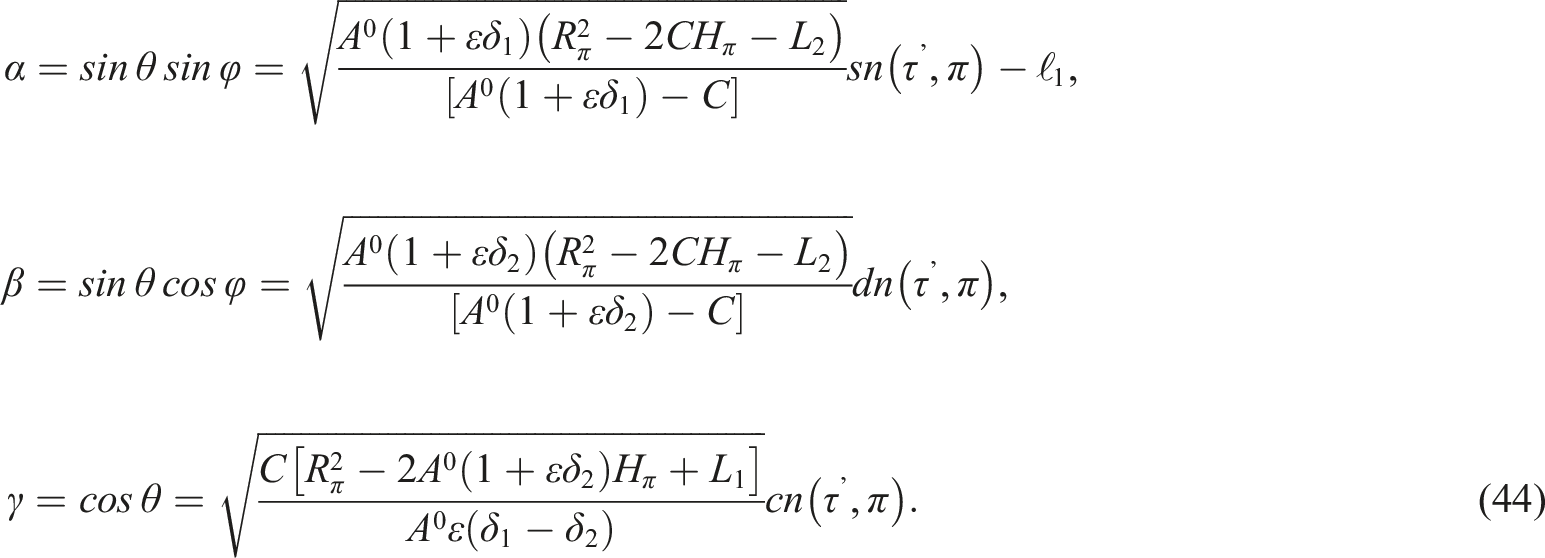

α = \sin θ \sin φ = \sqrt{\frac{A^{0} (1 + ε δ_{1}) (R_{π}^{2} - 2 C H_{π} - L_{2})}{[A^{0} (1 + ε δ_{1}) - C]}} s n (τ^{'}, π) - ℓ_{1}, β = \sin θ \cos φ = \sqrt{\frac{A^{0} (1 + ε δ_{2}) (R_{π}^{2} - 2 C H_{π} - L_{2})}{[A^{0} (1 + ε δ_{2}) - C]}} d n (τ^{'}, π), γ = \cos θ = \sqrt{\frac{C [R_{π}^{2} - 2 A^{0} (1 + ε δ_{2}) H_{π} + L_{1}]}{A^{0} ε (δ_{1} - δ_{2})}} c n (τ^{'}, π) .

(44)

It is anticipated that the phase plane solutions will manifest as closed curves since the treated cases $π_{j} (j = x, y, z)$ display periodic behaviors.

Simulation of the results

In this section, we are going to examine the achieved new results for the aforementioned two cases in the previous section $2 A^{0} (1 + ε δ_{1}) H_{π} \geq R_{π}^{2} > 2 A^{0} (1 + ε δ_{2}) H_{π}$ and $2 A^{0} (1 + ε δ_{2}) H_{π} \geq R_{π}^{2} > 2 C H_{π}$ . To accomplish this aim, let us consider the following data

A^{0} = 0.7 k g . m^{2}, ε = 0.1, δ_{1} = 0.5, δ_{2} = 0.55, C = 0.75 k g . m^{2}, p_{0} = 1 r a d . s^{- 1}, q_{0} = 2 r a d . s^{- 1}, r_{0} = 3 r a d . s^{- 1}, g = 9.8 m . s^{- 2}, ℓ_{1} (= 0.5, 1, 2) k g . m^{2} . s^{- 1} .

The units of the parameters used are listed in Table 1. For the first case, that is, at

2 A^{0} (1 + ε δ_{1}) H_{π} \geq R_{π}^{2} > 2 A^{0} (1 + ε δ_{2}) H_{π}

, the represented waves in Figures 2–4 have been plotted to show the great effect of diverse values of

ℓ_{1}

. These waves describe the time-dependent of the functions

α, β, γ, p, q,

and

r

ℓ_{1} (= 0.5, 1, 2) k g . m^{2} . s^{- 1}

. It is crucial to emphasize that these solutions exhibit standing waves periodic waves rather than any isolated points at all, as seen in Figure 2, indicating that their behavior is stable. One can conclude that when

ℓ_{1}

increases, the waves’ amplitudes decrease, while their wavelengths become stationary in light of the constancy of the oscillations number. The last objective of the calculations shown in Figure 3 is to analyze the phase plane diagrams of the solutions that are presented in the form of closed curves which demonstrates the stable behavior of the represented waves in Figure 2.

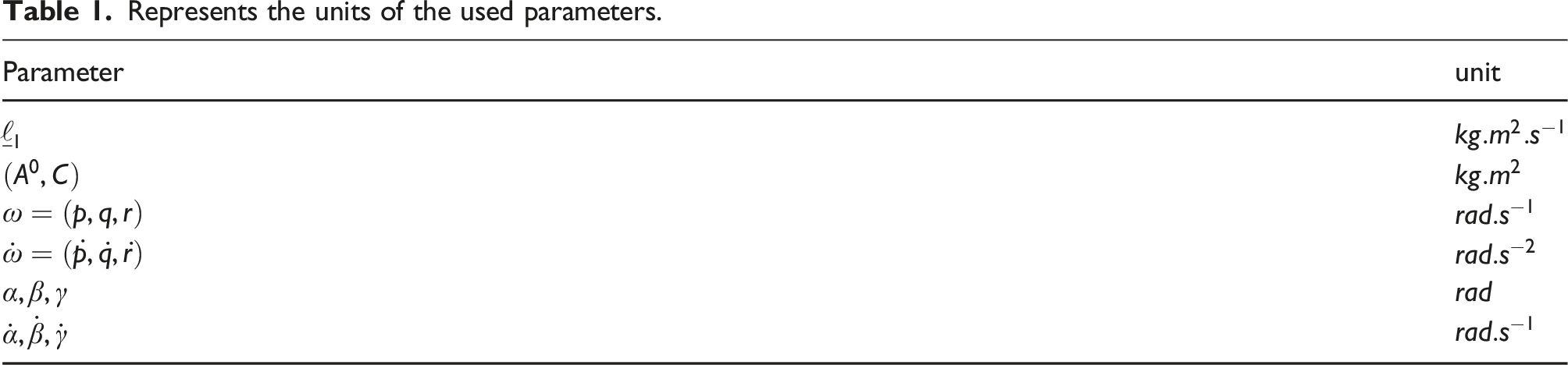

Table 1.

Represents the units of the used parameters.

Parameter	unit
${\underline{ℓ}}_{1}$	$k g . m^{2} . s^{- 1}$
$(A^{0}, C)$	$k g . m^{2}$
$ω = (p, q, r)$	$r a d . s^{- 1}$
$\dot{ω} = (\dot{p}, \dot{q}, \dot{r})$	$r a d . s^{- 2}$
$α, β, γ$	$r a d$
$\dot{α}, \dot{β}, \dot{γ}$	$r a d . s^{- 1}$

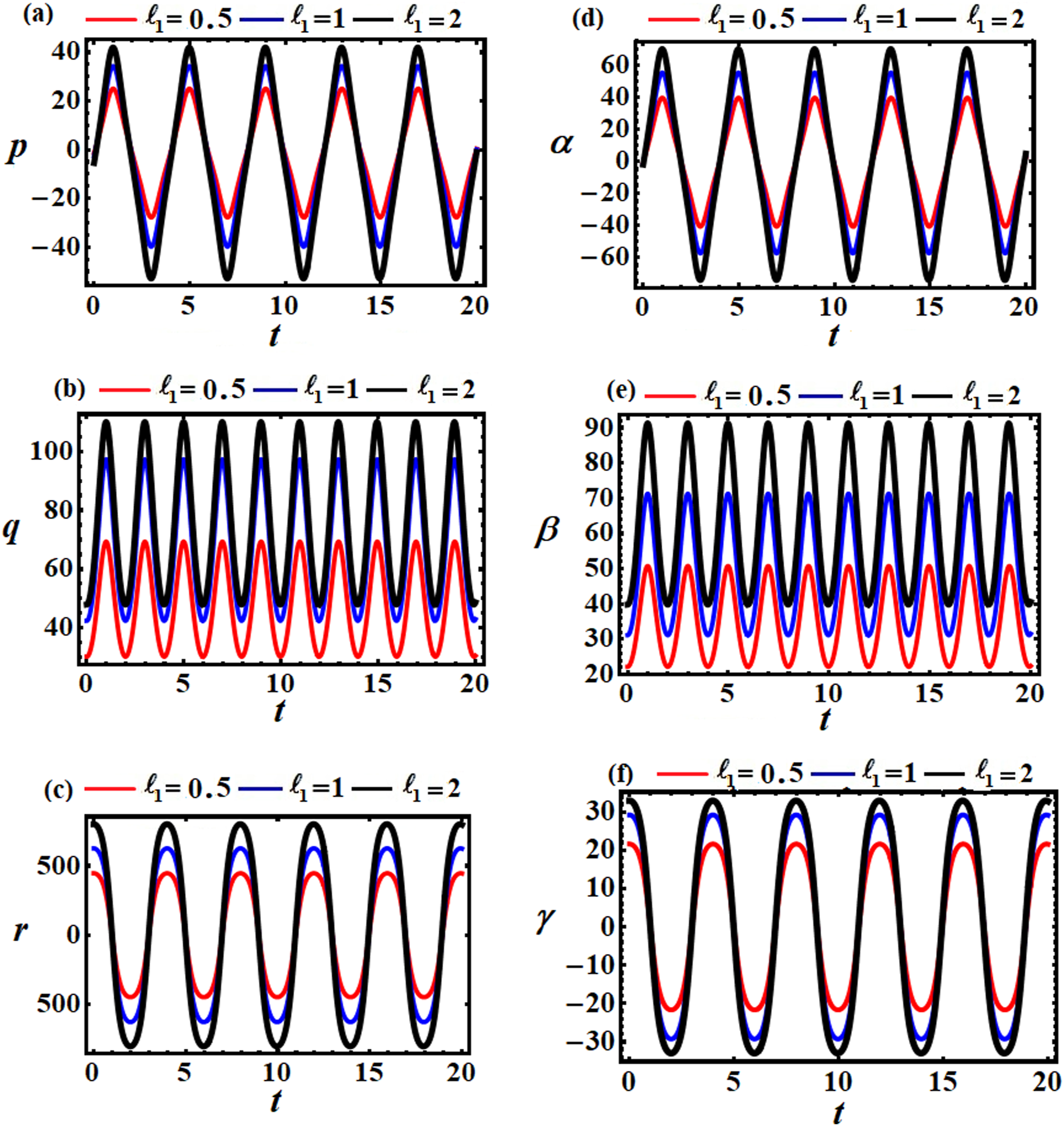

Figure 2.

Sows the time behavior for the functions $p, q, r, α, β,$ and $γ$ for ${\underline{ℓ}}_{1} (= 0.5, 1, 2) k g . m^{2} . s^{- 1}$ according to the first case.

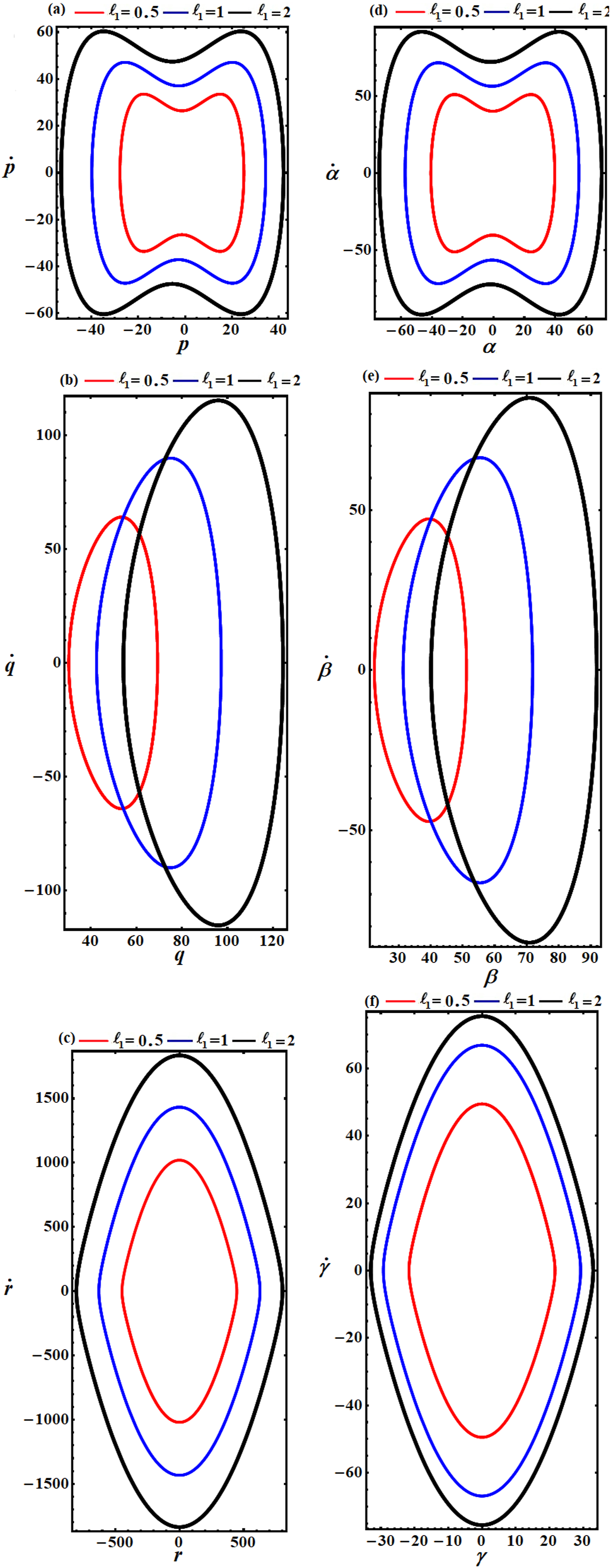

Figure 3.

Shows the diagrams of phase plane for the plotted waves in Figure 2.

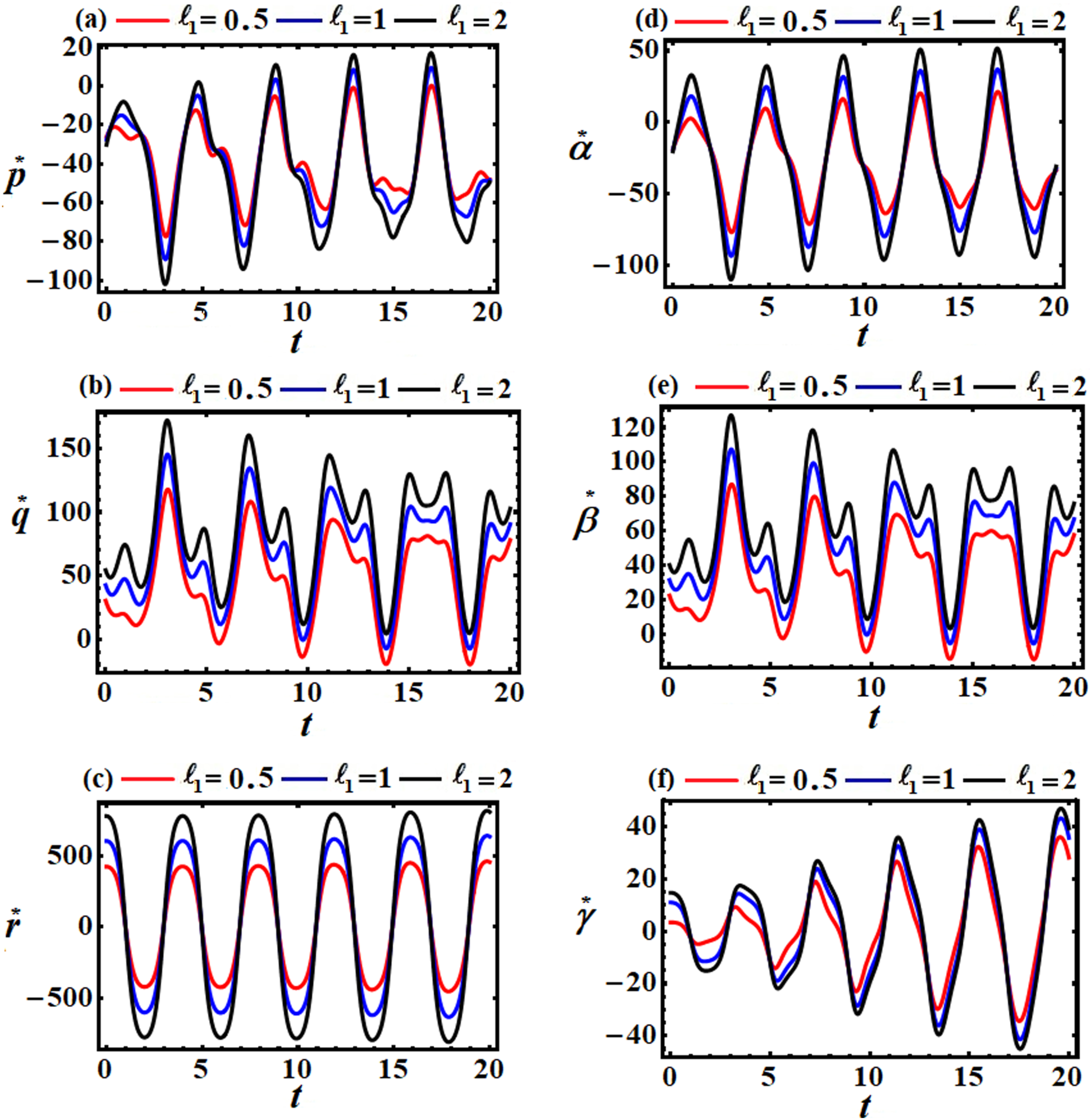

Figure 4.

Reveals the deviations of the newly acquired outcomes and the previous ones in Ref. [20] for the first case.

The obtained outcomes are compared with those in reference [20], revealing a significant degree of congruence when $ℓ_{1} = 0$ , which indicates that the results in reference [20] are a special case of those achieved in this work. The symbols $α^{*}, β^{*}, γ^{*}, p^{*}, q^{*}$ and $r^{*}$ , represent their differences, as illustrated in Figure 4. These curves also vary in their behavior from one part to another within Figure 4, which is due to the difference in solutions, as the mentioned symbols for the difference between the two solutions differ from each other.

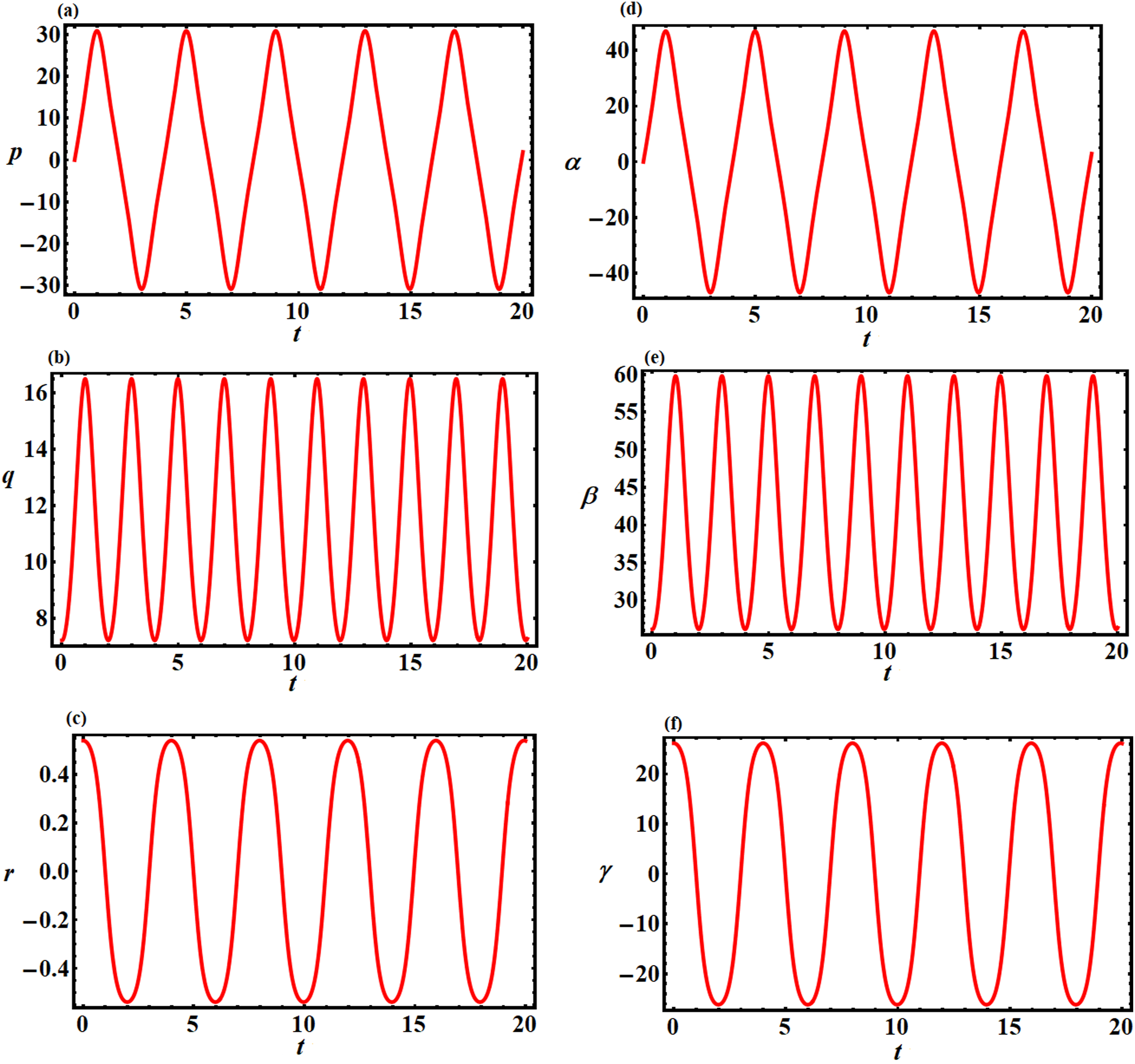

However, the drawn curves in Figures 5 and 6 are calculated in light of the second case when $ℓ_{1} (= 0.5, 1, 2) k g . m^{2} . s^{- 1}$ . Hence, the depicted waveforms in the portions of these figures are graphed to illustrate the response of the time-dependent functions $α, β, γ, p, q,$ and $r$ to the impact of the GM vector. Throughout the time frame under study, these waves exhibit periodic behavior, with the amplitudes of the graphed waves increasing as the GM increases and the number of waves somewhat decreasing. Figure 6 shows the phase plane diagrams of the solutions for the second case, which are used to analyze the stable behavior over a given time interval. Comparing the newly obtained results with those in Ref. [20] reveals that the new outcomes surpass the previous ones. The differences between them are expressed using the symbols $p *, q *, r *, α *, β *,$ and $γ *$ , which are shown graphically in the sections of Figure 7.

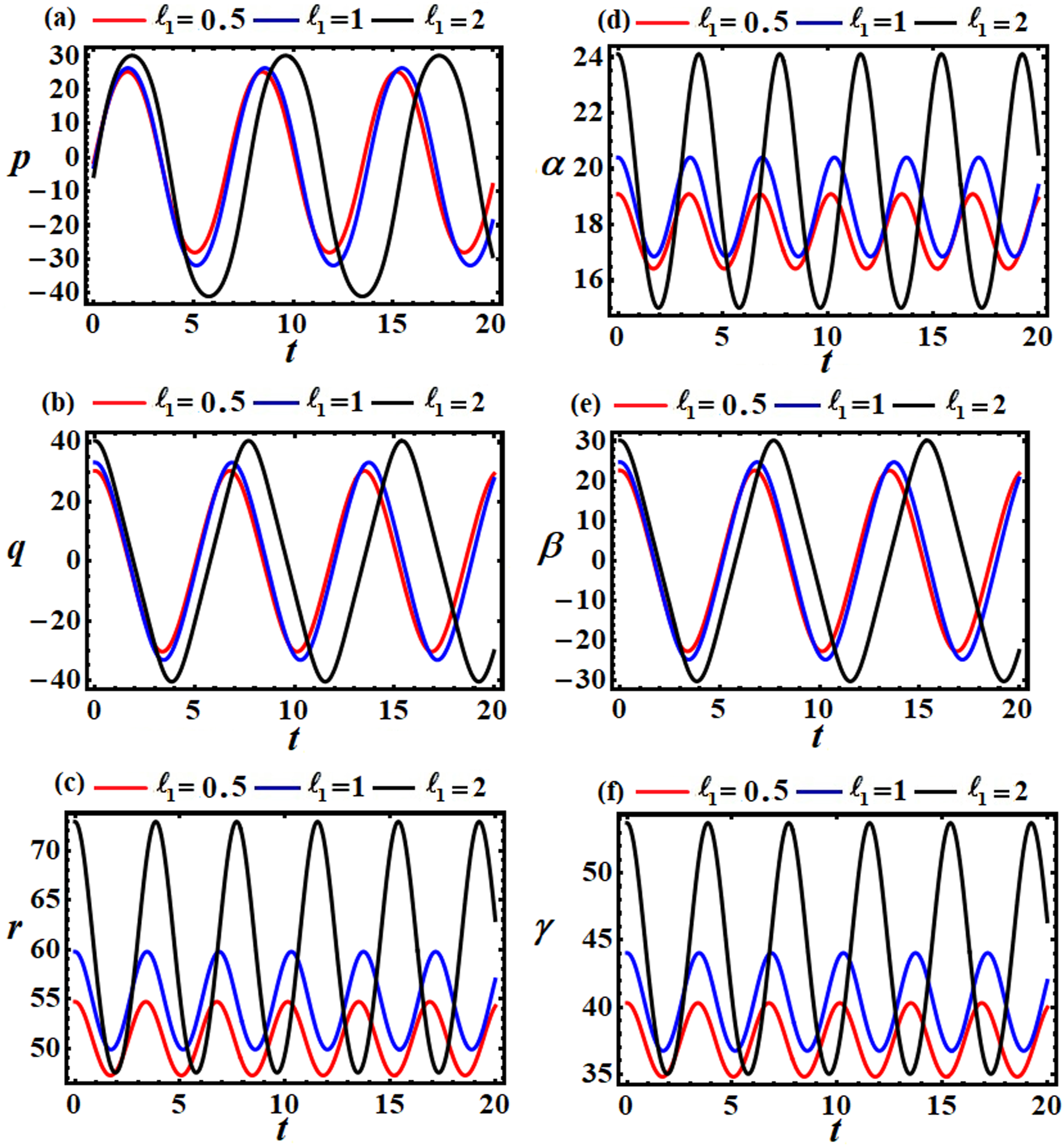

Figure 5.

Presents the time behavior for the functions $p, q, r, α, β,$ and $γ$ for $ℓ_{1} (= 0.5, 1, 2) k g . m^{2} . s^{- 1}$ according to the second case.

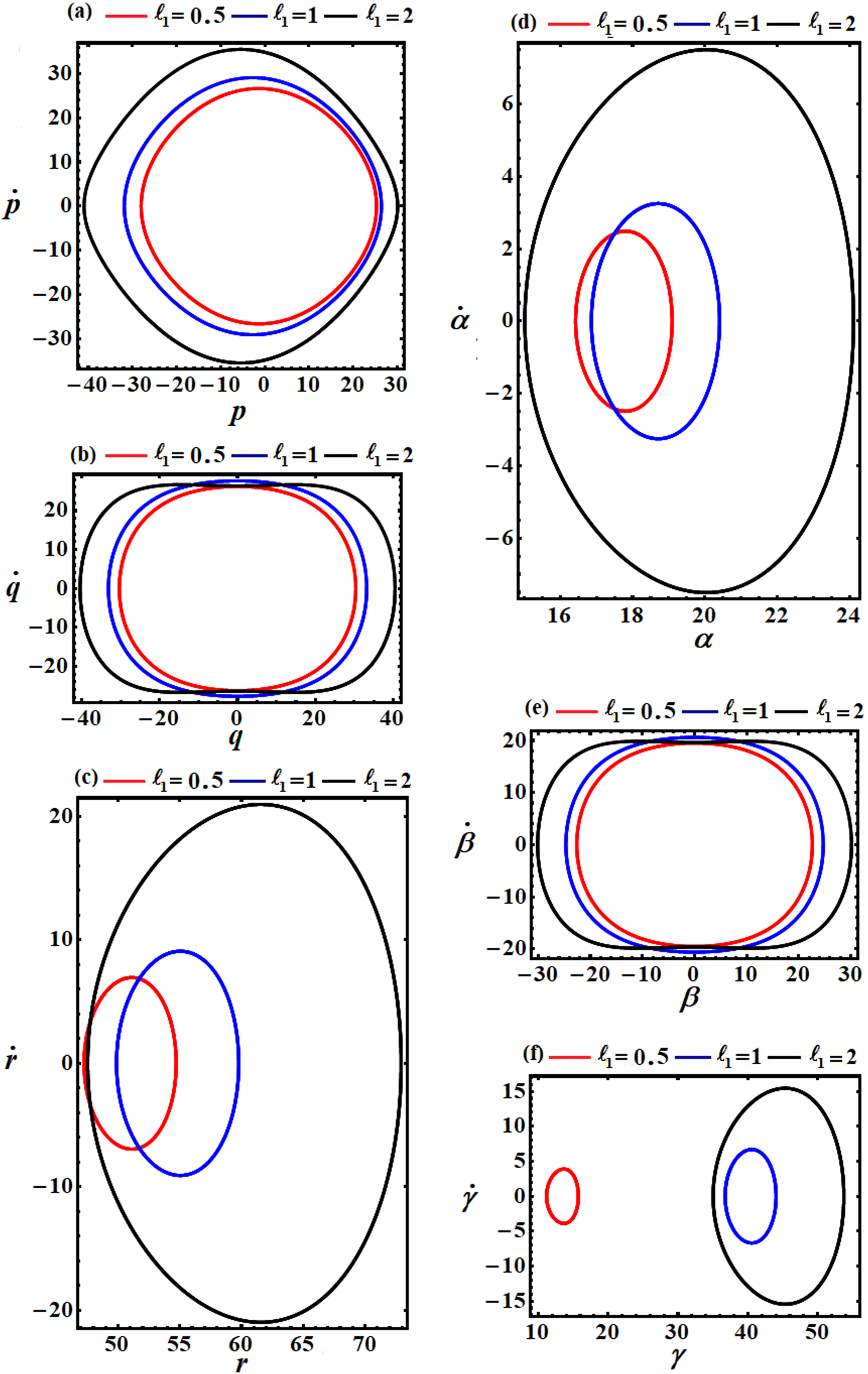

Figure 6.

Investigates the trajectories for the phase plane plots in Figure 5.

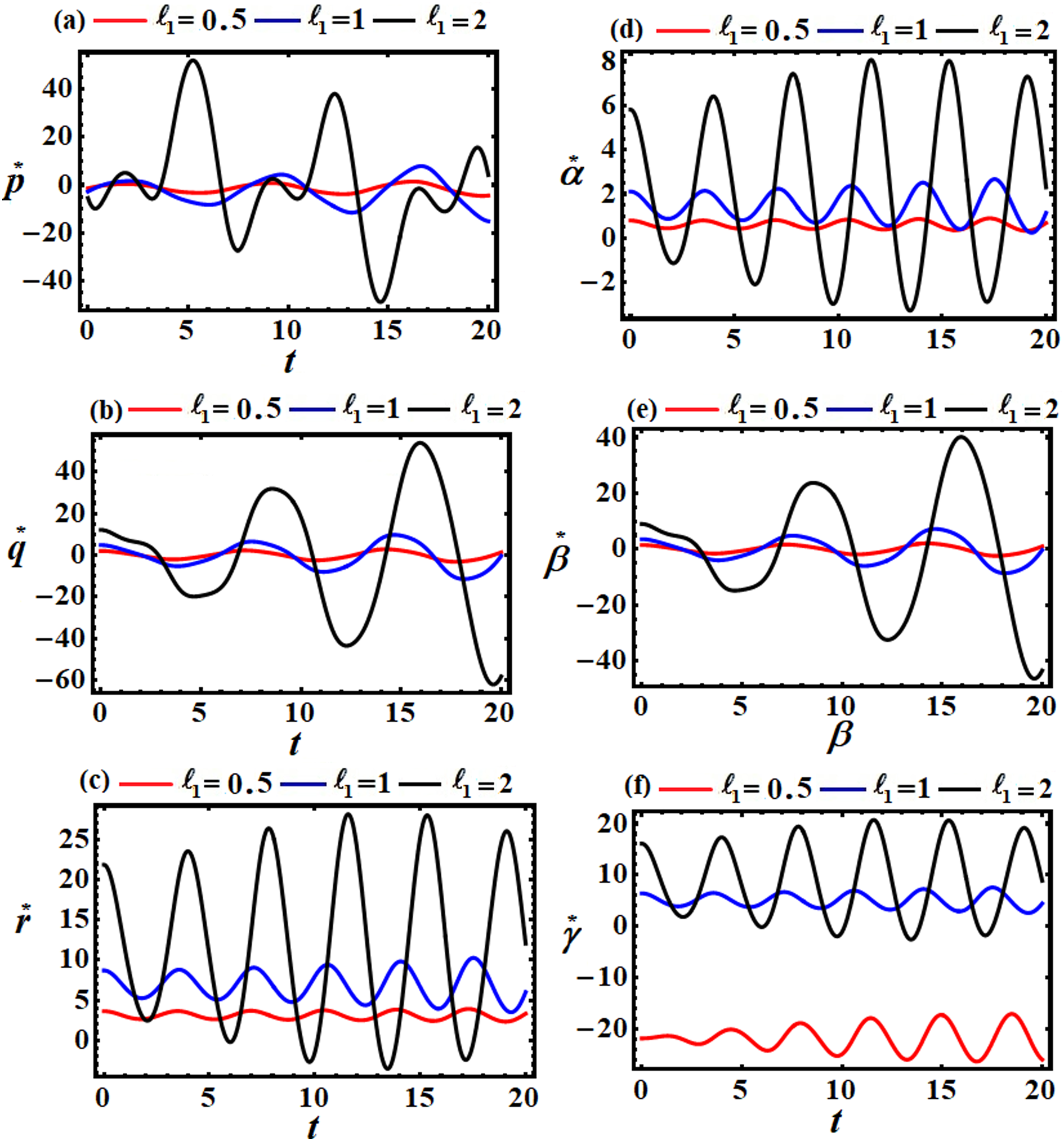

Figure 7.

Portrays the difference between the achieved solutions and the obtained ones in Ref. [20] for to the second case.

Based on the above simulation of the achieved outcomes, we can say that periodic solutions and the closed curves of their phase planes offer several benefits for the analysis and understanding of dynamical systems. These solutions indicate that a system’s behavior repeats after a certain period, making it predictable. This predictability is crucial in engineering and physics, where reliable system behavior is essential. The presence of closed curves in phase planes, representing periodic solutions, helps in visualizing the system’s long-term behavior. This visualization aids in understanding the nature of the system’s stability and the types of attractors present. Systems exhibiting such solutions often show robustness to small perturbations. This means the system can return to its periodic state after being disturbed, which is desirable in maintaining stable operations in practical applications.45,46

Drawing the difference between the current solutions and the solutions that preceded it offers several benefits in the analysis of dynamical systems. According to these differences, one can identify how the system’s behavior has evolved over time. This helps in understanding the impact of changes in parameters or initial conditions on the system dynamics. Examining the trend of differences over time can reveal patterns or trends in the system’s behavior. For instance, increasing differences may indicate instability or the onset of a new regime of behavior. Moreover, discrepancies between predicted and observed behaviors can highlight limitations or inaccuracies in the model used to describe the system. Analyzing the differences can guide model refinement or lead to the discovery of previously overlooked factors. Furthermore, comparing simulated results with other earlier data helps validate the accuracy of the simulation model. Differences beyond expected margins may signal the need for further investigation or refinement of the model.47,48

Waves in Figures 8 and 9 show the variation of the results in Ref. [20] for the first and second case, respectively, in the absences of the gyrostatic moment, that is, $\underline{ℓ} = \underline{0}$ . These waves are calculated according to the above data. It is clear that these waves have periodic forms during the examined time interval. We notice that these waves suffer from repeated peaks at the crest and height of these waves, as seen in Figures 8(a), (b), (d), (e) and 9(d), (e). The amplitudes of these waves are considered less than the corresponding ones in Figures 2 and 5, due to the existence of $\underline{ℓ}$ . Moreover, the impact of the gyrostatic moment improves the structure of the plotted waves to have symmetry over all time and increases of the amplitudes’ ranges. Therefore, the components of the angular velocity increase in comparison with the plotted ones in Figures 8 and 9. Consequently, the energy of the dynamical model increases according to this change, which can be used in engineering applications.

Figure 8.

Portrays the solutions for the first case when $\underline{ℓ} = \underline{0}$ .

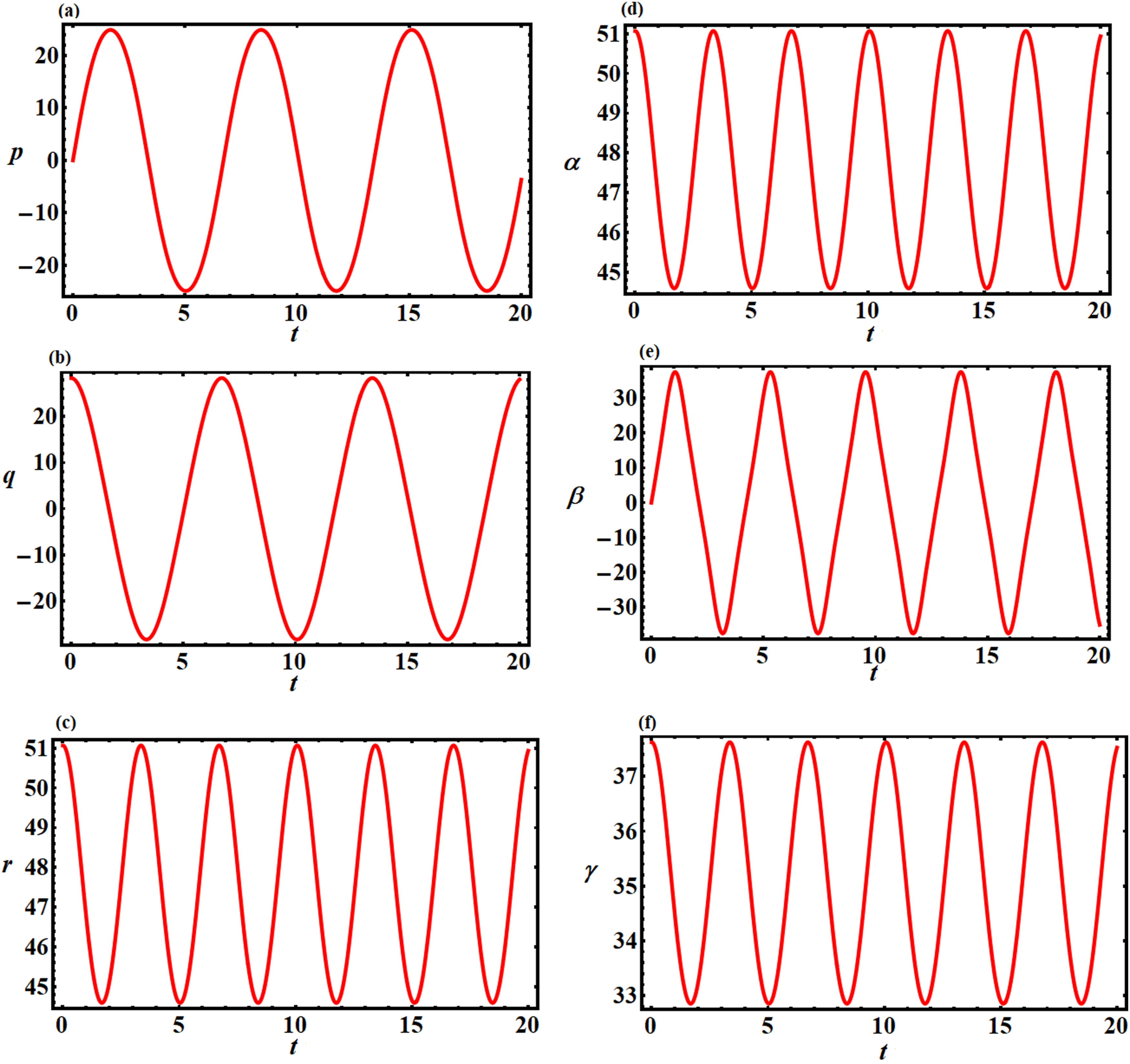

Figure 9.

Illustrates the solutions for the second case at $\underline{ℓ} = \underline{0}$ .

Conclusion

We have investigated an original problem related to the regulation of the deceleration minimum-time for the asymmetric rotating motion of the RB under the action of the GM in a resistive medium. For obtaining the best control and requiring the least amount of time, a well-established solution based on the Bellman function has been created. Euler-Poisson’s motion is categorized as a controlled motion that takes time-dependent angular momentum into account. Two possible cases for the RB’s motion have been examined, taking certain kinetic energy and angular momentum values into account. The obtained results are graphically displayed to demonstrate the remarkable impact of the GM and the several chosen parameters of the body on the controlled movement. The analysis of the outcomes in Ref. [20] reveals a remarkable agreement with the achieved solutions, particularly in the absence of the GM besides the values of the first two principal axes must be unequal. To highlight the importance of the obtained outcomes in the current study, the difference between our results and the earlier ones has been graphically shown. Overall, drawing these differences enhances understanding, facilitates model validation and refinement, guides decision-making, and supports optimization efforts in the analysis of dynamical systems. The purpose of the phase plane graphs is to show and disclose the motion analysis’s stable state. This study is noteworthy because it applies gyroscopic theory to real-world problems, such as tracking the path of ships and aircraft, and maintaining the balance and stability of vehicles.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

TS Amer

IM Abady

Data availability statement

The sharing of data is not relevant to this article since no datasets were created or analyzed during the present study.

References

Leimanis

. The general problem of the motion of coupled rigid bodies about a fixed point. Berlin: Spring Verlag, 1965.

Yehia

. Rigid body dynamics: a Lagrangian approach. Berlin: Springer Nature Switzerland AG, 2022.

. Arkhangel’skii, on the motion about a fixed point of a fast spinning heavy solid. J Appl Math Mech 1963; 27(5): 1314–1333.

Ismail

. The motion of fast spinning rigid body about a fixed point with definite natural frequency. Aerosp Sci Technol 1997; 1: 183–190.

Ismail

. The motion of a fast spinning disc which comes out from the limiting case γ″0 ≈ 0. Comput Methods Appl Mech Eng 1998; 161: 67–76.

Ismail

Amer

. The fast spinning motion of a rigid body in the presence of a gyrostatic momentum. Acta Mech 2002; 154: 31–46.l3.

Amer

. On the motion of a gyrostat similar to Lagrange’s gyroscope under the influence of a gyrostatic moment vector. Nonlinear Dynam 2008; 54: 249–262.

Amer

. The rotational motion of a symmetric rigid body similar to Kovalevskaya's case. Iran J Sci Technol Trans Sci 2018; 42(3): 1427–1438.

Amer

El-Kafly

Elneklawy

, et al. Analyzing the spatial motion of a rigid body subjected to constant body-fixed torques and gyrostatic moment. Sci Rep 2024; 14: 5390.

10.

Amer

El-Kafly

Elneklawy

, et al. Analyzing the dynamics of a charged rotating rigid body under constant torques. Sci Rep 2024; 14: 9839.

11.

Amer

. Modelling and analyzing the rotatory motion of a symmetric gyrostat subjected to a Newtonian and magnetic fields. Results Phys 2021; 24: 104102.

12.

J-H

Amer

El-Kafly

, et al. Modelling of the rotational motion of 6-DOF rigid body according to the Bobylev-Steklov conditions. Results Phys 2022; 35: 105391.

13.

Elfimov

. Existence of periodic solutions of equations of motion of a solid body similar to the Lagrange gyroscope. J Appl Math Mech 1978; 42(2): 262–269.

14.

Amer

. On the dynamical motion of a gyro in the presence of external forces. Adv Mech Eng 2017; 9(2): 168781401769173.

15.

Akulenko

. Problems and methods of optimal control. Dordrecht-Boston- London: Kluwer, 1994.

16.

Chernousko

Akulenko

Leshchenko

. Evolution of motions of a rigid body about its center of mass. Cham, Switzerland: Springer International Publishing, 2018.

17.

Akulenko

. Asymptotic methods of optimal control. Moscow: Nauka, 1987. [in Russian].

18.

El-Sabaa

Amer

Sallam

, et al. Modeling of the optimal deceleration for the rotatory motion of asymmetric rigid body. Math Comput Simulat 2022; 198: 407–425.

19.

El-Sabaa

Amer

Sallam

, et al. Modeling a semi-optimal deceleration of a rigid body rotational motion in a resisting medium. Sci Rep 2022; 12: 18916.

20.

Akulenko

Zinkevich

Leshchenko

. Optimal rotation deceleration of a dynamically asymmetric body in a resistant medium. J Comput Syst Sci Int 2011; 50(1): 14–19.

21.

Akulenko

Leshchenko

Rachinskaya

. Quasi-optimal deceleration of rotations of an asymmetric body in resistive medium. J Comput Syst Sci Int 2014; 53(3): 338–344.

22.

Rachinskaya

Rumyantseva

. Optimal deceleration of a rotating asymmetrical body in a resisting medium. Int Appl Mech 2018; 54(6): 710–717.

23.

Akulenko

Zinkevich

Leshchenko

, et al. Optimal rotation deceleration of a dynamically symmetric body with movable mass in a resistant medium. J Comput Syst Sci Int 2011; 50(2): 198–204.

24.

Akulenko

Kozachenko

Leshchenko

. Quasi-optimal braking of rotations of a body with a moving mass coupled to it through a quadratic friction damper in a resisting medium. J Comput Syst Sci Int 2018; 57(5): 689–694.

25.

Akulenko

Kozachenko

Leshchenko

. Time quasi-optimal deceleration of rotations of a gyrostat with a moving mass in a resistive medium. J Comput Syst Sci Int 2019; 58(5): 667–673.

26.

C-H

El-Dib

. A heuristic review on the homotopy perturbation method for non-conservative oscillators. Noise Vibr 2022; 41(2): 572–603.

27.

J-H

El-Dib

. The enhanced homotopy perturbation method for axial vibration of strings. FU Mech Eng 2021; 19(4): 735.

28.

J-H

Yang

C-H

, et al. Pull-down instability of the quadratic nonlinear oscillators. FU Mech Eng 2023; 21(2): 191.

29.

Feng

G-Q

. Dynamic pull-down theory for the Toda oscillator. Int J Mod Phys B 2023; 38.

30.

Feng

G-Q

. A circular sector vibration system in a porous medium: a fractal-fractional model and he’s frequency formulation. Facta Univ – Ser Mech Eng 2023; 21: 2.

31.

Moatimid

Amer

. Analytical solution for the motion of a pendulum with rolling wheel: stability analysis. Sci Rep 2022; 12: 12628.

32.

Moatimid

Amer

. Nonlinear suppression using time-delayed controller to excited Van der Pol-Duffing oscillator: analytical solution techniques. Arch Appl Mech 2022; 92: 3515–3531.

33.

Moatimid

Amer

. Analytical approximate solutions of a magnetic spherical pendulum: stability analysis. J Vib Eng Technol 2023; 11: 2155–2165.

34.

Moatimid

Amer

Zekry

. Analytical and numerical study of a vibrating magnetic inverted pendulum. Arch Appl Mech 2023; 93: 2533–2547.

35.

Akulenko

Leshchenko

. Optimal deceleration of rotation of a solid with internal degrees of freedom. Comp Syst Sci No 1995; 2: 115–122.

36.

Akulenko

Leshchenko

Rachinskaya

. Optimal deceleration of rotation of a dynamically symmetric body with a cavity filled with viscous liquid in a resistive medium. J Comput Syst Sci Int 2010; 49(2): 222–226.

37.

Akulenko

Leshchenko

Rachinskaya

. Optimal deceleration of rotations of an asymmetric body with a cavity filled with viscous fluid in a resistive medium. J Comput Syst Sci Int 2012; 51(1): 38–48.

38.

Schaub

Junkins

. Analytical mechanics of space systems. Las Vegas, NV: AIAA American Institute of Aeronautics & Ast, 2018.

39.

Amer

Ismail

Amer

. Application of the Krylov-Bogoliubov-Mitropolski technique for a rotating heavy solid under the influence of a gyrostatic moment. J Aero Eng 2012; 25(3): 421–430.

40.

Ismail

Amer

. Advanced investigations of a restricted gyrostatic motion. Control 2023; 42(3): 1205–1221.

41.

Kosenko

. Integration of the equations of a rotational motion of a rigid body in quaternion algebra. The Euler case. J Appl Math Mech 1998; 62(2): 193–200.

42.

Panayotounakos

Rizou

Theotokoglou

. A new mathematical construction of the general nonlinear ODEs of motion in rigid body dynamics (Euler’s equations). Appl Math Comput 2011; 217: 8534–8542.

43.

Akulenko

Leshchenko

Chernous’ko

. Fast rotation about a fixed point of a heavy solid body in a resisting media. Izv Ross Akad Nauk Mekh Tverd Tela 1982; 17(3): 5–13.

44.

Yehia

. On the integrability of certain problems in particle and rigid body dynamics. J Theor Appl Mech 1986; 5(1): 55–71.

45.

Galal

Amer

Elneklawy

, et al. Studying the influence of a gyrostatic moment on the motion of a charged rigid body containing a viscous incompressible liquid. Eur Phys J Plus 2023; 138: 959.

46.

Amer

Galal

. Simulation of a subjected rigid body motion to an external force and moment. J Vib Eng Technol 2024; 12: 2775–2790.

47.

Nayfeh

Balakumar

. Applied nonlinear dynamics: analytical, computational, and experimental methods. Hoboken, NJ: John Wiley & Sons, 2008.

48.

Abraham

Christopher

. Dynamics: the geometry of behavior. Boston, MA: Addison-Wesley, 1992.
