Microglia contact cerebral vasculature through gaps between astrocyte endfeet

Abstract

The close spatial relationship between microglia and cerebral blood vessels implicates microglia in vascular development, homeostasis and disease. In this study we used the publicly available Cortical MM^3 electron microscopy dataset to systematically investigate microglial interactions with the vasculature. Our analysis revealed that approximately 20% of microglia formed direct contacts with blood vessels through gaps between adjacent astrocyte endfeet. We termed these contact points “plugs”. Plug-forming microglia exhibited closer proximity to blood vessels than non-plug forming microglia and formed multiple plugs, predominantly near the soma, ranging in surface area from ∼0.01 μm² to ∼15 μm². Plugs were enriched at the venule end of the vascular tree and displayed a preference for contacting endothelial cells over pericytes at a ratio of 3:1. In summary, we provide novel insights into the ultrastructural relationship between microglia and the vasculature, laying a foundation for understanding how these contacts contribute to the functional cross-talk between microglia and cells of the vasculature in health and disease.

Introduction

The vast majority of gray matter astrocytes (∼99.8%) are connected to at least one blood vessel. ¹ These connections, known as astrocyte endfeet, provide almost complete coverage of all cerebral blood vessels. ² The area of astrocytic endfeet around a vessel is proportional to vessel diameter, with larger vessels having a greater area of endfeet surrounding them than smaller vessels. ³ Consistent with this, in larger vessels the astrocyte soma frequently constitute the endfeet. ⁴ Furthermore, endfeet surrounding arteries are larger in area than those surrounding veins. ³ Following injury, astrocyte endfeet coverage is maintained through astrocyte plasticity, but the speed of endfeet recovery declines with age. ⁵ The completeness of this coverage also has important functional implications. For example, astrocyte endfeet may control the exchange of water and metabolites between the brain and blood.^2,3 They may also play important roles in the regulation of blood flow^{6 –8} and glymphatic flow. ⁹

Despite astrocyte coverage of the cerebral vasculature being considered almost complete, gaps do exist. One study suggested intercellular endfoot-endfoot gaps between adjacent astrocytes (also called clefts) are ∼20 nm wide and may make up 0.3% of the area of the brain’s microvessels. ² However, the precise width, prevalence and dynamics (i.e. if they grow or shrink physiologically ³ ) of these gaps remains unclear. It is also not clear if they exist between astrocytes around both large (e.g. arterioles and venules) and small (e.g. capillaries) blood vessels. Their purpose is also unknown, although some have suggested they could provide a sieving function to regulate paravascular solute entry into the brain.^3,10

It is also possible these gaps provide entry points for cells of the brain parenchyma to directly contact the cerebral vasculature, which has been observed in a few reports.^2,4 Alternatively, cells of the parenchyma may contact the vasculature through discontinuities in individual astrocyte endfeet.^2,11

A growing body of evidence suggests microglia are one such cell that may directly contact the cerebral vasculature without the interference of astrocyte endfeet.^{2,12 –20} Early evidence came from an electron microscope study, suggesting microglia directly contact the basement membrane of cerebral vessels in the spinal cord of rats. ¹⁸ A 2010 study later provided 3D evidence for this, describing cellular processes penetrating through the astrocyte endfeet layer that were suggested to be from microglia. ² More recent work has provided examples of microglia contacting the basement membrane of blood vessels using electron microscopy.^{12 –17,19,20} However, these studies show only a few examples of microglia in close apposition to blood vessels and do not determine whether the possible contact points are at gaps between adjacent endfeet, or between discontinuities in individual endfeet, nor do they quantify the frequency of such contacts. The 2010 report did show examples of potential vessel contact by microglia at both endfoot-endfoot junctions and through discontinuities in individual endfeet, but the analysis was not expanded beyond this. ²

The primary issue with interpreting this prior literature is that it is not yet clear if contact between microglia and the vasculature truly exists between discontinuities in a single astrocyte endfoot, or if such regions simply reflect an astrocyte endfoot becoming so thin that it is difficult to discern in electron microscopy datasets.^2,4 This is especially true in electron microscope datasets that contain only single planes of imaging, as it is often not possible to accurately discern where astrocyte endfeet coverage begins and ends from a single plane. Although these studies imply that microglia can contact the vasculature without the interference of astrocyte endfeet, there is a lack of clearly defined criteria for how and where this occurs, meaning that the ultrastructural features of microglia-vasculature contact points are currently poorly defined.

In this study we took advantage of a recently released publicly available 3D electron-microscope dataset, covering a large area (1 mm³) of the visual cortex of a mouse, to conduct a formal analysis of the number of microglia directly contacting the vasculature without the structural interference of astrocyte endfeet. We determined the frequency of these contacts, where on the vascular tree they were more likely to directly contact (e.g. arterioles, venules, or capillaries), which cells microglia were directly interacting with at contact points (e.g. endothelial cells, pericytes etc.) and what the shapes and sizes of these contact points were. Our results lay the foundation for future studies aiming to define the structure and function of microglia-vasculature contact.

Materials and methods

Defining regions of interest within a public volume electron microscopy dataset

Microglia of the mouse visual cortex were identified within the publicly available Cortical MM^3 dataset (https://www.microns-explorer.org/cortical-mm3). ²¹ The Cortical MM^3 dataset is an open science electron microscopy dataset by the MICrONS consortium involving the Allen Institute, Baylor College of Medicine and Princeton University. It contains 1 mm³ of the mouse visual cortex from the leptomeninges to the white matter at a resolution of 4 × 4 × 40 nm.^{20 –23} The dataset is accessible through the Neuroglancer web-application. Within this dataset, we aimed to assess microglia-vascular interactions across all levels of the vascular tree including areas containing a penetrating arteriole, capillaries, and an ascending venule. To ensure an unbiased analysis, three adjacent regions of interest (ROI) were created using the box annotation tool in Neuroglancer. Annotations were placed at specific x, y and z coordinates to create ROIs. We created one ROI containing a penetrating arteriole (top left: 189377, 73419, 26850, lower right: 223825, 250250, 23770), one containing an ascending venule (top left: 258374, 73419, 26850, lower right: 292722, 250250, 23770), and one containing the capillary bed between them (top left: 223825, 73419, 26850, lower right: 258374, 250250, 23770, Figure 1(a) to (e)).

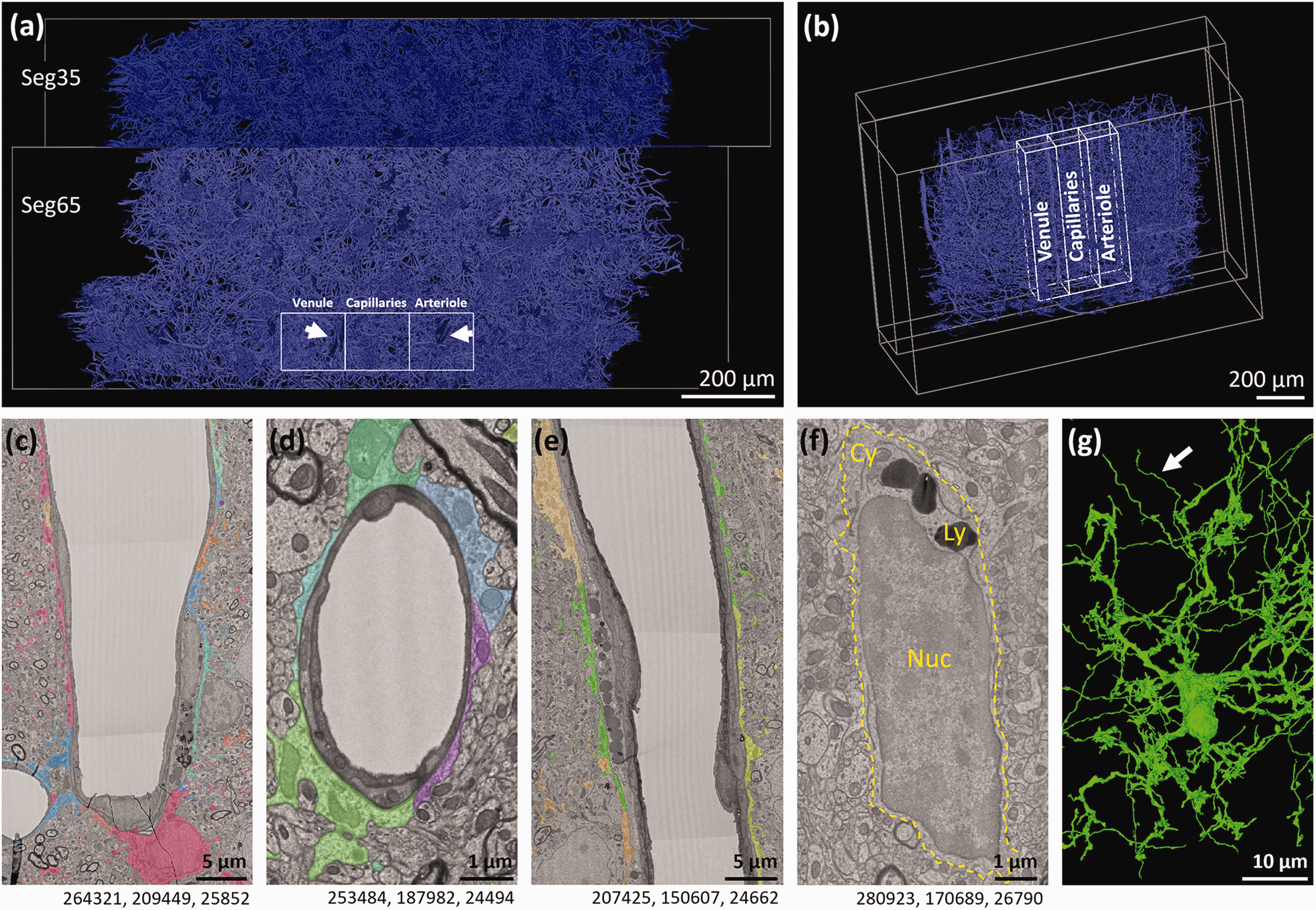

Figure 1.

Regions of interest placed around a venule, arteriole and the capillary bed between them. (a) Schematic of our regions of interest within the Cortical MM^3 dataset, looking from the top down. Blood vessel lumens are highlighted in blue. (b) Schematic showing a side view of where regions of interest were placed within the Cortical MM^3 dataset. (c–e) Representative examples of the (c) venule, (d) a capillary and (e) the arteriole within our region of interest. Astrocyte endfeet surrounding each vessel are highlighted in multiple colours. Astrocyte endfeet ultrastructures have been previously described in detail. ⁴ (f) Representative example of a microglia nucleus (Nuc), cytoplasm (Cy) and lysosomes (Ly) in the Cortical MM^3 dataset. (g) 3D reconstruction of microglia in (f). White arrow points to an area of the segmentation where a process belonging to a different cell has been picked up alongside the microglia segmentation. Numbers beneath the figures are xyz coordinates from the Cortical MM^3 dataset.

Identification of different cell types within the Cortical MM^3 dataset

Arteriole and venule starting points were identified using annotations provided by previous studies (https://n9.cl/vid4i ^{4 ,20}). Microglia were identified as previously described.^4,12 In brief, they were identified by their small soma size compared to other cell bodies, their distinct heterochromatin pattern, thin cytoplasm, prominent dark lysosomes (visible at low magnification), and an elongated irregular shape that often resembles a bean^24,25 (Figure 1(f) and (g)). Oligodendrocyte progenitor cells (OPCs) are visually similar to microglia, but these were differentiated by the presence of primary cilia in OPCs ²⁶ (see Supplementary Table 1 for examples), which are absent in microglia. ²⁷ Endothelial cells were readily identified forming the inner lining of the vasculature ⁴ and pericytes were identified on the abluminal surface of endothelial cells on capillaries, with which they share the basement membrane. Both have protruding cell bodies and long processes.^20,28 Astrocytes were identified by their perivascular location, their electron lucent appearance compared to other cell types, and by their extensive processes.^20,28 In general, the 3D cell segmentation in the MICrONS dataset assisted with cell identification.

Perivascular macrophages (PVMs) and perivascular fibroblasts (PVFs) were identified as previously described ⁴ (see Supplementary Table 2 for a list of PVMs and PVFs in our analysis and Supplementary materials/Supplementary Fig. 1 for more information on how PVMs were distinguished from microglia).

Annotation of microglia

Specific locations within the Cortical MM^3 dataset were identified using a point annotation tool placed at x, y, z coordinates. These coordinates were used to determine distances between different annotations. Microglia were identified and annotated by navigating each z-plane within the ROIs. The centre point of each microglia was located by finding the middle z-plane of each microglial nucleus, then annotating the centre of the nucleus at that z-plane by eye. The nearest blood vessel to each microglia was determined by the distance between the annotation placed at the centre of the microglia and an annotation placed at the edge of the nearest blood vessel. Blood vessel annotations were placed on the outer edge of the basement membrane.

Annotation of microglial plugs and fenestrations

Locations where microglia directly contact the vasculature through gaps between two or more adjacent astrocyte endfeet were defined as microglial ‘plugs’. We initially identified plugs with the aid of the coloured segmentation, which enabled us to track microglia processes and the vasculature within greyscale 2D EM images. We note the segmentation is not always accurate (Figure 1(g)),^4,20 so the ultrastructure was also carefully scrutinized to confirm if processes belonged to microglia. 12 microglia were unable to be assessed due to poor segmentation. If clear separation could be seen between two close adjacent plugs, they were counted separately. However, if they filled the same gap between astrocytic endfeet, they were counted as one plug. We also assessed where microglia may be contacting the vasculature through gaps in a single astrocyte endfoot, contacts we define as ‘fenestrations’.

Possible plugs and fenestrations were first annotated by GPM, before being reviewed by an independent researcher with prior experience analysing electron microscope datasets (SG). If researchers disagreed or were not convinced about the validity of a plug, it was removed from the dataset. Each plug’s centre point was determined by finding the central point of contact with the vasculature in the middle z-plane and placing an annotation. If the plug process was bifurcated at the middle z-plane, the centre point was placed in the part of the plug closest to the microglia cell soma.

To determine the nearest arteriole or venule to the capillary with plugs, we traced the least number of capillary orders to a larger vessel, always counting from the ascending venule. The few examples of plugs we found 9 orders away from the venule may be closer to a venule (or an arteriole) elsewhere in the brain (Figure 4(c)). However, this could not be confirmed because the ROIs we selected were near the edge of the EM volume, so some of the blood vessels extended into territories outside the dataset.

Annotation of microglial centrioles

Microglia centrioles were mostly found in the vicinity of the nucleus by first locating the Golgi apparatus that surrounds them (Figure 6(b) and (c)). They are cylindrical and exist in pairs at right angles to each other. In some cases, the centriole pair was located far from the nucleus within one of the larger microglial processes.

Quantification of plug-adjoining astrocytic endfeet and plug area

The number of astrocyte endfeet surrounding each microglial plug was determined with the aid of the coloured segmentation and by inspecting the ultrastructure. We assessed all z-planes where plugs were present, due to their 3D structures.

To approximate microglial plug area, the number of z-planes each plug spanned was determined. At the middle z-plane, the line annotation tool was used to trace the length of contact. Where it was not possible to assess width at the centre point (due to artefacts e.g. tissue folds), we assessed width at the z-plane directly prior to, or after, the artefact (whichever plane the contact point was wider on). These two distances were used to calculate the area of an ellipse (area = π × r₁ × r₂).

Quantification of vascular cells that microglial plugs most frequently contact

The identity of vascular cells contacted by each plug was determined. Endothelial and pericyte soma were defined as the region of the cell containing the nucleus, which were readily identifiable in the EM images, and processes were defined as any other parts of the cells.

In vivo two-photon microscopy of microglia surveying nearby capillary pericytes

All animal procedures were approved by the Animal Ethics Committee, University of Tasmania (A18608 and A23735) and conformed with the Australian National Health and Medical Research Council (NHMRC) Code of Practice for the Care and Use of Animals for Scientific Purposes, 2013 (8th Ed.). All results are reported in accordance with the ARRIVE guidelines. ²⁹

To investigate microglial surveillance near pericytes, we analysed in vivo two-photon microscopy data from a subset of NG2DsRed × CX3CR1^+/GFP mice (n = 2) that had been implanted with cranial windows at 12-weeks of age in our previous study ¹² . See Supplementary materials for details on the generation of NG2DsRed × CX3CR1^+/GFP mice and for imaging and analysis methods used to produce Video 1.

Statistical analysis

Data were processed in Microsoft Excel and statistical analyses were performed using GraphPad Prism 10.1.2 (GraphPad, USA). Data were tested for normality using the D’Agostino & Pearson test. Nuclear-centrosome (NC) lengths of non-plug and plug-forming microglia were not normally distributed and were compared using a Mann–Whitney test. NC lengths in all three ROIs were also not normally distributed so were compared using a Kruskal-Wallis test, followed by a Dunn’s post-hoc test. Overall ANOVA results are reported in the figure legend and results of the post hoc test are represented in the figure and reported in the results text. NC length was compared to nucleus to vessel distance using a Spearman correlation as data was not normally distributed. A p < 0.05 was considered statistically significant. Data are presented as frequency distributions, mean ± standard deviation (SD), or median + range (see figure legends for details). The raw data supporting the findings of this study are provided in Supplementary Table 3. We note that all data in this study, excepting the in vivo two-photon microscopy videos and associated images, are derived from the Cortical MM^3 dataset produced by the MICrONS consortium. ²¹

Results

The majority of plug-forming microglia are in close proximity to the vasculature

Although evidence has previously been provided that microglia may directly contact the vasculature,^{2,12 –19} there are no prior studies formally quantifying the frequency, number, size or location of microglial contacts with the vasculature using tools with sufficient resolution, such as electron microscopy. We took advantage of the publicly available Cortical MM^3 electron microscopy dataset ²¹ to obtain quantitative information regarding the ultrastructural nature of microglial contacts with the cerebral vasculature (Figure 1). The dataset provided sufficient resolution to observe microglial contacts with the vasculature that are below the limit of detection of other tools. In addition, the dataset is large enough to determine differences along the entire vascular tree.

We first placed three ROIs encompassing a penetrating arteriole, an ascending venule and the capillary bed between them. Collectively, these ROIs covered ∼3.6% of the total dataset volume. Within these ROIs we found 307 microglia (Figure 2(a)). 28.7% were in the venule ROI, 39.4% in the capillary ROI and 31.9% in the arteriole ROI. 54.4% of all microglia had their nuclear centre point within 10 µm of a blood vessel, and 17.8% of all microglia were <2.5 µm from a blood vessel. The average distance of microglia to capillaries was 9.7 µm. This data highlights the close spatial relationship between microglia and the cerebral vasculature (Figure 2(b) to (d)).

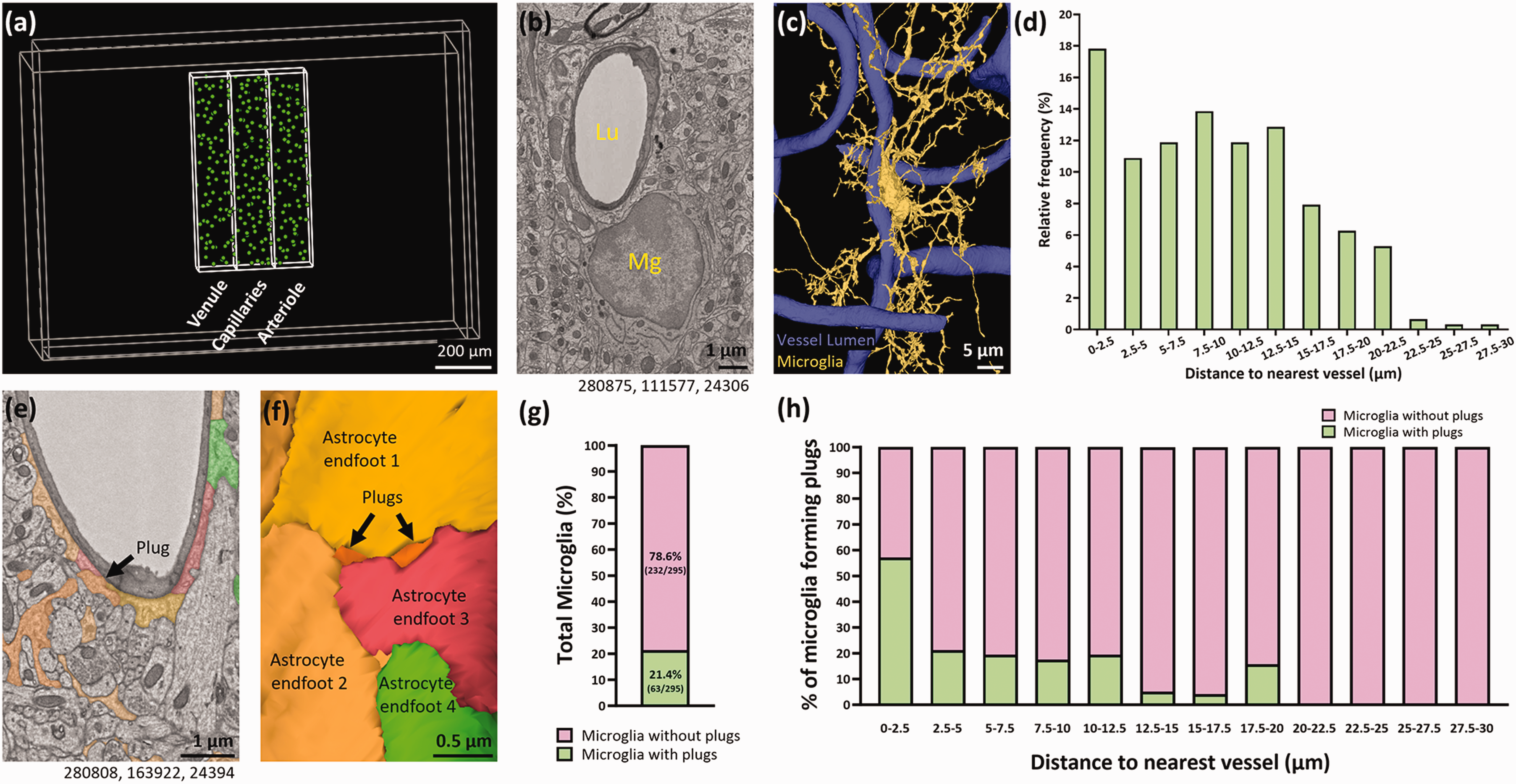

Figure 2.

Microglia residing close to blood vessels are more likely to form plugs between astrocyte endfeet. (a) Annotations (green) showing the nuclear location of all microglia found in the venule, capillary and arteriole regions of interest. (b) Representative example of a microglia (Mg) in close proximity to a blood vessel (Lu = vessel lumen). (c) 3D reconstruction of (b). (d) The relative frequency of microglia binned by distance to vessel. (e) Representative example of a microglial plug between two separate astrocyte endfeet. (f) 3D reconstruction of (e). The plug in (e) is the plug on the right in (f). (g) The percentage of total microglia that form at least one plug. (h) The percentage of microglia that form at least one plug binned by the distance of their nuclear centre point to the nearest blood vessel. Numbers beneath figures (b) and (e) are xyz coordinates from the Cortical MM^3 dataset.

We found 21.4% of all microglia had at least one process directly contacting a blood vessel through gaps between adjacent astrocyte endfeet (Figure 2(e) to (g)). We termed these contact points ‘plugs’. Of the microglia that form a plug, 57.1% were less than 2.5 µm from a blood vessel, but this percentage decreased the further microglia were away from the vasculature (Figure 2(h)). This suggests the closer microglia are to the vasculature, the more likely they are to form plugs.

Microglia may also contact the vasculature directly by penetrating single astrocyte endfeet, which we define as ‘fenestrations’. We found very few convincing examples of these types of contacts. For example, we found one potential contact through a hole in an individual endfoot (Supplementary Fig. 2). However, for this and other examples, we were unable to conclusively determine if microglia were contacting the vessels through fenestrations, as the astrocyte endfoot may have simply become so thin that it is no longer discernible. ⁴ Considering the lack of conclusive evidence that true fenestrations exist in astrocyte endfeet, we restricted our analysis to microglial plugs between endfeet, which provided more convincing evidence of the direct contact between microglia and the cerebral vasculature.

Plugs are most frequently found close to microglia soma

Although microglia soma are generally smaller than soma of other cell types residing in the brain, their processes can reach >20 µm into the surrounding tissue. Given both microglia soma and their processes can spatially associate with the vasculature, this provides significant opportunities for plugs to form. We therefore next determined how many plugs microglia can form, and which parts of microglia most frequently form plugs.

The median number of plugs formed by plug-forming microglia was 2, and the most formed by a single microglia was 17 (Figure 3(a) to (c)). Almost half of all plug-forming microglia formed just one plug (29/63, 46%), but 19% (12/63) formed five or more plugs (Figure 3(d)). Of the 186 plugs found, 64% were formed <10 µm from the centre of a microglia nucleus (Figure 3(e) to (g)). The furthest plug was 45.9 µm from its corresponding nucleus, but only 12.4% of plugs were >20 µm from the nucleus. It was also notable that all microglia with >5 plugs were within 5 µm of a blood vessel (Figure 3(h)). Collectively, these results suggest plugs most commonly form near the microglia soma, and that the closer a microglia soma is to the vasculature, the more plugs it is likely to form.

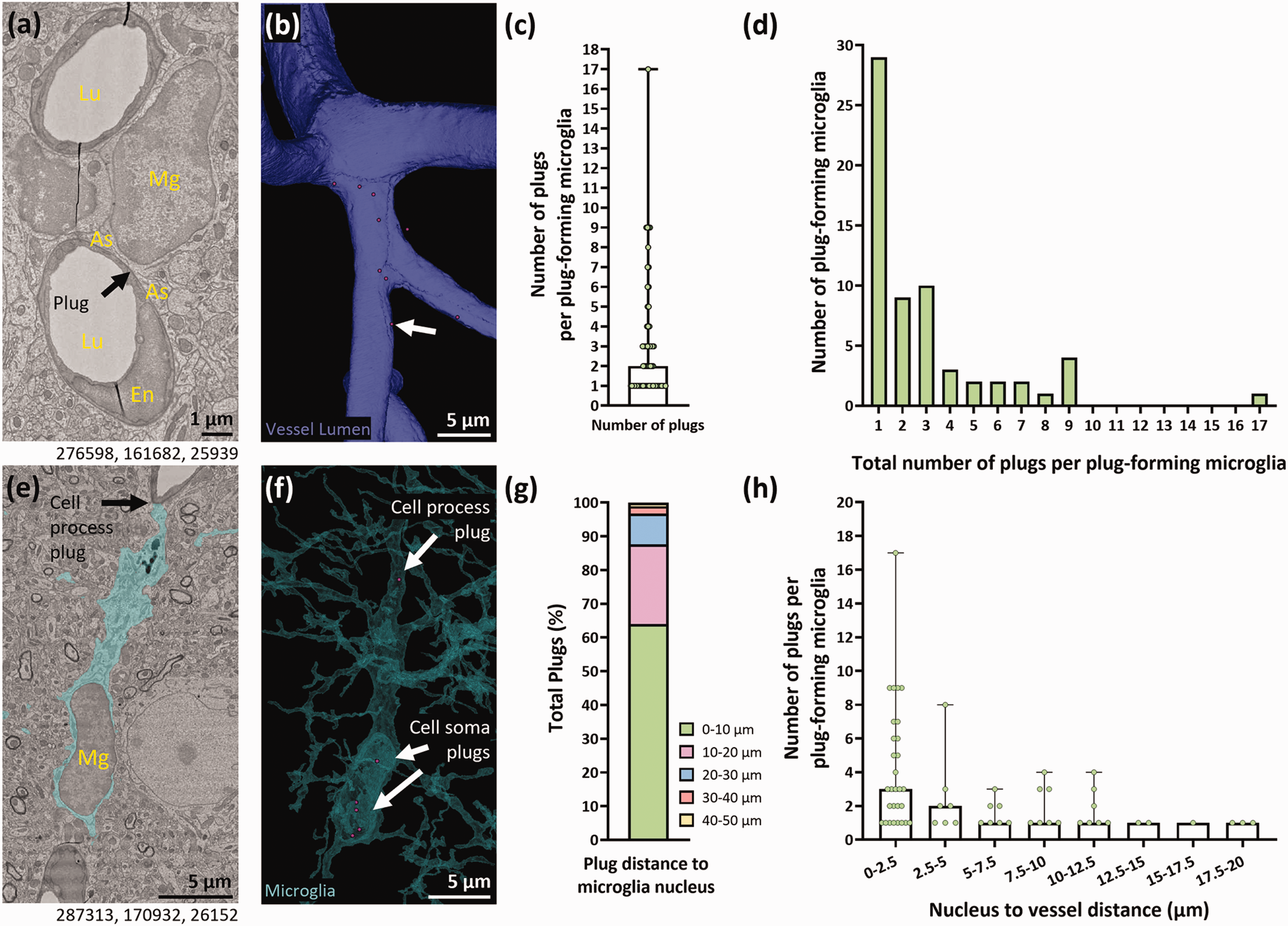

Figure 3.

Plugs predominantly form near the microglial soma and microglia closer to the vasculature form more plugs. (a) Representative example of a plug-forming microglia (Mg) adjacent to a blood vessel (Lu = vessel lumen). As = astrocyte. En = endothelial cell. (b) 3D reconstruction of the capillary lumen from (a) showing the location of plugs (magenta circles) formed by the microglia. (c) Quantification of the average number of plugs per plug-forming microglia (median + range). (d) Quantification of the number of plug-forming microglia that form between 1–17 plugs. (e) Representative example of a plug-forming microglia (Mg) with several plugs at the cell soma, and one plug formed at the process. (f) 3D reconstruction of microglia in (e) with the location of plugs (magenta circles) relative to the microglia soma and processes. (g) Quantification of the total percentage of plugs formed at various distances from the microglia nucleus. (h) Quantification of the number of plugs binned by the distance of plug-forming microglia to the nearest vessel (median + range). Numbers beneath figures (a) and (e) are xyz coordinates from the Cortical MM^3 dataset.

Microglial plugs are more prevalent at the venule end of the vascular tree

We next aimed to determine where on the vascular tree microglial plugs were most likely to form, which may provide clues about their function. We found no examples of plugs on either the arteriole or venule in our ROIs. Of the 186 plugs found, 70% formed on 1st to 3rd capillary branch orders away from the venule, with the number of plugs declining thereafter (Figure 4(a) to (c) and Supplementary Fig. 3(a–b)). It is possible the higher prevalence of microglia <2.5 µm from a blood vessel in the venule ROI compared to the arteriole and capillary ROI (24.1% vs. 13.4% and 16.8% respectively, Supplementary Fig. 4(a–c)) may have influenced the total number of plugs near the venule. However, considering there were ∼8-fold more plugs in the venule ROI compared with the arteriolar ROI (Supplementary Fig. 3(b)), this seems unlikely to be the sole reason for the higher prevalence of plugs at the venule end of the vascular tree. Although we found plugs in the arteriole ROI, most plugs were closer in capillary branch order to the venule than the arteriole, therefore, for our dataset we show capillary order relative to the venule (Figure 4(a) to (c)). Collectively, our data suggests plugs may be more common at the venule end of the vascular tree, rather than at the arteriolar end.

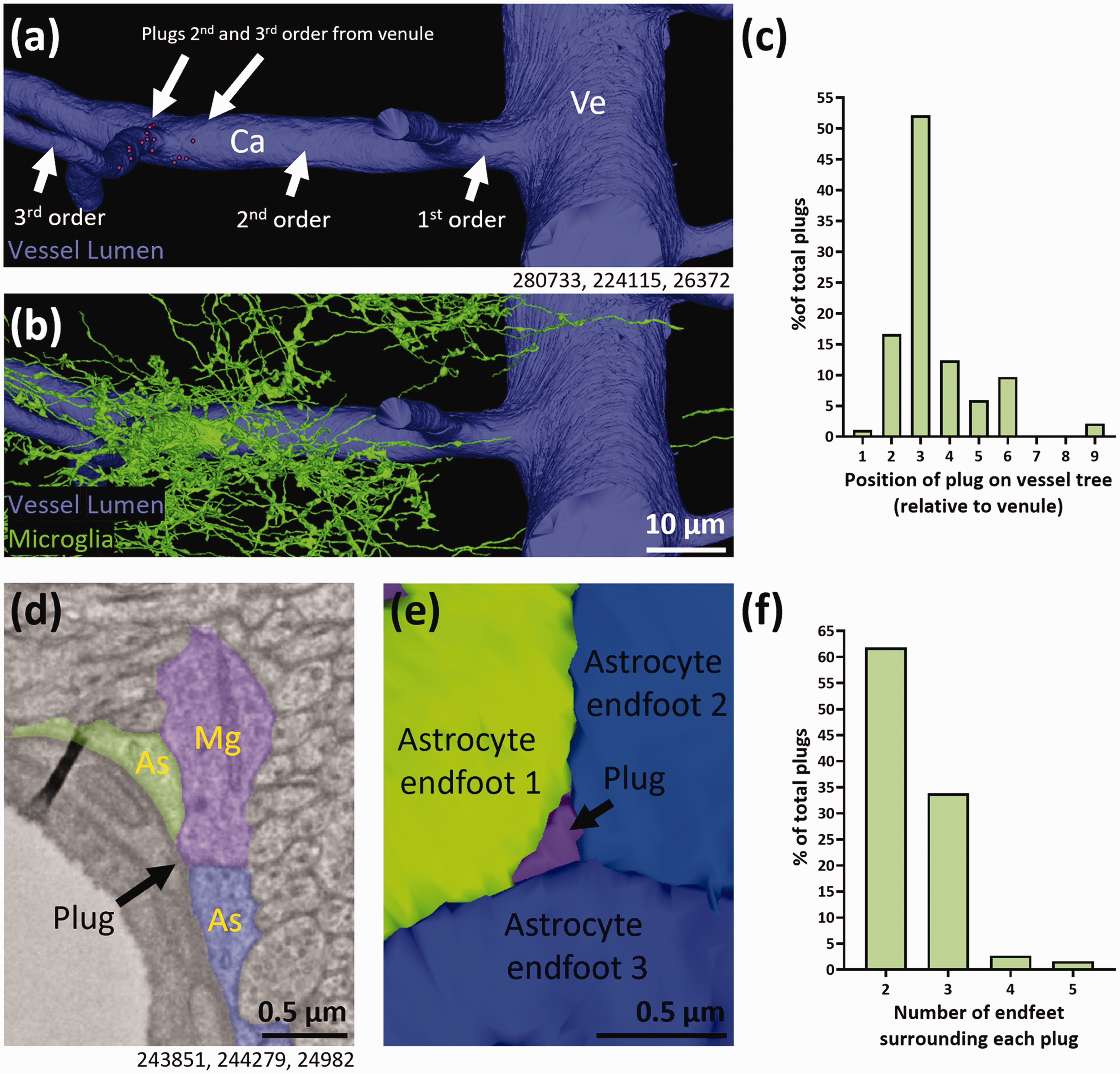

Figure 4.

Microglial plugs predominantly form closer to the venule end of the vascular tree and are predominantly surrounded by 2 or 3 astrocyte endfeet. (a–b) 3D reconstruction of the microglia and vessel in Supplementary Fig. 3(a) with locations of plugs (magenta circles) on 2nd and 3rd order vessels away from a venule (Ve), without (a) and with (b) the microglia. (c) Quantification of the total percentage of microglial plugs at different levels of the vascular tree relative to the venule. (d) Representative example of a plug-forming microglia (Mg) between three astrocyte (As) endfeet. (e) 3D reconstruction of (d) showing the astrocyte endfeet with the microglial plug between them. (f) Quantification of the total percentage of microglial plugs with differing numbers of astrocyte endfeet surrounding them. Numbers beneath figures (a, d) are xyz coordinates from the Cortical MM^3 dataset.

Microglial plugs are most commonly surrounded by two astrocyte endfeet

Astrocyte endfeet are predicted to form in a Voronoi-like tessellation pattern. ³⁰ Within such a pattern it is possible multiple endfeet can meet at the same point. We therefore next determined how many separate astrocyte endfeet were surrounding each of the plugs in our dataset. Microglial plugs were most commonly surrounded by two separate astrocyte endfeet (61.8%, Supplementary Fig. 5(a), Figure 4(f)), but were also often surrounded by three endfeet (33.9%, Figure 4(d) to (f)). We also found eight examples of plugs surrounded by as many as 4 or 5 endfeet, although these were rarer (2.7% and 1.6%, respectively, Supplementary Fig. 5(b)).

Microglial plugs typically have a small surface area

Inspired by previous work which quantified endothelial and pericyte peg-and-socket size, ³¹ we next determined the surface area of plug contact points on the vasculature to better understand plug diversity. The vast majority of plugs had a surface area <1 μm² (95.2%), with only a small proportion >1 μm² (4.8%, Figure 5(a) to (g)). Further segregation of the data showed that of the plugs with a surface area <1 μm², 83.6% of them were <0.1 μm² in surface area (Figure 5(h)). The small number of plugs that were ≥1 μm² ranged in size from 1.3 μm²–14.3 μm² (Figure 5(d) to (f), (i)), illustrating they can vary hugely in size, but that the majority are relatively small (<0.1 μm²) in surface area.

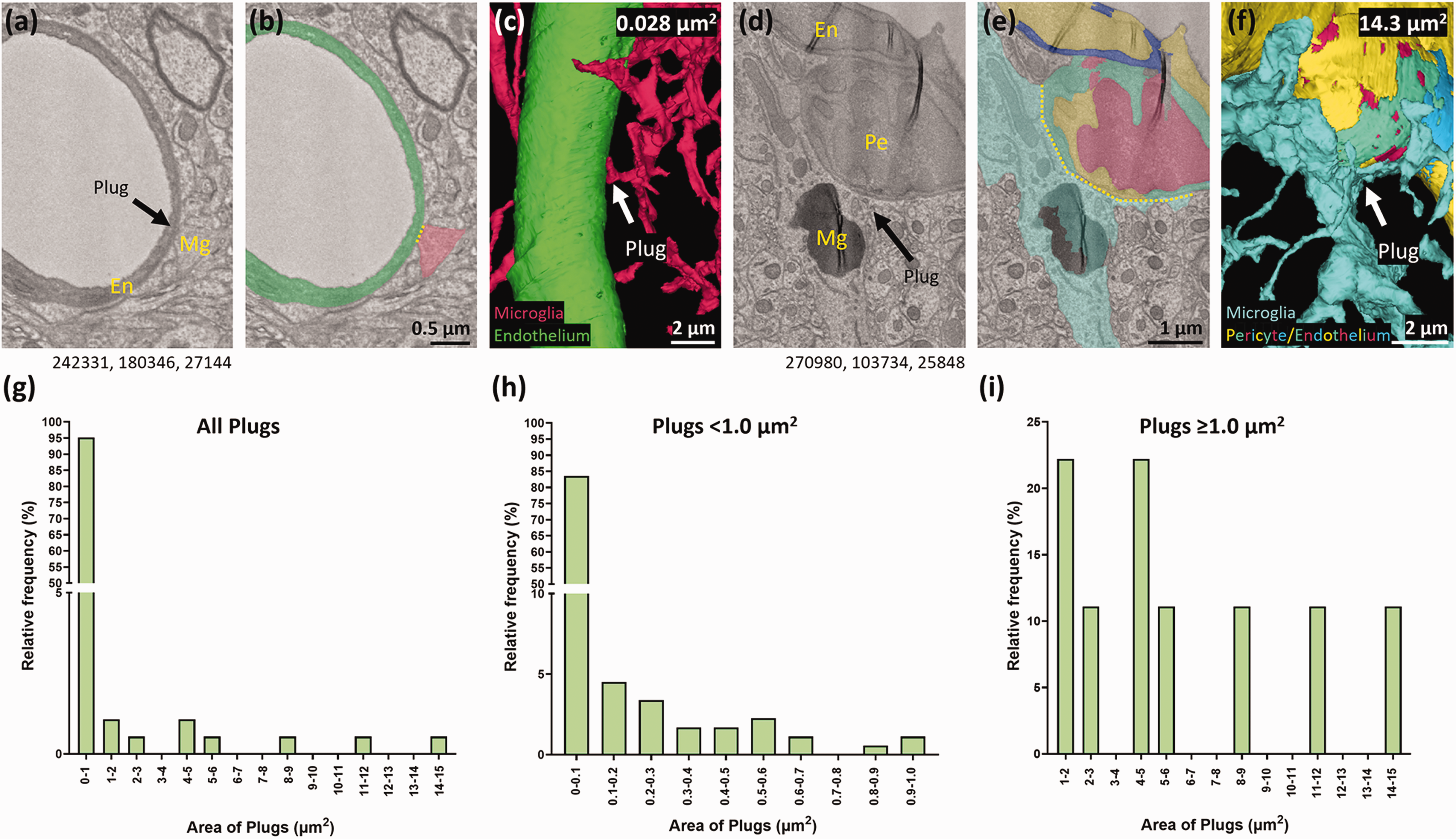

Figure 5.

Microglial plugs exhibit a large range of surface areas, but the majority are <0.1 μm². (a) Representative example of a microglial (Mg) plug with a small surface area, on an endothelial cell (En). (b) Segmentation of the microglia and the endothelium from (a). (c) 3D reconstruction of the microglia and the endothelium from (a). (d) Representative example of a microglial (Mg) plug with a large surface area, on a pericyte (Pe). (e) Segmentation of the microglia and pericyte from (d). (f) 3D reconstruction of the microglia and pericyte from (d). Yellow dotted lines indicate the width of the contact point in a single z-plane. (g) Quantification of the relative frequency of the surface area of all microglial plugs. (h) Quantification of the relative frequency of microglial plugs <1.0 μm² in surface area. (i) Quantification of the relative frequency of microglial plugs ≥1.0 μm² in surface area. Numbers beneath the figures (a) and (d) are xyz coordinates from the Cortical MM^3 dataset.

Microglia plugs may be transient

It is understood that microglia processes are constantly surveying their microenvironment.^32,33 Microglia soma can also shift over the course of several hours or weeks,^{33 –35} with many of these movements associated with blood vessels. ³⁵ To illustrate that microglia-vascular contacts may be transient, we used in vivo two-photon microscopy to image microglia soma and processes spatially associated with pericytes on blood vessels at the arteriole and venule ends of the vascular tree, and within the capillary bed, through cranial windows implanted in NG2DsRed × CX3CR1^+/GFP mice. Microglia (CX3CR1^+/GFP) and pericytes (NG2DsRed) were repetitively imaged over 7-minute periods. These images revealed microglia processes actively extending and retracting toward pericyte soma and processes on the cerebral vasculature over a brief timeframe (Figure 6(a), Video 1). One caveat to this is that many of the plugs we identified in the EM dataset are <1 μm² and may therefore be beyond the limit of detection using two-photon microscopy. However, these results highlight how microglia-vessel plugs may be transient, but we cannot rule out that some contacts may be long-lasting.

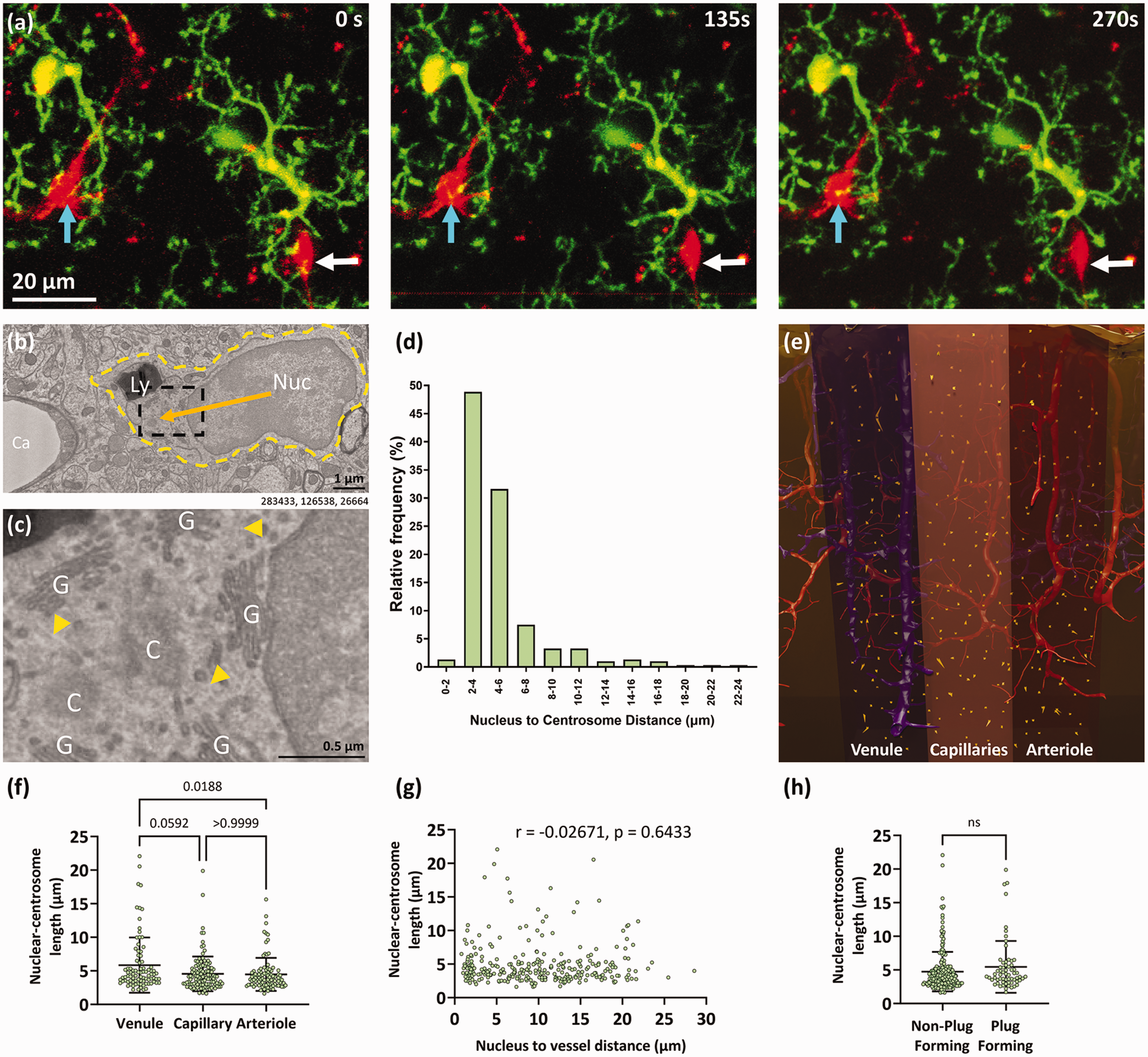

Figure 6.

Microglial plugs may be transient. (a) 23 μm thick projection images of NG2DsRed-positive pericytes (red) and CX₃CR1^+/GFP-positive microglia (green) in layers II/III of the somatosensory cortex of a 5-month-old female NG2DsRed ×CX₃CR1^+/GFP mouse imaged using in vivo two-photon microscopy. Cyan arrows indicate a microglia process moving toward a pericyte soma over time. White arrows indicate a microglia process moving away from a pericyte soma over time. These examples are derived from images used in Video 1. (b) Representative example of a microglia (Nuc = nucleus, Ly = lysosome, yellow dashed outline = outline of the cell) near a capillary (Ca). The orange arrow indicates the nuclear-centrosome (NC) length. (c) Enlargement of dashed black square in panel (b). Microglial centrioles (C) are surrounded by the golgi network (G). Microtubules (yellow arrowheads marking faint lines) radiate from the centrioles. (d) Quantification of the relative frequency of different NC lengths for all microglia in the dataset. (e) Schematic view of the Cortical MM^3 volume highlighting the regions of interest we analysed and the NC lengths of microglia (orange arrows) within these regions. The shaded areas denote the different regions analysed. See Supplementary Fig. 6 for wider top-down and side views of where the regions of interest are in the volume. (f) Quantification of NC length of microglia in the venule, capillary and arteriole regions (analysed with a Kruskal-Wallis test; Kruskal-Wallis statistic = 8.442, p = 0.0147), with Dunn’s post hoc test (mean ± SD). (g) Correlation of NC length and microglia nucleus to the edge of the nearest vessel length (Spearman correlation). (h) Quantification of NC length in non-plug-forming and plug-forming microglia (mean ± SD). Numbers beneath figure (b) are xyz coordinates from the Cortical MM^3 dataset.

Unfortunately, microglia soma and process motility cannot be inferred from static EM images. However, the orientation of the nuclear-centrosomal (NC) axis may provide a proxy metric for the direction cells may be migrating in, as the centrosome is thought to be located between the leading edge of migration and the nucleus in several cell types, with the nucleus shifting toward the back of the migrating cell.^{36 –38} This axis has been used to assess microglia migration in vitro ³⁶ and the movement of the centrosome into one branch of a microglia can predict microglia phagocytosis in zebrafish in vivo. ³⁹ We found the location of the centrosome in each microglia (Figure 6(b) and (c)) to determine the NC distance. The average NC distance was 4.9 ± 3.1 μm (Figure 6(d) and (e), Video 2). In microglia with longer NC lengths (i.e. >7 μm), the centrosome was generally positioned in a large process emanating from the cell body (see Video 3), which may suggest these processes are moving toward a target (see Supplementary Table 3 for all centriole coordinates). In our dataset, microglia within the venule region had longer NC lengths than those in capillary and arteriole regions (5.8 ± 4.1, 4.6 ± 2.6 and 4.5 ± 2.5 μm, respectively, Figure 6(d) and (e)). However, there was no correlation between NC length and proximity of microglia nuclei to vessels (Figure 6(f)). Furthermore, we found no difference in the NC length between plug- and non-plug-forming microglia (5.5 ± 3.9 vs. 4.7 ± 2.9 μm, Figure 6(h)). If NC length is considered a proxy of microglial motility, or movement toward a target, our data suggests there is no clear evidence plug-forming microglia are moving differently to non-plug forming microglia.

Microglial plugs contact both endothelial cells and pericytes

Due to their close spatial association with blood vessels, microglia may contact different cellular elements of the vasculature. Their location on the vascular tree can dictate the types of cells microglia may come into contact with. For example, pericytes are present throughout the capillary tree in the brain. Furthermore, perivascular fibroblasts (PVFs) and perivascular macrophages (PVMs) are found on large ascending venules, penetrating arterioles, and first-order capillaries, with some processes reaching third-order capillaries, but are rarely found elsewhere on the vascular tree.^4,40

In our dataset, the most frequently contacted cells by microglial plugs were endothelial cells (69%, Figure 7(a) to (c)), followed by pericytes (24%, Figure 7(c) to (e)), with some microglial plugs contacting both endothelial cells and pericytes at the same time (7%). We did not find any plugs contacting either PVFs or PVMs (see Supplementary Table 2 for location of PVFs and PVMs in our ROI). We further probed the dataset to determine where plugs on endothelial cells and pericytes were most prevalent. Most plugs were directly on endothelial cell (62%, Figure 7(b) and (f)), and pericyte (23%, Figure 7(e) and (f)) processes. There were occasional contacts with both endothelial soma (5%, Figure 7(a) and (f)) and pericyte soma (1%, Figure 7(d) and (f)), and some plugs contacted multiple cellular elements at the same time (Figure 7(f)).

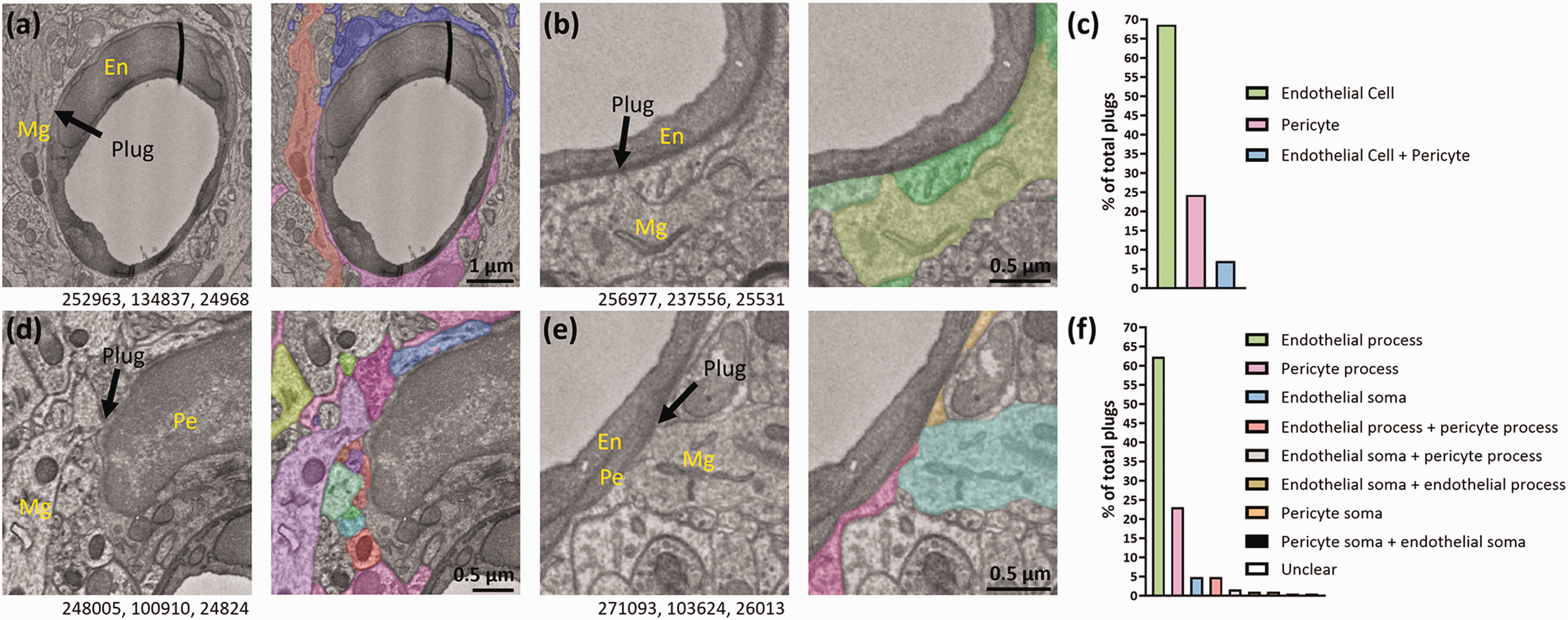

Figure 7.

Microglial plugs contact both endothelial cells and pericytes. (a) Representative example of a microglia (Mg) contacting an endothelial cell nucleus (En). Image to the right shows the astrocyte endfeet and microglial plug, in colour. (b) Representative example of a microglia contacting an endothelial process. Image to the right shows the astrocyte endfeet and microglial plug, in colour. (c) Quantification of the percentage of all microglial plugs that contact endothelial cells and pericytes. (d) Representative example of a microglia contacting a pericyte (Pe) soma. Image to the right shows the astrocyte endfeet and microglial plug, and several plugs from other cell types, in colour. (e) Representative example of a microglia contacting a pericyte process. Image to the right shows the astrocyte endfeet and microglial plug, in colour. (f) Quantification of the percentage of all microglial plugs contacting different locations on each cell (e.g. soma or processes) of endothelial cells or pericytes. Numbers beneath the figures are xyz coordinates from the Cortical MM^3 dataset for each representative image.

Discussion

This study used the largest publicly available 3D EM dataset of a mouse brain to investigate the ultrastructural relationship between microglia and the cerebral vasculature. Consistent with previous reports in the brain^12,13,15,19 and retina, ⁴¹ we observed a close spatial relationship between microglia and the vasculature in the Cortical MM^3 dataset. Over 50% of microglia were found residing within 10 μm of the vasculature, and ∼18% of microglia were within 2.5 μm of the vasculature. The furthest distance between the centre of a microglia soma and a vessel edge was 28.6 μm, which fits with reported average inter-capillary distances of ∼40–60 μm in mammalian cortices.^42,43 Considering microglia were 9.7 μm from capillaries on average, this suggests the majority of microglia prefer to reside spatially closer to vessels than away from them. Despite this close spatial relationship, only ∼1 in 5 microglia formed plugs with the vasculature through gaps between adjacent astrocyte endfeet, suggesting most microglia are not actively contacting vessels through these gaps at any given time.

Although we restricted our analysis to microglia-vessel contacts that occurred between adjacent astrocyte endfeet, we cannot rule out that microglia may contact blood vessels through holes in individual astrocyte endfeet (contacts we term ‘fenestrations’). We probed the dataset for examples of such contacts but found little convincing evidence that they exist. The primary reason for doubt is that astrocyte endfeet can become so thin that they blend into the surrounding plasma and basement membranes, making it impossible to determine if there is truly a lack of an endfoot.

In our study we found no microglial plugs on the venule or arteriole, only on capillaries. Evidence suggests arterioles have the thickest endfeet dimensions surrounding them, followed by venules and then capillaries.^3,44 It is possible plugs are present on capillaries rather than arterioles and venules due to thicker astrocyte endfeet inhibiting plug formation. We do not know the significance of our finding that plugs commonly occur at inter-endfoot junctions containing 2–3 endfeet. This may be governed by the relative frequency of such junctions (i.e. 2 or 3 endfeet at a junction might be the most common occurrence). In support of this theory, we have previously found that astrocyte endfeet form sharp lines between them in a Voronoi-like pattern, which means most junctions will be between 2 or 3 astrocyte endfeet. ⁴

It was notable that 95% of microglial plugs covered <1 μm² in surface area. However, 3.8% of plugs were >2 μm² and appeared to essentially take the place of astrocyte endfeet over large stretches of the vasculature. For biological context, proteins as large as 500 kDa have a predicted radius of ∼5 nm. ⁴⁵ Extracellular vesicles capable of carrying proteins, lipids and nucleic acids can range in diameter from as small as 30 nm to as large as 4 μm. ⁴⁶ The smallest plug in our dataset had a diameter at the centre z-plane of ∼40 nm and the median diameter of all our plugs was ∼160 nm. Collectively, this data suggests microglial plugs have biological relevance as they are large enough to enable the passage of small to large extracellular vesicles between microglia and cells of the vasculature.

We do not yet know how dynamic microglial plugs are. It is possible they constantly change size and shape and that plug formation is dynamic. It is also possible inter-endfeet gaps grow and shrink as recently suggested by others, ³ adding another layer of complexity. However, it is equally plausible some contacts may be more permanent, or that plug formation occurs regularly at specific ‘hotspots’. Studying plug dynamics using in vivo two-photon microscopy will be an important future direction, but it is imperative to highlight that many of the smaller plugs are likely below the limits of resolution of two-photon microscopes, which is ∼500 nm in xy and ∼2–3 μm in z. Therefore, ultrastructural analyses will remain important to better define how microglial plugs change in different physiological and pathological conditions.

A proportion of microglia soma are actively migrating at any given time, with one previous study suggesting ∼5% of microglia soma shift 1–2 μm over the course of 10 h. ³³ Other studies suggest ∼15% of microglia soma shift >5 μm over the course of days to several weeks.^34,35 Interestingly, as many as half of these migratory movements may be associated with blood vessels. ³⁵ Determining migration in static EM images is clearly challenging, however evidence suggests the nuclear-centrosome (NC) axis may provide a surrogate of cell migration in many cells, including microglia.^36,39,47 Although a role for the centrosome in microglia migration has not been definitively established, there is one report that microglia centrosomes can move up to 2 µm/min toward apoptotic neurons in the zebrafish optic tectum 3 days post-fertilisation in vivo. ³⁹ In contrast, there is some evidence centrioles are in the central part of the cell when macrophages migrate in vitro and therefore might not be connected to migration, ⁴⁷ however this evidence is from 2D cultured cells that migrate without significant tissue resistance. We found no evidence to support a difference in NC length between plug and non-plug forming microglia. This suggests that if NC length is a proxy marker of microglia motility, then there is no significant difference in motility between plug and non-plug forming microglia.

As the vasculature is surrounded by the basement membrane, ⁴⁸ any contact plugs make with cells of the vasculature also involve contact with the basement membrane. However, the thickness of the basement membrane is difficult to determine at sites of microglia-vascular contact as it blends into the plasma membrane of both microglia and cells of the vasculature in the EM dataset. Pericytes, astrocytes and endothelial cells bind to the basement membrane through integrin or dystroglycan receptors, ⁴⁸ but it is not clear if microglia are also capable of doing so. There is however some evidence microglia can form tight junctions with endothelial cells during inflammation, ¹⁶ so it will be important to determine if this is also occurs in normal physiology.

Microglial plugs were ∼3-fold more common at endothelial cells than pericytes, which may be explained by how much of the surface area of the cerebral vasculature is covered by pericytes. Some estimates suggest ∼22–30% of the cerebral vascular surface is covered by pericytes, ⁴⁹ which fits neatly with there being ∼3-fold more plugs at endothelial cells, suggesting microglial plugs have no clear preference for either cell type. However, others suggest higher coverage, ⁵⁰ and it is worth noting pericyte coverage is likely higher at the arteriole end of the capillary tree where ensheathing pericytes are present, ⁵¹ compared to the venule end of the capillary tree which contains thin-strand and mesh pericytes. More work is therefore required to definitively determine if microglial plugs have a preference for contacting either endothelial cells or pericytes.

There were three plugs contacting pericyte soma and it was notable that at all three locations, the pericytes were also contacted by plugs from other cell types (see Figure 7(d) for an example). These observations suggest some pericyte soma may have a specific lack of astrocyte endfoot coverage, allowing parenchymal cells access to pericytes without the structural interference of astrocytes. This finding is in agreement with a previous report suggesting the endfoot coverage of pericytes may be incomplete, in contrast to the coverage of endothelial cells. ²

Microglial plugs may have many functions. One of the striking findings in this work was that plugs were more prevalent on capillaries toward the venule end of the vascular tree, on capillary orders often referred to as post-capillary venules. ⁵² This finding raises intriguing functional implications due to the differing functions of blood vessels across the vascular tree. For example, nanoparticles have been shown to enter the brain via post-capillary venules that project onto ascending venules ⁵² and in muscle vasculature, immune cells traffic into tissue at the venule end of the capillary tree, a process which is facilitated by shape changes in pericytes. ⁵³ It is therefore attractive to suggest immune cells could traffic into the CNS at the venule end of the capillary tree. ⁵⁴ The presence of plugs at these locations therefore suggest microglia may functionally interact with immune cells extravasating from the venule end of the capillary tree.

Furthermore, microglial plugs may play a role in water homeostasis and waste removal in and out of the brain via the glymphatic system, ⁵⁵ by plugging gaps where fluid flow could occur. Alternatively, microglia may present antigens to the glymphatic system through these plugs. A previous study suggested microglial processes that are in close association with the vasculature express MHC class I and II after intravenous administration of cytokines in rats, which fits with this hypothesis. ¹⁸ One caveat to these ideas however is that it is not yet known if glymphatic flow occurs around capillaries, having predominantly been studied in larger vessels.

It has recently been suggested microglia may play roles in the regulation of blood flow.^12,13,15,41 Furthermore, microglia have been identified as a major source of platelet derived growth factor B (PDGF-B), ⁵⁶ a key molecule for pericyte homeostasis ⁵⁷ and BBB integrity. ⁵⁷ Considering these findings, it is attractive to suggest plugs may serve as an area through which microglia can release chemical mediators to influence pericytes and endothelial cells, thereby indirectly influencing vascular function. That being said, it is possible some chemical mediators may be released from microglia and diffuse across astrocyte endfeet,^23,58 which would bypass the need for direct microglia-vessel contact, so we cannot rule out cross-talk outside of where plugs occur.

BBB integrity is thought to be controlled by the co-ordinated actions of multiple cells including endothelial cells, astrocytes, pericytes, as well as extracellular components including the glycocalyx and the basement membrane ⁵⁹ , but a role for microglia in BBB integrity and protection is not often discussed. It is possible plugs provide redundancy for astrocytes by taking their place at the basement membrane to contribute to BBB integrity and protection when required. Evidence for this is provided by the several large plugs in our dataset essentially replacing astrocyte endfeet over large areas. It is plausible to suggest such a function may become more important during neurological injuries, when the BBB is thought to be compromised. ⁶⁰

Finally, it is well understood that both astrocytes and microglia undergo significant morphological and functional changes in response to brain injuries.^61,62 Around blood vessels in particular, we and others have previously shown that microglia prevalence and/or morphology can become significantly altered in response to various CNS injuries including Alzheimer’s disease, ¹² epilepsy, ⁶³ laser-induced vessel injury, ⁶⁴ stroke, ⁶⁵ systemic inflammation, ¹⁶ traumatic brain injury ⁶⁶ and diabetic retinopathy. ⁴¹ It is therefore logical to hypothesise that the number, size, distribution and function of microglial plugs is likely to change following brain injury or disease.

Our study has several limitations. The primary limitation is that our dataset is derived from one region of a single mouse brain that has undergone a cranial window implantation and two-photon imaging prior to tissue collection and electron microscopy, so therefore it may not fully reflect normal physiology. ²¹ Regretfully, there are no other datasets of similar size and quality currently available to expand our work beyond this biological replicate. For example, although the recently published human “h01” dataset is of a similar size to Cortical MM^3, ⁶⁷ the astrocyte endfeet are severely swollen around the blood vessels in this dataset, impeding our ability to identify microglial plugs. A second possible limitation is that a recent study suggested different methods of tissue processing in preparation for EM imaging can affect astrocyte endfoot coverage of vessels, which if true would likely change the number or size of microglial plugs observed. ⁶⁸ However, the reviewers of that paper raised some important concerns about their cryo-fixation method. Furthermore, it is likely some plugs were missed as the segmentation, which aids the analysis, is not always accurate. As a result, our quantification may have underestimated the prevalence of microglia-vascular contacts. It is also important to note plugs are unlikely to be restricted to microglia, as we observed several examples of other cells also forming plugs between astrocyte endfeet, however we have not formally analysed the cellular origin of these other plugs.

In summary, although astrocyte endfeet cover almost the entire cerebral vasculature, ² this study has established the existence of microglia plugs directly contacting blood vessels between adjacent astrocyte endfeet. Our work provides a platform to begin understanding the formation and dynamics of microglial plugs, as well as their function in brain health and disease.
