Complete inhibition of ABCB1 and ABCG2 at the blood–brain barrier by co-infusion of erlotinib and tariquidar to improve brain delivery of the model ABCB1/ABCG2 substrate [ 11 C]erlotinib

Abstract

P-glycoprotein (ABCB1) and breast cancer resistance protein (ABCG2) restrict at the blood–brain barrier (BBB) the brain distribution of the majority of currently known molecularly targeted anticancer drugs. To improve brain delivery of dual ABCB1/ABCG2 substrates, both ABCB1 and ABCG2 need to be inhibited simultaneously at the BBB. We examined the feasibility of simultaneous ABCB1/ABCG2 inhibition with i.v. co-infusion of erlotinib and tariquidar by studying brain distribution of the model ABCB1/ABCG2 substrate [¹¹C]erlotinib in mice and rhesus macaques with PET. Tolerability of the erlotinib/tariquidar combination was assessed in human embryonic stem cell-derived cerebral organoids. In mice and macaques, baseline brain distribution of [¹¹C]erlotinib was low (brain distribution volume, V_T,brain < 0.3 mL/cm³). Co-infusion of erlotinib and tariquidar increased V_T,brain in mice by 3.0-fold and in macaques by 3.4- to 5.0-fold, while infusion of erlotinib alone or tariquidar alone led to less pronounced V_T,brain increases in both species. Treatment of cerebral organoids with erlotinib/tariquidar led to an induction of Caspase-3-dependent apoptosis. Co-infusion of erlotinib/tariquidar may potentially allow for complete ABCB1/ABCG2 inhibition at the BBB, while simultaneously achieving brain-targeted EGFR inhibition. Our protocol may be applicable to enhance brain delivery of molecularly targeted anticancer drugs for a more effective treatment of brain tumors.

Keywords

Blood–brain barrier P-glycoprotein breast cancer resistance protein brain delivery transporter inhibition

Introduction

Despite great progress in the design of brain-penetrant, small-molecule therapeutics, the achievement of high and prolonged central nervous system (CNS) exposure of drug molecules still remains a major challenge, in particular for certain drug classes, such as molecularly targeted anticancer drugs.¹ One important reason for low and sub-therapeutic CNS exposure is efflux transport by P-glycoprotein (ATP-binding cassette subfamily B member 1, ABCB1) and breast cancer resistance protein (ATP-binding cassette subfamily G member 2, ABCG2). These two transporters are co-localized in the luminal (blood-facing) membrane of brain capillary endothelial cells which are part of the blood–brain barrier (BBB).² They possess an exceptionally broad and largely overlapping substrate spectrum and act as gatekeepers in preventing the brain entry of many small-molecule drugs.³,⁴ Moreover, there is ample evidence for functional redundancy between ABCB1 and ABCG2 at the BBB, i.e. in absence of either ABCB1 activity or ABCG2 activity (e.g. due to genetic knockout or pharmacological transporter inhibition), the remaining transport capacity of the other transporter often suffices to largely restrict CNS exposure of shared (dual) ABCB1/ABCG2 substrate drugs.^3–5 Although major efforts have focused on the design of molecularly targeted anticancer drugs with lack of or diminished ABCB1/ABCG2 efflux liability, this endeavor has only been successful in certain cases (e.g. osimertinib, AZD3759).^6–8 The majority of currently known and newly developed molecularly targeted anticancer drugs is hindered from entering the brain by ABCB1/ABCG2 efflux.³,⁴,⁹ This most often results in lack of efficacy for the treatment of primary or secondary brain tumors, for which a desperate and unmet medical need exists.

The pharmacological inhibition of ABCB1 and ABCG2 has been proposed as a strategy to improve brain access of dual ABCB1/ABCG2 substrate drugs.⁹,¹⁰ Such an approach may not be without risks, as off-target inhibition of ABCB1 and ABCG2 in other organs than the brain, such as excretory organs or the bone marrow, may lead to unwanted side effects and toxicity. Nevertheless, in absence of other effective therapies, such risks may be justified in case of hospitalized, terminally ill patients, for whom controlled transporter inhibition at the BBB may be a viable option for improved treatment of CNS malignancies.

Building on earlier experience with agents developed for the reversal of tumor multidrug resistance,¹¹,¹² several academic research groups have attempted to repurpose these agents for effective transporter inhibition at the BBB. From these efforts, two third-generation transporter inhibitors have emerged as promising agents, i.e. tariquidar and elacridar. While tariquidar mainly achieves ABCB1 (and not ABCG2) inhibition at clinically feasible doses¹³,¹⁴ and is therefore considered unsuitable to significantly enhance the brain distribution of dual ABCB1/ABCG2 substrates in humans,¹⁵,¹⁶ elacridar appears to be equipotent in inhibiting ABCB1 and ABCG2. Several preclinical studies showed that elacridar can effectively increase brain penetration of dual ABCB1/ABCG2 substrates,³ such as the epidermal growth factor receptor (EGFR)-targeted tyrosine kinase inhibitor erlotinib.^17–19 However, elacridar possesses very low oral bioavailability in humans, so that plasma concentrations attained after oral administration were far below the concentrations needed to inhibit ABCB1 and ABCG2 at the human BBB.²⁰ We have recently shown that continuous intravenous (i.v.) infusion of elacridar can inhibit ABCB1 and ABCG2 at the BBB of non-human primates (NHPs) and increase in Papio anubis baboons brain concentrations of [¹¹C]erlotinib, measured with positron emission tomography (PET), to similar levels as muscle tissue surrounding the skull, which points to complete transporter inhibition at the BBB.¹⁸ However, elacridar has very poor water solubility and formulation of the drug for i.v. administration required unacceptably high concentrations of organic solvent (tetrahydrofuran) for human use.²¹ In comparison to elacridar, tariquidar possesses better water solubility and can be formulated for i.v. administration in a solvent suitable for human use.^13–15,²²,²³ PET studies in healthy volunteers showed that tariquidar at i.v. doses up to 6 mg/kg is well tolerated and leads to 4- to 5-fold increases in the brain penetration of the model ABCB1 substrates (R)-[¹¹C]verapamil and [¹¹C]N-desmethyl-loperamide.¹³,¹⁴,²²,²³ Erlotinib is a potent ABCG2 inhibitor²⁴,²⁵ and we have shown that single-dose oral administration of high-dose erlotinib (650 mg) significantly increased the brain penetration of [¹¹C]erlotinib in healthy volunteers, although inhibition/saturation of efflux transport at the BBB was not maximal.¹⁶ We hypothesize that a combination of erlotinib and tariquidar may overcome the limitations of tariquidar, elacridar or erlotinib and provide a clinically feasible strategy to achieve complete inhibition of both ABCB1 and ABCG2 at the BBB resulting in increased brain penetration of ABCB1/ABCG2 substrate drugs, while simultaneously achieving EGFR inhibition in the brain.

In the present work, we used PET imaging with [¹¹C]erlotinib in mice and NHPs (Macaca mulatta) to examine the feasibility of dual ABCB1 and ABCG2 inhibition with a combination of erlotinib and tariquidar. Moreover, the tolerability of combined treatment with erlotinib/tariquidar was assessed in human embryonic stem cell (hESC)-derived cerebral organoids.

Material and methods

Chemicals and drugs

Unless otherwise stated, all chemicals were purchased from Sigma-Aldrich (Schnelldorf, Germany) or Merck (Darmstadt, Germany). Tariquidar dimesylate was purchased from Haoyuan Chemexpress Co., Ltd (Shanghai, PRC) or from Eras Labo (Saint-Nazaire-Les-Eymes, France). Erlotinib hydrochloride was purchased from Apollo Scientific (Bredbury, UK). Captisol® was obtained from Cydex Pharmaceuticals or Ligand Pharmaceuticals, Inc. (San Diego, CA, USA). For in vitro experiments in cerebral organoids, stock solutions of tariquidar dimesylate (5 mg/mL) and erlotinib hydrochloride (10 mg/mL) in DMSO were prepared.

Radiotracer synthesis

[¹¹C]Erlotinib was synthesized as described elsewhere.²⁶ For i.v. injection into mice, [¹¹C]erlotinib was formulated in 0.1 mM hydrochloric acid in physiological saline (0.9%, w/v). Molar activity at the time of injection was 73 ± 29 GBq/μmol (n = 26) and radiochemical purity was >98%. For experiments in macaques, [¹¹C]erlotinib was formulated in 0.9% aqueous saline with 10% ethanol (v/v). The radiochemical purity of [¹¹C]erlotinib was >98% and the molar activity at the time of injection was 22 ± 3 GBq/μmol (n = 6).

Animals

Female Friend leukemia virus B (FVB) mice were obtained from Charles River (Sulzfeld, Germany). At the time of experiment, animals were 7–15 weeks old and weighed 23.1 ± 1.6 g. In total, 26 mice were used in the experiments and each animal was used for only one PET scan. All animals were housed in type III IVC cages under controlled environmental conditions (21.8 ± 1.0°C, 40% to 70% humidity, 12-h light/dark cycle) with free access to standard laboratory rodent diet (LASQCdiet™, LASvendi, Soest, Germany) and water. An acclimatization period of at least 1 week was allowed before the animals were used in the experiments. The study was approved by the national authorities (Amt der Niederösterreichischen Landesregierung) and study procedures were in accordance with the European Communities Council Directive of 22 September 2010 (2010/63/EU).

Experiments in NHPs were conducted using two adult male rhesus macaques (Macaca mulatta; weight M1: 8.77 ± 0.74 kg and M2: 13.54 ± 0.84 kg during the course of the study) obtained from Silabe, France. A minimum interval of two weeks was respected between two scans in the same monkey to allow for complete recovery. Animal use procedures were in accordance with the recommendations of the European Community for the care and use of laboratory animals (2010/63/EU) and the French National Committees (French Decret 2013-118). The experimental protocol (reference n°17-050) was validated by a local ethics committee for animal use (Comité d’Ethique en Expérimentation Animale, CEtEA-044) and approved by the French government (reference APAFIS N°19200-2017121312309702 v4). The animal experimental data reported in this study are in compliance with the ARRIVE (Animal Research: Reporting in Vivo Experiments) guidelines.

PET imaging in mice

Drug administration protocol

We investigated four groups of mice. (1) One group was treated with vehicle, (2) one group with a bolus injection and continuous infusion of erlotinib, (3) one group with a bolus injection of tariquidar, and (4) one group with a bolus injection and continuous infusion of erlotinib plus a bolus injection of tariquidar. Table 1 gives an overview of examined animal groups and numbers and administered inhibitor doses. Doses of erlotinib and tariquidar were chosen based on previous studies in mice.²⁷,²⁸ A half-maximum inhibitory concentration (IC₅₀) of 1052 nM (corresponding to an i.v. dose of approximately 6 mg/kg) was reported for tariquidar to increase brain uptake of the ABCB1 substrate (R)-[¹¹C]verapamil in mice.²⁷ In rats, the half-maximum inhibitory dose of tariquidar for ABCB1 was in the same range (3 to 5 mg/kg).²⁹,³⁰ For i.v. administration, tariquidar dimesylate was dissolved in 2.5% (w/v) aqueous glucose solution. Erlotinib hydrochloride was dissolved in 2.5% (w/v) aqueous glucose solution containing 3% (w/v) Captisol®.

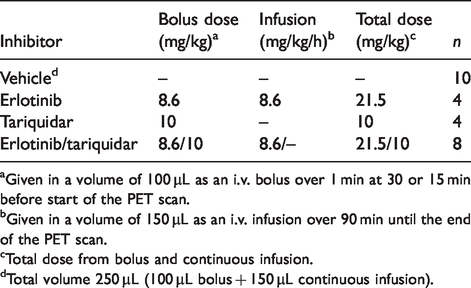

Table 1.

Overview of inhibitor doses, examined mouse groups and numbers.

Inhibitor	Bolus dose(mg/kg)^a	Infusion(mg/kg/h)^b	Total dose(mg/kg)^c	n
Vehicle^d	–	–	–	10
Erlotinib	8.6	8.6	21.5	4
Tariquidar	10	–	10	4
Erlotinib/tariquidar	8.6/10	8.6/–	21.5/10	8

^aGiven in a volume of 100 µL as an i.v. bolus over 1 min at 30 or 15 min before start of the PET scan.

^bGiven in a volume of 150 µL as an i.v. infusion over 90 min until the end of the PET scan.

^cTotal dose from bolus and continuous infusion.

^dTotal volume 250 µL (100 µL bolus + 150 µL continuous infusion).

Imaging procedure

Imaging experiments were performed under isoflurane/oxygen anesthesia. Animals were warmed throughout the experiment and body temperature (36.5–38.0°C) and respiratory rate (30–60 breaths/s) were constantly monitored. Mice were placed in an imaging chamber (m2m imaging Corp, Cleveland, Ohio, USA) and both lateral tail veins were cannulated for i.v. administration. A microPET Focus220 scanner (Siemens Medical Solutions, Knoxville, TN, USA) was used for PET imaging. At 30 min before start of the PET scan, animals received via one of the catheters erlotinib (8.6 mg/kg) or vehicle solution (total volume: 100 µL) as an i.v. bolus over 1 min followed by a continuous infusion of erlotinib (8.6 mg/kg/h) or vehicle solution until the end of the PET scan (Harvard Apparatus Syringe pump 11 Elite, total duration: 90 min, total volume: 150 µL). At 15 min before start of the PET scan, animals in the tariquidar groups received via the other catheter an i.v. bolus injection (volume: 100 µL) of tariquidar (10 mg/kg) over 1 min. Dynamic emission scans (60 min) were started with the i.v. injection of [¹¹C]erlotinib (27 ± 7 MBq in a volume of 100 µL, corresponding to 0.5 ± 0.2 nmol of unlabeled erlotinib). List-mode data were acquired with a timing window of 6 ns and an energy window of 250–750 keV. At the end of the PET scan, a terminal blood sample was withdrawn from the retro-bulbar plexus and animals were sacrificed by cervical dislocation while still under deep anesthesia and whole brains were removed. Blood was centrifuged to obtain plasma and radioactivity in blood, plasma and brain was measured in a gamma counter (Wizard 1470, Perkin Elmer or Hidex Model#425, Hidex, Turku, Finland). Radioactivity counts were normalized to sample weight, corrected for radioactive decay and used to determine brain-to-blood (K_b,brain) and brain-to-plasma (K_p,brain) ratios.

Mouse data analysis

The dynamic PET data were binned into 23 frames, which incrementally increased in time length. PET images were reconstructed using Fourier re-binning of the three-dimensional sinograms followed by a two-dimensional filtered back-projection with a ramp filter giving a voxel size of 0.4 × 0.4 × 0.796 mm³. Using AMIDE software,³¹ whole brain and the left ventricle of the heart (to obtain an image-derived blood curve) were manually outlined on the PET images to derive time-activity curves (TACs) expressed in units of standardized uptake value (SUV = (radioactivity per g/injected radioactivity). body weight). From the brain TACs, the area under the curve from 0 to 60 min (AUC_brain, SUV.min) was determined as a measure of the brain exposure to [¹¹C]erlotinib. The image-derived blood curve was converted into the corresponding plasma curve by multiplying the blood values with the plasma-to-blood radioactivity ratio measured for each animal in the gamma counter. Total distribution volume in the brain (V_T,brain, mL/cm³) was estimated by performing Logan graphical analysis using the image-derived plasma curve.³² V_T,brain corresponds to the brain-to-plasma ratio of radioactivity at steady state. In addition, integration plot analysis was performed as described previously²⁸ to estimate the rate constant for initial transfer of radioactivity from plasma into brain (k_uptake,brain, mL/min/g brain) using data measured from 0.3 min to 1.8 min after radiotracer injection.

PET imaging in non-human primates

Drug administration protocol

Two rhesus macaques underwent [¹¹C]erlotinib PET scans before (baseline) and during infusion of the erlotinib/tariquidar combination. For comparison, one animal received either erlotinib alone or tariquidar alone using infusion protocols, which have been previously used and validated in baboons.¹⁸,³³ Doses of erlotinib and tariquidar were selected based on available tolerance data and dose-response data (for tariquidar) obtained from previous work performed in baboons¹⁸,³³ and humans.¹⁴,¹⁶ Tariquidar solution for i.v infusion (4 mg/kg^/h) was prepared on the day of the experiment by dissolving tariquidar dimesylate in a 5% (w/v) glucose solution as described previously.³³ Tariquidar solution was infused at a rate of 6.7 mL/h during 90 min starting 30 min before injection of [¹¹C]erlotinib. Erlotinib solution for i.v infusion (10 mg/kg/h) was prepared on the day of the experiment by dissolving erlotinib hydrochloride in sterile water containing 6% (w/v) Captisol® followed by 1:1 dilution with 5% (w/v) glucose solution.¹⁸ The erlotinib solution was infused at a rate of 20 mL/h during 120 min, starting 60 min before injection of [¹¹C]erlotinib.

Imaging procedure

PET acquisitions were performed on an HR+ Tomograph (Siemens Healthcare, Knoxville, TN, USA) in anesthetized animals in supine position under suitable monitoring as described previously.¹⁸ Briefly, the animal received ketamine (10 mg/kg) to induce anesthesia. Once the animal was intubated, venous catheters were inserted for radiotracer injection (sural vein), propofol infusion (sural vein) and drug injection (right or left brachial vein or both for combined erlotinib/tariquidar infusion). Another catheter was inserted into the femoral artery for arterial blood sampling. The animal was positioned under the camera before administration of a 2 mL i.v. bolus of propofol (Aspen Pharma, Paris, France) followed by a 1 mL/kg/h i.v. infusion under oxygen ventilation. Animals were injected i.v. with [¹¹C]erlotinib (228 ± 19 MBq in a volume of 5 mL, corresponding to 10.3 ± 1.6 nmol of unlabeled erlotinib). A dynamic PET acquisition (60 min) in three-dimensional mode was then started to measure the brain kinetics of [¹¹C]erlotinib. Animals were extubated approximately 15 min after end of PET scanning. Animals were then continuously monitored for at least 60 min.

Arterial input function and metabolism

During PET acquisition, arterial blood samples (approximately 0.2 mL) were withdrawn for assessment of the arterial input function of total radioactivity. Blood samples were centrifuged and counted using a calibrated gamma-counter (Cobra, Perkin-Elmer, France). Additional plasma samples (0.5 mL) were collected at 0, 5, 10, 15, 30 and 60 min after radiotracer injection to estimate the percentage of unmetabolized [¹¹C]erlotinib by radio-high performance liquid chromatography analysis as described previously.¹⁸ For each animal, a 1-exponential decay function was fitted to the percentage of unmetabolized [¹¹C]erlotinib versus time and then applied to the corresponding total radioactivity TAC in plasma. TACs of unmetabolized [¹¹C]erlotinib in plasma were expressed in SUV units versus time. Unmetabolized [¹¹C]erlotinib plasma exposure was estimated under all tested conditions by calculating the AUC from 0 to 60 min.

Non-human primate data analysis

Measured attenuation and scatter corrections were applied to the emission data. Data were reconstructed using the 3D re-projection algorithm with an axial and transaxial Hanning filter with the cutoff set to the Nyquist frequency. Image analysis was performed using PMOD® software (version 3.8, PMOD Technologies Ltd, Zürich, Switzerland). For each animal, summed PET images were co-registered to previously acquired T1-weighted brain magnetic resonance images. The whole brain and temporal muscle surrounding the skull were outlined and applied to dynamic PET images to generate TACs. Brain and muscle tissue exposure was estimated as the AUC from 0 to 60 min. The BBB penetration of [¹¹C]erlotinib was estimated either as the brain-to-plasma AUC ratio (AUCR_brain/plasma) or as the brain-to-muscle AUC ratio (AUCR_brain/muscle), assuming negligible ABC transporter activity at the blood–muscle interface.³⁴ Moreover, kinetic modeling was performed using Logan plot analysis with the corresponding metabolite-corrected arterial plasma input function to estimate V_T,_brain.³² Compartmental models (1- or 2-tissue compartment) did not provide accurate estimates of outcome parameters to describe the brain kinetics of [¹¹C]erlotinib. Therefore, integration plot analysis was used as for the mouse data to estimate k_uptake,brain (mL/min/g brain) using data measured from 0.75 min to 3 min after radiotracer injection.²⁸

Human embryonic stem cell-derived cerebral organoids

Multicell cerebral organoids of hESCs were cultivated in StemFlex media for 60 days.³⁵ The hESCs were seeded into 6-well plates coated with matrigel. After three days, cells were dissociated into single cells and seeded into 96 ultra-low attachment plates for the next three to four days to form an embryonic body. At the size of 420 µm, they were induced with neural induction media. After several rounds of neural inductions, generated embryonic bodies with large and more continuous neuroepithelium were embedded into matrigel droplets on a sheet of Parafilm with small 3 mm dimples. These droplets were allowed to gel at 37°C, removed from the Parafilm and grown in differentiation media containing a 1:1 mixture of DMEM/F12 and Neurobasal containing 1:200 N2 supplement (Invitrogen), 1:100 B27 supplement without vitamin A (Invitrogen), 3.5 μL 2-mercaptoethanol, 1:4000 insulin (Sigma), 1:100 Glutamax (Invitrogen) and 1:200 MEM-NEAA. After four days of stationary growth, the droplets were transferred to an orbitary shaker (65 rpm/min) containing differentiation media as above, except that B27 supplement with vitamin A (Invitrogen) was used; 60-days-old organoids (one organoid per treatment) were incubated at 37°C (5% CO₂, 95% humidity) for 24 h in media with 0.1% DMSO (DMSO control), erlotinib hydrochloride (10 µg/mL), tariquidar dimesylate (5 µg/mL) and a combination of erlotinib hydrochloride (10 µg/mL) and tariquidar dimesylate (5 µg/mL).

Cryostat sectioning of cerebral organoids

After incubation, organoids were fixed with 4% paraformaldehyde and soaked in 30% sucrose solution for three days. After the fixation step, they were embedded in O.C.T and freezed on dry ice. The frozen cerebral organoids were cryosectioned at −20°C using a Microm HM 560 cryostat (Thermo Scientific) to provide slices with a thickness of 18 μm.

Anti-active caspase-3 immunostaining

The cryosectioned slices (eight slices per cerebral organoid) were dried at room temperature for 2 h and Heat-Induced Epitope Retrieval with Dako Target Retrieval Solution was performed to increase the accessibility of antigen and the staining intensity. The retrieval procedure involves immersion of tissue sections mounted on slides in diluted Target Retrieval Solution and heating in a water bath at 95°C. The sections were blocked and permeabilized in 2% of normal donkey serum and 0.3% triton-X100. The slides were incubated with Caspase-3 antibody (Cell Signaling Technology, Inc., Danvers, MA, USA, Rabbit polyclonal, 9662) overnight at 4°C. After 24 h incubations, they were washed three times with phosphate-buffered saline and incubated with Hoechst 33342 dye (Invitrogen) and finally secondary anti-Rabbit antibody.

Imaging

The stained cryosections were imaged at 4× magnification by using an Axio Scan.Z1 slide scanner (Carl Zeiss Microscopy GmbH, Jena, Germany). Positive cells were counted in each region of interest using ImageJ software.

Statistical analysis

All values are either given as mean ± standard deviation (SD) or as individual values. Statistical testing was performed using Prism 8.0 software (GraphPad Software, La Jolla, CA, USA). After confirmation of the normal distribution of the data using the Shapiro–Wilk normality test, differences in outcome parameters between groups were tested with one-way ANOVA with Dunnett’s multiple comparisons test. To assess correlations, the Pearson correlation coefficient r was calculated. The level of statistical significance was set to a p value of less than 0.05.

Results

Mouse experiments

We investigated groups of mice, which were administered vehicle solution, erlotinib alone, tariquidar alone or a combination of erlotinib and tariquidar (Table 1). As outcome parameters for the brain exposure and BBB penetration of [¹¹C]erlotinib, we determined AUC_brain, V_T,brain and k_uptake,brain . For the determination of V_T,brain and k_uptake,brain, the TACs in arterial plasma were required. Arterial blood curves were derived from the PET images by placing a region of interest into the left ventricle of the heart. Blood radioactivity concentrations derived from the last PET frame showed a good correlation with radioactivity concentrations measured with a gamma counter in a venous blood sample collected at the end of the PET scan (r = 0.814, p < 0.0001, slope = 1.67 ± 0.27). In the two animal groups which received erlotinib, total plasma radioactivity concentrations measured at the end of the PET scan in the gamma counter were significantly higher than in the vehicle group (Figure 1(a)). In Figure 1(b), TACs in the brain are shown for all groups. Brain TACs were low in the vehicle and erlotinib groups, on an intermediate level in the tariquidar group and highest in the erlotinib/tariquidar group. AUC_brain and V_T,brain values in individual animals per group are shown in Figure 1(c) and (d) and k_uptake,brain values are shown in Supplementary Figure 1. In agreement with the brain TACs, all three parameters were comparably low for the vehicle and erlotinib groups, intermediate for the tariquidar group and highest in the erlotinib/tariquidar group. AUC_brain was significantly increased by 2.0-fold in the tariquidar group and by 3.8-fold in the erlotinib/tariquidar group, as compared with the vehicle group (Figure 1(c)). For comparison, Abcb1a/b^(−/−)Abcg2^(−/−) mice, which had been examined in a previous study,¹⁷ had a 1.9-fold higher AUC_brain than the vehicle group. This discrepancy in AUC_brain between Abcb1a/b^(−/−)Abcg2^(−/−) mice and erlotinib/tariquidar-treated wild-type-mice may be related to higher plasma radioactivity exposure in the latter. V_T,brain, which takes plasma radioactivity concentrations into account, was 1.9-fold higher in the tariquidar group, 3.0-fold higher in the erlotinib/tariquidar group and 2.1-fold higher in Abcb1a/b^(−/−)Abcg2^(−/−) mice as compared with the vehicle group (Figure 1(d)). As an additional measure of the brain distribution of [¹¹C]erlotinib, we determined K_b,brain and K_p,brain from samples collected from the animals after the PET scan (Supplementary Figure 2). K_b,brain and K_p,brain values followed a similar trend as AUC_brain, V_T,brain and k_uptake,brain with low values in the vehicle and erlotinib groups, intermediate values in the tariquidar group and highest values in the erlotinib/tariquidar group.

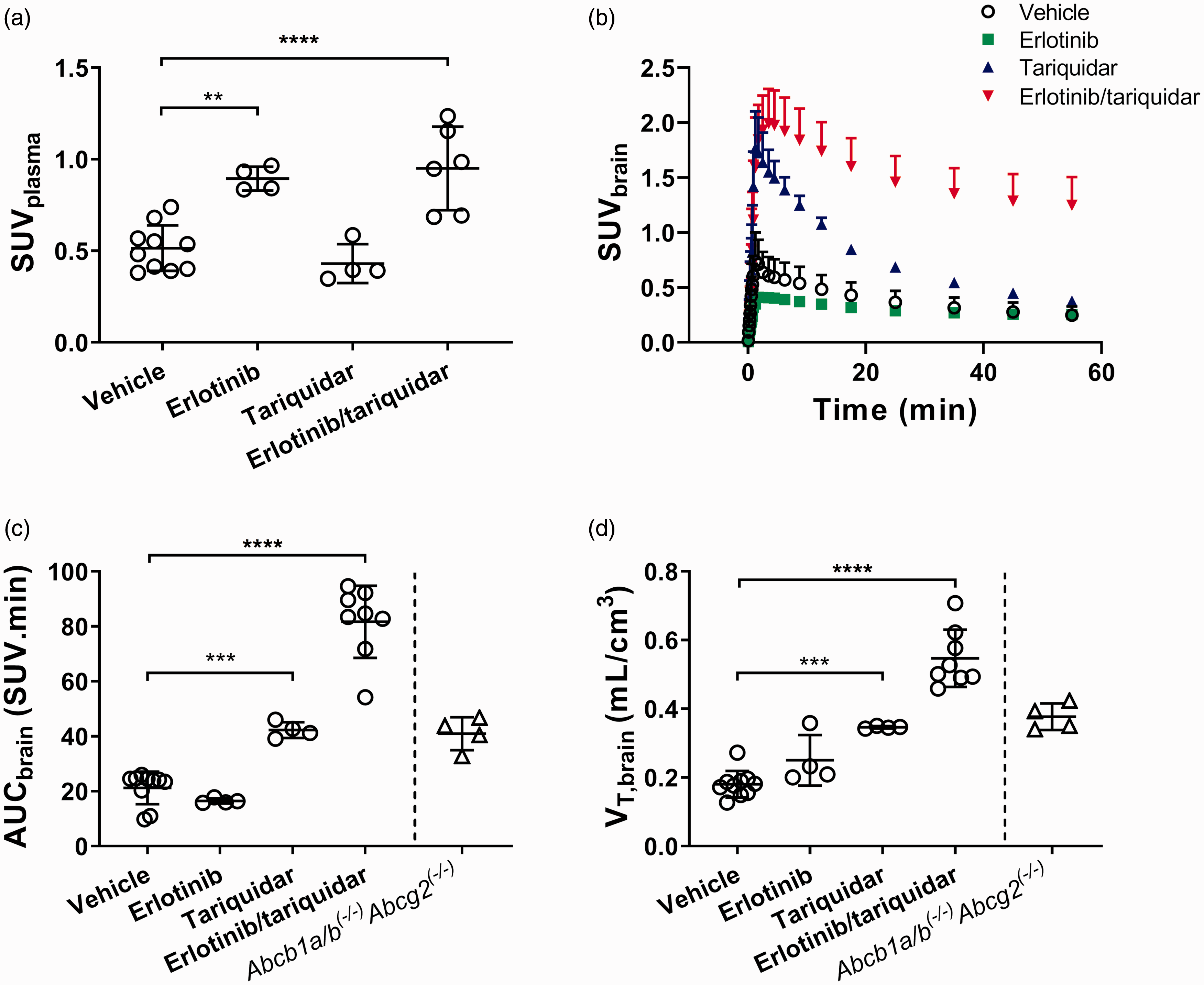

Figure 1.

Kinetics of [¹¹C]erlotinib in mice. Total radioactivity concentration in venous plasma collected at the end of the PET scan, measured in a gamma counter in all examined mouse groups (a). Time-activity curves (mean ± SD) in whole brain (b), AUC_brain values (c) and V_T,brain values (d) for all examined mouse groups. For comparison, AUC_brain and V_T,brain values are also shown for Abcb1a/b^(−/−)Abcg2^(−/−) mice measured in a previous study.¹⁷ **p < 0.01; ***p < 0.001; ****p < 0.0001, one-way ANOVA with Dunnett’s multiple comparisons test.

Non-human primate experiments

We assessed in two rhesus macaques the effect of combined infusion of erlotinib and tariquidar on the brain distribution of [¹¹C]erlotinib in comparison with control animals, which received no treatment (baseline). In addition, one animal each was either treated with erlotinib or with tariquidar infusion alone. All treatments were well tolerated and neither a change in pCO₂, heart rate, rectal temperature nor respiratory frequency was observed during and after infusion. PET summation images for all tested conditions are shown in Figure 2 and TACs in arterial plasma, brain and muscle are shown in Figure 3. Similar to the mouse data (Figure 1(b)), brain [¹¹C]erlotinib concentrations were highest in the erlotinib/tariquidar group and comparable to baseline in the erlotinib group (Figure 3(b)). In contrast to the mouse data, tariquidar infusion alone produced no effect on the brain concentrations of [¹¹C]erlotinib in the single examined animal. Erlotinib/tariquidar infusion changed the kinetics and increased the level of exposure of [¹¹C]erlotinib in arterial plasma (Figure 3(a)) and muscle tissue (Figure 3(c)). In Table 2, pharmacokinetic parameters are given for all investigated conditions. Erlotinib/tariquidar co-infusion induced a 3.9- and 5.6-fold increase in AUC_brain in the two examined animals. There was also a substantial but less pronounced increase (1.7- and 1.4-fold) in AUC_muscle, which suggested a change in the peripheral kinetics of [¹¹C]erlotinib. V_T,brain, which takes a change in plasma kinetics into account, was increased by 3.4- and 5.0-fold during erlotinib/tariquidar co-infusion as compared with baseline, consistent with a 2.7-fold-increase in k_uptake,brain (Table 2). These results were also consistent with the increases observed in AUCR_brain/plasma and AUCR_brain/muscle, which were used as additional parameters to describe the brain uptake relative to peripheral tissues. In the heavier macaque (M2), brain exposure reached similar levels as muscle exposure resulting in an AUCR_brain/muscle value close to 1 (Table 2). The effect of either erlotinib or tariquidar infusion alone on the brain distribution of [¹¹C]erlotinib was less pronounced suggesting only partial inhibition of ABC transporters, consistent with the data obtained in mice.

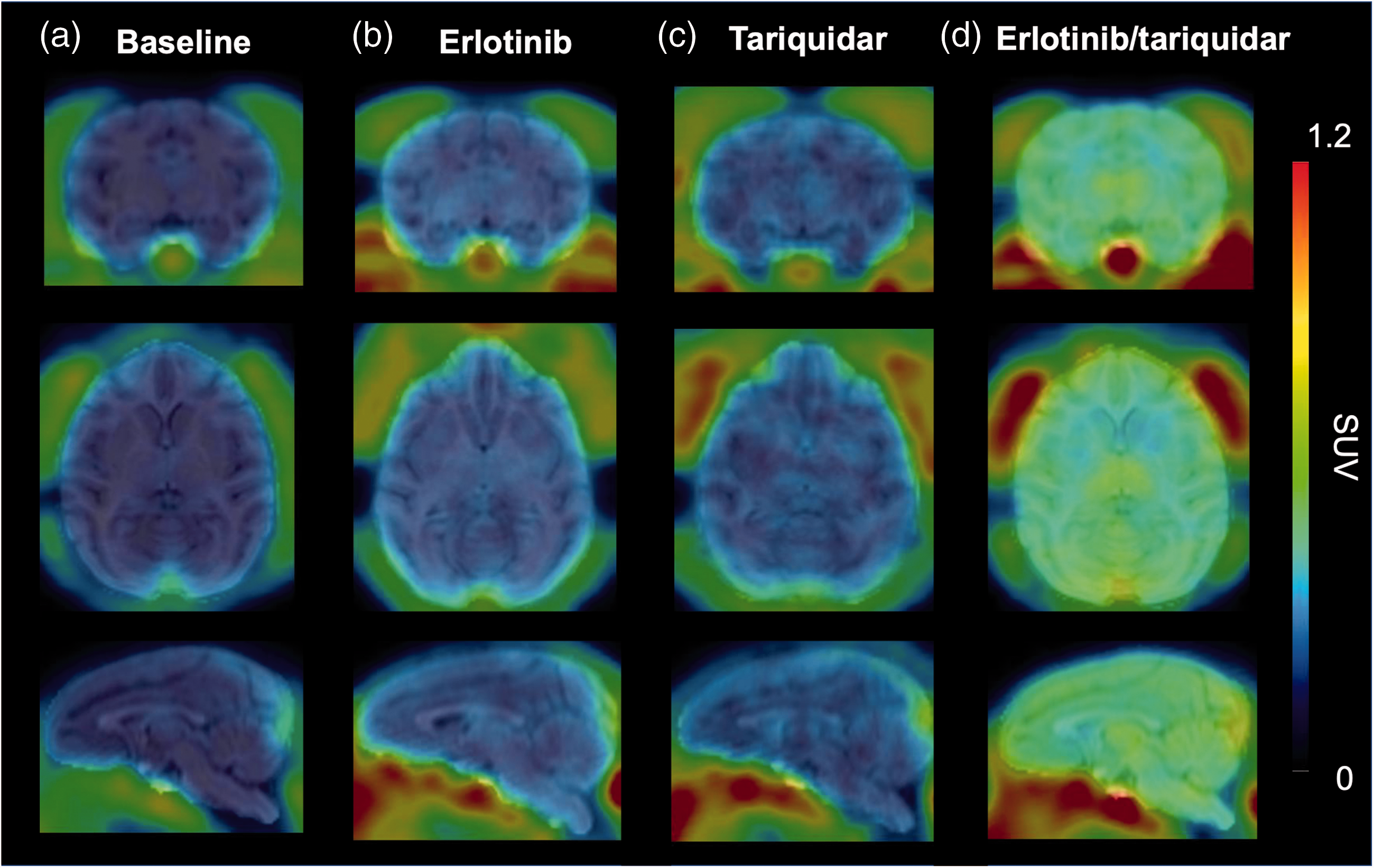

Figure 2.

[¹¹C]Erlotinib PET images in nonhuman primate. Representative coronal, axial and sagittal [¹¹C]erlotinib PET summation images (0–60 min) obtained in macaques without (a) or with treatment with erlotinib infusion alone (b), tariquidar infusion alone (c) or combined erlotinib/tariquidar infusion (d).

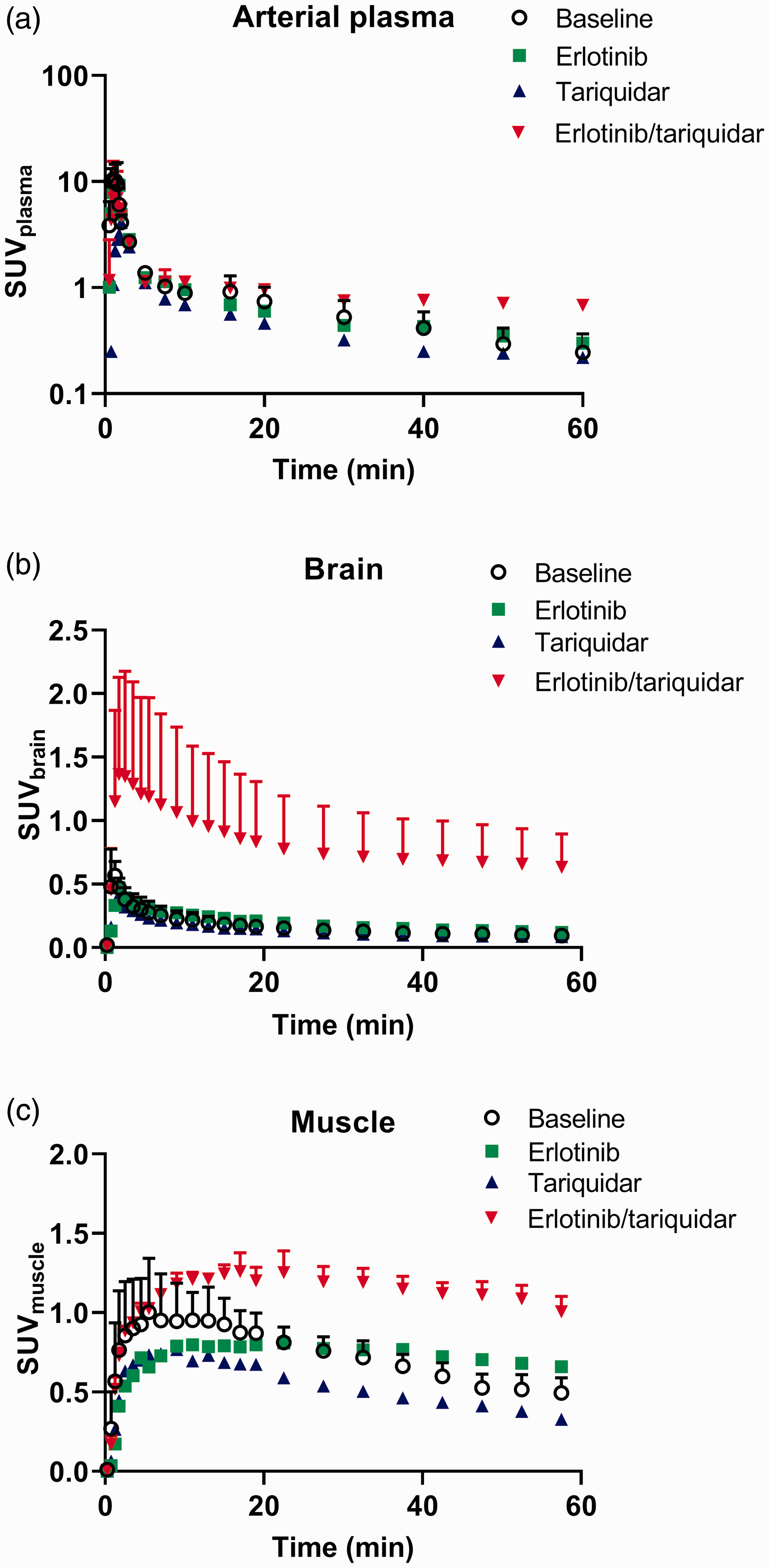

Figure 3.

Kinetics of [¹¹C]erlotinib in nonhuman primates. Metabolite-corrected arterial input function of parent [¹¹C]erlotinib in arterial plasma (a) and time-activity curves in the brain (b) and muscle tissue surrounding the brain (c) in macaques under the different tested conditions. Data are presented as individual values or mean ± SD (n = 2).

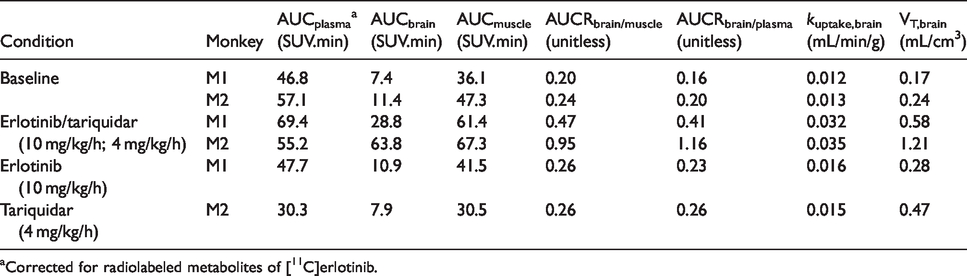

Table 2.

Impact of investigated treatments on the plasma and tissue kinetics of [¹¹C]erlotinib in NHPs.

Condition	Monkey	AUC_plasma^a(SUV.min)	AUC_brain(SUV.min)	AUC_muscle(SUV.min)	AUCR_brain/muscle(unitless)	AUCR_brain/plasma(unitless)	k_uptake,brain(mL/min/g)	V_T,brain(mL/cm³)
Baseline	M1	46.8	7.4	36.1	0.20	0.16	0.012	0.17
Baseline	M2	57.1	11.4	47.3	0.24	0.20	0.013	0.24
Erlotinib/tariquidar (10 mg/kg/h; 4 mg/kg/h)	M1	69.4	28.8	61.4	0.47	0.41	0.032	0.58
Erlotinib/tariquidar (10 mg/kg/h; 4 mg/kg/h)	M2	55.2	63.8	67.3	0.95	1.16	0.035	1.21
Erlotinib (10 mg/kg/h)	M1	47.7	10.9	41.5	0.26	0.23	0.016	0.28
Tariquidar (4 mg/kg/h)	M2	30.3	7.9	30.5	0.26	0.26	0.015	0.47

^aCorrected for radiolabeled metabolites of [¹¹C]erlotinib.

Experiments in hESC-derived cerebral organoids

We used hESC-derived cerebral organoids to recapitulate the impact of prolonged exposure to tested inhibitors on human brain cells, in the absence of any BBB efflux transport. Cerebral organoids were treated for 24 h with clinically relevant concentrations of either erlotinib alone (10 µg/mL, 25 µM) or tariquidar alone (5 µg/mL, 6 µM) or a combination of both drugs and Caspase-3 activation was measured as a marker of apoptosis (Figure 4). Treatment with either erlotinib alone or tariquidar alone resulted in no significant changes in Caspase-3 activation compared to the DMSO control group. However, the combined treatment with erlotinib and tariquidar resulted in a significant rise in Caspase-3 activation, accounting for 312 ± 180% of DMSO control (Figure 4). In Supplementary Figure 3, representative stained sections prepared from all groups are shown.

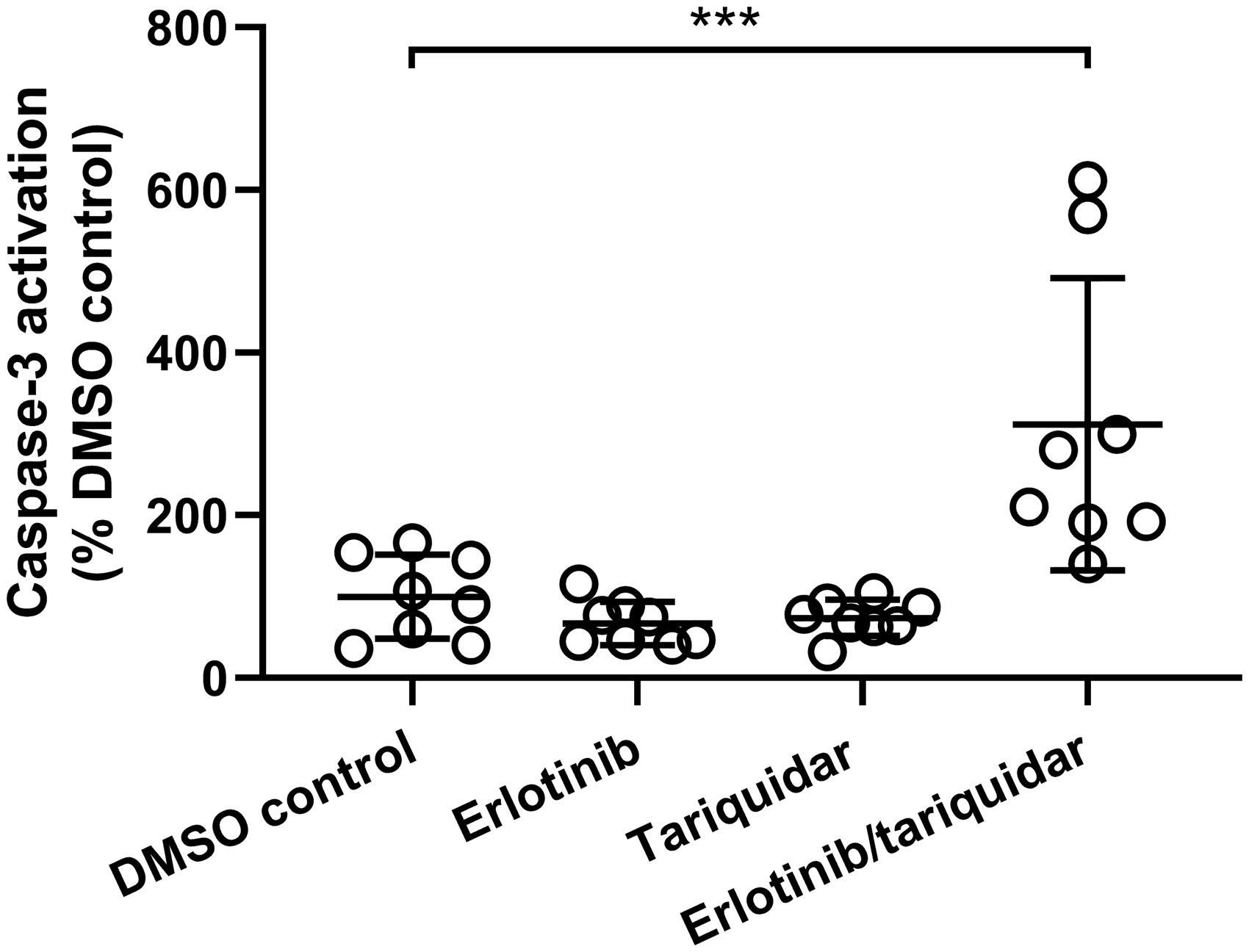

Figure 4.

Caspase-3 activation in hESC-derived cerebral organoids. Organoids were incubated for 24 h with medium with 0.1% DMSO (DMSO control), erlotinib hydrochloride (10 µg/mL, erlotinib), tariquidar dimesylate (5 µg/mL, tariquidar) and a combination of erlotinib hydrochloride (10 µg/mL) and tariquidar dimesylate (5 µg/mL) (erlotinib/tariquidar) (n = 1 cerebral organoid per treatment with eight slices analyzed per cerebral organoid). Results are expressed as percent of DMSO control. ***p < 0.001, one-way ANOVA with Dunnett’s multiple comparisons test.

Discussion

The aim of this study was to develop a clinically feasible protocol to achieve complete inhibition of both ABCB1 and ABCG2 activity at the BBB, thus providing a method to improve the brain delivery of dual ABCB1/ABCG2 substrates and enable molecularly targeted therapy of CNS diseases.⁹,¹⁰ We hypothesized that combined administration of erlotinib and tariquidar, which has each previously been applied as transporter inhibitor in an experimental setting in healthy human volunteers,^14–16 may provide a more effective strategy to inhibit ABCB1 and ABCG2 activity at the BBB than each compound administered alone.

We used PET imaging with [¹¹C]erlotinib as a model ABCB1/ABCG2 substrate to evaluate this novel pharmacological inhibition protocol in mice and NHPs, in a translational approach. A wealth of preclinical and clinical studies, including the use of transporter-deficient mice, have either used unlabeled erlotinib or [¹¹C]erlotinib as prototypical probe substrates to study the importance of ABCB1/ABCG2 activity at the BBB and to increase the extremely low baseline brain penetration of this drug with different pharmacological inhibition strategies.⁵,⁸,^16–20,²⁸,^36–38 Combined efflux by ABCB1 and ABCG2, rather than physical integrity of the BBB, was shown to be the rate-limiting factor for the brain delivery of [¹¹C]erlotinib.¹⁷,³⁷

The main finding of our study is a substantial increase in brain exposure (AUC_brain) and BBB penetration (V_T,brain and k_uptake,brain) of [¹¹C]erlotinib in mice and rhesus macaques receiving a co-infusion of erlotinib and tariquidar, while infusion of each drug alone proved to be less effective. The erlotinib/tariquidar combination increased V_T,brain in wild-type mice to similar levels as in Abcb1a/b^(−/−)Abcg2^(−/−) mice, suggesting complete inhibition of ABCB1/ABCG2-mediated efflux at the mouse BBB. In the two macaques treated with the erlotinib/tariquidar combination, V_T,brain was increased by 3.4- and 5.0-fold, respectively. The increases in V_T,brain induced by the erlotinib/tariquidar combination were more pronounced than the 2.7-fold increase in k_uptake,brain measured in the same animals. This suggests that the impact of ABC transporters on the overall brain distribution of [¹¹C]erlotinib may not only be restricted to the initial transfer from plasma into brain across the BBB.³³ In absence of transporter-deficient NHPs, the extent of ABCB1/ABCG2 inhibition was estimated by the AUCR_brain/muscle value. The muscle is not protected by ABCB1 and ABCG2 and muscle surrounding the skull has been proposed as a reference region to investigate ABC transporter activity at the BBB, thereby taking any change in peripheral kinetics and/or binding to plasma proteins into account.³⁴ In our previous study conducted in baboons, infusion of high-dose elacridar increased AUCR_brain/muscle of [¹¹C]erlotinib to approximately unity suggesting complete inhibition of efflux transporter activity at the BBB.¹⁸ In the present study, AUCR_brain/muscle measured in the two macaques treated with the erlotinib/tariquidar combination was 0.5 and 1, which corresponded to a 2.3- and 4.0-fold increase over baseline, respectively. This suggested that complete inhibition of ABC transporter-mediated efflux of [¹¹C]erlotinib was achieved in the animal which received the higher absolute dose of erlotinib and tariquidar.

In both mice and macaques, co-infusion of erlotinib/tariquidar increased the plasma concentrations of radioactivity, suggesting a change in peripheral pharmacokinetics. Moreover, erlotinib/tariquidar-treated macaques showed a trend towards decreased elimination of [¹¹C]erlotinib from plasma as compared with the control group. Similar effects have been reported in humans treated with high-dose oral erlotinib, which has been attributed to decreased hepatic clearance of [¹¹C]erlotinib caused by inhibition/saturation of hepatic transporters.³⁹ The change in plasma pharmacokinetics in erlotinib/tariquidar-treated macaques was consistent with the observed increase in radioactivity in the muscle. However, kinetic modeling, which takes the plasma kinetics into account, confirmed that the change in the peripheral kinetics of [¹¹C]erlotinib observed in mice and macaques treated with the erlotinib/tariquidar combination was not the main cause for the increased brain exposure to [¹¹C]erlotinib. It cannot be excluded that the employed inhibitors changed the plasma-free fraction of [¹¹C]erlotinib, which could have influenced the extent of its BBB penetration. However, the plasma-free fraction of [¹¹C]erlotinib cannot be reliably estimated as [¹¹C]erlotinib is highly bound to plasma proteins (>98%).

In mice and macaques treated with the erlotinib/tariquidar combination, the magnitude of the increase in brain distribution of [¹¹C]erlotinib over baseline was compared to animals treated with the same doses of erlotinib or tariquidar alone. It is noteworthy that erlotinib alone did not significantly increase the brain distribution of [¹¹C]erlotinib in mice. In contrast, in Papio anubis baboons infusion of high-dose erlotinib alone (10 mg/kg/h) was previously shown to partially inhibit transporter-mediated efflux of [¹¹C]erlotinib at the BBB and increase V_T,brain by 1.7-fold,¹⁸ which was confirmed in the single macaque examined in this study. Tariquidar alone markedly increased the brain distribution of [¹¹C]erlotinib in mice but had only a relatively small effect in the examined macaque, consistent with previous data showing that tariquidar alone did not improve the brain penetration of [¹¹C]erlotinib in humans.¹⁶ These discrepancies can be most likely attributed to species differences in the abundance of ABCB1 and ABCG2 at the BBB between rodents (i.e. mice or rats) and NHPs. Proteomic studies have shown that ABCG2 is the predominant efflux transporter at the BBB of cynomolgus monkeys (Macaca fascicularis) and humans and that the abundance of ABCG2 is 3.6-fold higher in cynomolgus monkeys than in mice.⁴⁰,⁴¹ Conversely, ABCB1 abundance in cynomolgus monkeys was only 0.30-fold of that in mice. Consequently, administration of high-dose erlotinib, which has a greater potential to inhibit ABCG2,²⁴ was more effective in inhibiting transporter-mediated efflux of [¹¹C]erlotinib in humans and NHPs than in mice, while tariquidar, which has a greater potential to inhibit ABCB1,¹⁵ was more effective in mice than in humans and NHPs. Therefore, co-infusion of erlotinib and tariquidar may compensate the potential of each single drug for preferentially targeting either ABCB1 or ABCG2, thus enabling more effective inhibition of the overall ABC transporter-mediated efflux of [¹¹C]erlotinib at the BBB. Moreover, this observation strongly supports the use of PET imaging in NHPs to predict the outcome of pharmacological inhibition of ABCB1 and/or ABCG2 at the BBB in humans.⁴²,⁴³

Several strategies to overcome ABCB1- and ABCG2-mediated efflux transport at the BBB have been tested in animals but failed to reach clinical application. The dual ABCB1/ABCG2 inhibitor elacridar was successfully translated from rodents to NHPs as a means to improve the brain delivery of erlotinib.^17–19 Unfortunately, the available oral formulation of elacridar for human use did not provide sufficiently high plasma levels of elacridar to improve the brain delivery of [¹¹C]erlotinib in humans.²⁰ In patients, erlotinib is intended for the oral route. It has been reported that pulsatile dosing of high-dose erlotinib may result in improved disease control in some EGFR-positive non-small cell lung cancer patients with brain metastases.⁴⁴ This observation is consistent with an improved brain penetration of [¹¹C]erlotinib enabled by partial inhibition or saturation of ABC transporter-mediated efflux at the BBB by high-dose erlotinib.¹⁶ Given its minimal toxicity, pulsatile erlotinib at a weekly single oral dose of 1000–1500 mg is a reasonable option in patients whose disease has progressed during standard treatment at daily oral doses of 150 mg.⁴⁴ Plasma levels achieved during the infusion of 10 mg/kg/h erlotinib in baboons ranged from 5 to 10 µg/mL (13-25 µM),¹⁸ which was in similar range as peak plasma levels measured in patients after pulsatile dosing (15–24 µM for an oral dose of 1600 mg).⁴⁵ For comparison, peak erlotinib plasma concentrations after standard clinical dosing (150 mg oral) were reported as 3.7 ± 1.2 µM.⁴⁶ Unfortunately, partial and variable clinical response to pulsatile dosing is observed, which may be linked to remaining ABC transporter activity at the BBB, possibly that of ABCB1.⁴⁴ Tariquidar can be formulated for i.v. infusion and the dose of tariquidar selected in this work (4 mg/kg/h) has been safely used before in baboons and humans to achieve nearly complete inhibition of ABCB1 activity at the BBB.¹⁴,³³ The plasma levels of tariquidar at this dose were in a similar range in humans (1.7–4.1 µM)¹⁴ and in baboons (3.7–6.0 µM).³³

The demonstration of the feasibility and efficacy of erlotinib/tariquidar co-infusion for ABCB1/ABCG2 inhibition at the BBB of NHPs is an important step towards a future translation of this inhibition protocol to humans. A potential advantage of the erlotinib/tariquidar co-infusion protocol is that it not only inhibits ABCB1/ABCG2 activity at the BBB, but may, at the same time, enable CNS-targeted EGFR inhibition and thus allow for the treatment of EGFR-dependent brain tumors or metastases.

Importantly, tariquidar itself is – just like erlotinib – subject to ABCB1- and ABCG2-mediated efflux transport at the BBB.¹⁵,⁴⁷,⁴⁸ As a consequence, simultaneous inhibition of ABCB1 and ABCG2 achieved with co-infusion of erlotinib/tariquidar is likely to enhance the brain exposure to both compounds. Increased brain levels of erlotinib alone or tariquidar alone were safely achieved in healthy volunteers.¹⁵,¹⁶ However, it is difficult to predict the tolerability of simultaneous high brain exposure to both compounds in humans. Our in vitro data in hESC-derived cerebral organoids, which are not protected by the BBB, showed that erlotinib or tariquidar alone – at concentrations corresponding to the plasma concentrations measured in NHPs – did not induce apoptosis, while there was an apparent synergy between erlotinib and tariquidar in apoptosis induction. Although the exact reasons for this apparent synergy remain unknown, it can be speculated that this was caused by increased intracellular access of erlotinib and/or tariquidar. Caution is therefore warranted to address potential safety issues of the erlotinib/tariquidar combination before a future clinical application in cancer patients. Previous work has shown that the cerebral ABCB1 inhibitory effect of tariquidar in humans is rapidly reversible and only maintained for the duration of the continuous i.v. infusion,¹⁴ so that it can be assumed that only transiently high concentrations of both erlotinib and tariquidar will be achieved in the human brain during application of our inhibition protocol. It is noteworthy that Caspase-3-dependent apoptosis is intended as a therapeutic target and provides an efficacy biomarker for brain-penetrant chemotherapy such as temozolomide.⁴⁹,⁵⁰ Further investigations are therefore needed to address whether apoptosis induced by the erlotinib/tariquidar combination is a limitation for its clinical use or rather a mechanism to potentiate the effects of erlotinib that may help in fighting cancer cells in patients with EGFR-positive CNS tumors or metastases.

Conclusion

We successfully demonstrated in a translational set-up, comprising experiments in mice and NHPs, the efficacy of erlotinib/tariquidar co-infusion to achieve complete inhibition of ABCB1/ABCG2-mediated efflux transport of erlotinib, resulting in substantial increases in its brain exposure and potentially enabling CNS-targeted EGFR inhibition. It remains to be determined whether the erlotinib/tariquidar co-infusion protocol can be combined with other molecularly targeted anticancer drugs and overcome their ABCB1/ABCG2-mediated efflux transport at the BBB, thus allowing a more effective treatment of primary or secondary brain tumors. For a potential future application in cancer patients, particular attention needs to be paid to safety issues.
