Endothelial cells are critical regulators of iron transport in a model of the human blood–brain barrier

Abstract

Iron delivery to the brain is essential for multiple neurological processes such as myelination, neurotransmitter synthesis, and energy production. Loss of brain iron homeostasis is a significant factor in multiple neurological disorders. Understanding the mechanism by which the transport of iron across the blood–brain barrier (BBB) is regulated is crucial to address the impact of iron deficiency on brain development and excessive accumulation of iron in neurodegenerative diseases. Using induced pluripotent stem cell (iPSC)-derived brain endothelial cells (huECs) as a human BBB model, we demonstrate the ability of transferrin, hepcidin, and DMT1 to impact iron transport and release. Our model reveals a new function for H-ferritin to transport iron across the BBB by binding to the T-cell immunoglobulin and mucin receptor 1. We show that huECs secrete both transferrin and H-ferritin, which can serve as iron sources for the brain. Based on our data, brain iron status can exert control of iron transport across the endothelial cells that constitute the BBB. These data address a number of pertinent questions such as how brain iron uptake is regulated at the regional level, the source of iron delivery to the brain, and the clinical strategies for attempting to treat brain iron deficiency.

Introduction

The blood–brain barrier (BBB) is formed by tight junctions between endothelial cells which confer selective permeability of molecules entering the brain from the bloodstream. ¹ This selectivity is essential to the protection and optimal performance of the brain in normal physiological conditions. However, the presence of the tight junctions between endothelial cells requires that critical nutrients for optimal brain function be transported across the endothelial cells and released into the brain. These transport processes must also meet the requirements of the endothelial cells for these same nutrients.

A key nutrient for normal brain development and adult function is iron. Iron serves as a cofactor in a number of crucial cellular processes, such as oxygen transport, DNA synthesis, and in the brain, myelination, making it one of the most vital micronutrients present in the body. ² During development, iron deficiency may result in long standing and severe phenotypes, leading to poor cognitive function, motor deficits, and other neurological disorders.^3–6 Conversely, excessive iron may cause cellular cytotoxicity through induction of oxidative stress leading to widespread neurodegeneration. ⁷ Despite this importance, the exact mechanism of regulation of iron uptake into the brain is currently not known and is further complicated by the fact that there are distinct regional differences within the brain in the amount of iron present, suggesting local regulation of uptake or release of iron.

Studies into regulation of iron transport across the BBB have stagnated due to the acceptance of the transferrin (Tf) transcytosis paradigm. ⁸ This model suggests that circulating holo-Tf binds to transferrin receptors (TfR) on the luminal side of the endothelial cells, is endocytosed as a complex into the cell and is subsequently exocytosed from the abluminal membrane, releasing unaltered holo-Tf into the brain extracellular space. This model is particularly problematic because it does not address the substantial iron needs of the endothelial cells themselves, nor does it address how iron uptake into the brain is regulated. Current research by our laboratory and others has suggested that endothelial cells can store iron, which is released into the brain upon demand, and has further suggested alternative transport models for Tf and possibly ferritin, challenging the current paradigm of Tf transcytosis.^9–13 We have recently proposed an alternative model for iron transport and uptake into the brain. ⁸ In this model, Tf undergoes endocytosis, and the iron is released from Tf in the endosome and is transported out of the endosome via the divalent metal transporter 1 (DMT1).^14,15 Subsequently, this iron can enter the labile iron pool to be used by the endothelial cells, stored in ferritin, secreted, or released as free iron into the brain through the iron exporter ferroportin.^16,17 This novel concept demonstrates how brain endothelial cells act as crucial regulators of cerebral iron homeostasis.

BBB research has commonly used models from primary animal sources, such as cows, pigs, and rats. While these models recapitulate most key BBB functions, including moderate transendothelial electrical resistance (TEER; a measure of tight junction formation), low passive permeability, and active transporter function, they are not necessarily representative of human BBB properties, which hamper the ability of the research to be translated to humans. However, the majority of human BBB models suffer from poor barrier properties, which limits their utility for discovery-based explorations. In this study, we use novel human-induced pluripotent stem cell (iPSC)-derived brain endothelial cells (huECs) to model the human BBB.^18–20 IPSC-derived huECs exhibit excellent barrier properties, including high TEER (typically above 3000 Ω×cm² in monoculture and above 6000 Ω×cm² after co-culture with astrocytes and pericytes), low permeability to small molecule tracers such as sodium fluorescein, and expression of active efflux transporters such as p-glycoprotein and breast cancer resistance protein (BCRP). Moreover, iPSC-derived huECs have recently been used to model genetic diseases that impact BBB transporter functions.^21,22 As such, the purpose of this study was to utilize iPSC-derived huECs to examine the mechanism(s) of iron uptake into and across the BBB.

Our central hypothesis for this work is that a mechanism exists to provide iron to brain microvasculature and that iron can be used within the endothelial cells or released to the brain in response to signals. This hypothesis required novel consideration of how Tf and iron are transported across the BBB, and in the process of pursuing the hypothesis we introduce H-ferritin (Hft) as a significant iron transporter. Ultimately, the data presented herein serve to establish BBB endothelial cells as a critical checkpoint and regulators of brain iron uptake.

Materials and methods

Human endothelial cell differentiation and cryopreservation

Human endothelial cells (huECs) were differentiated from CC3 iPSCs as described previously.^{18–20,23,24} CC3 iPSCs were maintained in E8 medium (prepared in-house) on growth factor reduced Matrigel (Corning). ²⁵ For maintenance, iPSCs were passaged using Versene (Thermo Fisher Scientific) upon reaching 60–80% confluence. Cells intended for differentiation were washed one time with DPBS (Thermo Fisher Scientific) and dissociated to single cells during a 3-min incubation with Accutase (Stem Cell Technologies) at 37℃. Cells were collected via centrifugation, and cell count and viability were assessed using a Trypan Blue stain and Countess II automated cell counter (Thermo Fisher Scientific). Cells were plated at a live density of 15,600 cells per square centimeter in E8 medium supplemented with 10 μM Rho-associated, coiled-coil containing protein kinase (ROCK) inhibitor Y27632 (R&D Systems). Differentiation was initiated 24 h after plating with a complete medium change to E6 medium. ²⁶ E6 medium was changed approximately every 24 h for four days. Cells were then expanded in human endothelial serum-free medium (hESFM; Thermo Fisher Scientific) containing 1% platelet poor plasma-derived serum (PDS; Alfa Aesar), collectively referred to as EC medium, 20 ng/mL basic fibroblast growth factor (bFGF; Peprotech), and 10 μM all-trans retinoic acid (RA; Sigma Aldrich). Medium was not changed for 48 h. Following this incubation, cells were washed once with DPBS and incubated with Accutase at 37℃ for approximately 25 min, or until cells fully dissociated from the plate. Cells were collected via centrifugation and resuspended in 60% EC medium with 20 ng/mL bFGF, 30% fetal bovine serum (Thermo Fisher Scientific), 10% Hybri-Max DMSO (Sigma), 10 μM RA, and 10 μM Y27632 at a ratio of 1 mL of freeze medium per well of a 6-well plate collected. Vials were frozen overnight at −80℃ in a freezing container (Thermo Fisher Scientific) followed by transfer to liquid nitrogen for long-term storage.

Hft preparation

We have previously described the methodology for recombinant Hft preparation.^11,27,28 Briefly, wild-type human Hft containing a poly-His tag was subcloned into pET30a(+), to be produced in BL21 Escherichia coli. Isopropyl-β-D-thio-galactoside (IPTG) was used to induce expression. Following this, bacteria were lysed, and Hft protein was purified on a nickel column using standard techniques (GE Healthcare Bio-Sciences).

Radiolabeling of Tf and Hft

⁵⁹Fe (Perkin Elmer) was complexed with nitrilotriacetic acid (NTA), ferric chloride (FeCl₃), and sodium bicarbonate (NaHCO₃) at a ratio of 100 µL NTA: 6.7 µL FeCl₃: 23.3 µL NaHCO₃: 50 µCi ⁵⁹FeCl₃ to form the ⁵⁹Fe-NTA complex. This ratio was adjusted accordingly for cases where more/less than 50 µCi ⁵⁹FeCl₃ was needed. After complexing, ⁵⁹Fe-NTA was subsequently incubated with apo-Tf (Sigma) or Hft for 30 min to allow for iron loading.^8,29 Free iron was separated from the total complex using Sephadex-G50 QuickSpin columns following manufacturer's instructions (Roche).

Transport studies

Initially, the apical chamber of 12-well Transwell plates (Costar Transwell, 0.4 µm pore, Corning) was coated with collagen IV (Sigma) and fibronectin (Sigma) at a ratio of five parts sterile ddH₂O mixed with four parts 1 mg/mL collagen IV and 1 part 1 mg/mL fibronectin. A total of 250 µL was used to coat plates overnight at 37℃. Following coating, 25,000 huECs were thawed and plated into the apical chamber of a 12-well Transwell plate in 500 µL hESFM (Thermo Fisher) plus 1% platelet poor PDS ( Fisher Scientific), 10 µM of a ROCK inhibitor Y27632 (R&D Systems), 20 ng/mL basic fibroblast growth factor (bFGF, Peprotech), and 10 µM RA ( Sigma). The basal chamber was filled with 1.5 mL of the same media. After allowing the cells to attach overnight at 37℃, we changed the media in both chambers to hESFM, supplemented with 1% PDS, 10 µM Y27632, but lacking bFGF and RA. Cells were incubated at 37℃ overnight to allow growth and tight junction formation, after which all transport studies were performed. Immediately before the experiment was performed, a complete media exchange was conducted by washing three times with 1 × DPBS to remove serum; 500 µL of serum-free media was added to the apical chamber, while 1.5 mL was added to the basal chamber. After media addition, trans-endothelial electrical resistance measurements were taken using an Epithelial Volt/Ohm Meter for TEER (EVOM2, STX2, World Precision Instruments). Blank (media only) TEER readings were obtained and subtracted from all other TEER measurements. Across all experimental conditions, we report an average TEER value of 1562 ± 516 Ω × cm².

RITC-Dextran (70 kDa, Sigma) was added at the beginning of the experiment in order to monitor tight junction formation and barrier permeability ³⁰ ; 10 µCi of either the ⁵⁹Fe-NTA-Tf (1 mg/mL) or ⁵⁹Fe-NTA-Hft (100 µg/mL) complex was added to the apical chamber and cells were incubated at 37℃, 5% CO₂. The following regulatory molecules were added to the basal chamber: (1) Apo-Tf was added at 1 mg/mL, (2) holo-Tf was loaded with non-radioactive FeCl₃ and added at 1 mg/mL, (3) Hepcidin (Peptides International, PLP-4392-s) was added at 500 nM. Furthermore, 104 nM of a DMT1 inhibitor (XEN602, generously provided by Xenon Pharmaceuticals) ³¹ was added to the apical chamber concurrently with Tf or Hft addition. For all experimental conditions, aliquots were sampled from the basal chamber at 0, 2, 4, 6, 8, and 24 h. These aliquots were further separated into protein bound and non-protein bound samples using Sephadex-G50 QuickSpin columns (Roche). Final ⁵⁹Fe activity in the apical chamber was also measured at the 24-h time point. At the end of the experiment, media was aspirated, cells were washed three times with 1 × DPBS (Corning), trypsinized, and ⁵⁹Fe activity counted. All ⁵⁹Fe counts were measured using a Beckman Gamma 4000 gamma counter (Beckman Coulter) and recorded as counts per minute (CPM). Blank media and background counts were obtained, averaged, and subtracted from all experimental counts. Additionally, at each time point, samples were taken from the basal chamber to be assessed for barrier permeability. RITC fluorescence (excitation: 555 nm, emission: 580 nm) was measured on a SpectraMax Gemini EM plate reader (Molecular Devices). Across all experiments, no permeability was seen using the RITC-dextran control.

Release studies

We have previously described the methodology for performing release assays.^8,29 Briefly, huECs in serum-free media plated in a 24-well Transwell format were loaded with 10 µCi ⁵⁹Fe-NTA complex and incubated overnight at 37℃. Following incubation, cells and chambers were rinsed three times with 1 × DPBS and serum-free media was added, along with apo-Tf (1 mg/mL), holo-Tf (1 mg/mL), or hepcidin (500 nM). These concentrations were selected based on estimated Tf in the cerebrospinal fluid (0.5 µM) and hepcidin levels in the blood. ^{29 59}Fe release was measured by taking 100 µL aliquots at 0, 2, 4, 6, 8, and 24 h, further separated into protein-bound and free ⁵⁹Fe fractions using Sephadex-G50 QuickSpin columns, and quantified via a Beckman Gamma 4000 gamma counter. As described before, tight junction formation and barrier permeability were measured via TEER and RITC signal.

Autoradiograph

Release studies were performed as described previously, except no periodic aliquots were taken. Instead, all basal chamber media was collected at the 24-h time point. Subsequently, samples were concentrated using a Vacufuge (Eppendorf) and reconstituted in 33 µL 1 × PBS. Next, samples were boiled for 10 min with 1 × samples buffer, loaded onto a 4–20% Criterion TGX Precast Protein Gel (Bio-Rad), and run at 250 V for 23 min. Gels were covered with plastic-wrap and loaded into an autoradiography cassette (FisherBiotech) with HyBlot CL Autoradiography film (Denville Scientific) and an intensifying screen for 2.5 h after which film was developed.

Western blot

Protein expression was detected via immunoblot as previously described.^8,29 Briefly, huECs were digested in a mixture of RIPA buffer (Sigma) and protease inhibitor cocktail (PIC, Sigma) for 1 h at room temperature. Subsequently, total protein was quantified by bicinchoninic assay (BCA, Pierce) and loaded onto a 4–20% Criterion TGX Precast Protein Gel (Bio-Rad). Protein was transferred onto a nitrocellulose membrane and probed for ferroportin (Alomone Labs, 1:500, AIT-001), Hft (Cell Signaling, 1:500, 4393S), Tf (Abcam, 1:5000, ab82411) or beta-actin (Sigma, 1:3000, A5441). Corresponding secondary antibody conjugated to HRP was used (1:5000, GE Amersham) and bands were visualized using ECL reagents (Perkin-Elmer) on an Amersham Imager 600 (GE Amersham).

Immunofluorescence

Fluorescent quantum dots (620 nm, Ocean Nanotech) were conjugated to Hft protein (Hft-QD) according to the manufacturer's instructions. As a negative control (Ctrl-QD), the same protocol was carried out substituting Hft for PBS. Prior to cell plating, the collagen IV/fibronectin/ddH₂O coating mixture was used to coat four well chamber slides (Fisher Scientific) for 4 h, after which chambers were allowed to dry; 25,000 huECs/chamber were then plated overnight. Next, 50 µg Hft-QD or an equivalent volume Ctrl-QD was added to plated cells for 3 h at 37℃. Cells were washed three times with 1 × DPBS and subsequently fixed in 4% paraformaldehyde for 20 min at room temperature, followed by washing with 1 × DPBS three times. Cells were blocked in 1% milk for 1 h and stained overnight with an anti-Tim-1 antibody (R&D Systems, MAB1750) at 1:100. Following this, fluorescent anti-mouse secondary antibody (Thermo Fisher Scientific) was used at 1:200, followed by a counterstain with DAPI. Cells were viewed with confocal microscopy (Leica).

Statistical analysis

Statistical analyses were performed by one-way or two-way ANOVA using time and treatment as the two factors, with Bonferroni post hoc test for significance using GraphPad Prism 4 software (GraphPad Software, Inc., San Diego, CA, USA). Data from three independent replicates were averaged and are expressed as the mean ± standard deviation (SD). A p-value of < 0.05 was considered significant.

Results

Tf and Hft function as iron carriers

The first experiment was designed to test the ability of Tf and Hft to deliver iron across this BBB model. HuECs were plated and incubated with 1 mg/mL ⁵⁹Fe-Tf or 100 µg/mL ⁵⁹Fe-Hft. Sampling from the basal chamber every 2 h allowed us to determine the quantity of iron transport over 24 h. Tf-bound iron was predominantly transported across the huECs in a protein-bound form, although there was a measurable amount of free iron released (Figure 1(a)). Conversely, ⁵⁹Fe delivered by Hft uptake was primarily released from the huECs as free iron, with a modest amount of protein-bound iron transported (Figure 1(b)).

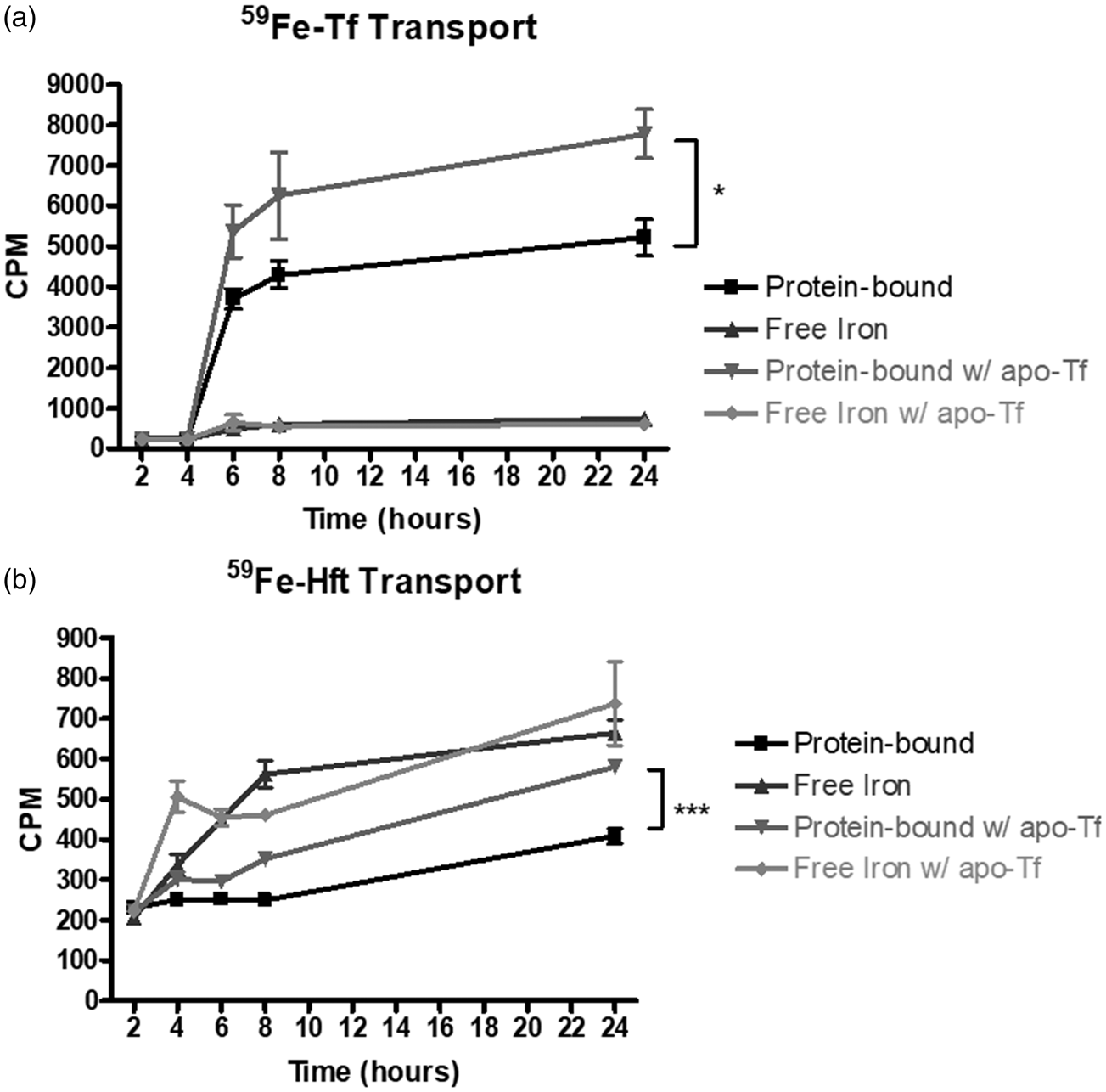

Figure 1.

Effect of apo-Tf on iron transport across the huECs. (a) 1 mg/mL ⁵⁹Fe-Tf robustly delivers iron across huECs in both protein-bound and free forms. Tf-bound is the preferred method of transport. Apo-Tf significantly increased iron transport across the huECs in the ⁵⁹Fe-Tf bound form. Transport of free iron was unaffected by apo-Tf addition. (b) 100 µg/mL ⁵⁹Fe-Hft also delivers iron across huECs, but the preferred method of transport is via free iron. Apo-Tf caused significant increase in protein-bound ⁵⁹Fe that was found in the basal chamber. Free ⁵⁹Fe transport was unaffected by apo-Tf addition. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Protein-bound” or “Free Iron” conditions using two-way ANOVA with Bonferroni's posttest for significance. *p < 0.05, ***p < 0.001.

Apo-Tf affects protein-bound iron transport across the BBB

Next, to test the hypothesis that there is regulatory control of iron transport, 1 mg/mL apo-Tf (iron-poor Tf) was added to the basal chamber during the transport experiment. When apo-Tf was added to the basal chamber, there was a similar pattern of protein bound and free ⁵⁹Fe transport (Figure 1(a)); however, the amount of protein bound iron transported was increased by 48% after 24 h (p < 0.05). The addition of apo-Tf to the basal chamber did not affect the amount of free ⁵⁹Fe transported via Hft (Figure 1(b)), but did induce a 42% increase (p < 0.001) in the amount of protein-bound ⁵⁹Fe iron transported after 24 h (Figure 1(b)).

Holo-Tf affects protein-bound iron transport across the BBB

Given that apo-Tf altered iron transport in huECs, we next tested the hypothesis that holo-Tf (iron-rich Tf) decreases the amount of iron transported across the BBB. To test this hypothesis, we added 1 mg/mL holo-Tf to the basal chamber during our transport assay. As a result, the amount of protein bound ⁵⁹Fe transported was significantly depressed at 6, 8, and 24 h, showing a 67% reduction after 24 h (Figure 2(a), p < 0.001). When holo-Tf was coupled with the ⁵⁹Fe-Hft transport condition, the amount of free ⁵⁹Fe transported was decreased by 56% (Figure 2(b), p < 0.001).

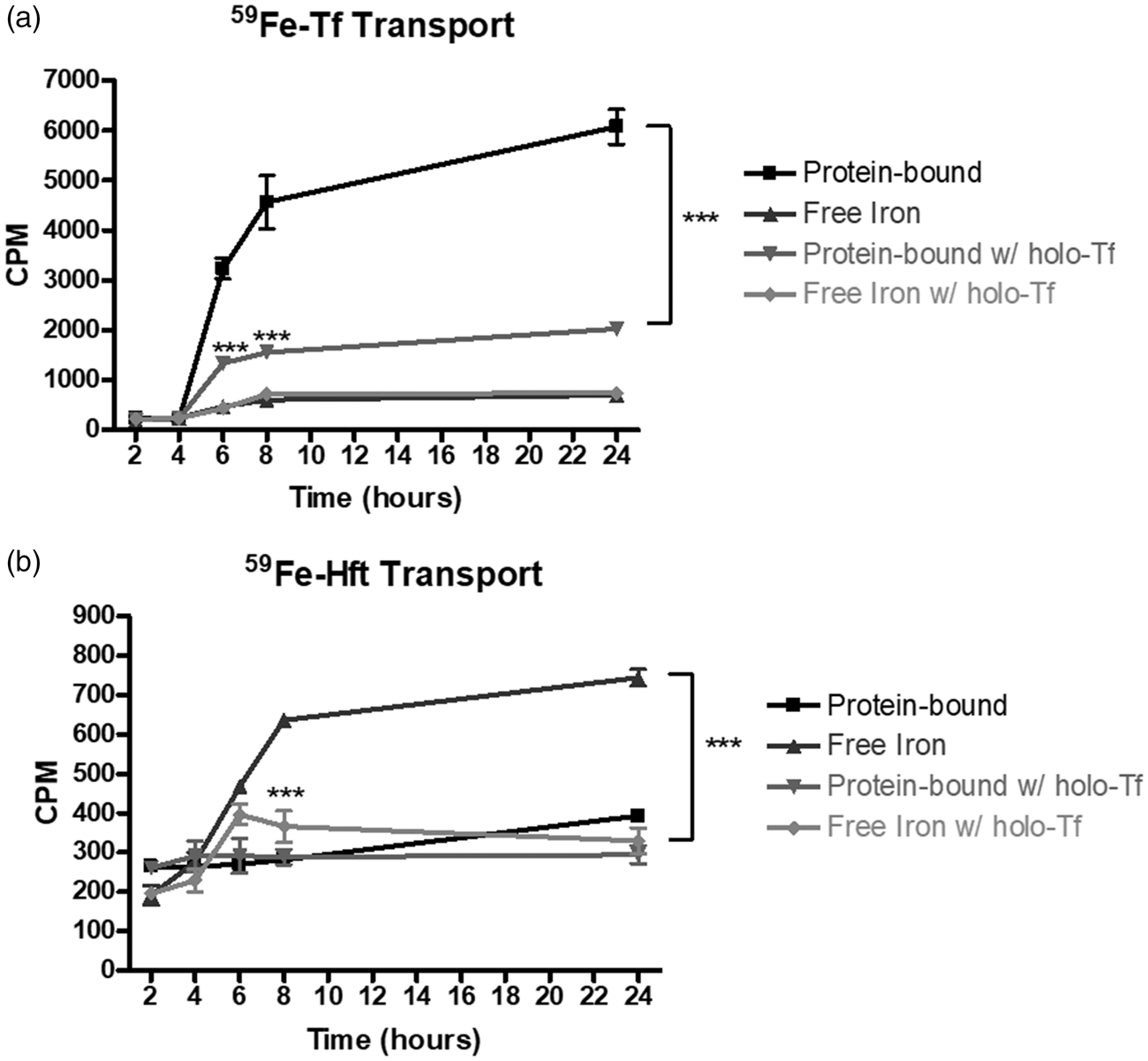

Figure 2.

Effect of holo-Tf on iron transport across the huECs. 1 mg/mL holo-Tf was added to the basal chamber during ⁵⁹Fe-Tf or ⁵⁹Fe-Hft transport. (a) Holo-Tf significantly decreased iron transport across the huECs in the protein-bound form. Transport of free iron was unaffected by holo-Tf addition. (b) Holo-Tf caused a significant decrease in free ⁵⁹Fe that was found in the basal chamber. ⁵⁹Fe-Hft transport was unaffected by holo-Tf addition. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Protein-bound” or “Free Iron” conditions using two-way ANOVA with Bonferroni's posttest for significance. ***p < 0.001.

Hepcidin affects free iron transport efflux from huECs

To begin to determine how free ⁵⁹Fe was transported across the huECs, we examined the only known exporter of iron in vertebrates, ferroportin, and its regulator, hepcidin. Hepcidin is a hormone produced by the liver which binds to ferroportin and causes its internalization and degradation.^32,33 We tested the hypothesis that addition of hepcidin to the basal chamber will cause a reduction in the amount of free ⁵⁹Fe transported across the huECs. We added 500 nM hepcidin to the basal chamber of each well and added ⁵⁹Fe-Tf or ⁵⁹Fe-Hft to the apical chamber (Figure 3). For the control, we added ⁵⁹Fe-Tf or ⁵⁹Fe-Hft to the apical chamber with no hepcidin added to the basal chamber. In this experiment, we found that addition of hepcidin did not affect the amount of protein-bound ⁵⁹Fe transported via Tf or Hft (Figure 3(a) and (b). However, addition of hepcidin lowered the amount of free iron transported after 24 h by 64% after Tf addition (p = 0.157). In addition, there were significant reductions in free iron transported 8 and 24 h after Hft addition, with a 24-h reduction of 56% after Hft addition (p < 0.001).

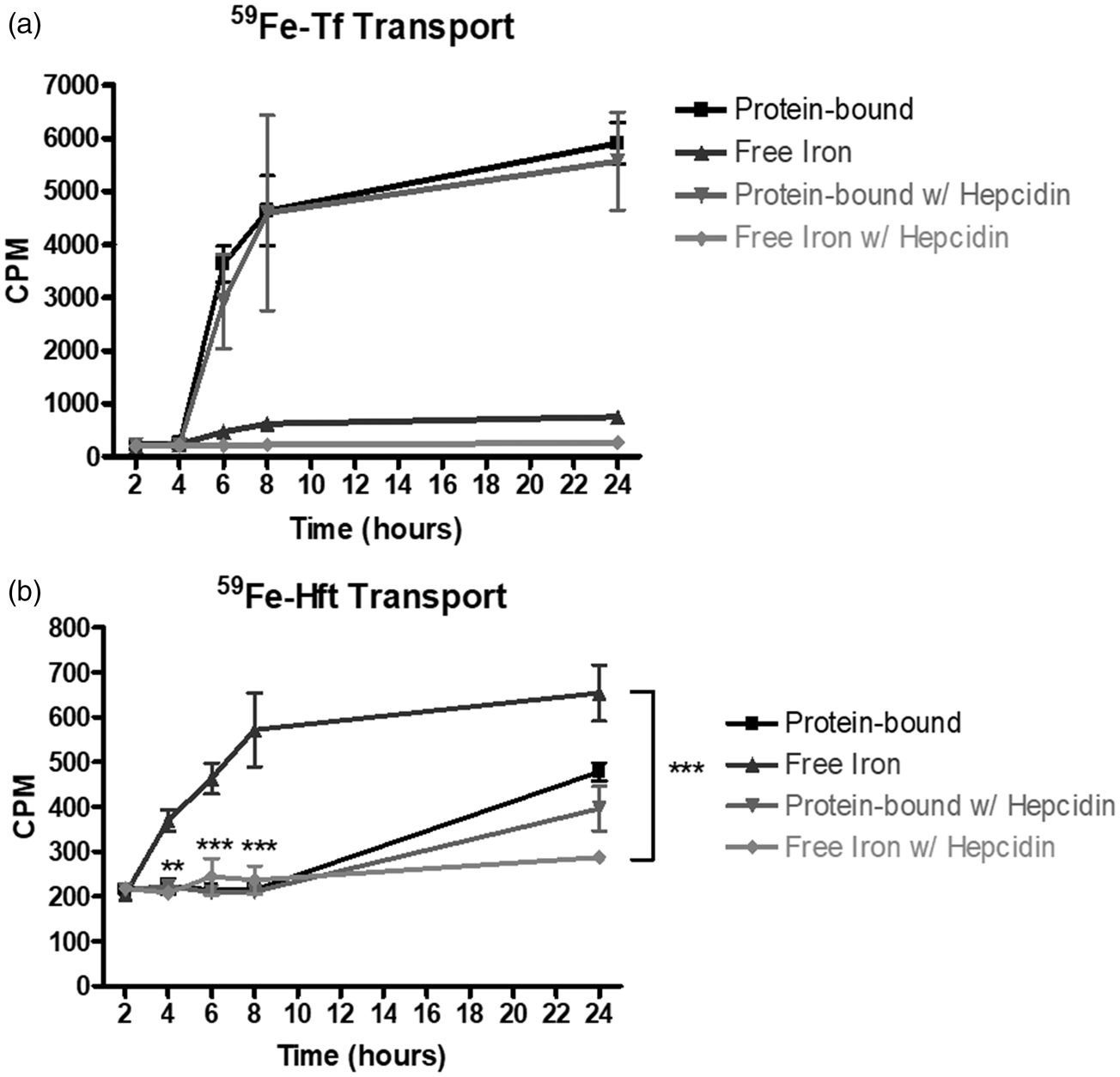

Figure 3.

Effect of Hepcidin on iron transport across the huECs; 500 nM Hepcidin was added to the basal chamber during ⁵⁹Fe-Tf or ⁵⁹Fe-Hft transport. (a) Hepcidin decreased free iron transport across the huECs. Protein-bound ⁵⁹Fe transport was unaffected by hepcidin addition. (b) Hepcidin caused significant decrease in free ⁵⁹Fe that was found in the basal chamber. ⁵⁹Fe-Hft transport was unaffected by hepcidin addition. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Protein-bound” or “Free Iron” conditions using two-way ANOVA with Bonferroni's posttest for significance. **p < 0.01, ***p < 0.001.

DMT1 inhibition affects iron transport

As previously mentioned, DMT1 is responsible for endosomal release of iron. However, the role of DMT1 has yet to be characterized in iron delivered by Hft, and its role in the transport of free iron across the BBB is not universally accepted.^29,34 To interrogate the role of DMT1 in our model, we utilized a DMT1 inhibitor, XEN602. We added 104 nM XEN602 to the apical chamber at the start of the experiment, concurrent with ⁵⁹Fe-Tf or ⁵⁹Fe-Hft addition (Figure 4). In the Tf transport experiment, addition of XEN602 not only lowered the amount of protein bound iron transported by 56% after 24 h (p < 0.001), but also altered the rate at which iron was transported across the huECs (Figure 4(a)). Free ⁵⁹Fe transport was unaffected. In the ⁵⁹Fe-Hft transport condition, XEN602 addition reversed the standard transportation method for Hft (Figure 4(b)). When compared to the control condition, there was a 236% increase in the amount of protein-bound ⁵⁹Fe transported, with a concurrent 61% decrease in the amount of ⁵⁹Fe transported after 24 h (Figure 4(b), p < 0.001). These data suggest a significant and novel role for DMT1 in the delivery of iron to the brain via Hft.

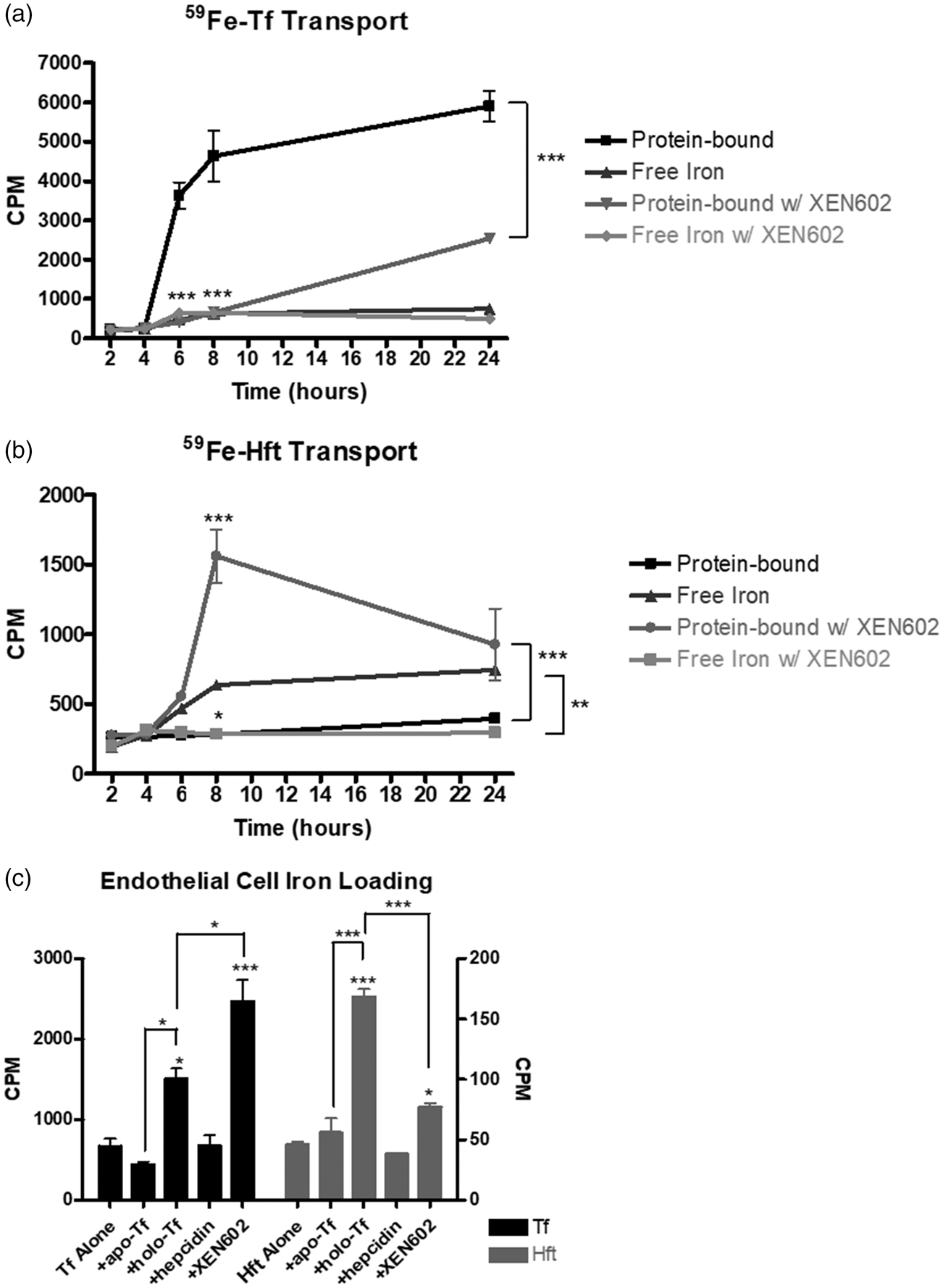

Figure 4.

Effect of the DMT1 inhibitor, XEN602, on iron transport across the huECs; 100 µM XEN602 was added to the basal chamber during ⁵⁹Fe-Tf or ⁵⁹Fe-Hft transport. (a) Inhibition of DMT1 significantly decreased protein-bound iron transport across the huECs. Free ⁵⁹Fe transport was unaffected by XEN602 addition. (b) XEN602 caused significant decrease in free ⁵⁹Fe that was found in the basal chamber. Protein-bound transport was also significantly increased by XEN602 addition. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Protein-bound” or “Free Iron” conditions using two-way ANOVA with Bonferroni's posttest for significance. (c) Human endothelial cells were loaded using either ⁵⁹Fe-Tf (black bars) or ⁵⁹Fe-Hft (gray bars) and subsequently collected for counting. ⁵⁹Fe-Tf shown by the left y-axis, while ⁵⁹Fe-Hft shown by the right y-axis. Holo-Tf and XEN602 significantly increased the amount of ⁵⁹Fe retained inside the endothelial cell. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Tf alone” or “Hft alone” conditions for the cell loading experiments using one-way ANOVA with Bonferroni's posttest for significance. *p < 0.05, **p < 0.01, ***p < 0.001.

Iron loading of huECs

At the 24-h time point for the transport assay, cells from each condition were collected and intracellular ⁵⁹Fe content was examined (Figure 4(c)). In the control transport condition, cells exposed to ⁵⁹Fe-Tf contained 669.45 ± 167.45 CPM, while cells incubated with ⁵⁹Fe-Hft contained 46.44 ± 5.12 CPM. When apo-Tf was added to the basal chamber, cells exposed to ⁵⁹Fe-Tf added had 436.03 ± 67.31 CPM, while cells incubated with ⁵⁹Fe-Hft had 55.97 ± 20.51 CPM. Though not statistically significant (p = 0.13), this represented a 35% decrease in the iron content after loading the cells with ⁵⁹Fe-Tf and a 20% increase after loading with ⁵⁹Fe-Hft (p = 0.35). When incubated with holo-Tf in the basal chamber, cells loaded with ⁵⁹Fe-Tf added contained 1502.65 ± 230.14 CPM (p < 0.05), while cells loaded with ⁵⁹Fe-Hft contained 168.23 ± 11.16 CPM (p < 0.001). When incubated with hepcidin in the basal chamber, cells loaded with ⁵⁹Fe-Tf recorded an average CPM of 675.17 ± 128.85 CPM, while cells loaded with ⁵⁹Fe-Hft recorded an average CPM of 38.3 ± 0.53. When incubated with XEN602 in the basal chamber, cells loaded with ⁵⁹Fe-Tf recorded an average CPM of 2464.4 ± 474.28 CPM (p < 0.001), while cells loaded with ⁵⁹Fe-Hft recorded an average CPM of 76.97 ± 5.26 (p < 0.05). Data from these studies provide evidence for the regulation of iron loading of huECs by Tf and Hft.

Iron and protein release by huECs

The next series of studies evaluated the ability of huECs to release ⁵⁹Fe in a protein-free loading paradigm. All of the release assays were performed under serum-free conditions and the huECs were loaded directly with ⁵⁹Fe-NTA instead of ⁵⁹Fe-Tf or ⁵⁹Fe-Hft ⁸ . We first established that iron is released over a 24-h period both bound to a protein and as free iron (Figure 5(a)). When huECs were incubated with 1 mg/mL apo-Tf in the basal chamber for 24 h after being loaded with ⁵⁹Fe-NTA overnight, there was an 81% increase (p < 0.001) in protein-bound ⁵⁹Fe and free ⁵⁹Fe released by the huECs, whereas there was a 35% decrease (p < 0.01) after incubation with 1 mg/mL holo-Tf (Figure 5(a) and (b)). Furthermore, when 500 nM hepcidin was added to the basal chamber of the huECs after iron loading, a 52% decrease in free ⁵⁹Fe released (p < 0.001) was seen after 24 h; protein-bound ⁵⁹Fe was unaffected (Figure 5(c)). In order to probe the mechanism for this effect, we incubated hepcidin with huECs for 24 h and found a 64% decrease (p < 0.05) in ferroportin (Figure 5(d)).

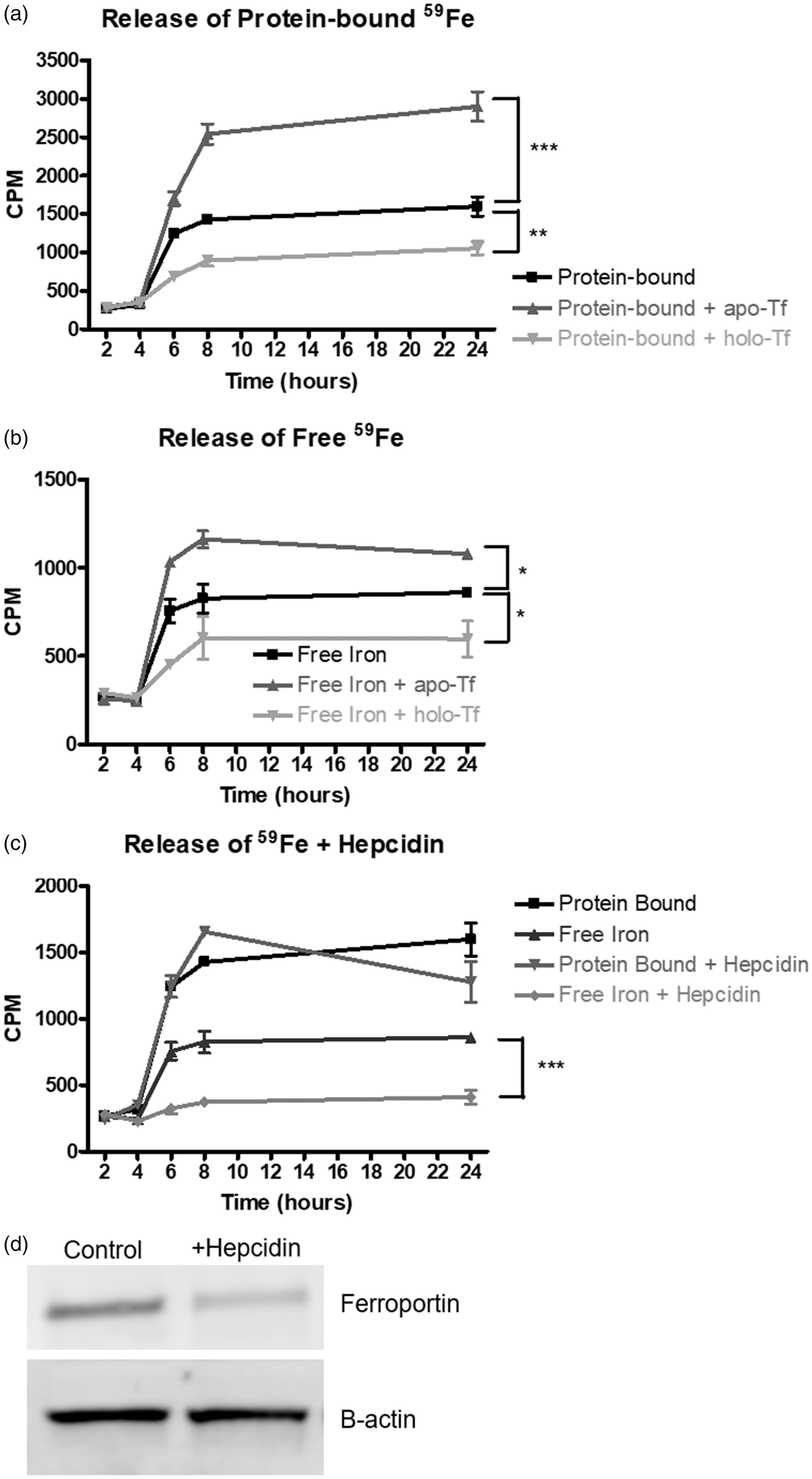

Figure 5.

Iron release from human endothelial cells. Human endothelial cells were loaded with 10 µCi ⁵⁹Fe-NTA overnight. (a) Release of protein-bound ⁵⁹Fe significantly increased after incubation with 1 mg/mL apo-Tf and significantly decreased after incubation with 1 mg/mL holo-Tf. (b) Release of free ⁵⁹Fe by huECs was significantly increased after incubation with apo-Tf and significantly decreased after incubation with holo-Tf. (c) 500 nM hepcidin treatment for 24 h significantly decreases free ⁵⁹Fe release. Release of protein-bound ⁵⁹Fe is unaffected by hepcidin addition. (d) Representative Western blot demonstrating incubation of huECs with 500 nM hepcidin for 24 h results in a 64% decrease in ferroportin expression. Means of three biological replicates ± SD from the treatment groups were evaluated against the “Protein-bound” or “Free Iron” conditions using two-way ANOVA with Bonferroni's posttest for significance. *p < 0.05, **p < 0.01, ***p < 0.001.

The release of iron bound to protein into the basal chamber following iron loading of the cells indicated that iron was being bound to a protein synthesized by the huECs. Thus, we undertook the next experiments to identity the protein secreted by endothelial cells. We performed the iron release assay as before, but collected and concentrated the entirety of the basal chamber media. Gel electrophoresis was performed on the concentrated basal chamber media with ⁵⁹Fe-Tf and ⁵⁹Fe-Hft applied as standards. Using autoradiography techniques on a SDS-PAGE gel, we demonstrate that the ⁵⁹Fe is associated with Tf (Figure 6(a)). Moreover, when the basal chamber media was subjected to an immunoblot analysis, Tf was detected in the basal chamber. Furthermore, the amount of Tf secreted changes in response to apo-Tf or holo-Tf (Figure 6(b)). Hft is also secreted into the basal chamber and is responsive to apo-Tf and holo-Tf (Figure 6(c)).

Figure 6.

Protein release from human endothelial cells. (a) Autoradiograph results demonstrating ⁵⁹Fe iron released by huECs is associated with transferrin. ⁵⁹Fe associated with Hft was undetectable. (b) Immunoblot demonstrating release of transferrin by huECs is comparable to ⁵⁹Fe-Tf standard. (c) Immunoblot demonstrating release of Hft by huECs comparable to ⁵⁹Fe-Hft standard. Lanes are as follows: (1) ⁵⁹Fe-Hft standard (Hft Std), (2) ⁵⁹Fe-Tf standard (Tf Std), (3) Control release experiment (Ctrl), (4) Release experiment with apo-Tf (+apo-Tf), (5) Release experiment with holo-Tf (+holo-Tf).

huECs use Tim-1 to take up Hft

Lastly, although we have demonstrated Hft uptake into the brain in animal studies,^11,28 Hft uptake is a novel concept in human BBB studies. Therefore, we examined the mechanism by which endothelial cells take up Hft, hypothesizing that the T-cell immunoglobulin and mucin receptor, Tim-1, facilitate Hft uptake. This is based upon previous literature describing Tim-2, the rodent homolog to Tim-1, as a binding partner to Hft. ²⁸ We used immunocytochemistry to explore colocalization between fluorescently labeled Hft (Hft-QD) and Tim-1 (Figure 7). As demonstrated in Figure 7(a), Hft-QD are robustly taken up by huECs. Furthermore, this Hft-QD uptake localizes with Tim-1. When Hft-QD are incubated concurrently with 2 µg/mL of an anti-Tim-1 antibody, there is a marked decrease in the amount of Hft-QD uptake (Figure 7(b)). As a negative control for this experiment, we used Ctrl-QD (Figure 7(c)). Additionally, we attempted to compete off the Hft-QD interaction with Tim-1 by using 2 µg/mL of an anti-Tim-2 antibody, but found no decrease in Hft-QD uptake (Figure 7(d)).

Figure 7.

Human endothelial cells take up H-ferritin through Tim-1. (a) HuECs incubated with Hft-QD for 3 h and stained for Tim-1 display colocalization between Hft-QD (magenta) and Tim-1 (green). Cell nuclei are stained with DAPI. (b) Hft-QD uptake is greatly decreased after incubating huECs with Hft-QD and an anti-Tim-1 antibody (2 µg/mL) concurrently. (c) Using Ctrl-QD as a negative control, huECs do not take up non-specific quantum dots. (d) To discern whether Hft-QD is specific to Tim-1, an anti-Tim-2 antibody (2 µg/mL) was used in an attempt to compete off Hft-QD. No reduction in signal was observed.

Discussion

The aim of this study was to demonstrate the active transport of Tf and Hft in a human BBB model, and how this uptake and transport might be modulated. As previously mentioned, the Tf transcytosis paradigm has numerous flaws that do not address the endothelial cells' iron requirements. The existing paradigm also fails to consider the possibility that iron uptake by the brain is regulated by the brain itself; this concept is critical to the debate regarding whether iron supplementation will increase brain iron in development or contribute to late onset neurodegenerative disease. ³⁵ In this study, we have expanded upon our previous work using bovine brain and retinal primary endothelial cells by utilizing a recently characterized novel model of the human BBB that recapitulates tight barrier properties and active transport functions. ¹⁸ The data with the huECs and our previous studies with primary bovine endothelial cells revealed similar results regarding iron transport across the endothelial cells in the BBB model and the regulatory factors that may impact this transport.^8,29 Furthermore, using the huEC as a model, we have demonstrated a novel function for Hft to deliver iron through Tim-1 to the endothelial cells. In addition, our current results identify a significant role for holo-Tf, hepcidin, and DMT1 in the regulation of uptake and transport/release of both Tf-bound and Hft-bound iron, as well as free iron.

We provide evidence that Hft, a protein thought to be solely used for iron storage, can serve as an iron delivery protein and is secreted from BBB endothelium as a source of iron for the brain. In addition to the demonstration of Hft-mediated iron delivery to the brain, we also demonstrate that Hft can load the endothelial cells with iron and this process is sensitive to regulation. The delivery of iron to both the developing and mature brain is critical, especially when considering the amount of iron required for specific and highly demanding metabolic brain processes such as myelination, growth, and development.^9,36,37 The ability of Hft to deliver iron to the brain and other organs has been previously reported in cell and animal models. ¹¹ In addition to iron delivery, ferritin has been employed as a potential delivery protein for chemotherapeutic agents and contrast agents in the brain.^38–40 Our data suggest that the protein can be transported intact across the BBB, thus highlighting the potential for ferritin to directly target sites in the brain. Our data further suggest the uptake mechanism for Hft is mediated by Tim-1, the sequential human homolog to the rodent Tim-2, a member of the T cell immunoglobulin and mucin domain family, which has been shown to robustly bind to Hft and deliver iron to oligodendrocytes.^{27,28,41–43}

The data we present here demonstrate the ability of proteins found in the brain to significantly affect iron transport at the level of the endothelial cells. This point is especially important because it suggests that signaling from specific regions of the brain may regulate iron release from endothelial cells accounting for local regulation consistent with reports of regional iron uptake in animal models following iron deprivation. ⁴⁴ This concept of local regulation becomes increasingly crucial in many neurological diseases that have an altered brain iron profile specific to various regions of the brain, such as the substantia nigra in Parkinson's disease ⁴⁵ and restless leg syndrome,^46,47 the hippocampus in Alzheimer's disease, ⁴⁸ as well as white matter in multiple sclerosis.^49,50 Here, we present data that support a role for apo-Tf, holo-Tf, and hepcidin in regulating the amount of iron transported across the BBB and released from the endothelial cells. This regulation directly impacts not only the maximal amount of iron transported but also the rate of transport. While we cannot rule out that the observed increase in protein-bound iron could result from increased free iron binding to available apo-Tf in the basal chamber, there is no ferroxidase activity in the basal media that would promote a conversion of ferrous to ferric iron for apo-Tf binding. Nonetheless, this does not change the interpretation that apo-Tf promotes increased release of iron from the endothelial cells.

Our data not only demonstrate regulation of transport, but also suggest that BBB endothelium can store iron and release it in a regulated manner, thus acting as a reservoir of iron for the brain. The ability to store iron in endothelial cells is consistent with our previous reports that ferritin is present in both animal and human brain microvasculature. ³ We demonstrate in this study that both apo-Tf and holo-Tf have significant effects on the level of iron storage in the endothelial cells, with apo-Tf decreasing the amount of iron stored while holo-Tf increased the amount of stored. These data, along with our previous reports in animal studies ⁵¹ provide convincing evidence that the BBB is not a simple conduit for iron transport. Moreover, the data showing apo-Tf and holo-Tf display significant and opposing effects on iron transport and endothelial cell storage of iron suggests the ratio of apo-Tf/holo-Tf is responsible for the regional regulation of iron.

In addition, we demonstrate that hepcidin acts as a regulatory mechanism for the release of free iron from the endothelial cells. Hepcidin functions by causing the only known iron exporter ferroportin to internalize and subsequently be degraded.^13,32,52 Our data suggest that hepcidin from the brain parenchyma can robustly decrease the amount of free iron that is released from the endothelial cells. Notably, the regulation by hepcidin seems to affect only the export of free iron, regardless of which protein is used to initially transport iron. This would be consistent with the existing concept for iron release via ferroportin but clearly indicates there is an additional mechanism for protein bound iron release from BBB endothelium. That protein bound iron release is regulated suggests a novel interaction between Tf and ferroportin on the abluminal side of the BBB that will be explored in future studies.

To release free iron via ferroportin, there must be a mechanism within the BBB endothelium to remove iron from both Tf and Hft. The DMT1 was originally characterized to transport a broad range of ions ⁵³ ; however, it has been shown to be a robust endosomal iron transporter in a variety of cell types.^14,17 Here, our data reveal that pharmacological inhibition of DMT1 results in separate intracellular fates for Tf and Hft. After receptor-mediated endocytosis of Tf, the Fe-Tf complex is directed to the endosome, where the pH decrease causes Fe³⁺ to be released from Tf and reduced to Fe²⁺. Subsequently, the free Fe is exported out of the endosome by DMT1 to be used in a variety of cellular processes, stored within ferritin, exported as free iron via ferroportin, or exported from the cell as Tf-bound iron. ⁸ Our data support these pathways for iron, as inhibition of DMT1 dramatically lowers the level of protein-bound iron transported through the BBB endothelium while dramatically increasing the amount of iron retained in the endothelial cells. Furthermore, DMT1 inhibition results in drastic increases in the amount of iron retained within the cell during transport, providing further evidence for involvement of DMT1 in intracellular pathways. The interrogation of a relationship between DMT1 and Hft iron delivery has not been explored in any cell type to our knowledge. Here, we provide evidence that Hft-mediated transport of iron is significantly impacted by DMT1 inhibition. The data reveal that DMT1 inhibition pushes the intracellular steady-state towards transport of protein-bound iron, which suggests multiple fates for Hft within the endothelial cell after internalization. After endocytosis, Hft is likely localized to the endo-lysosome to be degraded, where the iron contained within is exported from the endosome via DMT1 and from the cell via ferroportin. However, blockage of DMT1 may result in a lack of degradation of Hft, thereby causing the entire protein being exported from the cell. Though we have provided strong evidence for the existence of a novel mechanism of Hft transport, further studies are required to fully characterize the intracellular pathways.

In this study, we also provide evidence that BBB endothelial cells can secrete Tf and Hft. These data could further significantly alter the paradigm for brain iron uptake as it suggests proteins synthesized in BBB endothelium bind iron within these cells and release it into the brain. The concept of Tf being synthesized for release by endothelial cells is consistent with our previous report that Tf mRNA is present in human brain microvasculature. ³ The presence of mRNA for Hft has also been detected in human brain microvasculature and was considered as evidence for iron storage capacity of these cells, but now this concept may be expanded to secretion based on the findings in this study.^54,55 Though it is clear from the immunoblot analysis that Hft is secreted by BBB endothelium, one explanation for why a similar result was not found in the autoradiograph may stem from the loss of ⁵⁹Fe nucleation after protein denaturation. Clearly, synthesis and subsequent secretion of Tf and Hft by BBB endothelium demonstrates yet another level of regulation for iron transport to the brain and endothelial cells, which may function as a critical checkpoint.

The results of this study on iron transport at the level of the BBB have significant implications in treating iron-related brain disorders, as well as efforts to use the iron transport system in the brain to deliver therapeutics and contrast agents. Our data indicate that the brain has the ability to control the amount of iron transport and release and thus attempts to increase brain iron may be limited. This concept of “brain side” control could limit the effectiveness of iron supplementation strategies for overcoming behavioral and cognitive impairment associated with developmental iron deficiency^56,57 and also for treating neurological disorders such as restless legs syndrome.^58,59 Rather, strategies may instead need to focus on targeting release mechanisms in BBB endothelial cells. Moreover, technologies have been developed to harness the iron transport system in the brain to treat neurodegenerative diseases such as the use of bispecific antibodies against TfR in an attempt to alter deposition of β-amyloid in Alzheimer's disease,^60,61 or deliver chemotherapeutic agents to treat glioblastoma. ⁶² Both of these strategies are centered on the Tf transcytosis model that, based on our data, is not a direct transport model. However, the present data do increase support for the use of Hft as an effective protein for delivering agents to the brain.

In summary, these data present novel findings about regulation of brain iron uptake and transport across the BBB, providing evidence for Hft as a novel iron delivery protein and the beginning for mechanistic studies addressing this novel uptake mechanism. Finally, we have also identified a novel function of BBB endothelium to secrete Tf and Hft, further challenging the established transcytosis paradigm and revealing a heretofore unappreciated relationship between the BBB endothelium and brain iron uptake.
