Targeted overexpression of endothelial nitric oxide synthase in endothelial cells improves cerebrovascular reactivity in Ins2 Akita -type-1 diabetic mice

Abstract

Reduced bioavailability of nitric oxide due to impaired endothelial nitric oxide synthase (eNOS) activity is a leading cause of endothelial dysfunction in diabetes. Enhancing eNOS activity in diabetes is a potential therapeutic target. This study investigated basal cerebral blood flow and cerebrovascular reactivity in wild-type mice, diabetic mice (Ins2^Akita+/−), nondiabetic eNOS-overexpressing mice (TgeNOS), and the cross of two transgenic mice (TgeNOS-Ins2^Akita+/−) at six months of age. The cross was aimed at improving eNOS expression in diabetic mice. The major findings were: (i) Body weights of Ins2^Akita+/− and TgeNOS-Ins2^Akita+/− were significantly different from wild-type and TgeNOS mice. Blood pressure of TgeNOS mice was lower than wild-type. (ii) Basal cerebral blood flow of the TgeNOS group was significantly higher than cerebral blood flow of the other three groups. (iii) The cerebrovascular reactivity in the Ins2^Akita+/− mice was significantly lower compared with wild-type, whereas that in the TgeNOS-Ins2^Akita+/− was significantly higher compared with the Ins2^Akita+/− and TgeNOS groups. Overexpression of eNOS rescued cerebrovascular dysfunction in diabetic animals, resulting in improved cerebrovascular reactivity. These results underscore the possible role of eNOS in vascular dysfunction in the brain of diabetic mice and support the notion that enhancing eNOS activity in diabetes is a potential therapeutic target.

Keywords

Cerebral blood flow cerebrovascular dysfunction MRI hypercapnia eNOS arterial spin labeling

Introduction

Endothelial dysfunction is a hallmark of diabetes.^1,2 Reduced bioavailability of nitric oxide (NO) as a result of impaired endothelial nitric oxide synthase (eNOS) activity is a leading cause of endothelial dysfunction in diabetes.^1–4 Diabetic mice with eNOS knockout show a deleterious effect on renal microvasculature and aortic vessels.⁵ NO deficiency has been shown to precede the development of several complications of diabetes such as accelerated atherosclerosis affecting large arteries and microvascular dysfunction resulting in neuropathy and nephropathy.⁶ Enhancing eNOS activity in diabetes is a potential therapeutic target.

NO is generated from the conversion of L-arginine to L-citrulline by isoforms of NOS using tetrahydrobiopterin (BH4) as a cofactor. Among the three isoforms, eNOS is the predominant one expressed in vascular endothelial cells that constitutively generates NO. NO is an important mediator in the regulation of cerebral blood flow (CBF).^4,7 CBF is increased by NO derived from endothelial cells or neurons.⁷ Administering NOS inhibitors narrows cerebral arteries and reduces CBF.⁸ Decreased CBF has been observed in type-1 diabetic patients.⁹

Transgenic eNOS overexpression in mice has been shown to protect against endotoxin shock,¹⁰ systemic hypotension,¹¹ and skeletal muscle ischemic/reperfusion injury.¹² eNOS overexpression also minimizes neointimal lesion formation and medial thickening in a model of vascular remodeling.¹³ Rats overexpressing eNOS using adenoviral gene transfer develop a short-term increase in CBF.¹⁴ However, the effects of eNOS overexpression in the diabetic brain have not been studied.

Given that reduced NO availability is a leading cause of endothelial dysfunction in diabetes, normalizing eNOS activity by enhancing NO bioavailability through transgenic engineering could be a therapeutic option. In the present study, we investigated the effects of overexpression of eNOS on CBF and cerebrovascular reactivity (CR) in diabetes. CR was measured as the percent CBF changes associated with hypercapnic challenge (inhalation of 5% CO₂ in air). CBF and CR measurements were made using MRI on Ins2^Akita spontaneously diabetic mice, nondiabetic Tie2-specific transgenic eNOS-overexpressing (TgeNOS) mice, and the cross of these two animals (TgeNOS-Ins2^Akita+/−) with the goal of enhancing eNOS production in diabetic animals. Physiological parameters (respiration rate, heart rate, mean arterial blood pressure, body weight, and blood glucose) were measured and compared across groups. We tested the hypothesis that overexpression of eNOS will rescue cerebrovascular dysfunction in diabetes.

Materials and methods

The following ARRIVE guidelines were followed in the preparation of this manuscript: Title, Abstract, Background, Objectives, and Ethical statement; Study Design; Experimental procedures; Experimental animals, Housing, and husbandry; Experimental outcomes; Statistical methods, Numbers analyzed; Interpretation and scientific implications; and Generalizability/translation and Funding. All animal experiments were approved by the Institutional Animal Care and Use Committee at the University of Texas Health Science Center San Antonio in accordance with the Guide for the Care and Use of Laboratory Animals.

Breeding and genotyping

A pair of heterozygous C57BL/6 J-Ins2^Akita+/− (stock number 003548) from Jackson Laboratories (Bar Harbor, ME) was used for breeding. Heterozygous Ins2^Akita+/− mice obtained after back crossing of these parental strains were used for experiments. The tail snips obtained from litters at the time of weaning (about three weeks after birth) were used to identify their genotype using a PCR/restriction length polymorphism assay. Purified DNA from tail snips were subjected to PCR amplification using the following primers and conditions recommended by Jackson Laboratories: the primers used for Ins2^Akita+/− genotyping include FP:‘5TGC TGA TGC CCT GGC CTG CT3’(MR1093) and RP:‘5TGG TCC CAC ATA TGC ACA TG3’. The PCR product of Akita genotype was further digested with Fnu-1 restriction enzyme and the digested samples were examined using 12% polyacrylamide gels.

A hemizygous breeding pair of TgeNOS overexpressing mice (expressing human eNOS fused with green fluorescent protein in vascular endothelial cells) on a C57BL/6 J background was used for breeding experiments. Litters born for this hemizygous breeding pairs were genotyped using primers FP: ‘5 GATGGAAGACTTGGTGGGGAG3’and RP:‘5 GTTCTCCCTGGATTAAGTGAG3’ that specifically amplify the human eNOS and results were further confirmed by the presence of green fluorescent protein (Transnety, Cordova, TN). To generate Ins2^Akita+/− mice that express human eNOS, hemizygous Ins2^Akita mice were crossbred with hemizygous TgeNOS expressing mice for two to three generations, even though both strains were already available on a C57BL/6 J background, to obtain genetic homogeneity. The litters were genotyped for both Ins2^Akita+/− and hemizygous TgeNOS, and mice that were positive for both strains (hemizygous) were referred to as TgeNOS-Ins2^Akita+/−.

Magnetic resonance imaging

For MRI studies, four groups of male mice aged 5–7 months with a body weight ranging between 21 and 30 g were studied: (i) wild-type (WT) C57BL/6 J mice (n = 8), (ii) TgeNOS mice (n = 9), (iii) Ins2^Akita (n = 9) mice, and (iv) a genetic cross between TgeNOS and Ins2^Akita mice (TgeNOS-Ins2^Akita+/−) (n = 8).

All animals were noninvasively monitored for respiration rate, oxygen saturation, and rectal temperature and maintained within normal physiological ranges unless otherwise perturbed by hypercapnia. MRI experiments were performed on a 7 Tesla magnet (Bruker Biospec, Billerica, MA) with a 150 Gauss/cm gradient. A small custom-made circular surface coil designed for brain imaging (inner diameter = 1.1 cm) and a circular labeling heart coil (inner diameter = 0.8 cm) was used for arterial spin labeling.¹⁵ Mice were anesthetized with 1.0–1.5% isoflurane. Temperature was maintained at 37℃ and respiratory rate at 80–110 bpm. CBF was acquired using the continuous arterial spin labeling technique and single-shot echo-planar imaging with field of view = 1.28 × 1.28 cm, data matrix = 64 × 64, slice thickness = 1 mm, 9 slices, labeling duration = 2.2 s, post label delay = 350 ms, repetition time = 3 s, and echo time = 8 ms. Basal CBF was acquired in air. CBF hypercapnic responses were measured using inhalation of 5 min air followed by 5 min 5% CO₂. CBF maps and hypercapnia-induced percent changes maps were calculated.^16,17 Quantitative CBF and CBF changes were tabulated for the neocortices using region of interest analysis.

Blood glucose and blood pressure measurements

On a separate group of animals of similar age and weight as the MRI studies, blood pressure, heart rate, and nonfasting blood glucose were measured under similar experimental conditions outside the scanner (n = 5 each of the four groups). For blood pressure measurements, a common carotid artery was catheterized with PE-10 tubing and connected to a pressure transducer in a terminal surgery (Biopac System Inc., MP150, Goleta, CA). Blood glucose levels were measured using an AlphaTRAK 2® Blood Glucose Monitoring System (Abbott Laboratories, Abbott Park, IL).

Statistical analysis

Statistical analysis employed paired t test for CBF changes between normocapnic versus hypercapnic challenge within group and unpaired t test for CBF changes across different animal groups. Statistical significance was set at p < 0.05. Mean ± SD was used in text and table. Mean ± SEM was used for graphs.

Results

Physiological parameters (age, weight, respiration rate, blood glucose, blood pressure, and heart rate) are summarized in Tables 1 and 2. The mean ages were about six months and they were not statistically different amongst the four animal groups. Body weights of Ins2^Akita+/− (21 ± 0.4 g) and TgeNOS-Ins2^Akita+/− (23 ± 0.9 g) mice were significantly lower than that of wild-type (28 ± 0.9 g) and TgeNOS (30 ± 0.9 g) mice. Respiration rates were not statistically different amongst the four animal groups. Blood glucose values of wild-type and TgeNOS mice were normal but those of Ins2^Akita+/− and TgeNOS-Ins2^Akita+/− were markedly elevated compared with wild-type as expected. Blood glucose was also significantly different between Ins2^Akita+/− and TgeNOS-Ins2^Akita+/−. Blood pressure of TgeNOS mice was low (48 ± 9 mmHg) compared with wild-type mice (61 ± 17 mmHg) but the difference was not significant, whereas blood pressure of Ins2^Akita+/− (62 ± 11 mmHg) and TgeNOS-Ins2^Akita+/− (56 ± 7 mmHg) mice were similar to that of wild-type mice. Heart rates of the Ins2^Akita+/− (501 ± 63 bpm) and TgeNOS-Ins2^Akita+/− (558 ± 57 bpm) were lower compared with that of wild-type (601 ± 25 bpm) and TgeNOS (570 ± 13 bpm) mice.

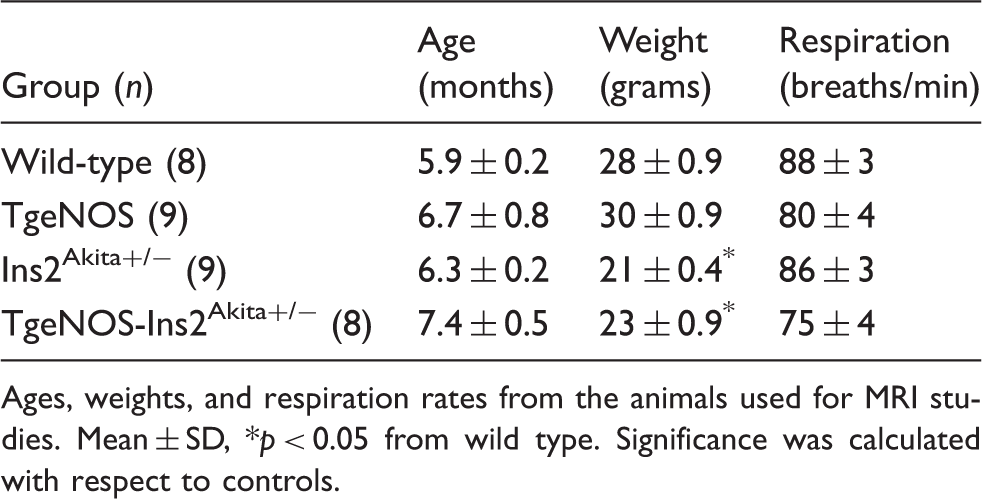

Table 1.

Physiological parameters (age, weight, and respiration rate).

Group (n)	Age (months)	Weight (grams)	Respiration (breaths/min)
Wild-type (8)	5.9 ± 0.2	28 ± 0.9	88 ± 3
TgeNOS (9)	6.7 ± 0.8	30 ± 0.9	80 ± 4
Ins2^Akita+/− (9)	6.3 ± 0.2	21 ± 0.4^*	86 ± 3
TgeNOS-Ins2^Akita+/− (8)	7.4 ± 0.5	23 ± 0.9^*	75 ± 4

Ages, weights, and respiration rates from the animals used for MRI studies. Mean ± SD, *p < 0.05 from wild type. Significance was calculated with respect to controls.

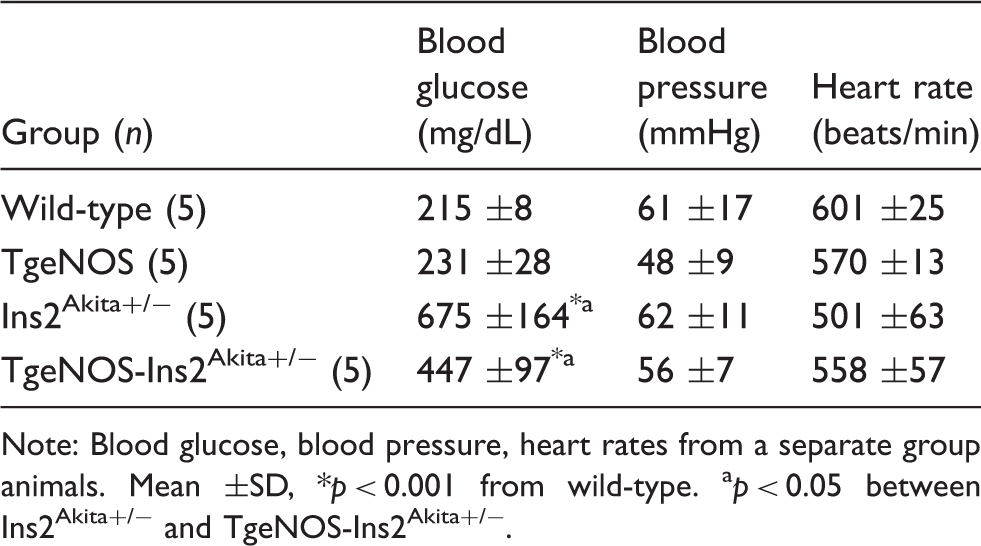

Table 2.

Physiological parameters (blood glucose, blood pressure, and heart rate).

Group (n)	Blood glucose (mg/dL)	Blood pressure (mmHg)	Heart rate (beats/min)
Wild-type (5)	215 ±8	61 ±17	601 ±25
TgeNOS (5)	231 ±28	48 ±9	570 ±13
Ins2^Akita+/− (5)	675 ±164^*a	62 ±11	501 ±63
TgeNOS-Ins2^Akita+/− (5)	447 ±97^*a	56 ±7	558 ±57

Note: Blood glucose, blood pressure, heart rates from a separate group animals. Mean ±SD, *p < 0.001 from wild-type.

p < 0.05 between Ins2^Akita+/− and TgeNOS-Ins2^Akita+/−.

Genotyping of wild-type, Ins2^Akita+/−, and TgeNOS-Ins2^Akita+/− mice are shown in Figure 1. In panel (a), the wild-type mice (lane 1) showed the wild-type allele at 140 bp, the Ins2^Akita+/− mice (lane 2) and TgeNOS-Ins2^Akita+/− mice (lane 3) both showed the mutant Ins2^Akita allele at 280 bp in addition to the wild-type product at 140 bp (indicating the heterozygous genotype). In panel (b), only the TgeNOS mice (lane 3) showed expression of the TgeNOS gene at 361 bp. In panel (c), only the TgeNOS-Ins2^Akita+/− mice (lane 3) showed the human eNOS product at 361 bp. These results confirmed the genotypes of mice generated from our breeding colony.

Figure 1.

Genotyping of wild-type, Ins2^Akita+/− and TgeNOS-Ins2^Akita+/−. (a) Lane 1 (wild-type mice): a single band (140 bp) of the wild-type allele. Lane 2 (Ins2^Akita+/− mice): wild-type (140 bp) and mutant Ins2^Akita gene (280 bp). Lane 3 (TgeNOS-Ins2^Akita+/− mice): wild-type (140 bp) and mutant Ins2^Akita+/− gene (280 bp). (b) Only Lane 3 (TgeNOS mice) shows expression of the TgeNOS gene (361 bp). (c) Only Lane 3 (TgeNOS-Ins2^Akita+/− mice) shows overexpression of the TgeNOS gene (361 bp).

Representative multi-slice CBF images are shown in Figure 2(a). Quantitative CBF was tabulated for neocortices as shown by the overlaid region of interests. The mean basal CBF of the TgeNOS group was significantly higher than that of wild-type (p < 0.05), Ins2^Akita+/− (p < 0.01), and TgeNOS-Ins2^Akita+/− mice (p < 0.05) (Figure 2(b)). There were no statistical significances in basal CBF between any other pairs.

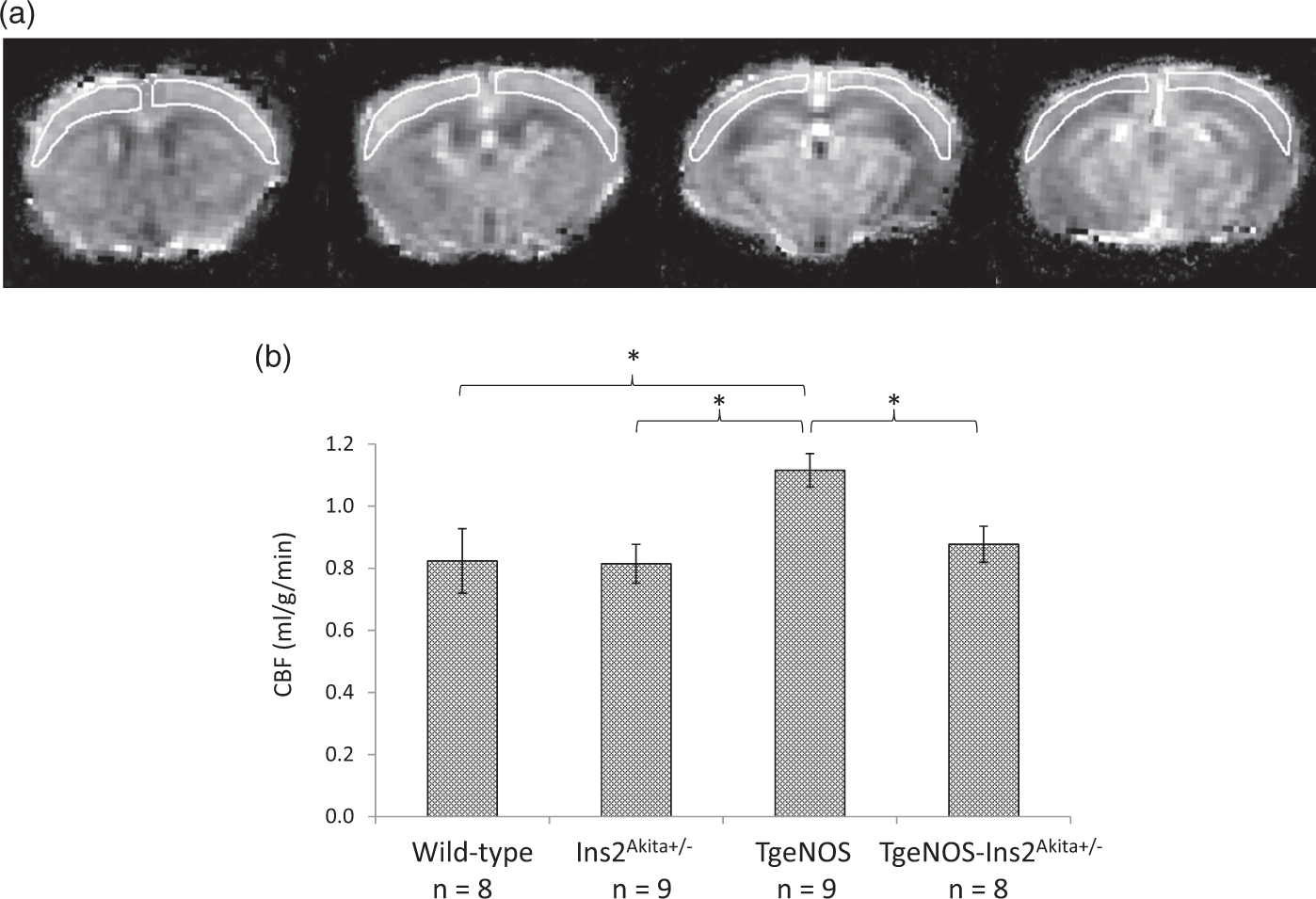

Figure 2.

(a) Multi-slice CBF images from the anterior to the posterior region of the brain were acquired from a wild-type animal. Region of interests of the neocortices were used for quantitative analysis. (b) Group CBF values of wild-type, Ins2^Akita+/−, TgeNOS, and TgeNOS-Ins2^Akita+/− mice. Mean ± SEM, *p < 0.05, **p < 0.001.

Figure 3 shows the absolute CBF and percent changes in CBF from hypercapnic challenge. Each group showed a significant increase in CBF during hypercapnia (p < 0.001, paired t test). The percent CBF increase in the Ins2^Akita+/− group was significantly reduced (p < 0.05) compared with the wild-type group. The percent CBF increase of the TgeNOS-Ins2^Akita+/− group was statistically significantly higher than that of the Ins2^Akita+/− (p < 0.05) and TgeNOS (p < 0.05) group. There were no statistical significances in hypercapnia-induced CBF increase between the remaining pairs.

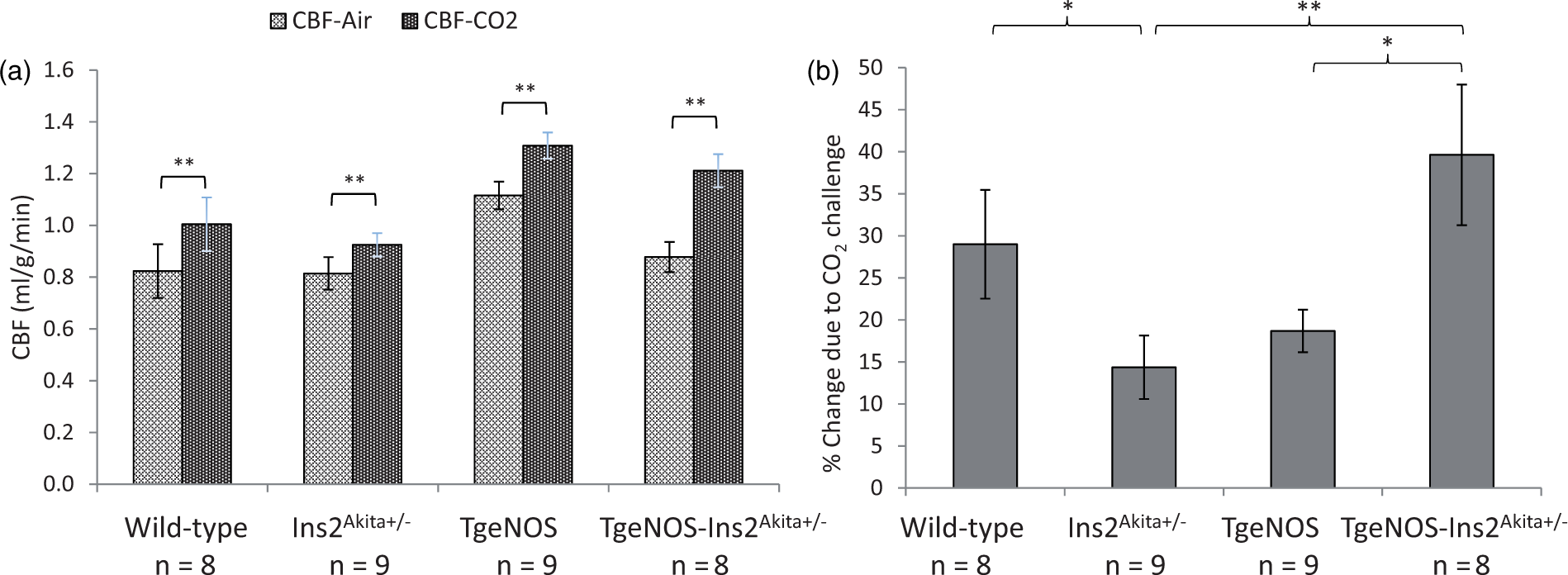

Figure 3.

Group-averaged. (a) CBF absolute and (b) CBF percent changes during 5% CO₂ challenge for wild-type, Ins2^Akita+/−, TgeNOS, and TgeNOS-Ins2^Akita+/− mice. Mean ± SEM, *p < 0.05 (paired t test).

Discussion

This study investigated basal CBF and CR in wild-type mice, diabetic mice (Ins2^Akita+/−), nondiabetic eNOS-overexpressing mice (TgeNOS), and the cross mice (TgeNOS-Ins2^Akita+/−) at six months of age. The major findings were: (i) body weights of Ins2^Akita+/− and TgeNOS-Ins2^Akita+/− were significantly different from those of the wild-type and TgeNOS mice. Only blood pressure of TgeNOS mice was lower than wild-type. (ii) Basal CBF of the TgeNOS group was significantly higher than CBF of the other three groups, whereas the basal CBF of the remaining three groups were not statistically different from each other. (iii) The CR in the Ins2^Akita+/− mice was significantly lower compared with the wild-type mice, whereas that in the TgeNOS-Ins2^Akita+/− was significantly higher compared with the Ins2^Akita+/− and TgeNOS group, indicating normalization of CR. These findings suggest overexpression of eNOS rescued some aspects of cerebrovascular dysfunction in diabetes, resulting in improved CR in diabetic animals. These findings also underscore the role of eNOS in cerebrovascular dysfunction in the brain in diabetes, and thus enhancement of eNOS activity in diabetes could be a potential therapeutic target.

Physiological parameters

Body weights of Ins2^Akita+/− and TgeNOS-Ins2^Akita+/− were significantly lower compared with those of the wild-type and TgeNOS mice, likely due to complications of diabetes, consistent with a previous study.¹⁸ The body weight of TgeNOS mouse was normal, suggesting overexpression of eNOS per se did not affect the body weight, consistent with previous studies.^19,20

Blood glucose of TgeNOS-Ins2^Akita+/− mice was lower than that of Ins2^Akita+/− mice. It is possible that eNOS overexpression could interact with diabetes and contribute to the lower blood glucose observed in TgeNOS-Ins2^Akita+/− mice, although there is no evidence of such interaction. However, TgeNOS per se did not increase blood glucose and thus this explanation is unlikely. The mechanism and the modulators that regulate blood glucose in this novel TgeNOS-Ins2^Akita+/− are unknown. Note that there were large variations of blood glucose in Ins2^Akita+/− and TgeNOS-Ins2^Akita+/− mice compared with WT or TgeNOS mice. This is a result of measurement of nonfasting blood glucose which could spike-up and fluctuate dramatically in diabetic animals. Blood pressure of the TgeNOS mice was lower than that of wild-type mice, which was expected because overexpressing eNOS (a vasodilator) would reduce vascular resistance. Blood pressure of Ins2^Akita+/− mice was similar to that of wild-type mice. A previous study reported systolic blood pressure to be elevated after 12 weeks of age compared with wild-type mice.²¹ Possible explanations for this discrepancy in blood pressure could be due to: (i) the use of isoflurane, a vasodilator, which could have masked the differences between Ins2^Akita+/− and wild-type mice; and/or (ii) previous studies measured blood pressure without the influence of anesthetics or under different anesthetics.^22,23 Blood pressure of TgeNOS-Ins2^Akita+/− mice was not different from wild-type mice. There is no published blood pressure data on TgeNOS-Ins2^Akita+/− mice with which to compare. An additional confound is that isoflurane may upregulate NO production.^24,25 However, the anesthesia settings were identical in all the animal groups, enabling the comparisons.

Basal CBF

Basal CBF of Ins2^Akita+/− was not significantly different from that of wild-type mice. To our knowledge, there are no previous reports of CBF in Ins2^Akita+/− mice. However, decreases in retinal blood flow have been observed at 6²⁶ and 7.5 months²⁷ and choroidal blood flow at 2.5 and 7.5 months²⁷ in Ins2^Akita+/− mice. The brain is one of the organs well protected from most systemic disorders, and thus it likely has compensatory mechanisms to maintain normal CBF under basal (nonchallenged) conditions. In type-1 diabetic patients, reduced local CBF has been reported.⁹ A possible explanation of this discrepancy could be due to difference in severity of the disease or species differences. It is possible that older Ins2^Akita+/− mice would show reduced basal CBF and future studies will need to investigate these animals at different age groups.

Basal CBF of TgeNOS mice was, however, significantly higher than basal CBF of the other groups. This is expected as NO has vasodilatory effects^28–30 and overexpressing eNOS in TgeNOS mice is expected to increase CBF, consistent with a previous report.⁷

Basal CBF of TgeNOS-Ins2^Akita+/− was not significantly different from that of wild-type. It is likely that the genetic cross resulted in less eNOS production, insufficient to elevate CBF as observed in the TgeNOS mice.

Cerebrovascular reactivity

Carbon dioxide is a potent vasodilator. Hypercapnic challenge with 5% CO₂ is commonly used to evaluate CR and cerebrovascular reserve in MRI.^31–37 As expected, CBF significantly increased during hypercapnia compared with baseline in all animal groups. In addition, isoflurane, also a vasodilator, could have caused vasodilation at baseline and thus attenuated the hypercapnic response herein.

Ins2^Akita+/− mice showed significantly reduced hypercapnic response compared with wild-type mice, suggesting compromised cerebrovascular function. Compromised CR has been reported in diabetic patients.^38,39 These findings support the notion that there is endothelial dysfunction in diabetes. TgeNOS mice showed reduced hypercapnic response compared with wild-type mice but did not reach statistical significance. We expected that overexpressing eNOS, a vasodilator, would dilate vessels at baseline and thus CO₂ would have less vasodilatory effects, thereby resulting in a smaller hypercapnia-induced CBF increase. TgeNOS-Ins2^Akita+/− mice had a significantly higher hypercapnic response compared with Ins2^Akita+/− mice (p < 0.01), but similar to wild-type mice, suggesting the overexpression of eNOS rescued some aspects of cerebrovascular dysfunction in diabetes. This finding demonstrates the positive influence of eNOS overexpression on vascular tone on diabetes.

Limitations and future perspectives

A limitation of this study is that we did not measure eNOS expression or NO production in our animals, and thus we could not validate the mechanism of action, although available data from this and a previous study⁵ suggest that cross animals have observable effects from eNOS overexpression. Future studies will need to make such measurements. We studied only 6-month old animals, and future studies will investigate these animals at different age groups. There are also alternative approaches to increase eNOS activity, such as by diet supplementation of L-arginine, sepiapterin, and salsalate,⁴⁰ warranting further investigation. Future studies could include investigating neurovascular coupling associated with evoked functional stimulation. We predict functional neurovascular coupling would be perturbed in TgeNOS and Ins2^Akita+/− mice, and less so in TgeNOS-Ins2^Akita+/− animals.

Conclusions

These findings support the hypothesis that overexpression of eNOS rescues CR in diabetes. The brain likely has compensatory mechanisms to maintain normal CBF under basal (nonchallenged) conditions but could not compensate under challenged conditions. These findings underscore the role of eNOS in cerebrovascular dysfunction in diabetes and suggest that restoring eNOS activity by enhancing NO bioavailability is a promising treatment strategy that warrants further investigation. Future studies will need to measure eNOS activity and NO production to validate mechanism of action.

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the NIH (NS045879 to TD and DK096119 to SM), MERIT Award from the Department of Veterans Affairs, and a Translational Resource Technology Grant and a Pilot Grant from the Clinical Translational Science Award (parent grant UL1RR025767).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ contributions

SBC, SM, ERM, and TQD designed the study and developed the methodology; SBC, BMF, LH, PJ, KSD, and LC collected the data; SBC, KSD, SM, and BMF performed the analysis; and SBC, SM, and TQD wrote the manuscript. SBC and SM contributed equally to this work.

References

Hink

Tsilimingas

Wendt

. Mechanisms underlying endothelial dysfunction in diabetes mellitus. Mol Diag Ther 2003; 2: 293–304.

Cosentino

Luscher

. Endothelial dysfunction in diabetes mellitus. J Cardiovasc Pharmacol 1998; 32 Suppl 3: S54–S61.

Hoshiyama

Yao

. Effect of high glucose on nitric oxide production and endothelial nitric oxide synthase protein expression in human glomerular endothelial cells. Nephron Exp nephrol 2003; 95: e62–e68.

Huang

. Endothelial nitric oxide synthase and endothelial dysfunction. Curr Hypertens Rep 2003; 5: 473–480.

Mohan

Reddick

Musi

. Diabetic eNOS knockout mice develop distinct macro- and microvascular complications. Lab Invest 2008; 88: 515–528.

Geraldes

King

. Activation of protein kinase c isoforms & its impact on diabetic complications. Circ Res 2010; 106: 1319–1331.

Toda

Ayajiki

Okamura

. Cerebral blood flow regulation by nitric oxide: recent advances. Pharmacol Rev 2009; 61: 62–97.

Toda

Ayajiki

Okamura

. Inhibition of nitroxidergic nerve function by neurogenic acetylcholine in monkey cerebral arteries. J Physiol 1997; 498(Pt 2): 453–461.

van Golen

Huisman

Ijzerman

. Cerebral blood flow and glucose metabolism measured with positron emission tomography are decreased in human type 1 diabetes. Diabetes 2013; 62: 2898–2904.

10.

Yamashita

Kawashima

Ohashi

. Resistance to endotoxin shock in transgenic mice overexpressing endothelial nitric oxide synthase. Circulation 2000; 101: 931–937.

11.

Ohashi

Kawashima

Hirata

. Hypotension and reduced nitric oxide-elicited vasorelaxation in transgenic mice overexpressing endothelial nitric oxide synthase. J Clin Invest 1998; 102: 2061–2071.

12.

Jones

Greer

JJM

Kakkar

. Endothelial nitric oxide synthase overexpression attenuates myocardial reperfusion injury. Am J Physiol—Heart Circ Physiol 2003; 286: H276–H282.

13.

Kawashima

Yamashita

Ozaki

. Endothelial NO synthase overexpression inhibits lesion formation in mouse model of vascular remodeling. Arterioscler, Thromb, Vasc Biol 2001; 21: 201–207.

14.

Luders

Weihl

Lin

. Adenoviral gene transfer of nitric oxide synthase increases cerebral blood flow in rats. Neurosurgery 2000; 47: 1206–1214; discussion 1214-5.

15.

Muir

Shen

Duong

. Cerebral blood flow MRI in mice using the cardiac-spin-labeling technique. Magn Reson Med 2008; 60: 744–748.

16.

Shen

Meng

Fisher

. Pixel-by-pixel spatiotemporal progression of focal ischemia derived using quantitative perfusion and diffusion imaging. J Cereb Blood Flow Metab 2003; 23: 1479–1488.

17.

Shen

Fisher

Sotak

. Effects of reperfusion on ADC and CBF pixel-by-pixel dynamics in stroke: characterizing tissue fates using quantitative diffusion and perfusion imaging. J Cereb Blood Flow Metab 2004; 24: 280–290.

18.

Barber

Antonetti

Kern

. The Ins2Akita mouse as a model of early retinal complications in diabetes. Invest Ophthalmol Visual Sci 2005; 46: 2210–2218.

19.

Talukder

MAH

Yang

Shimokawa

. eNOS is required for acute in vivo ischemic preconditioning of the heart: effects of ischemic duration and sex. Am J Physiol—Heart Circ Physiol 2010; 299: H437–H445.

20.

Sansbury

Bhatnagar

Hill

. Impact of nutrient excess and endothelial nitric oxide synthase on the plasma metabolite profile in mice. Front Physiol 2014; 5: 453.

21.

Toque

Nunes

Yao

. Akita spontaneously type 1 diabetic mice exhibit elevated vascular arginase and impaired vascular endothelial and nitrergic function. PloS one 2013; 8: e72277.

22.

Constantinides

Mean

Janssen

. Effects of isoflurane anesthesia on the cardiovascular function of the C57BL/6 mouse. ILAR J/Nat Res Counc, Inst Lab Anim Res 2011; 52: e21–e31.

23.

Szczesny

Veihelmann

Massberg

. Long-term anaesthesia using inhalatory isoflurane in different strains of mice-the haemodynamic effects. Lab Anim 2004; 38: 64–69.

24.

Loeb

Raj

Longnecker

. Cerebellar nitric oxide is increased during isoflurane anesthesia compared to halothane anesthesia: a microdialysis study in rats. Anesthesiology 1998; 89: 723–730.

25.

Matsuoka

Watanabe

Isshiki

. Increased production of nitric oxide metabolites in the hippocampus under isoflurane anaesthesia in rats. Eur J Anaesthesiol 1999; 16: 216–224.

26.

Wright

Singh Yadav

McElhatten

. Retinal blood flow abnormalities following six months of hyperglycemia in the Ins2(Akita) mouse. Exp Eye Res 2012; 98: 9–15.

27.

Muir

Renteria

Duong

. Reduced ocular blood flow as an early indicator of diabetic retinopathy in a mouse model of diabetes. Invest Ophthalmol Visual Sci 2012; 53: 6488–6494.

28.

Garg

Hassid

. Nitric oxide-generating vasodilators and 8-bromo-cyclic guanosine monophosphate inhibit mitogenesis and proliferation of cultured rat vascular smooth muscle cells. J Clin Invest 1989; 83: 1774–1777.

29.

Palmer

RMJ

Ferrige

Moncada

. Nitric oxide release accounts for the biological activity of endothelium-derived relaxing factor. Nature 1987; 327: 524–526.

30.

Ignarro

. Endothelium-derived nitric oxide: actions and properties. FASEB J 1989; 3: 31–36.

31.

Duong

Iadacola

Kim

S-G

. Effect of hyperoxia, hypercapnia and hypoxia on cerebral interstitial oxygen tension and cerebral blood flow in the rat brain: an 19F/1H study. Magn Reson Med 2001; 45: 61–70.

32.

Kim

S-G

Ugurbil

. Comparison of blood oxygenation and cerebral blood flow effects in fMRI: estimation of relative oxygen consumption change. Magn Reson Med 1997; 38: 59–65.

33.

Davis

Kwong

Weisskoff

. Calibrated functional MRI: mapping the dynamics of oxidative metabolism. Proc Natl Acad Sci USA 1998; 95: 1834–1839.

34.

Hoge

Atkinson

Gill

. Investigation of BOLD signal dependence on cerebral blood flow and oxygen consumption: The deoxyhemoglobin dilution model. Magn Reson Med 1999; 42: 849–863.

35.

Liu ZM, Schmidt KF, Sicard KM, Duong TQ. Imaging oxygen consumption in forepaw somatosensory stimulation in rats under isoflurane anesthesia. Magn Reson Med 2004; 52: 277–285.

36.

Sicard KM, Duong TQ. Effects of Hypoxia, Hyperoxia and Hypercapnia on Baseline and Stimulus-Evoked BOLD, CBF and CMRO2 in Spontaneously Breathing Animals. NeuroImage 2005; 25: 850–858.

37.

Shen Q, Ren H, Cheng H, Fisher M, Duong TQ. Functional, perfusion and diffusion MRI of acute focal ischemic brain injury. J Cereb Blood Flow and Metab 2005; 25: 1265–1279.

38.

Dandona

James

Newbury

. Cerebral blood flow in diabetes mellitus: evidence of abnormal cerebrovascular reactivity. Br Med J 1978; 2: 325–326.

39.

Fülesdi

Limburg

Bereczki

. Impairment of cerebrovascular reactivity in long-term type 1 diabetes. Diabetes 1997; 46: 1840–1845.

40.

Krishnan

Janardhanan

Roman

. Enhancing eNOS activity with simultaneous inhibition of IKKβ restores vascular function in Ins2^Akita+/⁻ type-1 diabetic mice. Lab Invest 2015; 95: 1092–1104.
