Abstract

The Göttingen minipig is recognized by the scientific community and by health authorities as the animal model of choice to evaluate dermally applied drugs under development. Young adults of approximately 4 months of age are most generally chosen to participate in dermal pharmacology and toxicology studies, and recently, minipigs have been proved to be also suitable for juvenile studies. A complete anatomical cartography of the skin morphology of juvenile male and female minipigs from postnatal day 1 (PND1) to twelve weeks of age was performed measuring the thickness of skin layers for each anatomical location and time point. Overall, the neonatal skin of minipigs (PND1 and PND8) shows prominent cellularity, similar to that seen in human neonates, and the morphology of the skin of older animals is considered similar to that of young adult minipigs. Epidermal thickness varies only minimally over the period; whereas, the dermal and more markedly, the subcutaneous thicknesses increase over time.

Keywords

juvenile minipig miniature swine cartography histology skin

The Göttingen minipig is considered as the animal model of choice to investigate percutaneous absorption, wound healing, dermal tolerance, and generally for dermal pharmacology and toxicology studies (Stricker-Krongrad et al. 2017; Ganderup et al. 2012; Bode et al. 2010). This model is also recognized and accepted by the authorities in regulatory drug development.

The minipig is well suited for skin studies as they allow the use of a large application surface with low hair density, an easy evaluation of skin reactions and feature only few background cutaneous findings. The minipig skin shares many common features with the human skin, in particular the low density of hair follicles, the properties of the dermoepidermal junction, and the epidermal morphology and thickness. When compared to the other nonrodent animal models, the skin thickness of the minipig is the most similar to human’s. Overall, among the animal species, the minipig is the most suitable species for dermal preclinical studies.

In addition to the conventional repeat-dose toxicity studies performed in adult animals of 4 months of age during drug development, juvenile animal toxicity studies are required by the authorities for the development of pediatric drugs. As stated by Tassinari (2013) or De Schaepdrijver (2010, 2013) and in line with the ICH guidance for industry on the “nonclinical safety evaluation of pediatric drug products” (2006), the main objectives of juvenile animal studies are to determine potential toxicities unique to immature animals. Over the last ten years, the number of juvenile animal toxicity studies, including all age groups from neonatal to young animals, increased drastically in the context of pediatric investigative plans. The species selection depends on several concurrent factors such as metabolic and physiological relevance of the model but also practical aspects such as feasibility of the intended route of administration.

Due to the relatively recent use of the minipigs in juvenile studies, only sparse background data are available (Feyen et al. 2016), and no information is available on the skin morphology characteristics in the juvenile minipig. In addition, the use of juvenile minipigs in dermal studies has long been considered as not feasible due to husbandry and behavioral constraints. However, it has been recently demonstrated that juvenile studies by dermal route can be performed with animals from postnatal day (PND1) onward (Penard 2016). Practical aspects such as the dressing materials, jackets, and estimation of the total body surface area were slightly adapted to the constraints of suckling piglets; and overall, it was demonstrated that the brief periods during which the piglets were removed from the mother did not impact the behavior, growth, and the health status of the young animals. In this study, sequential necropsies were performed and skin samples were taken in order to document the skin morphology at various anatomical location and time points from PND1 to 12 weeks of age. This article summarizes the main morphological characteristics of the skin at each time point.

Materials and Methods

Juvenile Animals and In-Life Follow-up

Male and female Göttingen minipigs were received from Ellegaard, Soroe Landevej 302, DK-4261 Dalmose, Denmark, and housed in a conventional and GLP-compliant “minipig unit” with restricted entry and controlled environmental conditions at Charles River, Les Oncins, France. Housing and handling of animals were performed in accordance with the European directive 2010/63/EU for animal experiments and national regulations, and the study design and technical procedures were approved by the relevant ethical committee.

Three multiparous Göttingen female minipigs were mated at the Test Facility (Charles River, Les Oncins, France) to obtain 20 piglets (10 males and 10 females).

Piglets from the first litter were used uniquely to establish the technical procedures and materials without the application of any test item and to document the skin morphology of juvenile minipigs.

Piglets from the two other litters were treated dermally with a placebo gel (standard volume of 2 ml/kg/day) applied on both flanks in areas defined using anatomic landmarks (rectangles between the scapulae and hipbones), in order to assess the feasibility of dermal administration in the juvenile minipig (not part of this article, results described in Penard L., Ellegaard’s Newsletter 47). Piglets from each litter were socialized and kept with the mother.

Sampling

Skin morphology documentation in juvenile minipigs from PND1 to week 12 of age was performed on skin samples taken at necropsy from the first litter (i.e., without application of any test item) at Charles River, Les Oncins, France. All samples were fixed in 10% neutral buffered formaldehyde, thereafter sent and processed at the Sophia Antipolis site of Galderma R&D. Twelve samples from one male and one female were obtained per time point from PND1 to 3 months of age (PND1, PND8, PND15, PND29, and W12) as described in Figure 1. The selected anatomical areas allow an extensive documentation of the skin morphology variability and included two samples taken from the lateral region (flank posterior area and flank anterior area), two samples taken on the dorsal line around the spine (rachis posterior area and rachis anterior area), one sample behind the right ear, one sample on the snout, one sample on the chin, one sample taken at the internal face of the forelimb and one on the internal face of the hind limb, two samples taken at the abdomen (anterior and posterior area), and finally one sample taken in the pelvic region (ischium–pelvis). It is to be noted that the term “flank” was used in this study to describe the entire lateral region (region defined using anatomic landmarks: rectangles between the scapulae and hipbones) although this anatomical correct term for the anterior part of this region should be “thoracic region.” This region as defined here corresponds to the area commonly used for dermal application in the dermal toxicology. The other anatomical regions have been selected to document the histological characteristics of areas that could potentially be used for injections or topical administrations.

Figure 1.

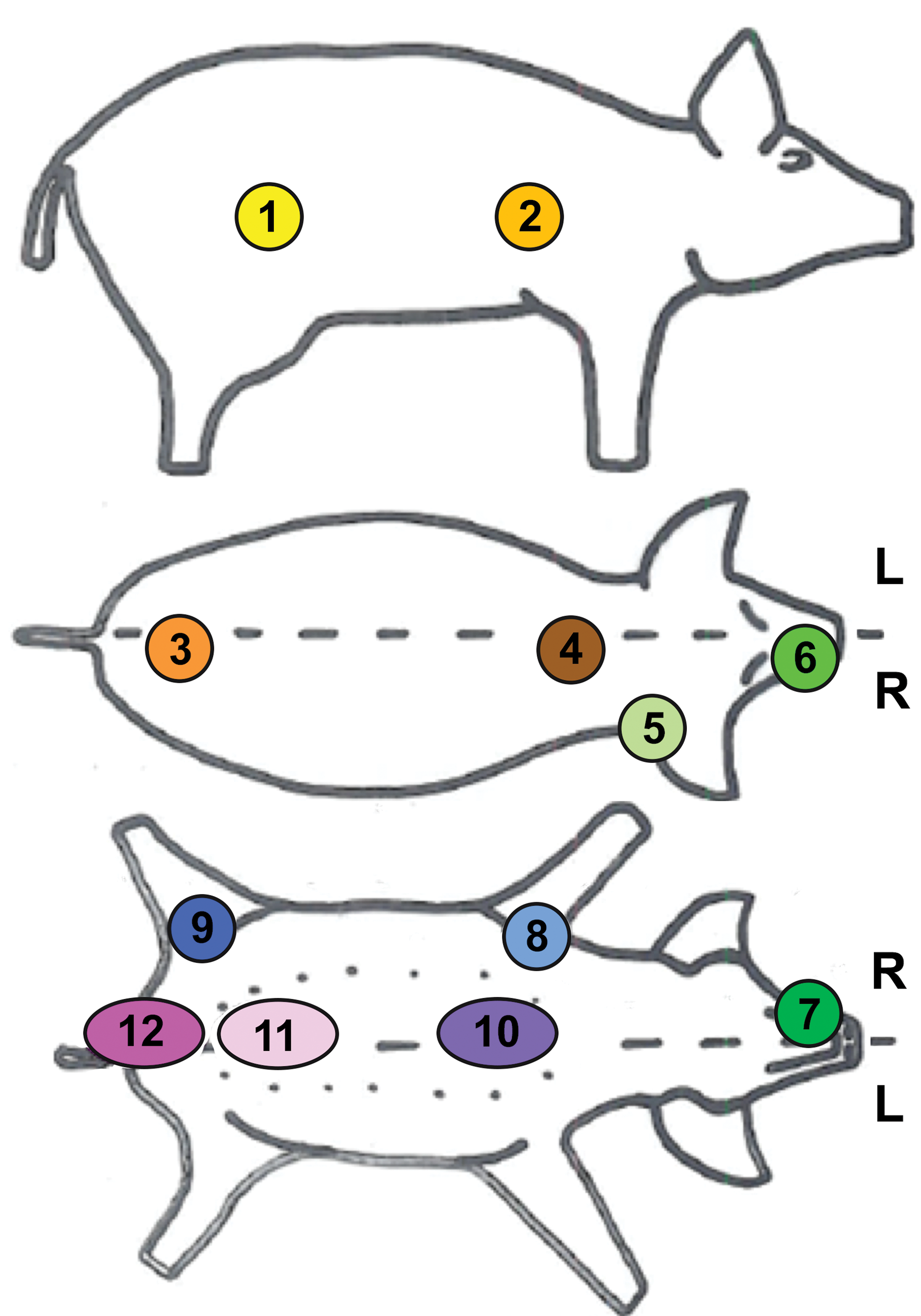

Anatomical location of the skin samples. Twelve skin samples were taken from each animal from the following anatomical regions: 1: flank (posterior area), 2: flank (anterior area), 3: around the spine (rachis, posterior area), 4: around the spine (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: ischium—pelvis area.The term flank was used to describe the entire lateral region, which is commonly used for dermal application (region defined using anatomic landmarks: rectangles between the scapulae and hip bones).

Sample Processing and Skin Thickness Measurements

All samples were fixed in 10% neutral buffered formalin. Samples were paraffin-embedded, and sections of 4-µm thickness were stained with hematoxylin and eosin. The slides were scanned using the Nanozoomer (Hamamatsu, Japan), and virtual slides were imported and stored in the internal image database (IMS from Imagic, Switzerland).

In addition to the descriptive evaluation at each time point, skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) as follows:

– For each skin layer (stratum corneum, epidermis, dermis, and hypodermis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. To note, stratum corneum, also called the horny or cornified layer is the outer layer of the epidermis consisting of several layers of dead cells. In this article, the term epidermis is used to describe the living part of the epidermis. The term hypodermis or subcutis is used to describe the deepest layer of the integument consisting of a loose connective tissue with adipocytes.

– For the stratum corneum and epidermis, measurements were done at a scan magnification of 20 whereas a low magnification was used for dermis and hypodermis (scan magnification of 2 or 1 whenever necessary to visualize the entire layer concerned).

– Special attention was paid to avoid areas of oblique cutting incidence or other artifacts that may affect skin thickness measurements.

– Comments were added to the database when necessary, in particular when the subcutis exceeded the margins of the available section. Data are reported but represent an underestimation of the actual data.

– Considering that the most superficial part of the stratum corneum could be artifactually removed during routine histology processing, all the data are only considered as estimation and only have a comparative value.

All the results were exported as an excel file and compiled together with animal information.

Results

Skin Morphology and Histomorphometric Data in Minipigs from PND1 to Week 12 of Age

Morphology of juvenile skin at PND1

Regardless of the anatomical region or sex, samples taken shortly after birth (PND1) showed the typical cutaneous multilayered structure consisting of the epidermis (a keratinized, stratified, and squamous epithelium), the dermis (a dense connective tissue consisting of different types of fibers, cells within a gel matrix), and the hypodermis (loose connective tissue with adipocytes). When compared with the skin of mature animals, the skin samples at PND1 showed a thick epidermis as well as a very high cellular density in dermis and hypodermis layers (see Figure 2 for epidermis and dermis morphology: sample taken at the anterior region of the spine). No immunohistochemistry was performed in this study; however, the morphology of these cells is evocative of active fibroblasts with an abundant cytoplasm and round nucleus.

Figure 2.

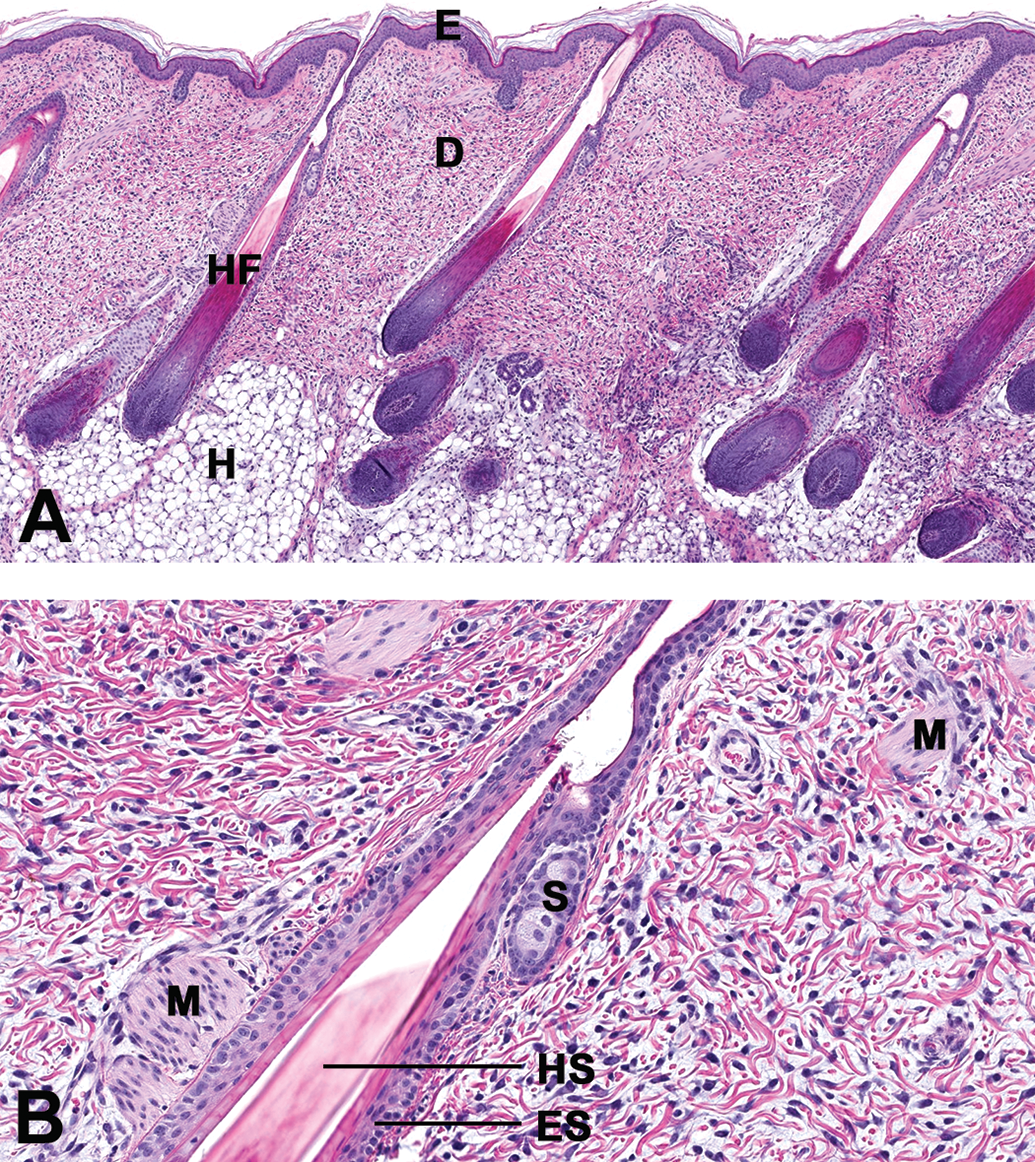

(A and B) Morphology of the epidermis and dermis in a juvenile male at PND1. Samples taken near the spine (rachis anterior) in a male juvenile minipig at PND1. All samples were fixed in 10% neutral buffered formaldehyde. Samples were paraffin-embedded and 4-µm thick sections were stained with hematoxylin and eosin. The slides were scanned using the Nanozoomer (Hammamatsu, Japan) and virtual slides were imported and stored in the internal image database (IMS from Imagic, Switzerland). (A) Low magnification (scan magnification ×5) and (B) high magnification (×20). E = epidermis; D = dermis; H = hypodermis (subcutis); HF = hair follicle in anagen phase; HS = hair shaft; ES = epithelial sheath; M = muscle, S = sebaceous gland; PND = postnatal day.

The subcutis was found to be very thin when compared with the week 12 samples (see Figure 3 for hypodermis at anterior spine), with the adipocytes present in this layer showing typical large optically empty vacuoles. All epidermal appendices were already present and well developed in all regions. Specifically, sebaceous glands were found as very small glands appended to hair follicles with a low number of differentiated sebaceous cells and prominent stem cells. Sweat glands were seen adjacent to hair follicles (apocrine glands) and showed a thick wall with cubic epithelial cells. When compared with young adult skin, sweat glands were less convoluted as they mostly appeared only as 3 to 4 transversal sections.

Figure 3.

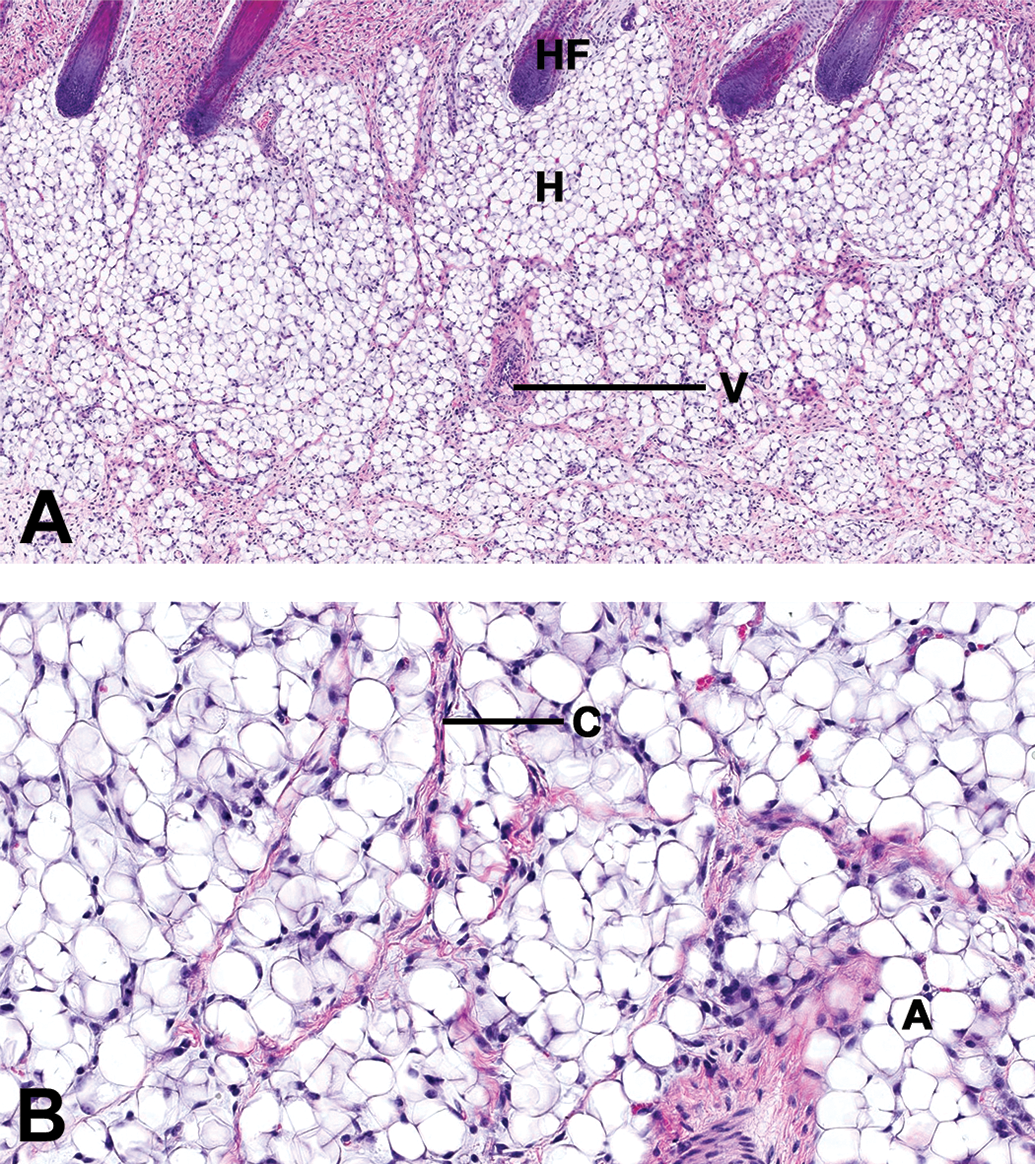

(A and B) Morphology of the hypodermis in a male juvenile minipig at PND1. Samples taken near the spine (rachis anterior) in a male juvenile minipig at PND1: hematoxylin and eosin stain. (A) Low magnification (scan magnification ×5) and (B) high magnification (×20). HF = hair follicle; H = hypodermis (subcutis); A = adipocytes; C = collagen strands; and B = blood vessel. The hypodermis consisted of a dense adipocytes population. The adipocytes showed a unique optically empty vacuole but were smaller than in mature animals. Thin strands of collagen were seen between the cells. PND = postnatal day.

Interestingly, vibrissae were seen at the chin or snout sections in the male and the female at PND1. Although the structure was easily recognized on the skin section as a very large hair follicle (about 2-fold larger than the other hair follicles in the same section; diameter of at least 150 µm), the peripheral blood sinus did not have its mature pattern and showed a highly cellular population surrounding the hair follicle (see Figure 4).

Figure 4.

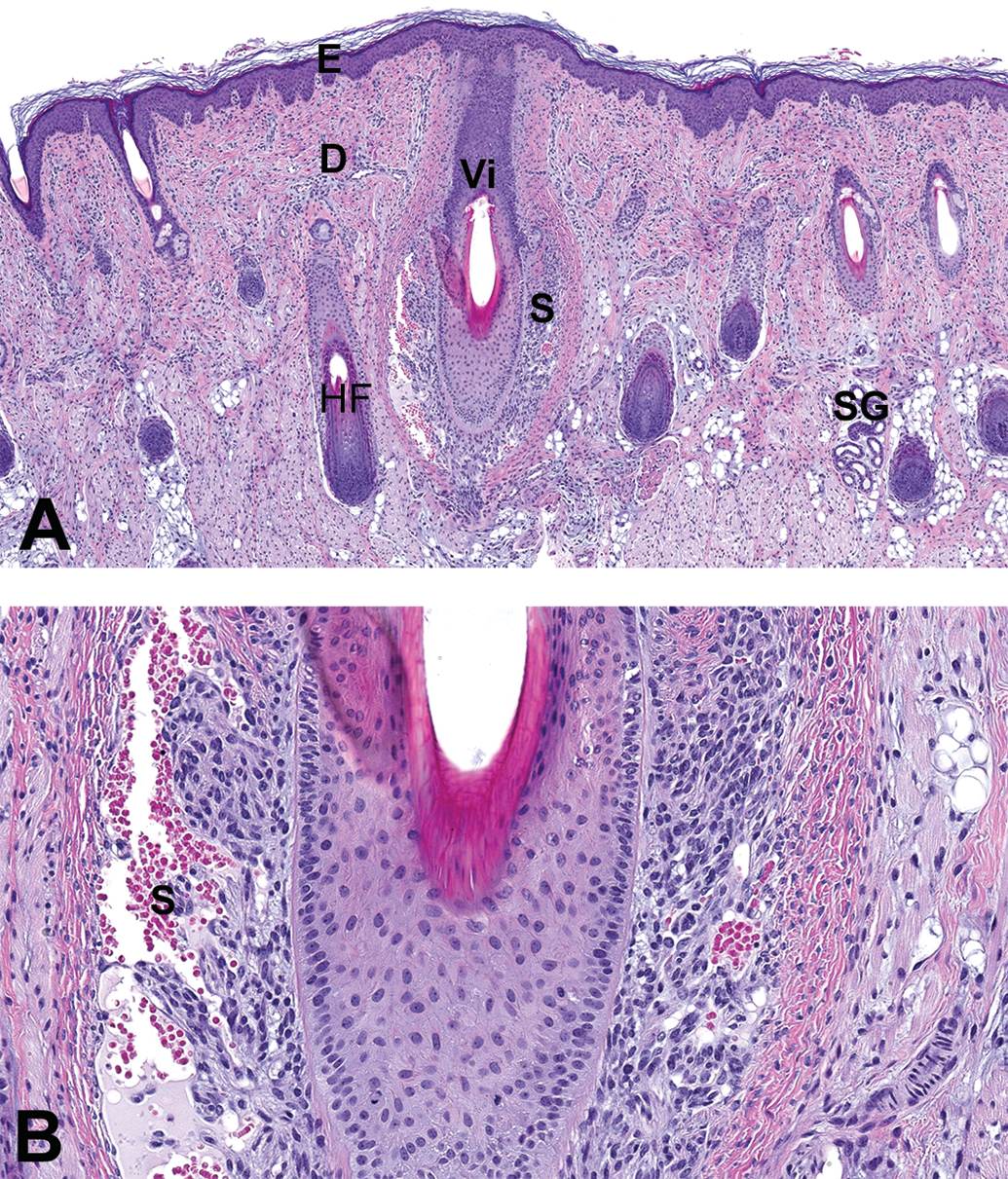

Morphology of the vibrissa in a juvenile male at PND1. Samples taken from the snout of a juvenile male at PND1: hematoxylin and eosin stain. (A) Low magnification (scan magnification ×5) and (B) high magnification (×20). PND = postnatal day.

Skin maturation from PND1 to week 12

At PND8 and PND15, the morphology of the skin of both the male and the female still differed from that observed at week 12 in all anatomical regions. As illustrated in Figure 5 (skin maturation of the flank from PND1 to PND15), the dermis still showed a diffusely dense cell population, although the cellular density appeared clearly lower than that of the neonatal skin at PND1.

Figure 5.

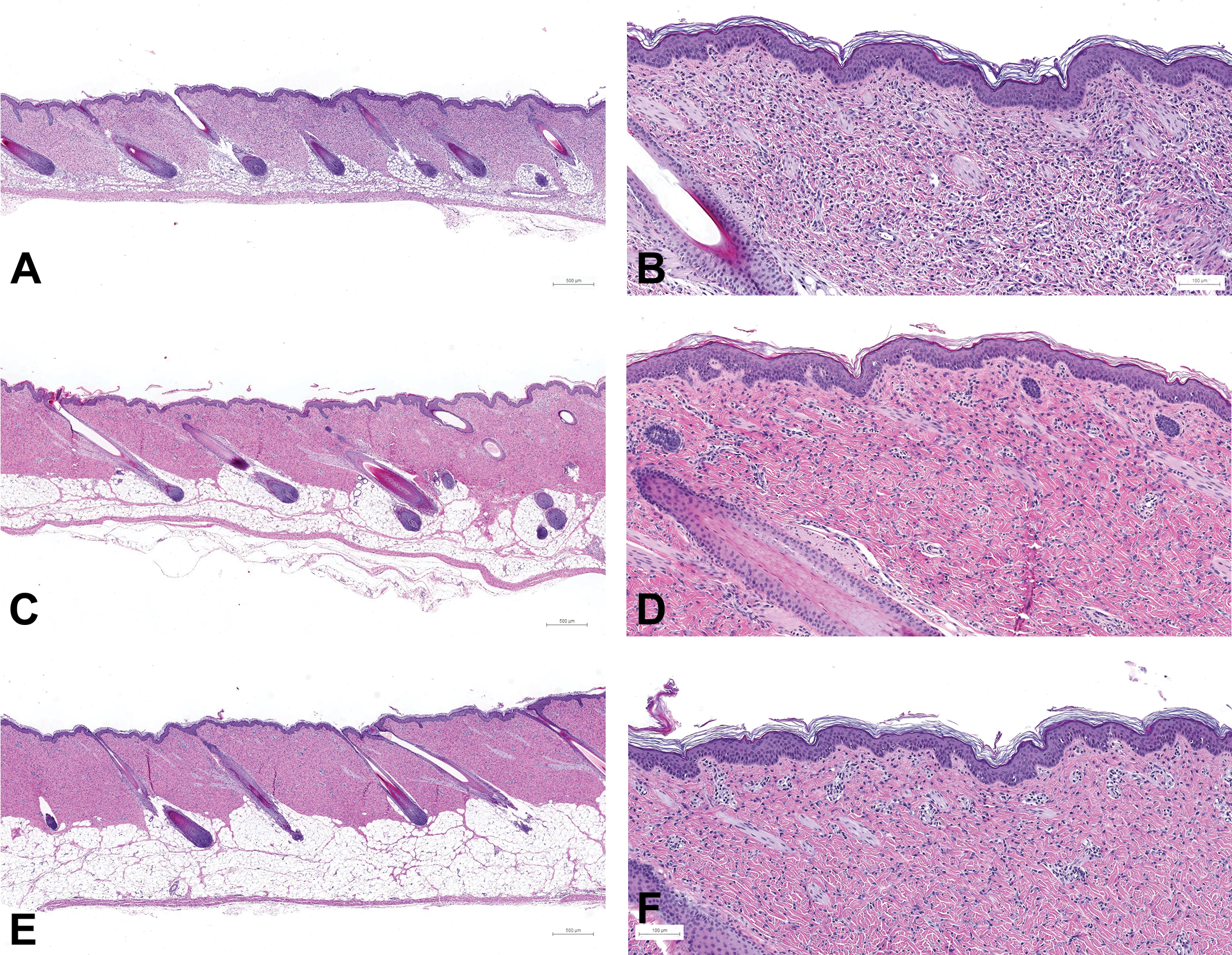

Skin maturation of the flank (posterior area) in females from PND1 to PND15. Samples taken from the flank posterior area of female juvenile minipigs at PND1 (A: scan magnification×5 and B: ×10), PND8 (C and D), PND15 (E: ×5 and F: ×10): hematoxylin and eosin stain. PND = postnatal day.

At PND29, all regions showed a morphology identical to what was seen in animals at week 12 (see Figure 6 for the skin morphology at PND29 and W12).

Figure 6.

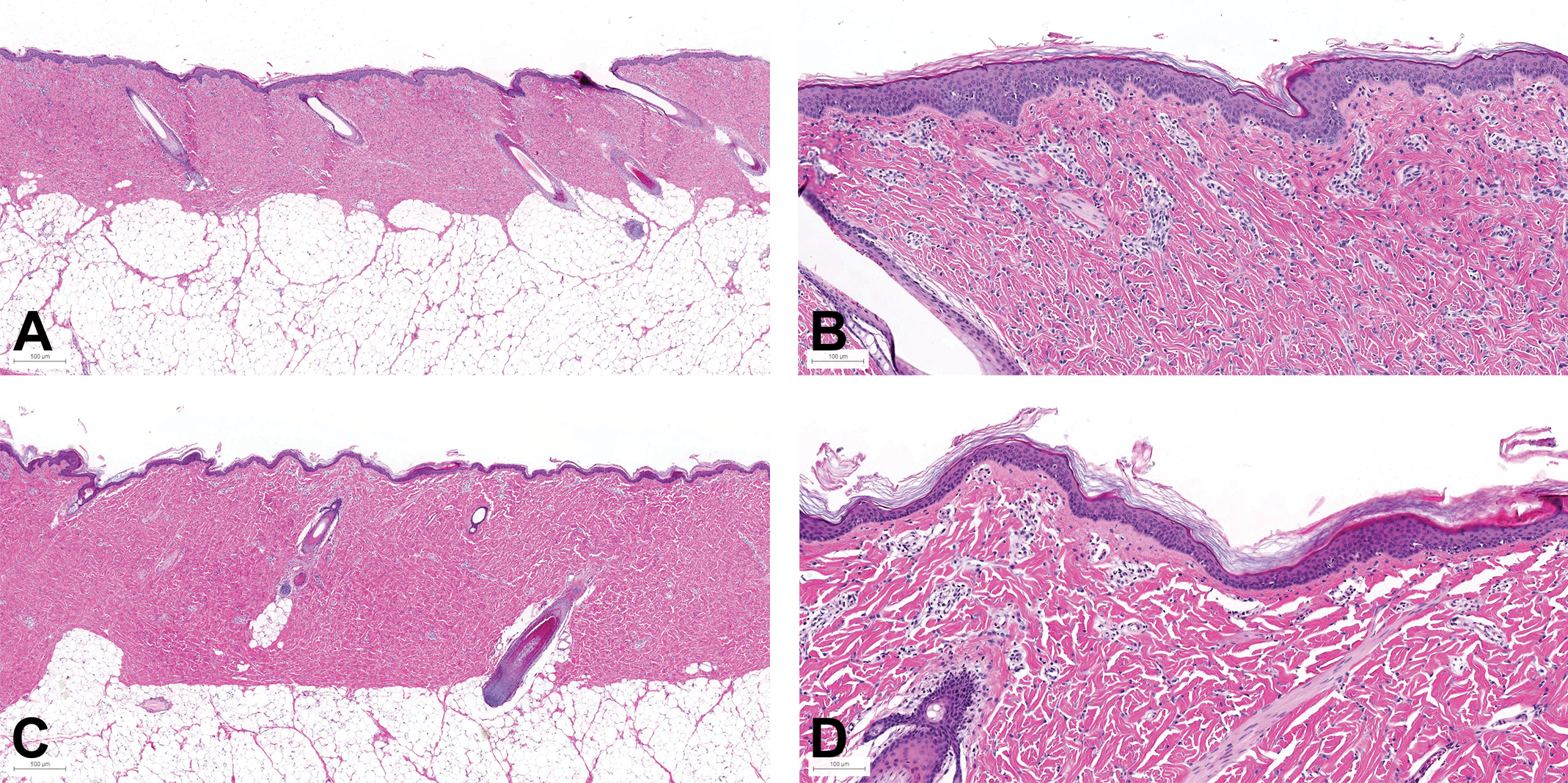

Skin morphology of the flank (posterior area) in female at PND29 and W12. Samples taken from the flank posterior area of female juvenile minipigs at PND29 (A and B: scan magnification×10) and at week 12 (C: ×5 and D: ×10): hematoxylin and eosin. PND = postnatal day.

At W12, the presence and morphology of appendices (sweat glands, hair follicles, and sebaceous glands), as well as the thickness of the three skin layers (epidermis, dermis, and hypodermis), differ according to the anatomical location. Apocrine glands, tubular glands with a coiled secretory duct related to the hair follicle lumen, are widely distributed in the minipig.

Sebaceous glands were seen in association with hair follicles in almost all samples, regardless of the location and age. In almost all locations, including the flanks where the formulations are commonly applied in dermal toxicity studies, the sebaceous glands were very small (transverse section width less than 40 µm with about four differentiated sebocytes). They were found to be slightly larger at the snout and at the chin.

Among the different locations evaluated, the snout and the chin had a very specific morphology. They showed a thicker epidermis and a thicker hypodermis when compared to other anatomical regions. In addition, large muscular bands crossing through the dermis were observed at both locations. Vibrissae, a very unique structure, was also found in snout and chin sections of minipigs. These specialized hair follicles were larger than other hair follicles and were surrounded by a sinus.

Skin Layer Thickness Maturation over Time from PND1 to Week 12

The thickness of each layer according to the anatomical location and time point is shown in Table 1 (presented by time point) and Table 2 (presented by anatomical region). The anatomical variations are illustrated for animals from PND1 to week 12 in Figures 7 to 11.

Table 1.

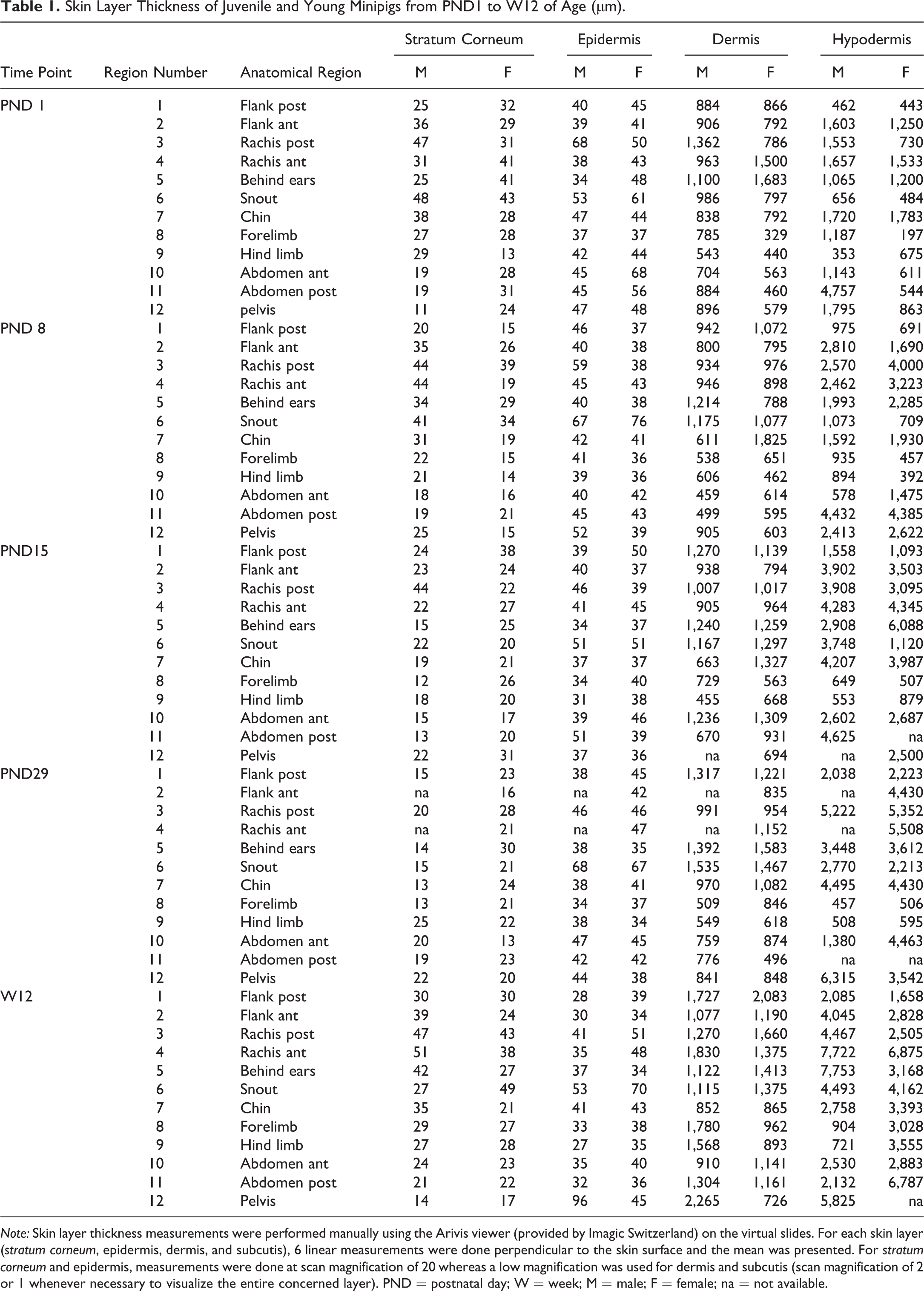

Skin Layer Thickness of Juvenile and Young Minipigs from PND1 to W12 of Age (µm).

Time Point	Region Number	Anatomical Region	Stratum Corneum		Epidermis		Dermis		Hypodermis
Time Point	Region Number	Anatomical Region	M	F	M	F	M	F	M	F
PND 1	1	Flank post	25	32	40	45	884	866	462	443
	2	Flank ant	36	29	39	41	906	792	1,603	1,250
	3	Rachis post	47	31	68	50	1,362	786	1,553	730
	4	Rachis ant	31	41	38	43	963	1,500	1,657	1,533
	5	Behind ears	25	41	34	48	1,100	1,683	1,065	1,200
	6	Snout	48	43	53	61	986	797	656	484
	7	Chin	38	28	47	44	838	792	1,720	1,783
	8	Forelimb	27	28	37	37	785	329	1,187	197
	9	Hind limb	29	13	42	44	543	440	353	675
	10	Abdomen ant	19	28	45	68	704	563	1,143	611
	11	Abdomen post	19	31	45	56	884	460	4,757	544
	12	pelvis	11	24	47	48	896	579	1,795	863
PND 8	1	Flank post	20	15	46	37	942	1,072	975	691
	2	Flank ant	35	26	40	38	800	795	2,810	1,690
	3	Rachis post	44	39	59	38	934	976	2,570	4,000
	4	Rachis ant	44	19	45	43	946	898	2,462	3,223
	5	Behind ears	34	29	40	38	1,214	788	1,993	2,285
	6	Snout	41	34	67	76	1,175	1,077	1,073	709
	7	Chin	31	19	42	41	611	1,825	1,592	1,930
	8	Forelimb	22	15	41	36	538	651	935	457
	9	Hind limb	21	14	39	36	606	462	894	392
	10	Abdomen ant	18	16	40	42	459	614	578	1,475
	11	Abdomen post	19	21	45	43	499	595	4,432	4,385
	12	Pelvis	25	15	52	39	905	603	2,413	2,622
PND15	1	Flank post	24	38	39	50	1,270	1,139	1,558	1,093
	2	Flank ant	23	24	40	37	938	794	3,902	3,503
	3	Rachis post	44	22	46	39	1,007	1,017	3,908	3,095
	4	Rachis ant	22	27	41	45	905	964	4,283	4,345
	5	Behind ears	15	25	34	37	1,240	1,259	2,908	6,088
	6	Snout	22	20	51	51	1,167	1,297	3,748	1,120
	7	Chin	19	21	37	37	663	1,327	4,207	3,987
	8	Forelimb	12	26	34	40	729	563	649	507
	9	Hind limb	18	20	31	38	455	668	553	879
	10	Abdomen ant	15	17	39	46	1,236	1,309	2,602	2,687
	11	Abdomen post	13	20	51	39	670	931	4,625	na
	12	Pelvis	22	31	37	36	na	694	na	2,500
PND29	1	Flank post	15	23	38	45	1,317	1,221	2,038	2,223
	2	Flank ant	na	16	na	42	na	835	na	4,430
	3	Rachis post	20	28	46	46	991	954	5,222	5,352
	4	Rachis ant	na	21	na	47	na	1,152	na	5,508
	5	Behind ears	14	30	38	35	1,392	1,583	3,448	3,612
	6	Snout	15	21	68	67	1,535	1,467	2,770	2,213
	7	Chin	13	24	38	41	970	1,082	4,495	4,430
	8	Forelimb	13	21	34	37	509	846	457	506
	9	Hind limb	25	22	38	34	549	618	508	595
	10	Abdomen ant	20	13	47	45	759	874	1,380	4,463
	11	Abdomen post	19	23	42	42	776	496	na	na
	12	Pelvis	22	20	44	38	841	848	6,315	3,542
W12	1	Flank post	30	30	28	39	1,727	2,083	2,085	1,658
	2	Flank ant	39	24	30	34	1,077	1,190	4,045	2,828
	3	Rachis post	47	43	41	51	1,270	1,660	4,467	2,505
	4	Rachis ant	51	38	35	48	1,830	1,375	7,722	6,875
	5	Behind ears	42	27	37	34	1,122	1,413	7,753	3,168
	6	Snout	27	49	53	70	1,115	1,375	4,493	4,162
	7	Chin	35	21	41	43	852	865	2,758	3,393
	8	Forelimb	29	27	33	38	1,780	962	904	3,028
	9	Hind limb	27	28	27	35	1,568	893	721	3,555
	10	Abdomen ant	24	23	35	40	910	1,141	2,530	2,883
	11	Abdomen post	21	22	32	36	1,304	1,161	2,132	6,787
	12	Pelvis	14	17	96	45	2,265	726	5,825	na

Note: Skin layer thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day; W = week; M = male; F = female; na = not available.

Table 2.

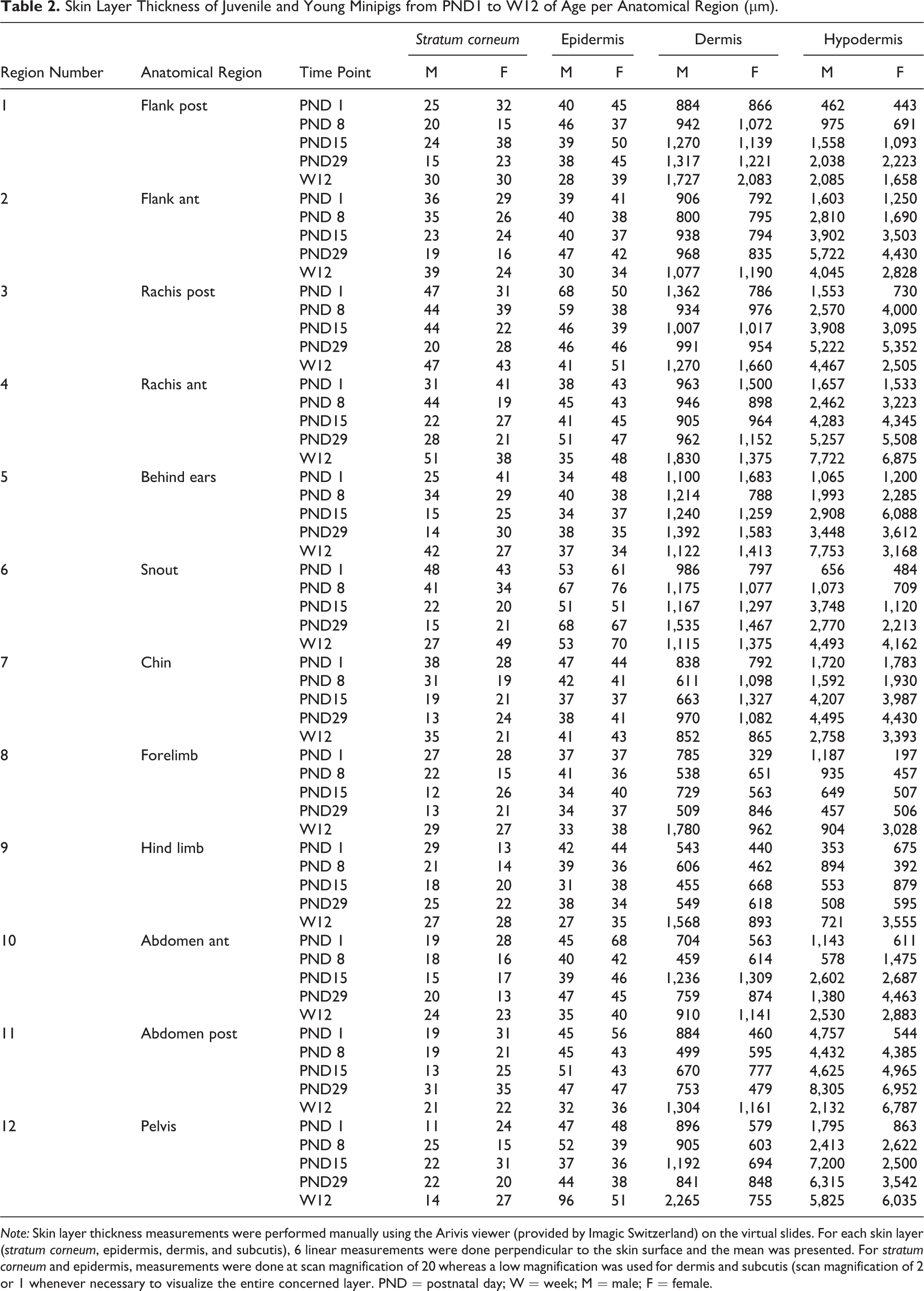

Skin Layer Thickness of Juvenile and Young Minipigs from PND1 to W12 of Age per Anatomical Region (µm).

Region Number	Anatomical Region	Time Point	Stratum corneum		Epidermis		Dermis		Hypodermis
Region Number	Anatomical Region	Time Point	M	F	M	F	M	F	M	F
1	Flank post	PND 1	25	32	40	45	884	866	462	443
		PND 8	20	15	46	37	942	1,072	975	691
		PND15	24	38	39	50	1,270	1,139	1,558	1,093
		PND29	15	23	38	45	1,317	1,221	2,038	2,223
		W12	30	30	28	39	1,727	2,083	2,085	1,658
2	Flank ant	PND 1	36	29	39	41	906	792	1,603	1,250
		PND 8	35	26	40	38	800	795	2,810	1,690
		PND15	23	24	40	37	938	794	3,902	3,503
		PND29	19	16	47	42	968	835	5,722	4,430
		W12	39	24	30	34	1,077	1,190	4,045	2,828
3	Rachis post	PND 1	47	31	68	50	1,362	786	1,553	730
		PND 8	44	39	59	38	934	976	2,570	4,000
		PND15	44	22	46	39	1,007	1,017	3,908	3,095
		PND29	20	28	46	46	991	954	5,222	5,352
		W12	47	43	41	51	1,270	1,660	4,467	2,505
4	Rachis ant	PND 1	31	41	38	43	963	1,500	1,657	1,533
		PND 8	44	19	45	43	946	898	2,462	3,223
		PND15	22	27	41	45	905	964	4,283	4,345
		PND29	28	21	51	47	962	1,152	5,257	5,508
		W12	51	38	35	48	1,830	1,375	7,722	6,875
5	Behind ears	PND 1	25	41	34	48	1,100	1,683	1,065	1,200
		PND 8	34	29	40	38	1,214	788	1,993	2,285
		PND15	15	25	34	37	1,240	1,259	2,908	6,088
		PND29	14	30	38	35	1,392	1,583	3,448	3,612
		W12	42	27	37	34	1,122	1,413	7,753	3,168
6	Snout	PND 1	48	43	53	61	986	797	656	484
		PND 8	41	34	67	76	1,175	1,077	1,073	709
		PND15	22	20	51	51	1,167	1,297	3,748	1,120
		PND29	15	21	68	67	1,535	1,467	2,770	2,213
		W12	27	49	53	70	1,115	1,375	4,493	4,162
7	Chin	PND 1	38	28	47	44	838	792	1,720	1,783
		PND 8	31	19	42	41	611	1,098	1,592	1,930
		PND15	19	21	37	37	663	1,327	4,207	3,987
		PND29	13	24	38	41	970	1,082	4,495	4,430
		W12	35	21	41	43	852	865	2,758	3,393
8	Forelimb	PND 1	27	28	37	37	785	329	1,187	197
		PND 8	22	15	41	36	538	651	935	457
		PND15	12	26	34	40	729	563	649	507
		PND29	13	21	34	37	509	846	457	506
		W12	29	27	33	38	1,780	962	904	3,028
9	Hind limb	PND 1	29	13	42	44	543	440	353	675
		PND 8	21	14	39	36	606	462	894	392
		PND15	18	20	31	38	455	668	553	879
		PND29	25	22	38	34	549	618	508	595
		W12	27	28	27	35	1,568	893	721	3,555
10	Abdomen ant	PND 1	19	28	45	68	704	563	1,143	611
		PND 8	18	16	40	42	459	614	578	1,475
		PND15	15	17	39	46	1,236	1,309	2,602	2,687
		PND29	20	13	47	45	759	874	1,380	4,463
		W12	24	23	35	40	910	1,141	2,530	2,883
11	Abdomen post	PND 1	19	31	45	56	884	460	4,757	544
		PND 8	19	21	45	43	499	595	4,432	4,385
		PND15	13	25	51	43	670	777	4,625	4,965
		PND29	31	35	47	47	753	479	8,305	6,952
		W12	21	22	32	36	1,304	1,161	2,132	6,787
12	Pelvis	PND 1	11	24	47	48	896	579	1,795	863
		PND 8	25	15	52	39	905	603	2,413	2,622
		PND15	22	31	37	36	1,192	694	7,200	2,500
		PND29	22	20	44	38	841	848	6,315	3,542
		W12	14	27	96	51	2,265	755	5,825	6,035

Note: Skin layer thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer. PND = postnatal day; W = week; M = male; F = female.

Figure 7.

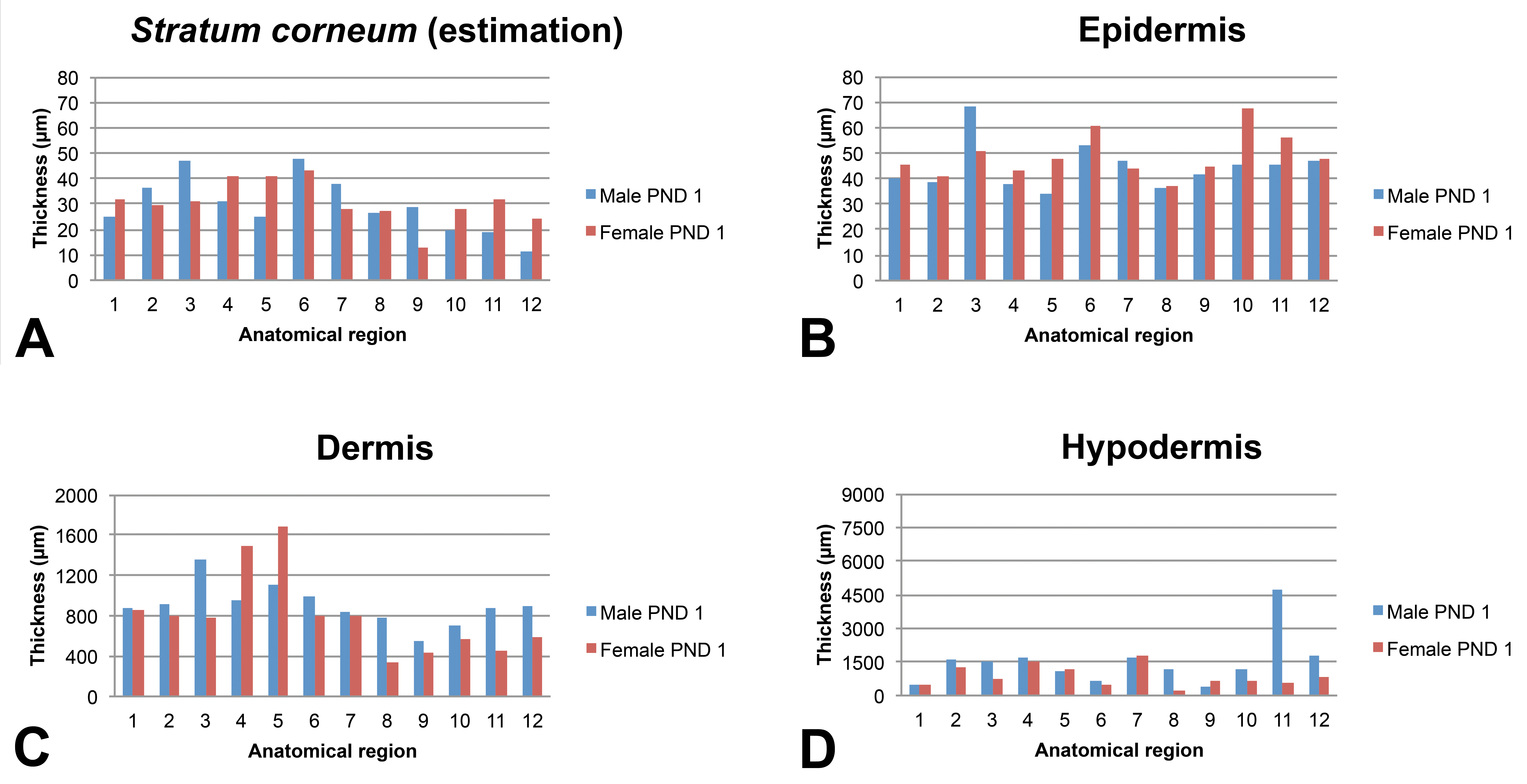

Skin layer thickness (µm) in juvenile minipigs at PND1 according to the anatomical location. 1: flank (posterior area), 2: flank (anterior area), 3: around the spine (rachis, posterior area), 4: around the spine (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: ischium–pelvis area. Skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day.

Figure 8.

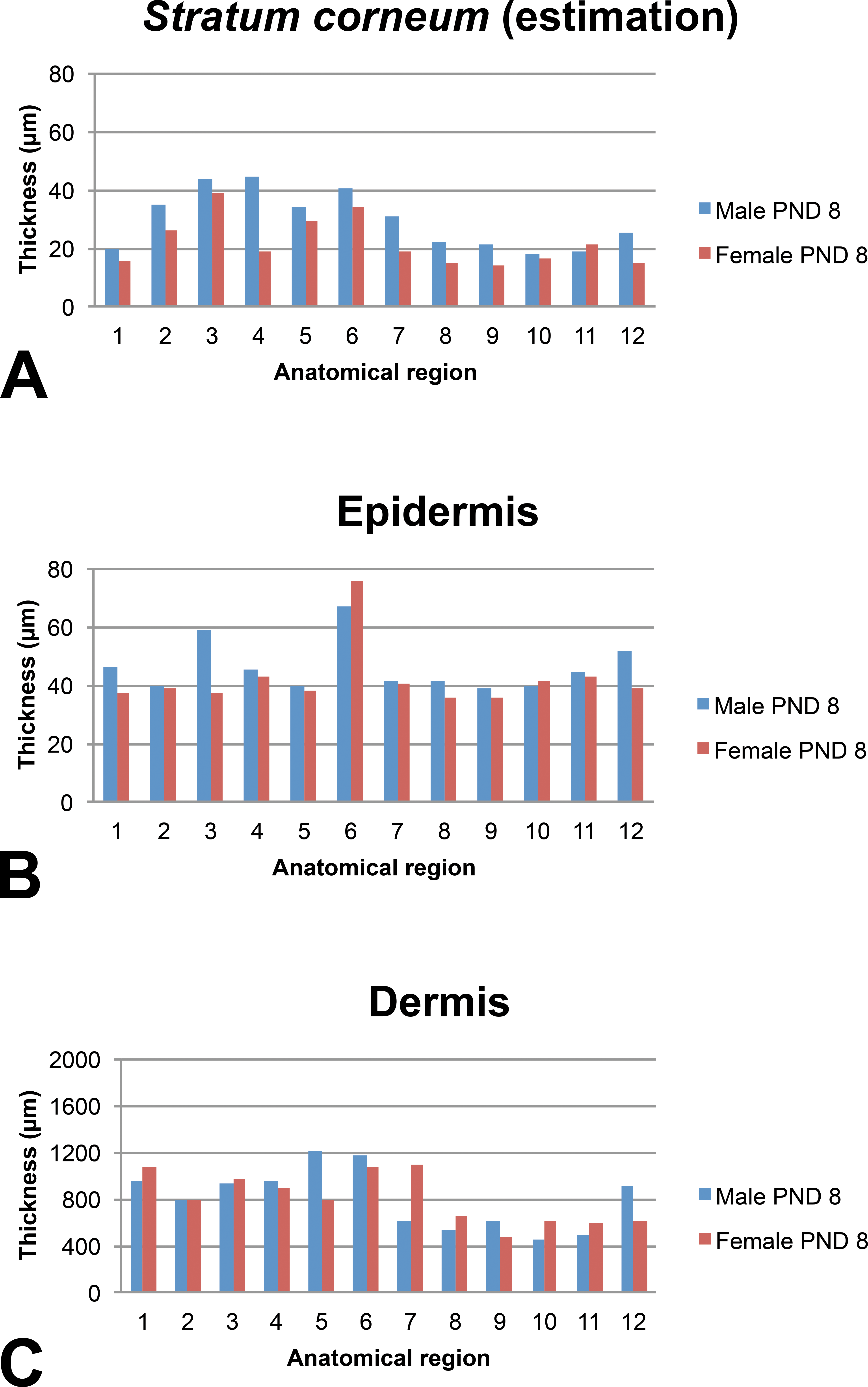

Skin layer thickness (µm) in juvenile minipigs at PND8 according to the anatomical location. 1: flank (posterior area), 2: flank (anterior area), 3: around the spine (rachis, posterior area), 4: around the spine (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: ischium–pelvis area. Skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day.

Figure 9.

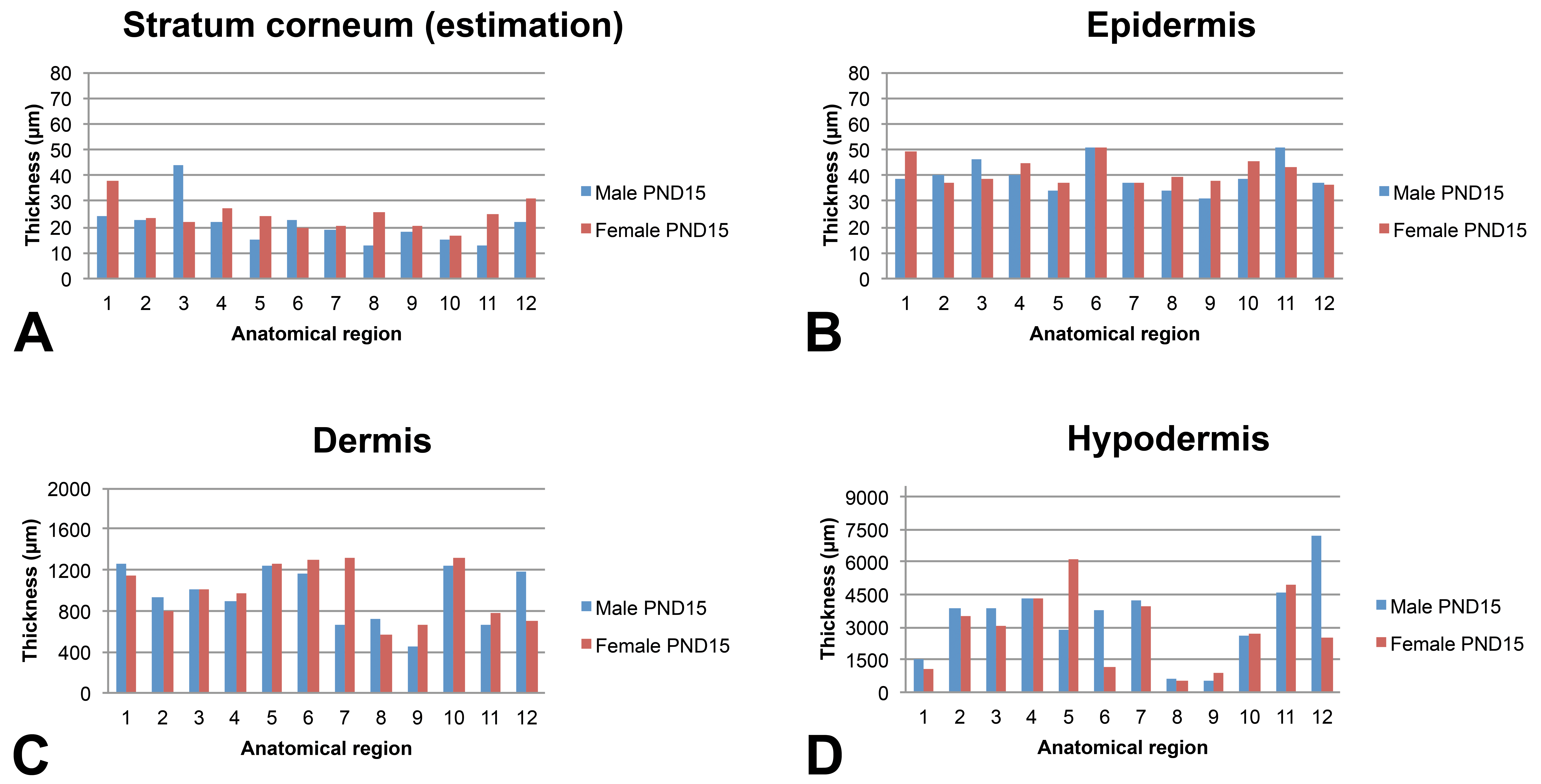

Skin layer thickness (µm) in juvenile minipigs at PND15 according to the anatomical location. 1: flank (posterior area), 2: flank (anterior area), 3: around the vertebral column (rachis, posterior area), 4: around the vertebral column (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: Ischium–pelvis area. Skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day.

Figure 10.

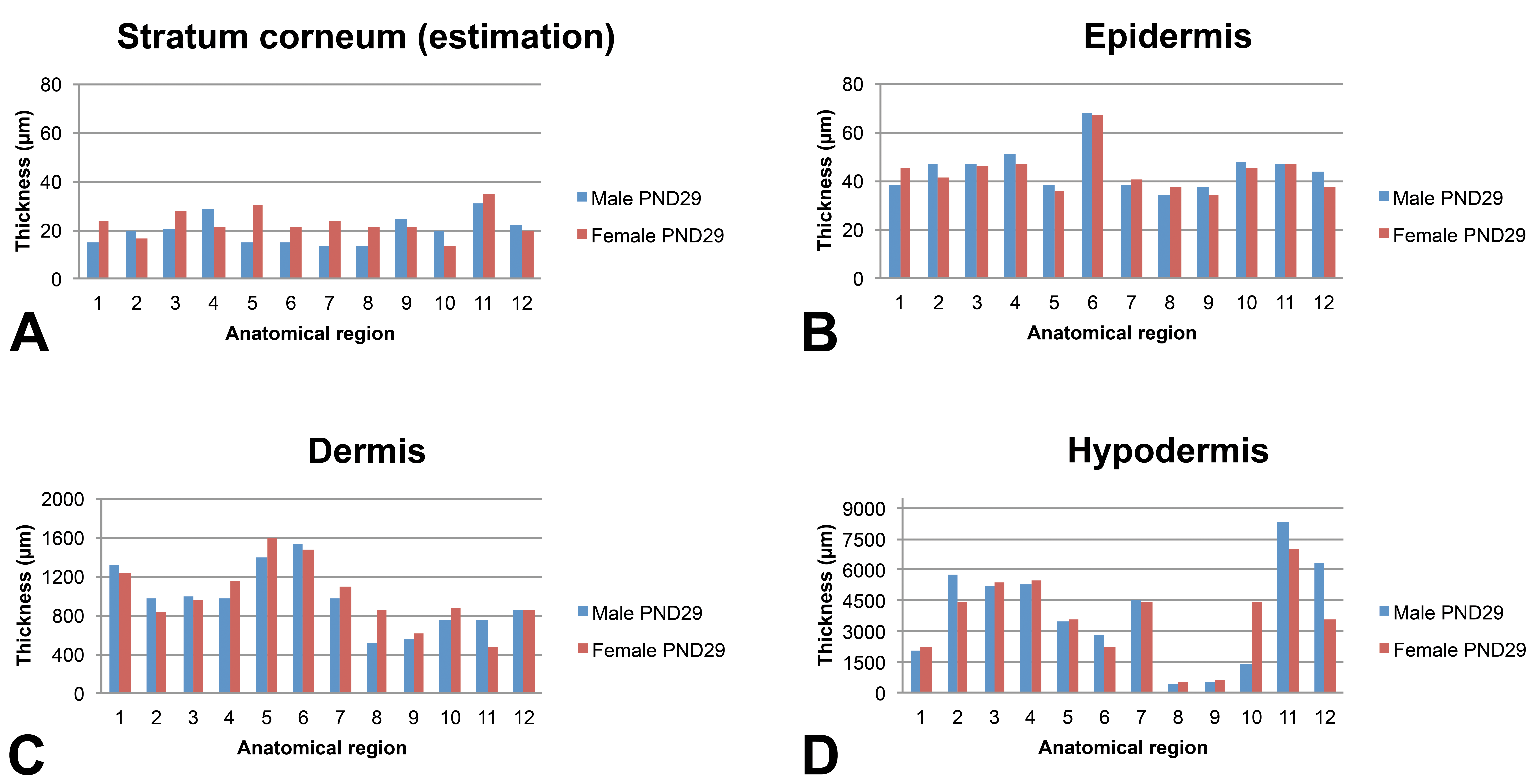

Skin layer thickness (µm) in juvenile minipigs at PND29 according to the anatomical location. 1: flank (posterior area), 2: flank (anterior area), 3: around the spine (rachis, posterior area), 4: around the spine (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: ischium–pelvis area. Skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day.

Figure 11.

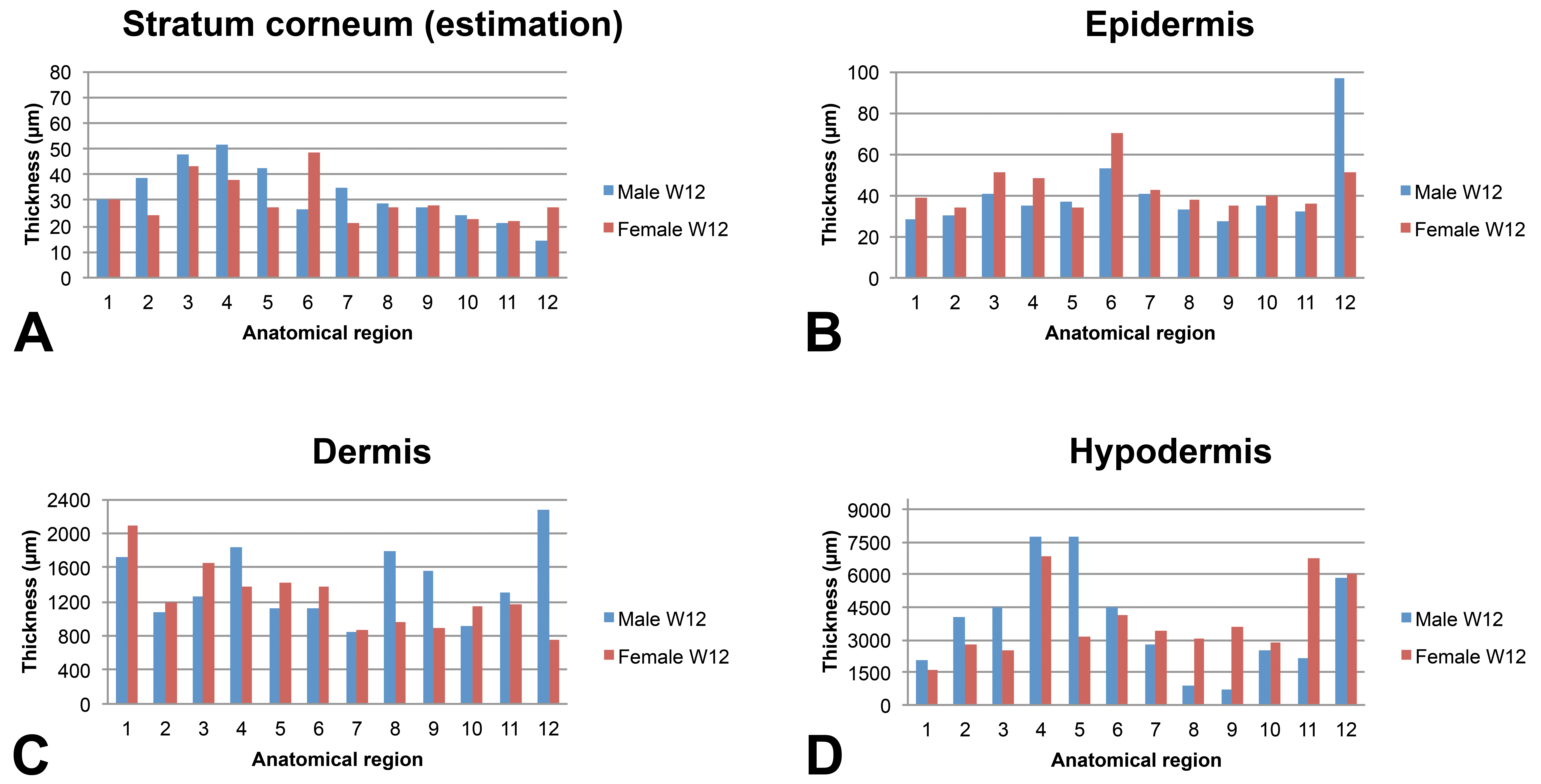

Skin layer thickness (µm) in juvenile minipigs at W12 according to the anatomical location. 1: flank (posterior area), 2: flank (anterior area), 3: around the spine (rachis, posterior area), 4: around the spine (rachis, anterior area), 5: behind the ears, 6: snout, 7: chin, 8: internal face of the forelimb, 9: internal face of the hind limb, 10: abdomen (anterior area), 11: abdomen (posterior area), and 12: ischium–pelvis area. Skin thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day; W = week.

In the very young animals (juvenile at PND1 or PND8), the estimated thickness of the stratum corneum varies from approximately 10 µm to 45 µm, the thinnest areas of the stratum corneum being found at the internal face of the forelimb and hind limb, the abdomen, and the pelvis area. In animals at PND15 and PND29, the estimated stratum corneum thickness was found overall to be rather low and homogeneous in all anatomical regions (approximately 20 µm) whereas marked variations were noted at week 12 (ranging from 20 µm to more than 40 µm).

The epidermis thickness in very young animals shows marked variations depending on the anatomical region at PND1 (ranging from about 35 µm in the internal face of the forelimb and behind the ears to about 60 µm for the snout). Individual very high values were noted for the spine region of the male at PND1 and for the abdomen region of the female at PND1. Conversely, the epidermal thickness appeared very homogeneous in all anatomical regions (approximately 40 µm) except the snout at PND8 and in older animals.

Regardless of the age of the animals, the thickness of the dermis showed marked variations depending on the anatomical region. As a general rule, the thinnest dermal compartments were seen for the internal face of the forelimb and hind limb and for the abdomen and for the pelvis area whereas a thicker dermis was seen for the samples taken behind the ears and the snout.

The subcutis was found to be highly variable depending on the anatomical region and differences tended to increase over time. In all animals, the thinnest regions were always the internal face of the forelimb and of the hind limb (region numbers 8 and 9, respectively).

Two samples were taken from the flank region, from the spine region, and from the abdomen: one sample at the anterior part and one located at the posterior part of each anatomical region (numbers 1 and 2 for the flank, 3 and 4 for the rachis, and 10 and 11 for the abdomen). Overall, regardless of the time point and sex, the anterior and posterior samples were almost identical from a morphology or thickness point of view, except for the hypodermis thickness in the flank and abdomen regions. The anterior area always showed a thicker hypodermis than the posterior area for the flank region (approximately 2-fold) whereas the thickness of the posterior part of the abdominal skin (closest to the pelvic area) was always found to be thicker than the anterior part (closest to the thoracic region).

Maturation of the flank region is illustrated in Figure 12. The estimated thickness of the stratum corneum was shown to be more or less stable over the period from PND1 to week 12. Conversely, the epidermis showed a tendency to be thinner at week 12. The thickness of both dermis and hypodermis increased dramatically and regularly during the period (2-fold and 4-fold, respectively).

Figure 12.

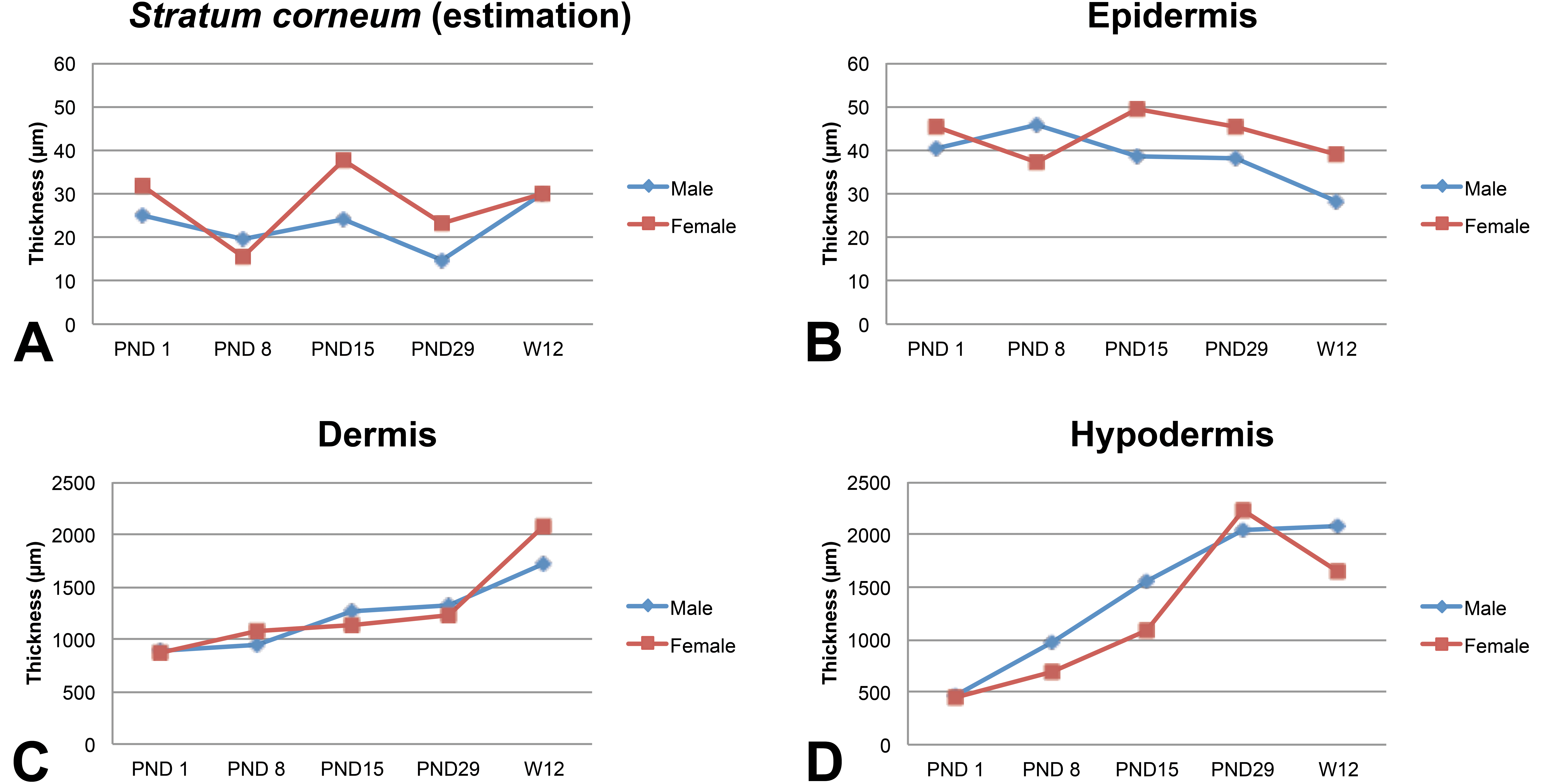

Maturation changes of the skin layer thickness (µm) in juvenile animals (flank, posterior area). Skin layer thickness measurements were performed manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). Manually using the Arivis viewer (provided by Imagic Switzerland) on the virtual slides. For each skin layer (stratum corneum, epidermis, dermis, and subcutis), 6 linear measurements were done perpendicular to the skin surface and the mean was presented. For stratum corneum and epidermis, measurements were done at scan magnification of 20 whereas a low magnification was used for dermis and subcutis (scan magnification of 2 or 1 whenever necessary to visualize the entire concerned layer). PND = postnatal day; W = week.

Discussion

In the minipig, as in humans, the morphology of the skin layers (stratum corneum, living part of the epidermis, dermis, and hypodermis) differs depending on the anatomical location. The presence and morphology of adnexa, including sweat glands, hair follicles, and sebaceous glands, may also vary. Apocrine glands were seen in all sections; although this type of gland is only seen in specific locations in humans (axillae, areolae, external ear canal, sexual/circumanal, and periumbilical areas), they are widely distributed in the minipig. The apocrine glands are tubular and show a coiled secretory part that is not related to the skin surface but to the hair follicle lumen. From literature data (Makin, Mortensen, and Brock 2012; Swindle 1998; Swindle et al. 2012), eccrine sweat glands may also be seen in minipigs but are thought to be limited to the snout and carpal glands. In the present study, for each animal from PND1 to W12, samples in the snout region were examined; however, we were unable to identify eccrine glands in our samples. Sebaceous glands were seen in association with hair follicles in almost all samples at any given location.

Regardless of the anatomical location, the morphology of the juvenile minipig skin samples taken at PND1 differs dramatically from that of young animals at 12 weeks of age, the main feature being the very high cellularity observed in the dermis. No specific literature data of dermal morphology was found for juvenile minipigs; however, this feature corresponds to what is well known and described for human neonates.

The age range of the animals in this study covered the skin maturation between PND1 and week 12. No specific translational information was found in the literature regarding minipig skin maturation, and therefore, we used the comparative diagram of age categories across species reproduced in the review article from De Schaepdrijver in 2010, although it was based on the central nervous system and the reproductive system development. The age categories used in our study may correspond to the evolution between neonate and child (from birth to approximately 12 years old). More specifically, the period from birth to 2 weeks in minipigs was thought to correspond to the term/neonatal period in humans (i.e., birth to 0.08 years); the period from 2 to 4 weeks in minipigs is considered to correspond to the infant/toddler period in humans (i.e., from 0.08 to 2 years), and the period from 4 to 14 weeks in minipigs was considered as equivalent to the childhood in humans (from 2 to 12 years).

From an embryologic point of view (reviewed in Loomis 2001), epidermis derives exclusively from ectoderm while dermal origins in humans are known to vary depending on the body site: neural crest ectoderm for the dermal mesenchyme of the face and anterior scalp, dermomyotome for the back, and mesoderm for limbs and ventral trunk. During the embryonic period, a presumptive epidermis forms as a single cell layer associated after 6 weeks, but for a short period of time, with a second more superficial layer called periderm. Stratification occurs later during pregnancy, approximately between 11 and 15 weeks for the skin appendages and between 22 and 24 weeks for the interfollicular epidermis. The fetal epidermis consists of a well-differentiated stratified epithelium resembling the adult skin by the middle of the third trimester. The fetal mesenchymal part of the skin is mainly cellular with few fibers and an extracellular gel-like matrix consisting of hydrated proteoglycans. The collagen and elastics fibers assembled in the second half of the pregnancy and the amount of fibers increases over time. In humans, the skin of the neonate shows a thick and well-organized dermis, but when compared to the skin of adults, the cellular component that consists mainly of fibroblasts is still prominent. This corresponds to our observations in neonatal minipigs.

Although several references could be found to support the interest of Göttingen minipig for dermal studies, only scant information was found on the potential impact of the age and/or bodyweight of the minipig on skin thickness. Qvist et al. (2000) documented the thickness of the skin layers according to age ranges in the minipig and compared them to human skin, but these data are based on a limited number of animals (n = 3 for each age category) and were restricted to the dorsal skin. The youngest age evaluated was 1.5 months (epidermis 50.0 ± 5.5 µm and dermis 1.15 ± 0.11 mm), and the authors concluded that the skin at this age was the closest to human skin. In this poster, the authors showed that the epidermal and dermal thickness generally increased with age in the minipig: 64.0 ± 0.0 µm and dermis 1.47 ± 0.19 mm at 3 months and 63.0 ± 5.3 µm and dermis 2.28 ± 0.11 mm at 6 months. In our study, we compared the skin layer thickness at different anatomical locations for juvenile animals from as young as PND1 to 3-month-old minipigs. Qvist et al. did not give an exact location of the examined skin samples in their poster, but we believe what they consider to be “dorsal skin” could correspond to the area around the spine (corresponding to the zones “rachis, anterior” and “rachis, posterior” in our study). Therefore, we could consider that our skin layer measurements were consistent with Qvist et al.’s results for 1-month minipigs (epidermis: 46 to 51 µm; dermis: 954 to 1,152 µm). At 3 months, however, we found no increase in the epidermal thickness (ranging from 35 to 51 µm) and only a limited increase in the dermal thickness (ranging from 1,270 to 1,830 µm). Considering the low number of animals in both studies, the discrepancy may be attributable to interindividual variability or method of measurement, which are not detailed in the poster by Qvist et al.

To our knowledge, this is the first time that an extensive skin anatomical morphology documentation is performed in the minipig, and it demonstrates marked anatomical differences in morphology and skin layer thickness. Some areas on the body, such as the chin and snout, have a very specific morphology, but it is also noted that skin layer thickness may also differ within the anatomical regions that are classically considered as homogeneous. For example, our assessment emphasized the flank region, which was defined using anatomic landmarks, that is, as a rectangle between the scapulae and hipbones, and corresponds to the area commonly used for dermal application in dermal toxicology studies. In this documentation work, two samples were performed taken, and it was noted in all animals that the anterior and posterior samples were almost identical in morphology or thickness except for the subcutis thickness. Indeed, the anterior area consistently showed a thicker subcutis than the posterior area (approximately 2-fold). This example highlights the fact that definition and standardization of skin samples are of major importance in dermal toxicology studies in order to provide adequate controls and reproducible results.

Overall, the neonate skin of minipigs showed the typical 3-layer structure of a mature skin and, as observed in neonate humans, the cellular component of the dermis appeared prominent and dermis and hypodermis thicknesses were smaller when compared to young adult skin. Over time, these unique neonatal characteristics tended to disappear progressively and one month after birth, the skin sections were very similar to those taken at week 12. The utility of the adult Göttingen minipig as an animal model in regulatory toxicology is already recognized for dermal application studies, and our results demonstrate that the minipig may also be the animal of choice for juvenile studies.

Footnotes

Acknowledgment

We thank Dr. Marie-France Perron Lepage for her very valuable review.

Author Contribution

Authors contributed to conception or design (BG, LP, JB, BR); data acquisition, analysis, or interpretation (BG, LP, NB); drafting the manuscript (BG); and critically revising the manuscript (LP, NB, JB, BR). All authors gave final approval and agreed to be accountable for all aspects of work in ensuring that questions relating to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Declaration of Conflicting Interests

The author(s) declared no potential, real, or perceived conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Bode

Clausing

Gervais

Loegsted

Luft

Nogues

Sims

(2010). The utility of the minipig as an animal model in regulatory toxicology. J Pharmacol Toxicol Methods 62, 196–220.

De Schaepdrijver

L. M.

(2010). Role of non-clinical assessment in paediatric drug development. In Guide to Paediatric Drug Development and Clinical Research, pp. 0138–43. Karger edition, Switzerland.

De Schaepdrijver

L. M.

(2013). Juvenile animal toxicity assessments: Decision strategies and study design. In Pediatric Drug development, 2nd ed., Chapter 19, pp. 0201–21. Concepts and Applications, Wiley-Blackwell, USA.

Feyen

Penard

van Heerden

Fant

Marsden

De Jonghe

Desmidt

Mousa

S. M.

Bailey

G. P.

(2016). “All pigs are equal.” Does the background data from juvenile Göttingen minipigs support this? Reprod Toxicol, 64, 105–15.

Ganderup

N. C.

Harvey

Mortensen

J. T.

Harrouk

(2012). The minipig as nonrodent species in Toxicology-where are we now? Int J Toxicol 31, 507–28.

Loomis

C. A.

(2001). Development and morphogenesis of the skin. Adv Dermatol 17, 183–210.

Makin

Mortensen

J. T.

Brock

W. J

. (2012). Dermal toxicity studies: Skin architecture, metabolism, penetration and toxicological and pharmacological methods. In The Minipig in Biomedical Research, Chapter 12, pp. 185–209. CRC press, Taylor and Francis group, USA.

Penard

(2016). Challenges of dermal administration in the juvenile Minipig. Ellegaard newsletter No. 47. https://minipigs.dk/fileadmin/filer/Pictures/News_2016/korrektur_6_1908412_Newsletter_47.pdf.

Qvist

M. H.

Hoeck

Kreilgaard

Madsen

Frokjaer

(2000). Evaluation of Gottingen minipig skin for transdermal in vitro permeation studies. Eur J Pharm Sci 0011, 0059–68.

10.

Stricker-Krongrad

Shoemake

C. R.

Liu

Brocksmith

Bouchard

(2017). The importance of minipigs in dermal safety assessment: An overview. Cutan Ocul Toxicol 36, 105–13.

11.

Swindle

(1998). Comparative anatomy and physiology of the pig. Scand J Lab Anim Sci 25, 0010–21.

12.

Swindle

Makin

Herron

A. J.

Clubb

F. J.

Frazier

K. S.

Jr . (2012). Swine as models in biomedical research and toxicology testing. Vet Pathol 0049, 0344–56.

13.

Tassinari

M. S.

(2013). Juvenile animal toxicity studies: Regulatory expectations, decision strategies and role in paediatric drug development. In Nonclinical Safety Assessment: A Guide to International Pharmaceutical Regulations ( Wiley

Borck W. J.-

, eds.), Chapter 16, pp. 0297–311. John Wiley & sons, ltd, USA.

Specificities of the Skin Morphology in Juvenile Minipigs
