Prediction and evaluation of health state for power battery based on Ridge linear regression model

Abstract

The state of health (SOH) of power battery reflects the difference between the current performance of the battery and the time it left the factory. Accurate prediction of it is the key to improving battery cycle efficiency. This paper studies the application of data-driven algorithms in power battery health estimation. Firstly, Using the data of actual operating vehicles which are monitoring in the data platform as the research objects. The charging event segmentation algorithm is designed for the full amount of data, and the K-means clustering model is used to extract slow charging events. Secondly, feature engineering is performed on the data, including the use of Pearson and Spearman coefficients analysis for numerical features, the use of one-hot encoding for category features to determine the final input features of SOH model. Eventually, using the Ridge linear regression model to predict the health status of the power battery. The research shows that the MAE is less than 5%, which meets the needs of practical use. In addition, this paper comparing Ridge with three other models named Linear Regression, Lasso, and Elastic Net. The result showed that the linear regression model with L2 regularization is more applicable in low-dimensional feature application scenarios without cell data in prediction of SOH.

Keywords

Data-driven power battery health status feature engineering regularization

The state of health (SOH) of power battery is an important parameter of the battery management system (BMS), which can reflect the age of the battery,¹ and its value usually directly determines whether the device needs to replace the battery module or pack.² In current research, SOH is generally defined as the ratio of the maximum capacity that the battery can currently charge to the rated capacity when it left the factory.³ The formula is:

S O H = \frac{C_{lef}}{Q_{N}} \times 100 %

(1)

In the formula, C_lef represents the current total capacity of the battery; Q_N represents the rated capacity when left the factory. The process of predicting battery health status is very complicated. Even batteries of the same brand and same batch model have different health status when they left the factory. Generally, the health status of the battery can be accurately obtained through experiments in a laboratory environment. In actual engineering applications, due to the influence of comprehensive factors such as working conditions, temperature, and usage habits, the predicted value can only provide a rough reference to the technicians.⁴

At present, the commonly used traditional model-based power battery state estimation models are: equivalent circuit model,⁵ electrochemical model⁶ and finite element model. However, the internal chemical reactions of lithium batteries cannot be directly observed or measured, and there is a certain amount of noise.⁷ Therefore, the above model-based method has some deviations, and it is impossible to establish a model that can be reasonably and accurately applied to actual conditions.⁸

In response to this problem, this paper studies the application of data-driven algorithms in estimating the state of health of power batteries.⁹ Comparing with the traditional model-based modeling method,¹⁰ this method considers the actual usage scenarios and habits of users, such as the average charging current and the temperature which have a greater impact on the actual SOH, and only needs to analyze a large amount of historical usage data in the data platform,¹¹ and the estimation accuracy of the algorithm can be verified through the corresponding experimental data.¹²

Data preprocessing

The data used in this article is provided by the Shanghai New Energy Vehicle Public Data Collection and Monitoring Research Center. The data comes from the Shanghai New Energy Vehicle Operation Data collected by the data center, all of which have been desensitized. The data includes the operating data of 25 pure electric vehicles, the data collection interval is 10 s, and the time span is 180 days, including vehicle operating data, battery extreme value data, and static information. Part of the sample data is shown in Table 1.

Table 1.

Sample data of new energy vehicles.

datatime	sequence	status	Ctrollertmp	rotatingspeed	torque	temperature	controllervoltage	controllercurrent
2018/1/6 9:15	1	3	11	0	0	10	719	0.7
2018/1/6 9:15	2	3	13	0	0	49	715	0.7
2018/1/6 9:15	1	1	12	1380	0	10	714	0.6
2018/1/6 9:15	2	1	13	1178	0.1	49	710	0.6
2018/1/6 9:16	1	1	12	2055	26.9	10	700	11
2018/1/6 9:16	2	1	14	1745	31.7	49	696	11
2018/1/6 9:16	1	1	12	1186	40.7	10	704	10
2018/1/6 9:16	2	1	13	1018	47.8	49	701	10
2018/1/6 9:17	1	1	12	743	4.8	10	710	4
2018/1/6 9:17	2	1	13	614	1.5	48	706	4
2018/1/6 9:17	1	3	12	1547	0.5	10	710	0.9
2018/1/6 9:17	2	3	13	1317	0.6	48	708	0.9
2018/1/6 9:18	1	1	12	47	6.1	10	713	0.8
2018/1/6 9:18	2	1	13	41	7.2	48	711	0.8
2018/1/6 9:19	1	3	12	0	0	10	714	0.4
2018/1/6 9:19	2	3	13	0	0	48	711	0.4
2018/1/6 9:19	1	1	12	893	18	10	711	2.6
2018/1/6 9:19	2	1	13	761	18.6	48	709	2.1
2018/1/6 9:20	1	1	13	2747	29.2	10	697	15.1
2018/1/6 9:20	2	1	14	2343	34.3	48	692	15.1
2018/1/6 9:20	1	3	12	2463	0	10	711	0.5
2018/1/6 9:20	2	3	14	2094	0	48	707	0.5

Data segmentation

Since the data used in this paper are all the original driving data and do not contain the label of the model: SOH, the most important thing is estimating the real SOH of vehicles from the raw data. As the definition of SOH which is showed in formula (1), the maximum rechargeable capacity in the current state needs to be calculated, so each charging event needs to be filtered from all the raw data at first In this paper, the charging event segmentation algorithm considers the following two possible abnormal situations: The first is that when the vehicle is charging in an underground parking garage or other places with poor network signal, the data may not be uploaded in time, resulting the loss of the next piece of data in this charging process; The second is that the charging pile is abnormal and the output current is unstable. When the maximum or minimum current is collected by the SOC algorithm in BMS, it will generate a program bug. As a result, the SOC of the data of the latter frame during charging is smaller than that of the previous frame, and the normal SOC should be an increasing process during charging.¹³ Considering the above possible situations in reality, in order to reduce the misclassification of charging events, the following segmentation algorithm is designed which can ensure the accuracy of subsequent labels:

Case1: When the time interval between the previous piece of data and the next piece of data is ≤10 min and the SOC of previous piece ≤the SOC of next piece, it is considered the same charging event;

Case2: When the time interval between the previous data and the next data is> 10 min and <30 min and the SOC of previous data< the SOC of next data, it is considered to be the same charging event;

Case3: Otherwise, it is considered as the next charging event.

According to formula (1), Q_N is a fixed, known quantity. C_lef can be converted to estimate the maximum charging capacity of the vehicle from actual operating data, so it can be changed to formula (2):

SOH = \frac{\frac{\int_{t_{start}}^{t_{end}} I dt}{SO C_{end} - SO C_{start}}}{C_{N}} .

(2)

According to the above charging event segmentation algorithm, 25 running vehicles were divided into a total of 6029 charging events, with an average of 241 times of charging per vehicle in half a year.

K-means distinguishes fast and slow charging

In the segmented charging events, selecting the charging events that can more accurately evaluate the SOH, and the conditions are as follows:

If the time of a charging event is too short, that is, the value of SOC_end - SOC_start is too small, it will cause the numerator of formula (2) to tend to infinity, and eventually cause the estimated SOH to be abnormal. The first condition in this paper is that the value of SOC_end - SOC_start is >30%.

There are two problems in the fast charging of vehicles: Firstly, for safety and prolonging the service life of lithium batteries, the charging pile will add a lower current operation during fast charging,¹⁴ that is, in the low SOC range is high current, and in the high SOC range, it will switch from constant current charging to constant voltage charging, and gradually switch to low current to protect the battery.¹⁵ If data loss occurs during this period, it will cause the calculated ampere-hour integral error, and then cause SOH error; secondly, the current is too large during fast charging, part of the current is actually converted into heat loss, and the capacity calculated by the Ampere-hour integral is too high, resulting in the estimated SOH is too large.¹⁶

Therefore, in all charging events, only the slow charging events are reserved for SOH estimation, which is to prepare labels for the training of the model. The condition for distinguishing between fast charging and slow charging is the current.¹⁷ As shown in Figure 1, it can be seen that there are two obvious peaks in the current distribution, namely, fast charging and slow charging. Since the current range of fast and slow charging cannot be artificially given, so it belongs to the unlabeled situation and is suitable for unsupervised learning models. In this paper, all charging current data are inputted into the K-means clustering model for training. Since there are only two types of fast charging and slow charging, K = 2 is used to classify the fast and slow charging events. The clustering result showed that the cluster center of slow charging events is −13.7 A, and the cluster center of fast charging events is −76.4 A, which is consistent with the result shown in the distribution diagram in Figure 1.

Figure 1.

Charging current distribution diagram.

Screening of charging events

According to the algorithm in 1.1 and 1.2, 1468 events which meeting the conditions were screened out from all 6029 charging events, and the SOH of 25 vehicles was estimated by formula (2) which is already different from the SOH calculated on board because of the SOH in the vehicle-mounted BMS on the market is basically obtained by multiplying the coefficient obtained by the cyclic test experiment by the rated capacity, or obtained by the look-up table method which does not consider the different actual use conditions of each vehicle. Since all 25 vehicles need to be flattened to the same dimension, considering the exact cumulative driving time cannot be known, the “absolute value” of cumulative mileage is selected as the abscissa. As can be seen from Figure 2, due to the different charging currents, different vehicle models and other characteristics, the SOH is also quite different under the same mileage, which is in line with the actual situation, but the SOH estimated based on 1468 charging events shows a gradual decline as the accumulated mileage increases. Secondly, using the principle of least squares to fit a straight line as shown in the green dashed line in Figure 2, and then calculating the 95% confidence interval based on the regression line, as shown in Figure 3, the red dashed internal interval in Figure 3, points outside the range of the interval are regarded as abnormal SOH values and deleted which further ensure the accuracy of subsequent labels. There are 1387 charging events rest These charging events can be used as labels for subsequent model training.

Figure 2.

95% Confidence interval screening of charging events.

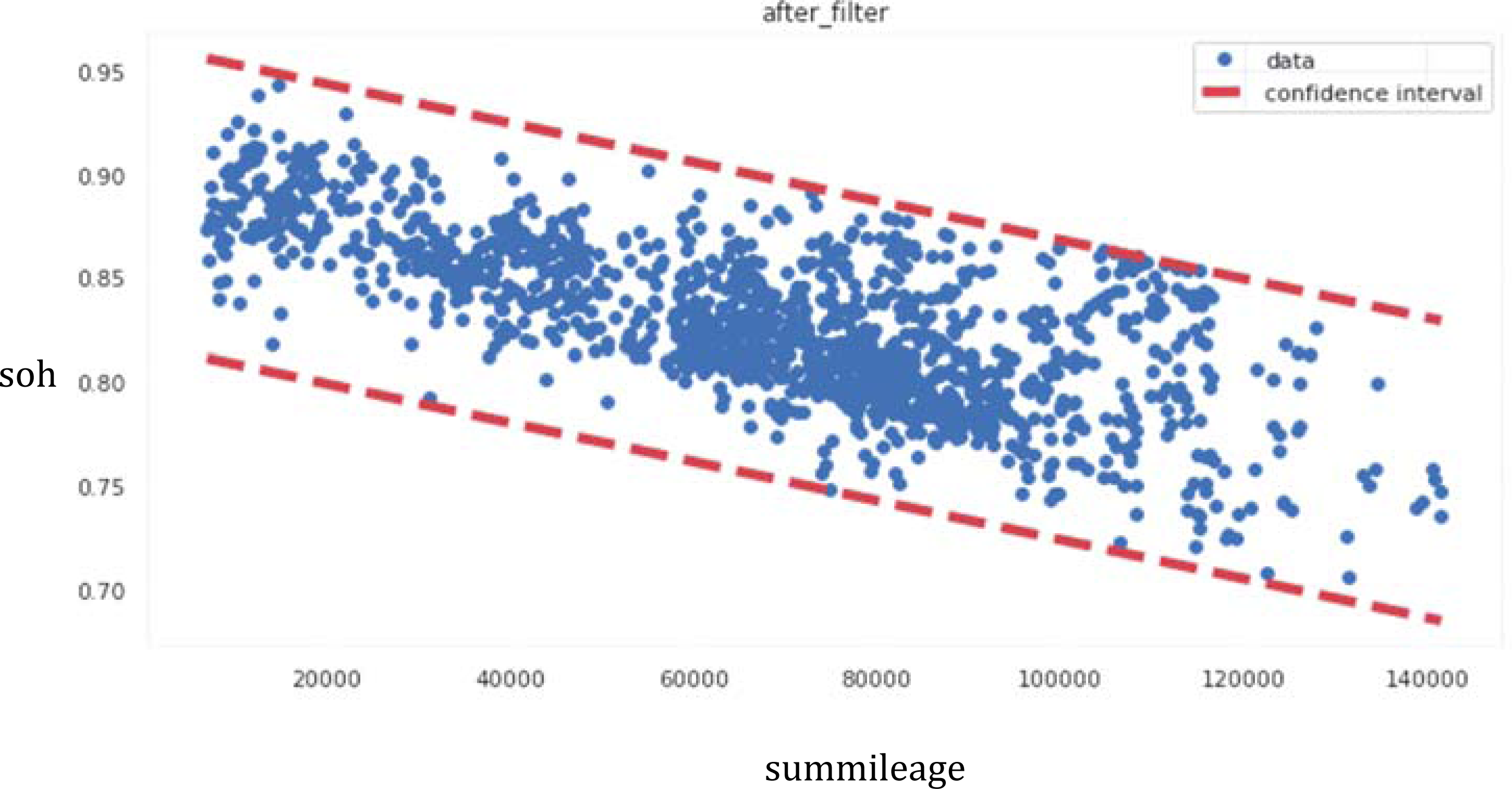

Figure 3.

Charging events after screening.

Feature engineering

The health status of the power battery is affected by many factors such as the number of cycles, use time, battery consistency, user driving habits, etc.¹⁸ This paper identifies 13 characteristics that affect the battery health status, as shown in Table 2.

Table 2.

Feature selection of SOH model.

Feature	symbol	unit
Accumulated mileage Accumulated charging time	summileage	km
Accumulated charging time	sumcharge_time	h
Average temperature of this charge	avg_temp	°C
Average temperature difference of this charge	avg_delta_temp	°C
The highest temperature probe code change times of this charge	max_temp_sn	times
The minimum temperature probe code change times of this charge	min_temp_sn	times
Average voltage difference of this charge	avg_delta_volt	V
The number of times of change of the highest voltage monomer code of this charge	max_volt_sn	times
The total voltage at the end of this charge	end_volt	V
Average current of this charge	avg_current	A
Starting SOC of this charge	start_soc	%
SOC at the end of this charge	end_soc	%
Month	month	month

Among them, the number of times the highest/lowest temperature probe code changes during this charge reflects the stability/disorder of the internal temperature distribution of the battery pack; the number of times the highest voltage monomer code changes during this charge reflects the consistency of the battery pack, when the battery consistency is better, the code of the highest voltage cell will change alternately. On the contrary, if the highest and lowest voltage always appear on two cells, it means that the battery pack has poor consistency; the initial SOC of this charge reflects the depth of discharge (DOD) of the battery pack, also reflects the user's habits from the side. For the feature of month, this article uses One-Hot encoding for this feature and converts it into a classification feature. Drawing the distribution diagram between all the features in pairs as shown in Figure 4. Figure 5 is a partial magnification of the upper left corner of Figure 4. It can be seen that the voltage (end_volt) at the end of the charge and the SOC (end_soc) at the end of the charge are present in the two features marked in the red box in the figure. The obvious positive correlation indicates that the features are redundant and will cause multicollinearity in the model, making the regression model lacking stability and difficult to distinguish the individual effects of each explanatory variable, so only end_soc is retained.

Figure 4.

Distribution map between features.

Figure 5.

Partial magnification of Figure 4.

At this time, there are 12 features, 11 of which are numeric features, and 1 is a classification feature (month). According to the Pearson correlation coefficient, the correlation between the numerical features is calculated and the heat map is drawn. Figure 6 shows the Pearson correlation coefficient heat map and the values in the figure represent the Pearson correlation coefficient calculated based on the input features. The purpose is to visualize the degree of correlation between the input features, which is a step in feature engineering. In the figure, you can see that there is no correlation coefficient approaching 1, indicating that the features at this time have met the needs of model training. These 11 numeric features are processed according to Max-Min standardization to eliminate the dimensional difference between the features for subsequent model training. The metrics of the linear analysis with Pearson and Spearman coefficients are shown in Table 3 and Table 4.

Figure 6.

Feature correlation heat map.

Table 3.

Pearson coefficients.

	summileage	sumcharge_time	avg_temp	avg_delta_temp
Summileage	1.000	0.244	0.270	0.166
sumcharge_time	0.244	1.000	0.624	−0.120
avg_temp	0.270	0.624	1.000	−0.072
avg_delta_temp	0.166	−0.120	−0.072	1.000
max_temp_sn	−0.170	0.176	0.124	−0.210
min_temp_sn	0.002	0.060	0.090	−0.055
avg_delta_volt	−0.064	−0.358	−0.144	0.109
max_volt_sn	−0.246	0.113	−0.049	−0.115
avg_current	−0.321	0.373	−0.065	−0.221
start soc	−0.204	−0.052	−0.023	−0.212
end_soc	0.013	−0.091	0.038	0.097
soh	−0.737	−0.079	−0.103	−0.190
	max_temp_sn	min_temp_sn	avg_delta_volt	max_volt_sn
summileage	−0.170	0.002	−0.064	−0.246
sumcharge_time	0.176	0.060	−0.358	0.113
avg_temp	0.124	0.090	−0.144	−0.049
avg_delta_temp	−0.210	−0.055	0.109	−0.115
max temp_sn	1.000	0.276	−0.228	0.238
min_temp_sn	0.276	1.000	−0.208	0.113
avg_delta_volt	−0.228	−0.208	1.000	−0.457
max_volt_sn	0.238	0.113	−0.457	1.000
avg_current	0.294	0.173	−0.473	0.356
start soc	−0.207	−0.146	0.345	−0.343
end_soc	−0.059	−0.061	0.344	0.012
soh	0.153	0.059	0.056	0.165
	avg_current	start_soc	end_soc	soh
summileage	−0.321	−0.204	0.013	−0.737
sumcharge_time	0.373	−0.052	−0.091	−0.079
avg_temp	−0.065	−0.023	0.038	−0.103
avg_delta_temp	−0.221	−0.212	0.097	−0.190
max_temp_sn	0.294	−0.207	−0.059	0.153
min_temp_sn	0.173	−0.146	−0.061	0.060
avg_delta_volt	−0.473	0.345	0.344	0.056
max_volt_sn	0.356	−0.343	0.012	0.165
avg_current	1.000	0.062	−0.188	0.367
start_soc	0.062	1.000	0.343	0.332
end_soc	−0.188	0.343	1.000	0.090
soh	0.367	0.332	0.090	1.000

Table 4.

Spearman coefficients.

	summileage	sumcharge_time	avg_temp	avg_delta_temp
summileage	1.000	0.250	0.278	0.179
sumcharge_time	0.250	1.000	0.708	−0.082
avg_temp	0.278	0.708	1.000	−0.072
avg_delta_temp	0.179	−0.082	−0.072	1.000
max_temp_sn	−0.177	0.171	0.128	−0.166
min_temp_an	−0.014	0.110	0.060	−0.005
avg_delta_volt	−0.120	−0.355	−0.156	0.039
max_volt_sn	−0.247	0.153	−0.030	−0.074
avg_current	−0.334	0.344	−0.004	−0.167
start_8°c	−0.200	−0.027	−0.012	−0.240
end_soc	0.117	−0.020	0.093	0.115
soh	−0.707	−0.082	−0.094	−0.215
	max_temp_sn	min_temp_sn	avg_delta_volt	max_volt_sn
summileage	−0.177	−0.014	−0.120	−0.247
sumcharge_time	0.171	0.110	−0.355	0.153
avg_temp	0.128	0.060	−0.156	−0.030
avg_delta_temp	−0.166	−0.005	0.039	−0.074
max_temp_sn	1.000	0.258	−0.233	0.241
min_tempsn	0.258	1.000	−0.211	0.135
avg_delta_volt	−0.233	−0.211	1.000	−0.512
max_volt_sn	0.241	0.135	−0.512	1.000
avgcurrent	0.335	0.217	−0.347	0.189
start_aoc	−0.215	−0.186	0.401	−0.354
end_soc	−0.093	−0.066	0.298	−0.007
soh	0.149	0.040	0.117	0.154
	avg_current	start_soc	end_soc	soh
summileage	−0.334	−0.200	0.117	−0.707
sumchargetime	0.344	−0.027	−0.020	−0.082
avg_temp	−0.004	−0.012	0.093	−0.094
avg_delta_temp	−0.167	−0.240	0.115	−0.215
max_temp_sn	0.335	−0.215	−0.093	0.149
min_temp_sn	0.217	−0.186	−0.066	0.040
avg_delta_volt	−0.347	0.401	0.298	0.117
max_volt_sn	0.189	−0.354	0.007	0.154
avg_current	1.000	0.149	0.198	0.412
start_soc	0.149	1.000	0.234	0.353
end_soc	−0.198	0.234	1.000	0.062
soh	0.412	0.353	0.062	1.000

SOH estimation model based on linear regression

This paper selects four linear regression models of Linear Regression, Lasso, Ridge and Elastic Net to establish the SOH estimation model of the power battery health status, and compares the differences between the four.¹⁹ The four regression algorithms are introduced below:

(1) Linear Regression

Linear regression is a kind of regression problem. Linear regression assumes that the target value and the feature are linearly correlated, that is, satisfying a multiple linear equation. By constructing a loss function, the parameters w and b when the loss function is the smallest are solved. The objective function is:

J (θ) = \frac{1}{2} \sum_{i}^{m} {(y^{(i)} - θ^{T} x^{(i)})}^{2}

(3)

In the formula, m is the number of samples, and θ is an n-dimensional vector, which means that the data has n-dimensional features. Solve the parameter vector θ that minimizes the formula (3). Linear Regression modeling is fast and simple, but when the number of features is large and the number of samples is small, it is easy to cause the generalization performance of the model to decrease, resulting in the phenomenon of “overfitting”.

(2) Lasso

In order to solve the above-mentioned Linear Regression over-fitting problem, it is proposed to add a regularization term of the L1 norm to the objective function (3), called Lasso, and its objective function is:

J (θ) = \frac{1}{2} \sum_{i}^{m} {(y^{(i)} - θ^{T} x^{(i)})}^{2} + λ \sum_{j}^{n} | θ_{j} |

(4)

In the formula, λ is called the regularization coefficient, which controls the degree of regularization. It can be seen from the formula that the goal is to find the θ that minimizes J(θ), so when λ is larger, in order to ensure that

λ \sum_{j}^{n} | θ_{j} |

is the smallest, the smaller θ is, the higher the degree of regularization. One of the advantages of Lasso is that it can obtain sparse solutions, so that there is a process of dimensionality reduction for features, so it is widely used in engineering applications.

(3) Ridge

Similar to Lasso, Ridge is also to solve the problem of Linear Regression overfitting. Unlike Lasso, Ridge adds a regularization term of the L2 norm to the objective function. The objective function is:

J (θ) = \frac{1}{2} \sum_{i}^{m} {(y^{(i)} - θ^{T} x^{(i)})}^{2} + λ \sum_{j}^{n} θ_{j}^{2}

(5)

Ridge cannot generate a sparse solution, and the parameter can only be as small as possible but not equal to 0. The advantage of Ridge's approach is that when there are fewer input features, it will not produce the effect of dimensionality reduction, and will not make most of the parameters before the features zero, so this method is suitable for scenarios with fewer features.

(4) Elastic Net

Elastic Net is a mixture of Lasso and Ridge. It uses both L1 and L2 regularization. The objective function is as follows:

J (θ) = \frac{1}{2} \sum_{i}^{m} {(y^{(i)} - θ^{T} x^{(i)})}^{2} + λ (ρ \sum_{j}^{n} | θ_{j} | + (1 - ρ) \sum_{j}^{n} θ_{j}^{2})

(6)

In addition to

λ

ρ

is also added as a regularization coefficient. The two coefficients adjust the regularization ratio of L1 and L2 together. The advantage is that it inherits some of the stability of Ridge on the basis of a certain dimensionality reduction effect.

This paper treats the preprocessed data as time series data, sorts values by the accumulated mileage from small to large, and uses forward verification method which is suitable for time series models to train the model. The sorted data is divided into training set, validation set and test set according to the ratio of 6:2:2. The cumulative mileage of all data ranges from 6930 km to 141,583 km. Therefore, the training set contains data of accumulated mileage of 6930 km∼ 80,792 km, the validation set contains data of accumulated mileage of 80,792km∼ 107,722 km, and the test set contains data of accumulated mileage of 107,722 km∼ 141,583 km. The model evaluation index selected in this paper is the Mean Absolute Error (MAE), which is the average of the absolute value of the error between the predicted value and the true value:

M A E (X, h) = \frac{1}{m} \sum_{i = 1}^{m} | h (x_{i}) - y_{i} |

(7)

Where h(x_i) is the predicted value of the model, that is, the predicted SOH; y_i is the true value, also called the label of the model, that is, the estimated SOH. The four models on the training set, validation set, and test set the performance is shown in the following Table 5.

Table 5.

Horizontal comparison of models.

Model	Training set MAE	Validation set MAE	Test set MAE
Linear Regression	1.57%	2.05%	3.38%
Lasso	2.92%	3.80%	4.66%
Elastic Net	2.92%	3.80%	4.65%
Ridge	1.57%	2.06%	3.37%

By comparing the four linear regression models, it can be seen that Lasso and Elastic Net with L1 regularization both perform poorly, because the actual running vehicle does not upload the data of each single battery, so this article can only select 12 effects. The features of SOH have a small number of features. If L1 regularization is used for dimensionality reduction, the model will be too simple and lead to larger errors. Therefore, the research in this paper shows that Ridge with L2 regularization performs well and is a better choice.²⁰

In this paper, the Ridge linear regression model is used to make SOH prediction, and the SOH prediction chart is drawn, as shown in Figure 7. The blue dot in the figure is the real SOH under the current accumulated mileage, and the orange dot is the SOH predicted by the model. It can be seen from the figure that the prediction made by this method is basically consistent with the real SOH and meets the actual demand.

Figure 7.

Ridge model predicts SOH.

Conclusion

This paper uses the operating data of 25 new energy vehicles provided by the Shanghai New Energy Vehicle Public Data Collection and Monitoring Research Center to evaluate and build an SOH estimation model. This article fully introduces the entire process, including data preprocessing, SOH evaluation, feature engineering, and training and verification of the final SOH estimation model. This paper compares the application of the four linear regression models named Linear Regression, Lasso, Ridge, and Elastic Net in the prediction of power battery health status. The results of the study show that the MAE of the four is less than 5%. However, in the low-dimensional feature application scenarios without cell data, the most commonly used Lasso model with dimensionality reduction function in the industrial field is not the most suitable. Instead, the simpler Linear Regression or Ridge with the L2 regularization term is more applicable and meets the needs of practical use.
