Heat-induced Alterations in the Localization of HSP72 and HSP73 as Measured by Indirect Immunohistochemistry and Immunogold Electron Microscopy

Abstract

The heat shock proteins are a family of stress-inducible proteins that act as molecular chaperones for nascent proteins and assist in protection and repair of proteins whose conformation is altered by stress. HSP72 and HSP73 are two major cytosolic/nuclear stress proteins of mammalian cells, with extensive sequence homology. HSP73 is constitutively expressed, whereas HSP72 is highly stress-inducible. However, it is unclear why two isoforms are expressed and whether these two proteins have different functions in the cell. To assist in the delineation of function, we have completed a detailed study of the localization of HSP72 and HSP73 in the cell before and after heat stress, using two different methods of detection. By indirect immunohistochemistry, the localization of these two proteins is similar, cytoplasmic and nuclear in nonstressed cells with a translocation to nucleoli immediately after heat. By the more sensitive immunogold electron microscopy technique, differences in localization were noted. In nonstressed cells, HSP72 was primarily nuclear, localized in heterochromatic regions and in nucleoli. HSP73 was distributed throughout the cell, with most cytoplasmic label associated with mitochondria. Mitotic chromosomes were also heavily labeled. After stress, HSP72 concentrated in nuclei and nucleoli and HSP73 localized to nuclei, nucleoli, and cytoplasm, with increased label over mitochondria. These differences in localization suggest that the HSP72 and HSP73 may associate with different proteins or complexes and hence have different but overlapping functions in the cell.

Heat shock proteins (HSPs) are highly conserved and ubiquitously expressed proteins that are either induced or increased in amount after cells are subjected to a number of stresses, including heat shock. In addition, highly homologous proteins are abundantly expressed in cells and do not respond to stress by increased expression (Lindquist and Craig 1988). Many years of research have shown that the constitutively expressed HSPs function as molecular chaperones for newly synthesized proteins, assisting in the folding and assembly of protein complexes and in translocation of proteins into organelles (Hartl 1996). After stresses that cause changes in protein conformation, HSP levels increase to assist in the refolding of damaged proteins. There are several families of HSPs that act cooperatively to fold and translocate nascent proteins in the cell. One major family is the HSP70 family, for which 11 genes are known in human cells and eight in murine cells (Tavaria et al. 1996). Of these genes, one is known to encode the major cytosolic/ nuclear constitutive isoform called HSP73, whereas there are two genes encoding the inducible isoform, HSP72. Other isoforms are located in the mitochondria (GRP75/PBP74/mtHSP75) and in the endoplasmic reticulum (BiP/GRP78).

The functional specificity of the two cytosolic isoforms, HSP72 and HSP73, has not yet been resolved in mammalian cells. HSP70 genes contain an ATPase domain, a peptide binding domain, a nuclear localization signal (NLS), and a carboxy-terminal domain of unknown but essential function (Zhu et al. 1996).

Some differences in peptide binding specificity have been found among different isoforms, e.g., between HSP73, DnaK (the bacterial homologue of HSP73), and BiP/GRP78 (Fourie et al. 1994) but, to our knowledge, no comparison has been made between mammalian HSP73 and HSP72. In the yeast Saccharomyces cerevisiae, there are 14 Hsp70 genes that resolve into five functionally distinct families, members of which cannot function interchangeably. However, the peptide binding domain does not determine the functional specificity of HSP70 genes from different families (James et al. 1997).

The observation that the development of thermotolerance, a transient resistance to heat shock induced by prior mild heating, correlates with the induction of HSP72 suggests that this protein targets stress-damaged proteins to a greater extent than the constitutively expressed HSP73 (Li and Werb 1982; Lee and Lai 1995). Furthermore, Cheng and Lai (1994) report that HSP73 is associated with intermediate filaments whereas HSP72 is associated with tubulins. However, in other studies we have shown that HSP73 appears to be as effective as HSP72 in reactivating heat-damaged luciferase expressed in mammalian cells (Tavaria et al. unpublished data).

Differences in function between the cytosolic HSP70 isoforms may be reflected in differences in intracellular localization before and after stress. HSP72 is a very minor protein not usually detected in rodent cells before stress, but in human cells it shows basal expression and is further induced by stress. Previous studies in human HeLa cells using indirect immunofluorescence have shown that HSP72 and HSP73, which share over 95% sequence identity, are present in both the cytosol and nucleus in resting cells and become predominantly nuclear during and soon after heat stress (Welch and Feramisco 1984; Ohtsuka et al. 1986; Wang et al. 1998; Xu et al. 1998). With time after stress, these proteins return to the cytosol. In Chinese hamster ovary cells, HSP73 follows a similar pattern after heat stress (Ohtsuka and Laszlo 1992). Other reports have shown that HSP72/73 is located on the outer mitochondrial membrane (Lithgow et al. 1993) and on the plasma membrane of some cells after heat shock (Multhoff et al. 1995).

In this study, we have analyzed in detail, using both indirect immunohistochemistry and immunogold electron microscopy, the localization of HSP72 and HSP73 before and after stress, as a means of addressing possible differences in function between the two proteins. We have utilized antibodies with specificity for one isoform only and a third antibody that recognizes both isoforms. To find the conditions that provide the best results in terms of antigen preservation, antibody binding, and sensitivity, we have used both freeze-fixation and chemical fixation before immunogold staining.

Materials and Methods

Cell Culture

A single cell clone of Chinese hamster ovary cells (CHO-K1) was used in all experiments. The cells were grown in Dulbecco's modified Eagle's medium (DMEM) supplemented with 10% fetal bovine serum and antibiotics. For indirect immunohistochemistry, cells were grown on sterile 13-mm coverslips inserted into flasks. Cells in exponential growth phase were used throughout these studies.

Heat Treatments

Cells were heated by submersion of sealed flasks in a water-bath set at 44 ± 0.1C. Fresh medium was always added before heating the cells. Two heat treatment protocols were followed. Cells were heated for 30 min at 44C or were first made thermotolerant by exposure to an initial heat treatment of 10 min at 44C followed by a recovery phase of 16 hr at 37C before a heat shock treatment of 30 min at 44C. After the latter treatment, cells were either processed directly or allowed a further recovery period at 37C before being processed.

Antibodies

Three different antibodies that recognize HSP72/73 were used in these studies. N6, a murine monoclonal antibody (MAb) (a kind gift from Dr. W. Welch), recognizes both HSP73 and HSP72 in CHO-K1 cells. IB5 (SPA-815; Stress-Gen Biotechnologies, Vancouver, BC, Canada) is a rat MAb that recognizes only HSP73 in CHO-K1 cells. C92 (SPA-810; StressGen Biotechnologies) is a murine MAb that recognizes only HSP72.

Western Analysis

Cells from control or heated flasks were harvested by rinsing in PBS, then scraping directly into gel sample buffer. Samples of equal protein loading were run on 10% SDS-PAGE and transferred to nitrocellulose. The membranes were probed for reactivity to N6, C92, or IB5 and detected using a secondary alkaline phosphatase-conjugated antibody.

Indirect Immunofluorescence

The procedure described by Ohtsuka and Laszlo (1992) was used in these studies. Briefly, cells were washed three times with PBS, fixed for 10 min in 3.7% paraformaldehyde in PBS containing 0.2% Triton X-100, washed three times with PBS, all at room temperature (RT), and then extracted with absolute acetone at −20C for 10 min, followed by three washes with PBS at RT. A blocking step of 30 min in 5% Carnation skim milk powder in PBS at RT was included. Cells were then incubated with N6, IB5, or C92 at a 1:60 dilution. Cells labeled with either N6 or C92 were detected with affinity-purified FITC-conjugated goat antimouse antibody (Boehringer Mannheim; Mannheim, Germany) at a 1:100 dilution. IB5-labeled cells were detected using affinity-purified FITC-conjugated goat anti-rat antibody (ICN Pharmaceuticals; Costa Mesa, CA) at a 1:100 dilution. The coverslips were mounted in Citifluor mountant solution (Agar Scientific; Stanstead, UK) and observed with a Bio-Rad (Bio-Rad Laboratories; Hercules, CA) confocal scanning microscope (model MRC1000). Confocal images of cells were obtained with a Leica microscope using a X63 (NA 1.4) plan-apo infinity-corrected objective (Leica Microscopy and Scientific Instruments Group; Heerbrugg, Switzerland). The 488-nm line from a krypton/argon laser was used to excite the FITC-tagged secondary antibody and emission was detected through the 522-nm filter. Optical sections were recorded at 0.4-μm vertical steps with each image averaged for seven scans. All images were processed using the Comos program (Bio-Rad) and Cas 4.02 (confocal assistant software, copyright Todd Clark Brelje). For all antibodies and for all heat regimens, the specificity of the fluorescence was constantly checked by omitting the primary antibody from some samples.

Electron Microscopy

Cells were gently scraped off flasks using a cell scraper (Costar; Cambridge, MA) before fixation. Two different methods of fixation, aldehyde and freeze fixation, were used. Cells in Group A were fixed in 2% paraformaldehyde, 0.05% glutaraldehyde in PBS, pH 7.4. Cells were then cryoprotected by immersion for 15 min in 1.2 M sucrose in PBS, pH 7.4, followed by 30 min in 2.3 M sucrose in PBS, pH 7.4, before being plunged into liquid nitrogen. Cells in Group B were centrifuged in 1% ultra-low geling temperature agarose (Sigma; St Louis, MO) and 2.3 M sucrose in PBS, pH 7.4. Approximately 5 μl of cells was placed inside a polypropylene ring and slammed onto a polished nitrogen-cooled copper mirror using the MM80 head attached to the KF80 (Leica). Settings were thickness = 2, speed = 8, force = 8. Cells from both Group A and Group B were transferred to a Reichert AFS (Leica) and substituted at −91C in methanol for 4-5 days. Substituted samples were warmed to −50C and embedded in Lowicryl HM20, which was polymerized at −50C by UV polymerization. Sections 90 nm thick were cut on a Reichert-Jung Ultracut E (Leica) and mounted on formvar-coated nickel grids. A wide range of fixation and embedding protocols were tested and the procedures presented here gave the best retention of antigenicity of HSP72 and HSP73.

Immunocytochemistry

Samples from Group A were placed on drops of 0.05 M glycine in PBS, pH 7.6, to quench free aldehydes. Groups A and B were then processed identically, as follows. Sections were floated on drops of blocking buffer [5% bovine serum albumin, 5% normal goat serum in incubation buffer (IB): 0.8% bovine serum albumin, 0.1% coldwater fish skin gelatin in PBS, pH 7.4] for 60 min. They were transferred to 8-μl droplets of either N6 at a dilution of 1:7, IB5 at a dilution of 1:20, or C92 at a dilution of 1:5, and incubated overnight in a moist chamber at 4C. After six 5-min washes in IB, N6, and C92 were detected by incubation for 60 min with goat anti-mouse IgG+M conjugated to 10-nm colloidal gold (Biocell Research Laboratories; Cardiff, UK). IB5 was detected by incubation for 60 min with goat anti-rat IgG+ M conjugated to 10 nm colloidal gold (ICN) or with a goat anti-rat IgG and IgM conjugated to ultrasmall gold (Aurion; Wageringen, The Netherlands). Ultrasmall gold was silver-enhanced according to Danscher (1981). A further six 5-min washes were followed by two 5-min washes in PBS and the antibody was “fixed” in place with 2% glutaraldehyde. Grids underwent a further six 5-min washes in ultrapure (18 Mil) water before drying. Some grids were double stained with methanolic uranyl acetate and lead citrate to improve contrast. Control sections were incubated in the absence of primary antibody. A positive control of a section known to react well with the antibodies used was also included. Examination was in a Hitachi H-600 electron microscope.

Results

Antibody Specificity

The intracellular localization of the two major isoforms of HSP70, i.e., HSP72 and HSP73, was investigated in CHO-K1 cells before and after a heat shock at 44C. Antibodies specific to these two isoforms or an antibody that recognizes both isoforms were used, and localization was determined both by indirect immunofluorescence and immunogold electron microscopy. The specificity of the antibodies is shown by Western analysis of the cells before and after heat shock (Figure 1). Only HSP73 is present in lysates of control cells, whereas a mild heat treatment of 10 min at 44C followed by 16 hr at 37C induces expression of HSP72. Thus, in thermotolerant cells, N6 detects both proteins and C92 now detects HSP72. IB5 staining, which detects only the constitutively expressed HSP73, remains unchanged between control and heated samples. No other proteins were reactive with these antibodies (Figure 1).

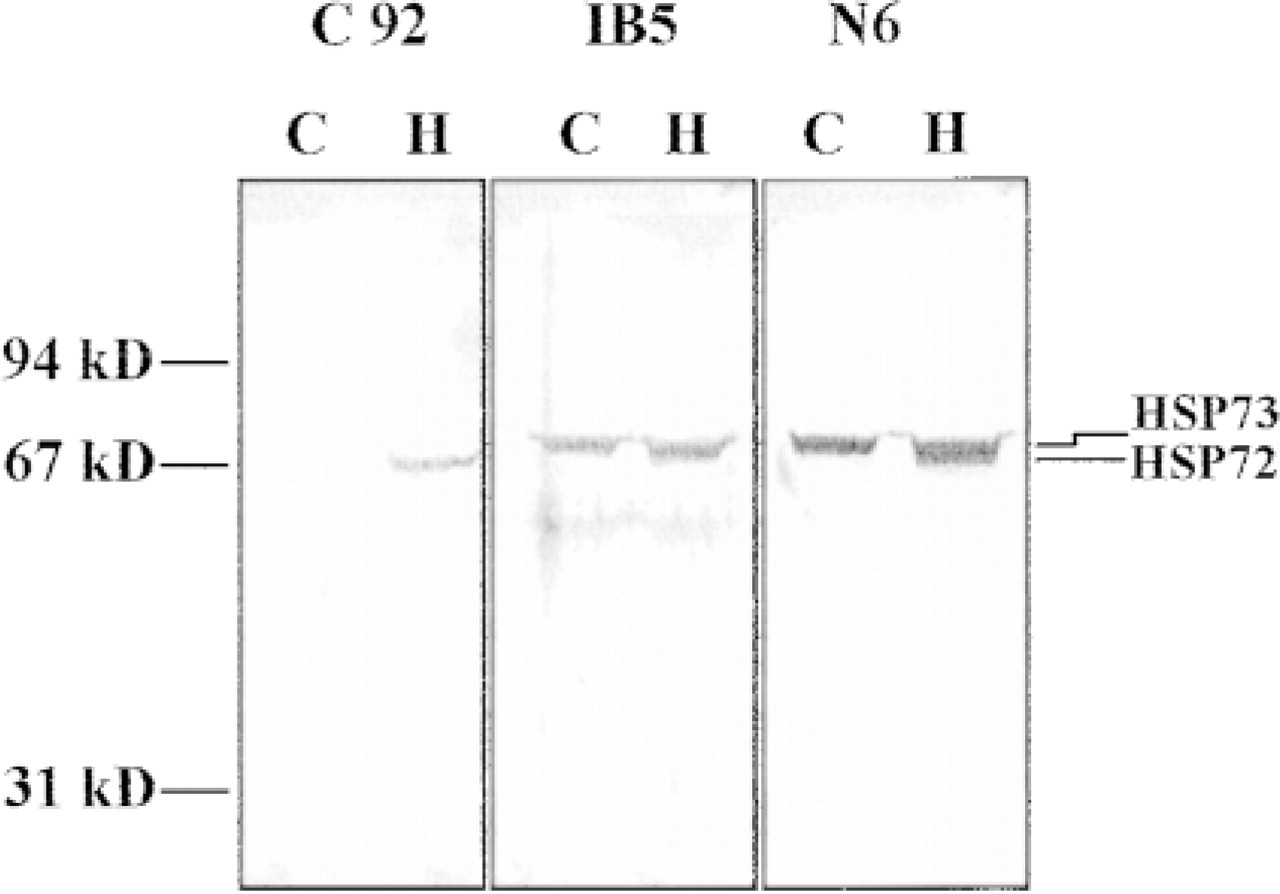

Figure 1

Specificity of the anti-HSP70 antibodies. CHO cells were heated for 10 min at 44C, then returned to 37C for 8 hr to allow expression of HSP72. Samples of control or heated CHO cells were subjected to SDS-PAGE and transferred to nitrocellulose. The membranes were probed with either C92, IB5, or N6 at 1:1000 dilution (1 μg/ml).

Localization of HSP72 and HSP73 by Indirect Immunofluorescence

Nonheated Cells. The immunofluorescence patterns of C92 (HSP72), IB5 (HSP73), and N6 (HSP72/73) staining are shown in Figure 2. Nonheated cells display very little fluorescence after immunostaining with C92 (experiment repeated nine times), consistent with the fact that HSP72 is hard to detect before stress (not shown). Fluorescence was detected only using full-strength laser intensity and with the iris fully open on the confocal microscope. In contrast, HSP73 distribution, as revealed by IB5 (experiment repeated 12 times), shows particulate staining in the cytoplasm and a pale diffuse staining in the nuclei (Figure 2A). In many experiments, bright fluorescent patches were seen in the nucleus, often associated with nucleoli when examined by scanning through a z-series on the confocal microscope. These patches were nodular or beaded in appearance (Figure 2B). In contrast, N6 (Figure 2C), which detects both HSP72 and HSP73 and therefore in nonstressed cells is reflecting HSP73 distribution, did not reveal brightly staining patches in the nucleus (experiment repeated five times). The pattern of HSP73 in the cytoplasm and nucleus was similar to that seen with the predominant IB5 distribution shown in Figure 2A.

Figure 2

Distribution of HSP72 and HSP73 in CHO cells as revealed by indirect immunofluorescence. (A-C) Nonheated cells. (A,B) Two patterns of IB5 staining commonly seen in control cells. (C) Typical N6 pattern. (D-F) Cells immediately after a heat treatment of 30 min at 44C, with C92 (D), IB5 (E), and N6 (F). (G) Labeling pattern with C92 16 hr after a heat treatment of 10 min at 44C. (H-J) Cells immunostained immediately after two heat treatments of 10 min and 30 min at 44C separated by 16 hr at 37C, with C92 (H), IB5 (I), and N6 (J). (K,L) Cells immunostained 1 hr after two heat treatments of 10 min and 30 min at 44C separated by 16 hr at 37C, with C92 (K) and IB5 (L). Arrow in K indicates the less uniform fluorescence within the nucleolus compared to that seen in H. Bars = 10 μm.

Cells Exposed to Heat Shock. In cells harvested immediately after a heat dose of 30 min at 44C, weak fluorescence only just above that of control cells was seen after C92 immunostaining (Figure 2D). This was apparent only with the confocal iris open and the laser intensity pushed to that used for viewing the control cells (experiment repeated four times). The heat treatment induced a partial translocation of HSP73 to the nucleoli, as revealed by IB5 immunostaining, but mainly around the nucleolar periphery (Figure 2E). This was evident only after scanning through a z-series on the confocal microscope (experiment repeated 11 times). The distribution of HSP73 as recognized by N6 (Figure 2F) showed much reduced particulate fluorescence in the cytoplasm and diffuse staining in the nucleus and nucleoli (experiment repeated four times). Occasionally the nucleolar fluorescence was brighter than that seen in other regions of the nucleus. There were noticeable differences in the extent of nucleolar staining with the two different anti-HSP73 antibodies (Figures 2E and 2F).

Thermotolerant Cells Exposed to Heat Shock. To induce thermotolerance and the associated expression of HSP72, cells were heated for 10 min at 44C and returned to 37C for the next 16 hr. The cells were then exposed to a severe heat treatment of 30 min at 44C. Because levels of HSP72 are very low in nonheated cells or in cells subjected directly to a severe heat dose, we first examined the distribution of HSP72 16 hr after its induction by mild heat stress, before the severe heat stress (experiment repeated twice). In these thermotolerant cells, C92 displayed particulate cytoplasmic staining and a more diffuse nuclear but not nucleolar distribution (Figure 2G). After the challenge heat dose, cells showed some cytoplasmic expression of HSP72, with most HSP72 translocating to the nuclei and especially the nucleoli (Figure 2H) (experiment repeated 11 times). HSP73 as assayed by IB5 showed a similar distribution to that seen in cells subjected to a single heat shock (as shown in Figure 2E), with predominantly nuclear and nucleolar staining (Figure 2I) (experiment repeated 11 times). N6 immunostaining revealed a similar distribution to that seen with IB5 (Figure 2J) (experiment repeated seven times).

Cells Allowed to Recover after Heat Shock. Thermotolerant cells allowed to recover for 1 hr after the second heat treatment were examined using the three antibodies. HSP72 distribution was similar to that seen immediately after heat shock except for a less uniform fluorescence within the nucleoli (Figure 2K) (experiment repeated nine times). By 1 hr after heat, HSP73 indicated by IB5 had begun to move out of the nucleoli (Figure 2L) (experiment repeated five times). HSP72/ 73 distribution as shown by N6 was similar to IB5 (experiment repeated five times; data not shown).

In an attempt to simplify the results, we have summarized them in Table 1, giving an indication of fluorescence intensity in the cytoplasm, nuclei, and nucleoli for each of the three antibodies after each heat regimen. Some caution should be exercised in reading this table because it does not reveal differences in appearance of fluorescence patterns but merely indicates fluorescence intensity.

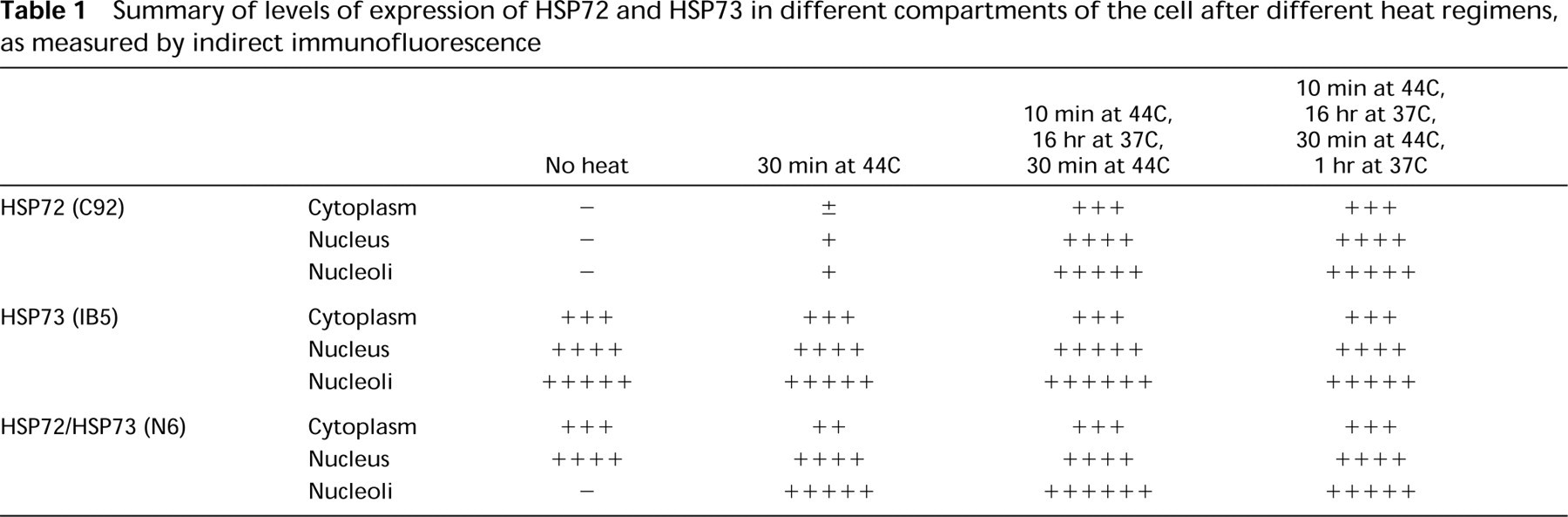

Table 1

Summary of levels of expression of HSP72 and HSP73 in different compartments of the cell after different heat regimens, as measured by indirect immunofluorescence

		No heat	30 min at 44C	10 min at 44C, 16 hr at 37C, 30 min at 44C	10 min at 44C, 16 hr at 37C, 30 min at 44C, 1 hr at 37C
HSP72 (C92)	Cytoplasm	-	±	+++	+++
	Nucleus	-	+	++++	++++
	Nucleoli	-	+	+++++	+++++
HSP73 (IB5)	Cytoplasm	+++	+++	+++	+++
	Nucleus	++++	++++	+++++	++++
	Nucleoli	+++++	+++++	++++++	+++++
HSP72/HSP73 (N6)	Cytoplasm	+++	++	+++	+++
	Nucleus	++++	++++	++++	++++
	Nucleoli	-	+++++	++++++	+++++

Localization of HSP72 and HSP73 by Immunogold Staining and Electron Microscopy

The method of fixation of cells before immunolocalization of proteins has variable effects on proteins and can destroy the antigenic determinants. Therefore, we initially compared two methods—chemical fixation and freeze fixation—for the ability of the three anti-HSP70 antibodies to detect their epitopes. We found that the staining intensity was greater in freeze-fixed cells for the antibodies IB5 and N6, suggesting better preservation of their antigens in their native state. No difference was observed in the labeling intensity or specificity when the antibody C92 was used. Another notable difference in staining patterns was seen when IB5 was used to detect HSP73. Substantial mitochondrial labeling was seen after freeze-fixing (Figure 3A), whereas little was detected in chemically fixed cells (Figure 3B). All further analyses with IB5 and N6 were completed using the freeze-fixing technique, whereas analysis with C92 was drawn from both fixation procedures. A minimum of five separate experiments utilizing freeze-fixation was completed for each control and heat shock regimen. Multiple blocks were cut for each experiment and labeling with the three different antibodies was completed on sections cut from these blocks. There were eight to 13 repeat labeling runs for each antibody and heat treatment.

Nonheated Cells. The distribution of HSP72 and HSP73 as detected by immunogold staining is shown in Figure 4. The extent of background staining obtained when the secondary antibody was used alone is very minor (Figure 4A). In control cells, some HSP72 was detected with the C92 antibody (Figure 4B), which contrasts with the lack of detection of HSP72 using the less sensitive immunofluorescence approach. The organelle exhibiting the greatest expression of HSP72 was the nucleus, especially in regions of heterochromatin and in the nucleolus (Figure 4B). Mitochondria were lightly labeled. HSP73 detected with IB5 was distributed throughout the cell, with most of the cytoplasmic label confined to the mitochondria. Label was generally in the form of large clusters of gold particles. Nucleolar localization of HSP73 was revealed and regions of heterochromatin showed strong reactivity (Figure 4C). Mitotic chromosomes, although not often seen, were strongly positive for HSP73 (Figure 4D). When total HSP72/73 was detected with N6, we found little label associated either with the nucleoli or with heterochromatin. The rest of the nucleus was positive for HSP72/73, but the density of gold grains was less than in the cytoplasm. Cytoplasmic staining was strong and expression at or near the cell surface and on the mitochondria was evident (Figure 4E). Mitotic chromosomes indicated little presence of HSP72/73, in contrast to the pattern seen with IB5.

Cells Exposed to Heat Shock. Immediately after a heat treatment of 30 min at 44C, HSP72 was detected mainly in the nucleus and nucleoli, with some expression at or near the cell surface. Heterochromatin was only lightly labeled (Figure 4F). There was evidence in some cells of HSP72 crossing the nuclear membrane close to regions of heterochromatin. Whereas the confocal fluorescence definitely revealed slightly more HSP72 binding in cells exposed to a single heat shock compared to control cells, this was not so evident in the thin sections used for immunogold staining, in which it is more difficult to quantitate the amount of antibody binding. Some sections did reveal a larger number of gold particles, but the image in Figure 4F was chosen to show the localization of HSP72 in the nuclear regions of the cell.

Figure 3

Transmission electron micrographs of mitochondrial labeling by IB5 in freeze-fixed (A) and chemically fixed (B) CHO cells. Both cell samples were subjected to an identical protocol after the initial fixation step and are from nonheated samples. Bars = 0.5 μm.

HSP73, as detected by IB5, was distributed primarily in the nucleus, including the nucleoli (Figure 4G). Clusters of gold occasionally decorated the heterochromatin, and mitochondria were positive for HSP73. The localization of total HSP72/73 as detected with N6 was again different from that seen with IB5 or C92. The cytoplasm generally remained the most heavily stained compartment after heat exposure, although clusters of gold were often observed either surrounding the nucleolar periphery or lying over the nucleolus itself. HSP72/73 could be seen crossing the nuclear membrane (Figure 4H).

Thermotolerant Cells Exposed to Heat Shock. After induction of thermotolerance, the effect of a 30-min 44C heat treatment on HSP72/73 distribution was assessed again. HSP72 was detected mainly in the nucleus and nucleoli. Heterochromatin was generally devoid of label except in areas adjacent to nuclear pores (not shown). HSP73 was mainly associated with the nucleus and the nucleoli but not with heterochromatin. Strong expression was seen in mitochondria as well (not shown). Total HSP72/73 as revealed by N6 staining generally showed strong expression in the nucleus and cytoplasm. Again, clusters of gold were often seen around the nucleolar periphery and over the nucleolus itself (Figure 4I). Mitochondria, rough ER, and areas close to the plasma membrane were also positive.

Cells Allowed to Recover After Heat Shock. Thermotolerant cells left to recover for 1 hr after the 30 min 44C treatment were examined to assess time-dependent changes in HSP72/73 after heat. HSP72 persisted in the nucleus and nucleolus but, in contrast to samples harvested immediately after heat, large clusters of gold particles were present over the heterochromatin (Figure 4J). HSP73 similarly moved to regions of heterochromatin, but in smaller clusters of gold particles, while maintaining its localization primarily in the nucleus and nucleoli. Mitochondrial label was reduced (Figure 4K). N6 immunostaining revealed primarily nuclear labeling in most cells. Heterochromatin was labeled to a lesser extent with small clusters of gold. Mitochondria, rough endoplasmic reticulum, and areas close to the plasma membrane remained positive (Figure 4L).

A tabular summary of the immunogold electron microscopic data, as was presented above for the fluorescence data, is not given because it is difficult to quantitate the intensity of gold particles in the thin sections used for antibody binding.

Discussion

As shown previously by others (Welch and Feramisco 1984; Ohtsuka et al. 1986; Wang et al. 1998; Xu et al. 1998), HSP72 and HSP73 are both cytoplasmic and nuclear before heat shock and move from the cytoplasm to the nucleus and nucleoli during heat shock. In this study, we set out to determine whether there are any differences in the localization of HSP72 and HSP73 before and after heat stress that could indicate different functions of the two isoforms. To compare the distribution of these two proteins, it was necessary to induce expression of HSP72 by exposing the cells to a mild heat treatment. The localization of the two proteins was then compared before and after a second more severe heat treatment. We did observe some differences in distribution of HSP72 and HSP73 before heat exposure, but these differences were less pronounced in stressed cells. The differences in localization were more evident with the more sensitive technique of immunogold staining after freeze-fixation of the cells rather than with indirect immunofluorescence.

A Comparison of Chemical vs Freeze-Fixation Before Immunogold Electron Microscopy

Freeze-fixation improved the intensity of immunological staining of N6 and IB5. Using IB5, we found that labeling of mitochondria was much more evident after freeze-fixation compared to chemical fixation, although labeling of other cell organelles by IB5 was not affected. These differences may result from the masking of the HSP73 epitope after chemical fixation due to crosslinking of the surrounding proteins. Sensitivity of HSP to chemical fixation by small amounts of glutaraldehyde has been reported previously (Soltys and Gupta 1996). Given the poor binding of N6 and, to a lesser extent, IB5 after aldehyde fixation, caution should be exercised in interpreting localization patterns from aldehyde-fixed cells.

Differences in HSP72/73 Localization Using Two Different Detection Methods

Confocal immunofluorescence and immunogold electron microscopy are two complementary techniques for determination of protein localization. The fluorescence approach allows the reconstruction of a 3D image of the cell and the overall localization of HSP72/ 73. For a more detailed examination for the presence of HSP72/73 in individual organelles, electron microscopy is used. This latter technique, when applied after freeze-fixation, has the added advantage of avoiding antigen damage and/or masking during chemical crosslinking and leaching of proteins from the cell by detergent or acetone. We believe that the immunogold labeling is more sensitive because it is done on thin sections that provide easy access of the antibody and because chemical crosslinking, detergent, and acetone are avoided.

Figure 4

Transmission electron micrographs of CHO cells before and after different heat regimens. (A) Background labeling obtained with secondary gold-conjugated antibody alone. Nonheated cells stained with C92 (B), IB5 (C,D), and N6 (E). (C) Large clusters of gold particles over the nucleus and regions of heterochromatin after IB5 labeling. (D) Labeling of metaphase chromosomes by IB5. Inset in E shows N6 staining of surface projections. (F-H) Cells immediately after a heat treatment of 30 min at 44C with C92 (F), IB5 (G), and N6 (H). Inset in F shows HSP72 expression at the cell surface. HSP72/73, as revealed by N6 staining, could be seen crossing the nuclear membrane (arrows in H). (I) Cells immunostained with N6 immediately after two heat treatments of 10 min and 30 min at 44C separated by 16 hr at 37C. (J-L) Cells immunostained 1 hr after two heat treatments of 10 min and 30 min at 44C separated by 16 hr at 37C, with C92 (J), IB5 (K), and N6 (L). Inset in L shows N6 staining in areas close to the plasma membrane. Cells in these micrographs were labeled with a secondary antibody conjugated to 10-nm gold except for D and the inset of L, which were labeled with ultrasmall gold and subsequently silver-enhanced. Bars = 0.5 μm.

In general, the fluorescence patterns of HSP72/73 distribution did reflect those seen at the EM level, but some differences were observed. First, HSP72 was not detected by fluorescence in the cells before induction of thermotolerance, whereas it does appear to be present in control cells as assayed by the immunogold technique. It is possible that, during the fixation and permeabilization process used for fluorescence, proteins may leach from the cells (Ohtsuka and Laszlo 1992). Alternatively, the levels of HSP72 may be too low to be detected above the background fluorescence.

We also noted a marked difference in HSP72/73 distribution between the fluorescence and EM experiments when the antibody N6 was used. After heat shock, most fluorescence staining was associated with the nucleoli, whereas the EM immunogold staining revealed the cytoplasm to be the most heavily labeled compartment. These differences could be due to a loss or masking of cytoplasmic HSP72/73 during the fixation and Triton-X/acetone permeabilization, as suggested previously (Ohtsuka and Laszlo 1992). It is evident that N6 binding is sensitive to aldehyde fixation. The association of HSPs with other cellular proteins has previously been implicated in preventing recognition of the antigenic epitope by the antibody (Milarski et al. 1989). On the other hand, care must be exercised in comparing results obtained from the thin sections (90-nm) used for EM to those obtained by immunofluorescence, which reveals whole-cell localization.

Localization of HSP72 and HSP73 in Control and Heated Cells

In nonheated cells, most HSP72 was located in the nucleus, especially in nucleoli and in regions of heterochromatin. In contrast, HSP73 revealed by IB5 was distributed throughout the cell, with much of the label found in the nucleolus or aggregated over the mitochondria. Heterochromatin and mitotic chromosomes were also positive for HSP73. A striking difference in localization was observed when N6 was used. This antibody recognizes both isoforms, but in resting cells the predominant isoform is HSP73. N6 detected HSP73 predominantly in the cytoplasm, with less label associated with the nucleus and generally no label associated with nucleoli. Mitotic chromosomes were not labeled by N6. The large immunogold clusters of IB5 contrasted with the diffuse gold labeling pattern of N6, which was mostly in the form of single grains.

In contrast to resting cells, differences in localization between HSP72 and HSP73 were not evident after heat stress. Immediately after heating, HSP72/73 tended to localize more strongly in the nucleus, especially in nucleoli. By 1 hr after heating, HSP72/73 had moved from the nucleoli to regions of heterochromatin, and the mitochondrial signal was reduced. Clusters of gold particles indicating HSP72/73 passing through nuclear pores into the cytoplasm could be observed.

The antibodies used here do not recognize the HSP70 isoform in the mitochondrial matrix, but there are reports of an HSP70 isoform associated with the outer mitochondrial membrane (Carbajal et al. 1993; Lithgow et al. 1993). From our results, it appears that HSP73 is the predominant isoform associated with mitochondria, but we did detect small amounts of mitochondrial HSP72 in control cells.

Labeling of HSP72/73 in the cytoplasm was both in clusters and in single grains, suggesting association both with individual proteins and with protein complexes. Nascent proteins are kept translocation-competent by association with cytosolic HSP73 (Rassow and Pfanner 1996). Soltys and Gupta (1996) found labeling of HSP60 in the cytoplasm over discrete sites of non-membrane-bound amorphous material similar to the clusters we observed. They suggest that these sites represent aggregates of protein.

Labeling of nucleoli is believed to occur in granular regions rather than in fibrillar regions (Pelham 1984; Welch and Feramisco 1984; Welch and Suhan 1986). It was not possible to discern the fibrillar and granular regions of the nucleoli after heat shock by their morphology alone. IB5 labeled nucleoli of nonheated cells in what appeared to be the granular region.

When the antibody C92 was used to detect HSP72 by immunofluorescence, we noted some variability of staining among cells, as has been reported previously. Henriksson et al. (1992) reported variable staining of HSP72 in myc-transfected cells. Milarski et al. (1989) reported heterogeneity in fluorescence staining of HeLa cells both before and after heat shock. They were able to show that the variability in fluorescence patterns and intensity of fluorescence after labeling with C92 was a cell-cycle phenomenon; once cells were synchronized, uniformity in fluorescence was observed. However, depending on which antibody was used to detect HSP72 after heat shock, different results for the nuclear distribution of HSP72 were observed. The differences were proposed to be due to the association of HSP72 with various proteins (including HSP73) throughout the cell cycle, resulting in masking of the antibody epitope. C92 was least able to recognize its epitope throughout the cell cycle, whereas N15, another antibody that recognizes human HSP72, always recognized its epitope regardless of the cell-cycle phase (Milarski et al. 1989).

We have noted that the distribution of HSP73 depends on the antibody being used. N6 and IB5, which by definition must recognize different epitopes, suggest different distributions of HSP73 in nonstressed cells. Most marked was the inability to detect significant amounts of HSP72/73 in the nucleoli and mitochondria when N6 was used compared to IB5. We hypothesize that the epitope for N6 is masked by binding to components of these organelles, whereas the epitope for IB5 remains free to bind the antibody. This highlights the importance of using at least two antibodies directed against different epitopes in determining localization of a protein.

In conclusion, we have shown that, in resting cells, the distribution of HSP72 and HSP73, although overlapping, reveals distinct variations that may reflect different chaperone functions. After heat stress these differences in localization are minimal, suggesting that both proteins are associating with similar damaged complexes or molecules. These results suggest that, in nonstressed cells, HSP72 and HSP73 may associate with different although overlapping proteins or complexes but that, during stress, both proteins are mobilized to protect essential sites, especially in the nucleoli and mitochondria.
