In Vivo Detection of Developing Vessel Occlusion in Photothrombotic Ischemic Brain Lesions in the Rat by Iron Particle Enhanced MRI

Abstract

The aim of our study was to visualize developing vessel occlusion in focal cerebral ischemia in vivo. Cortical photothrombosis (PT) was induced in rats, which in addition received superparamagnetic iron oxide (SPIO) particles intravenously. When SPIO particles were applied simultaneously during illumination of the brain for induction of PT, animals showed a markedly hypointense cortical lesion on T2-weighted (T2-w) magnetic-resonance images (MRI). At 3 h after PT, this hypointense area was surrounded by a small hyperintense rim. At 48 h after PT the hyperintense rim had further extended, whereas the hypointense lesion core did not change in size or signal. On histological sections areas of signal loss on T2-w MRI corresponded to local accumulation of iron particles, which were trapped within vessel thrombi. When SPIO particles were applied at 2 h after PT, the lesion appeared hyperintense on T2-w MRI, but was surrounded by a small hypointense rim indicating ongoing vessel occlusion at its outer margins. In contrast, delayed SPIO application at 24 h after completion of PT produced a merely hyperintense cortical lesion on T2-w MRI. Correspondingly, no iron deposits were seen on tissue sections. In conclusion, early SPIO-enhanced MRI provides a reliable in vivo tool to delineate areas of developing vessel occlusion in experimental cerebral ischemia and identifies vessel thrombosis as one mechanism of secondary infarct growth in the PT paradigm. This new imaging technique may aid to evaluate antithrombotic treatment strategies in the future.

Introduction

Cerebral infarction is caused by temporary or permanent occlusion of brain vessels, which leads to reduced intracerebral blood flow and decreased oxygen supply. Within minutes, irreversible tissue damage develops in brain areas which hemodynamically depend on the occluded vessels, and further extends into the periphery (‘penumbra‘) with time (Dirnagl et al, 1999). This secondary and delayed infarct growth has been attributed to increased excitotoxicity, inflammatory tissue damage and neuronal apoptosis (Dirnagl et al, 1999). Salvation of the penumbra is of particular therapeutic interest in stroke research. Diffusion-weighted magnetic-resonance imaging (DW-MRI) provides valuable information regarding the extent of ischemic tissue damage, but cannot depict the underlying vessel occlusion (Warach et al, 1995). Perfusion-weighted MRI (PW-MRI) in conjunction with DW-MRI gives an estimate of a potential mismatch between the infarct core and the surrounding tissue at risk (Schlaug et al, 1999; Neumann-Haefelin et al, 2000). Development of MR techniques allowing direct in vivo assessment of intravascular thrombus formation may further facilitate distinction between primary and secondary tissue damage, and help to evaluate the effects of novel drugs with regard to the amount of ischemic tissue salvaged.

In our present study, we report on ‘early’ iron enhanced MRI as in vivo tool to delineate areas of ongoing vessel occlusion in experimental ischemic brain damage. Photothrombotic focal cerebral infarcts (photothrombosis (PT)) were induced by systemical application of the photosensitive dye Rose Bengal and illumination through the intact skull in rats as described previously (Watson et al, 1985; Schroeter et al, 2002). Focal illumination of Rose Bengal leads to free radical formation, subsequent endothelial damage and thrombus formation in small vessels of the cerebral cortex (Dietrich et al, 1986; Dietrich et al, 1987b). Photothrombotic infarcts uniformly appear hyperintense in unenhanced T2-weighted (T2-w) MR sequences (Schroeter et al, 2001; Kleinschnitz et al, 2003). In parallel or after the induction of focal cerebral ischemia by PT, superparamagnetic iron oxide (SPIO) particles were intravenously injected at various intervals, and serial MRI measurements were performed afterwards. As a general effect, focal accumulation of SPIO particles in tissues leads to signal loss on T2-w MR images due to their paramagnetic effect (Chen et al, 1999). We here for the first time show that accumulation of SPIO particles trapped by developing thrombi allows detection of acute vessel occlusion in experimental cerebral ischemia by MRI. Furthermore, we support the notion that ongoing vessel thrombosis is one important mechanism of secondary infarct growth in the PT paradigm.

Materials and methods

Animal Experiments

All animal experiments were performed in accordance with institutional guidelines and were approved by Bavarian state authorities. Focal cerebral ischemia was induced in 43 adult male Wistar rats (200 to 220 g) by PT of cortical microvessels under inhalation anesthesia with enflurane in a 2:1 nitrogen/oxygen atmosphere, as described previously (Watson et al, 1985; Jander et al, 1995). A fibre-optic bundle of a cold light source was centred stereotactically 4 mm posterior and 4 mm lateral from Bregma on the intact skull. After that, 0.4 mL of a sterilefiltered Rose Bengal solution (10 g/L; Sigma, Deisenhofen, Germany) was administered via a femoral vein catheter, and the brain was illuminated for 20 mins. This procedure resulted in cone-shaped cortical infarctions without clinically visible symptoms. At the end of the operation, subcutaneous fat and skin were sutured in anatomical layers and animals were placed in separate cages for recovery. During the operation procedure, rectal temperature was kept between 36.5°C and 37.5°C by a servocontrolled heating blanket. In a subgroup of animals (n = 15), temperature in the right deep temporal muscle which correlates with the superficial cortical brain temperature (Busto et al, 1987; Jiang et al, 1991) was measured during PT and ranged between 34.0°C and 34.9°C. Thus, temperature was always beyond the critical threshold of 33°C necessary to ensure a stable amount of ischemic neuronal damage (Busto et al, 1987).

Magnetic Resonance Imaging

All measurements were performed on a clinical 1.5 T MRT unit (Magnetom Siemens Vison^®, Erlangen, Germany). Rats were anesthetized with intraperitoneal injections of 100 mg/kg body weight ketamin (Ketanest^®, Pfizer Inc., New York, NY, USA) and 10 mg/kg body weight xylazin (Rompun^®, Bayer, Leverkusen, Germany). Superparamagnetic iron oxide particles (Resovist^®, Schering, Berlin, Germany) were applied via the femoral vein at a dosage of 0.8 mmol Fe/kg body weight at the beginning of the illumination (n = 23). Then, MRI measurements were performed immediately after the end of the illumination in all animals, and serially in groups of animals after 3 h and 1, 2, 5, 7 and 14 days. At the end of the MRI measurements, three rats per time point were killed for histological analysis. Additional four animals underwent PT without application of SPIO particles and MRI scans were performed immediately thereafter. Further groups of rats received SPIO particles 2 (n = 6) and 24 (n = 4) h after finishing cortical illumination and subsequently underwent MRI. To analyze structural infarct growth, PT was induced in six animals and serial MRI scans were performed after 4 and 24 h.

For all MRI scans, animals were lying in supine position with their heads fixed in a custom-made dual channel surface coil designed for investigations of the rat brain (A063HACG, Rapid Biomedical, Würzburg, Germany). The MR protocol included a scout sequence in three planes and a coronal T2-w sequence (TR 2.500 ms, TE 92 ms) with a slice thickness of 2 mm and a coronal CISS sequence (TR: 16.4 ms, TE: 8.2 ms) with a slice thickness of 1 mm. For data postprocessing, MR images were transferred to an external workstation (Leonardo^®, Siemens, Erlangen, Germany). In seven animals that had received SPIO particles at the beginning of the illumination, the proportional volumes of the hypointense infarct core and the hyperintense rim surrounding the core were calculated over time by manually delineating the respective areas in subsequent slices as described previously (Kleinschnitz et al, 2003). Likewise, infarct volumes after 4 and 24 h were calculated in six rats without SPIO application. Infarct volumes were normalized to the total volume of the ipsilateral hemisphere.

Histology

After MRI, rats were killed by C0₂ narcosis. Brains were rapidly removed and immersion-fixed overnight in 4% paraformaldehyde, washed in phosphate-buffered saline (PBS), and embedded in paraffin. Subsequently, 5-μm-thick coronal paraffin sections were cut at multiple levels through the infarcts, deparaffinized with xylene, rehydrated, and washed in deionized water and PBS. Iron detection was performed as described previously (Kleinschnitz et al, 2003). Briefly, tissue sections were immersed in Perl's solution containing 2% potassium ferrocyanide and 2% HCl at a 1:1 concentration for 30 mins, washed and coverslipped. For evaluation of ischemic tissue and cell damage, hematoxylin-eosin (HE) staining was used. To further analyze the iron distribution in different brain compartments after PT, 400 to 600 serial coronal sections (5 μm) covering the whole photothrombotic lesion (mean diameter 2 to 3 mm) from the frontal to the occipital pole were cut from the brains of the animals that had received SPIO particles at the beginning of the illumination. Every 10th section was stained with Perl's solution (40 to 60 slices per animal) and analyzed for intravascular, interstitial and cell-bound iron deposits. Sections were examined with a Zeiss-Axiophot microscope.

Statistical Analysis

For statistical analysis the GraphPad Prism software package, version 3.0. (GraphPad Prism, USA) was used. Data are expressed as mean ± s.d. To analyze the hypo- and hyperintense lesion volumes after simultaneous injection of SPIO particles over time, nonparametric Kruskal—Wallis test followed by Dunn's post test for multiple comparisons was applied. Infarct volumes between 4 and 24 h were compared using nonparametric Mann—Whitney test. P-values <0.05 were considered statistically significant.

Results

In accordance with previous studies (Schroeter et al, 2001; Kleinschnitz et al, 2003), control animals without SPIO particle injection exhibited hyperintense cortical lesions on T2-w MRI sequences after PT (Figures 1A and 1B). These lesions significantly increased in size between 4 and 24 h, indicating secondary photothrombotic infarct growth after cessation of illumination (Figures 1A—C). In animals receiving SPIO particles at the beginning of illumination, a markedly hypointense lesion was seen on T2-w images when MRI was performed immediately after PT (Figure 2A). After 3 h, a hyperintense rim appeared around the hypointense core that gradually increased until 48 h after PT (white arrows in Figures 2B and 2C). Both the early hypointense core and the hyperintense peripheral rim persisted until day 14 in animals that were scanned serially by MRI, but gradually declined in size, indicating shrinkage of the ischemic lesion (Figure 2D). Quantification of our data revealed that the relative volume of the hypointense infarct core remained stable between days 0 and 5 and slightly decreased afterwards (Figure 3). In contrast, the volume of the hyperintense peripheral rim changed with maximum levels at day 1 (6.4% of the ipsilateral hemisphere) and a subsequent decrease until day 14 (2.3% of the ipsilateral hemisphere; P<0.001) (Figure 3).

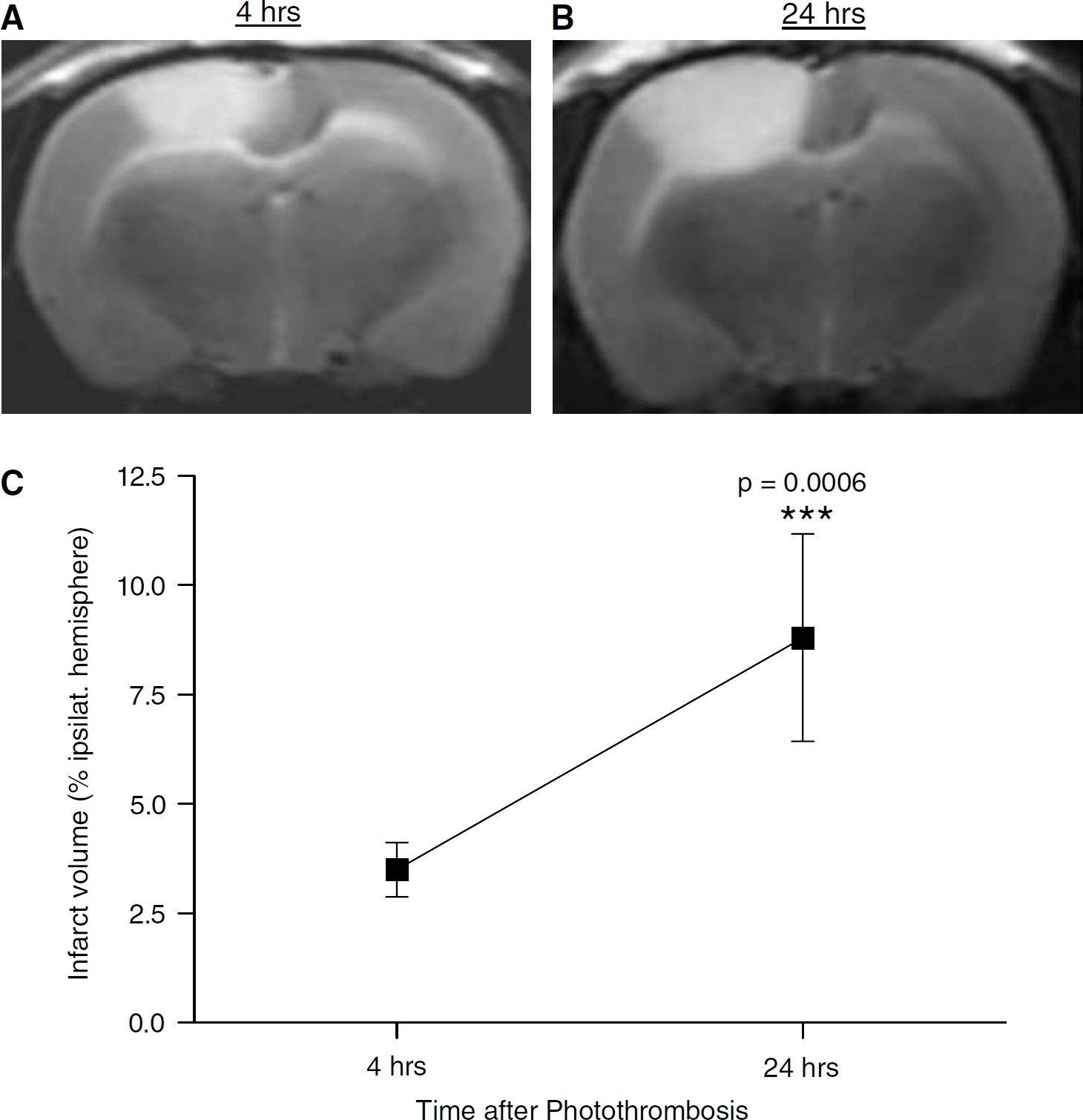

Figure 1

Sequential coronal T2-w MRI in a control animal without SPIO application and quantification of infarct volumes. A hyperintense cortical lesion is present 4 h after PT (A), which significantly increases in size after 24 h, indicating secondary infarct growth (B, C). Mean ± s.d. (n = 6); ***P<0.001 compared with relative infarct volumes (normalized to the ipsilateral hemisphere) after 4 h. Mann—Whitney test.

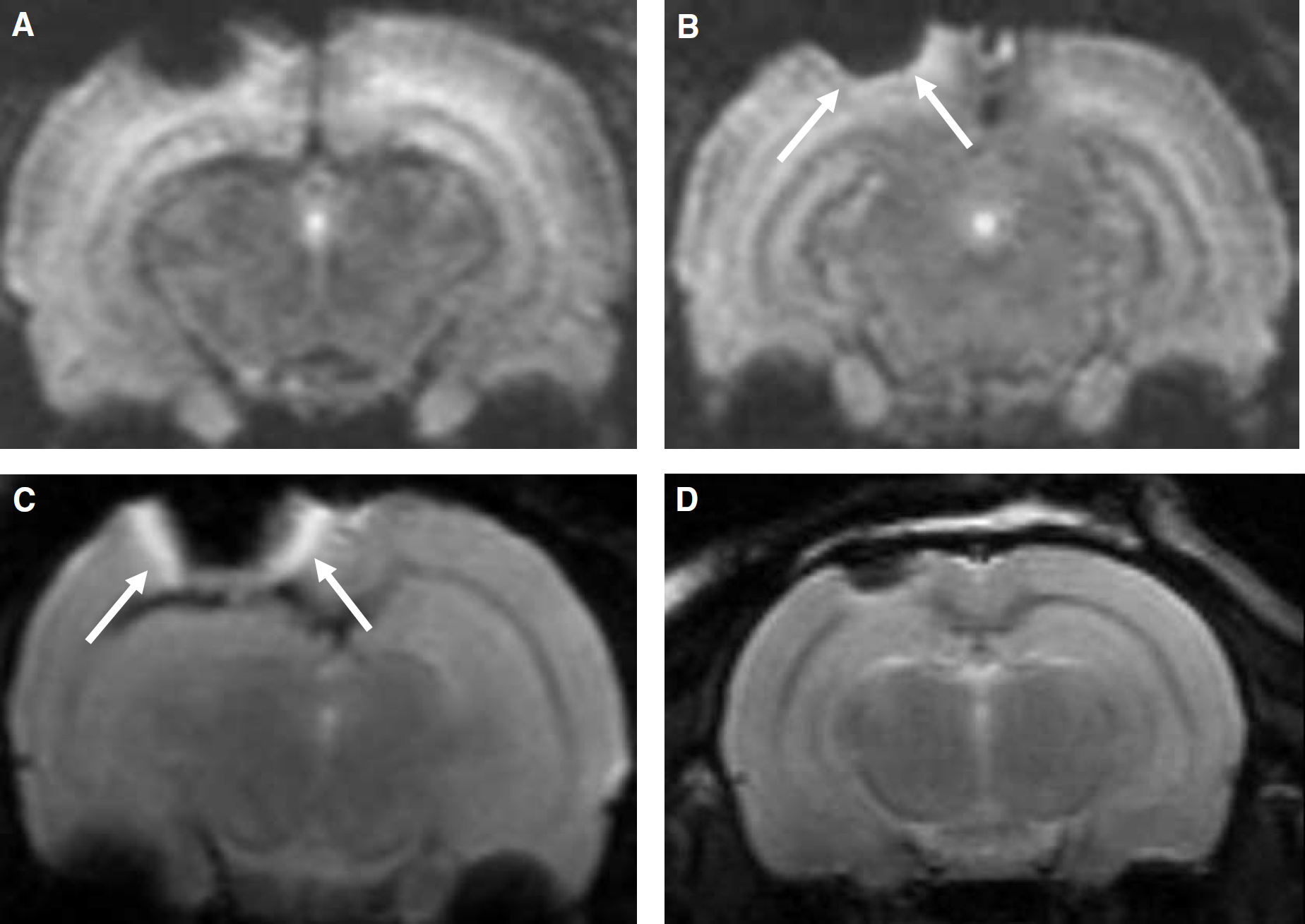

Figure 2

Sequential T2-w MRI in an individual animal that had received SPIO particles at the beginning of the illumination. Immediately after PT, the ischemic infarct is depicted as a markedly hypointense cortical lesion on MRI (A). After 3 h, a small hyperintense rim surrounds the lesion (B, white arrows), which further increases 48 h after PT (C, white arrows), whereas the hypointense core does not substantially change in size. After 14 days the volumes of the hypointense centre and the hyperintense peripheral rim have decreased (D).

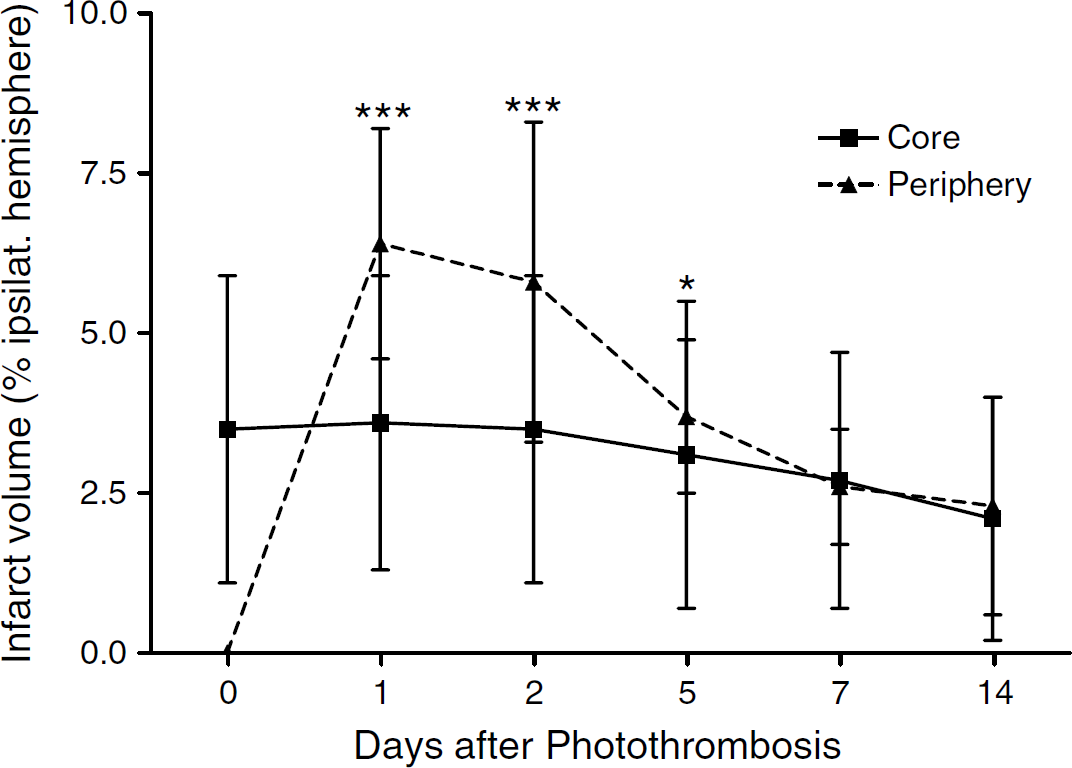

Figure 3

Quantitative analysis of the hypo- and hyperintense lesion portions after simultaneous injection of SPIO particles to PT over time. The relative volume (normalized to the ipsilateral hemisphere) of the hypointense part of the lesion (—) virtually remains stable over time, while the hyperintense rim in the periphery (—) displays a maximum at day 1 (6.4% ± 1.8%) and subsequently decreases until day 14 (2.3% ± 1.7%). Mean ± s.d. (n = 6 to 7 animals/timepoint); ***P<0.001, *P<0.05 compared with the relative volumes immediately after PT (day 0). Kruskal—Wallis test followed by Dunn's post test for multiple comparisons.

When SPIO particles were injected by a 2-h delay after completion of PT, the cortical lesions appeared mainly hyperintense on T2-w images, but displayed a small hypointense rim at their outer margin, which was indicative of ongoing vessel thrombosis (white arrows in Figure 4A). In contrast, more delayed injection of SPIO particles 24 h after PT showed merely hyperintense lesions on T2-w MRI without signal loss, which indicated cessation of SPIO accumulation at this advanced stage of infarct development (Figure 4B).

On corresponding histological sections stained by Perl's solution, cortical areas with a hypointense MRI signal representing the animals that had received SPIO at the beginning of the illumination showed a massive and homogenous intravascular accumulation of iron particles which were trapped within the vessel thrombi (Figure 5A). Most notably, multiple serial sections covering the whole photothrombotic lesion revealed an exclusively intravascular staining pattern, while diffuse, interstitial iron deposits, for example, due to the disrupted blood—brain barrier, were not present. When SPIO particles were injected with a delay of 2 h after PT, SPIO particles were localized exclusively in vessels at the outer margins of the infarcts (white arrows in Figure 5B), while vessel thrombi in the center of the lesions were devoid of iron particles (black arrows in Figure 5B). These data indicate ongoing vessel occlusion exclusively in the penumbra of photothrombotic lesions. When SPIO particles were applied 24 h after PT, the hyperintense cortical lesions on MRI consisted of necrotic tissue on HE-stained sections, and no SPIO particles could be detected by Perl's stain (Figure 5C). This finding indicates termination of thrombus formation already before SPIO application.

To clarify what happens with the SPIO deposits within thrombi in the long term, animals that had received SPIO particles during induction of PT were allowed to survive for prolonged periods. In these animals, in addition to intravascular SPIO accumulation, iron particles were found in increasing numbers of phagocytic cells from day 3 onward within the infarcted areas (Figures 5D and 5E). These phagocytes most likely cleared debris from destroyed and occluded vessels, and thereby accumulated iron particles intracellularly.

Discussion

As a principal finding, we provide a novel technique that allows detection of developing vessel occlusion in vivo. Focal cerebral infarcts were induced by PT (Watson et al, 1985; Dietrich et al, 1987a) and animals received SPIO particles at various time points during and after ischemia. The core and later the outer margins of developing infarcts showed a signal loss on T2-w MR images indicating iron accumulation. On histological sections stained by Perl's solution, areas of signal loss on MRI corresponded to local accumulation of iron. Importantly, iron could be detected exclusively within the lumina of vessels located in the infarct region, but not in the brain parenchyma or the remote cortex. Although photothrombotic brain damage is accompanied by a profound leakage of the blood—brain barrier (Dietrich et al, 1987b; Kleinschnitz et al, 2003), SPIO particles apparently did not passively diffuse into the brain parenchyma. The absence of passive perivascular and parenchymal iron accumulation in ischemic brain lesions is consistent with our previous study employing SPIO particles as macrophage marker (Kleinschnitz et al, 2003). When applied at the acute stage of PT (this study), systemically administered SPIO particles became locally caught intravasally during ongoing thrombosis of cortical vessels and, thereby, can serve as a MR marker for vessel occlusion.

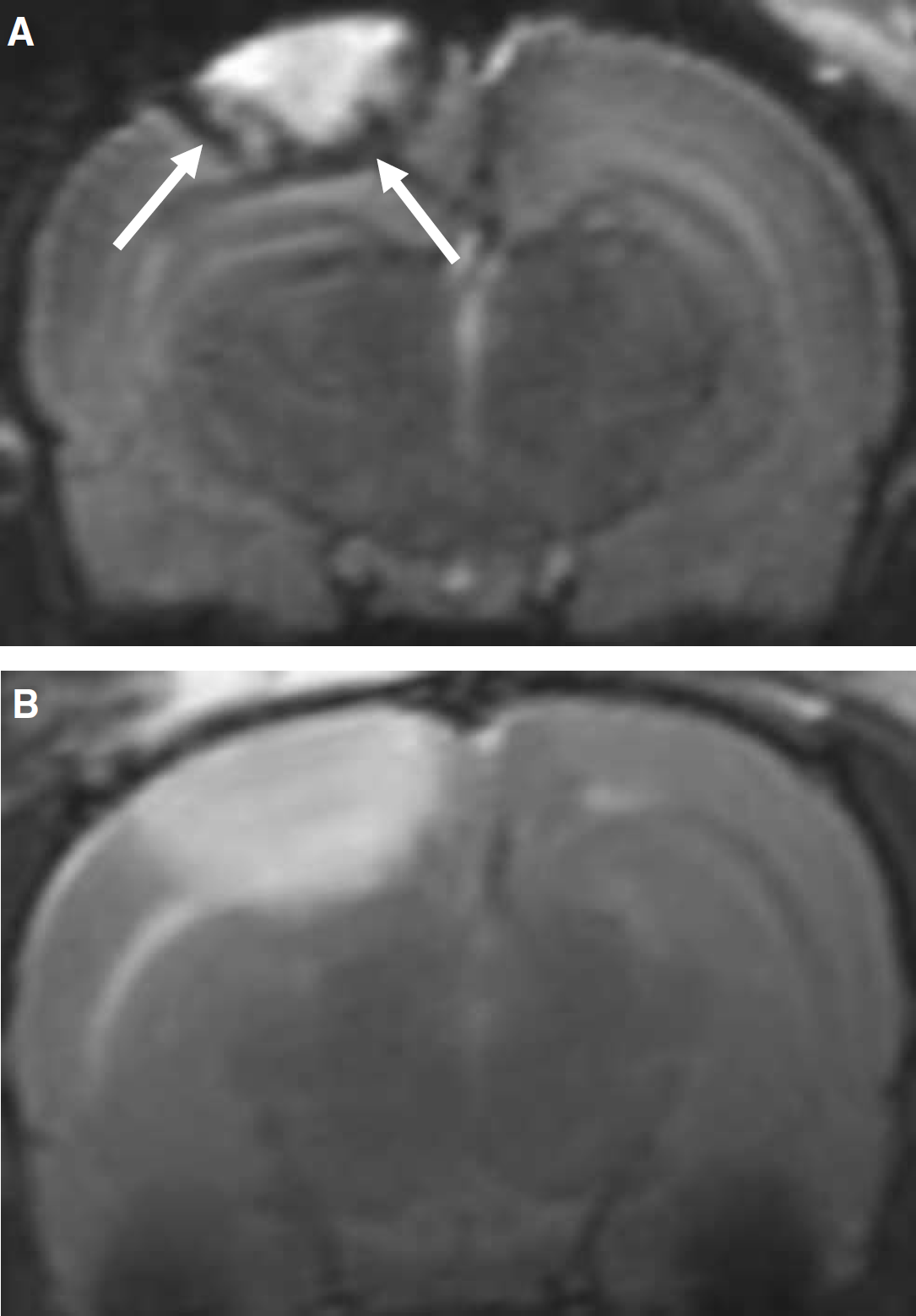

Figure 4

T2-weighted MRI after delayed SPIO particle application. When SPIO are injected 2 h after PT (A), a hyperintense infarct core is present which is surrounded by a small hypointense rim (white arrows), consistent with iron deposition at the periphery of the infarct. Superparamagnetic iron oxide particle injection with a delay of 24 h after PT (B) reveals a merely hyperintense lesion, indicating that thrombus formation had ceased at that time.

Figure 5

Histological analysis of the photothrombotic infarcts after SPIO particle application. Localization of SPIO particles by Perl's stain in focal cerebral infarcts injected during illumination (A), and with a delay of 2 (B) or 24 h (C) after PT, respectively. Paraffin sections were counterstained with HE for histological details, SPIO particles by Perl's stain appear blue. Note the intravascular iron accumulation throughout the core of the infarct (A; arrows denote examples). (B) shows the outer border of the photothrombotic infarct on the left and the core region on the right. Note that blue iron deposits are now restricted to vessels in the left border zone (white arrows), while the centre is spared (black arrows). When SPIO particles are injected at 24 h after PT, there is no more iron accumulation within the infarcts (C, black arrows), indicating that active thrombosis has ceased. (D, E) show later stages of infarct organization at day 14 after infarction of animals that have received SPIO particles early during illumination. Note that the iron-laden vessel (V) is partly recanalized (D), and iron is now mainly associated with phagocytes (white arrows in D, E) clearing debris during tissue reorganization.

By comparing infarct areas showing hyperintensities (structural damage) and hypointensities (iron accumulation) on T2-w images, we could further show that in PT vessel occlusion is still ongoing despite cessation of illumination, and spreads from the core of the lesion to the ‘penumbra’. Thus, ongoing thrombosis as shown here provides a partial explanation and possible mechanism for secondary infarct growth in the PT model documented by several groups (Grome et al, 1988; Verlooy et al, 1993; Lee et al, 1996; this study). The concept of an early thrombotic lesion core surrounded by a zone of ongoing vessel thrombosis in the periphery as revealed by iron-enhanced MRI in the present study further substantiates previous findings on the temporal profile of hemodynamic alterations after PT. Dietrich et al (1986) described a severely hypoperfused area 30 mins after cortical irradiation, which further enlarged after 4 h, indicating dynamic secondary infarct growth via expanding cerebral hypoperfusion.

Paramagnetic iron oxide particles have recently been introduced as a new class of cell-specific MRI contrast agent. They are taken up by circulating macrophages when applied directly to the circulation (Kleinschnitz et al, 2003). Moreover, T cells (Arbab et al, 2003) and stem cells (Hoehn et al, 2002) can be loaded in vitro by iron particles, and thereby followed in vivo after intravenous or intracerebral transfer of pre-labelled cells into recipient animals. After systemic application, accumulation of SPIO has been visualized by MRI in various pathologies of the CNS and PNS, including nerve injury (Bendszus and Stoll, 2003), experimental allergic neuritis (Stoll et al, 2004) and cerebral ischemia (Kleinschnitz et al, 2003). Accumulation of these iron particles indicated the acute migration of macrophages from the circulation into diseased nervous tissue. We now report on an additional application of SPIO particles as a MR contrast agent during the acute phase of cerebral ischemia, in which macrophages are not yet involved (Schroeter et al, 1997; Kleinschnitz et al, 2003). In contrast to later stages of infarct development where infiltrating SPIO-laden macrophages account for signal loss on MRI, SPIO particles are trapped in developing thrombi at the acute phase.

Ischemic stroke is caused by the cessation of cerebral blood flow. Brain regions which hemodynamically depend on the occluded vessels are irreversibly damaged within a few minutes. The surrounding peripheral tissue, where blood flow is reduced but reaches a certain threshold to maintain structural integrity (‘penumbra’), is at high risk to be lost by secondary infarct growth (Dirnagl et al, 1999; Garcia et al, 1993; Furlan et al, 1996; Marchal et al, 1996). Today, DW-MRI is the gold standard for the diagnosis of acute brain ischemia (Warach et al, 1995). Within minutes after the onset of experimental ischemia restricted diffusion can be shown (Moseley et al, 1990). Diffusion-weighted magnetic-resonance imaging only provides information regarding cytotoxic brain edema, but not regarding the extent of the underlying intravascular thrombus formation (Warach et al, 1995). Recently, a fibrinbinding gadolinium-labeled peptide was used as MR-contrast agent to visualize intravascular thrombus formation in vivo (Botnar et al, 2004). Intravasal thrombosis was shown with a high specificity, but enhancement did not allow differentiation between acute and subacute thrombus formation. In a different approach, we used iron particles with a short plasma elimination half-life of 30 mins (information provided by Schering GmbH, Germany). These particles were trapped within the intravascular thrombus and vizualized by MRI. Thereby, assessment of occlusive thrombus formation in a narrow time frame was feasible.

In the PT model, vessel occlusion and ischemic brain injury occur acutely in a highly synchronized and reproducible fashion. Further studies are required to clarify whether our novel technique can also be applied to other stroke models with different lesion dynamics, such as mechanical middle cerebral occlusion or the complex pathophysiology of thrombosis or fibrinolysis in humans.

As another important issue, cerebral ischemia might be complicated by intracerebral hemorrhage, resulting in a similar signal hypointensity on MRI as local trapping of iron particles. This was no confounding factor in our present study, since we found no bleedings on our thorough histological examination. Moreover, at this early stage hemorrhage does not appear hypointense on all MR sequences (Gustafsson et al, 1999) and thus cannot account for the observed signal changes in our study. In future studies employing our technique, hemorrhage probably can also be distinguished from iron-particle-induced signal loss by combined analysis of different MR sequences.

Photothrombotic brain injury is accompanied by strong parenchymal edema (Dietrich et al, 1987a). Therefore, intravascular accumulation of iron particles may not exclusively be caused by thrombosis but vascular compression as well. Although vasogenic edema develops within minutes after PT, maximum water content is reached with a delay of 24 h (Dietrich et al, 1987a; Pratt et al, 1998). At this time, however, intravascular iron trapping was absent in our study. This argues against a substantial contribution of transmural vascular compression.

Taken together, we have shown that SPIO-enhanced MRI is a valid in vivo technique to detect developing thrombotic vessel occlusion in cerebral ischemia. This method may thus serve as a tool to evaluate the therapeutic potency of new antithrombotic drugs in experimental stroke trials.
