Abstract

In the previous studies, admittance control and impedance control for a finger-arm robot using the manipulability of the finger were studied and methods of realizing the controls have been proposed. In this study, two 3-DOF fingers are attached to the end-effector of a 6-DOF arm to configure a multi-finger arm robot. Based on the previous methods, the authors have proposed an admittance control for a multi-finger arm robot using the manipulability of the fingers in this study. Algorithms of the averaging method and the mini-max method were introduced to establish a manipulability criterion of the two fingers in order to generate a cooperative movement of the arm. Comparison of the admittance controls combined with the top search method and local optimization method for the multi-finger arm robot was made and features of the control methods were also discussed. The stiffness control and damping control were experimentally evaluated to demonstrate the effectiveness of the proposed methods.

Keywords

Motion Control Redundancy Finger robot Manipulability Admittance Control

1. Introduction

Humanoid robots with two upper limbs have been extensively studied in recent years. The upper limb of such robots is generally composed of a multi-finger-arm having a complex mechanical structure. Such a structure possesses a high degree of freedom (DOF) that permits considerable flexibility for the humanoid robot to perform various dexterous manipulations in a manner similar to the human upper limb. However, the movement of a multi-finger arm with such high redundancies creates the problem of how to determine the numerous joints.

Controlling a robot that has a high degree of redundancy is a fundamental problem in the field of robotics. A considerable number of studies have reported on methodology for determining the redundant degree of freedoms of a multi-joint manipulator. The issues that have been studied thus far include the avoidance control of a kinematics singularity [1],[2] and obstacle collisions avoidance [3]–[5] by using the redundant degree of freedoms of the manipulator.

To realize the dexterous manipulation comparable to that of the human hand-arm, a lightweight finger was attached at the end of a serial-linkage manipulator so as to greatly improve the performance of a robot [6]–[12]. It is well known that manipulability have been widely used in robotics to evaluate mobility of a manipulator. Kinematic manipulability ellipsoid problem to general cooperating arms has been reported [13]–[15]. Force manipulability for multiple-arms [16]–[19], kinematic manipulability of closed chains [18],[20],[21] have also been addressed.

Actually, when performing delicate tasks, humans usually adopt a motion policy of keeping their upper limb in a formation which enables them to easily move their hand. To generate an efficient motion for a finger-arm robot that emulates the movement of the human hand-arm in an unconstrained space, the authors proposed a heuristic method [22][23] and a steepest ascent method [24][25] that make use of the manipulability of the finger. Integration of the impedance control and manipulability regulation of the finger was also attempted for a finger-arm robot to complete a contact task [26] [27].

Based on the previous concept of using finger's manipulability as a criterion, in this study, we have proposed a method of applying the admittance control to a multi-finger arm robot for completing a constrained task. However, unlike the case of using one finger, two fingers are used in this study and algorithms that can manipulate a multi-fingered arm are required. In this study, we first introduced a mini-max method and the averaging method for two fingers to establish a manipulability criterion for cooperatively moving the arm. Then, algorithms of admittance control combined with the top search method (TSM) and the local optimization method (TOM) are configured to regulate the manipulability of the fingers. Experiments of the stiffness control and damping control were completed to demonstrate the effectiveness of the proposed algorithms.

2. Overview of a Multi-Finger Arm Robot

2.1 Configuration of the Multi-finger Arm Robot

A 7-DOF manipulator (PA-10, Mitsubishi Heavy Industry Co.) was used in this study. Since the S3 axis of PA-10 was not used, the manipulator had 6 DOFs. The sevodriver of PA-10 was connected to a personal computer by arc network. Two 3-DOF finger robots (Yasukawa Co.) were attached to the end-effector of the arm to obtain a multi-finger arm robot with 12 DOFs. As shown in Fig. 1, two fingers were placed in parallel to emulate the forefinger and middle finger of a human being. To detect the contact force in a constrained task, two 3-axes F/T sensors (BL AutoTech Co.) were fixed at each fingertip, respectively. Data of the F/T sensors is input through an A/D board (AD12-64(PCI), Contec Co.) inserted in the computer. The control sampling time interval denoted as T(=5ms) was determined from an interrupt signal generated by an external timer on the A/D board.

Figure 1.

Schematic diagram of the multi-finger arm robot

As shown in Fig. 1, the base coordinate of the arm and the end-effector coordinate of the arm are denoted by ∑_b and ∑_t, respectively. In this study, a contact task using the multi-finger arm is assumed. It is known that the fingers easily drop to their singularities during movement in a large space because of their small link sizes. Therefore, to avoid the singularity of the fingers, a cooperative movement of the arm is required to augment the working space of the fingers so as to simultaneously regulate the manipulability of the two fingers.

2.2 Manipulability of the Finger

The position in Σ_b and ∑_t of the i_th fingertip is p _i ∊ R^3×1 and ^t p _i ∊ R^3×1, respectively, and the joint angle θ_i ∊ R^3×1 of the i_th finger is θ_i=[θ_i1, θ_i2, θ_i3]^T. Thus, we have

{}^{t}{\dot{p}}_{i} = J_{i}^{} \cdot {\dot{θ}}_{i}

(1)

where J _i ∊ R^3×3 is the Jacobian matrix of the i_th finger. The manipulability w_i of the finger is as given in [28]:

\begin{array}{l} w_{i} = \sqrt{\det (J_{i}^{} \cdot J_{i}^{T})} \\ = | ℓ_{2} ℓ_{3} \sin θ_{i 3} (ℓ_{1} + ℓ_{2} \cos θ_{i 2} + ℓ_{3} \cos (θ_{i 2} + θ_{i 3})) | \end{array}

(2)

where θ_i1, θ_i2 and θ_i3 are the joint angles of the i_th finger and l₁, l₂ and l₃ the link sizes of the fingers. The relation between the w_i and the joint angles θ_i is graphically shown in Fig. 2.

Figure 2.

A 3D graph of the manipulability of the finger

3. Review of the Previous Works

Before introducing the proposed control method in this study, we briefly describe the algorithms proposed in the previous studies.

3.1 Top Search Method (TSM)

To prevent the manipulability of the finger from continuously decreasing, a cooperative movement of the arm was generated by the top search method (TSM) [22] [23]. When the finger manipulability w is smaller than a given threshold w_th, the quantity of the expected movement of the arm end-effector Δ p _td(k) ∊ R^3×1 in ∑_b at time t=kT is computed by

Δ p_{t d} (k) = A (w) n (k)

(3)

The scalar quantity A(w) in (3) is determined as

A (w) = {\begin{matrix} 0 \\ K_{a} (w_{t h} - w (k)) \end{matrix} \begin{matrix}  \end{matrix} \begin{matrix} w (k) \geq w_{t h} \\ w (k) < w_{t h} \end{matrix}

(4)

where K_a is an heuristically determined coefficient. n(k) ∊ R^3×1 is a unit direction vector of the desired trajectory and it was given by

n (k) = (p (k) - p_{\max}^{} (k)) / | p (k) - p_{\max}^{} (k) |

(5)

where p (k) and p _max(k) are the current fingertip position in ∑_b and the finger position in ∑_b with the maximum manipulability, respectively.

3.2 Local Optimization Method (LOM)

The disadvantage of the TSM is that it cannot directly increase manipulability w of the finger. Therefore, to effectively regulate w, the local optimization method (TOM) was proposed [24][25]. The most important feature of the TOM is that manipulability w can be increased rapidly once it is smaller than a given reference w_th. In the previous study, whenever w decreases to a value below w_th, LOM is applied. The desired joint angle θ_d is immediately increased by

θ_{d}^{} (k) = θ (k - 1) + λ \frac{\partial w}{\partial θ}

(6)

where Λ is a predetermined gain coefficient and θ_d the desired joint angle. According to (2), we have For cooperatively moving the arm, the desired position p _td(k) of the arm end-effector in ∑_b is given by

{\begin{cases} \frac{\partial w}{\partial θ_{1}} = 0 \\ \frac{\partial w}{\partial θ_{2}} = l {}_{2}l_{3} \sin θ_{3} (l_{2} \sin θ_{2} + l_{3} \sin (θ_{2} + θ_{3})) \\ \frac{\partial w}{\partial θ_{3}} = l {}_{2}l_{3} (l_{1} \cos θ_{3} + l_{2} \cos θ_{3} \cos θ_{2} + l_{3} \cos (θ_{2} + 2 θ_{3})) \end{cases}

(7)

p_{t d}^{} (k) = p_{d}^{} (k) - R_{t}^{} \cdot {}^{t}p (k)

(8)

where p _d(k) ∑ R^3×1 is the desired position of fingertip in ∑_b, R_t ∊ R^3×3, the rotation matrix of the arm end-effector in ∑_b and ^t p (k) ∊ R^3×1, the fingertip position in ∑_t obtained from

{}^{t}p (k) = Λ_{f} (θ_{d})

(9)

where Λ_f represents the kinematics of the finger.

4. Admittance Control Algorithm

The impedance to be achieved at the fingertip in ∑_b can be expressed as

M Δ {\ddot{p}}_{i} + D Δ {\dot{p}}_{i} + K Δ p_{i} = Δ F_{i}

(10)

where Δ p _i(k) ∊ R^3×1 is the position difference in ∑_b of the i_th fingertip position; Δ F _i ∊ R^3×1, the force error in ∑_b between the desired force and the force detected by the F/T sensor of the i_th finger; and M, D and K, the virtual mass, virtual damping and virtual stiffness, respectively. If the impedance performance given by (10) is configured using position-servo for the robot, it is can be called admittance control [29].

4.1 Mini-Max Method

Unlike the case of previous studies, two fingers are used in this study. The arrangement of the two fingers to emulate the forefinger and the middle finger of a human being allows a nearly simultaneous increase or decrease in the manipulability of the two fingers. Therefore, we consider the lesser manipulability among the two as the criterion for generating a cooperative movement of the arm. The mini-max method is introduced to select the smaller manipulability from the two w_i(i=1, 2); it can be expressed by

w_{l} = \min {w_{i}}, i = 1, 2

(11)

In this study, w_l is used as the criterion to determine the movement of the arm.

4.1.1 For the TSM

In a manner similar to the description in section 3.1, when the manipulability w_l is smaller than the given threshold w_th, the desired position of the arm end-effector p _td(k) ∊ R^3×1 in ∑_b is computed as

p_{t d} (k) = p_{t} (k - 1) + A (w_{l}) n (k)

(12)

A(w) in (12) is determined as

A (w_{l}) = {\begin{matrix} 0 \\ K_{a} (w_{t h} - w_{l}) \end{matrix} \begin{matrix}  \end{matrix} \begin{matrix} w_{l} \geq w_{t h} \\ w_{l} < w_{t h} \end{matrix}

(13)

where K_a is an heuristically determined coefficient. n(k) ∊ R^3×1 in (12) is a unit direction vector of the desired trajectory and it is computed by

n (k) = (p^{l} (k) - p_{\max}^{l} (k)) / | p^{l} (k) - p_{\max}^{l} (k) |

(14)

where l is the number of fingers having lesser manipulability; p _l(k), the fingertip position in ∑_b; and p ^l_max(k), the fingertip position with the maximum manipulability, respectively.

A combination of admittance control with the TSM is proposed and the control block diagram is shown in Fig. 3(a), where the Λ_f and Λ_a are kinematics of the finger and the arm, respectively, ^t F _i(k), the data in ∑_t obtained from the F/T sensor of the i_th finger, and G _f, G _a the PID controllers of the finger and arm, respectively. This integration algorithm should enable impedance dynamics and manipulability modulation of the finger to be achieved simultaneously.

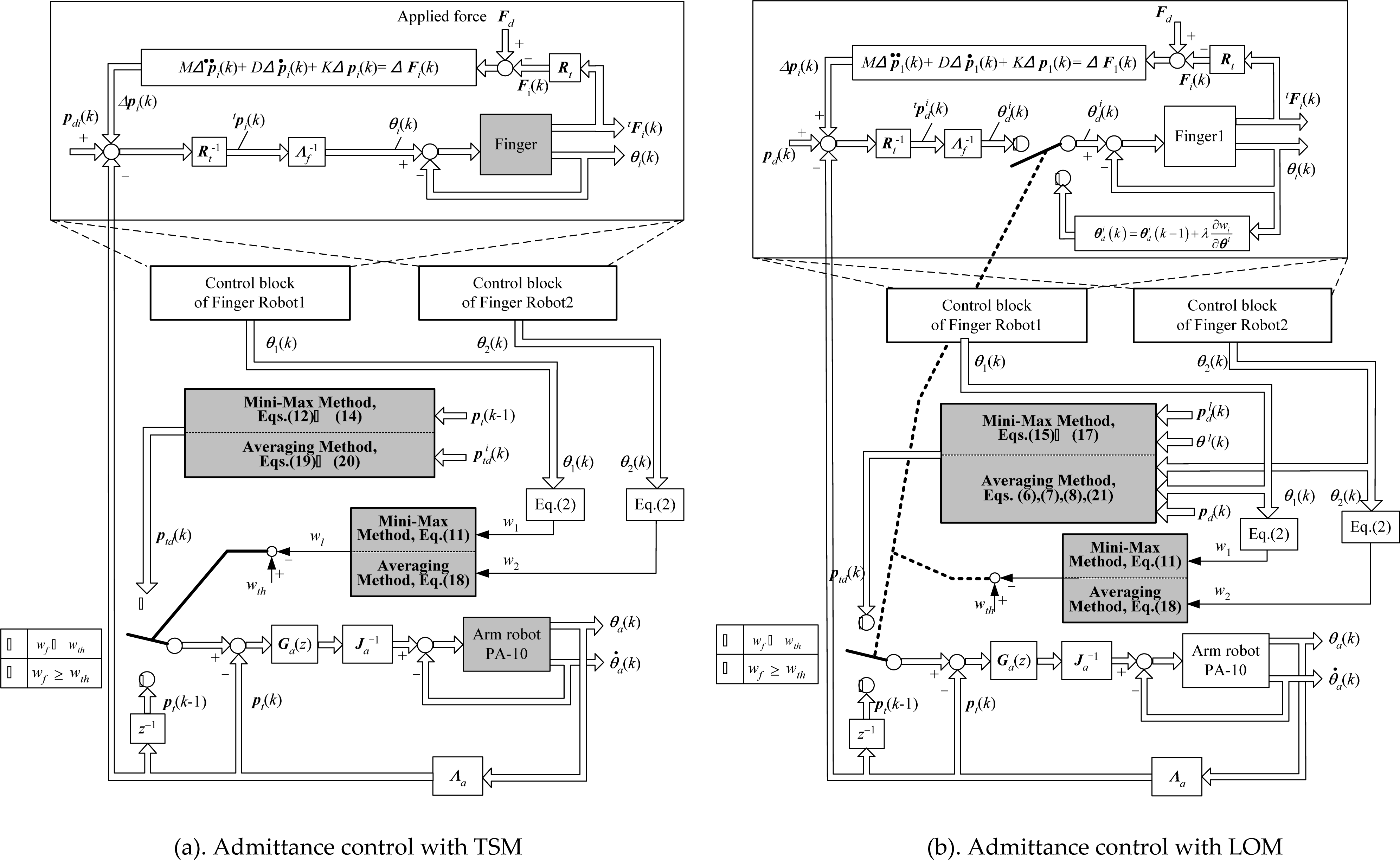

Figure 3.

Schematic diagram of the multi-finger arm robot

4.1.2 For the LOM

When the manipulability w_l is lesser than a given threshold w_th, the desired joint angle θ^l_d(k) of the finger with lesser manipulability is given by

θ_{d}^{l} (k) = θ^{l} (k - 1) + λ \frac{\partial w_{l}}{\partial θ^{l}}

(15)

Equation (7) is then applied to (15) to obtain θ^l_d(k). For cooperatively moving the arm, the desired position p _td(k) of the arm end-effector in ∑_b is given by

p_{t d}^{} (k) = p_{d}^{l} (k) - R_{t}^{} \cdot {}^{t}p_{_{l}} (k)

(16)

where $p_{d}^{l} (k) ∊ R^{3 \times 1}$ the desired position of the fingertip with lesser manipulability in ∑_b; ^t p _l(k) ∊ R^3×1, the fingertip position of the finger in ∑_t with lesser manipulability and it is given by

{}^{t}p_{_{l}} (k) = Λ_{f} (θ_{d}^{l} (k))

(17)

The proposed admittance control combined with the TOM is shown in Fig. 3(b).

4.2 Averaging Method

As described above, the mini-max method determines the finger having the lesser manipulability. However, switching control between the two fingers lead to an unexpected, rapid change in velocity of the arm. To avoid this problem, an averaging method is also introduced in this study; this method obtains the average of the manipulability of the two fingers. The averaged manipulability wave is given by

w_{a v e} = \frac{1}{n} \sum_{i = 1}^{n} w_{i} (n = 2)

(18)

4.2.1 For the TSM

When the manipulability is lesser than a given threshold w_th, the quantity of the expected movement of the arm end-effector Δ p _td(k) is given by

Δ p_{t d}^{} (k) = \frac{1}{n} \sum_{i = 1}^{n} Δ p_{t d}^{i} (k), (n = 2)

(19)

where $Δ p_{t d}^{i} (k)$ is movement of the arm computed using (3) and (4) for each finger. The moving direction n (k) ∊ R^3×1 of the arm is given by

n (k) = \frac{1}{n} \sum_{i = 1}^{n} n_{i} (k), (n = 2)

(20)

where n _i(k) is computed using (5) for each finger. The proposed admittance control combined with the LOM is shown in Fig. 3(a).

4.2.2 For the LOM

When the manipulability is lesser than a given threshold w_th, (6), (7), and (8) are applied to each finger. The desired position p _td(k) of the arm end-effector in ∑_b is given by

p_{t d}^{} (k) = p_{d}^{} (k) - R_{t}^{} \cdot \frac{1}{n} \sum_{i = 1}^{n} {}^{t}p_{i} (k), (n = 2)

(21)

where the fingertip position ^t p _i(k) ∊ R^3×1 (i=1,2) is given by

{}^{t}p_{i} (k) = Λ_{f} (θ_{d}^{i} (k))

(22)

The proposed admittance control combined with the LOM is shown in Fig. 3(b).

5. Experiments Using the Mini-max Method

Experiments were conducted to evaluate the stiffness control and damping control using the proposed control diagram shown in Fig. 3. In these experiments, the operator pushed and pulled the fingertips to apply an external force along the y axis of ∑_b at the fingers, as shown in Fig. 4.

Figure 4.

Experiment using the multi-finger arm

5.1 Stiffness Control

The impedance parameters in (10) were empirically determined:

M = 1.0 kg, D = 30.0 Ns/m, K = 150.0 N/m.

Threshold manipulability w_th = 2.0 × 10⁻⁴.

The stiffness results obtained using TSM and LOM are shown in Fig. 5; the position results of the arm end-effector using TSM and LOM are shown in Fig. 6;

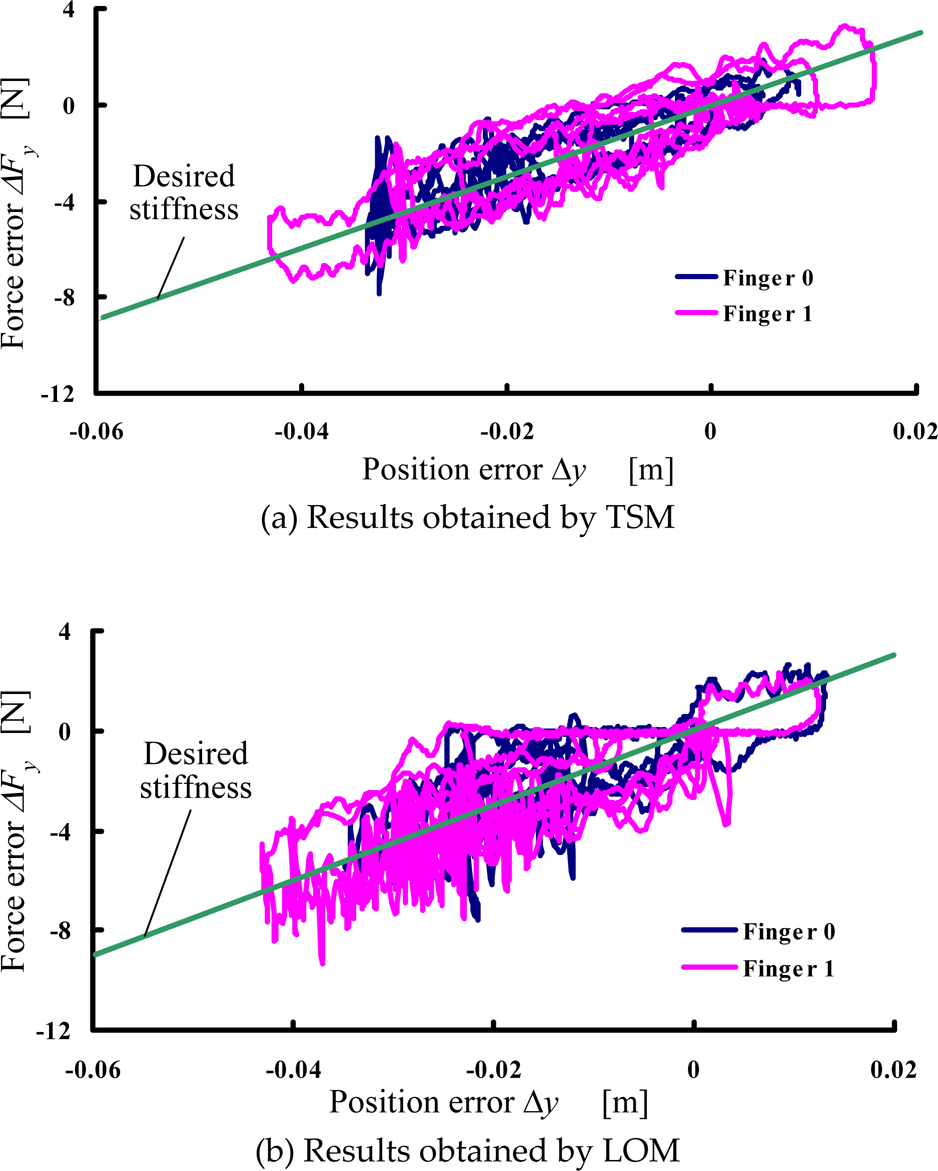

Figure 5.

Stiffness results using the min-max method

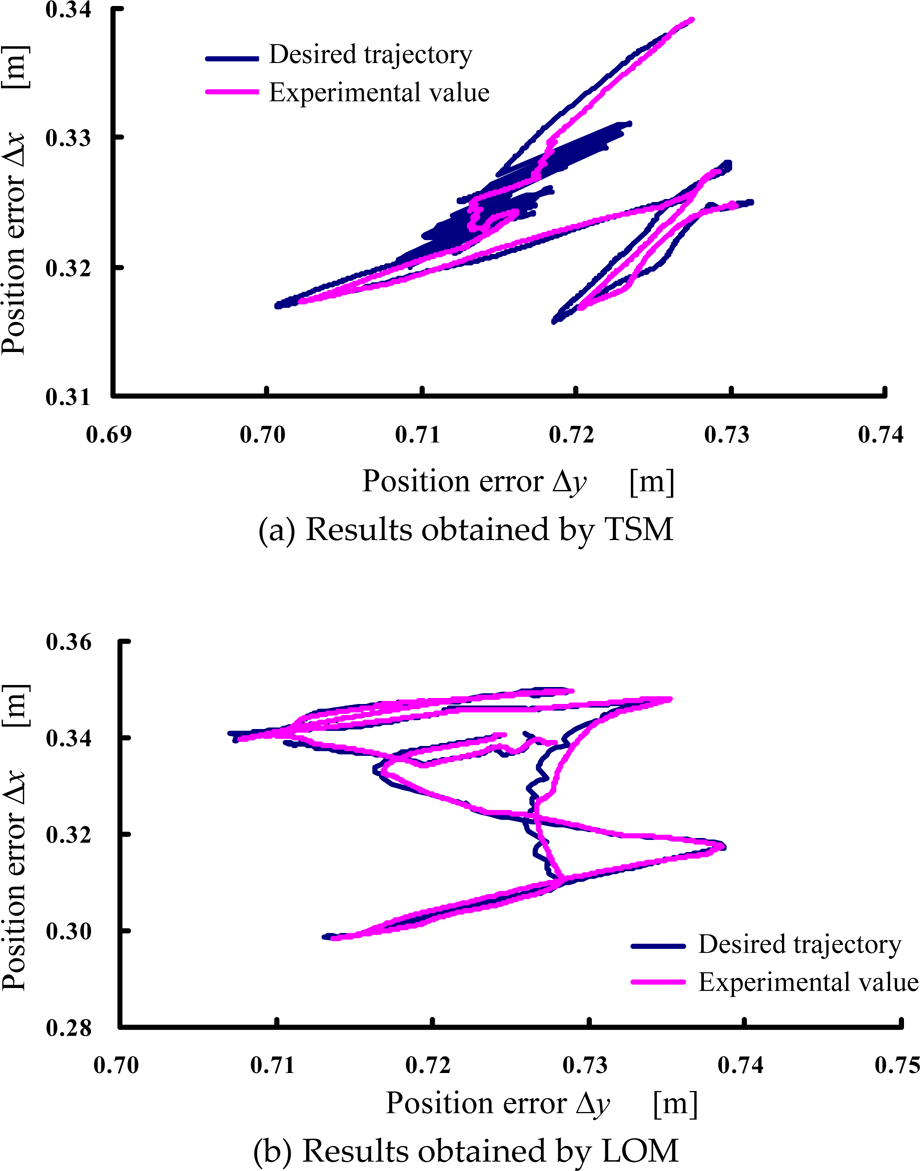

Figure 6.

Position of the arm's end-effector using the min-max method in stiffness control

The stiffness effects using both the TSM and LOM are modestly completed as shown in Fig. 5; therefore, the effectiveness of the mini-max method is confirmed. However, small tracking errors are detected in the position results of the arm end-effector, as shown in Fig. 6. This is attributed to the rapid change in velocity of the arm movement that is induced by the control of the arm being switched between the two fingers by the mini-max method.

The manipulability results using TSM and LOM are shown in Fig. 7. Although the results indicate that the LOM provided better stiffness control than the TSM, the manipulability results of the two fingers were effectively modulated around the w_th by both the TSM and the LOM. However, unlike the case of using one finger in the previous studies [24][25], w of two fingers using LOM cannot be completely regulated above w_th.

Figure 7.

Manipulability results using the min-max method

5.2 Damping Control

The impedance parameters in (10) were empirically determined:

M = 1.0 kg, D = 100.0 Ns/m, K = 0.0 N/m.

Threshold manipulability w_th = 2.0 × 10⁻⁴,

Damping control using the TSM and LOM was evaluated experimentally and the results are shown in Fig. 8. The results indicated that the TSM provides better damping than the LOM. This phenomenon was not observed in the previous study in which only one finger was used. The influence of switching control between the two fingers in the mini-max method can be considered to be the main reason for the same.

Figure 8.

Damping results using the min-max method

Moreover, when the TSM was applied, the arm cooperatively moved along the direction in which the finger had maximum manipulability according to (12)∼(14). However, when the LOM was used based on (15)∼(17), the finger moved primarily to increase its manipulability and the arm moved for the remained distance from the desired position. This fact suggests that the arm moves more roughly when using the LOM than when using the TSM.

6. Experiments Using Averaging Method

Experiments were also conducted to evaluate the stiffness control and damping control using the averaging method shown in Fig. 3. Same as the experiments using the mini-max method, the operator also pushed and pulled the fingertips to apply an external force along the y axis of ∑_b at the fingers in these experiments. However, experiments using LOM were not completed because one of the two fingers demonstrated an unstable performance, which is discussed in next section.

6.1 Stiffness Control Using TSM

The impedance parameters in (10) were determined:

M = 1.0 kg, D = 30.0 Ns/m, K = 150.0 N/m.

Threshold manipulability w_th = 2.0 × 10⁻⁴.

The stiffness results and position results of the arm are shown in Figs. 9(a) and 9(b) respectively. As compared to the results obtained by the mini-max method, shown in Fig. 5, the stiffness results obtained by the averaging method are more accurately completed. This is because the cooperative movement of the arm using the averaging method is always determined by the average manipulability of the two fingers instead of switching control between the two fingers, as in the case of the mini-max method. Therefore, the averaging method provides stable movement for a multi-finger arm.

Figure 9.

Experimental results (averaging method)

The manipulability results are shown in Fig. 10. As compared to the results shown in Fig. 7, it was found that manipulability occasionally decreased considerably. This fact indicates that it is difficult to simultaneously regulate the manipulability around the given threshold for the two fingers using the averaging method.

Figure 10.

Manipulability for stiffness control (the averaging method)

6.2 Damping Control Using TSM

The impedance parameters in (10) were given:

M = 1.0 kg, D = 100.0 Ns/m, K = 0.0 N/m.

Threshold manipulability w_th = 2.0 × 10⁻⁴,

The damping results are shown in Fig. 11. As compared to the results obtained by the mini-max method shown in Fig. 8, the damping effect is only completed for one of the two fingers using the averaging method, as shown in Fig. 11(a). From the manipulability results obtained by the averaging method, as shown in Fig. 11(b), the manipulability of one finger is modulated around the w_th whereas that of the other finger decreases considerably. This is because in the mini-max method, the minimum manipulability is used as a criterion to generate a cooperative movement of the arm, whereas in the averaging method, the average manipulability of the two fingers is computed to generate a movement for the arm.

Figure 11.

Results in damping control (w_th= 2.0 × 10⁻⁴) (averaging method)

To improve the performance of admittance control, we increased the threshold w_th (=2.2×10⁻⁴) and reevaluated the damping control. The results are shown in Fig. 12(a). As compared to the results shown in Fig. 11, the damping effect is found to be remarkably improved. The regulation of the manipulability is also improved, as shown in Fig. 12(b). Increasing the threshold manipulability resulted in an active movement of the arm, and thus, the finger with lesser manipulability can be easily included.

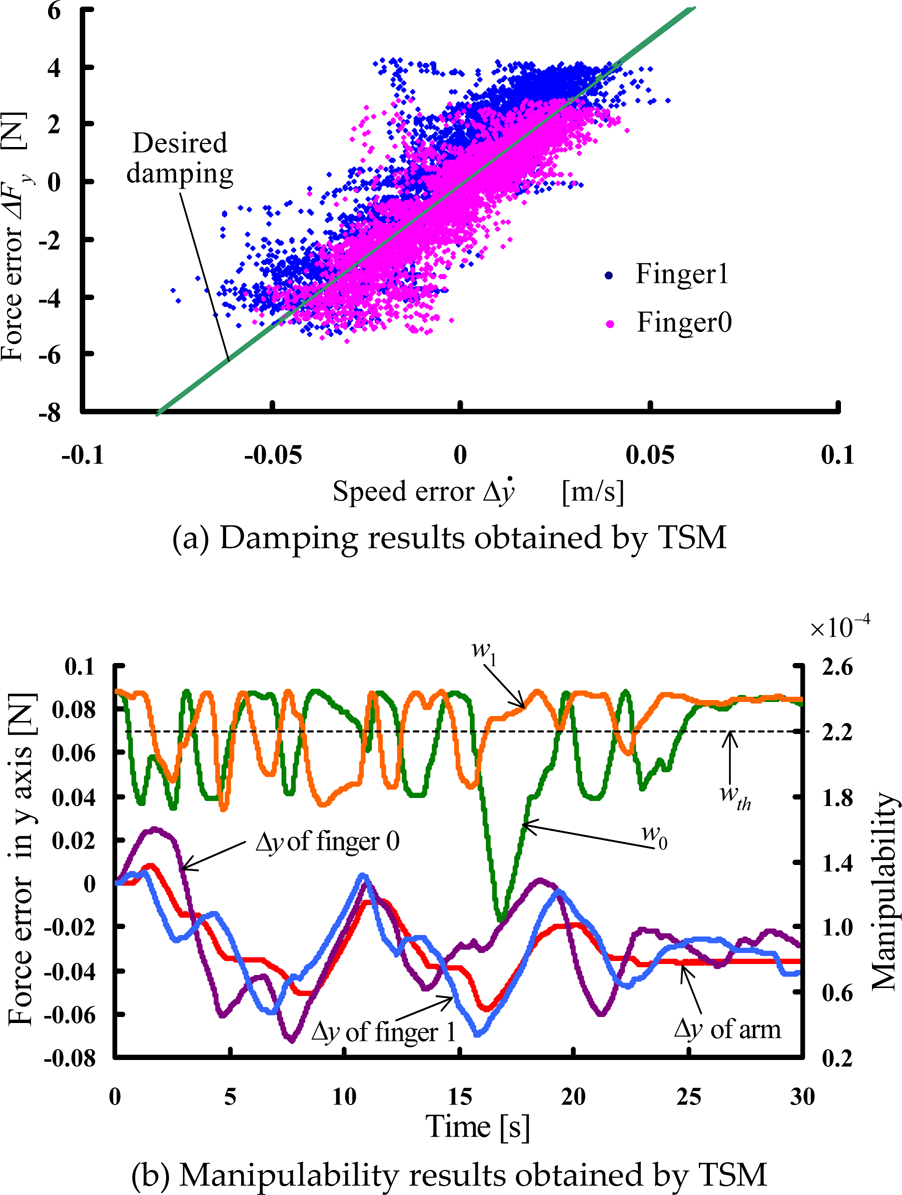

Figure 12.

Results for damping control (w_th = 2.2 × 10⁻⁴) (averaging method)

7. Discussion

The obtained experimental results indicate that for a multi-finger arm robot, the proposed admittance control with TSM exhibits a better admittance effect than that using the admittance control with LOM.

To deal with the problem of how to generate a cooperative motion for a multi-finger arm, the mini-max method and the averaging method were proposed in this study. The mini-max method considers the finger with lesser manipulability as a reference to generate a cooperative movement of the arm. This lead to the switching of control between the two fingers, and this in turn resulted in a rapid change in velocity of the arm. In contrast to the mini-max method, the averaging method considers the average manipulability of the two fingers as a reference to cooperatively move the arm. Therefore, the motion of the arm is completed smoothly, whereas the manipulability of the two fingers cannot be simultaneously regulated above the threshold manipulability. For this reason, the manipulability of one finger possibly decreased a lot in the experiments using LOM with the averaging method. As a result, the finger with lesser manipulability easily dropped in a state around its singularity, which leads an unstable performance and the experiments could not be completed.

8. Conclusion

In this study, admittance control combined with the TSM and the LOM have been proposed for a multi-finger arm robot. The mini-max method and the averaging method were introduced to deal with the manipulability of two fingers. The features of the proposed control algorithms have been investigated by experimentally evaluating the stiffness control and the damping control. The impedance experimental results demonstrate the effectiveness of the proposed methods. The results also indicate that when the averaging method combined with the TSM was applied, the arm moved smoothly and the admittance effect could be greatly improved by selecting a suitable threshold manipulability.

Footnotes

9.

This work was supported by the Japan Society for the Promotion of Science, Grant-in-Aid for Scientific Research (C) (No. 21500208).

References

Nakamura

and Hanafusa

, “Inverse kinematics solutions with singularity robustness for robot manipulator control”, Trans. ASME, J. Dyn. Syst., Meas. & Control, Vol.108, No.4, pp.163–171, 1986.

Furusho

and Usui

, “A control method for manipulator with redundant”, Trans. JSME (C), Vol.55, No.514, 1989, pp.1391–1398.

Khatib

, “Real-time obstacle avoidance for manipulators and mobile robots”, Int. J. of Robotics Research, Vol.5, No.1, pp.90–98, 1986.

Maciejewski

A. A.

and Klein

C. A.

, “Obstacle avoidance for kinematically redundant manipulators in dynamically varying environments”, Int. J. of Robotics Research, Vol.4, No.3, pp.109–117, 1985.

Loeff

L. A.

and Soni

A. H.

, “An algorithm for computer guidance of a manipulator in between obstacles”, Trans. ASME, J. of Eng. for Industry, Vol.97, No.3, pp.836–842, 1975.

Khatib

, “Inertial Properties in Robotic Manipulation: An Object- Level Framework,” Int. J. of Robotics Research, Vol.14, No.1, pp.19–36, 1995.

Melchiorri

and Salisbury

, “Exploiting the Redundancy of A Handarm Robotic System”, MIT A.I. Memo, No.1261, 1990.

Nagai

and Yoshikawa

, “Grasping and Manipulation by Robotic Arm/Multifingered-Hand Mechanisms”, J. RSJ, Vol.13 No.7, pp.994–1005, 1995.

Yoshikawa

Hosoda

and Doi

, “Quasi-Static Trajectory Tracking Control of Flexible Manipulator by Macro-Micro Manipulator System”, J. of RSJ, Vol.11, No.1, pp.140–147, 1993.

10.

Wimboeck

Ott

Ch.

, and Hirzinger

, “Impedance Behaviors for Two-handed Manipulation: Design and Experiments”, Proc. 2007 IEEE Int. Conf. on Robotics and Automation, pp.4182–4189, 2007.

11.

Kawase

Ishikawa

Sawada

Takata

, “Cooperative Compliant Motion Control of Wrist and Arm,” J. RSJ, Vol.9 No.4, pp.401–408, 1991.

12.

Bicchi

, “On the closure properties of robotic grasping”, International Journal of Robotics Research, vol. 14, no. 4, pp. 319–334, 1995.

13.

Bicchi

Melchiorri

, and Balluchi

“On the Mobility and Manipulability of General Multiple Limb Robots”, IEEE Trans. On Robotics and Automation, Vol. 11, No. 2, pp. 215–228, 1995.

14.

Chiacchio

Chiaverini

Sciavicco

Siciliano

, “Global Task Space Manipulability Ellipsoids for Multiple-Arm Systems”, IEEE Trans. on Robotics and Automation, Vol. 7, No. 5, pp. 678–685, Oct. 1991.

15.

Lee

, “Dual Redundant Arm Configuration Optimization with Task-Oriented Dual Arm Manipulability”, IEEE Trans. on Robotics and Automation, Vol. 5, No. 1, pp. 78–97, 1989.

16.

Bicchi

Prattichizzo

and Melchiorri

“Force and Dynamic Manipulability for Cooperating Robot Systems,” in Proc. Int. Symp. Robotic Systems, IROS'97, pp. 1479–1484, 1997.

17.

Melchiorri

, “MultipleWhole-Limb Manipulation: an Analysis in the Force Domain”, Int. J. on Robotics and Autonomous Systems, vol. 20, No. 1, pp. 15–38, 1997.

18.

Park

F. C.

and Kim

J. W.

, “Kinematic manipulability of closed chains,” in Recent Advances in Kinematics

Robot

Lenarcic

and Parenti–Castelli

Eds., Luwer Academic Publishers, Dordrecth 1996.

19.

Wen

J. T.

Wilfinger

L. S.

“Kinematic manipulability of general constrained rigid multibody systems”, in Proc. IEEE Int. Conf. Robotics Automat., pp. 1020–1025, 1998.

20.

Park

F. C.

and Kim

J. W.

, “Manipulability and Singularity Analysis of multiple robot systems: a geometric approach,” in Proc. IEEE Int. Conf. Robotics Automat., pp. 1032–1037, 1998.

21.

Wen

J. T.

Wilfinger

L. S.

“Kinematic manipulability of general constrained rigid multibody systems”, IEEE Trans. on Robotics and Automation, Vol. 15. No. 3, pp. 558–567, Apr. 1999.

22.

Quan

B. T.

Huang

Harada

and Yabuta

, “Control of a Macro-Micro Robot System Using Manipulability of the Micro Robot,” JSME International Journal (C), 49(3), pp.897–904, 2006.

23.

Huang

Quan

B.T.

Harada

and Yabuta

, “Emulating the Motion of a Human Upper Limb: Controlling a Finger-arm Robot by using the Manipulability of its Finger,” Proc. IEEE Int. Conf. on Robotics and Biomimetics, pp.607–612, 2006.

24.

Quan

B. T.

Harada

Huang

and Yabuta

, “Generation of Natural Moving Function for a Upper Limb Robot with Cooperative Control Utilizing Manipulability,” Trans. JSME (C), Vol.73 No.733, pp.2551–2560, 2007.

25.

Huang

Harada

Yamada

Hara

and Yabuta

, “Control of a Finger-arm Robot by Employing the Steepest Ascent Method to Modulate the Finger's Manipulability,” Proc. of IEEE/RSJ International Conference on Intelligent Robots and Systems IROS2008), Poster Session, 2008.

26.

Yamada

Nakamura

Hara

Huang

and Yabuta

, “Cooperative Impedance Control of a Finger-Manipulator System in Consideration of Manipulability,” Trans. JSME (C), Vol.74 No.748, pp.2994–3003, 2008.

27.

Huang

Yamada

Hori

Hara

and Yabuta

, “Integration of Impedance Control and Manipulability Regulation for a Finger-Arm Robot,” Proc. of IEEE International Conference on Robotics and Automation (ICRA2009), pp.4006–4012, 2009.

28.

Yoshikawa

, “Manipulability of robotic mechanisms”, Int. J. of Robotics Research, Vol.4, No.2, pp.3–9, 1985.

29.

Yabuta

Toyoshima

Honma

Tachibana

L. S.

and Todo

, “Effects on Servo-mechanism on Haptic Performance,” Trans. of JSME (C), Vol.68, No.671, pp.2045–2051, 2002.
