Abstract

BACKGROUND AND OBJECTIVE:

We aimed to further study the role of Myelin Transcription Factor 1(MyT1) in tumor and other diseases and epigenetic regulation, and better understand the regulatory mechanism of MyT1.

METHODS:

Using bioinformatics analysis, the structure and function of MyT1sequence were predicted and analyzed using bioinformatics analysis, and providing a theoretical basis for further experimental verification and understanding the regulatory mechanism of MyT1. The first, second and third-level structures of MyT1 were predicted and analyzed by bioinformatics analysis tools.

RESULTS:

MyT1 is found to be an unstable hydrophilic protein, rather than a secretory protein, with no signal peptide or trans-membrane domain; total amino acids located on the surface of the cell membrane. It contains seven zinc finger domains structurally. At sub-cellular level, MyT1 is localized in the nucleus. The phosphorylation site mainly exists in serine, and its secondary structure is mainly composed of random coils and alpha helices; the three-dimensional structure is analyzed by modeling.

CONCLUSIONS:

In this study, the structure and function of MyT1 protein were predicted, thereby providing a basis for subsequent expression analysis and functional research; it laid the foundation for further investigation of the molecular mechanism involved in the development of diseases.

Keywords

Transcription Factor 1 MyT1 structure function bioinformatics

1. Introduction

A large number of transcription factors exist in an organism, acting as trans-acting factors. They occur in different signal transduction pathways, and can specifically regulate gene expression with cis-acting factors; thereby influence various biochemical and physiological activities, thereby regulating various biochemical and physiological activities. Myelin transcription factor (Myt)/Neural zinc finger (NZF) proteins constitute a unique family of transcription factors that play an important role in differentiation of a mass of cell types. Myt/NZF family proteins are mainly expressed in the developing nervous system and have characteristic CCHHC-type zinc finger motifs as DNA-binding domains [1].

Myelin proteins account for 30% of the total myelin sheath mass, and the protein (PLP) and myelin basic protein (MBP) are the main myelin proteins in central nervous system, constituting 80% of the total myelin content in the central nervous system [2]. MyT1 is a DNA binding protein that binds to the promoter of PLP gene in oligodendrocyte precursor cells and may regulate the transcription of myelin protein gene [3].

In the normal physiological state, MyT1 acts as a transcription factor mainly expressing in the development of the central nervous system cells [4, 5], and mediates the formation of myelin and the proliferation and differentiation of oligodendrocyte [6, 7, 8]. MyT1 also exists in some subgroups of neural precursor and mature neurons [9]. MyT1’s DNA binding domain has a special CCHHC (Cys-X4-Cys-His-X7-His-X5-Cys) structure [10], which can identify a target sequence with “AAGTT” as the core, specifically bind to various neural development-related gene promoters [11], raise HDAC Sin3B or LSD1 to form a complex [12, 13], regulate gene expression by changing the histone modification characteristics of related genes, and promote the neuronal differentiation and proliferation of cells [14]. In situ hybridization studies have shown that the expression of MyT1 in the progenitor cells and the precursor of the neurons after mitosis in the peripheral and central nervous system begins at the beginning of neurogenesis [15]. It has been found that MyT1 can directly inhibit different somatic lineage programs other than neuron programs and play its role in promoting neurons [16]. In addition, overexpression of POU3F2, ASCL1, and MyT1 genes in fibroblasts have been shown to induce them into neurons [17]; some studies have shown similar phenomena in melanoma A375 cells [18], indicating MyT1 as a cell fate-determining gene that plays a key role in the differentiation and reprogramming of neurons. MyT1 has been pointed out as a powerful inhibitory protein that can recognize the open state of chromatin around the target gene by recruiting HDAC protein Sin3b, inhibit the expression of related genes by inhibiting the fate of a variety of non-neuronal cells, and promote the development of neurons and maintenance of biological characteristics by inhibiting the activation of Notch signal [16, 19]. These results indicate MyT1 as an important regulatory gene in the development of nerve cells.

With the rapid development of bioinformatics, the use of bioinformatics-related software for rapid and effective analysis has become the mainstream research methodology in the field of gene structure and function. Comprehensive analysis of MyT1 by bioinformatics methods would be helpful to obtain more information and provide more detailed data for its functional genomics research.

2. Materials and methods

The first, second and third-level structures of MyT1 were predicted and analyzed by bioinformatics analysis tools. The flowchart of the methods is shown in Fig. 1, and the software name and address are shown in Table 1.

Table 1
Software name and address

The name of the software	Use function	The URL
Protparam	Physical and chemical analysis	https://web.expasy.org/protparam/
TMHMM	Transmembrane analysis	http://www.cbs.dtu.dk/services/TMHMM/
ProtScale	Hydrophobic analysis	https://web.expasy.org/cgi-bin/protscale/protscale.pl
SignalP 5.0	Signal peptide prediction	http://www.cbs.dtu.dk/services/SignalP/
NetPhos 3.1 server	Prediction of phosphorylation sites	http://www.cbs.dtu.dk/services/NetPhos/
ProtComp v9.0	Subcellular localization	http://linux1.softberry.com/berry.phtml?topic=protcomppl &group=programs&subgroup=proloc
COILS	Coiled coil analysis	http://www.ch.embnet.org/software/COILS_form.html
SMART	Structure domain analysis	http://smart.embl-heidelberg.de/
SOPMA	Protein secondary structure prediction	https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl? page=npsa_sopma.html
SWISS-Model	Protein tertiary structure prediction	http://www.swissmodel.expasy.org/interactive

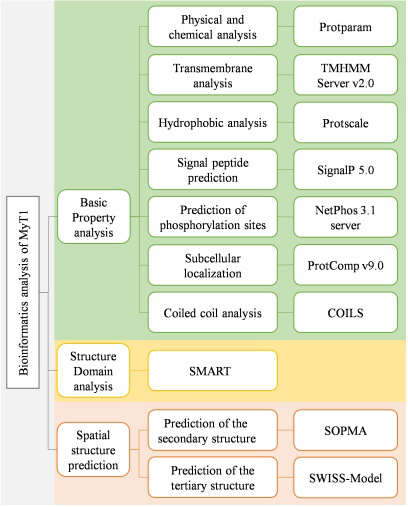

Figure 1.

Flowchart of the methods.

2.1 The basic property analysis of MyT1

2.1.1 Physical and chemical analysis

According to the physical and chemical properties of amino acids, we can analyze the unknown proteins in electrophoresis experiments, as well as the physical and chemical properties of known proteins. We used ExPASy ProtParam to analyze the physicochemical properties of MyT1 [20]. ExPASY can analyze the basic properties of proteins.

2.1.2 Transmembrane analysis

The protein contains transmembrane region, which suggests that it may act as a membrane receptor or a membrane protein localized on the membrane. TMHMM is a program based on Markov model to predict the transmembrane helix, which can be used to predict the transmembrane region and the inner and outer membrane region. We used TMHMM Server v.2.0 to predict transmembrane domain [21]. The parameter settings: Output format choose Extensive, with graphics.

2.1.3 Hydrophobic/hydrophilic analysis

Hydrophobicity of amino acids reflects protein folding. Hydrophobic regions appear in potential transmembrane regions and play an important role in maintaining the tertiary structure of proteins (such as maintaining the structure of biofilm). The hydrophilicity and hydrophobicity of proteins can provide reference for the identification of protein transmembrane regions. ProtScale was used for hydrophobic/hydrophilic analysis [20].

The parameter settings: Amino acid scale choose HPhotb. /Kyte and Doolittle; Window size choose 9; Relative weight of the window edges compared to the window center in 100%; There is no need to normalize the scale from 0 to 1.

2.1.4 Signal peptide prediction

Signal peptide is the N-terminal amino acid sequence of secretory protein polypeptide chain, which is used to guide protein transmembrane translocation. It is generally composed of 20 $\sim$ 40 amino acid residues. We used SignalP-5.0 server to predict signal peptide [22]. Signalp is a signal peptide prediction server, which can predict whether there are potential signal peptide splicing sites in a given amino acid sequence.

The parameter settings: Organism group choose Eukarya; Output format choose Long output.

2.1.5 Phosphorylation sites prediction

Protein phosphorylation refers to the process of transferring phosphate groups from one compound to another by enzymatic reaction. It is a universal regulation mode existing in organisms and plays an extremely important role in the process of cell signal transmission. We used NetPhos 3.1 Server [23] to predict protein phosphorylation sites. Netphos used neural network to predict phosphorylation sites.

The parameter settings: Residues to predict choose all three; Output format choose classical; Choose Generate graphics.

2.1.6 Subcellular localization

Protein surface is directly exposed to organelle environment, which is determined by sequence folding process, which depends on amino acid composition. Therefore, it is possible to predict subcellular localization by amino acid composition. ProtComp v9.0 was used to check sub-cellular localization.

2.1.7 Coiled coil analysis

Coiled coil is a structural model existing in many natural proteins. Many proteins with coiled coil structure have important biological functions, such as transcription factors in the regulation of gene expression. We used COILS [24] for curl helix analysis. COILS compared the sequence with the known parallel double stranded coil database to obtain the similarity score, and then calculated the probability of the sequence forming the coiled coil.

The parameter settings: Window width choose all; matrix chose MTIDK; 2.5 fold weighting of positions a, d chose no.

2.2 Structural domain analysis

Domain is a kind of structural level between secondary and tertiary structure. It is the basic structural unit of protein tertiary structure, which cannot be changed and is the core of gene. We used SMART [25] for structure domain analysis. SMART is a tool for protein family comparison based on Hidden Markov chain algorithm. It provides protein sequences and queries their domains and transmembrane domains in domain database.

The parameter settings: we choose PFAM domains.

2.3 Spatial structure prediction

2.3.1 Predict protein secondary structure

Secondary structure refers to the regular local structural elements such as alpha-helical and beta-turn. Different amino acid residues have different tendency to form different secondary structural elements. Most of the algorithms for predicting protein secondary structure are based on the known three-dimensional structure and secondary structure of protein, and the prediction methods are constructed by artificial neural network and genetic algorithm. Sopma is a self optimizing prediction method with band comparison, which integrates several independent secondary structure prediction methods into “consistent prediction results”. We used SOPMA [26] to predict protein secondary structure.

The parameter settings: Number of conformational states choose 4 (Helix, Sheet, Turn, Coil); Similarity threshold choose 8; Window width choose 17.

2.3.2 Homology modeling of protein tertiary structure

According to the data in the database established by the analysis of the structure and function of natural protein, the spatial structure and biological function of a certain amino acid sequence can be predicted. Protein structure prediction can be used to determine the three-dimensional shape of protein according to its amino acid sequence. SWISS-MODEL is an automated protein comparison modeling server, which is used to predict protein structure models We used SWISS-MODEL [27] for homology modeling of protein tertiary structure. SWISS-MODEL is an automatic online software for predicting protein tertiary structure by homologous modeling method. The credibility range of GMQE (global model quality estimation) is 0–1, and the higher the value, the better the quality.

3. Results

3.1 The basic property analysis of MyT1

3.1.1 Physical and chemical analysis

ExPASy ProtParam was used, the result shows that MyT1 encodes 1157 amino acids, the most abundant amino acid is glutamic acid, the relative molecular weight is 126447.96, the isoelectric point (pI) is 4.91, negative, the molecular formula C ${}_{5363}$ H ${}_{8527}$ N ${}_{1559}$ O ${}_{1877}$ S ${}_{49}$ , the sumnumber of negatively charged residues is 213, the sumnumber of positively charged residues is 113, total number of atoms is 17375, the instability index (II) is 68.15, aliphatic index is 59; Grand average of hydropathicity is $-$ 0.899. The amino acid composition as shown in Table 2.

Table 2
Prediction of the amino acid composition of MyT1

Amino acid species*	Amino acid	Number*	Ratio
Acidic amino acid	Glu (E)	152	13.1%
	Asp (D)	61	5.3%
Basic amino acid	Arg (R)	55	4.8%
	Lys (K)	78	6.7%
	His (H)	36	3.1%
Non-polar R amino acid	Ala (A)	86	7.4%
	Val (V)	43	3.7%
	Leu (L)	88	7.6%
	Ile (I)	33	2.9%
	Trp (W)	4	0.3%
	Met (M)	18	1.6%
	Phe (F)	22	1.9%
	Pro (P)	76	6.6%
R with polar uncharged amino acid	Asn (N)	37	3.2%
	Cys (C)	31	2.7%
	Gln (Q)	46	4.0%
	Gly (G)	81	7.0%
	Ser (S)	134	11.6%
	Thr (T)	57	4.9%
	Tyr (Y)	19	1.6%

Amino acid species: Amino acid can be divided into four groups according to the properties of R-group. Number: The number of the specific amino acids in MyT1 protein. Ratio: The percentage of occurrences of the specific amino acids in MyT1 protein.

3.1.2 Transmembrane analysis

TMHMM Server v.2.0 was used, as shown in Fig. 2, the MyT1 has no transmembrane domain and the total amino acids are located on the surface of cell membrane.

Figure 2.

Prediction of transmembrane of MyT1.

3.1.3 Hydrophobic/hydrophilic analysis

ProtScale was used, as shown in Fig. 3 and Table 3, MyT1 was found to be hydrophilic, the sum number of hydrophilic amino acid residues is $-$ 1134.687, and the sum number of hydrophobic amino acid residues is 94.52.

Table 3
The hydrophobic and hydrophilic amino acid residue positions situations of MyT1

Position of most hydrophilic amino acid residue	Value	Position of most hydrophobic amino acid residue	Value	The numerical sum of hydrophilic amino acid residue	The numerical sum of hydrophobic amino acid residue
298 $\sim$ 338	$-$ 3.5	203	1.911	$-$ 1134.687	94.52

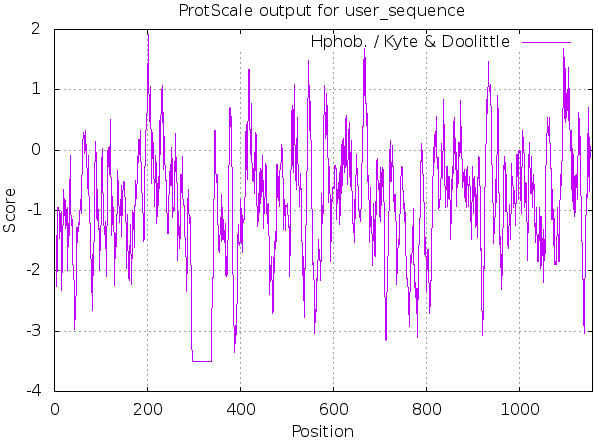

Figure 3.

Prediction of hydrophobic/hydrophilic of MyT1.

3.1.4 Signal peptide prediction

SignalP-5.0 server was used, it is shown in Fig. 4, there is no signal peptide in MyT1.

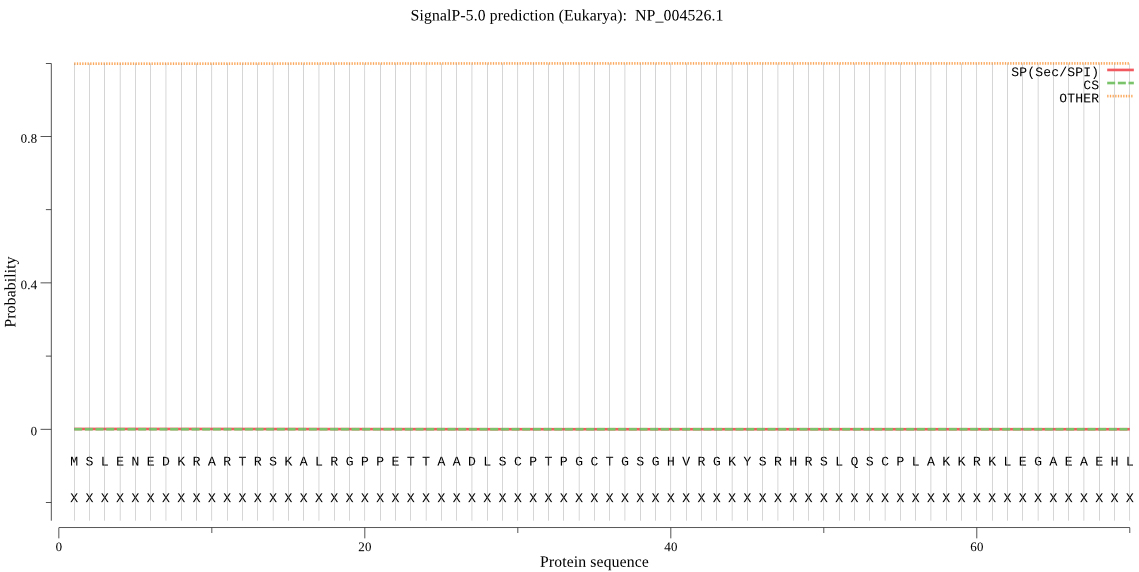

Figure 4.

Signal peptide prediction of MyT1.

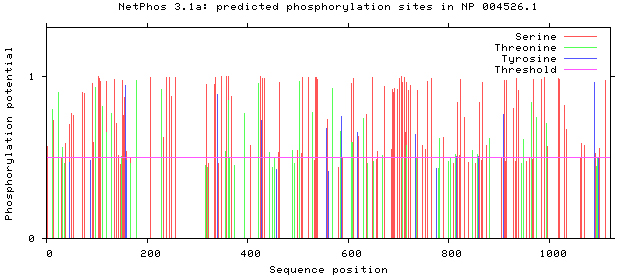

Figure 5.

Prediction of phosphorylation sites of MyT1.

3.1.5 Phosphorylation sites prediction

NetPhos 3.1 server was used, as shown in Figs 5–8. There are 34 threonine, 108 serine and 11 tyrosine sites in the potential phosphorylation sites of MyT1.

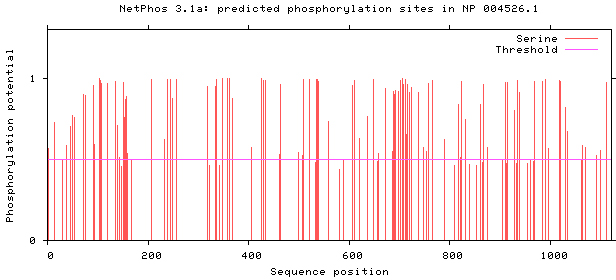

Figure 6.

Prediction of serine phosphorylation sites.

Table 4

The subcellular localization of MyT1

Location weights	LocDB	PotLocDB	Neural Nets	Pentamers	Integral
Nuclear	10.0	3.0	0	0.66	9.03
Plasma membrane	0	0	0.95	0	0.65
Extracellular	0	0	0.95	0.44	0.05
Cytoplasmic	0	0	0	1.93	0
Mitochondrial	0	0	0	1.73	0
Endoplasm. retic.	0	0	0	0.28	0
Peroxisomal	0	0	0.95	0	0.07
Golgi	0	0	0.15	0.26	0
Chloroplast	0	0	0	0.06	0
Vacuolar	0	0	0	0.01	0.19

Figure 7.

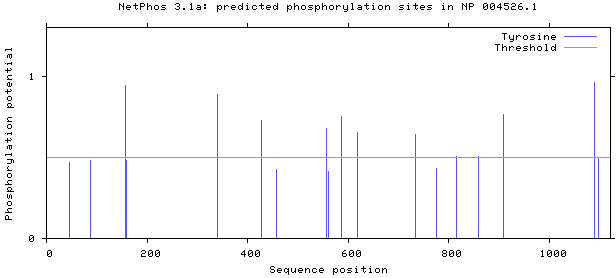

Prediction of tyrosine phosphorylation sites.

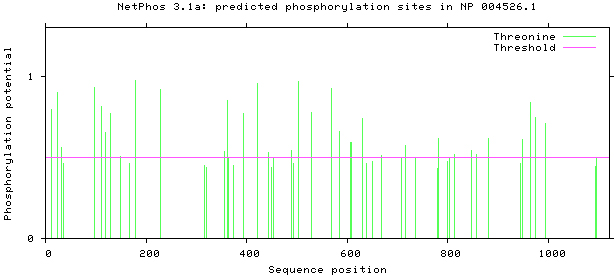

Figure 8.

Prediction of threonine phosphorylation sites.

3.1.6 Subcellular localization

ProtComp v9.0 was used, as shown in Table 4. MyT1 is located in nuclear at subcellular level.

3.1.7 Coiled coil analysis

COILS was used, as shown in Fig. 10. The coiled coil is at sites 291–344, 1033–1091.

3.2 Structural domain analysis

SMART was used, as shown in Fig. 9 and Table 5. MyT1 has seven zinc finger domains.

Table 5
Position of MyT1 Conservative structural domain

Name	Start	End	E-value
Pfam:zf-C2HC	65	93	4.1e-13
Pfam:zf-C2HC	477	504	1.6e-11
Pfam:zf-C2HC	521	549	1.9e-13
Pfam:MYT1	596	652	1.6e-25
Pfam:MYT1	651	827	4.2e-53
Pfam:zf-C2HC	835	863	1.1e-15
Pfam:zf-C2HC	879	907	1.2e-15
Pfam:zf-C2HC	928	956	1.1e-13
Pfam:zf-C2HC	981	1009	4.1e-13

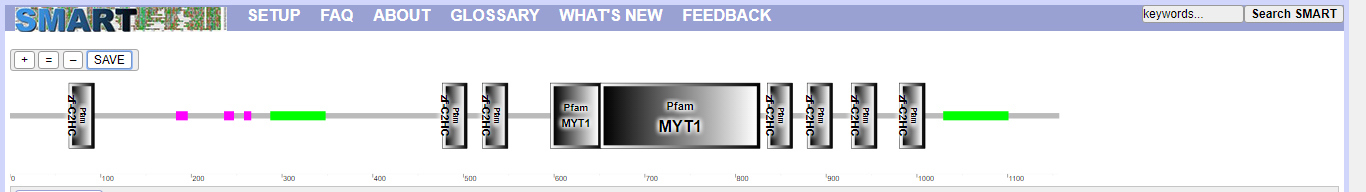

Figure 9.

Prediction of conservative structural domain of MyT1.

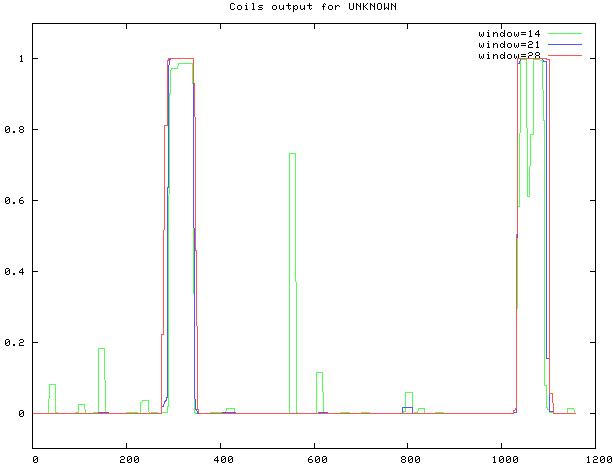

Figure 10.

Prediction of MyT1 Coiled coil.

3.3 Prediction of spatial structure

3.3.1 Predict protein secondary structure

SOPMA was used, as shown in Fig. 11. The secondary structure consisted of 36.99% alpha-helical, 7.95% extended strand, 2.25% beta-turn and 52.81% random coil.

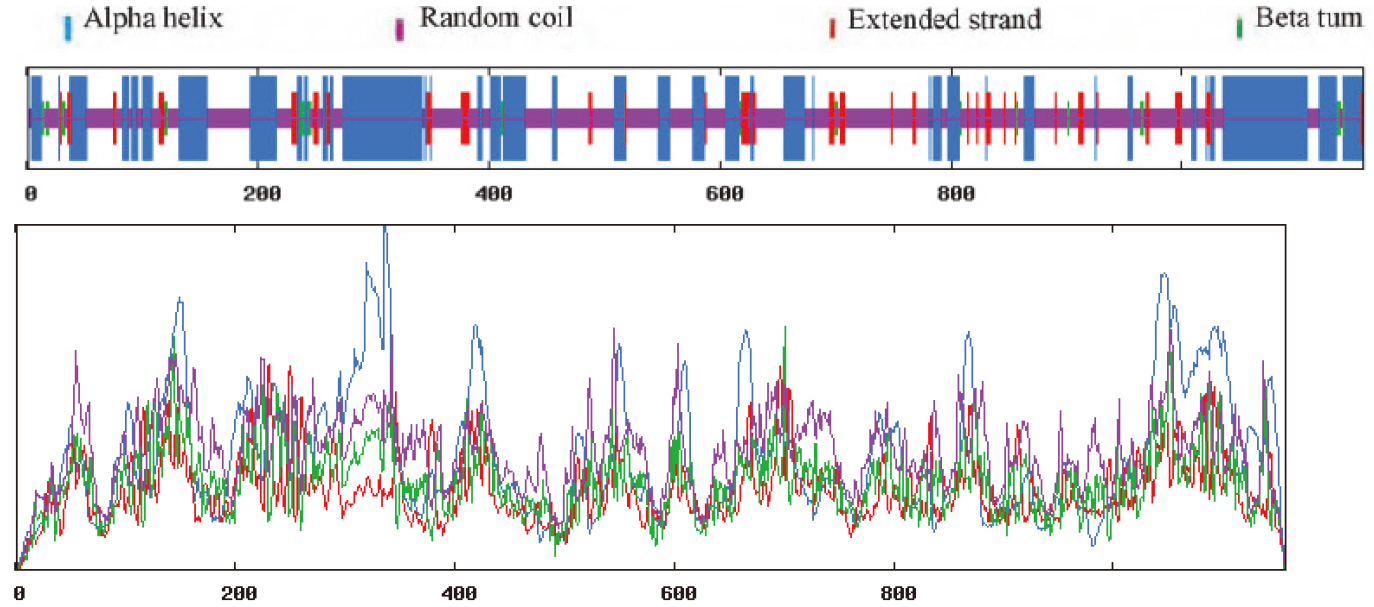

Figure 11.

Prediction of the secondary structure of MyT1.

3.3.2 Homology modeling of protein tertiary structure

SWISS MODEL was used, as shown in Fig. 12. The score of GMQE is 0.04.

Figure 12.

The tertiary structure prediction of MyT1.

The present study showed that MyT1encodesed 1157 amino acids, the most abundant amino acid is glutamic acid, the relative molecular weight was 126447.96, the isoelectric point (pI) was 4.91, negative, the molecular formula C ${}_{5363}$ H ${}_{8527}$ N ${}_{1559}$ O ${}_{1877}$ S ${}_{49}$ , half-life is 100 hours, belonged to unstable hydrophilic protein, not secretory protein, no signal peptide, no transmembrane domain, all amino acids located on the surface of cell membrane. There are seven zinc finger domains. At subcellular level, MyT1 localized in nuclear. The phosphorylation site mainly existed in the form of serine, and its secondary structure was mainly consisted of random coil and alpha helix, and the three-dimensional structure can be analyzed by modeling.

4. Conclusion

MyT1 is an important regulatory gene in the development of nerve cells and plays a vital role in their differentiation and reprogramming. Comprehensive analysis of MyT1 with bioinformatics approach helps to obtain more structural information and biological functions that will potentially yield benefit to functional genomics studies.

We studied the structure and function of MyT1 based on bioinformatics, the results show that t MyT1 is found to be an unstable hydrophilic protein, rather than a secretory protein, with no signal peptide or trans-membrane domain. The total amino acids are located on the surface of the cell membrane. It contains seven zinc finger domains structurally. At sub-cellular level, MyT1 is localized in the nucleus. The phosphorylation site mainly exists in serine, and its secondary structure is mainly composed of random coils and alpha helices; the three-dimensional structure is analyzed by modeling.

In conclusion, MyT1 is an unstable hydrophilic protein, which may be induced by environmental conditions. Furthermore, we can judge that transcription regulation may be induced by environmental conditions. There is no trans-membrane domain, demonstrating that it is not a secretory protein, which is consistent with its biological function as a transcription factor. Zinc finger domains regulate gene expression, cell differentiation, and embryonic development at the level of transcription and translation. It has abundant phosphorylation sites, which may be activated by phosphorylation and regulate the expression of secondary response genes. The nucleus is where it resides and functions form. Irregular curl is its main fold while the proportion of $\alpha$ helix is relatively small, which may not be conducive to its stability; the tertiary structure of MyT1 may be further analyzed by modeling. In this study, the structure and function of MyT1 protein were predicted by various bioinformatics methods, and the relationship between its spatial structure and regulatory mechanism is clarified, thereby providing a theoretical basis for exploring the function of the protein in future, and suggesting a starting point for further study of its molecular mechanism associated with the occurrence and development of diseases.

Footnotes

Acknowledgments

This work was supported by a project grant from the Tianjin Key Technology R&D Program (No. 17ZXRGGX00020) and the National Natural Science Foundation of China (Grand No. 81801240).

Conflict of interest

None to report.
