Finite Element Analysis in Orthodontics: Principles,Applications,and Clinical Implications—A Review

Abstract

Background

Finite element analysis (FEA) is a computational method used to evaluate stress, strain, and deformation in complex structures. In orthodontics, understanding biomechanical responses within teeth, periodontal ligament, and supporting bone is difficult through direct clinical measurement. Therefore, FEA has emerged as a valuable research tool to simulate orthodontic force systems and predict biological responses.

Objective

To review the principles of finite element analysis and discuss its applications, advantages, limitations, and clinical implications in orthodontics.

Methods

A narrative review of the literature was conducted focusing on the fundamental steps involved in FEA, including model generation, meshing, assignment of material properties, application of boundary conditions, and computational analysis of stress and strain within orthodontic structures.

Results

FEA provides a three-dimensional simulation of orthodontic force systems and enables detailed evaluation of stress distribution in teeth, periodontal ligament, alveolar bone, and orthodontic appliances. It has been widely applied in studying tooth movement biomechanics, mini-implant stability, bracket–archwire interactions, orthognathic surgery planning, and aligner therapy. The technique allows non-invasive visualization of biomechanical responses and supports optimization of appliance design and treatment mechanics.

Conclusion

Finite element analysis is a powerful tool that enhances the understanding of orthodontic biomechanics and assists in improving treatment planning and appliance design. With advancements in digital imaging, artificial intelligence, and patient-specific modeling, FEA is expected to play an increasingly important role in evidence-based orthodontic practice.

Introduction

Orthodontic tooth movement is caused by the application of regulated pressures to the alveolar bone, which induces remodeling through stress and strain in the periodontal ligament (PDL). Because direct in vivo measurement of these stresses is challenging, computational approaches like finite element analysis (FEA) give a non-invasive and precise way to observe internal biomechanical reactions. ¹

Initially developed in engineering, FEA was applied to dentistry in the 1970s to investigate stress distributions in dental and craniofacial structures. With developments in 3D imaging, digital modeling, and computer power, it has become an indispensable research tool in orthodontics.

Principles of the Finite Element Method (FEM) in Orthodontics

1. Discretization (meshing) of the structure (in Figure 1)

2. Assignment of material properties

3. Application of boundary conditions

4. Formulation of element equations

5. Assembly of the global stiffness matrix

6. Solution of equations

7. Visualization and interpretation

8. Indications of FEA in orthodontics

Table 1.

Elastic Modulus and Poisson Ratios of the Materials.

Material	Elastic Modulus (GPa)	Poisson’s Ratio
Enamel	80–85	0.30
Dentin	18–20	0.31
Periodontal ligament	0.05–0.07	0.45
Cortical bone	13–20	0.30
Cancellous bone	1–2	0.30
Stainless steel	~200	0.30
Titanium	~110	0.34

Source: Sarika et al. ¹⁴

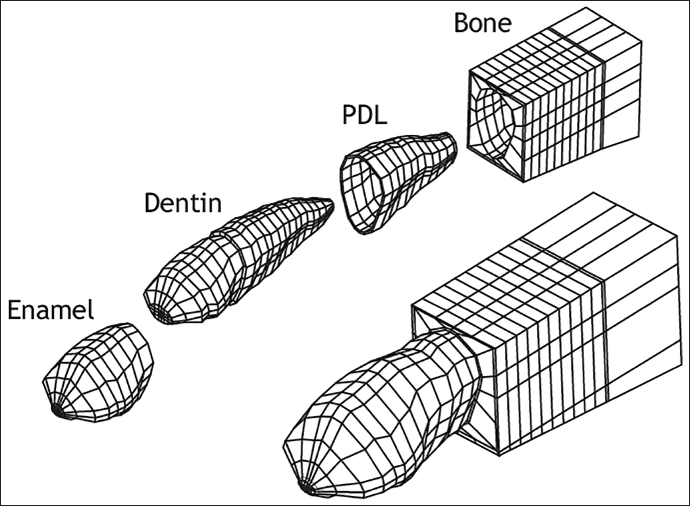

Figure 1.

Finite Element Mesh of Tooth, Periodontal Ligament, and Alveolar Bone Used to Simulate Orthodontic Forces.

Steps Involving in Finite Element Analysis

The workflow of finite element analysis (FEA) in orthodontics. It begins with a CBCT scan to obtain accurate three-dimensional anatomical data of the patient, which is then used to create a digital 3D model of teeth, bone, and surrounding structures. This model is subdivided into small elements through meshing to enable mathematical analysis. Subsequently, appropriate material properties such as elasticity and stiffness are assigned to each tissue to simulate real biological behavior. Boundary conditions are then defined to restrict unwanted movements and stabilize the model, followed by the application of orthodontic forces with specified magnitude and direction. Finally, the results are interpreted in terms of stress distribution, strain patterns, and tooth displacement, providing insights into the biomechanical response of dental structures under applied forces (Figure 2).

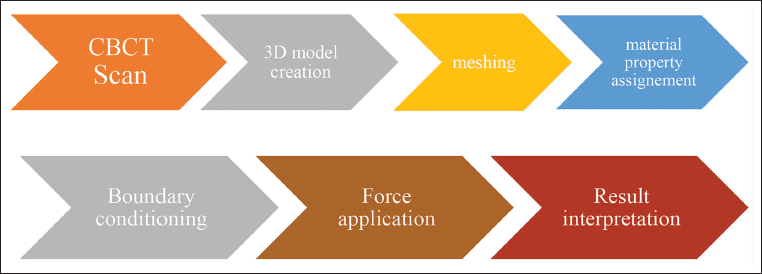

Figure 2.

Sequential Steps Involved in Finite Element Analysis of Orthodontic Systems, from Image Acquisition to Stress Visualization.

Applications of FEA in Orthodontics

Tooth Movement Biomechanics

FEA helps understand how forces and moments act on teeth and the PDL. ¹ Studies have demonstrated stress concentration in the cervical and apical areas during tipping and bodily tooth movement.

How different bracket-slot sizes and archwire dimensions influence tooth displacement and stress distribution was further analyzed to determine their biomechanical effects. ⁷

Clinically, these findings help orthodontists predict areas of high stress during tooth movement and determine the optimal force magnitude for controlled and efficient orthodontic treatment.

Mini-implants and Anchorage Mechanics

FEA models are used to evaluate stress patterns around TADs. It also analyzes the effect of implant diameter and cortical bone thickness on implant stability. ⁸ Optimal placement angles can also be predicted using FEA. ⁹

Mini-implant stability improves when the implant is placed perpendicularly (90°) with a larger diameter (1.6–2 mm) and greater length (6–10 mm). Increasing these parameters reduces stress on both bone and implant. Angulated insertion increases stress due to a lever-arm effect. Since this was an in vitro study, more in vivo research is needed to understand biological responses.

These findings assist clinicians in selecting appropriate mini-implant dimensions and insertion angles to enhance primary stability.

Orthodontic Brackets and Archwires

Stress and frictional forces between different bracket–archwire systems have been simulated using FEA to optimize force transmission. ¹⁰

Comparisons between self-ligating and conventional brackets have also been made to study frictional resistance.

Such simulations guide clinicians in selecting bracket–archwire systems that minimize friction and optimize biomechanical efficiency.

Orthognathic Surgery and Skeletal Anchorage

FEA assists in evaluating postoperative stress distribution on fixation plates and screws, predicting the risk of failure. ¹¹ It helps simulate skeletal displacement in orthognathic procedures for precise planning.

Clear Aligners and Custom Appliances

Recent studies have applied FEA to analyze the predictability of aligner-induced tooth movement. ¹² Patient-specific aligner designs and force optimization can be achieved through iterative simulation.

This improves the predictability of aligner-induced movements and aids in attachment design customization.

Biomechanical Evacuation of Orthodontic Force Effects Using Finite Element Analysis

Finite element analysis can be used to study the biomechanical response of a tooth and its supporting structures under different orthodontic force directions. By simulating forces at various angulations, the model helps visualize how stress is distributed within the tooth and periodontal ligament, allowing clinicians to understand how changes in force application influence tooth movement and tissue response. This approach provides a scientific basis for optimizing force systems to achieve efficient and safe orthodontic treatment (Figure 3).

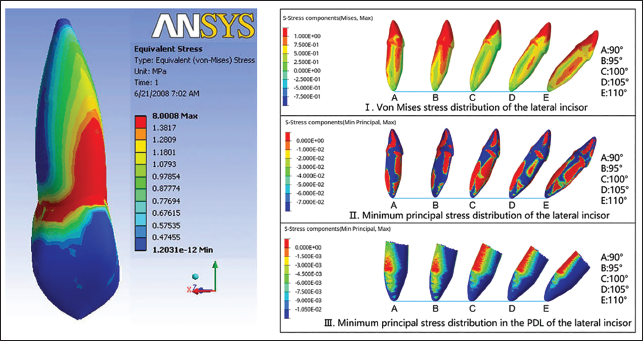

Figure 3.

Stress Distribution Pattern in the Periodontal Ligament During Orthodontic Tooth Movement Obtained Using Finite Element Analysis (FEA).

Advantages of FEA

• A non-invasive and repeatable method.

• Enables three-dimensional visualization of stress and strain patterns.

• Allows parametric analysis of force magnitude, direction, and appliance design.

• Reduces ethical and practical limitations associated with animal or human experimentation.

Limitations of FEA

Biological tissues are often modeled as linearly elastic, which does not fully represent the viscoelastic and anisotropic properties of the PDL and bone. ¹³ Simplified geometries and boundary conditions may not accurately reflect in vivo environments. Therefore, validation of FEA results with clinical and experimental studies remains essential.

Future Directions

Future advancements in FEA include the development of patient-specific models using cone-beam computed tomography (CBCT) and intraoral scans, integration with artificial intelligence and machine learning for predictive modeling, time-dependent simulations incorporating bone remodeling and PDL viscoelasticity, and the use of digital twin systems for orthodontic treatment planning and monitoring.

Advanced FEA studies analyzing how jaw movements and model detail influence stress and tooth behavior in dental structures (Figure 4).

Figure 4.

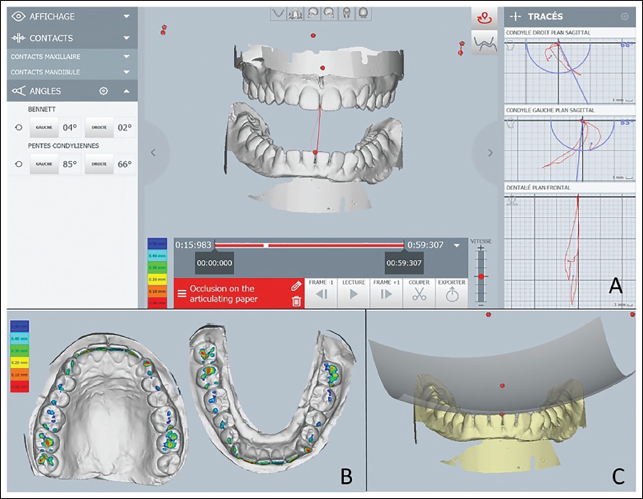

Frontiers Finite Element Analysis of Dental Structures: The Role of Mandibular Kinematics and Model Complexity. (A) Digital Analysis of Mandibular Movement and Condylar Paths; (B) Color-mapped Occlusal Contact Distribution on Dental Arches; (C) Virtual Articulation Showing the Maxillomandibular Relationship.

Software Used in FEA in Orthodontics

1. Imaging and model generation software

2. FEA software

3. Orthodontic treatment planning software

Conclusion

FEA is an advanced computational tool that bridges theoretical biomechanics and clinical orthodontic practice. By accurately simulating orthodontic forces and their effects on teeth and supporting structures, FEA aids in optimizing appliance design, improving treatment mechanics, and enhancing precision in orthodontic care. With ongoing advancements in digital imaging and computational technologies, FEA is expected to play an increasingly significant role in evidence-based and individualized orthodontic treatment.
