Abstract
Objective:
The objective of this prospective audit was to determine the long term outcome of patients diagnosed with chronic migraine who were treated with onabotulinumtoxinA for the prevention of chronic migraine.
Background:
While long term and real-world studies have confirmed the safety and efficacy of onabotulinumtoxinA in CM, there remains limited information from large patient numbers on the number of cycles and duration of onabotulinumtoxinA needed to successfully convert chronic migraine to episodic migraine, development of resistance to treatment and sustainability of response after stopping treatment.
Methods:
A total of 655 adult patients diagnosed with chronic migraine who received onabotulinumtoxinA at the Hull Migraine Clinic were followed up prospectively for a minimum of 2 years. OnabotulinumtoxinA was delivered as per the PREEMPT study protocol and patients were asked to keep a headache diary for at least 30 days prior to and continuously after receiving onabotulinumtoxinA. The primary outcome assessed in this prospective real-world audit was either the number of patients who achieved a ≥50% reduction in headache days or migraine days or an increment in crystal clear days twice that of baseline in a 30-day period. Patients were also assessed for analgesic medication overuse.
Results:
Treatment data were available for 655 patients who commenced treatment between July 2010 and October 2016 and followed for at least 2 years (24–70 months), with the last follow-up taking place in September 2018. Of the 655 patients, 380 patients responded to treatment after two cycles and went on to receive the third cycle. Of these, 152 patients were still on active treatment at 2 years. A further 61 patients had relapsed and were on treatment at 2 years. Of the 228 patients who stopped treatment, 112 were successfully converted to episodic migraine and showed a sustained response, 28 reverted to chronic migraine after the initial response despite continuing treatment (developed resistance), 14 were lost to follow up and 61 patients after achieving remission relapsed after a mean of 9 months (range 4–24 months) and recommenced treatment with onabotulinumtoxinA.
Conclusion:
After a minimum of 2 years, 29.4% of patients with chronic migraine who initially responded to treatment were successfully converted to episodic migraine and maintained a sustained response. Forty percent of the initial cohort of responders continued therapy with onabotulinumtoxinA to manage their chronic migraine.
Background
Chronic migraine (CM) affects approximately 2% of the general population 1 and is considered the most disabling form of the disorder, with a substantial impact on patient quality of life. 2
Patients with CM require prophylactic therapy to reduce the frequency of migraine attacks. 3 OnabotulinumtoxinA (onabotA; Botox®) is a formulation of botulinum toxin type A administered by intramuscular injection, and is specifically approved for the prevention of headaches in adults with CM in the European Union and North America. 4 –6 The efficacy and safety of onabotulinumtoxinA in adults with CM has been demonstrated in the Phase III Research Evaluating Migraine Prophylaxis Therapy (PREEMPT) clinical trial programme, 7 –11 In addition, recent meta-analyses and systematic literature reviews of randomised, double-blind, placebo-controlled trials have concluded that botulinum toxin A is an effective treatment for reducing the frequency of migraine episodes in patients with CM. 12 –14 As a result, onabotulinumtoxinA is being increasingly used in the management of CM in clinical practice and has been guideline recommended as an effective and well-tolerated treatment of CM. 15
OnabotulinumtoxinA was approved in the UK by the Medicine and Healthcare product Regulatory Agency (MHRA) in July 2010 16 and by the US Food and Drug Administration (FDA) in October 2010 17 for the treatment of CM. In the UK, the National Institute for Health and Care Excellence (NICE) has approved the use of botulinum toxin type A on the National Health Service (NHS) for the prophylaxis of headaches in adults with CM (defined as headaches on ≥15 days per month of which ≥8 days are with migraine) 18 that has not responded to ≥3 prior pharmacological prophylaxis therapies and whose condition is appropriately managed for medication overuse. 19 It is currently recommended that treatment with botulinum toxin type A should be stopped in people whose condition is not adequately responding to treatment (defined as a <30% reduction in headache days per month after two treatment cycles) or has changed to episodic migraine (defined as <15 headache days per month) for 3 consecutive months. 19 It is also recommended that patients currently receiving botulinum toxin type A should have the option to continue treatment until they and their clinician consider it appropriate to stop. 19
Studies confirming long term and real-world onabotulinumtoxinA safety and efficacy in CM have been published. 20 –23 Andreou et al. reported on real-world follow-up of 200 patients, of which 127 (63.5%) obtained at least a 30% reduction in headache days after two treatment cycles and a stable beneficial effect vs baseline for those who continued treatment up to 3 years. 20 However, there remains limited information from large numbers of patients on the long term outcomes for patients with CM treated with onabotulinumtoxinA in real-life clinical practice taking into account the number of cycles required to achieve therapeutic outcome of episodic migraine, the proportion with sustained remission and those who relapse, patients reverting to CM despite continuing treatment (resistance) and those stopping treatment with poor tolerability and side effects developing after few cycles.
This is a long term follow-up audit of an original prospective real-life analysis in an adult patient population. 24 The aim of the current analysis was to determine the outcome at 2 years in this patient population using clearly defined responder criteria.
Methods
This prospective analysis was conducted at the Hull Migraine Clinic (Hull Royal Infirmary and Spire Hospital Hull and East Riding). Adult patients were eligible for inclusion if they had CM, defined as headache on ≥15 days/month for ≥3 months, of which ≥8 days meet criteria for migraine with or without aura or respond to migraine-specific treatment. 25 All patients had tried and failed at least one oral preventive migraine therapy. Full details of the inclusion criteria have been published previously. 24 Ethical approval was not required for this prospective audit. Patients were informed that anonymised data would be collected for audit purposes.
Patients received onabotulinumtoxinA injections as per the PREEMPT study protocol 11 : 155 units of onabotulinumtoxinA were injected intramuscularly into 31 injection sites around the head and neck. Patients were prospectively followed for at least 2 years during the period of July 2010 and September 2018. Before treatment commenced, patients were asked to maintain a headache diary for at least 30 days prior to and continuously after receiving treatment with onabotulinumtoxinA. The Hull Headache Diary (Figure 1) was used to capture data on headache, painkillers and quality of life. 26 The continuous diary filling was mandatory to assess response to treatment in order to determine whether patients were offered a repeat treatment.

Hull headache diary.
Patients continued to maintain the headache diary and their response to treatment together with data on headache days, migraine days and crystal clear days were recorded at each visit. For the purpose of repeat treatment, the responder criteria defined by both the NICE and Hull Headache Clinic were used. NICE defined a responder as one with ≥30% reduction in headache days’ frequency after two treatment cycles, without emphasis on the severity of headache, i.e. number of migraine days. 19 The Hull Headache Clinic criteria defined responder as ≥50% reduction in either headache days or migraine days and/or an increment in crystal clear (headache free) days twice that of baseline in a 30-day period, provided they had at least 3 headache free days prior to treatment. Those with less than 3 clear days required to achieve at least 6 headache free days post treatment to be classed as responders. Both NICE and Hull criteria were followed for the negative stopping rule, that is if there is no response in the first two cycles, a third treatment was not given. The rationale for using both NICE and Hull responder criteria was that our previously published prospective data indicate that using NICE criteria around 10% of patients would have been deprived of treatment in spite of a reasonable response to treatment. 24 This is because the NICE criteria only take into account the number of headache days, 19 whereas the Hull criteria considers headache days, migraine days and headache free days. A modified positive stopping rule was used where treatment could be stopped if the headache days remained <10 days per month for 3 consecutive months following treatment. Patients were restarted on treatment if they had >15 headache days for >3 months (relapsed). Treatment was stopped in those that reverted to baseline despite continuing treatment with onabotulinumtoxinA (developed resistance). Treatment was also stopped if patient did not want to continue treatment for reasons such as pregnancy or intolerance to treatment. The extent of analgesic consumption, days off work quality of life score (HIT-6) and both 50% and 75% responder rate were also evaluated.
Statistical analysis
The details of the statistical analysis have been reported previously. 24 Briefly, the primary aim of the analysis was to compare the difference between outcome measurements made before and after treatment. All outcomes were measured on a continuous scale.
Results
Patient demographics
A series of 972 adult patients were treated (completed cycles) between July 2010 and September 2018 and received 5745 cycles. Full data were available for 851 patients. Treatment data for at least 2 years (24–70 months) were available for 655 patients who commenced treatment between July 2010 and October 2016 (Figure 2; Table 1).

Flow chart of patients in the audit.
Baseline characteristics.
Headache days, migraine days and crystal clear (headache free) days
The mean number of headache days, migraine days and crystal clear (headache free) days at baseline and after treatment are shown Table 2. The percentage of patients achieving a ≥50% reduction in headache days, migraine days and a ≥2-fold increase in crystal clear days with treatment was 22.6%, 39.1% and 38.8%, respectively. There was also a significant improvement in the Headache Impact Test-6 (HIT-6) score after treatment versus baseline (p < 0.001, Table 1).
Median change headache outcome measures before and after treatment.
CI, confidence interval; HIT-6, 6-item Headache Impact Test; IQR, interquartile range.
Treatment responses after 2 years
Of the 655 patients followed for at least 2 years, 380 (58%) fulfilled the Hull criteria (47.8% fulfilled the NICE criteria for responder) at Cycle 2 of treatment and were allowed to continue to Cycle 3 of treatment, and 275 (42%) patients stopped treatment as per the negative rule (Figure 3).

Summary of patients who stopped or continued treatment at 2 years follow-up.
From the cohort of 380 patients who met the Hull responder criteria, 152 (40%) patients were still on treatment at 2 years (Figure 3). A further 61 patients had relapsed and were on treatment at 2 years (Figure 3). Of the responders who stopped treatment by 2 years (n = 228), 112 (49.1%) stopped after being successfully converted to episodic migraine; 28 (12.3%) reverted to CM while still on treatment; 14 were lost to follow up and 13 stopped treatment due to pregnancy. Sixty-one (26.7%) patients who were successfully converted to episodic migraine relapsed after an average of 9 months (range 4–24 months) and recommenced treatment.
Long term outcome
As shown in Figure 2, from the original cohort of 380 responders, 112 (29.4%) continued to show a sustained response at 2 years. Of these, 20 stopped treatment at Cycle 4, 38 at Cycle 5, 34 at Cycle 6, 12 at Cycle 7 and 8 at Cycle 8. Twenty-eight patients (7.4%) became resistant to treatment with onabotulinumtoxinA. Of the patients who became resistant, 4 stopped treatment at Cycle 4, 7 at Cycle 5, 9 at Cycle 6, 5 at cycle 7 and 3 at Cycle 8.
Analgesic medication overuse
The median change in analgesic use in terms of the number of days of non-triptan analgesics and triptans needed was assessable in 827 of the total 972 patients. Use of non-triptan analgesics before treatment had an interquartile range of 6 to 22 days per month with a median of 12 days before treatment and that of triptan use had an interquartile range of 0–7 with a median of 1 day per month before treatment.
There was a significant reduction in the number of days of both non-triptans and triptans after treatment versus baseline (Table 3; p < 0.001). Forty-one percent of patients were able to achieve a ≥50% reduction in non-triptan analgesic use and 46% were able to achieve a ≥50% reduction in triptan use after treatment.
There was also a significant reduction in the number non-triptan analgesic days after treatment versus patients who did not overuse medication at baseline (p < 0.001; Table 4). The number of triptan days after treatment did not differ between the two patient groups.

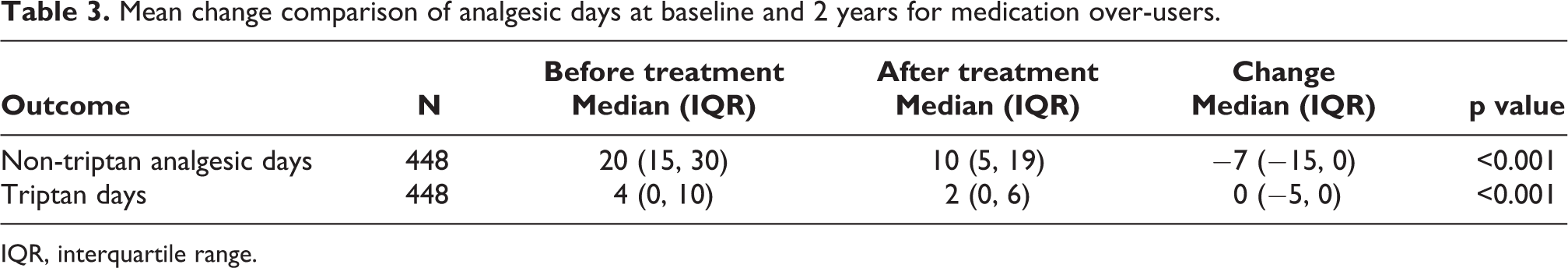

Mean change comparison of analgesic days at baseline and 2 years for medication over-users.
IQR, interquartile range.
Median change from baseline in analgesic days for medication over-users versus non-medication over-users.
IQR, interquartile range.
Discussion
The results of this prospective real-life analysis of patients with CM complement outcomes seen in randomised controlled trials and other real-world analyses, lending additional support for the use of onabotulinumtoxinA in the management of CM, and providing valuable information on treatment practices and patient characteristics among a large number of unselected patients.
To our knowledge, this is the largest number of patients for whom the outcomes of discontinuation rate, development of resistance, relapse after stoppage and sustained response to treatment have been reported to date. Further data are being collected and we aim to report 5-year follow-up in due course.
In the primary analysis of this patient cohort (254 patients), onabotulinumtoxinA was shown to significantly reduce the number of headache and migraine days, and increased the number of headache free days versus pre-treatment levels. 24 In the current 2-year follow-up, these benefits of treatment were shown to continue in a substantial proportion of the patients. Of the cohort of initial responders (N = 380) after two cycles of onabotulinumtoxinA, 45.5% (N = 173) were converted to episodic migraine of which the benefit was sustained in 65% (N = 112) while 35% (N = 61) relapsed after an average of 9 months (range 4–24 months).
Few patients became resistant to therapy and reverted to CM while still on treatment (12.3%), others were either lost to follow up or stopped due to pregnancy. Importantly, the HIT-6 score was significantly improved at 2 years versus baseline. This persistence in HIT-6 reduction over time indicates a stable and long term improvement in the impact of headache on patients’ ability to function.
The results of this audit support previous observations that loss of response to botulinum toxin A for CM after the first year is rare. 27 The outcomes observed also align with those of previous long term follow-ups in real-life clinical scenarios.
In a 2-year follow up of 123 patients in the US, it was reported that 67% of patients with CM were still on treatment after 2 years. 28 In this study, 25% of patients were able to stop treatment and remain free of CM for a minimum of 6 months, and 8% of patients stopped responding to therapy while still on treatment. However, it should be noted that, in this study, the definition of responder was not clearly defined, negative and positive stopping rules were not clear and treatment was funded via insurance reimbursement.
A prospective real-world analysis of onabotulinumtoxinA in chronic migraine post-NICE UK technology appraisal was carried out by Andreou and colleagues. The analysis describes the long term outcome of 200 patients, of which 127 fulfilled NICE criteria and continued to a third treatment. The number of patients fulfilling criteria for continuation of treatment at Cycle 2 was 63% compared to 47.8% in our audit. One assumes that if they had used Hull criteria the figures may have been significantly higher. Andreou et al. showed the response to be the same in those with or without medication overuse, similar to our audit. In their analysis, most of the patients had responded to the first treatment and only 3 of the 127 patients that did not respond to first treatment showed a meaningful response. They described that a third of the patients went into episodic migraine, with the majority converting in the second cycle (at 6 months). Our audit did not show such findings as patients entered into episodic migraines at different points over a period of 2 years. Moreover, they described the number of patients at different time points i.e. 113 were on treatment at year 1, 52 at year 2 and 28 at year 3. However, the outcome of the other patients remain unknown. Although authors were following NICE criteria for the positive stopping rule, many of their patients continued to receive onabotulinumtoxinA treatment while they remained episodic. We used a modified positive stopping rule and stopped treatment if the number of headache days per month came down to less than 10 per month for at least 3 months and we did not resume treatment unless they went up to 15 or more days of headache per month for at least 3 months. The number of patients remained on treatment at year 2 were very similar (40%) and the proportion of patients relapsing after successful stoppage were also similar (26% versus 21%).
In a second US study, the Chronic Migraine OnabotulinumtoxinA Prolonged Efficacy open Label (COMPEL) study, the consistency of the efficacy and the long term safety and tolerability of onabotulinumtoxinA for the prevention of headache in 716 patients diagnosed with CM (treated every 12 weeks over 2 years) were analysed. 22 A significant and sustained benefit of treatment was reported. A limitation of this study was the drop out of nearly half of the patients with reasons not clearly defined. Those who did benefit from treatment were continued on treatment for 2 years. Although the study evaluated long term efficacy, the need for continuation of treatment was not analysed. Finally, in two 3-year follow-ups of treatment of 90 patients in Italy and 65 patients in Greece, respectively, onabotulinumtoxinA was found to be an effective and well-tolerated treatment for CM. 23,29 OnabotulinumtoxinA did not show any incoming tolerance and its effectiveness was confirmed to be long-lasting, generating stable improvements in headache symptoms and patients’ quality of life. 22
The degree of analgesic use before and after treatment was studied and reported earlier. The median number of painkiller days before treatment was 12 (interquartile range of 6–22). This was reduced to 7 days (range 2–13) after treatment. The frequent or regular use of analgesics and anti-migraine drugs can make headache more frequent and induce the transformation of episodic to CM. 30 Medication overuse was highly prevalent in the patient population included in this prospective analysis, with 54% of patients overusing various analgesics (triptans and/or other analgesics [paracetamol, nonsteroidal anti-inflammatory drugs and opioids]). 31 OnabotulinumtoxinA offered an effective prophylactic treatment option in these patients and the results of the current analysis confirmed the outcomes from earlier studies that demonstrated that onabotulinumtoxinA was effective in individuals regardless of medication overuse at baseline. 25,31 –34
The current prospective analysis provides an insight into the long term outcomes in 655 patients diagnosed with CM prophylactically treated with onabotulinumtoxinA in a real-life clinical setting that measured not only treatment response using defined responder criteria, but also analysed the frequency of migraine and the severity of the headaches. The prospective analysis also provided important insights into the sustainability of the response to treatment and the degree of resistance to treatment over the long term. As with the primary patient population, the patient cohort in this analysis is believed to be representative of patients seen in daily clinical practice at an average tertiary headache centre in the UK and is concordant with previous observations in real-life long term clinical studies assessing the efficacy of onabotulinumtoxinA for the treatment of CM. 35
The strength of this prospective analysis was the large sample size that was representative of the patients with CM typically seen in daily clinical practice in a tertiary headache centre of UK. However, as with any prospective real-life analysis, there was a risk of confounding bias and lack of randomisation, and the lack of a control group meant it was not possible to quantify a placebo effect. The second limitation is that this is a single centre audit, which may reflect practice bias of the clinician in the centre. The third limitation is that the audit was conducted in the UK where treatment is funded centrally by the NHS and start and stopping rules of the treatment may differ from other countries where limitations and reimbursement rules may be different. The 2-year data does not include patients that could have relapsed or become resistant beyond 2 years and may have had a different outcome. The adverse effects of the toxin was only evaluated during the second cycle, although we believe that this would not have been higher subsequently as none of the patients stopped treatment due to adverse effects and the number of patients that were lost to follow up were very small.
Conclusions
OnabotulinumtoxinA continues to be a valuable addition to current treatment options for patients who are difficult to treat or intolerant of traditional oral prophylactic therapies and who have received treatment for at least 2 years and provides a lasting remission from oral treatment in a considerable number of patients.
Clinical implications
In a prospective real-life analysis of patients in the UK receiving onabotulinumtoxinA, the number of headache and migraine days were significantly reduced and headache free days increased over a 2-year period vs pre-treatment levels.
The percentage of patients achieving a ≥50% reduction in headache days, migraine days and a ≥2-fold increase in crystal clear days was 22.6%, 39.1% and 38.8%, respectively.
After a minimum of 2 years, 29.4% of initial treatment responders were successfully converted to episodic migraine and maintained a sustained response.
OnabotulinumtoxinA is a valuable addition to current treatment options for patients who are difficult to treat or intolerant of traditional oral prophylactic therapies, and may provide a lasting remission from oral treatment.
