Abstract

The Purdue Make It system is a unique automated platform capable of small-scale in situ synthesis, screening small-molecule reactions, and performing direct label-free bioassays. The platform is based on desorption electrospray ionization (DESI), an ambient ionization method that allows for minimal sample workup and is capable of accelerating reactions in secondary droplets, thus conferring unique advantages compared with other high-throughput screening technologies. By combining DESI with liquid handling robotics, the system achieves throughputs of more than 1 sample/s, handling up to 6144 samples in a single run. As little as 100 fmol/spot of analyte is required to perform both initial analysis by mass spectrometry (MS) and further MSⁿ structural characterization. The data obtained are processed using custom software so that results are easily visualized as interactive heatmaps of reaction plates based on the peak intensities of m/z values of interest. In this paper, we review the system’s capabilities as described in previous publications and demonstrate its utilization in two new high-throughput campaigns: (1) the screening of 188 unique combinatorial reactions (24 reaction types, 188 unique reaction mixtures) to determine reactivity trends and (2) label-free studies of the nicotinamide N-methyltransferase enzyme directly from the bioassay buffer. The system’s versatility holds promise for several future directions, including the collection of secondary droplets containing the products from successful reaction screening measurements, the development of machine learning algorithms using data collected from compound library screening, and the adaption of a variety of relevant bioassays to high-throughput MS.

Keywords

High-throughput screening desorption electrospray ionization mass spectrometry reaction screening enzymatic assay

Introduction

High-throughput screening (HTS) technologies have become increasingly relevant both for industrial pharmaceutical lead discovery and for basic and applied organic synthesis and biomedical research in academic settings.^1–3 Although some have argued that HTS is partially responsible for a decline in productivity in the pharmaceutical industry due to supposed inherent shortcomings of the technique,¹ the consistent stream of improvements to high-throughput analytical technologies has enabled researchers to acquire unprecedented amounts of high-quality data while enabling creative new experimentation.⁴

High-throughput experiments originally entailed the screening of large chemical libraries against biological targets of interest to determine any modification in the target response through highly automated sample handling processes and instrumentation, miniaturized assays in terms of sample consumption and analysis time, and rapid data analysis.⁵ HTS technologies have also been of increasing importance for reaction screening, wherein a broad and diverse array of chemical reaction variables (choice of reagents, catalyst, pH, solvent, stoichiometry, concentration, temperature, etc.) are rapidly screened to locate optimal conditions.^6,7 The successful hits from reaction screening can then be used in bioactivity screening and further investigation.^8–13

Traditional HTS methods for bioassay screening are based on optical detection techniques, such as colorimetry,^14–17 fluorescence,^18–25 radiometry,^26–28 and luminescence.^29–31 Most of these techniques accommodate high-density plates of up to 1536 wells and allow for sensitive and continuous detection with minimal analysis time (analysis is performed throughout incubation in most cases) via the use of commercially available plate readers. However, the fact that most biological systems do not involve species with distinctive optical properties is an intrinsic challenge for these techniques. As a result, the direct application of these methods is limited. In most cases, new assays must be specifically developed for each biological system. Common strategies to develop these optically based assays involve the use of radiolabeled compounds,^26–28 nonnative substrates,^25,32 and/or coupled reactions,^24,33 all of which can in turn introduce interferences into the assay as optically based approaches suffer from low chemical specificity. Furthermore, these modifications to the system under study might change its behavior compared with the native state,^33,34 as well as introduce safety concerns (e.g., radioactive material handling) and higher costs per assay.

In terms of chemical reaction screening, UV-visible spectrophotometry has long been incorporated into both flow-based and plate-based reactors for reaction monitoring and kinetic determinations,^35–38 yet its role is limited, as other analytical techniques are still necessary for accurate product identification and quantitation. Fluorescence-based methods have also been developed for reaction monitoring, and they are particularly powerful in the case of direct asymmetric synthesis, where the use of chiral species to form fluorescent diastereomeric complexes with analytes allows for high-throughput determination of enantiomeric purity.³⁹

Alternatively, mass spectrometry (MS)-based systems are naturally label-free and have significantly higher molecular specificity in comparison with optical methodologies. This provides them with remarkable versatility and allows their use in the screening of a variety of chemical and biological reaction systems. Consequently, MS has become increasingly popular as the analytical platform of choice for HTS.^40–42 Several MS-based platforms have been developed for this purpose, starting with well-known liquid chromatography (LC)–MS systems. The obvious trade-off of these platforms is speed, as LC-MS is significantly slower in comparison with optical detection techniques, given that the chromatographic separation is a bottleneck.^40,41 Even with increased duty cycles, achieved by the use of multiple LC columns, clever scheduling of injection, flow diversion, and detection times (e.g., Thermo Scientific Transcend), LC-MS systems are inherently slow, requiring at least 10 s/sample.^41,43,44 Novel LC sampling approaches that allow for mixing and monitoring of a target species, such as MISER and mixed-MISER,⁴⁵ have been incorporated in high-throughput systems, decreasing the analysis time to ~7 s/sample when analyzing 1536-density arrays.⁴⁶ Nonetheless, there is still a large gap in both the timescale and cost with respect to optically based techniques.

Higher throughputs can be readily achieved with LC-free MS-based platforms. Matrix effects and ionization suppression are inherent in these methods as a trade-off for eliminating the sample separation step, but novel ionization methods as well as advances in MS instrumentation have improved the performance of these LC-free methodologies so that they can be easily implemented for HTS without sacrifice in data quality.^41,42 These LC-free MS-based platforms can be classified into four major categories:⁴¹

Laser-based techniques, such as matrix-assisted laser desorption ionization (MALDI), which are well-established methods that provide high throughputs (>1 sample/s) but require time-consuming multistep plate preparation and for ionization to be performed under vacuum.^47–49 A variant of MALDI, self-assembled monolayers for MALDI, uses monolayers to allow for precise control of surface chemistry to increase the sensitivity of MALDI to analytes of interest.^50–52

Solid-phase extraction (SPE)-based platforms (e.g., Agilent RapidFire), which provide online enrichment and sample cleanup, reducing ionization suppression and matrix effects but increasing analysis time (~8 s/sample).^{13,41,42,53–55}

Droplet-based systems, which are typically based on acoustic or microfluidic droplet generation and maneuvering. The latest iteration of acoustic-based systems (e.g., Sciex Echo MS) uses acoustic desorption ejection coupled to an open port interface (ADE-OPI), allowing for analysis times faster than 0.3 s/sample with special considerations regarding the choice of solvent.^56–60 On the other hand, microfluidic-based approaches include mass-activated droplet sorting, a method based on the accurate sorting of split droplets according to results of parallel electrospray ionization (ESI)–MS screening with a throughput of ~1.5 s/sample.⁶¹ Note that both of these techniques still suffer the drawbacks from direct ESI regarding ionization suppression and matrix effects, which, in the case of the ADE-OPI systems, are simply reduced through a 1000-fold online dilution.^41,60

Desorption-based techniques, mainly represented by desorption ESI (DESI), the core of Purdue’s high-throughput Make It system. DESI provides contactless, ambient, fast (current throughput: >1 samples/s), and direct sample analysis, with great matrix tolerance and no requirement for sample preparation.^62–64 Additionally, by relying on microdroplets, DESI allows reaction acceleration^65–67 and in situ nanoscale synthesis, a feature unique to this platform compared with other HTS technologies.

Purdue’s high-throughput DESI-MS system has been developed over the last 5 years by an interdisciplinary team funded by the Defense Advanced Research Project (DARPA) as part of the agency’s Make It program, with the objective of automating small-molecule discovery and synthesis by efficiently exploring large domains of possible reaction types and conditions.^68,69 The development and application of this high-throughput platform has resulted in several dozen peer-reviewed publications. The system has been successfully used to study multiple organic reactions through HTS campaigns. The reactions include N-alkylation,⁷⁰ N-acylation,⁷¹ Sonogashira coupling,¹² nitrosation,⁹ Suzuki cross-coupling,^63,72 aromatic nucleophilic substitution (S_NAr),⁷ aldol reaction,⁷³ and reductive amination.⁶ Capabilities have also been demonstrated for studies of enzymatic systems, such as acetylcholinesterase, which include the determination of Michaelis–Menten kinetic parameters, as well as the screening and characterization of both inhibitors and reactivators.⁶² Currently the fully automated high-throughput DESI-MS system allows the screening of about 6000 samples/h, with sample analysis rates greater than 1 Hz.

Here we seek to illustrate the utility and broad applicability of Purdue’s Make It platform by describing two new experiments in the context of earlier work. The first is a combinatorial synthesis and reaction screening campaign, where 188 unique reactions are rapidly explored without a prior reaction period. The second is a label-free study of the nicotinamide N-methyltransferase (NNMT) enzymatic system, which includes quantitative data on reaction progress monitoring, inhibitor characterization, and substrate screening. Detailed experimental workflows, current efforts, and future directions in terms of instrumentation development and experimentation are also discussed.

Experimental Methods

High-Throughput DESI-MS System Overview

Purdue’s high-throughput DESI-MS system is an automated platform developed initially for small-molecule discovery and synthesis. Its main goal was to extend knowledge of small-molecule organic synthesis beyond that available from conventional batch-based, intuition-driven experiments. Throughout its development (since 2015), multiple advances and iterations have taken place, yielding the synthesis, screening, and (bio)analysis platform that we describe.

The core of the high-throughput system is DESI, an ambient ionization technique. As with all other methods within this family, DESI creates ions directly in the ambient environment, with minimal or no requirement for sample workup.^74,75 Additionally, DESI provides noncontact analysis (no capillaries carrying sample that can clog and also no carryover)⁴¹ as well as a high tolerance to complex matrices, including those typically not MS compatible.^62,76 DESI uses pneumatically driven charged microdroplets of solvent to impact the sample and transfer dissolved compounds in secondary splashed microdroplets to a mass spectrometer, where they produce ions representative of the sample.^74,77 In cases where the sample contains reactive molecules and the conditions are appropriate, a reaction can occur before mass analysis, allowing observation of reaction products generated during analysis. Moreover, in the secondary microdroplets generated by the DESI spray, reactions can be accelerated by orders of magnitude,^65–67 allowing rapid screening of reaction mixtures without a prior reaction period. The DESI-MS platform can thus be used both as an analytical tool, for screening reactions already carried out, and as a synthesis-analysis system in which the input mixtures of reactants undergo accelerated reactions in the microdroplets used for DESI analysis. In both cases, reactants, products, intermediates, and by-products can be rapidly analyzed by MS, or characterized further by MSⁿ experiments. The main output of these screening experiments is typically a yes/no answer to the question of whether or not a specific reaction generates an expected product under certain conditions, allowing for optimization of synthetic conditions and providing a starting point for scale-up.^6,7,63,70,71 Typically, no quantitative data are sought through organic reaction screening, although MS information can be readily utilized to assess compound purity.

The same platform as that used as a reaction screening tool can be adapted to perform bioassays, an application that requires robust methods with good quantitative performance. In this case, samples are quenched assays that are analyzed directly without workup, while typical analytes include the substrate and product of the enzyme-catalyzed reaction. DESI-MS-based bioassays are consequently discontinuous (as are most MS-based assays, opposed to traditional colorimetric/fluorometric methods),^41,62 which implies that reactions must be quenched at precise endpoints for kinetic studies. Note, however, that quenching is a simple single step (e.g., addition of an organic solvent or a chaotropic agent) that requires no significant increase in the overall analysis time. Furthermore, the use of quenched samples allows for storage of the aliquots and reexamination in a confirmatory analysis, if necessary.

Regardless of the type of application, automated HTS using the DESI-MS platform involves three main steps: sample preparation and spotting, DESI-MS analysis, and data processing ( Fig. 1 ). Note that all the operations of the system can be centrally controlled using homebuilt overarching software, CHemical Reaction Integrated System (CHRIS). The hardware and software aspects of the platform have been detailed previously.⁷¹ The steps followed in screening are as follows:

Step 1: Samples are added to a 384-well plate (master plate) aided by a robotic liquid handling system (Biomek i7; Beckman Coulter, Brea, CA). Note that these samples can be reaction mixtures prepared directly on the plate by addition of individual reactant stock solutions with no bulk incubation, or they can be previously incubated reaction mixtures. Samples can also be bioassay mixtures, after a reaction that is performed directly on the plate or previously prepared and quenched. With the master plate ready, 50 nL samples are spotted onto a DESI plate, using a slotted 384-pin tool (V&P Scientific, San Diego, CA). DESI plates are prepared in-house using customized soda-lime glass slides (Abrisa Technologies, Santa Paula, CA) with the same footprint of a standard well plate. A porous polytetrafluoroethylene (PTFE) membrane (Zytex G-115; Saint-Gobain, Wayne, NJ) is attached to each slide using a light film of spray adhesive (Scotch Spray Mount; 3M, St. Paul, MN). The Biomek robot allows pinning with 50 µm positional accuracy at densities up to 6144 reaction spots per plate. The high density of spots is achieved through shifting the pinning position of the 384-pin tool on the slide; up to 16 programmed shifts are available to users of the Biomek robot, which results in nominal center-to-center distances of 1.125 mm between spots at the highest density. The pinning is versatile and user-defined, meaning that it is not necessary to pin or analyze all positions. Note that as many as 16 independent master plates can be pinned on a single DESI plate (i.e., 6144 unique samples). DESI plates can also be pinned with the same sample in multiple positions to allow for running of instrumental replicates. For all experiments, three dye marks are also pinned at predefined positions in the corners of the DESI plate. These dye spots are used to calibrate the positions of the spotted samples.

Step 2: The DESI plate is automatically transferred, using a Selective Compliance Articulated Robot Arm (SCARA) (PF3400; Precise Automation, San Diego, CA), to the DESI stage. Prior to analysis, through use of the dye points on three corners of the plate, a calibration is performed to allow positions on the plate to be recognized with sufficient precision that one can return to any particular spot if confirmation requires. The calibration process is simple, involving only the aligning of the DESI spray with the dye marks. After this, the user can select the pinning position(s) to be analyzed (from the 16 possible) and the instrumental method to be used for the analysis. This latter option provides great versatility, considering that the user can define any MS experiment type available with the chosen mass spectrometer. Next, the analysis starts. During analysis, the DESI stage is moved underneath the DESI sprayer in a spot-to-spot fashion (i.e., jumping from one spot to the next), saving scanning time, especially if low densities are pinned. At least 0.3 s is spent on each spot (effective analysis time), with a variable dead time (used for moving of the stage) of less than 0.7 s/sample. This dead time per spot is reduced as higher densities are analyzed. The DESI solvent used in the analysis can be selected and even changed on the fly by means of a 16-channel high-precision piezoelectric solvent delivery system.⁷⁸ When data acquisition is complete, the DESI plate can be (1) discarded, (2) stored for later reanalysis, or (3) immediately reanalyzed (e.g., to obtain MSⁿ information from spots of interest). This latter capability is remarkable considering that only 50 nL of each sample is transferred to each spot on the DESI plate. Under typical conditions, with concentrations in the order of micromolar to millimolar,⁷⁹ this represents only a few nanograms of material. The low sample consumption also allows for storage of the master plates used for preparing the samples, so that further or confirmatory analyses can also be performed by spotting new slides.

Step 3: The spectra obtained are processed using CHRIS, which extracts peak intensities associated with m/z values of interest (if predefined by the user) on each spot, converting them into yes/no (or more finely grained) outputs for each spot on the plate. With this information, CHRIS creates a user-friendly heatmap that allows for simple data visualization (e.g., spectra, peak intensities). The data extracted by CHRIS are also available as .csv files that can be processed further, depending on the needs of the user. For instance, several MATLAB scripts have been developed to average replicate spots and calculate signal-to-noise ratios, conversion ratios, or analyte-to-standard ratios for quantitation, as well as processing this information to calculate reaction progression, statistical differences between reaction conditions, kinetic parameters, and inhibition percentages, among several other applications useful in both chemical reaction screening and bioassays. Additionally, the system is currently being equipped with artificial intelligence-based approaches to plan and optimize synthetic routes, as well as to aid in the MSⁿ-based characterization of compounds generated from particular reaction mixtures.

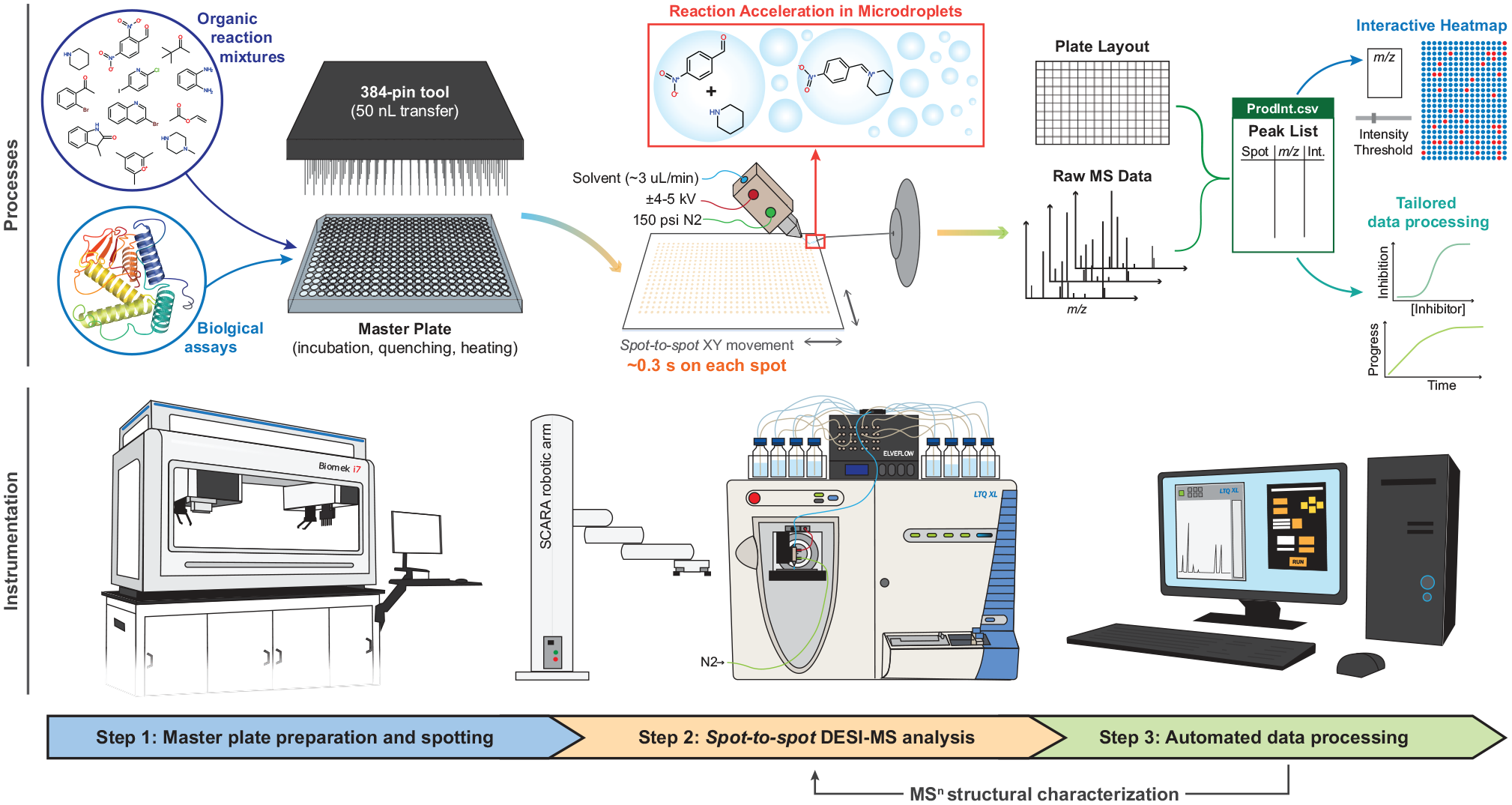

Figure 1.

General workflow using the high-throughput DESI-MS platform. Three main steps are followed regardless of the particular characteristics of an experiment: (1) prepare one or more 384-well master plates and spot samples of interest onto a DESI analysis plate, (2) perform DESI-MS analysis directly from the spotted DESI plate, and (3) process the raw data obtained using custom software. Both the instrumentation and the detailed processes involved in each step are presented in the figure.

The main characteristics of the system are summarized in Table 1 .

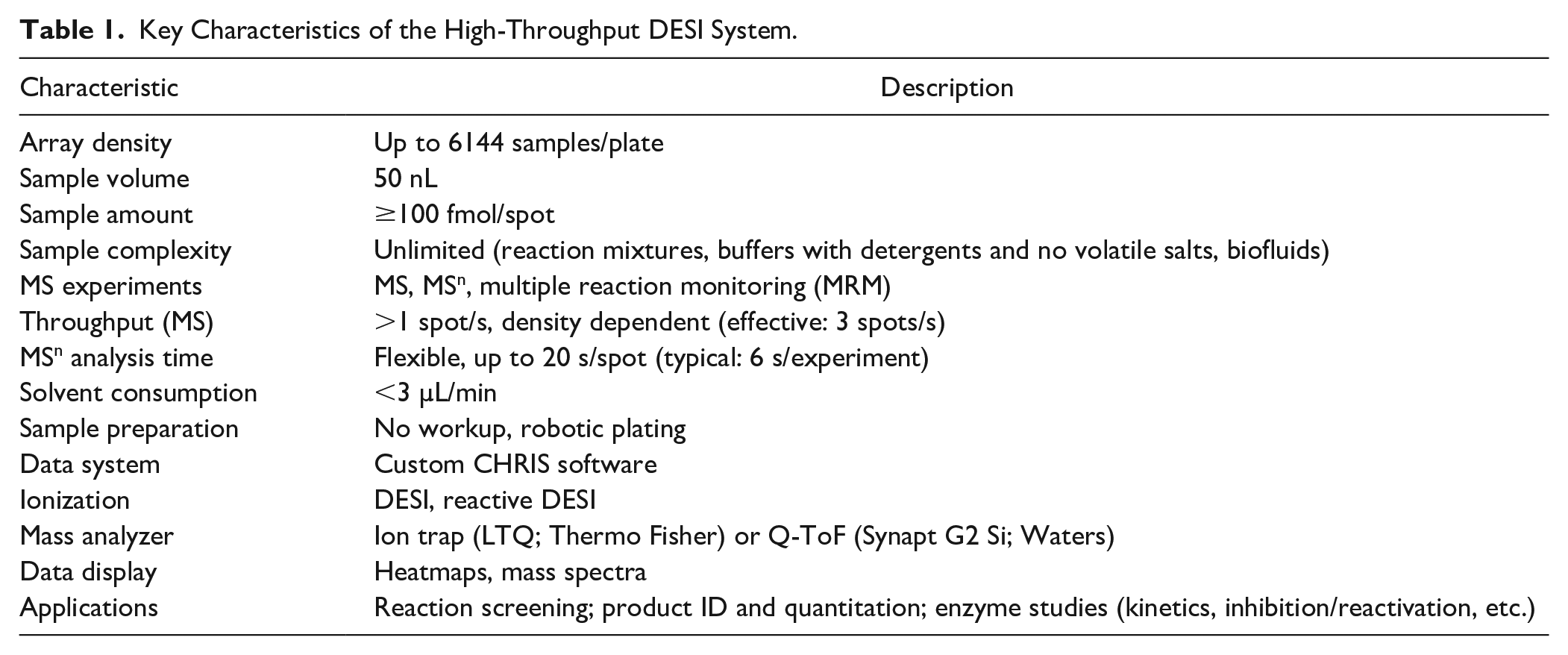

Table 1.

Key Characteristics of the High-Throughput DESI System.

Characteristic	Description
Array density	Up to 6144 samples/plate
Sample volume	50 nL
Sample amount	≥100 fmol/spot
Sample complexity	Unlimited (reaction mixtures, buffers with detergents and no volatile salts, biofluids)
MS experiments	MS, MSⁿ, multiple reaction monitoring (MRM)
Throughput (MS)	>1 spot/s, density dependent (effective: 3 spots/s)
MSⁿ analysis time	Flexible, up to 20 s/spot (typical: 6 s/experiment)
Solvent consumption	<3 µL/min
Sample preparation	No workup, robotic plating
Data system	Custom CHRIS software
Ionization	DESI, reactive DESI
Mass analyzer	Ion trap (LTQ; Thermo Fisher) or Q-ToF (Synapt G2 Si; Waters)
Data display	Heatmaps, mass spectra
Applications	Reaction screening; product ID and quantitation; enzyme studies (kinetics, inhibition/reactivation, etc.)

Versatile Combinatorial Synthesis and Reaction Acceleration

To demonstrate the versatility of the high-throughput synthesis and screening capabilities of the system, a total of 24 types of reactions were screened: reductive amination, nucleophilic aromatic substitution (S_NAr), Suzuki–Miyaura coupling, amine alkylation, amine acylation, amine arylation, Katritzky transamination, Claisen–Schmidt condensation, Friedel–Crafts alkylation, Friedel–Crafts acylation, exhaustive methylation followed by Hofmann elimination, Ugi reaction, Schiff base reaction, Biginelli reaction, Hantzsch pyridine synthesis, Malaprade oxidation, Baeyer–Villiger oxidation, Fischer esterification, Diels–Alder reaction, Sonagashira coupling, benzimidazole formation, Negishi coupling, alkyne cycloaddition,⁸⁰ and Buchwald–Hartwig amination. For each of these reaction types, between 2 and 16 combinations of several variables (reactants, catalysts, and solvents) were selected for analysis, yielding a total of 188 unique reactions (24 reaction types, 8 replicates per sample, 1500 samples in total) to be analyzed in a single campaign. Specific reactants, solvents, conditions, and catalysts for each reaction are included in the Supplemental Material.

The final concentration of each reactant in the reaction mixture was 50 mM, whereas the concentrations of catalysts, if used, were fixed at 10 mol%. All the reactant and catalyst stock solutions were prepared separately (in independent 384-well plates) and only mixed in a master plate immediately before pinning. This was done to minimize the reaction time in bulk. All the plating and mixing steps were carried out using the automated liquid handling robot. Manual work was limited to the preparation of stock solutions. Duplicate mixtures were prepared for each reaction, and four replicate spots of each mixture were transferred onto a DESI plate and immediately analyzed. The total time between initial mixing and full MS analysis was less than 2 min. MS analysis of ~1500 samples was completed in 25 min. Further MSⁿ analysis was later carried out using the same spotted plates. Replicate spots were used when performing multiple MSⁿ experiments. All analyses were carried out using a Prosolia DESI 2D stage (Zionsville, IN) and a Thermo Fisher LTQ XL ion trap (Waltham, MA) in the positive ion mode using as DESI solvent methanol (2.75 µL/min) and a spray voltage of 4 kV. The transfer capillary temperature was set at 300 °C, while the capillary and tube lens voltages were fixed at 14 V and 47 V, respectively. The DESI impact angle was 55°. The nitrogen pressure for the DESI spray was set at 150 psi. Collision-induced dissociation (CID), with helium as collision gas, was used for MSⁿ experiments.

NNMT Activity Assay

NNMT activity was assessed using conditions previously utilized in the literature with regard to buffer (5 mM Tris pH 8.6, 1 mM DTT), incubation temperature (37 °C), and final concentrations of enzyme (human NNMT, 100 nM), S-adenosyl-l-methionine (SAM) (100 µM), and pyridine substrate (2 mM).^81–85 All assays started with a 5 min incubation of the NNMT enzyme and the pyridine substrate in buffer, followed by the addition of SAM to initiate the reaction. Pyridine substrates were initially dissolved in DMSO. The final concentration of DMSO in the reaction mixture was <0.5%. No significant difference in enzymatic activity was observed with these DMSO levels. All reagents were purchased from Sigma Aldrich (St. Louis, MO), except for the inhibitor sinefungin obtained from Cayman Chemical (Ann Arbor, MI); all reagents were used as received.

Reaction monitoring was carried out discontinuously for 3 h, whereas endpoint assays were performed after incubation for 1 h. Quenching was achieved by the addition of a reaction volume of acetonitrile containing 1% formic acid. The quenching solvent also included neostigmine (10 µM), chosen as the internal standard. No sample preparation was required prior to analysis. Assay mixtures were pinned directly after quenching from a 384-well plate onto a DESI slide. MS analysis was performed using a Prosolia DESI 2D stage and a Thermo Fisher LTQ XL ion trap operating in full-scan MS-positive mode. The DESI solvent used was methanol with 0.1% formic acid (2.75 µL/min), and the spray voltage was 4 kV. The transfer capillary temperature was set at 300 °C and its voltage at 38 V. The tube lens voltage was 68 V. The DESI impact angle was fixed at 55°, and the nitrogen pressure for the spray was kept at 150 psi.

Results and Discussion

Versatile Combinatorial Synthesis and Reaction Acceleration

A unique capability of the DESI-MS high-throughput system arises from the reaction acceleration phenomenon that occurs in small-volume microdroplets, such as those originating during nano-ESI, DESI, or electrosonic spray ionization.⁶⁷ This acceleration phenomenon has been linked to the unique conditions at the droplet–air interface (reaction rates increase strongly with decreasing droplet size), and not simply to the increased concentration of reagents in evaporating droplets.^{65,67,86–88} Furthermore, it has been demonstrated that simply collecting the droplets sprayed from a reaction mixture allows the collection of milligram amounts of reaction product.⁸⁹ This capability confers a clear advantage for reaction screening: considerable product yields (obtained through a microdroplet-accelerated reaction) can be obtained with little to no incubation time prior to analysis. This is exemplified in the results of the 188 combinatorial reactions on a single plate screened using microdroplet-accelerated reactions with no bulk incubation time ( Fig. 2 ). Many of the samples show significant reactivity in this study, while several other reaction types do not yield appreciable amounts of product using these timescales and reaction conditions. These results suggest, as has been previously reported, that not all reactions have dramatically enhanced reaction rates in microdroplet systems.⁹⁰ Additionally, it is important to note that (1) the analysis was carried out only in the positive ion mode, and (2) some the reactions attempted are typically performed under inert atmosphere. Note that under the conditions selected, we are assessing which of the reactions are effectively accelerated in the DESI droplets. Multiple cases of conventional reaction screening (i.e., heated bulk incubation) for optimization of synthetic conditions using the DESI system have been previously demonstrated.^{9,12,70,73,91}

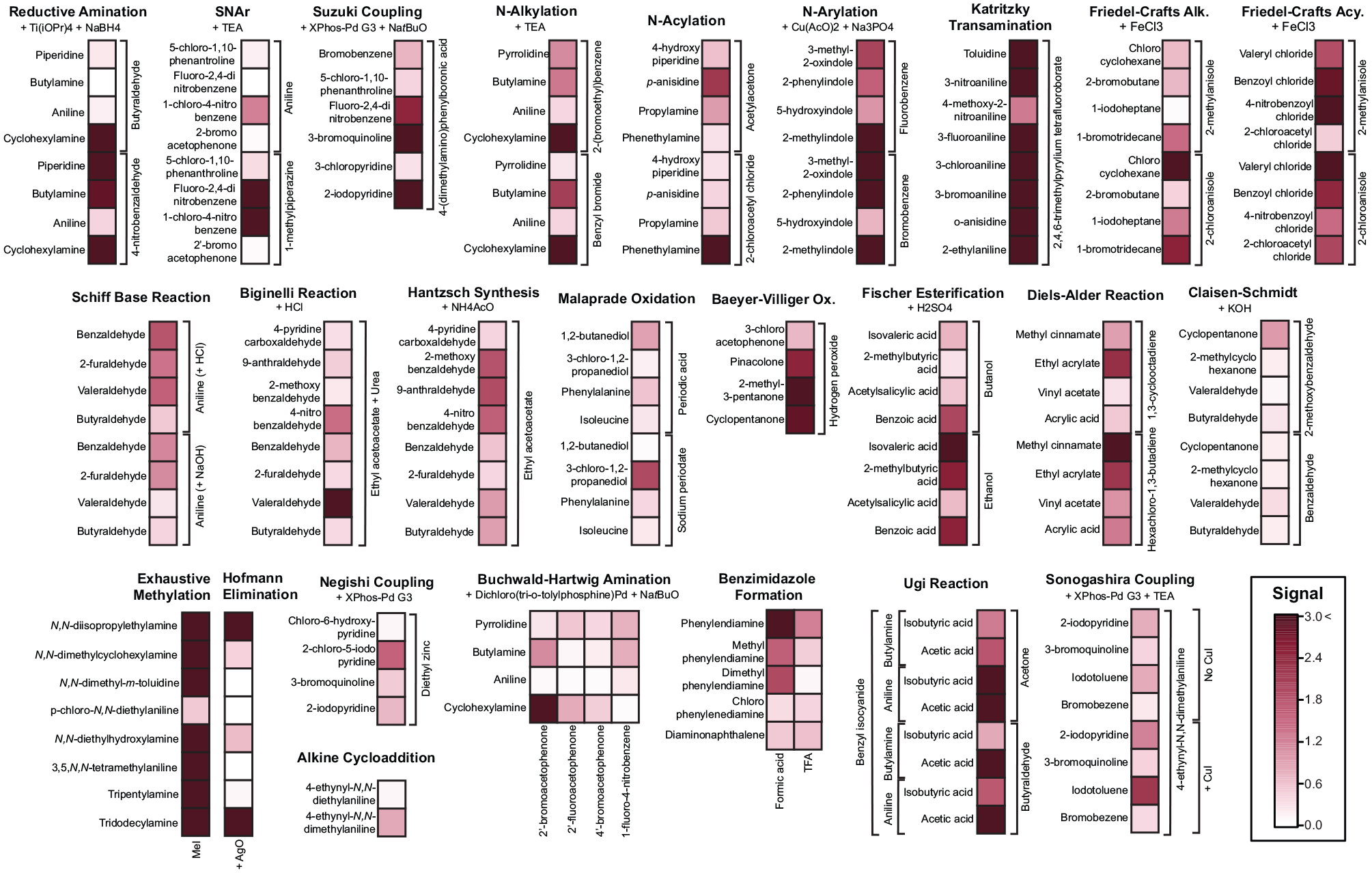

Figure 2.

Segmented heatmap obtained through the screening of 24 reaction types, with 188 unique reactions. Eight replicates were run for all reactions. The results represent averages across all replicates. Response corresponds to signal in mass spectrum expressed relative to the average blank response.

Some representative spectra from diverse successful reactions are shown in Figure 3 and Supplemental Figure S1 . As observed, high-quality spectra are obtained from the reaction mixtures despite the 0.3 s analysis time. For each of the 188 reactions, the m/z values of the protonated forms, [M+H]⁺, of the expected products were calculated a priori (see Supplemental Material) and used as input for the data processing software. The peak intensities of each m/z value (signal in the mass spectrum) expressed relative to the background were used to create a segmented heatmap ( Fig. 2 ) as the experimental result. Results represent averages of eight reaction replicates (independent duplicates with four instrumental replicates). Reactions with signal above 3 are typically considered successful reactions. From the heatmap, it is evident that reductive amination, S_NAr, N-arylation, Katritzky transamination, and Ugi reactions were among those with a high percentage of largely successful individual reaction combinations. Remarkably, all but one reaction in the set of Katritzky transamination reactions was successful, agreeing with the strong microdroplet acceleration effect that has been observed for this reaction in other droplet systems (e.g., Leidenfrost, nanoelectrospray).^86,92,93

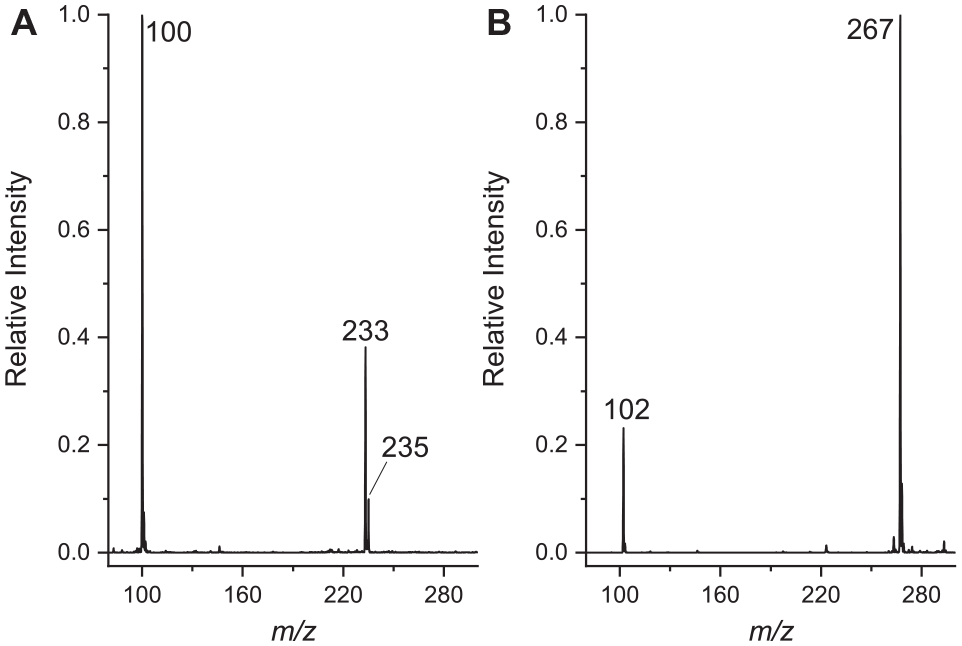

Figure 3.

Representative MS spectra from successful reactions. (A) Spectrum corresponds to the reductive amination between 4-nitrobenzaldehyde and cyclohexylamine (m/z 100). Both the imine intermediate (m/z 233) and final amine product (m/z 235) are observed. (B) Spectrum corresponds to the S_NAr between fluoro-2,4-dinitrobenzaldehyde and 1-methylpiperazine. Triethylamine (m/z 102), which is used as the base, and the final amine product (m/z 267) are observed. The piperazine reactant (m/z 101) was not detected, suggesting that the reaction went to completion.

Within each reaction type, the reactivity trend of the individual reagent combinations reflects the expected behavior of the chemical species, indicating that the system is reliable in capturing the chemical reactivity. For instance, in the case of reductive amination, 4-nitrobenzaldehyde shows a higher reactivity than butyraldehyde, owing to the nitro electron-withdrawing group, which favors nucleophilic attack.⁶ Similarly, aliphatic amines, as expected, are more reactive compared with aromatic amines. Another clear example is the unsuccessful reaction of aniline with 4-nitrobenzaldehyde, and this effect also explains why the imine formation reactions, all using aniline, were unsuccessful. Note that the same trend is observed in the S_NAr reactions, where 1-methylpiperazine was more reactive than aniline. This agrees well with the expected trend that product formation in S_NAr is favored by amines with electron-donating groups and aryl halides with electron-withdrawing groups (compare the cases of the nitro substituted aryl halides with, for instance, 5-chloro-1,10-phenanthroline).⁷ A further example of predictable structure–reactivity relationships is found in the N-arylation reactions, where fluorobenzene shows lower reactivity than bromobenzene, agreeing with previous reports,⁹⁴ as is the effect of the leaving group (e.g., fluorine vs bromine). A similar effect was observed in the Suzuki coupling reactions, where the oxidative addition is usually the rate-determining step of the mechanism.⁹⁵ This step is primarily controlled by the bond dissociation energy of the aryl halide C–X bond, and therefore the reaction can be predicted to favor the halides in the order I > Br > Cl > F,⁹⁵ which agrees well with the results obtained. Expected reactivity trends were also observed in the formation of benzimidazoles directly from aromatic diamines and carboxylic acids, a reaction previously described under microdroplet conditions.⁸⁷ Formic acid was proven more reactive than trifluoroacetic acid (TFA), while phenylenediamine was found as the most reactive substrate. Both conclusions are in agreement with the nanoelectrospray and electrosonic spray experiments used previously to characterize the reactant scope of this system.⁸⁷ Note that these intrareaction reactivity trends can be abstracted from the screening data by using the criterion of successful versus unsuccessful transformations, even without absolute quantitation of the reaction products (which is hindered by the differences in ionization efficiencies; see the “Limitations of DESI-MS for Reaction Screening” section), providing excellent agreement with the expected chemical behaviors.

Further examination of the full MS spectra of individual reactions provides insight into the causes of unsuccessful reactions. For example, in the case of Hofmann elimination, several reactions yielded no elimination product, but upon inspection of the MS spectra, the presence of a strong signal for the reaction intermediate was noted. These intermediates are simply the result of exhaustive methylation with methyl iodide—the first step in the Hofmann elimination reaction pathway. Note that two of the substrates (both N,N-dimethylanilines) cannot produce elimination products, consistent with the negative results obtained for the elimination despite successful methylation. Other interesting examples found upon inspection of the full MS spectra provided study cases for the MSⁿ characterization capabilities of the platform, as described in the next section.

MSⁿ Characterization of Products, Intermediates, and Side Products

The high-throughput DESI-MS platform, when coupled to an ion trap mass spectrometer, allows ready product characterization through MSⁿ experiments. The capability of performing full high-throughput MS screening followed by MS² characterization has been reported previously,⁶ but here we extend it by performing MS³ and MS⁴ experiments directly on the DESI samples. The only software modification required is a change in the method file to which CHRIS refers when performing the analysis. Single raw files with the MSⁿ data are obtained for each spot analyzed. These files can be analyzed manually or automatically parsed using MSConvert⁹⁶ and custom MATLAB scripts. Due to the limited amount (low nanograms) of sample at each spot, a maximum of two stages of the MSⁿ experiment can be performed while still obtaining high-quality spectra. This means that MS² and MS³ experiments can be performed on the same spot, but the MS⁴ analysis must be performed in a replicate spot. Reasonably, this requirement depends on the concentration of the sample and the acquisition time of each experiment. In the data shown, acquisition times were limited to 7 s/experiment using a single normalized collision energy (25 arbitrary units). Note the order of magnitude greater time required for MS/MS versus single-stage MS.

We assessed the MSⁿ analysis capability by evaluating in some detail two interesting cases found in the reaction plate screened. The first is the reductive amination reaction between 4-nitrobenzaldehyde and piperidine to form 1-(4-nitrobenzyl)piperidine ( Fig. 4A ). Besides the expected amine product ([M+H]⁺ m/z 221), a significant peak at m/z 219 was observed in the full mass spectrum, and this m/z value matches that of the expected imine reaction intermediate. To confirm this assignment identity, MS² and MS³ experiments were performed selecting m/z 219 as the precursor ion. These spectra showed three main product ions upon MS² fragmentation: m/z 189, 173, and 161 ( Fig. 4B ). These products correspond to neutral losses of 30, 46, and 58, respectively, which is a typical pattern for nitroaromatic compounds that fragment by loss of NO₂^. (46), as well as NO^. (30) followed by CO (28).^97–99 This latter fragmentation pathway was confirmed by the MS³ experiment starting with the sequence m/z 219 → m/z 189 ( Fig. 4C ), which primarily yields m/z 161 (loss of 28, CO). The expected reduced product of the reaction, the amine, was also characterized through MSⁿ experiments for comparison. Analogously to the imine intermediate, the MS² spectrum of the protonated amine product (m/z 221) showed the neutral losses characteristic of nitroaromatic compounds (30, 46, 58) yielding product ions at m/z 191, 175, and 163 ( Fig. 4D ). However, the amine also produced three additional products (m/z 189, 173, and 161); each is 2 m/z units below each of the characteristic fragment ions. These product ions appear to originate by the loss of H₂ from the radical cations [MH–NO₂]⁺^., [MH–NO]⁺^., and [MH–NO–CO]⁺^., behavior that has been reported previously for several nitroaromatic radical cations.⁹⁹ Note that, as expected, the product ion at m/z 191 fragments identically to its counterpart produced from the imine intermediate (m/z 189) upon MS³ analysis ( Fig. 4E ).

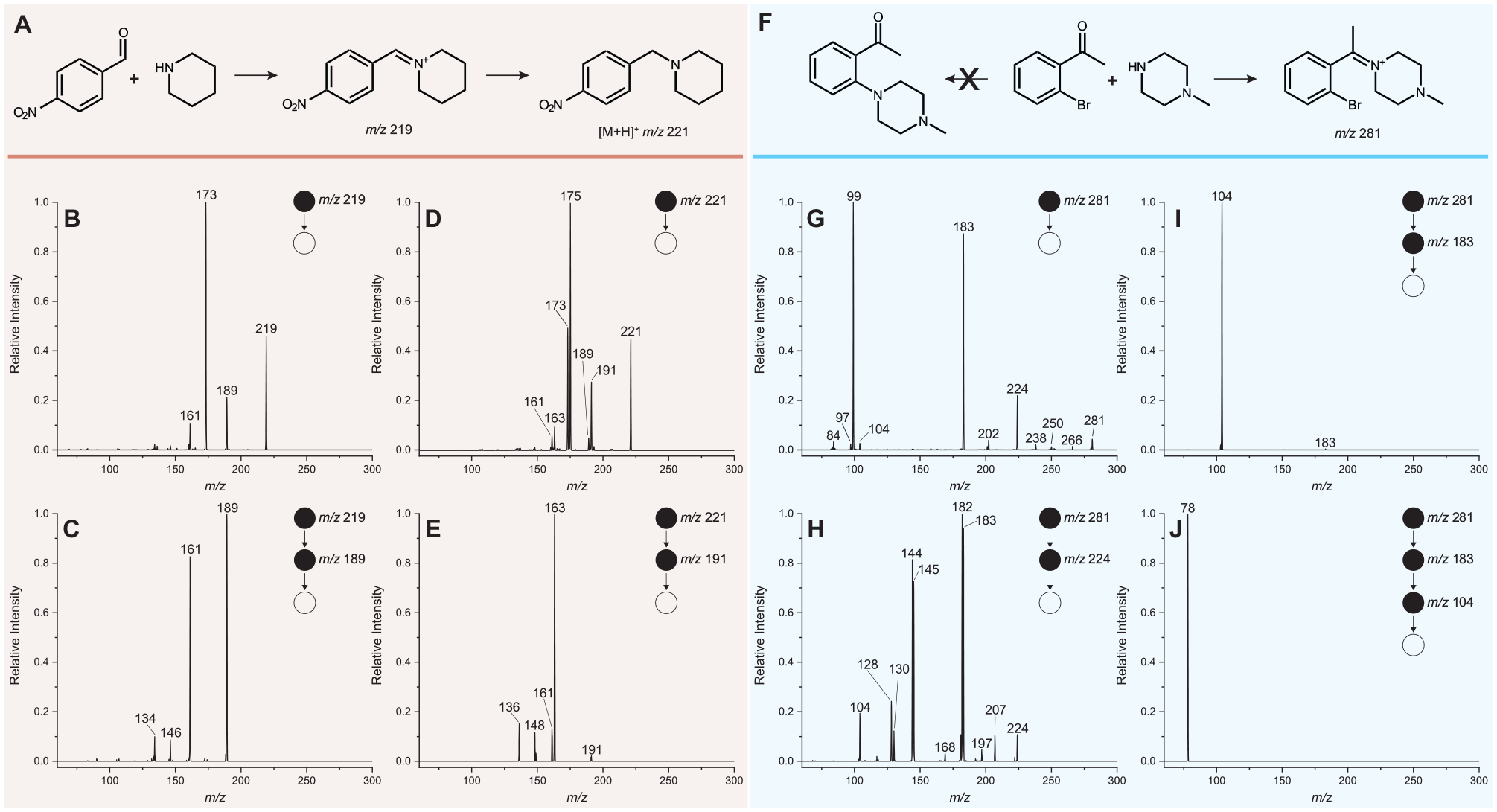

Figure 4.

MSⁿ experiments covering two interesting cases found in screening the XY plate. (A) The scheme shows the expected reductive amination between 4-nitrobenzaldehyde and piperidine, including the imine intermediate and the amine product, both observed in the mass spectrum of the reaction mixture and characterized by MS² and MS³. (B) The intermediate imine, m/z 219, showed three major fragments upon MS² analysis, (C) similar to the behavior of its product ion m/z 189 after its MS³ fragmentation. The amine product, m/z 221, was also characterized through (D) MS² and (E) MS³ of the product ion m/z 191. (F) The scheme shows the reaction between 2′-bromoacetophenone and 1-methylpiperazine, a pair of compounds evaluated for the S_NAr reaction, but which yielded the imine. This unexpected side product was characterized through (G) MS², MS³ of the product ions (H) m/z 281 and (I) m/z 183, and (J) MS⁴ of the only product (m/z 104) formed upon fragmentation of the MS² product ion m/z 183.

A second case of interest is the reaction of 2′-bromoacetophenone and 1-methylpiperazine. This reaction mixture was explored under the category of S_NAr; however, it did not yield the expected product, 2′-(4-methylpiperazin-1-yl)acetophenone ( Fig. 4F ). Nonetheless, a pair of significant peaks was identified at m/z 281 and 283, with almost equal intensities. These bromine containing ions are proposed to be the product of the nucleophilic substitution on the ketone instead of the ring, thus conserving the isotopic pattern. This assignment was confirmed by MSⁿ experiments on the precursor at m/z 281. The MS² spectrum obtained ( Fig. 4G ) shows three main product ions at m/z 224, 183, and 99, plus some minor fragments such as m/z 202, which results from the loss of ⁷⁹Br^. (79). The fragments at m/z 99 and m/z 183 correspond to the cleavage of the imine bond generating either 4-methyl-2,3,4,5-tetrahydropyrazin-1-ium (m/z 99) by loss of 1-bromo-2-vinylbenzene (neutral loss 182) or the benzylic ion 1-(2-bromophenyl)ethyl-1-ium (m/z 183) by loss of 1-methyl-1,2,3,6-tetrahydropyrazine (neutral loss 98). This characteristic fragmentation has been described previously for some N-substituted phenylmethanimines.¹⁰⁰ Note that the product ion at m/z 183 was further characterized by MS³ ( Fig. 4I ), where it generated a fragment at m/z 104 resulting from the loss of ⁷⁹Br^. (79). Furthermore, the product at m/z 104 yielded an ionic fragment, m/z 78, upon MS⁴ analysis ( Fig. 4J ). This fragment corresponds to the benzene radical cation ([C₆H₆]⁺^.) generated by the neutral loss of acetylene (26). Such a fragment has been described as a product ion after CID of substituted aromatic radical cations.¹⁰¹ A more complex MS³ spectrum was obtained from the product ion m/z 224 ( Fig. 4H ), assigned to cross-ring fragmentation through the piperazine with the neutral loss of 1-methylaziridine or N-methylethanimine (57).^102–104 The MS³ fragments of the m/z 224 ion include m/z 145 and 144, from the neutral loss of ⁷⁹Br^. (79) and H⁷⁹Br (80), respectively, as well as m/z 183 (previously described 1-(2-bromophenyl)ethyl-1-ium ion) and m/z 182, which can be tentatively assigned to 2-bromobenzonitrilium radical cation.

The utility of MSⁿ experiments is evident, even in these simple cases where some ideas exist about the nature of the potential intermediates or side products. However, for more complicated situations, ongoing efforts are oriented toward developing and incorporating machine learning algorithms into the high-throughput data system. These algorithms are oriented toward assisting in the structure elucidation of unknowns based on MS/MS information. The training of these methods clearly relies on the high-throughput platform itself and specifically on the ability to create large spectral libraries rapidly and efficiently.¹⁰⁴

Limitations of DESI-MS for Reaction Screening

As previously described, DESI doubles as an analytical and a synthetic tool, allowing the screening of already carried out reactions, as well as accelerating transformations without bulk incubation time (as here demonstrated). However, this highlights the question of where the reactions are occurring and raises a subsequent concern regarding the translation of DESI results to conventional synthetic methods of scale-up. The first question is challenging, considering that there are three locations in which the reaction can occur: (1) in the microtiter array (i.e., in bulk), with no acceleration; (2) in the thin film generated when nanoliter aliquots of the reaction mixture are spotted on the DESI plate, with some acceleration; or (3) in the DESI droplets, with the most acceleration.⁶⁷ In some cases, the observed output might be a combination of effects, whereas in others one of the reaction locales might be dominant. For instance, some of the reactions explored in this work showed little acceleration (whether in droplets or thin films); thus, when screened in a conventional DESI fashion, their results are ascribed to the bulk reaction. On the other hand, for reactions strongly accelerated in droplets, such as the Katritzky transamination, this will be the overwhelming cause of reaction acceleration. Nonetheless, it is important to highlight that despite this uncertainty in reaction location, DESI-based screening of organic reactions is valid and useful, as the conditions found optimal using DESI-MS can be readily translated to more conventional scaled-up synthesis methods such as flow chemistry (besides already existing droplet-based scale-up systems).⁸⁹ We have demonstrated this compatibility extensively for the synthesis of products of pharmaceutical interest, such as lomustine, a first-line agent for the treatment of brain tumors and second-line agent for Hodgkin’s lymphoma,⁹ and HSN608, a potent pan-active FLT3 inhibitor lead compound for the treatment of acute myeloid leukemia.¹² Furthermore, we have shown in multiple cases that the results obtained by high-throughput DESI-MS are directly comparable to traditional LC-MS screening, although the DESI-based analysis is orders of magnitude faster.^6,70

Another limitation arises from the ability to determine quantitative product yields. The direct use of ion counts (peak intensity) from full MS analysis, in the absence of internal or external standardization, does not necessarily provide quantitative information regarding the yield of a particular reaction across different reaction conditions or when comparing diverse reaction types. This is mainly due to the differences in ionization efficiencies across the various species screened and the dependence of this parameter on the composition of the solution. Consequently, the reaction screening presented here is intended to be qualitative, even a yes/no reaction output, and not a precise quantitation of reaction products (which would demand specific standards and calibration for each potential reaction in each reaction environment). However, note that in our particular combinatorial experiment the observation of trends across a single reaction type (i.e., same reaction conditions and at least one identical reactant), although not quantitative, is still highly informative. This claim is supported by considering (1) the excellent agreement of the experimental results with the expected chemical reactivity trends, as described above, and (2) the similarity in ionization efficiencies across the expected product species in each selected subset. For instance, within the Suzuki coupling reactions, all expected products are aromatic analogs with an identical 4-(dimethylamino)phenyl moiety, whose tertiary nitrogen (shared by all products) is the most likely protonation site. Comparisons between diverse reaction types, with significantly different products, are less direct due to the confounding effect of the dissimilarities in ionization efficiencies. However, even in these cases, the MS information is useful in assessing compound purity. If required, the addition of internal standards to obtain quantitative reaction information from quenched reaction mixtures, as it has been shown for MALDI-based screening,¹⁰⁵ is directly compatible with the workflow of the high-throughput DESI-MS platform. Note also that the limitation imposed by ionization efficiency is not exclusive to DESI-MS, but is shared by all methods based on MS.

The absence of quantitative concentration measurements does not always represent a limitation. For instance, in the case of most biological assays, the test compounds, for example, inhibitors (which change from sample to sample), are not the species being determined through the assay. Hence, when testing enzymatic inhibitors, the inhibitor itself is not quantified, but the substrate and/or product of the target enzyme is, and this is the same across all assays. The ratio between product and substrate (which is precisely determined by DESI) can then be utilized as a proxy for the bioactivity measurement, so that trends can be established even without the use of calibration procedures. Calibration in these cases allows for processing of the ion ratios in order to obtain accurate numeric responses, directly comparable to other methods. An example of successful standardization of DESI-MS data utilizing an internal standard to obtain quantitative results is presented in the following section for the study of the NNMT enzyme.

NNMT Activity Assay

NNMT is a small-molecule methyltransferase, primarily involved in the N-methylation of nicotinamide (also known as vitamin B3) to produce N-methylnicotinamide. NNMT requires the cofactor SAM, which acts as a methyl donor and is converted into S-adenosyl-l-homocysteine (SAH). The overexpression of NNMT has been related to several diseases, including cancer, obesity, and diabetes.^{83–85,106,107} Therefore, the development of high-throughput assays of NNMT activity is increasingly relevant to biological understanding and therapeutics. Traditional NNMT high-throughput assays rely on radioactive labeling (typically radiolabeled SAM) or fluorescence generation through coupled chemical or enzymatic reactions,⁸² such as the 2,7-naphthyridin-1(7H)-one formation between N-methylnicotinamide and acetylbenzofurane,^108,109 or the enzymatic conversion of SAH into homocysteine, which can be detected using thiol-specific fluorescent probes.¹¹⁰ These assays, despite being widely used and even commercially available, have several disadvantages, including the use of radioactive material or labels and the need for multiple preparation steps, which makes them slow and labor-intensive.⁸² Recently, methods have been developed around label-free fluorescence assays with a significantly limited substrate scope (only quinolines yielding florescent quinolinium ions upon N-methylation),⁸² capillary electrophoresis,¹¹¹ and LC (coupled with either UV detection or MS).^83–85,112 Although successful and versatile, the introduction of separation techniques dramatically reduces the throughput of these assays, with chromatographic runs taking 2 min in the fastest cases (using hydrophilic interaction liquid chromatography [HILIC])^84,85 and up to 25 min in the slowest (using C18 reverse-phase columns).^83,112

In contrast, through use of the high-throughput DESI-MS platform, the enzymatic assay can be directly performed without labels at rates faster than 1 s/sample (~0.3 s/sample of effective analysis time). The NNMT assay was easily adapted using reported conditions for buffer, concentrations, incubation, and quenching (see the “Experimental Methods” section). The only modification necessary was the addition of an internal standard to the quench solvent. Neostigmine (m/z 223) was chosen as internal standard due to its broad structural similarities to N-methylnicotinamide, as well as its much lower cost compared with deuterated analogs. No sample preparation is required, as reaction mixtures are directly transferred from a 384-microtiter plate to the PTFE DESI plate. Remarkably, all the results presented in Figure 5 (~1400 spots) were acquired during a single plate run, requiring less than 25 min of analysis.

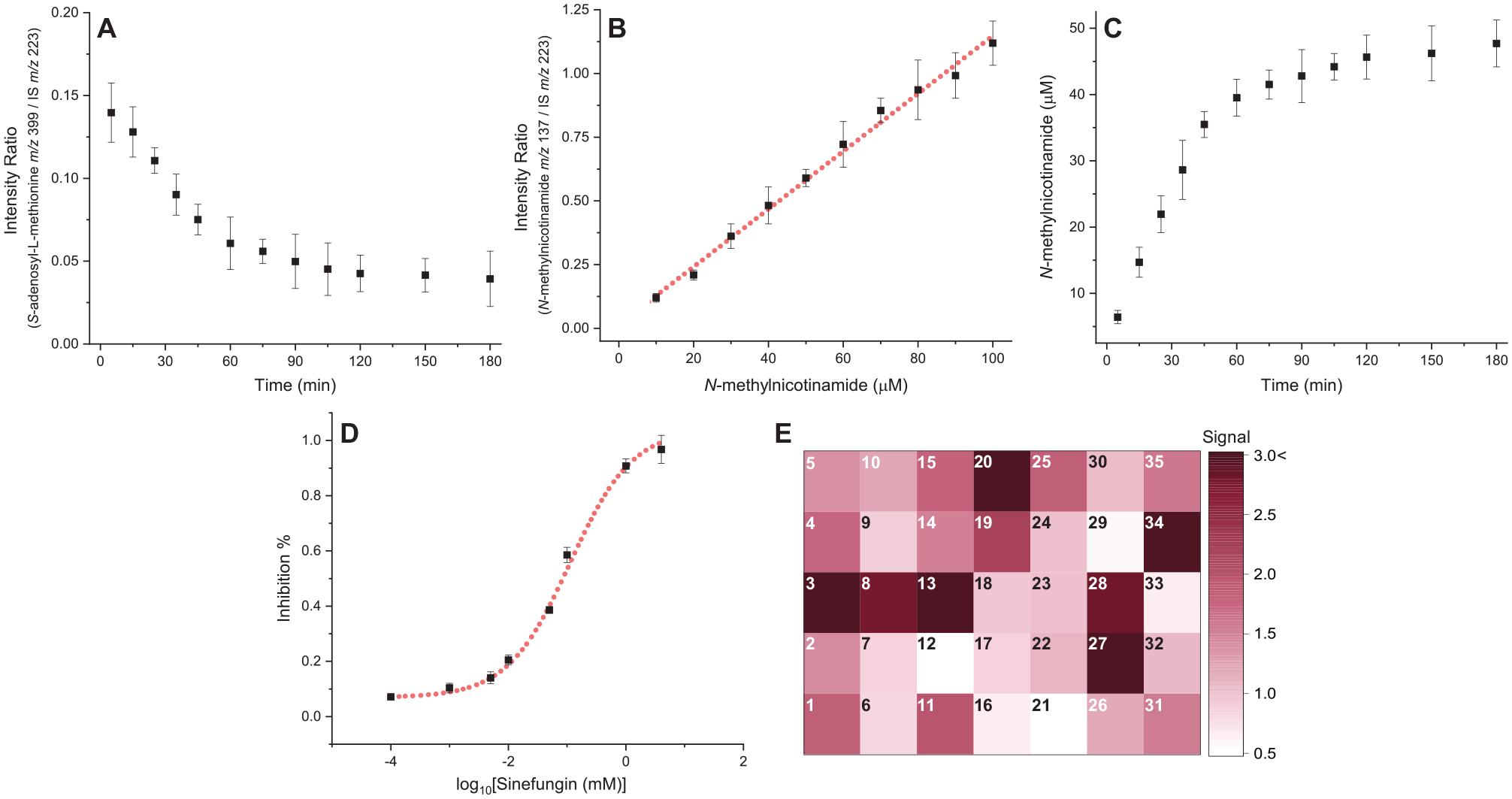

Figure 5.

Results of the NMMT activity assays carried out using the high-throughput DESI-MS platform. The enzymatic reaction was monitored discontinuously following the response (ion intensity) of (A) a reactant (SAM, m/z 399) or (C) one of the products (N-methylnicotinamide, m/z 399), relative to that of the internal standard (neostigmine, m/z 223). (B) Intensity ratios (N-methylnicotinamide/neostigmine, m/z 399/223) were converted to concentrations of the product using a calibration curve (R² > 0.99, limit of quantitation [LOQ] = 1.52 µM). (D) Endpoint assays were also performed to obtain dose–response curves and IC₅₀ values for a known NMMT inhibitor, sinefungin, whose IC₅₀ was calculated at 112 µM. Additionally, multiple substrates were screened, monitoring the m/z values of their expected N-methylation products. (E) The screening results are presented as a heatmap of MS signal, expressed relative to the background, for each of the expected products. An indexed list of the substrates screened is included in the Supplemental Material. The results included in this figure represent data from of ~1400 samples that were analyzed in a single run in less than 25 min.

DESI-MS analysis in full MS mode was used to simultaneously monitor product generation and reactant consumption. Due to their ionic character, N-methylnicotinamide (m/z 137) and SAM (m/z 399) were chosen to be monitored. The behavior of their ratios with respect to the internal standard over time directly reflects the reaction progress ( Fig. 5A ). Through use of a calibration curve ( Fig. 5B ), the ion intensity ratios can be readily converted into concentration of reactant or product, so that conventional reaction progress curves can be obtained ( Fig. 5C ). The initial linear region of this latter curve can be used to estimate initial velocities and, after varying substrate concentrations, Michaelis–Menten kinetic parameters, as has previously been demonstrated.⁶² Each data point included in the reaction progress curves, as well as the calibration curve, represents 24 replicates (independent triplicates with 8 instrumental replicates). The method showed good quantitative performance, with all points having coefficients of variation (CVs) better than 15%. Note that the concentration of SAM does not reach zero when the reaction progression plateaus, something expected considering the inhibitory activity of the reaction product on NNMT.⁸³ Representative spectra of the reaction progression are shown in Supplemental Figure S2 .

In a similar fashion, inhibitors can be screened and characterized using the DESI-MS-based assay. Here we demonstrate this capability through a dose–response study of sinefungin ( Fig. 5D ), a known inhibitor of NNMT. The ratio of N-methylnicotinamide to neostigmine was used as a proxy for enzymatic activity, and the percent inhibition was calculated with respect to positive and negative controls. The expected sigmoidal relationship was obtained with adequate goodness of fit (adjusted R² = 0.995), and an IC₅₀ value of 112 µM (pIC₅₀ = 3.95 ± 0.12) was calculated. Good reproducibility is observed (CV < 15%) across the 24 replicates screened for each inhibitor concentration.

Finally, thanks to the versatility of the high-throughput DESI-MS assay, multiple pyridine substrates can be screened rapidly without any changes to the method. This exploration of NNMT substrate tolerance is a relevant problem considering that the enzyme has a role in xenobiotic detoxification.^84,85 Previous studies have explored several pyridines, quinolines, and cyclic amines,^85,113 finding, for instance, that quinoline can be a substrate of NNMT,⁸² albeit with lower kinetic efficiency than pyridine.^85,109 However, the substrate scope tested has been modest (<30 compounds), yielding few trends in its description. Therefore, this is a challenging case in which label-free HTS would be greatly beneficial. Here, as a proof of concept, we screened the 35 pyridines/quinolines available in our laboratory (complete list available in the Supplemental Material) to test the promiscuity of the enzyme. The success of the methyl transfer was assessed in this case by evaluating the presence of the expected pyridinium/quinolinium product (substrate + CH₃: m/z [M+15]⁺). Average (n = 16) MS signal values, expressed relative to the background, were used to determine the presence or absence of the product ( Fig. 5E ). From the 35 substrates screened, 5 yielded high signal (>3). Representative spectra of these cases are included in Supplemental Figure S3 . Note that, as discussed above in regard to the limitations in organic reaction screening, the results across different enzymatic substrates are not necessarily directly comparable. However, in this particular case, (1) the screening is being utilized only as a yes/no analysis of the NMMT substrate scope (no absolute quantitation in sought), and (2) all the expected products are pyridinum or quinolinium cations in the same reaction environment; therefore, no formal ionization efficiency differences exist among them, making valid the comparisons between the substrates studied.

Three of the successful substrates had substituents in the third position: 3-chloropyridine (13), 3-phenylpyridine (20), and 3-aminoquinoline (27), whereas two were substituted in the fourth position: 4-(dimethylamino)pyridine (3) and 4-tert-butylpyridine (34). These results are in line with previous reports that suggest some favorability for substrates substituted in the third position (as in nicotinamide, the native substrate).⁸⁵ However, this favorability is highly dependent on the substituent, as in both our results and previous reports not all substrates substituted in the third position led to product (e.g., 3-ethylpyridine (29), 3-butylpyridine (19), 3-cyanopyridine (1)). Significantly few examples of substrates substituted in the fourth position have been evaluated previously, but our results seem to indicate certain tolerance for particular groups in that position. Large-scale screening efforts, which could be rapidly carried out using the high-throughput DESI-MS platform, might provide greater insight into the substrate scope of NNMT, adding valuable information to the existing knowledge on xenobiotic metabolism and detoxification.

Conclusions and Future Directions

As demonstrated, the Purdue Make It DESI-MS system has distinctive capabilities (i.e., ambient ionization, direct analysis of complex samples, microdroplet-accelerated reactions, and rapid MSⁿ characterization) that allow it to be used to perform high-throughput reaction screening, nanoscale synthesis, and (bio)analysis in a manner that is (presently) unmatched by other technologies. The DESI system serves as both a robust analytical tool and a synthetic methodology, while maintaining a competitive throughput (>1 sample/s), comparable to techniques that have more complex technical requirements. Additionally, it combines the versatility, specificity, and sensitivity of MS with the simplicity and convenience of the direct ambient analysis from complex mixtures, regardless of the presence of buffers, detergents, or nonvolatile salts. These qualities exceed those of many systems, especially those that utilize LC for sample workup or those that use optical methods of detection. These features, in addition to maintaining an automated sample handling, analysis, and data processing workflow, permit and encourage the user to employ creative and innovative experiments that are not available in any current technologies. Due to the modularity and accessibility of the Make It system, it is typically straightforward to implement small changes to the instrumentation or methodology to explore new systems and types of experiments.

One such new endeavor, currently under development, is based on the concept that nanogram amounts of reaction product can in principle be collected (by capturing a fraction of the secondary DESI droplets instead of directing all of them to the mass spectrometer) while performing HTS. Their collection will allow the high-throughput identification of optimal reaction conditions, as well as permitting small amounts of products to be available for subsequent high-throughput biological testing or orthogonal analytical characterization. This collection step will represent a bridge between all the current demonstrated capabilities of the platform—nanoscale synthesis, reaction screening, and label-free biological testing—yielding a whole integrated system suitable, for example, for a complete DESI-MS-based drug discovery campaign.

Other efforts underway are oriented toward implementation of machine learning for automated identification of reaction products from MS/MS spectra. This capability requires large data sets, which are readily obtained from the automated system, as already described. Furthermore, the Purdue Make It system capabilities for bioanalysis are not limited to traditional enzyme kinetic characterization and modulation by small molecules, as shown above. Possibilities exist to easily adapt the instrumentation and methodology to allow for adaptation of a variety of bioassays (e.g., permeability assays, receptor binding measurements) to be carried out in a high-throughput, label-free fashion, exploiting the versatility, selectivity, and sensitivity of MS analysis.

We anticipate that ongoing work, together with the demonstrated capabilities of the system for bioanalysis, synthesis, and reaction screening, as detailed in this paper, have the potential to dramatically assist in pharmaceutical, biotechnological, and biomedical diagnostic pipelines.
