Abstract

Affordable and physiologically relevant three-dimensional (3D) cell-based assays used in high-throughput screening (HTS) are on the rise in early drug discovery. These technologies have been aided by the recent adaptation of novel microplate treatments and spheroid culturing techniques. One such technology involves the use of nanoparticle (NanoShuttle-PL) labeled cells and custom magnetic drives to assist in cell aggregation to ensure rapid 3D structure formation after the cells have been dispensed into microtiter plates. Transitioning this technology from a low-throughput manual benchtop application, as previously published by our lab, into a robotically enabled format achieves orders of magnitude greater throughput but required the development of specialized support hardware. This effort included in-house development, fabrication, and testing of ancillary devices that assist robotic handing and high-precision placement of microtiter plates into an incubator embedded with magnetic drives. Utilizing a “rapid prototyping” approach facilitated by cloud-based computer-aided design software, we built the necessary components using hobby-grade 3D printers with turnaround times that rival those of traditional manufacturing/development practices at a substantially reduced cost. This approach culminated in a first-in-class HTS-compatible 3D system in which we have coupled 3D bioprinting to a fully automated HTS robotic platform utilizing our novel magnetic incubator shelf assemblies.

Keywords

spheroid organoid HTS magnetic bioprinting 3D printing

Introduction

Efforts to develop high-throughput screening (HTS) methodologies using cultured cells as three-dimensional (3D) spheroids and organoids have gained momentum for drug discovery because they are more physiologically relevant than traditional monolayer assays and recently have become more cost effective and less complex for large-scale screening campaigns.^1–4 Technologies that enable cell culture in 3D are referred to as 3D bioprinting and include photolithography, magnetic bioprinting, stereolithography, and direct cell extrusion.^5–10 The most critical, unmet challenge of 3D bioprinting has been scaling production in order to meet the needs of traditional HTS, which requires hundreds of thousands of wells to be tested for a given campaign.¹¹ Of the 3D methods currently available, magnetic bioprinting using cell-repellent surface treatment plates from Greiner Bio-One (Monroe, NC) and ultra-low-attachment (ULA) microcavity plates from Corning Inc (Corning, NY). has proven most promising in its utility to meet the scalability needs of HTS.^12–20

3D magnetic bioprinting has important advantages for HTS, but also presents hurdles in its integration. The largest challenge is ensuring that magnetic drives are fabricated and installed with sufficient precision for proper alignment of the microtiter plate wells with the magnets found on the drives, all the while remaining as minimally invasive to the system hardware and software components as possible. Enabling this procedure in an HTS environment requires fabricating and installing multiple embedded magnetic drives into the plate incubator, all with acceptable tolerances to minimize drive-to-plate placement variability. Error in this capacity has greater significance for the 1536-well format, where ~2 mm wells must align with smaller-diameter magnets requiring critical co-alignment in the X and Y axes within ~100 microns of precision. A lack of precision or reproducible accuracy in magnetic drive fabrication can lead to installation and plate handling that is suboptimal for spheroid development. This constraint is particularly true for applications that may require imaging of the 3D spheroids, which is the case in high-content assay approaches.

In this paper, we are focused on the validation and testing of the Greiner Bio-One m3D and cell-repellent microplate technology to enable 3D bioprinting for HTS, thereby extending previously published techniques for 384-well and 1536-well offline nonrobotic formats to a 1536-well robotic format.^21,22 NanoShuttle-PL employs a nanoparticle assembly technique consisting of gold, iron oxide, and poly-l-lysine (PLL). The PLL feature facilitates nonspecific binding to cell membranes via electrostatic interactions. Once treated with NanoShuttle-PL for a limited period of time, the cells can be aggregated into spheroids or organoids by dispensing the labeled cells into cell-repellent microtiter plates and incubating the plates on top of magnetic drives for a short period of time. Figure 1A,B demonstrates how these magnetic drives have been previously used in an offline nonrobotic format. The magnetic drives are designed such that each well of the microtiter plate has a corresponding magnet on the drive that sits under the center of the well and serves as a focal point for cells to aggregate, as seen in the top-down view of Figure 1C . Many protocols that make use of this bioprinting technique are primarily focused on 96- and 384-well microtiter plate densities, thereby limiting its utility for HTS. Our intention was to make this technique amenable to multibatch, 1536-well plate format screening and to execute a large-scale screening initiative to prove that the technique was viable for full robotic automation using a traditional HTS robotic platform.

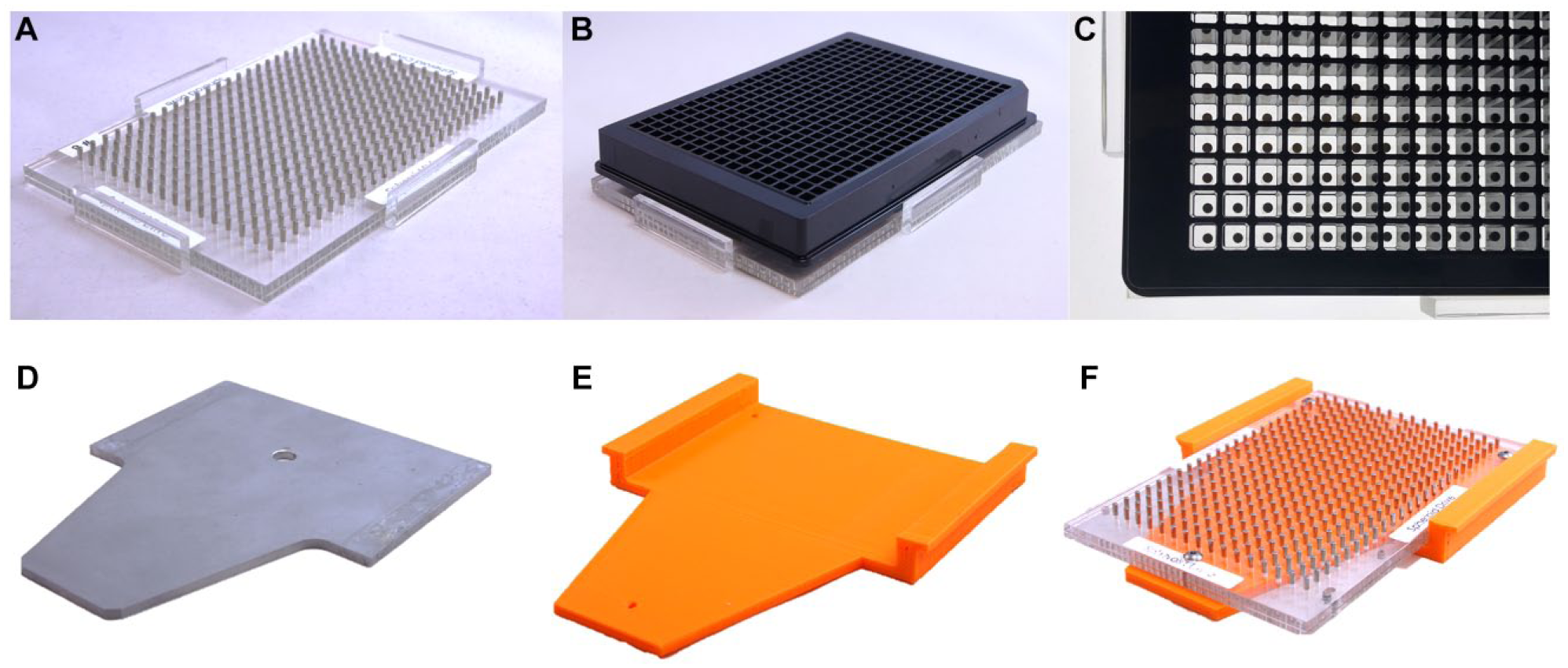

Figure 1.

(A) 384-well n3D Bioscience magnetic spheroid drive. Side (B) and top (C) views of a 384-well n3D Bioscience magnetic spheroid drive with Greiner ULA surface-treated microtiter plate. (E) First-generation spheroid drive adapter shelf. (F) First-generation spheroid drive adapter shelf with 384-well n3D Bioscience magnetic drive installed.

Additional details regarding the assay biology, usage, and validation of m3D technology compared with a traditional 2D monolayer variant of the assay in an offline nonrobotic capacity can be found in a previously published manuscript from our lab.²² Herein, we describe the validation and testing of the m3D and cell-repellent microplate technology in 1536-well format to enable 3D bioprinting and prove its utility for fully automated large-scale spheroid and organoid production to support HTS campaigns.

Materials and Methods

Custom Fabrication with CAD

Rapid prototyping of needed hardware was readily facilitated through 3D printing of custom thermoplastic parts, greatly mitigating problems and reducing lengthy turnaround times that traditional methods in engineering experience with fabrication, testing, and redesign.^23,24 To facilitate the rapid prototyping and testing of custom incubator shelves, we fabricated various magnetic shelf designs using fused deposition modeling 3D printers with polylactic acid (PLA) thermoplastic. A RepRapPro (Foxham, England) Tricolor Mendel was used to fabricate parts for 384- and 1536-well first-generation prototypes ( Fig. 1E,F ) and 384-well second-generation prototypes ( Fig. 2B,D ).²⁵ A SeeMeCNC (Ligonier, IN) Rostock Max v2 was used for the fabrication of third-generation prototypes ( Fig. 3A ).²⁶ All in-house produced prototype parts were 3D printed at a layer height of 0.3 mm with 100% infill. We designed the custom magnetic shelf computer-aided design (CAD) models using Onshape (Cambridge, MA)²⁷ and then fabricated them in-house, which allowed many design variants to be tested in a short period of time.

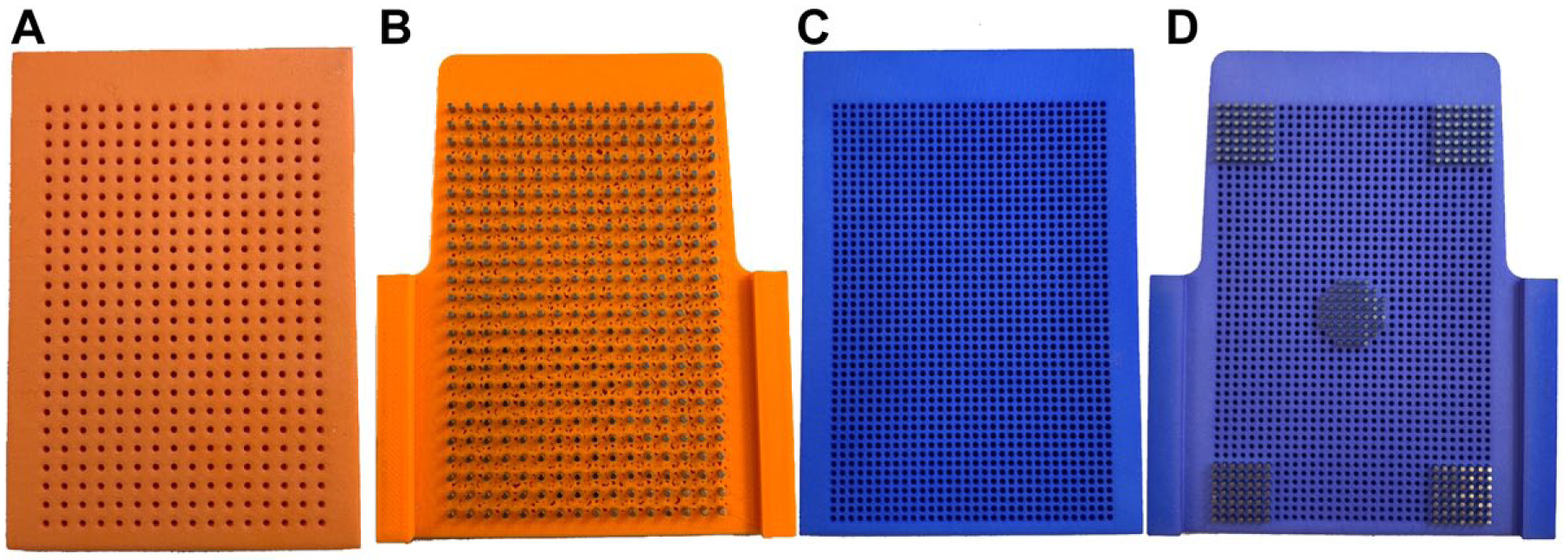

Figure 2.

(A) Second-generation HTS incubator 384-well alignment jig. (B) Second-generation 384-well spheroid drive. (C) Second-generation HTS incubator 1536-well alignment jig. (D) Second-generation 1536-well spheroid drive shown partially loaded with magnets.

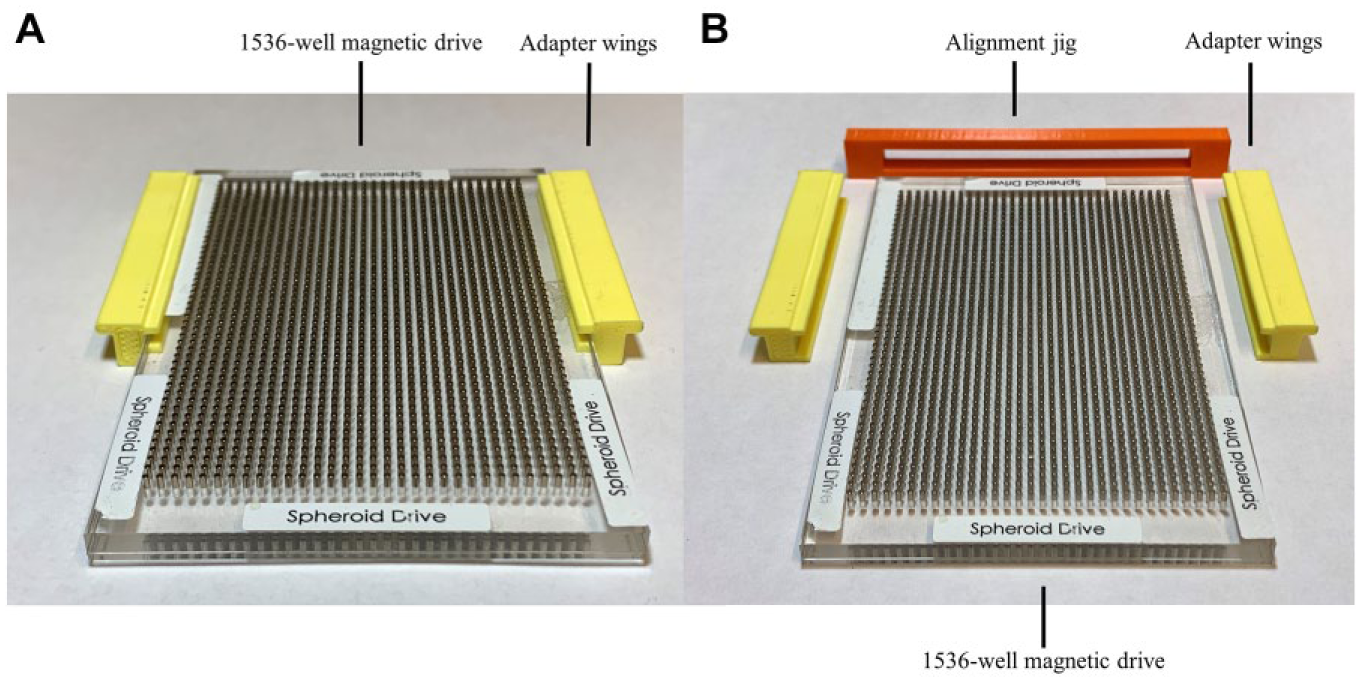

Figure 3.

(A) Third-generation n3D Bioscience drive with 3D printed adapter wings installed. (B) Third-generation HTS incubator 1536-well spheroid drive with wings uninstalled and alignment bracket for Y-axis positioning of wings.

Modification of Shelves

Over the course of this effort, we developed three designs in a sequential fashion with each attempting to address limitations of the previous design. The first- and third-generation designs involved the repurposing of existing magnetic drive assemblies manufactured by n3D Biosciences (Houston, TX) that were initially provided for nonrobotic assay use, while the second-generation design required individual magnetic cylinders to be purchased and inserted directly into the prototype shelf. The 3D cell culture system components utilized include flat-bottom, cell-repellent, black-wall, clear-bottom 384-well and 1536-well plates (specialized version of parts 781976 and 789979, respectively; Greiner Bio-One); 384- and 1536-well m3D magnetic spheroid drives (specialized versions of parts 781835 and 789830, respectively; Greiner Bio-One); and NanoShuttle-PL (part 657846; Greiner Bio-One). Note that Greiner Bio-One m3D spheroid drives were referred to as n3D Bioscience drives prior to acquisition of the technology by Greiner.

HTS System Overview

The facility at Scripps Florida uses a GNF Systems (San Diego, CA) HTS platform to execute hundreds of biochemical and cell-based assays in either 384- or 1536-well plate format.²⁸ This platform consists of three integrated, environmentally controllable microtiter plate incubators, two dispensers, a pintool transfer station, a centrifuge, and a suite of plate readers. Each of the robotically accessible incubators contains a rotating carousel composed of 18 segmented plate hotel stacks around the incubator’s circumference, with each hotel containing 27 shelves for plate placement. Any hotel stack can be readily removed from the carousel. The hotel stacks can be further disassembled to gain access to the individual shelf positions where the microtiter plates reside during incubation. By removing and fully disassembling a shelving unit, seen in Figure 1D , custom magnetic drive shelves can be adapted and installed to create a modified hotel shelf, as seen in Figure 3A , and its final installation onto the carousel ( Fig. 4 ).

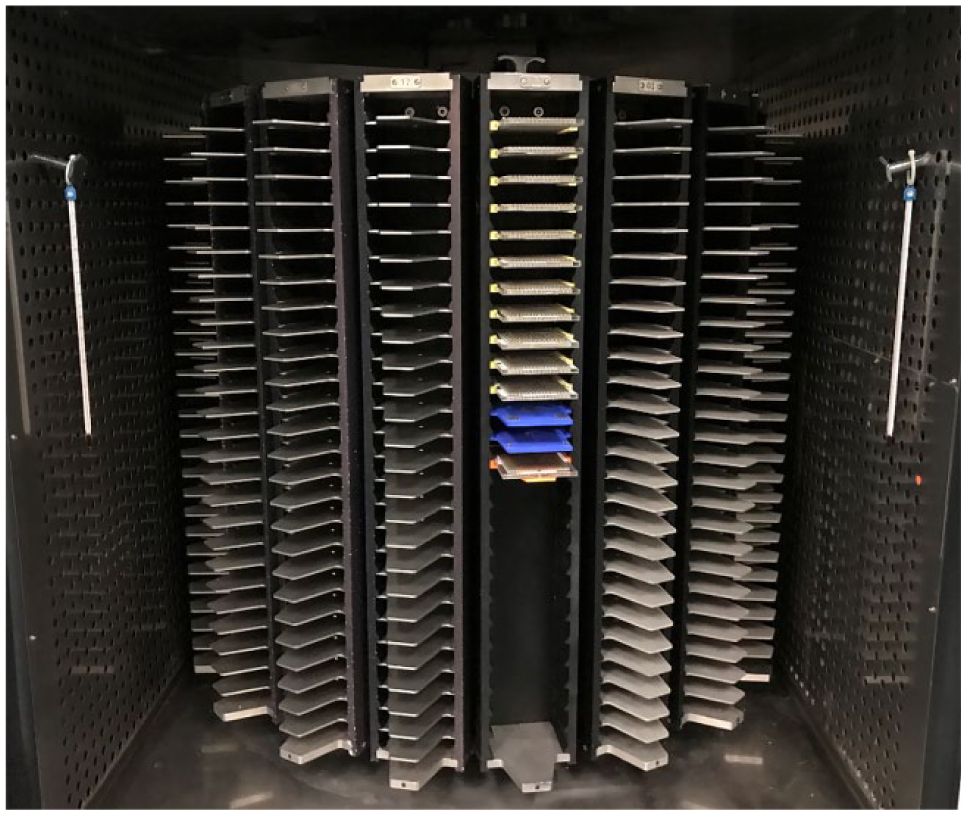

Figure 4.

GNF shelf stack installed into GNF robotic carousel.

Performing the Screening Assay

The assay we used to test the function of the first-generation, second-generation, and third-generation magnetic drivers was initially developed in the 384-well format and then miniaturized to the 1536-well format. The protocol that we used for the assay required incubating the assay plates on the magnetic drivers in the following steps: (1) Add NanoShuttle-PL to cells in a flask (0.6 mL per T175) and incubate the cells overnight at 37 °C, 5% CO₂, 95% relative humidity (RH); (2) harvest the cells and seed 1250 cells in 5 µL of culture medium to a 1536-well Greiner cell-repellent plate; (3) put the plate atop the spheroid drive and incubate the plate on the drive for 4 h; (4) incubate the cells for 24 h at 37 °C, 5% CO₂, 95% RH; (5) pintool transfer 10 nL of compounds; (6) incubate cells for an additional 3 days at 37 °C, 5% CO₂, 95% RH; (7) image spheroids using high-content screening, and (8) dispense 5 µL of CellTiter-Glo 3D reagent, shake for 10 min, incubate for 60 min at room temperature, and read on ViewLux. This assay is described in greater detail in a previous manuscript from our lab, which discusses the initial efforts to develop this assay and the results of preliminary offline screening in the 1536-well format against an internally curated approved drug library of ~3300 compounds.²² Concentration–response curves (CRCs) and IC50 values of pharmacological control compounds were used as a guide for assay optimization and validation for drug screening.

Results and Discussion

First-Generation Design

Our initial design efforts to enable automation of the m3D technology involved adapting the existing lab-bench 384-well magnetic drives onto a custom 3D printed HTS incubator shelf. To make the magnetic drives robotically compatible, we removed the side alignment tabs needed for plate alignment when used with nonrobotic assays ( Fig. 1A ). Subsequently, we drilled and tapped alignment holes to allow the drive to be fixed onto the 3D printed HTS incubator shelves.

The first-generation HTS incubator shelf design for the 384-well m3D magnetic drive is seen with and without the magnetic drive installed in Figure 1F and E , respectively. This design is similar to the stock GNF incubator shelf ( Fig. 1D ), with the exception that the plate platform has been lowered to keep the bottom of each microtiter plate at an equivalent Z height to a nonmodified shelf once the m3D drive has been installed. This design also allows the m3D drive to be fixed into place with three positioning screws in order to ensure the accurate alignment needed for proper robotic handling of the microtiter plates onto the shelf. The downside of this approach was that the additional height added to the shelf resulted in reduced headroom of the adjacent shelf below, preventing its usage; hence, only half of the shelves in any given hotel stack were found to be usable. This limited the initial installation of the modified m3D drive shelves to every other plate location within any given hotel incubator stack.

Second-Generation Design

After this first-generation design was tested and found to be functional, we addressed the primary limitation of the initial design: alternating empty slots in the plate hotel resulting in a loss of HTS capacity due to the height requirements of the initial shelf design. The second-generation design addressed this limitation by incorporating the magnets directly into the incubator shelves, as seen in Figure 2B,D . The second-generation design had the added benefit of ensuring proper and repeatable magnet alignment relative to the shelf by eliminating Cartesian X- and Y-axis alignment errors that were possible in the first-generation prototype due to inherent limitations of aligning the magnetic drive and the modified incubator shelf components together. We did not observe these errors during testing; however, this is due to significant effort made to ensure proper alignment.

The second-generation 384-well drive used stock magnets that were 1/16-inch by ¼-inch cylindrical neodymium magnets from Apex Magnets (Petersburg, WV) at a cost of $8.99 per 50 magnets, not including shipping.²⁹ For the 1536-well drive, custom-manufactured 3/64-inch by ¼-inch cylindrical neodymium magnets were ordered from SM Magnetics (Pelham, AL) at a cost of $1.05 per magnet, not including shipping.³⁰ These custom magnets were ordered with a tolerance of 0.05 mm, nickel plated, and magnetized through the length of the magnet. Due to the high cost of the magnets for the 1536-well prototype, only 250 magnets were ordered to provide a sufficient quantity to partially populate a 1536-well driver and validate the design.

We found that a limitation of the second-generation design was the need for magnets to be inserted into custom incubator shelving, requiring a mechanical jig to facilitate loading the magnets into the prepositioned holes without breaking during the press fit. To address this limitation, we designed a magnetic drive jig that sits over the top of the modified shelf during the assembly process to ensure magnets were perpendicular, matched in height, and not damaged during installation. These magnetic installation jigs can be seen to the left of the drives in Figure 2A,C for the 384- and 1536-well variants of the second-generation design. Unfortunately, the 1536-well second-generation drive could not be 3D printed using a conventional hobby-grade printer, because the printer lacked the ability to meet acceptable hole-shape tolerances. This problem was resolved by sending the CAD models to Shapeways (New York, NY)³¹ for professional fabrication using a commercial 3D printer capable of high-resolution printing. Parts fabricated by Shapeways were manufactured using Selective Laser Sintering (SLS) with the Shapeways versatile plastic material, also known as nylon plastic or polyamide.³² We found that the time required to fully assemble a 384-well variant of the second generation was approximately 4 h. For the 1536-well variant of the second-generation design, we partially populated the Shapeways prototype with 250 magnets ordered from SM Magnetics, which was sufficient to determine whether or not the design worked in a subset of wells. The amount of time required to insert 250 magnets into the 1536-well second-generation design was also approximately 4 h, due to the slightly increased difficulty of handling smaller magnets.

Third-Generation Design

The second-generation drives worked well with robotic testing; however, we found the 1536-well magnets to be expensive and the assembly of both the 384- and 1536-well drive shelves to be laborious. A third prototype, seen in Figure 3A , was created that reused preexisting drives obtained from Greiner Bio-One and n3D Biosciences. This design also eliminated the Z-height clearance issue of the first-generation design by installing a set of winged adapters on the sides of the original drive plate. One of the challenges with this third design was ensuring the proper front-to-back alignment of the adapters from drive to drive. To address this constraint, a Y-axis alignment jig, seen in Figure 3B , was designed and 3D printed to enable rapid conversion of the existing drives to work in the HTS incubators. The third-generation jig functions by allowing the user to push the winged adapters against the jig while the jig and face of the magnetic drive are flush, enabling the magnetic drives to be properly aligned at the correct depth in the plate hotel. After aligning the winged adapters, the third-generation jig is removed and the shelf is ready for installation into the incubator.

At each phase of development, the magnetic drive shelves were installed into the robotic incubator ( Fig. 4 ) for testing and validation. The magnetic drive shelves can be readily installed or removed from the incubator hotel stack by removing the back plate of the hotel and then installing or removing the drives from any desired location. Each hotel stack can contain upward of 26 drive plate positions, allowing for a nearly full HTS capacity (26 plates per hotel out of 27 possible locations). The bottom location in the hotel stack cannot be modified as it is a structural component of the stack frame. The design of the incubator shelves allows hotel stacks to be quickly swapped, enabling HTS operators to easily replace or alternate between traditional incubator shelves or magnetic drive shelves and providing flexibility to meet the needs of any particular HTS campaign.

One of the primary benefits of the magnetic 3D bioprinting approach is that it requires no significant changes to the HTS platform, nor does it interrupt standard operation apart from the addition of magnetic drives installed within the HTS incubators. Once the drives are installed, the 3D bioprinting assays can commence using established HTS routines with no need of additional support hardware or customized software to complete the adaption.

Screening Assay

To demonstrate the robustness and high-throughput capabilities of 3D spheroid screening, a large-scale screen comprising 151,977 compounds was run using the third-generation m3D magnetic drives ( Fig. 3A ). This screen was performed in a fully automated fashion, testing primary pancreatic cancer cells as 3D organoids under conditions as previously published.²² The compounds screened were chosen at random from the Scripps Drug Discovery Library of 653,085 compounds. To enable this assay to be run on the HTS platform, 10 customized m3D magnetic drives were installed in one of the HTS incubators, which allowed up to two 10-plate batches to be run per day for an average daily throughput of 15,200 compounds per day. At the average daily throughput, the 17 experiments comprising the pilot screen were completed in 10 days. While throughput for the pilot screen was limited to 20 plates per day in this instance, this limitation was due only to the number of drives currently fabricated. Each HTS incubator has a capacity to hold 468 microtiter plates under the current design and any given hotel stack can be retrofitted to use magnetic drives instead of standard incubator shelves to accommodate the necessary throughput. With a sufficient number of magnetic drives installed, a 3D bioprinting assay could provide the same throughput as a traditional 2D monolayer cell-based assay. A scatterplot of the primary screen plate statistics can be seen in Figure 5A , while a scatterplot of the HTS screen results can be seen in Figure 5B,C . Assay plates were determined acceptable only if Z′ > 0.5.³³ The response values in the HTS screen results reflect a percent inhibition calculation, which is defined as 100 * [1 – (Test Well – Median High Control)/(Median Low Control – Median High Control)].²²

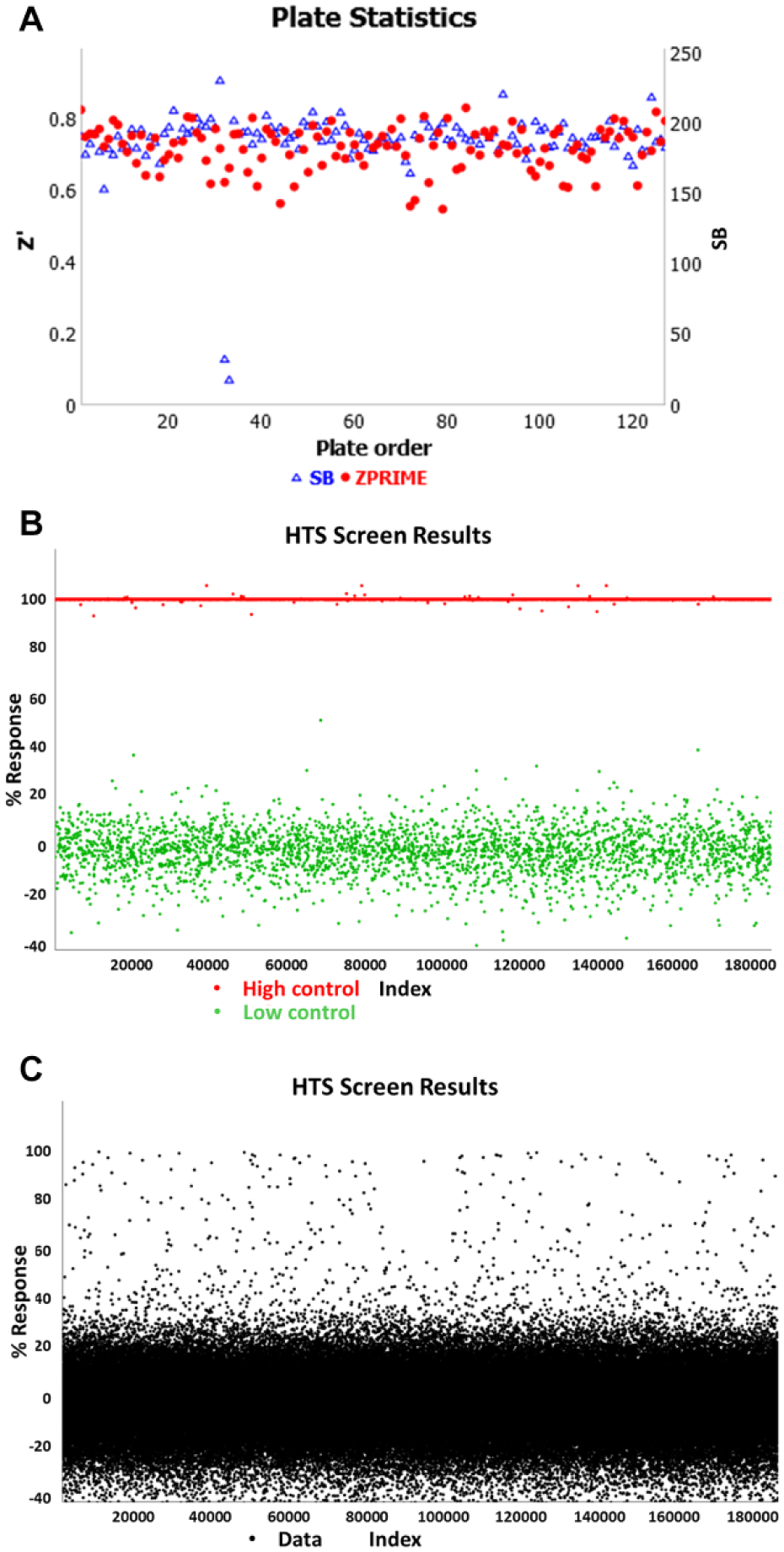

Figure 5.

(A) Scatterplot of plate statistics. (B) Randomized scatterplot of just the controls forming the 150K n3D-KRAS pilot assay. The bottom series of data points near the 0% response point on the chart are low-control wells containing cells and DMSO, while the top data points near the 100% response point are high-control wells containing medium and DMSO. (C) Randomized scatterplot of the 150K n3D-KRAS pilot assay data shown as normalized activity per the controls shown in panel B. Each sample tested is represented by a single black dot.

CRC of control compounds in 1536-well offline nonrobotic screening validation results were compared against 1536-well online robotic screening validation results and can be seen in Figure 6A and B , respectively. As seen in Figure 6C,D , previous studies in a traditional 2D monolayer assay also confirmed similar pharmacological responses for hT1 cells with and without the NanoShuttle technology. The specific values calculated from the CRCs can be seen in Table 1 . We found that the CRC response variances with respect to any given dose remain acceptable and comparable to standard 2D methods, attesting to the reliability of the spheroid production.

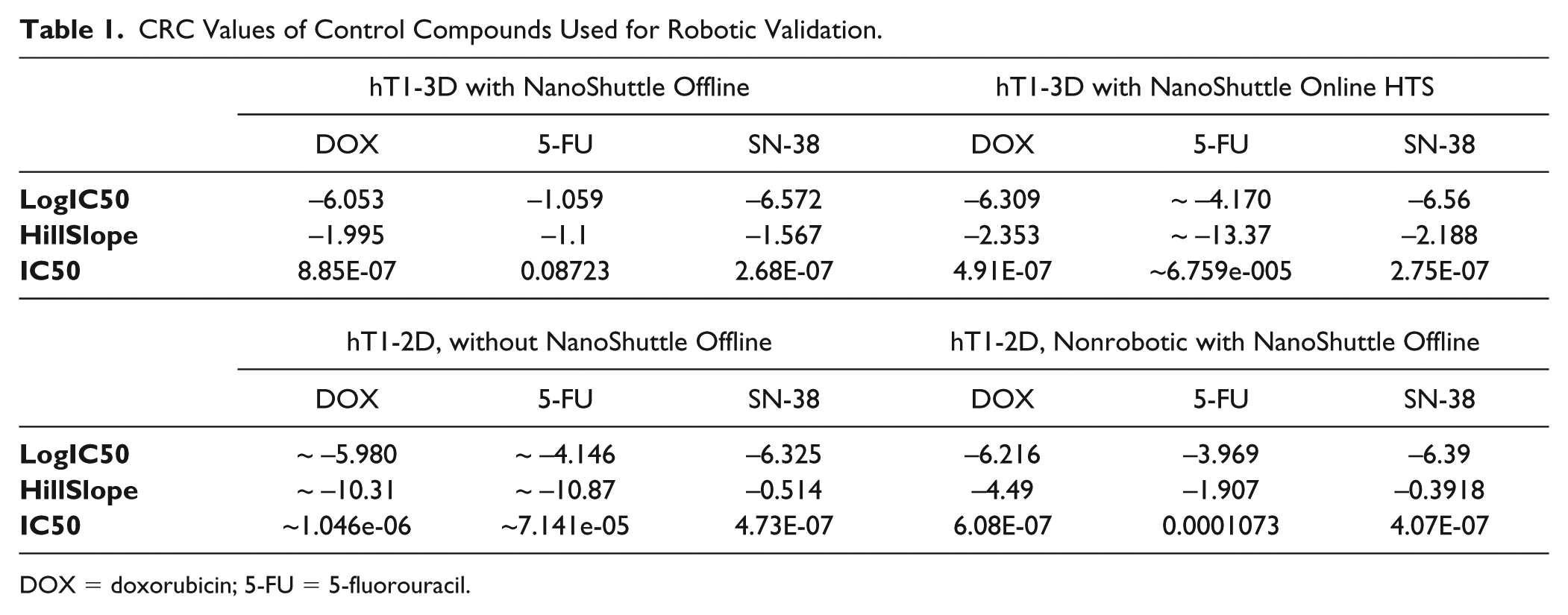

Table 1.

CRC Values of Control Compounds Used for Robotic Validation.

	hT1-3D with NanoShuttle Offline			hT1-3D with NanoShuttle Online HTS
	DOX	5-FU	SN-38	DOX	5-FU	SN-38
LogIC50	−6.053	−1.059	−6.572	−6.309	~ –4.170	−6.56
HillSlope	−1.995	−1.1	−1.567	−2.353	~ –13.37	−2.188
IC50	8.85E-07	0.08723	2.68E-07	4.91E-07	~6.759e-005	2.75E-07

	hT1-2D, without NanoShuttle Offline			hT1-2D, Nonrobotic with NanoShuttle Offline
	DOX	5-FU	SN-38	DOX	5-FU	SN-38
LogIC50	~ –5.980	~ –4.146	−6.325	−6.216	−3.969	−6.39
HillSlope	~ –10.31	~ –10.87	−0.514	−4.49	−1.907	−0.3918
IC50	~1.046e-06	~7.141e-05	4.73E-07	6.08E-07	0.0001073	4.07E-07

DOX = doxorubicin; 5-FU = 5-fluorouracil.

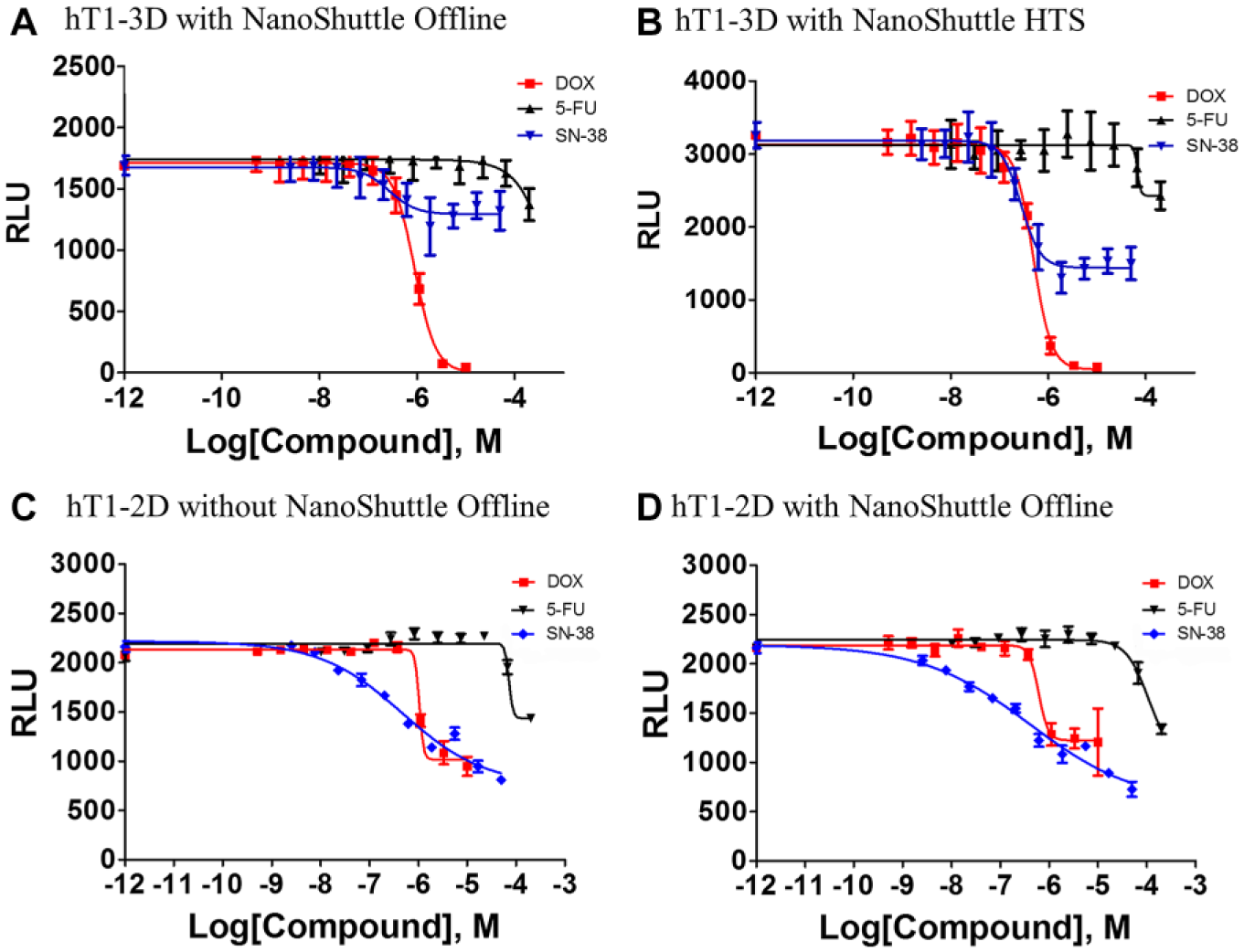

Figure 6.

(A) CRCs for three control compounds (doxorubicin, 5-fluorouracil, and SN-38) versus hT1 in 3D formats. CRC results in an offline nonrobotic validation run. (B) CRC results in an online robotic validation run. The curve represents the mean and standard deviation of 16 replicates per each concentration. (C) CRC results of hT1-2D cells without NanoShuttle in an offline nonrobotic run. (D) CRC results of hT1-2D cells with NanoShuttle in an offline nonrobotic run. All CRC data are shown in Table 1.

For the pilot screen, spheroids were grown from hT1 cells and then quantified using a CellTiter-Glo 3D viability assay. The hT1 cells were derived from patient pancreatic cancer cells intended for use in primary cancer cell research.³⁴ The pilot screen statistics were monitored with an average Z′ factor of 0.72, a signal-to-background ratio of 188.13, and a hit rate of 0.48%. The ability of 3D spheroid formation for hT1 pancreatic cancer cells is different compared with other cells lines like hT29, which is extremely compact with a well-defined surface. 3D formation structures for hT1 cells have been confirmed by Z-stack analysis using confocal microscopy. In addition, the cells were cultured in Corning spheroid plates to test side by side with the 3D bioprinting technology, which confirms that the spheroid formation is independent of the technology used. This was done to address concerns that the PLL might interfere with endogenous cell aggregation behavior and resulted in confirmation that the PLL did not interfere, as confirmed by previous publications.^12,21,35-38 Spheroids produced were found to be uniform as validated previously²² and by the tight reproducibility of the IC50 values of known anticancer drugs such as doxorubicin. This was assessed using a CRC plate that was included in each robotic HTS run for the 150K initiative, which determined doxorubicin to have an average IC50 value of 398 nM with only a variance of ~13% (N = 17 experiments, 16 replicates per dilution, threefold dilutions for 10 points).

The 150K screen efforts described in this paper have demonstrated that (1) 3D bioprinting of spheroids is feasible in a 1536-well format; (2) full robotic automation and plate handling can be employed for spheroid production, drug dosing, and plate readout; and (3) large-scale HTS screening can be implemented using spheroids in a cost-effective fashion relative to other 3D technologies. When compared with traditional 2D bioassays, bioprinting techniques using conventional 1536-well microplates were found to be threefold higher in cost. However, this compares favorably against bioprinting in specialized microcavity microplates, which were found to be five- to sixfold higher in cost.
