Abstract

Background: Injuries with fragments of embedded metal are a common occurrence in armed conflicts. Unfortunately, the list of metals encountered on the modern battlefield are practically endless while the short- and long-term health effects, especially when embedded as in a shrapnel wound, are not well understood. One of the major concerns with these types of injuries is the solubilization of the embedded metal and the translocation and deposition to various organs of the body. Methods: Using a rodent model system developed in our laboratory to assess the health effects of embedded metal fragments, we surgically implanted metal pellets into the gastrocnemius muscles of male Sprague-Dawley rats. Test metals were chosen from a list promulgated by the U.S. Department of Defense as “metals of concern” with respect to embedded fragment wounds and included tungsten, nickel, cobalt, iron, copper, aluminum, lead, and depleted uranium. Tantalum was used as a control metal. Cohorts of the metal-implanted rats were humanely euthanized at 1, 3, 6, and 12-months post-implantation and a variety of tissues collected and analyzed for metal content using inductively coupled plasma-mass spectrometry. Results: With few exceptions, the embedded metal fragments eventually released solubilized metal ions, with the metals deposited in numerous tissues in the rats. Not all of the embedded metals localized to all tissues at significant levels. Copper, iron, and aluminum were not found in statistically significant levels, versus control, in any of the tissues analyzed. The other metals tested all appeared in elevated levels in the kidney which is not surprising since previous research has shown that they are also excreted in the urine at appreciable amounts. Tungsten and nickel were found in only a small number of tissues, tungsten in spleen, and nickel in liver and testes. Cobalt, lead, and depleted uranium showed the widest distribution with significant levels in liver, spleen, testes, lung, tibia, fibula, and femur. Conclusion: In this study, we showed that embedded metal fragments, such as those suffered in a shrapnel wound, could solubilize and metals become deposited in tissues far from the original site of implantation. Tissue deposition was metal-specific and many of the metals were found to cross the blood-testes barrier and were also found in bone. Since standard surgical guidance recommends leaving embedded fragments in place except for certain circumstances, this report will expand the understanding of tissue deposition of the solubilized metals and will hopefully aid healthcare professionals in developing long-term treatment strategies for dealing with these types of wounds.

Keywords

Metals embedded fragments shrapnel solubilization ICP-MS

Introduction

Fatalities from metal fragment wounds are an unfortunate result of armed conflicts. However, technological improvements in armor protection and medical advancements in survival surgery have significantly improved the odds of surviving ballistic injuries.¹ As a result, numerous individuals now live with retained metal fragments in their bodies as a result of their military service. Under the assumption that most embedded metal fragments would be inert, standard surgical guidelines proposed leaving the metal fragment in place except under certain conditions.² However, that assumption is not always correct. Although rare, there have been case studies reported in the peer-reviewed scientific literature describing adverse health effects resulting from embedded metal fragments.^3–6 Most of these adverse effects were manifested many years after the initial injury.^7–9 Another unpredictable consequence of embedded metal fragments is that many metals tend to degrade over time, releasing solubilized metal ions into the body.^10–14 This property is not unique to embedded military-relevant metal fragments but has also been found to occur with implanted medical and dental devices as well as from industrial accidents.^15–21 For instance, degradation of metal-on-metal hip replacements have resulted in the release of cobalt ions from the cobalt/chromium alloy utilized.¹⁵ Solubilized aluminum from titanium/aluminum/vanadium used in joint prostheses has also been found in urine and serum as has titanium from dental implants.^16,17 In some cases, these solubilized metals are excreted in the urine while in other cases, although urine excretion is observed, the metals will also sequester in “target organs” in the body.^22,23 This raises the specter of potentially toxic metals localized in sensitive tissues for extended periods of time. Unfortunately, there is a lack of knowledge with respect to the toxicological and biokinetic properties of embedded metal fragments suffered in warfare. To that end, the U.S. Departments of Defense (DoD) and Veterans’ Affairs (DVA) have developed a list of “metals of concern” that require further investigation.^24,25 This project is part of a larger collaborative effort with the DVA, the University of Maryland School of Medicine, and the University of Kentucky to study the potential health effects of embedded metals from the DoD and DVA list of “metals of concern.” The overall program is a two-pronged approach using a rodent model developed in our Institute to study embedded metal fragments with a parallel human investigation with military personnel suffering from metal fragment injuries. We have previously reported that metals implanted into rodents for up to 12 months eventually partially solubilize and are found in the urine as well as discrete regions of the brain.^26,27 In this study, we have investigated the metal distribution patterns in tissues collected from our metal-implanted Sprague-Dawley rat cohort.

Methods

Animals and animal husbandry

All animal research associated was approved prior to initiation by the Armed Forces Radiobiology Research Institute (AFRRI) Institutional Animal Care and Use Committee (IACUC) under protocol number 2016-05-006. All procedures were conducted in compliance with the Guide for the Care and Use of Laboratory Animals²⁸ in an Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC)-accredited facility. Male Sprague-Dawley (Rattus norvegicus) rats, approximately 30 days old and weighing 75–100 g, were obtained from Envigo (Barrier 208A, Frederick, MD, USA). After arriving, animals were allowed to acclimate for at least two weeks. Rats were pair-housed throughout the study in plastic microisolator cages (23.8 × 45.4 cm) with filter tops. Teklab Sani-Chips (Envigo) were used as bedding and bedding was changed 2–3 times per week. Vivarium rooms were maintained at 21 ± 2°C with 30–70% humidity. A 12:12-h light:dark cycle was maintained with lights on at 0600. Rats were fed a standard rodent chow (Teklad Global Rodent Diet 8604, Envigo) with water available ad libitum.

Experimental design

Previous research in our Institute developed a rodent model for studying the health effects of embedded metal fragments, such as those suffered in a shrapnel wound.²⁹ We used that model system in this study to investigate the effects of eight military-relevant metals, selected from the DoD and DVA list of “metals of concern,” including tungsten (W), nickel (Ni), cobalt (Co), iron (Fe), copper (Cu), aluminum (Al), lead (Pb), and depleted uranium (DU). Tantalum (Ta) was used as a control for any changes resulting from the surgical procedure or due to the presence of a foreign material in the muscle. Tantalum is considered inert and has been used for implanted prosthetic devices.^30–32 Previous studies have shown no differences between naïve and tantalum-implanted rats with respect to body weight gain, mobility, localized metal toxicity, and neoplastic changes in the gastrocnemius tissue surrounding the implanted tantalum pellets.^10,29,33,34 Therefore, the total number of rats needed for the study was reduced and the ARRIVE Guidelines met.³⁵ Animals were randomly assigned to one of the nine metal implantation groups with an n = 8 per metal. The metal groups were conducted in four different cohorts: 1-, 3-, 6-, or 12-months post-implantation surgery (i.e., “Time from Implant”). A total of 288 rats (n = 8 × 9 metal groups × 4 cohorts) were used in the study with the number of animals required per group calculated from the power analysis included with the IACUC protocol to ensure statistical relevance.

Metal pellets (1 mm diameter × 2 mm length) were obtained from Alfa Aesar (Ward Hill, MA, USA) with the exception of DU which was purchased from Aerojet Ordnance (Jonesboro, TN, USA). Prior to implantation, pellets were cleaned and chemically sterilized as previously described.³⁶

Metal pellet implantation

Metal pellets were surgically implanted bilaterally in the gastrocnemius muscle of rats as previously described.^26,27 Briefly, animals were initially anesthetized in an induction chamber using isoflurane (Baxter Healthcare, Deerfield, IL, USA) and then maintained throughout the surgical period using a nose cone with a scavenger/recapture system. The surgical sites were clipped, swabbed with 70% 2-propanol, and finally cleansed with betadine (Purdue Pharma LP, Stamford, CT, USA). Prior to surgery, a prophylactic dose of an analgesic (buprenorphine, 0.05–0.1 mg/kg, s.c., Rickitt and Colman, Hull UK) was administered. Two identification methods were used. A small transponder (Electronic Lab Animal Monitoring System, Bio-Medic Data Systems, Seaford, DE, USA) was injected subcutaneously in the mid-dorsal thoracic region. Each transponder was programmed with a unique animal identification number that can be read with a low-power radio frequency scanner. An ear punch system was used as the second backup identification system in case of transponder failure. Using aseptic technique, a small incision approximately 5 mm in length was made through the skin of each hind leg to expose the gastrocnemius muscle. Each gastrocnemius muscle was implanted with two sterile pellets spaced approximately 1.5 mm apart on the lateral side of the muscle by placing the sterile pellet in a 14–16 gauge needle. Using a specially designed plunger placed inside the needle, the needle was inserted into the gastrocnemius and the plunger depressed forcing the pellet into the muscle. Tissue adhesive (VetBond; 3M Corporation, St. Paul, MN, USA) was used to seal the incision. After surgery, rats were closely monitored until ambulatory. The surgery sites were examined daily for two weeks to assess for signs of inflammation, infection, and local metal toxicity, and after that time, weekly, for the duration of the study.

Tissue collection

Upon reaching their experimental endpoint or when indicated by guidelines approved by the AFRRI IACUC, rats were humanely euthanized under deep isoflurane by exsanguination and confirmatory pneumothorax as per the guidelines of the American Veterinary Medical Association.³⁷ After euthanasia, a complete gross pathology examination was conducted. A variety of tissues were collected for further examination as has been described in earlier publications.^24,25

Sample preparation and metal analysis

Prior to metal analysis, tissue samples were first dried in a muffle furnace (Fisher Scientific, Pittsburgh, PA USA) at 100°C for 24 h. The temperature of the furnace was then ramped to 350°C, at 5°C/min, and the samples held there for 24 h. The furnace temperature was then ramped to 600°C, at 5°C/min, and the samples held there for 48 h. After cooling, the samples were wet-ashed with 5 ml of 70% nitric acid (Optima Ultrapure Grade, Fisher Scientific) and 200 μl of 30% hydrogen peroxide (Semiconductor Grade, Sigma-Aldrich Chemical Co., St. Louis, MO USA) then heated to just below boiling until completely evaporated. The samples were then dry-ashed for 12 h at 600°C in a muffle furnace prior to another cycle of wet-ashing with nitric acid and hydrogen peroxide. After the second run of wet-ashing, the resulting white residue was dissolved in 2% nitric acid and analyzed.

All reagents used were of the highest grade available. Plasticware and other disposables were obtained from ThermoFisher (Pittsburgh, PA, USA). Metal content determined using an inductively coupled plasma-mass spectrometer (Thermo Fisher iCAP RQ/Q with Quantara software, Madison, WI, USA) equipped with a Cetac ASX-560 Autosampler (Cetac Technologies, Omaha, NE, USA). High-pressure liquid argon, 99.997%, was used for the plasma gas. Helium, 99.999%, was used as the CCT gas. Calibration was accomplished with external standards of the appropriate metal standard (SPEX CertiPrep, Metuchen, NJ, USA) in 2% nitric acid. The sample probe was washed with a constant flow of 2% nitric acid to prevent carryover. Quantitative analysis was obtained by reference to the slope of the calibration curve (counts per second/ng per liter) as well as an internal standard. Limit of Detection (LoD)/Limit of Quantitation (LoQ), in ppb, are as follows: Ta—0.012/0.015; W—0.002/0.010; Ni—0.016/0.042; Co—0.001/0.002; Fe—0.541/1.226; Cu 0.026/0.106; Al—0.629/1.716; Pb—0.001/0.009; U—0.001/0.003.

Statistical analysis

Metal concentrations were analyzed by two-way ANOVA using the variables of implanted metal and time from implant followed by Sidak’s multiple comparisons test where each metal implant group within a time from implant is compared back to the corresponding Ta-implanted group value. Analyses were performed using GraphPad Prism Software (version 9.1.2, La Jolla, CA, USA). In all cases, p values<.05 were considered significant.

Results

Metal levels in the collected rat tissues were assessed using inductively coupled plasma-mass spectrometry, with results expressed as ng of metal per g of tissue. Table 1 shows the instrument parameters and operating conditions.

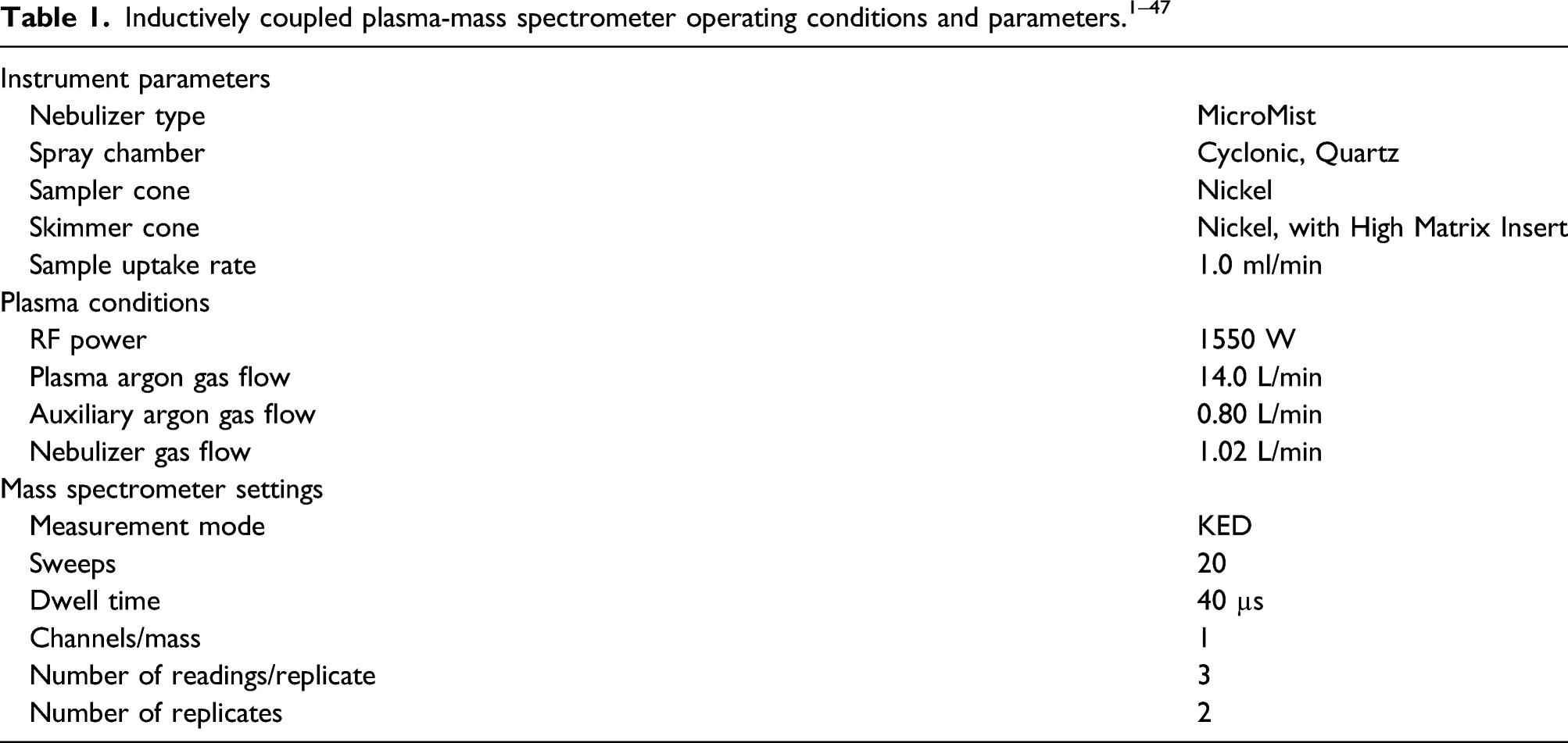

Table 1.

Inductively coupled plasma-mass spectrometer operating conditions and parameters.^1–47

Instrument parameters
Nebulizer type	MicroMist
Spray chamber	Cyclonic, Quartz
Sampler cone	Nickel
Skimmer cone	Nickel, with High Matrix Insert
Sample uptake rate	1.0 ml/min
Plasma conditions
RF power	1550 W
Plasma argon gas flow	14.0 L/min
Auxiliary argon gas flow	0.80 L/min
Nebulizer gas flow	1.02 L/min
Mass spectrometer settings
Measurement mode	KED
Sweeps	20
Dwell time	40 µs
Channels/mass	1
Number of readings/replicate	3
Number of replicates	2

Kidney metal levels in the experimental groups are found in Table 2 and are given as ng of metal/g tissue weight. With the exception of iron, copper, and aluminum, all other metals were found at significantly higher levels in the kidneys of the experimental rats than in the tantalum-implanted control animals. In most cases, kidney metal levels plateaued around 6-months post-implantation with the exception of depleted uranium which continued to increase throughout the entirety of the study.

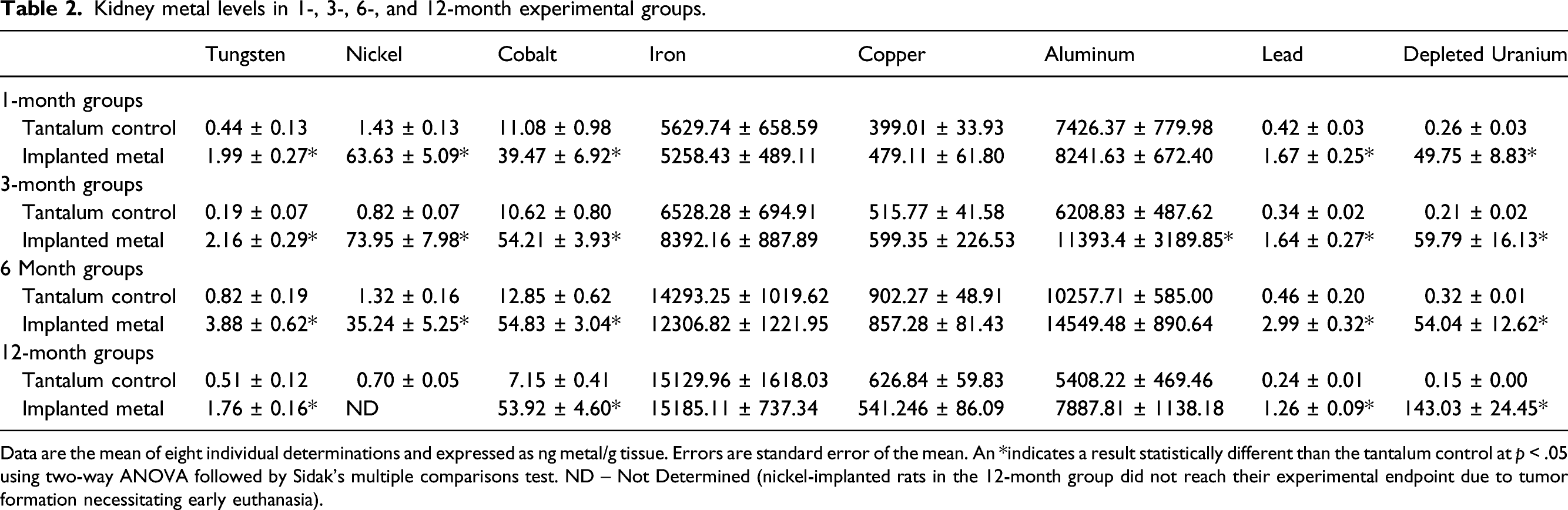

Table 2.

Kidney metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	0.44 ± 0.13	1.43 ± 0.13	11.08 ± 0.98	5629.74 ± 658.59	399.01 ± 33.93	7426.37 ± 779.98	0.42 ± 0.03	0.26 ± 0.03
Implanted metal	1.99 ± 0.27*	63.63 ± 5.09*	39.47 ± 6.92*	5258.43 ± 489.11	479.11 ± 61.80	8241.63 ± 672.40	1.67 ± 0.25*	49.75 ± 8.83*
3-month groups
Tantalum control	0.19 ± 0.07	0.82 ± 0.07	10.62 ± 0.80	6528.28 ± 694.91	515.77 ± 41.58	6208.83 ± 487.62	0.34 ± 0.02	0.21 ± 0.02
Implanted metal	2.16 ± 0.29*	73.95 ± 7.98*	54.21 ± 3.93*	8392.16 ± 887.89	599.35 ± 226.53	11393.4 ± 3189.85*	1.64 ± 0.27*	59.79 ± 16.13*
6 Month groups
Tantalum control	0.82 ± 0.19	1.32 ± 0.16	12.85 ± 0.62	14293.25 ± 1019.62	902.27 ± 48.91	10257.71 ± 585.00	0.46 ± 0.20	0.32 ± 0.01
Implanted metal	3.88 ± 0.62*	35.24 ± 5.25*	54.83 ± 3.04*	12306.82 ± 1221.95	857.28 ± 81.43	14549.48 ± 890.64	2.99 ± 0.32*	54.04 ± 12.62*
12-month groups
Tantalum control	0.51 ± 0.12	0.70 ± 0.05	7.15 ± 0.41	15129.96 ± 1618.03	626.84 ± 59.83	5408.22 ± 469.46	0.24 ± 0.01	0.15 ± 0.00
Implanted metal	1.76 ± 0.16*	ND	53.92 ± 4.60*	15185.11 ± 737.34	541.246 ± 86.09	7887.81 ± 1138.18	1.26 ± 0.09*	143.03 ± 24.45*

Data are the mean of eight individual determinations and expressed as ng metal/g tissue. Errors are standard error of the mean. An *indicates a result statistically different than the tantalum control at p < .05 using two-way ANOVA followed by Sidak’s multiple comparisons test. ND – Not Determined (nickel-implanted rats in the 12-month group did not reach their experimental endpoint due to tumor formation necessitating early euthanasia).

Table 3 gives the metal levels in the liver from metal-implanted rats. Unlike the kidney metal results, only cobalt, lead, and depleted uranium were significantly elevated in liver. In addition, the liver levels of those three metals stayed relatively constant throughout the experimental period.

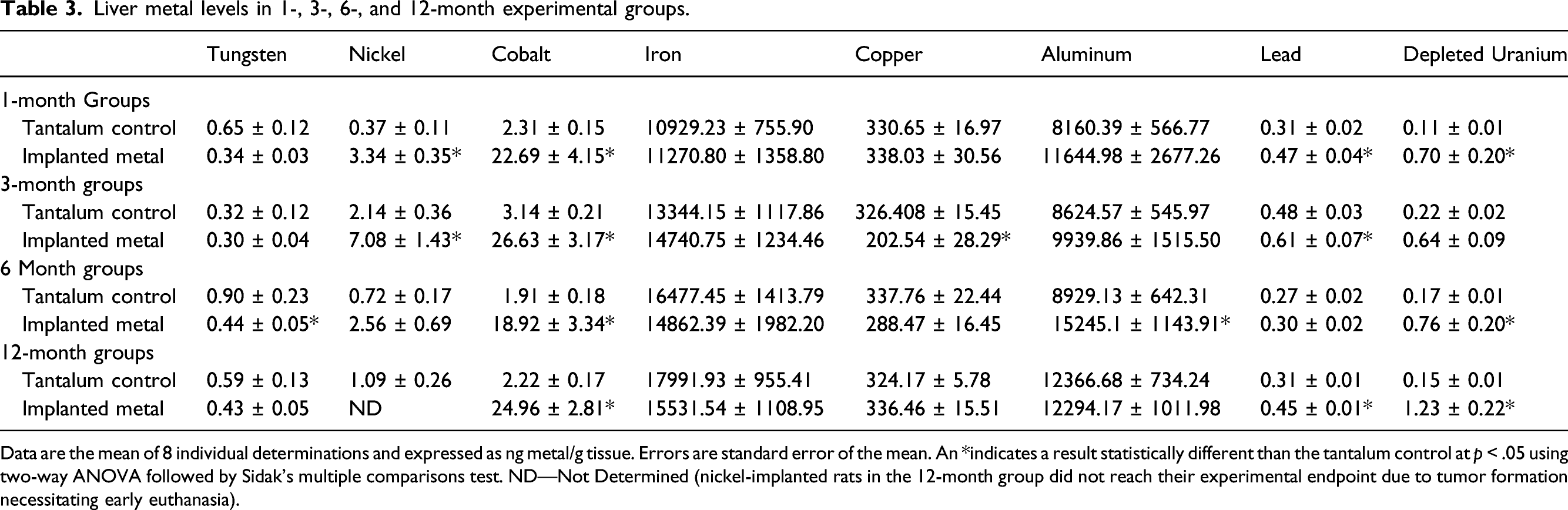

Table 3.

Liver metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month Groups
Tantalum control	0.65 ± 0.12	0.37 ± 0.11	2.31 ± 0.15	10929.23 ± 755.90	330.65 ± 16.97	8160.39 ± 566.77	0.31 ± 0.02	0.11 ± 0.01
Implanted metal	0.34 ± 0.03	3.34 ± 0.35*	22.69 ± 4.15*	11270.80 ± 1358.80	338.03 ± 30.56	11644.98 ± 2677.26	0.47 ± 0.04*	0.70 ± 0.20*
3-month groups
Tantalum control	0.32 ± 0.12	2.14 ± 0.36	3.14 ± 0.21	13344.15 ± 1117.86	326.408 ± 15.45	8624.57 ± 545.97	0.48 ± 0.03	0.22 ± 0.02
Implanted metal	0.30 ± 0.04	7.08 ± 1.43*	26.63 ± 3.17*	14740.75 ± 1234.46	202.54 ± 28.29*	9939.86 ± 1515.50	0.61 ± 0.07*	0.64 ± 0.09
6 Month groups
Tantalum control	0.90 ± 0.23	0.72 ± 0.17	1.91 ± 0.18	16477.45 ± 1413.79	337.76 ± 22.44	8929.13 ± 642.31	0.27 ± 0.02	0.17 ± 0.01
Implanted metal	0.44 ± 0.05*	2.56 ± 0.69	18.92 ± 3.34*	14862.39 ± 1982.20	288.47 ± 16.45	15245.1 ± 1143.91*	0.30 ± 0.02	0.76 ± 0.20*
12-month groups
Tantalum control	0.59 ± 0.13	1.09 ± 0.26	2.22 ± 0.17	17991.93 ± 955.41	324.17 ± 5.78	12366.68 ± 734.24	0.31 ± 0.01	0.15 ± 0.01
Implanted metal	0.43 ± 0.05	ND	24.96 ± 2.81*	15531.54 ± 1108.95	336.46 ± 15.51	12294.17 ± 1011.98	0.45 ± 0.01*	1.23 ± 0.22*

Data are the mean of 8 individual determinations and expressed as ng metal/g tissue. Errors are standard error of the mean. An *indicates a result statistically different than the tantalum control at p < .05 using two-way ANOVA followed by Sidak’s multiple comparisons test. ND—Not Determined (nickel-implanted rats in the 12-month group did not reach their experimental endpoint due to tumor formation necessitating early euthanasia).

Metal levels in the spleens from metal-implanted rats are shown in Table 4. Both tungsten and cobalt levels increased in a time-dependent manner while nickel levels were significantly higher at the earlier implantation time points but were lower as time progressed. Again, with few exceptions, iron, copper, and aluminum levels were not significantly different from control. Aluminum levels were significantly higher than control at the 1-month post-implantation time point. Lead and depleted uranium levels in the spleen, while elevated, were not consistently significantly higher than control.

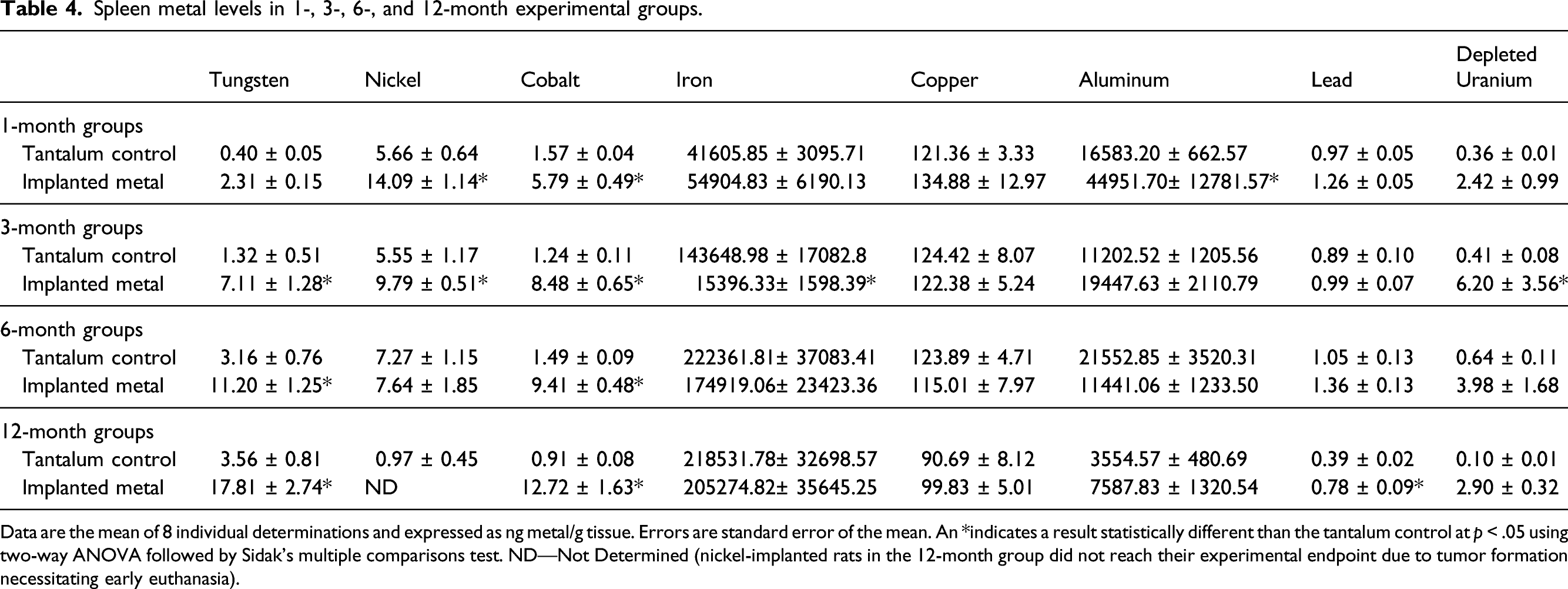

Table 4.

Spleen metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	0.40 ± 0.05	5.66 ± 0.64	1.57 ± 0.04	41605.85 ± 3095.71	121.36 ± 3.33	16583.20 ± 662.57	0.97 ± 0.05	0.36 ± 0.01
Implanted metal	2.31 ± 0.15	14.09 ± 1.14*	5.79 ± 0.49*	54904.83 ± 6190.13	134.88 ± 12.97	44951.70± 12781.57*	1.26 ± 0.05	2.42 ± 0.99
3-month groups
Tantalum control	1.32 ± 0.51	5.55 ± 1.17	1.24 ± 0.11	143648.98 ± 17082.8	124.42 ± 8.07	11202.52 ± 1205.56	0.89 ± 0.10	0.41 ± 0.08
Implanted metal	7.11 ± 1.28*	9.79 ± 0.51*	8.48 ± 0.65*	15396.33± 1598.39*	122.38 ± 5.24	19447.63 ± 2110.79	0.99 ± 0.07	6.20 ± 3.56*
6-month groups
Tantalum control	3.16 ± 0.76	7.27 ± 1.15	1.49 ± 0.09	222361.81± 37083.41	123.89 ± 4.71	21552.85 ± 3520.31	1.05 ± 0.13	0.64 ± 0.11
Implanted metal	11.20 ± 1.25*	7.64 ± 1.85	9.41 ± 0.48*	174919.06± 23423.36	115.01 ± 7.97	11441.06 ± 1233.50	1.36 ± 0.13	3.98 ± 1.68
12-month groups
Tantalum control	3.56 ± 0.81	0.97 ± 0.45	0.91 ± 0.08	218531.78± 32698.57	90.69 ± 8.12	3554.57 ± 480.69	0.39 ± 0.02	0.10 ± 0.01
Implanted metal	17.81 ± 2.74*	ND	12.72 ± 1.63*	205274.82± 35645.25	99.83 ± 5.01	7587.83 ± 1320.54	0.78 ± 0.09*	2.90 ± 0.32

Nickel and cobalt levels in the testes of metal-implanted rats were significantly higher than in control rats while staying relatively constant throughout the experimental time course (Table 5). On the other hand, depleted uranium levels in the testes increased in a time-dependent manner, Aluminum and lead levels were significantly higher at 1-month post-implantation but returned to normal levels as time went on. Again, there were no significant differences in the iron or copper levels in the testes from metal-implanted rats.

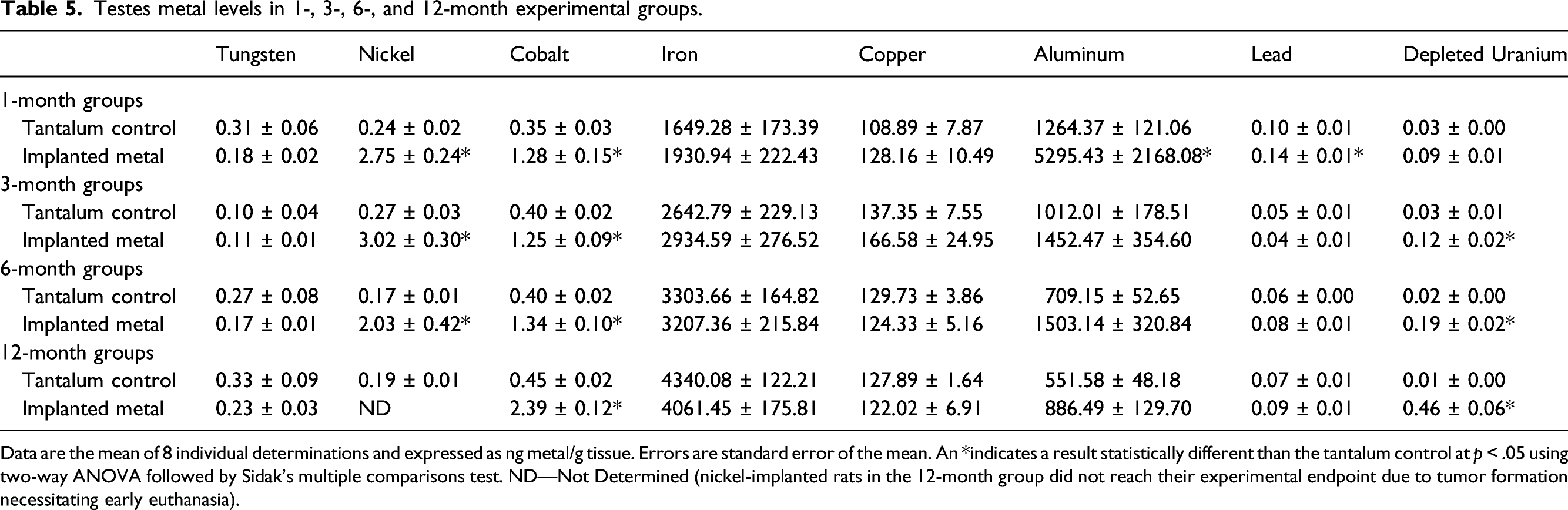

Table 5.

Testes metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	0.31 ± 0.06	0.24 ± 0.02	0.35 ± 0.03	1649.28 ± 173.39	108.89 ± 7.87	1264.37 ± 121.06	0.10 ± 0.01	0.03 ± 0.00
Implanted metal	0.18 ± 0.02	2.75 ± 0.24*	1.28 ± 0.15*	1930.94 ± 222.43	128.16 ± 10.49	5295.43 ± 2168.08*	0.14 ± 0.01*	0.09 ± 0.01
3-month groups
Tantalum control	0.10 ± 0.04	0.27 ± 0.03	0.40 ± 0.02	2642.79 ± 229.13	137.35 ± 7.55	1012.01 ± 178.51	0.05 ± 0.01	0.03 ± 0.01
Implanted metal	0.11 ± 0.01	3.02 ± 0.30*	1.25 ± 0.09*	2934.59 ± 276.52	166.58 ± 24.95	1452.47 ± 354.60	0.04 ± 0.01	0.12 ± 0.02*
6-month groups
Tantalum control	0.27 ± 0.08	0.17 ± 0.01	0.40 ± 0.02	3303.66 ± 164.82	129.73 ± 3.86	709.15 ± 52.65	0.06 ± 0.00	0.02 ± 0.00
Implanted metal	0.17 ± 0.01	2.03 ± 0.42*	1.34 ± 0.10*	3207.36 ± 215.84	124.33 ± 5.16	1503.14 ± 320.84	0.08 ± 0.01	0.19 ± 0.02*
12-month groups
Tantalum control	0.33 ± 0.09	0.19 ± 0.01	0.45 ± 0.02	4340.08 ± 122.21	127.89 ± 1.64	551.58 ± 48.18	0.07 ± 0.01	0.01 ± 0.00
Implanted metal	0.23 ± 0.03	ND	2.39 ± 0.12*	4061.45 ± 175.81	122.02 ± 6.91	886.49 ± 129.70	0.09 ± 0.01	0.46 ± 0.06*

The metal pellets tested were implanted into the gastrocnemius muscle and Table 6 shows the metal levels from that tissue. Once again, cobalt was found at significantly higher, yet constant, levels in the metal-implanted rats than in control across all time points. With the exception of the 3-month DU-implanted group, no other statistically significant differences were observed.

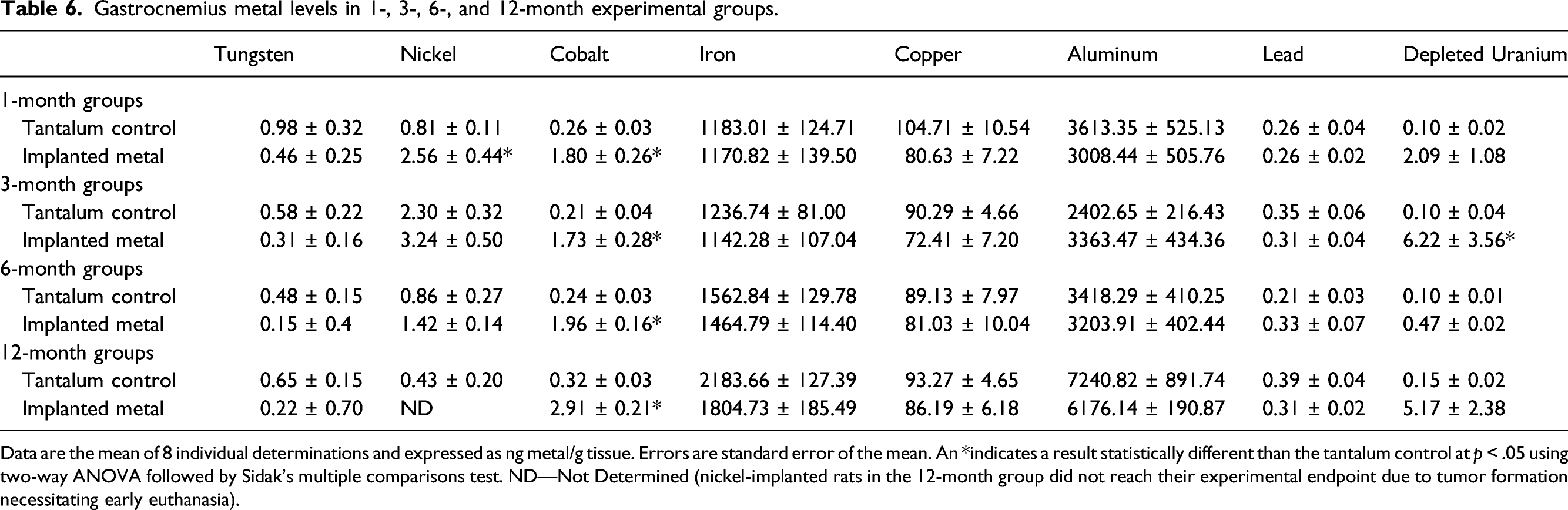

Table 6.

Gastrocnemius metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	0.98 ± 0.32	0.81 ± 0.11	0.26 ± 0.03	1183.01 ± 124.71	104.71 ± 10.54	3613.35 ± 525.13	0.26 ± 0.04	0.10 ± 0.02
Implanted metal	0.46 ± 0.25	2.56 ± 0.44*	1.80 ± 0.26*	1170.82 ± 139.50	80.63 ± 7.22	3008.44 ± 505.76	0.26 ± 0.02	2.09 ± 1.08
3-month groups
Tantalum control	0.58 ± 0.22	2.30 ± 0.32	0.21 ± 0.04	1236.74 ± 81.00	90.29 ± 4.66	2402.65 ± 216.43	0.35 ± 0.06	0.10 ± 0.04
Implanted metal	0.31 ± 0.16	3.24 ± 0.50	1.73 ± 0.28*	1142.28 ± 107.04	72.41 ± 7.20	3363.47 ± 434.36	0.31 ± 0.04	6.22 ± 3.56*
6-month groups
Tantalum control	0.48 ± 0.15	0.86 ± 0.27	0.24 ± 0.03	1562.84 ± 129.78	89.13 ± 7.97	3418.29 ± 410.25	0.21 ± 0.03	0.10 ± 0.01
Implanted metal	0.15 ± 0.4	1.42 ± 0.14	1.96 ± 0.16*	1464.79 ± 114.40	81.03 ± 10.04	3203.91 ± 402.44	0.33 ± 0.07	0.47 ± 0.02
12-month groups
Tantalum control	0.65 ± 0.15	0.43 ± 0.20	0.32 ± 0.03	2183.66 ± 127.39	93.27 ± 4.65	7240.82 ± 891.74	0.39 ± 0.04	0.15 ± 0.02
Implanted metal	0.22 ± 0.70	ND	2.91 ± 0.21*	1804.73 ± 185.49	86.19 ± 6.18	6176.14 ± 190.87	0.31 ± 0.02	5.17 ± 2.38

Similar results were observed for lung metal levels (Table 7). Again, cobalt levels were significantly higher than control at all experimental time points and also increased in a time-dependent manner. No other significant differences were observed with the exception of the 6- and 12-month DU-implanted cohorts where higher levels of uranium were found in the lung.

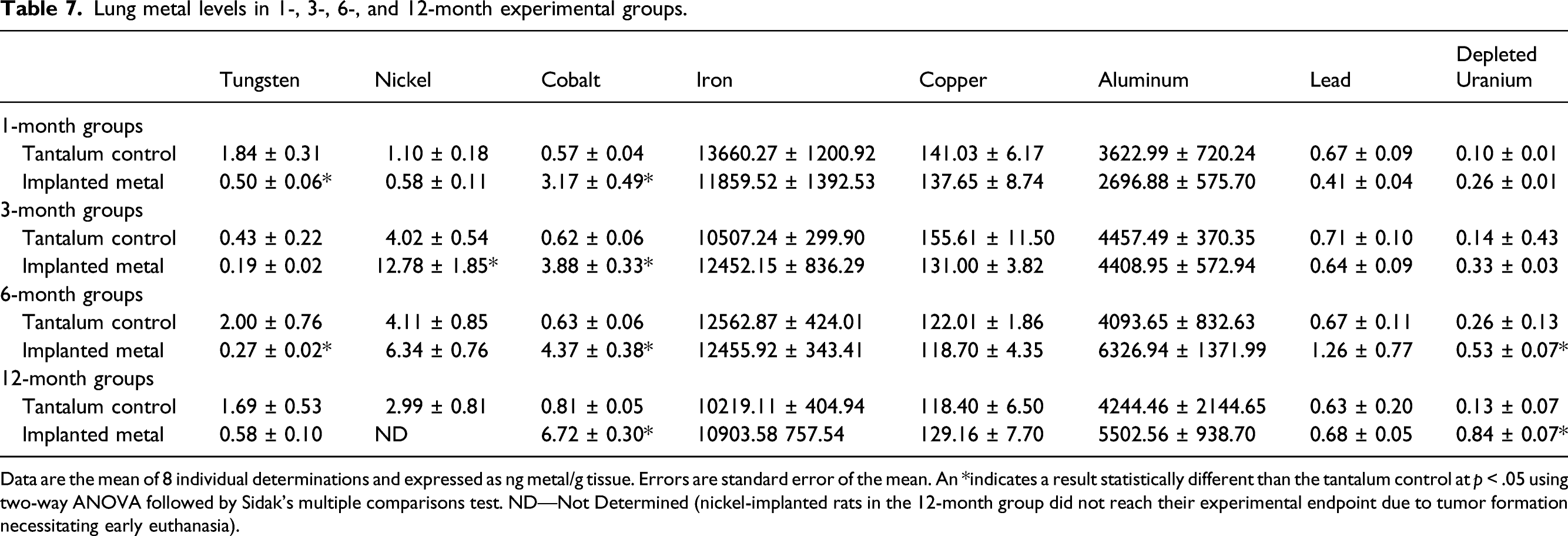

Table 7.

Lung metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	1.84 ± 0.31	1.10 ± 0.18	0.57 ± 0.04	13660.27 ± 1200.92	141.03 ± 6.17	3622.99 ± 720.24	0.67 ± 0.09	0.10 ± 0.01
Implanted metal	0.50 ± 0.06*	0.58 ± 0.11	3.17 ± 0.49*	11859.52 ± 1392.53	137.65 ± 8.74	2696.88 ± 575.70	0.41 ± 0.04	0.26 ± 0.01
3-month groups
Tantalum control	0.43 ± 0.22	4.02 ± 0.54	0.62 ± 0.06	10507.24 ± 299.90	155.61 ± 11.50	4457.49 ± 370.35	0.71 ± 0.10	0.14 ± 0.43
Implanted metal	0.19 ± 0.02	12.78 ± 1.85*	3.88 ± 0.33*	12452.15 ± 836.29	131.00 ± 3.82	4408.95 ± 572.94	0.64 ± 0.09	0.33 ± 0.03
6-month groups
Tantalum control	2.00 ± 0.76	4.11 ± 0.85	0.63 ± 0.06	12562.87 ± 424.01	122.01 ± 1.86	4093.65 ± 832.63	0.67 ± 0.11	0.26 ± 0.13
Implanted metal	0.27 ± 0.02*	6.34 ± 0.76	4.37 ± 0.38*	12455.92 ± 343.41	118.70 ± 4.35	6326.94 ± 1371.99	1.26 ± 0.77	0.53 ± 0.07*
12-month groups
Tantalum control	1.69 ± 0.53	2.99 ± 0.81	0.81 ± 0.05	10219.11 ± 404.94	118.40 ± 6.50	4244.46 ± 2144.65	0.63 ± 0.20	0.13 ± 0.07
Implanted metal	0.58 ± 0.10	ND	6.72 ± 0.30*	10903.58 757.54	129.16 ± 7.70	5502.56 ± 938.70	0.68 ± 0.05	0.84 ± 0.07*

Metal levels in the tibia are shown in Table 8. No significant differences were seen in metal levels with the exception of cobalt, lead, and DU. In all three cases, levels rose from 1 to 3 months, dropped slightly at 6 months and then rose again at 12 months.

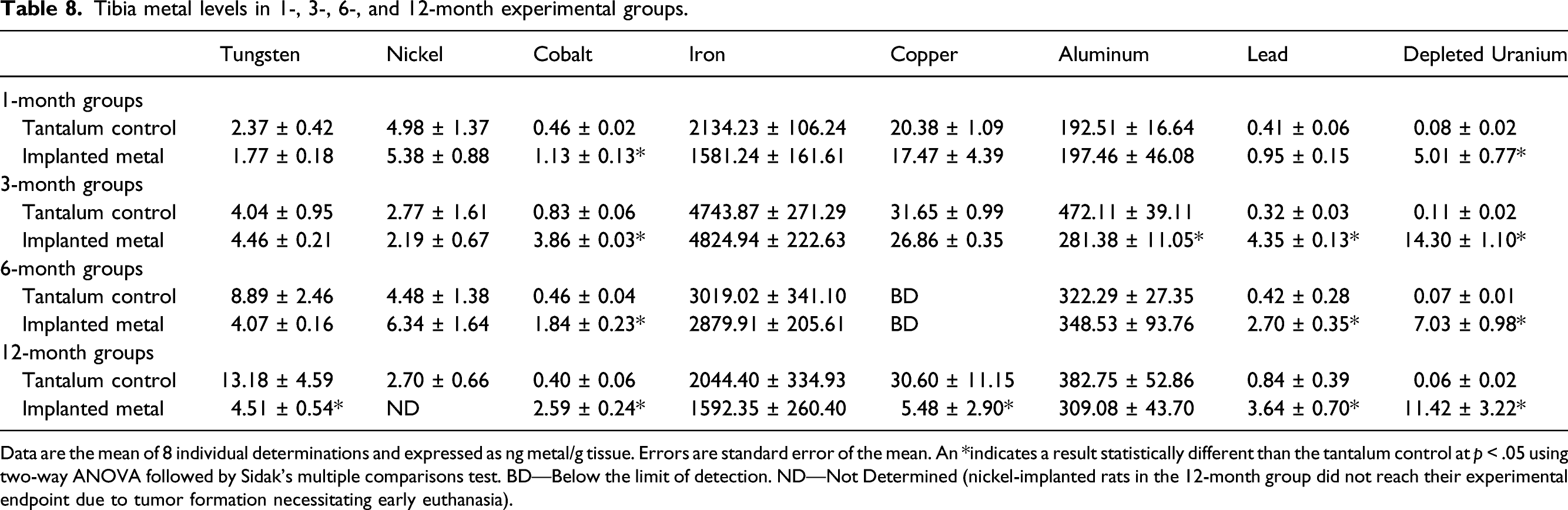

Table 8.

Tibia metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	2.37 ± 0.42	4.98 ± 1.37	0.46 ± 0.02	2134.23 ± 106.24	20.38 ± 1.09	192.51 ± 16.64	0.41 ± 0.06	0.08 ± 0.02
Implanted metal	1.77 ± 0.18	5.38 ± 0.88	1.13 ± 0.13*	1581.24 ± 161.61	17.47 ± 4.39	197.46 ± 46.08	0.95 ± 0.15	5.01 ± 0.77*
3-month groups
Tantalum control	4.04 ± 0.95	2.77 ± 1.61	0.83 ± 0.06	4743.87 ± 271.29	31.65 ± 0.99	472.11 ± 39.11	0.32 ± 0.03	0.11 ± 0.02
Implanted metal	4.46 ± 0.21	2.19 ± 0.67	3.86 ± 0.03*	4824.94 ± 222.63	26.86 ± 0.35	281.38 ± 11.05*	4.35 ± 0.13*	14.30 ± 1.10*
6-month groups
Tantalum control	8.89 ± 2.46	4.48 ± 1.38	0.46 ± 0.04	3019.02 ± 341.10	BD	322.29 ± 27.35	0.42 ± 0.28	0.07 ± 0.01
Implanted metal	4.07 ± 0.16	6.34 ± 1.64	1.84 ± 0.23*	2879.91 ± 205.61	BD	348.53 ± 93.76	2.70 ± 0.35*	7.03 ± 0.98*
12-month groups
Tantalum control	13.18 ± 4.59	2.70 ± 0.66	0.40 ± 0.06	2044.40 ± 334.93	30.60 ± 11.15	382.75 ± 52.86	0.84 ± 0.39	0.06 ± 0.02
Implanted metal	4.51 ± 0.54*	ND	2.59 ± 0.24*	1592.35 ± 260.40	5.48 ± 2.90*	309.08 ± 43.70	3.64 ± 0.70*	11.42 ± 3.22*

Data are the mean of 8 individual determinations and expressed as ng metal/g tissue. Errors are standard error of the mean. An *indicates a result statistically different than the tantalum control at p < .05 using two-way ANOVA followed by Sidak’s multiple comparisons test. BD—Below the limit of detection. ND—Not Determined (nickel-implanted rats in the 12-month group did not reach their experimental endpoint due to tumor formation necessitating early euthanasia).

With the exception of lead, similar results were observed for metal levels in the fibula as seen in Table 9. At the 1-month post-implantation time point, lead, copper, and aluminum levels in the fibula were significantly higher than in controls, but then returned to normal levels over time. Conversely, cobalt and DU were significantly higher than control with DU increasing in a time-dependent manner.

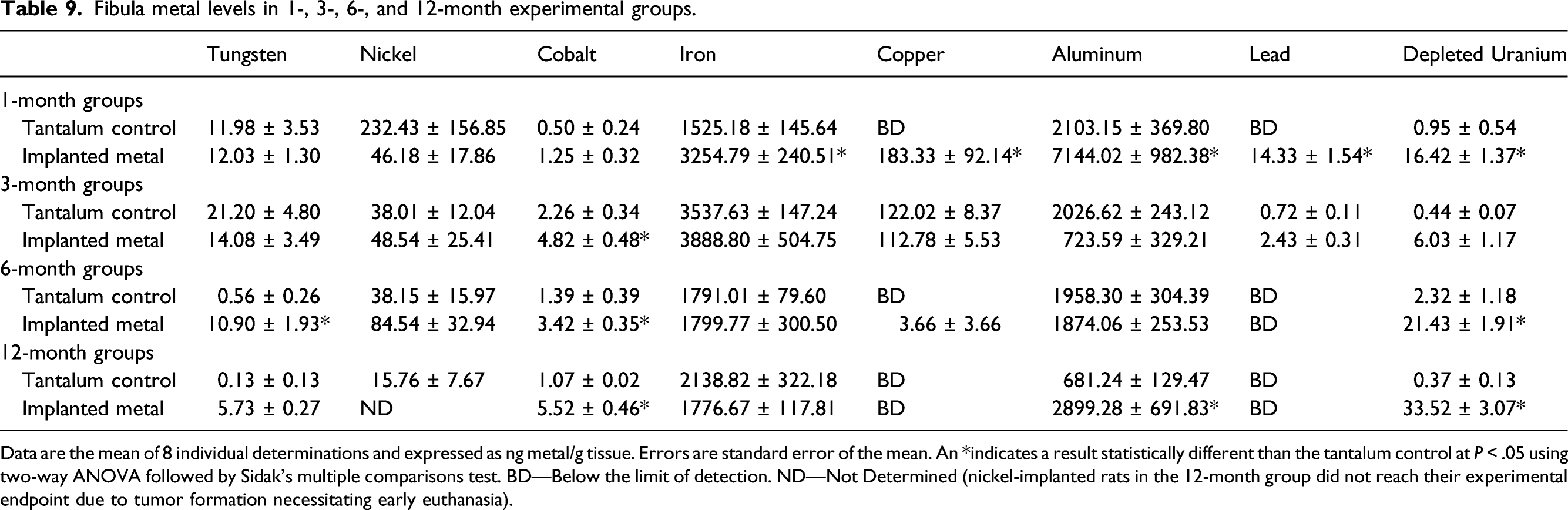

Table 9.

Fibula metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	11.98 ± 3.53	232.43 ± 156.85	0.50 ± 0.24	1525.18 ± 145.64	BD	2103.15 ± 369.80	BD	0.95 ± 0.54
Implanted metal	12.03 ± 1.30	46.18 ± 17.86	1.25 ± 0.32	3254.79 ± 240.51*	183.33 ± 92.14*	7144.02 ± 982.38*	14.33 ± 1.54*	16.42 ± 1.37*
3-month groups
Tantalum control	21.20 ± 4.80	38.01 ± 12.04	2.26 ± 0.34	3537.63 ± 147.24	122.02 ± 8.37	2026.62 ± 243.12	0.72 ± 0.11	0.44 ± 0.07
Implanted metal	14.08 ± 3.49	48.54 ± 25.41	4.82 ± 0.48*	3888.80 ± 504.75	112.78 ± 5.53	723.59 ± 329.21	2.43 ± 0.31	6.03 ± 1.17
6-month groups
Tantalum control	0.56 ± 0.26	38.15 ± 15.97	1.39 ± 0.39	1791.01 ± 79.60	BD	1958.30 ± 304.39	BD	2.32 ± 1.18
Implanted metal	10.90 ± 1.93*	84.54 ± 32.94	3.42 ± 0.35*	1799.77 ± 300.50	3.66 ± 3.66	1874.06 ± 253.53	BD	21.43 ± 1.91*
12-month groups
Tantalum control	0.13 ± 0.13	15.76 ± 7.67	1.07 ± 0.02	2138.82 ± 322.18	BD	681.24 ± 129.47	BD	0.37 ± 0.13
Implanted metal	5.73 ± 0.27	ND	5.52 ± 0.46*	1776.67 ± 117.81	BD	2899.28 ± 691.83*	BD	33.52 ± 3.07*

Data are the mean of 8 individual determinations and expressed as ng metal/g tissue. Errors are standard error of the mean. An *indicates a result statistically different than the tantalum control at P < .05 using two-way ANOVA followed by Sidak’s multiple comparisons test. BD—Below the limit of detection. ND—Not Determined (nickel-implanted rats in the 12-month group did not reach their experimental endpoint due to tumor formation necessitating early euthanasia).

Table 10 shows the metal levels in the femurs from metal-implanted rats. As with the tibia, cobalt, lead, and DU levels in the femur were all significantly higher than control. Again, femur levels of those three metals appear to peak at 3-months post-implantation before decreasing, but still staying significantly higher than control, at the 6- and 12-M time points.

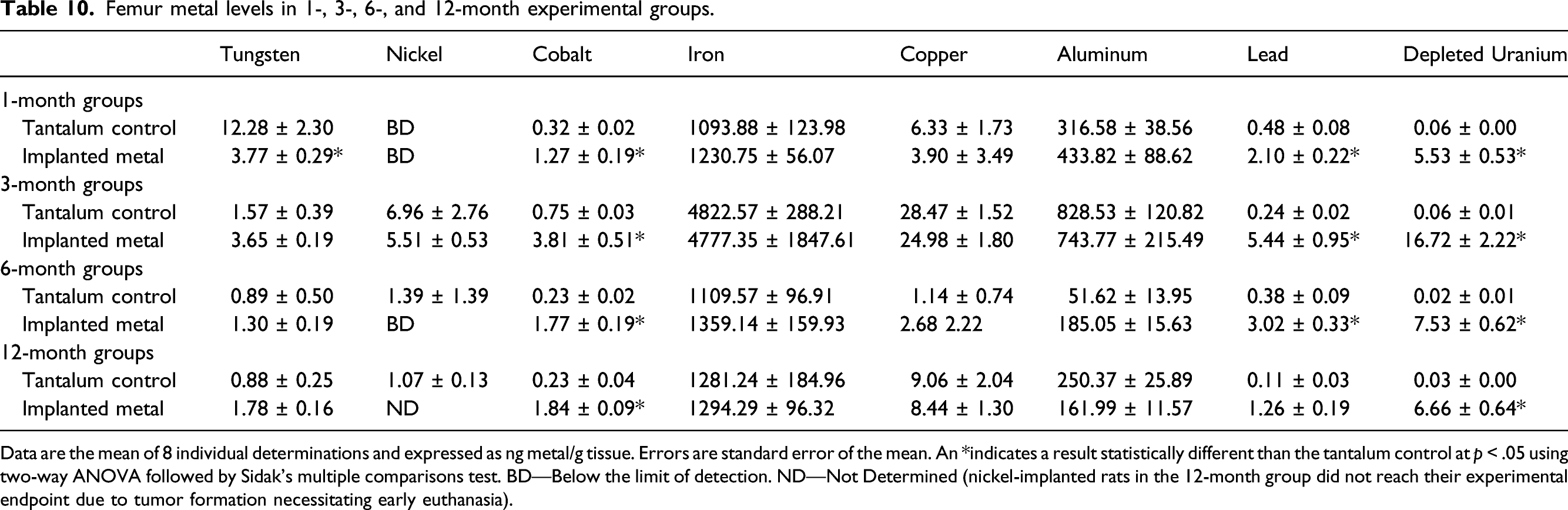

Table 10.

Femur metal levels in 1-, 3-, 6-, and 12-month experimental groups.

	Tungsten	Nickel	Cobalt	Iron	Copper	Aluminum	Lead	Depleted Uranium
1-month groups
Tantalum control	12.28 ± 2.30	BD	0.32 ± 0.02	1093.88 ± 123.98	6.33 ± 1.73	316.58 ± 38.56	0.48 ± 0.08	0.06 ± 0.00
Implanted metal	3.77 ± 0.29*	BD	1.27 ± 0.19*	1230.75 ± 56.07	3.90 ± 3.49	433.82 ± 88.62	2.10 ± 0.22*	5.53 ± 0.53*
3-month groups
Tantalum control	1.57 ± 0.39	6.96 ± 2.76	0.75 ± 0.03	4822.57 ± 288.21	28.47 ± 1.52	828.53 ± 120.82	0.24 ± 0.02	0.06 ± 0.01
Implanted metal	3.65 ± 0.19	5.51 ± 0.53	3.81 ± 0.51*	4777.35 ± 1847.61	24.98 ± 1.80	743.77 ± 215.49	5.44 ± 0.95*	16.72 ± 2.22*
6-month groups
Tantalum control	0.89 ± 0.50	1.39 ± 1.39	0.23 ± 0.02	1109.57 ± 96.91	1.14 ± 0.74	51.62 ± 13.95	0.38 ± 0.09	0.02 ± 0.01
Implanted metal	1.30 ± 0.19	BD	1.77 ± 0.19*	1359.14 ± 159.93	2.68 2.22	185.05 ± 15.63	3.02 ± 0.33*	7.53 ± 0.62*
12-month groups
Tantalum control	0.88 ± 0.25	1.07 ± 0.13	0.23 ± 0.04	1281.24 ± 184.96	9.06 ± 2.04	250.37 ± 25.89	0.11 ± 0.03	0.03 ± 0.00
Implanted metal	1.78 ± 0.16	ND	1.84 ± 0.09*	1294.29 ± 96.32	8.44 ± 1.30	161.99 ± 11.57	1.26 ± 0.19	6.66 ± 0.64*

Data are the mean of 8 individual determinations and expressed as ng metal/g tissue. Errors are standard error of the mean. An *indicates a result statistically different than the tantalum control at p < .05 using two-way ANOVA followed by Sidak’s multiple comparisons test. BD—Below the limit of detection. ND—Not Determined (nickel-implanted rats in the 12-month group did not reach their experimental endpoint due to tumor formation necessitating early euthanasia).

Discussion

Embedded metal fragment injuries are an inevitable consequence of armed conflict. Advances in weapon design, as well as the use of improvised explosive devices, now mean that there is theoretically no limit on what metals could be found in an embedded fragment wound. In most cases, the toxicological and carcinogenic potential of many of these metals are not known. Thus, the short- and long-term health effects of these types of injuries are an emerging medical issue. As a result, the United States DoD and DVA developed a list of “metals of concern” with respect to embedded fragment wounds.^24,25 Using a rodent model designed to investigate the effects of embedded metal fragments, we selected several metals from these lists to assess the associated health risks. Herein we report on the tissue distribution patterns of these metals at 1-, 3-, 6-, and 12-months post-implantation.

Earlier studies on embedded metal fragments suggest that, over time, many can solubilize with the released metals excreted in the urine and, in some cases, deposited in specific tissues.^{10,12–14,34,36,38} We had previously reported that metals selected from the DoD/DVA list of “metals of concern” when implanted into the gastrocnemius muscle of laboratory rats also eventually solubilized and were excreted in the urine.²⁶ In addition, some of the solubilized metals were capable of crossing the blood-brain barrier and depositing in discrete regions of the brain.²⁷ In this study, with the exception of iron, copper, and aluminum, all of the implanted metals were found at significantly elevated levels in the kidney. This is not surprising considering that excretion is the primary route of elimination once the metals solubilize. The extent of distribution of metals in the kidney also varies over time. For example, tungsten and lead levels tend to increase over time with a peak at 6-months post-implantation followed by a decrease at 12-months post-implantation. Nickel levels in the kidney peak at 3-months post-implantation before dropping at 6-months post-implantation possibly due to tumor formation around the implanted pellet limiting metal solubilization. Cobalt levels in the kidney also peak at 3-months post-implantation but remained constant for the remainder of the experimental period while depleted uranium levels in the kidney continued to increase over time. As reported earlier, histopathological examination of the kidney did not reveal any observable metal-induced damage.²⁶ In fact, histopathology did not identify any metal-associated tissue lesions with the exception of rhabdomyosarcoma formation at the pellet implantation sites in the nickel and cobalt groups.^27,39

Not all implanted metals localized to all tissues at significant levels. In fact, implanted copper, iron, and aluminum did not result in significantly higher levels in any of the tissues analyzed, possibly because the small number of pellets implanted did not significantly add to the levels found normally in the body. In addition, the implanted copper pellets were discovered to move from the gastrocnemius muscle and extrude through the skin by 3-months post-implantation, so it is not unexpected that no significantly high levels of copper were identified in any of the tissues.³⁹ Other metals were only found in a limited number of tissues. For example, tungsten was found at significant levels only in spleen, while nickel was elevated in both liver and testes. On the other hand, cobalt, lead, and depleted uranium were found in a wide variety of tissues including liver, spleen, testes, lung, tibia, fibula, and femur. Tungsten and cobalt levels in spleen exhibited a similar pattern with tissue levels of both consistently increasing over the duration of exposure. Conversely, nickel levels peaked at 1-month and depleted uranium levels at 6-months post-implantation before both decreasing. Nickel showed similar accumulation patterns in liver, testes, gastrocnemius, and lung with a peak early after implantation (1 to 3 months) followed by a decline. There were no significant levels of nickel in any of the bone samples. Cobalt levels in liver, testes, gastrocnemius, and lung also showed a constant pattern of accumulation with a peak early after implantation with the tissue levels of the metal remaining relatively constant throughout the experimental period. Lead accumulation was not found in any significant amounts over time in gastrocnemius, testes, or lung; and in liver reached peak accumulation by 3-months before decreasing. A similar pattern was observed for lead in bone. For most tissues, depleted uranium accumulation tended to rise throughout the experimental period.

As noted earlier, embedded metal fragments, especially those suffered in wartime, were originally considered inert and were left in place. We now know that this is not the case and that certain metals can solubilize and be transported to tissues far from the original injury. This metal solubilization and transport is not limited to war wounds but has also been identified as occurring in medical implants such as metal-on-metal hip replacements. For example, although elevated levels of cobalt and chromium have been found in the serum and urine of patients with failed hip replacements, there have also been instances where the joint failure led to cobalt-induced cardiotoxicity and significantly high levels of cobalt in the heart muscle.⁴⁰

As described above, with the exception of nickel and cobalt, no overt adverse effects resulting from the implanted metals were seen in the tissues of the experimental rats. It should be noted that the amount of metal implanted into the experimental rats is similar to that reported being surgically excised from a wounded veteran.¹² Additional research from this project is currently investigating tissue biomarkers and histopathological assessment of the rodent tissues; therefore, it may be possible that the amount of metal implanted is not high enough to result in substantial adverse health effects. However, metal deposition in tissues is not without risks. Standard toxicological and carcinogenic concerns aside, metals are also involved in the production of reactive oxygen species through the Fenton and Haber-Weiss reactions.^41,42 These reactive oxygen species can initiate a cascade of toxic effects leading to lipid peroxidation as well as protein and DNA damage. Metals have also been shown to induce epigenetic and gene expression changes.^43,44 Investigations using gastrocnemius muscle isolated from our implanted rat cohorts has demonstrated that the embedded metals induced transcriptional changes in the tissue surrounding the pellet and changed urinary miRNA patterns.^39,45 This raises serious concerns as to the long-term effects of metals translocated from embedded fragments to other tissues. As shown previously, certain metals can cross the blood-brain barrier²⁷ and as demonstrated in this report, also cross the blood-testes barrier and were also found in bone. The effect of these metals on gene expression in these sensitive tissues requires further investigation as does the pathways involved in transporting the metal from the embedded fragment to these tissues. Research on the biokinetics of embedded material suggests that multiple routes are required to account for the clearance of easily solubilized metals as well as any particulate material.⁴⁶ A variety of factors will affect the rate of solubilization and translocation including the chemical and physical properties of the embedded fragment and the induction of inflammation in the tissue and the recruitment of macrophages and other immune system cells to the damaged area.²² It may be possible to assess serum and urinary oxidative stress biomarkers to identify the onset of adverse health effects resulting from the embedded metal, an area we continue to investigate.

With the realization that not all embedded metal fragments can be considered “inert,” the current conundrum with respect to the management of these injuries is how to balance the long-term health risks with the morbidity that can sometimes occur as a result of extensive surgery to remove the fragments. Current guidance still leans toward leaving embedded fragments in place unless they are easily accessible or may present a life-threatening health issue in the future.⁴⁷ However, with the virtually limitless number of metals and metal mixtures that may be found in embedded fragment wounds, the lack of a knowledge base with respect to long-term health effects, especially solubility and translocation properties, put health care professionals at a disadvantage when designing treatment strategies for dealing with these types of injuries.

Footnotes

Acknowledgements

The authors would like to thank Raisa Marshall, Anya Fan, and William Danchanko for their expertise in the pellet implantation surgeries, animal welfare checks, and tissue collection.

Author contributions

Conceptualization, JFK; methodology, VBV, JFH, JFK; software, VBV, JFH, JFK; validation, VBV, JFH, JFK; formal analysis, VBV, JFH; investigation, VBV, JFH, JFK; resources, JFK; data curation, VBV, JFH, JFK; writing—original draft preparation, JFK; writing—review and editing, VBV, JFH, JFK; visualization, VBV, JFH, JFK; supervision, JFK; project administration, JFK; funding acquisition, JFK. All authors have read and agreed to the published version of the manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The project described was supported by the grant Health Effects of Blast Injuries and Embedded Metal Fragments (W81XWH-16-2–0058) from the Congressionally Directed Medical Research Program (CDMRP) Peer-Reviewed Medical Research Program.

Ethical approval

All procedures involving animals were (a) conducted with maximal possible well-being of the rats, (b) approved by the AFRRI Institutional Animal Care and Use Committee (IACUC) prior to the start of the study under protocol 2016-05-006, and (c) performed in compliance with the guidelines set forth in the Guide for the Care and Use of Laboratory Animals in an Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC)-accredited facility.

Data availability statement

All data supporting the results described are provided within the manuscript.

ORCID iD

John F Kalinich

References

Manring

Hawk

Calhoun

, et al. Treatment of war wounds: a historical review. Clin Orthop Relat Res 2009; 467: 2168–2191.

Maggio

Kalasinsky

Lewin-Smith

, et al. Wound fragments from cutaneous sites of US Military personnel deployed in operation Iraqi Freedom: clinical aspects and pathologic characterizations. Dermatol Surg 2008; 34: 475–82.

Symonds

Mackay

Morley

. The late effect of grenade fragments. J R Army Med Corps 1985; 131: 68–69.

Ligtenstein

Krijnen

JLM

Jansen

BRH

, et al. Forgotten injury: a late benign complication of an unremoved shrapnel fragment—Case report. J Trauma 1994; 36: 580–582.

Eylon

Mosheiff

Liebergall

, et al. Delayed reaction to shrapnel retained in soft tissue. Injury 2005; 36: 275–281.

Bar

Merimsky

. Soft-tissue sarcoma following traumatic injury: case report and review of the literature. Front Oncol 2017; 7: 134.

Schenck

Kronman

. Hoarseness and mass in the neck 30 years after penetrating shrapnel injury. Ann Otol Rhinol Laryngol 1977; 86: 259.

Knox

Wilkinson

. Shrapnel presenting with symptoms 62 years after wounding. Br Med J (Clin Res Ed) 1981; 283: 193.

Lindeman

McKay

Taubman

, et al. Malignant fibrous histiocytoma developing in bone 44 years after shrapnel trauma. Cancer 1990; 66: 2229–2232.

10.

Pellmar

Fuciarelli

Ejnik

, et al. Distribution of uranium in rats implanted with depleted uranium pellets. Toxicol Sci 1999; 49: 29–39.

11.

Centeno

Rogers

van der Voet

, et al. Embedded fragments – a unique exposure situation and concerns of possible health effects. Int J Environ Res Pub Health 2014; 11: 1261–1278.

12.

Gaitens

Centeno

Squibb

, et al. Mobilization of metal from retained embedded fragments in a blast-injured Iraq War Veteran. Mil Med 2016; 181: e625–e629.

13.

Gaitens

Condon

Squibb

, et al. Metal exposure in veterans with embedded fragments from war-related injuries: early findings from surveillance efforts. J Occup Environ Med 2017; 59: 1056–1062.

14.

McDiarmid

Gaitens

Hines

, et al. The US Department of Veterans’ Affairs depleted uranium cohort at 25 years: longitudinal surveillance results. Environ Res 2017; 152: 175–184.

15.

Daniel

Ziaee

Pradhan

, et al. Renal clearance of cobalt in relation to the use of metal-on-metal bearings in hip arthroplasty. J Bone Joint Surg Am 2010; 92: 840–845.

16.

Sarmiento-Gonzalez

Encinar

Marchante-Gayon

, et al. Titanium levels in the organs and blood of rats with a titanium implant, in the absence of wear, as determined by double-focusing ICP-MS. Analyt Bioanalyt Chem 2009; 393: 335–343.

17.

Aguilera-Correa

J-J

Aunon

Boiza-Sanchez

, et al. Urine aluminum concentration as a possible implant biomarker of Pseudomonas aeruginosa infection using a fluorine- and phosphorus-doped Ti-6Al-4V alloy with osseointegration capacity. ACS Omega 2019; 4: 11815–11823.

18.

Jacobs

Hallab

Skipor

, et al.

Metal degradation products: a cause for concern in metal-metal bearings?

Clin Orthop Rel Res 2003; 417: 139–47.

19.

Keegan

Learmonth

Case

. Orthopaedic metals and their potential toxicity in the arthroplasty patient: a review of current knowledge and future strategies. J Bone Joint Surg Br 2007; 89: 567–73.

20.

Osawa

Abe

Inokuma

, et al. Chain saw blade granuloma: reaction to a deeply embedded metal fragment. Arch Dermatol 2006; 142: 1079–1080.

21.

Saruwatari

Kamiwada

Matsushita

, et al. Tungsten granuloma attributable to a piece of lawn-mower blade. Clin Exp Dermatol 2009; 34: e268–9.

22.

Emond

Kalinich

. Biokinetics of embedded surrogate radiological dispersal device material. Health Phys 2012; 102: 124–136.

23.

Vergara

Emond

Kalinich

. Tissue distribution patterns of solubilized metals from internalized tungsten alloy in the F344 rat. AIMS Environ Sci 2016; 3: 290–304.

24.

Policy on analysis of metal fragments removed from Department of defense personnel. (Policy #: 07-029, Date: 18 December 2007). https://www.health.mil/Military-Health-Topics/Health-Readiness/Environmental-Exposures?page=2#pagingAnchor (2007, accessed 11 October 2021)

25.

Screening and evaluation protocol for veterans with embedded fragments who served in Iraq and/or Afghanistan. Post-11 September 2001 (6 April 2017). https://www.va.gov/VHAPublications/ViewPublication.asp?pub_ID=5372 (accessed 11 October 2021)

26.

Hoffman

Vergara

Fan

, et al. Effect of embedded metal fragments on urinary metal levels and kidney biomarkers in the Sprague-Dawley rat. Toxicol Rpts 2021; 8: 463–480.

27.

Hoffman

Vergara

Kalinich

. Brain region- and metal-specific effects of embedded metals in a shrapnel wound model in the rat. Neurotoxicology 2021; 83: 116–128.

28.

National Research Council . 2011. Guide for the Care and Use of Laboratory Animals: 8th ed. Washington, DC: The National Academies Press.

29.

Castro

Benson

Bogo

, et al. Establishment of an Animal Model to Evaluate the Biological Effects of Intramuscularly Embedded Depleted Uranium Fragments. Technical Report 96-3. Bethesda, MD: Armed Forces Radiobiology Research Institute, 1996.

30.

Hockley

Goldin

Wake

MJC

, et al. Skull repair in children. Pediatr Neurosurg 1990; 16: 271–275.

31.

Johansson

Hansson

Albrektsson

. Qualitative interfacial study between bone and tantalum, niobium or commercially pure titanium. Biomaterials 1990; 11: 277–280.

32.

Strecker

Hagan

Liermann

, et al. Iliac and femoropopliteal vascular occlusive disease treated with flexible tantalum stents. Cardiovasc Intervent Radiol 1993; 16: 158–164.

33.

Hahn

Guilmette

Hoover

. Implanted depleted uranium fragments cause soft tissue sarcomas in the muscles of rats. Environ Health Persp 2002; 110: 51–59.

34.

Kalinich

Emond

Dalton

, et al. Embedded weapons-grade tungsten alloy shrapnel rapidly induces metastatic high-grade rhabdomyosarcomas in F344 rats. Environ Health Persp 2005; 113: 729–734.

35.

Percie du Sert

Hurst

Ahluwalia

, et al. The ARRIVE guidelines 2.0: updated guidelines for reporting animal research. PLoS Biol 2020; 18: e3000410.

36.

Emond

Vergara

Lombardini

, et al. Induction of rhabdomyosarcoma by embedded military-grade tungsten/nickel/cobalt not by tungsten/nickel/iron in the B6C3F1 mouse. Int J Toxicol 2015; 34: 44–54.

37.

American Veterinary Medical Association (AVMA) . AVMA Guidelines on Euthanasia. https://www.avma.org/sites/default/files/2020-02/Guidelines-on-Euthanasia-2020.pdf (accessed 11 October 2021).

38.

Kalinich

Vergara

Emond

. Urinary and serum metal levels as indicators of embedded tungsten alloy fragments. Mil Med 2008; 173: 754–758.

39.

Wen

Vechetti

Jr. Alimov

, et al. Time-course analysis of the effect of embedded metal on skeletal muscle gene expression. Physiol Genomics 2020; 52: 575–587.

40.

Fox

Phillips

Yanta

, et al. Fatal cobalt toxicity after total hip arthroplasty revision for fractured ceramic components. Clin Toxicol 2016, 54, 874–877.

41.

Winterbourn

. Toxicity of iron and hydrogen peroxide: the Fenton reaction. Toxicol Lett 1995; 82–83: 969–974.

42.

Kehrer

. The Haber-Weiss reaction and mechanisms of toxicity. Toxicology 2020; 149: 43–50.

43.

Hernandez-Coro

Sanchez-Hernandez

Montes

, et al. Alterations in gene expression due to chronic lead exposure induce behavioral changes. Neurosci Biobehav Rev 2021; 126: 361–367.

44.

de Araujo

Gomes

Devoz

NDA

, et al. Association between miR-148a and DNA methylation profile in individuals exposed to lead. Front Genet 2021; 12: 620744.

45.

Vechetti

Jr Wen

Hoffman

, et al. Urine miRNAs as potential biomarkers for systemic reactions induced by exposure to embedded metal. Biomarkers Med 2021; 15: 1397–1410.

46.

Guilmette

Durbin

. Scientific basis for the development of bio-kinetic models for radionuclide-contaminated wounds. Radiat Protect Dosim 2002; 105: 1–4.

47.

Spalding

Stewart

Tulloch

, et al. Penetrating missile injuries in the Gulf War. Br J Surg 1991; 78: 1102–1104.

Metal distribution patterns in tissues from implanted Sprague-Dawley rats

Abstract

Keywords

Introduction

Methods

Animals and animal husbandry

Experimental design

Metal pellet implantation

Tissue collection

Sample preparation and metal analysis

Statistical analysis

Results

Discussion

Footnotes

Acknowledgements

Author contributions

Declaration of conflicting interests

Funding

Ethical approval

Data availability statement

ORCID iD

References
