Abstract
Galacto-oligosaccharides (GOS) have been added to infant formulas and conventional foods as prebiotics all over the world. The present study was conducted to assess the subchronic toxicity of a GOS syrup (VITAGOS™) when administered orally by gavage daily at 0, 1020, 2041, and 4082 mg GOS syrup/kg/day to male and female Sprague-Dawley rats to deliver doses of 0, 500, 1000, and 2000 mg GOS/kg/day for 90 days. Throughout the entire treatment period, no abnormal clinical signs or mortalities were observed. Similarly, no test article-related toxicologically adverse findings were seen in body weight, feed consumption, ophthalmological findings, hematology, coagulation, clinical chemistry, urinalysis, organ weights, and gross pathology or histopathology. Significant increases in the cecum weight of males and females treated with 2000 mg GOS/kg/day were associated with mucosal hypertrophy/hyperplasia; no changes in the cecum were noted at lower doses. The organ weight and histopathological changes noted in the cecum are consistent with findings in rats administered other poorly digestible and fermentable substances; thus, this is considered to be an adaptive rather than toxic response. The No-Observed-Adverse-Effect-Levels for VITAGOS™ is 4082 mg GOS syrup/kg body weight/day or 2000 mg GOS/kg body weight/day.
Introduction
Galacto-oligosaccharides (GOS) are also known as oligogalactosyllactose, oligogalactose, oligolactose, transgalactosylated oligosaccharide, and transgalacto-oligosaccharide. GOS are produced from lactose by
Typically, the oligosaccharides in synthetic GOS preparations are linked via
GOS has been used extensively in infant formulas and general foods in Japan, European Union, United States, Australia, New Zealand, and China. In the United States, the intended use level of GOS is up to 7.8 g/L in reconstituted infant formulas and up to 11 g/serving in conventional foods, which were proposed in several Generally Recognized As Safe (GRAS) Determinations that received “no questions” letters from the US Food and Drug Administration (US FDA 14 –17 ). In the European Union, GOS is approved for use in infant and follow-on formulas in combination with fructo-oligosaccharides (FOS) at levels up to 8 g (90% GOS and 10% FOS)/L 7.2 g GOS and 0.8 g FOS/L) 18 Similarly, GOS is permitted in Australia and New Zealand in infant and follow-on formulas at levels up to 290 mg/100 kJ or approximately 8 g/L. 19
Two published 90-day studies in Sprague-Dawley rats of two GOS products (Vivinal®, Mead Johnson Nutritionals; Oligomate, Yakult Pharmaceutical Industry) have been reported. When administered by gavage, GOS syrup was determined to have No-Observed-Adverse-Effect-Levels (NOAELs) of 2000 mg GOS syrup/kg/day (Oligomate
20
) and 5000 mg GOS syrup/kg/day (Vivinal®
21
), resulting in NOAELs of 825 and 2250 mg GOS/kg, respectively. In addition, an unpublished 90-day study estimated the NOAEL of Vivinal® to be 6900 mg GOS/kg/day when it was included in the diets of Wistar rats.
22
These two GOS products were both manufactured from lactose by using
VITAGOS™ is a GOS-containing product manufactured using lactose and
Materials and methods
The study of GOS product VITAGOS™ was conducted per OECD Guideline No. 408 for Testing of Chemicals, “Repeated Dose 90-Day Oral Toxicity Study in Rodents” adopted on September 21, 1998. The study was performed in an Association for Assessment and Accreditation of laboratory Animal Care accredited laboratory, and all procedures were in compliance with the Committee for Purpose of Control and Supervision of the Experiments on Animals guidelines of India.
Test article
VITAGOS™ GOS syrup provided by Vitalus Nutrition Inc. contained 75% solids and was stored at a refrigerated temperature (2–8%). The syrup contains approximately 65.8% GOS, 14% lactose, and 18% glucose on a dry basis.
Test animal
Sprague-Dawley rats from Envigo (Harlan Laboratories; Placentia, CA, USA) were examined for good health and the suitability for the study and acclimatized for 5 days before the start of the treatment. All animals were housed (2/cage) with a temperature of 21–24°C, relative humidity of 65–67%, and 12-h light and 12-h dark cycle. All animals were fed

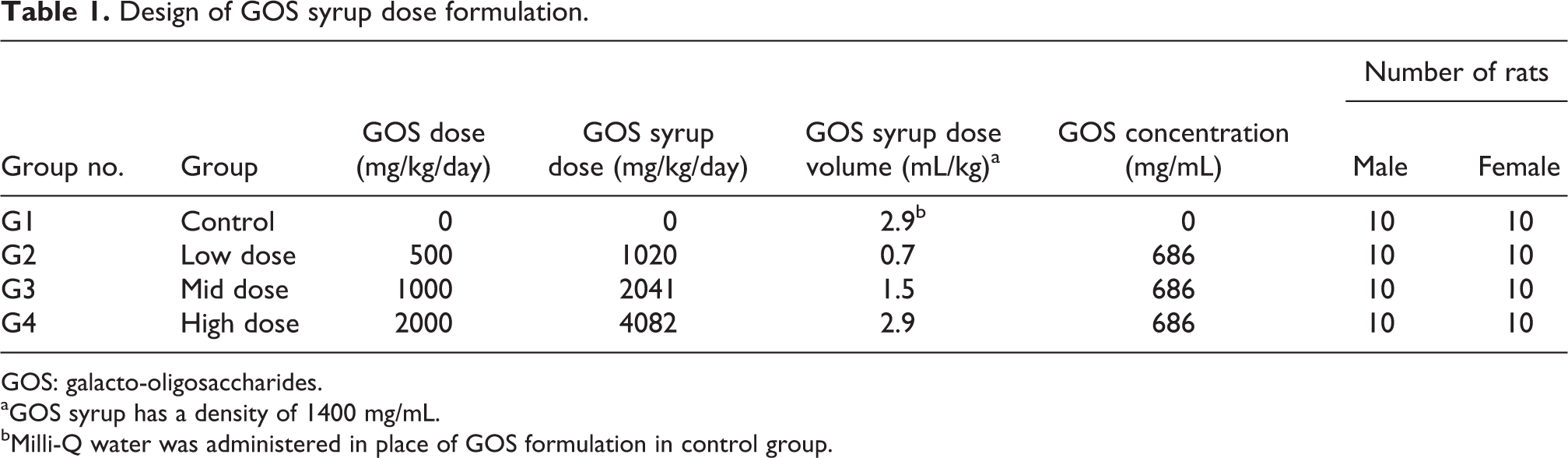

Design of GOS syrup dose formulation.
GOS: galacto-oligosaccharides.
aGOS syrup has a density of 1400 mg/mL.
bMilli-Q water was administered in place of GOS formulation in control group.
Observations
Clinical examination
All rats were observed once daily for changes in appearance, behavior, clinical/toxic signs, and neurological changes and twice daily for morbidity and mortality. Detailed clinical examination was done prior to the test article administration on day 1 and at weekly intervals thereafter during treatment period.
Ophthalmological examination
Ophthalmological examination for all rats was carried out with a direct ophthalmoscope before start of treatment and at the end of the treatment period. Mydriasis was induced before examination using a solution of 1% Tropicamide (Unimed Technologies LTD., India).
Body weight and feed consumption
Individual body weight was recorded prior to test article administration on day 1 and at weekly intervals thereafter except for week 13 when the animals were weighed on day 5 of that week. Fasting body weight was recorded prior to termination. The feed consumption was measured on the same day as body weights were recorded except for day 1. Feed efficiency was calculated as body weight gain divided by feed consumption during the same period.
Clinical pathology
All rats were fasted overnight before blood collection on day 91. The blood was collected for all groups by retro-orbital plexus puncture with the help of a fine capillary tube under isoflurane (Abbott Laboratories, Chicago, IL) anesthesia. The hematological, coagulation, and clinical chemistry parameters listed in Table 2 were determined using the ADVIA 2120 hematology system (Bayer HealthCare LLC, Pittsburgh, PA), Start-4 coagulation analyzer (Diagnostica stago, 92600 Asnieres, France) and Dimension RxL Max clinical Chemistry System (Dade Behring Inc., Newark, DE).

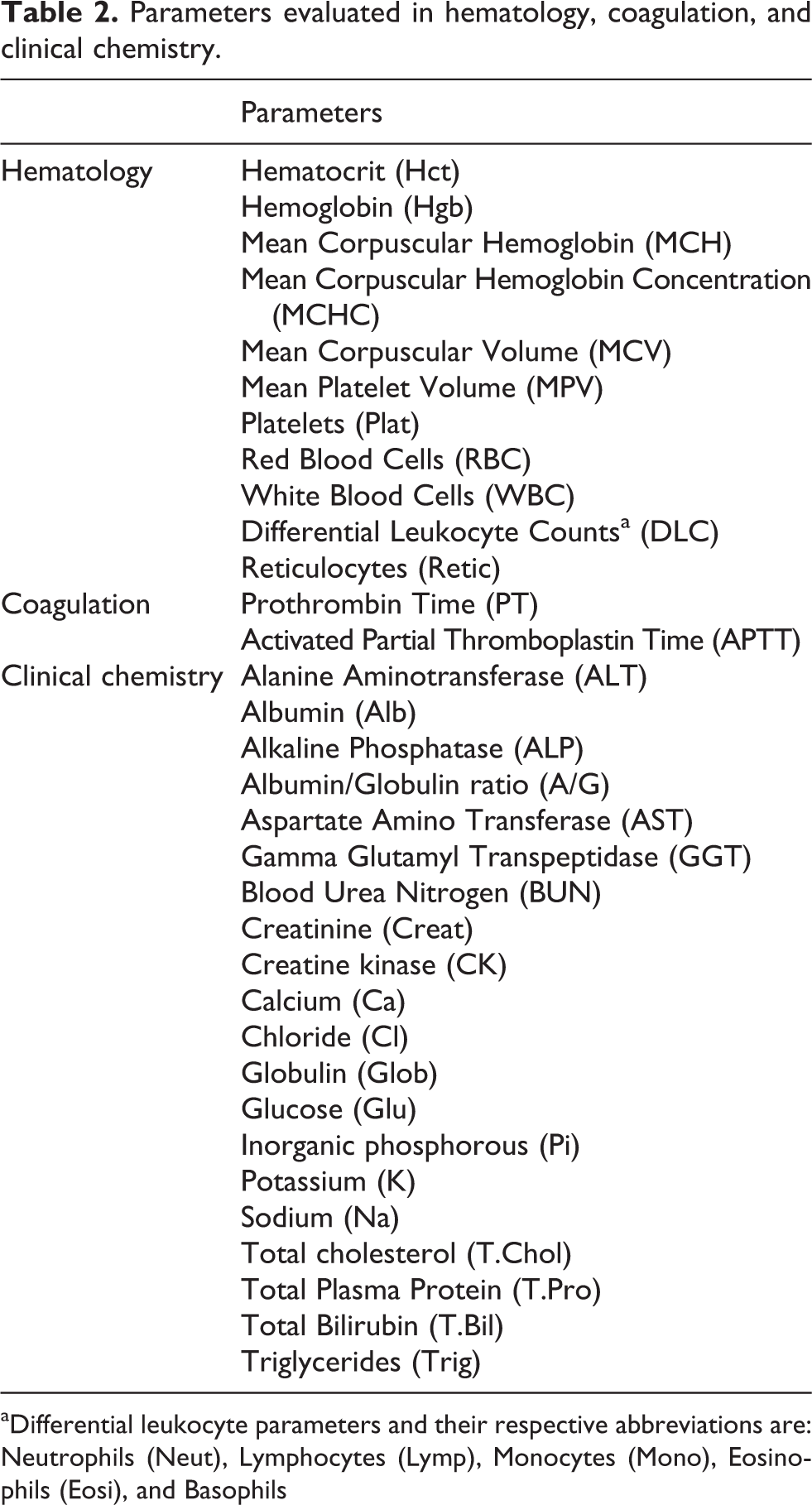

Parameters evaluated in hematology, coagulation, and clinical chemistry.
aDifferential leukocyte parameters and their respective abbreviations are: Neutrophils (Neut), Lymphocytes (Lymp), Monocytes (Mono), Eosinophils (Eosi), and Basophils
Urinalysis
Urine was collected from all rats at the end of the treatment period in urine collection tubes. On day 90, each rat was placed in a specially fabricated cage overnight (water allowed) and next morning, the collected urine was sent for analysis. Specific gravity was analyzed using refractometry method (Refractometer-PAL-10S; Atago, Japan). Nitrite, proteins, glucose, ketone bodies, urobilinogen, and bilirubin were analyzed by using Multistix 10 SG strips in Clinitek status analyzer (Bayer Healthcare LLC, UK). Gross appearance (color and clarity), pH, and total volume were recorded. Urine was also subjected to microscopic examination for sediments such as crystals, epithelial cells, erythrocytes, leukocytes, and casts.
Necropsy
After the last treatment on day 90, all animals were fasted overnight and on day 91, they were all weighed and exsanguinated under isoflurane anesthesia and subjected to detailed necropsy. The organs and tissues listed in Table 3 from all rats were collected and fixed using 10% neutral buffered formalin (monosodium phosphate dihydrate, Disodium hydrogen phosphate, and formaldehyde; Rankem, India). The organs marked with X were weighed. The paired organs were weighed together, and combined weight was presented. The organ weight ratios as percentage of body and brain weight were calculated based on the fasted body weight and brain weight.

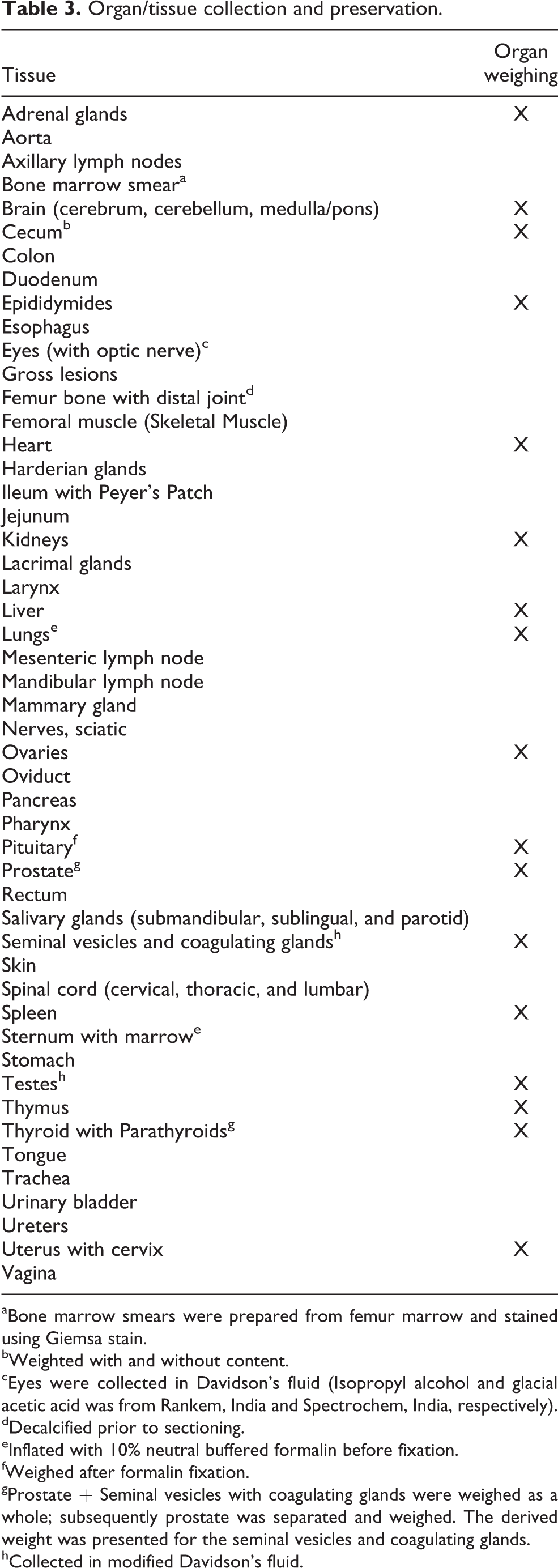

Organ/tissue collection and preservation.
aBone marrow smears were prepared from femur marrow and stained using Giemsa stain.
bWeighted with and without content.
cEyes were collected in Davidson’s fluid (Isopropyl alcohol and glacial acetic acid was from Rankem, India and Spectrochem, India, respectively).
dDecalcified prior to sectioning.
eInflated with 10% neutral buffered formalin before fixation.
fWeighed after formalin fixation.
gProstate + Seminal vesicles with coagulating glands were weighed as a whole; subsequently prostate was separated and weighed. The derived weight was presented for the seminal vesicles and coagulating glands.
hCollected in modified Davidson’s fluid.
Histopathological examination was carried out on all the preserved organs and tissues of vehicle control (G1; 0 mg GOS/kg/day) and high dose (G4; 2000 mg GOS/kg/day) group rats. In addition, all gross lesions from all the animals were examined microscopically. Furthermore, the cecum from the lower dose groups (G2; 500 mg GOS/kg/day and G3; 1000 mg GOS/kg/day) was examined, as test article-related histopathological changes were observed in the high dose group.
Statistical analysis
All data were captured using Provantis and analyzed using the software’s built-in statistical tests. The data were analyzed using analysis of variance (ANOVA), after testing for homogeneity for intragroup variance using Levene’s test. Where intragroup variances were heterogeneous, ANOVA was performed after suitable transformation of data. Dunnett’s pairwise comparison of the treated group means with the control group mean was performed, when the group differences were found significant. Feed efficiency was calculated and analyzed by EXCEL using one-way ANOVA and
Results
Clinical observations
All animals survived until scheduled anesthesia on day 91, and no clinical signs were observed in all animals throughout the treatment period.
Ophthalmological examination
No eye abnormalities were found during ophthalmological examination conducted during the acclimatization and at the end of the treatment period.
Body weight
When compared to the control group, body weight was unaffected at 500 mg/kg/day (G2) in males and in females at all doses. The body weight change in all animals is shown in the growth curve (Figure 1). In male rats, starting from day 43 until the end of treatment, the animals in group G3 (1000 mg/kg/day) and G4 (2000 mg/kg/day) had significantly lower body weight than the controls, ranging from 7% to 8% and 6% to 9% in reduction, respectively (

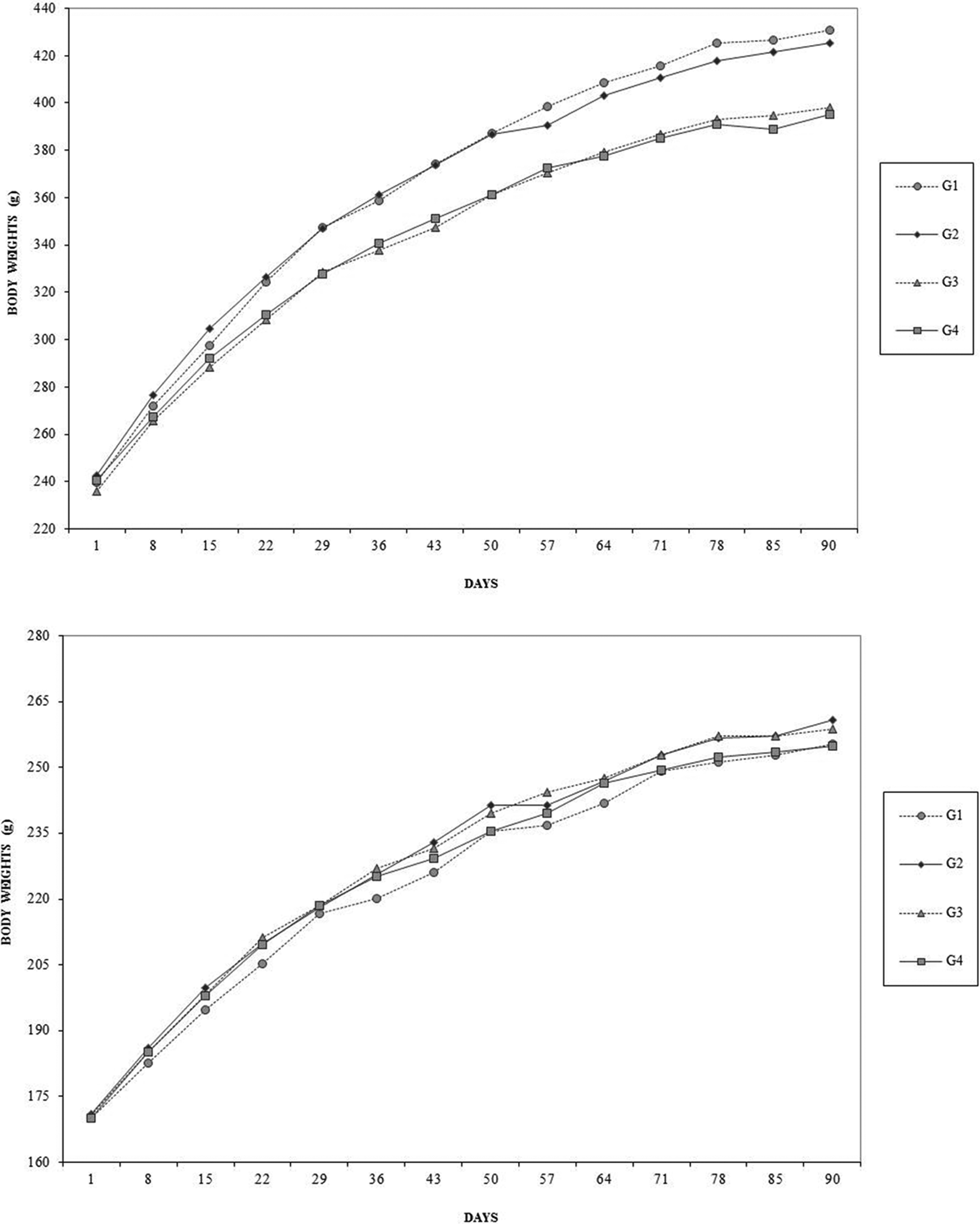

Growth curves of male (top) and females (bottom) in terms of mean body weight. G1, G2, G3, and G4 represent 0, 500, 1000, and 2000 mg GOS/kg/day, respectively.
Feed consumption
When compared to the control group, feed consumption was unaffected at 500 mg/kg/day (G2) in males and at all the dose levels in females. In males, significant changes in feed consumption occurred during the following days at doses of 1000 and 2000 mg/kg/day with a reduction of 6–10% and 7–12%, respectively ( G3 (1000 mg/kg/day): Day 8–15, 15–22, 36–43, 43–50, 57–64, 71–78, and 78–85 G4 (2000 mg/kg/day): Day 8–15, 15–22, 22–29, 36–43, 43–50, 50–57, 57–64, 64–71, 71–78, 78–85, and 85–90
Feed efficiency
Feed efficiency of all animals is shown in Table S1 in supplementary material. With an exception of males during says 15 and 22 and females at the 500 mg/kg/day group during days 50–57, the feed efficiency of male and female rats at all dose levels was not significantly different than controls (
Clinical pathology
Hematology and coagulation
Hematology and coagulation data are presented in Table 4. There are occasional sporadic findings of significant differences in hematology parameters in GOS-treated animals compared to controls including decreased absolute and relative reticulocyte count in females treated with 1000 mg/kg/day dose, decreased white blood cell in males at 1000 mg/kg/day, increased mean platelet volume in females at 2000 mg/kg/day dose, and decreased absolute neutrophil count in all treated males. In the coagulation parameters, decreased prothrombin time values in all treated males and increased activated partial thromboplastin time values in all treated females were noted.

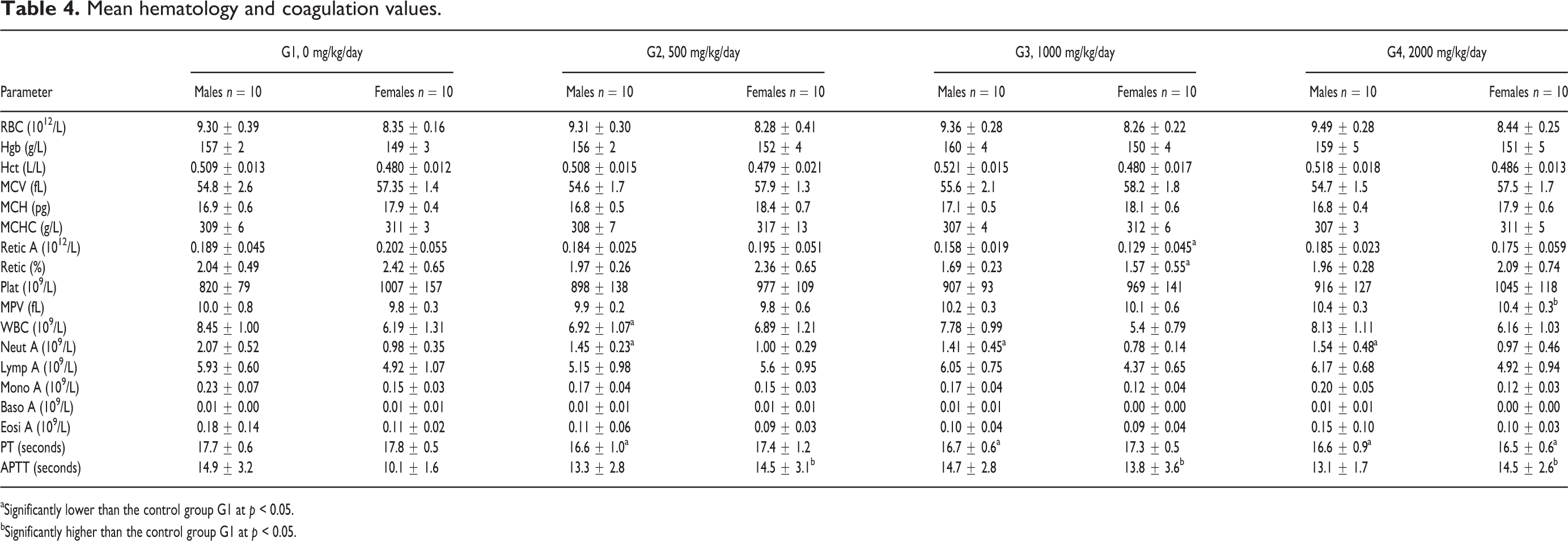

Mean hematology and coagulation values.
aSignificantly lower than the control group G1 at
bSignificantly higher than the control group G1 at
Clinical chemistry
Values of clinical chemistry parameters are presented in Table 5. Significant differences in the following parameters from GOS-treated rats compared to controls included: increases in blood urea nitrogen in males treated with 1000 and 2000 mg/kg/day and females treated with 1000 mg/kg/day, decreases in total bilirubin of males treated with 500 mg/kg/day and all treated females, decreases in triglycerides of females treated with 500 mg/kg/day and males treated with 2000 mg/kg/day, increases in albumin of males treated with 1000 and 2000 mg/kg/day, decreases in calcium and increases in sodium of all treated rats, and increases in chloride of animals treated with the highest dose.

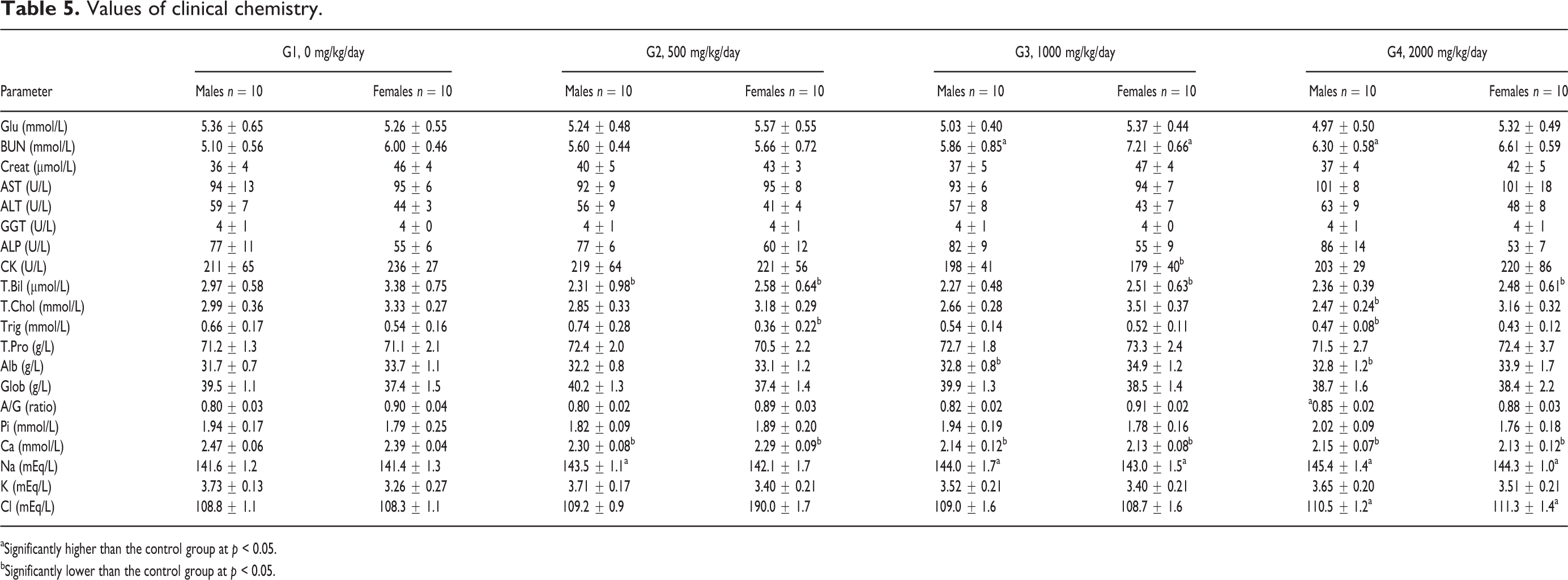

Values of clinical chemistry.
aSignificantly higher than the control group at
bSignificantly lower than the control group at
Urinalysis
There were no test article-related changes in the urinalysis parameters in treated rats compared to controls.
Organ weights
Absolute and relative organ weights of all animals are presented in Tables S2 and S3 in supplementary material; organ weights with statistically significant changes when compared to the control group are shown in Table 6. The mean absolute and relative cecum weight to body weight and brain weight (with or without content) were significantly increased in both sexes in the 2000 mg/kg/day group. In male rats, mean brain weight relative to body weight in the 1000 (+7.7%) and 2000 (+7.6%) mg/kg/day groups was significantly higher than the control group; mean absolute liver weight (–11%) and liver weight relative to brain weight (–11%) from the 1000 mg/kg/day group were significantly lower than the control group; mean absolute liver weight (–15%) and liver weight relative to body weight (–7.4%) and brain weight (–14%) from the 2000 mg/kg/day group were significantly lower than those of the control group; other significant observations were incidental findings. No other significant differences were noted in GOS-treated females.

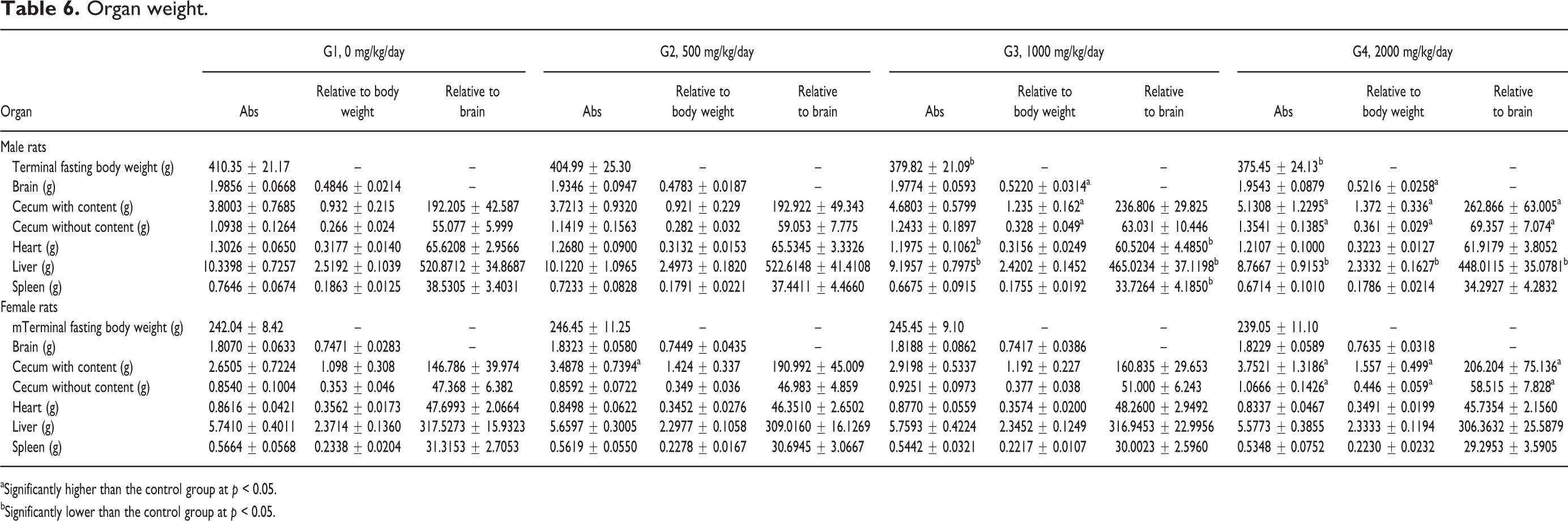

Organ weight.
aSignificantly higher than the control group at
bSignificantly lower than the control group at
Gross pathology
All tissues and organs were examined for gross pathology. Dilated uterus with cervix was noted (2/10 in control, 3/10 in 500 mg/kg/day, and 2/10 in 2000 mg/kg/day) in female rats.
Histopathology
Histopathology results from control and high dose (2000 mg/kg/day) groups are listed in Table 7. Mucosal hypertrophy/hyperplasia was noted in the cecum of both male and female animals treated with the highest dose level (2000 mg/kg/day), but no polyps were noted in any of the cecum. Furthermore, the cecum from the lower dose groups (G2; 500 mg/kg/day and G3; 1000 mg/kg/day) was examined, as test article-related histopathological change was observed in the high dose group. No abnormal findings were noted in the cecums of these two lower dose groups. Other findings not related to test article administration include single incidences in one dose group (adrenal glands, epididymides, harderian gland, liver, mammary glands, and thymus), incidences mainly in one sex (lungs, spleen, and mandibular lymph nodes), and incidences occurred in both control and GOS-treated groups at similar rates (kidneys, lacrimal glands, thyroid gland, and uterus with cervix).

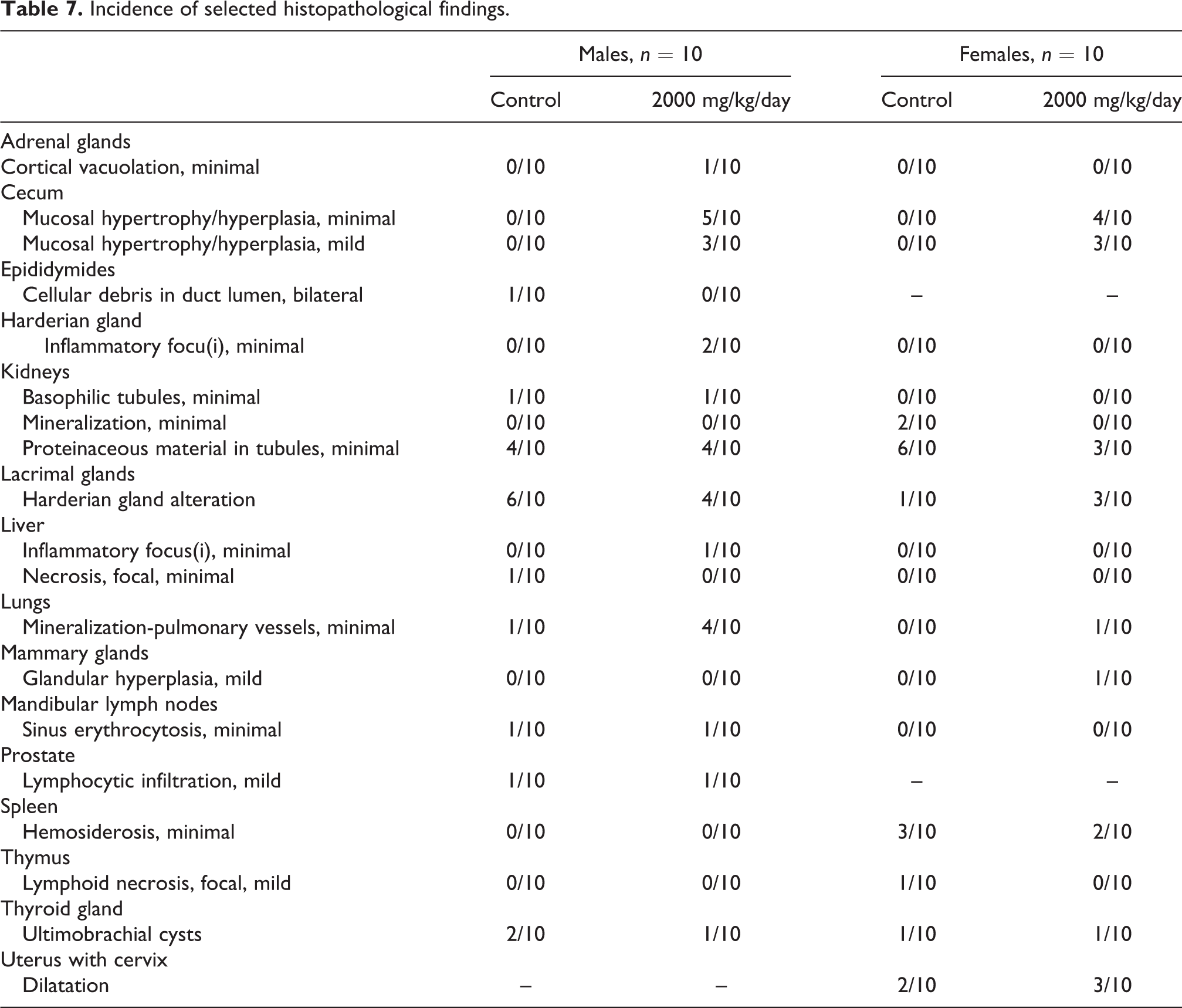

Incidence of selected histopathological findings.
Discussion
Sprague-Dawley rats (10 per sex per group) were treated with VITAGOS™ to deliver GOS at doses of 0, 500, 1000, and 2000 mg/kg/day for 90 consecutive days.
There were no deaths, relevant clinical signs, or abnormal ophthalmological findings reported at any dose level in this study. Both body weight and feed consumption were reduced at 1000 and 2000 mg/kg/day doses in males but not females. The reductions in body weight were not considered clinically adverse since they were less than 10%. The reductions in feed consumption were considered a test article-related nonadverse finding, as the lower feed consumption did not result in any clinical signs during the in-life phase of the treatment period. Most importantly, no test article-related effect was seen on feed efficiency. Therefore, the reductions in body weight and feed consumption may be due to poor acceptability rather than less efficient utilization of the diets.
There were no test article-related adverse changes reported in hematology, coagulation, serum clinical chemistry, or urine parameters in either sex in the test groups compared to controls. In hematology, decreased absolute neutrophil count in all treated groups in males was considered incidental and likely due to random biological variation as there was no dose correlation and it only occurred in male animals. In coagulation parameters, changes in prothrombin time values in all treated males and activated partial thromboplastin time values in all treated females were considered as incidental because there was no clear dose correlation, no consistency between sexes, and no related changes in the related hematology parameter platelet counts. In the clinical chemistry, an increased concentration of blood urea nitrogen in males at 1000 and 2000 mg/kg/day and in females at 1000 mg/kg/day was noted, but the levels of blood urea nitrogen were within historical values obtained from control rats of this age and strain (3.84–8.85 mmol/L,
The absolute and relative weight of cecum with and without contents at 2000 mg/kg/day dose in males and females was considered a test article-related effect, as it was microscopically associated with mucosal hypertrophy/hyperplasia (males, 8/10 hypertrophy/hyperplasia with 5 minimal, 3 mild; females, 7/10 hypertrophy/hyperplasia with 4 minimal, 3 mild). It was noted that the brain weight relative to body weight in 1000 and 2000 mg/kg/day groups of males were significantly increased when compared to the control group, but the increase was not dose dependent. Because the absolute weight of brains in these two groups was not different from the control group, the reduced terminal body weight of these two groups may have been the cause of the reductions in the brain relative to body weight. Thus, it was an incidental change and not associated with any microscopic changes in the histopathological examination. In addition, absolute and relative to brain weights of liver in males at 1000 mg/kg/day and absolute and relative to body and brain weights of liver in males at 2000 mg/kg/day were significantly reduced when compared to the control. No histopathological findings were seen in the livers of all males except one minimal necrosis in the control and one minimal inflammatory focus in the 2000 mg/kg/day group. In addition, no adverse findings were noted in these two groups of male rats in terms of clinical chemistry parameters that are related to compromised liver function, such as T. Bil, ALT, AST, ALP, and GGT. 24 No changes in liver weights were noted in treated females. Incidental reduction in liver weight was also seen in females given 2500 mg GOS/kg/day in a study of another GOS product. 21 Thus, the reductions of liver weight in males at 1000 and 2000 mg/kg/day dose from this study were not considered to be of toxicological significance. Other statistically significant changes in organ weights were not considered to be test article-related adverse effects because they were single incidences.
Because the cecum is an area of significant bacterial fermentation, cecal hypertrophy/hyperplasia is thought to occur because of the increased amounts of short-chain fatty acids that are produced by bacterial fermentation after large amounts of nonadsorbed carbohydrate and dietary fiber enter the caecum and colon. 25 –27 Increased concentrations of short chain fatty acids and enhanced ion absorption due to decreased pH can alter the osmotic balance of the GI tract and enhance the fluid volume of enterocytes. Therefore, in the current study, the histological changes seen in the cecum of high-dose animals, although related to test article administration, is considered an adaptive rather than toxic response.
Cecal enlargement is a common finding in toxicology studies of GOS products. An oral dose of 2000 mg Oligomate/kg/day (825 mg GOS/kg/d) in Sprague-Dawley rats increased cecum weight over 90 days. 20 Cecal enlargement was also seen in male and female Wistar rats when feeding GOS syrup in diets at levels of 1600, 3200, and 6100 mg/kg/day (684, 1368, and 2608 mg GOS/kg/day),and 1800, 3600, and 6900 mg/kg/day (770, 1539, and 2959 mg GOS/kg/day) in female and male rats, respectively. 22 In general, feeding GOS at levels from 2.96% to 20% in the diets of rats will result in an increased cecum weight. 8,28 –36 Chonan and Watanuki 32 also found cecal hypertrophy after administering approximately 650 mg GOS/kg/day to Wistar for 30 days. Feeding a diet containing 2% GOS has a similar effect on cecal weight increase in pigs. 37 GOS-related effects reported in studies of GOS products (cecal weight increase) are well-established physiological effects that are consistent with the transport of resistant sugars/carbohydrates to the colon and are widely recognized as not being toxicologically relevant to humans. 38
The cecum is not found in humans, although in rats, it is the site of fermentation for non-digestible substances. Therefore, cecal enlargement along with mucosal hypertrophy and hyperplasia has been observed as a response in several rodent species to food ingredients other than GOS such as modified starches, polyols, some fibers, and lactose; these ingredients share the feature of being poorly absorbed and osmotically active. 39 Many studies have demonstrated that consumption of pectin, 40 malitols, glucomannan, cellulose, 41 –43 fructans, 44 and wheat bran 45 can cause mucosal hyperplasia/hypertrophy of caecum/colon in rats. It is noted that enhanced colonic mucosal growth (hypertrophy/hyperplasia) was found in rats fed dietary fiber cellulose and wheat bran that have been previously shown to inhibit the development of genotoxin-induced colonic neoplasia in rats. 46 It has also been reported that mucosal hypertrophy in rodents represents a physiological adaptation to increased osmotic forces when high doses of undigestible substances are consumed; the effect is reversible after test article is withdrawn from the diet. 39,47,48
The histopathologic features of the cecal enlargement noted in the current study are indicative of an adaptive response. Mucosal hypertrophy/hyperplasia was characterized by an increase in cell density and mitotic activity within the crypts involving diffuse areas of the mucosa and/or by the presence of elongated mucosal glands with increased height of surface columnar cells. The cytoplasm of epithelial cells had increased basophilia with slightly elongated or vesicular nuclei. Importantly, in the current study, there were no polyps observed in the cecum. These pathologic features are produced by other nondigestible substances that produce characteristic increases in cecal crypt depth, circumference, number of crypts, and number of cells per crypt in the cecum. 27
Therefore, hypertrophy/hyperplasia without atypical cellular features represents a compensatory and adaptive response to a large amount of GOS, consistent with the effects seen with other poorly absorbable carbohydrates. 47 Thus, the observed cecal hypertrophy/hyperplasia, without evidence of polyps, is considered compensatory and not preneoplastic and, although test article-related, is not considered to be a toxic response.
In conclusion, the NOAEL for VITAGOS™ following oral gavage is estimated to be 4082 mg/kg body weight/day and the NOAEL for GOS following gavage of VITAGOS™ is estimated to be 2000 mg/kg body weight/day under the test conditions employed.
