Abstract

A method is described for using custom snap-on lids to protect chemicals in microtiter plates from evaporation and contamination. The lids contain apertures (diameter 1.5, 1.0, or 0.5 mm) through which the chemical building blocks can be transferred. The lid with 0.5 mm apertures was tested using a noncontact acoustic liquid handler; the 1.0 and 1.5 mm lids were tested using two tip-based liquid handlers. All of the lids reduced the rate at which solvents evaporated to room air, and greatly reduced the rate of contamination by water and oxygen from room air. In steady-state measurements, the lids reduced the rate of evaporation of methanol, 1-hexene, and water by 33% to 248%. In cycled experiments, the contamination of aqueous solvent with oxygen was reduced below detectability and the rate at which DMSO engorged atmospheric water was reduced by 81%. Our results demonstrate that the lids preserve the integrity of air-sensitive reagents during the time needed for different types of liquid handlers to perform dispensations. Controlling degradation and evaporation of chemical building blocks exposed to the atmosphere is increasingly useful as the reagent volume is reduced by advances in liquid handling technology, such as acoustic droplet ejection.

Keywords

acoustic droplet ejection liquid handling chemistry contamination microdroplets evaporation dehydration synthesis solvents crystallization drug discovery

Introduction

Improvements in liquid handling technology¹ underlie transformative new capabilities for applications such as bioassays² and chemical syntheses.³ In many cases, the frontier for the miniaturization of fluid phase assemblies has been pushed to volume regimes of just a few nanoliters.⁴ One challenge is that miniaturization increases the ratio of the surface area to volume and accelerates both the evaporation of nanoscale solvents into room air and their contamination by chemicals in the atmosphere, such as water vapor, oxygen, nitrogen-containing compounds, and carbon dioxide. Techniques for managing air-sensitive and moisture-sensitive chemicals on a laboratory scale were established long ago,⁵ and recent reviews of this topic are often somewhat informal.⁶ However, few specialized techniques exist for managing chemicals whose air or moisture sensitivity only becomes problematic at a nanoliter scale.⁷ Recent advances in chemistry and biology continue to uncover useful chemicals that fall into this moderate sensitivity gap,⁸ though some chemicals are so sensitive that miniaturization plays little role.⁹ Quality control is a crucial duty of library curation both because the chemicals are often expensive, if not irreplaceable,^10,11 and because their degradation can lead to colossally costly cases of molecular mistaken identities.¹² Our group developed miniaturization strategies using acoustic droplet ejection to reduce consumption of fragment libraries¹³ and heavy metal libraries¹⁴ only to discover that chemical integrity was compromised long before the parsimony became useful ( Fig. 1 ).

Figure 1.

Frustrations of library curation. Collaborators supplied our screening facility with a library of chemical fragments in aqueous buffers containing dithiothreitol (DTT) and DMSO. (A) Appearance of adjacent wells containing two chemicals before the library was put into service. (B) Same two chemicals after the source plate was used for a single screening experiment (room air exposure approximately 1 h). Once the source plate is uncovered, the solvents are subject to evaporation to room air, and the chemicals are exposed to room air contaminants such as water vapor, oxygen, nitrogen-containing compounds, and carbon dioxide. Some chemicals degrade, reducing the useful life of the library (note that the chemicals shown are highly sensitive; we typically see only a handful of highly sensitive chemicals in a midsized library such as this one, which contained 321 compounds).

We previously described a simple technique to isolate specific types of experiments from room air.¹⁵ Here, we describe a similar but more general approach for using snap-on climate control lids with small apertures to protect chemical building blocks that are located within source plates from the surrounding atmosphere during dispensation (the liquids are transferred through the small apertures in the lid). By greatly reducing both the evaporation and contamination of solvents, the useful life of valuable and fragile chemicals can be greatly extended. The lids are fastened under an inert atmosphere before liquid transfer begins. When all transfers are complete, the lids are replaced with adhesive plate sealant ( Fig. 2 ).

Figure 2.

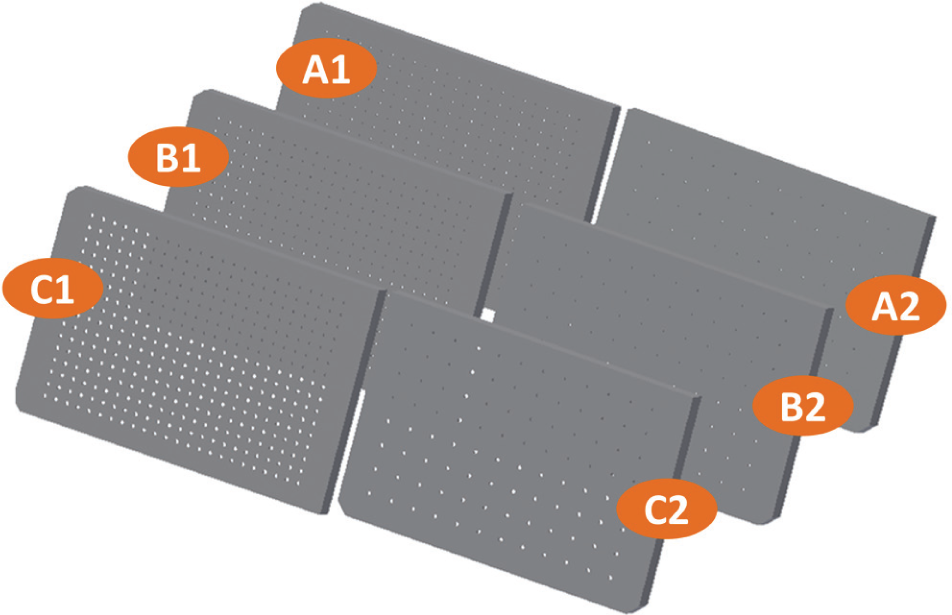

Climate control source plate lids. Three tested source plate lids with target aperture diameters of 1.5, 1.0, and 0.5 mm (A1, B1, and C1, respectively) that were designed to fit a 384-well polypropylene microplate (Labcyte, Inc., Sunnyvale, CA; “PolyPro” source plate hereafter) and three untested source plates that were designed to fit a 96-well Nunc source plate (A2, B2, and C2). We measured the diameter of 20 apertures in each plate type to confirm that the target diameters were accurate (the measured diameters were 1.41 ± 0.017, 0.89 ± 0.029, and 0.50 ± 0.023 mm, respectively). We designed a series of climate control lids to maintain a local microclimate inside of the PolyPro source plate (to preserve volatile solvents or air-sensitive chemicals). The lid designs for the 96-well source plates that were not tested are also available. The plate lids were constructed out of 1 mm thick acrylonitrile butadiene styrene (Amtek P430, Eden Prairie, MN) using a 3D printer (Stratasys Dimension Elite, Arnold, MD).

We designed climate control lids that are compatible with a variety of liquid handling instruments. Some liquid handlers require larger apertures to accommodate the liquid transfer mechanism, so we designed lids with apertures having three different diameters (1.5, 1.0, and 0.5 mm). We then measured the reduction in the rate of evaporation of various common solvents when the plates were continuously exposed to room air, as well as the reduction in the rate of contamination by water¹⁶ and oxygen when the plates were cyclically exposed to room air. Our results suggest that using climate control lids can protect the integrity of vulnerable chemicals, greatly extending the useful life of chemical libraries such as fragment, reagent, and ligand libraries. Lids with smaller apertures yielded the greatest improvement, and the acoustic noncontact liquid handler that used the smallest apertures had the additional benefit that there was no chance of a collision due to an error in positioning or alignment.

Methods

Although there is a huge diversity of designs for liquid handling robots, the component responsible for separating each liquid aliquot from its storage reservoir must utilize a washable tip, a disposable tip, or no tip. Each of these strategies imposes a different clearance requirement for the physical space that must remain unobstructed immediately above the storage reservoir (through which the liquid aliquot is dispensed). We compared the clearance requirements (obtained from published material and from inquiries to the manufacturers) for a variety of commonly used liquid handlers ( Table 1 ). With this information, we designed lids with apertures of three sizes to accommodate the majority of the specifications ( Table 1 is divided into three groups of liquid handlers that are compatible with the three designs). To test our designs, we obtained access to two liquid handling robots with a washable tip^17,18 and one with no tip.¹⁹ These three instruments could be accommodated by apertures having design diameters of 1.5, 1.0, and 0.5 mm, respectively. Before testing the effectiveness of our climate control lid designs, we verified that each of the three liquid handlers was able to dispense liquids from source trays that were covered by the relevant lid ( Fig. 3 ).

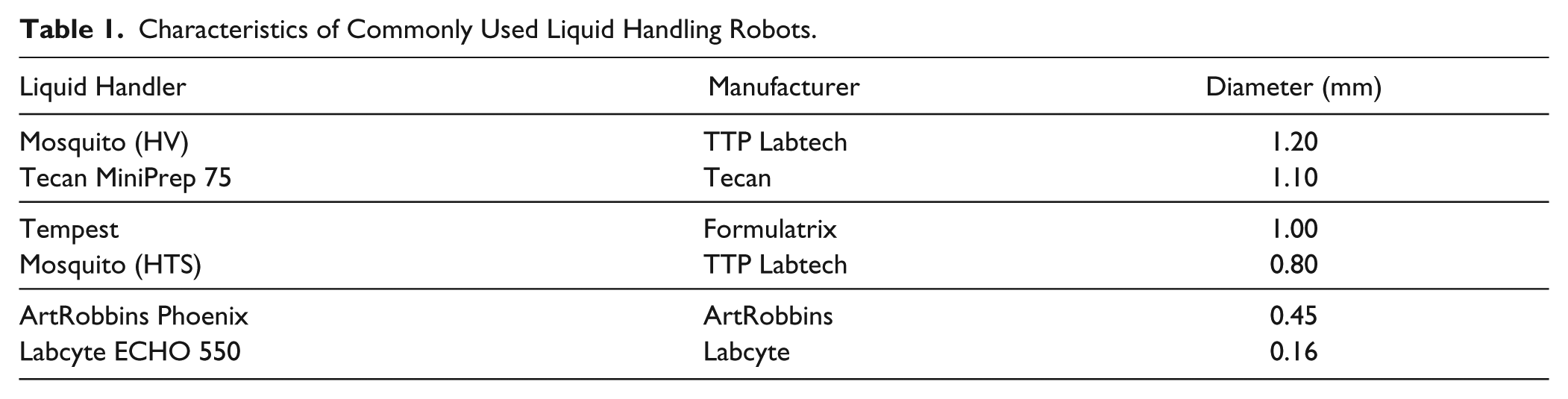

Table 1.

Characteristics of Commonly Used Liquid Handling Robots.

Liquid Handler	Manufacturer	Diameter (mm)
Mosquito (HV)	TTP Labtech	1.20
Tecan MiniPrep 75	Tecan	1.10
Tempest	Formulatrix	1.00
Mosquito (HTS)	TTP Labtech	0.80
ArtRobbins Phoenix	ArtRobbins	0.45
Labcyte ECHO 550	Labcyte	0.16

Figure 3.

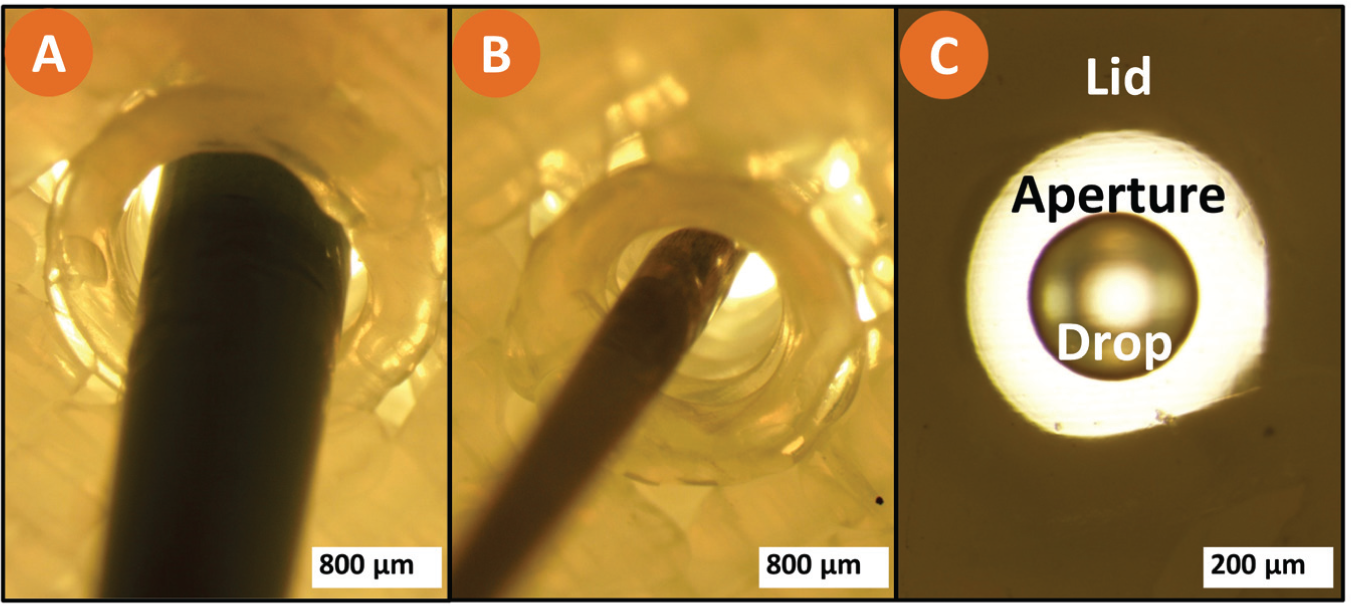

Clearance requirement for three liquid handling robots. The physical space that must remain unobstructed immediately above the storage reservoir is demonstrated. (A) A 1.5 mm aperture with a 1.1 mm TECAN MiniPrep 75 (washable tip) liquid handler in position to withdraw liquid from the source plate. (B) A similar scenario for a 1.0 mm aperture with a 0.45 mm ArtRobbins Crystal Phoenix (washable tip) liquid handler. (C) A 2.5 nL droplet ejected through a 0.5 mm aperture by a Labcyte ECHO 550 (no tip) liquid handler (plastic was positioned directly above the aperture to illustrate the required clearance). In each case, the minimum required clearance is larger than the diameter of the physical object shown because the aperture size must also account for the imperfect positioning precision of the robot. For example, we used 20 photographs similar to that in C to measure the distance between the center of the ejected droplet and the center of the aperture. The average discrepancy between the center of the ejected droplet and the center of the aperture was 50 ± 23 µm. Accounting for the discrepancy in the ejection position (50 ± 23 µm) and the discrepancy in the aperture diameter (500 ± 23 µm; see Table 2 ), a 500 µm nominal aperture size is needed to accommodate the 250 µm diameter droplet with a 3σ clearance confidence (expected failure rate of <0.3%). Note that the expected diameter of 2.5 nL spherical droplets transiting the aperture is 160 µm, which is less than the 250 µm hemispherical droplet of the same volume that is shown in C.

An undergraduate engineering intern used the Autodesk Inventor software to design custom plate lids that snap onto two popular 96- and 384-well microtiter source plates (Nunc 96-Well Polypropylene and Echo Qualified 384-Well Polypropylene). All of our plate lid designs had circular apertures for liquid transfer located above the center of each microtiter well, and the lids were designed to contact the source plate surface (i.e., with no air gap; Fig. 4 ). For lids with 1.5/1.0/0.5 mm apertures, an average of 92.3%/96.9%/99.0% of the total surface area was covered for 384-well microtiter source plates, and an average of 98.1%/99.2%/99.8% was covered for the 96-well source plates ( Table 2 ). Most liquid handling robots are compatible with any source plate that conforms to the standard set by the Society for Laboratory Automation and Screening (SLAS) (formerly SBS, Society for Biomolecular Screening), as indicated by the description “meets the Standards ANSI/SLAS 1-2004 through ANSI/SLAS 4-2004.”²⁰ To prevent the testing of plate lids from being confounded by characteristics of the source plates, all of our testing was done using a common source plate (384-well polypropylene microplate; Labcyte, Inc.; “PolyPro” source plate hereafter). To test our designs, we used a 3D printer to fabricate three identical plate lids having apertures with the three tested diameters (a total of nine plates were printed). Each plate was visually examined for defects using a Leica MZ16 F microscope (115× maximum magnification).

Figure 4.

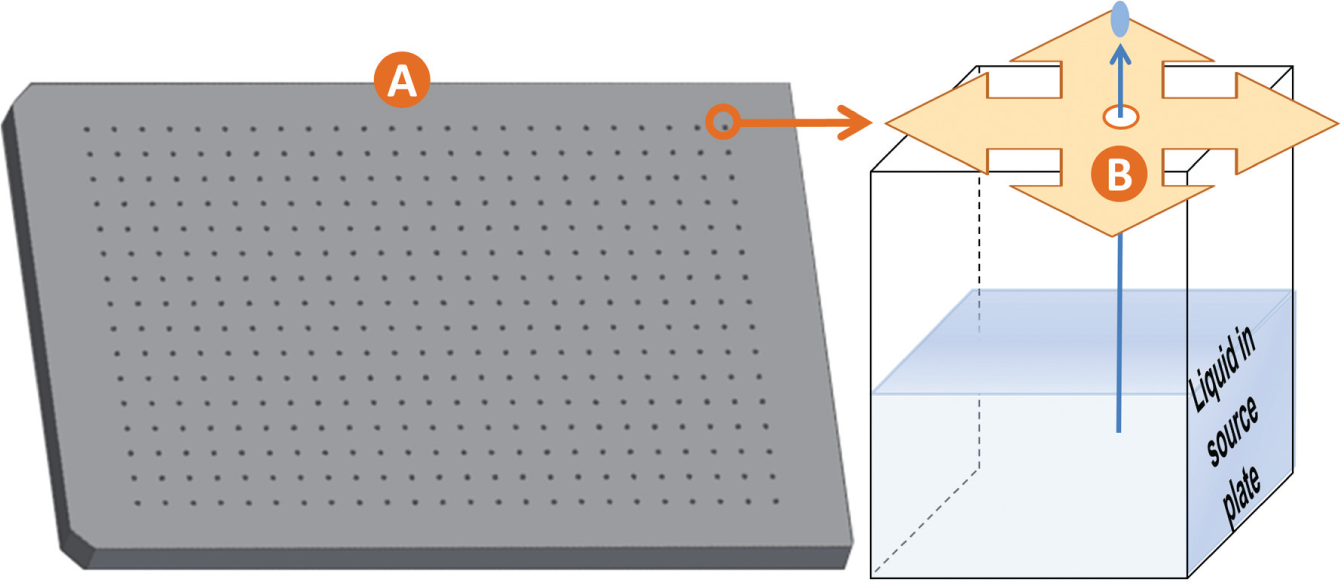

Apertures in climate control lids. Very small volumes of chemical building blocks can be damaged by atmospheric evaporation and contamination. To prevent this, we designed and tested climate control plate lids (A) that retain a microclimate inside the source plate while liquids are dispensed. The source plate lids were fitted onto the source plate under an inert atmosphere (nitrogen glove box). The source plate lids were used to prevent evaporation and contamination while the chemical building blocks were dispensed from the source plate (B). Chemical building blocks were passed from the source plates to the desired locations through apertures that were large enough for liquid transfer but small enough to prevent evaporation or contamination by room air. When dispensation was complete, the source plate was returned to the inert atmosphere and fitted with a conventional adhesive plate sealant for long-term storage.

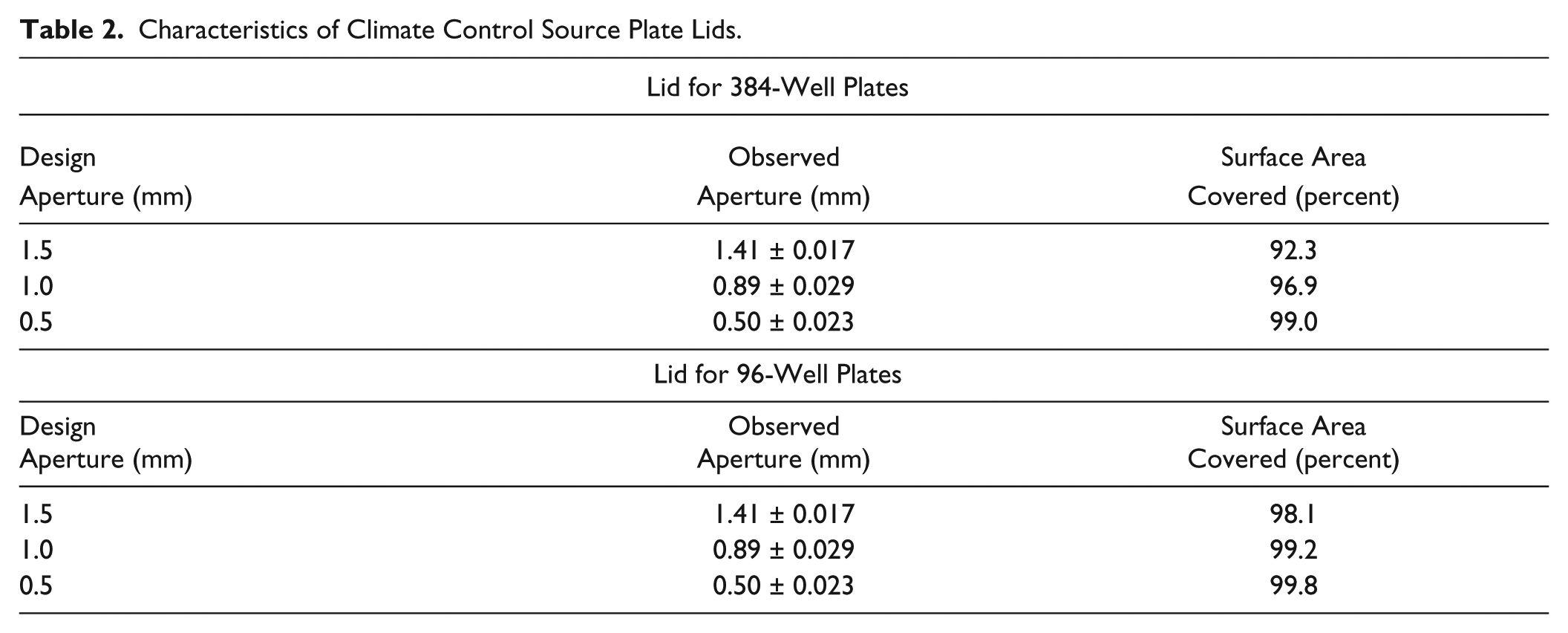

Table 2.

Characteristics of Climate Control Source Plate Lids.

Lid for 384-Well Plates
Design	Observed	Surface Area
Aperture (mm)	Aperture (mm)	Covered (percent)
1.5	1.41 ± 0.017	92.3
1.0	0.89 ± 0.029	96.9
0.5	0.50 ± 0.023	99.0
Lid for 96-Well Plates
Design	Observed	Surface Area
Aperture (mm)	Aperture (mm)	Covered (percent)
1.5	1.41 ± 0.017	98.1
1.0	0.89 ± 0.029	99.2
0.5	0.50 ± 0.023	99.8

Measuring Evaporation Rates for Methanol, 1-Hexene, and Water

We used the EchoSurvey software to deduce the volume in each of the 384 wells in a PolyPro source plate by projecting a sound pulse (or “ping”) through the plastic bottom of the plate and measuring the time needed until the ping was reflected back from the fluid surface.²¹ Using this method, we periodically recorded the volume in each of the wells of PolyPro plates (with no lids) that were initially filled with 50 µL of three test solvents (methanol, 1-hexene, and water). Similar measurements were made for the same three test solvents in plates that were covered with climate control lids with aperture diameters of 1.5, 1.0, and 0.5 mm. We recorded the temperature and humidity in the laboratory during our measurements using a sling psychrometer (Sper Scientific, Scottsdale, AZ; 20~120 °F). We periodically checked the consistency of our results (i.e., consistency across all of the wells in each plate) by superposing topographical surface plots of the percent remaining volume in the wells of plates with and without climate control lids (we tracked percent remaining volume to avoid confounding our results with changes during setup) ( Fig. 5 ). We noticed that evaporation from plates without lids was nonuniform (with significantly more evaporation occurring in wells near the edges of the plate compared to wells near the interior of the plate). To prevent transient features such as these “edge effects” from influencing our calculated evaporation rates, we used the slope of a linear best fit to the volume change data as the best estimate of the evaporation rate for each solvent in each plate ( Fig. 6 ).

Figure 5.

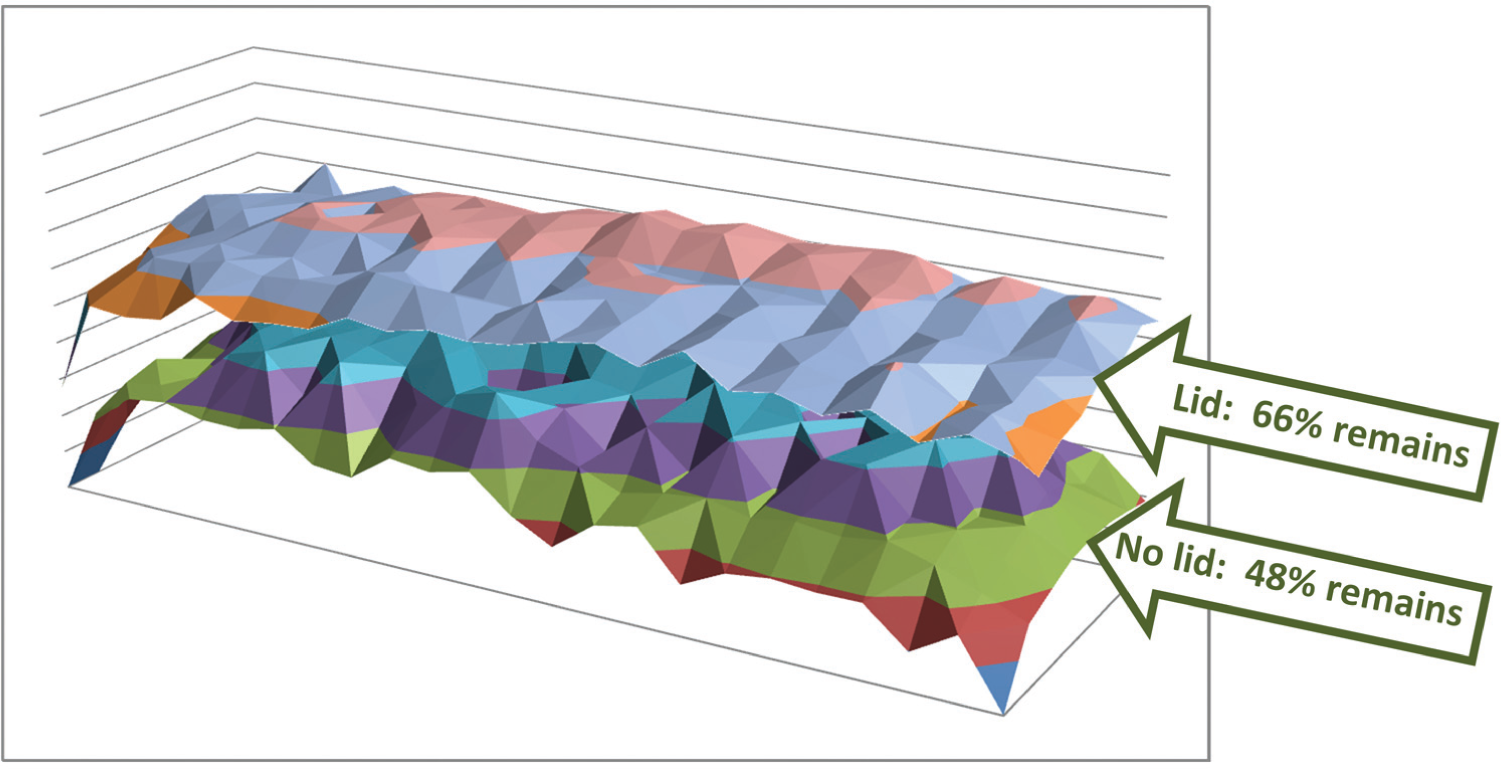

Climate control lids reduce evaporation and reduce edge effects. Climate control lids reduce evaporative changes in the volume of solvents ( Fig. 6 ) and also reduce nonuniform evaporation of solvents located near the edge of the source plate. The final volume at the end of our evaporation trial for methanol is shown for each of the 384 wells in an uncovered source plate (bottom) and also in a source plate covered with a climate control lid containing 1.5 mm apertures (top). The average volume for all of the 384 wells in the uncovered plate was 48% of the starting volume, compared to 66% of the starting volume for the covered plate (this corresponds to the data point that is boxed in green in Fig. 6 ). In addition to the reduction in overall evaporation, the climate control lids also improved the uniformity of the solvent. The increased evaporation in wells located near the edges of the uncovered plate is clearly visible compared to similar wells located in the interior of the plate. Similar results were observed for all of our measurements (data not shown).

Figure 6.

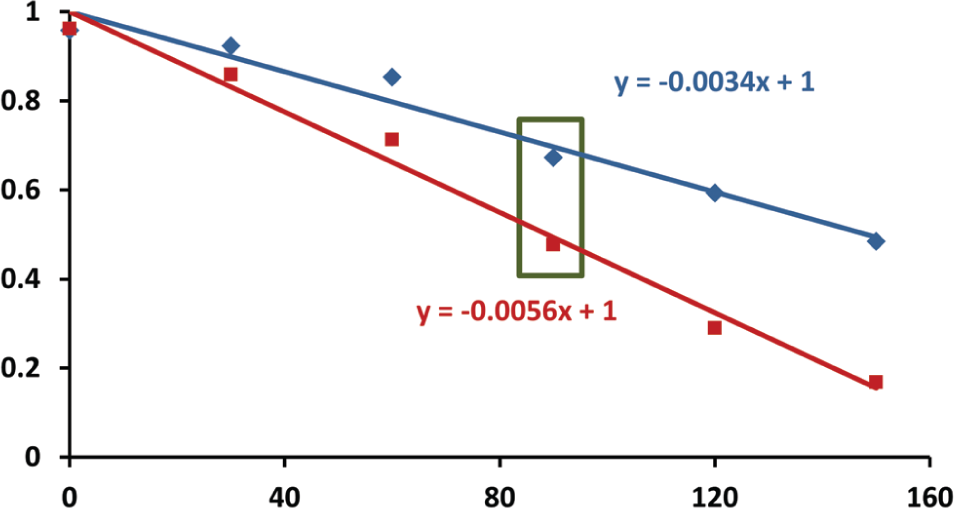

Deducing the evaporation rate. We periodically compared the remaining volume of solvent (methanol, 1-hexene, and water) in each of the 384 wells of an uncovered PolyPro plate with the remaining volume in a PolyPro plate that was covered with a climate control lid (the two data points obtained from Fig. 5 are boxed in green here). Each solvent was tested using no lid, using a lid with 1.5 mm apertures, using a lid with 1.0 mm apertures, and using a lid with 0.5 mm apertures. For each of the three tested solvents and for each of the three aperture sizes, the reduction in the rate of evaporation was taken as the slope of the linear best fit to the data obtained from plates fitted with a climate control lid divided by the slope of the data obtained from a plate with no lid. As an example, the remaining volume (in percent) is plotted as a function of the time (in minutes) for source plates containing methanol that were covered with a plate lid containing 1.5 mm apertures (blue data points) and that were not covered (red data points). In this case, the slope obtained from the source plate that was covered by a climate control lid is −0.34%/s, and the slope obtained from the uncovered lid was −0.56%/s. Consequently, we calculate that the evaporation rate was reduced by {(0.56 − 0.34)/(0.56)} = 39%. More importantly, we deduce that the total time available before reaching an acceptable level of evaporation is increased by {(−0.56/−0.34) − 1 } = 64.7%. Figure 7 shows the observed reduction in evaporation of each of three tested solvents using lids with each of three aperture sizes (the data from Fig. 6 is boxed in green in Fig. 7 ).

Measuring Contamination of an Aqueous System by Oxygen

Although there are many techniques to accurately measure the concentration of oxygen in a test fluid, most of these cannot be used to track the oxygen infiltration into each of the 384 wells of a source plate in real time. We used the oxidation of a reduced form of methylene blue (immobilized by 2% agar) as an indicator of the distance that oxygen penetrated into each of the 384 wells of a source plate.²²

We heated 100 mL of 2% w/v agarose to 100 °C in an Erlenmeyer flask for 5 min, and then cooled and maintained the solution at 60 °C. We then added glucose (140 mM final), sodium hydroxide (80 mM final), and 120 µL of 1% methylene blue. During the preparation, nitrogen gas was bubbled through the solution to remove oxygen. The resulting reduced “indicator gel” was colorless and translucent. We transferred 79 ± 11 µL of indicator gel into all 386 source wells of two PolyPro source plates and then allowed the source plates to be fully cleansed of oxygen in an oxygen-free box (Suppl. Fig. 1) with a continuous flow of 10 L/min of nitrogen. The oxygen-free acrylic box was part of the apparatus that allowed the plates to be cycled between room air and contaminant-free air (this and next section).

Both tested plates (covered with a 0.5 mm diameter plate lid and an uncovered control) were cycled into the oxygen-free acrylic box for 0.5 min and into room air for 5.0 min. The plate lid was removed from the covered plate while it was in the acrylic box, and replaced when it was moved to room air (to reproduce the experimental conditions that would be observed if a chemical-containing plate were repeatedly used for liquid dispensation and then returned to storage). Every 4 h during 20 h of observation, one cuboidal indicator gel from the gel-containing wells in each of the source plates (control and covered) was individually transferred to water that had been deoxygenated using nitrogen bubbling (as described earlier) for visualization (Leica MZ16 F).

Measuring Contamination of DMSO by Water

We used the EchoSurvey software to deduce the percentage of DMSO and the percentage of engorged water in each of the 384 wells in four PolyPro source plates (one without a lid and three with lids) that were cycled between a dry nitrogen chamber (for 0.5 min) and a 100% humidity chamber (for 5 min). We used the same apparatus as was used to measure oxygen contamination (Suppl. Fig. 1) with an additional humidity chamber that surrounded both plates when they were removed from the dry nitrogen chamber. The EchoSurvey software deduces the amount of water that is engorged by DMSO by measuring the force needed to perturb the surface of the liquid.²³ Using this method, we periodically recorded the percentage of water engorgement in each of the wells of a PolyPro plate (with no lid) that was initially filled with 60 µL of DMSO. Similar measurements were made for three plates that were covered with climate control lids with 1.5, 1.0, and 0.5 mm apertures (humidity was maintained at 100% inside the humidity box).

Extending the Usable Life of Grubbs’ Catalyst

We prepared a saturated solution of Grubbs’ catalyst by adding 300 mg to 10 mL of toluene (first generation, Sigma-Aldrich, St. Louis, MO; no. 579726) and dispensed the solution to two 386-well plates (50 µL aliquot per well) in a single-use nitrogen glove bag, retaining leftover solution in two tubes to serve as benchmarks. Both tested plates (covered with a 0.5 mm diameter plate lid and an uncovered control) were cycled into the oxygen-free acrylic box for 0.5 min and into room air for 5.0 min for 4 h (as described earlier). We regularly monitored the volume in each well and used a Hamilton microsyringe to replace evaporated solvent (toluene is volatile and we did not want to confound reduction in evaporation with reduction in contamination by room air). After 4 h, the solution from the wells in each plate was combined and sealed in a centrifuge tube. After 48 h in the centrifuge tubes, we used a NanoDrop spectrophotometer (Thermo Scientific, Waltham, MA; ND-2000c) to obtain a UV-Vis spectrum from each specimen, and also from an uncontaminated benchmark that was never exposed to room air and from an oxidized benchmark that was intentionally damaged by mixing with nondegassed water for 24 h.

Results

There are two classes of problems to avoid during nanoliter dispensations: those that cannot be mitigated by a glove box (such as solvent evaporation) and those that can (such as oxygen poisoning and absorption of room water). Climate control lids protect liquids in two ways during dispensations: (1) they prevent, or slow, the evaporation of solvents, and (2) they protect the chemical properties of the solvated chemicals from contamination by outside air. In the steady-state measurements, climate control lids significantly reduced the rate of evaporation of methanol, 1-hexene, and water. In cycled experiments, the contamination of aqueous solvent with oxygen was reduced below detectability and the rate at which DMSO engorged atmospheric water was reduced by 81%. Our results demonstrate that climate control lids can be instrumental for preserving the integrity of air-sensitive reagents during the time needed for different types of liquid handlers to perform dispensations.

Climate Control Lids Reduce Evaporation Rates for Methanol, 1-Hexene, and Water

Figure 7 shows that using source plate lids effectively reduced the rate of evaporation of methanol, 1-hexene, and water for all of the tested aperture sizes. The reduction in evaporation rate was well correlated with the volatility of the solvent. The ratio of the average rate of evaporation for methanol and 1-hexene was 1:1.46, which is in good agreement with relative volatilities of the two solvents (1:1.37) (the ratio for water is omitted because it is confounded by room humidity). Consequently, we conclude that the reduction in the evaporation rate of solvents by using climate control lids increases as a function of the volatility of the solvent.

Figure 7.

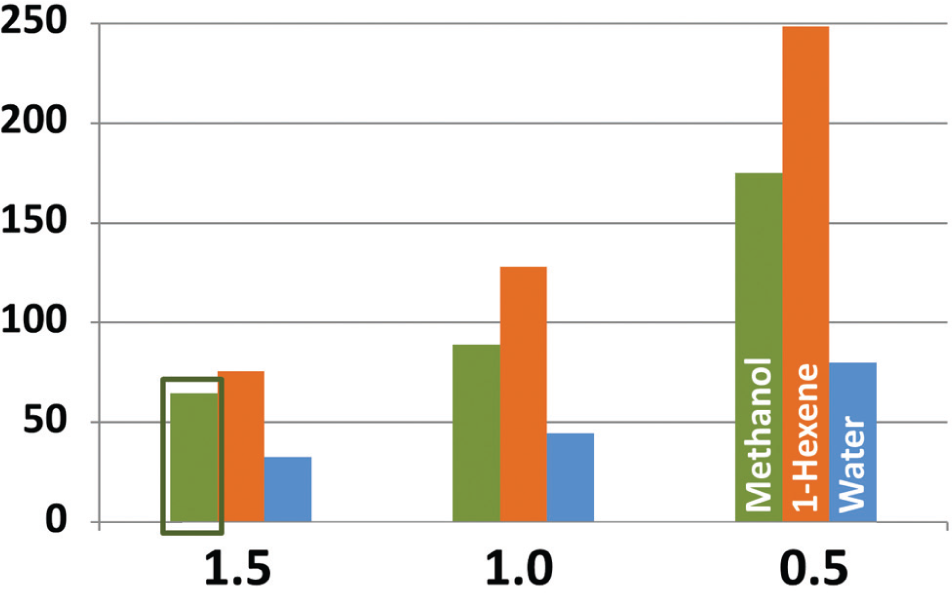

Climate control lids reduce solvent evaporation. The reduction in the evaporation rate for plates with climate control lids compared to uncovered plates was deduced from the ratio of the slope of the percent volume change as a function of time (as shown in Fig. 6 ). The data point obtained from Figure 6 is boxed in green here.

In addition to reducing the average evaporation rate for all wells in a source plate, the climate control lids also improve the uniformity of performance across all wells in the plate. Figure 5 shows that solvents stored in unprotected source plates undergo differential evaporation because chemicals located near the interior of the source plate are less exposed to room air than chemical located at the edges of the source plate.¹⁶ Use of plate lids greatly reduces these edge effects, because the plate lids uniformly protect all of the chemicals in the plate.

Climate Control Lids Reduce Contamination of Aqueous System by Oxygen

Figure 8 shows that the climate control lid with 0.5 mm diameter apertures significantly reduced the penetration of oxygen into the indicator gel. After 20 h of cycled exposure to room air, the entire colorless indicator gel was oxidized to a blue color in the control plate, compared to no observable discoloration in the plate that was protected by the climate control lid. Lids with larger aperture sizes slowed the rate of oxygen penetration somewhat, as evidenced by a reduced rate of oxidation of the indicator column (data not shown). However, only the 0.5 mm apertures allowed the indicator column to fully recover from each 5 min oxygen exposure during the subsequent 0.5 min in the nitrogen box, allowing the indicator column to remain colorless indefinitely.

Figure 8.

Climate control lids reduce the contamination of chemicals by oxygen. Agarose was used to immobilize a methylene blue–based oxygen indicator in each well of a source plate to compare to the rate of oxygen penetration into the agar column in a source plate that was fitted with a 0.5 mm aperture climate control lid with the rate of penetration in an uncovered plate. When the source plates were continuously exposed to room air, we observed no difference in the oxygen penetration rate (deduced from the depth of color change) between covered and uncovered plates. However, a striking difference in deduced oxygen penetration was observed when both plates were cyclically rotated between an oxygen-free nitrogen box (for 30 s, both plates uncovered) and room air (for 5 min, one plate covered). Similar measurements made using 1.0 and 1.5 mm aperture lids showed a smaller reduction in the oxygen penetration rate (data not shown).

Climate Control Lids Reduce Contamination of DMSO by Water

We used the EchoSurvey software to demonstrate that climate control lids reduce DMSO engorgement in source plates that were cycled between dry nitrogen and high humidity (the cycling reproduces the environmental changes experienced during repeated liquid dispensations followed by plate storage). We compared the rate of DMSO engorgement of water for source plates with and without lids. Water engorgement was reduced for plates protected by all of our designs, but the reduction was most significant using lids with 0.5 mm apertures ( Fig. 9 ). Overall, the climate control lids reduced the rate of water engorgement by DMSO by 34%, 61%, and 81% using lid apertures of 1.5, 1.0, and 0.5 mm, respectively (see Suppl. Fig. 2).

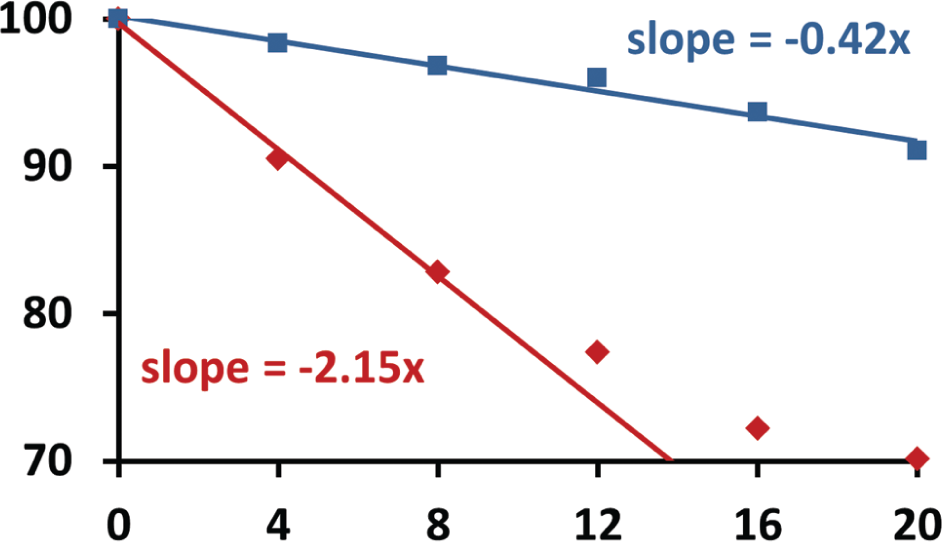

Figure 9.

Climate control lids reduce the engorgement of water by DMSO. The percentage of DMSO is shown as a function of time for a source plate that was covered with a climate control lid containing 0.5 mm apertures (blue) and compared with the percentage for an uncovered control plate (red); the extra volume is composed of engorged water. The initial concentration of DMSO was scaled to 100% (the measured initial DMSO concentration was slightly less than 100% because some water was engorged during plate preparation). The software that was used to deduce the DMSO ratio is unreliable when there is more than 30% water, so all compositions below 70% DMSO are reported as 70% (consequently, the DMSO composition asymptotically approaches 70%). Linear best fits are shown for both data sets. Only the first three data points were used to determine the best fit for the control plate composition, because of the measurement limits described above (some of the outeredge wells had engorged 30% water by the fourth measurement). The slopes for the two best-fit lines are 0.42% water engorgement per hour (for the plate covered with a climate control lid) and 2.15% water engorgement per hour (for the control plate). The rate of water engorgement was reduced by 81% for the plates covered with lids compared to the control plates. Similar measurements made using 1.0 and 1.5 mm aperture lids showed a smaller reduction in the rate of water engorgement (see Suppl. Fig. 2).

Usable Life of Grubbs’ Catalyst Extended ~4.5-Fold

Figure 10 shows spectroscopy measurements and microscope pictures of each of the four Grubbs’ catalyst solutions. Note that the fully oxidized benchmark does not account for losses of Grubbs’ catalyst during the oxidation procedure (e.g., due to precipitation of damaged catalyst). We used the region between 475 and 675 nm to estimate the degree of protection conferred by the climate control lid by extrapolating the difference between the uncontaminated control and the lid-covered data by 4.5-fold to best fit the uncovered data. Those derived data points are also shown in Figure 10 , corresponding to a 4.5-fold reduction in the rate of change observed in the absorbance between 475 and 675 nm.

Figure 10.

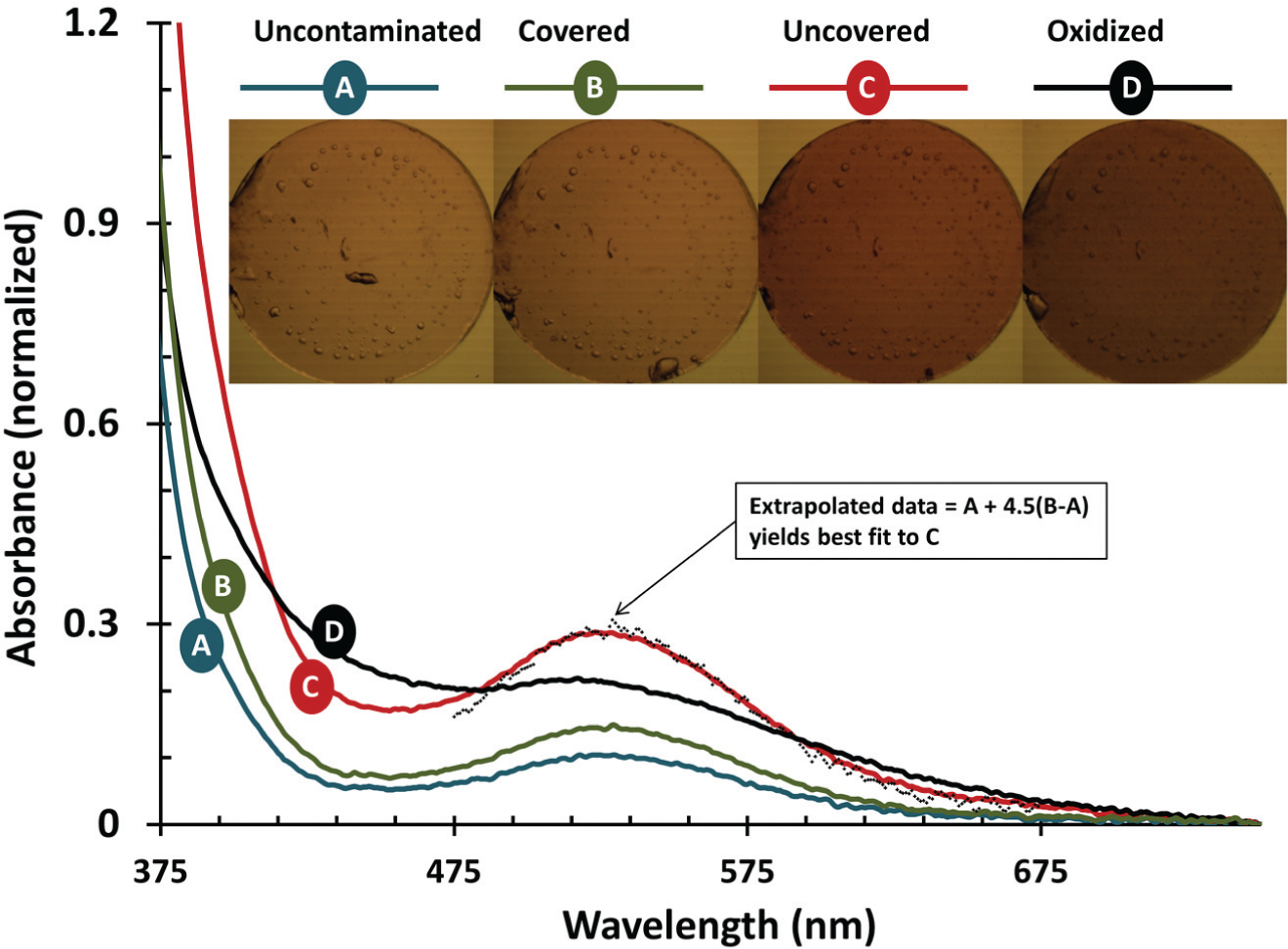

Climate control lids reduce the rate of contamination of Grubbs’ catalyst. Pictures and UV-Vis spectra are shown for solutions of Grubbs’ catalyst in toluene that were never exposed to room air (blue line A), that were protected by climate control lids (green line B), that were not protected (red line C), and that were intentionally oxidized (black line D). Extrapolating the A→B trend by 4.5 best fits C, which we postulate may indicate that the rate of damage caused by room air is decreased by a factor of 4.5 using the climate control lids (+ symbols).

Discussion

Nanoliter liquid handling can facilitate high-throughput screening applications such as fragment-based drug discovery and organic synthesis.²⁴ These improvements can make prominent research more affordable for well-funded private sector businesses as well as more accessible to academic laboratories with limited resources. Crystallography groups (including ours) have leveraged miniaturization to decrease the cost of specimen preparation^25,26 and to increase the speed of crystallographic bioassays.^27,28 These advantages have motivated numerous efforts to improve the scale and efficiency of liquid handling robots using technologies such as conventional air displacement and piezoelectric ink jets.²⁹ Clearly, the advantages of miniaturizing liquid handling can only be realized if the savings are reflected in lowered consumption of chemicals stored in the source plate. One challenge has been that chemicals in source plates can degrade before they are fully utilized. This degradation can occur because of evaporation of the solvent or because of contamination of the chemical by environmental gasses. The importance of the physical and chemical integrity of building blocks is highlighted by the extensive efforts to prevent cross-contamination of specimens and to reduce contamination by the sample container.³⁰ Unsurprisingly, much of the successful nanoliter biology and chemistry has occurred in apparatuses with no air–liquid interface, such as microfluidics and microbatch.^31,32 However, combinatorial chemistry (for bioassays or for chemical synthesis) is difficult to do with microfluidic technologies because the diversity of tested chemicals is too great.

We have demonstrated that source plate lids can greatly reduce the problems commonly encountered when miniaturizing liquid handling that has an air–liquid interface. Evaporation of the solvent is reduced in the steady state, and contamination of the chemicals is reduced when the plate is cycled between dispensation and storage. Lids with the smallest apertures, appropriate for use with acoustic droplet ejection, most effectively maintained a protective microclimate in each source plate. Acoustic droplet ejection is a noncontact method that has the additional advantage that misalignment between the source plate lid and the dispensation robot cannot cause a collision. The rapid advances in advanced liquid handling robots partnered with simple techniques to protect the smaller (and consequently more vulnerable) chemical aliquots may be natural partners to allow the overall quality of assays to be governed by the improvements in liquid handling, as opposed to plateauing because of environmental contamination issues.³³ These new technologies (in combination with rigorous testing of the performance of liquid handling robots^34,35) will allow future biological and chemical innovations to probe smaller specimens and exploit more challenging opportunities.
