Abstract

Elucidation of the heterogeneity of cells is a challenging task due to the lack of efficient analytical tools to make measurements with single-cell resolution. Microfluidics has emerged as a powerful platform for single-cell analysis with the ability to manipulate small volume and integrate multiple sample preparation steps into one device. In this review, we discuss the differentiating advantages of microfluidic platforms that have been demonstrated for single-cell protein analysis.

Keywords

microfluidics single cell heterogeneity protein analysis laminar flow droplet

Introduction

Proteins regulate almost all cellular functions. Conventional protein analysis techniques require a large population of cells. While these studies provide rich information on cell population, population-averaged results do not allow measuring cell-to-cell variation, which can provide important biological insights.^1–4 Cells under seemingly identical extrinsic environmental conditions often display heterogeneous behaviors. An example is nuclear factor (NF)–κB trafficking: cells challenged with tumor necrosis factor–α (TNF-α) display quantitative differences from cell to cell in NF-κB nuclear localization.^1,2 Similar examples have also been reported in tumor progression, stem cell differentiation, and host-pathogen interactions.^3,5 However, protein analysis at a single cell level is challenging. The hurdles lie in the low abundance of proteins in single cells,⁶ the large dynamic range of many protein constituents within one cell,⁷ and the transitory existence of cellular proteins responding to stimulation.^8,9 To overcome these hurdles, several analytical instrumentation and techniques such as flow cytometry,^10,11 mass cytometry,^12,13 affinity arrays,¹⁴ and mass spectrometry^15,16 have been developed over the years. For example, the invention of fluorescence-activated cell sorting (FACS) greatly improved single-cell analysis with high-throughput and high-content information.^10,11 One limitation of FACS, though, is that because sample preparation is done manually, a large number of cells are often required, which makes it difficult to analyze rare samples such as primary cells and biopsy samples.

Microfluidics has emerged as a powerful platform for single-cell analysis with the capability to manipulate small volume and integrate multiple sample preparation steps into one device. Microfluidic chips have characteristic dimensions at the same scale as the dimension of a cell, which allows very rapid exchange of buffers and reagents, thereby minimizing gradients of stimulants experienced by cells. The small volume contained in microfluidic devices allows experiments requiring a lower amount of less expensive reagents/rare cells and enables a higher number of experiments from a given amount of sample. Other advantages include precise control of the cellular microenvironment and the ability to encapsulate a single cell in droplets. Because of these distinct capabilities, many state-of-the-art microfluidic platforms have been developed for single-cell protein analysis in the past few years.^17–22

Differentiating Capabilities of Microfluidics

Many biochemical analyses have benefited from the unique advantages offered by microfluidics.^23,24 Laminar flows in microfluidic channels enable well-defined and stable liquid-liquid interfaces down to cellular dimensions. One of the early examples using this distinct capability is the selective treatment of cellular microdomains, resulting electively in the delivery of membrane-permeable molecules to specific microdomains of single cells ( Fig. 1A ).^25,26 Similarly, lateral propagation of epidermal growth factor (EGF) signaling in single live cells was revealed by laminar flows, providing evidence that ligand-independent propagation of EGF signaling depends on the receptor density of the plasma membrane.²⁷

Figure 1.

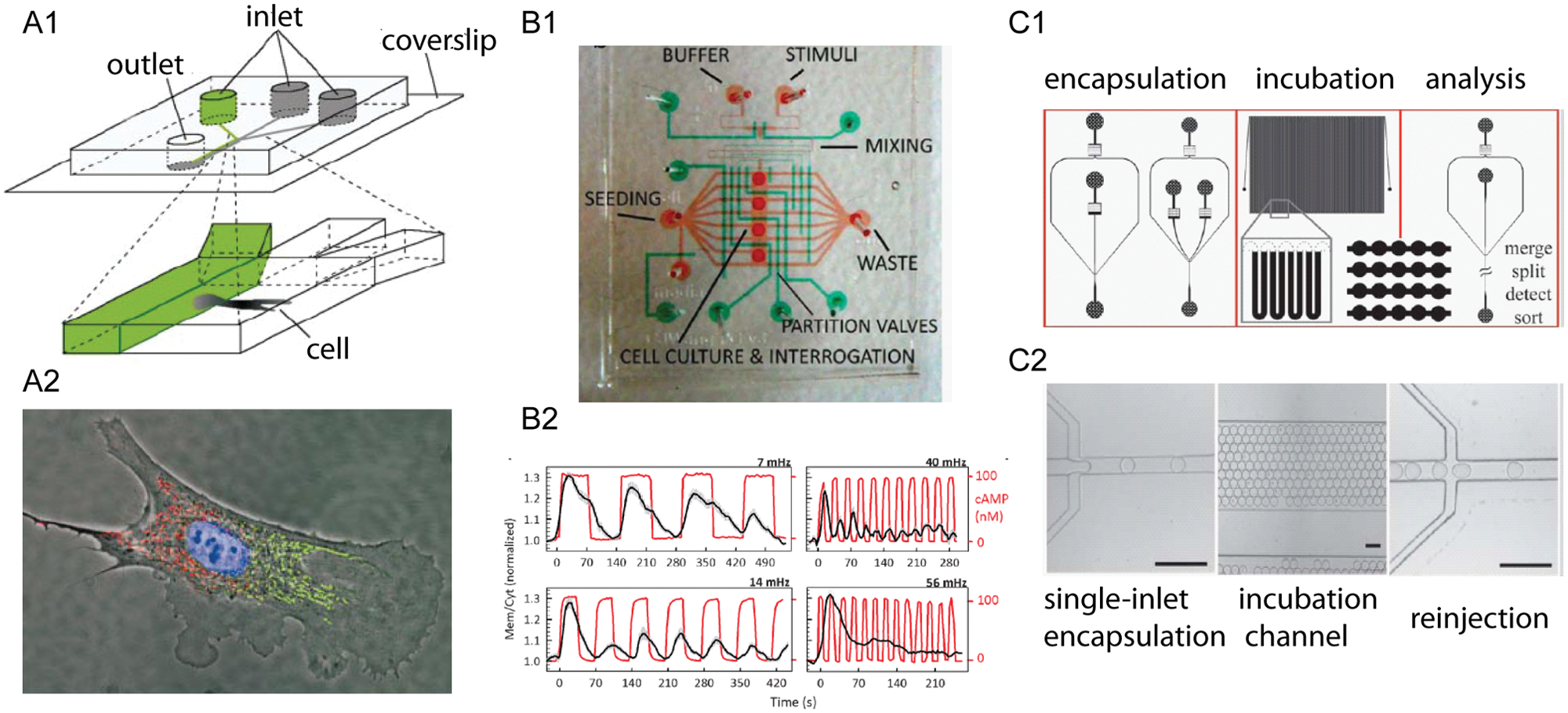

Examples of biological applications benefiting from differentiating capabilities of microfluidics. (A1) The microfluidic device for selective treatment of cellular microdomains using multiple laminar flows. (A2) Fluorescence image of a single bovine capillary endothelial cell after partial treatment. Reproduced from Takayama et al.²⁶ with permission. (B1) The layout of a two-layer microfluidic function generator. The bottom layer in red contained a cell culture chamber connected by a mixing channel to the two signal inlets, as well as a separate set of channels for waste output and cell introduction. Two upper control channels (visualized with green food dye) controlled stimuli entry and exit. (B2) Kinetic responses of PHcrac-GFP (black) in cells (n = 100) stimulated with pulse trains of 100 nM cAMP of the indicated frequency (red). Reproduced from Wang et al.³¹ with permission. (C1) Schematic modular design of the droplet-based microfluidic components: encapsulation, incubation, and analysis. (C2) Micrographs of single-inlet encapsulation, serpentine incubation channel, and reinjection for further drop handling and analysis. Reproduced from Koester et al.⁴⁰ with permission.

Another unique capability of microfluidics is the generation of spatial gradients of fluidics through progressive serial dilution of multiple input streams into a series of streams spanning several orders of magnitude in concentration.²⁸ For example, Thompson et al.²⁹ generated multiple concentrations of stimulus in an upstream microfluidic network to examine the activation of transcription factor NF-κB in HeLa cells.

The advancement in zero dead-volume valves and control software has enabled the precise control of fluidics in space, time, and magnitude. It allows interesting exposure profiles to single cells, including pulsatile, ramp, square-wave, and oscillatory signals,^20,30–33 whereas only step flow is feasible in a conventional culture dish. Precise control of fluidic profiles over cells has been used to measure protein levels in fundamental cellular behaviors, including inflammatory responses and cellular signaling pathways. For instance, Mettetal et al.³⁰ used a flow-cell setup to produce periodic stimuli to measure the frequency dependence of signal processing in the osmo-adaptation pathway. Hersen et al.³² designed a microfluidic device to reliably manipulate a single cellular environment over a range of pulsatile frequencies and measured the signal transduction by the HOG MAP kinase pathway. More recently, Wang et al.³¹ demonstrated the use of a polydimethylsiloxane (PDMS)–based microfluidic function generator to characterize the signal response upon pulses of chemoattractant cyclic adenosine monophosphate (cAMP) ( Fig. 1B ). The precise control of the cellular microenvironment in microfluidic platforms has proven to be indispensable to study dynamic changes of proteins at cellular and subcellular resolution.

Another feature of microfluidics is the ability to compartmentalize individual cells in a nanoliter or smaller volume for biochemical analysis. This has led to analysis of single cells with minimal sample dilution, shorter reaction times, and higher sensitivity.^21,34–36 One group encapsulated a desired cell into a droplet and then photolyzed the cell rapidly and conducted fluorescent microscopy–based single-cell assays.³⁷ Coupled with precise generation and the repeatability of droplet generation, this system has the potential to become a high-throughput platform for cellular proteomics.³⁸ Another fluorescence-activated droplet sorting platform processed cells at rates of about 2000 droplets per second, allowing researchers to accurately describe the heterogeneity of the cell population.³⁹ The droplets also serve as a “container” for secreted biomolecules, minimizing sample dilution and boosting detection sensitivity. One can rapidly analyze secreted proteins (e.g., antibodies or cytokines) or released metabolites (e.g., biomarkers or vitamins) from thousands of encapsulated single cells.^40–42 Huebner et al.⁴² developed a quantitative enzyme assay in microdroplets. Koester et al.⁴⁰ also have demonstrated the detection of secreted antibodies in single hydridoma cells in picodrops ( Fig. 1C ). In addition, Joensson et al.⁴³ described the detection of cell-surface protein biomarkers CCR5 and CD19 on individual human cells (U937) using enzymatic amplification in microfluidic droplets with high sensitivity and high throughput.

Fabrication of Microfluidic Devices

Historically, silicon and glass have been the preferred substrates for the fabrication of microfluidic chips.⁴⁴ They remain attractive for many biological applications because of the following properties: large optical transition range (180–2500 nm); high resistance to mechanical stress, heat, and chemicals; and high electric isolation and high biocompatibility through its well-studied surface chemistry. Of the three major glass etching techniques—mechanical, dry, and wet—the most practiced method is isotropic wet etching. This method uses a photolithography mask to define features on the surface of the wafer. Timed exposure to chemical etchants such as HF dissolves the Si-O-Si bonds in the glass isotropically, generating a D-shaped channel with a smooth surface and a constant depth.

Today, the materials that used to fabricate microfluidic devices have been expanded from glass and silicon to polymers, paper, tape, fabric, and thread.^45–48 Among those, the most used material is PDMS.^49,50 PDMS is optically transparent (240–1100nm), permeable to atmospheric gases, chemically inert, mechanically flexible, and electrically insulating.⁵¹ The transparency allows the use of transmitted light and fluorescent signals for imaging cell activity. Permeability to oxygen and carbon dioxide is beneficial for culturing mammalian cells within devices over extended periods. The flexibility allows easy integration of fluidic tubings and valves. PDMS-based microfluidic devices are attractive for rapid prototyping because the turnaround of PDMS devices can be as fast as a few days. The critical drawbacks of PDMS in biological experiments include the adsorption of small hydrophobic molecules and proteins from the solution to the surface of PDMS.^52,53

Microfluidic Platforms for Single-Cell Protein Analysis

There are three essential elements for carrying out single-cell protein analysis: single-cell isolation, cell manipulation, and detection of intracellular proteins. The strategies of isolating individual cells fall into two categories: biochemical and physical. Physical trapping methods include single-cell trapping array,⁴ microvalves,^54,55 droplet encapsulation,⁴⁰ dielectrophoresis,⁵⁶ electrophoresis,^57,58 and optical trapping.^59,60 Biochemical trapping methods include trapping the cells using antibodies⁶¹ and/or cellular-matrix protein-assisted adhesion.^62,63 Proteins in isolated single cells can be analyzed in intact (or whole) cells or analyzed after lysis. Sensitive detection of intracellular proteins is desired for quantitative measurements from single cells on a microfluidic device. Main detection technologies that have been coupled with microfluidics for single-cell analysis include fluorescent microscopy,^14,33,64 laser-induced fluorescence (LIF),^55,65,66 flow cytometry,^67,68 and mass spectrometry (MS).^15,69 Fluorescence-based technologies provide high-throughput and high-information content analysis but often are limited by the available genetic and chemical probes; MS can be highly sensitive and requires neither prelabeling nor purification of proteins. However, the lack of an effective interface between sample preparation and the detection is an obstacle for MS to be widely applied in single-cell protein analysis via microfluidics.⁷⁰ Nevertheless, integrated microfluidic platforms enable single-cell protein analysis by minimizing sample dilution and by offering efficient separation capabilities, which will be discussed in the following sections.

Intact Cell Analysis

Intact cell analysis refers to detection of proteins without lysing the cells and is typically done by immunostaining or arrays (for secreted cells). The advantage of this approach is that the proteins are maintained at their intracellular concentrations that are orders of magnitude higher than those upon cell lysis. In a typical setting, cells are cultured on chip before external stimulation. Intracellular proteins are then probed with fluorescent antibodies for downstream measurement. Groisman et al.⁷¹ introduced a microfabricated elastomer chip wherein chemostatic conditions for bacterial and yeast are well maintained. Tay et al.³³ demonstrated the use of a versatile microfluidic cell culture system⁷² to study how single cells respond to TNF-α. They found that the process of cell activation is digital at the single-cell level but graded at the population level ( Fig. 2A ). To link single-cell genomics with proteomics, Taniguchi et al.⁶⁴ reported a microfluidic device–based approach to quantifying the Escherichia coli proteome with single-molecule sensitivity. Almost all protein number distributions can be described by the gamma distribution: the large fluctuation in low-abundance proteins and a common extrinsic noise in high-abundance proteins ( Fig. 2B ). To clinically evaluate immune cells at single-cell resolution, Ma et al.¹⁴ demonstrated a single-cell barcode chip (SCBC) using an immunosandwich assay for highly multiplexed and quantitative measurements of secreted proteins from single cells ( Fig. 2C ). To demonstrate the clinical application of a microfluidic platform to solid tumors, Sun et al.⁷³ reported quantitative single-cell proteomic analysis of multiple signaling molecules using microfluidic image cytometry (MIC) ( Fig. 2D ). The above-mentioned reports used microscopy for detection. We have been developing flow cytometry–based platforms for single-cell analysis. First, we reported the use of microfluidic flow cytometry for measuring cellular proteins in macrophages.⁶⁷ We then implemented an optical trapping-based cell sorter to obtain data only on the desired cell population.⁷⁴ We also integrated all the preparatory procedures, including cell handling, buffer washing, stimulation, immunostaining, microscopic imaging, and flow cytometry, into one multifunctional microfluidic chip. This permits end-to-end experimentation and mitigates manual errors typically associated with conventional assays. Accessories such as electronic control valves, digital heaters, and optical detectors were assembled for automation to increase reproducibility and minimize labor, contamination, loss of cells and reagents, and variations in cell microenvironment. Recently, we demonstrated that our integrated platform allows quantitative measurement of intracellular proteins from multiple fleeting events using high-resolution imaging and on-chip flow cytometry ( Fig. 3 ).⁷⁵

Figure 2.

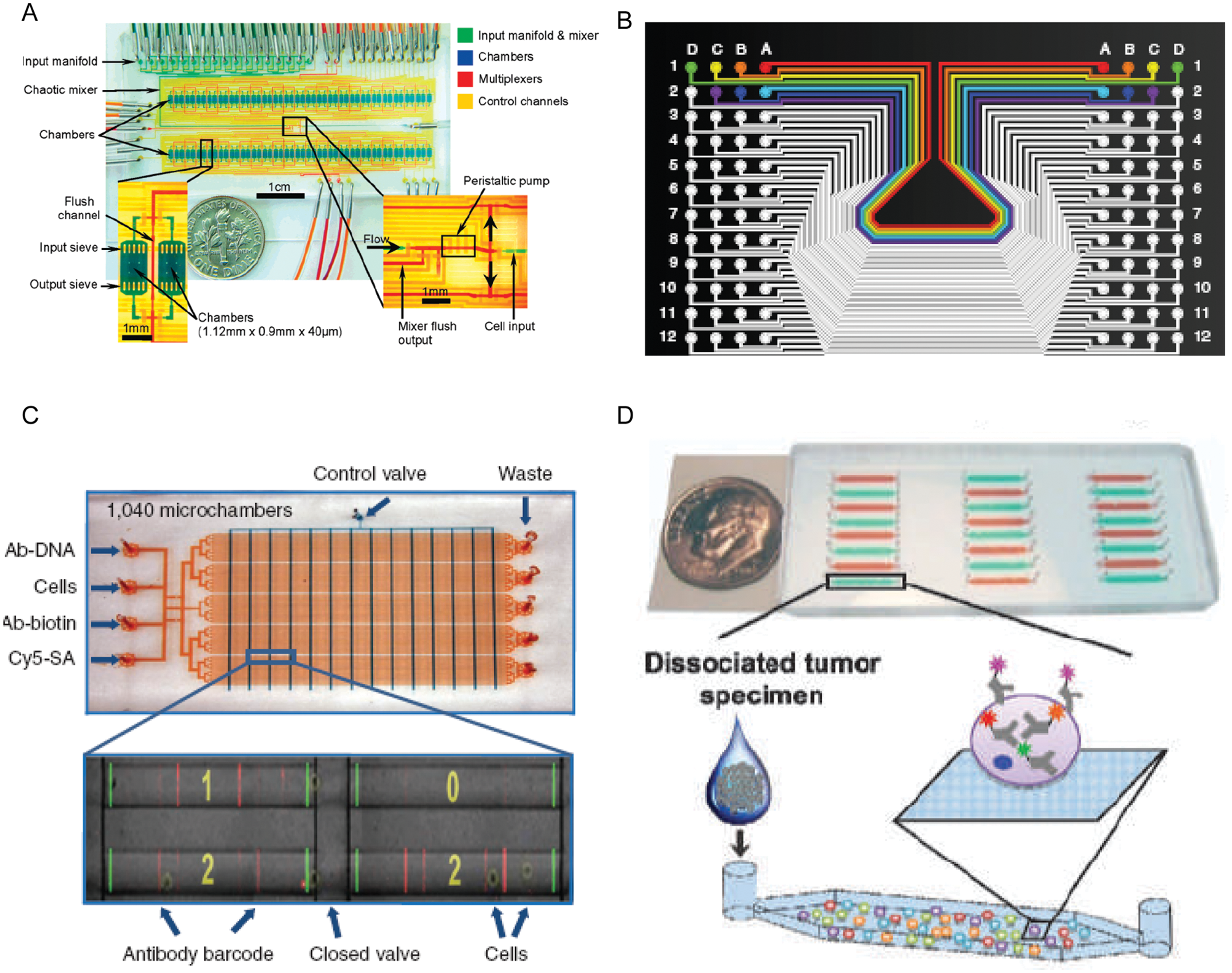

Microfluidic platforms for intact cell analysis. (A) Fully automated design of the cell culture chip to study how single cells respond to tumor necrosis factor–α. Reproduced with permission of Tay et al.³³ (B) A polydimethylsiloxane microfluidic chip is used for quantifying the Escherichia coli proteome with single-molecule sensitivity. Reproduced with permission of Taniguchi et al.⁶⁴ (C) A single-cell barcode chip for single-cell protein secretome analysis. The inset is an optical micrograph showing cells loaded and isolated within the microchambers, overlaid with the fluorescence micrograph of the developed assay barcode. Numbers of cells per microchamber are indicated by the yellow numbers. Reproduced with permission of Ma et al.¹⁴ (D) A microfluidic cell array chip with 24 microfluidic channels for immunocytochemistry. Reproduced with permission of Sun et al.⁷³

Figure 3.

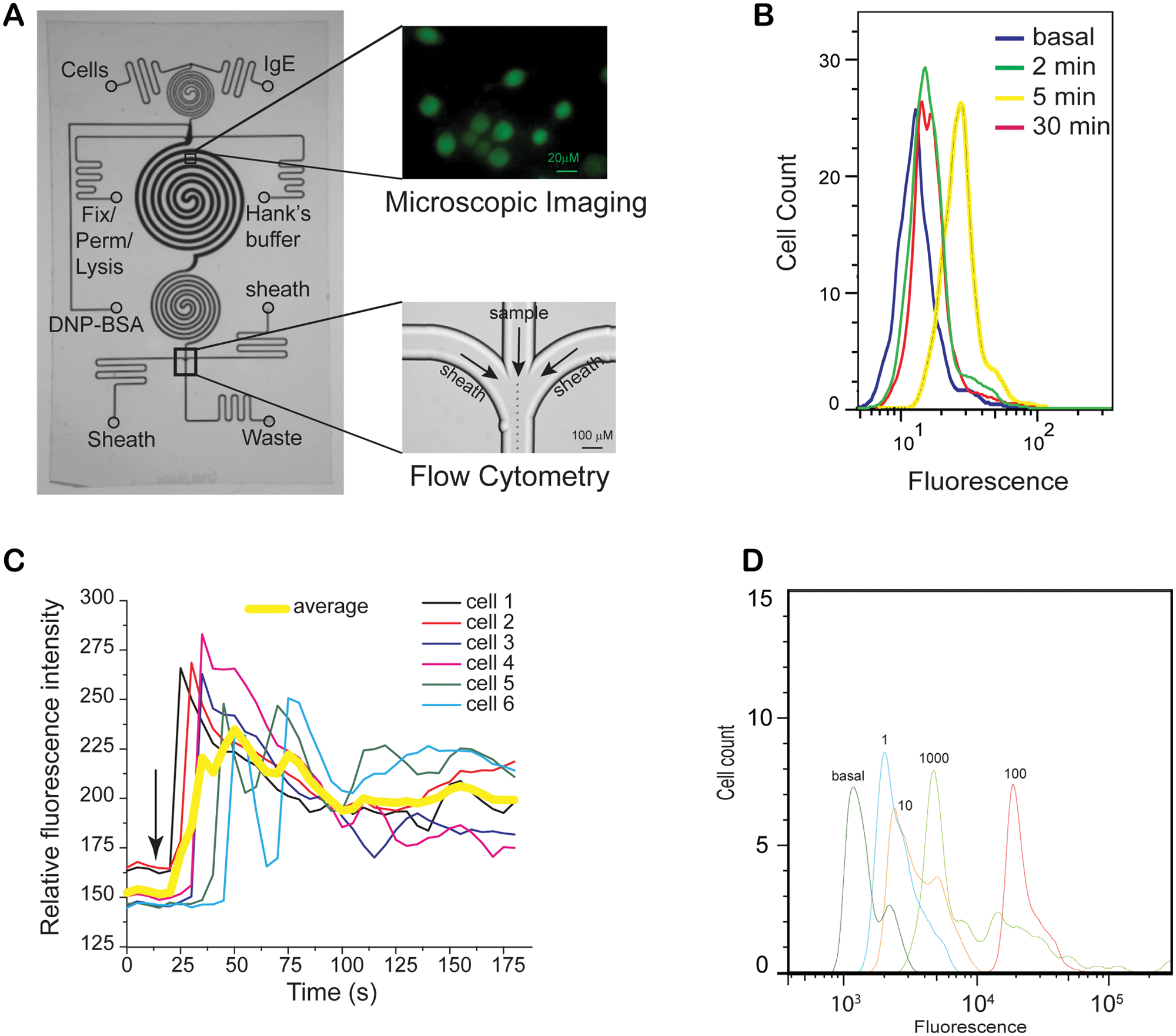

An integrated microfluidic platform for single-cell measurement of allergic pathway. (A) Micrograph of the monolithic microfluidic chip. The inlets used for individual cell/reagent loading, buffer washing, and intracellular immunostaining are indicated in the figure. (B) Analysis of phosphorylation of kinase Syk by µflow cytometer. (C) Time course of antigen-stimulated Ca²⁺ mobilization in individual RBL-2H3 cells. (D) Analysis of kinase tumor necrosis factor–α production by µflow cytometer. Adapted from Liu et al.⁷⁵ with permission.

Cell Lysate Analysis

This approach is especially useful when the components are impossible to label in intact cells. To achieve efficient lysis, chemical lysis is widely used to disrupt the interaction of cell membrane and the substrate.^76,77 Cells can also be lysed by electroporation under a sufficiently high electric field.^78,79 Laser photolysis can rapidly lyse cells so that cells are frozen at the moment of photolysis.^37,80 For cellular proteins that cannot be amplified, efficient separation and sensitive detection are desired for identification and analysis. The separation modalities such as chromatography and electrophoresis within microchannels can be incorporated into the same chip to perform high-resolution analysis after efficient sample transfer. Several approaches have been established to integrate sample preparation, lysate separation, and subsequent identification on-chip. Microchip capillary electrophoresis (CE) has shown great promise for separating lysate. Wu and coworkers⁵⁵ demonstrated the use of chemical cytometry to analyze the chemical content of a single cell. The same group then improved the multistate valve to detect low-copy-number proteins (less than 1000 molecules/cell) in individual cells ( Fig. 4A ).⁶⁶ The development of PDMS-glass hybrid chips and the detection of amino acids through chemiluminescence also improved the usability of microfluidic CE.^81,82

Figure 4.

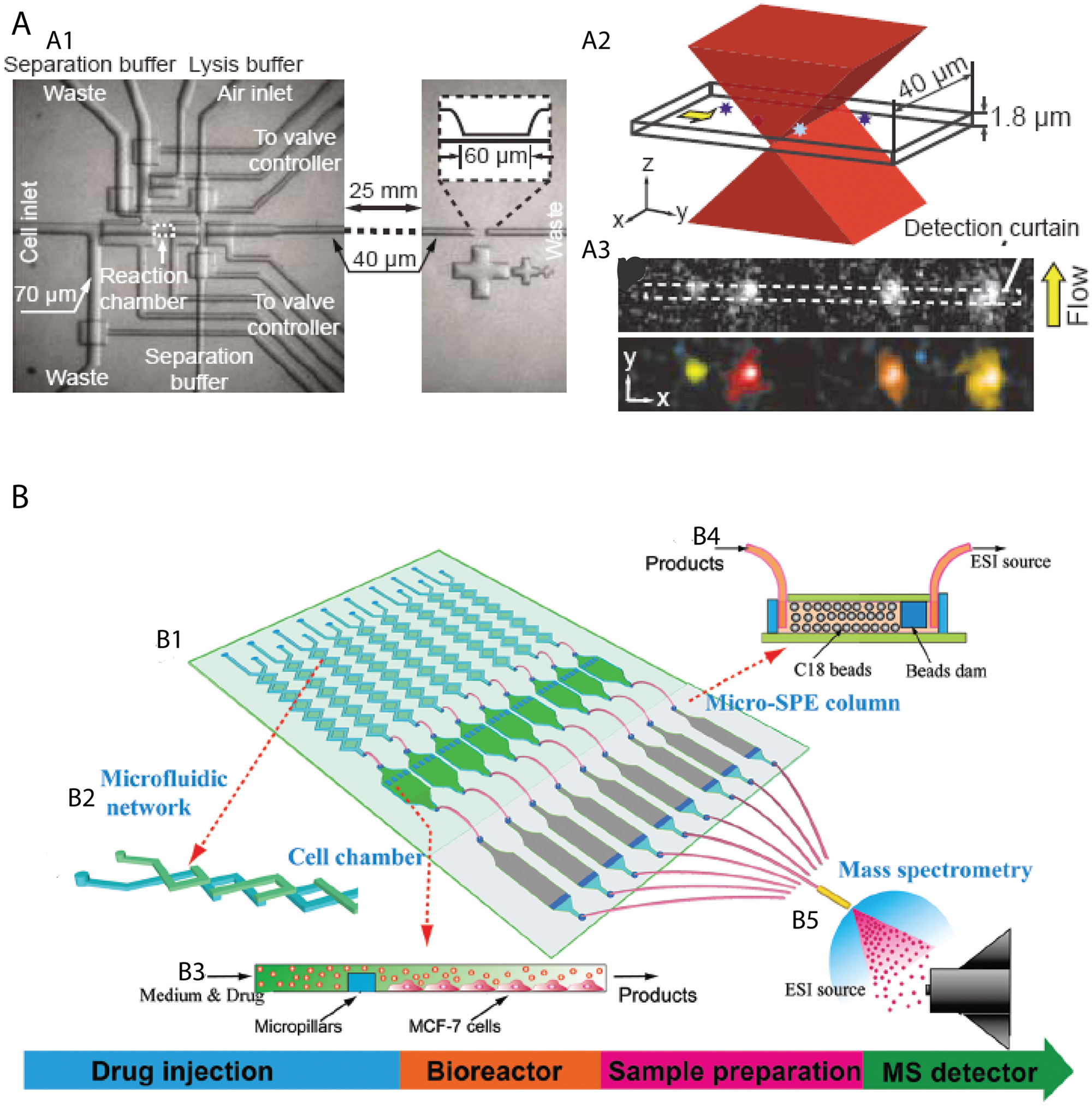

Microfluidic platforms for cell lysate analysis. (A) Chemical cytometer to detect a low copy number of proteins. (A1) Layout of the chemical analysis chip. (A2) Schematic illustration of the excitation laser focused by the microscope objective and the dimensions of the molecule-counting channel. (A3) One frame from the CCD images of fluorescent molecules flowing across the molecule-counting section (upper panel) and the identification results (lower panel). Adapted from Huang et al.⁶⁶ with permission. (B) The integrated microfluidic chip−electrospray ionization mass spectrometry (ESI-MS) platform. (B1) The platform consists of a microfluidic network, on-chip micro-SPE columns for sample desalting and purifying, and a mass spectrometer. (B2) Microfluidic network for the concentration gradient generator. (B3) Magnified view of the MCF-7 cell culture chamber. (B4) Magnified view of an integrated micro-SPE column on the microdevice for sample pretreatment prior to ESI-MS detection. (B5) The ESI source was coupled with the micro-SPE column together by capillaries. Reproduced from Chen et al.⁶⁹ with permission.

To address the lack of an effective interface between miniaturized sample preparation and the mass spectrometer,⁷⁰ Mellors et al.¹⁵ reported continuous on-chip lysis of erythrocytes with real-time electrophoretic separation and electrospray ionization MS. More recently, Chen et al.⁶⁹ demonstrated a isotope labeling–assisted microfluidic chip electrospray ionization MS platform for quantitative and qualitative analysis of multiplex metabolites in MCF-7 cells ( Fig. 4B ).

Conclusions and Future Outlook

In recent years, the microfluidic community has shifted its focus from technology development to biological applications, realizing the urgent need of bringing the technology from promise to practice. As a result, we have seen many noteworthy applications such as elucidating the heterogeneities of cell populations, monitoring intracellular protein dynamics by precisely controlling the cellular microenvironment, and detecting a low copy number of proteins in single cells.

However, nontrivial challenges need to be addressed before microfluidic devices for single-cell analysis gain wide acceptance from the biological research community. First, we need to develop assays with higher sensitivity. The most interesting proteins in cells tend to be present at low concentrations and cannot be measured by antibody-based approaches. Advances in detection technologies and improved affinity reagents can also play a major role. Second, it is difficult to measure proteins in living cells. Development of genetically engineered fluorescent proteins has been revolutionary in interrogating proteins in living cells, but the technology is limited to analysis of cell lines. Another limitation has been measurement not only of the proteins but also of DNA and RNA so that one can correlate them to get a systems-level picture. Finally, seamless integration of materials, fluidics handling, and hardware control and detection systems is desired. Microfluidics has the potential to address some critical issues of single-cell proteomics, but it cannot be a system with much complexity and poor stability. It is imperative to translate the proof-of-concept experiments into robust and easy-to-use techniques that biologists will adopt.

Despite all these challenges, the future of microfluidics in single-cell protein analysis is promising. Microfluidics offers many differentiating capabilities that could not be possible without microfluidics. The deep collaboration between chemists, biologists, and engineers would bring microfluidics to a new level toward elucidation of a single-cell proteome.

Footnotes

Acknowledgements

We thank Dr. Mais J. Jebrail for critical reading of this manuscript.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Financial support for preparation and some of the work included was provided by the following grants: R01 DE020891, funded by the National Institute of Dental and Craniofacial Research; P50GM085273 (the New Mexico Spatiotemporal Modeling Center), funded by the National Institute of General Medical Sciences; and ENIGMA, a Lawrence Berkeley National Laboratory Scientific Focus Area Program supported by the U.S. Department of Energy, Office of Science, Office of Biological and Environmental Research. Sandia National Laboratories is a multiprogram laboratory managed and operated by Sandia Corporation, a wholly owned subsidiary of Lockheed Martin Corporation, for the U.S. Department of Energy’s National Nuclear Security Administration under contract DE-AC04-94AL85000.
