Comparison of Clinical Outcome following Cartilage Repair for Patients with Underlying Varus Deformity with or without Additional High Tibial Osteotomy: A Propensity Score–Matched Study Based on the German Cartilage Registry (KnorpelRegister DGOU)

Abstract

Background

Even though realignment procedures have gained popularity as concomitant techniques in cartilage repair approaches with underlying malalignment, the clinical efficacy has not been proven to full extent.

Methods

Out of 5474 patients from the German Cartilage Registry, 788 patients with focal cartilage defects on the medial femoral condyle having received either no accompanying surgery or high tibial osteotomy (HTO) were identified. After a 1:1 propensity score matching, outcome of 440 patients was evaluated using KOOS (Knee Injury and Osteoarthritis Outcome Score), VAS (visual analogue scale), and satisfaction during the 3-year follow-up.

Results

Patients having received a concomitant HTO had significantly higher postoperative KOOS values (12 months: 67.26 ± 15.69 vs.75.10 ± 16.12, P = 0.001; 24 months: 67.14 ± 23.85 vs. 77.11 ± 16.50, P = 0.010; 36 months: 74.40 ± 16.57 vs. 81.75 ± 14.22, P = 0.023) and lower pain levels (6 months: 3.43 ± 2.18 vs. 2.89 ± 2.15, P = 0.009; 12 months: 3.64 ± 2.20 vs. 2.17 ± 1.96, P < 0.001; 24 months: 4.20 ± 3.12 vs. 2.94 ± 2.45, P = 0.005; 36 months: 3.20 ± 2.18 vs. 2.02 ± 1.98, P = 0.003). One and 3 years postoperatively, concomitant HTO led to significantly higher satisfaction in patients. These advantages of accompanying HTO were also seen in the group of patients with a varus deformity of 5° or more, in which pain levels without concomitant HTO even increased during the 3-year follow-up.

Conclusion

The results of the present study underline the importance and safety of concomitant HTO in patients with cartilage defects and varus deformity. HTO should therefore be considered and recommended generously in patients with focal cartilage defects of the medial femoral condyle and varus deformity.

Keywords

cartilage repair repair osteotomy procedures microfracture cartilage transplantation grafts

Introduction

Ever since the introduction of innovative techniques for repair and regeneration of articular cartilage such as bone marrow stimulation (BMS)¹ and cell transplantation techniques,² the relevance of identifying underlying pathologies causing the cartilage defects and their concomitant treatment has been recognized with increasing interest.^3-5

For cartilage defects located on the medial femoral condyle (MFC) varus deformity is one of the major underlying pathologies leading to a significant increase of forces in the medial compartment.^4,6 Biomechanical studies proved potential of high tibial osteotomy (HTO) in terms of load reduction in the medial compartment⁷ and further on the efficiency in peak pressure reduction in focal cartilage defects associated with varus deformity.⁴

Furthermore, in an analysis of more than 1,700 patients suffering from cartilage defects of the knee, Spahn et al.⁸ were able to describe a significant correlation between malalignment and defect location; varus deformity was the most common underlying pathology for defects of the medial compartment.

In order to address both cartilage defect and underlying pathology, valgization osteotomies such as HTOs come into focus. An earlier study could demonstrate that there was significant improvement in terms of “survival” of the cartilage procedure even in deformities less than 5°.³ Furthermore, in a recent analysis of patients included in the German Cartilage Registry (KnorpelRegister DGOU), it could be shown that in German-speaking countries contributing their data to this registry, there is a clear trend toward conducting additional HTO even in smaller deformities.⁹

Nevertheless, this study could not provide any data on clinical outcome and therefore on efficacy of combined osteotomy and cartilage repair procedures. Outcome analysis was part of the present study, which reports a large patient cohort based on data from the German Cartilage Registry and focuses on a direct comparison of isolated cartilage repair versus combined realignment and cartilage repair in a matched cohort setting.

Methods

Data Collection

Data from the KnorpelRegister DGOU were used for the present analysis. The KnorpelRegister DGOU is an observational, nation-wide, and longitudinal multicenter registry of patients assigned for surgical treatment of cartilage defects of the knee and aims to determine real-life treatment patterns and clinical outcomes. The registry was initiated by the Working Group Clinical Tissue Regeneration of the German Society for Orthopedics and Trauma (DGOU) in 2013. Since then, the number of sites has increased to 120. The registry is conducted in accordance with the Declaration of Helsinki and registered at germanctr.de (DRKS00005617). The current study was approved by the Ethics Commission of the Medical Center–University of Freiburg: EK-FR 105/13_130795).

All patients aged 18 years and older who meet the following criteria are eligible to take part in the German Cartilage Registry: surgical treatment of cartilage defects of the knee, ankle or hip joint at a participating site, signed written informed consent, and possession of a personal email address.

Until February 2020, 5474 patients assigned for surgical treatment of cartilage defects of the knee had been included in the registry.

Data collection is performed using a web-based RDE System “RDE-Light,” which was developed by the Clinical Trials Unit (Freiburg) as an electronic data entry interface and data management system for clinical studies and other projects in clinical research. Data are collected paperless and directly on site via an internet browser. Forms are based on HTML- and PDF-format. RDE-Light is available in various languages and validated according to GAMP 5. Furthermore, it fulfills all requirements of Good Clinical Practice (GCP). Established security standards like cryptographic security protocols (SSL/TLS), user authentication protocols and authorization concepts are applied.

After the patient signs the written informed consent the investigator is allowed to register the patient to the database. Patient- and defect-specific parameters are reported by the treating physician at the time of surgery.

Patient satisfaction is evaluated by a 4-item score (not satisfied, partially satisfied, satisfied, very satisfied) at every follow-up point (6, 12, 24, and 36 months postoperatively).

Functional outcome was assessed by visual analogue scale (VAS) and Knee Injury and Osteoarthritis Outcome Score (KOOS) score at 0 months (preoperatively) and after 6, 12, 24, and 36 months postoperatively.

The German Cartilage Registry is supported by a grant from the “Oscar-Helene-Stiftung” and the “Deutsche Arthrosehilfe e.V.”

Data Selection

For the present study, only cases with isolated focal defects of the MFC in patients with existing leg-length x-rays having received either no accompanying surgery (group cartilage repair [CR]) or an accompanying HTO (group CR/HTO) were analyzed (n = 788) ( Fig. 1 ).

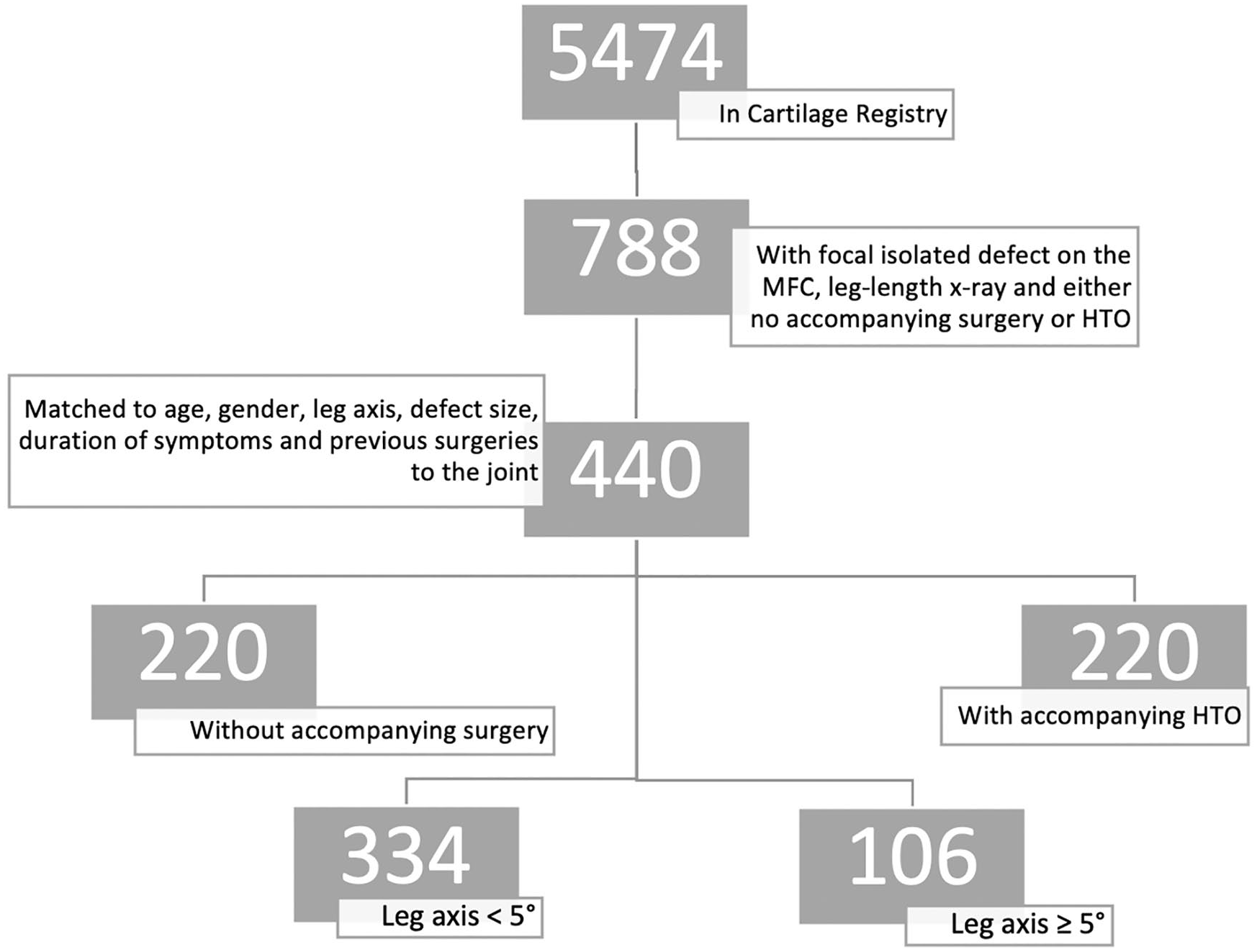

Figure 1.

Selection process of patients included in the underlying analysis.

Propensity Score Matching and Statistical Analysis

To reduce the bias resulting from the nonrandomized nature of the present analysis and to enhance comparability between the 2 treatment groups (without accompanying HTO [group CR] vs. accompanying surgery [group CR/HTO]), a 1:1 propensity score matching with replacement was performed with the built-in Propensity-Score plug-in of the SPSS V.26 software. Patients were matched by propensity score based on age, gender, leg axis (based on the hip-knee-angle), size of defect, duration of symptoms and previous operations on the joint. After matching with a tolerance of 0.006, a total of 220 patients with accompanying HTO were matched to 220 patients without accompanying surgery with similar patient characteristics.

Chi-square test was used to compare categorial variables and unpaired t test to compare continuous variables. Normal distribution was assessed visually by using Q-Q-plots. P values <0.05 were considered statistically significant. SPSS statistics version 26 was used to analyze the data.

Results

Patient Characteristics

The preoperative patient characteristics of the cohort of patients with isolated focal chondral defects of the MFC and preoperative leg-length x-ray are shown in Table 1 . A total of 788 patients fulfilling the aforementioned criteria could be identified. Group CR/HTO consisted of 250 patients (31.7%) while 538 (68.3%) patients were included in group CR. The patients in the CR/HTO group were older, had larger cartilage defects, longer symptom duration, more previous surgeries to the joint, were more often male, had a worse meniscus status and a more severely injured corresponding joint surface in accordance with higher degrees of malalignment in terms of varus deformity. Since these preoperative baseline characteristics could affect the postoperative outcome a 1:1 nearest neighbor propensity score matching was conducted to reduce the bias in evaluating the best practice in patients with varus deformity and chondral defects of the MFC.

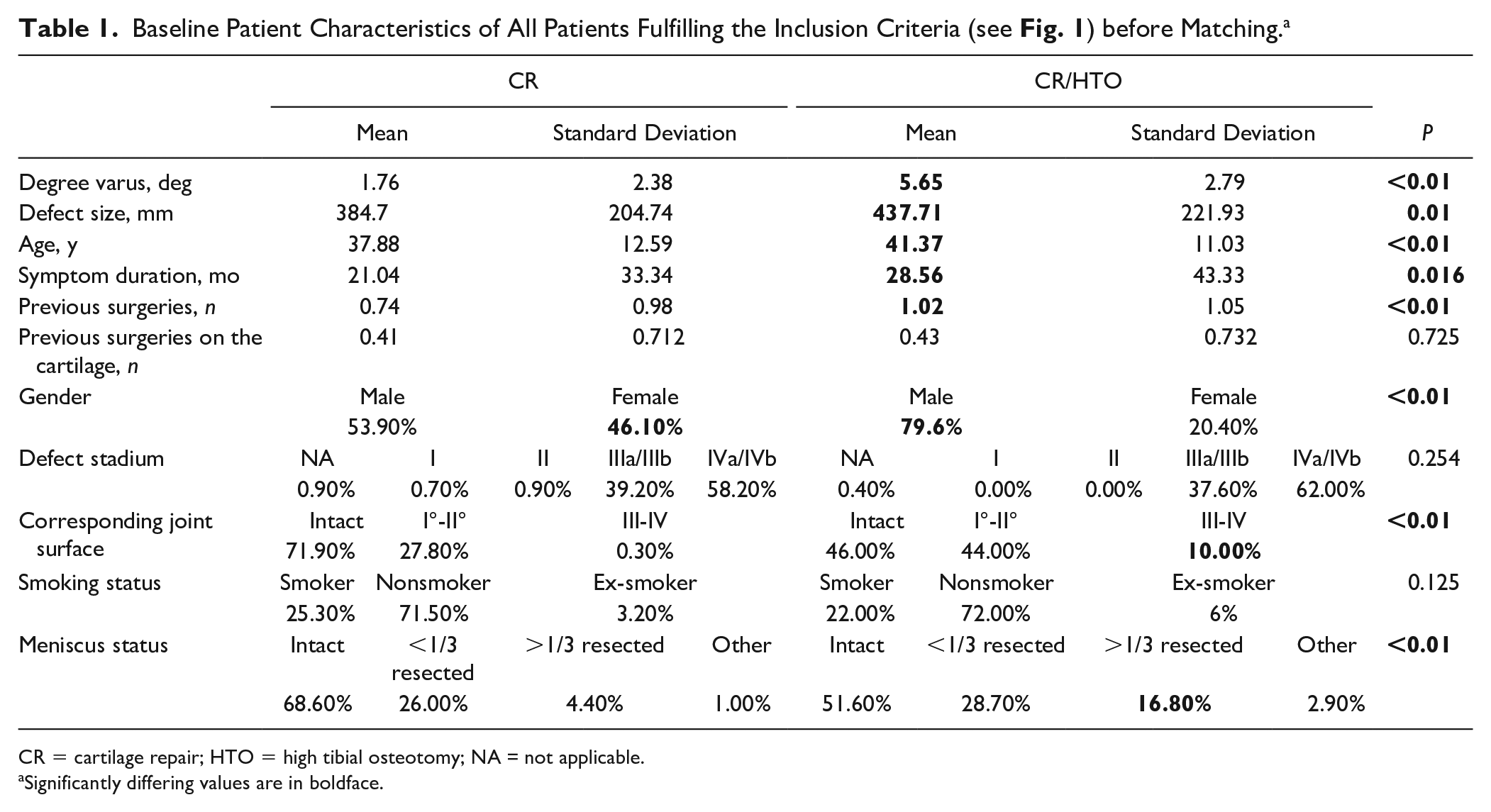

Table 1.

Baseline Patient Characteristics of All Patients Fulfilling the Inclusion Criteria (see Fig. 1 ) before Matching.^a

	CR					CR/HTO					P
	Mean		Standard Deviation			Mean		Standard Deviation			P
Degree varus, deg	1.76		2.38			5.65		2.79			<0.01
Defect size, mm	384.7		204.74			437.71		221.93			0.01
Age, y	37.88		12.59			41.37		11.03			<0.01
Symptom duration, mo	21.04		33.34			28.56		43.33			0.016
Previous surgeries, n	0.74		0.98			1.02		1.05			<0.01
Previous surgeries on the cartilage, n	0.41		0.712			0.43		0.732			0.725
Gender	Male		Female			Male		Female			<0.01
Gender	53.90%		46.10%			79.6%		20.40%			<0.01
Defect stadium	NA	I	II	IIIa/IIIb	IVa/IVb	NA	I	II	IIIa/IIIb	IVa/IVb	0.254
Defect stadium	0.90%	0.70%	0.90%	39.20%	58.20%	0.40%	0.00%	0.00%	37.60%	62.00%	0.254
Corresponding joint surface	Intact	I°-II°	III-IV			Intact	I°-II°	III-IV			<0.01
Corresponding joint surface	71.90%	27.80%	0.30%			46.00%	44.00%	10.00%			<0.01
Smoking status	Smoker	Nonsmoker	Ex-smoker			Smoker	Nonsmoker	Ex-smoker			0.125
Smoking status	25.30%	71.50%	3.20%			22.00%	72.00%	6%			0.125
Meniscus status	Intact	<1/3 resected	>1/3 resected		Other	Intact	<1/3 resected	>1/3 resected		Other	<0.01
Meniscus status	68.60%	26.00%	4.40%		1.00%	51.60%	28.70%	16.80%		2.90%	<0.01

CR = cartilage repair; HTO = high tibial osteotomy; NA = not applicable.

Significantly differing values are in boldface.

After matching, 220 couples (440 patients) were identified. The baseline characteristics of the matched cohort without any significant characteristics beyond the matched variables are shown in Table 2 . Since the categoric variables could not be matched, the corresponding joint surface and the defect stadium remained higher in the group of patients who received an accompanying HTO.

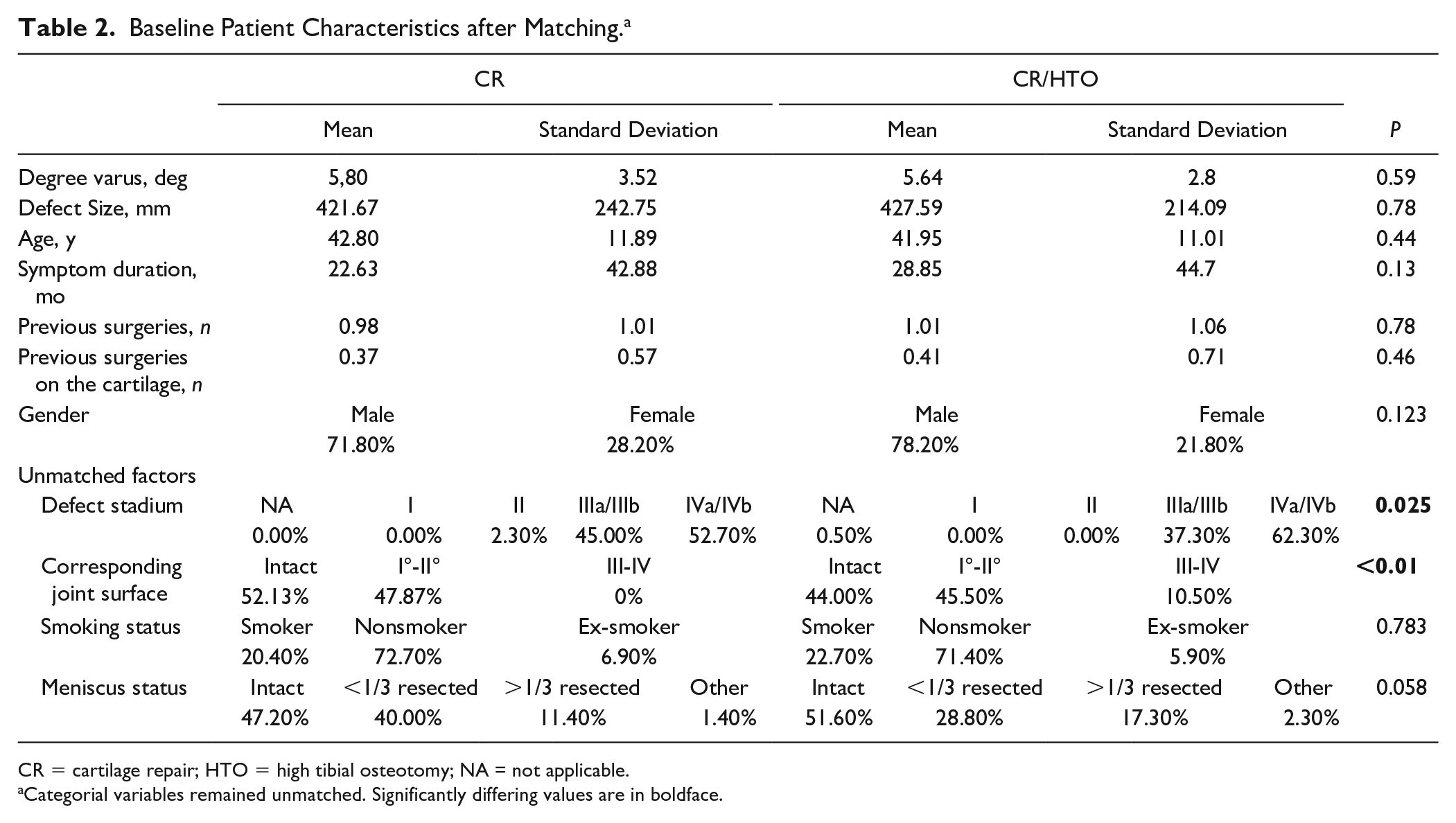

Table 2.

Baseline Patient Characteristics after Matching.^a

	CR					CR/HTO					P
	Mean		Standard Deviation			Mean		Standard Deviation			P
Degree varus, deg	5,80		3.52			5.64		2.8			0.59
Defect Size, mm	421.67		242.75			427.59		214.09			0.78
Age, y	42.80		11.89			41.95		11.01			0.44
Symptom duration, mo	22.63		42.88			28.85		44.7			0.13
Previous surgeries, n	0.98		1.01			1.01		1.06			0.78
Previous surgeries on the cartilage, n	0.37		0.57			0.41		0.71			0.46
Gender	Male		Female			Male		Female			0.123
Gender	71.80%		28.20%			78.20%		21.80%			0.123
Unmatched factors
Defect stadium	NA	I	II	IIIa/IIIb	IVa/IVb	NA	I	II	IIIa/IIIb	IVa/IVb	0.025
Defect stadium	0.00%	0.00%	2.30%	45.00%	52.70%	0.50%	0.00%	0.00%	37.30%	62.30%	0.025
Corresponding joint surface	Intact	I°-II°	III-IV			Intact	I°-II°	III-IV			<0.01
Corresponding joint surface	52.13%	47.87%	0%			44.00%	45.50%	10.50%			<0.01
Smoking status	Smoker	Nonsmoker	Ex-smoker			Smoker	Nonsmoker	Ex-smoker			0.783
Smoking status	20.40%	72.70%	6.90%			22.70%	71.40%	5.90%			0.783
Meniscus status	Intact	<1/3 resected	>1/3 resected		Other	Intact	<1/3 resected	>1/3 resected		Other	0.058
Meniscus status	47.20%	40.00%	11.40%		1.40%	51.60%	28.80%	17.30%		2.30%	0.058

CR = cartilage repair; HTO = high tibial osteotomy; NA = not applicable.

Categorial variables remained unmatched. Significantly differing values are in boldface.

Type of Cartilage Treatment

While the majority of patients received autologous chondrocyte implantation (ACI) as cartilage regenerative therapy, most patients with accompanying HTO were treated by BMS (5.1% vs. 19.4%) ( Table 3 ).

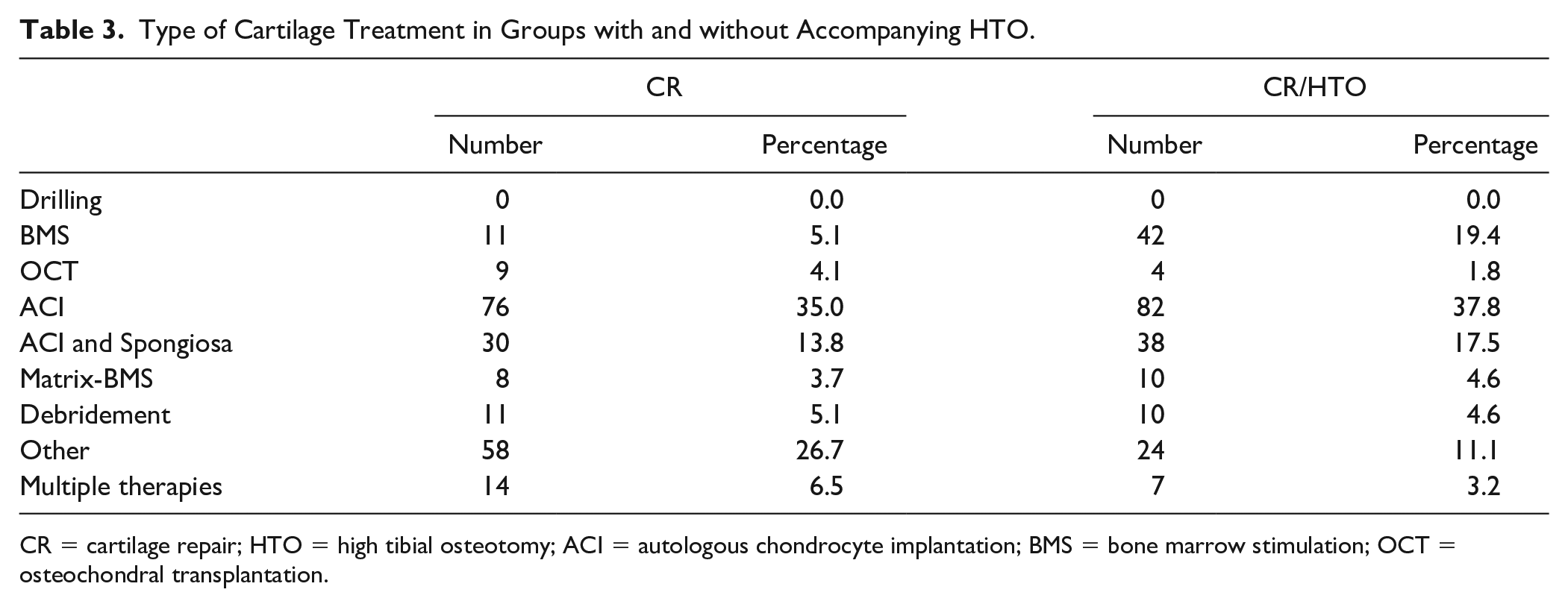

Table 3.

Type of Cartilage Treatment in Groups with and without Accompanying HTO.

	CR		CR/HTO
	Number	Percentage	Number	Percentage
Drilling	0	0.0	0	0.0
BMS	11	5.1	42	19.4
OCT	9	4.1	4	1.8
ACI	76	35.0	82	37.8
ACI and Spongiosa	30	13.8	38	17.5
Matrix-BMS	8	3.7	10	4.6
Debridement	11	5.1	10	4.6
Other	58	26.7	24	11.1
Multiple therapies	14	6.5	7	3.2

CR = cartilage repair; HTO = high tibial osteotomy; ACI = autologous chondrocyte implantation; BMS = bone marrow stimulation; OCT = osteochondral transplantation.

Overall Outcome

KOOS

Patients in the CR/HTO group had significantly higher postoperative KOOS values from 12 to 36 months postoperatively (12 months: 67.26 ± 15.69 vs. 75.10 ± 16.12, P = 0.001; 24 months: 67.14 ± 23.85 vs. 77.11 ± 16.50, P = 0.010; 36 months: 74.40 ± 16.57 vs. 81.75 ± 14.22, P = 0.023) (see Table 4 and Fig. 2 ). The preoperative KOOS was also significantly higher in the CR/HTO group (49.62 ± 15.38 vs. 54.97 ± 18.78, P = 0.010). Values from patients without accompanying HTO are always mentioned first according to the provided tables.

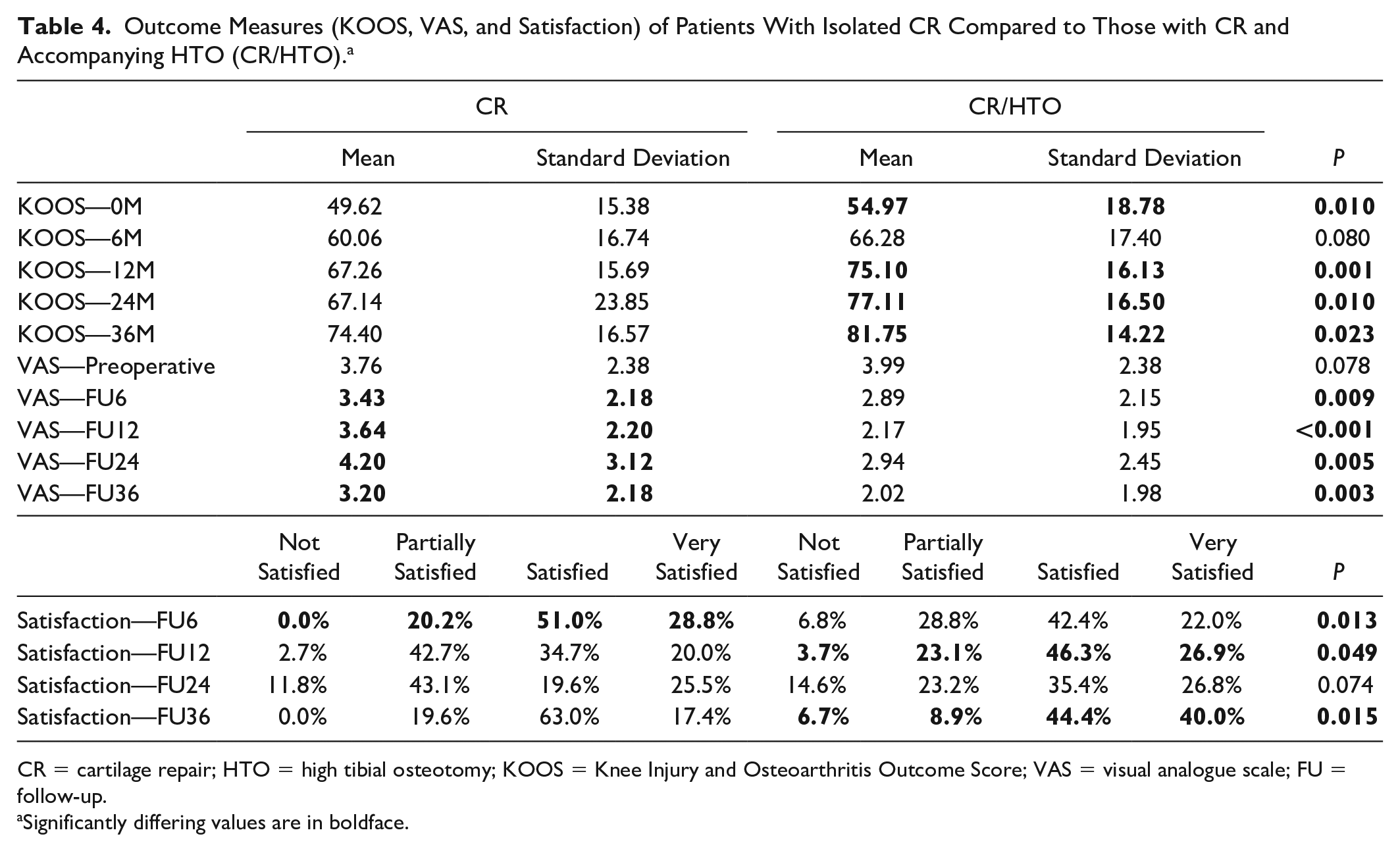

Table 4.

Outcome Measures (KOOS, VAS, and Satisfaction) of Patients With Isolated CR Compared to Those with CR and Accompanying HTO (CR/HTO).^a

	CR				CR/HTO				P
	Mean		Standard Deviation		Mean		Standard Deviation		P
KOOS—0M	49.62		15.38		54.97		18.78		0.010
KOOS—6M	60.06		16.74		66.28		17.40		0.080
KOOS—12M	67.26		15.69		75.10		16.13		0.001
KOOS—24M	67.14		23.85		77.11		16.50		0.010
KOOS—36M	74.40		16.57		81.75		14.22		0.023
VAS—Preoperative	3.76		2.38		3.99		2.38		0.078
VAS—FU6	3.43		2.18		2.89		2.15		0.009
VAS—FU12	3.64		2.20		2.17		1.95		<0.001
VAS—FU24	4.20		3.12		2.94		2.45		0.005
VAS—FU36	3.20		2.18		2.02		1.98		0.003
	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	P
Satisfaction—FU6	0.0%	20.2%	51.0%	28.8%	6.8%	28.8%	42.4%	22.0%	0.013
Satisfaction—FU12	2.7%	42.7%	34.7%	20.0%	3.7%	23.1%	46.3%	26.9%	0.049
Satisfaction—FU24	11.8%	43.1%	19.6%	25.5%	14.6%	23.2%	35.4%	26.8%	0.074
Satisfaction—FU36	0.0%	19.6%	63.0%	17.4%	6.7%	8.9%	44.4%	40.0%	0.015

CR = cartilage repair; HTO = high tibial osteotomy; KOOS = Knee Injury and Osteoarthritis Outcome Score; VAS = visual analogue scale; FU = follow-up.

Significantly differing values are in boldface.

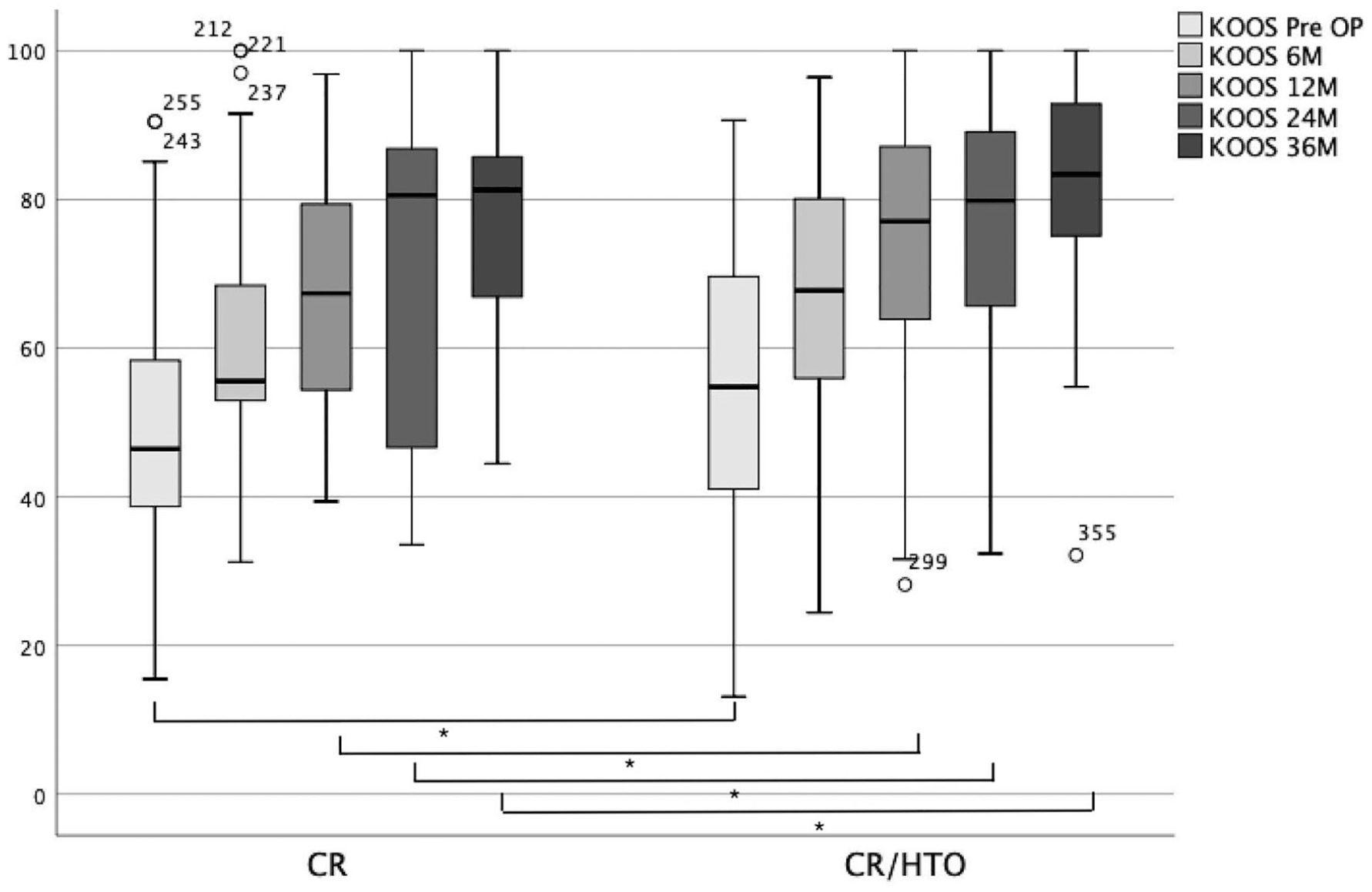

Figure 2.

Outcome (Knee Injury and Osteoarthritis Outcome Score [KOOS]) of patients with cartilage repair (CR) alone compared to patients with concomitant HTO (CR/HTO) preoperative (light gray—left), as well as 6, 12, 24 and 36 (dark gray—right) months postoperatively.

Pain

Throughout the whole follow-up period, higher pain scores were reported by patients who received the cartilage treatment without concomitant surgery even though preoperative pain scores were equal in both groups (3.76 ± 2.38 vs. 3.99 ± 2.38, P = 0.078) (see Table 4 ). HTO reduced postoperative pain scores significantly (VAS at 6 months: 3.43 ± 2.18 vs. 2.89 ± 2.15, P = 0.009; VAS at 12 months: 3.64 ± 2.20 vs. 2.17 ± 19.6, P < 0.001; VAS at 24 months: 4.20 ± 3.12 vs. 2.94 ± 2.45, P = 0.005; VAS at 36 months: 3.20 ± 2.18 vs. 2.02 ± 1.98, P = 0.003).

Satisfaction

While patients in the CR group initially (6-month follow-up [FU6]) reported higher satisfaction rates (0.0% not satisfied, 20.2% partially satisfied, 51.0% satisfied, 28,8% very satisfied vs. 6.8% not satisfied, 28.8% partially satisfied 42.4% satisfied, 22.0% very satisfied, P = 0.013), these findings reversed at 1 year (2.7% not satisfied, 42.7% partially satisfied, 34.7% satisfied, 20.0% very satisfied vs. 3.7% not satisfied, 23.1% partially satisfied 46.3% satisfied, 26.9% very satisfied, P = 0.049) FU and persisted even after 3 years (0.0% not satisfied, 19.6% partially satisfied, 63.0% satisfied, 17.4% very satisfied vs. 6,7% not satisfied, 8.9% partially satisfied 44.4% satisfied, 40.0% very satisfied, P = 0.015), whereas patients in the CR/HTO group reported higher satisfaction scores 6, 12, and 36 months after the operation (see Table 4 ).

Outcome in Dependence of Amount of Varus Deformity

To compare outcome in patients with varus deformity <5° (group A) and those with ≥5° (group B) 2 separate groups were established out of our propensity score–matched cohort of 440 patients. Group A consisted of 106 patients and group B of 334. The patient characteristics of both groups vary regarding positive and negative outcome predicting factors (see Table 5 ).

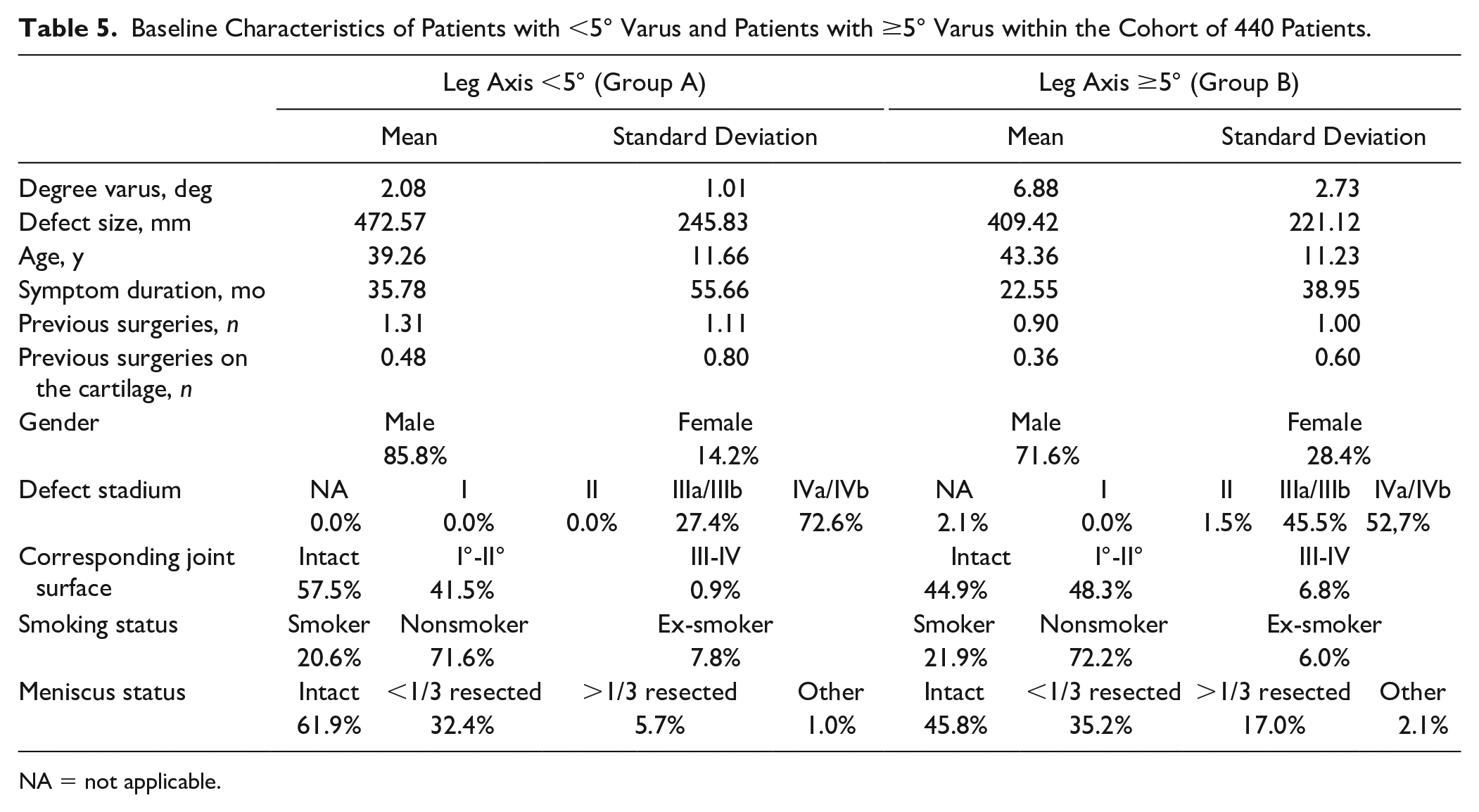

Table 5.

Baseline Characteristics of Patients with <5° Varus and Patients with ≥5° Varus within the Cohort of 440 Patients.

	Leg Axis <5° (Group A)					Leg Axis ≥5° (Group B)
	Mean		Standard Deviation			Mean		Standard Deviation
Degree varus, deg	2.08		1.01			6.88		2.73
Defect size, mm	472.57		245.83			409.42		221.12
Age, y	39.26		11.66			43.36		11.23
Symptom duration, mo	35.78		55.66			22.55		38.95
Previous surgeries, n	1.31		1.11			0.90		1.00
Previous surgeries on the cartilage, n	0.48		0.80			0.36		0.60
Gender	Male		Female			Male		Female
Gender	85.8%		14.2%			71.6%		28.4%
Defect stadium	NA	I	II	IIIa/IIIb	IVa/IVb	NA	I	II	IIIa/IIIb	IVa/IVb
Defect stadium	0.0%	0.0%	0.0%	27.4%	72.6%	2.1%	0.0%	1.5%	45.5%	52,7%
Corresponding joint surface	Intact	I°-II°	III-IV			Intact	I°-II°	III-IV
Corresponding joint surface	57.5%	41.5%	0.9%			44.9%	48.3%	6.8%
Smoking status	Smoker	Nonsmoker	Ex-smoker			Smoker	Nonsmoker	Ex-smoker
Smoking status	20.6%	71.6%	7.8%			21.9%	72.2%	6.0%
Meniscus status	Intact	<1/3 resected	>1/3 resected		Other	Intact	<1/3 resected	>1/3 resected		Other
Meniscus status	61.9%	32.4%	5.7%		1.0%	45.8%	35.2%	17.0%		2.1%

NA = not applicable.

In group, A no significant difference in terms of improved KOOS, VAS, or satisfaction could be observed between patients having received a concomitant HTO and those who had not ( Table 6 ).

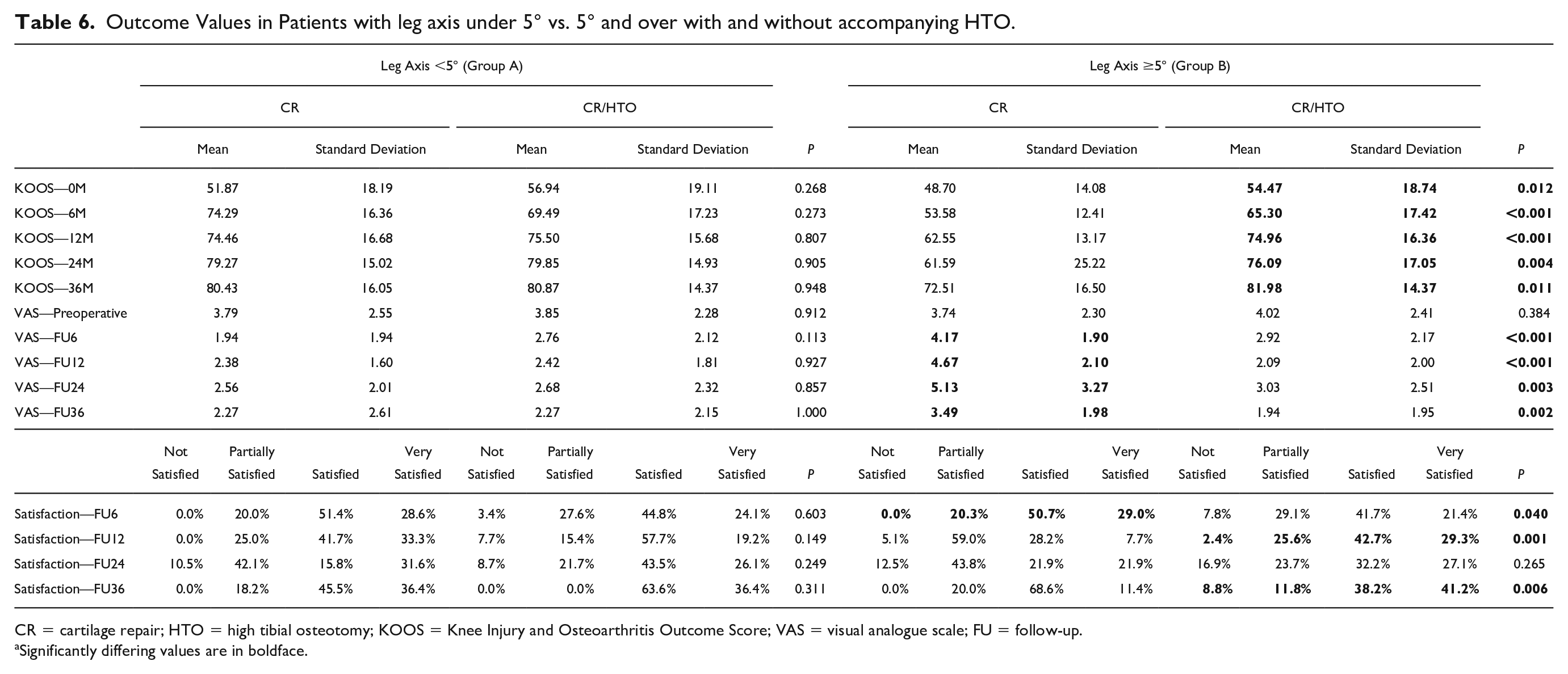

Table 6.

Outcome Values in Patients with leg axis under 5° vs. 5° and over with and without accompanying HTO.

	Leg Axis <5° (Group A)								P	Leg Axis ≥5° (Group B)								P
	CR				CR/HTO					CR				CR/HTO						Mean	Standard Deviation	Mean	Standard Deviation	Mean	Standard Deviation	Mean	Standard Deviation	KOOS—0M
51.87		18.19		56.94		19.11		0.268		48.70		14.08		54.47		18.74			0.012
KOOS—6M	74.29		16.36		69.49		17.23		0.273	53.58		12.41		65.30		17.42		<0.001
KOOS—12M	74.46		16.68		75.50		15.68		0.807	62.55		13.17		74.96		16.36		<0.001
KOOS—24M	79.27		15.02		79.85		14.93		0.905	61.59		25.22		76.09		17.05		0.004
KOOS—36M	80.43		16.05		80.87		14.37		0.948	72.51		16.50		81.98		14.37		0.011
VAS—Preoperative	3.79		2.55		3.85		2.28		0.912	3.74		2.30		4.02		2.41		0.384
VAS—FU6	1.94		1.94		2.76		2.12		0.113	4.17		1.90		2.92		2.17		<0.001
VAS—FU12	2.38		1.60		2.42		1.81		0.927	4.67		2.10		2.09		2.00		<0.001
VAS—FU24	2.56		2.01		2.68		2.32		0.857	5.13		3.27		3.03		2.51		0.003
VAS—FU36	2.27		2.61		2.27		2.15		1.000	3.49		1.98		1.94		1.95		0.002
	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	P	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	Not Satisfied	Partially Satisfied	Satisfied	Very Satisfied	P
Satisfaction—FU6	0.0%	20.0%	51.4%	28.6%	3.4%	27.6%	44.8%	24.1%	0.603	0.0%	20.3%	50.7%	29.0%	7.8%	29.1%	41.7%	21.4%	0.040
Satisfaction—FU12	0.0%	25.0%	41.7%	33.3%	7.7%	15.4%	57.7%	19.2%	0.149	5.1%	59.0%	28.2%	7.7%	2.4%	25.6%	42.7%	29.3%	0.001
Satisfaction—FU24	10.5%	42.1%	15.8%	31.6%	8.7%	21.7%	43.5%	26.1%	0.249	12.5%	43.8%	21.9%	21.9%	16.9%	23.7%	32.2%	27.1%	0.265
Satisfaction—FU36	0.0%	18.2%	45.5%	36.4%	0.0%	0.0%	63.6%	36.4%	0.311	0.0%	20.0%	68.6%	11.4%	8.8%	11.8%	38.2%	41.2%	0.006

CR = cartilage repair; HTO = high tibial osteotomy; KOOS = Knee Injury and Osteoarthritis Outcome Score; VAS = visual analogue scale; FU = follow-up.

Significantly differing values are in boldface.

In group B, HTO led to a significantly improved KOOS score throughout the whole follow-up period ( Table 6 ). Average preoperative pain score was equal between patients with and without accompanying HTO in group B but postoperatively patients having received an accompanying HTO had significant less pain than those who had not ( Table 6 ). In group B patients who did now undergo concomitant HTO showed increased pain levels from preoperative up to 2 years postoperatively; at the 3-year FU, the average pain score sank below preoperative values for the first time. The pain score in patients with accompanying HTO was below preoperative levels throughout the whole follow-up period and was reduced by 51.7% compared with preoperative values 3 years after surgery.

Regarding subjective satisfaction rates, a high number of patients in all 4 groups were apparently unsatisfied after 2 years FU (group A: without HTO 10.5%, with HTO 8.7%; group B: without HTO 12.5%, with HTO 16.9%). Patients in group B without HTO were significantly more satisfied initially (FU 6 months, P = 0.040), while reversed results were seen at one and 3 years were HTO led to significantly higher subjective satisfaction rates (FU 12 months, P = 0.001; FU 36 months, P = 0.006).

Nonetheless, the absolute share of “not satisfied” patients with leg axis ≥5° is larger after receiving accompanying HTO, while the overall satisfaction rate is higher (36 months: 11.4% vs. 41.2% “very satisfied,” P = 0.006).

Discussion

This is the first study presenting large cohort data after HTO and cartilage versus cartilage repair alone in patients with cartilage defect of the medial compartment of the knee. In contrast to earlier studies,^10,11 this study was initiated to not only compare event-free survival but also functional outcome after combined HTO and CR versus isolated CR in a large cohort of patients with focal cartilage defects of the medial compartment of the knee.

Despite the large number of patients involved in this study, patients with cartilage defects of the knee represent a heterogenous cohort in terms of concomitant pathologies and in many scientific reports there is no reliable discrimination between patients with focal cartilage defects and early or even progressed osteoarthritis.^10-12 This is of extraordinary importance since osteoarthritis is still the most relevant contraindication for any type of cartilage repair. Moreover, various factors, including not only integrity of the corresponding joint surface, meniscus status, duration of symptoms, and gender but also defect size and several other parameters can influence clinical outcome following different types of cartilage repair. For this purpose, in the present study a 1:1 nearest neighbor propensity score matched cohort of 440 patients from the German Cartilage Registry was analyzed in order to evaluate the effect of concomitant HTO to the best possible degree.

In the unmatched cohort, patients who received the cartilage surgery alone were younger, had smaller defects, a shorter duration of symptoms, less previous surgeries to the joint, were more often female, had a better meniscus status and a less severely injured corresponding joint surface and a lower amount of leg axis malalignment ( Table 1 ).⁸ As a consequence, it was necessary to even out those differences before conducting an elaborate analysis ( Table 1 ). After the matching process, mean values of age, defect size, symptom duration, number of previous surgeries to the joint and the cartilage defect, degree of leg axis malalignment, and sex distribution were equal in the groups of patients with and without concomitant HTO ( Table 2 ). Categorial variables (defect stadium and corresponding joint surface integrity) remained unmatched, since categorial variables with more than 2 values are not covered well by the propensity score. This leads to a more integer corresponding joint surface and a lower defect stadium in patients without accompanying HTO. These 2 factors need to be discussed when interpreting outcome parameters of the 2 analyzed patient groups (with vs. without HTO).¹³ Nevertheless, the matching process led to a homogenous distribution of various parameters with potential effect on functional outcome.

Based on the analysis of the 440 propensity score matched patients involved in the present study, major findings were that concomitant HTO leads to significantly higher KOOS values and lower pain scores 1, 2, and 3 years postoperatively ( Table 4 ). In patients with a cartilage defect of the medial femoral condyle having undergone isolated cartilage procedure, the mean pain level 2 years after the intervention even increased compared to preoperative levels, whereas concomitant HTO led to consistently lower postoperative pain levels. Moreover, an accompanying HTO led to more satisfied patients 1 and 3 years after the intervention ( Table 4 ). The rate of reinterventions was equal in both groups. In the cohort with a leg axis of 5° varus and more similar results as in the overall cohort in terms of better KOOS, lower pain, and higher patient satisfaction in patients with concomitant HTO could be shown. Even in the cohort of patients with deformities of less than 5° improved functional outcome could be demonstrated, however not significantly better compared to patients without accompanying HTO ( Table 6 ). Interestingly, 2 years postoperatively in all groups (CR, CR/HTO, groups A and B) the worst results regarding pain and satisfaction could be shown, even though KOOS did not show poor results at 24 months ( Tables 4 and 6). This finding is difficult to put into context and lacks a well-founded explanation.

Although the effect and necessity of concomitant osteotomy in cartilage repair has been generally accepted, it has never been shown so clearly in terms of improved functional outcome. Nevertheless, these results are in line with earlier studies (in vitro and in vivo) that suggest positive effects of unloading on regeneration of cartilage and the opposite for malalignment resulting in an overload and asymmetric load of the joint. Progression of untreated cartilage defects could be also shown in vitro and in vivo,^14,15 probably resulting from the fact that the contact pressure concentrates around the rims of cartilage defects,⁴ Especially in patients with varus malalignment, which is a proven risk factor for cartilage lesions of the medial compartment,⁸ the underlying pathology needs to be addressed when cartilage repair is carried out to prevent further degeneration.¹⁶ High tibial osteotomy with at least 50% release of the medial collateral ligament leads to reduced pressure in the medial compartment and on the preexisting cartilage defect.^4,7

Good results of HTO combined with cartilage repair have been shown in terms of pain and patient-reported outcome measures, and HTO has proven feasible and safe.^17-21 The present analysis supports this data. A recent systematic review depicted almost 100% return to work rates after ACI plus HTO whereas a significantly less number of patients (51.78%) returned to their former work activity after osteochondral allograft transplantation.²² HTO in combination with ACI also led to the shortest return to work time (3.15 months) compared to ACI alone (3.34 months) and osteochondral allograft (11.1 months). Multiple studies and even systematic reviews and meta-analyses on the effect of high tibial osteotomy with a concomitant “cartilage procedure” in osteoarthritic knees compared with HTO alone exist,^11,23-27 but literature about cartilage procedures with versus without concomitant high tibial osteotomy in patients with focal cartilage defects is sparse. Here the difference between focal cartilage defects and osteoarthritis needs to be emphasized. Whereas the average age of the described patients in the studies comparing HTO to HTO with concomitant “cartilage procedures” is between 50 and 64 years,¹¹ the average age in the German Cartilage Registry is 37.26 ± 12.53 and in our matched cohort 42.38 ± 11.46 years. Multiple studies have dealt with the question of survivorship and revision free survival of high tibial osteotomies in the treatment of osteoarthritis of the knee.^10,12,28 The mean patient age between 50 and 54 years needs to be considered here. To date, publications dealing with the question of functional outcome of concomitant HTO in a cohort of young patients with focal cartilage defects of the knee are lacking. Also, concerning what degree of deformity requires a correction of varus malalignment, a limit of 5° became common sense^29-32 without any scientific evidence. In patients with cartilage defects of the medial femoral condyle and varus deformity of <5° who received concomitant HTO with ACI lower failure rates (2/19 vs. 10/24) were observed compared with patients who received ACI alone.³ Even though this 5° limit seems to be outdated and the trend goes toward performing HTO even in less severe leg axis deformities,⁹ there has neither been any supporting scientific evidence until now, nor have data concerning functional outcome of cartilage repair accompanying HTO in large cohorts been published.

In the overall cohort with a mean varus deformity of 5.80 ± 3.52 (CR) and 5.64 ± 2.80 (CR/HTO) degrees, respectively, the benefit of a concomitant HTO in terms of KOOS, pain, and patient satisfaction could be shown even though patients who received the cartilage procedure alone had a more integer corresponding joint surface and a less severe defect stadium. This benefit was also shown in patients with a varus deformity of 5° or more. In patients with a varus deformity of less than 5°, the superiority of concomitant HTO in terms of functional outcome could not be shown during a 3-year follow-up, confirming the results of Bode et al.³ This advantage of a concomitant HTO was shown, even though patients in the CR/HTO group had a less integer corresponding joint surface, a higher defect size, and underwent more often microfracture compared to the group of patients who received the cartilage procedure alone. The type of cartilage treatment was not die primary aim the present study and therefore it has not been included in the propensity matching, nevertheless it might influence outcome. Interestingly. the CR/HTO group BMS was used more frequently (19.4% vs. 5.1%) ( Table 3 ). According to multiple studies,^29,33,34 BMS seems inferior, even though the CR/HTO showed better outcomes. Therefore, the inferiority of quality of cartilage repair in the CR/HTO group and the better results respectively might even strengthen the results of the present study.

Even though this study was conducted on a large cohort of patients, it was not possible to carry out a reliable gradually outcome analysis. In further studies, an exact angle at which patient outcome improves significantly from an accompanying high tibial osteotomy should be determined.

Limitations

This study shows several limitations. First of all, due to the fact that this study was based on registry data, input errors from patient and doctor side cannot be ruled out. Second, there has been no information on the type of performed valgisating tibial osteotomy; whether opening or closing wedge osteotomy was performed. In the biggest centers entering data in the registry, opening wedge osteotomy is performed almost exclusively. As a third limitation it must be mentioned that no information about the amount of correction can be made, since this information is not part of the Cartilage Registry. Fourth, propensity score matching has some limitations; the covariates chosen for matching may not be all the confounders affecting the outcome significantly. Influencing covariates might be overseen or not even asked for. So hidden bias due to latent variables may remain after matching.

Conclusion

Concomitant HTO results in better postoperative KOOS values, lower pain levels, and a higher patient satisfaction compared with the cartilage procedure alone in a propensity score–matched cohort. Even greater data sets with longer follow-up durations are needed to carry out a gradually outcome analysis to distinguish a scientific limit of varus deformity where valgization osteotomies accompanying cartilage repair are indicated to improve patient outcome. From a clinical point of view, this article underlines the importance of concomitant HTO in patients with cartilage defects and varus deformity and based on the results of the study, HTO should be considered and recommended generously in these patients.

Footnotes

Acknowledgments and Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article. The German Cartilage registry is supported by a grant from the “Oscar-Helene-Stiftung” and the “Deutsche arthrosehilfe e.V.”

Ethical Approval

The current study was approved by the Ethics Commission of the Medical Center–University of Freiburg: EK-FR 105/13_130795).

Trial Registration

The registry is conducted in accordance with the Declaration of Helsinki and registered at germanctr.de (DRKS00005617).

ORCID iD

Svea Faber

References

Steadman

Rodkey

Singleton

Briggs

KK.

Microfracture technique for full-thickness chondral defects: technique and clinical results. Oper Tech Orthop. 1997;7:300-4. doi:10.1016/S1048-6666(97)80033-X

Brittberg

Lindahl

Nilsson

Ohlsson

Isaksson

Peterson

Treatment of deep cartilage defects in the knee with autologous chondrocyte transplantation. N Engl J Med. 1994;331:889-895. doi:10.1056/NEJM199410063311401

Bode

Schmal

Pestka

Ogon

Sudkamp

Niemeyer

A non-randomized controlled clinical trial on autologous chondrocyte implantation (ACI) in cartilage defects of the medial femoral condyle with or without high tibial osteotomy in patients with varus deformity of less than 5. Arch Orthop Trauma Surg. 2013;133:43-9. doi:10.1007/s00402-012-1637-x

Mina

Garrett

Jr Pietrobon

Glisson

Higgins

High tibial osteotomy for unloading osteochondral defects in the medial compartment of the knee. Am J Sports Med. 2008;36:949-55. https://doi.org/10.1177/0363546508315471

Mouzopoulos

Borbon

Siebold

Patellar chondral defects: a review of a challenging entity. Knee Surg Sports Traumatol Arthrosc. 2011;19:1990-2001. doi:10.1007/s00167-011-1546-5

Agneskirchner

Hurschler

Stukenborg-Colsman

Imhoff

Lobenhoffer

Effect of high tibial flexion osteotomy on cartilage pressure and joint kinematics: a biomechanical study in human cadaveric knees. Winner of the AGA-DonJoy Award 2004. Arch Orthop Trauma Surg. 2004;124:575-84. doi:10.1007/s00402-004-0728-8

Agneskirchner

Hurschler

Wrann

Lobenhoffer

The effects of valgus medial opening wedge high tibial osteotomy on articular cartilage pressure of the knee: a biomechanical study. Arthroscopy. 2007;23:852-61. doi:10.1016/j.arthro.2007.05.018

Spahn

Fritz

Albrecht

Angele

Fickert

Aurich

, et al. Coincidence and therapy of dysalignments and degenerative knee cartilage lesions. Results from the German Cartilage Registry DGOU. Z Orthop Unfall. 2017;155:457-67. doi:10.1055/s-0043-108649

Faber

Zellner

Angele

Spahn

Loer

Zinser

, et al. Decision making for concomitant high tibial osteotomy (HTO) in cartilage repair patients based on a nationwide cohort study of 4968 patients. Arch Orthop Trauma Surg. 2020;140(10):1437-44. doi:10.1007/s00402-020-03476-6

10.

Jin

Song

Santoso

Ingale

Choi

Seon

JK.

Survival and risk factor analysis of medial open wedge high tibial osteotomy for unicompartment knee osteoarthritis. Arthroscopy. 2020;36:535-43. doi:10.1016/j.arthro.2019.08.040

11.

Lee

Ahn

Teo

Lee

YS.

Effectiveness of concurrent procedures during high tibial osteotomy for medial compartment osteoarthritis: a systematic review and meta-analysis. Arch Orthop Trauma Surg. 2018;138:227-36. doi:10.1007/s00402-017-2826-4

12.

Niinimäki

Eskelinen

Mann

Junnila

Ohtoner

Leppilahti

Survivorship of high tibial osteotomy in the treatment of osteoarthritis of the knee: Finnish registry-based study of 3195 knees. J Bone Joint Surg Br. 2012;94:1517-21. doi:10.1302/0301-620X.94B11.29601

13.

Gudas

Mačiulaitis

Staškūnas

Smailys

Clinical outcome after treatment of single and multiple cartilage defects by autologous matrix-induced chondrogenesis. J Orthop Surg (Hong Kong). 2019;27:2309499019851011. doi:10.1177/2309499019851011

14.

Everhart

Abouljoud

Kirven

Flanigan

DC.

Full-thickness cartilage defects are important independent predictive factors for progression to total knee arthroplasty in older adults with minimal to moderate osteoarthritis: data from the osteoarthritis initiative. J Bone Joint Surg Am. 2019;101:56-63. doi:10.2106/JBJS.17.01657

15.

Schinhan

Gruber

Vavken

Dorotka

Samouh

Chiari

, et al. Critical-size defect induces unicompartmental osteoarthritis in a stable ovine knee. J Orthop Res. 2012;30:214-20. doi:10.1002/jor.21521

16.

Jungmann

Gersing

Baumann

Holwein

Braun

Neumann

, et al. Cartilage repair surgery prevents progression of knee degeneration. Knee Surg Sports Traumatol Arthrosc. 2019;27:3001-13. doi:10.1007/s00167-018-5321-8

17.

Bode

Ogon

Pestka

Zwingmann

Feucht

Sudkamp

, et al. Clinical outcome and return to work following single-stage combined autologous chondrocyte implantation and high tibial osteotomy. Int Orthop. 2015;39:689-96. doi:10.1007/s00264-014-2547-z

18.

Kahlenberg

Nwachukwu

Hamid

Steinhaus

Williams

3rd . Analysis of outcomes for high tibial osteotomies performed with cartilage restoration techniques. Arthroscopy. 2017;33:486-92. doi:10.1016/j.arthro.2016.08.010

19.

Kim

Park

JH.

The proper correction of the mechanical axis in high tibial osteotomy with concomitant cartilage procedures—a retrospective comparative study. J Orthop Surg Res. 2019;14(1_suppl):281. doi:10.1186/s13018-019-1333-4

20.

Niemeyer

Schmal

Hauschild

von Heyden

Sudkamp

Kostler

Open-wedge osteotomy using an internal plate fixator in patients with medial-compartment gonarthritis and varus malalignment: 3-year results with regard to preoperative arthroscopic and radiographic findings. Arthroscopy. 2010;26(12):1607-16. doi:10.1016/j.arthro.2010.05.006

21.

Zarkadis

Belmont

Jr Zachilli

Hollard

Kinsler

Todd

, et al. Autologous chondrocyte implantation and tibial tubercle osteotomy for patellofemoral chondral defects: improved pain relief and occupational outcomes among US army servicemembers. Am J Sports Med. 2018;46:3198-208. doi:10.1177/0363546518800713

22.

Nimkingratana

Brittberg

Returning to work after articular cartilage repair intervention: a systematic review. Orthop J Sport Med. 2020;8:2325967120905526. doi:10.1177/2325967120905526

23.

Ferruzzi

Buda

Cavallo

Timoncini

Natali

Giannini

Cartilage repair procedures associated with high tibial osteotomy in varus knees: Clinical results at 11years’ follow-up. Knee. 2014;21:445-50. doi:10.1016/j.knee.2013.11.013

24.

Koh

Kwon

Kim

Choi

YJ.

Comparative outcomes of open-wedge high tibial osteotomy mesenchymal stem cell treatment : a prospective study. Anthroscopy. 2014;30:1453-60.

25.

Lee

Mok

Lee

YS.

Comparison of the regeneration of cartilage and the clinical outcomes after the open wedge high tibial osteotomy with or without microfracture: a retrospective case control study. BMC Musculoskelet Disord. 2019;20(1_suppl):267. doi:10.1186/s12891-019-2607-z

26.

Saw

Anz

Jee

CSY

RCS

Mohtrraudin

Ragavanaidu

High tibial osteotomy in combination with chondrogenesis after stem cell therapy: a histologic report of 8 cases. Arthroscopy. 2015;31:1909-20. doi:10.1016/j.arthro.2015.03.038

27.

Yao

Liu

Sun

Wang

. Effectiveness of high tibial osteotomy with or without other procedures for medial compartment osteoarthritis of knee: an update meta-analysis. J Knee Surg. Published online January 17, 2020. doi:10.1055/s-0039-1700978

28.

van Wulfften Palthe

AFY

Clement

Temmerman

OPP

Burger

BJ.

Survival and functional outcome of high tibial osteotomy for medial knee osteoarthritis: a 10–20-year cohort study. Eur J Orthop Surg Traumatol. 2018;28:1381-9. doi:10.1007/s00590-018-2199-6

29.

Brittberg

Recker

Ilgenfritz

Saris

DBF

. Matrix-applied characterized autologous cultured chondrocytes versus microfracture: five-year follow-up of a prospective randomized trial. Am J Sports Med. 2018;46:1343-51. doi:10.1177/0363546518756976

30.

Niemeyer

Albrecht

Andereya

Angele

Ateschrang

Aurich

, et al. Autologous chondrocyte implantation (ACI) for cartilage defects of the knee: a guideline by the working group „Clinical Tissue Regeneration” of the German Society of Orthopaedics and Trauma (DGOU). Knee. 2016;23:426-35. doi:10.1016/j.knee.2016.02.001

31.

Niemeyer

Laute

Zinser

Becher

Kolombe

Fay

, et al. A prospective, randomized, open-label, multicenter, phase iii noninferiority trial to compare the clinical efficacy of matrix-associated autologous chondrocyte implantation with spheroid technology versus arthroscopic microfracture for cartilage defects of the knee. Orthop J Sport Med. 2019;7:232596711985444. doi:10.1177/2325967119854442

32.

Saris

Price

Widuchowski

Bertrand-Marchand

Caron

Drogset

JO.

Matrix-applied characterized autologous cultured chondrocytes versus microfracture: two-year follow-up of a prospective randomized trial. Am J Sports Med. 2014;42:1384-94. doi:10.1177/0363546514528093

33.

Hoburg

Löer

Körsmeier

Siebold

Niemeyer

Fickert

Ruhnau

Matrix-associated autologous chondrocyte implantation is an effective treatment at midterm follow-up in adolescents and young adults. Orthop J Sport Med. 2019;7:232596711984107. doi:10.1177/2325967119841077

34.

Saris

DBF

Vanlauwe

Victor

Almqvist

Verdonk

Bellemans

, et al. Treatment of symptomatic cartilage defects of the knee: characterized chondrocyte implantation results in better clinical outcome at 36 months in a randomized trial compared to microfracture. Am J Sports Med. 2009;37(Suppl 1):10S-19S. doi:10.1177/0363546509350694
