Abstract

Purpose

This study aimed to compile available data in medical literature about subchondral calcium phosphate injection, comparing results obtained with this technique, as well as indications, complications, and other important factors in treatment of bone marrow lesions.

Designs

A literature review using PubMed and Medline database in order to identify works with terms “subchondral calcium phosphate injection,” “ subchondroplasty®,” “bone marrow lesion,” and “knee.” Eight relevant articles were found.

Results

A total of 164 patients with bone marrow lesion mainly on femoral condyle and tibial plateau recovered with significant functional improvement of knee after subchondral calcium phosphate treatment. Although 25% of them still had some type of pain complaint, they also showed improvement. There were few complications reported and return to activities occurred after 3 months on average.

Conclusions

Few studies evaluate the result of using subchondral calcium phosphate injection technique. However, all presented favorable results regarding pain and improvement of knee function. In addition, within 2 years, there was a 70% reduction in conversion to total knee arthroplasty in patients with previous surgical indication who choose calcium phosphate treatment.

Keywords

bone marrow lesions cartilage subchondral injury subchondral calcium phosphate subchondroplasty

Introduction

Changes in subchondral bone are currently recognized as an important factor in the osteoarthritic process.^1,2 Bone marrow lesions (BML), or bone edema, are characterized by a histological alteration of the subchondral bone, which may progress with pain, joint surface deformity and accelerated progression of osteoarthritis.^3-6 Histological changes are not limited only to edema, but includes also fibrosis, necrosis of bone marrow, microfractures of bone trabeculation, and deficient mineralization, which leads to production of abnormal bone remodeling to form a bone with normal characteristics.^7,8

Accelerated progression of osteoarthrosis is common in patients with BML, which may increase chance of total knee arthroplasty (TKA) by up to 9 times within 3 years.^9,10 The search for adjuvant therapies capable of altering the evolution of a subchondral lesion becomes important for preservation of the knee joint.

Subchondral calcium phosphate injection consists of application of a synthetic calcium-phosphate-based bone substitute at the BML site. It aims to improve the structural quality of affected subchondral bone and provide a local bone remodeling, seeking to prevent bone collapse and progression of arthritis.^11-15

The purpose of the present study is to identify evidence produced by studies related to the subject, synthesizing data obtained in medical literature on indications, treatment, complications, and results of subchondral calcium phosphate injection technique for BML.

Methods

Search Strategy

Electronic database PubMed and Medline were used to search for relevant studies on subject. Primary term used was “subchondral calcium phosphate injection” and “subchondroplasty®” and secondary terms “bone marrow lesion” and “knee.” English studies were searched without time filtering; however, all published works are less than 5 years from date of publication to date.

Study Selection

All studies that approached subchondral calcium phosphate injection as a treatment technique for BML, presenting respective results obtained with technique were evaluated. Studies were checked first for duplicates and then displayed by title, summary, methods, and results. Each study was submitted to a stepwise screening process by each author.

Data Extraction

All the data obtained in studies were compiled in a table, in which similar and different aspects were analyzed and identified: number of patients, indications, contraindications, product used, site of injury, technique used, classification, return to activities, complications and results obtained, among other data evaluated ( Table 1 ).

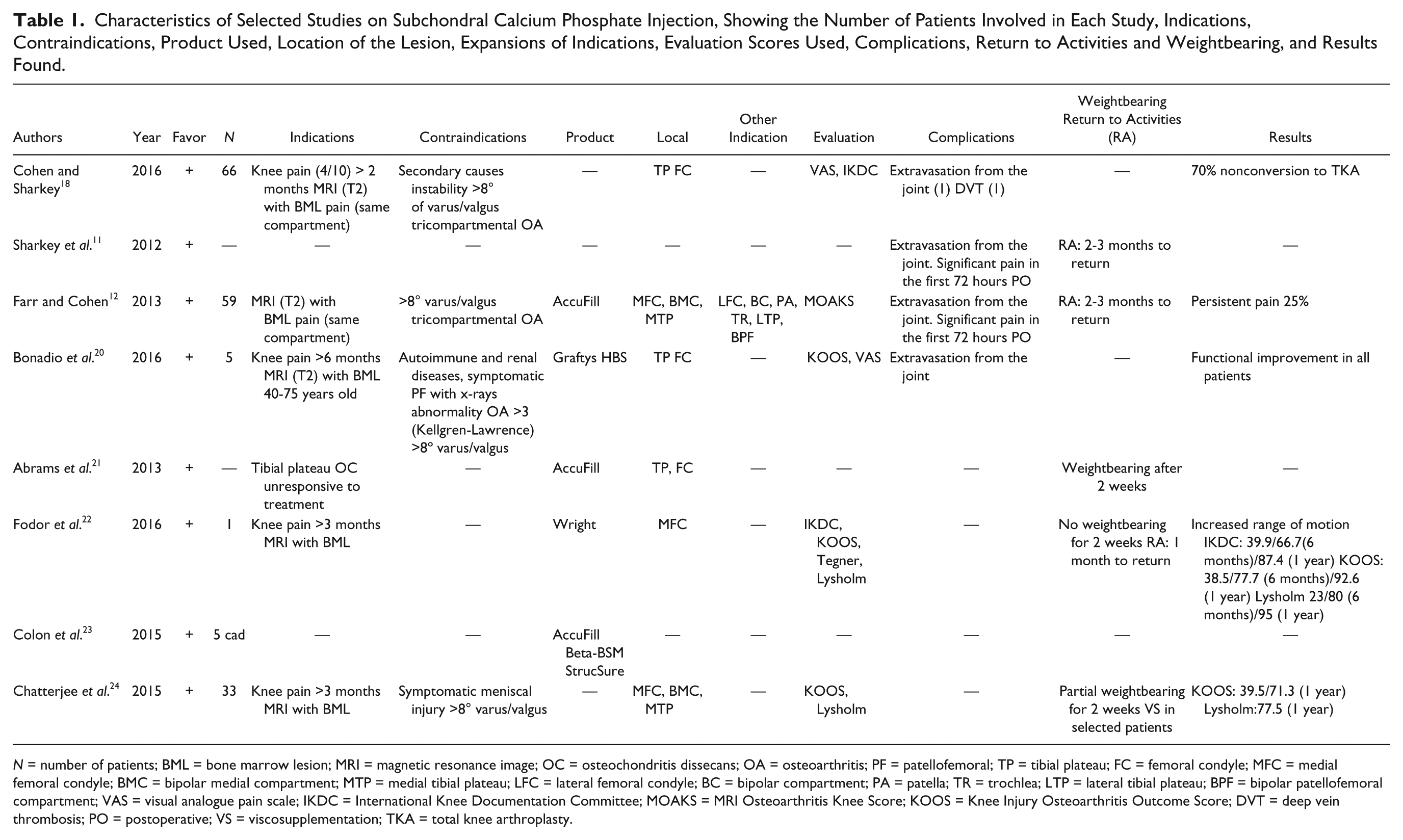

Table 1.

Characteristics of Selected Studies on Subchondral Calcium Phosphate Injection, Showing the Number of Patients Involved in Each Study, Indications, Contraindications, Product Used, Location of the Lesion, Expansions of Indications, Evaluation Scores Used, Complications, Return to Activities and Weightbearing, and Results Found.

Authors	Year	Favor	N	Indications	Contraindications	Product	Local	Other Indication	Evaluation	Complications	Weightbearing Return to Activities (RA)	Results
Cohen and Sharkey¹⁸	2016	+	66	Knee pain (4/10) > 2 months MRI (T2) with BML pain (same compartment)	Secondary causes instability >8° of varus/valgus tricompartmental OA	—	TP FC	—	VAS, IKDC	Extravasation from the joint (1) DVT (1)	—	70% nonconversion to TKA
Sharkey et al.¹¹	2012	+	—	—	—	—	—	—	—	Extravasation from the joint. Significant pain in the first 72 hours PO	RA: 2-3 months to return	—
Farr and Cohen¹²	2013	+	59	MRI (T2) with BML pain (same compartment)	>8° varus/valgus tricompartmental OA	AccuFill	MFC, BMC, MTP	LFC, BC, PA, TR, LTP, BPF	MOAKS	Extravasation from the joint. Significant pain in the first 72 hours PO	RA: 2-3 months to return	Persistent pain 25%
Bonadio et al.²⁰	2016	+	5	Knee pain >6 months MRI (T2) with BML 40-75 years old	Autoimmune and renal diseases, symptomatic PF with x-rays abnormality OA >3 (Kellgren-Lawrence) >8º varus/valgus	Graftys HBS	TP FC	—	KOOS, VAS	Extravasation from the joint	—	Functional improvement in all patients
Abrams et al.²¹	2013	+	—	Tibial plateau OC unresponsive to treatment	—	AccuFill	TP, FC	—	—	—	Weightbearing after 2 weeks	—
Fodor et al.²²	2016	+	1	Knee pain >3 months MRI with BML	—	Wright	MFC	—	IKDC, KOOS, Tegner, Lysholm	—	No weightbearing for 2 weeks RA: 1 month to return	Increased range of motion IKDC: 39.9/66.7(6 months)/87.4 (1 year) KOOS: 38.5/77.7 (6 months)/92.6 (1 year) Lysholm 23/80 (6 months)/95 (1 year)
Colon et al.²³	2015	+	5 cad	—	—	AccuFill Beta-BSM StrucSure	—	—	—	—	—	—
Chatterjee et al.²⁴	2015	+	33	Knee pain >3 months MRI with BML	Symptomatic meniscal injury >8° varus/valgus	—	MFC, BMC, MTP	—	KOOS, Lysholm	—	Partial weightbearing for 2 weeks VS in selected patients	KOOS: 39.5/71.3 (1 year) Lysholm:77.5 (1 year)

N = number of patients; BML = bone marrow lesion; MRI = magnetic resonance image; OC = osteochondritis dissecans; OA = osteoarthritis; PF = patellofemoral; TP = tibial plateau; FC = femoral condyle; MFC = medial femoral condyle; BMC = bipolar medial compartment; MTP = medial tibial plateau; LFC = lateral femoral condyle; BC = bipolar compartment; PA = patella; TR = trochlea; LTP = lateral tibial plateau; BPF = bipolar patellofemoral compartment; VAS = visual analogue pain scale; IKDC = International Knee Documentation Committee; MOAKS = MRI Osteoarthritis Knee Score; KOOS = Knee Injury Osteoarthritis Outcome Score; DVT = deep vein thrombosis; PO = postoperative; VS = viscosupplementation; TKA = total knee arthroplasty.

Results

Initial research resulted in 10 articles found, of which, after analysis of title and abstract, we selected and included 8 studies, extracting data for compilation in a table. Results of evaluated data were subdivided into topics:

Number of patients

Number of patients evaluated in studies varied from 5 to 66. Most of the studies present a small series. A total of 164 patients were evaluated in the 8 studies analyzed.

2. Indications

Indications for subchondral calcium phosphate injection in BML were: moderate to severe pain for more than 2 to 6 months; presence of BML associated with pain in the same compartment of the lesion; stable osteochondritis dissecans injuries in tibial plateau with nonresponse during conservative treatment. Age to indicate the surgical treatment ranged from 40 to 75 years.

3. Contraindications

Contraindications for subchondral calcium phosphate injection in BML were: secondary causes for pain diagnosed; loss of limb function; knee instability; angular deformities in varus or valgus greater than 8°; tricompartmental osteoarthrosis; autoimmune diseases; dialytic renal insufficiency; and anterior pain with patellofemoral alteration identified by imaging examination.

4. Substitute bone paste

All bone substitutes used in paste are made from calcium phosphate. In evaluated studies following brands were used: AccuFill (Zimmer Inc., USA), Graftys HBS (Graftys, France), Wright Pro Dense (Wright, USA), Beta-BSM (Zimmer Inc., USA), and StrucSure (Smith & Nephew, UK). Composition and maximum compression force of each of them are presented in Table 2 .

5. Location of lesion

Bone substitution was applied to lesions identified mainly in medial tibial plateau and medial femoral condyle. Other regions treated, however, were lateral tibial plateau, lateral femoral condyle, femoral trochlea, patella, and combined in presence of mirror lesions: femoral condyle and tibial plateau, patella, and femoral trochlea.

6. Technique

Initially, evaluation should be performed with magnetic resonance imaging (MRI), in order to define location, size, and depth of lesion.

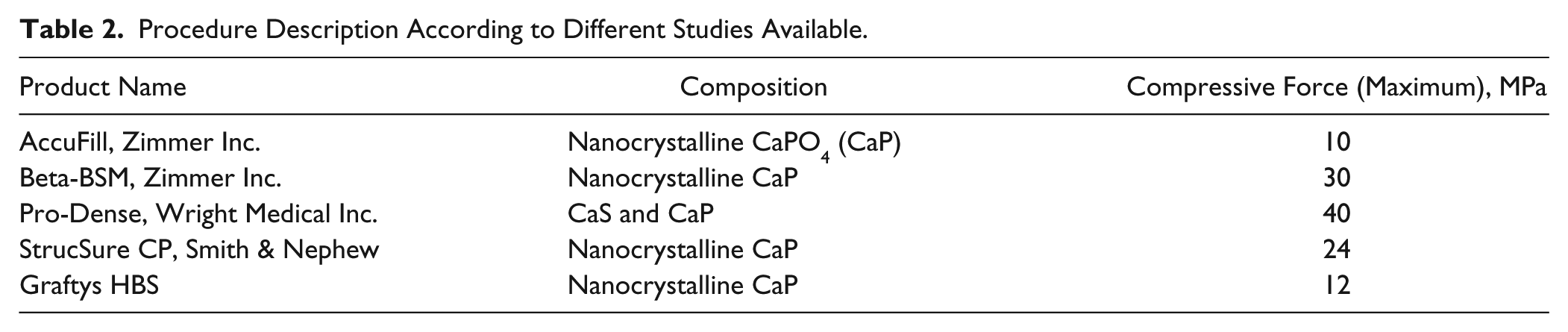

Table 2.

Procedure Description According to Different Studies Available.

Product Name	Composition	Compressive Force (Maximum), MPa
AccuFill, Zimmer Inc.	Nanocrystalline CaPO₄ (CaP)	10
Beta-BSM, Zimmer Inc.	Nanocrystalline CaP	30
Pro-Dense, Wright Medical Inc.	CaS and CaP	40
StrucSure CP, Smith & Nephew	Nanocrystalline CaP	24
Graftys HBS	Nanocrystalline CaP	12

In the surgical center, under anesthetic effect (general or spinal anesthesia), a 7G cannula, with its own syringe for sulfate mixing (varies according to each manufacturer), is introduced 5 to 10 mm below fluoroscopy-guided joint surface in the central region of lesion. Calcium phosphate (CaP) slurry is injected to fill injured area, which may range from 5 to 16 mL. Intraoperative image control is important to ensure that there is no extravasation of substrate to the joint or soft tissue.

To treat a tibial lesion, a navigational guide can be used by placing it on anterior portion of knee so that access portals of guide are on subchondral bone (5 to 10 mm below articular surface). Guide should mark tibial plateau and posterior border of tibia. Tibial tubercle can be used as a stabilizer for the navigation frame. Once the guide is in place, trajectory that has been predetermined by the 3 planes in the MRI can be used to accurately place a fenestrated cannula in the BML. Placement of cannula is confirmed in orthogonal fluoroscopic views. The inner trocar from the cannula can be removed and the syringe with synthetic bone substitute is injected into the cannula. By applying constant digital pressure, bone substitute is injected into area of subchondral defects. The cannula can be rotated to direct the fenestrations toward or away from the articular surface ( Fig. 1 ). Bone substrate is continued to be injected until a dark flush is visible on fluoroscope which mimics BML identified on MRI. Arthroscopic evaluation is used to confirm proper injection of CaP without extravasation in joint space.

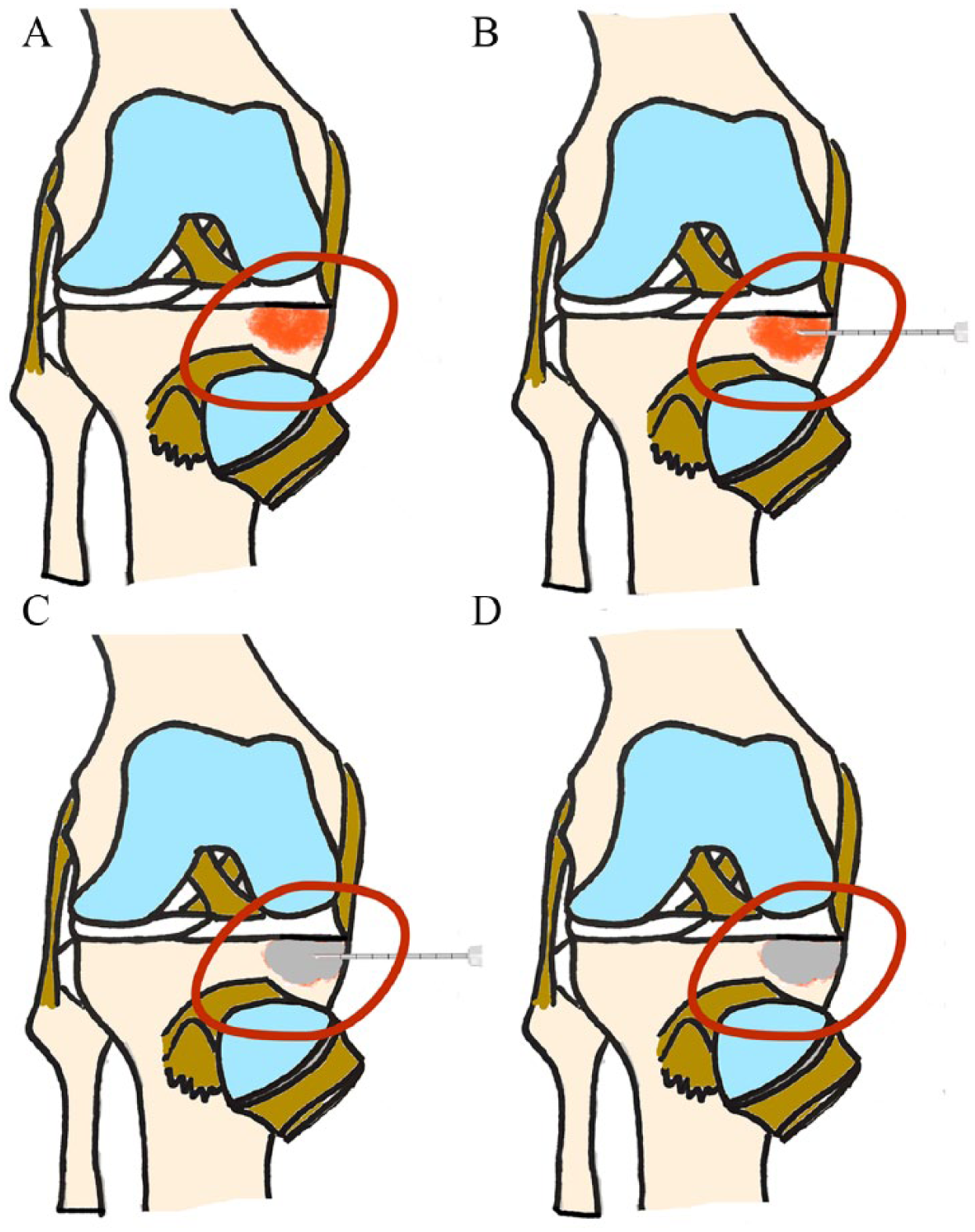

Figure 1.

(A) A lesion was identified through 3 planes in the magnetic resonance image (MRI). (B) Introduction of fenestrated cannula in the center of lesion, with fenestrations directed toward joint, 5 to 10 mm from articular surface. (C) Calcium phosphate injection until a dark flush is visible on fluoroscope that mimics the MRI pattern on magnetic resonance imaging. (D) arthroscopic image is used to confirm proper injection of calcium phosphate without extravasation in joint space.

To treat a femoral lesion, a navigation guide can be used again and placed on femoral condyle to define articular surface of condyle and confirm location of the injection. Similar to the tibial lesion, fluoroscopy is used to confirm proper location of placement and injection of CaP. Based on location of lesion, cannula fenestrations can be directed to articular surface, if necessary. As with tibial lesion, surgeon needs to confirm that there is no extravasation of phosphate in joint, placing material exactly on lesion and confirming placement with arthroscopy. As CaP is hydrophilic, any material can be washed from joint with arthroscope and shaver.

Incision is sutured and dressing simple. Postoperative immobilization was not performed, and total load was released as tolerated 1 day after surgery ( Table 3 ).

7. Evaluation questionnaires

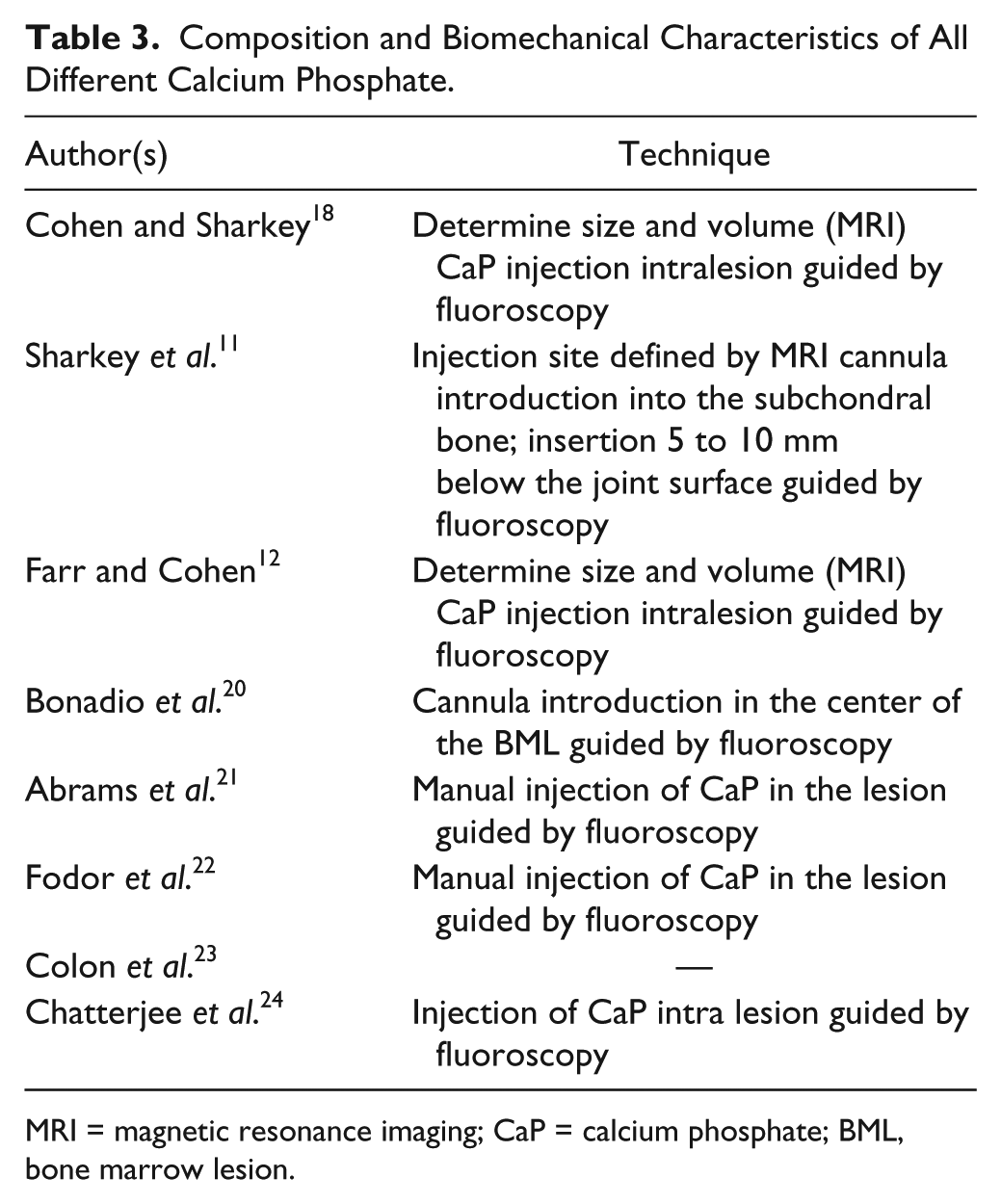

Table 3.

Composition and Biomechanical Characteristics of All Different Calcium Phosphate.

Author(s)	Technique
Cohen and Sharkey¹⁸	Determine size and volume (MRI) CaP injection intralesion guided by fluoroscopy
Sharkey et al.¹¹	Injection site defined by MRI cannula introduction into the subchondral bone; insertion 5 to 10 mm below the joint surface guided by fluoroscopy
Farr and Cohen¹²	Determine size and volume (MRI) CaP injection intralesion guided by fluoroscopy
Bonadio et al.²⁰	Cannula introduction in the center of the BML guided by fluoroscopy
Abrams et al.²¹	Manual injection of CaP in the lesion guided by fluoroscopy
Fodor et al.²²	Manual injection of CaP in the lesion guided by fluoroscopy
Colon et al.²³	—
Chatterjee et al.²⁴	Injection of CaP intra lesion guided by fluoroscopy

MRI = magnetic resonance imaging; CaP = calcium phosphate; BML, bone marrow lesion.

Visual analog scale (VAS) was used to assess subjective pain pre- and postoperation.^16-21 To evaluate knee function, IKDC (International Knee Documentation Committee), KOOS (Knee Injury and Osteoarthritis Outcome Score), Tegner and Lysholm scores were used.^18,20-24 The MOAKS score (MRI Osteoarthritis Knee Score) was used to evaluate the MRI lesion.²⁰

8. Complications

Subchondral calcium phosphate injection seems to be a very safe procedure with very few complications described. The most common complaint was disproportionate knee pain that improved completely within 72 hours after procedure. In the studies evaluated, extravasation of product into joint (2 patients) and deep vein thrombosis of affected limb (one patient) were also mentioned. No case of infection was reported after procedure.

9. Postoperative management

Some authors release total load as tolerated day after surgery, but, on average, there was a load restriction, as tolerated, with use of crutches, for a maximum of 2 weeks.

Physical therapy is started within 2 weeks of surgery and persists for 4 to 8 weeks after surgery. Significant reduction of pain and return to full activity occurs after 2 to 3 months of surgery.

10. Results

The studies evaluated showed significant functional improvement of knee, although Farr and Cohen¹² found that 25% of them still remained with some kind of pain complaint.

There was a 70% reduction in need for total knee arthroplasty (TKA) in patients assessed after 2 years of subchondral calcium phosphate injection. In the study with the largest number of patients, 66, use of this technique was proposed in patients who sought service with indication for TKA, with improvements in pain scores (VAS) and knee function (IKDC).¹⁸

Discussion

Subchondral calcium phosphate injection technique for treatment of BML was used in 8 studies evaluated in literature. In all cases, this technique proved to be favorable to treat BML, with satisfactory results.

Since it is a simple procedure, filling of bone defect with calcium phosphate seems to be an alternative in an attempt to avoid evolution of bony edema to a more severe degenerative process of knee. Coupled with few complications described, interest in knowing if this modality actually assists in treatment of lesion stimulates that new studies be done, with better methodology and a larger sample of patients evaluated.

Calcium phosphate–based bone substitute is a graft option in bone defects.^13-15 In this function, biphasic calcium phosphate ceramics show good results as osteoinducer and osteoconductor. Such properties may contribute to balance in bone mineralization that was lost in areas of BML, modifying evolution of pathology.^16,17 Biphasic calcium phosphate ceramics have degradation more similar to autologous bone, unlike hydroxyapatite, which has a longer time.²⁰

Most of the studies described evaluate patients who underwent follow-up procedure ranging from 6 to 24 months. It is noticed that type of patients and indication is still quite varied, and that follow-up time is still short. However, it is interesting to note that in all studies, after at least 6 months, there was clinical and functional improvement, and appearance of lesion on imaging examination (MRI).^18,20-24

Studies show that the presence of BML in some patients with osteoarthritis is associated with pain, disease progression, joint deformity and consequently evolution to degenerative stages that allow indication of substitution surgery, such as total or partial knee arthroplasty.^3,5,10 However, cases when a patient is young, an alternative treatment option may be beneficial. Bone substitutes can be a solution to improve symptoms and even reduce edema, avoiding or postponing evolution of arthrosis and consequently delaying joint replacement, which was demonstrated by Cohen et al. In their studies, there was a 70% reduction in patient’s desire to undergo TKA after 2 years of subchondral calcium phosphate injection treatment. All patients had initial indication for joint replacement. Even so, it was chosen to fill the lesion with calcium phosphate. This very relevant data is promising, but it requires broader assessments, with a larger number of patients, and standardization for indication.^12,18-23

Calcium phosphates commercially available to perform subchondral calcium phosphate injection have different properties, such as maximum compressive strength supported varying from 0.000025 MPa to 55 MPa; preparation time of product, varying from 3 to 10 minutes; and time to use (working time) of calcium phosphate preparation varying from 2 to 15 minutes, implying directly on final result.²³

Different characteristics of available products also hamper standardization of results, and consequently, comparison between them. In addition, scales of evaluation of results varied widely between authors, associated with a lack of control group, which, although all showed improvement of knee function and pain, makes it impossible to quantify this improvement and compare this issue between studies.

Limitations

One of the most important limiting factors founded in all different studies presented is the lack of standardization to evaluate results obtained. In addition, no study compared technique with another surgical treatment, like knee arthroscopy, or with longer follow-up of 2 years ago. Finally, number of patients evaluated still needs to be broader for more significant results.

Conclusion

Although there are many commercially available calcium phosphate products for the treatment of subchondral BMLs, there are relatively few studies. While there are reports of decreased pain, improved function and a delay in TKA, there remains a need for high level of evidence studies with appropriate controls (including active controls) to understand the optimal formulations, techniques, and indications.

Footnotes

Authors’ Note

This study was done at the Centro de Traumatologia do Esporte, Universidade Federal de São Paulo, São Paulo, Brazil.

Acknowledgments and Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Madry

van Dijk

Mueller-Gerbl

The basic science of the subchondral bone. Knee Surg Sports Traumatol Arthrosc. 2010;18(4):419-33.

Orth

Cucchiarini

Wagenpfeil

Menger

Madry

PTH [1-34]-induced alterations of the subchondral bone provoke early osteoarthritis. Osteoarthritis Cartilage. 2014;22(6):813-21.

Felson

Chaisson

Hill

Totterman

Gale

Skinner

, et al. The association of bone marrow lesions with pain in knee osteoarthritis. Ann Intern Med. 2001;134(7):541-9.

Sowers

Hayes

Jamadar

Capul

Lachance

Jannausch

, et al. Magnetic resonance-detected subchondral bone marrow and cartilage defect characteristics associated with pain and X-ray-defined knee osteoarthritis. Osteoarthritis Cartilage. 2003;11(6):387-93.

Roemer

Guermazi

Javaid

Lynch

Niu

Zhang

, et al. Change in MRI-detected subchondral bone marrow lesions is associated with cartilage loss: the MOST Study. A longitudinal multicentre study of knee osteoarthritis. Ann Rheum Dis. 2009;68(9):1461-5.

Kraus

Feng

Wang

White

Ainslie

Graverand

, et al. Subchondral bone trabecular integrity predicts and changes concurrently with radiographic and magnetic resonance imaging-determined knee osteoarthritis progression. Arthritis Rheum. 2013;65(7):1812-21.

Kazakia

Kuo

Schooler

Siddiqui

Shanbhag

Bernstein

, et al. Bone and cartilage demonstrate changes localized to bone marrow edema-like lesions within osteoarthritic knees. Osteoarthritis Cartilage. 2013;21(1):94-101.

Taljanovic

Graham

Benjamin

Gmitro

Krupinski

Schwartz

, et al. Bone marrow edema pattern in advanced hip osteoarthritis: quantitative assessment with magnetic resonance imaging and correlation with clinical examination, radiographic findings, and histopathology. Skeletal Radiol. 2008;37(5):423-31.

Tanamas

Wluka

Pelletier

Abram

Berry

, et al. Bone marrow lesions in people with knee osteoarthritis predict progression of disease and joint replacement: a longitudinal study. Rheumatology (Oxford). 2010;49(12):2413-9.

10.

Scher

Craig

Nelson

Bone marrow edema in the knee in osteoarthrosis and association with total knee arthroplasty within a three-year follow-up. Skeletal Radiol. 2008;37(7):609-17.

11.

Sharkey

Cohen

Leinberry

Parvizi

Subchondral bone marrow lesions associated with knee osteoarthritis. Am J Orthop (Belle Mead NJ). 2012;41(9):413-7.

12.

Farr

Cohen

SB.

Expanding applications of the subchondroplasty procedure for the treatment of bone marrow lesions observed on magnetic resonance imaging. Oper Tech Sport Med. 2013;21(2):138-43.

13.

Evaniew

Tan

Parasu

Jurriaans

Finlay

Deheshi

, et al. Use of a calcium sulfate-calcium phosphate synthetic bone graft composite in the surgical management of primary bone tumors. Orthopedics. 2013;36(2):e216-22.

14.

Kim

NK.

Curettage and calcium phosphate bone cement injection for the treatment of enchondroma of the finger. Hand Surg. 2012;17(1):65-70.

15.

Winge

Reikeras

Rokkum

Calcium phosphate bone cement: a possible alternative to autologous bone graft. A radiological and biomechanical comparison in rat tibial bone. Arch Orthop Trauma Surg. 2011;131(8):1035-41.

16.

Surmenev

Surmeneva

Ivanova

AA.

Significance of calcium phosphate coatings for the enhancement of new bone osteogenesis—a review. Acta Biomater. 2014;10(2):557-79.

17.

Chen

Wang

Shih

Tyan

, et al. Properties of osteoconductive biomaterials: calcium phosphate cement with different ratios of platelet-rich plasma as identifiers. Mater Sci Eng C Mater Biol Appl. 2013;33(6):3537-44.

18.

Cohen

Sharkey

PF.

Subchondroplasty for treating bone marrow lesions. J Knee Surg. 2016;29:555-63.

19.

Cohen

Sharkey

PF.

Surgical treatment of osteoarthritis pain related to subchondral bone defects or bone marrow lesions: subchondroplasty. Tech Knee Surg. 2012;11:170-5.

20.

Bonadio

Giglio

Helito

Pécora

Camanho

Demange

MK.

Subchondroplasty for treating bone marrow lesions in the knee—initial experience. Rev Bras Ortop. 2017;52(3):325-30.

21.

Abrams

Alentorn-Geli

Harris

Cole

BJ.

Treatment of a lateral tibial plateau osteochondritis dissecans lesion with subchondral injection of calcium phosphate. Arthrosc Tech. 2013;2:e271-4.

22.

Fodor

Prejbeanu

Predescu

Codorean

Fleaca

Roman

, et al. Novel surgical technique for bone marrow lesion—case report. J Interdiscipl Med. 2016;1(S2):27-30.

23.

Colon

Yoon

Russel

Cammisa

Abjornson

Assessment of the injection behavior of commercially available bone BSMs for Subchondroplasty® procedures. Knee. 2015;22(6):597-603.

24.

Chatterjee

McGee

Strauss

Youm

Jazrawi

Subchondral calcium phosphate is ineffective for bone marrow edema lesions in adults with advanced osteoarthritis. Clin Orthop Relat Res. 2015;473(7):2334-42.
