Abstract
Three-dimensional (3D) bioprinting techniques can be used for the fabrication of personalized, regenerative constructs for tissue repair. The current article provides insight into the potential and opportunities of 3D bioprinting for the fabrication of cartilage regenerative constructs. Although 3D printing is already used in the orthopedic clinic, the shift toward 3D bioprinting has not yet occurred. We believe that this shift will provide an important step forward in the field of cartilage regeneration. Three-dimensional bioprinting techniques allow incorporation of cells and biological cues during the manufacturing process, to generate biologically active implants. The outer shape of the construct can be personalized based on clinical images of the patient’s defect. Additionally, by printing with multiple bio-inks, osteochondral or zonally organized constructs can be generated. Relevant mechanical properties can be obtained by hybrid printing with thermoplastic polymers and hydrogels, as well as by the incorporation of electrospun meshes in hydrogels. Finally, bioprinting techniques contribute to the automation of the implant production process, reducing the infection risk. To prompt the shift from nonliving implants toward living 3D bioprinted cartilage constructs in the clinic, some challenges need to be addressed. The bio-inks and required cartilage construct architecture need to be further optimized. The bio-ink and printing process need to meet the sterility requirements for implantation. Finally, standards are essential to ensure a reproducible quality of the 3D printed constructs. Once these challenges are addressed, 3D bioprinted living articular cartilage implants may find their way into daily clinical practice.
Introduction
Three-dimensional (3D) bioprinting, one of the main approaches within the field of biofabrication, 1 is an emerging technology that allows for the fabrication of constructs with control over spatial resolution, shape, and mechanical properties. Bioprinting facilitates the accurate positioning of biomaterials, cells, and biological cues in a layer-by-layer fashion and can, thus, be applied for the generation of personalized regenerative implants. Articular cartilage is a thin, avascular, structural organ, and it is therefore an easier potential target for treatment with bioprinted regenerative constructs compared to vascularized organs, such as the liver and kidney. Cartilage contains predominantly proteoglycans, water, collagen type II, and low numbers of chondrocytes. Due to this low cell number and the absence of vascularization, the tissue has a limited regenerative capacity. 2 Consequently, most articular cartilage injuries will progress toward osteoarthritis if no interventions are taken. 3 Significant improvements in reparative cartilage treatments have been achieved over the past few decades ( Fig. 1 ). However, full cartilage restoration remains a significant challenge. It is generally accepted that for stable long-term reconstruction, function repair, or even regeneration, the therapy should not only address the cartilage but also focus on reconstructing the underlying bone and reestablishing joint homeostasis. Therefore, bioprinted, personalized, regenerative constructs may provide a solution for cartilage injuries.

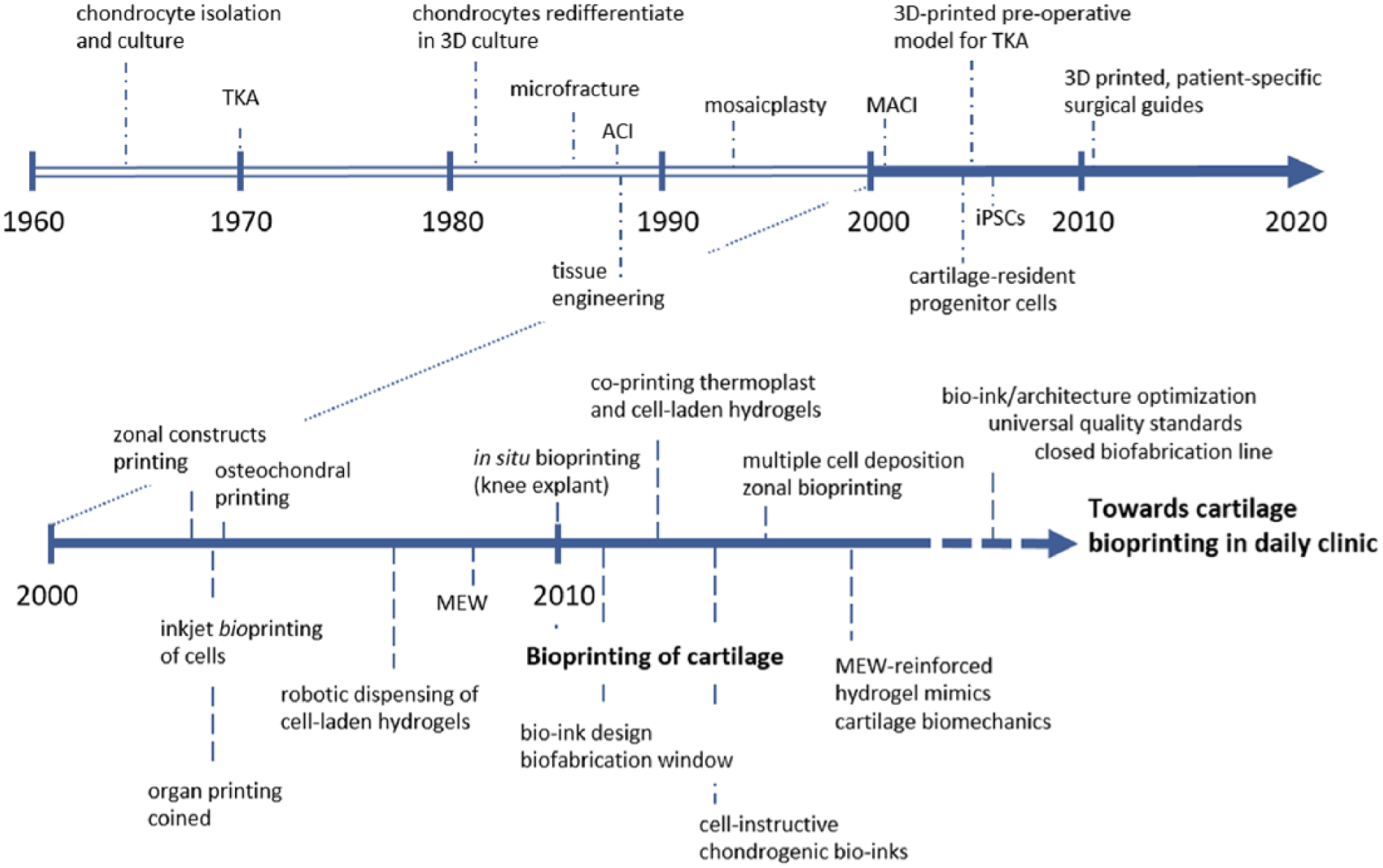

Evolution of cartilage repair and bioprinting of cartilage. Additive manufacturing techniques and in particular bioprinting are enabling to produce patient-specific, complex architectures that mimic the composition of articular cartilage. With the development of novel bioactive bio-inks and the combination of different 3D bioprinting techniques, functional cartilage constructs will be obtained. Optimized and mature bioprinted grafts will have to meet high quality standards in order to be used as clinical devices for cartilage and joint healing. TKA = total knee arthroplasty; ACI = autologous chondrocyte implantation; MACI = matrix-induced autologous chondrocyte implantation; iPSC = induced pluripotent stem cell; MEW = melt electrospinning writing.
Although bioprinting technology is rapidly gaining interest in the field of regenerative medicine, it is still in its infancy ( Fig. 1 ). Consequently, significant steps will have to be taken before this technology can be translated to widespread clinical applications. The International Cartilage Repair Society has adopted a leading role in analyzing the current state of scientific developments for cartilage regeneration in order to, for example, provide recommendations for the execution of preclinical and clinical studies. 4 The present position article can be regarded as an extension to this previous initiative and summarizes the current status of 3D bioprinting in the field of cartilage regeneration. More specifically, this article aims to address the potential and opportunities of 3D bioprinting for the fabrication of personalized regenerative articular cartilage constructs with tailored biological properties, architecture, and mechanical properties.
Current Status of 3D Printing in the Orthopedic Clinic
Three-dimensional printing technologies use 3D computer models to determine the final shape of the printed construct. Imaging techniques currently used in the clinic, for example, X-rays, magnetic resonance imaging (MRI), and computed tomography (CT), provide macroscopically detailed sequences of 2D images of patients. These sequences can relatively easily be translated into 3D images, which can serve as blueprints for 3D printing, for example, on conversion into stereolithography and additive manufacturing files. 5 Currently, 3D printing technologies are already part of a number of clinical routines. Three-dimensional models of complex abnormalities are, for example, printed for educational purposes and to help surgeons in preoperative planning for challenging surgeries.6-8 Moreover, patient-specific drilling and sawing guides are printed to assist orthopedic surgeons with the placement of pedicle screws and total joint replacements respectively.9,10 Additionally, customized 3D printed implants are already commercially available, for example, for calvarial reconstruction. 11 These examples indicate that the current 3D printing technologies have the capability to provide personalized implants for orthopedic defects. However, the transition from 3D printing of polymers, ceramics, and metals toward 3D bioprinting of living and biologically active constructs has not taken place in the clinical practice yet. In this research field, however, several steps have already been performed to demonstrate the possibilities and the feasibility of the clinical transition ( Table 1 ).

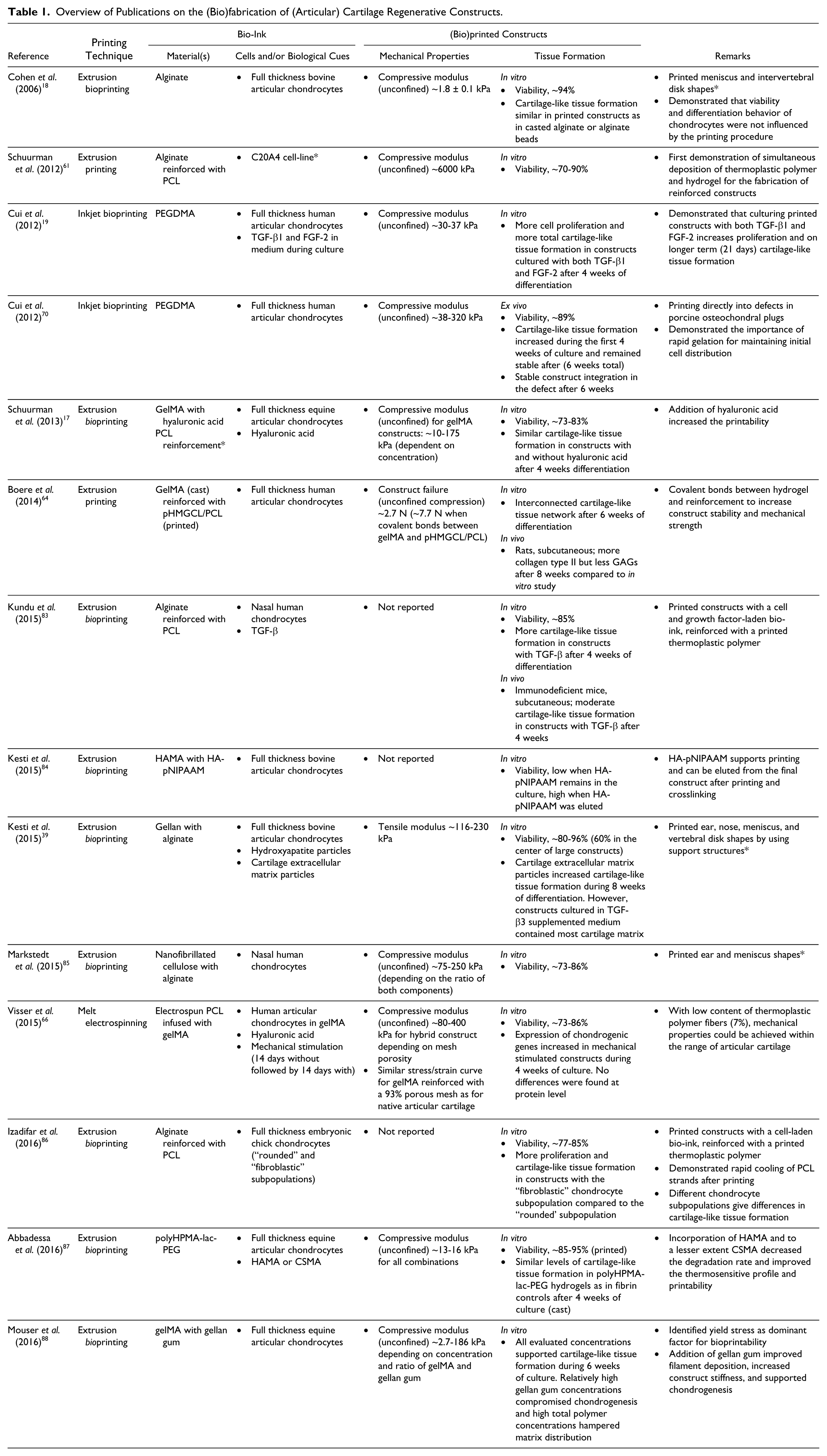

Overview of Publications on the (Bio)fabrication of (Articular) Cartilage Regenerative Constructs.
Proof of concept study.
PCL = polycaprolactone; PEGDMA = poly(ethylene) glycol dimethacrylate; TGF = transforming growth factor; FGF = fibroblast growth factor; GelMA = gelatin-methacryloyl; pHMGCL/PCL = poly(hydroxylmethylglycolide-co-ϵ-caprolactone)/poly(ϵ-caprolactone); HAMA = methacrylated hyaluronic acid; HA-pNIPAAM = poly(N-isopropylacrylamide) grafted hyaluronan; polyHPMA-lac-PEG = polyethylene glycol midblock flanked by two poly[N-(2-hydroxypropyl) methacrylamide mono/dilactate]; CSMA = methacrylated chondroitin sulfate; PEGT-PBT = poly(ethylene glycol)-terephthalate-poly(butylene terephthalate).
The Potential of 3D Bioprinting for Regenerative Cartilage Constructs
Cell Laden and Bioactive Inks
Bioprinting techniques provide many possibilities for the fabrication of personalized cartilage constructs. A key factor for the success of these regenerative constructs is to make them biologically active. One strategy to accomplish this is by incorporating cells. It has been widely demonstrated that the bioprinting process when using extrusion, inkjet, or laser-based printing technologies does not hamper the viability or long-term performance of the deposited cells.12 -19 Extrusion-based printing allows the deposition of cell-laden filaments and is regarded as the most suitable technique for the 3D bioprinting of viable constructs of several centimeters in size and with high cell densities. 20 Consequently, for the printing of cartilage constructs, extrusion-based printing techniques are most often considered (85% of the publications; Table 1 - 3 ). However, the resolution of the fiber thickness is limited by the extrusion process to ~100 µm. In contrast, inkjet and laser-based printing allow the deposition of smaller volumes and are, thus, more suitable for the accurate deposition of micropatterns, down to the level of single cells. Currently, the most promising carrier materials, or “bio-inks,” for cell-based 3D bioprinting are based on hydrogels, as they facilitate homogeneous cell encapsulation in a highly hydrated and mechanically supportive 3D environment.

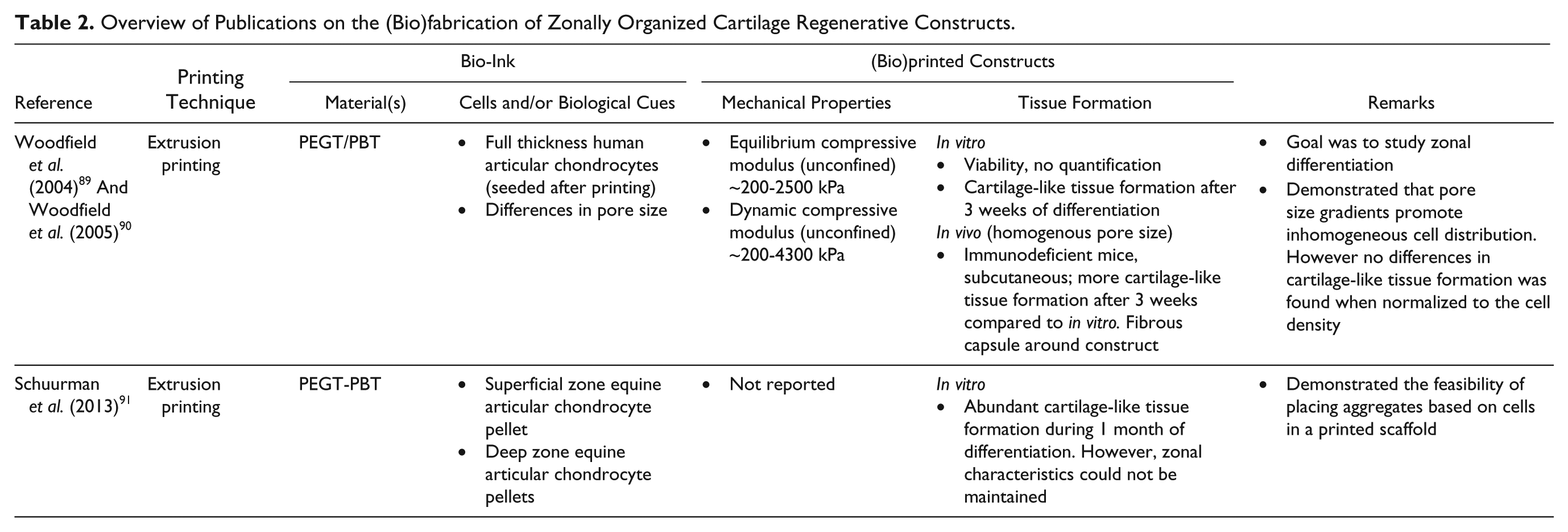

Overview of Publications on the (Bio)fabrication of Zonally Organized Cartilage Regenerative Constructs.

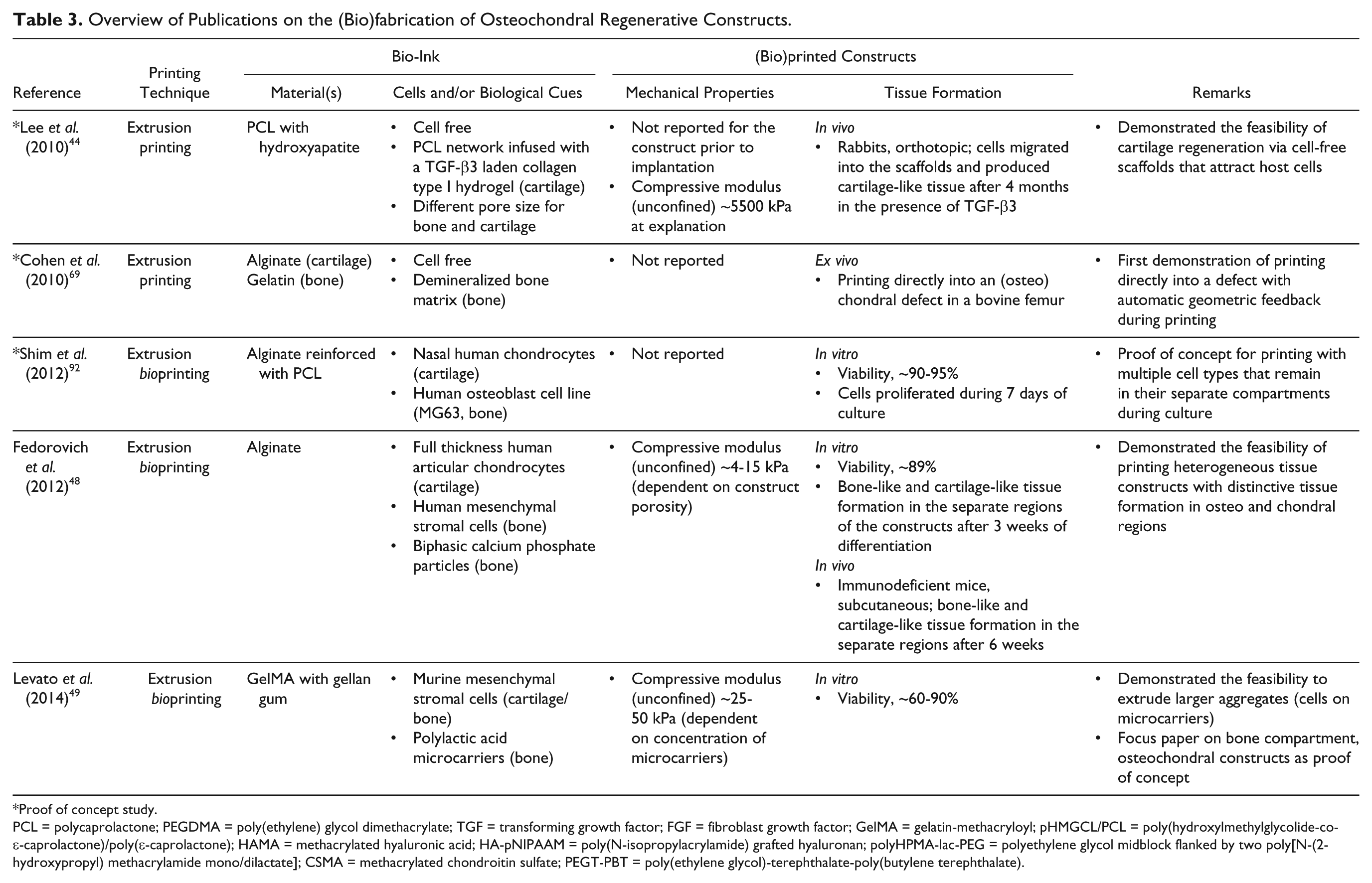

Overview of Publications on the (Bio)fabrication of Osteochondral Regenerative Constructs.
Proof of concept study.
PCL = polycaprolactone; PEGDMA = poly(ethylene) glycol dimethacrylate; TGF = transforming growth factor; FGF = fibroblast growth factor; GelMA = gelatin-methacryloyl; pHMGCL/PCL = poly(hydroxylmethylglycolide-co-ϵ-caprolactone)/poly(ϵ-caprolactone); HAMA = methacrylated hyaluronic acid; HA-pNIPAAM = poly(N-isopropylacrylamide) grafted hyaluronan; polyHPMA-lac-PEG = polyethylene glycol midblock flanked by two poly[N-(2-hydroxypropyl) methacrylamide mono/dilactate]; CSMA = methacrylated chondroitin sulfate; PEGT-PBT = poly(ethylene glycol)-terephthalate-poly(butylene terephthalate).
Multiple cell types have been explored for their application in bioactive cartilage implants. Autologous chondrocytes or chondrons, chondrocytes with their pericellular matrix, can be harvested form a non–load-bearing cartilage surface or the perimeter of a cartilage defect in the patient.21 -23 So far, in cartilage bioprinting research, the focus has predominantly been on the use of chondrocytes ( Table 1 - 3 ). Nevertheless, when using autologous chondrocytes, obtaining sufficient cell numbers remains a challenge, especially since expansion in monolayer culture causes dedifferentiation of the cells toward a more fibroblastic phenotype. 24 Additionally, complications such as donor site morbidity are likely to occur. An alternative cell type is the multipotent mesenchymal stromal cell (MSC) population, which can be derived from multiple tissues, for example, bone marrow, adipose tissues, and muscles. 25 These cells can be differentiated into chondrocyte-like cells in the presence of specific growth factors, such as the transforming growth factor beta family. However, adequate cues to control MSC fate have to be provided, as these cells have the tendency to progress into hypertrophic chondrogenesis and to give rise to bone formation via the endochondral pathway once implanted in vivo. 26 Combining MSCs with chondrocytes or chondrons has shown promising results both in vitro and in vivo, in which it seems that the MSCs stimulate and direct the chondrocytes/chondrons to synthesize new cartilage-like tissue.27 -29 Furthermore, alternative cell populations with regenerative potential are being investigated, including subpopulations of chondroprogenitor cells, which can be harvested from mature cartilage and can be expanded in mono-layer culture without losing their chondrogenic phenotype. 30 Also, the induced pluripotent stem cells that show unlimited self-renewal and can be generated from numerous, easily accessible cell types (i.e., keratinocytes), constitute an interesting cell source for cartilage regeneration, provided that the safety concerns about their usage are cleared.31,32 Multiple research groups are focusing on these different cell populations for cartilage regeneration purposes and on enhancing the cell performance by, for example, culturing with specific growth factors, biological cues, and mechanical loading regimes; however, these detailed strategies are not within the scope of the present opinion article and have been reviewed elsewere.33 -35
An alternative strategy to generate bioactive constructs based on 3D printing technologies involves the embedding of biological cues that stimulate encapsulated cells or attracts and/or stimulates cells from the host. Hydrogel-based bio-inks allow for the incorporation of growth factors, bioactive proteins, peptides, chemicals, and matrix components, 36 and printing procedures have so far not shown any negative effects on the activity of these biological cues17,37 -39 ( Table 1 - 3 ). Large molecules that are constituents of the native cartilage matrix, such as hyaluronic acid,40,41 can be used as promising biological cues for cartilage regeneration. Addition of these components also have an impact on the overall rheological properties, often increasing the printability of a hydrogel bio-ink for extrusion printing.17,42 When printing with thermoplastic polymers, on the other hand, biological molecules are exposed to relatively high temperatures during the extrusion process. Therefore, while thermostable compounds can be loaded during printing, labile compounds need to be incorporated afterwards. For example, dexamethasone still exhibits osteoinductive properties in vitro after being printed in a polycaprolactone (PCL)/poloxamine polymer blend at 110°C. 43 Contrarily, transforming growth factor beta cannot be heated to this temperature but can be coated on printed PCL scaffolds and was demonstrated to attract and stimulate cells from surrounding tissues in vivo when incorporated with this approach. 44 Furthermore, other recently developed regenerative strategies, that include, for example, the incorporation of cell-secreted exosomes 45 or microRNAs, can easily be combined with bioprinting technologies, since all these moieties can be preserved in the highly hydrated environment provided by hydrogel bio-inks.
Shape, Architecture, and Multiphasic Organization
For the generation of personalized regenerative implants, precise control over shape and internal architecture is essential. As discussed above, the outer shape of a construct can be personalized by using medical imaging as the foundation of the print template. Additionally, multiple “inks” consisting of different biomaterials, bioactive factors, and/or cells can be loaded in a bioprinter to fabricate complex anatomical architectures with multiple tissue types. Irregular shapes and overhangs can also be obtained via the printing of support structures with a sacrificial material, such as alginate, agarose, PCL, polyvinyl alcohol (PVA), polyethylene glycol (PEG), and pluronics.12-14,46,47
Printing with multiple bio-inks also allows for the inclusion of multiple tissues and tissue interfaces in a single construct. This is of particular importance in the orthopedic field, where tissue interfaces play a significant role in the underlying (patho)biology. Osteochondral constructs have, for example, been successfully generated with either osteoblasts in the bone part and chondrocytes in the cartilage part, 48 or stem cells in both layers with additional biological cues to induce bone differentiation in the one part and cartilage formation in the other.26,49 However, in the latter study further evaluation of biological cues is necessary, as the MSCs generated bone via the endochondral pathway in the cartilage layer after in vivo implantation. 26 Furthermore, to mimic the bone compartment, bio-inks that can both carry cells and harden over time have been developed, to achieve a stiffness within the same range of those of cancellous bone. 38 Such bio-inks could be combined with hydrogels described above to obtain fully printed, cellular composites with mechanical properties that appropriately match bone and cartilage regions. Additionally, vessel-like structures can be printed in the bone compartment to support vascularization by using sacrificial materials.13,14,46
Printing with multiple bio-inks also provides a platform to mimic the zonal organization of articular cartilage. Articular cartilage exhibits distinct depth dependence in composition and mechanical performance,50,51 which have been notably difficult to reproduce with conventional approaches to cartilage repair. 52 It is believed that restoration of this zonal organization will improve integration and performance of the construct at the defect site.53,54 Three-dimensional bioprinting may be a unique tool to achieve the appropriate zone-specific compositional and mechanical heterogeneity present in articular cartilage. Increasing resolution of 3D bioprinters might even allow for imitation of the specific fiber arrangement of the split line patterns found at the articular surface, as well as the more complex Benninghoff arcade orientation of collagen fibers emanating from the subchondral bone. 55 Additionally, depth-dependent differences in cell densities can be replicated via gradient bioprinting, in which a cell-free and a cell-laden bio-ink are mixed at the nozzle of the bioprinter to accurately change the final cell density during printing. 56 The zonal cellular phenotypes of embedded/seeded cells can be stimulated by the incorporation of biological cues and matrix components.57,58 For example, it was demonstrated that the incorporation of chondroitin sulfate and matrix metalloproteinase–sensitive peptides in a PEG-based hydrogel stimulates MSCs to produce superficial zone-specific matrix components, while incorporating chondroitin sulfate alone or hyaluronic acid stimulates intermediate and deep zone matrix production, respectively. 59 Another option for the fabrication of zonally organized constructs is to incorporate zonally harvested chondrocytes, which have been shown to maintain their zone-specific biosynthetic activities during culture in PEG-based hydrogels. 60
Mechanical Properties
Finally, 3D bioprinting can generate constructs composed of both hydrogels and thermoplastic polymers with mechanical properties that suit the challenging mechanical environment of the joint. It has been demonstrated that these hybrid constructs exhibit mechanical characteristics similar to the thermoplastic polymer frame without the hydrogel.47,61 Therefore, by changing the architecture of the thermoplastic polymer frame, the mechanical properties of the construct can be tailored.62,63 To prevent disruption of the interface between the two materials during mechanical loading, covalent binding of the thermoplastic polymer and the hydrogel was shown feasible and effective. 64 Additionally, the hybrid printing and covalent binding of both materials did not affect the viability of cells incorporated in the hydrogel.47,61
An alternative approach to reinforce hydrogel constructs is using melt electrospun meshes. Melt electrospinning writing allows for the controlled deposition of thermoplastic polymer filaments with a thickness in the order of 1 to 20 µm, while bioprinting generates filaments with a thickness in the order of 100 µm. 65 By incorporating electrospun meshes in a cast hydrogel construct, the mechanical behavior of the hybrid construct can approach the bulk mechanical properties of native articular cartilage. 66 Therefore, if accurate melt electrospinning writing could be combined with 3D bioprinting technologies, organized constructs with heterogeneous mechanical characteristics similar to native articular cartilage could be fabricated. The first setups to combine melt electrospinning with bioprinting are already being developed. For example, the feasibility of generating constructs with alternating layers of inkjet-printed hydrogels and random electrospun thermoplastic polymer meshes has already been demonstrated, emphasizing the prospect of the fabrication of organized, custom-made constructs with native mechanical characteristics. 67
Automation of Implant Production Process
Bioprinting can also contribute to the automation of the implant production process. Besides printing into a wells-plate, constructs could also be printed directly into a bioreactor, minimizing handling and, thus, infection risks. Also, successful co-printing of a bioreactor simultaneously with a construct has been demonstrated. 68 Constructs fabricated with these approaches require a 2-step surgical procedure for clinical implantation. During a first surgery autologous cells are harvested, which then need to be bioprinted and precultured in a laboratory. Later, during a second surgery, the bioprinted construct can be implanted into the patient’s cartilage defect. As bioprinting is a relatively fast process (minutes), a 1-step surgical approach might also be feasible, in which the cell-laden construct is fabricated in the operation theater and directly implanted. Potentially, cartilage defects could also be filled in situ, by printing the implant directly into the lesion. This approach has been exemplified by the direct ex vivo printing into osteochondral plugs or femurs.69,70 In line with this, steps exploring the feasibility of in situ bioprinting for other tissues have been taken, for example, for calvarial defects in living mice. 16 Additionally, a bio-pen is being developed to simplify the in situ print procedure. 71 Although 1-step surgical procedures and printing directly into a defect are exciting concepts and foster the idea of further automation in surgery, it would add the challenge to initiate the neocartilage formation within the harsh environment of a diseased joint.
Current Challenges in Bringing 3D Bioprinting to Clinical Applications
Bioprinting requires the combination of multiple elements in a bio-ink, for example, printability, shape stability after printing, cell therapies, biological cues, and mechanical strength. Taking all these aspects into account often results in a tradeoff, in which the separate elements are suboptimal in the bio-ink or final construct. 20 Future research should, for example, focus on new methods to improve the printability of hydrogel-based bio-inks without negatively influencing the cell behavior.17,72 Additional research should focus on new methods for the formulation and processing of bio-inks prior to printing, 73 in order to generate a larger range of biomaterials that can successfully be employed in bioprinting technologies. Besides optimizing the printing procedures and bio-inks, there is still a need for deeper understanding of cartilage regeneration in general, in order to determine, for example, what cell types, biological cues, and organization are required in the final construct for successful cartilage regeneration.
For the clinical translation of bioprinted living cartilage implants, the bio-ink has to meet the same regulations and safety requirements, concerning, for example, sterility, (endo)toxin content, reproducibility, and, if cell-laden, Advanced Therapy Medicinal Product regulations as biomaterials used for other implantable devices. 74 To ensure sterility after 3D printing, the printing process needs to be incorporated in a Good Manufacturing Practice facility, and the printer itself and all its components should be sterile and able to operate in a sterile environment. Furthermore, the whole fabrication process should preferably involve minimal manual handling and postprocessing steps in closed systems. Bioprinters that can fulfill these requirements are already commercially available. However, most commercial printers nowadays work on open-loop and have no feedback on the quality of the print, thus requiring monitoring from skilled operators. Implementation of automated, reliable quality control during the printing process will facilitate adaptation of printers into clinics. Ideally, these systems also would have an integrated bioreactor system to allow for in vitro culture prior to implantation without extra handling of the construct. During this culture the constructs can relatively easily be stimulated with, for example, growth factors or mechanical loading, to stimulate the encapsulated cells to differentiate into the desired lineage. Additionally, cartilage-like tissue formation is stimulated in this period to provide an initial matrix, which will increase the construct stiffness and might improve integration in the defect. A bioprinter-bioreactor setup, or closed biofabrication line, is not commercially available yet; however, the first steps toward these kind of setups are currently being taken. 75
To ensure safety of 3D bioprinted living medical implants for clinical use and to help organizations qualify and validate the printing process and bio-inks, standards are required. Standards are already available for additive manufacturing in general, under American Society for Testing and Materials (ASTM) F2792. Additionally, standards for tissue-engineered constructs have been published by the ASTM international committee F04, the International Organization for Standardization technical committee 150/SCZ, and the British Standards Institute. However, currently no such standard is available for bioprinting technologies.76,77 There are a number of attempts to develop validation protocols for relatively simple bioprint-related analyses, such as the quantification of the shape fidelity of a 3D printed construct. Such analysis are based on the length, width, and height of a printed filament compared to the nozzle diameter,78,79 the shape of the pores in a 3D construct compared to the theoretical shape, 80 or on the deviation between the printed construct and the 3D computer model.39,81 Notably, multiple studies have demonstrated that optical scanning for validation can be incorporated in 3D bioprinters.69,82 This offers the prospect of real-time assessment of print fidelity and immediate quality control/quality analysis that may be useful for regulatory compliance. Ultimate clinical translation will also have to include strategies and regulations for cell sourcing, whether autologous or allogeneic, cell incorporation in the bio-ink or seeding on the printed construct, and implantation techniques to implant and fix the printed construct into the defect side. One universal standard to assess the quality of a 3D printed living construct in terms of sterility, shape-fidelity, biological properties, cell incorporation, surgical implantation techniques, and safety, is still lacking and needs to be set up in order to smoothen the transition from bench to bedside.
Conclusion
The 3D printing techniques that are currently used in the orthopedic clinic are just a glimpse of how this technology might contribute to future patient treatments, especially for articular cartilage regenerative therapies. Bioprinting techniques allow for the fabrication of personalized constructs with accurately positioned cells and biological cues to mimic the osteochondral interface and/or the zonal organization of articular cartilage. Mechanical properties can be tailored by hybrid printing or reinforcement strategies to match those of the cartilage area that needs replacement. Finally, bioprinting fosters the prospect of automation of the implant production process.
Although bioprinting provides many opportunities to generate cartilage regenerative constructs, which closely resemble the native tissue, there are still multiple challenges that need to be overcome. The main challenge is to make the transition in the clinic from nonliving personalized 3D printed implants toward biologically active and living implants. In order to accomplish this, some additional challenges need to be overcome first. Bio-inks have to be further optimized and the required construct architecture and mechanical properties need to be established. Additionally, the printing process, as well as the bio-inks, need to meet the specific sterility requirements to allow for implantation. Finally, universal quality standards are necessary to smoothen the clinical translation of new bio-inks and printing technologies. Tackling these challenges will foster the shift of biologically active and living bioprinted implants from the laboratory toward the daily clinical practice.
