Abstract

Woven barrier fabrics for filtration and operating room textiles feature permeable pore channels between yarn interlocking points (mesopores), which create an increased risk of penetration by contaminated fluids and particles. These pore channels can be reduced in size by high-density weaving. This, however, results in deteriorated drapability and performance characteristics. To meet the requirements made on the barrier effect without impairing the physiological properties of the textile, fluid-tight and particle-tight woven fabrics with adjustable porosity are being developed. This research aim could be realized by the targeted and partial application of microparticles into the mesopores. There, they form a meshed structure in the pores, whose size is thus reduced without them being entirely obstructed. The simultaneous retention of the micropores (pores between the individual filaments) in the woven fabric guarantees preservation of the physiological characteristics of the textile. The efficiency of the finishing was examined by an extensive physiological and physical characterization of the woven fabrics before and after particle application. Regarding the test method used to monitor the barrier effect and the channel paths, a test device was modified to simulate the demands of later, practical use.

Keywords

Particle treatment surgical gowns barrier fabrics pore structure filtration

Introduction

Operating room (OR) and cleanroom protective textiles have to contain a barrier against particle-contaminated fluids, which often serve as carrier media for microorganisms [1]. The barrier properties of the woven fabric are determined by the construction-dependent pore morphology (meso- and micropores), and the surface character of the textile structures. When used for protective garments, it is equally important to guarantee high wearing comfort. Fulfilling these conflicting requirements (barrier effect and comfort) in a single textile structure is an immense challenge. To impede the penetration or pervasion of fluids, barrier textiles are finished with fluorocarbon (FC) resin. The hydrophobizing by means of FC also reduces the adsorption of water on the fibers. Such woven fabrics only have an effective barrier function against fluids at small amounts of fluid, low pressures, and short exposure times. A barrier against particles can rely on a number of mechanisms. Any barrier against the fluid carrier medium is at the same time a protection against penetration by particles. If the carrier medium penetrates the pore structure, the barrier effect of the pore structure is crucial for particle retention. In that case, structure-dependent barrier effects, as well as adhesive forces between particles and fibers become important. In the simplest case (sieve effect), the maximum pore sizes present in the woven fabric determine particle retention. In the case of smaller particles and larger pores, further barrier mechanisms are known, such as retention by bridging [2], and by adhesive forces (van der Waals forces), or by electrostatic forces. In microfilament woven fabrics, deep-bed filtration also plays an important role. Particles penetrating into the woven fabric interact with the filament surfaces and can be deposited between the woven fabric filaments. Using microfibers, the maximum pore sizes can be reduced to 10 µm, sometimes even to just 5 µm, although a frictionless production cannot be guaranteed in the latter case. Even with currently available modern weaving technologies and the use of microfilament yarns, a reduction of the mechanical separation limit of 7 µm is hardly achievable, according to tests detailed in Schnitzer [3] and Schnitzer and Ripperger [4]. The primary carrier media for infecting agents are bodily fluids (blood, sweat, ichor), and solid particles (dirt, skin scales), contaminating wounds or surgical staff directly or by airborne means. The size of these carrier media ranges from 6 µm to 40 µm. As yet, filter materials and OR textiles are optimized empirically, at high development costs, with new developments being an exception. The process-engineering design of the structures to be woven is established empirically and often relies on the trial-and-error method [5]. Furthermore, high-density woven materials are stiff, and their mechanical loading often results in damages to the material structure. To retain a strong barrier effect, past research work has been focused on laminates. These, however, are much more costly in development and production. Additionally, multi-use and cleaning processes can cause delamination within the compound, which is hard to localize and thus offers an increased penetration potential for germs. A cost-effective variation in practice is a full coating of textile fabrics, which entails a stiffening of the woven fabric and deterioration of wearing comfort.

The literature offers a number of approaches to finishing textiles with nanoparticles. In most cases, the goal is the creation of ultra-hydrophobic, self-cleaning surfaces modeled after the lotus leaf [6], the so-called lotus effect®. A combined particle/hydrophobicity finishing for an increased barrier effect of OR textiles with regard to cost effectiveness and ecology is not presently known. Neither is there at present a method to apply a partial coating exclusively to the mesopores of a textile structure. The established nano- and low-add-on technologies are used either for full coatings or in a defined, fabric-independent pattern, e.g. by spraying, rolling, impregnating, dipping, or printing. As shown in Behera and Arora [7] and Synytska et al. [8], ultra-hydrophobic surfaces can enhance the barrier effect of the textiles by increasing the intrusion pressure. In the abovementioned finishings of woven fabrics with particles, they are evenly applied to the entire surface of the base material in suspension or aerosol form at a defined pressure gradient, in order to ensure the optimum bonding between particles and base material.

In order to fully exploit the advantages of woven fabrics as barrier textiles (good drapability, high wearing comfort), mesopores present primarily at the crossing points of warp and weft yarns in the woven fabric (Figure 1), are to be reduced in size by a targeted finishing with fine microparticles so that the woven fabric meets the stated requirements. By using a new method of partial fine particle application in which the particles are to be purposefully deposited at the mesopores of the woven fabric structure, combined with a targeted binding of the particles to the woven fabric fibers, a reduction in mesopore size is to be achieved without completely obstructing all pores. Currently, such a method is unknown and promises extensive research potential. This work, therefore, aims to develop a method for the suitable production of innovative and fluid-tight microfilament woven fabrics which meet the requirements for particle-filtration down to the micrometer range, to be used as multi-use OR textiles with good wearing comfort and as filtration media. Through a controlled application of the particles in the mesopores, the structurally large pores should be partially and targeted reduced. A controlled connection of the microparticles on the fiber surface further serves the development of pre-defined porous medical and filter materials. In order to bridge the mesopores, the particles used in the process have to be of a size adjusted to the construction of the woven fabric. This achieves an adjustable, durable surface barrier, which remains effective even at an increased pressure difference.

Figure 1.

Position of the mesopores and micropores in the fabric structure [9].

Experimental

Materials

Due to its good physical characteristics, polyester (PES) is the most commonly used synthetic fiber in woven barrier fabrics and offers a wide range of possible applications. The large choice of yarn variants, in combination with defined weaving parameters, allows the production of woven fabrics with defined fabric densities and adjustable micropore and mesopore structures. To characterize the latter, plain-weave PES woven fabrics with varying parameters were produced and examined. The filament yarns were chosen with regard to their influencing criteria on the micro- and mesopores (Table 1) and referring to commercially produced woven barrier fabrics. The conventional use of smooth and untwisted multifilament yarn ensures a smooth fabric surface, which is required for a high barrier effect against contaminated fluid and particle in OR rooms.

Table 1.

Degree of influence of the yarn parameters on meso- and micropores [9].

Yarn parameter	Mesopores	Micropores
Filament fineness	+	+++
Filament cross-section	+	+++
Filament yarn fineness	+++	++

The micropores between the individual filaments of the yarn influence the textile-physiological characteristics of the barrier textiles. The micropore sizes of conventional OR textiles average to roughly 1–3 µm [9]. Water vapor molecules, at a size of <0.0004 µm [5] can therefore pass through the pores unimpededly. This permeability can be influenced by the fineness of the individual filaments in the yarn. A low filament fineness allows high packing density (number of individual filaments in the yarn), and thus a size reduction of the micropores (Figure 2) [9]. To analyze the influence of the filament fineness on the pore size, both yarns with a very high and yarns with a lower packing density were selected, and combined for the production of the woven fabrics (Table 2).

Figure 2.

Influence of filament fineness on the micropores in the yarn: low fiber fineness/low packing density (a), high fiber fineness/high packing density (b) [9].

Table 2.

Filament yarn parameters.

	Yarn count (tex)		Filament fineness (dtex)		Filament number/yarn
Woven fabric number	Warp	Weft	Warp	Weft	Warp	Weft
1	15	14	1.5	0.6	107	233
2	10	10	2.5	0.8	40	128
3	10	15	2.5	3.1	40	48

Besides the filament fineness the filament cross-section has also an important influence on the physiological properties like the moisture conductivities as well as the bending stiffness of woven fabrics [9]. There is a wide range of possibilities of different cross-section geometries for chemical fibers, for example round, trilobal, pentalobal, and octolobal. The result of profiled cross-sections is furthermore a structured and therefore rough fiber surface. Rough surfaces support the adhesion of dust particles which is ineffective for barrier effect and for the hygienic conditions.

To achieve a high packing density with small micropores in the yarn and a smooth fabric surface as well as a low bending stiffness in spite of a high fabric density, smooth yarns with round fiber cross-section should be preferred. Furthermore, the yarn count is an important parameter for adjustments to the mesostructure. Low yarn counts allow the realization of high fabric densities, resulting in small mesopores. Tests have proven a yarn fineness of <10 tex to facilitate the production of high-density woven fabrics [9]. To ensure a frictionless production of woven fabrics on commercial weaving machines, yarn counts from 10 tex to 15 tex were selected in the context of this work, respectively.

Weaving parameters

The woven fabrics are produced on a rapier weaving machine (Lindauer Dornier GmbH, Germany) with asymmetric shed geometries (lower shed > upper shed), using a full-width temple. The use of fine filament yarns allows the realization of a high warp and weft thread densities, leading to small mesopore sizes. The theoretical calculation of the fabric density is based on the fabric index x (equation 1), according to the model by Walz and Luibrand [10] and presents a relative measure:

x = b \times (d K + d S) 2 \times \frac{(f K + f S)}{100}

(1)

where

weave factor (plain weave: 1.00; twill weave: 0.56)

d K / S

weft/warp yarn diameter (mm)

f K / S

number of warp/weft threads/cm

fabric density

The weave factor b results from Walz and Luibrand [10]:

b = \frac{numberof existing yarn diameter (d) in a rapport}{number of possible yarn diameter (d) in a plain weave}

(2)

If the calculation results in an index value

x \geq 1

, the fabric is highly dense or even closed, but it may, however, feature thread overlappings. Conventional barrier fabrics are distinguished by a very high fabric index, which results in high material stiffness. To avoid this and provide better wearing comfort, woven fabrics with a range of fabric densities (x < 1) were produced. The machine speed is held constant at 380 r/min.

Physiological characterization

The focus of fabric finishing was placed on a reduction of mesopore size while retaining high wearing comfort, which required a characterization of the physiological properties of all types of woven fabric before and after finishing with microparticles.

Resistance to water vapor permeability

The textile-physiological characteristics, and thus the wearing comfort, can be described primarily by testing the resistance of a fabric to water vapor permeability $R et$ . This test was performed in accordance with DIN EN 31092 on a “Permetest” testing device (Sensora, Czech Republic) with 10 samples for each condition.

Air permeability

The air permeability R of a textile fabric characterizes the speed of an air flow penetrating a specimen perpendicularly to its surface. This characteristic is important in the context of textiles, as it serves to maintain a regular body climate of the wearer and ensures air exchange between the body and its surroundings. Conditions to be defined for the test are the examination surface, pressure difference and time. The test was conducted according to DIN EN ISO 9237 on an FX 3300 testing device (Textest AG, Germany) with n = 10 samples for each condition.

Bending stiffness

To guarantee an optimum in wearing comfort for OR and/or cleanroom garments, high breathability has to be combined with a good drapability of the woven fabric. Besides parameters like the shear stiffness, the bending stiffness of textile fabrics is a very important parameter to characterize the drapability, the textile grip as well as the creasing tendency. By determining the bending length C the bending stiffness G can be calculated. The test was performed according to the EN ISO 9073-7 standard for the determination of bending length C, and was conducted on a Cantilever ACPM 200 (Cetex GmbH, Germany). To obtain the value of C, the average of measured value of overhang length has to be halved. Using equation (3), the bending stiffness G can be calculated:

G = m \cdot C 3 \cdot 10 - 3

(3)

where

mass per unit area of the measuring specimen (g/m²)

total mean value of the bending length of the measuring specimen (cm)

The sampling was made conform to DIN EN ISO 9073-7, with a sample size of six per warp and weft direction.

Porosimetry

To realize the partial and, above all, targeted finishing in the mesopores of the PES woven fabrics, an accurate understanding of pore morphology is required. The pore size distribution within the fabric structure was determined using the liquid displacement technique (Pore Size Meter PSM 165, TOPAS GmbH, Germany) following ASTM E1294-89 and ASTM F316-03 with a capillary constant of 28,6. As testing fluid, a perfluorocarbon (surface tension σ₁ = 16 mN/m) was used. Measuring the pressure-dependent volume flow through the pores, the “mean flow pore size” (average opened pore size) and related “pore size distribution” values were determined. In the context of testing, these values are of most importance since they provide specific information regarding the pore structure before and after particle finishing.

Effective pore size of the mesopores

Apart from porosimetry measurements, the structural geometry of the mesopores has to be taken into account, which is measured on untreated woven fabrics. For this, several calculation models are available [9,11,12]. According to Gooijer et al. [13], the effective pore size D can be calculated with equation (4):

D = 4 \frac{A}{W}

(4)

A designates the pore space at the crossing points and W designates the circumference in the yarn crossing points. To execute the calculation, the three-dimensional elementary cells of the pore are projected into a two-dimensional plane as shown in Figure 3.

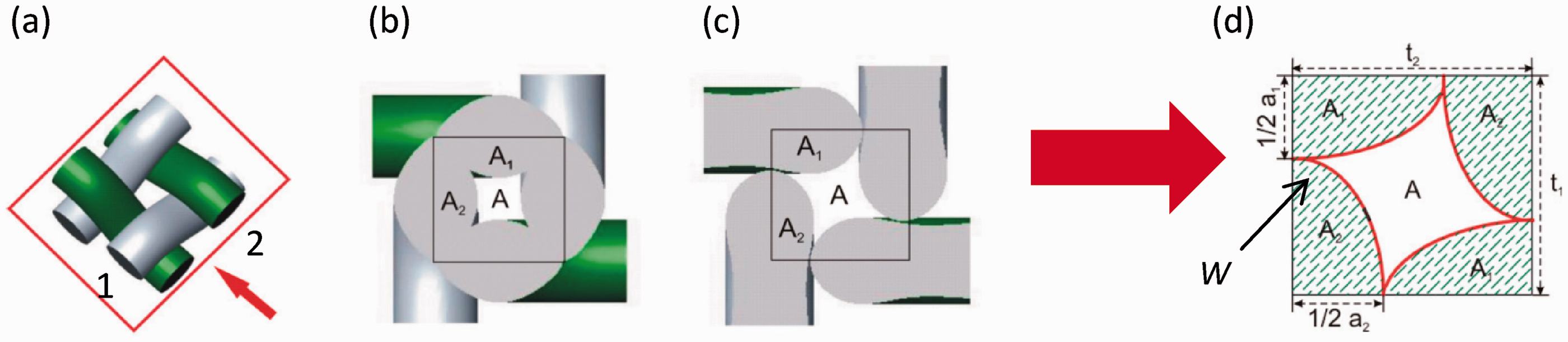

Figure 3.

Projection of the mesopore into a two-dimensional plane [9].

The cut faces A (Figure 3a) from the cross-sections b and c of two different layers (Figure 3), are shown in Figure 3(d). The circumference W is given as a line around A. The height of the thread systems 1 and 2 (warp and weft thread system) is designated by a₁ and a₂ (Figures 3(d) and 5), whereas t₁ and t₂ characterize the distances between the centers of the neighbored yarns in weft and warp direction. Assuming that the lines of W denote part of an ellipse, the formulae for A (equation 5) and W (equation 6), according to the derivation in [8], result as follows:

A = t 1 t 2 - \frac{π}{4} a 1 (t 2 - \frac{a 2}{2}) - \frac{π}{4} a 2 (t 1 - \frac{a 1}{2})

(5)

W = π \sqrt{\frac{(\frac{a 1}{2}) 2 + (t 2 - \frac{a 2}{2}) 2}{2}} + π \sqrt{\frac{(\frac{a 2}{2}) 2 + (t 1 - \frac{a 1}{2}) 2}{2}}

(6)

Inserting the values A and W into equation (4) gives the effective pore size D. The pore parameters are determined by light microscopic pictures (Axiotech 100, Zeiss, Germany) of microtome sections (RM 225 microtome, Leica Microsystems Vertrieb GmbH, Germany). For this test, the woven fabric is cut orthogonally to the warp direction (= warp section) and to the weft direction (= weft section) (Figure 4) and inserted into a specimen holder. After embedding in epoxy resin and subsequent UV curing, sections of 10 µm each are cut away in layers (Figure 5). To characterize the pore geometry, image analysis software (Image C, Imtronic, Germany) is used with a sample size of 15 per warp and weft direction.

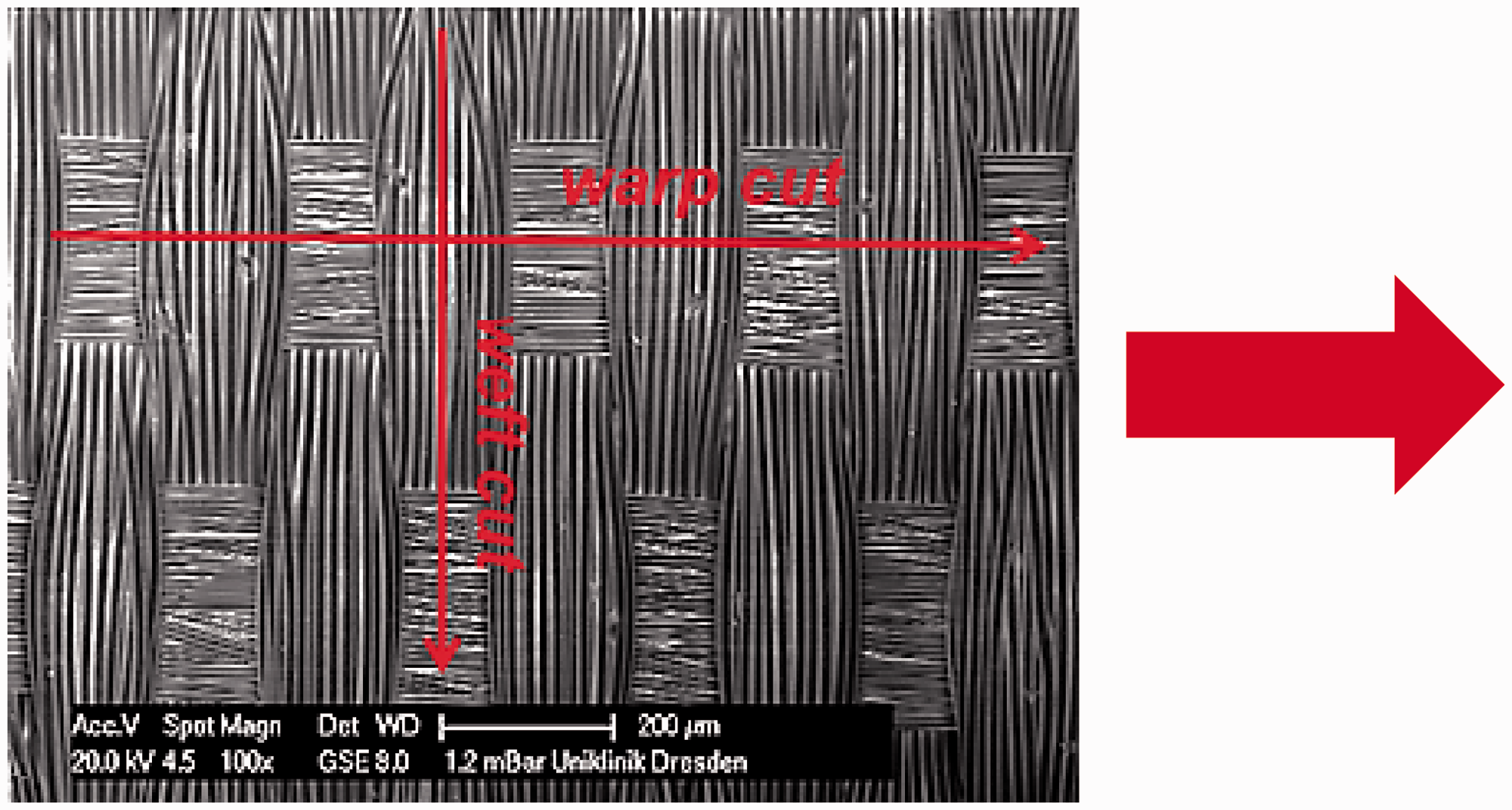

Figure 4.

Cutting direction of the microtome sections.

Figure 5.

Warp section for pore size determination.

Topography

Topographical examinations were conducted to measure the roughness and the undulation of the woven fabric surface, and thus revealing the evenness of the structure. Another analysis in z direction allows conclusions regarding the pore height, and thus, regarding the superficial depth of the mesopores [14]. These measurements were performed using a MicroGlider® 600 (FRT GmbH, Bergisch-Gladbach, Germany) with an optical sensor scanning an area of $105 μ m 2$ . In contrast to SEM and light-microscopic images, this method provides three-dimensional views. The graphics were created and analyzed using the FRT Mark III software (FRT, Germany).

Penetration test

Regulations regarding the resistance of a woven fabric to wet bacterial penetration are detailed in DIN EN ISO 22610. The focus is placed on the determination of the resistance of a material to the penetration of fluid-borne bacteria, represented by selected bacterial strains, under mechanical friction or mechanical strain [15]. The tests detailed in DIN EN ISO 22610 are performed using human-pathogenic staphylococci. For this reason, the tests can only be performed in microbiological laboratories. Another disadvantage is the fact that the potential pathways of the bacteria can neither be simulated nor optically analyzed under practice-based conditions. For this purpose, a testing station of the Martindale abrasion tester was re-designed and remodeled into a penetration test station for dynamic, practice-based exposure. The newly developed test device is shown in Figure 6.

Figure 6.

Schematics of there-designed Martindale abrasion tester.

This method simulates the friction of a barrier textile (barrier fabric 2) on another barrier textile impregnated with a contaminated fluid (barrier fabric 1). A suspension containing fluorescent microparticles of defined size simulates the contaminated fluid. The Lissajous figure is regarded as the standardized motion of the test device and offers the possibility to cover a wide range of dynamic loading cycles. By means of additional weights, a parallel and variable pressure load ranging up to 1.2 N/cm² can be achieved. The parameters used in the test were selected based on researched model experiments [16,17], and on the characteristics of potential carrier media (Table 3, Table 4). Fluorescent particles with diameters from 5.68 µm to 10 µm (Microparticles, Berlin, Germany) were used as test particles, simulating solid particle as carrier medium, for example dust particles.

Table 3.

Mechanical pressure load on OR textiles [16,17].

Surgeon activity	p: mechanical pressure load (N/cm²)
Leaning against operating table	0.36 N/cm²
Handling surgical instruments	0.48 N/cm²
Resting on arm	0.43 N/cm²
Leaning on abdominal region (between 15 s and 1 min)	1–2 N/cm²

Table 4.

Selected test parameters for penetration tests.

Mechanical stress	Pressure p:	0.9 N/cm² and 1.2 N/cm²
	Number of abrasion cycles:	n = 30
Suspension of fluorescent micro spheres	Particle diameter:	5.68 µm and 10 µm
Suspension of fluorescent micro spheres	Suspension on barrier fabric 1:	V = 15 ml

Image-analysis evaluation of particle penetration

To reach detailed conclusions regarding the amount of penetrating particles and the contaminated area, a microscopic analysis of the reverse side of barrier fabric 1 and of the collecting woven fabric was performed using the light microscope AXIOmanager (ZEISS, Germany), followed by a software-assisted assessment (Vision Assistant, National Instruments). After calibrating the image (Figure 7), a grayscale image was created for an enhanced contrast evaluation (Figure 8). After creating a binary image and the subsequent determination of a brightness threshold value, the fluorescent particles could clearly be distinguished from the surface of the woven fabric. All areas brighter than the threshold value depict penetrated particles (Figure 9). Each area defined as a particle is captured and measured by the software. The result maps the individual areas of the particle as well as the total area of all penetrated particles.

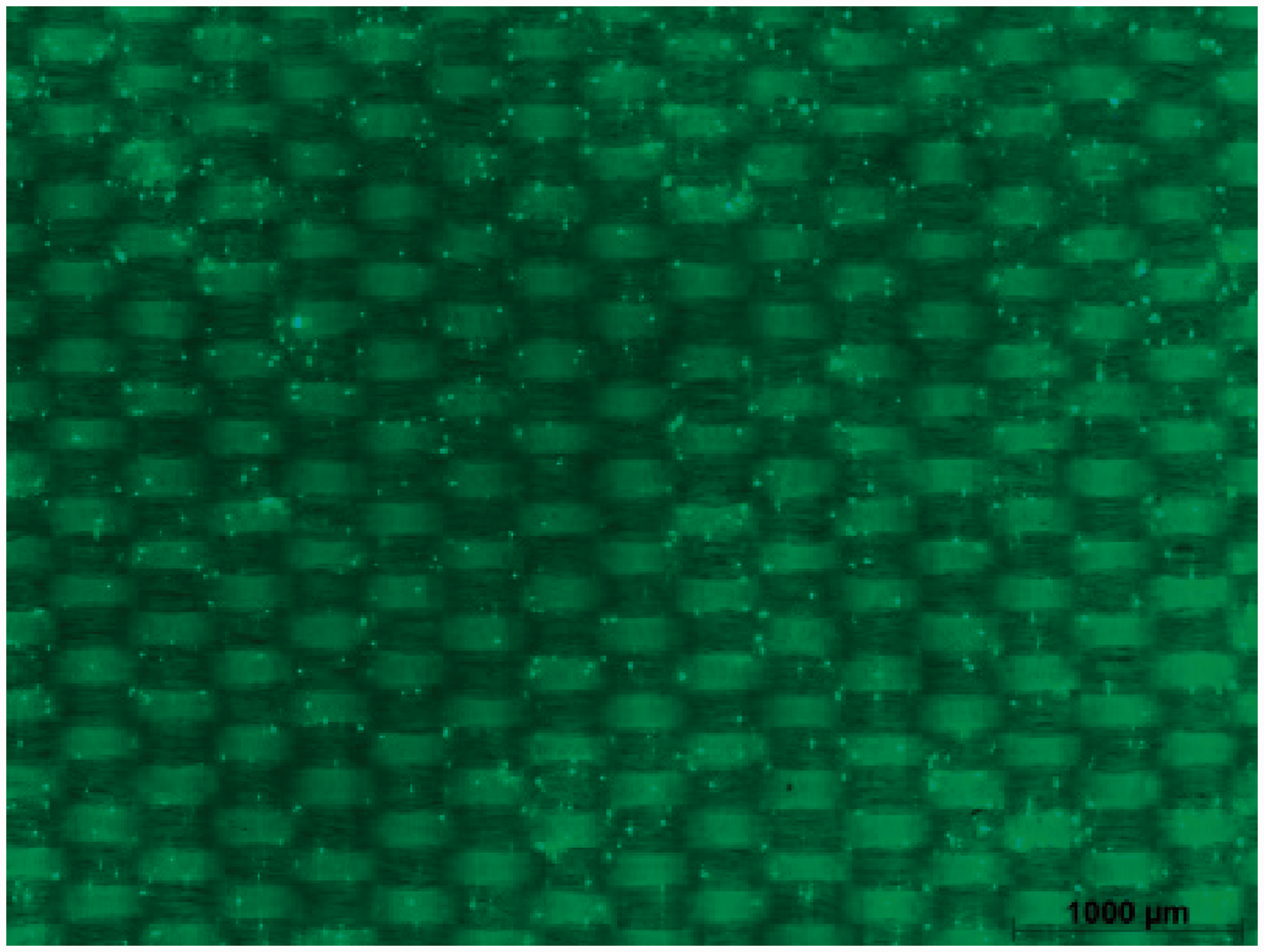

Figure 7.

Microscopic view of barrier fabric no. 3 penetration behavior.

Figure 8.

Conversion of microscopic image into grayscale image.

Figure 9.

Selection ranges by brightness threshold value determination.

Particle treatment

To realize a partial and, above all, targeted application of the microparticles into and onto the mesopores, the structural filtration effect of the microfilament yarns was exploited. The fundamental idea of the process development was that the perfusion resistance of a woven fabric is smallest at the mesopores, which are the largest pores in the fabric. In case of a suspension or an aerosol, the particles flow to and into the mesopores, where they are deposited and form a filter cake. The structure and formation of a porous filter cake primarily depends on the shape and size of the particles. It is important to take into account the size ratios between the particle and the pore, so that, according to the principle of filtration, the relation $\frac{d pore}{d particle} > 1$ should apply.

Particles for application

The use of nanoparticles on textiles is viewed critically due to their suspected respirability, and the ecological damage caused by particles separated during the washing process [18]. Since barrier fabrics are a medical product, the focus was placed on microparticles. Thermoplastic, polydisperse, technical particles made from Polyamide 12, Orgasol® 2001 DU NAT1 (Arkema, Colombes, France) with an average particle size of 5 µm were used as test particles. They are regarded as nonhazardous and are often used in cosmetics or food applications. The thermoplastic properties of the particles are used for a firm bonding to the fiber surface, exploiting a thermal post-processing of the finished woven fabrics. A laboratory dryer (Mathis, Germany) was used for this purpose. Treatment time and temperature were chosen with regard to the particle melting point (174.25℃), and the glass transition temperature (50℃). In preliminary tests, a 10 min treatment at 150℃ has proven sensible.

Treatment method

Vacuum filtration was used as the filtration method for particle application. This is a special case of a so-called “dead-end” filtration, modified for the purpose of finishing woven fabrics. The test station is shown in Figure 10.

Figure 10.

Principle schematics of vacuum filtration for particle application.

In contrast to the conventional vacuum filtration method, where a suspension is inserted into the funnel and filtrated by a filtering medium, this method relies on particle insertion in the form of an aerosol consisting of particles, distilled water, and a dispersing agent (DISPERBYK-180, BYK, Germany). A paint spray gun with integrated gravity feed cup (500 ml) and a nozzle diameter of 1.5 mm was used to create the aerosol. The particles are sucked from this aerosol into the mesopores, where they are deposited, forming a filter cake. The test parameters for the particle treatment were selected as follows:

Air pressure of the paint spray gun: 0.3 bar.

Treatment duration: 23 s.

Vacuum pump (Vacuubrand, Germany; pumping speed: 5.6 m³/h; suction capacity: $4 \times 10 - 4 mbar$ .

Results

Materials

Using the materials and weaving parameters described in “Materials” and “Weaving parameters” sections, three woven fabrics with differing warp and weft densities were produced. To counter the usual stiffness of high-density woven fabrics and create a fabric with pleasant wearing comfort, the focus of production was placed on materials with a fabric index x < 1. Due to the resulting, comparatively larger mesopores, flow resistance in the pore channels is also reduced, which positively facilitates particle finishing. To evaluate bending stiffness, and thus wearing comfort, a highly dense barrier fabric no. 4 with a fabric index of 1.13 was included in the examinations. This fabric was not finished with particles. The produced fabric types, as well as the highly dense comparison fabric are listed in Table 5.

Table 5.

Profile of barrier fabric characteristics.

	Fabric density (DIN EN ISO 1049-2) (number of threads/cm)
Fabric number	Warp	Weft	Mass per unit area (DIN EN ISO 12127) (g/m²)	Fabric thickness (DIN EN ISO 5084) (mm)	Fabric index according to Walz	Effective pore size D (µm)
1	54	29	124.70	0.24	0.83	62
2	72	24	104.91	0.19	0.63	52
3	71	18	110.23	0.22	0.57	66
4	69	38	140.00	0.20	1.13	49

Topography

As shown by the roughness profile (Figure 11) and the associated profile section (Figure 12), fabric no. 2, for instance, is characterized by a relatively even height profile (Figure 13) in which the warp and weft yarns are clearly visible (Table 5). The profile section is a representation of the thread orientation in z direction. From the profile section, the height difference Δz can be determined. At its deepest point, the profile section allows a statement regarding the depth of the pores, which is primarily measured in the warp-direction profile section. This step is performed with untreated woven fabrics and helps in the selection of the optimum particle size.

Figure 11.

Roughness profile of fabric no. 2.

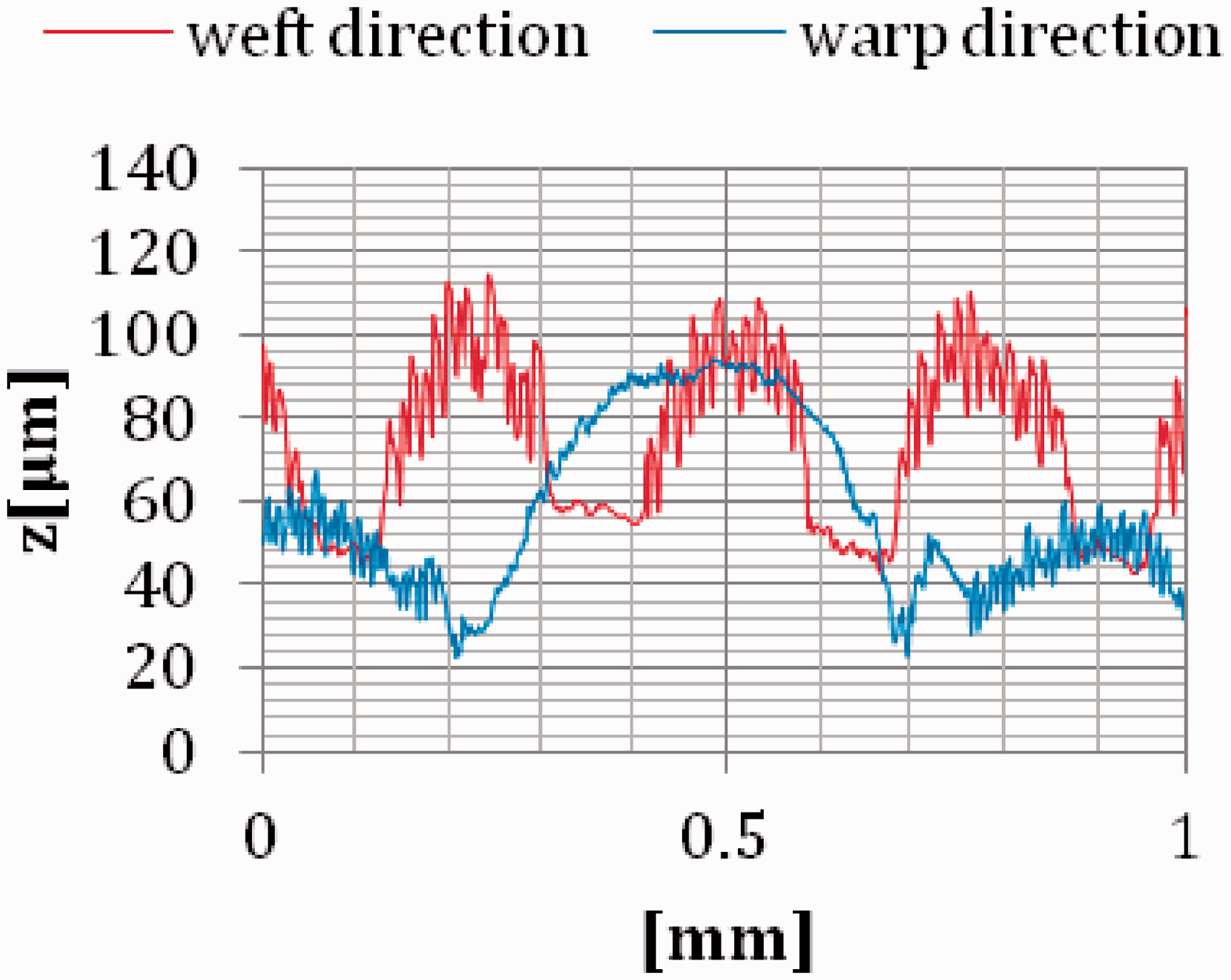

Figure 12.

Profile section fabric no. 2.

Particle application

Using the described test parameters for particle application, a partial and targeted deposition of the microparticles in and on the mesopores was achieved, without obstruction of the micropores (Figure 14). Based on a number of preliminary tests and the evaluation of the topography images, a particle size of 5 µm has proven as the sensible choice. The preparation of a fabric cross-section by microtome cutting confirms the achievement of a targeted and unilateral deposition of the particles. Due to the filter effect of woven fabrics, no particle penetration on the fabric backside could be detected (Figures 15 and 16).

Figure 14.

Particle deposition after finishing.

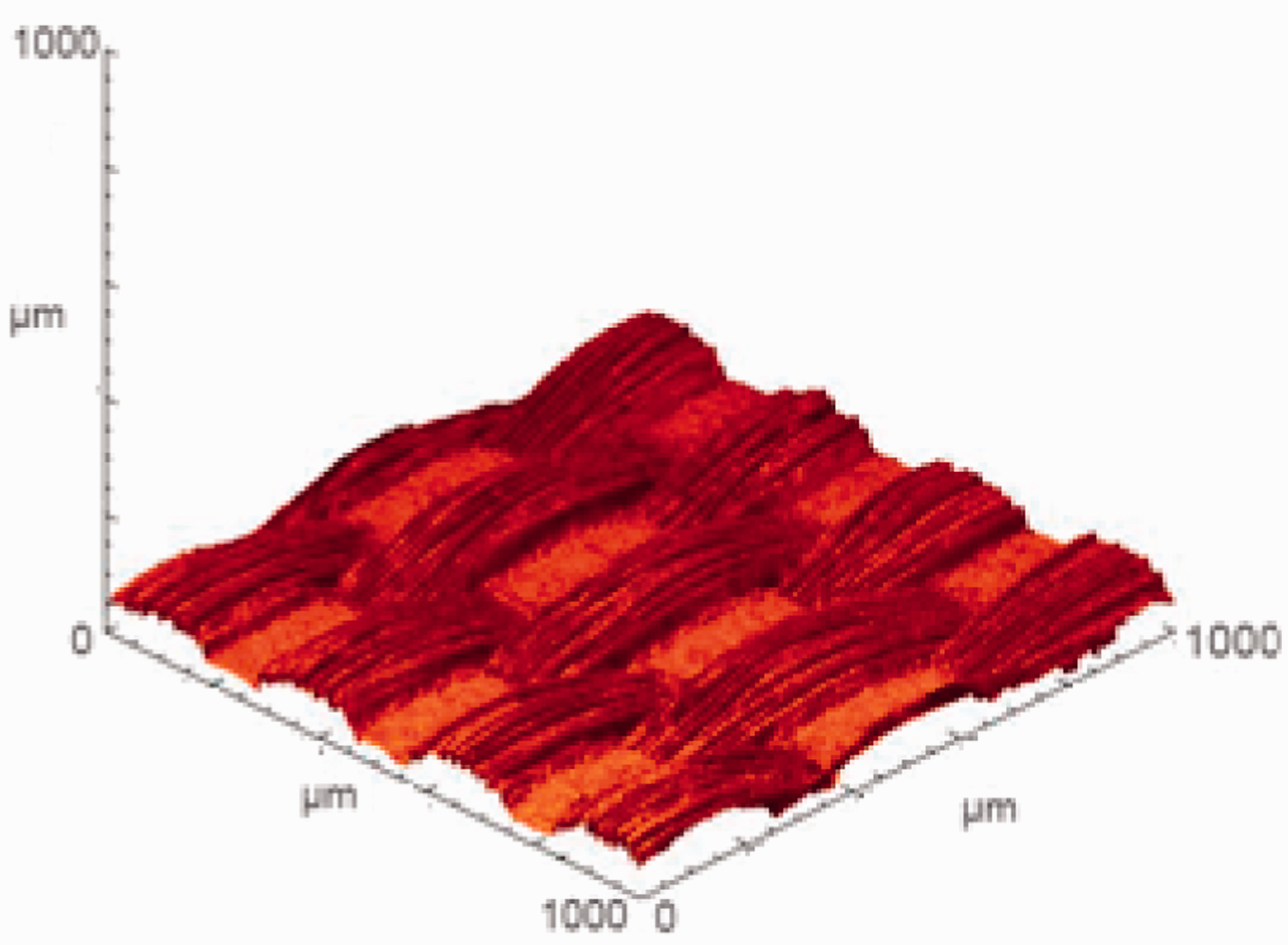

Figure 13.

Height profile fabric no. 2.

Figure 15.

Fabric cross-section with deposited particles.

Figure 16.

Fabric backside after particle finishing.

Physiological characterization

One important aspect of this research work was to ensure the physiological wearing comfort after particle finishing. The relevant tests concern the water vapor permeability resistance, air permeability and drapability (in the form of bending stiffness) [19,20].

Resistance to water vapor permeability

The physiological examinations focused on the resistance to water vapor permeability, as it is of crucial importance to the comfort of the wearer. To create optimum conditions, the resistance to water vapor permeability should not exceed a value of 8 m² Pa/W [19]. This is considered a guidance value for the wearing comfort of OR textiles. After particle finishing, a reduction of the resistance to water vapor permeability by approx. 50% was observed (Figure 17). However, the results prove that after particle application the water vapor permeability is still beneath the guidance value and therefore does not subtract from wearing comfort. The slight increase in the standard deviation shows the accuracy of the measurement. Only fabric no. 3 shows an increased scattering (Table 6). A reason for this is the low weft density in relation to a high warp density. This makes the structure slightly unstable which results in higher measurement inaccuracies.

Figure 17.

Comparison of resistance to water vapor permeability before and after particle application.

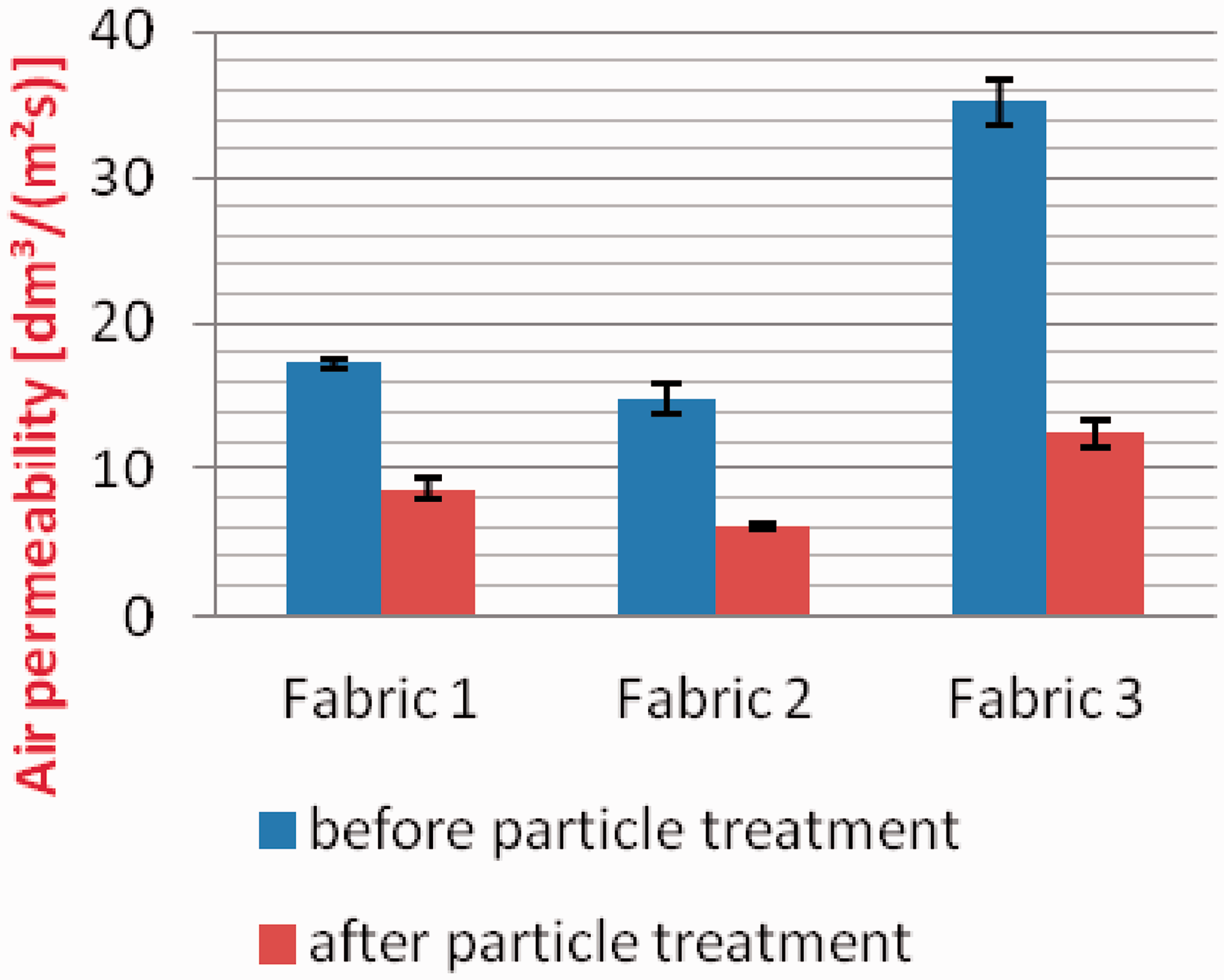

Figure 18.

Comparison of air permeability before and after particle application.

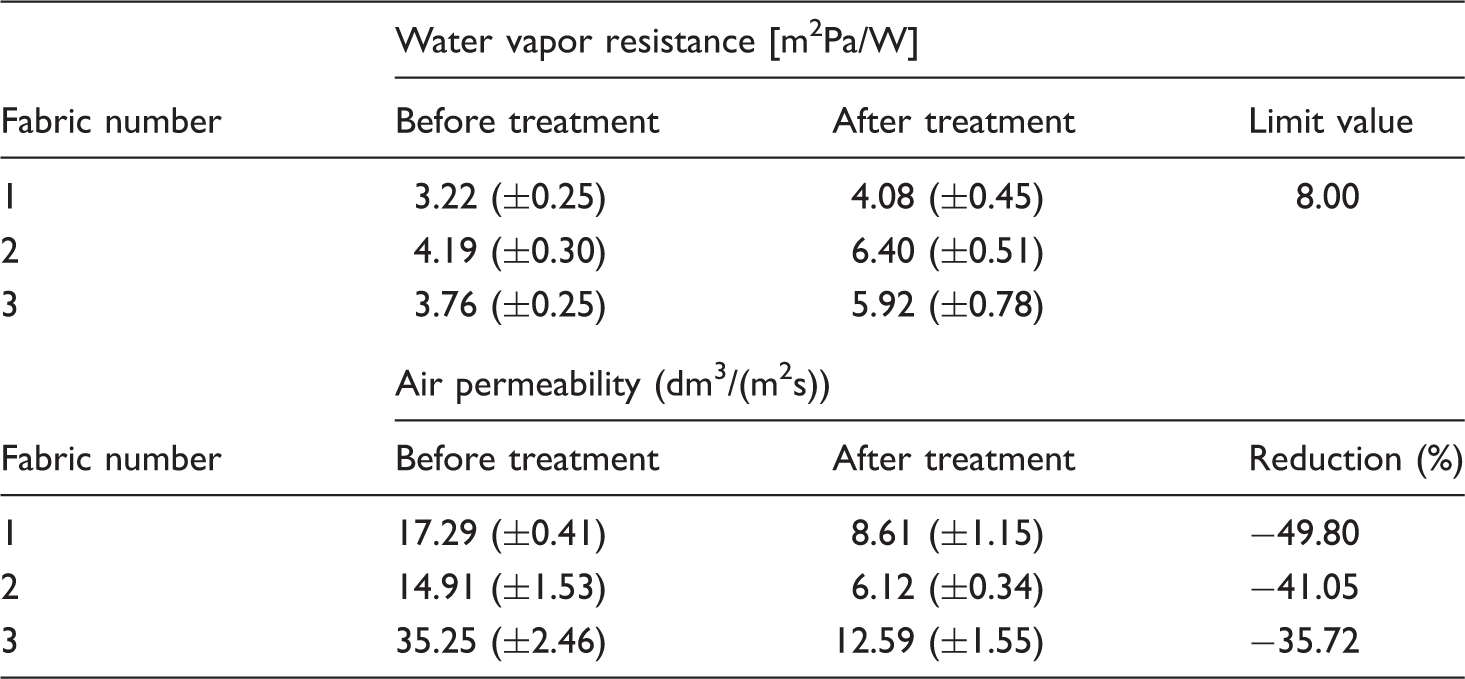

Table 6.

Physiological properties before particle application.

	Water vapor resistance [m²Pa/W]
Fabric number	Before treatment	After treatment	Limit value
1	3.22 (±0.25)	4.08 (±0.45)	8.00
2	4.19 (±0.30)	6.40 (±0.51)
3	3.76 (±0.25)	5.92 (±0.78)
	Air permeability (dm³/(m²s))
Fabric number	Before treatment	After treatment	Reduction (%)
1	17.29 (±0.41)	8.61 (±1.15)	−49.80
2	14.91 (±1.53)	6.12 (±0.34)	−41.05
3	35.25 (±2.46)	12.59 (±1.55)	−35.72

Air permeability

As expected, a reduction of the measured values and the corresponding reduction of air permeability was registered (Table 6). Fabric no. 3 displays the largest reduction of air permeability by 49.80%. One reason for this is the comparatively high packing density of the individual filaments in the yarn, which results in a smaller number of permeable micropores between the filaments. Air permeability, in this woven fabric, is influenced primarily by the mesostructure. If it is largely closed, this will result in reduced air permeability. The same is observable in fabric no. 2, which has a lower packing density than fabric no. 1 but a higher packing density than fabric no. 3. The spread of values, as already mentioned in the measurements of air permeability, can be attributed to the irregular structure of the fabric. This can be seen especially in the fabrics no. 2 and 3, which have a comparatively unstable structure due to a lower fabric density. In comparison to the resistance to water vapor permeability, there is no known wearing comfort guidance value concerning air permeability. In a previous publication [21], the physiological properties of high-density woven barrier fabrics for use as OR protective textiles were examined thoroughly. For plain-weave PES woven fabrics with a fabric index $x \geq 1$ , these earlier examinations showed air permeability values below 2.25 mm/s.

A comparison to values from Table 6 shows that the air permeability of the particle-finished fabrics is lower, despite the reduction in mesopore size (see “Pore size” section). These results are promising, as they prove a size reduction of the mesostructure without impairing air permeability. The crucial value for wearing comfort was assessed as positive with the measuring regarding resistance to water vapor permeability, which was supported by the results of air permeability tests.

Bending stiffness

In garment physiology, bending stiffness tests are considered an important tool for the evaluation of fabric drapability. This is particularly relevant for sufficient freedom of movement of the wearer. The test results show increased stiffness values after particle application (Table 7). Fabric no. 3, when compared to fabric no. 1, displays a rather high bending stiffness after particle application. This is owed partially to the lower fabric density. The fabric density of fabric no. 1 is higher than fabrics no. 2 and 3. A high fabric density leads to smaller mesopores and therefore a lower amount of particle is necessary to reduce the pore size.

There are no known wearing comfort guidance values or regulations concerning bending stiffness. For this reason, a comparison was made to the highly dense reference barrier fabric no. 4. In comparison to the particle-finished woven fabrics, a higher bending stiffness can be observed. This shows that better drapability can be ensured despite a stiffening of the structure after particle application. This can be observed for fabric no. 3.

Pore size

An extensive profile of the selected fabrics before and after particle finishing was created in order to study the influence of partial particle application on pore size reduction. The evaluation of the porosimetry measurements before particle application gives an overview of the achieved pore sizes and their distribution in the barrier fabrics no. 1–3. The results are illustrated on an example of fabric no. 1 in Figures 19 and 20. The graphics show a large increase of pore proportion in the ratio of smaller pores of <4 µm, while the number of larger-sized pores is reduced. For the unfinished fabric, pores in the range from 4 µm to 10 µm account for 29.19%. After particle finishing there is a conspicuous decrease to 7.50%.

Figure 19.

Pore size distribution before particle application, exemplified by woven fabric no. 1.

Figure 20.

Pore size distribution after particle application, exemplified by woven fabric no. 1.

Penetration behavior

The determination of penetration behavior before particle application revealed a clear massing of fluorescent particles in the mesostructure area after microscopic analysis (Figures 21 and 22), thus locating the mesopores as the location of potential pathways for microorganisms. This confirms the assumption of an increased penetration in the yarn crossing points of plain-weave woven fabrics. A comparatively small amount of particles could be localized in the area of the microstructure, which indicates a good retention capability caused by the use of microfilament yarns. The production of microtome sections (woven fabric cross-sections) again confirms this result (Figure 23).

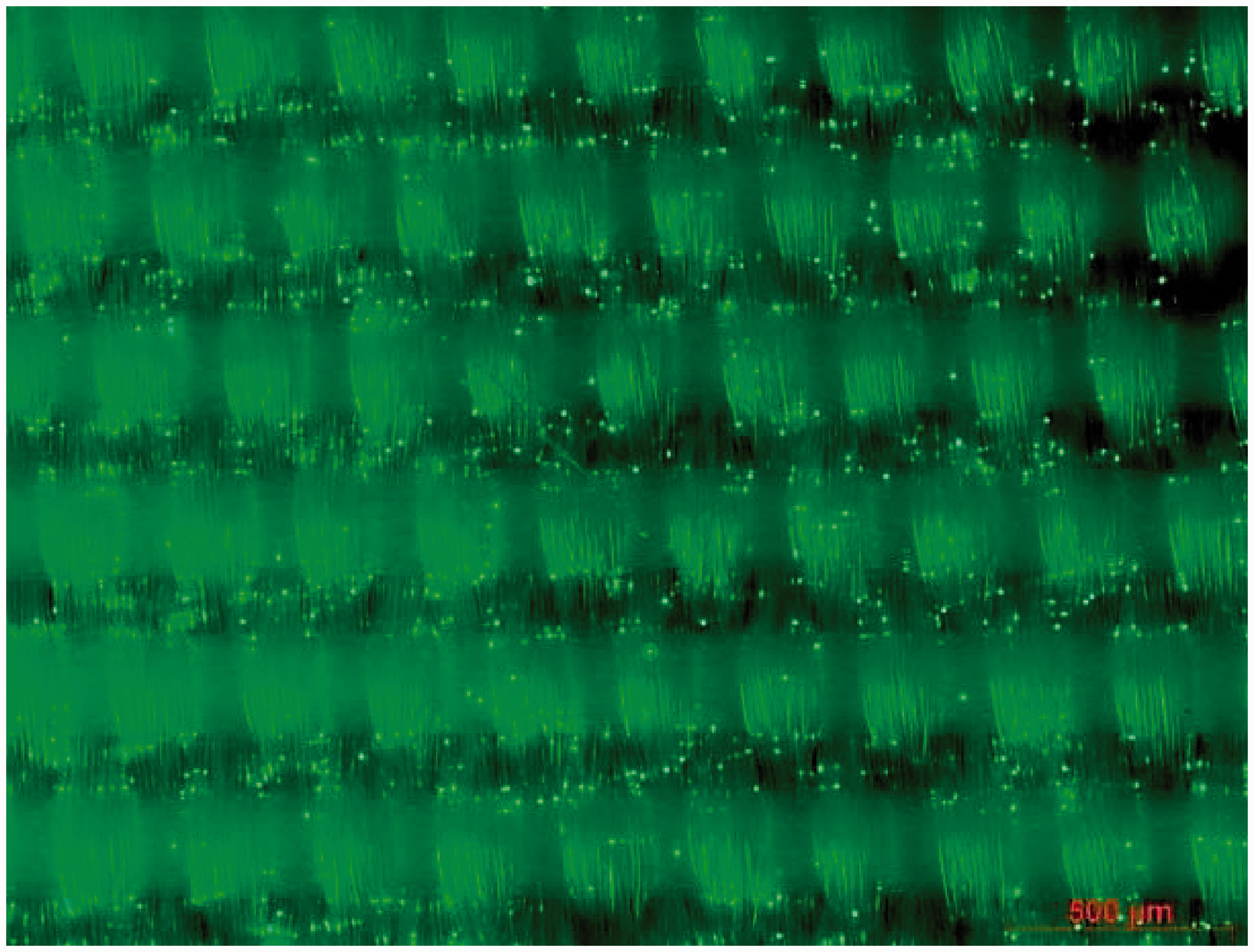

Figure 21.

Penetration behavior before particle finishing, woven fabric no. 1.

Figure 22.

Penetration behavior after particle finishing, woven fabric no. 1.

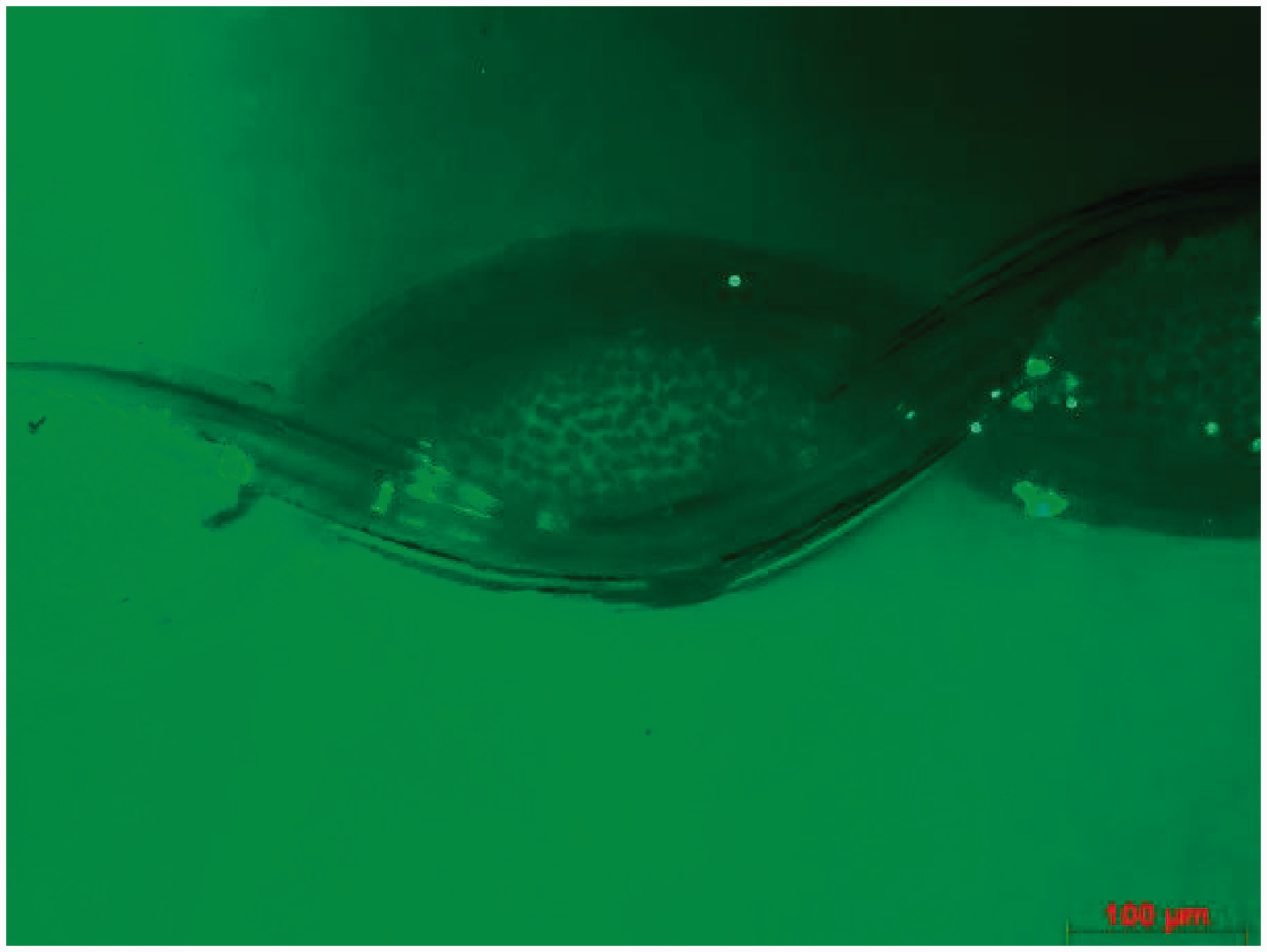

Figure 23.

Cross-section view, penetration behavior before finishing, woven fabric no. 1.

The image-analysis evaluation of the barrier fabrics contaminated with fluorescent particles, and of the collection fabric (see “Image-analysis evaluation of particle penetration” section) determines the total area of the penetrated particles. The results before and after finishing with microparticles are shown in Table 8, using woven fabric no. 3 as example. Regarding the area of the penetrated particles, a reduction of particle penetration by 79.8% was achieved. The penetration behavior of the particle-finished fabrics shows a clear reduction of the pathways in the range of the mesopores (Figures 21 and 22). The results of the image analysis show a considerable reduction of the spread in terms of fabric area.

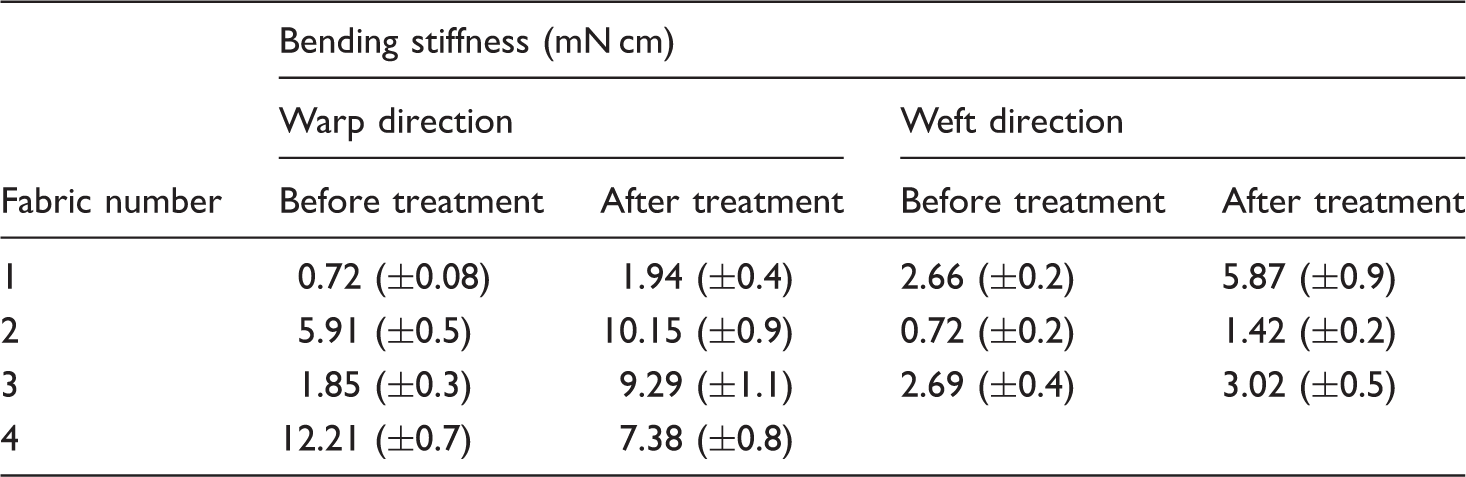

Table 7.

Results for bending stiffness before and after particle finishing.

	Bending stiffness (mN cm)
	Warp direction		Weft direction
Fabric number	Before treatment	After treatment	Before treatment	After treatment
1	0.72 (±0.08)	1.94 (±0.4)	2.66 (±0.2)	5.87 (±0.9)
2	5.91 (±0.5)	10.15 (±0.9)	0.72 (±0.2)	1.42 (±0.2)
3	1.85 (±0.3)	9.29 (±1.1)	2.69 (±0.4)	3.02 (±0.5)
4	12.21 (±0.7)	7.38 (±0.8)

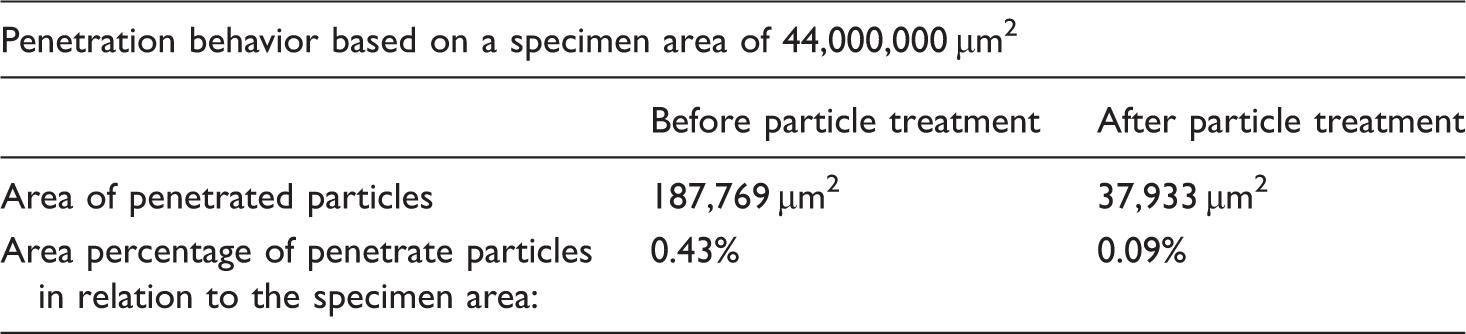

Table 8.

Evaluation of penetration behavior after particle finishing, woven fabric no. 1.

Penetration behavior based on a specimen area of 44,000,000 µm²
	Before particle treatment	After particle treatment
Area of penetrated particles	187,769 µm²	37,933 µm²
Area percentage of penetrate particles in relation to the specimen area:	0.43%	0.09%

Summary and outlook

This work aimed to develop a method for the suitable production of innovative and fluid-tight microfilament woven fabrics for the filtration of particles down to the µm range, to be used in filtration media and multi-use OR textiles with great wearing comfort. A targeted, partial application of the microparticles into the mesopores of the PES woven fabrics was successful in significantly reducing the structurally large pores. The examination of the pore size distribution revealed a total reduction of the pore proportion of larger pores (≥4 µm) from 20.19% to 7.50% and at the same time an increase of small pores (≤4 µm). After binding the particles to the fiber surface by a thermal post-processing method, the particles form a porous structure in the mesopores. This way, the woven fabrics are sufficiently dense to serve as barriers against airborne or fluid-borne particles, but still display a resistance to water vapor permeability below the guidance value of $8 m 2 Pa / W$ , ensuring high wearing comfort. The effectiveness of the finishing was evaluated by extensive physiological and physical characterization of the woven fabrics before and after particle application, supplemented by a comparative study of selected textile-physiological fabric properties with highly dense barrier fabrics. This revealed comparatively better air permeability and lower bending stiffness, the latter of which results in better drapability. The barrier effect against airborne and fluid-borne particles, as well as their pathways, was successfully analyzed by means of a newly developed test method allowing the realistic simulation of practical use. This proved a reduced particle penetration after finishing, expressed by an area reduction of fluorescent particles by 79.8%. Future studies will aim at a permanent inter-particle binding, and a fixation of the particles to the fiber surface in the meso range. The aim is a strong binding of particles with a permanent resistance against mechanical stress as well as a good washing resistance. To achieve this, chemically active surfaces have to be developed. This finishing has to be selected with regards to the fabric surface and the particle characteristics. For PES woven fabrics, treatments with atmospheric pressure plasma or a wet-chemical treatment with alkali are possible solutions. To induce connections between the particles, and between the particles and the mesopores of the woven fabric, an additional targeted functionalization of the particle surface is required. Using functionalized particles, multifunctionality becomes an option, adding features such as antistatic and flame resistance, or antibacterial properties to the fabric. The finished fabrics will also be subjected to practical stresses (e.g. combined abrasion-pressure stresses, or combined torsion-buckling stresses) and will be tested with regards to their usage properties (e.g. reprocessing cycles). Furthermore it should be necessary to extend the testing of wearing comfort by characterizing the drape behavior. One option would be the analysis of shear stiffness and compression properties according the KES-FB of KAWABATA [22]. In order to further improve the bending stiffness of finished fabrics, the yarn and weaving parameters will be varied and their effect on barrier and filter properties was analyzed. Through the application of sub-microparticles the reduction of fabrics porosity about 1 µm seems possible. The aim is to produce fabrics with both high wearing comfort and outstanding barrier effects.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Deutsche Forschungsgemeinschaft [DFG CH 174/26-1].
