Abstract

In the process of guide roller transmission, the geometric nonlinearity caused by the lateral vibration of the flexible electronic membrane will result in the divergence and instability of the membrane velocity, thus affecting the printing accuracy. In this paper, in order to engineer the exact condition that affecting the printing accurancy, the Elliptic integral method, whose effectiveness has been verified for its soluted result, is consistent with the one concluded from L-P method and He's Frequency formula while soluting the nonlinear vibration equation, respectively, on basis of Von Karman’s large deflection theory and Hamilton’s principle, is mainly applied, and thus provide a theoretical support for the design and manufacture of high-precision flexible electronic printing press.

Keywords

Flexible electronic membrane geometric nonlinearity L-P perturbation method He’s frequency formula elliptic integral method

Introduction

Flexible electronic membrane materials^1–5 are widely used in electronic products and people’s demand for flexible electronic membrane materials is daily increasing. The flexible electronic membrane will be pre-tensioned by the guide roller inside the automatic printing machine during the transmission process (as shown in Figure 1).

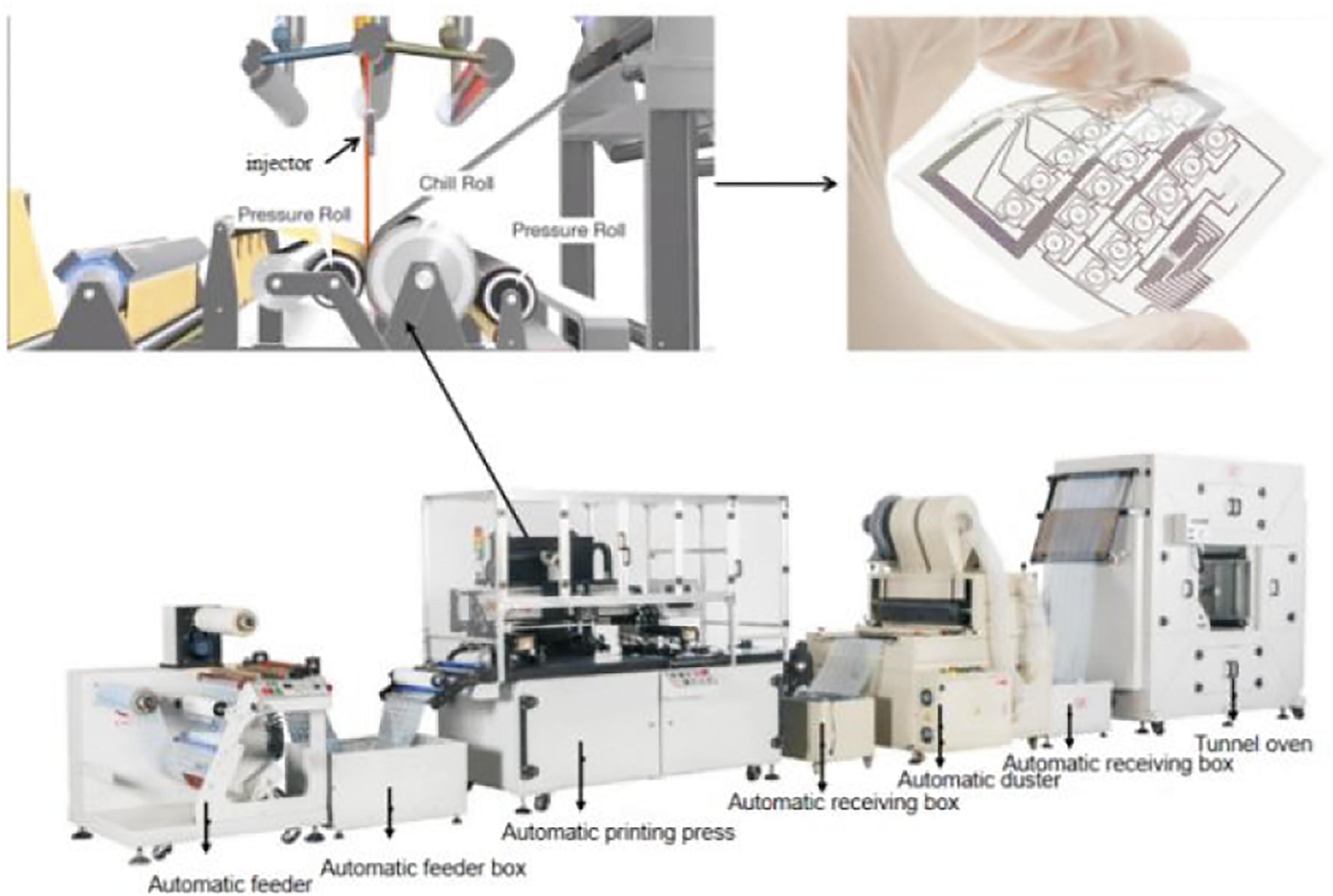

Figure 1.

Shaanxi People B624 Flexible Press.

Chinese scholar Chen LQ^6–8 systematically studied the nonlinear vibration of string, beam, and ring. Nosier⁹ studied the influence of material properties and boundary conditions on the vibration characteristics of solid circular plate by establishing a dynamic model of functionally graded circular plate under transverse mechanical load. Huang JL¹⁰ proposed a new incremental harmonic balance method to study the quasi periodic motion of an axially moving beam, which is verified the effectiveness by comparing the frequency and amplitude. Tornabene F¹¹ established the governing equation of the thin shell by using Hamilton’s principle and get it solved by using the generalized differential quadrature method. MH Ghayesh¹² obtained the nonlinear dynamic equation of the forced motion of the axially moving plate based on the energy method. Li HY¹³ established the motion equation based on the classical thin plate theory, which is discretized by the Galerkin method and solved by using the multi-scale method to obtain the frequency response equation under the steady motion condition. RM Soares¹⁴ established a nonlinear static model of pre stretched hyperelastic annular membrane under finite deformation. Li MZ¹⁵ analyzed the free vibration of functionally graded plates with simply supported boundary conditions. Based on Hamilton principle, the governing differential equations and boundary conditions were derived. Ke LL¹⁶ studied the nonlinear free vibration of beam and obtained the influence of volume fraction, amplitude, and slenderness ratio on the nonlinear free vibration of beam. Feng C¹⁷ established the nonlinear free vibration equation of composite beam, and calculated the vibration frequency and amplitude of the beam by using Ritz method. Wang YB¹⁸ used Hamilton principle to obtain the equation of a beam under axial time-varying load. He Jihuan has done a lot of work on the stability of nonlinear vibration equations by using He-Laplace method¹⁹ and Homotopy Perturbation Method.²⁰

To sum up, previous studies rarely considered the large deformation of the middle surface of the flexible electronic membrane caused by the pre-tension of the roller, and as well failed to offer the actual motion speed of the flexible electronic membrane while dimensionless method is adopted to solute the motion equation.

Establishment of dynamic model

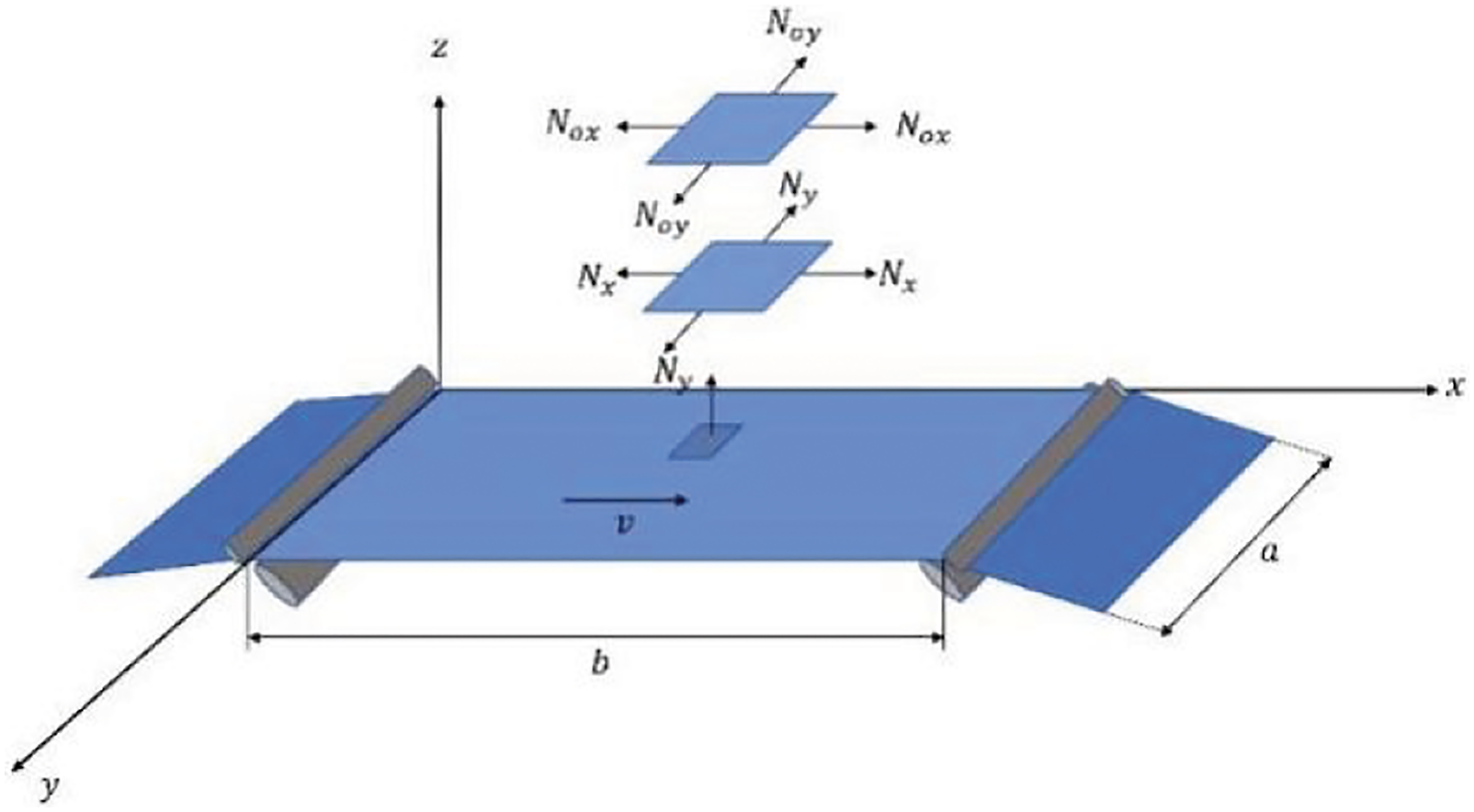

Figure 2 shows the dynamic model of flexible electronic membrane, where $N_{0 x}$ and $N_{0 y}$ show the pulling force in $x$ and $y$ , respectively, of the guide roller during its transmission process. $N_{x}$ and $N_{y}$ show the tension caused by the large deflection deformation because of the transverse vibration within membranes. $b$ denotes the longitudinal length of the membrane, a denotes the width, and $v$ denotes the longitudinal transmission velocity.

Figure 2.

Dynamic model of flexible electronic membrane.

According to Von Karman’s large deflection theory, the vibration equation and compatibility equation of flexible electronic membrane subjected to the pretension are

ρ (\frac{\partial^{2} \bar{ω}}{\partial t^{2}} + 2 v \frac{\partial^{2} \bar{ω}}{\partial x \partial t} + v^{2} \frac{\partial^{2} \bar{ω}}{\partial x^{2}}) - (N_{x} + N_{0 x}) \frac{\partial^{2} \bar{ω}}{\partial x^{2}} - (N_{y} + N_{0 y}) \frac{\partial^{2} \bar{ω}}{\partial y^{2}} = 0

(1)

\frac{\partial^{2} N_{x}}{\partial y^{2}} + \frac{\partial^{2} N_{y}}{\partial x^{2}} - μ \frac{\partial^{2} N_{x}}{\partial x^{2}} - μ \frac{\partial^{2} N_{y}}{\partial y^{2}} - 2 (1 + μ) \frac{\partial^{2} N_{x y}}{\partial x \partial y} = E h [{(\frac{\partial^{2} \bar{ω}}{\partial x \partial y})}^{2} - \frac{\partial^{2} \bar{ω}}{\partial x^{2}} \frac{\partial \bar{ω}}{\partial y^{2}}]

(2)

Substituting equations $N_{x} = \partial^{2} Φ / \partial y^{2}, N_{y} = \partial^{2} Φ / \partial x^{2}, N_{x y} = - \partial^{2} Φ / \partial x \partial y, N_{0 x} / h = σ_{0 x}, N_{0 y} / h = σ_{0 y}$ into (1) and (2), we have Separating variables, we obtain

ρ (\frac{\partial^{2} \bar{ω}}{\partial t^{2}} + 2 v \frac{\partial^{2} \bar{ω}}{\partial x \partial t} + v^{2} \frac{\partial^{2} \bar{ω}}{\partial x^{2}}) - (\frac{\partial^{2} Φ}{\partial y^{2}} + h σ_{0 x}) \frac{\partial^{2} \bar{ω}}{\partial x^{2}} - (\frac{\partial^{2} Φ}{\partial x^{2}} + h σ_{0 y}) \frac{\partial^{2} \bar{ω}}{\partial y^{2}} = 0

(3)

\frac{\partial^{4} Φ}{\partial x^{4}} + \frac{\partial^{4} Φ}{\partial y^{4}} = E h [{(\frac{\partial^{2} \bar{ω}}{\partial x \partial y})}^{2} - \frac{\partial^{2} \bar{ω}}{\partial x^{2}} \frac{\partial \bar{ω}}{\partial y^{2}}]

(4)

\bar{ω} (x, y, t) = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} T_{m n} (t) W_{m n} (x, y)

(5)

Φ (x, y, t) = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} U_{m n} (t) ϕ_{m n} (x, y)

(6)

Substituting equations (5) and (6) into equation (4) yields

\sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} U_{m n} (t) \frac{\partial^{4} ϕ_{m n} (x, y)}{\partial x^{4}} + \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} U_{m n} (t) \frac{\partial^{4} ϕ_{m n} (x, y)}{\partial y^{4}} = E h \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} [{(\frac{\partial^{2} W_{m n} (x, y)}{\partial x \partial y})}^{2} - \frac{\partial^{2} W_{m n} (x, y)}{\partial x^{2}} \frac{\partial^{2} W_{m n} (x, y)}{\partial y^{2}}] T_{m n}^{2} (t)

(7)

Equation (7) can be simplified as follows:

U_{m n} (t) = T_{m n}^{2} (t)

(8)

Φ (x, y, t) = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} T_{m n}^{2} (t) ϕ_{m n} (x, y)

(9)

Assume the mode shape functions is

W_{m n} (x, y) = W (x, y) = W = s i n \frac{m π x}{a} s i n \frac{n π y}{b}

(10)

Substituting equations (8) and (10) into equation (7) yields

\frac{\partial^{4} ϕ}{\partial x^{4}} + \frac{\partial^{4} ϕ}{\partial y^{4}} = E h \frac{m^{2} n^{2} π^{4}}{2 a^{2} b^{2}} (c o s \frac{2 m π x}{a} + c o s \frac{2 n π y}{b})

(11)

The solution of equation (11) can be expressed as

ϕ (x, y) = α cos \frac{2 m π x}{a} + β c o s \frac{2 n π y}{b} + γ_{1} x^{3} + γ_{2} x^{2} + γ_{3} y^{3} + γ_{4} y^{2}

Substituting equation (12) into equation (11) yields

α = \frac{a^{2} n^{2}}{32 m^{2} b^{2}} E h β = \frac{b^{2} m^{2}}{32 n^{2} a^{2}} E h

The corresponding four edges simply boundary conditions are as follows:

x = 0,1 : \frac{\partial^{2} ϕ}{\partial y^{2}} = 1 \frac{\partial^{2} ϕ}{\partial x \partial y} = 0, ω = 0

y = 0,1 : \frac{\partial^{2} ϕ}{\partial x^{2}} = 1 \frac{\partial^{2} ϕ}{\partial x \partial y} = 0, ω = 0

Bring equation (12) into the boundary condition, we get $γ_{1} = γ_{3} = 0$ , $γ_{2} = n^{2} π^{2} / 16 b^{2} E h, γ_{4} = m^{2} π^{2} / 16 a^{2} Eh$ .

Then equation (12) is expressed as

ϕ (x, y) = \frac{a^{2} n^{2}}{32 m^{2} b^{2}} E h cos \frac{2 m π x}{a} + \frac{b^{2} m^{2}}{32 m^{2} a^{2}} E h c o s \frac{2 n π y}{b} + \frac{n^{2} π^{2}}{16 b^{2}} E h x^{2} + \frac{m^{2} π^{2}}{16 a^{2}} E h y^{2}

(12)

Substituting equations (5) and (6) into equation (3) yields

\iint_{s}^{.} [ρ (\frac{\partial^{2} T (t)}{\partial t^{2}} W + 2 v \frac{\partial W}{\partial x} \frac{\partial T (t)}{\partial t} + v^{2} \frac{\partial^{2} W}{\partial x^{2}} T (t)) - (h σ_{0 x} \frac{\partial^{2} W}{\partial x^{2}} + h σ_{0 y} \frac{\partial^{2} W}{\partial y^{2}}) T (t) - (\frac{\partial^{2} ϕ}{\partial y^{2}} \frac{\partial^{2} W}{\partial x^{2}} + \frac{\partial^{2} ϕ}{\partial x^{2}} \frac{\partial^{2} W}{\partial y^{2}}) T^{3} (t)] W (x, y) d s = 0

(13)

where

A = \iint_{s}^{.} ρ W^{2} d s = \frac{a b}{4} ρ

(14)

B = \iint_{s}^{.} 2 ρ v \frac{\partial W}{\partial x} d s = 0

(15)

C = \iint_{s}^{.} [ρ v^{2} \frac{\partial^{2} W}{\partial x^{2}} - (h σ_{0 x} \frac{\partial^{2} W}{\partial x^{2}} + h σ_{0 y} \frac{\partial^{2} W}{\partial y^{2}})] W (x, y) d s = \frac{π^{2} a b h}{4} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{m ρ v^{2} b}{n a} (c o s (m π) - 1) (\cos (n π) - 1)

(16)

D = \iint_{s}^{.} - (\frac{\partial^{2} ϕ}{\partial y^{2}} \frac{\partial^{2} W}{\partial x^{2}} + \frac{\partial^{2} ϕ}{\partial x^{2}} \frac{\partial^{2} W}{\partial y^{2}}) W d s = \frac{3 π^{4} E h}{64} (\frac{m^{4} b}{a^{3}} - \frac{n^{4} a}{b^{3}})

(17)

Then equation (13) is discretized as

\frac{\partial^{2} T (t)}{\partial t^{2}} + [\frac{π^{2} h}{ρ} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{4 m v^{2}}{a^{2} h} (\cos (m π) - 1) (\cos (n π) - 1)] T (t) + \frac{3 π^{4} E h}{16 a b ρ} (\frac{m^{4} b}{a^{3}} - \frac{n^{4} a}{b^{3}}) T^{3} = 0

(18)

L-P Perturbation Method

When $ε = (\frac{h^{2}}{a b}) ≪ 1$ , then equation (18) can be expressed as

\frac{d^{2} T (t)}{d t^{2}} + ω_{0}^{2} (T (t) + ε α_{1} T^{3} (t)) = 0

(19)

ω_{0}^{2} = \frac{π^{2} h}{ρ} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{4 m v^{2}}{a^{2} h} (\cos (m π) - 1) (\cos (n π) - 1)

(20)

α_{1} = \frac{3 π^{4} E}{16 ρ h ω_{0}^{2}} (\frac{m^{4} b}{a^{3}} - \frac{n^{4} a}{b^{3}})

(21)

Let $τ = t ω$ , then equation (19) is expressed as

ω^{2} \frac{d^{2} T (τ)}{d τ^{2}} + ω_{0}^{2} T (τ) = - ε α_{1} ω_{0}^{2} T^{3} (τ)

(22)

Expand $ω$ and $T (τ)$ into power series about $ε$

T (τ) = T_{0} (τ) + ε T_{1} (τ) + ε^{2} T_{2} (τ) + \dots + ε^{n} T_{n} (τ) + o (ε^{n + 1})

(23)

ω = ω_{0} + ε ω_{1} + ε^{2} ω_{2} + \dots + ε^{n} ω_{n} + o (ε^{n})

(24)

Substituting equations (23) and (24) into equation (22), we obtain

{(ω_{0} + ε ω_{1} + ε^{2} ω_{2} + \dots)}^{2} ({\ddot{T}}_{0} (τ) + ε {\ddot{T}}_{1} (τ) + ε^{2} {\ddot{T}}_{2} (τ) + \dots) + ω_{0}^{2} (T_{0} (τ) + ε T_{1} (τ) + ε T_{2} (τ) + \dots) = - ε α_{1} ω_{0}^{2} {(T_{0} (τ) + ε T_{1} (τ) + ε^{2} T_{2} (τ) + \dots)}^{3}

(25)

Comparison $ε^{0}$ :

{\ddot{T}}_{0} (τ) + T_{0} (τ) = 0

(26)

The general solution of equation (26) is as follows:

T_{0} (τ) = C_{1} \cos (τ) + C_{2} sin (τ)

(27)

where

C_{1}

and

C_{2}

are constants.

Let the initial condition be:

T (0) = T_{0} (0) + ε T_{1} (0) + ε^{2} T_{2} (0) + \dots = a_{0}

(28)

\dot{T} (0) = \dot{T_{0}} (0) + \dot{ε T_{1}} (0) + ε^{2} \dot{T_{2}} (0) + \dots = 0

(29)

Bringing the initial conditions $T_{0} (τ) = a_{0}$ , ${\dot{T}}_{0} (0) = 0$ into equation (27), we obtain

T_{0} (τ) = a_{0} cos (τ)

(30)

Comparison $ε^{1}$ :

2 ω_{0} ω_{1} {\ddot{T}}_{0} (τ) + ω_{0}^{2} {\ddot{T}}_{1} (τ) + ω_{0}^{2} T_{1} (τ) = - α_{1} ω_{0}^{2} T_{0}^{3} (τ)

(31)

Substituting equation (30) into equation (31), we obtain

\ddot{T_{1}} (τ) + T_{1} (τ) = - \frac{3}{4} α_{1} a_{0}^{3} \cos (τ) - \frac{1}{4} α_{1} a_{0}^{3} \cos (3 τ) + 2 \frac{ω_{1}}{ω_{0}} a_{0} \cos (τ)

(32)

In order to eliminate the internal resonance in equation (32), we have

2 \frac{ω_{1}}{ω_{0}} a_{0} - \frac{3}{4} α_{1} a_{0}^{3} = 0

(33)

ω_{1} = \frac{3}{8} ω_{0} α_{1} a_{0}^{3}

(34)

Then equation (32) becomes

\ddot{T_{1}} (τ) + T_{1} (τ) = - \frac{1}{4} α_{1} a_{0}^{3} cos (3 τ)

(35)

The solution of equation (35):

T_{1} (τ) = C_{3} \cos (τ) + C_{4} \sin (τ) + \frac{α_{1} a_{0}^{3}}{32} cos (3 τ)

(36)

Supposing $T_{1} (0) = 0, {\dot{T}}_{1} (0) = 0$ , and we bring them into equation (36)

T_{1} (τ) = \frac{α_{1} a_{0}^{3}}{32} (\cos (3 τ) - cos (τ))

(37)

Substituting equations (37), (34), and (30) into equation (23) and (24) can be obtain

T (τ) = a_{0} \cos (τ) + \frac{α_{1} a_{0}^{3} ε}{32} (\cos (3 τ) - \cos (τ)) + o (ε^{2})

(38)

ω = ω_{0} + \frac{3 ω_{0} α_{1} a_{0}^{2} ε}{8} + o (ε^{2})

(39)

Suppose $τ = ω t$

τ = (ω_{0} + \frac{3 ω_{0} α_{1} a_{0}^{2} ε}{8} + o (ε^{2})) t

(40)

Substituting equation (40) into equation (38) yields

T (t) = a_{0} \cos (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} + \frac{α_{1} a_{0}^{3} ε}{32} (c o s 3 (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} t - cos (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} t)

(41)

The frequency after adding nonlinear term is

ω = ω_{0} (1 + \frac{3 α_{1} a_{0}^{2} ε}{8})

(42)

When $a_{0} = 0$ , it is a linear vibration. Substituting equations (10) and (41) into equation (5) yields

\bar{ω} (x, y, t) = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} s i n \frac{m π x}{a} s i n \frac{n π y}{b} [a_{0} \cos (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} t + \frac{α_{1} a_{0}^{3} ε}{32} (c o s 3 (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} t - cos (1 + \frac{3 α_{1} a_{0}^{2} ε}{8}) ω_{0} t)]

(43)

Substituting $\bar{ω} (x, y, 0) = W_{0} (x, y)$ in equation (43), we obtain

W_{0} (x, y) = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} a_{0} s i n \frac{m π x}{a} s i n \frac{n π y}{b}

The modes corresponding to different frequencies are orthogonal, we multiply $W_{i j} ρ h$

a_{0} = \frac{\int_{s}^{.} ρ h W_{0} (x, y) s i n \frac{m π x}{a} s i n \frac{n π y}{b} d s}{\int_{s}^{.} ρ h s i n^{2} \frac{m π x}{a} s i n^{2} \frac{n π y}{b} d s} = \frac{4}{a b} \int_{0}^{a} \int_{0}^{b} W_{0} (x, y) s i n \frac{m π x}{a} s i n \frac{n π y}{b} d x d y

(44)

When $W_{0} (x, y) = W_{0}$ , we have

a_{0} = {\begin{matrix} \frac{16 W_{0}}{m n π^{2}}, (m, n = 1,3,5 \dots) \\ 0, (m, n = 2,4,6 \dots) \end{matrix}

He’s Frequency Formula

Here, L-P perturbation method is compared with He’s frequency formula.21 The square of its frequency can be obtained, which is

ω_{i}^{2} = \frac{d f}{d u} (u = \frac{i A}{N}), i = 1,2,3, \dots ., N - 1

(45)

where

A

is the amplitude,

ω^{2} = \frac{\sum_{i = 1}^{N} ω_{i}^{2}}{N - 1}

(46)

when

f (T (t)) = ω_{0}^{2} T (t) + ω_{0}^{2} ε α_{1} T^{3} (t)

, the frequency of equation (19) is easily obtained as follows

ω^{2} = f' (T (t)) | \begin{matrix} T = \frac{a_{0}}{2} \end{matrix} = ω_{0}^{2} (1 + \frac{3}{4} ε α_{1} a_{0}^{2})

(47)

When $ε < < 1$ , equation (47) is equivalent to that obtain by L-P Perturbation Method. When we increase the size of N in equation (46), the calculation accuracy of frequency can be improved.

When $T (t) = a_{0} \cos (ω t)$ , it can be obtained by integrating equation (19)

T' (t) = - \int_{0}^{t} [ω_{0}^{2} T (t) + ω_{0}^{2} ε α_{1} T^{3} (t)] d t = - (\frac{ω_{0}^{2} a_{0}}{ω} + \frac{2 ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω}) s i n (ω t) - \frac{ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω} s i n (ω t) c o s^{2} (ω t) + C_{1}

(48)

We assume the initial conditions: $T' (0) = 0$ , $C_{1}$ =0. By integrating equation (48), we obtain

T (t) = \int_{0}^{t} T' (t) d t = \int_{0}^{t} [- (\frac{ω_{0}^{2} a_{0}}{ω} + \frac{2 ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω}) s i n (ω t) - \frac{ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω} s i n (ω t) c o s^{2} (ω t)] d t = (\frac{ω_{0}^{2} a_{0}}{ω^{2}} + \frac{2 ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω^{2}}) c o s (ω t) + \frac{ε ω_{0}^{2} α_{1} a_{0}^{3}}{9 ω^{2}} (c o s^{3} (ω t) - 1) + C_{2}

(49)

When $T (0) = a_{0}$ , We obtain

C_{2} = a_{0} - \frac{ω_{0}^{2} a_{0}}{ω^{2}} - \frac{2 ε ω_{0}^{2} α_{1} a_{0}^{3}}{3 ω^{2}}

(50)

Substituting equations (50) into equation (49), We also get the solution of equation (19)

T (t) = \frac{4 (3 a_{0} + 2 ε α_{1} a_{0}^{3})}{3 (4 + 3 ε α_{1} a_{0}^{2})} (c o s (ω t) - 1) + \frac{ε α_{1} a_{0}^{3}}{9 (4 + 3 ε α_{1} a_{0}^{2})} (3 c o s (ω t) + c o s (3 ω t) - \frac{1}{4})

(51)

Elliptic integral method

Simplified equation (18), we have

\ddot{T} (t) + k_{a} T (t) - k_{b} T^{3} (t) = 0

(52)

k_{a} = \frac{π^{2} h}{ρ} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{4 m v^{2}}{a^{2} h} (\cos (m π) - 1) (\cos (n π) - 1)

k_{b} = - \frac{3 π^{4} E}{16 ρ h ω_{0}^{2}} (\frac{m^{4} b}{a^{3}} - \frac{n^{4} a}{b^{3}})

The integral of equation (52) is obtained as follows

\dot{T} + k_{a} T^{2} - \frac{k_{b}}{2} T^{4} = H

φ = \frac{T}{W_{0}} λ^{2} = \frac{k_{a} - \frac{1}{2} k_{b} W_{0}^{2}}{\frac{1}{2} k_{b} W_{0}^{2}}

(53)

Bring above in the following formula

\frac{d φ}{d τ} = \sqrt{\frac{k_{b} W_{0}^{2}}{2}} \sqrt{(1 - φ^{2}) (λ^{2} - φ^{2})}

(54)

When $n^{2} = \frac{1}{λ^{2}}$ , the vibration period is obtained

T = 4 \sqrt{\frac{2}{k_{b} W_{0}^{2} λ^{2}} \int_{0}^{1} \frac{d φ}{\sqrt{(1 - φ^{2}) (1 - n^{2} φ^{2})}}} = 4 \sqrt{\frac{2}{k_{b} W_{0}^{2} λ^{2}}} Z (n)

(55)

Then the vibration frequency is

ω = \frac{π}{2} \sqrt{k_{a} - \frac{1}{2} k_{b} W_{0}^{2}} \frac{1}{Z (n)}

(56)

Z (n) = \frac{π}{2} {1 + {(\frac{1}{2})}^{2} n^{2} + {(\frac{1 · 3}{2 · 4})}^{2} n^{4} + {(\frac{1 · 3 · 5}{2 · 4 · 6})}^{2} n^{6} + \dots}

(57)

Namely,

ω = \frac{\sqrt{k_{a} - \frac{1}{2} k_{b} W_{0}^{2}}}{\frac{π}{2} {1 + {(\frac{1}{2})}^{2} n^{2} + {(\frac{1 · 3}{2 · 4})}^{2} n^{4} + {(\frac{1 · 3 · 5}{2 · 4 · 6})}^{2} n^{6} + \dots}}

(58)

n^{2} = \frac{\frac{1}{2} k_{a} w_{0}^{2}}{k_{a} - \frac{1}{2} k_{b} w_{0}^{2}} = \frac{[\frac{π^{2} h}{2 ρ} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{2 m v^{2}}{a^{2} h} (\cos (m π) - 1) (\cos (n π) - 1)] w_{0}^{2}}{[\frac{π^{2} h}{ρ} (\frac{m^{2}}{a^{2}} σ_{0 x} + \frac{n^{2}}{b^{2}} σ_{0 y}) - \frac{4 m v^{4}}{a^{2} h^{2}} (\cos (m π) - 1) (\cos (n π) - 1)] + [\frac{3 π^{4} E}{32 ρ h ω_{0}^{2}} (\frac{m^{4} b}{a^{3}} - \frac{n^{4} a}{b^{3}})] w_{0}^{2}}

(59)

Numerical calculation

Taking Shaanxi People B624 high-precision flexible electronic printing press as the research object, its parameters are shown in Table 1.

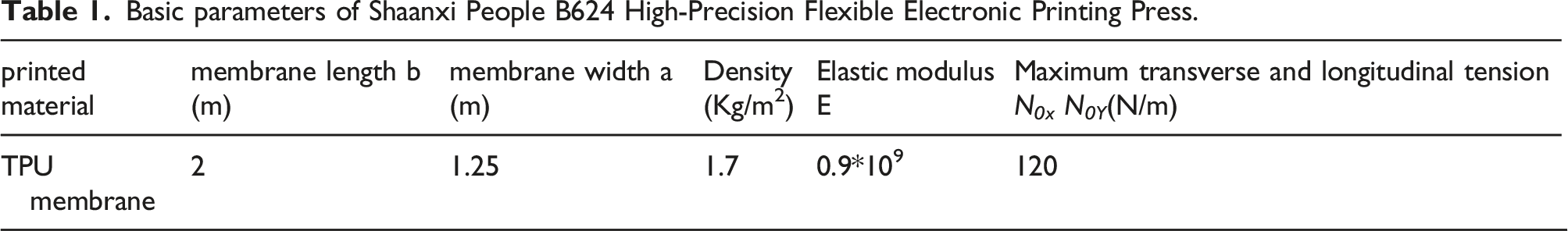

Table 1.

Basic parameters of Shaanxi People B624 High-Precision Flexible Electronic Printing Press.

printed material	membrane length b (m)	membrane width a (m)	Density (Kg/m²)	Elastic modulus E	Maximum transverse and longitudinal tension N_0x N_0Y(N/m)
TPU membrane	2	1.25	1.7	0.9*10⁹	120

Use the formula (43) obtained by L-P perturbation method, taking $t = 0.02 s$ , as well as $a = 1 m$ , $b = 1 m$ , $N_{0 x} = 50 N / m$ , and $N_{0 y} = 50 N / m$ to calculate the first three modes of flexible electronic membrane.

The first mode shape: $\bar{ω} (x, y, t) = (0.0891 c o s 325.18 t + 2.596 \times 10^{- 3} (c o s 975.54 t - c o s 325.18 t)) s i n π x s i n π y$ .

The second mode shape: $\bar{ω} (x, y, t) = (0.0297 c o s 673.98 t + 5.65 \times 10^{- 3} (c o s 2021.94 t - c o s 673.98 t)) s i n π x s i n 3 π y$ .

The third mode shape: $\bar{ω} (x, y, t) = (0.0297 c o s 746.77 t + 9.559 \times 10^{- 3} (c o s 2240.3 t - c o s 746.77 t)) s i n 3 π x s i n π y$ .

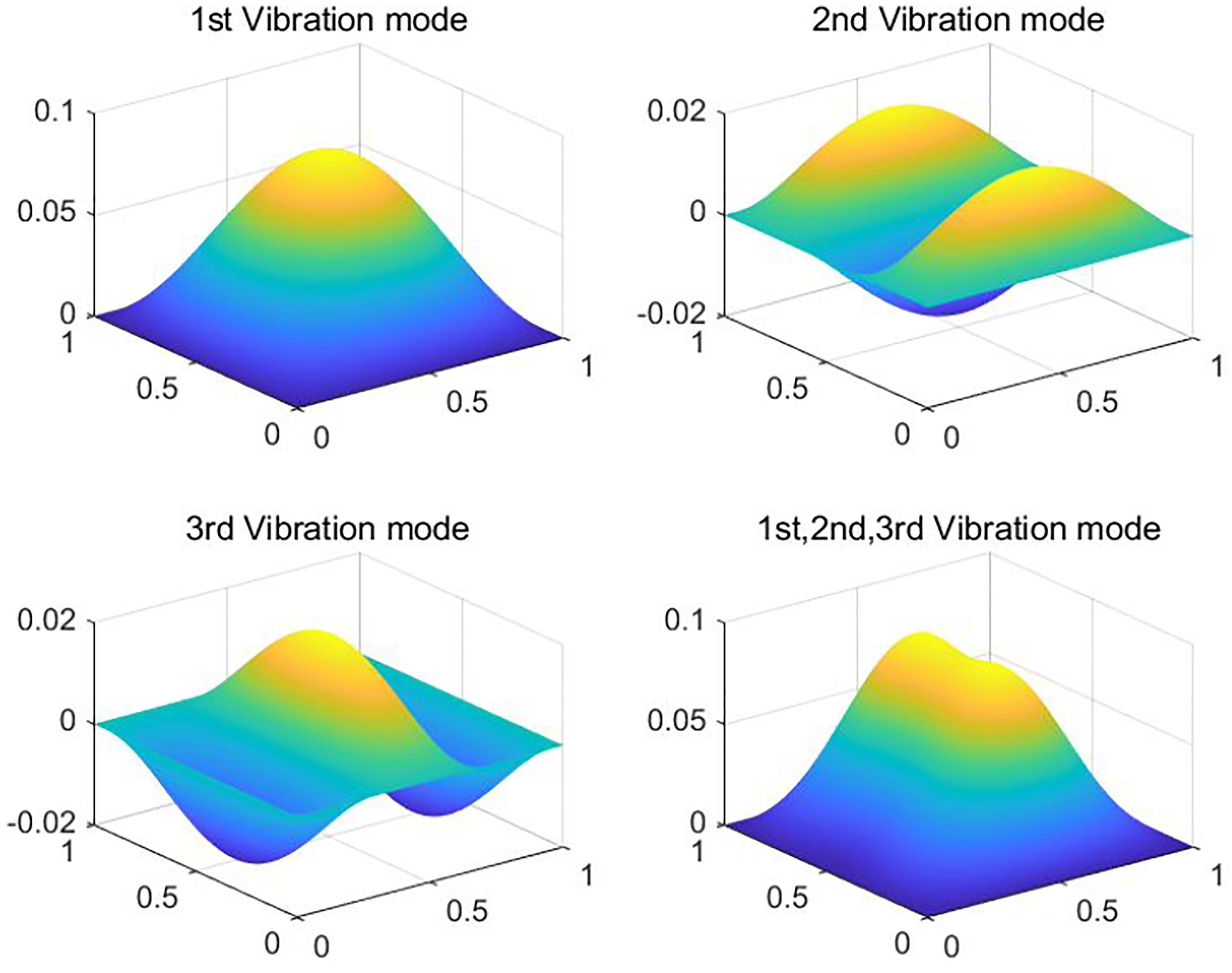

From Figure 3, we can see that with the increase of mode order, the amplitude of flexible electronic membrane gradually decreases, and the total modes present the saddle surface. The amplitude of the first mode decreases compared with the second mode. The results show that the L-P perturbation method is effective. From Figure 4, we calculate the first three order vibration frequencies of flexible electronic membrane by using the L-P perturbation method and the Elliptic Integral method, respectively. The vibration frequency of the membrane decreases with the decrease of mode. The horizontal ordinate is the initial amplitude and the longitudinal coordinates is the frequency. By comparison, it can be seen that with the change of initial displacement, when $W_{0}$ tends to 0, the first three order frequencies obtained by the two methods will converge to 38.37 Hz, 85.79 Hz, and 85.79 Hz. The values obtained by both methods converge. It is proved that the properties of equation (42) and equation (49) are the same.

Figure 3.

The first three modes of L-P perturbation method.

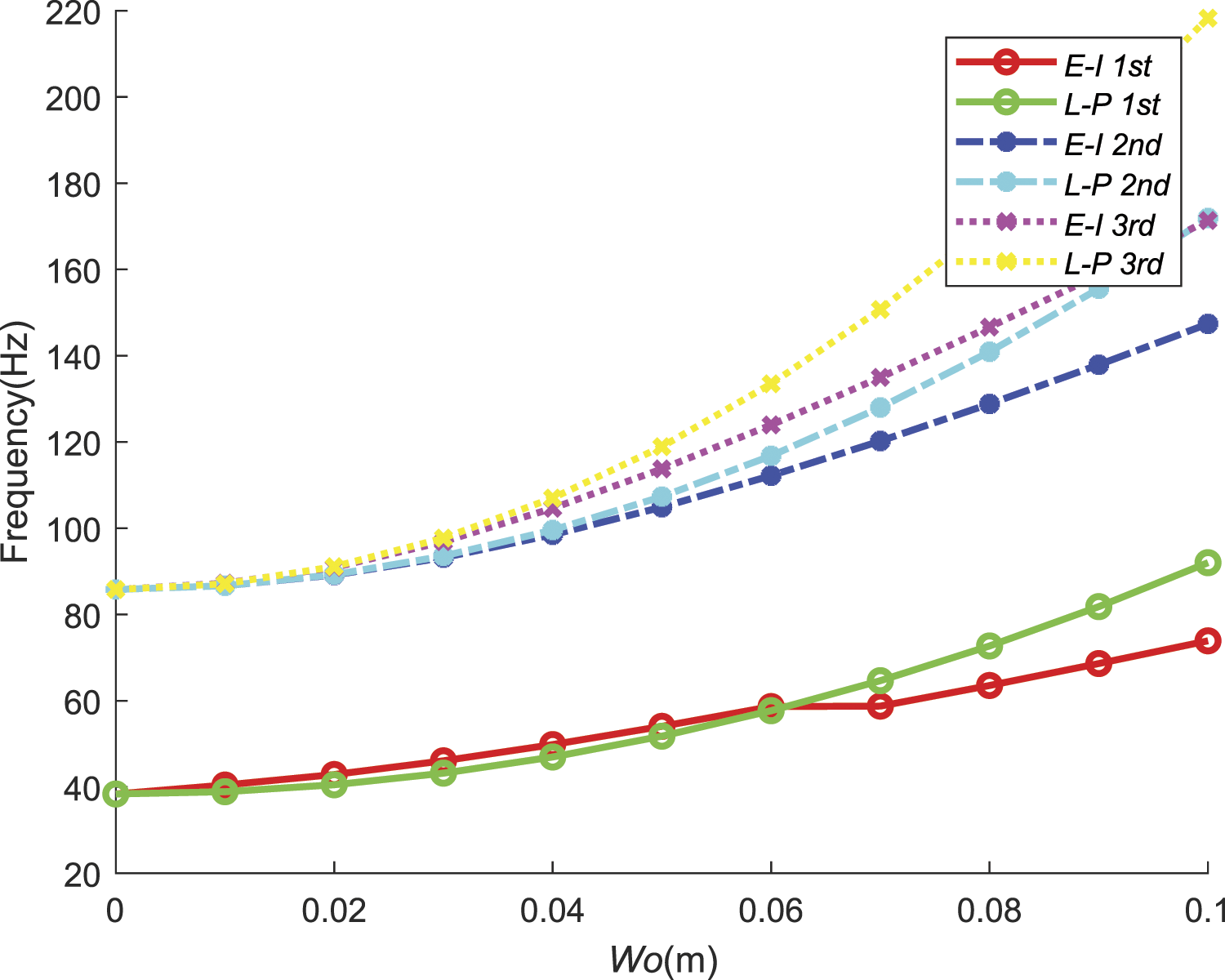

Figure 4.

Comparison of the first three frequencies obtained by L-P perturbation method and Elliptic Integral method.

Analysis of the calculation results

In the process of membrane production, the guide roller length $b$ and membrane density $ρ$ have a great influence on the nonlinear vibration of membrane, so these two quantities are taken to study the nonlinear vibration of membrane on the basis of equation (49). When setting $b a s 0.2 m, 0.4 m, 0.6 m$ , respectively, and other parameters $N_{0 x} = 120 N / m, N_{0 y} = 120 N / m, E = 0.9 \times 10^{9} {N / m}^{2}, W_{0} = 0 m$ , Figure 5 shows the relationship between density coefficient $ρ$ and complex frequency $ω$ . With the increase of membrane length $b$ , the real part of the complex frequency of the membrane becomes smaller, the imaginary part tends to 0, and the membrane remains in a stable working state. This shows that by increasing the membrane length $b$ , it will reduce the real part of the complex frequency of the system, so it is necessary to control the length $b$ .

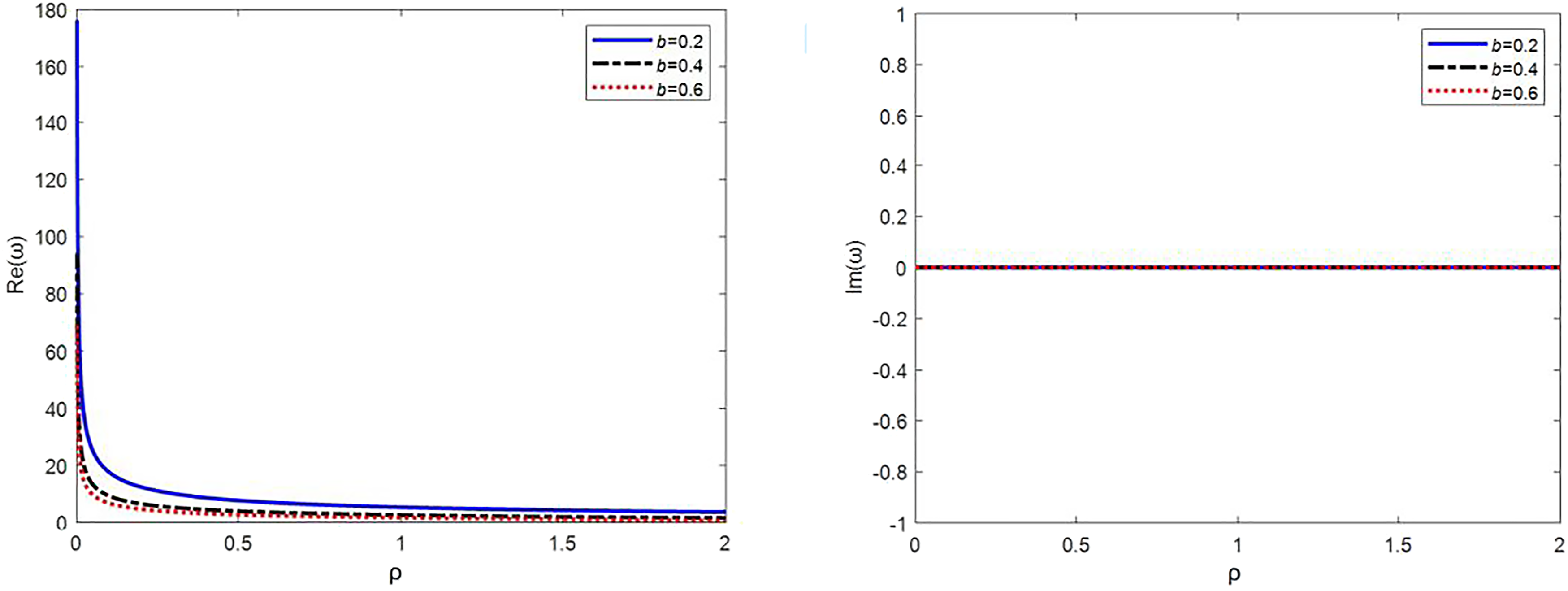

Figure 5.

Relation curve between complex frequency $ω$ and density $ρ$ with different membrane width $b (W_{0} = 0)$ .

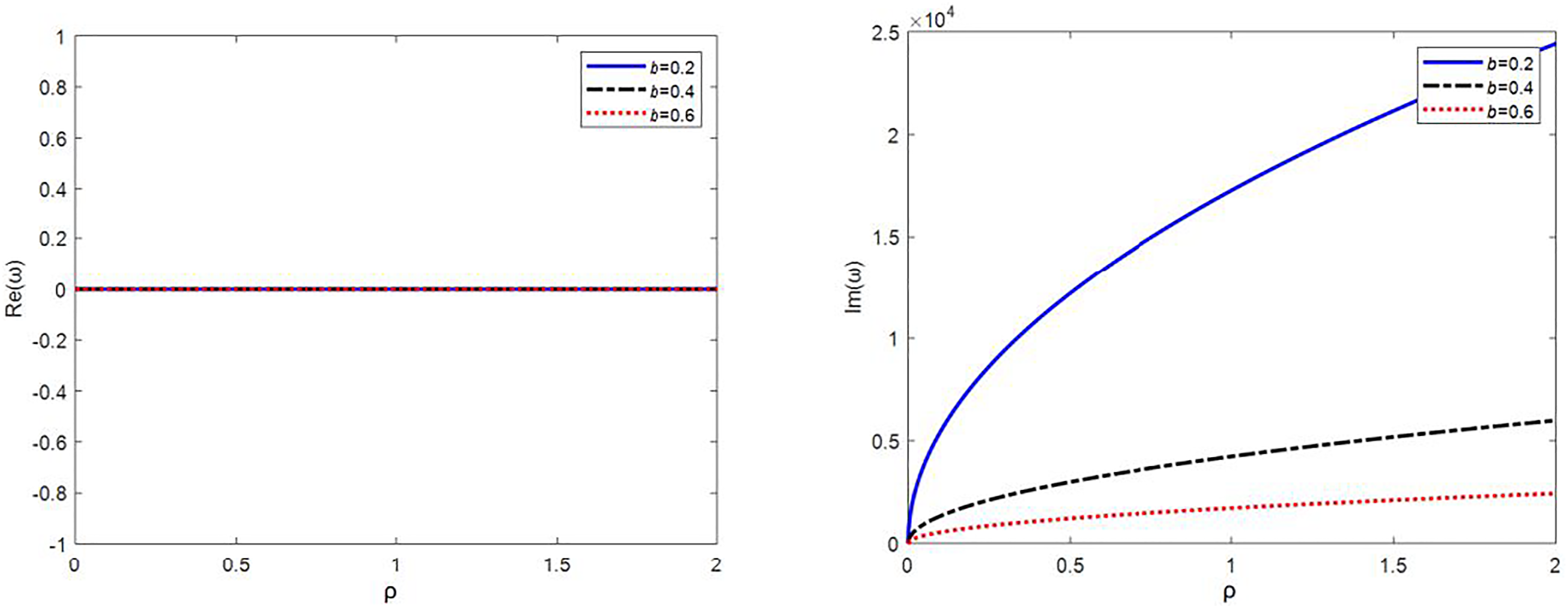

Figure 6 shows the relationship between the complex frequency and the density coefficient, subject to the condition that the initial amplitude $W_{0} = 0.1$ and other parameters remain unchanged. With the growing of the initial amplitude, the real part of the dimensionless complex frequency of the membrane tends to 0, the imaginary part diverges, and the membrane becomes unstable. This indicates, the increase of the initial amplitude will make the membrane into the unstable working state in advance, so the initial amplitude should be controlled.

Figure 6.

Relation curve between complex frequency $ω$ and density $ρ$ with different membrane width $b (W_{0} = 0.1)$ .

Taking a further step, we continue to study the influence of membrane density on system vibration. As with $ρ = 0.4 {kg / m}^{2}, 0.6 {kg / m}^{2}, 0.8 {kg / m}^{2}$ and other parameters as $N_{0 x} = 120 N / m, N_{0 y} = 120 N / m, a = 0.9 m, b = 1 m, E = 0.9 \times 10^{9} {N / m}^{2}, W_{0} = 0.3 m$ , the relation curve between complex frequency $ω$ and velocity $c$ is shown in Figure 7. When $ρ = 0.4 {kg / m}^{2}$ , $ρ = 0.6 {kg / m}^{2}$ , $ρ = 0.8 {kg / m}^{2}$ , the maximum velocity of moving membrane is accordingly $19.239 m / s$ , $15.53 m / s$ , and $13.687 m / s$ . With the increase of membrane density, the critical velocity of moving membrane decreases.

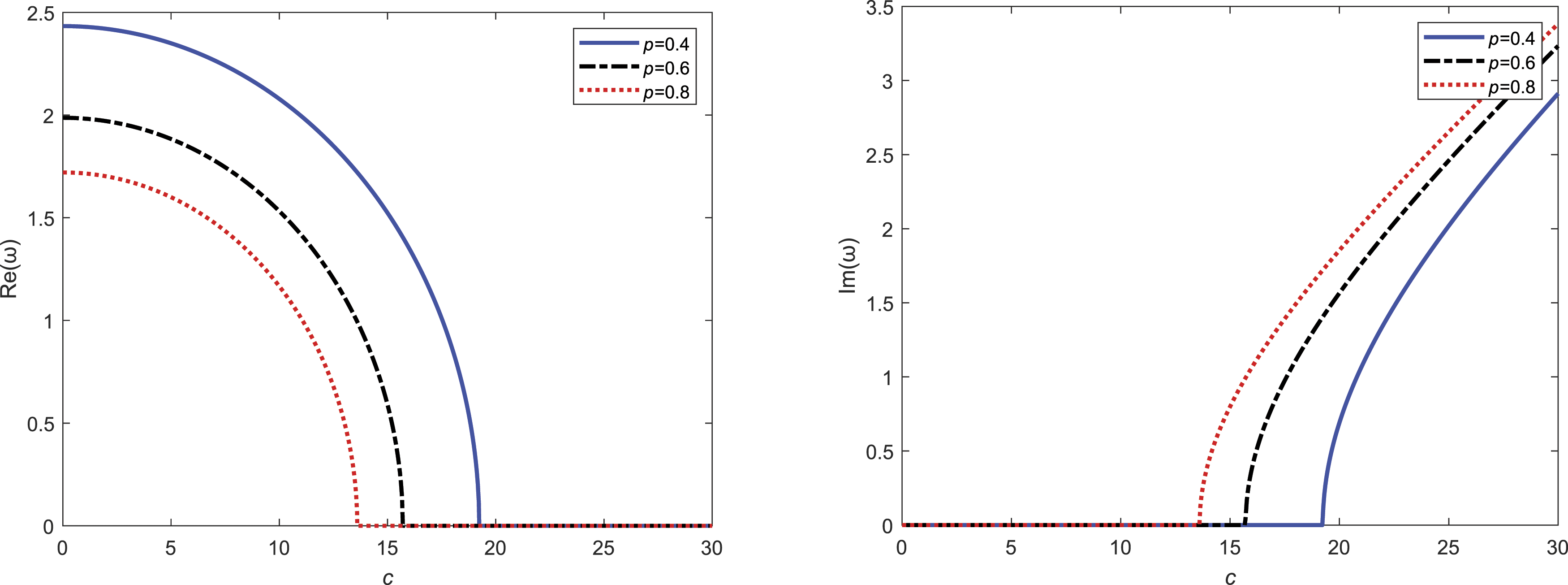

Figure 7.

Relation curve between complex frequency $ω$ and velocity $c$ with different membrane density $ρ (W_{0} = 0.3)$ .

Conclusion

Considering the additional tension, the nonlinear dynamic model of flexible electronic membrane is established. The following conclusions are obtained:

1. The initial amplitude of the membrane should be controlled in the motion process. as the increase of the initial amplitude will make the flexible electronic membrane unstable, and the imaginary part of the complex frequency will always increase, which makes the membrane system divergent and unstable.

2. The increase of length b—the distance between guide rollers—will reduce the film complex frequency and make the system enter into the unstable working state in advance. Therefore, it is necessary to control this distance in the design of high-precision printing press.

3. The increase of the density of flexible electronic membrane will lead to the decrease of the working speed of the coater machine. When $N_{0 x} = 120 N / m$ , $N_{0 y} = 120 N / m$ , $W_{0} = 0.3 m, a = 1 m, b = 1 m$ , $E = 0.9 \times 10^{9} {N / m}^{2}$ , and $ρ = {0.4 kg / m}^{2}$ , the coater machine can reach the maximum working speed of $19.239 m / s$ .

This paper mainly discuss the influence of length $b$ and membrane density on the vibration of flexible electronic membrane, and thus determine the maximum working speed of flexible electronic printing equipment, which provides a theoretical basis for the structural design of flexible electronic printing press.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The author gratefully acknowledges the support of the National Natural Science Foundation of China (No. 52075435) and the Natural Science Foundation of Shaanxi Province (No. 2021JQ-480,2020JM-457).

ORCID iDs

Yao Feng

Mingyue Shao

References

Park

Vosguerichian

Bao

. A review of fabrication and applications of carbon nanotube membrane-based flexible electronics. Nano Scale 2013; 5(5): 1727–1752.

Koo

Park

K-I

Lee

, et al. Bendable inorganic thin-film battery for fully flexible electronic systems. Nano Lett 2012; 12(9): 4810–4816.

Zardetto

Brown

Reale

, et al. Substrates for flexible electronics: a practical investigation on the electrical, film flexibility, optical, temperature, and solvent resistance properties. J Polym Sci B: Polym Phys 2011; 49(9): 638–648.

Heremans

Tripathi

de Jamblinne de Meux

, et al. Mechanical and electronic properties of thin-film transistors on plastic, and their integration in flexible electronic applications. Adv Mater 2016; 28(22): 4266–4282.

Liu

Zhou

Cheng

, et al. Highly flexible electronics from scalable vertical thin membrane transistors. Nano Lett 2014; 14(3): 1413–1418.

Chen

L-Q

. Analysis and control of transverse vibrations of axially moving strings. Appl Mech Rev 2005; 58(2): 91–116.

Chen

L-Q

Yang

X-D

. Steady-state response of axially moving viscoelastic beams with pulsating speed: comparison of two nonlinear models. Int J Sol Structures 2005; 42(1): 37–50.

Chen

L-Q

Zhang

N-H

. The regular and chaotic vibrations of an axially moving viscoelastic string based on fourth order Galerkin truncaton. J Sound Vibration 2003; 261(4): 764–773.

Nosier

Fallah

. Non-linear analysis of functionally graded circular plates under asymmetric transverse loading. Int J Non-Linear Mech 2009; 44(8): 928–942.

10.

Huang

Zhu

. A new incremental harmonic balance method with two time scales for quasi-periodic motions of an axially moving beam with internal resonance under single-tone external excitation. J Vibration Acoust 2017; 139(2): 1–15.

11.

Tornabene

Viscoti

Dimitri

, et al. Higher order theories for the vibration study of doubly-curved anisotropic shells with a variable thickness and isogeometric mapped geometry. Compos Structures 2021; 267: 113829.

12.

Ghayesh

Amabili

Païdoussis

. Nonlinear dynamics of axially moving plates. J Sound Vibration 2013; 332(2): 391–406.

13.

Lang

, et al. Dynamics of an axially moving unidirectional plate partially immersed in fluid under two frequency parametric excitation. Int J Non-Linear Mech 2018; 99: 31–39.

14.

Soares

Gonçalves

. Nonlinear vibrations and instabilities of a stretched hyperelastic annular membrane. Int J Sol Struct 2012; 49(3): 514–526.

15.

Yan

Guedes Soares

. Free vibration of advanced composite plates using a new higher order shear deformation theory. Eur J Mech - A/Solids 2021; 88: 104236.

16.

L-L

Yang

Kitipornchai

. Nonlinear free vibration of functionally graded carbon nanotube-reinforced composite beams. Compos Struct 2010; 92(3): 676–683.

17.

Chuang

Kitipornchai

Jie

, et al. Nonlinear free vibration of functionally graded polymer composite beams reinforced with graphene nanoplatelets (GPLs). Eng Struct 2017; 140: 110–119.

18.

Wang

Zhu

. Nonlinear transverse vibration of a hyperelastic beam under harmonic axial loading in the subcritical buckling regime. Appl Math Model 2021; 94: 597–618.

19.

J-H

Moatimid

GM.

Mostapha

. Nonlinear instability of two streaming-superposed magnetic Reiner-Rivlin Fluids by He-Laplace method. J Electroanalytical Chem 2021; 895: 115388.

20.

J-H

Mostapha

. Insight into the significance of hall current and joule heating on the dynamics of Darcy-Forchheimer peristaltic flow of Rabinowitsch fluid. J Math 2021: 2021: 1.

21.

J-H

Yang

HeHe

C-H

, et al. A simple frequency formulation for the tangent oscillator. Axioms 2021; 10(4): 320.

Study on nonlinear vibration of flexible electronic membrane engendered by high-precision imprinting system

Abstract

Keywords

Introduction

Establishment of dynamic model

L-P Perturbation Method

He’s Frequency Formula

Elliptic integral method

Numerical calculation

Analysis of the calculation results

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
