Abstract
Background
Pulmonary endarterectomy (PEA) is the preferred treatment for CTEPH patients which can significantly improve symptoms and pulmonary hemodynamics. Therefore, this retrospective study evaluated the long-term outcomes after pulmonary endarterectomy (PEA) and analyze the predictors of long-term outcomes for chronic thromboembolic pulmonary hypertension (CTEPH).
Methods
From 2002–2020, 76 CTEPH patients successfully discharged after PEA in Beijing Chaoyang Hospital were followed-up by scheduled clinical visits or telephone interviews. The follow-up time lasted for 18 years and median time was 7.29 years.
Results
The survival rate at 1,3,5,10,15 years postoperatively was 100.00%, 97.10%, 95.40%, 89.80% and 82.90%, respectively. Multivariate logistics regression analysis showed that postoperative mPAP (hazard ratio: 1.144; 95%confidence interval: 1.018–1.285; P = 0.023) was associated with a higher risk of late death, right atrium right and left diameters (hazard ratio: 1.113; 95%confidence interval, 1.006–1.231; P = 0.038) were associated with a higher risk of major adverse events.
Conclusion
Pulmonary endarterectomy is an effective way to treat CTEPH. Long-term outcome is excellent for patients who undergoing pulmonary endarterectomy who survived from peri-operation time. Postoperative mPAP is a significant prognostic factor for long-term death and right atrium right and left diameters is a significant prognostic factor for major adverse events. That shows patients with high postoperative mPAP and right atrium right and left diameter should be followed up closely.
Keywords
Introduction
Chronic thromboembolic pulmonary hypertension (CTEPH) is classified into group 4 PH, which is a rare consequence of an acute pulmonary embolism.1,2 The main pathophysiology of CTEPH is pulmonary arterial obstruction by organized thrombotic material stemming from incompletely resolved acute pulmonary embolism.3‐5 It was diagnosed as pulmonary hypertension with at least one segmental perfusion defect after at least 3 months of anticoagulation therapy. 6 If untreated, patients with a mean pulmonary artery pressure (mPAP) higher than 40 mm Hg were reported to have a 5-year survival rate of less than 30%, and if it exceeds 50 mm Hg, the 5-year survival lowered to about 10%.7,8
Pulmonary endarterectomy (PEA) is the preferred treatment for CTEPH patients which can significantly improve symptoms and pulmonary hemodynamics.9‐11 It has been used for over 30 years since the first PEA, 12 the surgical technology and procedures are being continuously improved over time so that surgical morbidity and mortality continues to decrease. 13 The first PEA operation was done in 2002 in our center and has thus been performed for nearly 20 years until now. In this retrospective study, we reviewed our experience regarding effect, risk factors, long-term outcome of these CTEPH patients who underwent PEA.
In this study, we analyzed factors including basic clinical characteristics (sex, age, body mass index(BMI), smoking), symptoms (hemoptysis, dyspnea, venous thrombus embolism(VTE), WHO functional class), hemodynamics (PAP, pulmonary vascular resistance, cardiac index(CI)), echocardiography (right ventricular basal internal diameter, right atrium right and left diameter, left ventricular end-diastolic internal diameter) and so on.
Methods
Study Population
A retrospective review of our database identified consecutive 76 patients who underwent pulmonary artery endarterectomy for CTEPH and successfully discharged at Beijing Chao-yang hospital between December 2002 and December 2021.
The inclusion criteria for this operation included the following: (1) pulmonary hypertension with evidence of thromboembolic disease on pulmonary angiography, (2) absence of significant noncardiac comorbid disease. Patients with other diseases (pulmonary sarcoma and other non-CTEPH patients) causing the same clinical and radiological appearance as CTEPH, missing cases during follow up and perioperative death were excluded from the analysis. Due to the retrospective nature of the study, informed consent was waived for data-analysis and publication under anonymized form (Figure 1).
Study flow chart.
Basic Clinical Characteristics and Hemodynamics
The diagnosis of CTEPH was performed using Swan-Ganz catheterization, computed tomography and pulmonary angiography in all cases. Evaluation of heart function using echocardiography and perfusion/ventilation scintigraphy was additionally applied to evaluate perfusion/ventilation mismatch. All patients had significant clinical symptoms, including palpitations, shortness of breath, and intolerance after exercise. Symptoms related to CTEPH were evaluated using WHO functional class and 6MWD preoperatively.
Surgical Procedure/ Surgery
The PEA procedure has been described previously. 14 All PEA surgeries were conducted with a median sternotomy and deep hypothermia circulatory arrest (DHCA) with cardiopulmonary bypass (CPB). DHCA is limited to 20-min intervals, and usually one period is enough for the dissection to be completed on each side. The procedure is bilateral, and on completion of the right PEA, bypass is resumed and the patient reperfused while the arteriotomy is closed so that the procedure can be repeated on the left side, with circulatory arrest being initiated as necessary. 15 Surgical related date is collected during surgery.
Follow-up and Study Endpoint
Follow-up data were obtained from hospital records and by means of direct telephone interviews with the patients or their families. Follow-up ended when the patient death or until December 2021. The primary follow-up endpoint of this study was all-cause mortality and the secondary endpoint was major adverse events (MAEs), defined as hospitalization resulting from balloon pulmonary angioplasty or giving pulmonary hypertension target medicine due to acute exacerbation.
Statistical Analysis
Continuous variables with a normal distribution are expressed as the mean ± standard deviation (SD) and compared by Student's t-test, continuous variables with a non-normal distribution were presented as the median and interquartile (IQR) and compared by nonparametric test. Categorical variables are expressed as number with percent and compared by nonparametric test. Estimation of cumulative survival was performed by using the Kaplan–Meier method and compared with the log-rank test. To address factors that are associated with long-term mortality, the missing values impute by multiple imputation. Multivariate logistic regression analysis and Cox proportional hazards analysis were separately performed, respectively. Cox proportional hazards analysis was performed at the time point of 1, 3, 5, 15 years after surgery, and at the end of the follow-up period (overall). The optimal postoperative mPAP cutoff value for adverse events were determined with the aid of a receiver operating characteristic curve. P < 0.05 are considered statistically significant. All statistical analyses were performed with GraphPad Prism Version 8 (GraphPad Software, La Jolla, CA) and SPSS 26.0 software (IBM, Armonk, NY).
Results
Clinical Characteristics of Enrolled Patients
Baseline characteristics, preoperative hemodynamic and echocardiographic date are shown in Table 1. The average age of the patients was 45.00 ± 11.52 years, and 76.32% were male. Before surgery, 16 patients require pulmonary arterial hypertension-targeted treatments. The time from first symptoms to PEA was 36.00(21.00–60.00) months. All patients suffered from clinical symptoms preoperatively, there are 37(44.68%) patients classified to WHO class III or IV and 42(55.26%) patients had VTE history.
Variables of Study Patients.
Categorical data are presented as n (%) and continuous data as mean ± standard deviation or median and interquartile.
BMI: body mass index; PEA: pulmonary endarterectomy; VTE: venous thromboembolism; 6MWD: 6 min walking distance; NT-proBNP: N-terminal pro-B-type natriuretic peptide; CI: cardiac index; sPAP: systolic pulmonary artery pressure; dPAP: diastolic pulmonary artery pressure; mPAP: mean pulmonary artery pressure; PVR: pulmonary vascular resistance.
Hemodynamics at diagnosis showed that mPAP was 52.63 ± 10.63 mm Hg and PVR was 908.50(741.00–1180.75) dyn.s.cm–5, CI was 1.99(1.65–2.55) L·min–1·m−1.
Echocardiography findings showed that the main pulmonary artery Internal diameter was 32.04 ± 4.13 mm, right ventricular basal internal diameter was 49.00(42.00–55.00) mm (Table 1).
Long-Term Survival
As shown in Figures 2, 3, the mPAP and PVR were significantly decreased after the surgery. And follow-up ended with interval of 7.29(4.00–8.97) years. The longest follow-up period was 18 years and the shortest was 1 year. The survival rate after PEA at 1,3,5,10,15 years was 100%, 97.10%, 95.40%, 89.80% and 82.90%, respectively (Figure 4). After the surgery, all patients received oral anticoagulant therapy. Four patients require pulmonary arterial hypertension-targeted treatments, 9 patients received balloon dilatation of pulmonary artery (BPA).

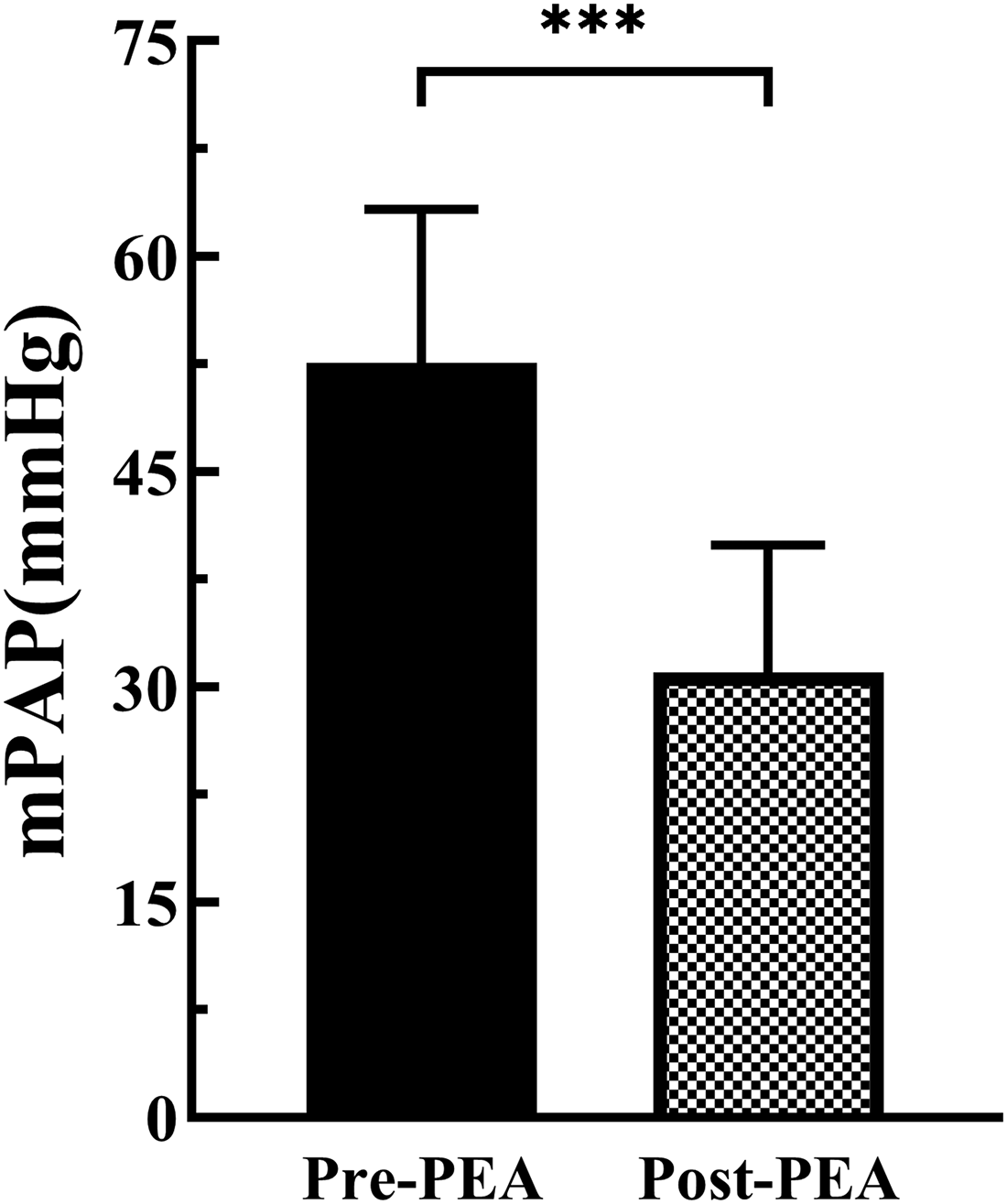

Change of mPAP and PVR.
Change of mPAP and PVR.
Kaplan–Meier survival curves in patients with operated chronic thromboembolic pulmonary hypertension (CTEPH).
Age (35.86 ± 10.43 VS 45.93 ± 11.28; P = 0.027) was much younger in those patients died compared with the patients survived. Preoperative CI (1.51 ± 0.07 VS 2.07(1.69–2.57), P = 0.044) was much lower in those patients died compared with the patients survived. Preoperative right ventricular basal internal diameter (44.00 ± 18.28 VS 48.91 ± 7.68, P = 0.013) was much lower in those patients died compared with the patients survived. Postoperative dPAP (25.71 ± 8.18 VS 20.13 ± 5.93, P = 0.026) and mPAP (39.48 ± 10.44 VS 29.67(24.33–36.33); P = 0.019) was much higher in those patients died compared with the patients survived (Table 1).
Major Adverse Events
The incidence of MAEs is 13.16% (10/76). Age (52.20 ± 10.20 VS 43.91 ± 11.38; P = 0.033) was higher in those patients occurred MAEs compared with the patients no MAEs occurred. Right atrium right and left diameters (54.90 ± 9.66 VS 49.99 ± 9.50; P = 0.134) has no significant difference in those patients. And postoperative mPAP (38.00 ± 12.69 VS 30.07 ± 7.98; P = 0.016) was much higher in those patients with MAEs (Table 1).
Multivariate Logistic Regression
Multivariate logistic regression analysis showed that age, perioperative mPAP and postoperative mPAP were predictors in late death. After adjusted for sex, age (HR:0.898, 95%CI:0.809–0.997, P = 0.045) and postoperative mPAP (HR:1.144, 95%CI:1.018–1.285, P = 0.023) were independent predictors in late death (Table 2). Postoperative mPAP (HR:1.145, 95%CI:1.041–1.259, P = 0.005) was an independent predictor in primary endpoint event. After adjusted for sex, right atrium right and left diameters (HR:1.133, 95%CI:1.006–1.231, P = 0.038) was an independent predictor in MAEs.

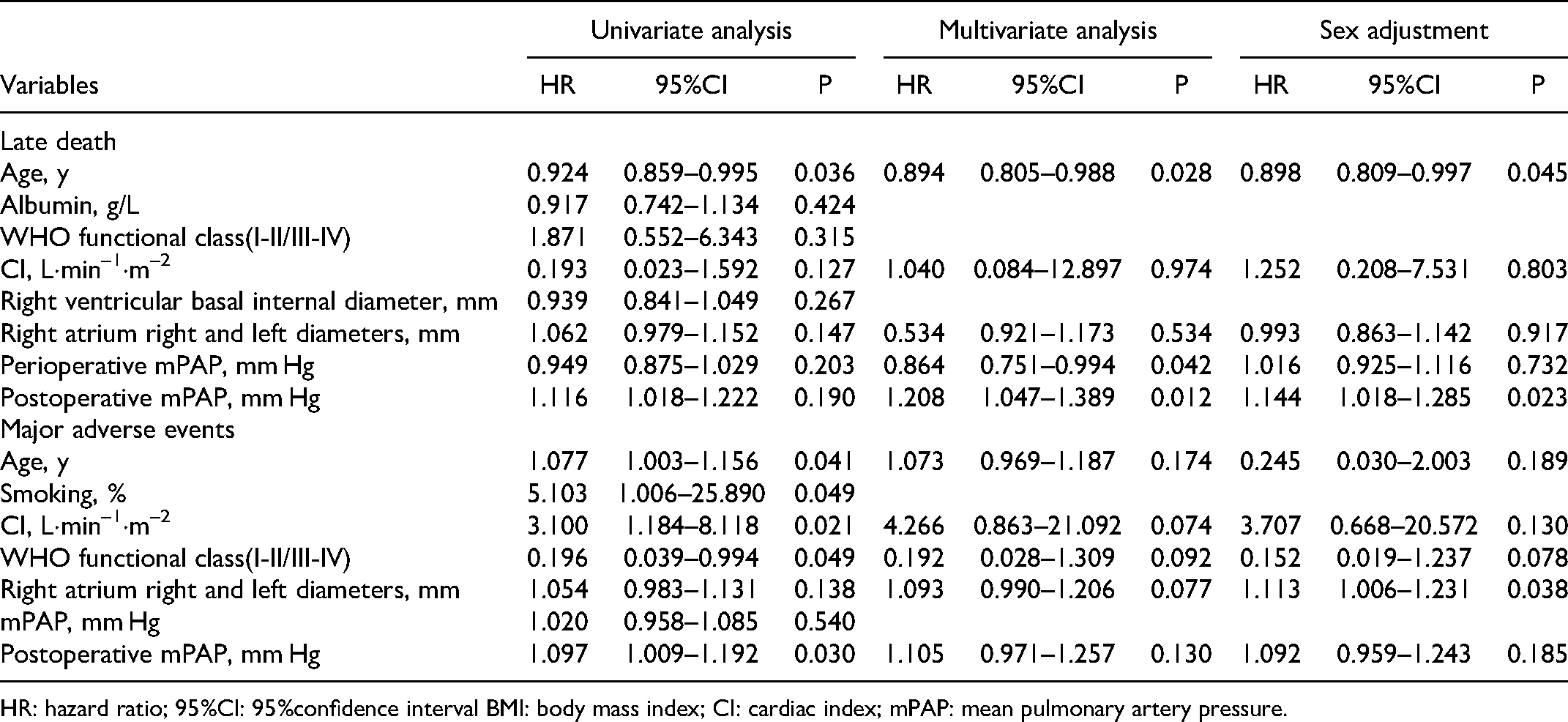

Predictors for Late Death and Endpoint Event After Pulmonary Endarterectomy.
HR: hazard ratio; 95%CI: 95%confidence interval BMI: body mass index; CI: cardiac index; mPAP: mean pulmonary artery pressure.
The cut-off value was determined with ROC curve and Youden index. ROC curve analysis indicated that postoperative mPAP 40.50mm Hg was a cut off value of death (P = 0.019; the area under the ROC curve was 0.771) (Figure 5).

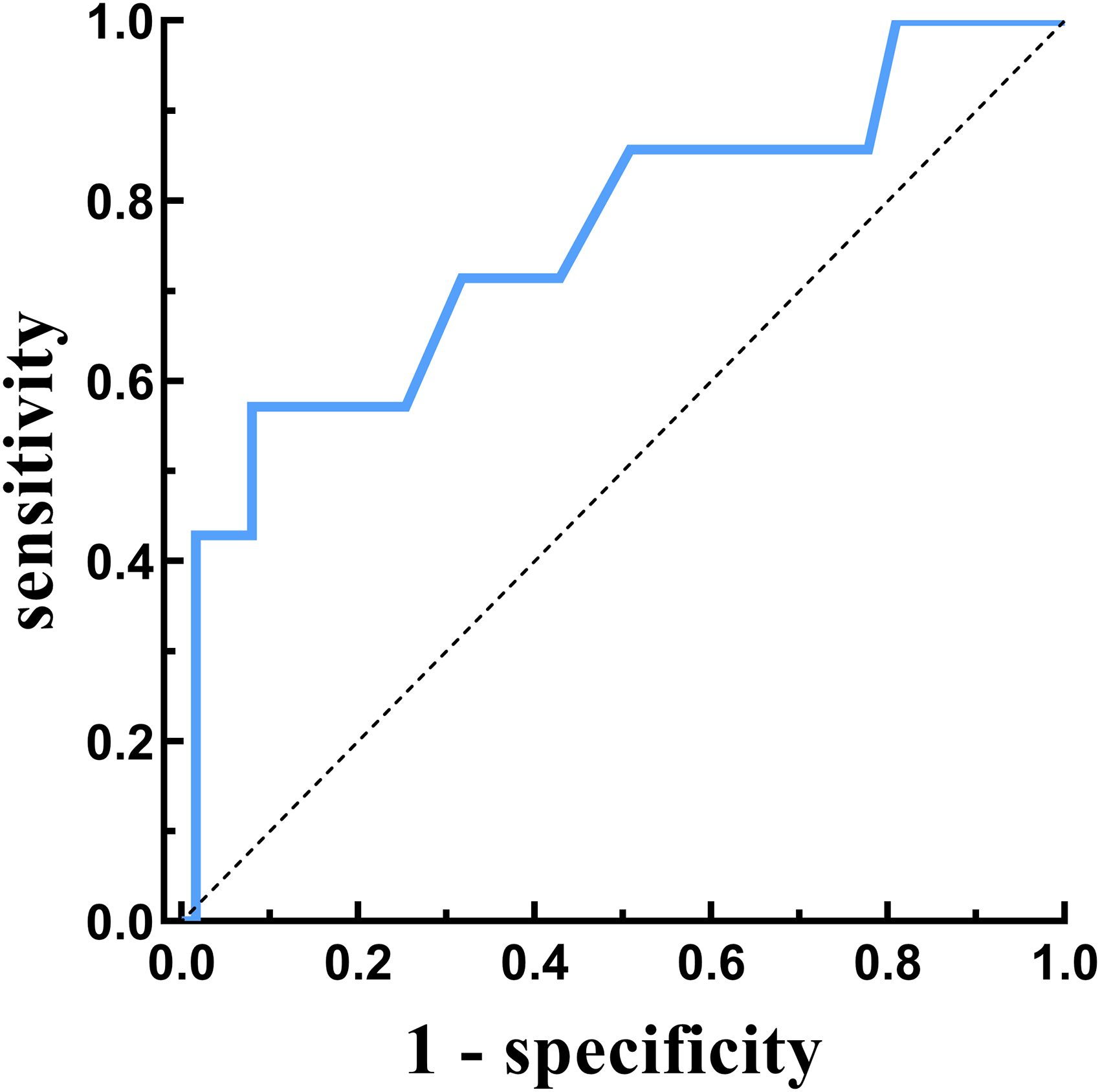

The receiver operating characteristic curve to predict all-cause mortality after surgery.
Discussion
This is the first study evaluating nearly 20 years outcomes of CTEPH patients after PEA in China. The results of this retrospective analysis demonstrate the prognostic impact of long-term outcomes, which can provide a reference for PEA treatment.
PEA is the preferred treatment of choice for operable patients with CTEPH with excellent long-term outcome.9,16,17 During a recent study in France, PVR, CO and TLCO can predict postoperative outcomes. 18 In our study, age, perioperative mPAP, postoperative mPAP were significant predictors for death. However, after sex and age adjustment, only postoperative is an independent predictor for death. This suggests that not only postoperative status can affect the outcome.
It was observed that postoperative mPAP can affect late death. There has been an imaging data of pulmonary vascular study indicating that 20% of the pulmonary vasculature abnormal with new vascular lesions involved even with regular anticoagulation therapy.19,20 This demonstrates that residual PH remains an important factor in the survival. In our center, the incidence of residual pulmonary hypertension was 22.4%. In this study, we calculate mPAP = 40.5mm Hg is the cutoff value for postoperative death. In ERS statement on CTEPH, mPAP≥38mm Hg can affect the patient long-term outcome, mPAP>30mm Hg as a suggest threshold to initiate drug therapy. 9
The incidence of VTE varied in different studies, especially in CTEPH cohort. The incidence of DVT in a UK registry study was 59.3% to 60.4% in PEA patients. The incidence of PE/DVT is 63.8/48.3, 69.8/36.7, 39.1/43.5% respectively in America, Europe and Japan in the worldwide prospective CTEPH Registry. 21 The incidence of VTE was 55.26% in our study, within the scope of reported literatures.
A small number of studies have considered that elderly patients should be offered PEA in expert center.22,23 In a recent study, the patients were split into three groups according to their age: group1: ≤50 years, group2: >50≤70 years, group3:>70 years, they find that survival of the group1 patients were better than group2 patients and group2 patients were better than group3 patients with 5 years follow up. 24 In our center, the age is an independent risk factor of long-term outcome, and all-cause mortality patients were younger, this may be relevant to older patients received BPA and drug treatment. In our center, one patient was very young at the time of the operation, and dead after about 10 years, because this patient has patent foramen ovale and drugs abuse history. This may influence the results on age.
This study is a retrospective observational design. There are several limitations: 1) Sample sized is limited. 2) The follow-up time varies too much between different patients. 3) For the limitation of target medicine, only 16 patients received pulmonary arterial hypertension-targeted treatments before PEA and 4 patients received pulmonary arterial hypertension-targeted treatments after PEA 4) Previous studies suggest that sex-related survival difference in CTEPH patients who underwent PEA, there are more males than females in PEA patients in our center, this may affect the all-cause mortality rate.
Conclusion
In conclusion, our study shows that PEA can improve hemodynamic effectively and the patients have excellent long-term prognosis. And residual pulmonary hypertension can affect the survival of patients.
