UBC ® Rapid Test for detection of carcinoma in situ for bladder cancer

Abstract

UBC^® Rapid Test is a test that detects fragments of cytokeratins 8 and 18 in urine. We present results of a multicentre study measuring UBC^® Rapid Test in bladder cancer patients and healthy controls with focus on carcinoma in situ (CIS) and high-grade bladder cancer. From our study with N = 452 patients, we made a stratified sub-analysis for carcinoma in situ of the urinary bladder. Clinical urine samples were used from 87 patients with tumours of the urinary bladder (23 carcinoma in situ, 23 non-muscle-invasive low-grade tumours, 21 non-muscle-invasive high-grade tumours and 20 muscle-invasive high-grade tumours) and from 22 healthy controls. The cut-off value was defined at 10.0 µg/L. Urine samples were analysed by the UBC^® Rapid Test point-of-care system (concile Omega 100 POC reader). Pathological levels of UBC Rapid Test in urine are higher in patients with bladder cancer in comparison to the control group (p < 0.001). Sensitivity was calculated at 86.9% for carcinoma in situ, 30.4% for non-muscle-invasive low-grade bladder cancer, 71.4% for nonmuscle-invasive high grade bladder cancer and 60% for muscle-invasive high-grade bladder cancer, and specificity was 90.9%. The area under the curve of the quantitative UBC^® Rapid Test using the optimal threshold obtained by receiveroperated curve analysis was 0.75. Pathological values of UBC^® Rapid Test in urine are higher in patients with high-grade bladder cancer in comparison to low-grade tumours and the healthy control group. UBC^® Rapid Test has potential to be more sensitive and specific urinary protein biomarker for accurate detection of high-grade patients and could be added especially in the diagnostics for carcinoma in situ and non-muscle-invasive high-grade tumours of urinary bladder cancer.

Keywords

bladder cancer carcinoma in situ urinary tumor marker

Introduction

Urinary bladder cancer has a high rate of recurrence; a substantial number of non-invasive tumours will progress to muscle-invasive disease. Especially, carcinoma in situ (CIS) is a very aggressive form of urinary bladder cancer, almost high grade and thought to be the most common precursor of invasive tumours.¹ CIS was first reported by Melicow.² Despite the non-invasive character of CIS, it was suspected to possess aggressive tumour biology, and tendencies towards early progression were described.³ CIS is rare, and it is found in approximately 3% of the cases.⁴

In addition, CIS is difficult to detect. Even cystoscopy being the gold standard for bladder cancer detection, it is not easy to find,⁵ and classic white-light cystoscopy (WLC) can miss up to 50% of cases.⁶ Urothelial CIS is a flat lesion characterized by the presence of unequivocal cytologically malignant cells.¹ Extensive denudation of the urothelium, monomorphic appearance of the neoplastic cells, inflammatory atypia, radiation-induced nuclear smudging, multinucleation and pagetoid spread of CIS may cause diagnostic difficulties. Together with clinical and morphologic correlation, immunostaining with CK20, p53 (full thickness) and CD44 (absence of staining) may help accurately diagnose CIS.⁷ Urothelial CIS with glandular differentiation or pagetoid changes is a variant of CIS that follows the natural history of conventional urothelial CIS.^8–10

Traditionally, the detection of CIS was performed with a combination of urine cytology, cystoscopy and multiple bladder biopsies.¹¹ Urine cytology has a calculated sensitivity for any form of CIS of approximately 60%.¹² Within the limitations of random sampling and pathologic assessment, multiple bladder biopsies have a sensitivity of approximately 77%.¹³

Urine soluble markers should be able to ensure primary diagnosis, follow-up control and screening of high-risk populations. These urinary-based assays may detect the presence of bladder cancer, because the disease is in contact with urine constantly, malignant cells are shed into the urine, and it is likely that urine contains the carcinogens producing the malignancy. Nowadays, there are other urine-based possibilities for bladder cancer detection. Some of these methods have a higher specificity and sensitivity than classical urine cytology and can be important for screening.¹⁴

As intermediate filaments of the cytoskeleton, cytokeratins are to enable cells to withstand mechanical stress. In humans, 20 different cytokeratins have been identified, and cytokeratins 8, 18, 19 and 20 are known as important in bladder cancer.¹⁵ Immunohistochemical features of urothelial dysplasia include aberrant cytokeratin 20 expression at different levels of the urothelium, but also, there is usually overexpression of p53 and high Ki-67 index.¹⁶ Cytokeratin 20 can be measured in higher levels in tumours. The expressions of cytokeratins such as cytokeratins 8, 18 and 19 are higher in urothelial cells and may be elevated because of a higher cell turnover rate.^17,18

UBC^® Rapid Test can measure fragments of cytokeratins 8 and 18 qualitatively. The measured levels are lower in low-grade tumours and benign urological diseases.^19,20 Cytokeratins 8 and 18 are soluble in urine and can be detected quantitatively with monoclonal antibodies using sandwich enzyme-linked immunosorbent assay (ELISA). The aim of this multicentre study was to evaluate the usefulness of UBC Rapid Test in patients with CIS of urinary bladder cancer comparing with healthy individuals.

Materials and methods

Patients

For this prospective study, 452 urine samples from bladder cancer patients and healthy controls have been collected between January 2014 and October 2015 at the Department of Urology, HELIOS Hospital Bad Saarow (study centre I) and Lukas Hospital Neuss (study centre II), Germany. The study was approved by the local Institutional Review Board of National Medical Association Brandenburg. All patients with confirmed bladder cancer underwent cystoscopy, bladder ultrasound and transurethral resection of bladder tumour in case of abnormal findings. Exclusion criteria were any kind of mechanical manipulation (cystoscopy, transrectal ultrasound and catheterization) within 10 days before urine sampling. Other exclusion criteria were benign prostate enlargement, urolithiasis, other tumour diseases, severe infections and pregnancy. All these criteria could influence the test to false-positive results. This is the highest number of samples measured for UBC Rapid Test; therefore, it was possible to make a subgroup analysis with focus on CIS.

From this primary cohort of 452 urine samples, we made a stratified sub-analysis for CIS of urinary bladder cancer. Therefore, clinical urine samples were used from 87 patients with urinary bladder cancer (23 CIS, 23 non-muscle-invasive low-grade (NMI-LG) tumours, 21 non-muscle-invasive high-grade (NMI-HG) tumours and 20 muscle-invasive high-grade (MI-HG) tumours) and from 22 healthy controls. All patients were paired matched in age and gender.

Procedure

Midstream urine was collected in a sterile plastic container and processed subsequently. Urine samples were analysed by the UBC Rapid Test (concile GmbH, Freiburg/Breisgau, Germany). All tests were carried out as advised by the manufacturer’s instructions. The presence of a test band after 10 min of incubation was checked. After visual evaluation, the test cartridges were analysed by the photometric point-of-care (POC) system concile Omega 100 reader (concile GmbH, Freiburg/Breisgau, Germany) for quantitative analysis. The cut-off value was defined at 10 µg/L. The Omega 100 reader illuminates the test field with a complementary coloured light to reduce interference in the analysis. The built-in charge-coupled device–matrix sensor takes a photograph of the light reflected, which is analysed by the device.

Statistical analysis

The predictive ability of UBC Rapid Test to detect urinary bladder cancer was analysed by means of receiver operating characteristic (ROC) analysis. The optimal cut-point is defined at the point that maximizes the Youden index. The sensitivity, specificity, and negative predictive value (NPV) and positive predictive value (PPV) are presented at the optimal cut-off for each analysis.

All statistical analyses were performed using R version 3.2.3.²¹

Results

In the stratified sub-analysis for this project, a total of 109 patients were included in the study, 87 with confirmed bladder cancer and 22 healthy controls with no history of bladder cancer. The median age of the study population was 72 (range = 52–89) years. Of these patients, 78 (71.6%) were men and 31 (28.4%) were women.

We could show that pathological concentrations of UBC Rapid Test are detectable in urine of bladder cancer patients. The characteristics for age and sex as well as the results of UBC Rapid Test for bladder cancer patients and healthy controls are listed in Table 1. Both study centres enrolled a similar number of patients in the study.

Table 1.

Patient characteristics and results of UBC^® Rapid Test.

	CIS	NMI-LG	NMI-HG	MI-HG	Control	Control-reference	p value
n	23	23	21	20	22	146
Age (years)							0.501
Mean (SD)	72.22 (6.85)	71.48 (6.89)	73.05 (8.40)	71.55 (8.95)	71.86 (7.11)	67.41 (12.76)
Median	74	72	74	74.5	73	69
Range	57–81	57–84	57–89	52–83	57–84	31–86
Sex							0.608
Female (%)	7 (30.43)	7 (30.43)	5 (23.81)	5 (25.00)	7 (31.82)	57 (39.04)
Male (%)	16 (69.57)	16 (69.57)	16 (76.19)	15 (75.00)	15 (68.18)	89 (60.69)
UBC Rapid Test							<0.001
Mean (SD)	66.0 (81.0)	12.2 (19.1)	89.3 (102.1)	60.7 (91.7)	5.9 (3.1)	7.4 (10.2)
Median	23.4	5.2	42	20.45	5	5
Range	5–300	5–84.4	5–300	5–300	5–18.8	5–90.9
Sensitivity	86.9%	30.4%	71.4%	60%	–	–
Specificity	–	–	–	–	90.9%	93.8%

NMI-LG: non-muscle-invasive low grade; NMI-HG: non-muscle-invasive high grade; MI-HG: muscle-invasive high grade; SD: standard deviation.

Due to the focus on CIS and high-grade bladder cancer patients, we decided not to compare with cytology and other urinary markers in that clinical setting. In our CIS cohort, we have only one isolated CIS, and others are CIS in combination with other pathologies such as pTa, pT1 and pT2+.

Pathological levels of UBC Rapid Test in urine are higher in patients with bladder cancer in comparison to the control group. In 23 CIS, the mean value of UBC Rapid Test was 66.0 µg/L, for NMI-LG tumours 12.2 µg/L, for NMI-HG tumours 89.3 µg/L, for MI-HG tumours 60.7 µg/L and for the healthy individuals 5.9 µg/L. Pathological levels of UBC Rapid Test in urine are statistically significantly higher in patients with bladder cancer in comparison to the control group (p < 0.0001). The area under the curve (AUC) of the quantitative UBC Rapid Test using the optimal threshold obtained by receiver-operated curve (ROC) analysis (cut-off = 10.0 µg/L) was 0.75 as shown in Figure 1. Figure 2 shows ROC analysis separated for the different risk groups: The calculated AUC is 0.918 for CIS at a cut-off value of 10.70 µg/L, 0.666 for NMI-LG at a cut-off value of 5.10 µg/L, 0.88 for NMI-HG at a cut-off value of 16.4 µg/L and 0.861 for MI-HG at a cut-off value of 6.40 µg/L. These cut-off values are the outcome after ROC optimization of the various cohorts. For the whole study group, we decided to take a cut-off value set on 10.0 µg/L for this study.

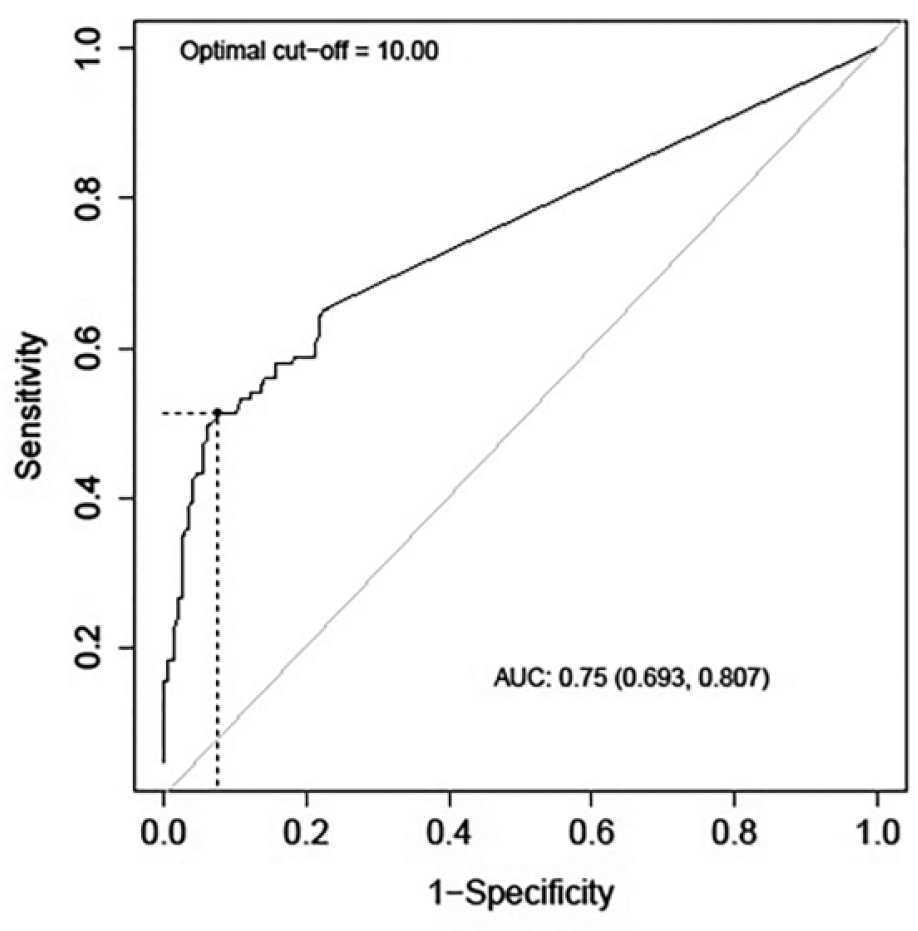

Figure 1.

Analysis of the predictive ability – ROC curve analysis for UBC^® Rapid Test at a cut-off value of 10.0 µg/L with AUC 0.75 for the whole population.

Figure 2.

Analysis of the predictive ability – ROC curve analysis for UBC^® Rapid Test at a cut-off value of 10.0 µg/L for all-risk groups: CIS (black), NMI-LG (red), NMI-HG (green), and MI-HG (blue).

Box plot graph in Figure 3 shows the variation of values in the different tumour groups. It shows that most of the pathological values are higher than the cut-off especially for CIS and high-grade tumours.

Figure 3.

Box plot for CIS, non-muscle-invasive low grade (NMI-LG), non-muscle-invasive high grade (NMI-HG), muscle-invasive high grade (MI-HG), and control (matched group; all).

Sensitivity was calculated as 86.9% for CIS, 30.4% for NMI-LG tumours, 71.4% for NMI-HG tumours and 60% for MI-HG bladder cancer, and specificity was 90.9%. A specificity of 90.9% was calculated for the age- and sex-selected control group, and for the whole number of healthy individuals (n = 146) from the primary cohort, a specificity of 93.8% was calculated. Data of sensitivity, specificity, PPV and NPV using cut-off of 10.0 µg/L for UBC Rapid Test including the 95% confidence interval are listed in Table 2.

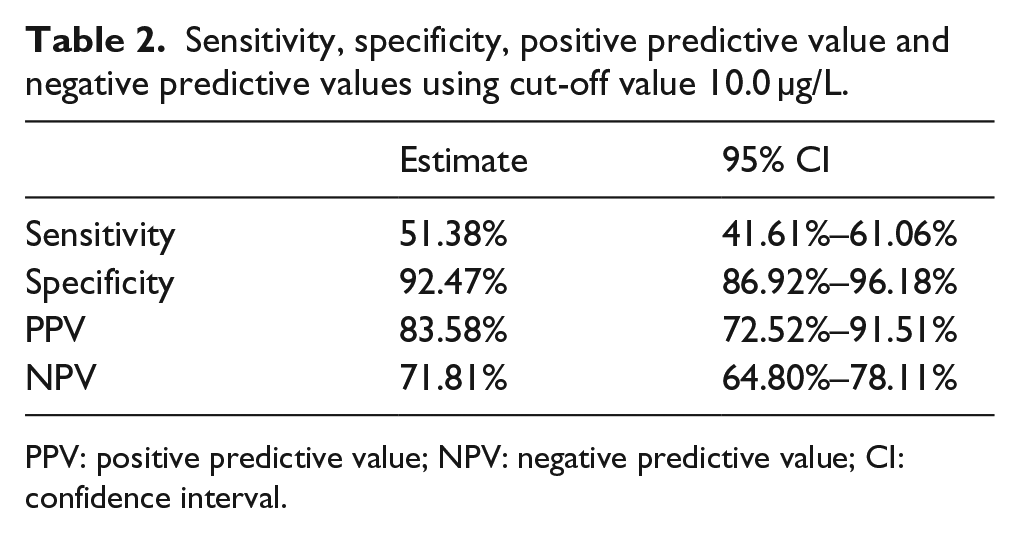

Table 2.

Sensitivity, specificity, positive predictive value and negative predictive values using cut-off value 10.0 µg/L.

	Estimate	95% CI
Sensitivity	51.38%	41.61%–61.06%
Specificity	92.47%	86.92%–96.18%
PPV	83.58%	72.52%–91.51%
NPV	71.81%	64.80%–78.11%

PPV: positive predictive value; NPV: negative predictive value; CI: confidence interval.

Discussion

Current guidelines recommend the use of urine markers only as an adjunct to cystoscopy owing to their limited accuracy.^22–24 Newer tests, such as fluorescence in situ hybridization (FISH) and immunocytology, have shown improved sensitivity compared with cytology,^25–27 but they are complex to perform and require specialized laboratory facilities. POC tests for bladder cancer have been introduced, aiming to overcome complex testing and high costs, and do provide a cost- and time-effective adjunct to cytology. The main limitations of most of these tests are their relatively high rate of false-positive tests (due to infection, mechanical manipulation, other tumour diseases, diabetes mellitus and the presence of stones).

The aim of this multicentre study was to evaluate the usefulness of UBC Rapid Test with special focus on patients with CIS and high-grade tumours of urinary bladder comparing with healthy individuals. The results of this study show that cytokeratin concentrations determined by the POC reader significantly correlated between patients with bladder cancer and healthy controls. Values of UBC Rapid Test in high-grade tumours are significantly higher than in low-grade tumours and healthy individuals. The AUC as a parameter of diagnostic quality of the quantitative UBC Rapid Test was calculated with 0.75 based on a cut-off value of 10.0 µg/L. UBC Rapid Test determined quantitatively not only the risk of bladder cancer in general increase but also the risk of having a high-grade tumour (G3, CIS) increased with higher test values. This feature underlines the significance of a quantitative consideration of UBC Rapid Test, as is also the case for other quantitative urinary markers.²⁸ Comparing with already published results, these new results show again high values for UBC Rapid Test for high-grade bladder cancer patients.^20,29 After one of the first UBC Rapid studies with a high number of samples more than 15 years ago,³⁰ our results now show that this test could be very useful to be combined in diagnostic for the high-risk group of bladder cancer patients. In former reports of UBC Rapid Test, a sensitivity of 65% and specificity of 92% were calculated.^30,31 Mian et al.³¹ used an older version for the measurement of UBC Rapid Test, and only visual evaluation was possible. In our study, an updated version of the cytokeratin assay for UBC Rapid Test was used; an improved lateral flow results in more clear test and control bands to evaluate. Furthermore, in our study, UBC Rapid Test is used in combination with the Omega 100 reader to quantify the results.

For sure, this was the beginning and first results of UBC Rapid Test, but newer studies reported at a cut-off of 12.3 µg/L a sensitivity, specificity, PPV, and NPV of 60.7%, 70.1%, 46.8%, and 79.3%, respectively, with an AUC of 0.68.²⁰

After the European Association of Urology (EAU) guidelines, the examination of voided urine for exfoliated cancer cells has high sensitivity in high-grade tumours and is a useful indicator in cases of high-grade malignancy or CIS.³² But there are also limitations for cytology. Evaluation of cytology specimens can be hampered by low cellular yield, urinary tract infections (UTIs), stones, or intravesical instillations, but for experienced readers, specificity exceeds 90%.^17,33 However, negative cytology does not exclude a tumour. Compared to the subjective method of cytology, the advantage of UBC Rapid Test is an objective method that is standardized and reproducible. Anyway, there is no known urinary marker specific for the diagnosis of invasive bladder cancer.³⁴

It is common that new urine tests are compared with the results of cytology. In the large number of studies, the results vary a lot. Sensitivity for G1 tumours is lower than 30%, for G2 tumours around 60%, and for G3 tumours around 90%. Specificity is around 90%–95%.³⁵ In a prospective study, Schmitz-Dräger et al. compared immunocytology in patients with haematuria.³⁶ Therefore, 301 consecutive patients with haematuria and without tumour in patients’ history have been tested with a commercial urine test. In 10 out of 228 patients (4.6%) with microhaematuria and 17 out of 66 patients (27%) with gross haematuria, bladder cancer could be detected. Patients with microhaematuria and bladder cancer showed sensitivity and specificity of 40% and 97% in cytology and 80% and 89% in immunocytology, respectively. Cystoscopy alone showed 80% and 99%. A combination of these tests could raise sensitivity by the same specificity. In the study by Ritter et al.,²⁰ UBC Rapid Test was also compared with cytology showing better results for UBC Rapid Test. Though it is one limitation of our study, this is one reason why we had no comparison to cytology due to the focus on high-grade urinary bladder cancer.

Regarding FISH as a tool for enhanced detection of CIS, it detects after amplification of chromosomes 3, 7, and 17 and also deletion of 9p from voided urine. Multicolour FISH has been shown to be particularly sensitive and specific for CIS.³⁷ One series demonstrated that eight of nine patients with a prior history of CIS and a positive multicolour FISH but negative cystoscopy were subsequently diagnosed with a CIS recurrence within 5 months.³⁸ This makes FISH potentially valuable in the detection of recurrences on treatment or surveillance. FISH generally outperforms cytology in this context, especially in the setting of intravesical therapy where inflammatory alterations in cytologic features can impair conventional urine cytology, but FISH needs in some cases at least 25 cells or more for evaluation.³⁹

But not only biomarkers could improve the diagnostic of CIS. Photodynamic detection (PDD) can be particularly helpful in the detection of CIS, with rates of detection increasing from 23% to 68% with WLC alone to 91%–97% with WLC plus PDD.^40–42 Kausch et al.⁴⁰ reported an additional detection rate of 39% for CIS in a meta-analysis of seven studies that specifically reported on CIS. This detection rate decreased to 23% if the analysis was restricted to five studies with homogeneous patient populations.

The optimal use of the UBC Rapid Test in daily practice still remains to be defined. In contrast to dichotomized urinary tests, its quantitative character enables risk stratification for bladder cancer to be performed based on the absolute UBC Rapid Test value. A positive UBC Rapid Test result should not inevitably lead to cystoscopy. The test might contribute not only to improved detection of bladder cancer but also to improved prediction of high-risk tumours, which has also been shown for other quantitative protein-based urinary tests.⁴³ One approach to objectify risk stratification including various parameters would be to develop a nomogram (including quantitative UBC Rapid Test, grade of haematuria, smoking status, age and gender).⁴⁴ This could be of particular interest in patients with microscopic haematuria, as the recommendations for work-up of these patients including invasive cystoscopy are discussed controversially.

Conclusion

Pathological values of UBC Rapid Test in urine are higher in patients with high-grade bladder cancer in comparison to low-grade tumours and the healthy control group. Sensitivity for CIS and NMI-HG tumours are very high. Thus, UBC Rapid Test has the potential to be more sensitive and specific urinary protein biomarker for accurate detection of high-grade patients. UBC Rapid Test is standardized and calibrated and thus independent of used batch of test as well as study site. UBC Rapid Test should be added in the diagnostics for CIS and NMI-HG tumours of the urinary bladder cancer, though cystoscopy is still an important part of monitoring of bladder cancer.

Footnotes

Acknowledgements

The authors thank the staff of the Urological Departments at HELIOS Hospital Bad Saarow and Lukas Hospital Neuss, Germany, for their excellent help while collecting the samples. Statistical calculations have been performed by Dr Marcus Thuresson from Statisticon, Uppsala, Sweden.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The test systems were sponsored by concile GmbH, Freiburg/Breisgau, Germany and IDL Biotech AB, Bromma, Sweden.

References

Lopez-Beltran

Marques

Montironi

. Dysplasia and carcinoma in situ of the urinary bladder. Anal Quant Cytopathol Histpathol 2015; 37: 29–38.

Melicow

. Histological study of vesical urothelium intervening between gross neoplasms in total cystectomy. J Urol 1952; 68: 261–279.

Melicow

Hollowell

. Intra-urothelial cancer: carcinoma in situ, Bowen’s disease of the urinary system: discussion of thirty cases. J Urol 1952; 68: 763–772.

Dyrskjot

Zieger

Kruhoffer

. A molecular signature in superficial bladder carcinoma predicts clinical outcome. Clin Cancer Res 2005; 11: 4029–4036.

Babjuk

Burger

Zigeuner

. EAU guidelines on non-muscle-invasive urothelial carcinoma of the bladder: update 2013. Eur Urol 2013; 64: 639–653.

Witjes

Redorta

Jacqmin

. Hexaminolevulinate-guided fluorescence cystoscopy in the diagnosis and follow-up of patients with non-muscle-invasive bladder cancer: review of the evidence and recommendations. Eur Urol 2010; 57: 607–614.

Casey

Catto

Cheng

. Diagnosis and management of urothelial carcinoma in situ of the lower urinary tract: a systematic review. Eur Urol 2015; 67: 876–888.

Orozco

Vander Zwaag

Murphy

. The pagetoid variant of urothelial carcinoma in situ. Hum Pathol 1993; 24: 1199–1202.

Nese

Gupta

Bui

. Carcinoma in situ of the urinary bladder: review of clinicopathologic characteristics with an emphasis on aspects related to molecular diagnostic techniques and prognosis. J Natl Compr Canc Netw 2009; 7: 48–57.

10.

Lopez-Beltran

Jimenez

Montironi

. Flat urothelial carcinoma in situ of the bladder with glandular differentiation. Hum Pathol 2011; 42: 1653–1659.

11.

Kurth

Schellhammer

Okajima

. Current methods of assessing and treating carcinoma in situ of the bladder with or without involvement of the prostatic urethra. Int J Urol 1995; 2(Suppl 2): 8–22.

12.

Bolenz

West

Ortiz

. Urinary cytology for the detection of urothelial carcinoma of the bladder – a flawed adjunct to cystoscopy? Urol Oncol 2013; 31: 366–371.

13.

Dinney

Greenberg

Steinberg

. Intravesical valrubicin in patients with bladder carcinoma in situ and contraindication to or failure after bacillus Calmette-Guerin. Urol Oncol 2013; 31: 1635–1642.

14.

Lotan

Roehrborn

. Sensitivity and specificity of commonly available bladder tumor markers versus cytology: results of a comprehensive literature review and meta-analyses. Urology 2003; 61: 109–118; discussion 118.

15.

Southgate

Harnden

Trejdosiewicz

. Cytokeratin expression patterns in normal and malignant urothelium: a review of the biological and diagnostic implications. Histol Histopathol 1999; 14: 657–664.

16.

Hodges

Lopez-Beltran

Davidson

. Urothelial dysplasia and other flat lesions of the urinary bladder: clinicopathologic and molecular features. Hum Pathol 2010; 41: 155–162.

17.

Lokeshwar

Habuchi

Grossman

. Bladder tumor markers beyond cytology: International Consensus Panel on bladder tumor markers. Urology 2005; 66: 35–63.

18.

Siracusano

Niccolini

Knez

. The simultaneous use of telomerase, cytokeratin 20 and CD4 for bladder cancer detection in urine. Eur Urol 2005; 47: 327–333.

19.

Schroeder

Lorenzo-Gomez

Hautmann

. A side by side comparison of cytology and biomarkers for bladder cancer detection. J Urol 2004; 172: 1123–1126.

20.

Ritter

Hennenlotter

Kuhs

. Evaluation of a new quantitative point-of-care test platform for urine-based detection of bladder cancer. Urol Oncol 2014; 32: 337–344.

21.

R Core Team. R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria, 2015, https://www.R-project.org/

22.

Babjuk

Oosterlinck

Sylvester

. EAU guidelines on non-muscle-invasive urothelial carcinoma of the bladder, the 2011 update. Eur Urol 2011; 59: 997–1008.

23.

Sturgeon

Duffy

Hofmann

. National Academy of Clinical Biochemistry Laboratory Medicine Practice Guidelines for use of tumor markers in liver, bladder, cervical, and gastric cancers. Clin Chem 2010; 56: e1–e48.

24.

Hall

Chang

Dalbagni

. Guideline for the management of nonmuscle invasive bladder cancer (stages Ta, T1, and Tis): 2007 update. J Urol 2007; 178: 2314–2330.

25.

Banek

Schwentner

Tager

. Prospective evaluation of fluorescence-in situ-hybridization to detect bladder cancer: results from the UroScreen-Study. Urol Oncol 2013; 31: 1656–1662.

26.

Friedrich

Hellstern

Hautmann

. Clinical use of urinary markers for the detection and prognosis of bladder carcinoma: a comparison of immunocytology with monoclonal antibodies against Lewis X and 486p3/12 with the BTA STAT and NMP22 tests. J Urol 2002; 168: 470–474.

27.

van Rhijn

Catto

Goebell

. Molecular markers for urothelial bladder cancer prognosis: toward implementation in clinical practice. Urol Oncol 2014; 32(7): 1078–1087.

28.

Shariat

Casella

Wians

Jr . Risk stratification for bladder tumor recurrence, stage and grade by urinary nuclear matrix protein 22 and cytology. Eur Urol 2004; 45: 304–313; author reply 313.

29.

Ecke

Arndt

Stephan

. Preliminary results of a multicentre study of the UBC^® Rapid Test for detection of urinary bladder cancer. Anticancer Res 2015; 35: 2651–2655.

30.

Sanchez-Carbayo

Herrero

Megias

. Initial evaluation of the new urinary bladder cancer rapid test in the detection of transitional cell carcinoma of the bladder. Urology 1999; 54: 656–661.

31.

Mian

Lodde

Haitel

. Comparison of the monoclonal UBC-ELISA test and the NMP22 ELISA test for the detection of urothelial cell carcinoma of the bladder. Urology 2000; 55: 223–226.

32.

Witjes

Comperat

Cowan

. EAU guidelines on muscle-invasive and metastatic bladder cancer: summary of the 2013 guidelines. Eur Urol 2014; 65: 778–792.

33.

Raitanen

Aine

Rintala

. Differences between local and review urinary cytology in diagnosis of bladder cancer. An interobserver multicenter analysis. Eur Urol 2002; 41: 284–289.

34.

van Rhijn

van der Poel

van der Kwast

. Urine markers for bladder cancer surveillance: a systematic review. Eur Urol 2005; 47: 736–748.

35.

Ecke

. Focus on urinary bladder cancer markers: a review. Minerva Urol Nefrol 2008; 60: 237–246.

36.

Schmitz-Drager

Tirsar

Schmitz-Drager

. Immunocytology in the assessment of patients with asymptomatic hematuria. World J Urol 2008; 26: 31–37.

37.

Bergman

Reznichek

Rajfer

. Surveillance of patients with bladder carcinoma using fluorescent in-situ hybridization on bladder washings. BJU Int 2008; 101:26–29.

38.

Fritsche

Burger

Dietmaier

. Multicolor FISH (UroVysion) facilitates follow-up of patients with high-grade urothelial carcinoma of the bladder. Am J Clin Pathol 2010; 134: 597–603.

39.

Sarosdy

Schellhammer

Bokinsky

. Clinical evaluation of a multi-target fluorescent in situ hybridization assay for detection of bladder cancer. J Urol 2002; 168: 1950–1954.

40.

Kausch

Sommerauer

Montorsi

. Photodynamic diagnosis in non-muscle-invasive bladder cancer: a systematic review and cumulative analysis of prospective studies. Eur Urol 2010; 57: 595–606.

41.

Grossman

Stenzl

Fradet

. Long-term decrease in bladder cancer recurrence with hexaminolevulinate enabled fluorescence cystoscopy. J Urol 2012; 188: 58–62.

42.

Burger

Grossman

Droller

. Photodynamic diagnosis of non-muscle-invasive bladder cancer with hexaminolevulinate cystoscopy: a meta-analysis of detection and recurrence based on raw data. Eur Urol 2013; 64: 846–854.

43.

Shariat

Karam

Lotan

. Critical evaluation of urinary markers for bladder cancer detection and monitoring. Rev Urol 2008; 10: 120–135.

44.

Lotan

Capitanio

Shariat

. Impact of clinical factors, including a point-of-care nuclear matrix protein-22 assay and cytology, on bladder cancer detection. BJU Int 2009; 103: 1368–1374.
