Mitochondrial Transfer Induced by Adipose-Derived Mesenchymal Stem Cell Transplantation Improves Cardiac Function in Rat Models of Ischemic Cardiomyopathy

Abstract

Although mesenchymal stem cell transplantation has been successful in the treatment of ischemic cardiomyopathy, the underlying mechanisms remain unclear. Herein, we investigated whether mitochondrial transfer could explain the success of cell therapy in ischemic cardiomyopathy. Mitochondrial transfer in co-cultures of human adipose-derived mesenchymal stem cells and rat cardiomyocytes maintained under hypoxic conditions was examined. Functional recovery was monitored in a rat model of myocardial infarction following human adipose-derived mesenchymal stem cell transplantation. We observed mitochondrial transfer in vitro, which required the formation of cell-to-cell contacts and synergistically enhanced energy metabolism. Rat cardiomyocytes exhibited mitochondrial transfer 3 days following human adipose-derived mesenchymal stem cell transplantation to the ischemic heart surface post-myocardial infarction. We detected donor mitochondrial DNA in the recipient myocardium concomitant with a significant improvement in cardiac function. Mitochondrial transfer is vital for successful cell transplantation therapies and improves treatment outcomes in ischemic cardiomyopathy.

Introduction

Ischemic heart disease is a leading cause of death worldwide. Various cell therapies have been applied to treat acute myocardial infarction (MI) and ischemic cardiomyopathy. However, the mechanisms underlying these responses remain to be fully elucidated^1–3. Recently, a phenomenon called mitochondrial transfer (MT) via nanotube has been described in animal models of acute lung injury following mesenchymal stem cell (MSC) transplantation. MT is thought to exert protective effects on recipient alveolar epithelial cells, thereby representing an uninvestigated mode of action of cell therapy against heart failure^4–6. MT is carried out through a structure called gap junction, which is a part where cells are close to each other, and a structure in which intercellular communication is formed by a protein called connexin that penetrates the cell membrane. Bidirectional MT has been observed in cardiomyocytes (CMs) co-cultured with MSCs^4,7. CMs receiving mitochondria show elevated expression of mitochondrial proteins, increased oxidative phosphorylation, and improved ATP production ⁸ . In vivo, MT is expected to confer resistance to cytotoxicity, exert anti-apoptotic effects, and increase ATP production in recipient CMs, overall improving myocardial function^9,10.

To the best of our knowledge, it has not been evaluated previously whether MT occurs in vivo following cell transplantation. Hence, the role of MT in the success of cell transplantation and its effect on heart function remain unknown. Here, we demonstrated MT from transplanted cells to CMs in vivo and proposed that this phenomenon represents the mechanism underlying successful cell therapies for ischemic cardiomyopathy.

Materials and Methods

Assessment of In Vivo MT

Transplantation of human adipose-derived stem cells (hADSCs) harboring stained mitochondria

Experimental protocols were approved by the Ethics Review Committee for Animal Experimentation of Osaka University Graduate School of Medicine (Reference number 02-030-002), Japan. Animal care was conducted humanely, in compliance with the Principles of Laboratory Animal Care formulated by the National Society for Medical Research and the Guide for the Care and Use of Laboratory Animals prepared by the Institute of Animal Resources and published by the National Institutes of Health (Eighth Edition, revised 2011).

A MI model in F344/NJcl-rnu/rnu rats (CLEA Japan, Inc., Tokyo, Japan) was generated via permanent ligation of the left anterior descending artery (LAD). Two weeks after LAD ligation, hADSCs (1 × 10⁶ cells; Lonza, Tokyo, Japan) were transplanted into the infarct area using fibrinogen and thrombin solution (CSL Behring, Tokyo, Japan). The composition of this graft is shown in S1 Table ¹¹ . The hADSCs were pre-stained with MitoTracker Red (Thermo Fisher Scientific, Waltham, MA, USA) ¹² . The rats were euthanized at appropriate time points following transplantation, and heart samples were collected (Fig. 1). Subcutaneous injection of caprophen and inhaled isoflurane were used to relieve the pain of the animals, and at the time of euthanasia, overdose of inhaled isoflurane and intravenous potassium chloride were administered to obtain cardiac arrest. Following formalin fixation, paraffin-embedded heart sections were stained with an antibody against phalloidin (Cat. #A12379; Thermo Fisher Scientific), and counterstained with Hoechst 33342 (Dojindo Molecular Technologies, Inc., Kumamoto, Japan).

Figure 1.

Study protocol. Myocardial infarction was induced in 7- to 8-week-old male rats 2 weeks prior to transplantation. During transplantation, human adipose-derived stem cells (hADSCs) with or without pre-stained mitochondria were implanted using fibrin glue on the surface of the heart. Following transplantation, heart samples were obtained at scheduled time points for various analyses and cardiac function was evaluated using echocardiography. The hADSC grafts were analyzed in vitro.

Observation of graft-heart boundaries with electron microscopy

Mitochondrial ultrastructure and spatial relationship between hADSCs and rat cardiomyocytes (rCMs) were assessed in tissue samples collected from areas including the boundary between the heart and hADSC graft. Contrasted sections were imaged under an H-7500 transmission electron microscope (Hitachi, Tokyo, Japan) (Fig. 2A–G).

Figure 2.

Evaluation of mitochondrial transfer (MT) in vivo. (A) Three days following transplantation, hADSC graft-derived mitochondria were observed in recipient rCMs; the mitochondria under epicardium and in the hADSC graft were also stained. This transfer phenomenon was observed only in rats with myocardial infarction (MI). (B, C) Individual staining for rat actin and human mitochondria are shown in the dashed line box in A. (D) Magnified picture of the dashed line box in A. Arrow: mitochondria in hADSC; arrowhead: mitochondria in rat CM; red: mitochondria of ADSC; green: actin in rCM; blue: nucleus. (E) Electron microscopy image of the graft and heart boundary. (F) Magnified picture of the dashed rectangle in E. (G) Magnified picture of the dashed rectangle in F. Arrows indicate pseudopod-like structures or fusion. (H) Heart sample used for sequencing of the donor mitochondrial DNA fragment. The samples for sequencing were micro-dissected and obtained from the part enclosed by a dashed line. (I) Before and after cutting out the gel containing target amplicons (rectangle), of approximately 200–250 bp, following electrophoresis. (J) Gene sequence homology to human MT-ND6. MT-ND6: mitochondrially encoded NADH-ubiquinone oxidoreductase core subunit 6; CM: cardiomyocyte; ADSC: adipose-derived stem cell; rCM: rat cardiomyocyte.

Detection of donor mitochondrial DNA in recipient rCMs

Paraffin-embedded tissues from the heart and hADSC grafts were harvested 3 days after transplantation. Tissue sections were stained with hematoxylin and eosin, and residual rCMs around the fibrotic tissue and just beneath the hADSC graft were collected using a laser-equipped microscope (Leica LMD7000). DNA was isolated, and a human mitochondrial DNA fragment was amplified using a customized primer pair (Eurofins Genomics, Louisville, KY, USA) (Fig. 2H–J) (S2 Table)^13–15. PCR conditions and reaction mixtures are listed in S3 and S4 Tables. The PCR products were purified and used as a template for sequencing and further analysis.

Intravital imaging of MT from hADSC grafts to the beating myocardium

MI-induced adult male CAG/eGFP transgenic Sprague–Dawley (SD) rats (200–250 g; Japan SLC, Inc., Shizuoka, Japan) were used as recipients of hADSC transplants. The hADSCs were transfected using CellLight^TM Mitochondria-RFP BacMam 2.0 (Thermo Fisher Scientific) (Fig. 3A). Graft composition and transplantation were performed as above (S1 Table). The beating heart and the graft were stabilized using a custom-made suction device (Fig. 3B) ¹⁶ . Clear in vivo images were obtained by previously reported methods ¹⁷ . Observation was initiated immediately following transplantation and continued for the maximum possible duration.

Figure 3.

Intravital imaging of mitochondrial transfer (MT). (A) hADSCs transfected with CellLight to express RFP in the mitochondria. (B) Schematic illustration of intravital imaging. The residual rCMs in the infarct area were observed through the stabilizer and graft. (C) Spatial relationship between the graft and heart at the beginning of observation. (D) RFP signal in the rCMs just beneath the pericardium (rectangle) 6 h after grafting. (E) Representative image of residual rCMs in the infarct area. Arrows indicate transferred granular mitochondria. (F) Magnified picture of the dashed rectangle in E. hADSC: human adipose-derived stem cell; rCM: rat cardiomyocyte; RFP: red fluorescent protein.

In Vitro Observation of MT and Its Influence on rCM Metabolism

Observation of rCM and hADSC co-culture

Commercially available neonatal rCMs (RCM-561; QBM Cell Science, Ontario, Canada) were stained with MitoTracker Green (Thermo Fisher Scientific), seeded on a 4-well glass slide chamber, and cultured under normoxic conditions for 3–4 h. The same count of hADSCs, stained with MitoTracker Red (Thermo Fisher Scientific), was transferred to the rCM culture, and the two cell populations were co-cultured for 1 h before observation (Fig. 4A) under hypoxic conditions (1% O₂), with or without 10 µM α-glycyrrhetinic acid (αGA; Sigma-Aldrich, St. Louis, MO, USA), for 24 h. Subsequently, co-cultured cells were fixed and stained with anti-cardiac actinin and anti-human mitochondria antibodies, and three-dimensional images were constructed.

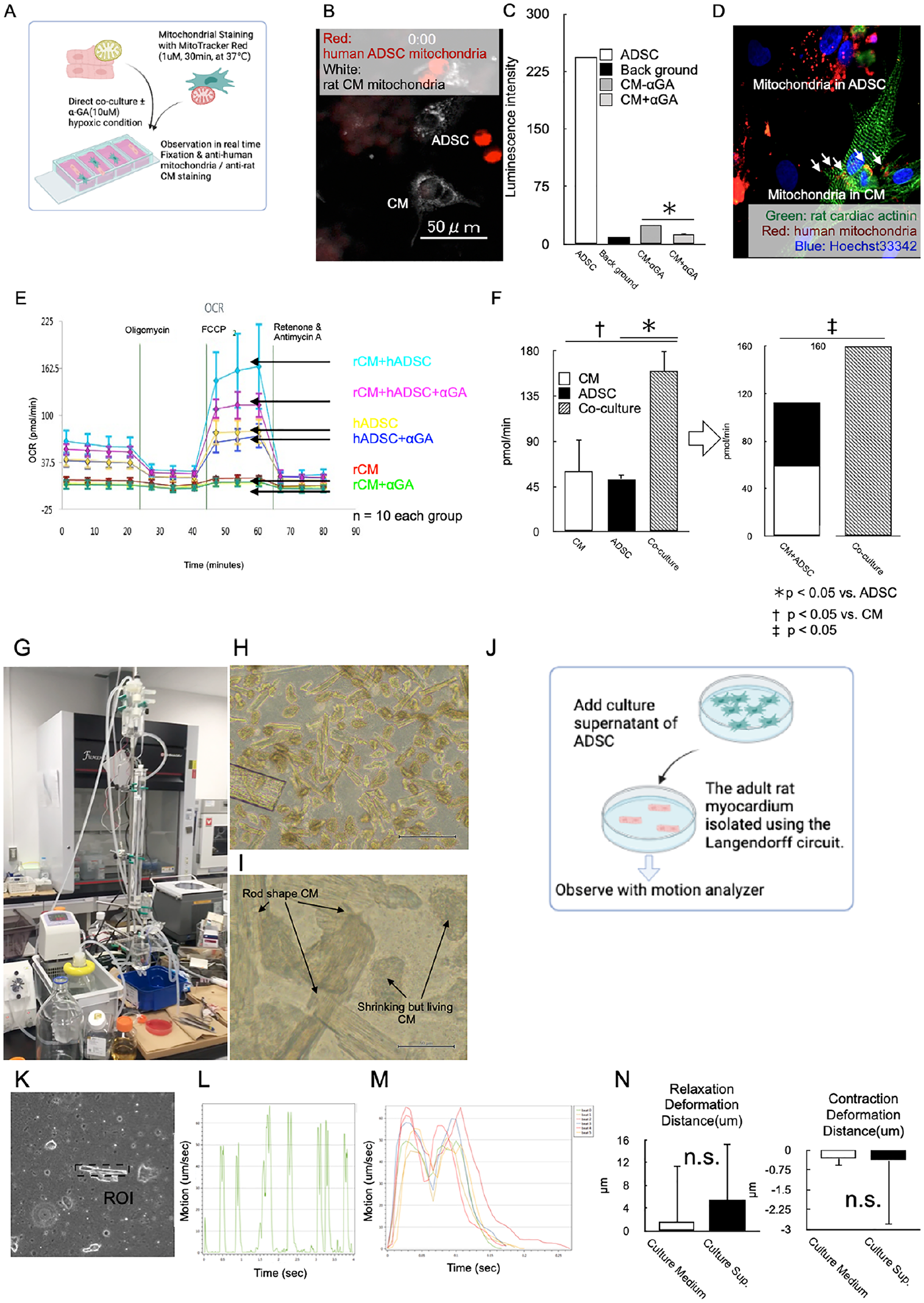

Figure 4.

Co-culture of rCMs and hADSCs. (A) This is the protocol for this experiment. rCMs were cultured on chamber slides under normoxic conditions for 3–4 h, and pre-stained hADSCs were added thereafter. After starting the co-culture, the chamber slides were observed in real time. After observation, the cells were fixed and stained with anti-human mitochondria and anti-rat mitochondria antibodies. (B) Real-time continuous observations over 24 h with or without αGA. (C) Mitochondrial luminescence intensity in rCMs and culture medium. (D) Fixed co-culture samples showing the transferred granular mitochondria in rCMs; n = 4 samples per group. *P < 0.05 by t-test. (E, F) Effect of αGA on OCR of rCMs and hADSCs cultured independently or co-cultured; n = 10 per group. *P < 0.05, ^†P < 0.05, ^‡P < 0.05 by ANOVA. (G) Illustration of the isolation system of adult rCMs. (H, I) Representative image of harvested rCMs. (J) Sequence of this experiment: culture supernatant of hADSCs was collected and added to the freshly isolated adult rCMs for motion analysis. (K) In motion analysis, the region of interest was set independently for each adult rCM. (L, M) Representative velocity waveforms. (N) Effect of hADSC culture supernatant on rCM contractions. hADSC: human adipose-derived stem cell; rCM: rat cardiomyocyte; OCR: oxygen consumption rate; αGA: α-glycyrrhetinic acid.

Measurement of oxygen consumption rate (OCR)

OCR in living cells was measured using a Seahorse XF24 Extracellular Flux Analyzer (Agilent Technologies, Santa Clara, CA, USA), according to the manufacturer’s protocol. The rCMs (2 × 10⁴ cells/well) were cultured on 96-well Agilent Seahorse XF cell culture microplates under normoxic conditions for 48 h, after which the same number of hADSCs were added to each well and cultured with or without αGA, under normoxic conditions, for 24 h before analysis. The detailed culture conditions for each group are listed in S5 Table ¹⁸ .

Quantification of cytokines from the hADSC graft

hADSC grafts were cultured under normoxic or hypoxic (1% O₂) conditions, and culture supernatant was collected after 24, 48, and 72 h. The secretion of hepatocyte growth factor (HGF), vascular endothelial growth factor (VEGF), IL-6, and IL-10 was assessed by enzyme-linked immunosorbent assays (R&D Systems, Minneapolis, MN, USA).

Isolation and motion analysis of rCMs with/without hADSC supernatant

The 7- to 8-week-old male Crl: (SD) rats were generally anesthetized, and the hearts were harvested. The heart was connected to a Langendorff circulation circuit through aortic ligation to the cannula (Fig. 4G). Perfusion buffer (Tyrode’s solution, S6 Table) containing 300 units/mL collagenase type II (Gibco; Thermo Fisher Scientific) was perfused into the coronary arteries. The heart was homogenized on a petri dish, and cardiac cells were transferred to a 96-well plate (Fig. 4H, I). The rCMs were stimulated with either 1 µM isoprenaline, 400 µM propranolol, or hADSC culture supernatant (Fig. 4J). rCM motion was observed and analyzed using the SI8000 Cell Motion Imaging System (Sony, Tokyo, Japan)^19,20.

Evaluation of Influence of MT on Cardiac Function and Metabolism

Graft survival following transplantation

Luciferase-transduced hADSCs were transplanted into the nude rat MI model as described above (Fig. 5A). The luminescence intensity of the grafts was measured at the body surface. For histological analysis, hearts with residual graft samples were collected at days 1, 3, 7, and 14, and paraffin-embedded samples were stained using an antibody specific to human mitochondria (Cat. #MAB1273; Merck Millipore, Burlington, MA, USA).

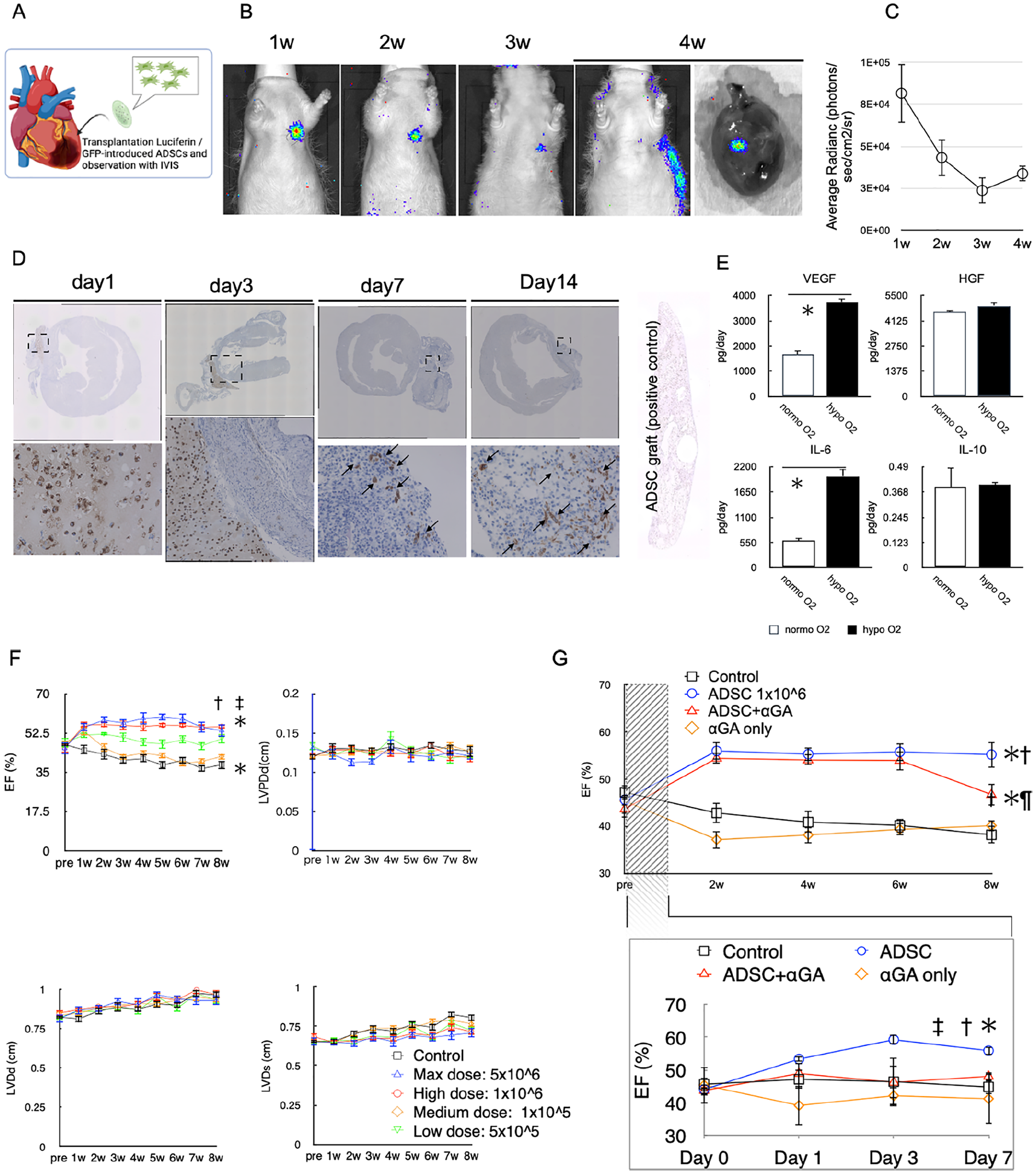

Figure 5.

hADSC transplantation into a rat model of ischemic cardiomyopathy. (A) For evaluation of hADSC survival and engraftment, luciferin-transduced hADSCs were implanted on the surface of the heart. (B) Representative images of the luciferin signal from hADSCs. (C) Luciferin signal intensity showing the survival of hADSCs in the graft over time. (D) Representative images of hADSC grafts with stained mitochondria. The lower images are magnifications of the dashed boxes in the upper images. Image on the far right shows the whole graft. It is significant that the survival of the transplanted cells was confirmed not only by tracing the luciferase-transduced hADSC from the body surface but also histologically. (E) Cytokine secretion from hADSC grafts measured by ELISA; n = 3 samples per group. *P < 0.05 by t-test. (F) Cardiac function and dimension following transplantation; n = 8 per group. *P < 0.05, ^†P < 0.05, ^‡P < 0.05 by ANOVA. (G) Long-term and short-term cardiac function in selected groups after hADSC transplantation; n = 8 rats per group. *P < 0.05, ^†P < 0.05 ^‡P < 0.05, ^¶P < 0.05 by ANOVA. hADSC: human adipose-derived stem cell.

Assessment of cardiac function

Following injections with hADSCs (1 × 10⁵ cells/body [group DL], 5 × 10⁵ cells/body [group DM], 1 × 10⁶ cells/body [group DH], and 5 × 10⁶ cells/body [group MD]), cardiac function was assessed using an echocardiography system equipped with a 12 MHz transducer (SONOS 7500; Philips, Amsterdam, Netherlands). Heart samples were collected on days 3, 7, 14, and 56 following transplantation.

Two weeks after MI induction, either hADSCs (A group, n = 20), hADSCs combined with αGA (final concentration, 10 μM; A + αGA group, n = 10), or αGA alone (final concentration, 10 μM; αGA group, n = 4) were transplanted. For the control group, sham operation was performed (fibrinogen and thrombin solution only; C group, n = 10). Cardiac function was examined using echocardiography. Heart samples were collected at days 3, 7, 14, and 56 following transplantation.

Histological analysis of the heart

To assess rCM diameter and fibrosis, heart sections from each group collected 8-weeks after surgery were stained with periodic acid-Schiff and Picro Sirius red, respectively. The sections were also stained with anti-von Willebrand factor antibody, and capillary density was calculated in the peri-infarct area. Electron microscopy was performed for morphological evaluation of mitochondria in the heart.

Quantification of intramyocardial ATP and mitochondrial DNA

ATP content in the heart samples was assessed using a colorimetric ATP assay kit (ab83355; Abcam, Cambridge, UK). To quantify human and rat mitochondrial DNA in the recipient heart, we performed quantitative polymerase chain reaction (PCR). Total DNA was isolated from the infarct region and remote areas, and PCR was performed with SYBR Green (Thermo Fisher Scientific) using specific primer pairs (S1 Table).

Statistical Analysis

All values are expressed as means ± SEM. Statistical analyses were performed using JMP Pro 14 software (SAS Institute Inc., Cary, NC, USA). Comparison across multiple groups with normal distribution was performed using one-way analysis of variance (ANOVA), followed by Tukey’s multiple comparisons test. Comparison between two groups was performed using an unpaired or paired two-tailed Student’s t-test or Mann–Whitney U test, as appropriate. Comparison across multiple groups with non-normal distribution was performed using Kruskal–Wallis tests followed by Dunn’s multiple comparisons tests. P values <0.05 were considered statistically significant.

Results

Donor-Derived Mitochondrial DNA Was Detected in CMs In Vivo

Three days after the transplantation of hADSCs harboring pre-stained mitochondria, we detected stained mitochondria in the graft and recipient rat heart (Fig. 2A–D). Electron microscopy revealed tunnel-like connections between hADSCs and CMs (Fig. 2E–G). Laser microdissection was used to obtain heart samples for DNA sequencing (Fig. 2H). The mitochondrial genome fragment was PCR-amplified, and the resulting amplicon length was consistent with those in previous reports (Fig. 2I) ¹¹ . The genome sequence analysis revealed 99% homology with human mitochondrial NADH-ubiquinone oxidoreductase chain 6 (MT-ND6) (Fig. 2J).

MT Occurred Within 24 h Following Transplantation

For intravital imaging, we transfected hADSCs with CellLight to induce mitochondrial expression of red fluorescent protein (RFP) (Fig. 3A). Upon transplantation, the graft formed a layer on the heart where hADSCs were equally distributed (Fig. 3C). The mitochondria from the hADSCs were detected in the myocardial layer of the recipient, 3–4 h after transplantation (Fig. 3D). Residual CMs in the fibrotic area contained granules that were considered to represent the transferred mitochondria (Fig. 3E, 3F, S1A–C, Video S1, S2). When co-culture of hADSCs and CMs was performed for 24 h under hypoxic conditions, the hADSCs were found to move around the CMs in a fixed field of view (Fig. 4A, 4B, S2A, Video S3). In the CMs, the intensity of hADSC-derived mitochondrial luminescence significantly increased during the 24-h co-culture (Fig. 4C). The fixed sample also exhibited granular hADSC-derived mitochondria in the rat cardiomyocytes (rCM) (Fig. 4D, S2B Video S4).

hADSC Co-Culture Synergistically Enhanced the OCR of CMs In Vitro

The oxygen consumption rate (OCR) of rCMs was synergistically enhanced by hADSC co-culture, and was significantly higher than the sum of the OCRs of rCMs and hADSCs cultured independently. This effect was negated by the addition of a non-specific gap junction inhibitor αGA (Fig. 4E, 4F). We successfully obtained adult rCMs using a Langendorff circuit and captured the motion of individual rCMs (Fig. 4K–M). An additional 24-h culture with supernatant hADSCs had no effect on the contraction of rCMs (Fig. 4N).

hADSC Dose-Dependency and Gap Junction Intervention for Improvement of Cardiac Function

We monitored luciferin signals using an in vivo imaging system at least 4 weeks after transplantation. In the fourth week, the heart surface was observed directly (Fig. 5B, 5C). Histological analysis of these samples revealed surviving hADSCs on the surface or in the connective tissue between the heart and chest wall (Fig. 5D). The supernatant of cultured and grafted hADSCs contained various cytokines. Among them, secretion of VEGF and IL-6 was stimulated by hypoxia (Fig. 5E). hADSC transplantation exerted a therapeutic effect on cardiac function in infarcted rats. This effect was temporary in low (DL)- and medium (DM)-dose groups, limited to the early phase following transplantation. In the maximum-dose (MD) group, improvement was greater than in the other groups at weeks 2–6. However, at week 8, cardiac function improved in both the DH and MD groups equally. No effect against cardiac remodeling was observed, as indicated by the left ventricular (LV) end-diastolic diameter (LVDd) and LV posterior wall thickness; however, the LV end-systolic diameter (LVDs) tended to become smaller with increasing doses (Fig. 5F, S1 Fig.). Although the addition of αGA to hADSCs blocked the improvement of cardiac function three days after transplantation, long-term improvement was not affected (Fig. 5G). It was also found that the optimal transplantation time is 1–2 weeks after the onset of MI (S2A–J Fig.).

hADSC Transplantation Increased Intramyocardial Mitochondrial DNA and ATP

No difference was observed in fibrotic area across the groups during the first two weeks following implantation. However, the difference was apparent after 8 weeks. Additionally, semiquantitative assessment revealed less interstitial fibrosis in the hADSC-treated group than in the control group. rCM diameter was significantly smaller in the DH and MD groups, and the highest capillary densities and lowest collagen accumulation were observed in the DM group (Fig. 6A, B). Mitochondrial number and cristae structure were relatively normal compared to the untreated group, as indicated using electron microscopy. The endoplasmic reticulum, myofibers, Z-disk, and intercalated disks, were confirmed to be morphologically preserved (Fig. 6C). Following treatment, the amount of rat mitochondrial DNA in the myocardium increased with time. However, mitochondrial DNA from the infarct area decreased by day 56 after treatment. In other words, recipient rat mitochondrial DNA increased significantly on day 14 in the infarct area and on day 56 in the remote area (Fig. 6D). Donor-derived mitochondrial genes were not sufficiently amplified to allow detection. One day after transplantation, cytosolic ATP levels in the hADSC-treated group were approximately ten-fold higher than those in the control group (Fig. 6E).

Figure 6.

Histological analysis of the heart. (A) Representative whole microscopy images of Sirius red staining, periodic acid-Schiff staining, and immunostaining using an anti-von Willebrand factor antibody in each group; n = 8–10 per group, scale bar = 50 μm, group DL: 1 × 10⁵ cells/body, group DM: 5 × 10⁵ cells/body, group DH: 1 × 10⁶ cells/body, group MD: 5 × 10⁶ cells/body. (B) Fibrotic area, capillary density, and rCM diameter in each group; n = 8 samples for each group; *P < 0.05, ^†P < 0.05, ^‡P < 0.05, ^¶P < 0.05, ^§P < 0.05 by ANOVA. (C) Morphology of mitochondria in rCMs that were observed with an electron microscope after 8 weeks of transplantation. (D) Intramyocardial mitochondrial DNA of the recipient was quantified for each region: infarct and remote areas; n = 4 samples for each group. *P < 0.05 by ANOVA. (E) Intramyocardial ATP concentration one day after transplantation; n = 3 samples per group; *P < 0.05 by t-test. rCM: rat cardiomyocyte.

Discussion

Following the transplantation of hADSCs onto the ischemic heart surface, donor-derived mitochondrial DNA was detected in the DNA extracted from CMs, providing the first evidence of MT from ADSCs to the ischemic myocardium in vivo. This MT occurred shortly after transplantation, as evidenced by histological evaluation and intravital imaging, suggesting an influence on early improvement of cardiac function. Furthermore, ATP concentration in the intramyocardial infarct area increased 24 h after transplantation and stabilized after a week. Consistent with our findings, previous reports have suggested retention of these mitochondria for approximately 1 week ²¹ . However, direct histological identification of mitochondria over time was challenging. Although the detailed mechanisms underlying MT nor specific cell type have not been elucidated, our data confirmed cell–cell communication and indicate transfer of mitochondria and other organelles between cells ²² . Specifically, when CMs were exposed to hADSC supernatant, no immediate contraction-enhancement effect was observed on CMs, suggesting that direct cell–cell communication is necessary for MT to occur between hADSCs and CMs ²¹ . In vitro experiments using a co-culture system demonstrated that ADSCs interact with and transfer mitochondria to CMs, thereby improving their metabolic capacity, as measured by OCR. Moreover, the addition of a connexin blocker to this in vitro co-culture system prevented the OCR enhancement effect of MT, and reduced the ability of MT to improve cardiac function in vivo, suggesting the involvement of connexin in cell–cell communication underlying MT. However, the survival period of transferred mitochondria, the signaling pathway leading to MT, and the detailed mechanisms of recipient cell activation remain to be elucidated.

Ischemic diseases are often ameliorated by angiogenesis; however, this can lead to the dysfunction of myocardial and cardiac cells. Reactivation of these cells can result in long-term improvement of cardiac function. Although the transplanted cells survived on the surface of the heart for approximately 4 weeks, the transferred mitochondria could not be identified in heart specimens thereafter. Rather, the transferred mitochondria either disappeared within a few days after transplantation, or were present in very low numbers. This suggests that hADSC treatment improves the pathophysiology of ischemic cardiomyopathy, including mitochondrial abnormalities, by providing a short-term supply of relatively healthy mitochondria and normalizing the long-term morphology and quantity of mitochondria in the recipient myocardium.

Mitochondrial protein abnormalities can cause chronic structural abnormalities in heart tissue. Thus, if transferred mitochondria activate pathological mitochondria, it may be beneficial for the subject^23,24. Here, structural improvements, such as the orientation of myocardial fibers, suppression of CM hypertrophy, and suppression of fibrosis (remodeling suppression), were observed. These histological changes could be induced by cytokines from the transplanted cells. Moreover, considering the downward trend of ejection fraction eight weeks after transplantation in the αGA group, MT could be considered to contribute not only to short-term but also long-term improvements in CM function.

Various transfer modes have been proposed for MT, including the involvement of microvesicles, tunneling nanotubes formation, cell fusion, and direct cell-cell contact^25,26. It has been reported that connexins are involved in nanotube formation and cell-cell contact among these MT modes. In in vitro experiments, danger-associated molecular pattern proteins, mtDNA, Ca²⁺, CD38 signaling, NAD⁺, and NADH, released from damaged cells, act to trigger signals and actively promote MT from donor cells via the modes shown in Fig. 7 ²⁷ . Additionally, evaluation of the direct myocardial transplantation of isolated mitochondria suggested a mechanism whereby CMs directly internalize mitochondria through the cell membrane ²⁸ . These processes are considered to be non-specific and reflect passive transfer^27,29. Here, MT was promoted by hypoxic stimulation in vitro, and MT from the myocardium to hADSCs was prevented by a connexin blocker in vivo. Therefore, ischemic myocardial signaling may be speculated to cause cell–cell communication via gap junctions, after which MT occurs.

Figure 7.

Mode of mitochondrial transfer (MT) and possible mechanism. The possible mechanisms of MT are classified as (1) direct transfer, (2) indirect transfer, (3) fusion, and (4) free mitochondria. Cell injury through hypoxia or free radicals destroys CMs or evokes some form of stress signal. ADSCs receive the signal and transfer their mitochondria to injured cells. Recipient cells enhance their ATP production and contractile power following MT. CM: cardiomyocyte; ADSC: adipose-derived stem cell.

In this study, however, the transfer of mitochondrial DNA alone, migration of transplanted cells into the myocardium along with subsequent fusion with recipient cells, and MT via microvesicles could not be excluded. The presence or absence of a signal from the recipient CM to the donor cell (to assess whether MT is active or passive) was not determined, and any potential signal was not specified. Moreover, the amount and period of retention of transferred mitochondria, the mechanisms underlying subsequent increase in intramyocardial ATP, and the short- and long-term improvement of cardiac function remain to be fully elucidated. Nevertheless, our current findings support the hypothesis of cell transplantation delivering living mitochondria directly to myocardial cells, along with cytokines that promote angiogenesis, inducing protective effects in the myocardium ⁸ . Overall, our results suggested that ADSC-to-CM MT occurs both in vitro and in vivo, thereby contributing to the recovery of early cardiac function, after ADSC transplantation in ischemic cardiomyopathy. Thus, enhancement of the mechanisms of MT is proposed to enhance the efficacy of cell therapy.
