Electrical and optical properties of functionalized multiwalled carbon nanotubes/poly (3-octylthiophene)/polystyrene composites

Abstract

This work focuses on the combination of the complementary physical properties of multiwalled carbon nanotubes (MWCNTs) and poly(3-octylthiophene) (P3OT)/polystyrene (PS) polymer blend. The characterization of MWCNTs/P3OT/PS hybrid system performed by Fourier transform infrared spectroscopy, ultraviolet (UV)–visible absorption, and electrical measurements show interesting effects. Optical results demonstrate that the addition of MWCNT to P3OT/PS matrix blend will enhance the UV–visible absorption and insignificantly affect the optical energy gap of P3OT/PS matrix; this can be explained in terms of a reduced photo-induced charge transfer in such composite system. This study shows that incorporation of 5 wt% functionalized MWCNTs onto P3OT/PS polymer blend will convert this material from insulator to conductor and at this level of MWCNTs content, MWCNTs will form a network inside blend matrix with low capacitor element and high resistor element effects.

Introduction

Due to the unique properties of the carbon nanotubes (CNTs), polymer/CNT nanocomposites have received intense attention in recent years to create new material systems with superior properties. ^1,2 Scientists and researchers are attracted to the unique shape, size, and remarkable physical performance of the nanotubes that possess a very high tensile strength, high thermal stability, and high electrical conductivity in a cylindrical shape with a diameter of around 10 nm and a length of upto 100 μm. Due to these attractive properties, nanotubes have found applications in various areas such as electrochemical devices, hydrogen storage, field emission devices, sensors, and probes. Particularly, multiwalled nanotube (MWNT)-based polymer nanocomposites have the potential to enable development of unique lightweight materials. ^{2 –6} On the other hand, use of nanotube reinforcements in polymer composites has been a challenge because of the difficulties in optimizing the processing conditions to achieve good dispersion and load transfer. Such difficulties in dispersion refer to the fact that the nanotubes are held together as bundles and ropes; thus they have very low solubility in solvents and tend to remain as entangled agglomerates. Such a problem can be solved using several techniques such as the use of surfactants, sonication, and other mixing methods. Recent work has demonstrated superior dispersion of MWNTs in polymers by functionalizing the nanotubes to make them compatible with solvents and the matrix material.^7–17 The most commonly used method to functionalize CNTs is the wet chemical method using different strong acids. At the same time, recent research showed that such a method will cause a morphological damage to CNTs, and also found that the oxidation process with strong acids will create a significant physical damage and will cause severe degradation of CNTs. ^18,19 Besides, dry oxidation, such as the use of ozone in the presence of ultraviolet (), or exposing CNTs to UV radiation at ambient atmosphere has been an alternative treatment to resolve the issues associated with the wet oxidation. ^{20 –23} Moreover, many studies showed that UV-modified CNTs induced a higher electrical conductivity in polymer matrices and will not cause morphological damages to CNTs. ^22,23

Previously, increasing emphasis in the research of conjugated polymers is placed on the engineering and processing of conjugated polymers in blends and composites with conventional polymers. For these blends, popular conventional polymers with excellent optical and mechanical properties like polystyrene (PS), polyethylene (PE), poly(vinyl carbazole) (PVK), or poly(vinyl benzyl chloride) (PVBC) are used as host matrices. ^24,25 These studies, however, focused on the investigation of the photoexcited states in conjugated polymer (donor)/fullerene (acceptor) interpenetrating networks embedded into conventional polymer hosts like PS, PVK, or PVBC. At the same time, it was found that no other studies investigated optical or electrical properties of multi-walled carbon nanotube (MWCNT)/poly(3-octylthiophene) (P3OT)/PS composites. However, this study will show very interesting results in the electrical and optical properties of such composites.

The extreme surface to volume ratio of the nanofillers, several orders of magnitude larger than that of micron-sized fillers, and the proximity of size of the nanofiller to the radius of gyration of the host polymers lead to interphase volume fractions that can easily exceed the volume fraction of the filler phase. By increasing the dispersion of the nanofillers in the polymer matrix, the influence of this interphase zone is increased. Previous study ²⁶ has introduced visual evidence of the interphase in a MWCNT/polycarbonate system, with scanning electron microscopic images illustrating a significantly adsorbed polymer layer on nanotubes protruding from fracture surfaces. This study also demonstrated an increased size of this region for systems in which the nanotubes had been functionalized before processing the composite. This evidence, combined with mechanical property data, indicates that functionalization leads to an increased interaction zone in polymer nanocomposite systems. ^11,12

Recently, some success has been reported in improved electrical, optical, and mechanical properties of MWNT-reinforced polymers as well as enhanced crystallization and orientation of nanotubes. ^{5,7 –11,13,15,27 –32} All these studies show that the physical properties of MWCNT-reinforced polymers are postulated to be heavily dependent on the specific MWCNT/polymer systems and different processing methods. Among them, the promising method is functionalization of MWNTs.

In the present work, we prepared MWCNT-P3OT-PS composites through the addition of different functionalized MWCNT loadings to polymer blend host composed of 30% P3OT polymer and 70% PS. Their electrical and optical properties are characterized and correlated.

Experimental

Materials

MWCNTs were purchased from Chengdu Organic Chemicals Co. (Chengdu, China). The samples were synthesized by natural gas catalytic decomposition over nickel-based catalyst and were advertized as having a diameter of > 50 nm, length of 10–20 μm, and purity of >95%. Figure 1(a) and (b) shows the scanning electron and transmission electron micrographs of MWCNTs as received with out further purification. MWCNTs were functionalized with UV radiation using a UV–ozone generator (Model # 42-220, Jelight Co., California, USA) in ambient laboratory air for a period of upto 180 min.

Figure 1.

(a) SEM and (b) TEM of MWCNTs. SEM: scanning electron micrograph; TEM: transmission electron micrograph; MWCNTs: multiwalled carbon nanotubes.

PS was supplied by Saudi Basic Industries Corporation (KSA, Jobail) with brand name PS 330. P3OT polymer was purchased from Aldrich Co. (USA) with a molecular weight of 34,000 g mole⁻¹ .

Films preparation

A casting technique was used to prepare the composites. In this technique, first, the P3OT and PS polymers were dissolved in chloroform at a weight ratio of 30% P3OT and stirred with a magnetic stirrer at room temperature (RT) for 2 h. In another vial, functionalized MWNTs were dispersed in the same solvent (chloroform) by bath sonication for 30 min, added to the polymer solution, and again bath sonicated for 1 h, then stirred for 24 h at 30°C to disperse the MWNT in the polymer mixture. The mixture was casted into a glass petri dish (diameter of 5 cm). The obtained products were dried at RT for 24 h. The thickness of the resulting composite films was 0.1 mm. The composites used in this study are 0, 0.5, 1, 3, and 5 wt% of functionalized MWNTs. Control sample of pure P3OT/PS with 30% P3OT was prepared following the same procedures.

Fourier transform infrared analysis

Fourier transform infrared (FT-IR) spectra of composite films were recorded using a PerkinElmer 100 FT-IR spectrophotometer in the transmission mode at a wavenumber range of 4000–1000 cm⁻¹.

Electrical measurements

Electrical measurements with alternating current (AC) and direct current (DC) applied electric fields were performed using the 4200-SCS Semiconductor Characterization System (Keithley Co., USA). Samples were shaped into circular disks of area 1.2 cm² and thickness 0.1 mm. The DC electrical parameters (current–voltage (I-V) characteristics and DC conductivity (σ _DC)) were measured at RT. Impedance (Z), loss tangent (tanδ), and AC conductivity (σ _AC) were calculated from the measured capacitance (C) and loss angle (δ) data ^{33 –36} at RT and frequency range of 1–10 MHz.

Optical properties

UV–visible absorption spectra of the prepared composites were measured using a Shimadzu UV-VIS spectrophotometer (Model UV-3600; Japan) in the wavelength range of 230–700 nm. The scan step was 0.5 nm. The optical absorbance (A) spectra of the samples were collected at RT. After correction for reflection, the absorption coefficient α was calculated from the absorbance (A). ³⁷

Results and discussion

Results of FT-IR spectra

The FT-IR spectra of the as received MWCNTs and those treated with UV–ozone (UVO) for 120 min are compared in Figure 2(a). The peak at 1170 cm⁻¹ corresponds to the presence of ester groups on the treated CNTs surface. Furthermore, the peaks at 1636 and 3442 cm⁻¹ are assigned to the stretching of C=O and a hydroxyl group, respectively. The presence of these peaks of the UVO-treated CNTs indicates that UVO treatment led to the production of carboxylic acid functional group on the CNTs surface. ^{21 –23,38}

Figure 2.

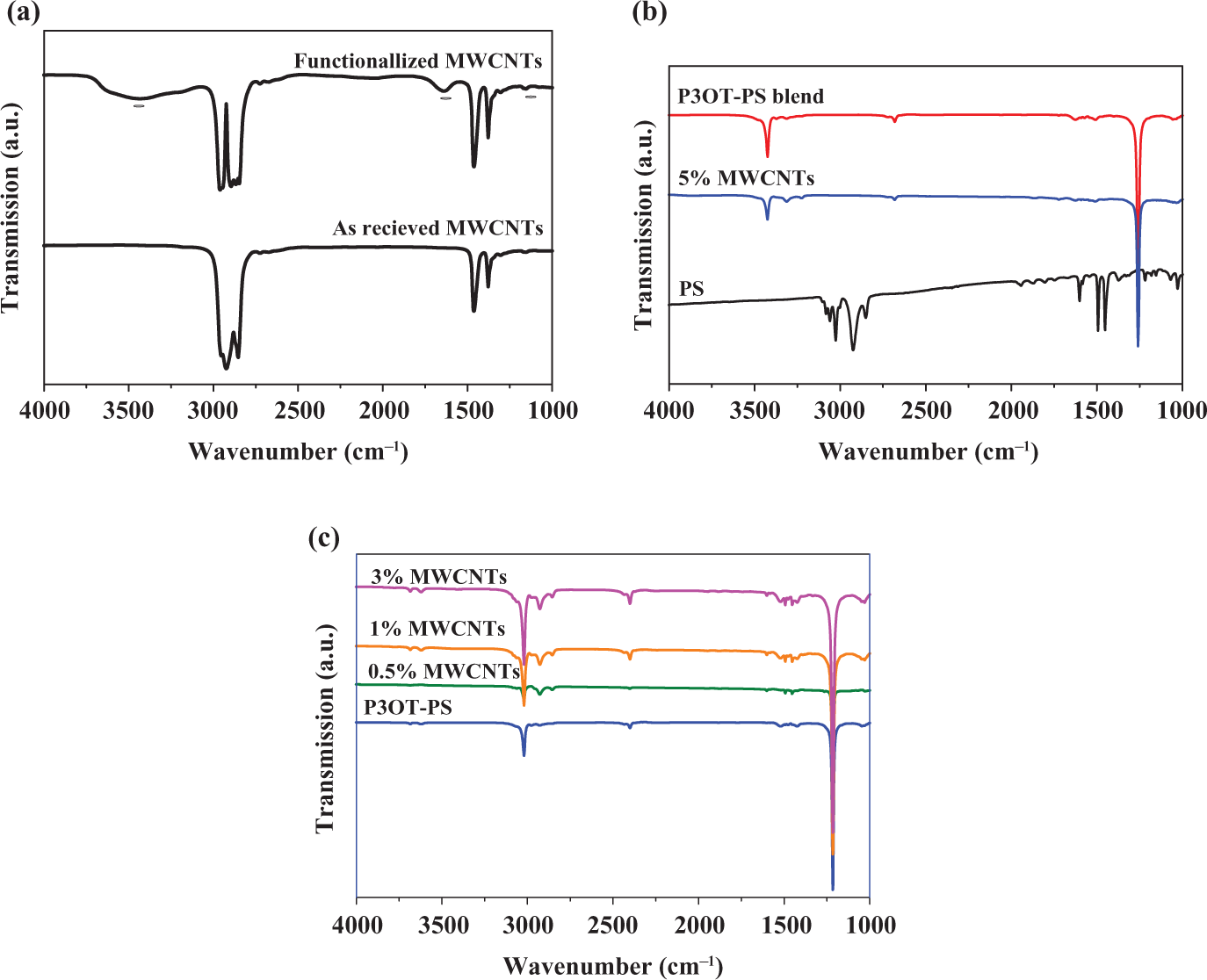

FT-IR spectra of MWCNT (a); blend (b) and composites (c). FT-IR: Fourier transform infrared; MWCNT: multiwalled carbon nanotube.

For comparison, the FT-IR spectra of PS, P3OT-PS blend, and composites are included in Figures 2(b) and (c). The main bands of PS (Figure 2(b)) are located over the 2800–3100 cm⁻¹ range, attributed to C–H stretching vibrations in the main chain and in aromatic rings, and the peaks at 1601, 1492, 1451, 1215 and 1027 cm⁻¹ are due to deformation and skeletal vibrations of C–H in PS. ³⁹ In the case of P3OT polymer, it was reported that the main peaks in the P3OT infrared (IR) spectrum appear at 3054 and 1370–1550 cm⁻¹, which are attributed to aromatic CH stretching, methyl deformation, ring-stretching modes or the aromatic CH stretching, and C=C stretching. ⁴⁰ However, upon blending of 30 wt% P3OT with PS, the IR spectra of blends or composites do not show any new peaks or shift in their peak positions. This indicates that the presence of such IR bands in the spectra of composites only reflect the superposition of P3OT and PS bands, which means that there are no interactions between P3OT and PS or between MWCNTs and blend host. ⁴¹

UV–visible absorption

Figure 3 shows the normalized absorption spectra of pure PS, P3OT-PS, and MWCNT-P3OT-PS composites with different nanotube concentrations. The subsidiary frame in this figure represents the absorption spectrum of MWCNTs. PS has a strong absorption below 300 nm and the peak at 262 nm arises from the phenyl ring in each repeat unit. ³⁹ Besides, the P3OT polymer has an absorption peak centered at around 512 nm. ⁴² It is known that P3OT polymer films themselves can show different absorption spectra when prepared using different solvents. ^27,42,43 Figure 4 shows the absorbance of MWCNT-P3OT-PS composites as a function of MWCNTs weight fraction at 262 and 512 nm. Upon blending of 30 wt% P3OT with 70 wt% PS, no new absorption peaks are observed for the P3OT-PS blend or even in MWCNTs-P3OT-PS composite materials. Usually, new absorption peaks are expected if there is a ground-state electronic interaction between the components in a blend composite matrix. ⁴² In P3OT-PS blend and MWCNT-P3OT-PS composites, the absence of new absorption peaks indicates that there is no significant electronic interaction in the ground state between MWCNTs, PS, and P3OT. A peculiar observation shown in Figure 3 is the variation in PS absorbance at 262 and 512 nm when P3OT polymer and MWCNTs are blended with PS neat. The decrease in the absorbance of P3OT-PS blend at 262 nm could be attributed to the screening effects of P3OT on the absorbance of PS. This indicates, however, that P3OT-PS blend is a partially miscible blend, such an effect can also be seen in the FT-IR spectra (Figure 2). MWCNTs have a strong absorption below 300 nm in addition to their absorption in the visible region; consequently, addition of MWCNTs upto 5 wt% to P3OT-PS blends will enhance their UV–visible absorbance. It can also be seen that the increase in MWCNTs weight fraction on P3OT-PS blend will cause a slight blueshift within 2–4 nm in the peak maximum at 512 nm, this may signify that the effective π-conjugation length of P3OT becomes extended in the composite, because the local nanoscopic structure of P3OT becomes modified by PS and MWCNTs. ⁴²

Figure 3.

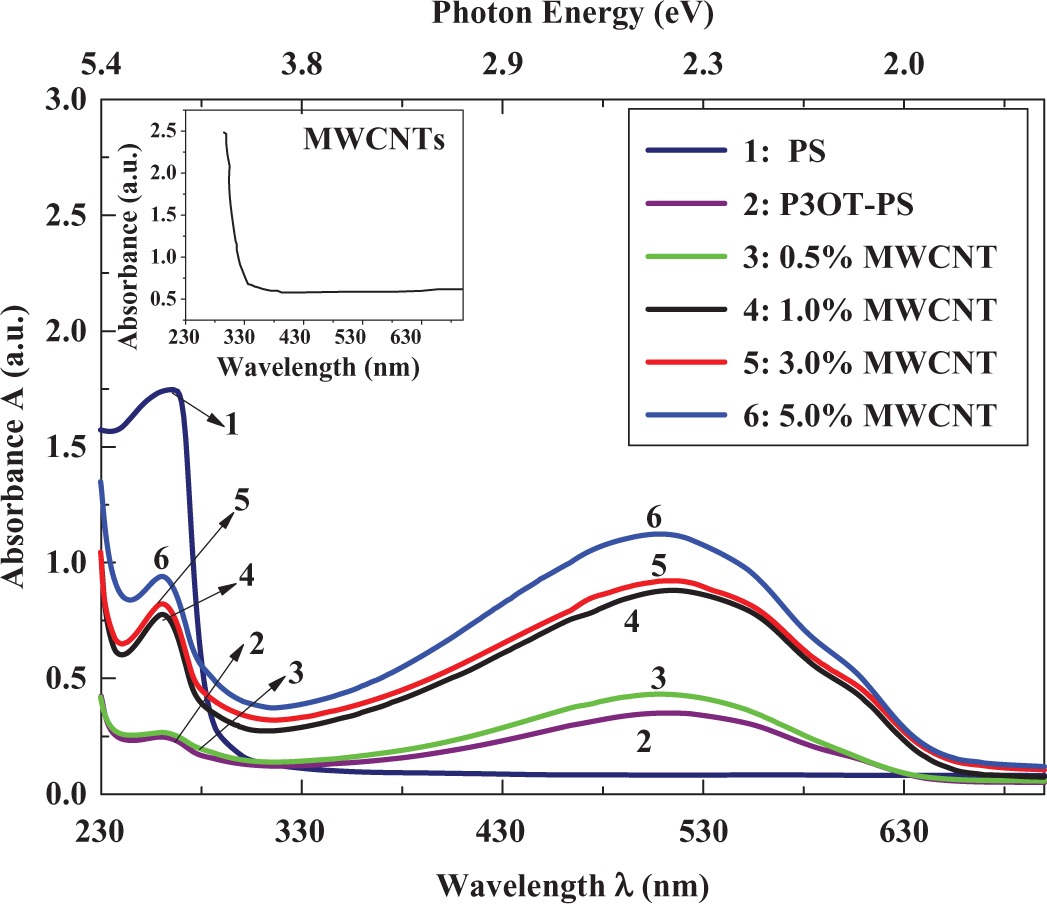

Ultraviolet–visible absorption spectra of polymer composite systems.

Figure 4.

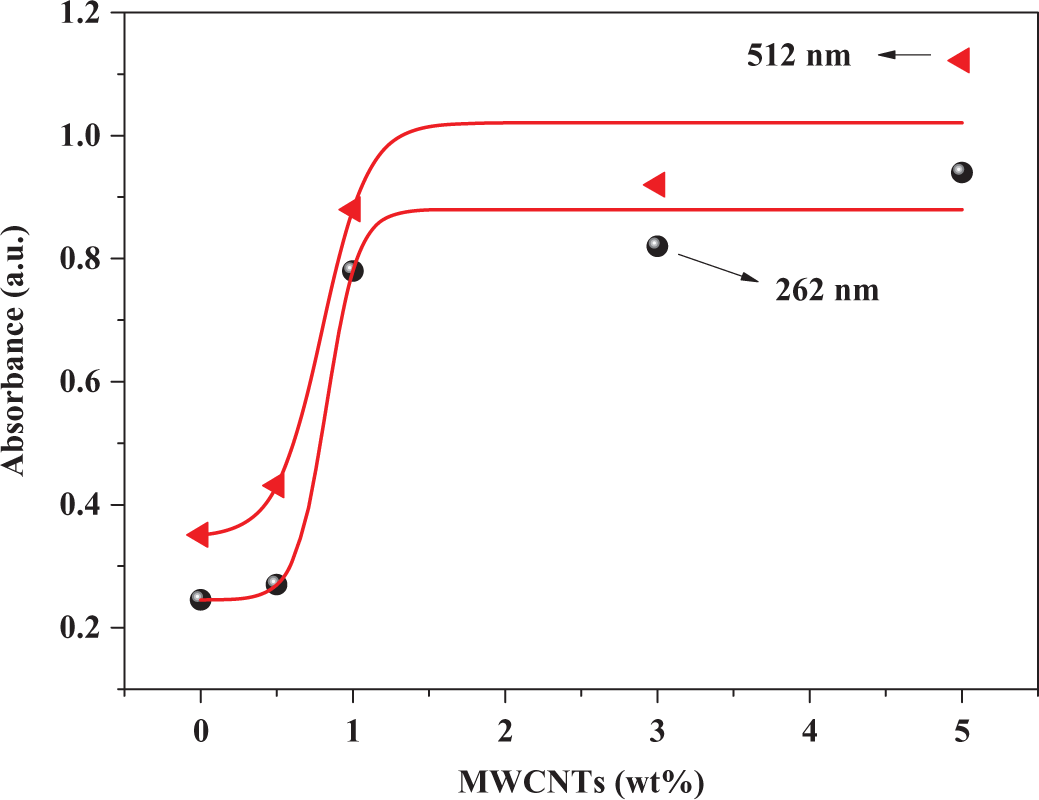

Absorbance versus MWCNTs weight fraction. MWCNTs: multiwalled carbon nanotubes.

The dependence of the absorption coefficient α upon the photon energy hυ for near edge optical absorption in semiconductors takes the form

$\mathit{\alpha }h\mathit{\upsilon }=k{\left(h\mathit{\upsilon }-E_{\mathrm{o}\mathrm{p}\mathrm{t}}\right)}^m$

where E _opt is the optical band gap, k is a constant, and m = 0.5 for all prepared samples with an allowed direct energy gap. ^36,44

The absorption coefficient α has the formula

$\mathit{\alpha }=\left(2.303/x\right)A$

where x is the sample thickness and A is the absorbance. ^27,35,36

Figures 5 and 6 show the plot of (αhυ)² versus hυ using the data obtained from the optical absorption spectra of composites. The obtained optical energy gap results are listed in Table 1. It can be seen that there are only slight variations in the values of the optical energy gap for composites compared to that for PS film and the values remain almost around 4.4 eV. Brabec et al. ²⁴ reported that PS polymer does not show a photo-induced charge transfer with P3OT, and they attributed this result to the phase separation between the two polymer components. This conclusion, however, supports the optical energy gap results in the present work; thus, we can say that the blend of PS with P3OT will reduce the photo-induced charge transfer, and as a result, the optical energy gap values of blends almost remain around the PS value.

Figure 5.

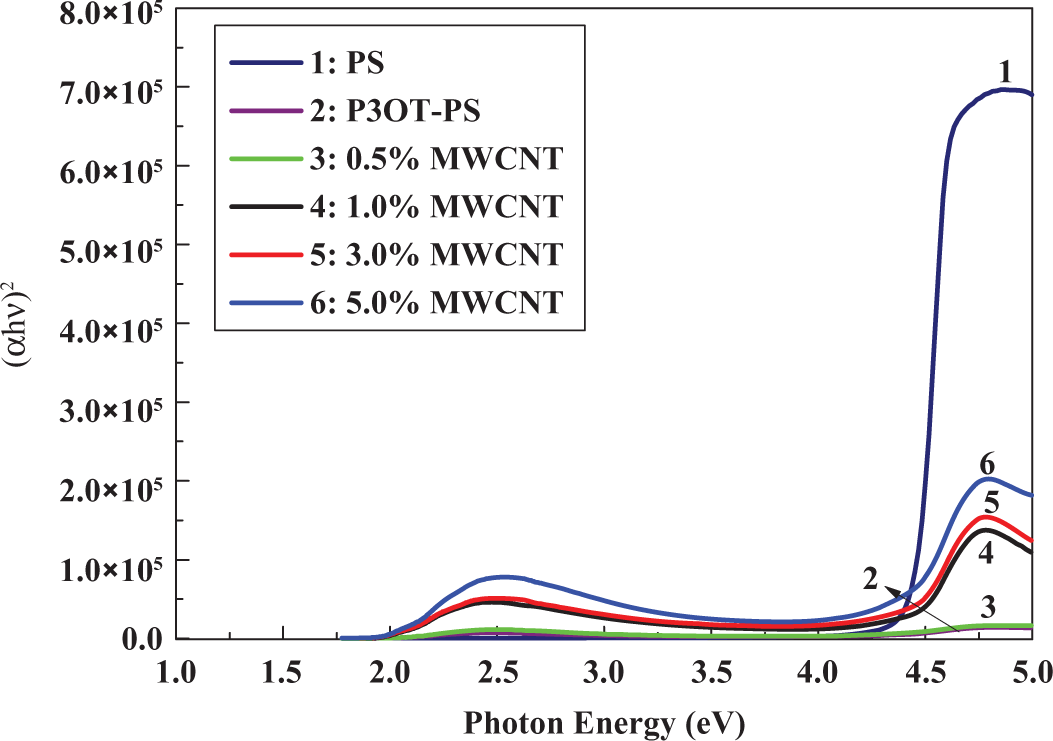

(αhυ)² versus photon energy for polymer composite systems.

Figure 6.

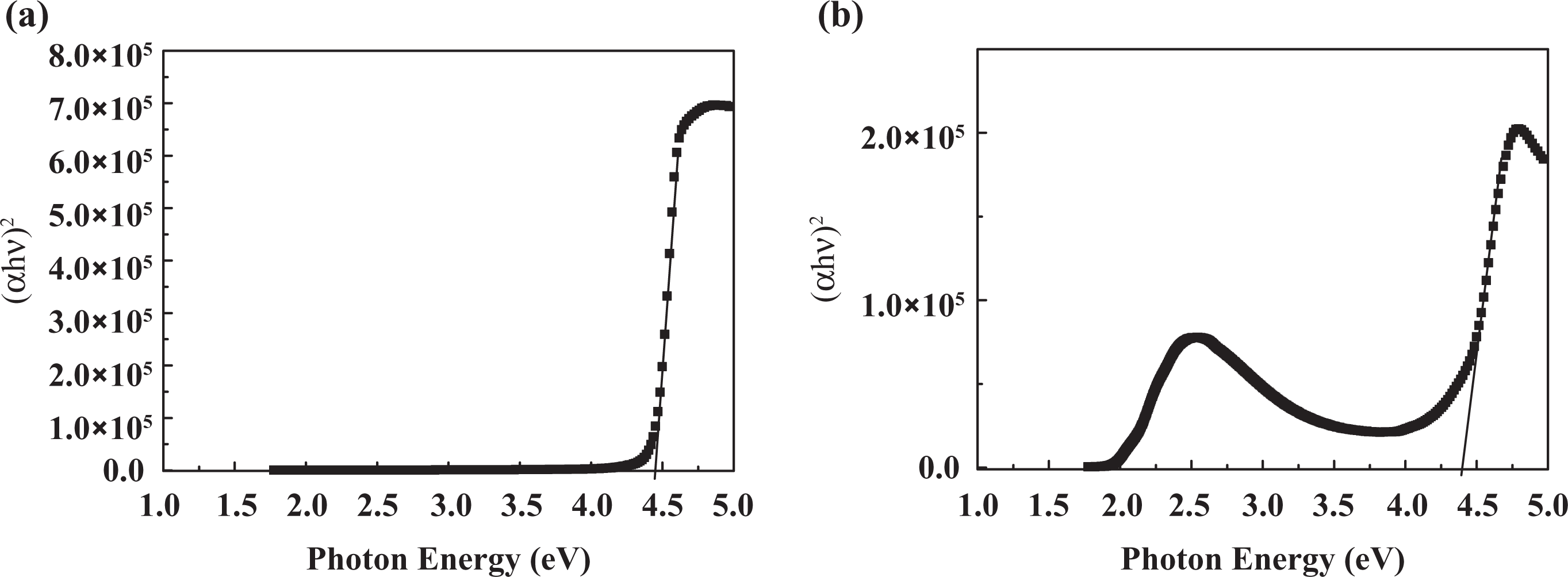

(αhυ)² versus photon energy for: (a) PS and (b) 5% MWCNT-PS-P3OT composite. polymer composite systems. MWCNT: multiwalled carbon nanotube; PS: polystyrene; P3OT: poly3-octylthiophene.

Table 1.

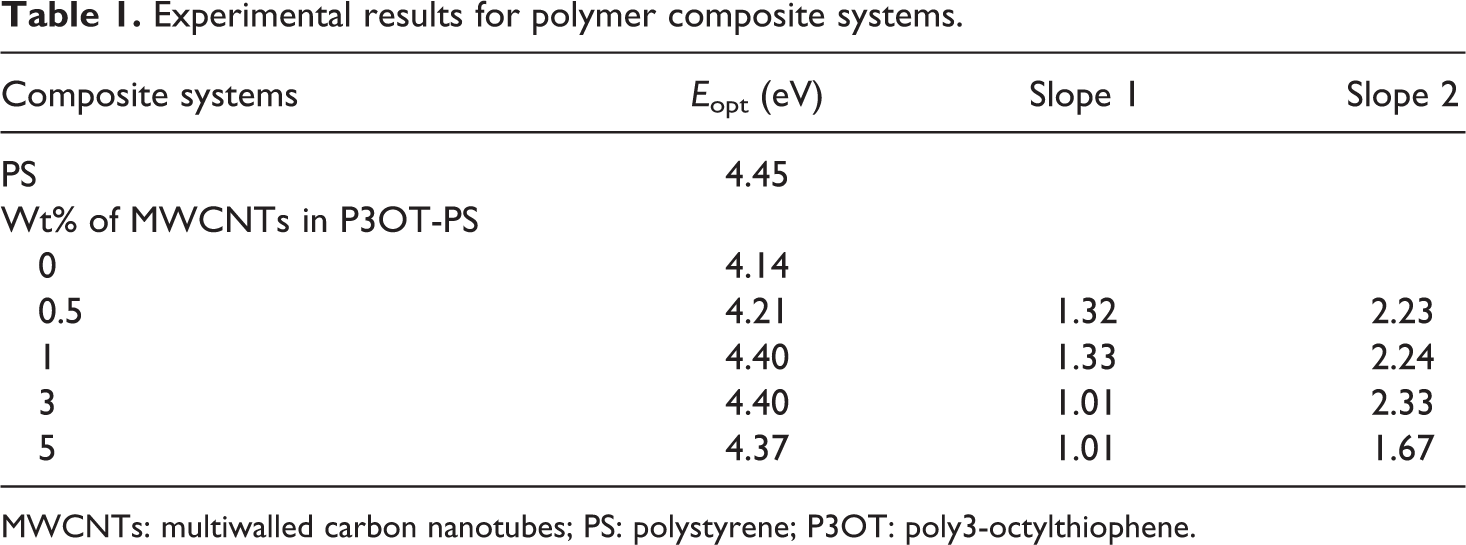

Experimental results for polymer composite systems.

Composite systems	E opt (eV)	Slope 1	Slope 2
PS	4.45
Wt% of MWCNTs in P3OT-PS
0	4.14
0.5	4.21	1.32	2.23
1	4.40	1.33	2.24
3	4.40	1.01	2.33
5	4.37	1.01	1.67

MWCNTs: multiwalled carbon nanotubes; PS: polystyrene; P3OT: poly3-octylthiophene.

Electrical results

Characteristics I–V curves of MWCNT-P3OT-PS composites are measured at RT and are presented graphically in Figure 7(a). The charge transport mechanism based on the power law model $I\approx V^m$ has been widely used for the analysis of the conduction phenomenon in organic or polymeric materials. ²⁷ The model is divided into three regimes, Ohmic (m = 1), trap-free space-charge-limited current (m = 2), and trap-charge-limited current (m > 2). ^3,27,45,46 However, Figure 7(b) presents a nonlinear log(I)–log(V) characteristic curves of the studied composite samples. It is interesting to note that in all cases, the points fall on two intersecting straight lines of unequal slopes, which indicates the existence of two different conduction mechanisms. The first one operates at low applied voltages (slope 1), while the others are prominent at the latter stage of voltages (slope 2); the obtained values of slopes 1 and 2 at regions I and II, respectively, are listed in Table 1. It can be seen that, at low applied voltage range (region I), the maximum slope value is 1.33 (as in the case of 1 wt% CNTs sample), while the minimum slope value is 1.01 (as in the case of 3 and 5 wt% CNT samples). On the other hand, at higher applied voltages (region II), the slopes become bigger and vary between 1.67 and 2.24. From the obtained slope results and the power law model, one can conclude that the conduction mechanism at low applied voltage range is almost Ohmic, while at high applied voltage range, it is almost due to trap-free space-charge-limited current.

Figure 7.

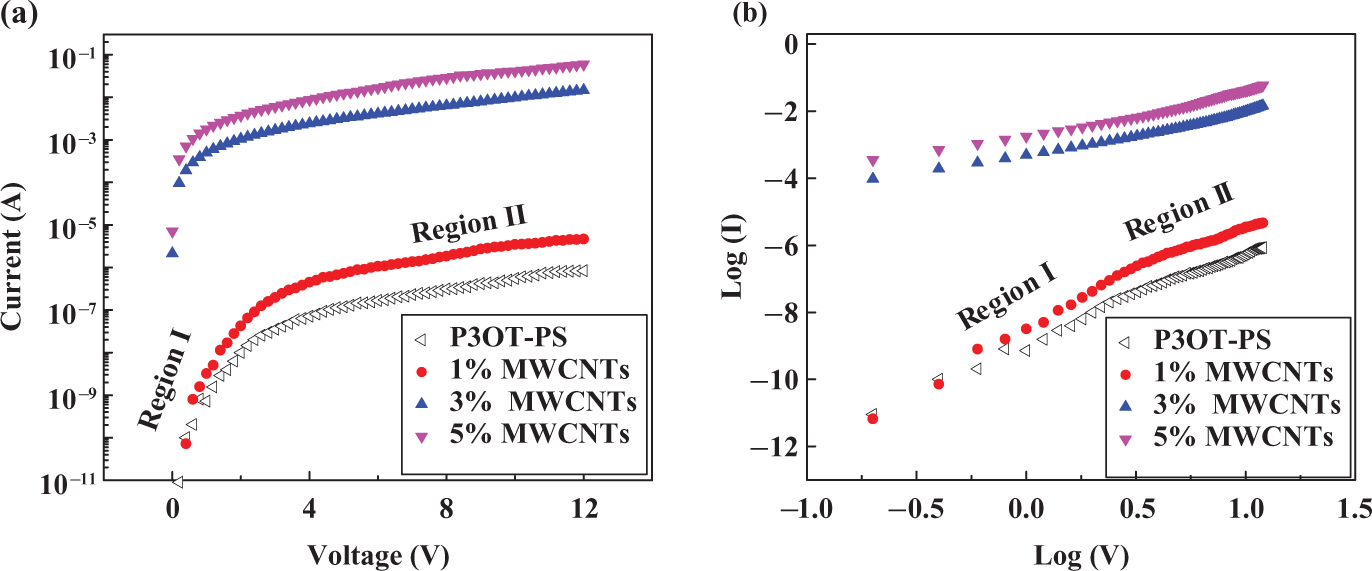

(a) Current (I)–voltage (V) characteristic curves and (b) log(I) versus log(V) for MWCNT-P3OT-PS composites. MWCNT: multiwalled carbon nanotube; PS: polystyrene; P3OT: poly3-octylthiophene.

The RT conductivity of PS and MWCNT-P3OT-PS composites was determined from the I-V results using the formula

${\mathit{\sigma }}_{\mathrm{D}\mathrm{C}}=\left(I/V\right)\left(x/A\right)$

where σ _DC is the DC conductivity, x is the sample thickness, and A is the sample area, the obtained results are presented together with PS results in Figure 8 as a function of the weight fraction of CNTs in P3OT-PS.

Figure 8.

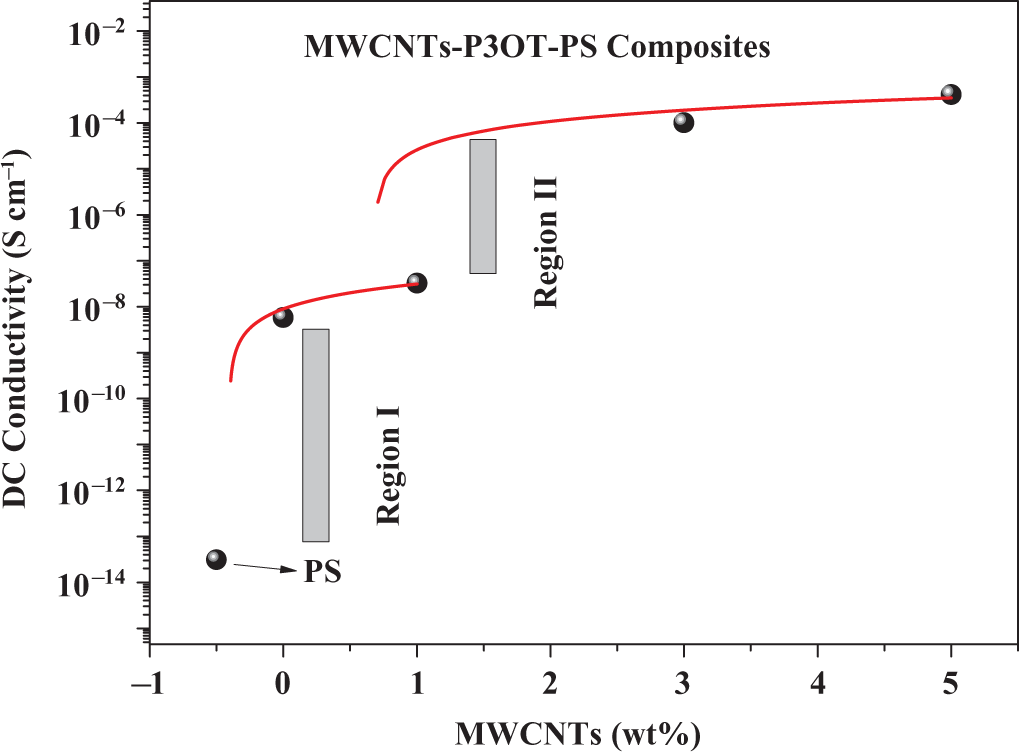

Variations in DC conductivity with MWCNTs weight fraction for MWCNT-P3OT-PS composites. DC: direct current; MWCNT: multiwalled carbon nanotube; PS: polystyrene; P3OT: poly3-octylthiophene.

Generally, conductivity depends on the polymer matrix and the filler materials. With regard to the polymer, it is controlled mostly by the conjugation and the dopants present in them. ²⁷ If the filler material is CNTs, it is decided by its purity, alignment, and the concentration. ^3,4,27,47 However, as shown in Figure 8, region I represents the first jump of conductivity upon blending of 30 wt% P3OT with 70 wt% PS; here the conductivity increases upto five orders of magnitude when compared with PS neat. At this region (i.e. region I), the material is converted from the insulator region to near semiconductor region. A peculiar observation shown in Figure 8, in region II, is that MWCNTs will significantly increase the electrical conductivity of the P3OT-PS matrix from the order of 10⁻⁹ S cm⁻¹ (as in the case of P3OT-PS matrix) upto 10⁻⁴ S cm⁻¹ (as in the case of 3 and 5 wt% MWCNTs-P3OT-PS), which means that addition of 3 or 5 wt% MWCNTs to P3OT-PS matrix will convert the material from near semiconductor limit to near conductor limit. We previously ²⁷ found that the addition of 5 wt% single-walled carbon nanotubes to the P3OT matrix will increase the electrical conductivity of P3OT upto 10⁻⁴ S cm⁻¹. In the present work, however, we show that the same limit can be reached even at low applied voltage (of 10 volts) by blending 70% commercial polymer such as PS with 30% P3OT polymer and adding 3 or 5 wt% CNTs.

In CNTs–polymer composites, the polymer layer in the internanotube connections presents highly resistive section in the electrical pathway, acting as a barrier to efficient carrier transport between the nanotubes and models fluctuation-induced tunneling for the conductivity. ^27,46 Additionally, direct connection and overlapping of the CNT are not necessary, that is, nanotubes do not need to physically touch each other for conductivity. Nanotubes can just be close enough to allow for a hopping/tunneling electron effect; these mechanisms require the CNT–CNT distance to be less than 5 nm. As a result, a higher volume fraction of CNTs filler is needed to achieve electrical percolation threshold. ² This, however, indicates that in addition to the above-mentioned conduction mechanisms, other mechanisms such as hopping and tunneling mechanisms are also included in the electrical conduction of composites. However, it is interesting here to study the effects of cyclic voltage on the I–V characteristics and also the effect of DC biasing voltage on the AC impedance (Z) spectra of composites. Figures 9(a)–(d) show the I–V cyclic effect of 5, 1, 0.5, and 0 wt% MWCNT-P3OT-PS composites, respectively. Generally, behaviors of the obtained I–V curves indicate the existence of both capacitor and resistor elements in the MWCNTs–polymer network. The hysteresis behavior can be clearly observed at low MWCNT concentration (Figure 9(c)) and also in pure sample (Figure 9(d)); this behavior could be attributed to the existence of capacitor elements that are created by the interfacial regions between the two polymeric phases and the gaps between nanotubes. At higher level of MWCNTs content (Figures 9(a) and (b)), MWCNTs will form a network structure in the polymer matrix and as a result will act as a short circuit leading to a reduction in the capacitor elements of the MWCNT-polymer network, thus the electrical hysteretic behavior will be reduced. The results obtained suggest that at low MWCNTs content, capacitor element is the predominate one, whereas resistor element is the most effective one at high MWCNT loadings. Besides, the variation in impedance with frequency and AC-applied voltage at RT for 5 wt% MWCNTs sample is shown in Figures 10 and 11. Figure 10 shows that impedance values are nearly independent of frequency and this indicates that the effect of resistor element is greater than capacitor element at this level of CNTs content. Besides, the variation in impedance with applied field at 10 KHz (Figure 11) is not exactly linear, which indicates the existence of polymer barriers between nanotubes. The charge carries will jump from one barrier to another through hopping mechanism. ⁴⁸ The above results provide a strong evidence of existence of the above-mentioned mechanisms. Also the effect of capacitor element is clear at low MWCNTs content, while it has small effect in comparison with resistor element at high MWCNTs content. ^27,48,49

Figure 9.

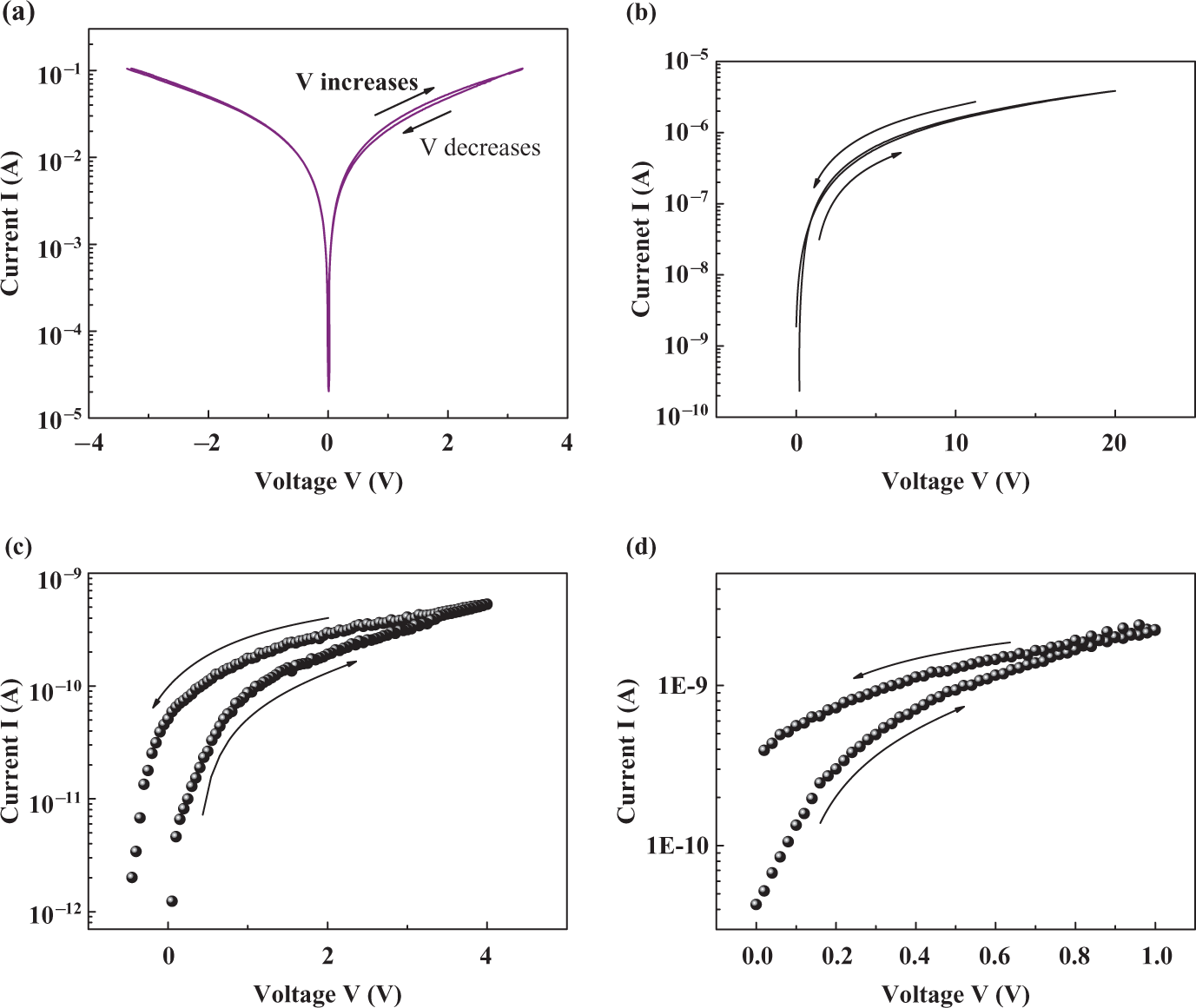

Effect of cyclic applied biasing voltage on the I-V characteristic curve of: (a) 5, (b) 1, (c) 0.5 and (d) 0 wt% MWCNT-P3OT-PS composites. I-V: current–voltage; MWCNT: multiwalled carbon nanotube; PS: polystyrene; P3OT: poly3-octylthiophene.

Figure 10.

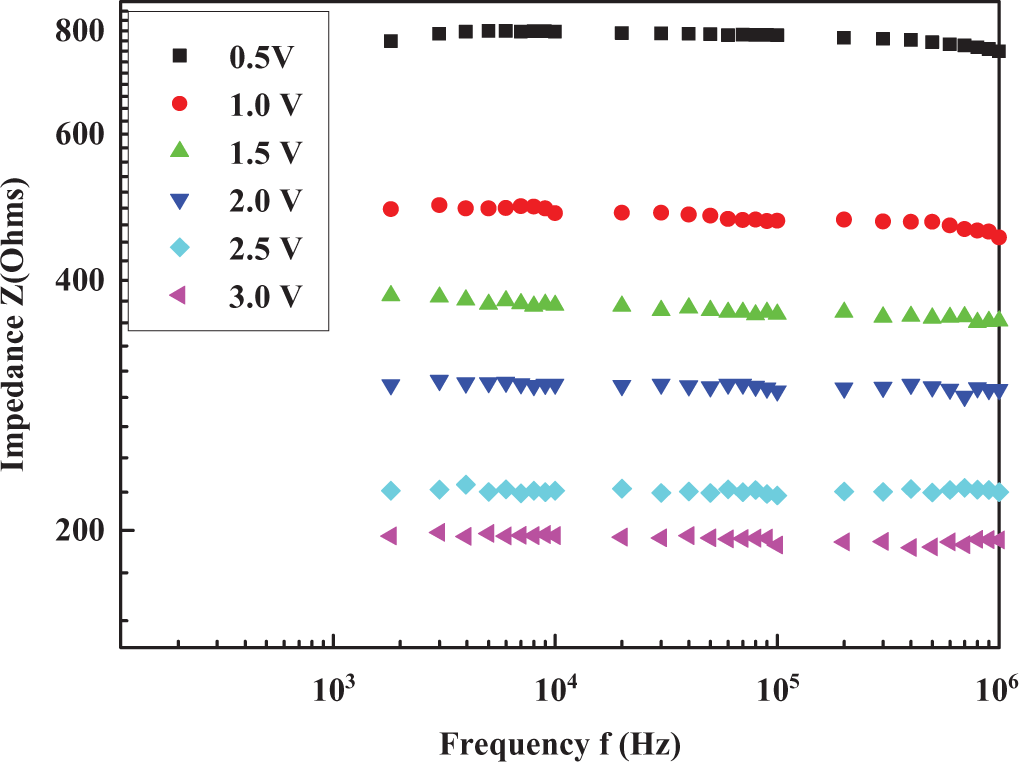

Impedance (Z) versus frequency at different applied voltage values for 5 wt% MWCNT-P3OT-PS composite. MWCNT: multiwalled carbon nanotubes; PS: polystyrene; P3OT: poly3-octylthiophene.

Figure 11.

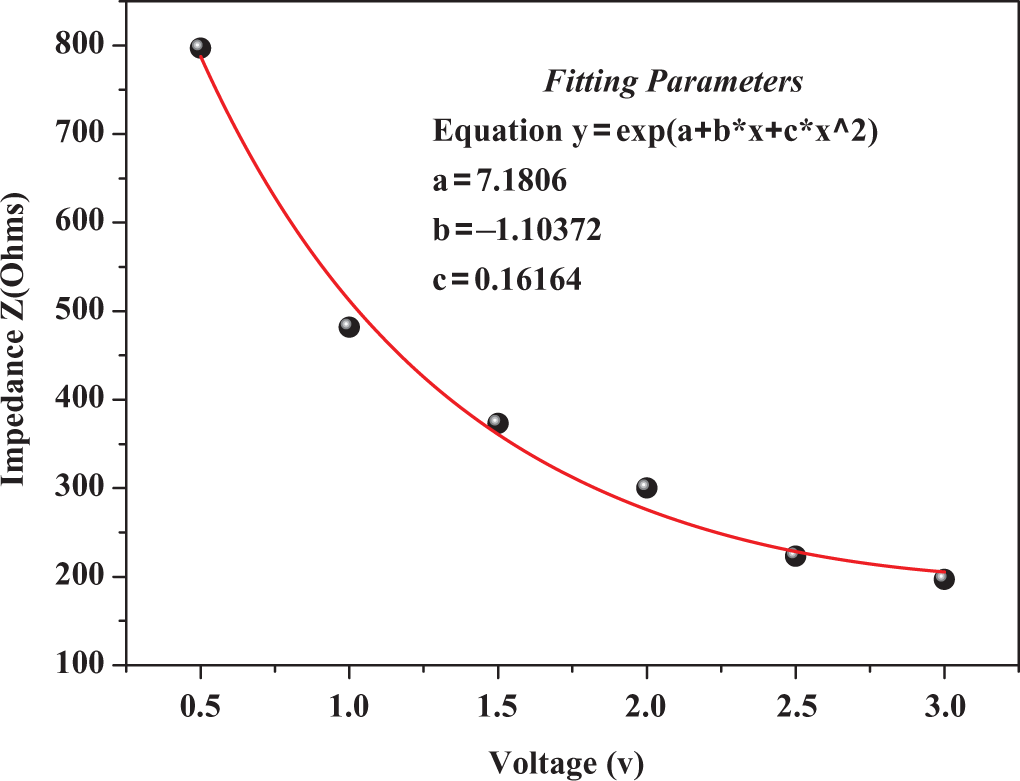

Impedance (Z) versus applied voltage for 5 wt% MWCNT-P3OT-PS composite. MWCNT: multiwalled carbon nanotubes; PS: polystyrene; P3OT: poly3-octylthiophene.

Conclusions

MWCNT-P3OT-PS composite films were prepared by casting technique. The dispersion of MWCNTs in 30 wt% P3OT-PS blend is improved through the functionalization of MWCNTs using UV–ozone. FT-IR results reveal the existence of carboxylic acid at the MWCNTs surface and there are no detectable interactions between composite components. Incorporation of MWCNTs upto 5 wt% into the blend matrix will enhance the UV/visible absorption of the P3OT-PS polymer blend and will not highly influence the optical energy gap of the blend matrix. Electrical results show that there are more than two mechanisms in the electrical conduction of these composites and their contributions depend on the applied voltage and composite compositions. At low MWCNTs content, capacitor element is the predominant one, while at high MWCNTs content resistor is the most effective element. This work shows that blending of 30 wt% P3OT with PS and incorporating 3 or 5 wt% MWCNTs into P3OT-PS matrix will increase electrical conductivity upto 10 order of magnitudes compared with PS and will convert composite material to conductor.
