Abstract

Introduction:

In trans-tibial prosthetics, shape-capture methods are employed to create a representation of the residuum. Shape-capture methods can be grouped into the categories of ‘hands-on’, ‘hands-off’ and computer-aided design.

Objective:

This review examines the influences and trends of shape-capture methods on the outcomes of quality, comfort of user and clinical efficiency, in the population of trans-tibial prosthesis users.

Study Design:

Systematic Review

Method:

Databases and relevant journals were searched. Participants included trans-tibial prosthetics users/limb models. Interventions included shape-capture methods. Outcomes included quality, comfort of user and clinical efficiency.

Results:

Overall, 22 papers were evaluated; 8 papers evaluated hands-on and hands-off methods, 2 evaluated computer-aided design and 12 evaluated measurement systems used with shape capture. No papers relating to clinical efficiency were found.

Conclusion:

Overall evidence was weak in suggesting that effects on outcomes were due to the sole influences of shape capture. However, studies suggest that hands-on methods are dependent on a prosthetist’s skill. Hands-off methods, although repeatable, might still require experience to attain a good fit. Computer-aided design studies were mostly done on theoretical models. Shape-capture measurements require more consistent ‘gold standards’. The relation between socket fit and comfort is still unclear. Overall, more research is required in each area.

Clinical relevance

A good fitting prosthetic socket is crucial for efficient and comfortable use of a prosthesis. To attain the best chances of a good fit, it is important that the characteristics of the residuum are captured as accurately as possible during the initial “shape capture” stage. This paper attempts to categorize and evaluate the existing shape capture methods on their influence and trends on various outcomes - Quality of shape capture, comfort of user and clinical efficiency.

Keywords

Prosthetic design biomechanics computer-aided design–computer-aided manufacturing prosthetic socket prosthetics rehabilitation of amputees rehabilitation shape capture

Introduction

Background

In a trans-tibial prosthesis, the socket works as a mechanical coupling between the human body and the prosthetic limb. To allow for efficient and comfortable use of the prosthesis, it is crucial to attain a good fit of the socket. The production and fitting of a socket occur over four main stages – shape capture, modification, fabrication and alignment. The stages are intimately linked, with the previous stage influencing subsequent ones. Due to this close relation, errors made in the overall process could be cumulative. Hence, it is important that the shape of the residuum is captured as accurately as possible to obtain the best chance of a good fit.^1–5

Optimal socket fit

In 1995, Klasson⁶ mentioned three criteria for a good fitting socket:

The mechanical coupling between the skeleton and the prosthesis is to be as stiff as possible;

No tissue damage;

Minimum discomfort to the user.

A stiff mechanical coupling would allow for minimal residuum displacement and effective transfer of forces during weight bearing. This was acknowledged by Lilja and Oberg,⁷ who stated that high stiffness improves proprioception and prosthetic function. To attain a stiff coupling, skeletal structures in the residuum would need to be stabilised within compressed soft tissue. Soft tissue compression should occur naturally under load and not through manual deformation in specific areas. This would aim to provide a uniform pressure distribution around the residuum, which would minimise tissue damage and discomfort.⁶ Klasson’s opinions resonated with those of Kahle,⁸ who agreed that a uniform pressure distribution would minimise skin breakdown.

Klasson also suggested that modification of the captured shape should be kept to a minimum as it is an unquantifiable and unreproducible process^1,9–11 which could introduce discrepancies in socket fit.¹² Holmgren was cited, stating that shaping for an even pressure distribution should be done at the shape-capture process.⁶

The three criteria could be obtained through a socket that matches either the surface or the volume of the loaded residuum.⁶ Surface matching is difficult to achieve and errors could create peak loading pressures in other areas. Volume matching applies the principle of hydrostatic load transfer, which assumes that soft tissues behave uniformly when loaded and should the socket be a closed system of fixed volume, there would be equal pressure distribution over the residuum. However, soft tissues are not uniform and the socket is an open system. Therefore, volume matching sockets can only be described as a quasi-hydrostatic system.

Socket design

Presently, there are two existing socket designs used in trans-tibial prosthetics. Specific surface bearing design suggests that weight is borne mostly on specific load tolerant surfaces of the residuum.¹³ This design requires manual manipulation of soft tissues to pre-shape the negative cast, which is followed by modification that shapes the socket contours to anticipate contact forces of gait.

Total surface bearing design suggests that equal load should be distributed over all surfaces of the residuum. It aims to create a quasi-hydrostatic system, which redistributes socket pressures in gait.⁹ It is sometimes referred to as a hydrostatic socket.¹⁴ This design utilises pressurised casting to load the residuum and usually no further modifications are required.

Although the two socket designs are radically different, they are both prescribed clinically, depending on the indications of the prosthetic user.^14,15

Shape capture

‘Shape capture’ is the term loosely used to define the process where a representation of the residuum is created via either a physical cast or virtual scan. It provides the prosthetist with a starting point to design and fabricate the eventual socket. Thus, it is essential that shape capture represents the residuum as accurately as possible, to minimise cumulative error.¹⁶

Conventionally, shape capture is done via plaster-of-Paris (POP) bandages, where it is wrapped and hand shaped by the prosthetist to produce a negative cast.¹⁷ However, with different socket designs and advancements in technology, new methods of shape capture have emerged.

Categorising shape capture

In prosthetics, the terminologies and classifications used for shape capture are still inconsistent. Safari et al.¹⁸ used the term ‘hands-on’ for a conventional wrap cast and ‘hands-off’ for shaping with pneumatic pressure, while Manucharian¹⁹ referred to the hydrocast as ‘hands-off’.

For clarity, this article would refer to ‘hands-on’ as any shape-capture technique that requires manual shaping. ‘Hands-off’ techniques would not require manual dexterity in shaping. Computer-aided design (CAD) would refer to digital shape-capture methods. These methods are categorised in Figure 1.

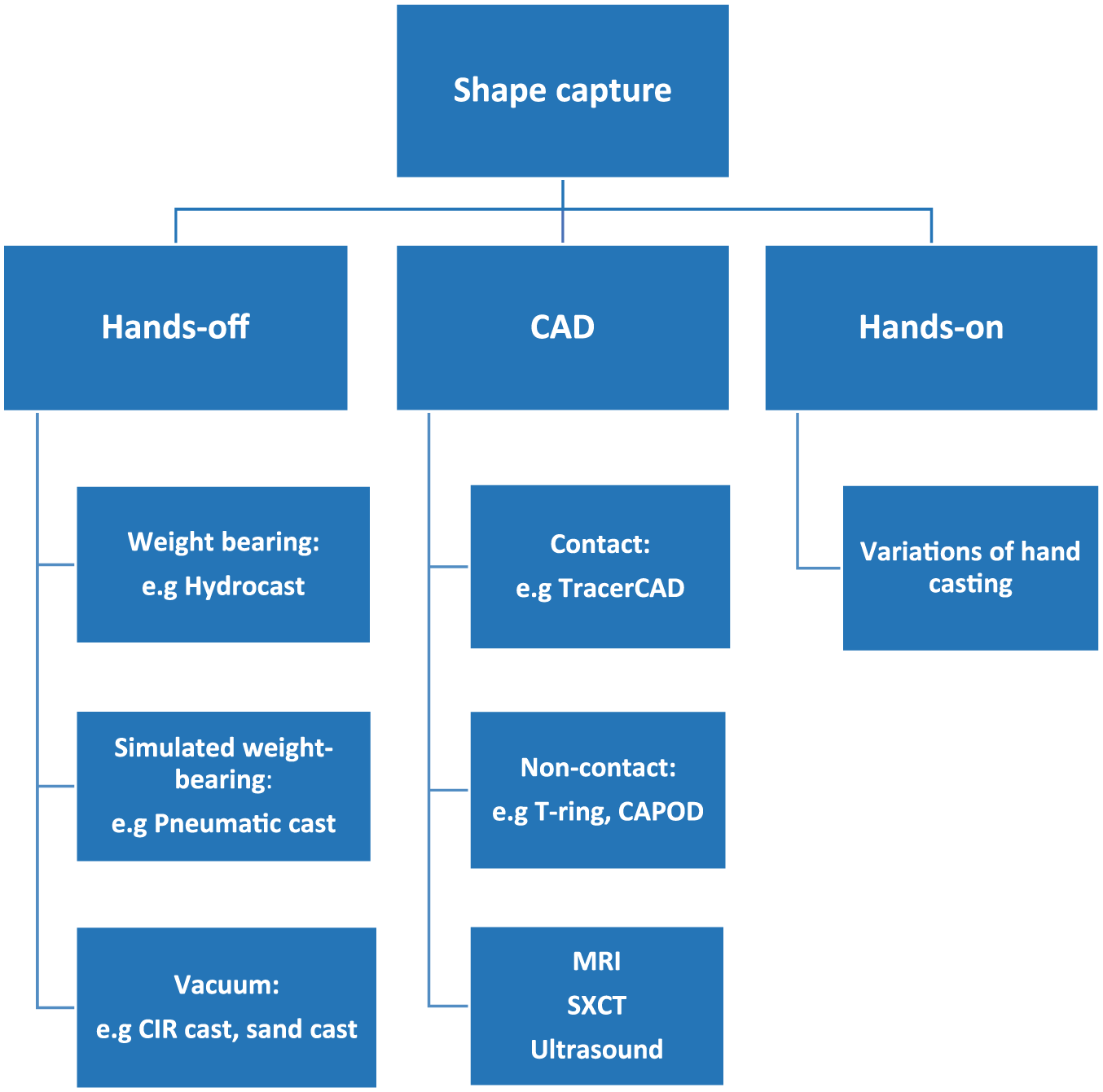

Figure 1.

Shape-capture methods.

CAD (contact)^12,20,21 methods require contact between the digitizer and the surfaces of the subject, in order to capture its shape. CAD (non-contact)^12,22–27 are optical scanners that utilise laser,²⁸ fringe projection²⁹ and silhouetting^30,31 technology to capture shape. Ultrasound,³² magnetic resonance imaging (MRI)^18,33 and spiral X-ray computed tomography (SXCT)^30,34 are systems that can capture both external and internal structures of the residuum. These methods are also non-contact; however, due to their added capabilities, they are classed under a separate sub-group. CAD methods do not load the limb, thus requiring modification to the captured shape.

Hands-off, weight-bearing (HOFF(WB)) methods³⁵ capture shape under load-bearing conditions with the casting equipment supporting the prosthesis user. This attempts to replicate socket loading pressures experienced in standing, which help to shape the negative cast. Minimal or no modification is required.^6,16,35

Hands-off, simulated weight-bearing (HOFF(SWB)) methods also attempt to replicate weight-bearing pressures. However, these casts are taken in a non weight-bearing state, with appliances exerting external pressures to shape the negative cast. Some modification might still be required.⁹

Hands-off, vacuum (HOFF(V))^36,37 methods apply the ‘principle of dilatancy’ to capture shape through vacuum suction. Depending on the technique utilised, these casts can be performed in a weight-bearing state. Modification might be required.^38,39

It is difficult to distinctly categorise shape-capture methods due to the multiple overlaps in characteristics; however, these categories would be used in this review for clarity.

There are suggested advantages and disadvantages of different shape-capture methods, which are listed in Table 1.

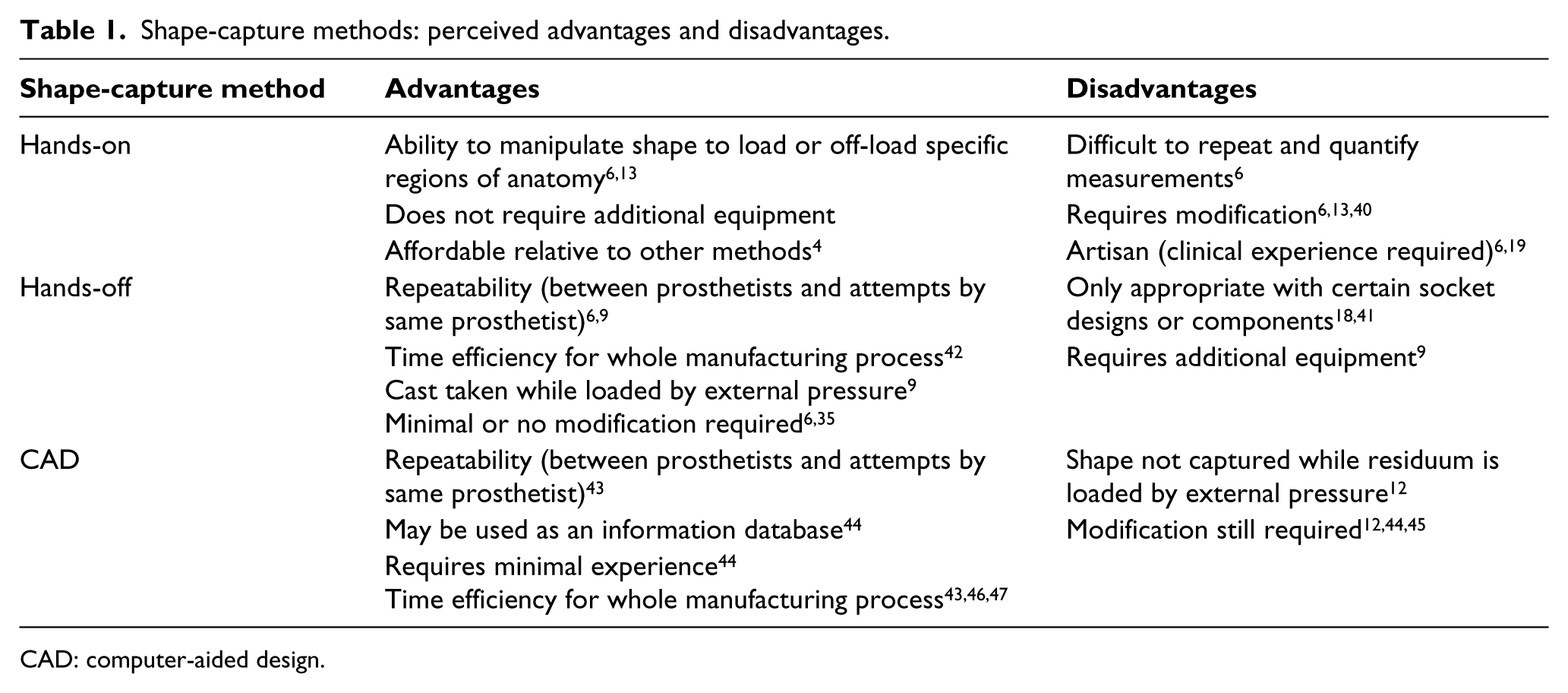

Table 1.

Shape-capture methods: perceived advantages and disadvantages.

Shape-capture method	Advantages	Disadvantages
Hands-on	Ability to manipulate shape to load or off-load specific regions of anatomy^6,13	Difficult to repeat and quantify measurements⁶
	Does not require additional equipment	Requires modification^6,13,40
	Affordable relative to other methods⁴	Artisan (clinical experience required)^6,19
Hands-off	Repeatability (between prosthetists and attempts by same prosthetist)^6,9	Only appropriate with certain socket designs or components^18,41
Hands-off	Time efficiency for whole manufacturing process⁴² Cast taken while loaded by external pressure⁹ Minimal or no modification required^6,35	Requires additional equipment⁹
CAD	Repeatability (between prosthetists and attempts by same prosthetist)⁴³	Shape not captured while residuum is loaded by external pressure¹²
	May be used as an information database⁴⁴	Modification still required^12,44,45
	Requires minimal experience⁴⁴ Time efficiency for whole manufacturing process^43,46,47

CAD: computer-aided design.

Shape-capture measurements

Clinically, measurements at anatomical landmarks on the residuum are usually taken together with shape capture. A variety of measurement equipment exist, ranging from rudimentary hand tools to advanced CAD systems, possessing resolutions capable of measuring changes in one-tenth of a millimetre in geometry or percentage volume.⁴⁸ To assess for shape-capture accuracy, equipment precision is required.

Evaluating shape capture

Quality of shape capture

To have the best chance of obtaining a good socket fit, shape capture should be repeatable, reliable and accurate. However, as the dimensions of a residuum under optimal socket fit conditions are still unknown, ‘true’ accuracy is undefined. Some studies utilised ‘gold standard’ measurements to determine the dimensions of an unloaded residuum as a reference standard for accuracy.¹² However, this ‘gold standard’ varies across literature.

A ‘clinically acceptable’ socket fit was suggested to allow for 1–2 socks to be worn over the residuum.^7,40 The exact measurements of this fit differ across studies, but it was suggested that volumetric differences are within 5%–9% of the residuum’s volume.^7,18,31,40 Sanders et al.⁴² mentioned that a 5% volumetric change in a uniformly expanding residuum with a diameter of 90 mm would correspond to a radial difference of 1 mm. However, it was unclear how this value was obtained.

In this article, quality of shape capture will be determined by the reliability and accuracy of different methods. Accuracy would be measured according to the values of the clinically acceptable fit.

Comfort of user

A prosthetic socket needs to fit comfortably. Having an ill-fitting socket would result in gait deviations, skin breakdown and even rejection of prosthesis.³ Comfort can be quantified using internally valid scales such as the Socket Comfort Score (SCS).⁴¹

Clinical efficiency

Some shape-capture methods are suggested to improve clinical efficiency through minimisation of cost and time.³⁶ Hence, different shape-capture methods could be employed for centres with varying budgets and clinician experience.

Objectives

Shape capture is the first step of every socket production process. However, it is unclear which shape-capture methods provide the best chances of attaining a good fit, under certain conditions. Therefore, outcomes relating shape capture to socket fit need to be evaluated.

The purpose of this review is to examine the influences and trends of shape-capture methods on the outcomes of quality, comfort of user and clinical efficiency, in the population of trans-tibial prosthesis users. This review also hopes to suggest direction for future research.

Method

Protocol

The methodology of this review was documented according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement.⁴³ Studies were graded according to the American Academy of Orthotists and Prosthetists (AAOP) guidelines.⁴⁴

Studies were selected based on the criteria in Table 2. Studies that used models as subjects were also included, as quality was evaluated as an outcome. Quality of shape capture determines the margin of error for measured dimensions of any object.

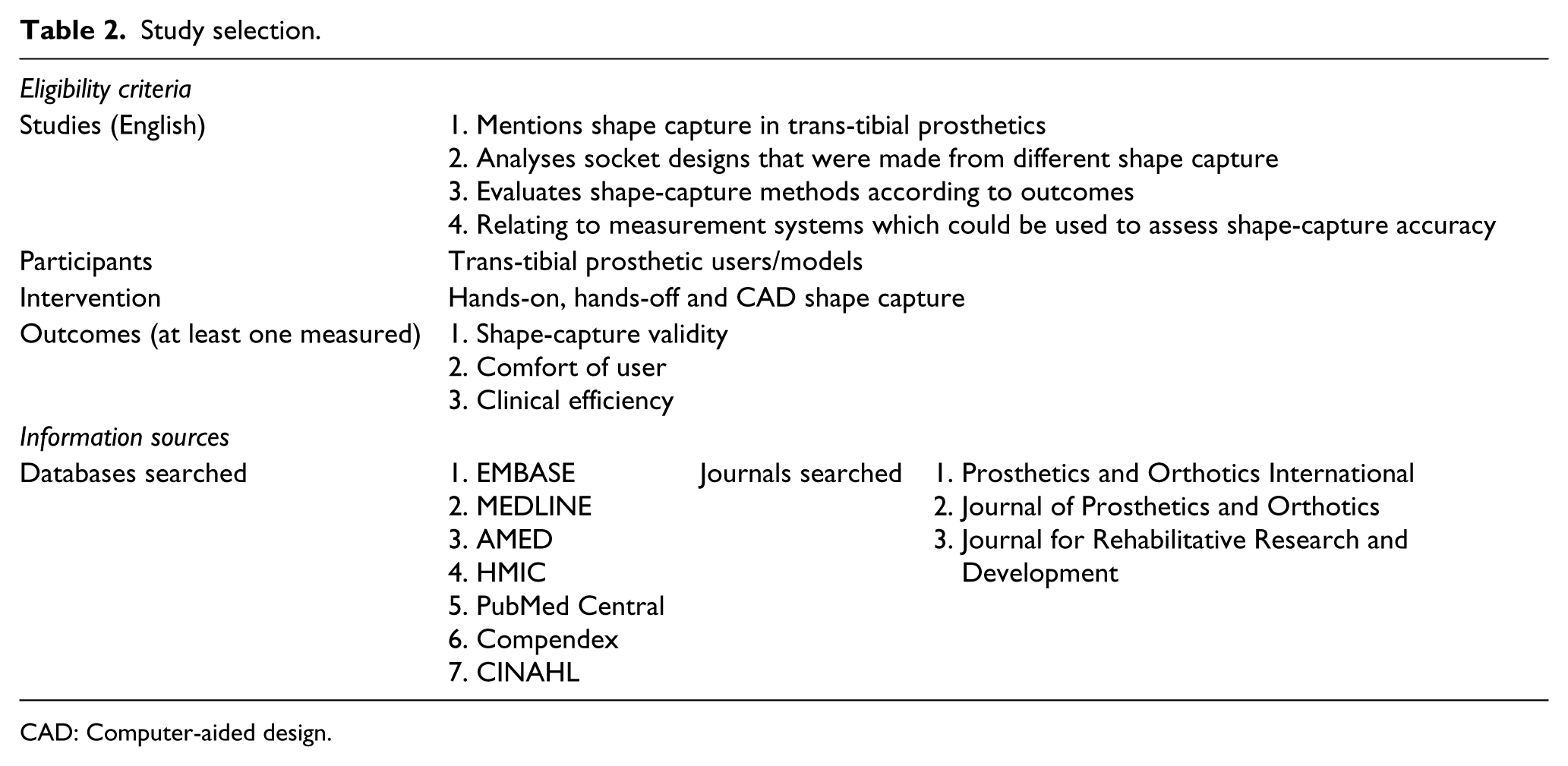

Table 2.

Study selection.

Eligibility criteria
Studies (English)	1. Mentions shape capture in trans-tibial prosthetics2. Analyses socket designs that were made from different shape capture3. Evaluates shape-capture methods according to outcomes4. Relating to measurement systems which could be used to assess shape-capture accuracy
Participants	Trans-tibial prosthetic users/models
Intervention	Hands-on, hands-off and CAD shape capture
Outcomes (at least one measured)	1. Shape-capture validity2. Comfort of user3. Clinical efficiency
Information sources
Databases searched	1. EMBASE2. MEDLINE3. AMED4. HMIC5. PubMed Central6. Compendex7. CINAHL	Journals searched	1. Prosthetics and Orthotics International2. Journal of Prosthetics and Orthotics3. Journal for Rehabilitative Research and Development

CAD: Computer-aided design.

Excluded studies

Studies that used direct socket production were excluded. In direct socket production, the socket is formed on the user’s limb via a lamination process. It is a method of socket fabrication rather than a different shape-capture method.⁴⁵

Studies that reported on CAD scanning of negative hand casts in their methodology were also excluded. This is essentially using CAD for modification, rather than the actual shape capture.⁴⁶

Studies that reported on post amputation temporary prostheses or included subjects who were inexperienced prosthetic users were also excluded. This is to limit the differences in outcome measures due to volume fluctuations as well as comfort where new users are not yet accustomed to a prosthesis.^31,48,47,49

Papers that only presented technical instructions were also excluded as they do not evaluate any outcomes.

Information sources

Studies were found via searching of electronic databases and bibliographies of included studies. To ensure a thorough search process, journals where included studies were most commonly published in were hand searched to obtain other relevant studies. These are listed in Table 2. The last updated search was done on 25 April 2018. The full search strategy and search terms are shown in Appendix 1.

Study selection

The author assessed the eligibility of studies independently. Studies which were found to be ambiguous in inclusion or exclusion criteria were discussed with the co-authors.

Data collection process

A template was created for the data extraction process. This is detailed in Appendix 1. Extracted data are presented in Tables 3 and 4.

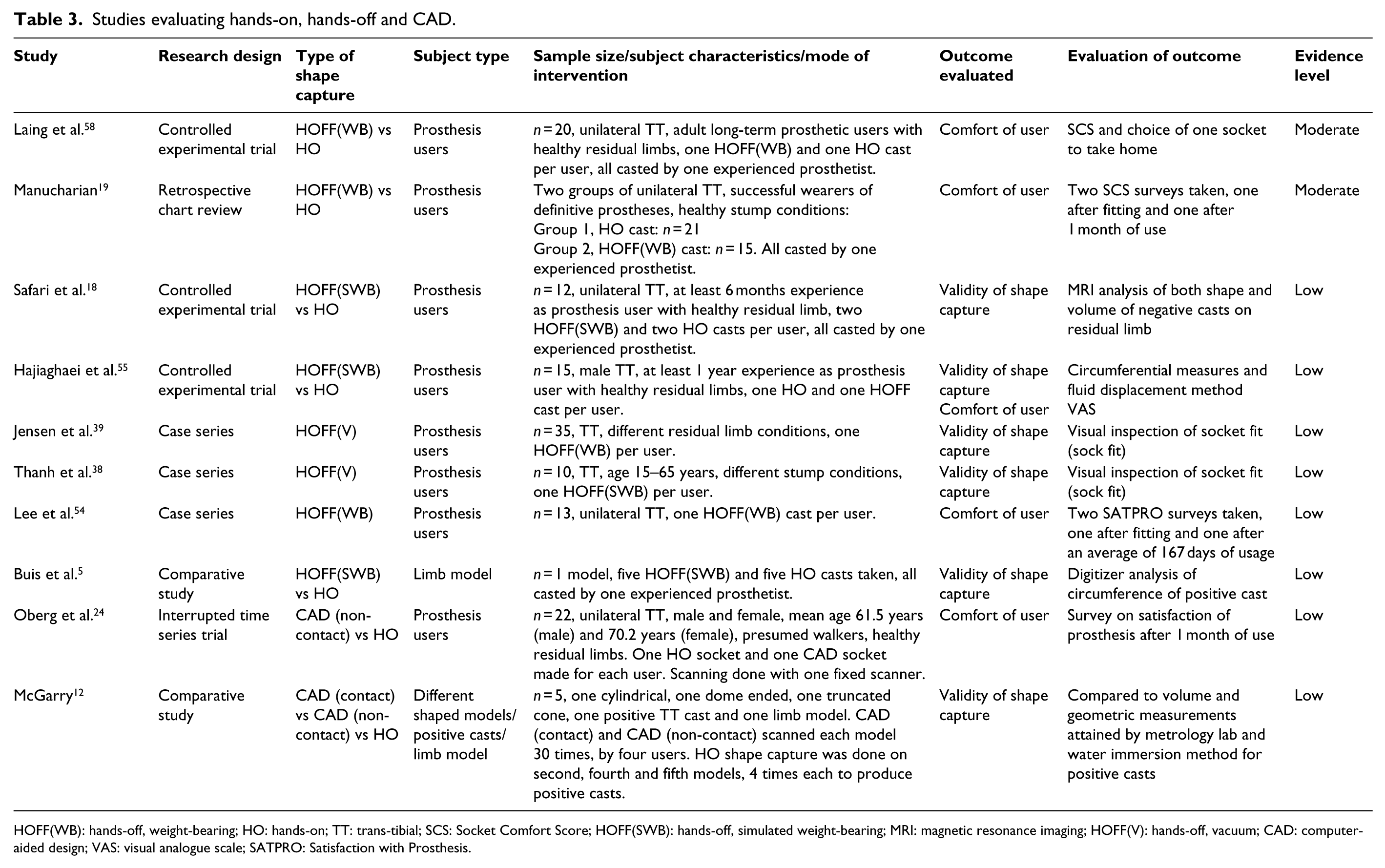

Table 3.

Studies evaluating hands-on, hands-off and CAD.

Study	Research design	Type of shape capture	Subject type	Sample size/subject characteristics/mode of intervention	Outcome evaluated	Evaluation of outcome	Evidence level
Laing et al.⁵⁸	Controlled experimental trial	HOFF(WB) vs HO	Prosthesis users	n = 20, unilateral TT, adult long-term prosthetic users with healthy residual limbs, one HOFF(WB) and one HO cast per user, all casted by one experienced prosthetist.	Comfort of user	SCS and choice of one socket to take home	Moderate
Manucharian¹⁹	Retrospective chart review	HOFF(WB) vs HO	Prosthesis users	Two groups of unilateral TT, successful wearers of definitive prostheses, healthy stump conditions:Group 1, HO cast: n = 21Group 2, HOFF(WB) cast: n = 15. All casted by one experienced prosthetist.	Comfort of user	Two SCS surveys taken, one after fitting and one after 1 month of use	Moderate
Safari et al.¹⁸	Controlled experimental trial	HOFF(SWB) vs HO	Prosthesis users	n = 12, unilateral TT, at least 6 months experience as prosthesis user with healthy residual limb, two HOFF(SWB) and two HO casts per user, all casted by one experienced prosthetist.	Validity of shape capture	MRI analysis of both shape and volume of negative casts on residual limb	Low
Hajiaghaei et al.⁵⁵	Controlled experimental trial	HOFF(SWB) vs HO	Prosthesis users	n = 15, male TT, at least 1 year experience as prosthesis user with healthy residual limbs, one HO and one HOFF cast per user.	Validity of shape captureComfort of user	Circumferential measures and fluid displacement methodVAS	Low
Jensen et al.³⁹	Case series	HOFF(V)	Prosthesis users	n = 35, TT, different residual limb conditions, one HOFF(WB) per user.	Validity of shape capture	Visual inspection of socket fit (sock fit)	Low
Thanh et al.³⁸	Case series	HOFF(V)	Prosthesis users	n = 10, TT, age 15–65 years, different stump conditions, one HOFF(SWB) per user.	Validity of shape capture	Visual inspection of socket fit (sock fit)	Low
Lee et al.⁵⁴	Case series	HOFF(WB)	Prosthesis users	n = 13, unilateral TT, one HOFF(WB) cast per user.	Comfort of user	Two SATPRO surveys taken, one after fitting and one after an average of 167 days of usage	Low
Buis et al.⁵	Comparative study	HOFF(SWB) vs HO	Limb model	n = 1 model, five HOFF(SWB) and five HO casts taken, all casted by one experienced prosthetist.	Validity of shape capture	Digitizer analysis of circumference of positive cast	Low
Oberg et al.²⁴	Interrupted time series trial	CAD (non-contact) vs HO	Prosthesis users	n = 22, unilateral TT, male and female, mean age 61.5 years (male) and 70.2 years (female), presumed walkers, healthy residual limbs. One HO socket and one CAD socket made for each user. Scanning done with one fixed scanner.	Comfort of user	Survey on satisfaction of prosthesis after 1 month of use	Low
McGarry¹²	Comparative study	CAD (contact) vs CAD (non-contact) vs HO	Different shaped models/ positive casts/limb model	n = 5, one cylindrical, one dome ended, one truncated cone, one positive TT cast and one limb model. CAD (contact) and CAD (non-contact) scanned each model 30 times, by four users. HO shape capture was done on second, fourth and fifth models, 4 times each to produce positive casts.	Validity of shape capture	Compared to volume and geometric measurements attained by metrology lab and water immersion method for positive casts	Low

HOFF(WB): hands-off, weight-bearing; HO: hands-on; TT: trans-tibial; SCS: Socket Comfort Score; HOFF(SWB): hands-off, simulated weight-bearing; MRI: magnetic resonance imaging; HOFF(V): hands-off, vacuum; CAD: computer-aided design; VAS: visual analogue scale; SATPRO: Satisfaction with Prosthesis.

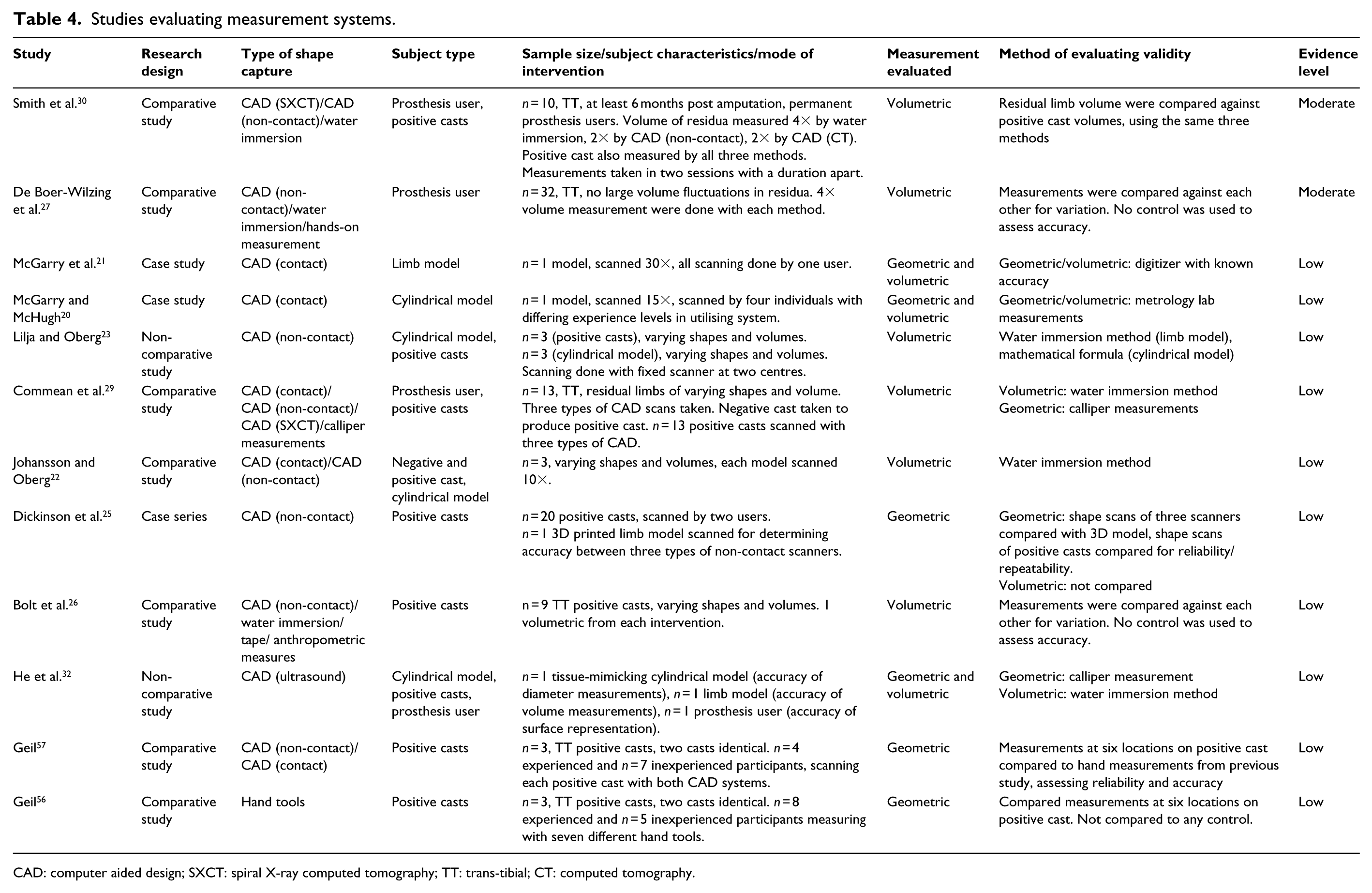

Table 4.

Studies evaluating measurement systems.

Study	Research design	Type of shape capture	Subject type	Sample size/subject characteristics/mode of intervention	Measurement evaluated	Method of evaluating validity	Evidence level
Smith et al.³⁰	Comparative study	CAD (SXCT)/CAD (non-contact)/water immersion	Prosthesis user, positive casts	n = 10, TT, at least 6 months post amputation, permanent prosthesis users. Volume of residua measured 4× by water immersion, 2× by CAD (non-contact), 2× by CAD (CT).Positive cast also measured by all three methods. Measurements taken in two sessions with a duration apart.	Volumetric	Residual limb volume were compared against positive cast volumes, using the same three methods	Moderate
De Boer-Wilzing et al.²⁷	Comparative study	CAD (non-contact)/water immersion/hands-on measurement	Prosthesis user	n = 32, TT, no large volume fluctuations in residua. 4× volume measurement were done with each method.	Volumetric	Measurements were compared against each other for variation. No control was used to assess accuracy.	Moderate
McGarry et al.²¹	Case study	CAD (contact)	Limb model	n = 1 model, scanned 30×, all scanning done by one user.	Geometric and volumetric	Geometric/volumetric: digitizer with known accuracy	Low
McGarry and McHugh²⁰	Case study	CAD (contact)	Cylindrical model	n = 1 model, scanned 15×, scanned by four individuals with differing experience levels in utilising system.	Geometric and volumetric	Geometric/volumetric: metrology lab measurements	Low
Lilja and Oberg²³	Non-comparative study	CAD (non-contact)	Cylindrical model, positive casts	n = 3 (positive casts), varying shapes and volumes.n = 3 (cylindrical model), varying shapes and volumes. Scanning done with fixed scanner at two centres.	Volumetric	Water immersion method (limb model), mathematical formula (cylindrical model)	Low
Commean et al.²⁹	Comparative study	CAD (contact)/CAD (non-contact)/CAD (SXCT)/calliper measurements	Prosthesis user, positive casts	n = 13, TT, residual limbs of varying shapes and volume. Three types of CAD scans taken. Negative cast taken to produce positive cast. n = 13 positive casts scanned with three types of CAD.	Volumetric	Volumetric: water immersion methodGeometric: calliper measurements	Low
Johansson and Oberg²²	Comparative study	CAD (contact)/CAD (non-contact)	Negative and positive cast, cylindrical model	n = 3, varying shapes and volumes, each model scanned 10×.	Volumetric	Water immersion method	Low
Dickinson et al.²⁵	Case series	CAD (non-contact)	Positive casts	n = 20 positive casts, scanned by two users.n = 1 3D printed limb model scanned for determining accuracy between three types of non-contact scanners.	Geometric	Geometric: shape scans of three scanners compared with 3D model, shape scans of positive casts compared for reliability/ repeatability.Volumetric: not compared	Low
Bolt et al.²⁶	Comparative study	CAD (non-contact)/water immersion/tape/ anthropometric measures	Positive casts	n = 9 TT positive casts, varying shapes and volumes. 1 volumetric from each intervention.	Volumetric	Measurements were compared against each other for variation. No control was used to assess accuracy.	Low
He et al.³²	Non-comparative study	CAD (ultrasound)	Cylindrical model, positive casts, prosthesis user	n = 1 tissue-mimicking cylindrical model (accuracy of diameter measurements), n = 1 limb model (accuracy of volume measurements), n = 1 prosthesis user (accuracy of surface representation).	Geometric and volumetric	Geometric: calliper measurementVolumetric: water immersion method	Low
Geil⁵⁷	Comparative study	CAD (non-contact)/CAD (contact)	Positive casts	n = 3, TT positive casts, two casts identical. n = 4 experienced and n = 7 inexperienced participants, scanning each positive cast with both CAD systems.	Geometric	Measurements at six locations on positive cast compared to hand measurements from previous study, assessing reliability and accuracy	Low
Geil⁵⁶	Comparative study	Hand tools	Positive casts	n = 3, TT positive casts, two casts identical. n = 8 experienced and n = 5 inexperienced participants measuring with seven different hand tools.	Geometric	Compared measurements at six locations on positive cast. Not compared to any control.	Low

CAD: computer aided design; SXCT: spiral X-ray computed tomography; TT: trans-tibial; CT: computed tomography.

Risk of bias

Risk of bias was evaluated via the AAOP State-of-the-Science Evidence Report.⁴⁴ Studies were classified according to their design; however, not all fulfilled the categories provided. Studies with experimental designs were graded higher than those without. The checklist determined the level of bias by assessing the study’s internal validity (IV) and external validity (EV). Overall grades of ‘low’, ‘moderate’ and ‘high’ are given, according to the level of bias and study design.

Results

Study selection

A total of 22 eligible studies were identified in this review. The selection process is detailed in Figure 2, and the extracted data are presented in Tables 3 and 4. No studies evaluating clinical efficiency were found, which led to the outcome measure being removed.

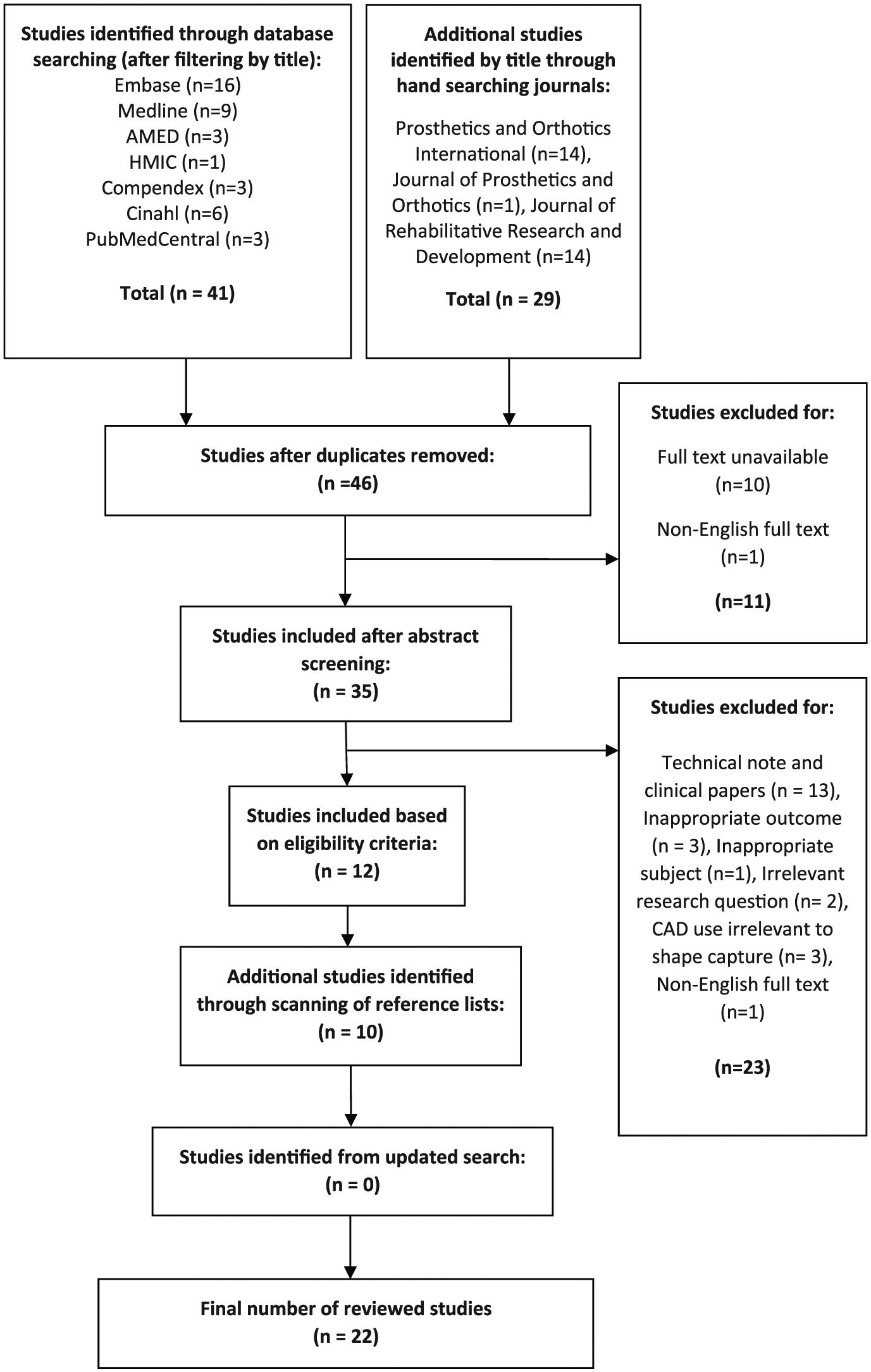

Figure 2.

PRISMA flow diagram.

Quality appraisal

Overall, 19 studies^{5,12,18,20–26,29,32,38,39,54–57} were rated to have low evidences due to high risk of bias, 3 had moderate evidences^19,27,30,58 with moderate risk of bias and no studies with very low risk of bias were found. These are presented in Tables 3 and 4.

Hands-on and hands-off

Eight studies evaluated HO and HOFF methods; ^{5,18,19,38,39,54,55,58} four studies reported on quality,^5,18,38,39 three reported on comfort^19,54,58 and one reported on both outcomes.⁵⁵

Comfort was evaluated in two studies comparing HOFF(WB) against HO,^19,58 as reported in Table 5. Both studies used the SCS as their outcome measure. However, one study¹⁹ took SCS surveys on two separate occasions, one after initial fitting and the other after a month of use. In both surveys, results for HO were better. The other study⁵⁸ took surveys after initial fitting and found no significant differences between HO and HOFF(WB) sockets.

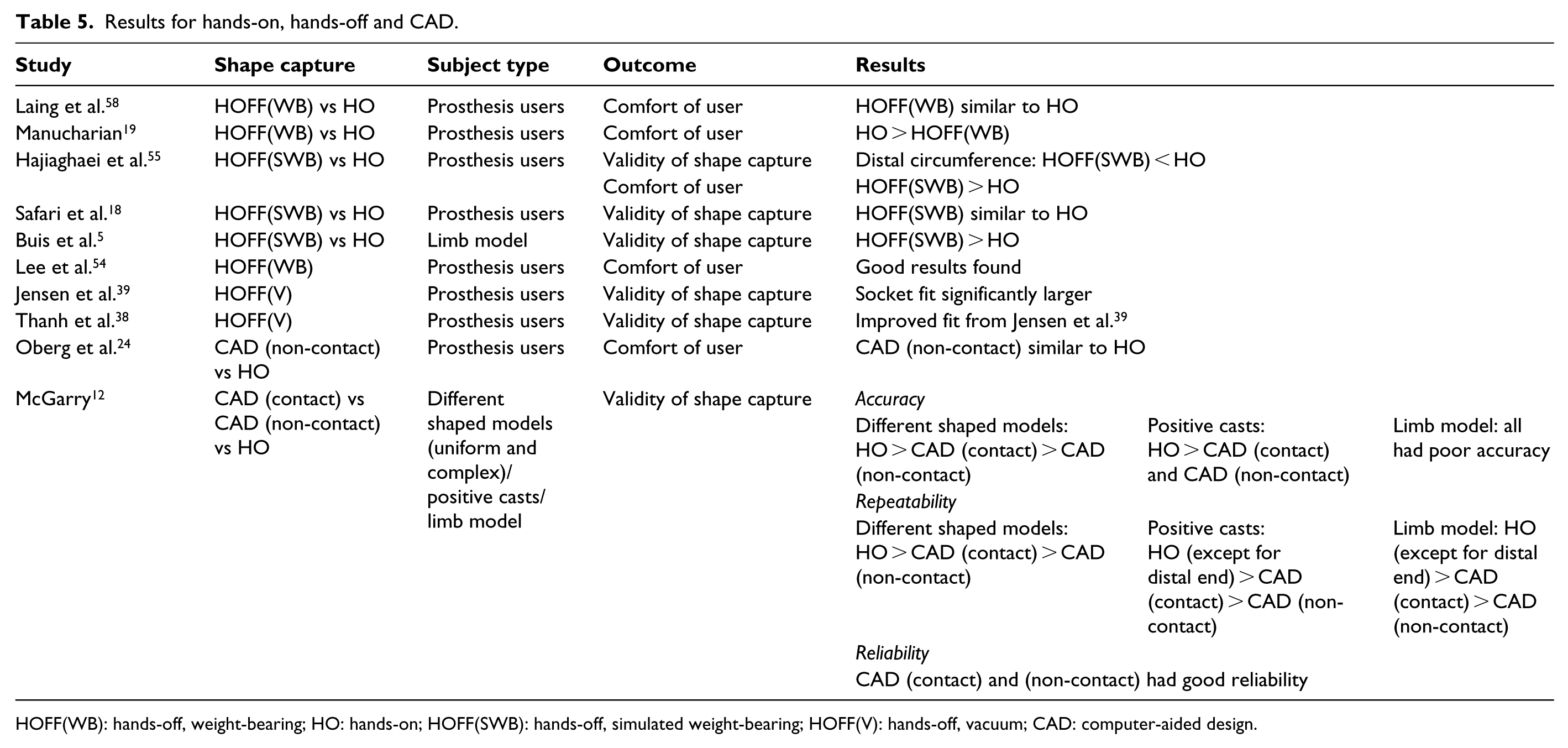

Table 5.

Results for hands-on, hands-off and CAD.

Study	Shape capture	Subject type	Outcome	Results
Laing et al.⁵⁸	HOFF(WB) vs HO	Prosthesis users	Comfort of user	HOFF(WB) similar to HO
Manucharian¹⁹	HOFF(WB) vs HO	Prosthesis users	Comfort of user	HO > HOFF(WB)
Hajiaghaei et al.⁵⁵	HOFF(SWB) vs HO	Prosthesis users	Validity of shape capture	Distal circumference: HOFF(SWB) < HO
Hajiaghaei et al.⁵⁵	HOFF(SWB) vs HO	Prosthesis users	Comfort of user	HOFF(SWB) > HO
Safari et al.¹⁸	HOFF(SWB) vs HO	Prosthesis users	Validity of shape capture	HOFF(SWB) similar to HO
Buis et al.⁵	HOFF(SWB) vs HO	Limb model	Validity of shape capture	HOFF(SWB) > HO
Lee et al.⁵⁴	HOFF(WB)	Prosthesis users	Comfort of user	Good results found
Jensen et al.³⁹	HOFF(V)	Prosthesis users	Validity of shape capture	Socket fit significantly larger
Thanh et al.³⁸	HOFF(V)	Prosthesis users	Validity of shape capture	Improved fit from Jensen et al.³⁹
Oberg et al.²⁴	CAD (non-contact) vs HO	Prosthesis users	Comfort of user	CAD (non-contact) similar to HO
McGarry¹²	CAD (contact) vs CAD (non-contact) vs HO	Different shaped models (uniform and complex)/ positive casts/limb model	Validity of shape capture	Accuracy
				Different shaped models: HO > CAD (contact) > CAD (non-contact)	Positive casts: HO > CAD (contact) and CAD (non-contact)	Limb model: all had poor accuracy
				Repeatability
				Different shaped models: HO > CAD (contact) > CAD (non-contact)	Positive casts: HO (except for distal end) > CAD (contact) > CAD (non-contact)	Limb model: HO (except for distal end) > CAD (contact) > CAD (non-contact)
				Reliability
				CAD (contact) and (non-contact) had good reliability

HOFF(WB): hands-off, weight-bearing; HO: hands-on; HOFF(SWB): hands-off, simulated weight-bearing; HOFF(V): hands-off, vacuum; CAD: computer-aided design.

Quality was evaluated in two studies comparing HOFF(SWB) against HO.^5,18 Both studies had different subject groups and outcome measures, as evident in Table 5. One was done on residual limbs, while the other was done on a single limb model. Both studies compared cast repeatability. The first study used MRI to evaluate negative cast dimensions on the residual limb.¹⁸ The other used a digitizer to analyse circumferences of positive casts.⁵ The first study¹⁸ found that both HO and HOFF(SWB) produced repeatable and clinically acceptable volumes, but lacked shape repeatability. When expressed in percentage volume for clinical significance, HO shape differences equated to a ‘1 sock fit’, while HOFF(SWB) did not require a sock. The other study⁵ found that HO lacked repeatability where variations in circumferential measurements ranged from 2.4 to 5 mm. HOFF(SWB) was more repeatable and had a maximum variation of 1.4 mm.

CAD

Two studies evaluated CAD shape capture.^12,24 As presented in Table 5, one study reported on comfort of user,²⁴ where satisfaction of socket was measured after a month of use. The study compared CAD (non-contact) to HO sockets on group of prosthesis users. No significant differences were found. The other study compared HO, CAD (contact) and CAD (non-contact)¹² on various theoretical models. Accuracy of volumetric and geometric dimensions obtained was evaluated against metrology laboratory measurements to determine clinical significance. CAD (contact) had good accuracy for uniformly shaped models, but was inaccurate on complex shapes and the limb model. HO was found to be inaccurate on the limb model and CAD (non-contact) was found to be largely inaccurate across all models. Reliability of HO was not evaluated but CAD (contact) and CAD (non-contact) were found to be reliable. Both CAD systems had good repeatability on uniform shapes, but performed poorly on complex shapes and the limb model. HO had better repeatability when compared to CAD, except for distal end volumes in more complex shapes and the limb model. Generally, all methods lacked repeatability at measuring distal end volumes in complex shapes and CAD (non-contact) was the least repeatable method.

No study was found evaluating CAD against HOFF.

Measurements

A total of 12 studies compared measurement systems;^{20–23,25–27,29,30,32,56,57} 11 compared CAD systems^{20–23,25–27,29,30,32,57} and 1 compared hand tools.⁵⁶ With reference to Table 4, studies compared geometric and volumetric measurements on a variety of subject groups. Studies had small sample sizes and mostly compared models of different shapes and volumes. Only four studies^27,29,30,32 included measurements carried out on a residuum. Studies suggest that the different systems were generally repeatable and reliable. However, results varied according to shape, compressibility of surfaces, study design and statistical analysis.

Discussion

The purpose of this review was to report on the influences and trends that shape-capture methods had on certain outcomes in trans-tibial prosthetics. With the paucity of literature on shape capture, along with a specific focus on certain outcomes, only a few eligible studies were identified from the search. Of the literature identified, there were many variations in study characteristics. This made inter-study comparisons difficult. Many studies also involved different forms of bias, which affected overall validity.

Shape-capture methods

In the study by Safari et al.,¹⁸ repeatability was compared between HOFF(SWB) and HO. Both methods utilised POP bandages but differ in the shaping process. For HOFF(SWB), POP bandage was applied over a silicon liner worn on the residuum. For HO, wrap casting was done directly onto the residuum. This difference in interface could affect cast deformability which would affect the evaluated dimensions. ‘8 layers of stockinet’ were also worn on the residuum before either HO or HOFF(SWB) casts were taken. This was to improve boundary visibility in the MRI scan. However, this is not a normal clinical practice and it was unclear if measurements took into account the diameters and volumes of the stockinet. Hajiaghaei et al.⁵⁵ compared between HOFF(SWB) and HO. The HO method used was atypical of the conventional wrap cast but was similar to the ‘Precision Plaster Casting’ detailed by Staats,⁵⁹ which was used to develop the UCLA TSB socket.⁶⁰ Although this method required hand shaping and modification, however, it utilises weight bearing, which might not permit comparisons with other HO studies.

In studies by Laing et al.⁵⁸ and Manucharian,¹⁹ SCS was used to evaluate socket comfort at initial fitting. Manucharian¹⁹ assessed comfort immediately after the alignment stage, without any mention of acclimatisation. On the contrary, Laing et al.⁵⁸ assessed comfort as the last outcome after a series of measurements for various gait tests, where the user could have already been acclimatised to the socket. Lee et al.⁵⁴ utilised the Satisfaction with Prosthesis (SATPRO) to assess post-fitting and post-usage satisfaction, while Hajiaghaei et al.⁵⁵ used a visual analogue scale (VAS) to determine socket comfort. Along with different outcome measures of comfort, different socket suspensions, interfaces and prosthetic feet were also used in each study. These could have affected comfort scores, which made inter-study comparison unsuitable.

Buis et al.⁵ compared the consistencies of HOFF(SWB) and HO on a single limb model. As the limb model is not able to replicate tissue behaviour, results might differ if the study was done on a residuum. Furthermore, use of a single model with no variations in dimensions might not be able to fully assess the repeatability of both methods. In the study by McGarry,¹² HO was compared against CAD (contact) and CAD (non-contact), assessing for quality. Theoretical models, positive casts and a manikin model were used as subjects. Similarly, these subject types are not representative of the residuum. However, the results suggested that the quality of CAD systems with regard to more complex shapes and compressible models was poor. This might also suggest that poor results would be obtained on a residuum. However, more CAD studies involving prosthesis users and updated systems are required to draw a conclusion.

Jensen et al.³⁹ investigated the effects of a HOFF(V) on socket fit. This method captured the shape of the residuum via vacuum suction, with the user bearing weight on a sand-filled container.³⁶ The method was later on improved by replacing sand with micro-polystyrene beads and the weight-bearing element of the cast was omitted.³⁷ Both methods required cast modification. The new method was evaluated by Thanh et al.,³⁸ who reported an improved one sock fit from 2–5 socks required to obtain total contact in the original sand cast. However, these assessments were done on sockets manufactured from modified casts. Shape capture in both studies was also done by the same prosthetist which could affect its reliability. Both of these factors would have affected the assessment of shape-capture quality.

Safari et al.¹⁸ found that HO produced acceptable volume but poor shape repeatability when applied on residual limbs. McGarry¹² reported that HO had poor repeatability in distal end volumes but acceptable repeatability in diameter measurements when done on a limb model. Each study assessed repeatability with one prosthetist applying the intervention. These differences in results could be due to variations in plaster wrapping techniques, study designs and subject types.

HOFF methods were developed to minimise the influences of a prosthetist’s casting and modification skills on the resultant socket fit.^9,16 This would possibly indicate that HOFF would be suitable for clinics that lacked experienced practitioners.⁵⁸ As shown in Tables 3 and 5, HOFF methods were applied in developing countries and were suggested to produce promising results.^38,39,54,58 However, these findings should be interpreted with caution. Jensen et al.³⁹ and Thanh et al.³⁸ mentioned that experienced prosthetist inputs were still required for the casting and modification process. Laing et al.⁵⁸ attempted to minimise inter-rater error by having the same experienced prosthetist casting for both HO and HOFF(WB). Only Lee et al.⁵⁴ evaluated comfort of HOFF(WB) sockets casted by less-experienced clinicians.

Measurements

Most of the findings reflected those reported by Sanders et al.,⁴⁸ in their systematic review of measurement systems for volume change in the residuum. With variations in system and study characteristics, differences in results were expected. However, due to the focus of this review, differences were not covered in detail. Instead, general findings were discussed.

There was a lack of reference standard which systems could be compared to. Geil⁵⁶ compared the repeatability and accuracy of hand tools against each other. McGarry and McHugh²⁰ referred to measurements obtained from a metrology laboratory as the ‘gold standard’. Some studies^12,22,23,32 compared volumetric measurements to that of a water immersion method. However, Bolt et al.²⁸ and De Boer-Wilzing et al.²⁷ evaluated water immersion against CAD and found that there were systematic errors. Studies were also inconsistent in the indices used for analysis of repeatability and reliability.

It was found that all systems evaluated had acceptable reliability and repeatability while measuring theoretical models. However, evidence is weak in suggesting the results would be achieved on a residuum. Studies that measured a residuum show that results vary according to marker positioning, movement and residuum characteristics.^27,29,30,32 Systems capable of visualising internal structures have potential to assess socket fit with reference to tibial position within the residuum.^18,29 However, due to high costs, inaccessibility and duration of scan time, these systems are not implemented in clinical use.⁴⁸

Accuracy of shape capture

Accuracy could be assessed by comparing shape to either the unloaded residuum or to a loaded residuum with dimensions of an optimal fit. Due to the lack of ‘optimal fit dimensions’ for each limb, ‘true’ accuracy of shape could be difficult to quantify.

Klasson⁶ suggested that the optimal socket fit would stabilise the tibia through soft-tissue compression when the residuum’s volume equilibrium is reached. Fluid in the residuum would be drained out proximally as it compresses, till the limit of compressibility is reached. This rate of proximal fluid transfer would be pressure and time dependent due to the viscosity of flow, where time taken for volume change and pressure exerted are inversely related. The geometric and volumetric dimensions measured under this condition could perhaps be considered as the ‘optimal fit dimensions’ for that particular residuum. However, Klasson also mentioned that there is no knowing if such a condition can be reached, and if so, the amount of pressure and time required and the corresponding limb dimensions are unknown. At present, no study has quantified these dimensions.

Due to the lack of a ‘true’ accuracy, authors in the literature have defined volumetric and geometric values of a ‘clinically acceptable fit’ which correspond to a 1–2 sock fit over the residuum.^7,18,40 Most studies that evaluated quality of shape-capture systems used these values to determine their clinical significance. However, it was found that there was a lack of consensus between studies defining these values.^{7,18,31,40,42} This inconsistency could likely affect the quality of systems with regard to clinical significance.

Literature for measurement systems mostly focused on the need for equipment precision and resolution in measuring an unloaded residuum. Although they are important, it was found that different conditions could have a significant effect on a residuum’s volume and geometry, possibly larger than the precision gained from using a sophisticated system. Lilja et al.⁶¹ found that residual limb volume increased with muscle activity during casting, up to 5.8%. Zachariah et al.³¹ found that the residuum’s volume change ranged from 0.2% to 17% within 5 min of doffing and it was inconsistent between subjects and conditions. These significant values might possibly suggest that perhaps more attention should be directed towards assessing socket fit or captured shape of a loaded residuum, rather than surface and volume measurements in an unloaded residuum. These could be achieved with systems that can assess internal limb structures.

Comfort of user

Comfort is subjective and difficult to quantify.^47,49 Surveys such as the SCS⁴¹ provides a numerical result for ease of statistical analysis. However, opinions towards socket comfort still vary between individuals and it can be influenced by different factors.

Experienced prosthesis users might prefer a socket design due to familiarity. This was reflected in the study by Manucharian,¹⁹ where it was found that initial and final SCSs were higher for subjects whose socket designs were unchanged.

Comfort is also an outcome which is measured at the end of the socket production process. This occurs after the stages of shape capture, modification, manufacturing and alignment. Changes made in any of the stages could have an effect on the overall outcome.^52,62,63 Influence from components such as suspension, prosthetic foot,⁵¹ socket materials and interfaces⁶⁴ might have an effect on overall comfort score. Therefore, it is difficult to ascertain if the effects on comfort are due to the sole influence from shape capture, unless inconsistencies are removed with more robust research methodologies.

Summary

In summary, as presented in Tables 3 and 4, all studies had small sample sizes and were inconsistent in characteristics and outcome measures. This limited the potential for inter-study comparisons, which subsequently affected the confidence of trends identified. Evidence was also weak in suggesting that effects on outcomes were due to the sole influence of shape-capture methods. However, from the limited evidence, some insights could still be drawn.

Generally, HO was found to have poor shape repeatability.^5,18 This was likely due to the deforming nature of the HO method, where indentations are made to pre-shape the cast for modification. Some results reported that HO is repeatable in volume, where differences are within the clinically acceptable ranges.¹⁸ This was not found across all studies.¹² Irrespective of study design, this likely corresponds with suggestions in literature that a good fitting HO cast is still largely dependent on a prosthetist’s skill.⁶

Safari et al.¹⁸ reported that although HOFF(SWB) produced repeatable volumes, it had poor shape repeatability. The author suggested that the poor repeatability could be caused by factors such as setting of bladder pressure and proximal force application during casting. Other HOFF studies were found to also utilise input from experienced prosthetists during the casting process.^19,38,39,58 These similarities could perhaps suggest that although HOFF methods aim to minimise the reliance on a prosthetist’s technical skills, some degree of experience in apparatus usage is still required to attain a good fit.

There were a lack of studies that compared CAD to other shape-capture methods. Most studies involving CAD evaluated the quality of systems on theoretical models. More CAD studies evaluating socket fit on residual limbs are required.

No particular ‘gold standard’ measurement for residual limbs has been established in the literature, and it is still unclear as to what the dimensions of an optimal socket fit are.⁴⁸ Also, there was no robust evidence to suggest that the criteria of a ‘clinically acceptable fit’ was accurate due to variations found in literature.^{7,18,31,40,42} More research is required in establishing reference standards to which quality of shape capture could be compared to.

Comfort was found to be subjective in nature and differed across studies and individuals. HOFF methods encourage an even pressure distribution over the residuum^6,9,16 and in theory would be expected to produce better results in comfort as compared to HO with load-specific surfaces. Interestingly, no distinct trends in comfort were identified between sockets produced from HOFF or HO methods. This agrees with findings from Cavenett et al.,¹⁵ where no differences were identified for comfort, between TSB and PTB socket designs. This suggested that although scales could be used to quantify comfort,⁴¹ the exact mechanisms of socket fit relating to comfort are still unclear⁴⁷ and more research is required on the topic.

Limitations

This systematic search and review was done by one author, only considering literature that was written in English. This may have resulted in possible oversight of other research in foreign languages. The nature of the topic being studied contains multiple variables that are intertwined and only studies with experienced prosthesis users were included. Hence, findings obtained might not be fully representative of the trans-tibial prosthesis user population. Attempts at organising the literature into sub-groups for the context of this review might have discounted some details that each shape-capture method presents.

Recommendations for future work

To obtain an optimal fit, the socket needs to be either surface- or volume matching.⁶ However, surface matching is difficult to attain and present shape-capture methods that can only create quasi-hydrostatic systems through attempted volume matching. These methods also only represent a static situation. Goss et al.⁵³ reported on redesigning a hydraulic rig initially used by Isherwood in attempting to attain a surface-matching socket.⁶ Although uncompleted and untested, this rig allowed for real-time pressure measurements and was proposed to be able to cast the residuum in a dynamic situation with the use of polyester tape. More research in this direction is required to possibly design a shape-capture method that could also incorporate the dynamic nature of gait.

The exact relations between socket fit and comfort are still unclear.⁴⁷ However, future research can look at assessing the fit of a loaded limb within a socket. Most present systems are only able to evaluate the dimensions of an unloaded residuum, with the exception of SXCT.^29,30 SXCT is capable of providing accurate representations of a limb within a socket, however, only in a static position. Papaioannou et al.⁵⁰ reported on a system that could assess socket fit in a dynamic situation. This could possibly open up new avenues for understanding socket comfort.

Conclusion

The purpose of this review was to examine the influences and trends that shape-capture methods would have on certain outcomes in trans-tibial prosthetics. However, it was found that study characteristics and outcome measures used were inconsistent. This made inter-study comparisons unsuitable, which limited trend identification. Overall evidence was weak in suggesting that effects on outcomes were due to the sole influences of shape capture. However, it was not unexpected that hands-on methods lacked shape repeatability.^5,18,55 This was due to the manual cast deformation required of a specific surface bearing socket design. Volume repeatability differed between studies and is likely to be influenced by a prosthetist’s skill.^12,18 Hands-off methods were found to be generally repeatable but some equipment usage experience was still required to attain good results.^19,38,39,58 CAD (contact) methods had higher quality when compared to CAD (non-contact); however, these findings were obtained on theoretical models.¹² Measurement systems lacked a reference standard and ‘gold standards’ were inconsistent across studies.⁴⁸ Comfort was found to be subjective, and its relation to socket fit is still unclear.⁴⁷ Overall, more research is required in each area and future studies should have more robust methodologies to limit variabilities between studies. Future research should possibly look towards developing dynamic shape-capture methods⁵³ and utilising systems which are capable of assessing socket fit in dynamic situations.⁵⁰

Footnotes

Appendix 1 Author contribution

All authors contributed equally in the preparation of this manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Associate Editor: Nerrolyn Ramstrand

Funding

The author(s) received no financial support for the research, authorship and/or publication of this article.

ORCID iD

Anthony McGarry

References

Convery

Buis

AWP

Wilkie

, et al. Measurement of the consistency of patellar-tendon-bearing cast rectification. Prosthet Orthot Int 2003; 27(3): 207–213.

Davenport

Noroozi

Sewell

, et al. Systematic review of studies examining transtibial prosthetic socket pressures with changes in device alignment. J Med Biol Eng 2017; 37(1): 1–17.

Engsberg

Sprouse

Uhrich

, et al. Comparison of rectified and unrectified sockets for transtibial amputees. J Prosthet Orthot 2008; 18(1): 1–7.

Rae

Cockrell

. Interface pressure and stress distribution in prosthetic fitting. Bull Prosthet Res 1971(10–16): 64–111.

Buis

AWP

Blair

Convery

, et al. Pilot study: data-capturing consistency of two trans-tibial casting concepts, using a manikin stump model: a comparison between the hands-on PTB and hands-off ICECAST Compact® concepts. Prosthet Orthot Int 2003; 27(2): 100–106.

Klasson

Appreciation of prosthetic socket fitting from basic engineering principles. Glasgow: National Centre for Training and Education in Prosthetics and Orthotics, 1995.

Lilja

Öberg

Proper time for definitive transtibial prosthetic fitting. J Prosthet Orthot 1997; 9(2): 90.

Kahle

JT.

Conventional and hydrostatic transtibial interface comparison. J Prosthet Orthot 1999; 11(4): 85–91.

Kristinsson

The ICEROSS concept – a discussion of a philosophy. Prosthet Orthot Int 1993; 17(1): 49–55.

10.

Sidles

Boone

Harlan

, et al. Rectification maps: a new method for describing residual limb and socket shapes. J Prosthet Orthot 1989; 1(3): 149–153.

11.

Udai

Nath Sinha

A quantitative error map generation for modification of manual socket for below-knee amputee. In: Sahana

Saha

(eds) Advances in computational intelligence. Singapore, Singapore: Springer, 2017, pp. 383–391.

12.

McGarry

Evaluation of the tracer CAD and T ring prosthetic shape capture systems. PhD Thesis, University of Strathclyde, Glasgow, 2009.

13.

Foort

The patellar-tendon-bearing prosthesis for below-knee amputees, a review of technique and criteria. Artif Limbs 1965; 9(1): 4–13.

14.

Safari

Meier

MR.

Systematic review of effects of current transtibial prosthetic socket designs –part 1: qualitative outcomes. J Rehabil Res Dev 2015; 52(5): 491–508.

15.

Cavenett

White

Gomersall

The effectiveness of total surface bearing compared to specific surface bearing prosthetic socket design on health outcomes of adults with a trans-tibial amputation: a systematic review. JBI Database System Rev Implement Rep 2014; 12(4): 233–318.

16.

Murdoch

The “Dundee“ socket: a total contact socket for the below-knee amputation. Orthop Prosthet Appl J 1965; 19(3): 231–234.

17.

Sharma

Prabu

Plaster of Paris: past, present and future. J Clin Orthop Trauma 2013; 4(3): 107–109.

18.

Safari

Rowe

McFadyen

, et al. Hands-off and hands-on casting consistency of amputee below knee sockets using magnetic resonance imaging. Sci World J 2013; 2013: 486146.

19.

Manucharian

SR.

An investigation of comfort level trend differences between the hands-on patellar tendon bearing and hands-off hydrocast transtibial prosthetic sockets. J Prosthet Orthot 2011; 23(3): 124–140.

20.

McGarry

McHugh

Comparison of the results of four users of a contemporary CAD/CAM system. Prosthet Orthot Int 2007; 31(1): 27–35.

21.

McGarry

McHugh

Buis

, et al. Evaluation of the effect of shape on a contemporary CAD system. Prosthet Orthot Int 2008; 32(2): 145–154.

22.

Johansson

Oberg

Accuracy and precision of volumetric determinations using two commercial CAD systems for prosthetics: a technical note. J Rehabil Res Dev 1998; 35(1): 27–33.

23.

Lilja

Oberg

Volumetric determinations with CAD/CAM in prosthetics and orthotics: errors of measurement. J Rehabil Res Dev 1995; 32(2): 141–148.

24.

Oberg

Lilja

Johansson

, et al. Clinical evaluation of trans-tibial prosthesis sockets: a comparison between CAD CAM and conventionally produced sockets. Prosthet Orthot Int 1993; 17(3): 164–171.

25.

Dickinson

Steer

Woods

, et al. Registering methodology for imaging and analysis of residual-limb shape after transtibial amputation. J Rehabil Res Dev 2016; 53(2): 207–218.

26.

Bolt

de Boer-Wilzing

Geertzen

, et al. Variation in measurements of transtibial stump model volume: a comparison of five methods. Am J Phys Med Rehabil 2010; 89(5): 376–384.

27.

De Boer-Wilzing

Bolt

Geertzen

, et al. Variation in results of volume measurements of stumps of lower-limb amputees: a comparison of 4 methods. Arch Phys Med Rehabil 2011; 92(6): 941–946.

28.

Öberg

Kofman

Karisson

, et al. The CAPOD system – a Scandinavian CAD/CAM system for prosthetic sockets. J Prosthet Orthot 1989; 1(3).

29.

Commean

Smith

Cheverud

, et al. Precision of surface measurements for below-knee residua. Arch Phys Med Rehabil 1996; 77(5): 477–486.

30.

Smith

Commean

Bhatia

, et al. Validation of spiral CT and optical surface scanning for lower limb stump volumetry. Prosthet Orthot Int 1995; 19(2): 97–107.

31.

Zachariah

Saxena

Fergason

, et al. Shape and volume change in the transtibial residuum over the short term: preliminary investigation of six subjects. J Rehabil Res Dev 2004; 41(5): 683–694.

32.

Xue

Fan

, et al. Test of a vertical scan mode in 3-D imaging of residual limbs using ultrasound. J Rehabil Res Dev 1999; 36(2): 86–93.

33.

Safari

Rowe

Buis

Accuracy verification of magnetic resonance imaging (MRI) technology for lower-limb prosthetic research: utilising animal soft tissue specimen and common socket casting materials. Sci World J 2012; 2012; 156186.

34.

Smith

Commean

Vannier

MW.

Residual-limb shape change: three-dimensional CT scan measurement and depiction in vivo. Radiology 1996; 200(3): 843–850.

35.

Goh

JCH

Lee

PVS

Chong

SY.

Stump/socket pressure profiles of the pressure cast prosthetic socket. Clin Biomech 2003; 18(3): 237–243.

36.

Casanova

Smith

, et al. CIR sand casting system for trans-tibial socket. Prosthet Orthot Int 2003; 27(2): 146–152.

37.

Casanova

Reisinger

, et al. CIR casting system for making transtibial sockets. Prosthet Orthot Int 2009; 33(1): 1–9.

38.

Thanh

Poetsma

Jensen

JS.

Preliminary experiences with the CIR casting system for transtibial prosthetic sockets. Prosthet Orthot Int 2009; 33(2): 130–134.

39.

Jensen

Poetsma

Thanh

NH.

Sand-casting technique for trans-tibial prostheses. Prosthet Orthot Int 2005; 29(2): 165–175.

40.

Fernie

Holliday

PJ.

Volume fluctuations in the residual limbs of lower limb amputees. Arch Phys Med Rehabil 1982; 63(4): 162–165.

41.

Hanspal

Fisher

Nieveen

Prosthetic socket fit comfort score. Disabil Rehabil 2003; 25(22): 1278–1280.

42.

Sanders

Mitchell

Zachariah

, et al. A digitizer with exceptional accuracy for use in prosthetics research: a technical note. J Rehabil Res Dev 2003; 40(2): 191–195.

43.

Liberati

Altman

Tetzlaff

, et al. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate healthcare interventions: explanation and elaboration. BMJ 2009; 339: b2700.

44.

AAOP state of the science evidence report guidelines, 2008, https://cdn.ymaws.com/www.oandp.org/resource/resmgr/docs/pdfs/aaop_evidencereportguidlines.pdf

45.

Ennion

Johannesson

Rhoda

The use of a direct manufacturing prosthetic socket system in a rural community in South Africa: a pilot study and lessons for future research. Prosthet Orthot Int 2017; 41(5): 455–462.

46.

Ruder

GK.

CAD CAM trans-tibial temporary prosthesis: analysis and comparison with an established technique. Prosthet Orthot Int 1992; 16(3): 189–195.

47.

Neumann

ES.

Measurement of socket discomfort – part I: pressure sensation. J Prosthet Orthot 2001; 13(4): 99–110.

48.

Sanders

Fatone

Residual limb volume change: systematic review of measurement and management. J Rehabil Res Dev 2011; 48(8): 949–986.

49.

Neumann

ES.

Measurement of socket discomfort – part II: signal detection. J Prosthet Orthot 2001; 13(4): 111–122.

50.

Papaioannou

Mitrogiannis

Nianios

, et al. Assessment of internal and external prosthesis kinematics during strenuous activities using dynamic roentgen stereophotogrammetric analysis. J Prosthet Orthot 2010; 22(2): 91–105.

51.

Mai

Commuri

Dionne

, et al. Effect of prosthetic foot on residuum-socket interface pressure and gait characteristics in an otherwise healthy man with transtibial osteomyoplastic amputation. J Prosthet Orthot 2012; 24(4): 211–220.

52.

Seelen

Anemaat

Janssen

, et al. Effects of prosthesis alignment on pressure distribution at the stump/socket interface in transtibial amputees during unsupported stance and gait. Clin Rehabil 2003; 17(7): 787–796.

53.

Goss

Thomas

Zahir

, et al. Report: Isherwood Mk II, a report on the design, construction and testing of a rig facilitating controlled pressure distribution for prosthetic sockets. BLESMA, 2015, https://www.researchgate.net/profile/Victor_Goss/publication/280610701_Report_Isherwood_Mk_II/links/55be4c9608ae9289a099d5e4/Report-Isherwood-Mk-II.pdf

54.

Lee

Lythgo

Laing

, et al. Pressure casting technique for transtibial prosthetic socket fit in developing countries. J Rehabil Res Dev 2014; 51(1): 101–110.

55.

Hajiaghaei

Ebrahimi

Kamyab

, et al. A comparison between the dimensions of positive transtibial residual limb molds prepared by air pressure casting and weight-bearing casting methods. Med J Islam Repub Iran 2016; 30: 341.

56.

Geil

MD.

Consistency and accuracy of measurement of lower-limb amputee anthropometrics. J Rehabil Res Dev 2005; 42(2): 131–140.

57.

Geil

MD.

Consistency, precision, and accuracy of optical and electromagnetic shape-capturing systems for digital measurement of residual-limb anthropometrics of persons with transtibial amputation. J Rehabil Res Dev 2007; 44(4): 515–524.

58.

Laing

Lythgo

Lavranos

, et al. Transtibial prosthetic socket shape in a developing country: a study to compare initial outcomes in pressure cast hydrostatic and patella tendon bearing designs. Gait Posture 2017; 58: 363–368.

59.

Staats

TB.

Advanced prosthetic techniques for below knee amputations. Orthopedics 1985; 8(2): 249–258.

60.

Staats

Lundt

The UCLA total surface bearing suction below-knee prosthesis. Clin Prosthet Orthot 1987; 11(3): 118–130.

61.

Lilja

Johansson

Oberg

Relaxed versus activated stump muscles during casting for trans-tibial prostheses. Prosthet Orthot Int 1999; 23(1): 13–20.

62.

Kobayashi

Orendurff

Arabian

, et al. Effect of prosthetic alignment changes on socket reaction moment impulse during walking in transtibial amputees. J Biomech 2014; 47(6): 1315–1323.

63.

Jia

Suo

Meng

, et al. Effects of alignment on interface pressure for transtibial amputee during walking. Disabil Rehabil Assist Technol 2008; 3(6): 339–343.

64.

Coleman

Boone

Laing

, et al. Quantification of prosthetic outcomes: elastomeric gel liner with locking pin suspension versus polyethylene foam liner with neoprene sleeve suspension. J Rehabil Res Dev 2004; 41(4): 591–602.

Influences and trends of various shape-capture methods on outcomes in trans-tibial prosthetics: A systematic review

Abstract

Introduction:

Objective:

Study Design:

Method:

Results:

Conclusion:

Clinical relevance

Keywords

Introduction

Background

Optimal socket fit

Socket design

Shape capture

Categorising shape capture

Shape-capture measurements

Evaluating shape capture

Quality of shape capture

Comfort of user

Clinical efficiency

Objectives

Method

Protocol

Excluded studies

Information sources

Study selection

Data collection process

Risk of bias

Results

Study selection

Quality appraisal

Hands-on and hands-off

CAD

Measurements

Discussion

Shape-capture methods

Measurements

Accuracy of shape capture

Comfort of user

Summary

Limitations

Recommendations for future work

Conclusion

Footnotes

Appendix 1

Author contribution

Declaration of conflicting interests

Funding

ORCID iD

References
