Abstract

Background: Optoelectronic motion capture may provide a platform for the development of objective biomechanical outcome measures applicable to the young, active individual with lower limb loss. In order to create valid and robust tools, the modelling strategy applied must adequately represent both natural and prosthetic segments and joints.

Objectives: To explore existing usage of optoelectronic motion capture and modelling strategies for the analysis of amputee function.

Study design: Literature review.

Methods: Systematic search of Medline (OVID) and keyword search of the Journal of Prosthetics and Orthotics.

Results: Over 60% (n = 32) of the 51 studies extracted adopted a conventional three degree-of-freedom modelling approach. Linear segment representation (15%) and six degree-of-freedom techniques (19%) were employed in the remaining papers. Prosthetic modelling strategies were poorly reported. Landmarks were estimated from corresponding positions on the contralateral intact limb, mechanical joint centres and regression equations. No model defined the residuum and socket independently.

Conclusions: In the absence of a definitive solution, it is essential that the limitations of any model are understood in the development and establishment of reliable outcome measures for this population using motion capture technology. Poor reporting and a lack of consistency make comparison of results between studies and institutions impractical.

Clinical relevance

Standard modelling techniques may not consistently represent the body and prosthesis adequately to produce valid results for the analysis of function of persons with lower limb loss. Variation in modelling techniques limits the utility of findings reported in the literature. Development and application of a uniform, robust modelling strategy would benefit research and clinical practice.

Keywords

Biomechanics biomechanics of prosthetic/orthotic devices gait analysis rehabilitation of amputees

Introduction

Following lower limb amputation, regaining function with the aid of a prosthesis involves substantial motor learning in light of the loss of natural joints, musculature and proprioceptive feedback,¹ which are fundamental in the movement and stabilization of the body.

For all persons with limb loss, continual evaluation during rehabilitation is critical in developing and consolidating efficient movement patterns, avoiding detrimental compensatory motions and optimizing the alignment and configuration of the prosthetic limb.

Standard measures of amputee function include gait velocity and analysis of temporal and spatial stride parameters,² ^– ⁵ functional assessments such as the timed walk test⁶ and the timed up-and-go (TUG) test,⁷ and subjective approaches such as questionnaires and functional rating scales.⁸ These are simple to perform and require little specialized equipment; however, they have largely been designed to assess basic functional capabilities, quality of life and health status.⁹ As such, they can measure only limited aspects of mobility⁸ and thus may have insufficient sensitivity at higher levels of function.¹⁰

Recent statistics show that the national average age of referrals to UK civilian prosthetics centres is 65 years for males and 69 years for females,¹¹ with over 70% of amputations of dysvascular aetiology. In contrast, with 84% of UK regular forces below the age of 40,¹² the military amputee population is significantly younger, and limb loss is predominantly a result of trauma sustained on military operations.

For a young, previously active patient without cardiovascular compromise, the potential demands of prosthetic use are greater, with many individuals expecting to perform at a high level in employment and sport.¹³ Consequently, greater versatility is required of outcome measures used to evaluate this group, where the context of application may range from early gait re-education to movement refinement and performance optimization.

Applied as a basis for gait and functional movement assessment, biomechanical analysis can provide a means to understand adaptations that have occurred with respect to the integration of the prosthesis into the dynamic system of the individual.¹⁴ It can also offer additional information about functional status and prosthetic performance,^10,13,15 inform appropriate patient management¹⁶ and establish the efficacy of a rehabilitation programme.¹⁷

Marker-based motion capture is a tool commonly used to track and describe the movement (kinematics) of the body in three dimensions. The output additionally forms a key component in more complex analyses that combine motion, force and muscle activity data to gain further insight into interactions, motor strategies and energy transfer mechanisms.

Optoelectronic motion capture systems enable the acquisition of kinematic data in three dimensions via the detection of a configuration of skin-mounted markers positioned at bony landmarks and/or segment midsections by a system of cameras.

Two-dimensional (2D) marker coordinates from each camera are amalgamated in order to establish a set of position coordinates for each marker in the three-dimensional (3D) measurement volume. This is performed for each frame of captured data during activity. Central to the use of this technique for human functional measurement is the employment of a biomechanical model that simplifies the complex anatomy of the individual under investigation.

Conventionally, each segment of the body, for example the thigh and shank, is assumed to be a rigid body.¹⁸ The model dictates the placement of the markers and relates their position to the geometry of the underlying segment. With reference to this model, the coordinate data of each detected marker may be translated into meaningful information about the position and movement of the body upon which the marker or markers are placed. The extent to which useful information may be extracted thus depends on the extent to which the system is adequately represented by the markers.

Modelling strategies

Modelling strategies vary in complexity and affect the number of degrees of freedom (DOF) that may be reported between anatomical segments, e.g. foot, thigh, trunk. In simplest form, the motion of a single marker may be used to describe the displacement of an anatomical landmark or segment relative to which it has been applied. The application of two or more markers on each segment enables the angular motion of a segment to be described. Linear segment representation, as employed in the link model described by Winter,¹⁹ requires landmarks at single proximal and distal segment endpoints (Figure 1a). The line between these points, commonly defined via the 2D or 3D coordinates of laterally attached markers, is used to represent the segment. Relative segmental motion may be defined locally in 1DOF by the minimum inclusive angle between the two lines in 3D space, or globally with respect to the plane of progression or laboratory coordinate system.

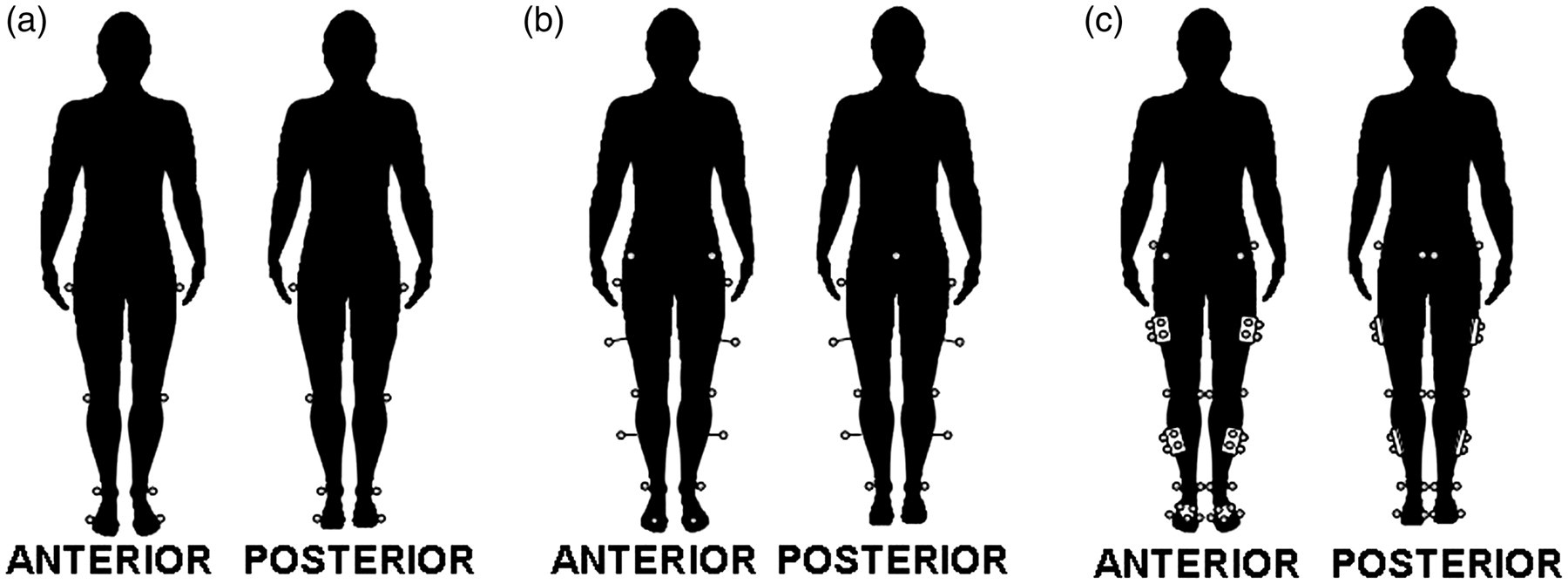

Figure 1.

Example marker configurations for biomechanical models. Anterior/posterior views from left to right: (a) linear segment representation model; (b) Helen Hayes ‘conventional’ marker configuration;¹⁸ (c) six degree-of-freedom marker set.²⁴.

Early published works by Kadaba et al.¹⁸ and Davis et al.,²⁰ describing protocols developed at Helen Hayes and Newington hospitals, respectively, are the foundation of many models used in gait and movement analysis.²¹ Three markers are employed in the definition of the shank, thigh and pelvic segments. Attached laterally on the segment at the tip of a wand, the third marker enables a plane to be defined from which 3D segment-embedded local coordinate systems are built^18,20 (Figure1b). Knee and ankle joint centres are estimated from laterally placed markers and anthropometric measurements. The hip joint centres are estimated via regression equations based on pelvic geometry as a function of leg length. With the exception of the foot, which is tracked by only two markers, the 3D modelling of each segment enables sagittal, coronal and transverse joint rotations, i.e. motion in 3DOF, to be described. This modelling approach, commonly referred to as ‘historical’ or ‘conventional’, forms the basis for protocols within the dedicated clinical software packages provided with a number of motion capture systems,²² e.g. Vicon Plug-In Gait (Vicon Motion Systems, Oxford), and the Codamotion Gait Package (Codamotion, Charnwood Dynamics Ltd, Leicestershire).

Using 6DOF modelling enables the description of three rotational components and three translational components of motion between two segments. This requires segmental independency that may be achieved when there are at least three real markers unique to each segment.^23,24 Examples include the Cleveland Clinic set within the Orthotrak software supplied with Motion Analysis systems (Motion Analysis Corporation, California) and the calibrated anatomical systems technique (CAST) described by Cappozzo et al.²³ In both of these methods the motion of each segment is tracked by an independent group of three or more markers in close proximity (‘triad’ or ‘cluster’) applied at the segment midsection, unconstrained to the adjacent segments. Within a static trial an ‘anatomical’ configuration based on real markers and/or landmark digitization is used to define the geometry of each segment and the position of the marker group relative to the segment (Figure 1c). In the subsequent movement trials any anatomical markers, including those that may hinder movement such as those placed medially at the knee and ankle, may be removed.²²

Limitations of the various modelling strategies are widely acknowledged. Soft tissue artefact arising from uncontrolled skin and subcutaneous tissue movement,^22,25 ^– ²⁸ and marker placement imprecision,^{29–
31} for example, are commonly cited sources of error in all marker-based protocols.

Repeatability has been investigated by several authors;^22,23,30,32 ^– ³⁶ however, aside from marker placement discrepancies between sessions, variability in data may also be attributed to natural variation in both non-pathological and pathological movement.^22,31,37 ^– ³⁹ Validity is more difficult to establish in the absence of a suitable gold standard measure.³⁵

Hybrid protocols based on conventional and 6DOF strategies have evolved with the aim of improving validity or optimizing the method for a specific assessment environment or patient population. For example, more complex foot models have been developed and evaluated.⁴⁰ This increased focus on the foot may be attributed to the extensive use of motion capture for the analysis of children with cerebral palsy, for which foot function is frequently of clinical importance. Functional methods of estimating joint centres of rotation during movement trials have been explored and implemented as an alternative to anthropometrics and reliance on regression-based joint centre estimations inestablishing local segment and joint coordinate systems.^29,38,41,42

In describing the kinematics of a person with limb loss where motion at, and distal to, the level of amputation is under investigation, the model configurationadopted must also take the prosthetic limb into account.

Scope

This review was conducted to investigate the use of motion capture, biomechanical models and marker sets for the motion of individuals with lower limb loss as described in the existing literature, with the aim of establishing an appropriate model and marker configuration for this patient cohort. Such a model is required as a foundation for the development of robust, objective biomechanical outcome measures for rehabilitation and performance optimization for this group.

Methods

A search of the MEDLINE (OVID) database was conducted on 15 April 2010 to obtain papers published after 1950 that describe the use of a marker-based approach for analysis of lower limb amputee kinematics. The search strategy used is defined in Figure 2. The Journal of Prosthetics and Orthotics (unlisted by Medline) was searched separately with the keywords ‘kinematic’, ‘kinematics’, ‘kinetic’, ‘kinetics’ and ‘biomechanics’, and the results added to the primary search prior to filtering and study selection.

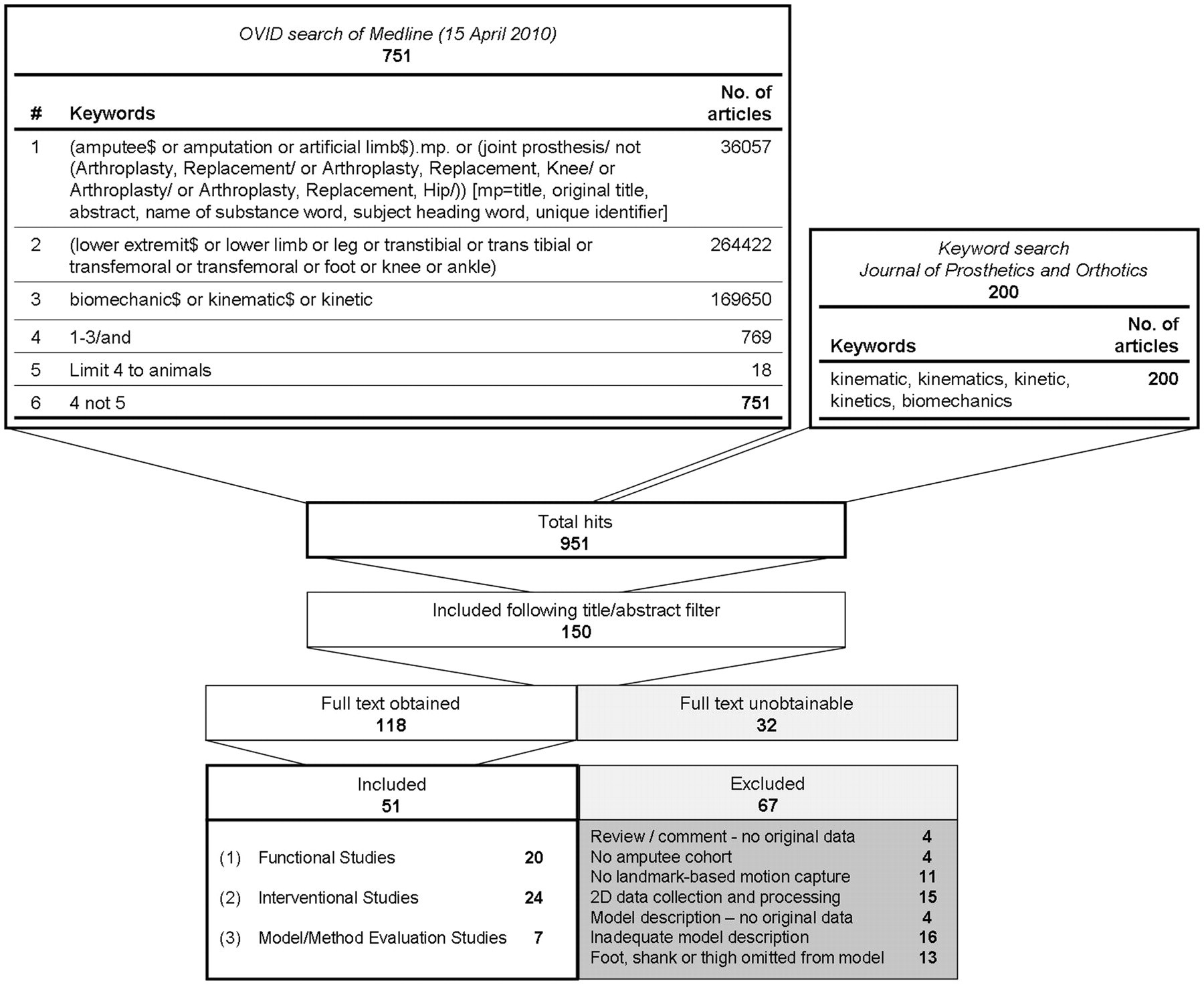

Figure 2.

Search strategy and study selection.

Study selection

Papers were selected for inclusion based on the following criteria:

Use of 3D motion capture using a marker or landmark-based model;

Digitized or marker-derived landmarks;

Analysis of at least one subject with single or multiple amputations, including at least one lower limb amputation at any level from foot to hip disarticulation;

Application or evaluation of a biomechanical model for full lower limb analysis, including segmental definition of foot, shank and thigh;

English language.

Dual-planar video analyses were accepted if direct linear transform conversion was applied to obtain 3D coordinates of digitized landmarks.

Papers were excluded if detail regarding the marker set and model presented in the described method or obtainable cited references were insufficient to establish the landmark location and segment definition strategy of the model. Literature reviews were excluded. Where application of a named or referenced model was applied in the study method, full implementation of the model protocol was assumed, including marker placement, segment definition and calibration, unless explicitly stated otherwise. Studies were separated into three groups by focus:

Functional: observation and description of function of amputee cohorts performing a specified task or activity;

Intervention: investigation of the effect of an intervention on amputee function;

Model/method evaluation: utilization of kinematic data from an amputee subject or cohort to evaluate a method or modelling technique or for simulation purposes.

Results

A total of 51 studies that satisfied the inclusion criteria were retrieved in full text format. This comprised 20 functional studies, 24 intervention studies and 7 model/method evaluations (Tables 1, 2 and 3, respectively). Amputation levels included hip disarticulation (1 study), transfemoral or above-knee amputation (25 studies), knee disarticulation (2 studies), transtibial or below-knee amputation (28 studies) and partial foot amputation (3 studies). One study included two subjects with unilateral Symes amputations and knee fusions.⁴³ Sample sizes ranged from 1 to 20 amputees (mean = 8.8, SD ± 5.5, median = 10, mode = 10). The modelling strategies employed are summarized by group in Table 4.

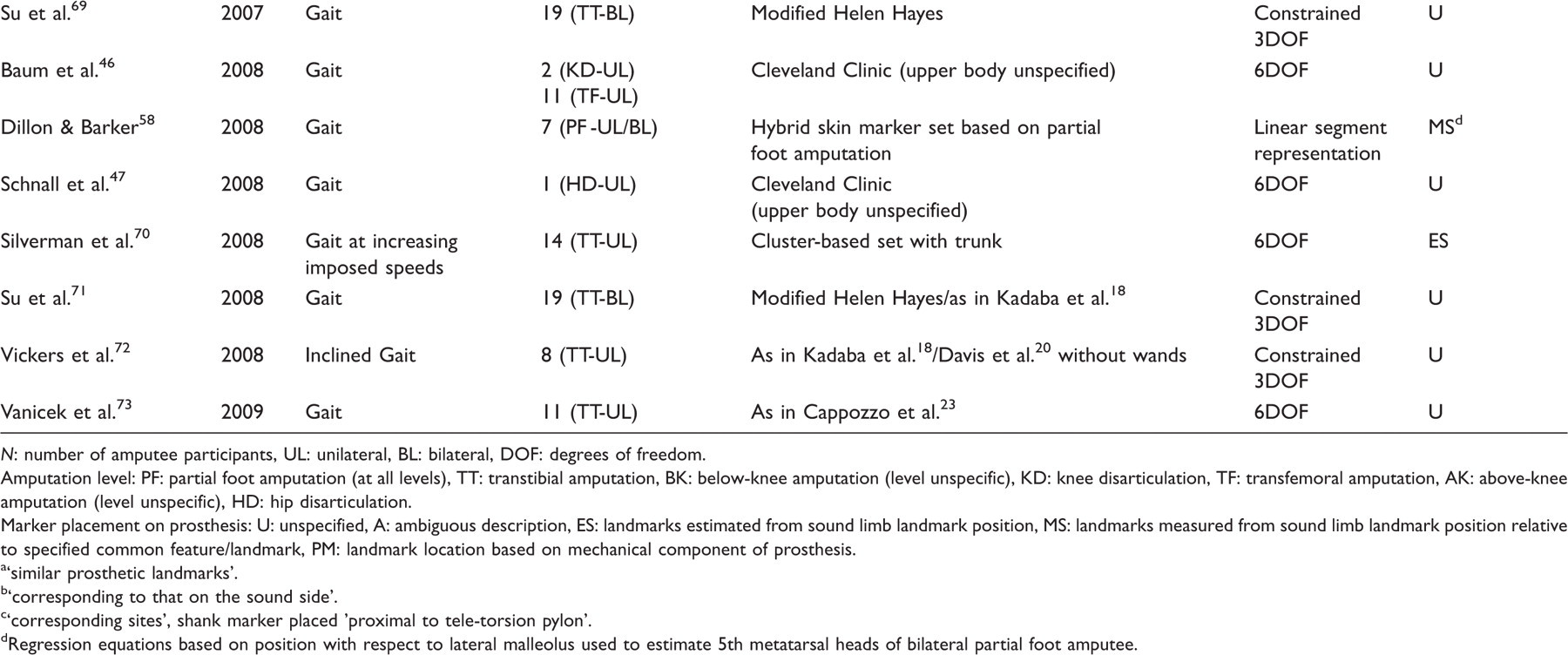

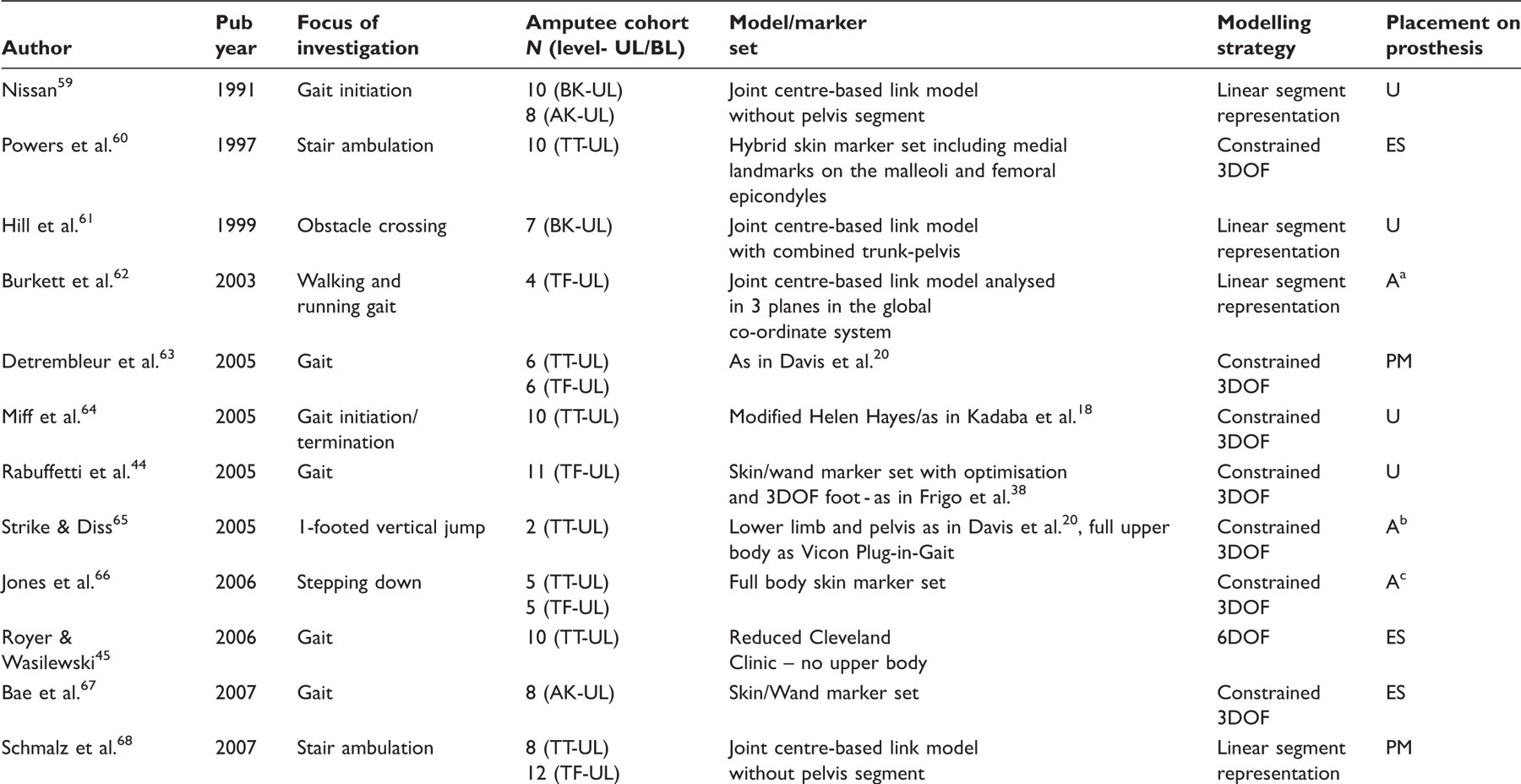

Table 1.

Functional studies: analyses of data collected from a defined amputee population performing a specific motion, task or activity.

Author	Pub year	Focus of investigation	Amputee cohort N (level- UL/BL)	Model/marker set	Modelling strategy	Placement on prosthesis
Nissan⁵⁹	1991	Gait initiation	10 (BK-UL)8 (AK-UL)	Joint centre-based link model without pelvis segment	Linear segment representation	U
Powers et al.⁶⁰	1997	Stair ambulation	10 (TT-UL)	Hybrid skin marker set including medial landmarks on the malleoli and femoral epicondyles	Constrained 3DOF	ES
Hill et al.⁶¹	1999	Obstacle crossing	7 (BK-UL)	Joint centre-based link model with combined trunk-pelvis	Linear segment representation	U
Burkett et al.⁶²	2003	Walking and running gait	4 (TF-UL)	Joint centre-based link model analysed in 3 planes in the global co-ordinate system	Linear segment representation	A^a
Detrembleur et al.⁶³	2005	Gait	6 (TT-UL)6 (TF-UL)	As in Davis et al.²⁰	Constrained 3DOF	PM
Miff et al.⁶⁴	2005	Gait initiation/termination	10 (TT-UL)	Modified Helen Hayes/as in Kadaba et al.¹⁸	Constrained 3DOF	U
Rabuffetti et al.⁴⁴	2005	Gait	11 (TF-UL)	Skin/wand marker set with optimisation and 3DOF foot - as in Frigo et al.³⁸	Constrained 3DOF	U
Strike & Diss⁶⁵	2005	1-footed vertical jump	2 (TT-UL)	Lower limb and pelvis as in Davis et al.²⁰, full upper body as Vicon Plug-in-Gait	Constrained 3DOF	A^b
Jones et al.⁶⁶	2006	Stepping down	5 (TT-UL) 5 (TF-UL)	Full body skin marker set	Constrained 3DOF	A^c
Royer & Wasilewski⁴⁵	2006	Gait	10 (TT-UL)	Reduced Cleveland Clinic – no upper body	6DOF	ES
Bae et al.⁶⁷	2007	Gait	8 (AK-UL)	Skin/Wand marker set	Constrained 3DOF	ES
Schmalz et al.⁶⁸	2007	Stair ambulation	8 (TT-UL)12 (TF-UL)	Joint centre-based link model without pelvis segment	Linear segment representation	PM
Su et al.⁶⁹	2007	Gait	19 (TT-BL)	Modified Helen Hayes	Constrained 3DOF	U
Baum et al.⁴⁶	2008	Gait	2 (KD-UL)11 (TF-UL)	Cleveland Clinic (upper body unspecified)	6DOF	U
Dillon & Barker⁵⁸	2008	Gait	7 (PF -UL/BL)	Hybrid skin marker set based on partial foot amputation	Linear segment representation	MS^d
Schnall et al.⁴⁷	2008	Gait	1 (HD-UL)	Cleveland Clinic (upper body unspecified)	6DOF	U
Silverman et al.⁷⁰	2008	Gait at increasing imposed speeds	14 (TT-UL)	Cluster-based set with trunk	6DOF	ES
Su et al.⁷¹	2008	Gait	19 (TT-BL)	Modified Helen Hayes/as in Kadaba et al.¹⁸	Constrained 3DOF	U
Vickers et al.⁷²	2008	Inclined Gait	8 (TT-UL)	As in Kadaba et al.¹⁸/Davis et al.²⁰ without wands	Constrained 3DOF	U
Vanicek et al.⁷³	2009	Gait	11 (TT-UL)	As in Cappozzo et al.²³	6DOF	U

N: number of amputee participants, UL: unilateral, BL: bilateral, DOF: degrees of freedom.

Amputation level: PF: partial foot amputation (at all levels), TT: transtibial amputation, BK: below-knee amputation (level unspecific), KD: knee disarticulation, TF: transfemoral amputation, AK: above-knee amputation (level unspecific), HD: hip disarticulation.

Marker placement on prosthesis: U: unspecified, A: ambiguous description, ES: landmarks estimated from sound limb landmark position, MS: landmarks measured from sound limb landmark position relative to specified common feature/landmark, PM: landmark location based on mechanical component of prosthesis.

‘similar prosthetic landmarks’.

‘corresponding to that on the sound side’.

‘corresponding sites', shank marker placed 'proximal to tele-torsion pylon’.

Regression equations based on position with respect to lateral malleolus used to estimate 5th metatarsal heads of bilateral partial foot amputee.

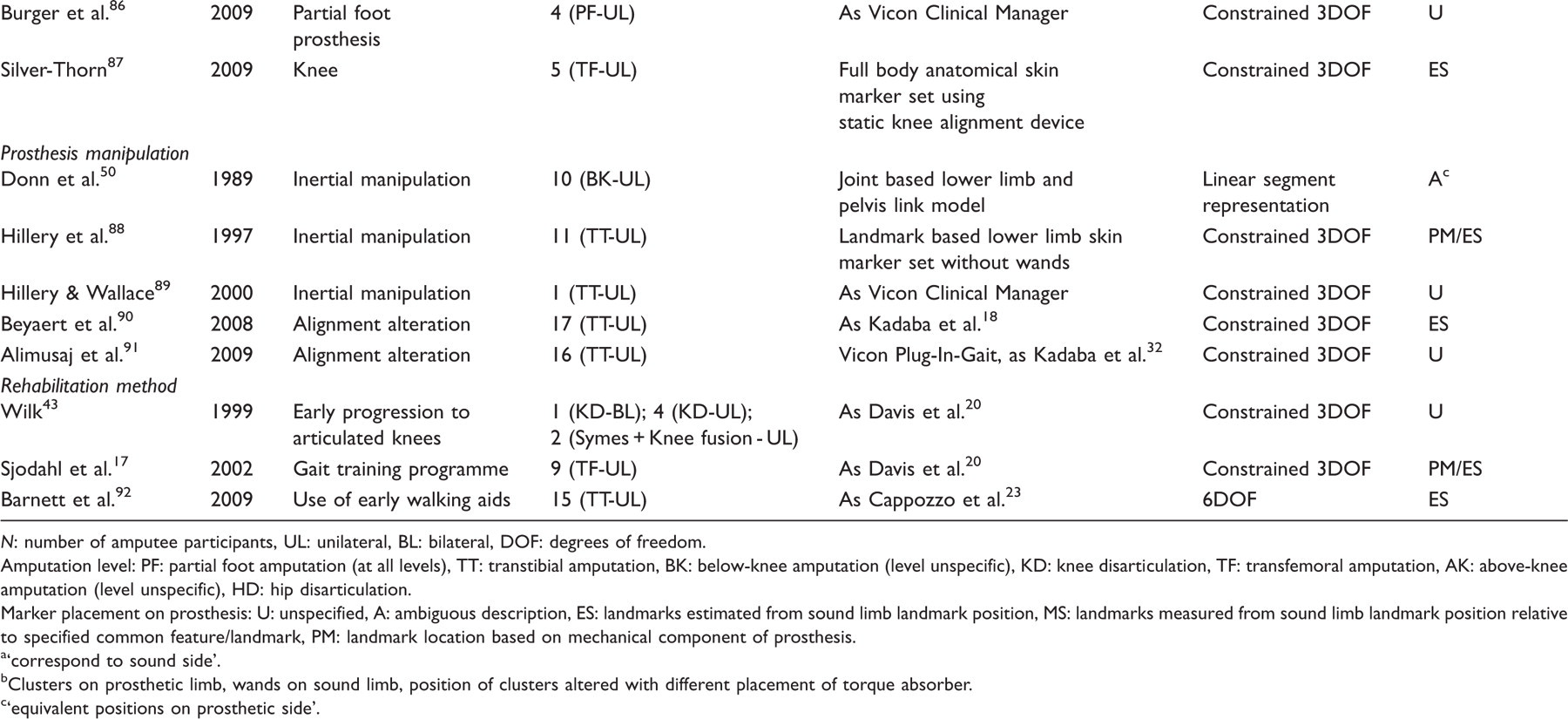

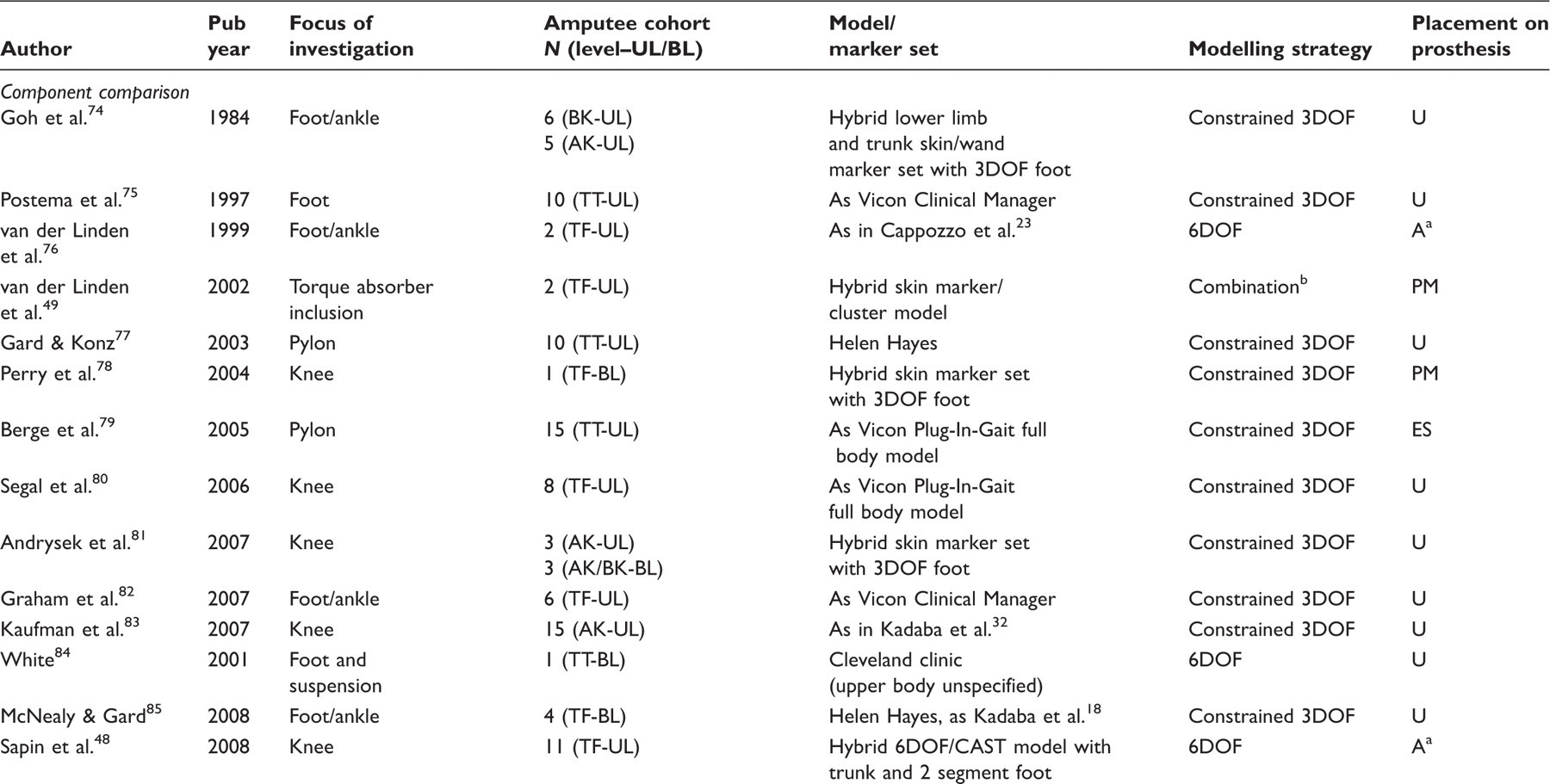

Table 2.

Interventional studies: analyses of more than one prosthetic component or configuration, or rehabilitation method with respect to effects on amputee function.

Author	Pub year	Focus of investigation	Amputee cohortN (level–UL/BL)	Model/marker set	Modelling strategy	Placement on prosthesis
Component comparison
Goh et al.⁷⁴	1984	Foot/ankle	6 (BK-UL) 5 (AK-UL)	Hybrid lower limb and trunk skin/wand marker set with 3DOF foot	Constrained 3DOF	U
Postema et al.⁷⁵	1997	Foot	10 (TT-UL)	As Vicon Clinical Manager	Constrained 3DOF	U
van der Linden et al.⁷⁶	1999	Foot/ankle	2 (TF-UL)	As in Cappozzo et al.²³	6DOF	A^a
van der Linden et al.⁴⁹	2002	Torque absorber inclusion	2 (TF-UL)	Hybrid skin marker/cluster model	Combination^b	PM
Gard & Konz⁷⁷	2003	Pylon	10 (TT-UL)	Helen Hayes	Constrained 3DOF	U
Perry et al.⁷⁸	2004	Knee	1 (TF-BL)	Hybrid skin marker set with 3DOF foot	Constrained 3DOF	PM
Berge et al.⁷⁹	2005	Pylon	15 (TT-UL)	As Vicon Plug-In-Gait full body model	Constrained 3DOF	ES
Segal et al.⁸⁰	2006	Knee	8 (TF-UL)	As Vicon Plug-In-Gait full body model	Constrained 3DOF	U
Andrysek et al.⁸¹	2007	Knee	3 (AK-UL)3 (AK/BK-BL)	Hybrid skin marker set with 3DOF foot	Constrained 3DOF	U
Graham et al.⁸²	2007	Foot/ankle	6 (TF-UL)	As Vicon Clinical Manager	Constrained 3DOF	U
Kaufman et al.⁸³	2007	Knee	15 (AK-UL)	As in Kadaba et al.³²	Constrained 3DOF	U
White⁸⁴	2001	Foot and suspension	1 (TT-BL)	Cleveland clinic (upper body unspecified)	6DOF	U
McNealy & Gard⁸⁵	2008	Foot/ankle	4 (TF-BL)	Helen Hayes, as Kadaba et al.¹⁸	Constrained 3DOF	U
Sapin et al.⁴⁸	2008	Knee	11 (TF-UL)	Hybrid 6DOF/CAST model with trunk and 2 segment foot	6DOF	A^a
Burger et al.⁸⁶	2009	Partial foot prosthesis	4 (PF-UL)	As Vicon Clinical Manager	Constrained 3DOF	U
Silver-Thorn⁸⁷	2009	Knee	5 (TF-UL)	Full body anatomical skin marker set using static knee alignment device	Constrained 3DOF	ES
Prosthesis manipulation
Donn et al.⁵⁰	1989	Inertial manipulation	10 (BK-UL)	Joint based lower limb and pelvis link model	Linear segment representation	A^c
Hillery et al.⁸⁸	1997	Inertial manipulation	11 (TT-UL)	Landmark based lower limb skin marker set without wands	Constrained 3DOF	PM/ES
Hillery & Wallace⁸⁹	2000	Inertial manipulation	1 (TT-UL)	As Vicon Clinical Manager	Constrained 3DOF	U
Beyaert et al.⁹⁰	2008	Alignment alteration	17 (TT-UL)	As Kadaba et al.¹⁸	Constrained 3DOF	ES
Alimusaj et al.⁹¹	2009	Alignment alteration	16 (TT-UL)	Vicon Plug-In-Gait, as Kadaba et al.³²	Constrained 3DOF	U
Rehabilitation method
Wilk⁴³	1999	Early progression to articulated knees	1 (KD-BL); 4 (KD-UL); 2 (Symes + Knee fusion - UL)	As Davis et al.²⁰	Constrained 3DOF	U
Sjodahl et al.¹⁷	2002	Gait training programme	9 (TF-UL)	As Davis et al.²⁰	Constrained 3DOF	PM/ES
Barnett et al.⁹²	2009	Use of early walking aids	15 (TT-UL)	As Cappozzo et al.²³	6DOF	ES

N: number of amputee participants, UL: unilateral, BL: bilateral, DOF: degrees of freedom.

‘correspond to sound side’.

Clusters on prosthetic limb, wands on sound limb, position of clusters altered with different placement of torque absorber.

‘equivalent positions on prosthetic side’.

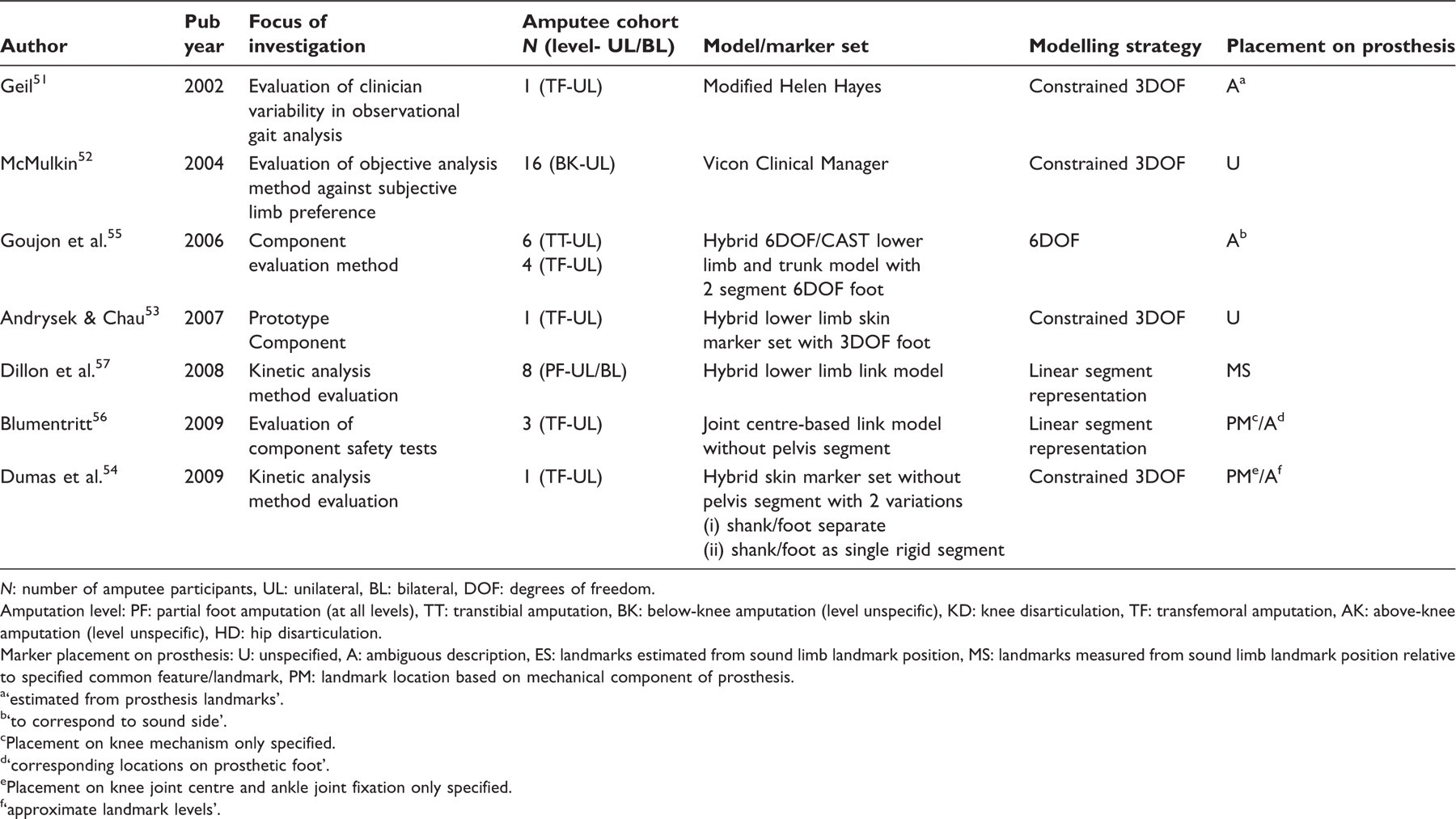

Table 3.

Model/method evaluation studies - evaluations of models and outcome measures for amputee/prosthesis functional analysis.

Author	Pub year	Focus of investigation	Amputee cohortN (level- UL/BL)	Model/marker set	Modelling strategy	Placement on prosthesis
Geil⁵¹	2002	Evaluation of clinician variability in observational gait analysis	1 (TF-UL)	Modified Helen Hayes	Constrained 3DOF	A^a
McMulkin⁵²	2004	Evaluation of objective analysis method against subjective limb preference	16 (BK-UL)	Vicon Clinical Manager	Constrained 3DOF	U
Goujon et al.⁵⁵	2006	Component evaluation method	6 (TT-UL)4 (TF-UL)	Hybrid 6DOF/CAST lower limb and trunk model with 2 segment 6DOF foot	6DOF	A^b
Andrysek & Chau⁵³	2007	Prototype Component	1 (TF-UL)	Hybrid lower limb skin marker set with 3DOF foot	Constrained 3DOF	U
Dillon et al.⁵⁷	2008	Kinetic analysis method evaluation	8 (PF-UL/BL)	Hybrid lower limb link model	Linear segment representation	MS
Blumentritt⁵⁶	2009	Evaluation of component safety tests	3 (TF-UL)	Joint centre-based link model without pelvis segment	Linear segment representation	PM^c/A^d
Dumas et al.⁵⁴	2009	Kinetic analysis method evaluation	1 (TF-UL)	Hybrid skin marker set without pelvis segment with 2 variations(i) shank/foot separate (ii) shank/foot as single rigid segment	Constrained 3DOF	PM^e/A^f

N: number of amputee participants, UL: unilateral, BL: bilateral, DOF: degrees of freedom.

‘estimated from prosthesis landmarks’.

‘to correspond to sound side’.

Placement on knee mechanism only specified.

‘corresponding locations on prosthetic foot’.

Placement on knee joint centre and ankle joint fixation only specified.

‘approximate landmark levels’.

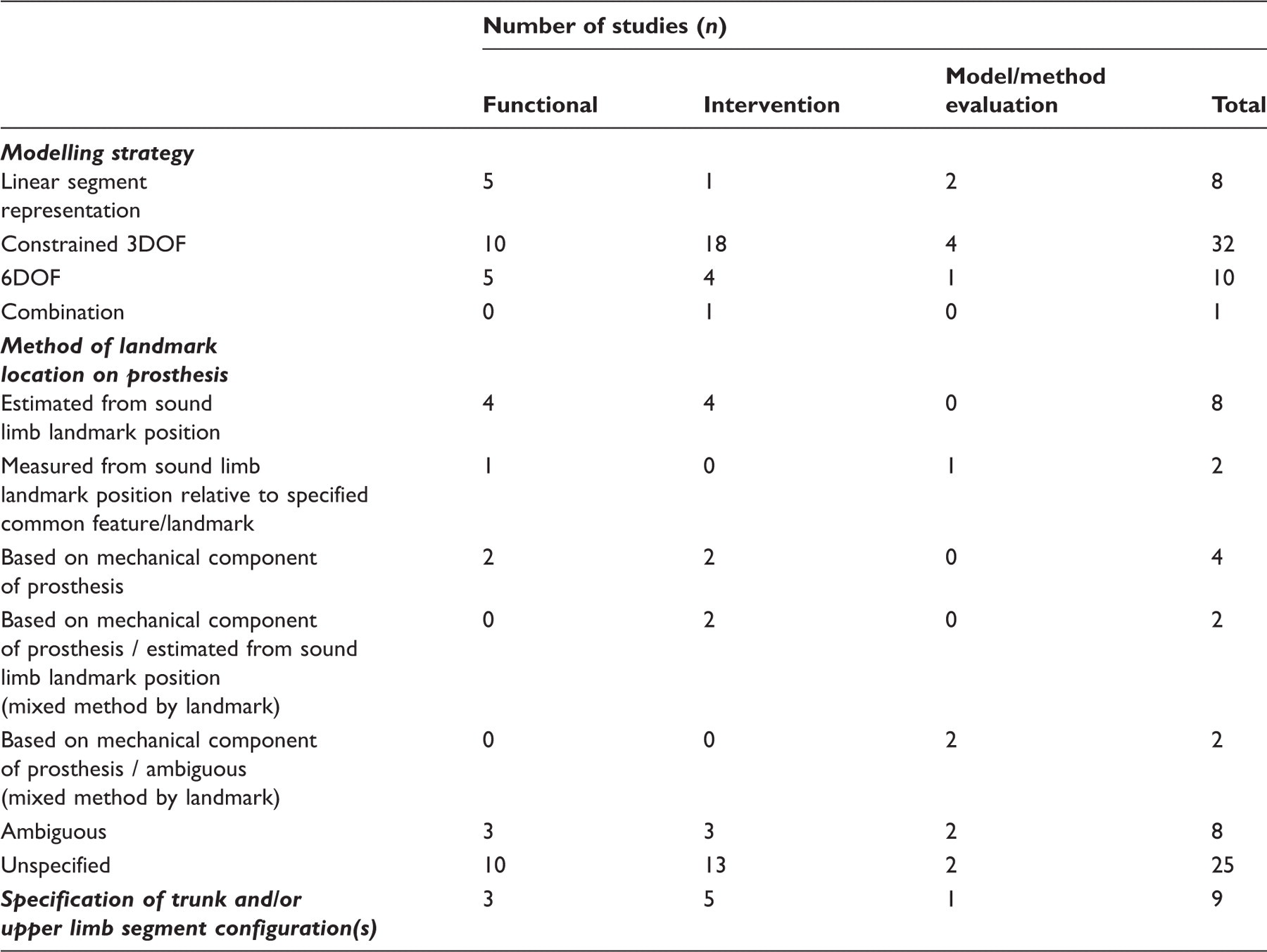

Table 4.

Modelling strategies of included studies.

	Number of studies (n)
	Functional	Intervention	Model/method evaluation	Total
Modelling strategy
Linear segment representation	5	1	2	8
Constrained 3DOF	10	18	4	32
6DOF	5	4	1	10
Combination	0	1	0	1
Method of landmark location on prosthesis
Estimated from sound limb landmark position	4	4	0	8
Measured from sound limb landmark position relative to specified common feature/landmark	1	0	1	2
Based on mechanical component of prosthesis	2	2	0	4
Based on mechanical component of prosthesis / estimated from sound limb landmark position (mixed method by landmark)	0	2	0	2
Based on mechanical component of prosthesis / ambiguous (mixed method by landmark)	0	0	2	2
Ambiguous	3	3	2	8
Unspecified	10	13	2	25
Specification of trunk and/or upper limb segment configuration(s)	3	5	1	9

Functional studies

The 20 studies in the functional group explored a range of activities within the laboratory environment (Table1), the most common of which was walking at a self-selected speed.

Half of the studies (n = 10) utilized derivatives of the ‘conventional’ approach. One of these adopted an ‘optimization’ model as described by Frigo et al.³⁸ with a 3DOF single segment foot model and optimization of the hip and knee joint centre definitions by a functional approach.⁴⁴ Another 25% of the studies (n = 5) implemented a 6DOF approach, three of which used the Cleveland Clinic model.⁴⁵ ^– ⁴⁷ The remaining 25% (n = 5) utilized a joint centre-based linear modelling approach.

Intervention studies

The 24 intervention studies were further grouped by intervention type (Table 2). Sixteen studies investigated the effect of a specific prosthetic component on amputee function. Five studies investigated the effect of different prosthetic adjustments, namely rotational alignment manipulation (n = 2) and inertial manipulation (n = 3), and three studies evaluated the efficacy of rehabilitation methods.

A derivative of the conventional approach was used in 75% of intervention studies (n = 18). Four studies employed 6DOF modelling, one of which included a two-segment foot model.⁴⁸ One study mounted clusters on the prosthetic limb and a conventional anatomical configuration on the sound limb.⁴⁹ Donn et al. employed a linear model.⁵⁰

Model/method evaluation studies

Four of the seven studies that fell within the model/method evaluation category (Table 3) employed a 3DOF approach. Geil evaluated the variability of observational gait analysis amongst clinicians⁵¹ while McMulkin et al. investigated the agreement of instrumented performance analysis and subjective preference for prosthetic components.⁵² Andrysek & Chau evaluated the energy transfer mechanisms of a swing phase controlled knee joint using a hybrid version of the conventional approach with a 3DOF foot.⁵³ Dumas et al. compared the results of inverse dynamic calculations of loads at the knee joint with direct measurements via a transducer incorporated into the prosthetic structure.⁵⁴ Calculations were based on a hybrid 3DOF model with the foot and shank modelled both separately and as a single rigid structure.

Goujon et al. investigated potential kinematic and kinetic parameters to be used for the evaluation of prosthetic feet using a 6DOF model with a two-segment foot, as utilized in a later study from the same group also included in this review (intervention studies group – Sapin et al.⁴⁸).⁵⁵ Blumentritt et al. used a joint centre-based linear model to analyse a series of devised tests designed to evaluate the safety of prosthetic knee joints.⁵⁶ Dillon et al.⁵⁶ investigated the effect of employing a standard link model¹⁹ for calculating inverse dynamics in partial foot amputees, and evaluated an adaptation to the model designed to account for the loss of a portion of the extremity,⁵⁷ as utilized in a study that falls within the functional studies group of this review.⁵⁸

Discussion

Successful biomechanical modelling requires the anatomy of the individual to be adequately described geometrically, and with sufficient degrees of freedom to capture motion of interest in all relevant planes, with respect to the activity under investigation. Fundamental to the utilization of marker-based models are assumptions that anatomical segments are rigid and that there is negligible movement between the markers and the underlying skeleton.²³ The ability to extract meaningful data depends on the extent to which the requirements are met and these assumptions hold, and this may vary for an individual or population cohort.³¹ In the context of clinical prosthetics, the introduction of an artificial limb poses new challenges in segment definition and tracking as well as in the reporting of meaningful kinematic information.

A standard model developed based on an intact human musculoskeletal system may be appropriately applied should it adequately represent the combined biological-prosthetic system, given the parameters under investigation. However, differences in the positioning of relevant functional landmarks, differences in joint behaviour, non-anatomical movement of prosthetic components and the introduction of an additional segmental interface between the socket and residual limb, amongst other factors, may increase the scope for misrepresentation and subsequent misinterpretation of data. This is undesirable for outcome measure data that are to be used as the basis for a clinical judgement, and also limits the applicability of the method in the assessment of prosthetic component function,⁹³ particularly when the data are combined with kinetic measurements in order to calculate joint forces, moments and powers, and energy mechanisms.

The results of this search indicate that there is currently no established model for the analysis of lower limb amputees. There was no obvious correlation between the focus of the existing literature and the choice of model. Over 60% (n = 32) of the 51 studies adopted a conventional 3DOF approach, either with direct application of the models described by Kadaba et al.¹⁸ (Helen Hayes model) or Davis et al.²⁰ (Newington model), or in a derivative or hybrid form. This approach is limited by the sharing of common landmarks in the definition of adjacent segments, which promotes error propagation between segments and constrains the reported movement to three degrees of rotational motion about a single point, with implications for the adequacy of system representation and accuracy.^21,93

In many institutions, preference for the conventional approach may be due to the appeal of few markers, ease and speed of implementation, availability of established and well-published protocols, and support within dedicated clinical gait packages that are supplied with several motion capture systems. Within established laboratories, a change of capture protocol would demand the compilation of new normative and group datasets in light of the redundancy of the data collected with the previous configuration, which could no longer be assumed to provide a suitable comparative control in an assessment scenario.³⁵

Landmark location and definition

Treatment of the prosthesis within the biomechanical models employed is poorly reported in the literature. In approximately 50% (n = 25) of the 51 study protocols retrieved in this review, including 10 of the 16 studies evaluating prosthetic components, the placement of markers or location of landmarks on the prosthetic side was unspecified. It is possible that this aspect was not considered or that the detail was omitted in favour of text regarded as more relevant to the main focus of the study.

Of the studies that provided a description of the treatment of the prosthetic limb in the model, position was most frequently described ambiguously (n = 8) or estimated from corresponding positions on the contralateral intact limb (n = 8). This estimation method has the advantage of simplicity; however, such placement may be misleading or irrelevant considering the structure and function of the prosthetic component. In the modelling of a solid ankle cushioned heel (SACH) foot, for example, a marker placed at the cosmetic lateral malleolus is essentially redundant beyond the description of the geometry of the component in the zero condition, as there is no articulation at this point. Selection of an appropriate location may also be confounded by cosmetic coverings that obscure the position of relevant landmarks.

Placement of markers based on the geometry or functional mechanisms of the prosthetic component may lead to a more representative description of the system, although this may be complicated by components that produce non-anatomical movement, such as running blades.⁹⁴ However, only eight studies adopted this approach for any landmark within the model.

Joint origin and axis definition

Differences in limb geometry or functional prosthetic joint behaviour as well as alterations in limb alignment, such as anterior or posterior translation of the foot with respect to the shank pylon, inherently affect the joint definition within the model.⁹⁵ This complicates analysis when examining different components and the effects of adjustments to limb alignment.

Arguably, 6DOF methods are more appropriate for describing the motion of non-uniaxial prosthetic joints such as polycentric knees, as they do not impose a single centre of rotation between segments. However, where a component violates the rigid body assumption, for example a foot with a deformable keel, an alternative modelling approach may be required,^58,94 particularly where this aspect of the design is responsible for joint functionality. In assuming segmental rigidity and a single axis of rotation at the ankle, significant error has been demonstrated in the calculation of joint moments and energy storage and transfer mechanisms, for example in assessment of foot and ankle components.^96,97

Residuum–socket interface

Any relative movement at the interface between socket and limb will also counter the rigid body assumption of a standard model and affect results.¹⁷ Where this relative movement may vary in severity between two cohorts under comparison, for example primary and established amputees, or where the socket fit itself is under investigation, it may be more appropriate to model the residual limb and socket as two segments. Only two studies acknowledged the residuum and socket as independent segments.^57,58 These publications were from the same institution and investigated only partial foot amputation. In both studies, the anthropometric models required for inverse dynamics were adapted to account for the prosthesis; however, both residuum and prosthesis were modelled as a single rigid foot segment within the kinematic link model.

Trunk and upper limb movement

Profound compensatory movement strategies may be developed following the loss of a limb, and therefore significant functional variables may be overlooked by neglecting trunk and upper body movements in biomechanical analyses.⁹⁸ The present review included only nine studies that specified inclusion of configurations for any independent segments above pelvic level in addition to the lower limb (Table 4).

Ensemble data

Factors including age,⁹⁹ aetiology of amputation,^14,99 experience ambulating with a prosthesis,¹⁰⁰ complications with the residual limb¹⁰¹ and differences in prosthetic components^14,102 are all associated with functional ability post amputation, and may result in a high degree of inter-subject variability within an amputee cohort. Averaging such data with the aim ofproducing a representative mean for a sample may conceal important events,⁷⁶ reduce the magnitude of results¹⁰² or create anomalies, and ultimately lead to the generation of profiles that do not reflect the movement of any subject.⁶⁹ The majority of observational studies extracted for this review evaluated single cases or small heterogeneous cohorts, with low control for confounding factors.

Given geometric, structural and functional differences between limbs, components and their natural counterparts, direct comparisons of individual or grouped motion data should always be conducted with care. Selection of appropriate parameters to compare requires an understanding of the deficiencies of the model, so that the accuracy of the representation of each separate human or prosthetic system or condition (e.g. alignment) under investigation can be judged. Differences between limb or component alignment, rigidity, rotational or translational axes, and the presence or lack of soft tissue artefact, for example, may affect the integrity of inter-limb comparisons. When the model favours either of the limbs in terms of applicability of imposed constraints and measurable degrees of freedom, or describes neither limb adequately for the movement under investigation, an alternative modelling strategy may be required.

The relevance of conducting comparative analyses of the motion of two systems that are by nature or design geometrically or functionally different, for example single axis and polycentric or natural knee joints, should also be questioned.

Conclusion

Optoelectronic motion capture may provide a means to objectively measure function across the wide range of abilities that may be demonstrated by a young, active population with lower limb loss. The extraction of representative and meaningful data relies upon (1) the selection of outcome variables that are functionally relevant to the individual or population under investigation, and (2) a model that is sufficiently representative of the system or systems to enable accurate computation of these variables. There is no definitive marker set in the literature that is appropriate for the analysis of this population in all contexts. Few centres have published work describing attempts to develop marker-based models specifically to incorporate prosthetic components. Further efforts are warranted to quantify potential error in applying standard models, as the literature is lacking in this area. In the absence of a definitive solution, it is essential that the limitations of any applied model and associated landmark configuration are understood, in order for appropriate, informed conclusions to be reliably drawn from the data.³¹

Knowledge transfer across institutions requires explicit method description for validity to be established, and is facilitated by the use of common approaches to motion capture, modelling and analysis. The development of more robust modelling strategies for individuals with limb loss would be worthwhile, enabling standard motion analysis techniques to provide reliable data to monitor ability, enhance treatment and aid prosthesis optimization for the maximization of function and performance throughout the rehabilitation pathway and beyond.

Footnotes

Funding

This research received no specific grant from any funding agency in the public, commercial or not-for-profit sectors.

Conflict of interest

The authors alone are responsible for the content and writing of the paper.

References

Vrieling AH, van Keeken HG, Schoppen T, Hof A, Otten B, Halbertsma JP, et al. Gait adjustments in obstacle crossing, gait initiation and gait termination after a recent lower limb amputation. Clin Rehabil 2009; 23(7): 659–971.

Prince

Winter

Sjonnensen

Powell

Wheeldon

. Mechanical efficiency during gait of adults with transtibial amputation: a pilot study comparing the SACH, Seattle, and Golden-Ankle prosthetic feet. J Rehabil Res Dev 1998; 35(2): 177–185.

Torburn

Perry

Ayyappa

Shanfield

. Below-knee amputee gait with dynamic elastic response prosthetic feet: a pilot study. J Rehabil Res Dev 1990; 27(4): 369–384.

Sadeghi

Allard

Duhaime

. Muscle power compensatory mechanisms in below-knee amputee gait. Am J Phys Med Rehabil 2001; 80(1): 25–32.

Schmalz

Blumentritt

Jarasch

. Energy expenditure and biomechanical characteristics of lower limb amputee gait: the influence of prosthetic alignment and different prosthetic components. Gait Posture 2002; 16(3): 255–263.

Datta

Ariyaratnam

Hilton

. Timed walking test: an all-embracing outcome measure for lower-limb amputees? Clin Rehabil 1996; 10: 227–232.

Schoppen

Boonstra

Groothoff

de Vries

Goeken

Eisma

. The timed ‘up and go’ test: reliability and validity in persons with unilateral lower limb amputation. Arch Phys Med Rehabil 1999; 80(7): 825–828.

Rommers

Vos

Groothoff

Eisma

. Mobility of people with lower limb amputations: scales and questionnaires: a review. Clin Rehabil 2001; 15(1): 92–102.

Hafner

Willingham

Buell

Allyn

Smith

. Evaluation of function, performance, and preference as transfemoral amputees transition from mechanical to microprocessor control of the prosthetic knee. Arch Phys Med Rehabil 2007; 88(2): 207–217.

10.

Pasquina

Fitzpatrick

. The Walter Reed experience: Current issues in the care of the traumatic amputee. J Prosthet Orthot 2006; 18(1S): 119–125.

11.

NASDAB. Statistical database for the United Kingdom2006/7. 2009 http://www.nasdab.co.uk/pdf.pl?file=nasdab/news/Final_2006_07.pdf, accessed October 2010.

12.

Defence Analytical Services Agency. UK Defence Statistics 2010 http://www.dasa.mod.uk/modintranet/UKDS/UKDS2010/ukds.php, accessed October.

13.

Czerniecki

Gitter

Beck

. Energy transfer mechanisms as a compensatory strategy in below knee amputee runners. J Biomech 1996; 29(6): 717–722.

14.

Soares

Yamaguti

Mochizuki

Amadio

Serrao

. Biomechanical parameters of gait among transtibial amputees: a review. Sao Paulo Med J 2009; 127(5): 302–309.

15.

Burkett

Smeathers

Barker

. Optimising the trans-femoral prosthetic alignment for running, by lowering the knee joint. Prosthet Orthot Int 2001; 25(3): 210–219.

16.

Pratt

Falkonakis

Palmer

Sharpe

Panagamuwa

. Letter to the editor. Prosthet Orthot Int 2002; 26(3): 258–259.

17.

Sjodahl

Jarnlo

Soderberg

Persson

. Kinematic and kinetic gait analysis in the sagittal plane of trans-femoral amputees before and after special gait re-education. Prosthet Orthot Int 2002; 26(2): 101–112.

18.

Kadaba

Ramakrishnan

Wootten

. Measurement of lower extremity kinematics during level walking. J Orthop Res 1990; 8(3): 383–392.

19.

Winter

. Biomechanics and motor control of human movement 1990 2nd ed. New York: John Wiley & Sons.

20.

Davis

Õunpuu

Tyburski

Gage

. A gait analysis data collection and reduction technique. Hum Mov Sci 1991; 10(5): 575–587.

21.

Buczek

Rainbow

Cooney

Walker

Sanders

. Implications of using hierarchical and six degree-of-freedom models for normal gait analyses. Gait Posture 2010; 31(1): 57–63.

22.

Ferrari

Benedetti

Pavan

Frigo

Bettinelli

Rabuffetti

Crenna

Leardini

. Quantitative comparison of five current protocols in gait analysis. Gait Posture 2008; 28(2): 207–216.

23.

Cappozzo

Catani

Croce

Leardini

. Position and orientation in space of bones during movement: anatomical frame definition and determination. Clin Biomech (Bristol, Avon) 1995; 10(4): 171–178.

24.

Marika

Issam

David

Salim

. What are the gains and losses when using a non-six degree of freedom skin marker set for clinical gait analysis? Gait Posture 2006; 12(24(S2)): S121–S122.

25.

Lundberg

. On the use of bone and skin markers in kinematics research. Hum Mov Sci 1996; 15(3): 411–422.

26.

Manal

McClay

Stanhope

Richards

Galinat

. Comparison of surface mounted markers and attachment methods in estimating tibial rotations during walking: an in vivo study. Gait Posture 2000; 11(1): 38–45.

27.

Sangeux

Marin

Charleux

Durselen

Ho Ba Tho

. Quantification of the 3D relative movement of external marker sets vs. bones based on magnetic resonance imaging.Clin Biomech 2006; 21(9): 984–991.

28.

Peters

Galna

Sangeux

Morris

Baker

. Quantification of soft tissue artifact in lower limb human motion analysis: a systematic review. Gait Posture 2010; 31(1): 1–8.

29.

Della Croce

Camomilla

Leardini

Cappozzo

. Femoral anatomical frame: assessment of various definitions. Med Eng Phys 2003; 25(5): 425–431.

30.

Growney

Meglan

Johnson

Cahalan

. Repeated measures of adult normal walking using a video tracking system. Gait Posture 1997; 6(2): 147–162.

31.

McGinley

Baker

Wolfe

Morris

. The reliability of three-dimensional kinematic gait measurements: a systematic review. Gait Posture 2009; 29(3): 360–369.

32.

Kadaba

Ramakrishnan

Wootten

Gainey

Gorton

Cochran

. Repeatability of kinematic, kinetic, and electromyographic data in normal adult gait. J Orthop Res 1989; 7(6): 849–860.

33.

Schache

Blanch

Rath

Wrigley

Starr

Bennell

. Intra-subject repeatability of the three dimensional angular kinematics within the lumbo-pelvic-hip complex during running. Gait Posture 2002; 15(2): 136–145.

34.

Vogt

Portscher

Brettmann

Pfeifer

Banzer

. Cross-validation of marker configurations to measure pelvic kinematics in gait. Gait Posture 2003; 18(3): 178–184.

35.

Collins

Ghoussayni

Ewins

Kent

. Asix degrees-of-freedom marker set for gait analysis: repeatability and comparison with a modified Helen Hayes set. Gait Posture 2009; 30(2): 173–180.

36.

Long

Eastwood

Graf

Smith

Harris

. Repeatability and sources of variability in multi-center assessment of segmental foot kinematics in normal adults. Gait Posture 2010; 31(1): 32–36.

37.

Zahedi

Spence

Solomonidis

Paul

. Repeatability of kinetic and kinematic measurements in gait studies of the lower limb amputee. Prosthet Orthot Int 1987; 11(2): 55–64.

38.

Frigo

Rabuffetti

Kerrigan

Deming

Pedotti

. Functionally oriented and clinically feasible quantitative gait analysis method. Med Biol Eng Comput 1998; 36(2): 179–185.

39.

Eve

McNee

Shortland

. Extrinsic and intrinsic variation in kinematic data from the gait of healthy adult subjects. Gait Posture 2006; 24(S2): S56–S57.

40.

Stebbins

Harrington

Thompson

Zavatsky

Theologis

. Repeatability of a model for measuring multi-segment foot kinematics in children. Gait Posture 2006; 23(4): 401–410.

41.

Camomilla

Cereatti

Vannozzi

Cappozzo

. An optimized protocol for hip joint centre determination using the functional method. J Biomech 2006; 39(6): 1096–1106.

42.

Leardini

Sawacha

Paolini

Ingrosso

Nativo

Benedetti

. A new anatomically based protocol for gait analysis in children. Gait Posture 2007; 26(4): 560–571.

43.

Wilk

. Transition to an articulating knee prosthesis in pediatric amputees. J Prosthet Orthot 1999; 11(3): 69–69.

44.

Rabuffetti

Recalcati

Ferrarin

. Trans-femoral amputee gait: socket-pelvis constraints and compensation strategies. Prosthet Orthot Int 2005; 29(2): 183–192.

45.

Royer

Wasilewski

. Hip and knee frontal plane moments in persons with unilateral, trans-tibial amputation. Gait Posture 2006; 23(3): 303–306.

46.

Baum

Schnall

Tis

Lipton

. Correlation of residual limb length and gait parameters in amputees. Injury 2008; 39(7): 728–733.

47.

Schnall

Baum

Andrews

. Gait characteristics of a soldier with a traumatic hip disarticulation. Phys Ther 2008; 88(12): 1568–1577.

48.

Sapin

Goujon

de Almeida

Fode

Lavaste

. Functional gait analysis of trans-femoral amputees using two different single-axis prosthetic knees with hydraulic swing-phase control: kinematic and kinetic comparison of two prosthetic knees. Prosthet Orthot Int 2008; 32(2): 201–218.

49.

Van der Linden

Twiste

Rithalia

. The biomechanical effects of the inclusion of a torque absorber on trans-femoral amputee gait: a pilot study. Prosthet Orthot Int 2002; 26(1): 35–43.

50.

Donn

Porter

Roberts

. The effect of footwear mass on the gait patterns of unilateral below-knee amputees. Prosthet Orthot Int 1989; 13(3): 140–144.

51.

Geil

. Variability among practitioners in dynamic observational alignment of a transfemoral prosthesis. JProsthet Orthot 2002; 14(4): 159–159.

52.

McMulkin

. Comparison of three pediatric prosthetic feet during functional activities. J Prosthet Orthot 2004; 16(3): 78–78.

53.

Andrysek

Chau

. An electromechanical swing-phase-controlled prosthetic knee joint for conversion of physiological energy to electrical energy: feasibility study. IEEE Trans Biomed Eng 2007; 54(12): 2276–2283.

54.

Dumas

Cheze

Frossard

. Loading applied on prosthetic knee of transfemoral amputee: comparison of inverse dynamics and direct measurements. Gait Posture 2009; 30(4): 560–562.

55.

Goujon

Bonnet

Sautreuil

Maurisset

Darmon

Fode

. A functional evaluation of prosthetic foot kinematics during lower-limb amputee gait. Prosthet Orthot Int 2006; 30(2): 213–223.

56.

Blumentritt

. The safety of C-Leg: biomechanical tests. JProsthet Orthot 2009; 21(1): 2–2.

57.

Dillon

Barker

Pettet

. Effect of inaccuracies in anthropometric data and linked-segment inverse dynamic modeling on kinetics of gait in persons with partial foot amputation. J Rehabil Res Dev 2008; 45(9): 1303–1316.

58.

Dillon

Barker

. Comparison of gait of persons with partial foot amputation wearing prosthesis to matched control group: observational study. J Rehabil Res Dev 2008; 45(9): 1317–1334.

59.

Nissan

. The initiation of gait in lower limb amputees: some related data. J Rehabil Res Dev 1991; 28(2): 1–12.

60.

Powers

Boyd

Torburn

Perry

. Stair ambulation in persons with transtibial amputation: an analysis of the Seattle LightFoot. J Rehabil Res Dev 1997; 34(1): 9–18.

61.

Hill

Patla

Ishac

Adkin

Supan

Barth

. Altered kinetic strategy for the control of swing limb elevation over obstacles in unilateral below-knee amputee gait. J Biomech 1999; 32(5): 545–549.

62.

Burkett

Smeathers

Barker

. Walking and running inter-limb asymmetry for paralympic trans-femoral amputees: a biomechanical analysis. Prosthet Orthot Int 2003; 27(1): 36–47.

63.

Detrembleur

Vanmarsenille

De Cuyper

Dierick

. Relationship between energy cost, gait speed, vertical displacement of centre of body mass and efficiency of pendulum-like mechanism in unilateral amputee gait. Gait Posture 2005; 21(3): 333–340.

64.

Miff

Childress

Gard

Meier

Hansen

. Temporal symmetries during gait initiation and termination in nondisabled ambulators and in people with unilateral transtibial limb loss. J Rehabil Res Dev 2005; 42(2): 175–182.

65.

Strike

Diss

. The biomechanics of one-footed vertical jump performance in unilateral trans-tibial amputees. Prosthet Orthot Int 2005; 29(1): 39–51.

66.

Jones

Twigg

Scally

Buckley

. The mechanics of landing when stepping down in unilateral lower-limb amputees. Clin Biomech 2006; 21(2): 184–193.

67.

Bae

Choi

Hong

Mun

. Dynamic analysis of above-knee amputee gait. Clin Biomech 2007; 22(5): 557–566.

68.

Schmalz

Blumentritt

Marx

. Biomechanical analysis of stair ambulation in lower limb amputees. Gait Posture 2007; 25(2): 267–278.

69.

Gard

Lipschutz

Kuiken

. Gait characteristics of persons with bilateral transtibial amputations. J Rehabil Res Dev 2007; 44(4): 491–501.

70.

Silverman

Fey

Portillo

Walden

Bosker

Neptune

. Compensatory mechanisms in below-knee amputee gait in response to increasing steady-state walking speeds. Gait Posture 2008; 28(4): 602–609.

71.

Gard

Lipschutz

Kuiken

. Differences in gait characteristics between persons with bilateral transtibial amputations, due to peripheral vascular disease and trauma, and able-bodied ambulators. Arch Phys Med Rehabil 2008; 89(7): 1386–1394.

72.

Vickers

Palk

McIntosh

Beatty

. Elderly unilateral transtibial amputee gait on an inclined walkway: a biomechanical analysis. Gait Posture 2008; 27(3): 518–529.

73.

Vanicek

Strike

McNaughton

Polman

. Gait patterns in transtibial amputee fallers vs. Non-fallers: Biomechanical differences during level walking. Gait Posture 2009; 29(3): 415–420.

74.

Goh

Solomonidis

Spence

Paul

. Biomechanical evaluation of SACH and uniaxial feet. Prosthet Orthot Int 1984; 8(3): 147–154.

75.

Postema

Hermens

de Vries

Koopman

Eisma

. Energy storage and release of prosthetic feet. Part 1: Biomechanical analysis related to user benefits.Prosthet Orthot Int 1997; 21(1): 17–27.

76.

van der Linden

Solomonidis

Spence

Paul

. A methodology for studying the effects of various types of prosthetic feet on the biomechanics of trans-femoral amputee gait. J Biomech 1999; 32(9): 877–889.

77.

Gard

Konz

. The effect of a shock-absorbing pylon on the gait of persons with unilateral transtibial amputation. J Rehabil Res Dev 2003; 40(2): 109–124.

78.

Perry

Burnfield

Newsam

Conley

. Energy expenditure and gait characteristics of a bilateral amputee walking with C-leg prostheses compared with stubby and conventional articulating prostheses. Arch Phys Med Rehabil 2004; 85(10): 1711–1717.

79.

Berge

Czerniecki

Klute

. Efficacy of shock-absorbing versus rigid pylons for impact reduction in transtibial amputees based on laboratory, field, and outcome metrics. J Rehabil Res Dev 2005; 42(6): 795–808.

80.

Segal

Orendurff

Klute

McDowell

Pecoraro

Shofer

Czerniecki

. Kinematic and kinetic comparisons of transfemoral amputee gait using C-Leg and Mauch SNS prosthetic knees. J Rehabil Res Dev 2006; 43(7): 857–870.

81.

Andrysek

Redekop

Naumann

. Preliminary evaluation of an automatically stance-phase controlled pediatric prosthetic knee joint using quantitative gait analysis. Arch Phys Med Rehabil 2007; 88(4): 464–470.

82.

Graham

Datta

Heller

Howitt

Pros

. Acomparative study of conventional and energy-storing prosthetic feet in high-functioning transfemoral amputees. Arch Phys Med Rehabil 2007; 88(6): 801–806.

83.

Kaufman

Levine

Brey

Iverson

McCrady

Padgett

Joyner

. Gait and balance of transfemoral amputees using passive mechanical and microprocessor-controlled prosthetic knees. Gait Posture 2007; 26(4): 489–493.

84.

White

. Bilateral kinematic and kinetic data of two prosthetic designs: a case study. J Prosthet Orthot 2001; 12(4): 120–120.

85.

McNealy

Gard

. Effect of prosthetic ankle units on the gait of persons with bilateral trans-femoral amputations. Prosthet Orthot Int 2008; 32(1): 111–126.

86.

Burger

Erzar

Maver

Olensek

Cikajlo

Matjacic

. Biomechanics of walking with silicone prosthesis after midtarsal (Chopart) disarticulation. Clin Biomech 2009; 24(6): 510–516.

87.

Silver-Thorn

. Functional stability of transfemoral amputee gait using the 3R80 and Total Knee 2000 prosthetic knee units. J Prosthet Orthot 2009; 21(1): 18–18.

88.

Hillery

Wallace

McIlhagger

Watson

. The effect of changing the inertia of a trans-tibial dynamic elastic response prosthesis on the kinematics and ground reaction force patterns. Prosthet Orthot Int 1997; 21(2): 114–123.

89.

Hillery

Wallace

. Trans-tibial amputee gait adaptations as a result of prosthetic inertial manipulation. Disabil Rehabil 2000; 22(8): 383–386.

90.

Beyaert

Grumillier

Martinet

Paysant

Andre

. Compensatory mechanism involving the knee joint of the intact limb during gait in unilateral below-knee amputees. Gait Posture 2008; 28(2): 278–284.

91.

Alimusaj

Fradet

Braatz

Gerner

Wolf

. Kinematics and kinetics with an adaptive ankle foot system during stair ambulation of transtibial amputees. Gait Posture 2009; 30(3): 356–363.

92.

Barnett

Vanicek

Polman

Hancock

Brown

Smith

. Kinematic gait adaptations in unilateral transtibial amputees during rehabilitation. Prosthet Orthot Int 2009; 33(2): 135–147.

93.

Sawers

. The potential for error with use of inverse dynamic calculations in gait analysis of individuals with lower limb loss: a review of model selection and assumptions. J Prosthet Orthot 2010; 22(1): 56–56.

94.

Wilson

Asfour

Abdelrahman

Gailey

. Anew methodology to measure the running biomechanics of amputees. Prosthet Orthot Int 2009; 33(3): 218–229.

95.

Dillon

Bach

. Re: Gait and balance of transfemoral amputees using passive mechanical and microprocessor controlled prosthetic knees by Kaufman et al. Gait Posture 2009 161–162.

96.

Prince

. New technique for the calculation of the energy stored, dissipated, and recovered in different ankle-foot prostheses. IEEE Trans Rehabil Eng 1994; 2(4): 247–247.

97.

Geil

Parnianpour

Quesada

Berme

Simon

. Comparison of methods for the calculation of energy storage and return in a dynamic elastic response prosthesis. J Biomech 2000; 33(12): 1745–1750.

98.

Goujon-Pillet

Sapin

Fode

Lavaste

. Three-dimensional motions of trunk and pelvis during transfemoral amputee gait. Arch Phys Med Rehabil 2008; 89(1): 87–94.

99.

Davies

Datta

. Mobility outcome following unilateral lower limb amputation. Prosthet Orthot Int 2003; 27(3): 186–1890.

100.

Vrieling

van Keeken

Schoppen

Hof

Otten

Halbertsma

. Gait adjustments in obstacle crossing, gait initiation and gait termination after a recent lower limb amputation. Clin Rehabil 2009; 23(7): 659–671.

101.

Chakrabarty

. An audit of the quality of the stump and its relation to rehabilitation in lower limb amputees. Prosthet Orthot Int 1998; 22(2): 136–146.

102.

Hafner

Sanders

Czerniecki

Fergason

. Energy storage and return prostheses: does patient perception correlate with biomechanical analysis? Clin Biomech 2002; 17(5): 325–344.

Biomechanical models in the study of lower limb amputee kinematics: a review

Abstract

Keywords

Introduction

Modelling strategies

Scope

Methods

Study selection

Results

Functional studies

Intervention studies

Model/method evaluation studies

Discussion

Landmark location and definition

Joint origin and axis definition

Residuum–socket interface

Trunk and upper limb movement

Ensemble data

Conclusion

Footnotes

Funding

Conflict of interest

References
