Abstract

Focused ultrasound combined with circulating microbubbles (FUS+MB) can transiently enhance blood-brain barrier (BBB) permeability at targeted brain locations. Its great promise in improving drug delivery to the brain is reflected by a rapidly growing number of clinical trials using FUS+MB to treat various brain diseases. As the clinical applications of FUS+MB continue to expand, it is critical to have a better understanding of the molecular and cellular effects induced by FUS+MB to enhance the efficacy of current treatment and enable the discovery of new therapeutic strategies. Existing studies primarily focus on FUS+MB-induced effects on brain endothelial cells, the major cellular component of BBB. However, bioeffects induced by FUS+MB expand beyond the BBB to cells surrounding blood vessels, including astrocytes, microglia, and neurons. Together these cell types comprise the neurovascular unit (NVU). In this review, we examine cell-type-specific bioeffects of FUS+MB on different NVU components, including enhanced permeability in endothelial cells, activation of astrocytes and microglia, as well as increased intraneuron protein metabolism and neuronal activity. Finally, we discuss knowledge gaps that must be addressed to further advance clinical applications of FUS+MB.

Keywords

Focused ultrasound blood-brain barrier neurovascular unit molecular effects cellular effects

Introduction

The combination of focused ultrasound and microbubbles (FUS+MB) is an emerging technology that has been used to deliver various therapeutic agents to the brain.¹ In 2001, FUS+MB treatment was first introduced by Hynynen et al. to enhance the permeability of the blood-brain barrier (BBB).² Over the past two decades, interest in FUS+MB has increased due to its unique capability to noninvasively, locally, and reversibly enhance BBB permeability for the delivery of therapeutic agents across the BBB. Preclinical studies have succeeded in delivering a wide range of therapeutic agents to the brain using FUS+MB, including small molecules,³ proteins,^4–6 viruses,^7,8 and even cells.^9,10 The success in preclinical studies, predominantly conducted using healthy animals, has led to several clinical trials in patients with glioblastoma,^11,12 Alzheimer’s disease,¹³ and amyotrophic lateral sclerosis.¹⁴ As clinical applications of FUS+MB continue to expand, there is a pressing need to fully understand FUS+MB-induced biological effects and underlying mechanisms to improve the efficacy of current treatment as well as enable discoveries of new therapeutic strategies for brain diseases.

To date, studies of biological effects of FUS+MB treatment have primarily focused on changes in blood vessels and associated physiological effects. These biological effects include but are not limited to increased BBB permeability and altered cerebral blood flow, as covered by several excellent reviews.^15–17 Although exact mechanisms of FUS+MB-induced BBB opening are still under investigation, it is considered that safe, transient BBB opening is attributed to the expansion and contraction of MBs in the ultrasound field, a phenomenon also known as MB cavitation.^18–20 MB cavitation can generate mechanical stress on the brain endothelium, resulting molecular, cellular, and structural changes that are associated with BBB permeability enhancement.^21–23

Can FUS+MB affect other brain cells surrounding blood vessels? The answer is yes. Increasing evidence indicates that the impact of FUS+MB reaches all cell types in the neurovascular unit (NVU), an essential structure composed of brain endothelial cells, pericytes, astrocytes, microglia, and neurons. This extensive impact results in systemic bioeffects, including the sterile inflammatory response, waste clearance, and even neurogenesis.²⁴ Despite the broad impact FUS+MB has on brain physiology, a complete understanding of biological effects on different NVU cell types is lacking. In addition to having differential effects on different cell types, FUS+MB-induced bioeffects are dependent on various factors, such as FUS pressure, time post sonication, target location in the brain, and healthy/diseased animal model.^25–30 A better understanding of FUS +MB-induced effects on the NVU can help delineate underlying mechanisms of systemic physiological changes in the brain after FUS+MB treatment. This knowledge will be critical for improving the safety and effectiveness of FUS+MB-enhanced therapeutic applications.

Here, we first provide a brief introduction to the FUS+MB technique. We then briefly discuss the roles of each component in the NVU. For each NVU component, we summarize existing evidence on molecular-level changes induced by FUS+MB and discuss remaining knowledge gaps. We conclude with an outlook for studies needed to understand the full extent of biological effects induced by FUS+MB in the NVU and their underlying mechanisms.

FUS+MB technique

Although neurosurgical, pharmacologic, and physiologic strategies have been developed to circumvent the BBB for brain drug delivery, FUS+MB is the only established technique that can induce localized and reversible BBB opening.¹⁵ Several excellent articles review the FUS+MB technique with the focus on its application in brain drug delivery.^15,31,32 In this review, we provide an overview of critical parameters involved in this technique and discuss its limitations.

Technological advancement in past decades has led to the development of transcranial FUS devices that are capable of noninvasively delivering ultrasound energy inside the brain with a maximum depth at the scale of 10 centimeter, and a focal region of 1 × 1 × 10 mm³.^33,34 MBs, which are gas-filled bubbles coated by protein or lipid shells (diameters range from 1 to 10 µm), were originally used as blood-pool ultrasound contrast agents in clinics. When encountering an ultrasound beam, MBs cavitate—a broad term for various ultrasound-induced bubble activities, including their volumetric oscillation and collapse. MB cavitation can generate microstreaming or jetting that induces shear stress on surrounding tissue. MB expansion and contraction can also induce vessel distention and invagitation.¹⁸ MB cavitation is believed to be the main physical mechanism that causes bioeffects, which can last a few hours to weeks. Hundreds of preclinical studies have reported on optimizing FUS+MB experimental parameters, developing imaging tools to monitor and assess the treatment, improving FUS targeting accuracy, and demonstrating its short and long-term safety. Building on extensive and promising preclinical findings, the first-in-human study was conducted in 2018 to evaluate feasibility and safety of FUS+MB-induced BBB opening in patients with Alzheimer’s disease.¹³ Since then, there have been 5 completed and 17 ongoing FUS+MB clinical trials in patients with different types of brain diseases (Table 1)^{11,13,35–38}

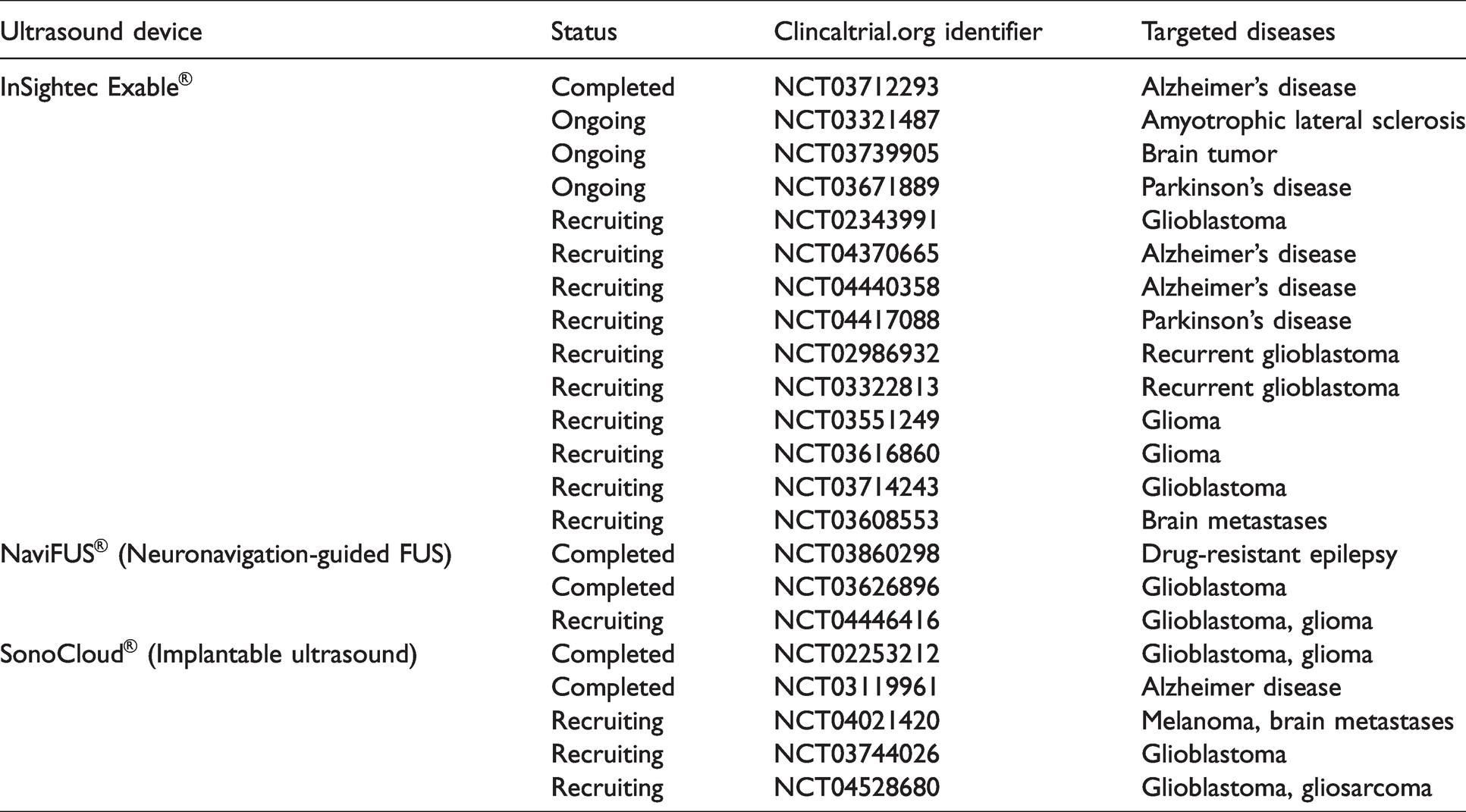

Table 1.

Clinical trials using FUS+MB to treat brain diseases.

Ultrasound device	Status	Clincaltrial.org identifier	Targeted diseases
InSightec Exable®	Completed	NCT03712293	Alzheimer’s disease
	Ongoing	NCT03321487	Amyotrophic lateral sclerosis
	Ongoing	NCT03739905	Brain tumor
	Ongoing	NCT03671889	Parkinson's disease
	Recruiting	NCT02343991	Glioblastoma
	Recruiting	NCT04370665	Alzheimer’s disease
	Recruiting	NCT04440358	Alzheimer’s disease
	Recruiting	NCT04417088	Parkinson's disease
	Recruiting	NCT02986932	Recurrent glioblastoma
	Recruiting	NCT03322813	Recurrent glioblastoma
	Recruiting	NCT03551249	Glioma
	Recruiting	NCT03616860	Glioma
	Recruiting	NCT03714243	Glioblastoma
	Recruiting	NCT03608553	Brain metastases
NaviFUS® (Neuronavigation-guided FUS)	Completed	NCT03860298	Drug-resistant epilepsy
	Completed	NCT03626896	Glioblastoma
	Recruiting	NCT04446416	Glioblastoma, glioma
SonoCloud® (Implantable ultrasound)	Completed	NCT02253212	Glioblastoma, glioma
	Completed	NCT03119961	Alzheimer disease
	Recruiting	NCT04021420	Melanoma, brain metastases
	Recruiting	NCT03744026	Glioblastoma
	Recruiting	NCT04528680	Glioblastoma, gliosarcoma

Preclinical studies have identified a large parameter space that impact FUS+MB results, including MB parameters (e.g., type, dosage, size, and injection method), FUS parameters (e.g., frequency, ultrasound pressure, burst parameters, sonication duration), and other experimental variables (e.g., targeted brain region and disease condition).

Three commercially available ultrasound contrast agents are currently used in FUS+MB studies: Definity, Optison, and SonoVue. Definity are perfluorocarbon gas-filled lipid shells (mean diameter = 1.1–3.3 µm; maximum concentration = 6 × 10⁹ MBs/mL; recommended clinical dose = 10 µl/kg). Optison are perfluorocarbon gas-filled albumin shells (mean diameter = 3.0–4.5 µm; concentration = 5–8 × 10⁸ MBs/mL; recommended clinical dose = 0.5 mL per adult). SonoVue are sulfur hexafluoride gas-filled lipid shells (mean diameter = 1.5–2.5 µm; concentration = 1–5 × 10⁸ MBs/mL; recommended clinical dosage = 2–2.4 mL per adult). While these commercially available MBs have a large size variance (i.e., polydisperse), custom-made monodisperse MBs have also been used in FUS+MB preclinical studies to achieve more consistent BBB opening.³⁹ More recently, Nanobubbles with long circulation time (i.e., 10 min in rats) were shown to successfully induce BBB opening.⁴⁰

As for FUS parameters, a wide range has been used to induce BBB disruption, and there is a lack of standard and consent for optimal parameters. The most well-characterized FUS parameters are peak negative pressure (PNP) and mechanical index (MI, which is PNP divided by square root of central frequency). McDannold et al. found that the threshold for BBB disruption (probability of disruption was estimated to be 50%) was between a MI of 0.4 and 0.5 using a rabbit model.⁴¹ In comparison, a lower MI threshold for BBB disruption was reported in primates as 0.32 (0.15 MPa, 0.22 MHz transducer).⁴¹ The authors argued that the discrepancy may be due to different detection sensitivity of MRI versus histological analysis for BBB disruption and differences between small animal models and primates.⁴¹ It is difficult to specify the clinical range of PNP as most reported clinical trials used 50-60% “cavitation threshold” power but did not specify PNP or MI.^13,14,31,37 In a clinical trial of recurrent GBM, BBB disruption was observed by MRI using MI of 0.48–0.68 and PNP of 0.34–0.48 MPa.⁴² Although most existing studies focus on characterizing the threshold and safety range of PNPs to induce BBB disruption, emerging evidence suggests PNPs lower than the threshold can still affect the NVU without disrupting the BBB or inducing an inflammation response. For example, FUS+MB treatment at 0.1 MPa achieved localized endothelial cell transfection on cerebral blood vessels by injecting MBs conjugated with plasmid.⁴³ As PNP increased from 0.1 MPa to 0.4 MPa, transfected cell types shifted from cells on blood vessels (endothelial cells, pericytes, astrocytes) to cells distal from the blood vessels (neurons, microglia).⁴⁴ These results show that FUS+MB affects cells in the NVU at different PNPs depending on the distance between the affected cell and blood vessels, suggesting that FUS parameters may be tuned to transfect specific brain cell types.

Other experimental parameters, for example, the targeted brain region, anesthesia, and disease condition of the experimental model, can also affect FUS+MB-induced bioeffects in the brain. FUS+MB can induce BBB disruption in a wide range of brain regions with varying vasculature and structural properties, such as hippocampus,⁴⁵ striatum,⁴⁶ and brainstem.⁴⁷ A recent study showed that FUS+MB induced a lower level of BBB opening in the caudate putamen compared to the thalamus in a rat brain, possibly due to the difference in ultrasound’s incidence angle at these targeted locations.⁴⁸ Another study reported that astrocytes and microglia in the cerebral cortex and hippocampus were affected differently by FUS+MB treatment in a healthy rat model.^25,49 Furthermore, neurogenesis was observed in the sonicated frontal lobe of healthy rats but not the sonicated hippocampus after 6 weekly FUS+MB treatments; however, this local difference in neuronal response was reversed in rats that received one-time treatment.²⁵ Moreover, the anatomical difference between healthy and pathological brain tissue can result in significant differences in FUS+MB-induced effects. For example, one study using a mouse model of Alzheimer’s disease found that FUS+MB-induced BBB permeability enhancement was lessened in transgenic (TgCRND8) mice compared to non-transgenic mice, suggesting that amyloid plaque may weaken FUS+MB-induced effects on vessel permeability.⁵⁰ Changes in the brain tumor microenvironment such as blood vessel disruption, impaired blood flow, and increased endocytosis can also lead to a reduced effect from FUS+MB, which may explain the overall higher PNP used to enhance BBB permeability changes in brain tumors compared to healthy tissue.^42,51–53

There are several limitations with the FUS+MB technique that should be mentioned. Due to a lack of complete understanding of biological effects induced by FUS+MB and their underlying mechanisms, FUS+MB treatments may cause unwanted biological effects. For example, multiple FUS+MB treatments have been shown to elevate hyperphosphorylated tau protein in neurons.²⁵ Secondly, the efficacy of the FUS+MB technique can be influenced by many technical variables; therefore, clinical studies should be aware of the degree of variability between patients. In a phase I safety trial for treating patients with Alzheimer’s disease, while all patients had successful BBB opening following the MRgFUS treatment, results were most uniform in 2 out 5 patients.¹³ Thirdly, there is a lack of understanding of long-term bioeffects induced by FUS+MB, rendering safety evaluation of the technique incomplete. Finally, microhemorrhage and edema can happen when relatively higher PNPs are used, however, safety should be evaluated for each specific FUS setup and animal model to determine the threshold for PNP.⁵⁴

NVU components

The concept of the NVU initially emerged to describe the unique interrelation between cerebral blood vasculature and brain cells.^55–57 The most studied role of the NVU is neurovascular coupling, which links neuronal activity to blood flow and became the basis for functional MRI (fMRI).⁵⁷ Additionally, the NVU regulates BBB permeability, the glymphatic system, and neurovascularization. Dysfunction of the NVU contributes to numerous brain pathologies, including neurodegenerative diseases, brain tumors, cerebral ischemia, and inflammation.^56–58 Given that FUS-activated MBs must first interact with the NVU for any effect in the NVU to happen, it is important to understand its biological function when investigating effects of FUS+MB (Figure 1). In this section, we briefly review the biological role of each NVU component and how brain diseases affect their function.

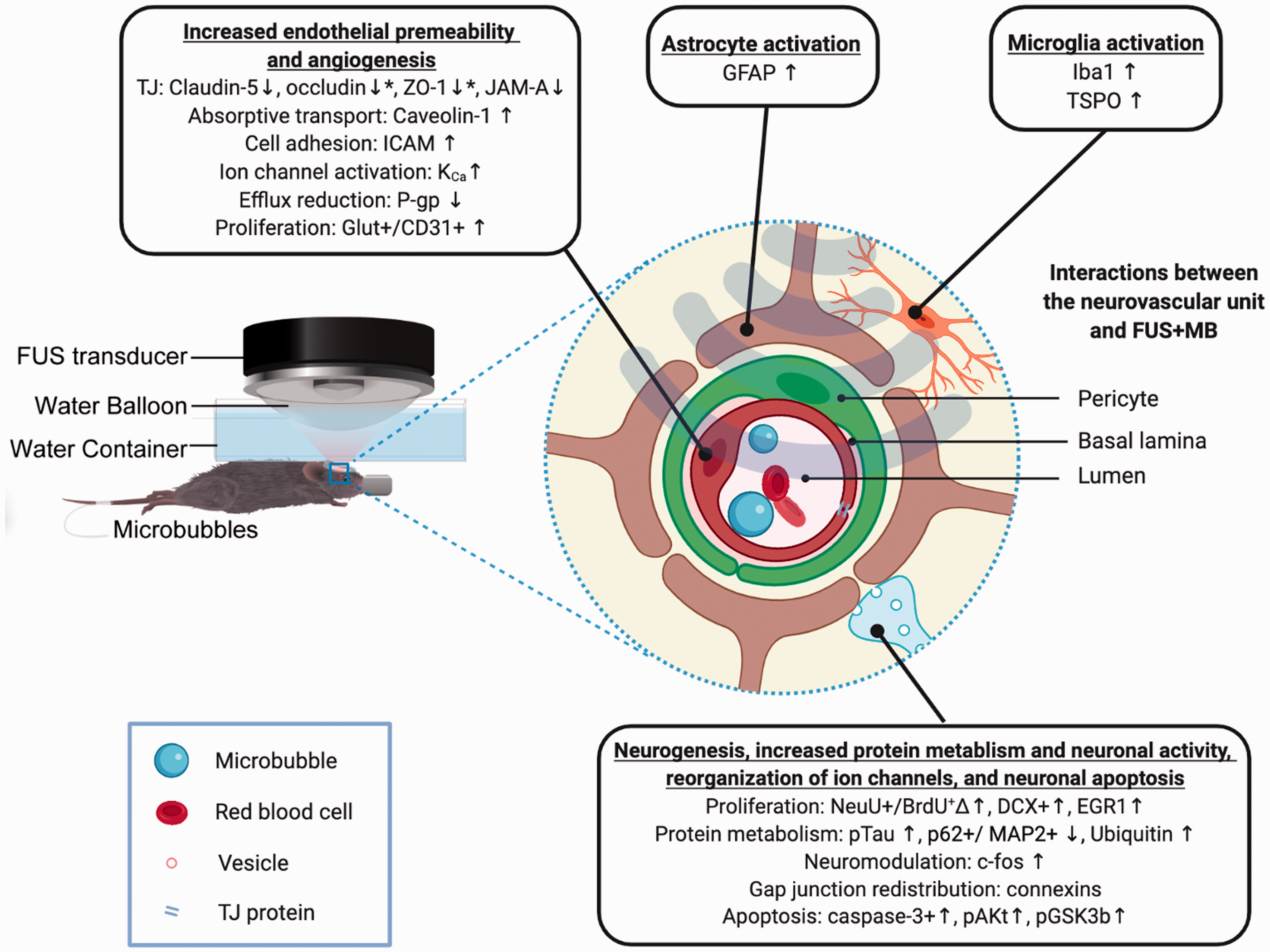

Figure 1.

Bioeffects of FUS+MB on neurovascular unit (NVU) components. An illustration of the experimental setup for applying the FUS+MB technique on small animals is provided on the left. Molecular changes and functional effects induced by FUS+MB for each NVU component are listed in boxes. ^*Contradictory results were reported; ^ΔSpatial heterogeneity of the effect on this protein was observed; Molecular markers in red have been studied in diseased animal models. Details regarding focused ultrasound (FUS) parameters, methods of measurement, brain regions where molecular changes were observed, the time post sonication when molecular changes were observed, and how long these changes lasted please refer to Chapter 5 to 8 and Tables 2 to 5.

Endothelial cells

The endothelial cells lining cerebral blood vessels regulate the trafficking of molecules and cells between blood and brain by forming highly specialized paracellular and transcellular barriers.⁵⁹ Altered expression and dysfunction of elements of these barriers can result in BBB permeability changes.

The paracellular barrier of the BBB is formed by tight junctions and adherent junctions between cerebral endothelial cells, limiting the diffusion of ions, macromolecules, and other solutes across the BBB.⁶⁰ The tight junction structure is composed of transmembrane tight junction proteins (e.g., claudins, occludins, and junctional adhesion molecules [JAMs]) and their cytoplasmic adaptors (e.g., zonula occludens-1 [ZO-1] and ZO-2), which are linked to the cytoskeletal protein actin.⁶¹ The adherent junction structure is established through transmembrane proteins such as vascular endothelial cadherin (VE-cadherin) and platelet-endothelial cell adhesion molecule (PECAM), which are coupled to the cytoskeleton via catenins.⁶² Reduced expression and altered morphology of these structural barriers have been observed along with enhanced BBB permeability and BBB dysfunction under several pathological conditions, including brain tumors, Alzheimer’s disease, and stroke.^63–65

The transcellular barrier is formed by highly-regulated transcytosis and efflux transporters. During transcytosis, molecules are internalized by caveolin- or clathrin-coated vesicles and shuttled across the endothelial cell from its luminal to abluminal surface. Once on the abluminal side, vesicular contents are exocytosed into the brain parenchyma.⁶⁶ Vesicles in brain endothelial cells are more than 10-fold fewer than those in blood vessels of other tissues, resulting in low rates of transcytosis.⁶⁷ Changes in expression and dysfunction of caveolins in brain endothelial cells can alter the permeability of macromolecules, regulate intracellular signal transduction, and have been linked to several brain pathologies, including inflammation, Alzheimer’s disease, ischemic stroke, and brain cancer.^68–71 Additionally, polarized expression of influx and efflux transporters, ion channels, and ion transporters are involved in transcellular transport across the BBB. These transporters ensure that nutrients, such as glucose and amino acids, are delivered to the brain and that solutes and metabolite waste products are effluxed from the brain to the blood.⁷² For example, the multidrug resistance efflux transporter P-glycoprotein (P-gp), a type of ATP-binding cassette (ABC) transporter, is mainly present on the luminal membrane surface, preventing the passage of drugs and toxins across the BBB into the brain from the blood.⁷³ Increased expression of P-gp in the brain has been observed following ischemic stroke, which could significantly reduce the BBB permeability, posing another challenge for drug delivery to the brain.⁷⁴ A negative correlation between P-gp expression and the presence of amyloid deposition was observed in brain samples of Alzheimer’s disease.⁷⁵ Together, this evidence suggests that transcytosis and P-gp play an important role in mediating BBB permeability in both health and brain diseases.

Pericytes

Pericytes encircle cerebral endothelial cells and the vascular lumen. In this anatomical position, they contribute to the barrier function and communicate directly with endothelial cells through specialized junctions.⁷⁶ Pericyte:endothelial cell interactions regulate microvascular permeability, remodeling, and angiogenesis.⁶² Pathological conditions like hypoxia (e.g., in tumor environment) or brain trauma can cause detachment of pericytes from endothelial cells and, consequently, impaired BBB barrier function along with other endothelial abnormalities.⁶²

Astrocytes

Astrocytes provide a cellular link between the neuronal circuitry and blood vessels; they are involved in maintaining vascular integrity, neuronal metabolism, and perivascular clearance mechanisms.⁵⁶ Their extended endfoot processes provide ∼99% abluminal vessel coverage.⁵⁶ Astrocytic endfeet express high levels of aquaporin-4 (AQP4), a type of water channel proteins. Displaced astrocytic endfeet from brain endothelial cells can be caused by infiltrating glioma cells, resulting in a localized breach in the BBB.⁷⁷ On the other hand, injury and stress in the CNS cause astrocytes to become activated and secrete a variety of protective factors, including angiopoietin-1, sonic hedgehog, glial-derived neurotrophic factor, retinoic acid, apolipoprotein E, and insulin-like growth factor-1; these factors attenuate BBB permeability and promote BBB function after brain injury.^78,79 Aquaporin 4 (AQP4), a type of water channel proteins, are highly expressed by astrocytic endfeet; this protein is involved in the perivascular clearance mechanisms via the newly discovered glymphatic system.⁸⁰

Microglia

Microglia cells are resident macrophages of the brain and contribute to brain function by modulating innate immune activity within the perivascular region.⁶² Under pathologic conditions, microglia become activated, highly mobile, phagocytic, and can secret numerous soluble factors, including pro- and anti-inflammatory cytokines, growth factors, chemokines, and neurotrophins.^56,81,82 A recent study showed that activated microglia could have opposing effects on BBB permeability: Their initial response to pathological conditions can help maintain BBB integrity via the expression of tight junction protein claudin-5 and physical contact with endothelial cells; however, chronic inflammation can result in microglia phagocytosis of astrocyte endfeet, impairing BBB function.⁸⁴

Neurons

The physical contact between neuronal processes with the cerebral vasculature is critical for mediating cerebral blood flow in response to the neuronal metabolic demand.⁵⁶ Recent studies have shown that neuronal signals contribute to the stabilization of the structure of the vascular network and the regulation of efflux transporters.^85,86 The integrity of the neuronal network depends on gap junction-mediated intercellular communication. Gap junctions connect the cytoplasms of adjoining cells through extracellular interactions between plaques of connexin hemichannels (i.e., connexons) formed in each cell.⁸⁷ Thus, gap junctions allow for direct passage of cytoplasmic inorganic ions and other small water-soluble molecules between neighboring neurons.

FUS+MB-induced BBB opening

BBB permeability increases immediately after FUS+MB, then gradually returns to normal within a few hours or days, depending on the experimental condition.²⁴ It is difficult to untangle cellular effects on the rest of the NVU and to verify whether these effects are caused by FUS+MB-induced BBB opening, mechanical forces generated from MB cavitation, or both. What occurs following BBB disruption during brain insults such as trauma and stroke may offer some insights into how NVU elements are affected by FUS+MB-induced BBB opening. BBB disruption following brain insults can result in downregulated tight junction proteins, increased transcytosis of plasma proteins (e.g., albumin), and vasogenic edema.^28,88,89 Extravasated albumin following BBB disruption can activate astrocytes and microglia, inducing an inflammation response.^88,90 Kovacs et al. found that MB cavitation induced increased transient expression of cytokines, chemokines, and trophic factors (CCTFs) associated with NFκB pathways as well as cell adhesion molecules, which is comparable to a sterile inflammation response following ischemia or trauma.^24,28 In particular, FUS+MB induced protein expression for pro-inflammatory cytokines TNFα, IL-1α, IL-1β, IL18, and IFNγ as well as heat-shock protein 70 (HSP70) within 5 minutes of sonication, suggesting the close involvement of NVU components in response to the treatment.²⁸ Increased CCTFs associated with NFκB pathways occurred as early as 0.5 hours and lasted 24 hours post sonication.²⁸ Transient vasospasm and hypoxia following FUS+MB treatment can also lead to production and release of TNFα and other proinflammatory factors. Vasospasm in mouse arteries and arterioles was observed immediately after sonication and recovered within a few minutes.^24,91 Using functional MRI and an arterial spin labeling (ASL) MRI, a more recent study found that FUS+MB significantly reduced the blood oxygen level dependent (BOLD) and cerebral blood flow signal changes in response to hind paw stimulation, which returned to baseline after 24 hours.⁹² In the following chapters, we review current findings on molecular changes induced by FUS+MB for each NVU component separately to gain more cell-type-specific insights into biological effects of FUS+MB.

Effects of FUS+MB on endothelial cells

When activated by FUS, MB cavitation can induce mechanical stress on endothelial cells, resulting in the temporary and local increase of BBB permeability.^18,⁹² Studies in vivo have found that FUS+MB causes the reconfiguration of paracellular junctions, increased transcytosis, and reduced efflux transporter activity, and the opening of endothelial cell ion channels.^21,^25,^29,⁹³ A long-term effect of endothelial cell proliferation has also been reported following FUS+MB, suggesting that FUS+MB may induce lasting effects on the NVU. In this section, we review literatures on molecular effects of FUS+MB on brain endothelial cells and discuss functional changes these effects can lead to. Table 2 provides a summary of molecular changes in brain endothelial cells and experimental conditions used in each study.

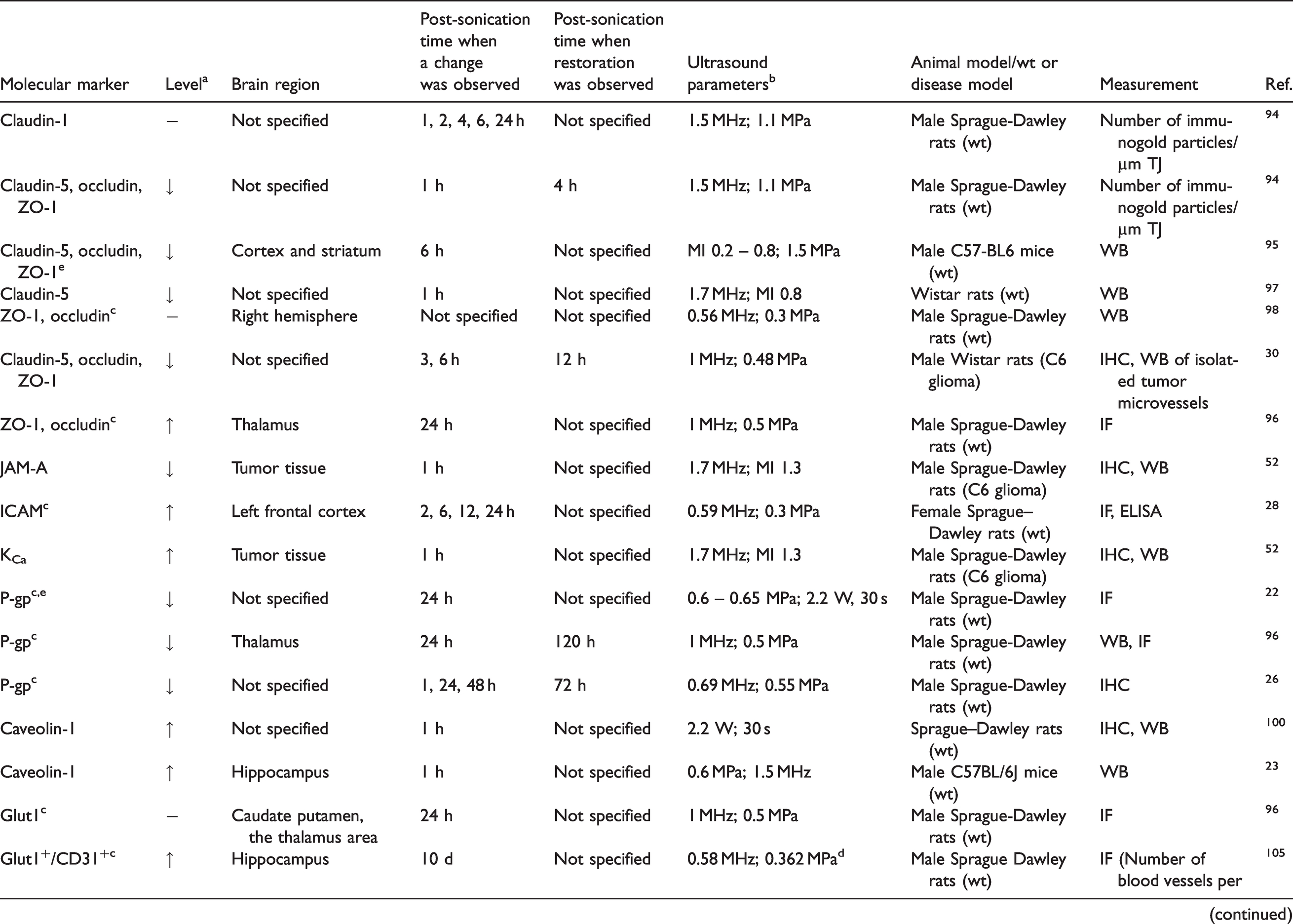

Table 2.

Effects of FUS+MB on endothelial cells in the NVU.

Molecular marker	Level^a	Brain region	Post-sonication time when a change was observed	Post-sonication time when restoration was observed	Ultrasound parameters^b	Animal model/wt or disease model	Measurement	Ref.
Claudin-1	−	Not specified	1, 2, 4, 6, 24 h	Not specified	1.5 MHz; 1.1 MPa	Male Sprague-Dawley rats (wt)	Number of immunogold particles/ µm TJ	⁹⁴
Claudin-5, occludin, ZO-1	↓	Not specified	1 h	4 h	1.5 MHz; 1.1 MPa	Male Sprague-Dawley rats (wt)	Number of immunogold particles/ µm TJ	⁹⁴
Claudin-5, occludin, ZO-1^e	↓	Cortex and striatum	6 h	Not specified	MI 0.2 – 0.8; 1.5 MPa	Male C57-BL6 mice (wt)	WB	⁹⁵
Claudin-5	↓	Not specified	1 h	Not specified	1.7 MHz; MI 0.8	Wistar rats (wt)	WB	⁹⁷
ZO-1, occludin^c	−	Right hemisphere	Not specified	Not specified	0.56 MHz; 0.3 MPa	Male Sprague-Dawley rats (wt)	WB	⁹⁸
Claudin-5, occludin, ZO-1	↓	Not specified	3, 6 h	12 h	1 MHz; 0.48 MPa	Male Wistar rats (C6 glioma)	IHC, WB of isolated tumor microvessels	³⁰
ZO-1, occludin^c	↑	Thalamus	24 h	Not specified	1 MHz; 0.5 MPa	Male Sprague-Dawley rats (wt)	IF	⁹⁶
JAM-A	↓	Tumor tissue	1 h	Not specified	1.7 MHz; MI 1.3	Male Sprague-Dawley rats (C6 glioma)	IHC, WB	⁵²
ICAM^c	↑	Left frontal cortex	2, 6, 12, 24 h	Not specified	0.59 MHz; 0.3 MPa	Female Sprague–Dawley rats (wt)	IF, ELISA	²⁸
K_Ca	↑	Tumor tissue	1 h	Not specified	1.7 MHz; MI 1.3	Male Sprague-Dawley rats (C6 glioma)	IHC, WB	⁵²
P-gp^c,e	↓	Not specified	24 h	Not specified	0.6 – 0.65 MPa; 2.2 W, 30 s	Male Sprague-Dawley rats (wt)	IF	²²
P-gp^c	↓	Thalamus	24 h	120 h	1 MHz; 0.5 MPa	Male Sprague-Dawley rats (wt)	WB, IF	⁹⁶
P-gp^c	↓	Not specified	1, 24, 48 h	72 h	0.69 MHz; 0.55 MPa	Male Sprague-Dawley rats (wt)	IHC	²⁶
Caveolin-1	↑	Not specified	1 h	Not specified	2.2 W; 30 s	Sprague–Dawley rats (wt)	IHC, WB	¹⁰⁰
Caveolin-1	↑	Hippocampus	1 h	Not specified	0.6 MPa; 1.5 MHz	Male C57BL/6J mice (wt)	WB	²³
Glut1^c	−	Caudate putamen, the thalamus area	24 h	Not specified	1 MHz; 0.5 MPa	Male Sprague-Dawley rats (wt)	IF	⁹⁶
Glut1⁺/CD31^+c	↑	Hippocampus	10 d	Not specified	0.58 MHz; 0.362 MPa^d	Male Sprague Dawley rats (wt)	IF (Number of blood vessels per 10⁶ µm³ of tissue)	¹⁰⁵
Glut1+^c	↑	Hippocampus (DG, CA1, CA3)	7, 14 d	21 d	0.55 MHz; 0.128 MPa	Male Sprague-Dawley rats (wt)	IF (Immunoreactive area normalized to imaging volume)	¹⁰⁶
BrdU+/Glut1+^c	↑	Hippocampus (DG, CA1, CA3)	7, 14, 21 d	Not specified	0.55 MHz; 0.128 MPa	Male Sprague-Dawley rats (wt)	Number of BrdU+/Glut1+ cells (normalized to imaging volume)	¹⁰⁶
pJNK^c	↑	Caudate putamen, the thalamus area	24 h	Not specified	1 MHz; 0.5 MPa	Male Sprague-Dawley rats (wt)	IF (fluorescence intensity)	⁹⁶

^aChanges in protein levels include increase (↑), decrease (↓), or no change (−).

^bUltrasound parameters include center frequency of transducer in MHz, peak negative pressure (PNP) of the transducer in MPa, and mechanical index (MI) = PNP//√ (center frequency of the transducer).

^cLarge volume treatment (multiple treatments in one region).

^dCavitation feedback-controlled the FUS.

^eVessel damage or hemorrhage was observed.

TJ: tight junction; WB: western blot; IHC: immunohistochemistry; IF: immunofluorescence; ELISA: enzyme-linked immunoassay; DG: dentate gyrus; CA1: cornu ammonis 1; CA3: cornu ammonis 3.

Paracellular junction breakdown and re-distribution

The first direct evidence of FUS+MB-induced alterations in tight junction proteins was demonstrated by electron microscopy and immunogold labeling of these proteins.⁹⁴ This study found decreased expression of occludin, claudin-5, and ZO-1 following sonication, while claudin-1 expression was less affected.⁹⁴ These effects, observed as early as 1 hour after sonication, were accompanied by the extravasation of normally-excluded compounds (e.g. Evans Blue) into the brain parenchyma.⁹⁴ Tight junction protein expression was restored within 4 hours post sonication.⁹⁴ Another study using a commercialized, diagnostic ultrasound system combined with MBs reported immediate BBB opening following sonication. While the BBB permeability measured by Evans Blue extravasation was restored within 6 hours, reduction in occludin, claudin-5, and ZO-1 protein levels persisted 6 hours following sonication.⁹⁵ Interestingly, one study found that the fluorescent intensity of immunolabeled ZO-1 and occludin increased rather than decreased in sonicated brain regions at 24 hours post-sonication.⁹⁶ It remains to be determined whether this is due to the recovery of tight junction proteins as protein levels return and eventually surpass the baseline level. Another study compared continuous and intermittent launches of FUS and found that claudin-5 protein levels were more reduced as compared to non-FUS controls, by intermittent, rather than continuous sonication.⁹⁷ These data suggest that FUS+MB-induced tight junction downregulation may be due to structural changes, recycling, or relocalization of tight junction proteins.

In contrast, several other studies showed that tight junction protein reduction does not always accompany FUS+MB-induced BBB disruption. One study showed that while occludin and ZO-1 protein levels did not decrease, the physical interaction between these two proteins was reduced in sonicated brain regions, as demonstrated through co-precipitation.⁹⁸ The timeframe for these measurements post sonication was not specified in this study.

To date, only two preclinical studies of FUS+MB-induced effects on tight junction proteins in diseased animal models have been reported. In the first study, a significant reduction in mRNA and protein levels of junctional adhesion molecule-A (JAM-A) was observed in a rat model of glioma in which diagnostic ultrasound was used in combination with MBs.⁵² The second study, also in a rat glioma model, showed similar reduction in mRNA and protein expression of claudin-5, occludin, and ZO-1 within 3 hours after FUS+MB.³⁰ These transcriptional and proteomic changes in tight junction proteins lasted for 9 hours and were nearly restored within 12 hours following sonication.³⁰ Given the complexity of the tumor environment and heterogeneity among different types of tumors, it is clear that more preclinical studies are needed to better understand both the short-term and long-term effects of FUS+MB on tumor endothelial cells and their junctional proteins.

Despite the important function of adherent junctions in regulating BBB, little is known about how they are affected by FUS+MB. Intercellular adhesion molecule 1 (ICAM-1) is expressed on brain endothelial cells where it is critical for the firm arrest and transmigration of leukocytes from blood to brain tissues. ICAM-1 expression can be increased by pro-inflammatory cytokines.⁹⁹ Only one study so far has reported that ICAM-1 protein levels increased within 2 hours, and the elevation persisted through 24 hours after FUS+MB treatment.²⁸ A better understanding of how FUS+MB affects ICAM-1 expression and immune cell migration might identify novel targets for brain tumor immunotherapy.

Transcellular transport enhancement

FUS+MB has been shown to increase the number of caveolae in the cytoplasm of brain endothelial cells in healthy rodent models as well as a stroke/ischemic murine model.^{21,94,100,101} Several studies using molecular-level characterization showed that FUS+MB upregulates the expression of caveolin-1, an essential mediator of caveolae-mediated endocytosis.^23,100 Particles of different sizes may employ different transcytosis mechanisms following FUS+MB treatment. A recent study showed that FUS+MB delivered significantly less 500 kDa dextrans in caveolin knockout mice when compared to the wide type mice, while no significant difference was observed for 3 kDa and 70 kDa dextrans, suggesting that caveolin-1 plays an important role in FUS+MB-mediated transcellular transport for large particles.²³ Future studies are needed to investigate underlying mechanisms by which FUS+MB affects transcellular transport. In addition, FUS parameters and drug characteristics for optimized FUS-enhanced transcellular transport remain undefined.

Efflux transporter reduction

FUS+MB changes efflux transporter expression in the brain. Several studies have reported that the P-gp protein levels in endothelial cells were suppressed for up to 24 hours after sonication but restored within 72 hours when moderate FUS PNP was used (∼0.55 MPa), temporarily preventing drug efflux back into the blood circulation.^{22,26,29,96,102} In addition, downregulation of mRNA expression level of ABC and SLC transporters Abcb1a, Abca9, Slc22a6, Slc22a8, and Slc6a13 was observed 6 hours following sonication.²⁹ The expression level of these transcripts was restored to basal levels within 24 hours. When high FUS pressure (0. 81 MPa) was applied, an increased and diffuse expression of P-gp was observed in tissues near damaged blood vessels. Under these conditions, basal P-gp expression was not restored within 120 hours, suggesting that higher FUS pressure may cause irreversible damage to the P-gp transporter pathway.²⁶ Together, these findings suggest that the effect of FUS+MB on the efflux transporter expression is dependent on the FUS pressure.

Ion channel activation

Modulation of ion channels, especially K⁺ channels, has been recognized as an early response in the signaling cascade induced by FUS+MB. This FUS+MB-induced ion channel activation was observed 1 hour after treatment in a rat C6 glioma model. The expression and protein level of the α-subunit of calcium-activated potassium channels (KCa) were increased significantly, concomitant with increased BBB permeability.⁵² FUS+MB -induced ion channel opening has also been observed in vitro in several cell types, including endothelial cells⁹² and breast cancer cells,⁹³ where an increased cellular influx of Ca²⁺ and K⁺ followed treatment.

Exact mechanisms of ion channel activation following FUS+MB remain to be revealed. Structural and physiological changes in ion channels activated by mechanical forces have been studied extensively.¹⁰³ During FUS+MB treatment, MB cavitation and altered blood flow can both induce changes in the mechanical stress sensed by endothelial cells. Current research on mechanotransduction in the endothelium offers several insights regarding mechanisms of FUS+MB-induced ion channel activation¹⁰⁴: (1) a direct physical interaction link may exist between the mechanical force on the endothelial cell surface and the ion channel, in which case the force pushes the ion channel open, (2) mechanical forces acting on endothelial cells change the tension on cytoskeleton or cell membrane fluidity, which in turn changes channel function and activity, and (3) the response of ion channels may be secondary to the activation of cellular proteins (e.g., kinases and phosphatases), which modulate ion channel activity. Future studies are needed to better understand the exact mechanism of ion channel activation following FUS+MB treatment and associated functional effects on the NVU.

Endothelial cell proliferation

FUS+MB treatments can induce endothelial cell proliferation and angiogenesis in the brain tissue. Following FUS+MB treatment, researchers have observed an acute upregulation in the expression of pro-angiogenic factor, vascular endothelial growth factor (VEGF),^28,105,106 and angiogenesis-related genes, including egr3, ltgb2, lgals3, and mmp9.²⁹ Importantly, this increase in VEGF and other angiogenesis-related proteins may also increase BBB permeability.^107,108 Endothelial cell proliferation may not happen right away, as suggested by one study in which no significant changes in the fluorescent intensity from staining Glut1, a brain endothelial cell marker, were detected 24 hours post sonication.⁹⁶ However, increased phosphorylation (activation) of c-jun N-terminal kinase (pJNK), which is involved in endothelial cell proliferation, apoptosis, and differentiation, was detected in the thalamus of sonicated brains at 24 hours post sonication, suggesting that endothelial cell proliferation may occur at a later timepoint.⁹⁶ Delayed angiogenesis is further supported by several studies that report a late-stage upregulation in the density of blood vessel segments and newborn endothelial cells 7 – 21 days after FUS+MB treatment.^105,106 One study found an increased number of blood vessels stained by Glut1 and CD31 (also known as PECAM-1) in the hippocampus 10 days post sonication.¹⁰⁵ Another study showed an increased area of fluorescence from Glut1 staining in the hippocampus of sonicated brains between 7 and 14 days.¹⁰⁶ The study also found an increased number of BrdU+/Glut1+ cells, a marker of endothelial cell proliferation, in the sonicated hippocampus up to 21 days, suggesting that FUS+MB can affect endothelial cells long after sonication. This increase in endothelial cell proliferation may be triggered by changes in shear stress applied on the cerebral endothelium caused by FUS+MB.^104,109 Signals arising through mechanotransduction have been shown to mediate diverse cellular processes, including cell growth, angiogenesis, apoptosis, migration, and differentiation.^104,110 It remains to be determined whether FUS+MB-induced endothelial cell proliferation and angiogenesis can produce functional, perfused blood vessels. This bioeffect could significantly impact the treatment of cerebral ischemia, where damage to the brain issue is caused by blockage in blood vessels.

Effects of FUS+MB on astrocytes

It is known that FUS+MB can induce astrocyte reactivity and microglia activation as a result of a sterile inflammatory response in healthy mice.^28,105 Both single-location and large volume FUS+MB treatment led to an increase in the area or intensity of GFAP and Iba1 signals in the brain as early as 3 hours post-sonication. This effect can last for as long as 7 weeks (Table 3).^{25,28,49,105,111} For some cases, astrocyte reactivity was reported to recover within 2 weeks for single location treatment and within 13 weeks for large volume treatment.^25,111 In a high-grade murine glioma model, moderate and heterogeneous astrocyte activity (GFAP expression) was observed in tumor regions without FUS+MB treatment, whereas increased astrogliosis and astrocyte activity were observed in regions of tumors targeted with FUS.⁵³

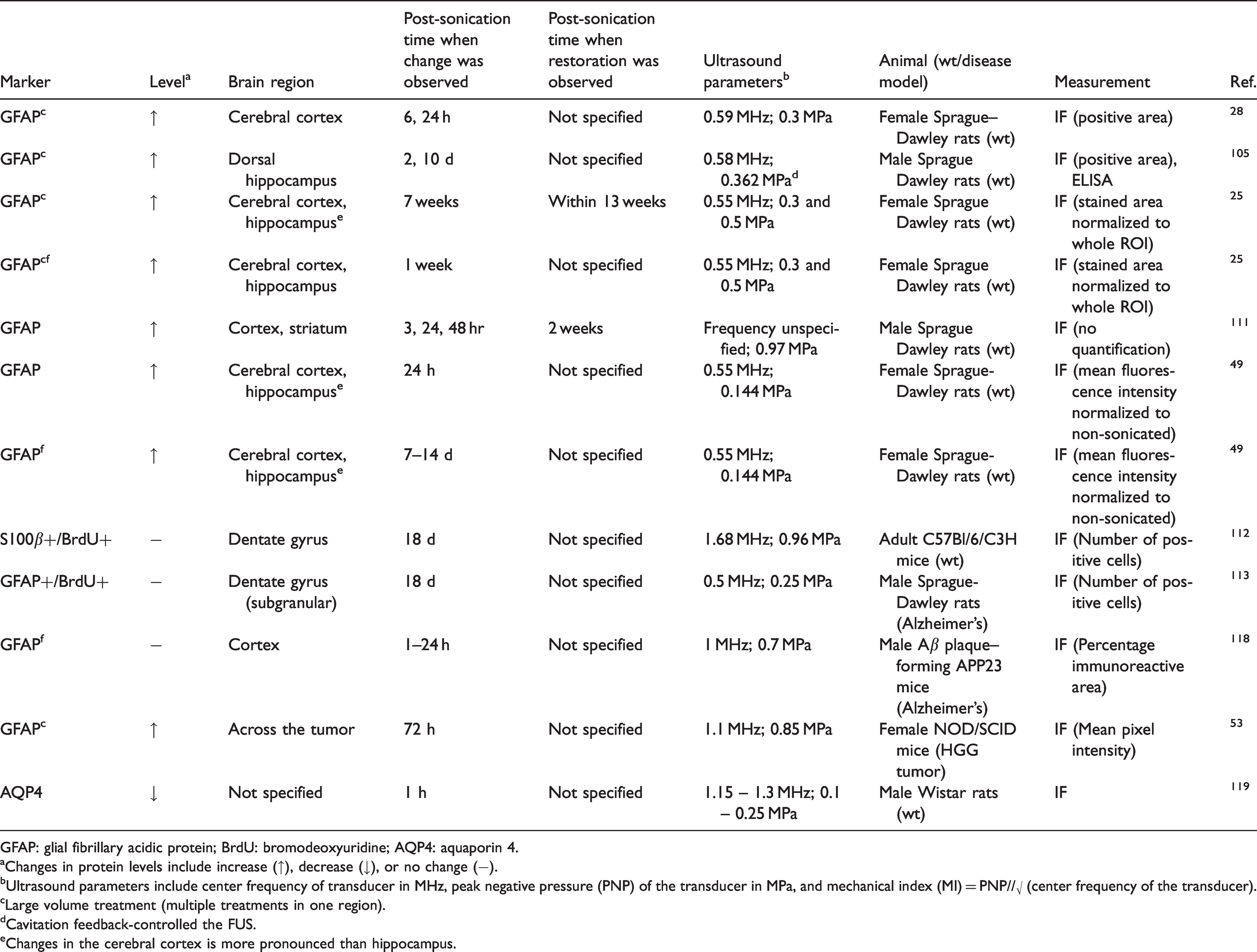

Table 3.

Effects of FUS+MB on astrocytes in the NVU.

Marker	Level^a	Brain region	Post-sonication time when change was observed	Post-sonication time when restoration was observed	Ultrasound parameters^b	Animal (wt/disease model)	Measurement	Ref.
GFAP^c	↑	Cerebral cortex	6, 24 h	Not specified	0.59 MHz; 0.3 MPa	Female Sprague–Dawley rats (wt)	IF (positive area)	²⁸
GFAP^c	↑	Dorsal hippocampus	2, 10 d	Not specified	0.58 MHz; 0.362 MPa^d	Male Sprague Dawley rats (wt)	IF (positive area), ELISA	¹⁰⁵
GFAP^c	↑	Cerebral cortex, hippocampus^e	7 weeks	Within 13 weeks	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (stained area normalized to whole ROI)	²⁵
GFAP^c^f	↑	Cerebral cortex, hippocampus	1 week	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (stained area normalized to whole ROI)	²⁵
GFAP	↑	Cortex, striatum	3, 24, 48 hr	2 weeks	Frequency unspecified; 0.97 MPa	Male Sprague Dawley rats (wt)	IF (no quantification)	¹¹¹
GFAP	↑	Cerebral cortex, hippocampus^e	24 h	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	IF (mean fluorescence intensity normalized to non-sonicated)	⁴⁹
GFAP^f	↑	Cerebral cortex, hippocampus^e	7–14 d	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	IF (mean fluorescence intensity normalized to non-sonicated)	⁴⁹
S100β+/BrdU+	−	Dentate gyrus	18 d	Not specified	1.68 MHz; 0.96 MPa	Adult C57Bl/6/C3H mice (wt)	IF (Number of positive cells)	¹¹²
GFAP+/BrdU+	−	Dentate gyrus (subgranular)	18 d	Not specified	0.5 MHz; 0.25 MPa	Male Sprague-Dawley rats (Alzheimer’s)	IF (Number of positive cells)	¹¹³
GFAP^f	−	Cortex	1–24 h	Not specified	1 MHz; 0.7 MPa	Male Aβ plaque–forming APP23 mice (Alzheimer’s)	IF (Percentage immunoreactive area)	¹¹⁸
GFAP^c	↑	Across the tumor	72 h	Not specified	1.1 MHz; 0.85 MPa	Female NOD/SCID mice (HGG tumor)	IF (Mean pixel intensity)	⁵³
AQP4	↓	Not specified	1 h	Not specified	1.15 – 1.3 MHz; 0.1 – 0.25 MPa	Male Wistar rats (wt)	IF	¹¹⁹

GFAP: glial fibrillary acidic protein; BrdU: bromodeoxyuridine; AQP4: aquaporin 4.

^aChanges in protein levels include increase (↑), decrease (↓), or no change (−).

^cLarge volume treatment (multiple treatments in one region).

^dCavitation feedback-controlled the FUS.

^eChanges in the cerebral cortex is more pronounced than hippocampus.

Spatial heterogeneity of astrocyte reactivity in response to FUS+MB has been observed. In one study where healthy rats received FUS in both the cerebral cortex and hippocampal regions, an increase in GFAP expression 24 hours post-sonication was more pronounced in the cerebral cortex than hippocampus for both one-time FUS treatment and multiple treatments at different time points.⁴⁹ Another study reported similar spatial heterogeneity in astrocyte activation at a later time point, where astrocytes in the sonicated cerebral cortex showed increased levels of GFAP 7 weeks following sonication while no significant change was observed in the sonicated hippocampus.²⁵

Although short-term astrogliosis has been reported after FUS+MB treatment, long-term astrogliosis has not been observed, suggesting that FUS-induced astrocyte proliferation may be temporary. One study found no significant astrogliosis in FUS-treated adult mice after 18 days by counting positive cells stained with an astrocyte marker (S100β) and a cell proliferation marker (BrdU).¹¹² Another study using a rat model of Alzheimer's disease, found no astrogliosis at 18 days post sonication.¹¹³

Recent reports have shown that FUS+MB may enhance the clearance of waste products, such as Amyloid β, in the brain.^114–118 It is suspected that astrocytes play a role in this FUS+MB-enhanced clearance. One hypothesis is that the CSF travels along peri-arterial spaces, enters the brain interstitium partly through aquaporin-4 (AQP4) channels on astrocyte endfeet, and transports across the glymphatic space by diffusion and convection. At the same time, it mixes with interstitial fluid and pulls along waste products and drains via the peri-venous spaces.⁷⁷ However, this hypothesis is contrary to the observation that AQP4 protein levels reduced after FUS+MB due to the loss of astrocytic endfeet.¹¹⁹ The role of astrocyte end-feet and AQP4 remains unclear in the regulation of solute transport within parenchyma extracellular spaces.¹²⁰ Recently, a study used FUS+MB to study the glymphatic system in human subjects and observed glymphatic efflux.³⁵ The authors suspected that it may be due to changes of AQP4 levels on astrocyte endfeet following FUS+MB treatment. Further studies are needed to understand whether astrocytes contribute to enhancing waste clearance following FUS+MB treatment and, if yes, how.

Effects of FUS+MB on microglia

Several preclinical studies have observed FUS+MB-induced microglia activation using methods from immunohistochemistry staining of Iba1 to noninvasive PET imaging with [18F]-DPA714, a biomarker of translocator protein (TSPO) at the site of BBB disruption.^{25,28,49,53,111,121} FUS+MB-induced microglia activation occurred as early as 1 hour after sonication and may last for as long as 7 weeks while the recovery time ranges from 24 hours to 13 weeks (Table 4). Both single and multiple treatments of FUS+MB have been shown to activate microglia in the sonicated cortex.⁴⁹ Additionally, upregulation of translocator protein, a highly inducible protein localized on the mitochondrial outer membrane upon microglial activation, was observed in brain regions treated by FUS+MB throughout 14 days.⁴⁹

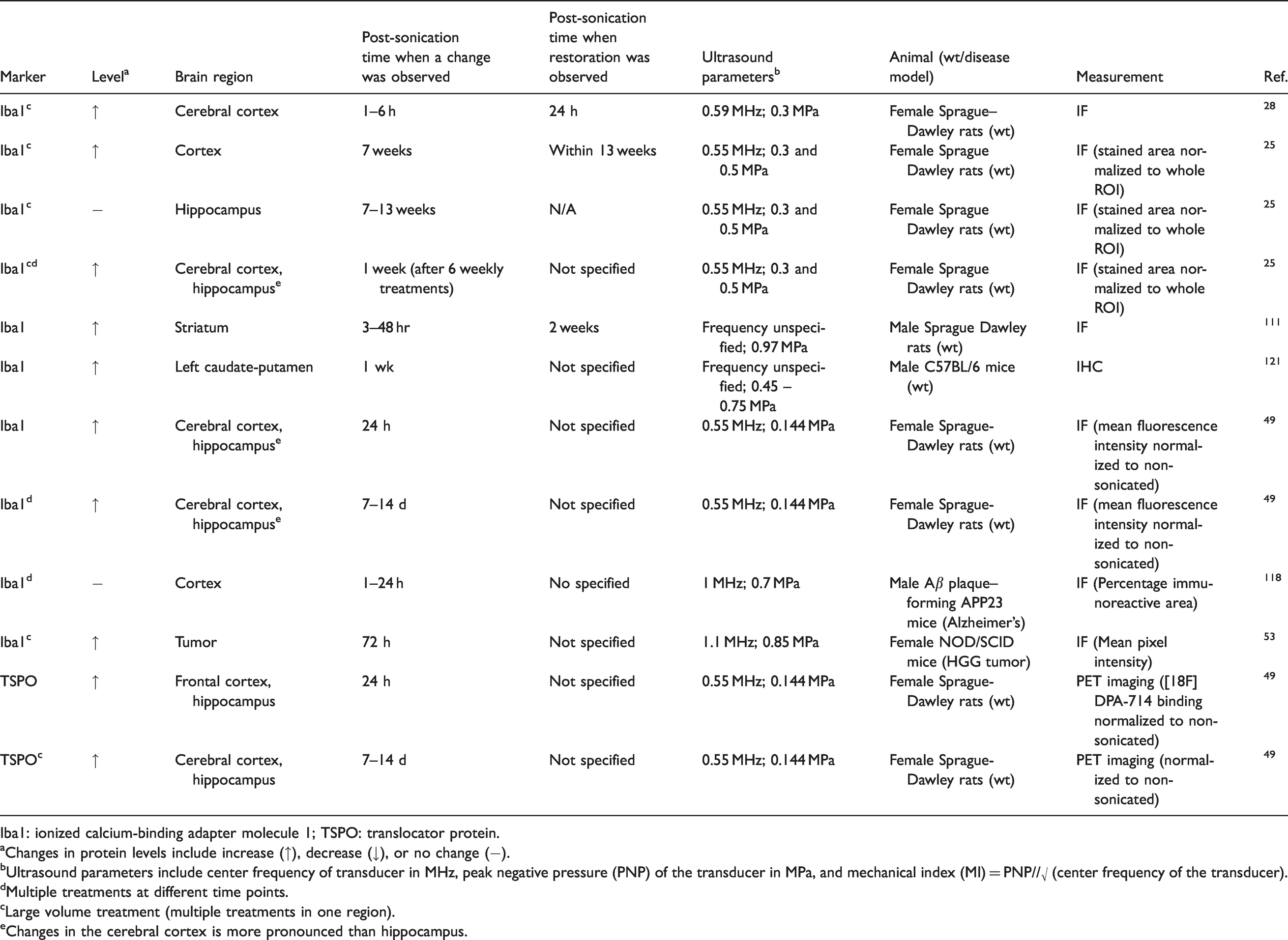

Table 4.

Effects of FUS+MB on microglia in the NVU.

Marker	Level^a	Brain region	Post-sonication time when a change was observed	Post-sonication time when restoration was observed	Ultrasound parameters^b	Animal (wt/disease model)	Measurement	Ref.
Iba1^c	↑	Cerebral cortex	1–6 h	24 h	0.59 MHz; 0.3 MPa	Female Sprague–Dawley rats (wt)	IF	²⁸
Iba1^c	↑	Cortex	7 weeks	Within 13 weeks	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (stained area normalized to whole ROI)	²⁵
Iba1^c	−	Hippocampus	7–13 weeks	N/A	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (stained area normalized to whole ROI)	²⁵
Iba1^cd	↑	Cerebral cortex, hippocampus^e	1 week (after 6 weekly treatments)	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (stained area normalized to whole ROI)	²⁵
Iba1	↑	Striatum	3–48 hr	2 weeks	Frequency unspecified; 0.97 MPa	Male Sprague Dawley rats (wt)	IF	¹¹¹
Iba1	↑	Left caudate-putamen	1 wk	Not specified	Frequency unspecified; 0.45 – 0.75 MPa	Male C57BL/6 mice (wt)	IHC	¹²¹
Iba1	↑	Cerebral cortex, hippocampus^e	24 h	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	IF (mean fluorescence intensity normalized to non-sonicated)	⁴⁹
Iba1^d	↑	Cerebral cortex, hippocampus^e	7–14 d	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	IF (mean fluorescence intensity normalized to non-sonicated)	⁴⁹
Iba1^d	−	Cortex	1–24 h	No specified	1 MHz; 0.7 MPa	Male Aβ plaque–forming APP23 mice (Alzheimer's)	IF (Percentage immunoreactive area)	¹¹⁸
Iba1^c	↑	Tumor	72 h	Not specified	1.1 MHz; 0.85 MPa	Female NOD/SCID mice (HGG tumor)	IF (Mean pixel intensity)	⁵³
TSPO	↑	Frontal cortex, hippocampus	24 h	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	PET imaging ([18F]DPA-714 binding normalized to non-sonicated)	⁴⁹
TSPO^c	↑	Cerebral cortex, hippocampus	7–14 d	Not specified	0.55 MHz; 0.144 MPa	Female Sprague-Dawley rats (wt)	PET imaging (normalized to non-sonicated)	⁴⁹

Iba1: ionized calcium-binding adapter molecule 1; TSPO: translocator protein.

^aChanges in protein levels include increase (↑), decrease (↓), or no change (−).

^dMultiple treatments at different time points.

^cLarge volume treatment (multiple treatments in one region).

^eChanges in the cerebral cortex is more pronounced than hippocampus.

Activated microglia may have opposing effects on BBB permeability: their initial expression of TJ proteins can promote BBB integrity, while chronic inflammation can cause microglia phagocytosis of astrocyte endfeet and impair BBB function.^84,122,123 Given that FUS+MB only causes transient microglia activation, the former effect may dominate, however, further studies are needed to understand the complete effect of FUS+MB-induced microglia activation and establish safety limits. In addition, activated microglia secret numerous soluble factors, including pro- and anti-inflammatory cytokines, growth factors, chemokines, and neurotrophins, which can impact a wide range of cells in the brain.^56,82,83

FUS+MB-activated microglia were shown to take up albumin-binding amyloid β by phagocytosis in mouse models of Alzheimer's disease.^118,124 In addition, FUS+MB increased Iba1 immunoreactivity and induced “activated” microglia morphology in wild type and Alzheimer's disease models, respectively.¹¹⁸ Although it is needed to establish safety limits and optimize treatment protocol, FUS+MB holds promise to be applied in clinics to clear waste products, such as Amyloid β, in aging brains and neurodegenerative brain diseases.

Similar to astrocytic activation, spatial heterogeneity of Iba1 signal following FUS+MB treatment was evident in the brain. One study showed that an increase in Iba1 expression 24 hours post-sonication was more pronounced in the FUS-treated cerebral cortex than the FUS-treated hippocampus.⁴⁹ One study reported an increase of Iba1 signal in the cerebral cortex at 7 weeks following sonication, while no increase of Iba1 was observed in the hippocampus.²⁵ Given that the activation of microglia and astrocytes shares similar spatial heterogeneity, the FUS+MB-induced activation of these two cell types may be coupled. The density of microglia in different brain regions may also contribute to such spatial heterogeneity of Iba1.

The differential Iba1 expression in microglia may only reflect a small part of the intrinsic heterogeneity of microglia. Recent transcriptome analyses have uncovered diverse functional phenotypes of microglia, ranging from pro-inflammatory “M1-like” phenotypes (i.e., upregulates inflammatory mediators such as Tnf, Il1b) to immunosuppressive “M2-like” phenotypes (i.e., upregulates Chil3, Fzd1, and Arg1).¹²⁵ Existing studies found upregulation of Tnf and Il1b in the brain regions targeted by FUS,^27–29 suggesting that FUS+MB may enhance the “M1-like” phenotype in microglia. A diverse population of microglia was found post sonication using single-cell RNA sequencing,⁴³ but it is unclear whether FUS+MB increased or reduced such cell heterogeneity. Since this is still an understudied area, we do not know the full extent of FUS+MB effects on microglia except that some microglia can be activated. It is unclear why FUS+MB “selectively” activates some microglia but not others. Understanding the effects of FUS+MB on cell heterogeneity could have clinical value, as cell heterogeneity has long been recognized as a hallmark for cancer and tumor environment.

Effects of FUS+MB on neurons

Although neurons are not in direct contact with FUS-activated MBs, FUS+MB can still have biological effects on neurons through several mechanisms. First, vasospasm, vasoconstriction, and interrupted local blood flow induced by FUS+MB may cause ischemic neuronal damage; however, no direct evidence of neuronal damage has been seen so far, suggesting that this effect from transient vasoconstriction and blood flow changes may be limited.^91,127 Second, mechanical forces from blood vessel expansion and contraction, as well as the ultrasound waves themselves, may activate mechanotransduction pathways in surrounding neurons due to the proximity of neurons and blood vessels (<10 – 20 µm¹²⁸) Third, BBB disruption following FUS+MB treatment causes the exchange and release of cytokines and solute molecules between the blood and brain tissue, which may affect neuronal function. One of the physiological responses following FUS+MB, acute inflammation, is caused by rapid and early activation of the glial cells as a response to the mechanical and biological stimuli, leading to neuroprotective effects such as clearing of abnormal protein deposits.¹²⁹ In this section, we review existing studies on neuronal responses following FUS+MB treatment and remaining knowledge gaps. Table 5 provides a summary of molecular changes in neurons and experimental conditions used in each study.

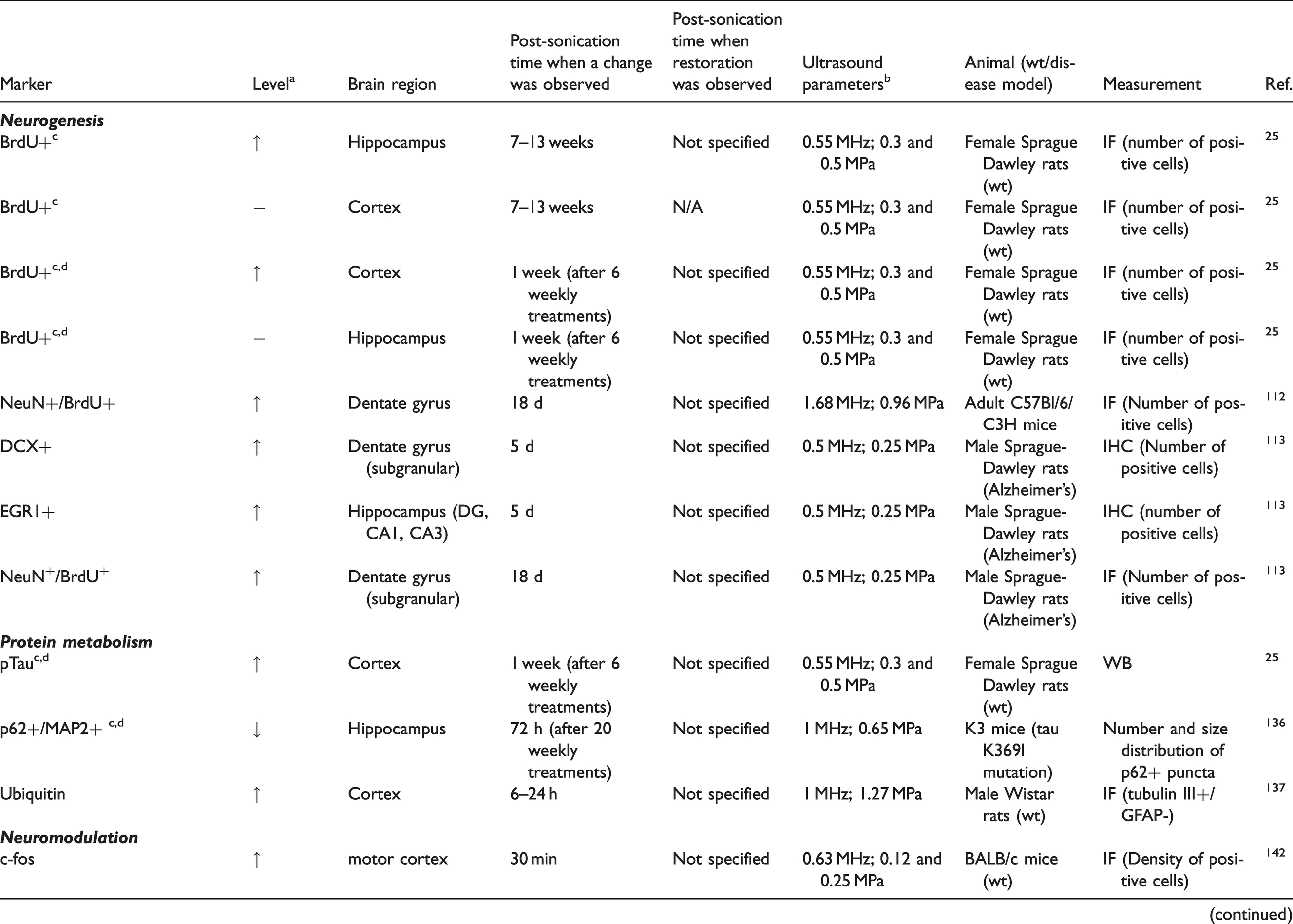

Table 5.

Effects of FUS+MB on neurons in the NVU.

Marker	Level^a	Brain region	Post-sonication time when a change was observed	Post-sonication time when restoration was observed	Ultrasound parameters^b	Animal (wt/disease model)	Measurement	Ref.
Neurogenesis
BrdU+^c	↑	Hippocampus	7–13 weeks	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (number of positive cells)	²⁵
BrdU+^c	−	Cortex	7–13 weeks	N/A	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (number of positive cells)	²⁵
BrdU+^c,d	↑	Cortex	1 week (after 6 weekly treatments)	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (number of positive cells)	²⁵
BrdU+^c,d	−	Hippocampus	1 week (after 6 weekly treatments)	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	IF (number of positive cells)	²⁵
NeuN+/BrdU+	↑	Dentate gyrus	18 d	Not specified	1.68 MHz; 0.96 MPa	Adult C57Bl/6/C3H mice	IF (Number of positive cells)	¹¹²
DCX+	↑	Dentate gyrus (subgranular)	5 d	Not specified	0.5 MHz; 0.25 MPa	Male Sprague-Dawley rats (Alzheimer's)	IHC (Number of positive cells)	¹¹³
EGR1+	↑	Hippocampus (DG, CA1, CA3)	5 d	Not specified	0.5 MHz; 0.25 MPa	Male Sprague-Dawley rats (Alzheimer's)	IHC (number of positive cells)	¹¹³
NeuN⁺/BrdU⁺	↑	Dentate gyrus (subgranular)	18 d	Not specified	0.5 MHz; 0.25 MPa	Male Sprague-Dawley rats (Alzheimer's)	IF (Number of positive cells)	¹¹³
Protein metabolism
pTau^c,d	↑	Cortex	1 week (after 6 weekly treatments)	Not specified	0.55 MHz; 0.3 and 0.5 MPa	Female Sprague Dawley rats (wt)	WB	²⁵
p62+/MAP2+ ^c,^d	↓	Hippocampus	72 h (after 20 weekly treatments)	Not specified	1 MHz; 0.65 MPa	K3 mice (tau K369I mutation)	Number and size distribution of p62+ puncta	¹³⁶
Ubiquitin	↑	Cortex	6–24 h	Not specified	1 MHz; 1.27 MPa	Male Wistar rats (wt)	IF (tubulin III+/GFAP-)	¹³⁷
Neuromodulation
c-fos	↑	motor cortex	30 min	Not specified	0.63 MHz; 0.12 and 0.25 MPa	BALB/c mice (wt)	IF (Density of positive cells)	¹⁴²
Gap junctions
Small connexin plagues	↓ ↑ (large)	Cortex	1 h	Within 24 h	1 MHz; 1.25 MPa	Male Wistar rats (wt)	IF, WB	¹³⁹
Large connexin plagues	↑	Cortex	1 h	Within 24 h	1 MHz; 1.25 MPa	Male Wistar rats (wt)	IF, WB	¹³⁹
Apoptosis and cell survival
Caspase-3+/ tubulin III+/GFAP-	↑	Cortex	24 h	Not specified	1 MHz; 1.27 MPa	Male Wistar rats (wt)	IF	¹³⁷
pAKt/NeuN+	↑	Right hemisphere	1.5 h	Not specified	0.558 MHz; 0.3 MPa	Male Sprague-Dawley rats (wt)	IF (NeuN+), WB	⁹⁸
pGSK3b/NeuN+	↑	Right hemisphere	1.5 h, 24 h	Not specified	0.558 MHz; 0.3 MPa	Male Sprague-Dawley rats (wt)	IF (NeuN+), WB	⁹⁸

NeuN: neuronal nuclear protein; DCX: doublecortin; EGR1: early growth response protein 1; p62: sequestosome-1; MAP2: microtubule-associated protein 2; Akt: protein kinase B; GSK3b: glycogen synthase kinase 3 beta.

^aChanges in protein levels include increase (↑), decrease (↓), or no change (−).

^cLarge volume treatment (multiple treatments in one region).

^dMultiple treatments at different time points.

Neurogenesis

Neurogenesis, the persistent formation of functional, mature neurons from neural stem cells, appears to be decreased in aged adults and those with Alzheimer's disease.^130,131 As a result, multiple efforts are underway to study whether FUS+MB treatment can enhance neurogenesis in the adult brain or interrupt the neurodegenerative process that leads to neuronal death. Several preclinical studies reported promising results. One study showed that FUS treatment significantly increased the number of proliferating neurons (NeuN+/BrdU+) in the dentate gyrus of adult mice 18 days after sonication.¹¹² Another study reported upregulated EGR1, a marker for neuronal plasticity, and an increased number of neuroblasts (DCX-positive) in a dementia rat model 5 days after sonication, along with a significant increase of NeuN+/BrdU+ cells in the subgranular zone (SGZ) and the granule cell layer (GCL) of the hippocampal dentate gyrus at 18 days after sonication.¹¹³ Spatial heterogeneity of FUS-induced neurogenesis has been observed in adult rats. Kovacs et al. showed that 6 weekly FUS+MB treatments significantly increased the number of BrdU+ cells in the sonicated frontal lobe compared to contralateral brain regions, while no significant increase was detected in the sonicated hippocampus.²⁵ In contrast, an increased number of BrdU+ cells was detected in the sonicated hippocampus but not the cerebral cortex at 7 or 13 weeks after a single FUS+MB treatment.²⁵ This study also reported co-localization of NeuN+ and BrdU+ cells, suggesting that these proliferating cells were neurons.²⁵

Several studies have shed light on the mechanisms of FUS+MB-induced neurogenesis. Recent work suggests that this effect is dependent on increasing the permeability of the BBB, as sonication at low pressures with MBs, as well as at high pressures in the absence of MBs, both failed to affect the density of BrdU+ cells in the dentate gyrus.¹³² One possibility is that neurogenesis is stimulated by cytokines such as neuromodulators and growth factors that extravasate from the blood. Indeed, FUS+MB-induced upregulation of growth factors, including brain-derived neurotrophic factor (BDNF) and early growth response 1 (EGR1) was associated with neurogenesis in a rat dementia model 18 days post-sonication.¹¹³ Furthermore, a sustained increase in phosphorylation (activation) of Akt and GSK3β was observed for 24 hours after sonication in neuronal cells flanking the region of the FUS+MB-induced BBB opening.⁹⁸ These data suggest that the activation of proliferation pathways in neuronal cells is involved in FUS+MB-induced neurogenesis.

Intraneuron protein metabolism

A prominent feature of neurodegenerative disorders is the aggregation of misfolded endogenous proteins into insoluble inclusions.¹³³ These misfolded proteins and inclusion bodies are believed to play a critical role in disease propagation, neuronal death, and dysfunction. For instance, hyperphosphorylated tau protein species and pathological tau aggregations are implicated in the spread of neuropathology and neurodegeneration in Alzheimer's disease and other tauopathies.^134,135

FUS+MB can be used to promote clearance of pathological tau from the brain. In line with this, a recent study demonstrated that repeated FUS+MB treatments (over 15 weeks) induced a three-fold reduction of hippocampal phosphorylated tau-positive deposits and a two-fold reduction in the number of both cortical and hippocampal neurofibrillary tangles in a K3 mouse model (carrying K369I mutant tau).¹³⁶ The absence of a reduction in phosphorylated tau-positive deposits in the cerebral cortex was attributed to greater dispersion of these deposits and dilution of FUS+MB effect in the cerebral cortex, compared to the hippocampus.¹³⁶ While a previous study showed that FUS+MB enhanced ubiquitin expression,¹³⁷ the change in tau deposits was not due to tau ubiquitination or a decrease in protein kinase activity,¹³⁶ which in turn could result in proteasome-mediated protein clearance and decreased tau phosphorylation, respectively. In contrast, FUS+MB induced neuronal autophagic activity with increased interaction between tau and p62 (an autophagy adaptor and flux marker), increased beclin-1 expression (an autophagosomal nucleation factor), and decreased mTOR activity (a key regulator of autophagy).¹³⁶ In another study using a different tau mouse model (rTg4510 mice carrying P301L mutant tau), a shorter course of FUS+MB treatment (4 weeks) also resulted in decreased phosphorylated tau density both on the sonicated side and, to a lesser degree, on the contralateral side.¹²⁴ Furthermore, FUS+MB resulted in microglial activation, and immune cell density was associated with lower phosphorylated tau density.¹²⁴

Contrary to the above findings that FUS+MB decreased phosphorylated tau density in Alzheimer’s mouse models, multiple FUS+MB treatments in wild-type rats were reported to increase the number of phosphorylated tau-positive neurofibrillary tangles in the sonicated cerebral cortex (but not the hippocampus).²⁵ Underlying mechanisms of FUS+MB-induced neurofibrillary tangle accumulation as well as its potential implications in humans remain elusive. More studies are needed to further our understanding of cellular and molecular pathways by which FUS+MB can affect neuronal protein homeostasis. It is also unclear whether FUS+MB can have beneficial effects on other intracellular proteinopathies (e.g., synucleopathies and TDP-43 proteinopathies). This is particularly relevant in patients who have mixed neuropathologies, such as in older patient groups.¹³⁸ Finally, animal models only recapitulate certain aspects of neurodegenerative disorders. Clinical studies are needed to determine the efficacy of FUS+MB-mediated BBB opening and provide mechanistic insight into FUS+MB-induced bioeffects in neurodegenerative disorders.

Gap junctions between neurons

Sonication does not appear to alter total gap junction connectivity between neurons but does appear to differentially affect small- versus large-sized gap-junctional plaques between neurons and astrocytes. Small neuron-astrocyte plaques were reduced in number, while large plagues were increased at 3 to 6 hours after sonication (1.25 MPa) with MBs. Basal plaque size distribution was restored within 24 hours.¹³⁹ These results indicate that FUS+MB leads to a reorganization of gap-junctional plaques in both neurons and astrocytes. Interestingly, similar gap-junctional changes have been observed as a response to ischemia in the brain,^140,141 suggesting that this re-distribution may be crucial for the maintenance of homeostasis in the face of tissue stressors. Additional gap-junctional changes may also be indicative of cell damage. When cells are damaged by high-pressure FUS (1.25 MPa), ions (e.g., Ca²⁺ and K⁺) present at high concentrations in the extracellular fluid move into the cell. This can induce gap junction channel closure, potentially limiting the spread of damage to neighboring cells. Further studies are needed to assess whether FUS+MB-induced gap junctional changes lead to functional changes in neuronal integrity, and, if so, whether gap junctions between neurons can be used as a safety measure for FUS+MB effects on neurons.

Neuronal circuit modulation

Although FUS alone can modulate neuronal activity and cognitive function, FUS+MB may induce a stronger effect in neurons. A recent study demonstrated that expression of c-fos, a molecular marker for neuronal activity, was enhanced when FUS and MBs were applied together compared to FUS alone in the sonicated brain region.¹⁴² Interestingly, FUS+MB also significantly increased the success rate of eliciting electromyogram compared to FUS alone, which may be explained by the enhanced expression of c-fos at the motor cortex.¹⁴² One non-human primates study showed that FUS+MB improved performance in a reward-based reaching task by decreasing reaction times and touch error.¹⁴³ Another study reported that FUS+MB targeting at the somatosensory cortex significantly reduced the somatosensory-evoked potential in non-human primates, and the effect lasted from less than one hour to 7 days depending on the FUS parameter (mechanical index).¹⁴⁴ These results suggest that FUS+MB could have a positive and sustained impact on cognitive function. However, the underlying mechanisms remain unknown due to the lack of molecular and cellular studies.

It is suspected that FUS+MB-induced neuromodulation is attributed to the extravasation of blood constituents from FUS+MB-induced BBB opening and mechanical effects from oscillating MBs. FUS+MB-induced BBB opening can enrich the parenchymal concentration of oxygen, glucose, ions, nutrients, and hormones, which can affect neuronal function.¹⁴⁵ On the other hand, oscillating MBs may radiate acoustic energy into the surrounding medium, thereby affecting neurons through mechanotransduction pathways. Challenges remain to elucidate mechanisms involved in neuromodulation from FUS+MB treatment. To that end, further studies are needed to link neuroplasticity at the molecular and cellular level with the behavioral outcome to understand mechanisms of FUS effects on neuronal function.

Concluding remarks

In this review, we summarized existing evidence on cellular and molecular effects induced by FUS+MB treatment in the NVU. To understand the full extent of bioeffects associated with FUS+MB and to further advance its clinical applications, several key questions remain to be answered. First, how differently do diseased brains respond to FUS+MB compared to healthy ones? Second, how does cellular and spatial heterogeneity within the brain affect FUS+MB-induced bioeffects? Third, how long does it take for different bioeffects to be induced and how long do they last? And fourth, after gaining this new knowledge, what new therapeutic applications can FUS+MB have?

There is a lack of preclinical studies on FUS+MB-induced biological effects and underlying mechanisms in diseased animal models. Considering that the BBB and the tissue environment in brain diseases are altered from those in a healthy brain, it is crucial to gain more knowledge about how brain diseases modify FUS+MB-induced bioeffects. For example, reduced expression and activity of efflux transporters, P-gp and Glut1, are known to occur in patients with Alzheimer’s disease.¹⁴⁶ The impact that such reduced efflux activity has on the efficacy of FUS+MB-induced BBB opening remains unclear.

Existing studies largely focus on averaged bioeffects at the bulk tissue level, despite increasing evidence showing significant local differences in BBB permeability in both healthy and diseased brains.¹⁴⁷ In healthy brains, local differences in BBB permeability may be caused by the difference in white matter versus grey matter, differences in vessel types and density, and other anatomical features in different regions of the parenchymal. For brain tumors, a portion of the BBB can be disrupted by infiltrating tumor cells to become the blood tumor barrier. This type of local differences and intratumoral heterogeneity may translate into a differential response to FUS+MB treatment. Indeed, a recent study reported that the caudate putamen had a lower level of FUS+MB-induced BBB opening compared to the thalamus, possibly due to the difference in ultrasound’s incidence angle at these targeted locations.⁴⁸ Spatial heterogeneity of microglia and astrocyte activation following FUS+MB has also been reported in several studies.^25,49 Therefore, a better understanding of the location and cell-specific bioeffects induced by FUS is desired. Traditional omics tools such as RNA sequencing (RNA-seq) can shed light on the bioeffects of FUS+MB without being biased and confounded by limited a priori knowledge (as in candidate pathway studies). However, RNA-seq is blind to the cell type of origin and location concerning the FUS beam, making it difficult to be used in studying cell and location-specific FUS+MB effects. While immunohistochemical staining is widely used to gain spatial information, its low throughput and low multiplexity make it unsuitable for mechanistic studies. The key to solving this problem may lie with advanced spatial transcriptomics and proteomics tools such as 10x Genomics’s Visium Spatial Gene Expression system and Nanostring’s GeoMx™ Digital Spatial Profiler system.^148,149

As Todd et al. pointed out in a recent review, different bioeffects of FUS+MB can happen at various time points following treatment.²⁴ For example, changes in BBB permeability happen immediately after sonication and last up to 24 hours, while it may take 4–5 days to observe clearance of Amyloid β and up to 3 weeks to observe neurogenesis.²⁴ In our review, we noted that the timing and duration of several bioeffects have not been determined or specified (Tables 2 and 5). A better understanding of the temporal dynamics of FUS+MB-induced bioeffects is critical to understand underlying mechanisms. To this end, advanced technologies such as deep tissue live imaging with multi-photon microscopy may offer insights into the temporal profile of FUS+MB-induced bioeffects through live imaging.^50,116 Finally, as we translate FUS+MB treatments from animal models to clinical studies, it is important to develop non-invasive tests to monitor both short-term and long-term effects of FUS+MB on the brain. These biomarkers may be detected by FUS+MB-enabled liquid biopsy, a new technique recently introduced for noninvasive detection of brain-specific biomarkers by releasing these biomarkers from the brain to the blood.^150,151

Many of the biological effects in the NVU besides BBB opening have only been discovered relatively recently and are still under investigation. As a more complete picture of cellular and molecular effects induced by FUS+MB emerges, new ways to apply FUS+MB treatment beyond drug delivery may become apparent. For example, FUS-enhanced transcytosis is now considered to play a bigger role in transporting agents/drugs across BBB than paracellular pathways, suggesting drugs targeting caveolin or receptors involved in transcytosis in combination with FUS-activated MBs may achieve higher efficacy in drug delivery. Effects of FUS+MB on pericytes remain largely unknown despite the important roles pericytes play in regulating BBB permeability.^152,153 Furthermore, FUS+MB-enhanced waste clearance via microglia and neurons is still an understudied field, despite its promising clinical value in treating Alzheimer's disease.

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was funded by the National Institutes of Health (R01EB027223, R01EB030102, and R01MH116981), the Charlie Teo Foundation, and the Little Legs Foundation.

Acknowledgements

The authors would also like to thank Charlotte Weixel for proofreading the manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Haumann

Videira

Kaspers

GJL

, et al. Overview of current drug delivery methods across the blood-brain barrier for the treatment of primary brain tumors. CNS Drugs 2020; 34: 1121–1131.

Hynynen

McDannold

Vykhodtseva

, et al. Noninvasive MR imaging-guided focal opening of the blood-brain barrier in rabbits. Radiology 2001; 220: 640–646.

Park

Aryal

Vykhodtseva

, et al. Evaluation of permeability, doxorubicin delivery, and drug retention in a rat brain tumor model after ultrasound-induced blood-tumor barrier disruption. J Control Release 2017; 250: 77–85.

Jordão

Ayala-Grosso

Markham

, et al. Antibodies targeted to the brain with image-guided focused ultrasound reduces amyloid-beta plaque load in the TgCRND8 mouse model of Alzheimer’s disease. PLoS One 2010; 5: e10549.

Wang

Cui

Yang

, et al. Intracerebral administration of ultrasound-induced dissolution of lipid-coated GDNF microbubbles provides neuroprotection in a rat model of Parkinson’s disease. Brain Res Bull 2014; 103: 60–65.

Kinoshita

McDannold

Jolesz

, et al. Noninvasive localized delivery of herceptin to the mouse brain by MRI-guided focused ultrasound-induced blood-brain barrier disruption. Proc Natl Acad Sci USA 2006; 103: 11719–11723.

Alonso

Reinz

Leuchs

, et al. Focal delivery of AAV2/1-transgenes into the rat brain by localized ultrasound-induced BBB opening. Mol Ther Nucleic Acids 2013; 2: e73.

Wang

Kugelman

Buch

, et al. Non-invasive, focused Ultrasound-Facilitated gene delivery for optogenetics. Sci Rep 2017; 7: 39955.

Burgess

Ayala-Grosso

Ganguly

, et al. Targeted delivery of neural stem cells to the brain using MRI-guided focused ultrasound to disrupt the blood-brain barrier. PLoS One 2011; 6: e27877.

10.

Shen

W-B

Anastasiadis

Nguyen

, et al. Magnetic enhancement of stem cell-targeted delivery into the brain following MR-guided focused ultrasound for opening the blood–brain barrier. Cell Transplant 2017; 26: 1235–1246.

11.

Carpentier

Canney

Vignot

, et al. Clinical trial of blood-brain barrier disruption by pulsed ultrasound. Sci Transl Med June 2016; 8: 343re2.

12.

Park

Kim

Jung

, et al. Safety and feasibility of multiple blood-brain barrier disruptions for the treatment of glioblastoma in patients undergoing standard adjuvant chemotherapy. J Neurosurg 2020; 134(2): 475–483.

13.

Lipsman

Meng

Bethune

, et al. Blood–brain barrier opening in Alzheimer’s disease using MR-guided focused ultrasound. Nat Commun 2018; 9: 2336–2338.

14.

Abrahao

Meng

Llinas

, et al. First-in-human trial of blood–brain barrier opening in amyotrophic lateral sclerosis using MR-guided focused ultrasound. Nat Commun 2019; 10: 4373–4379.

15.

Aryal

Arvanitis

Alexander

, et al. Ultrasound-mediated blood-brain barrier disruption for targeted drug delivery in the Central nervous system. Adv Drug Deliv Rev 2014; 72: 94–109.

16.

Burgess

Shah

Hough

, et al. Focused ultrasound-mediated drug delivery through the blood-brain barrier. Expert Rev Neurother 2015; 15: 477–491.

17.

Pandit

Chen

Götz

The blood-brain barrier: physiology and strategies for drug delivery. Adv Drug Deliv Rev 2020; 165-166: 1–14.

18.

Chen

Kreider

Brayman

, et al. Blood vessel deformations on microsecond time scales by ultrasonic cavitation. Phys Rev Lett January 2011; 106: 034301.

19.

Kooiman

Vos

Versluis

, et al. Acoustic behavior of microbubbles and implications for drug delivery. Adv Drug Deliv Rev 2014; 72: 28–48.

20.

Caskey

Stieger

Qin

, et al. Direct observations of ultrasound microbubble contrast agent interaction with the microvessel wall. J Acoust Soc Am 2007; 122: 1191–1200.

21.

Sheikov

McDannold

Vykhodtseva

, et al. Cellular mechanisms of the blood-brain barrier opening induced by ultrasound in presence of microbubbles. Ultrasound Med Biol 2004; 30: 979–989.

22.

Cho

Lee

Han

, et al. Localized down-regulation of P-glycoprotein by focused ultrasound and microbubbles induced Blood-Brain barrier disruption in rat brain. Sci Rep 2016; 6: 31201–31210.

23.

Pandit

Koh

Sullivan

RKP

, et al. Role for caveolin-mediated transcytosis in facilitating transport of large cargoes into the brain via ultrasound. J Control Release September 2020; 327: 667–675.

24.

Todd

Angolano

Ferran

, et al. Secondary effects on brain physiology caused by focused ultrasound-mediated disruption of the blood–brain barrier. J Control Release 2020; 324: 450–459.

25.

Kovacs

T-W

Sundby

, et al. MRI and histological evaluation of pulsed focused ultrasound and microbubbles treatment effects in the brain. Theranostics 2018; 8: 4837–4855.

26.

Aryal

Fischer

Gentile

, et al. Effects on P-glycoprotein expression after blood-brain barrier disruption using focused ultrasound and microbubbles. PLoS One 2017; 12: e0166061–15.

27.

McMahon

Hynynen

Acute inflammatory response following increased blood-brain barrier permeability induced by focused ultrasound is dependent on microbubble dose. Theranostics 2017; 7: 3989–4000.

28.

Kovacs

Kim

Jikaria

, et al. Disrupting the blood-brain barrier by focused ultrasound induces sterile inflammation. Proc Natl Acad Sci USA 2017; 114: E75–E84.

29.

Mcmahon

Bendayan

Hynynen

Acute effects of focused ultrasound-induced increases in blood-brain barrier permeability on rat microvascular transcriptome.

Sci Rep 2017; 7:45657.

30.

Shang

Wang

Liu

, et al. Mechanism of low-frequency ultrasound in opening blood-tumor barrier by tight junction. J Mol Neurosci 2011; 43: 364–369.

31.

Meng

Pople

Lea-Banks

, et al. Safety and efficacy of focused ultrasound induced blood-brain barrier opening, an integrative review of animal and human studies. J Control Release 2019; 309: 25–36.

32.

Meng

Hynynen

Lipsman

Applications of focused ultrasound in the brain: from thermoablation to drug delivery. Nat Rev Neurol 2021; 17: 7–13.

33.

Naor

Krupa

Shoham

Ultrasonic neuromodulation. J Neural Eng 2016; 13: 031003.

34.

Lee

Kim

Jung

, et al. Image-guided transcranial focused ultrasound stimulates human primary somatosensory cortex. Sci Rep 2015; 5: 8743.

35.

Meng

Abrahao

Heyn

, et al. Glymphatics visualization after focused ultrasound‐induced blood–brain barrier opening in humans. Ann Neurol 2019; 86: 975–980.

36.

Mainprize

Lipsman

Huang

, et al. Blood-brain barrier opening in primary brain tumors with non-invasive MR-guided focused ultrasound: a clinical safety and feasibility study. Sci Rep 2019; 9: 321.

37.

D’Haese

P-F

Ranjan

Song

, et al. β-Amyloid plaque reduction in the hippocampus after focused ultrasound-induced blood–brain barrier opening in Alzheimer’s disease. Front Hum Neurosci 2020; 14: 593672.

38.

Chen

K-T

Lin

Y-J

Chai

W-Y

, et al. Neuronavigation-guided focused ultrasound (NaviFUS) for transcranial blood-brain barrier opening in recurrent glioblastoma patients: clinical trial protocol. Ann Transl Med 2020; 8: 673–673.

39.

Choi JJ, Feshitan JA, Baseri B, et al. Microbubble-Size Dependence of Focused Ultrasound-Induced Blood–Brain Barrier Opening in Mice In Vivo. IEEE Trans Biomed Eng 57: 145–154.

40.

Cheng

Bing

, et al. Influence of nanobubble concentration on blood–brain barrier opening using focused ultrasound under real-time acoustic feedback control. Ultrasound Med Biol 2019; 45: 2174–2187.

41.

McDannold

Vykhodtseva

Hynynen

Blood-Brain barrier disruption induced by focused ultrasound and circulating preformed microbubbles appears to be characterized by the mechanical index. Ultrasound Med Biol 2008; 34: 834–840.

42.

McDannold

Arvanitis

Vykhodtseva

, et al. Temporary disruption of the blood-brain barrier by use of ultrasound and microbubbles: safety and efficacy evaluation in rhesus macaques. Cancer Res 2012; 72: 3652–3663.

43.

Chen

Chai

Lin

, et al. Neuronavigation-guided focused ultrasound for transcranial blood-brain barrier opening and immunostimulation in brain tumors. Sci Adv 2021; 7: eabd0772.

44.

Gorick

Mathew

Garrison

, et al. Sonoselective transfection of cerebral vasculature without blood–brain barrier disruption. Proc Natl Acad Sci 2020; 117: 201914595.

45.

Mathew

Gorick

Price

RJ.

Single-cell mapping of focused ultrasound-transfected brain. Gene Ther. Epub ahead of print 1 February 2021. DOI; 10.1038/s41434-021-00226-0.

46.

Dubey

Heinen

Krantic

, et al. Clinically approved IVIg delivered to the hippocampus with focused ultrasound promotes neurogenesis in a model of alzheimer’s disease. Proc Natl Acad Sci 2020; 117(51): 32691–32700.

47.

Lin

C-Y

Tsai

C-H

Feng

L-Y

, et al. Focused ultrasound-induced blood brain-barrier opening enhanced vascular permeability for GDNF delivery in Huntington’s disease mouse model. Brain Stimul 2019; 12: 1143–1150.

48.

Sultan

Zhang

, et al. Focused ultrasound-enabled delivery of radiolabeled nanoclusters to the pons. J Control Release 2018; 283: 143–150.

49.

Huh

Park

Seo

, et al. A local difference in blood–brain barrier permeability in the caudate putamen and thalamus of a rat brain induced by focused ultrasound. Sci Rep 2020; 10: 19286–19211.

50.

Sinharay

Kovacs

, et al. In vivo imaging of sterile microglial activation in rat brain after disrupting the blood-brain barrier with pulsed focused ultrasound: [18F]DPA-714 PET study. J Neuroinflammation 2019; 16: 155–111.

51.

Burgess

Nhan

Moffatt

, et al. Analysis of focused ultrasound-induced blood-brain barrier permeability in a mouse model of Alzheimer’s disease using two-photon microscopy. J Control Release 2014; 192: 243–248.

52.

Idbaih

Canney

Belin

, et al. Safety and feasibility of repeated and transient blood-brain barrier disruption by pulsed ultrasound in patients with recurrent glioblastoma. Clin Cancer Res 2019; 25: 3793–3801.

53.

Zhang

Liu

, et al. Increasing of blood-brain tumor barrier permeability through transcellular and paracellular pathways by microbubble-enhanced diagnostic ultrasound in a C6 glioma model. Front Neurosci 2017; 11: 1–9.

54.

, et al. MR-guided focused ultrasound increases antibody delivery to nonenhancing high-grade glioma. Neuro-oncology Adv 2020; 2: vdaa030.

55.

Chen

Konofagou

EE.

The size of blood-brain barrier opening induced by focused ultrasound is dictated by the acoustic pressure. J Cereb Blood Flow Metab 2014; 34: 1197–1204.

56.

Chow

The molecular constituents of the blood-brain barrier. Trends Neurosci 2015; 38: 598–608.

57.

McConnell

Kersch

Woltjer

, et al. The translational significance of the neurovascular unit. J Biol Chem 2017; 292: 762–770.

58.

Iadecola

The neurovascular unit coming of age: a journey through neurovascular coupling in health and disease. Neuron 2017; 96: 17–42.

59.

Hawkins

Davis

TP.

The blood-brain barrier/neurovascular unit in health and disease. Pharmacol Rev 2005; 57: 173–185.

60.

Daneman

Prat

The blood–brain barrier. Cold Spring Harb Perspect Biol 2015; 7: a020412.

61.

Gao

Krieg

López-Larrubia

, et al. Blood-brain barrier, blood-brain tumor barrier, and fluorescence-guided neurosurgical oncology: delivering optical labels to brain tumors. Front Oncol 2020. 1: 739.

62.

Stamatovic

Johnson

Keep

, et al. Junctional proteins of the blood-brain barrier: New insights into function and dysfunction. Tissue Barriers 2016; 4: e1154641.

63.

Correale

Villa

Cellular elements of the blood-brain barrier. Neurochem Res 2009; 34: 2067–2077.

64.

Ran

Zhu

, et al. Increased BBB permeability enhances activation of microglia and exacerbates loss of dendritic spines after transient global cerebral ischemia. Front Cell Neurosci 2018; 12: 236.

65.

Šimić

Španić

Langer Horvat

, et al. Blood-brain barrier and innate immunity in the pathogenesis of Alzheimer’s disease. Prog Mol Biol Transl Sci 2019; 168: 99–145.

66.

Liebner

Fischmann

Rascher

, et al. Claudin-1 and claudin-5 expression and tight junction morphology are altered in blood vessels of human glioblastoma multiforme. Acta Neuropathol 2000; 100: 323–331.

67.

Villaseñor

Lampe

Schwaninger

, et al. Intracellular transport and regulation of transcytosis across the blood–brain barrier. Cell Mol Life Sci 2019; 76: 1081–1092.

68.

Huang

Zhong

, et al. A review of the role of cav-1 in neuropathology and neural recovery after ischemic stroke. J Neuroinflammation 2018; 15: 348.

69.

Blochet

Buscemi

Clément

, et al. Involvement of caveolin-1 in neurovascular unit remodeling after stroke: effects on neovascularization and astrogliosis. J Cereb Blood Flow Metab 2020; 40: 163–176.

70.

Sohn

Brick

Tuan

RS.

From embryonic development to human diseases: the functional role of caveolae/caveolin. Birth Defects Res C Embryo Today 2016; 108: 45–64.

71.

Stamatovic

Keep

Wang

, et al. Caveolae-mediated internalization of occludin and claudin-5 during CCL2-induced tight junction remodeling in brain endothelial cells. J Biol Chem 2009; 284: 19053–19056.

72.

Zheng

, et al. Caveolin-1 regulates nitric oxide-mediated matrix metalloproteinases activity and blood-brain barrier permeability in focal cerebral ischemia and reperfusion injury. J Neurochem 2012; 120: 147–156.

73.

O’Donnell

ME.

Blood-brain barrier Na transporters in ischemic stroke. In: Davis TP (ed) Advances in pharmacology. Cambridge, MA: Academic Press Inc., 2014, pp.113–146.

74.

Löscher

Potschka

Blood-brain barrier active efflux transporters: ATP-binding cassette gene family. NeuroRx 2005; 2: 86–98.

75.

Demars

Yang

Hawkins

, et al. Spatiotemporal changes in p-glycoprotein levels in brain and peripheral tissues following ischemic stroke in rats. J Exp Neurosci 2017; 11: 1179069517701741.

76.

Jeynes

Provias

P-Glycoprotein altered expression in Alzheimer’s disease: regional anatomic variability. J Neurodegener Dis 2013; 2013: 1–7.

77.

Von Tell

Armulik

Betsholtz

Pericytes and vascular stability. Exp Cell Res 2006; 312: 623–629.

78.

Watkins S, Robel S, Kimbrough IF, et al. Disruption of astrocyte -vascular coupling and the blood -brain barrier by invading glioma cells. Nat Commun 2014; 5: 4196.

79.

Zhang S, Wu M, Peng C, et al. GFAP expression in injured astrocytes in rats. Exp Ther Med 2017; 14: 1905–1908.

80.

Michinaga S and Koyama Y. Dual roles of astrocytederived factors in regulation of blood-brain barrier function after brain damage. Int J Mol Sci 2019; 20: 571.

81.

Plog BA and Nedergaard M. The glymphatic system in central nervous system health and disease: past, present, and future. Annu Rev Pathol 2018; 13: 379–394.

82.

Prinz

Priller

Microglia and brain macrophages in the molecular age: from origin to neuropsychiatric disease. Nat Rev Neurosci 2014; 15: 300–312.

83.

Hopperton

Mohammad

Trépanier

, et al. Markers of microglia in post-mortem brain samples from patients with Alzheimer’s disease: a systematic review. Mol Psychiatry 2018; 23: 177–198.

84.

Haruwaka

Ikegami

Tachibana

, et al. Dual microglia effects on blood brain barrier permeability induced by systemic inflammation. Nat Commun 2019; 10: 5816.

85.

Pulido

Munji

Chan

, et al. Neuronal activity regulates blood-brain barrier efflux transport through endothelial circadian genes. Neuron 2020; 108: 937–952.

86.

Lacoste

Comin

Ben-Zvi

, et al. Sensory-Related neural activity regulates the structure of vascular networks in the cerebral cortex. Neuron 2014; 83: 1117–1130.

87.

Stout

Snapp

Spray

DC.

Connexin type and fluorescent protein fusion tag determine structural stability of gap junction plaques. J Biol Chem 2015; 290: 23497–23514.

88.

Shlosberg

Benifla

Kaufer

, et al. Blood-brain barrier breakdown as a therapeutic target in traumatic brain injury. Nat Rev Neurol 2010; 6: 393–403.

89.

Schoknecht

David

Heinemann

The blood-brain barrier-gatekeeper to neuronal homeostasis: clinical implications in the setting of stroke. Semin Cell Dev Biol 2015; 38: 35–42.

90.

Ralay Ranaivo

Wainwright

MS.

Albumin activates astrocytes and microglia through mitogen-activated protein kinase pathways. Brain Res 2010; 1313: 222–231.

91.

Raymond SB, Skoch J, Hynynen K, et al. Multiphoton imaging of ultrasound/optison mediated cerebrovascular effects in vivo. J Cereb Blood Flow Metab 2007; 27: 393–403.

92.

Todd

Zhang

Livingstone

, et al. The neurovascular response is attenuated by focused ultrasound-mediated disruption of the blood-brain barrier. Neuroimage 2019; 201: 116010.

93.

Helfield

Chen

Watkins

, et al. Biophysical insight into mechanisms of sonoporation. Proc Natl Acad Sci USA 2016; 113: 9983–9988.

94.

Tran

Le Guennec

Bougnoux

, et al. Characterization of cell membrane response to ultrasound activated microbubbles. IEEE Trans Ultrason Ferroelectr Freq Control 2008; 55: 43–49.

95.

Sheikov

McDannold

Sharma

, et al. Effect of focused ultrasound applied with an ultrasound contrast agent on the tight junctional integrity of the brain microvascular endothelium. Ultrasound Med Biol 2008; 34: 1093–1104.

96.

Zhao

Chen

Liu

, et al. Blood-brain barrier disruption induced by diagnostic ultrasound combined with microbubbles in mice. Oncotarget 2018; 9: 4897–4914.

97.

Choi

Lee

Han

, et al. Diminished expression of P-glycoprotein using focused ultrasound is associated with JNK-Dependent signaling pathway in cerebral blood vessels. Front Neurosci 2019; 13: 1350–1312.

98.

Dong

Chen

, et al. Opening the blood-brain barrier and improving the efficacy of temozolomide treatments of glioblastoma using pulsed, focused ultrasound with a microbubble contrast agent. Biomed Res Int 2018; 2018: 6501508.

99.

Jalali

Huang

Dumont

, et al. Focused ultrasound-mediated BBB disruption is associated with an increase in activation of AKT: Experimental study in rats. BMC Neurol 2010; 10: 114.

100.

Lawson

Wolf

ICAM-1 signaling in endothelial cells. In: Pharmacological reports. Poland: Polish Academy of Sciences, 2009, pp.22–32.

101.

Deng

Huang

Wang

, et al. The role of caveolin-1 in blood-brain barrier disruption induced by focused ultrasound combined with microbubbles. J Mol Neurosci 2012; 46: 677–687.

102.

Zhang

Song

Shan

, et al. Borneol attenuates ultrasound-targeted microbubble destruction-induced blood-brain barrier opening in focal cerebral ischemia. Front Neurol 2017; 8: 704–708.

103.

Lelu

Afadzi

Berg

, et al. Primary porcine brain endothelial cells as in vitro model to study effects of ultrasound and microbubbles on blood-brain barrier function. IEEE Trans Ultrason Ferroelectr Freq Control 2017; 64: 281–290.

104.

Kefauver

Ward

Patapoutian

Discoveries in structure and physiology of mechanically activated ion channels. Nature 2020; 587: 567–576.

105.

Chatterjee

Fisher

AB.

Mechanotransduction in the endothelium: role of membrane proteins and reactive oxygen species in sensing, transduction, and transmission of the signal with altered blood flow. Antioxid Redox Signal 2014; 20: 899–913.

106.

McMahon

Oakden

Hynynen

Investigating the effects of dexamethasone on blood-brain barrier permeability and inflammatory response following focused ultrasound and microbubble exposure. Theranostics 2020; 10: 1604–1618.

107.

McMahon

Mah

Hynynen

Angiogenic response of rat hippocampal vasculature to focused ultrasound-mediated increases in blood-brain barrier permeability.

Sci Rep 2018; 8: 12178.

108.

Jiang

Xia

Jiang

, et al. Vascular endothelial growth factors enhance the permeability of the mouse blood-brain barrier. PLoS One 2014; 9: e86407–e86407.

109.

Rempe

Hartz

AMS

Bauer

Matrix metalloproteinases in the brain and blood-brain barrier: versatile breakers and makers. J Cereb Blood Flow Metab 2016; 36: 1481–1507.

110.

Wiedemair

Tuković

Jasak

, et al. On ultrasound-induced microbubble oscillation in a capillary blood vessel and its implications for the blood-brain barrier. Phys Med Biol 2012; 57: 1019–1045.

111.

Resnick

Yahav

Shay-Salit

, et al. Fluid shear stress and the vascular endothelium: for better and for worse. Prog Biophys Mol Biol 2003; 81: 177–199.

112.

Stavarache

Petersen

Jurgens

, et al. Safe and stable noninvasive focal gene delivery to the mammalian brain following focused ultrasound. J Neurosurg 2018; 130: 989–998.

113.

Scarcelli

Jordão

O'Reilly

, et al. Stimulation of hippocampal neurogenesis by transcranial focused ultrasound and microbubbles in adult mice. Brain Stimul 2014; 7: 304–307.

114.

Shin

Kong

Lee

, et al. Focused ultrasound-induced blood-brain barrier opening improves adult hippocampal neurogenesis and cognitive function in a cholinergic degeneration dementia rat model. Alzheimer’s Res Ther 2019; 11: 1–15.

115.

Jordão

Thévenot

Markham-Coultes

, et al. Amyloid-β plaque reduction, endogenous antibody delivery and glial activation by brain-targeted, transcranial focused ultrasound. Exp Neurol 2013; 248: 16–29.

116.

Burgess

Dubey

Yeung

, et al. Alzheimer disease in a mouse model: MR imaging-guided focused ultrasound targeted to the hippocampus opens the blood-brain barrier and improves pathologic abnormalities and behavior. Radiology 2014; 273: 736–745.

117.

Poon

Shah

Lin

, et al. Time course of focused ultrasound effects on β-amyloid plaque pathology in the TgCRND8 mouse model of Alzheimer’s disease. Sci Rep 2018; 8: 14061.

118.

Alecou

Giannakou

Damianou

Amyloid β plaque reduction with antibodies crossing the blood-brain barrier, which was opened in 3 sessions of focused ultrasound in a rabbit model. J Ultrasound Med 2017; 36: 2257–2270.

119.

Leinenga

Götz

Scanning ultrasound removes amyloid-b and restores memory in an Alzheimer’s disease mouse model. Sci Transl Med 2015; 7: 278ra33.

120.

Burgess

Cho

Shaffaf

, et al. The use of two-photon microscopy to study the biological effects of focused ultrasound on the brain. Multiphot Microsc Biomed Sci XII 2012. 8226: 822642.

121.

Sweeney

Sagare

Zlokovic

BV.

Blood-brain barrier breakdown in Alzheimer disease and other neurodegenerative disorders. Nat Rev Neurol 2018; 14: 133–150.

122.

Sierra

Acosta

Chen

, et al. Lipid microbubbles as a vehicle for targeted drug delivery using focused ultrasound-induced blood-brain barrier opening. J Cereb Blood Flow Metab 2017; 37: 1236–1250.

123.

von Bernhardi

Heredia

Salgado

, et al. Microglia function in the normal brain. Adv Exp Med Biol 2016; 949: 67–92.

124.

Regulation of blood-brain barrier integrity by microglia in health and disease: a therapeutic opportunity. J Cereb Blood Flow Metab 2020; 40: S6–S24.

125.

Karakatsani

Kugelman

, et al. Unilateral focused ultrasound-induced blood-brain barrier opening reduces phosphorylated tau from the rTg4510 mouse model. Theranostics 2019; 9: 5396–5411.

126.

Liddelow

Barres

BA.

Review reactive astrocytes: production, function, and therapeutic potential. Immunity 2017; 46: 957–967.

127.

Hynynen

Chung

Colucci

, et al. Potential adverse effects of high-intensity focused ultrasound exposure on blood vessels in vivo. Ultrasound Med Biol 1996; 22: 193–201.

128.

Wolak

Thorne

RG.

Diffusion of macromolecules in the brain: implications for drug delivery. Mol Pharm 2013; 10: 1492–1504.

129.

Sochocka

Diniz

Leszek

Inflammatory response in the CNS: friend or foe?

Mol Neurobiol 2017; 54: 8071–8089.

130.

Tobin

Musaraca

Disouky

, et al. Human hippocampal neurogenesis persists in aged adults and Alzheimer’s disease patients. Cell Stem Cell 2019; 24: 974–982.e3.

131.

Boldrini

Fulmore

Tartt

, et al. Human hippocampal neurogenesis persists throughout aging. Cell Stem Cell 2018; 22: 589–599.e5.

132.

Mooney

Shah

Yeung

, et al. Focused ultrasound-induced neurogenesis requires an increase in blood-brain barrier permeability. PLoS One July 2016; 11: e0159892.

133.

Davis

Leyns

CEG

Holtzman

DM.

Intercellular spread of protein aggregates in neurodegenerative disease. Annu Rev Cell Dev Biol 2018; 34: 545–568.

134.

Wang

Mandelkow

Tau in physiology and pathology. Nat Rev Neurosci 2016; 17: 5–21.

135.

Del

Alonso

Grundke-Iqbal

Iqbal

Alzheimer’s disease hyperphosphorylated tau sequesters normal tau into tangles of filaments and disassembles microtubules. Nat Med 1996; 2: 783–787.

136.

Pandit

Leinenga

Götz

Repeated ultrasound treatment of tau transgenic mice clears neuronal tau by autophagy and improves behavioral functions. Theranostics 2019; 9: 3754–3767.

137.

Alonso

Reinz

Fatar

, et al. Neurons but not glial cells overexpress ubiquitin in the rat brain following focused ultrasound-induced opening of the blood-brain barrier. Neuroscience 2010; 169: 116–124.

138.

Schneider

Arvanitakis

Bang

, et al. Mixed brain pathologies account for most dementia cases in community-dwelling older persons. Neurology 2007; 69: 2197–2204.

139.

Alonso

Reinz

Jenne

, et al. Reorganization of gap junctions after focused ultrasound blood-brain barrier opening in the rat brain. J Cereb Blood Flow Metab 2010; 30: 1394–1402.

140.

Hossain

Peeling

Sutherland

, et al. Ischemia-induced cellular redistribution of the astrocytic gap junctional protein connexin43 in rat brain. Brain Res 1994; 652: 311–322.

141.

Oguro

Jover

Tanaka

, et al. Global ischemia-induced increases in the gap junctional proteins connexin 32 (Cx32) and Cx36 in hippocampus and enhanced vulnerability of Cx32 knock-out mice. J Neurosci 2001; 21: 7534–7542.

142.

Cui

, et al. Effect of scattered pressures from oscillating microbubbles on neuronal activity in mouse brain under transcranial focused ultrasound stimulation. Ultrason Sonochem 2020; 63: 104935.

143.

Downs

Buch

Karakatsani

, et al. Blood-Brain barrier opening in behaving Non-Human primates via focused ultrasound with systemically administered microbubbles. Sci Rep 2015; 5: 15076–15013.

144.

Chu

Liu

Lai

, et al. Neuromodulation accompanying focused ultrasound-induced blood-brain barrier opening. Sci Rep 2015; 5: 15477–15412.

145.

Munoz

Aurup

Konofagou

, et al. Modulation of brain function and behavior by focused ultrasound. Curr Behav Neurosci Rep 2018; 5: 153–164.

146.

Quek

Oikari

Pandit

, et al. Altered brain endothelial cell phenotype from a familial Alzheimer mutation and its potential implications for amyloid clearance and drug delivery. Stem Cell Reports 2020; 14: 1–16.

147.

Wilhelm

Nyúl-Tóth

Suciu

, et al. Heterogeneity of the blood-brain barrier. Tissue Barriers 2016; 4: e1143544.

148.

Prokop

Miller

Labra

, et al. Impact of TREM2 risk variants on brain region-specific immune activation and plaque microenvironment in Alzheimer’s disease patient brain samples. Acta Neuropathol 2019; 138: 613–630.

149.

Waylen

Nim

Martelotto

, et al. From whole-mount to single-cell spatial assessment of gene expression in 3D. Commun Biol 2020; 3: 602.

150.

Pacia

Zhu

Yang

, et al. Feasibility and safety of focused ultrasound-enabled liquid biopsy in the brain of a porcine model. Sci Rep 2020; 10: 7449.

151.

Zhu

Cheng

, et al. Focused ultrasound-enabled brain tumor liquid biopsy. Sci Rep 2018; 8: 6553.

152.

Beard

Brown

Sutherland

BA.

The rise of pericytes in neurovascular research. J Cereb Blood Flow Metab 2020; 40: 2366–2373.

153.

Shen

Zhu

, et al. PDGFR-β restores blood-brain barrier functions in a mouse model of focal cerebral ischemia. J Cereb Blood Flow Metab 2019; 39: 1501–1515.

A review of bioeffects induced by focused ultrasound combined with microbubbles on the neurovascular unit

Abstract

Keywords

Introduction

FUS+MB technique

NVU components

Endothelial cells

Pericytes

Astrocytes

Microglia

Neurons

FUS+MB-induced BBB opening

Effects of FUS+MB on endothelial cells

Paracellular junction breakdown and re-distribution

Transcellular transport enhancement

Efflux transporter reduction

Ion channel activation

Endothelial cell proliferation

Effects of FUS+MB on astrocytes

Effects of FUS+MB on microglia

Effects of FUS+MB on neurons

Neurogenesis

Intraneuron protein metabolism

Gap junctions between neurons

Neuronal circuit modulation

Concluding remarks

Footnotes

Funding

Acknowledgements

Declaration of conflicting interests

References
