Excitatory/inhibitory neuronal metabolic balance in mouse hippocampus upon infusion of [U- 13 C 6 ]glucose

Abstract

Hippocampus plays a critical role in linking brain energetics and behavior typically associated to stress exposure. In this study, we aimed to simultaneously assess excitatory and inhibitory neuronal metabolism in mouse hippocampus in vivo by applying ¹⁸FDG-PET and indirect ¹³C magnetic resonance spectroscopy (¹H-[¹³C]-MRS) at 14.1 T upon infusion of uniformly ¹³C-labeled glucose ([U-¹³C₆]Glc). Improving the spectral fitting by taking into account variable decoupling efficiencies of [U-¹³C₆]Glc and refining the compartmentalized model by including two γ-aminobutyric acid (GABA) pools permit us to evaluate the relative contributions of glutamatergic and GABAergic metabolism to total hippocampal neuroenergetics. We report that GABAergic activity accounts for ∼13% of total neurotransmission (V_NT) and ∼27% of total neuronal TCA cycle (V_TCA) in mouse hippocampus suggesting a higher V_TCA/V_NT ratio for inhibitory neurons compared to excitatory neurons. Finally, our results provide new strategies and tools for bringing forward the developments and applications of ¹³C-MRS in specific brain regions of small animals.

Keywords

neuronal metabolism metabolic modeling TCA cycle mouse hippocampus

Introduction

The hippocampus plays a critical role in linking brain energetics and neurotransmission to behavior in response to stress exposure.^1,2 The assessment of relative contributions of excitatory and inhibitory metabolic activity in this structure is thus of substantial interest in psychiatric neurosciences.^3,4 In this context, mice are useful models for studying brain metabolic mechanisms associated with genetic and environmental factors influencing behavior.

Several in vivo techniques based on magnetic resonance spectroscopy (MRS) and imaging (MRI) allow to quantify metabolism underlying brain function and behavior in mice.^5,6 Amongst other, carbon-13 (¹³C) MRS stands out as it allows a dynamic assessment of metabolic fluxes in vivo upon administration of a ¹³C-labeled substrate.^7–11 While several rodent studies have shown capability of distinguishing glial from neuronal contributions to total metabolic activity,^12–14 fewer studies have separated glutamatergic and GABAergic metabolism. GABAergic flux analysis in rodent brain has generally been limited to ex vivo experiments¹⁵ or qualitative in vivo assessment of [3-¹³C]-GABA formation upon ¹³C-labeled substrate infusion.^16–18 Quantitative analyses have generally been achieved after experimentally increasing GABA levels^19,20 or upon combined infusion of [1,6-¹³C₂]Glc and [2-¹³C]acetate.²¹ Although direct ¹³C detection provides the best spectral resolution leading to good separation between metabolite resonances,^22,23 its very low sensitivity makes GABA detection rather difficult in rodent brains, even more so in mouse hippocampus. Alternatively, indirect ¹³C-MRS (¹H-[¹³C]-MRS) has high sensitivity and studies at 9.4, 11.7 or 14 T have shown significant improvement in the detection of GABA resonances.^24–26 However, to date, experiments using ¹H-[¹³C]-MRS on mice upon ¹³C-glucose infusion have given only limited insight into the relative GABAergic contribution to total brain metabolism.^27–29 Among three commonly used labeled glucose, i.e. 1- 1,6- or U- (uniformly) ¹³C-labeled glucose (Glc), [U-¹³C₆]Glc shows the best fitting potential in ¹H-[¹³C]-MRS spectra with its numerous visible resonances, but may be subjected to quantification bias due to unsatisfactory ¹³C-decoupling efficiency at 14.1 T. In fact, incomplete decoupling of [U-¹³C₆]Glc resonances, typically observed due to RF power limitations, may affect the quantification of glucose itself, but may impact quantification of adjacent/overlapping metabolites as well.

While [1,6-¹³C₂]Glc has often been preferred for ¹³C-MRS studies, as it allows the assessment of glial cells metabolic contribution when considering a two-compartment mathematical model,³⁰ [U-¹³C₆]Glc produces more detectable labeling signals, and might thus lead to a better quantification of low concentrated GABA-enrichment curves, typically suited for the hippocampus. Recently, significant improvements have been achieved in the mathematical modeling of mouse brain metabolism by combining direct ¹³C-MRS upon infusion of [1,6-¹³C₂]Glc with ¹⁸FDG-PET, allowing the study of neuron-glial metabolism in a small mouse brain volume.¹³ So far, the benefits of such multimodal approach in mouse remain to be tested using [U-¹³C₆]Glc infusion and using additional blood labeling analysis in order to study hippocampal metabolism.

In this study, we aimed at (1) evaluating the feasibility of including glucose spectra with three decoupling efficiencies in the basis-set for quantification; (2) seeking a new approach for modeling GABA metabolism particularly suited for ¹H-[¹³C]-MRS upon [U-¹³C₆]Glc infusion. By combining ¹⁸FDG-PET, ¹³C modeling as well as high-resolution NMR experiments, we provide a critical assessment of the feasibility of combined energetic and neurotransmission metabolic activity in mouse hippocampus.

Methods and materials

Animals

All experiments were carried out with the approval of the Cantonal Veterinary Authorities (Vaud, Switzerland) and conducted according to the Federal and Local ethical guidelines of Switzerland (Service de la consummation et des affaires vétérinaires, Epalinges, Switzerland) in compliance with the ARRIVE (AnimalResearch: Reporting in vivo Experiments) guidelines. Animals were housed in standard plexiglass filter-top cages in a controlled facility with temperature set at 23 ± 1°C and humidity at 40%. Mice were kept in a normal 12-h daylight cycle and had ad libitum access to water and standard rodent chow diet.

Animal preparation

Male C57BL6/J mice (N = 8) at the age of six weeks (18 ± 2 g) were fasted overnight (12 h) and placed in a new cage on the evening prior to the scan. Anesthesia was induced with isoflurane at 3% (vol/vol) in a mixture of air/O₂ (1:1), thereafter animals were maintained at 2% isoflurane for the preparation. In particular, one femoral vein was cannulated for infusion of a 20% (m/v) [U-¹³C₆] glucose solution during the scan (Sigma Aldrich, St Louis, MO, USA). Blood glucose concentration was measured using a Breeze-2 meter (Bayer AG, Leverkusen, Germany) before (6.9 ± 0.9 mM) and after (7.7 ± 3.3 mM) the preparation. The animals were then placed in a horizontal holder with the head fixed using a nose cone and two ear bars (Rapid Biomedical, Rimpar, Germany). During the 230-min scan, animals were monitored (SA Instruments Inc., New York, NY, USA) and maintained for body temperature (36.2 ± 0.3°C) by circulating warm water via silicon tubes and breathing rates in the range of 78 ± 7 bpm by adjusting the delivery of isoflurane in the range of 1–1.5% (vol/vol). After a first 5-min bolus of glucose (3.2 mL/kg of 99% enriched ¹³C glucose), the infusion was maintained at a constant rate (10 mL/kg/h of 70% enriched [U-¹³C₆]Glc) over the whole infusion time, up to 4 h. The bolus provides a means of rapidly adding labeling to the endogenous blood, mixing with the existing ¹²C-glucose, to reach the target FE of 70% within a few minutes, thus providing a plasma glucose isotopic enrichment time course resembling a step-function.³⁰ At the end of the experiment, blood glucose and lactate levels were measured using two nearby GM7 analyzers (Analox Instruments Ltd, Stourbridge, UK).

¹H-[¹³C]-MRS acquisition of mouse hippocampus

Animals were scanned in a horizontal 14.1 T/26 cm magnet (Agilent Inc., USA) with a homemade ¹H-¹³C surface coil.³¹ For optimal sensitivity in the bilateral dorsal hippocampus, the diameter of the ¹³C loop was set to 7 mm, and to 10 mm for each of the two ¹H loops in quadrature. A set of fast-spin echo (FSE) images were acquired (TE_eff/TR= 40/2000 ms, average = 1, 15 × 0.6 mm slices, data matrix = 128 × 128, field-of-view (FOV) = 20 × 20 mm²) for localizing the volume of interest (VOI). The VOI (5.5 × 2 × 1.5mm³) was placed to include both dorsal hippocampi after what field homogeneity was optimized using FAST(EST)MAP to reach a typical water linewidth of 20 ± 1Hz, based on the full width at half maximum (FWHM).³² ¹H-[¹³C]-MRS spectra were acquired using the full intensity SPECIAL-BISEP sequence (TE = 2.8 ms, TR = 4000ms, averages = 8) as previously described.^28,29,33 Proton frequency offset of the inversion pulse was set at the resonance of glutamate C4 (2.34 ppm), and carbon frequency offset for the decoupling and inversion pulses was set at 45 ppm, as previously described.²⁸ The powers of the respective pulses were calibrated on a phantom containing an aqueous solution of [2-¹³C] acetate (Sigma Aldrich, St. Louis, MO) in a voxel with similar properties (distance and size) as the in vivo hippocampus. These calibrations resulted in a bandwidth of 14 kHz (90 ppm at 14.1 T) for the inversion pulse and of 10 kHz (65 ppm at 14.1 T) for the ¹³C decoupling pulse. Decoupling consisted in a hyperbolic secant HS8 adiabatic full-passage³⁴ together with a MLEV-4 cycle and five-step phase supercycle³⁵ applied during the entire acquisition period (145 ms). The proton and inverted spectra (editing ON and OFF) were obtained using an interleaved acquisition and were subtracted in the post processing steps by subtracting each proton spectrum with its associated inverted counterpart to obtain the final edited spectrum containing only ¹³C-bound ¹H resonances.

¹H-[¹³C]-MRS spectral analysis

The 16 spectra of each acquisition block were then frequency corrected and summed for quantification with LCModel resulting in one measurement time point. Both edited and non-edited spectra were quantified with LCModel. LCModel analyzes MRS data by fitting a linear combination of individual metabolite resonances, from a basis set, to the in vivo spectra, by adjusting their amplitudes, phases and linewidths.³⁶ The individual metabolite spectra are generally simulated or measured in vitro and incorporated into the basis set prior to the analysis with LCModel. The non-edited proton spectra were quantified using a standard basis set including simulated mouse brain metabolite: glucose (Glc), lactate (Lac), alanine (Ala), creatine, phosphocreatine, ascorbate, glutathione, N-acetyl-aspartate, N-acetylaspartyl-glutamate, myo-inositol, scyllo-inositol, glutamate (Glu), glutamine (Gln), γ-aminobutyric acid (GABA), aspartate (Asp), taurine, glycerophosphorylcholine, choline, phosphocholine, phosphoethanolamine, as well as the measured macromolecules (mac).^37,38 In addition, the non-edited basis set only included the coupled and decoupled component of glucose. The basis set of the edited spectra was adapted for [U-¹³C₆]Glc infusion metabolism by including following simulated metabolite resonances in the model: LacC3, LacC2, AlaC2+C3, GluC4, GluC3, GluC2, GlnC4, GlnC3, GlnC2, AspC3, AspC2, GABAC4, GABAC3 and GABAC2. Glucose ¹³C resonances are highly deshielded, and to overcome quantification bias due to unsatisfactory decoupling, three decoupling efficiencies were acquired in an aqueous solution of [U-¹³C₆]Glc during full decoupling of resonances C2-6 (dec), full coupling (coup) and partial decoupling (part; as depicted in Supplementary Figure 1(a)) and included in the basis set. The relative efficiency of the decoupling and total amount of ¹³C-labeled brain glucose in vivo can be calculated as follows: % Coupling = (Glc_coup/ΣGlc_x) × 1 + (Glc_part/ΣGlc_x)× 0.5; where ΣGlc_x = Glc_coup + Glc_part + Glc_dec, i.e. the sum of the individual spectra of glucose quantified with the modified basis set (see Supplementary Figure 1(c)). Absolute concentration of metabolites was obtained from the quantification of non-edited spectra with LCModel³⁶ using the water signal as internal reference assuming 80% brain water content. Fitting quality was assessed with the Cramér-Rao lower bounds errors (CRLB)³⁹ using a cut-off of 50%, above which quantification was assumed to be unreliable. CRLB of the labeled resonances reported in the results were calculated from the second half of the infusion, to represent steady-state values. Correlation of the different peak intensities, spectral SNR and linewidth are reported as given by LCModel. Isotopic fractional enrichment (FE) was calculated for each metabolite by dividing the labeled atom signal over the metabolite concentration as described previously.²⁷ Finally, the FE curves were multiplied by the metabolite concentration to obtain the metabolic ¹³C-enrichement curves, which were then averaged for all the animals and used for the proposed metabolic models, described in the following sections.

FE measurements of blood glucose, acetate and acetate

The enrichments of blood glucose, lactate and acetate were measured in a subgroup of three animals which underwent surgery and [U-¹³C₆]Glc infusion without any scan. Retro-orbital blood collection was performed at three different time points (20, 60 and 180 min after glucose infusion start) with lithium/heparin Microvette collection tube (Sarstedt AG, Nümbrecht, Germany). Blood was then centrifugated for 2 min at room temperature (6 000 r/min) to extract the plasma which was then frozen in liquid nitrogen. Blood metabolites were subsequently extracted using a chloroform/methanol extraction protocol followed by lyophilization.⁴⁰ Metabolites were then resuspended in deuterium oxide containing 0.1 mM DSS (4,4-dimethyl-4-silapentane-1-sulfonic acid) as internal reference. High resolution ¹H-NMR (HR-NMR) was performed on the samples with a DRX-600 spectrometer (Bruker BioSpin, Fällanden, Switzerland) using a pulse acquired ¹H sequence (flip angle = 30°, pulse delay = 5s, acquisition time = 2.7s, number of acquisitions = 160). FE was calculated based on the resonances of β-Glc H6, Lac H3 and acetate H3, bound to ¹³C and ¹²C respectively. Based on their respective coupling constants (Glc J_C-H(β-H1): 169 Hz, Lac J_C-H(H3): 131 Hz, Acetate J_C-H(H3): 130 Hz), the coupled and uncoupled proton resonances ([¹H-¹²C] and [¹H-¹³C]) were integrated, normalized, and calculated into the corresponding metabolite FE.

¹⁸FDG positron emission tomography and cerebral metabolic rate of glucose

In vivo measurements of cerebral glucose uptake were performed on a different group of animals (N = 3, not fasted) with positron emission tomography (PET) as previously described in detail.⁴¹ Briefly, catheter insertion of the tail vein was performed under 2% (vol/vol) isoflurane anesthesia, allowing for substrate administration, and blood sampling to establish initial and final glycemia values. Mice were prone positioned on a heat-regulated scanner bed to accommodate: (1) insertion of a respiratory cushion between the thorax and the bed; (2) insertion of a rectal thermometer; and (3) delivery of isoflurane via a nose mask. Animals were positioned with the thoracic region in the center of the field of view, allowing the inferior vena cava (the anatomical source of the input function) and brain (hippocampus) to be imaged simultaneously. During the 50-min scan, mice were maintained under 1–1.5% (vol/vol) isoflurane anesthesia in oxygen. Monitored temperature and breathing rate were maintained within a physiological range. PET coincidence data were acquired in list mode (see below) and coordinated with the i.v. bolus injection of ¹⁸F-fluorodeoxyglucose (¹⁸FDG) (∼50 MBq) through the tail vein catheter within the first 20 s of the PET scan, followed by 50–200 μL of saline chase solution. Imaging was performed using an avalanche photodiode-based small animal micro-PET scanner (LabPET4; Gamma Medica, Sherbrook, Canada). Prior to image reconstruction, list mode data were histogrammed using the following number of frames (F) and frame duration (s): 24 F, 5 s; 6 F, 30 s; 5 F, 2 min; 7 F, 5 min. After image reconstruction with the Labpet software, PMOD 2.95 software (PMOD Technologies, Zurich) was used for the determination of the standardized uptake value (SUV), defined as (mean ROI activity [kBq/cm³])/(injected dose [kBq]/body weight [g]). Regions of interest, i.e. hippocampus (2 × 5.5 mm²), were manually drawn over one axial slice. Mathematical modeling of hippocampal glucose metabolism was performed as previously described⁴¹ using the activity density (Bq/cm³) corrected for the decay at the initial scan time. Briefly, glucose kinetic parameters were obtained from a Sokoloff model description of FDG metabolism with four parameters pools using the activity measured in the vena cava as the input function and the tissue activity from the hippocampus (including 3% partial blood volume). The blood glucose concentration (Cp) was the value obtained from the tail vein at the end of the PET experiment and the lumped constant (LC) was fixed to 0.6. The adjusted metabolic parameters were: the transport constants between blood and hippocampus (k1 and k2), phosphorylation constants (k3 and k4) and CMR_g (calculated as (Cp/LC) · k1 · k3/(k2+k3)).

One-compartment modeling of hippocampal metabolic fluxes

A simple one-compartment model was taken from Xin et al.²⁷ and modified with additional information. In brief, pyruvate C3 is labeled from [U-¹³C₆]Glc and enters brain TCA cycle, which labels aspartate and glutamate through the transmitochondrial flux. The labeling of glutamine arises from neurotransmission cycling and exchanges with the glutamate pool. Mathematical modeling of the data acquired from ¹H-[¹³C]-MRS was complemented with FE measurements of plasma lactate/acetate from high-resolution NMR and CMR_g determined from PET. A thorough description of the model is provided in the Supplementary Material and Figure 1(a).

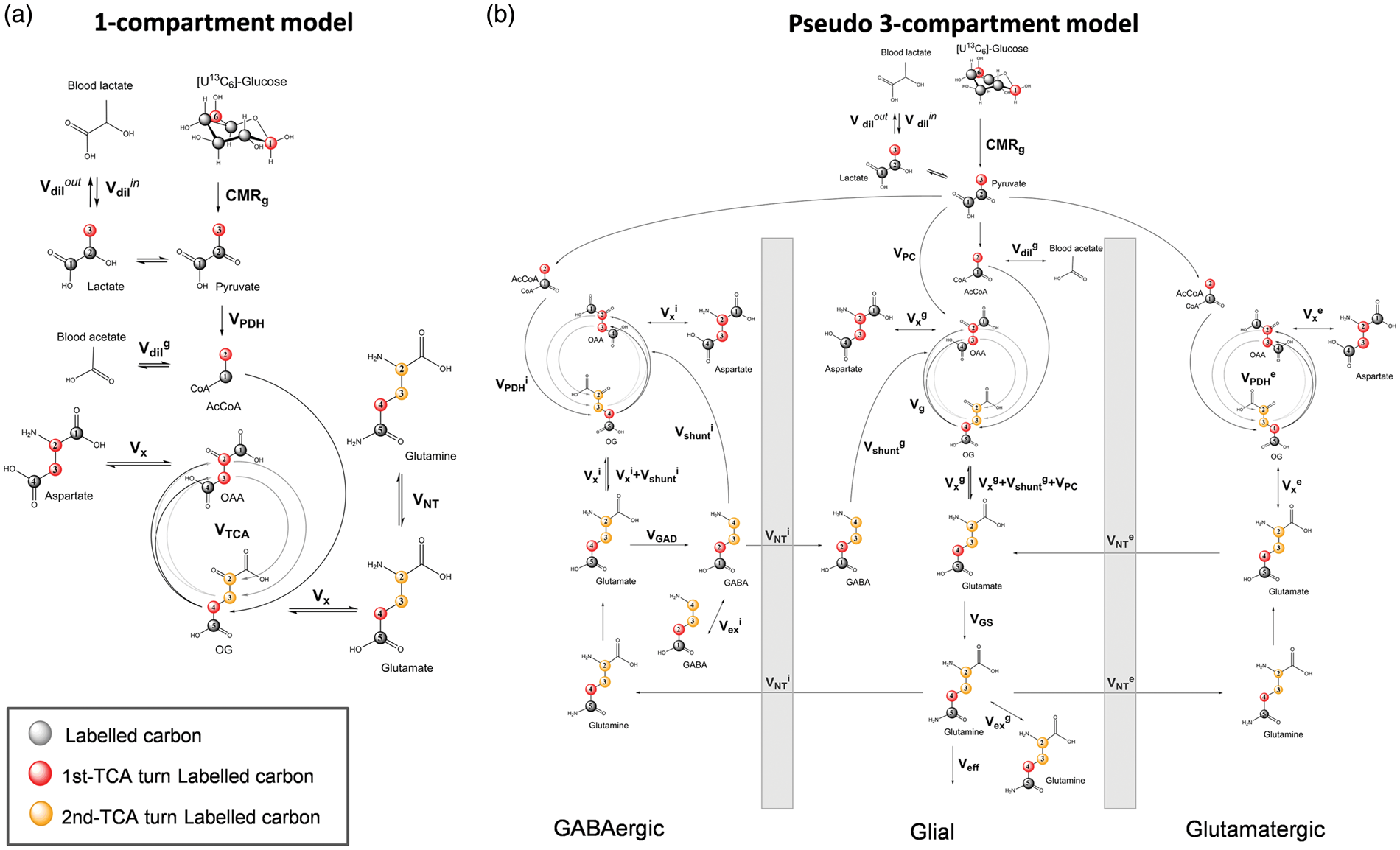

Figure 1.

Mathematical models of hippocampal metabolism. (a) Scheme of the one-compartment model of hippocampal brain metabolism used to fit the ¹³C enrichment curves, including: pyruvate dehydrogenase activity (V_PDH), tricarboxylic acid cycle (V_TCA), a dilution flux from blood lactate (V_dilⁱⁿ and V_dil^out) and from blood acetate (V_dil^g), a transmitochondrial flux (V_x) and a neurotransmission flux (V_NT). (b) Scheme of the pseudo three-compartment model of brain metabolism compartment model used to fit the ¹³C enrichment curves. Fluxes are separated into glutamatergic (^e), GABAergic (ⁱ) and glial (^g) compartments. Cerebral metabolic rate of glucose (CMR_g), pyruvate dehydrogenase activity (V_PDH), glial tricarboxylic acid cycle (V_g), a dilution flux from blood lactate (V_dilⁱⁿ and V_dil^out) and from blood acetate (V_dil^g), a transmitochondrial flux (V_x), a neurotransmission flux (V_NT), pyruvate carboxylase flux (V_PC), a Gln efflux (V_eff), glutamine synthetase activity (V_GS), glutamate decarboxylase activity (V_GAD), GABA TCA shunt (V_shunt) and two exchange fluxes between two Gln or two GABA pools (V_ex^g and V_exⁱ).

To estimate the hippocampal metabolic fluxes, the measured ¹³C-labeling curves, i.e. Glc, LacC3, GluC4, GluC3, GlnC4, GlnC3 and AspC3, were fitted in the proposed one-compartment model using a standard built-in ordinary differential equation solver together with a modified Levenberg–Marquardt nonlinear weighed regression method using MATLAB (Version 8.3, The MathWorks, Inc., Natick, MA). Glucose FE curve was used as an input function for both models and was fitted with an inverse exponential function with an oblique asymptote (a·t + b)·(1 − exp(−c·t)). A weighing based on the relative CRLB of each ¹³C metabolite resonance was used for each labeling curve in the regression cost function. Precision of the metabolic fluxes was further evaluated with Monte Carlo simulations (300 artificial turnover curves) providing a flux probability distribution.¹¹

Pseudo three-compartment modeling of hippocampal metabolic fluxes

The pseudo three-compartment model was adapted from Duarte and Gruetter²⁶ to resemble the reality of brain cell-specific metabolism and particularly the differences between glutamatergic (excitatory) and GABAergic (inhibitory) neurons. Since uniformly labeled glucose does not differentiate ¹³C labeling produced by the pyruvate carboxylase (PC), all glial fluxes were then taken from the literature. In particular, the PC flux (V_PC) was set to 0.04 µmol/l/min,^13,28 glial TCA cycle was set to V_g = 0.16 µmol/l/min¹³ and the glial transmitochondrial flux (V_x^g) was set to be equal to V_g.

Since the presence of a multiple glial Gln pools in astrocytes has been described,⁴² and shown to improve fitting of experimental data with a three-compartment model,²⁶ we propose a similar approach with the addition of a pool for GABAergic neurons. Including two GABA pools is closer to the biochemical reality underlying the function of the two GAD isoforms, one being more cytoplasmic (GAD67) and the other being neurotransmission-related (GAD65).⁴³ GAD activities are very heterogeneous and highly regulated; however, for simplification purpose, relative GABA pools were set to relative GAD concentrations in the mouse hippocampus, i.e. a 1:1 relation for both isoforms.⁴⁴ Overall, CMR_g, V_dilⁱⁿ, glutamatergic fluxes V_PDH^e, V_x^e, V_NT^e, GABAergic fluxes V_PDHⁱ, V_xⁱ, V_NTⁱ, glutamate decarboxylase activity (V_GAD), as well as two exchange fluxes V_ex^g and V_exⁱ reflecting the presence of two Gln pools in glia as well as two GABA pools in inhibitory neurons, were included. The superscripts of e, i and g indicate glutamatergic, GABAergic and glial compartments, respectively. In addition to Glc, LacC3, GluC4, GluC3, GlnC4, GlnC3 and AspC3 ¹³C-labeling curves used for one-compartment model and the NMR and PET data, GluC2, GlnC2, GABAC2, GABAC3 and GABAC4 were included in the pseudo three-compartment model. More details of the equations describing the mathematical models used are given in the Supplementary Material and Figure 1(b).

Statistics

Correlations were performed using GraphPad Prism (GraphPad software, San Diego, CA, USA). All values are given as mean ± SD. Statistical tests were performed using unpaired Student t-tests with significance set at p < 0.05.

Results

¹H-[¹³C]-MRS of mouse dorsal hippocampus at 14 Tesla

At the end of the glucose infusion, blood glucose reached a concentration of 20.8 ± 4.1 mM and blood lactate level post-infusion was 7.9 ± 2.4 mM. Resulting ¹H-[¹³C]-MRS spectra (16 times 8 average blocks) led to a time resolution of about 10 min for every metabolite (Figure 2(a)). Quantification of the non-edited spectra with LCModel (Figure 2(b)) provided hippocampal metabolite concentrations used for the modeling, i.e. Glu = 6.4 ± 1.0 mM, Gln = 2.6 ± 0.5 mM, Asp = 1.0 ± 0.1 mM, and GABA = 1.7 ± 0.6 mM. Lactate levels were relatively stable and low (2.5 ± 0.9 mM) with an increase of only 0.2 mM from the initial value towards the end of the infusion. The SNR of the non-edited spectra was 21 ± 1 with a linewidth of 17 ± 2 Hz as calculated by LCModel. For the edited spectra, the SNR was 7 ± 2 over the whole infusion time course (5 ± 2 in the first half of the protocol, 8 ± 1 in the second).

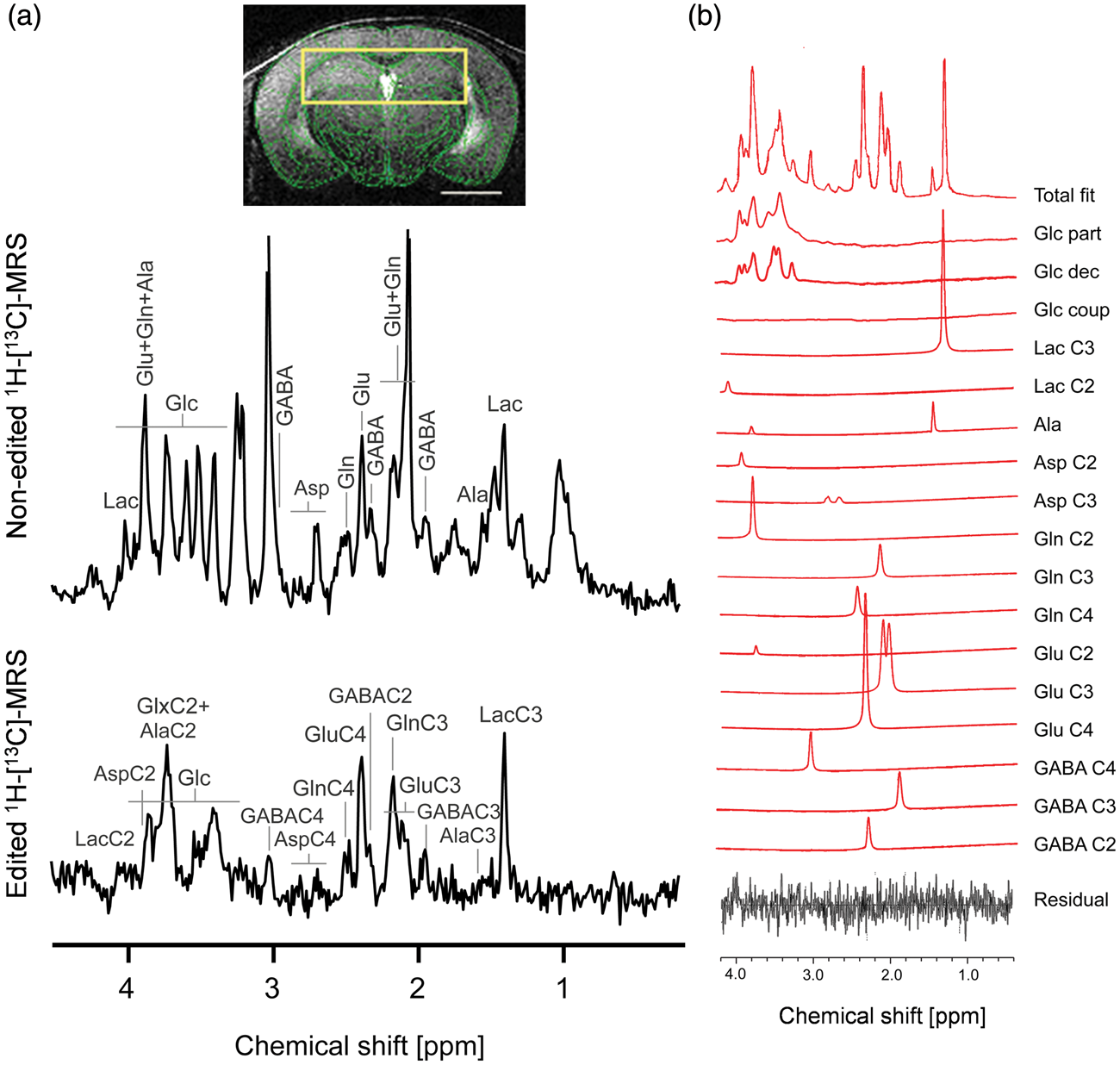

Figure 2.

¹H-[¹³C]-MRS in mouse dorsal hippocampus. (a) Typical non-edited (¹²C+¹³C, top) and edited (¹³C, bottom) ¹H-[¹³C]-MRS spectra acquired from mouse hippocampus (yellow box in one MR image; scale bar = 2mm) after 3 h of [U-¹³C₆]Glc infusion. Labeling of relevant metabolites is indicated: Lactate (Lac), glutamate (Glu), glutamine (Gln), alanine (Ala), γ-aminobutyric acid (GABA) and aspartate (Asp). In the edited spectrum, the carbon position number coupled with the observed proton resonance is indicated for each metabolite. (b) Example of fitting the edited spectrum with LCModel using a basis set corrected for glucose coupling, i.e. including partially decoupled (Glc part), decoupled (Glc dec) and coupled (Glc coup) glucose (More details in Supplementary Figure 1). In this example, very minimal Glc coup was detected by the LCModel.

Spectral fitting results

The inclusion of glucose spectral patterns with three different decoupled efficiencies in the basis set (Supplementary Figure 1) improved the quantification of glucose and GABAC4, i.e. with reduced average CRLB of Glc = 3.4 ± 0.7% (from 5.1 ± 3.7%) and GABAC4 = 18 ± 4% (from 110 ± 318%, Supplementary Figure 2). Average CRLBs for the other resonances were largely not affected, i.e.: LacC3 = 5 ± 1%, GluC4 = 3.1 ± 0.4%, GluC3 = 6.8 ± 1.5%, GluC2+GlnC2 = 20 ± 11%, GlnC4 = 8 ± 1%, GlnC3 = 12 ± 2%, AspC3 = 28 ± 6%, GABAC2 = 26 ± 7% and GABAC3 = 21 ± 5%. The correlation matrix resulting from the different resonance fitting by LCModel indicated that GluC3 and GlnC3 were relatively less correlated than usual (R = −0.73) while GluC2 and GlnC2 were highly dependent (R = −0.85; Supplementary Figure 2(a)).

Quantification results of metabolic fractional enrichment in mouse hippocampus and blood

As shown in Figure 3(a), the FE of hippocampal Glc reached a plateau in a near step function to 0.70 ± 0.10 that was faster than both FEs of hippocampal Lac (0.62 ± 0.07) and GluC4 (0.52 ± 0.05; Figure 3(a)) but similar to that of blood Glc, i.e. ∼0.7 (Figure 3(b)). The FE of blood Lac reached a plateau at ∼0.5 but not that of blood acetate (Figure 3(b)). In hippocampus, GlnC4 FE reached a plateau after 150 min at 0.47 ± 0.09, while around 180 min, FEs of GluC3, GlnC3 and GlxC2 reached their respective steady state, i.e. 0.53 ± 0.08, 0.47 ± 0.05 and 0.43 ± 0.17. In addition, all the GABA enrichment curves showed rapid labeling patterns and reached steady-state around 150 min for GABAC2 and 180 min for GABAC3 and 4. The FEs of GABAC2-4 at steady state were not significantly different from each other (p > 0.05), i.e. 0.32 ± 0.08 for GABAC2, 0.37 ± 0.08 for GABAC3 and 0.34 ± 0.04 for GABAC4. Finally, AspC3 showed the highest variability in the labeling but reached a plateau around 150 min at 0.49 ± 0.17. The accumulation curves of ¹⁸FDG during the PET experiments (Figure 3(c)) were reproducible and modeling of glycolytic flux led to a cerebral metabolic rate of CMR_g = 0.61 ± 0.02 µmol/g/min. The other ¹⁸FDG rate constants obtained were as follows: k1 = 0.39 ± 0.08 min⁻¹, k2 = 0.57 ± 0.11 min⁻¹, k3 = 0.06 ± 0.02 min⁻¹, k4 = 0.04 ± 0.02 min⁻¹.

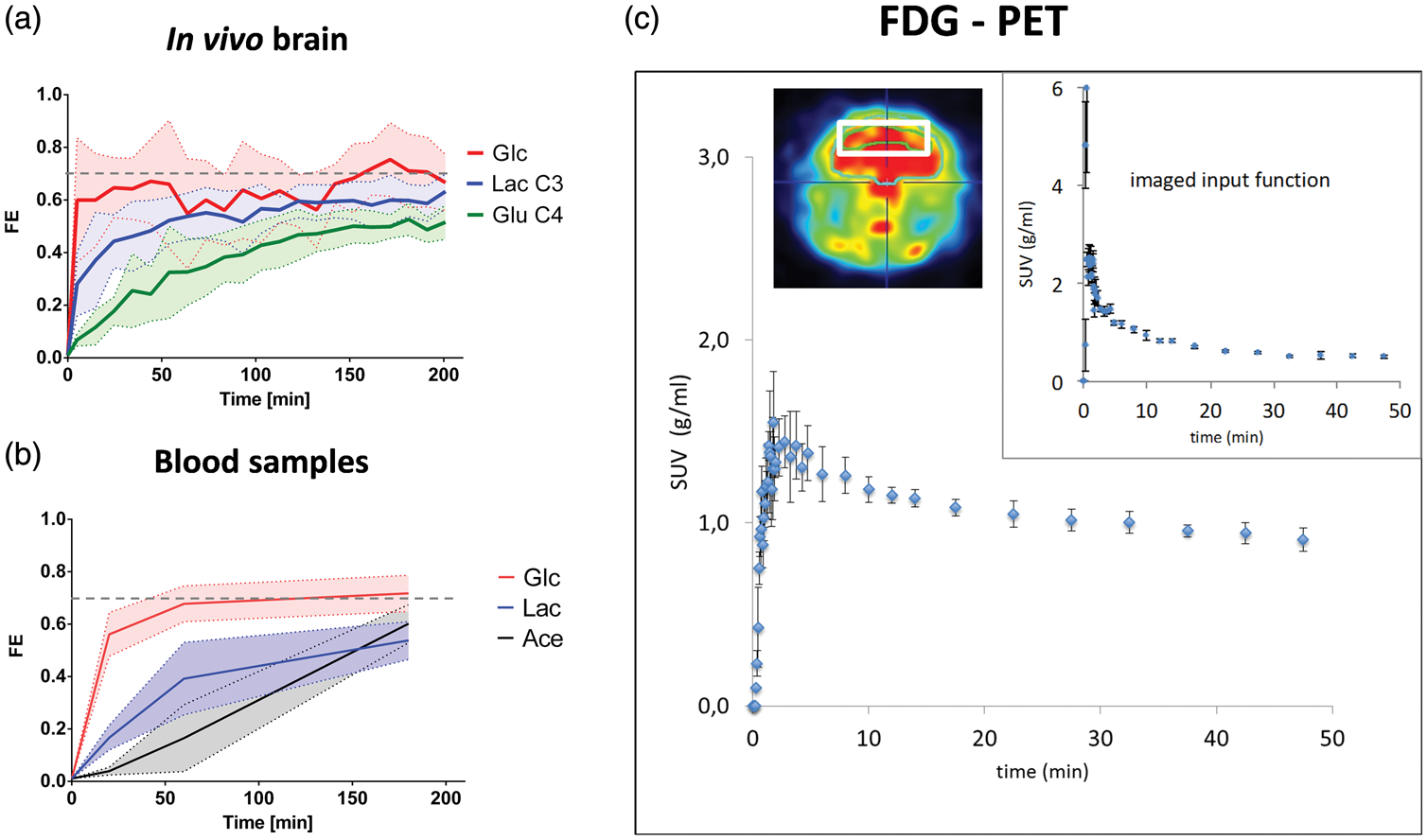

Figure 3.

Glucose labeling in hippocampus and plasma during ¹H-[¹³C]-MRS. (a) Averaged fractional enrichment (FE) of brain glucose (Glc), lactate C3 (Lac C3) and glutamate C4 (Glu C4) during the in vivo MRS experiment. (b) Blood plasma FE of glucose, lactate and acetate measured during [U-¹³C₆]Glc infusion (N = 3). Shaded areas represent the SD. (c) Glucose standard uptake value (SUV) in hippocampus and vena cava input function (upper right) measured by ¹⁸FDG PET (N = 3). The heat map depicts a PET image acquired at steady-state, i.e. during the last minutes of the 50-min scan, and shows regions of high (red) and low (blue) phosphorylation of ¹⁸FDG. The voxel used for PET modeling (white box) had similar dimensions as for the ¹H-[¹³C]-MRS (i.e. 5.5 × 2 × 1.5 mm³) and is shown in white on the heat map.

Mathematical modeling of hippocampal metabolism

The one-compartment model of glucose metabolism (Figure 1(a)) generated a satisfactory fit of the data (Figure 4) with no strong flux correlation (i.e. <0.8; Supplementary Figure 3(a)). The resulting metabolic fluxes are summarized in Table 1. For instance, we measured a TCA cycle (V_TCA) of 1.71 ± 0.03 µmol/g/min and a neurotransmission rate (V_NT) of 0.062 ± 0.006 µmol/g/min. Our 1-compartment approach was extended to include GABA metabolism, as adapted from a previous model of hypothalamic metabolism²⁸; however, resulting GABA metabolic rates remained unreliable.

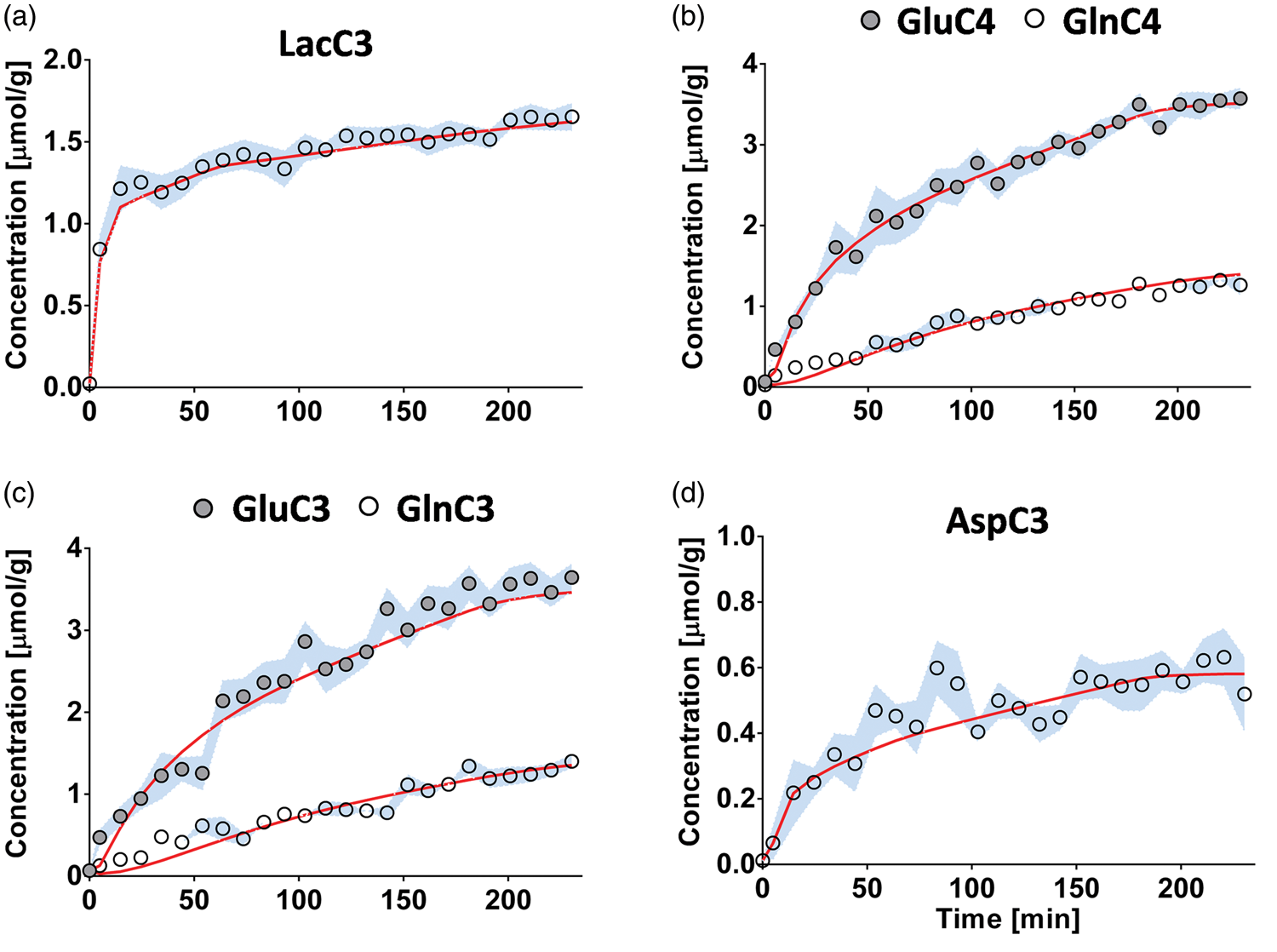

Figure 4.

Fitting results using a one-compartment model of hippocampal metabolism. Results of the fitting of the one-compartment model (red) to the¹³C enrichment curves of (a) lactate C3, (b) glutamate and glutamine C4, (c) glutamate and glutamine C3 and (d) aspartate C3, shown as the mean for all animals (circles) ± SD (blue).

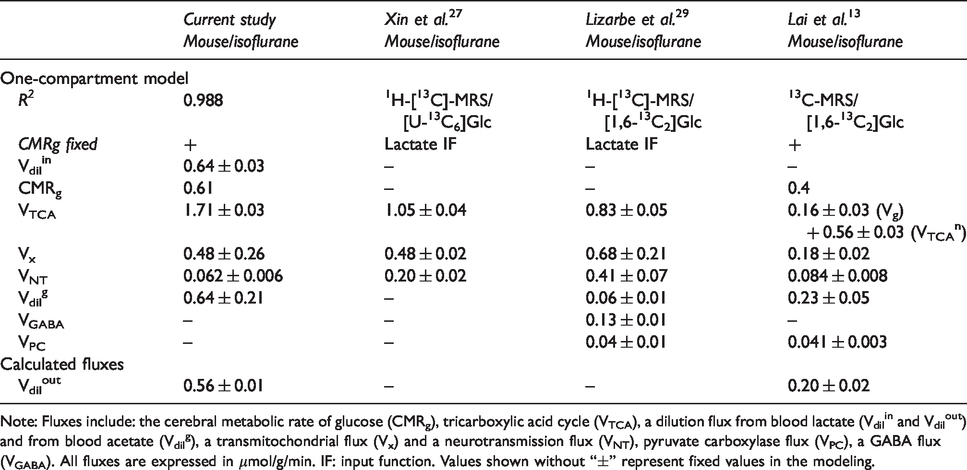

Table 1.

Flux estimation obtained with the one-compartment model compared to relevant literature

	Current study Mouse/isoflurane	Xin et al. ²⁷ Mouse/isoflurane	Lizarbe et al. ²⁹ Mouse/isoflurane	Lai et al. ¹³ Mouse/isoflurane
One-compartment model
R²	0.988	¹H-[¹³C]-MRS/ [U-¹³C₆]Glc	¹H-[¹³C]-MRS/ [1,6-¹³C₂]Glc	¹³C-MRS/ [1,6-¹³C₂]Glc
CMRg fixed	+	Lactate IF	Lactate IF	+
V_dilⁱⁿ	0.64 ± 0.03	–	–	–
CMR_g	0.61	–	–	0.4
V_TCA	1.71 ± 0.03	1.05 ± 0.04	0.83 ± 0.05	0.16 ± 0.03 (V_g)+ 0.56 ± 0.03 (V_TCAⁿ)
V_x	0.48 ± 0.26	0.48 ± 0.02	0.68 ± 0.21	0.18 ± 0.02
V_NT	0.062 ± 0.006	0.20 ± 0.02	0.41 ± 0.07	0.084 ± 0.008
V_dil^g	0.64 ± 0.21	–	0.06 ± 0.01	0.23 ± 0.05
V_GABA	–	–	0.13 ± 0.01	–
V_PC	–	–	0.04 ± 0.01	0.041 ± 0.003
Calculated fluxes
V_dil^out	0.56 ± 0.01	–	–	0.20 ± 0.02

Note: Fluxes include: the cerebral metabolic rate of glucose (CMR_g), tricarboxylic acid cycle (V_TCA), a dilution flux from blood lactate (V_dilⁱⁿ and V_dil^out) and from blood acetate (V_dil^g), a transmitochondrial flux (V_x) and a neurotransmission flux (V_NT), pyruvate carboxylase flux (V_PC), a GABA flux (V_GABA). All fluxes are expressed in μmol/g/min. IF: input function. Values shown without “±” represent fixed values in the modeling.

The proposed three-compartment model of glucose metabolism (Figure 1(b)) provided overall satisfactory fits on the ¹³C-labeling curves of LacC3, GluC3-4, GlnC3-4, AspC3, and GABAC2-4 (R² = 0.988; Table 2 and Figure 5), with limited number of correlations between fluxes (the absolute coefficients of four parameters were >0.7; Supplementary Figure 3(b)) and coherence of flux results. Importantly, the addition of a second GABAergic GABA pool (Supplementary Figure 4(a)) and a second astrocytic Gln pool (Supplementary Figure 4(b)) improved the overall fitting (total goodness-of-fit R² value) by 0.6% and 0.4%, respectively, as compared to the 1-pool models. The summary of the estimated fluxes is reported in Table 2. Since the glial metabolic rates were taken from the literature, due to the fact that [U-¹³C₆]Glc does not assess astrocyte metabolism reliably, varying these values in a ±100% range resulted only in an approximately ±25% difference in the estimation of main fluxes (Supplementary Figure 3(c)).

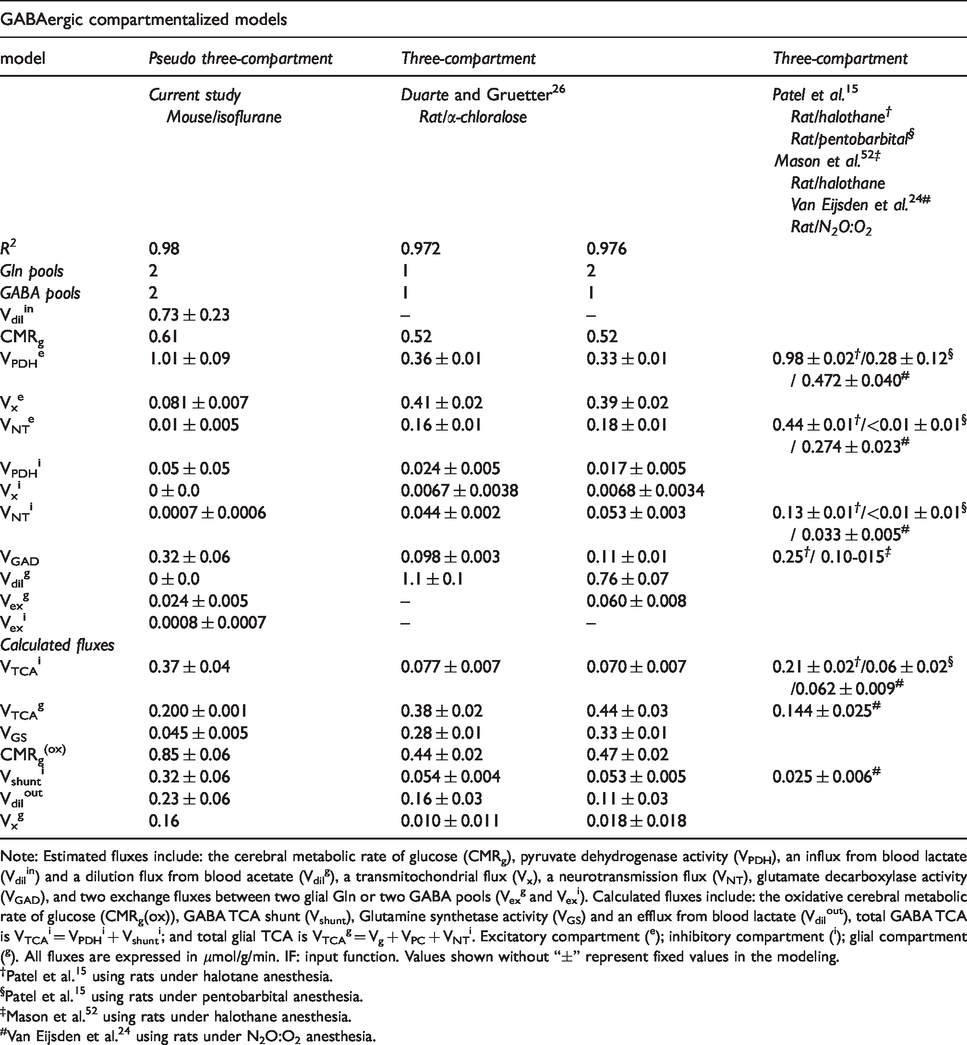

Table 2.

Flux estimation obtained with the pseudo three-compartment model compared to relevant literature.

GABAergic compartmentalized models
model	Pseudo three-compartment	Three-compartment		Three-compartment
	Current study Mouse/isoflurane	Duarte and Gruetter²⁶Rat/α-chloralose		Patel et al. ¹⁵ Rat/halothane^† Rat/pentobarbital^§ Mason et al. ⁵² ^‡ Rat/halothane Van Eijsden et al. ²⁴ ^# Rat/N₂O:O₂
R²	0.98	0.972	0.976
Gln pools	2	1	2
GABA pools	2	1	1
V_dilⁱⁿ	0.73 ± 0.23	–	–
CMR_g	0.61	0.52	0.52
V_PDH^e	1.01 ± 0.09	0.36 ± 0.01	0.33 ± 0.01	0.98 ± 0.02 ^† /0.28 ± 0.12^§/ 0.472 ± 0.040 ^#
V_x^e	0.081 ± 0.007	0.41 ± 0.02	0.39 ± 0.02
V_NT^e	0.01 ± 0.005	0.16 ± 0.01	0.18 ± 0.01	0.44 ± 0.01 ^† /<0.01 ± 0.01^§/ 0.274 ± 0.023 ^#
V_PDHⁱ	0.05 ± 0.05	0.024 ± 0.005	0.017 ± 0.005
V_xⁱ	0 ± 0.0	0.0067 ± 0.0038	0.0068 ± 0.0034
V_NTⁱ	0.0007 ± 0.0006	0.044 ± 0.002	0.053 ± 0.003	0.13 ± 0.01 ^† /<0.01 ± 0.01^§/ 0.033 ± 0.005 ^#
V_GAD	0.32 ± 0.06	0.098 ± 0.003	0.11 ± 0.01	0.25 ^† / 0.10-015 ^‡
V_dil^g	0 ± 0.0	1.1 ± 0.1	0.76 ± 0.07
V_ex^g	0.024 ± 0.005	–	0.060 ± 0.008
V_exⁱ	0.0008 ± 0.0007	–	–
Calculated fluxes
V_TCAⁱ	0.37 ± 0.04	0.077 ± 0.007	0.070 ± 0.007	0.21 ± 0.02 ^† /0.06 ± 0.02^§/0.062 ± 0.009 ^#
V_TCA^g	0.200 ± 0.001	0.38 ± 0.02	0.44 ± 0.03	0.144 ± 0.025 ^#
V_GS	0.045 ± 0.005	0.28 ± 0.01	0.33 ± 0.01
CMR_g^(ox)	0.85 ± 0.06	0.44 ± 0.02	0.47 ± 0.02
V_shuntⁱ	0.32 ± 0.06	0.054 ± 0.004	0.053 ± 0.005	0.025 ± 0.006 ^#
V_dil^out	0.23 ± 0.06	0.16 ± 0.03	0.11 ± 0.03
V_x^g	0.16	0.010 ± 0.011	0.018 ± 0.018

Note: Estimated fluxes include: the cerebral metabolic rate of glucose (CMR_g), pyruvate dehydrogenase activity (V_PDH), an influx from blood lactate (V_dilⁱⁿ) and a dilution flux from blood acetate (V_dil^g), a transmitochondrial flux (V_x), a neurotransmission flux (V_NT), glutamate decarboxylase activity (V_GAD), and two exchange fluxes between two glial Gln or two GABA pools (V_ex^g and V_exⁱ). Calculated fluxes include: the oxidative cerebral metabolic rate of glucose (CMR_g(ox)), GABA TCA shunt (V_shunt), Glutamine synthetase activity (V_GS) and an efflux from blood lactate (V_dil^out), total GABA TCA is V_TCAⁱ = V_PDHⁱ + V_shuntⁱ; and total glial TCA is V_TCA^g = V_g + V_PC + V_NTⁱ. Excitatory compartment (^e); inhibitory compartment (ⁱ); glial compartment (^g). All fluxes are expressed in μmol/g/min. IF: input function. Values shown without “±” represent fixed values in the modeling.^†Patel et al.¹⁵ using rats under halotane anesthesia.^§Patel et al.¹⁵ using rats under pentobarbital anesthesia.^‡Mason et al.⁵² using rats under halothane anesthesia.^#Van Eijsden et al.²⁴ using rats under N₂O:O₂ anesthesia.

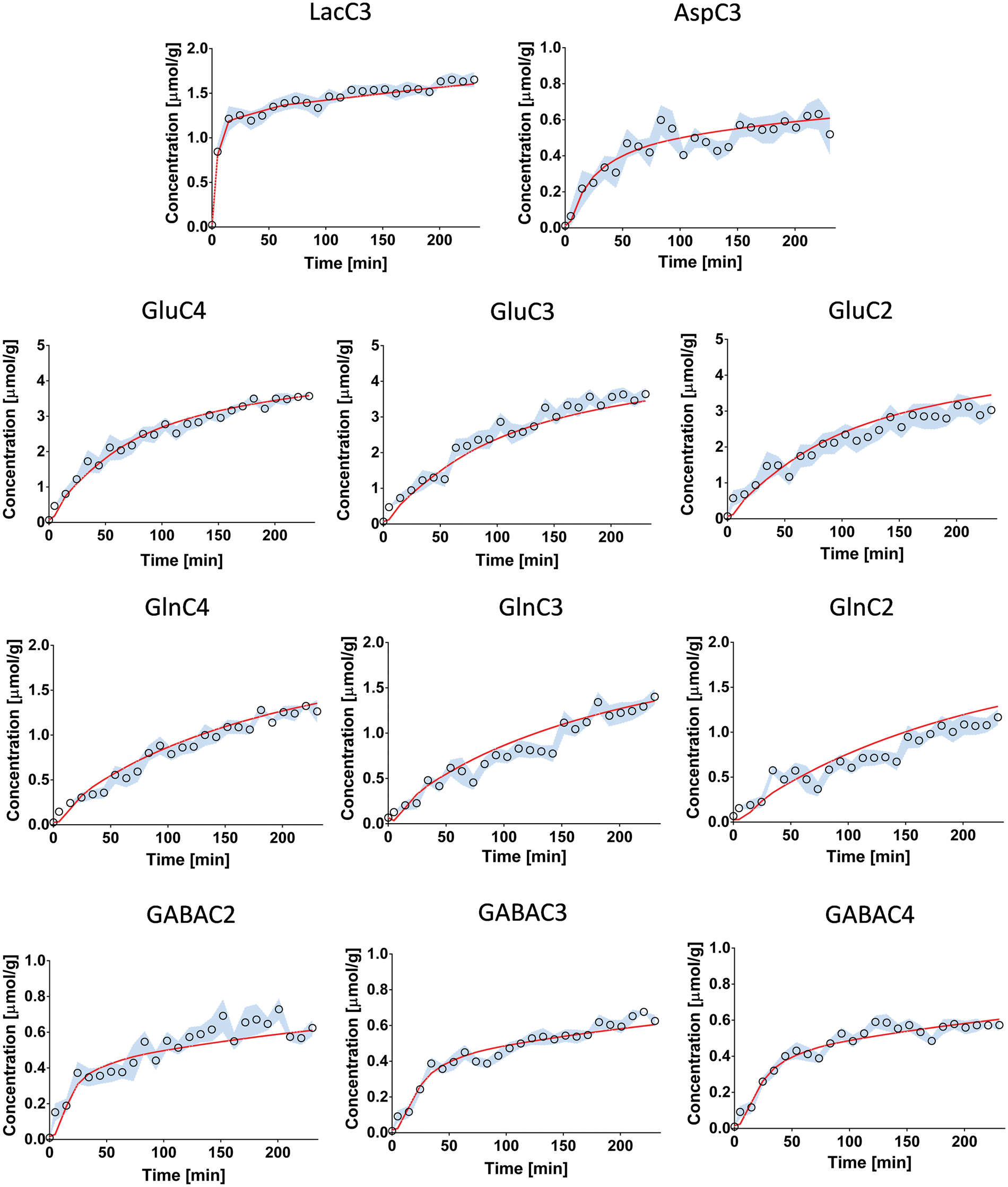

Figure 5.

Fitting results using a pseudo three-compartment model of hippocampal metabolism. Results of the fitting of the pseudo three-compartment model (red) to the ¹³C-enrichment curves (circles), shown as the mean for all animals ± SD (blue).

Discussion

This study shows for the first time that a metabolic flux analysis of mouse hippocampal glucose metabolism is feasible in mouse brain in vivo using ¹H-[¹³C]-MRS and ¹⁸FDG-PET to distinguish glutamatergic and GABAergic neuron activity. With improved glucose quantification and a more sophisticated mathematical model including two separate GABA pools and a second glial Gln pool, we have been able to assess the relative metabolic contributions of excitatory and inhibitory neurons from in vivo mouse hippocampus.

Optimization of glucose quantification improves data analysis for a [U-¹³C₆]Glc infusion

We first incorporated the glucose spectral patterns with three decoupling efficiencies in the basis set (Supplementary Figure 1) to circumvent plausible RF limitations, which may often arise from the very broadband ¹³C-decoupling during ¹H-[¹³C]-MRS experiments. The quantification of both glucose and its neighboring resonance GABAC4 was noticeably improved (Supplementary Figure 2(b)). In particular, the resulting FE of hippocampal glucose was similar to that of blood glucose (Figure 3(a) and (b)), and thus could be used as an input function for the mathematical model. This is a significant improvement, as lactate has been generally preferred for that purpose in ¹H-[¹³C]-MRS experiments in mice.^27,28 The input function provides knowledge about the kinetics and labeling of the infused substrate, which is fundamental in determining the downstream metabolic rates.³⁰ The use of brain glucose as input function provides thus a more complete description of glucose metabolism that is upstream of mitochondria, i.e. by considering CMR_g and brain/blood lactate exchange into the model.

One-compartment modeling of mouse hippocampus

Improving FEs of both glucose and GABA, taking together CMR_g from PET and the FEs of blood Lac and acetate, permits to assess neuronal metabolism with a more detailed mathematical model than previously applied in mice.²⁷ For instance, the proposed one-compartment model of hippocampal metabolism, which does not include GABA (Figure 1(a)), was evaluated and provided an excellent fit (i.e. R²= 0.988) for LacC3, GluC4, GlnC4, GluC3, GlnC3 and AspC3 (Table 1 and Figure 4). When compared to other mouse studies using a one-compartment model and isoflurane anesthetic, our results indicate a higher V_TCA/V_NT ratio (∼28) than reported by Xin et al.²⁷ (∼5), Lai et al.¹³ (∼9) and Lizarbe et al.²⁸ (∼2), which may reflect a specificity of the hippocampus (Table 1). When all FEs of GABAC2-4 were incorporated into the one-compartment model as proposed by Lizarbe et al.,²⁸ the overall fit outcomes did not agree with our data (data not shown). When examining the labeling of GABA, it appears that our data do not resemble a sigmoid function as seen in other studies.^24,28 Rather, the labeling curves of GABA had a steep slope and reached a steady-state quickly as seen in Duarte and Gruetter²⁶ and Xin et al.²⁷ (Figure 5). When we increased the SNR of GABA by reducing the temporal resolution, the steep slopes of GABA remained similar to the high temporal resolution ones and to Xin et al.²⁷ as well. Due to its direct interaction with GluC4, and fewer number of TCA turns needed to enter this position, GABAC2 is normally labeled faster than the other carbon positions. A major difference between [U-¹³C₆]Glc and [1,6-¹³C₂]Glc infusion is that the latter does not produce pyruvate C2 labeling, thus leading to the dilution of GluC3 and GlnC3 pools, as compared to their C2 equivalents, through the activity of glial pyruvate carboxylase. As a result, with [U-¹³C₆]Glc, GABAC3 labeling pool, arising from GluC3, is not diluted and reaches similar levels as GABAC4, providing better detection and quantification than when [1,6-¹³C₂]Glc is used. Although we cannot exclude that this GABA labeling differing from that of hypothalamus²⁸ is due to regional difference, it is likely to be related to the use of [U-¹³C₆]Glc as well.

Compartmentalized modeling of brain excitatory/inhibitory metabolic balance using a pseudo three-compartment metabolic flux analysis

Then a more complex pseudo three-compartment model, including GABAergic, glutamatergic and glial compartments was explored. In particular, the inclusion of GABA labeling curves for this cell-specific metabolism description of the brain led to some additional observations when compared to the one-compartment model: Duarte and Gruetter²⁶ have reported that the addition of GABAergic metabolism increased the total CMR_g(ox) compared to a glia-neuronal two-compartment model. This effect has been proposed to arise from the glial recycling of GABA, leading to a higher glial TCA cycle (V_TCA^g). In the present study, the addition of GABA labeling in our model did not induce a rise in the total V_TCA, rather, inclusion of GABA (and fixed glial fluxes) resulted in a very similar mitochondrial oxidation: V_TCA = 1.71 ± 0.03 µmol/g/min in the one-compartment model versus V_TCA (= 2 × CMR_g(ox)) = 1.70 ± 0.12 µmol/g/min in the pseudo three-compartment model (Tables 1 and 2). This difference could arise from the difference in how blood/brain lactate kinetics are modeled here, and the net lactate influx in the hippocampus (V_dilⁱⁿ−V_dil^out) is likely to influence CMR_g(ox). In fact, when compared to the glia-neuronal two-compartment model after infusion of [1,6-¹³C₂]Glc presented in Lai et al.,¹³ our analysis reveals much higher levels of TCA cycle activity (+137%; V_TCA in the one-compartment model here versus V_g+V_TCAⁿ in Lai et al.¹³), while CMR_g we measured with PET was only +52% higher. Rather than a brain region-specificity, this discrepancy might thus be due to using the measured plasma lactate levels in the modeling here, instead of assuming a physiological resting-state condition, i.e. assuming that all the lactate oxidized in the brain comes from brain glucose metabolism (CMR_g ≈ CMR_g(ox)).

Another striking difference resides in the relatively higher level of GABA synthesis observed (V_GAD = 0.32 ± 0.06 µmol/g/min) as compared to Lizarbe et al.²⁸ (V_GABA = 0.13 ± 0.01 µmol/g/min), where a 1-comparment model of GABA metabolism was used after infusion of [1,6-¹³C₂]Glc. As mentioned above, even though we cannot exclude that this difference might arise from regional or protocol differences, GABA synthesis from GAD remains clearly proportional to the total TCA cycle (V_GAD/V_TCA = 0.19), in good agreement with Lizarbe et al.²⁸ (V_GABA/V_TCA = 0.16), and Duarte and Gruetter²⁶ (V_GAD/V_TCA = 0.12). These results, together with the low inhibitory neurotransmission observed relative to GAD activity in this study, strengthen the idea that GABA is primarily synthesized from glutamate arising from the TCA in GABAergic neurons, rather than recycled from glial glutamine.⁴⁵

The present results are largely in good agreement with previous compartmentalized studies including a GABAergic compartment (Table 2) but reveal some differences. For example, the transmitochondrial flux of excitatory neurons was rather small compared to several studies^46,47 but similar to in vivo mouse data reported recently.¹³ This flux was found to be zero in the GABAergic neurons, in good agreement with Duarte and Gruetter.²⁶ While the latter reported a neurotransmission rate of 0.16 µmol/g/min for excitatory neurons (V_NT^e) and 0.044 µmol/g/min for inhibitory neurons (V_NTⁱ), we found much smaller values (V_NT^e of = 0.01 µmol/g/min, V_NTⁱ of 0.0007 µmol/g/min). One possible explanation may be the use of isoflurane compared to alpha-chloralose used in this study. Isoflurane has been reported to induce hyperpolarization of hippocampal pyramidal (excitatory) cells.⁴⁸ While it seems clear that the low excitatory neuron neurotransmission rate has been caused by the deep anesthesia, as has been evidenced in other studies,¹⁵ it is less obvious how inhibitory neurotransmission is affected. It is important to note that, unlike glutamatergic neurons, neurotransmitter release in GABAergic neurons is thought to rely less on astrocytic recycling through the Glu/GABA-Gln cycle^49,50 making the net inhibitory neurotransmission more difficult to assess. This would have significant influence in the interpretation of our data: while V_NT^e is certainly proportional to excitatory electrical activity, V_NTⁱ might only reflect part of GABAergic neurotransmitter release. For instance, V_exⁱ flux, which was considered in this study for the first time, may reflect the proportion of extrasynaptic GABA reuptake by GABAergic neurons that re-enters neurotransmission pool without being further metabolized. As a result, inhibitory neurotransmission is likely to be closer to V_NTⁱ +V_exⁱ than solely V_NTⁱ. Following this reasoning, GABA neurotransmission would account for ∼13% of total neurotransmission, which is in good agreement with values of ∼11% found using N₂/O₂²⁴ or ∼21% found with alpha-chloralose²⁶ in rats. Finally, GABAergic contribution to neuronal total TCA cycle was higher (∼27%) than previously reported by Duarte and Gruetter²⁶ (∼17%), van Eijsden et al.²⁴ (∼12%), and Hyder et al. (∼18%).⁵¹ GABAergic oxidative metabolism is tightly linked to GAD activity, which contributes to GABAergic TCA (V_TCAⁱ = V_PDHⁱ + V_GAD − V_NTⁱ). Mason et al.⁵² reported that V_GAD is related to the level of GAD67 protein and was measured to be 0.10–0.15 µmol/g/min in rat cortex, where GAD67 represents only ∼28% of total GAD. The fact that GAD67 represents 50% of total GAD in mouse hippocampus⁴⁴ could explain the higher GABAergic oxidative metabolism observed here. Overall, we observed a higher glucose oxidation of inhibitory neurons (V_TCA/V_NT) compared to excitatory neurons (i.e. 2.30-fold), which might reflect a specificity of hippocampal GABAergic properties. A higher TCA oxidative requirement for GABAergic neurotransmission, relative to that of glutamatergic neurotransmission (1.09-fold), has been reported previously in a hippocampal area²⁴ as compared to cortex (0.72-fold)¹⁵ or whole brain (0.73-fold)²⁶ in rats. High energy demands of hippocampal inhibitory network may provide mechanistic links to explain vulnerability of this structure to stress and psychiatric conditions.^53,54

Another major difference is the high variability of the dilution V_dil^g parameter compared to Duarte and Gruetter²⁶ using a three-compartment model and when applying a one-compartment model here. This flux takes into account the events that would lead to the dilution of TCA cycle-related metabolites (Glu, Gln, Asp and GABA) through the action of glial-specific metabolism that does fuel oxidation in the mitochondria, such as glycogen metabolism,¹⁰ or that involves labeling contribution from blood acetate. As the three-compartment model includes other possible diluting mechanisms, i.e. through dilution from the GABA exchange flux (V_exⁱ) as well as the glutamine exchange flux (V_ex^g), V_dil^g drops when the model considers the existence of only one-Gln or one-GABA pool. Because previously reported dilution fluxes^11,13 (0.5-1 µmol/g/min) do not seem realistic in terms of glial metabolism (i.e. glycogen breakdown, acetate uptake, etc.), our results strongly suggest that dilution occurs at another level than arising from glial AcCoA.

Incorporation of FEs of blood glucose, lactate and acetate for an accurate assessment of brain energetic fluxes

In this study, a higher CMR_g(ox) (= V_TCA/2) relative to CMR_g was observed when compared to other studies.^13,26 This difference might partially arise from the incorporation of lactate dynamics in the model here.⁵⁵ Instead of setting the net brain lactate influx from blood (V_dilⁱⁿ − V_dil^out) to be dependent on the estimated CMR_g(ox) and the fixed CMR_g, we measured and considered the FE and concentration of blood Lac. Generally, a net efflux of lactate is observed upon glucose consumption from the brain, in other words CMR_g > CMR_g(ox).⁵⁶ However, at the end of the experiment, the high levels of peripheral Lac (∼8mM) and brain Lac (∼2.7 mM) resulted in a Lac_brain/Lac_blood ratio of ∼0.3 and altered the directionality of lactate flux to be from the blood to the brain. Since this effect is amplified by the permeabilization properties of isoflurane on the blood–brain barrier,⁵⁷ the determination of the FE and concentration of blood Lac in the model improves the assessment of brain energetic fluxes. While blood glucose labeling was comparable to that of brain glucose with a rapid rise after 20 min, lactate and acetate reached a FE of 0.50 only after ∼150 min of infusion. As a result, including these dynamic labeling curves of blood metabolites, rather than a fixed FE value, in the flux analysis led to an improved fitting quality and modeling reliability.

General concerns in anesthesia and modeling

Isoflurane is a gold-standard versatile anesthesia for mice; however, it may affect brain activity stronger than other anesthetics and cause substantial changes in metabolic fluxes.⁴⁸ For instance, a relatively low V_NT was measured with both models, which may be partially explained by reduced electrical activity induced by the effects of such anesthesia.⁵⁸ While isoflurane remains the most commonly used volatile anesthetic agent in rodents and presents clear technical advantages by its ease of use, encouraging the use of other anesthetics for ¹³C-MRS experiments in mouse will further widen our understanding in the effect of these chemicals on metabolic fluxes. It should be noted that although anesthesia levels were comparable between ¹⁸FDG-PET and ¹H-[¹³C]-MRS studies, glycemic differences might limit the interpretation of the results. In particular, due to low sensitivity of ¹³C nucleus, glucose infusion during ¹H-[¹³C]-MRS experiments is normally performed using a hyperglycemic clamp (i.e. by inducing a steady-state hyperglycemia for a given period).³⁰ Although this hyperglycemic protocol is based on the idea that glucose brain entry and metabolism are not dependent on blood glucose when its concentration is above a certain threshhold,⁵⁹ it might have unwanted physiological effects on the brain metabolism, like a reduction of CMR_g or alteration of plasma insulin levels,^59,60 and the impact of the extended period of hyperglycemia on glucose metabolic rates cannot be excluded⁶⁰ and remain to be further explored. On the contrary, ¹⁸FDG-PET experiment is performed in a euglycemic condition without prior fasting that is reflecting normal physiological status of metabolism and function. Nevertheless, our approach aims at preventing non-physiological consequences of hyperglycemia on the ¹H-[¹³C]-MRS metabolic flux estimation by setting the CMR_g in the mathematical model to a physiological value, i.e. obtained from the PET experiment. Thus, combining ¹⁸FDG-PET with ¹H-[¹³C]-MRS provides a useful approach to determine brain metabolic fluxes in vivo.

Another point to be mentioned is that increasing the complexity of the mathematical model allows a better fitting of the data but may lead to several flux estimations to be close to zero. Even though the addition of these parameters might appear impractical, the proposed model with increased complexity remains very helpful to seek specific metabolic differences in comparative animal studies. Nevertheless, it is primordial that the prior knowledge of the model is motivated by biological evidences and a priori knowledge that support the approximations and assumptions made in the mathematical modeling. Inclusion of additional blood labeling information significantly improved the modeling outcomes, and thus, working towards a real-time quantification of plasma metabolite concentration and labeling, i.e. during the MRS acquisition, may further strengthen the modeling precision.

Conclusion

We conclude that quantification of ¹H-[¹³C]-labeled metabolites at 14 T during [U-¹³C₆]Glc infusion can be improved. With a joint ¹⁸FDG-PET measurement and additional blood labeling analysis, a metabolic flux analysis distinguishing GABAergic and glutamatergic neuronal metabolism was possible using a three-compartment model with fixed glial parameters. We report that under our experimental conditions, glucose oxidation relative to neurotransmission was more important for inhibitory neurons than excitatory neurons. This result might have significant implications for the understanding of metabolic resilience of the hippocampal GABAergic system. Taken together, our results provide new tools typically applicable in comparative studies of mouse brain with glutamatergic/GABAergic metabolic imbalance.

Supplemental Material

JCB910535 Supplemental Material - Supplemental material for Excitatory/inhibitory neuronal metabolic balance in mouse hippocampus upon infusion of [U-¹³C₆]glucose

Supplemental material, JCB910535 Supplemental Material for Excitatory/inhibitory neuronal metabolic balance in mouse hippocampus upon infusion of [U-¹³C₆]glucose by Antoine Cherix, Guillaume Donati, Blanca Lizarbe, Bernard Lanz, Carole Poitry-Yamate, Hongxia Lei and Rolf Gruetter in Journal of Cerebral Blood Flow & Metabolism

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported financially by the Center for Biomedical Imaging (CIBM) of the University of Lausanne (UNIL), University of Geneva (UNIGE), Geneva University Hospital (HUG), Lausanne University Hospital (CHUV), Swiss Federal Institute of Technology (EPFL) and the Leenaards and Louis–Jeantet Foundations and the Swiss National Science Foundation Grant 31003A_149983.

Declaration of conflicting interests

The author(s) declare no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ contributions

AC, HL, BLi and RG designed the study. AC, CPY and BLa acquired and analyzed the data. AC, HL, BLi, CPY, BLa, GD and RG interpreted the data. AC drafted the manuscript. HL, BLi, CPY, BLa, GD and RG assisted in revising the manuscript and approved the final version.

ORCID iDs

Antoine Cherix

Blanca Lizarbe

Hongxia Lei

Supplemental material

Supplemental material for this article is available online.
