Abstract

Fracability is a property widely used to evaluate whether reservoirs can effectively fracture to increase production capacity. The brittleness index, which is used to evaluate reservoir fracability, is calculated via various methods, and the evaluation process of the brittleness index is complicated and not sufficiently intuitive. Thus, we used triangle method to evaluate reservoir fracability. The shale composition is classified into strong (quartz + pyrite), moderate (carbonate + plagioclase + siderite), and poor (clay + TOC + porosity) fracability based on the mechanical parameters of each shale component, which were integrated as the endpoints of the triangle method. Meanwhile, the triangle method is divided into four fracability evaluation grades: strong (I), moderate (II), weak (III) and poor (IV) fracability; each major evaluation grade has four sub-categories: best for fracturing (1), better for fracturing (2), poor for fracturing (3) and worst for fracturing (4). The triangle method is simpler and more convenient than the conventional method, dividing the fracability evaluation grades more specifically. The difference in fracability between samples can be shown intuitively, which enhances the accuracy and reliability of the evaluation of transitional shales and provides theoretical support for reservoir reconstruction.

Keywords

Fracability evaluation novel triangle method reservoir reconstruction transitional shale southern North China Basin

Introduction

The use of unconventional oil and gas reservoirs such as shale, coal, and tight sandstone oil and gas reservoirs, can promote the energy transition from conventional to renewable energy sources (Kuchler, 2017) and achieve the carbon neutrality goal as soon as possible (Lu et al., 2021; Zhao et al., 2020). Compared with conventional reservoirs, unconventional shale, coal, and tight sandstone reservoirs, which have low porosity and ultra-low permeability, require hydraulic fracturing before the extraction of gas and oil (Javadpour, 2009; Hu et al., 2020; Lawal et al., 2021; Zhang et al., 2008). The fracability of a reservoir is typically used to describe the effects of reservoir hydraulic fracturing and reconstruction (Wang and Gale, 2009; Zhang et al., 2016). Generally, a reservoir with “better” fracability can easily form a complex fracture network and enhance the reconstruction effect (He et al., 2020; Holt et al., 2015). Therefore, the fracability evaluation of the reservoirs prior to hydraulic fracturing and reconstruction is important (Ma et al., 2019; Wu et al., 2018).

The fracability of shale reservoir largely depends on the mineralogy and mechanical properties of the reservoir, including the distribution and types of minerals, organic matter (OM), total organic carbon (TOC), porosity, and type of pores and fractures (He et al., 2020; Herrmann et al., 2019; Grieser and Bray, 2007; Lawal et al., 2021; Lora et al., 2016; Mews et al., 2019; Moghadam et al., 2019). Every type of mineral and OM in shale has a different Young's modulus and Poisson's ratio (Gholami et al., 2016; Huo et al., 2018), which can influence the fracability characteristics of the reservoir. A high Young's modulus and low Poisson's ratio suggest good reservoir fracability (Kang et al., 2020; Rickman et al., 2008). Quartz, which is a typical brittle mineral, has a high Young's modulus and low Poisson's ratio, showing good brittleness and fracability (Chen et al., 2021b). Jin et al. (2015) and Simmons and Birch (1963) illustrated that pyrite also has good fracability and is a brittle mineral, with a high Young's modulus and low Poisson's ratio. Carbonate minerals, including calcite and dolomite, have a moderate Young's modulus and Poisson's ratio, which are lower and higher than those of quartz, respectively; these minerals are non-brittle mineral and show lower fracability than quartz (Mathia et al., 2016; Mews et al., 2019). Plagioclases always are brittle mineral; however, based on their Young's modulus and Poisson's ratio, they can be classified as non-brittle (Huo et al., 2018; Woeber et al., 1963). In addition, the brittleness of siderite is higher than that of clay, but lower than that of quartz, which is a non-brittle mineral (Christensen, 1972). Clay minerals, including illite, kaolinite, chlorite, and illite-smectite mixed-layer (I-Sm) are representative ductile mineral and have poor fracability (Lawal et al., 2021; Mews et al., 2019; Moghadam et al., 2019; Yasin et al., 2017). In addition, OM exhibits ductile characteristic. However, the trend of the Young's modulus and Poisson's ratio of plagioclase is different from that of quartz and similar to that of carbonate. Plagioclase have moderate fracability and are non-brittle mineral (Huo et al., 2018; Woeber et al., 1963). The Young's modulus of siderite is higher than those of carbonate and plagioclase, which is lower than that of pyrite; the Poisson's ratio of siderite is higher than those of quartz and pyrite, which is similar to the carbonate and plagioclase, also showing moderate fracability (Christensen, 1972). Clay minerals, including illite, kaolinite, chlorite, and I-Sm are ductile and follow the opposite trend, i.e., they have a low Young's modulus, high Poisson's ratio and show poor fracability (Lawal et al., 2021; Mews et al., 2019; Moghadam et al., 2019). In addition, OM has the lowest Young's modulus and high Poisson's ratio, which indicates worse fracability (Walles, 2004; Yasin et al., 2017).

The types of fractures and pores in shale also influence the fracability of reservoirs. Some pores and fractures between brittle minerals can be preserved during strong compaction and are connected with artificial fractures during fracturing, which is conducive to shale fracability (Chen et al., 2021b). Most pores and fractures, particularly those developed in ductile minerals, are usually closed during compaction (He and Hayatdavoudi, 2018; Oluwadebi et al., 2018; Renard et al., 2018), which is not conducive to fracability.

Fracability cannot be measured directly; therefore, many scholars use the brittleness index (BI) to quantitatively evaluate it (Hucka and Das, 1974; Kang et al., 2020; Kumar et al., 2018; Lawal et al., 2021; Rybacki et al., 2016; Tarasov and Potvin, 2013), which is defined using various calculation methods and models. There are no unified standard calculations for evaluating shale brittleness. The proportion of brittle mineral content of all minerals in shale is usually used to calculate the BI (Jarvie et al., 2007; Jin et al., 2015; Slatt and Abousleiman, 2011), such as the weight fraction of quartz (Jarvie et al., 2007; Rickman et al., 2008), the weight fraction of quartz, feldspar, carbonate and mica (Jin et al., 2015), the weight fraction of quartz and carbonate (Li et al., 2013), the weight fraction of pyrite, quartz, dolomite (Wang and Gale, 2009; Zhang et al., 2016, 2017) and even the fraction of all minerals except clay (Gale et al., 2007). The BI can also be defined using the Young's modulus and Poisson's ratio (Grieser and Bray, 2007; Kang et al., 2020; Rickman et al., 2008; Sone and Zoback, 2013), which are acquired based on the normalized and average value. Huo et al. (2018) redefined the BI by considering both the mechanical properties of different minerals and their mineral contents. Instead of the BI calculation method, a few researchers have used the triangle method to evaluate fracability and classify the evaluation grades. The triangle method is simpler and more convenient method to evaluate the fracability of shales, and the fracability grades of different shales can be compared more intuitively. Meanwhile, the accuracy and reliability of the sample fracability can be improved through a more precise division of the triangle method.

In recent years, an increasing number of unconventional oil and gas reservoirs have been discovered in the southern North China Basin (SNCB) (Chen et al., 2016; Liu et al., 2016), and the fracability of shale reservoirs must be evaluated before hydraulic fracturing. Therefore, establishing the triangle method to evaluate the fracability of transitional shale, classifying the evaluation grades of fracability and evaluating the fracability of shale in the SNCB can provide theoretical support for reservoir fracturing and exploitation.

Samples and methods

Geological setting

The southern North China Basin (SNCB), belonging to marine-continental transitional facies, is located in the southern margin of the North China Platform and covered a total area of 15 × 10⁴km² (Xu et al., 2003). There is a shale exploration block in SNCB which is named Wenxian shale exploration block, at the junction of Taikang Uplift and Kaifeng Depression. Compared with the multiple uplifts and reverses of strata and clockwise transgressive changes, the Wenxian shale exploration block gradually deposited Benxi-Taiyuan-Shanxi-Shihezi Formation (Li et al., 2021). Among them, Taiyuan Formation, which developed shale, limestone, sandstone and coal seam and Shanxi Formation, which developed shale, siltstone, medium-grained sandstone and coal seam (Chen et al., 2016, 2021a; Liu et al., 2016) are the target formation (Figure 1(a)).

Figure 1.

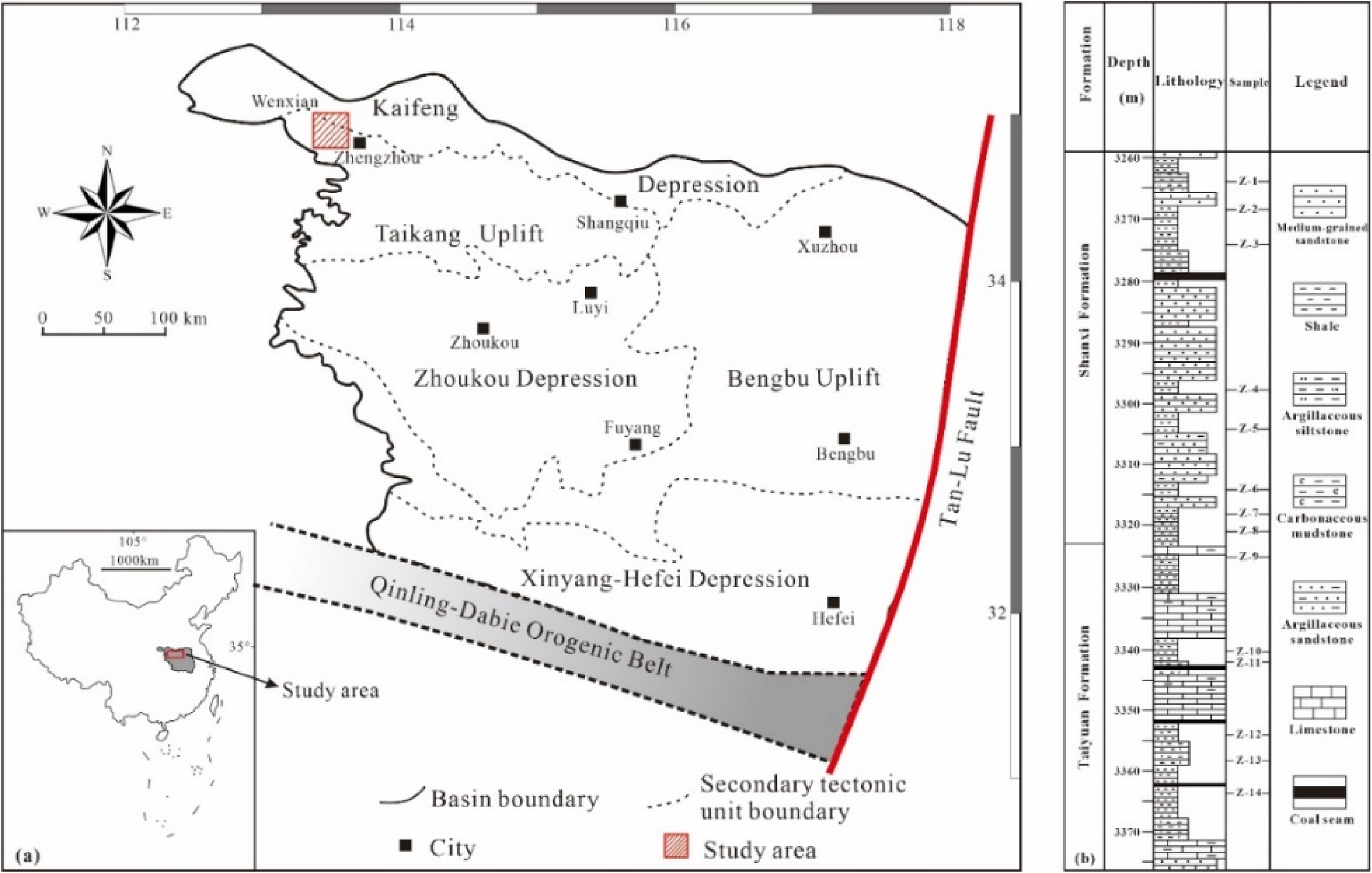

(a) Geological setting of the study area (modified after (Liu et al., 2016) and (b) the stratigraphic column and sampling locations of the lower permian Shanxi and Taiyuan formations.

Samples and methods

The samples were collected from well ZXY-1, located at the junction of the Taikang Uplift and Kaifeng Depression in the Wenxian shale gas exploration block in the SNCB. All 14 samples were collected via cylindrical drilling, and they were marine–continental transitional shale from the Carboniferous–Permian with a depth ranging from 3260 m to 3379 m. Eight samples (Z-1–Z-8) were collected from the Shanxi Formation, and others (Z-9–Z-14) were collected from the Taiyuan Formation (Figure 1). The specific rock parameters are listed in Table 1.

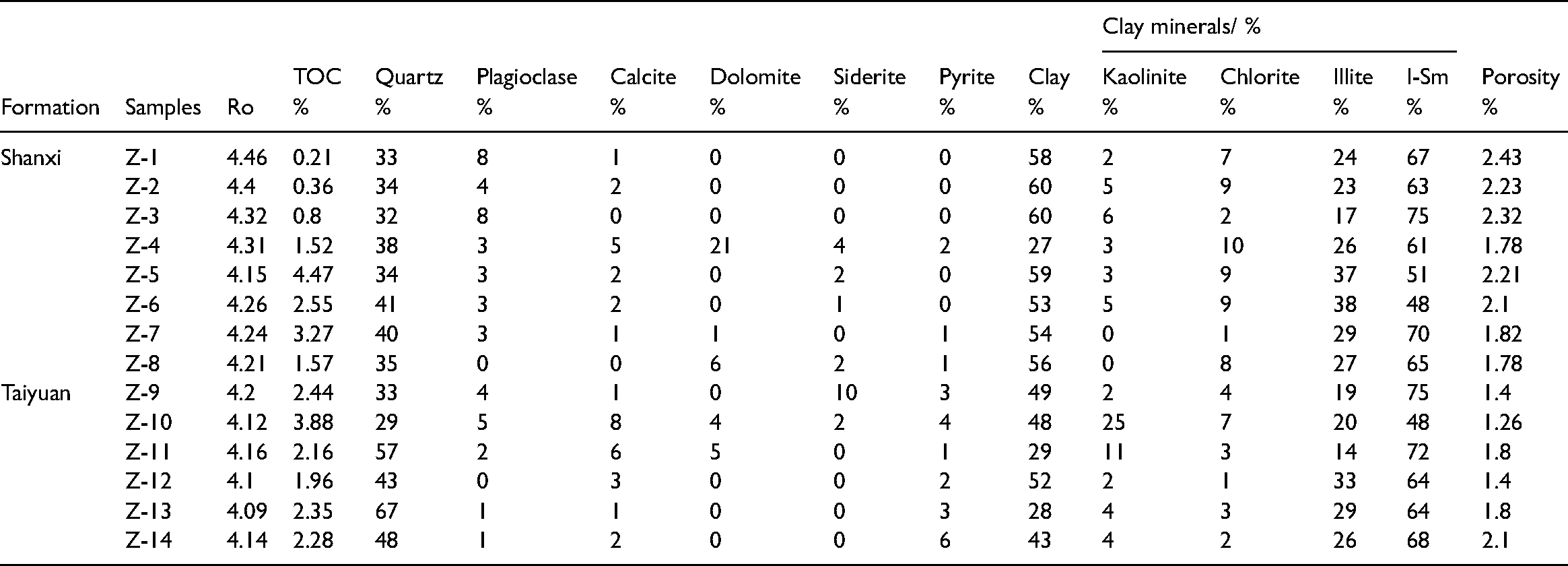

Table 1.

TOC content, mineral composition and porosity of Taiyuan-Shanxi shale samples.

Formation	Samples	Ro	TOC %	Quartz %	Plagioclase %	Calcite %	Dolomite %	Siderite %	Pyrite %	Clay %	Clay minerals/ %				Porosity %
Formation	Samples	Ro	TOC %	Quartz %	Plagioclase %	Calcite %	Dolomite %	Siderite %	Pyrite %	Clay %	Kaolinite %	Chlorite %	Illite %	I-Sm %	Porosity %
Shanxi	Z-1	4.46	0.21	33	8	1	0	0	0	58	2	7	24	67	2.43
	Z-2	4.4	0.36	34	4	2	0	0	0	60	5	9	23	63	2.23
	Z-3	4.32	0.8	32	8	0	0	0	0	60	6	2	17	75	2.32
	Z-4	4.31	1.52	38	3	5	21	4	2	27	3	10	26	61	1.78
	Z-5	4.15	4.47	34	3	2	0	2	0	59	3	9	37	51	2.21
	Z-6	4.26	2.55	41	3	2	0	1	0	53	5	9	38	48	2.1
	Z-7	4.24	3.27	40	3	1	1	0	1	54	0	1	29	70	1.82
	Z-8	4.21	1.57	35	0	0	6	2	1	56	0	8	27	65	1.78
Taiyuan	Z-9	4.2	2.44	33	4	1	0	10	3	49	2	4	19	75	1.4
	Z-10	4.12	3.88	29	5	8	4	2	4	48	25	7	20	48	1.26
	Z-11	4.16	2.16	57	2	6	5	0	1	29	11	3	14	72	1.8
	Z-12	4.1	1.96	43	0	3	0	0	2	52	2	1	33	64	1.4
	Z-13	4.09	2.35	67	1	1	0	0	3	28	4	3	29	64	1.8
	Z-14	4.14	2.28	48	1	2	0	0	6	43	4	2	26	68	2.1

In the quantitative analysis of samples, the Leco organic carbon analyzer (CS-230, China) was used to determine the TOC content, using powder samples with < 200 mesh. The BrukerD8 Discover X-ray diffractometer and composition of samples. Each sample was first crushed and samples with a particle size smaller than 10 μm was used for evaluation of total clay mineral content and non-clay mineral content, whereas others with a particle size smaller than 2 μm was used for determination of the content of each clay mineral relative to the total clay mineral content. The operation and calculation followed the relevant oil-industry standard of China (SY/T 5163-2010).

Meanwhile, Ultrapure-200A (KFSY/J95-036) was used to measure helium porosity. Samples were prepared by being processed into small cylinders with a diameter of 1 cm and subjected to drying at 105 °C for 24 h. In the qualitative analysis of the sample, FE-SEM was used for the microscopic observation of samples. The approximately 2.5 × 10⁵ µm² of the area of each sample were polished by the argon-ion milled (AIM) technology first and then used Hitachi SU8010 scanning electron microscope (SEM) in secondary-electron mode to identify the type and geometry of pores, fractures and minerals. For more experiments, details can see (Chen et al., 2016, 2021b).

The stress-strain experiment adopts the WEP-600 microcomputer-controlled screen display, a universal rock mechanical experimental instrument, strictly in Maccoby the recommended method of the International Society of Rock Mechanics (Rock characterization testing and monitoring-ISRM suggested method), and the samples are processed under different conditions. The maximum load-bearing capacity of the loading frame of the triaxial rock mechanics test system is 270 tons. The axial and radial displacement sensors used in the test meet the performance indicators of strain sensitivity of 5E-6 mm/mm, the accuracy of 0.2% and temperature resistance of 200 °C. Confining pressure (simulating the horizontal stress of the formation, loading rate 0.035 MPa/sec) and pore pressure (simulating reservoir pressure, Load rate 0.0069 MPa/sec) and axial pressure (simulating overburden pressure, load rate 1E-5 mm/mm/sec), and finally obtain the stress P-strain curve from deformation to failure of the rock sample, and Young's modulus and Poisson's ratio can be obtained by calculation (Diao, 2013).

Results

Composition characteristics

The TOC of the samples varied, from 0.21% to 4.47% (mean 2.05%). Clay and quartz were the main mineral components in the shale, ranging from 28% to 60% (mean 47.67%) and from 29% to 67% (mean 41.07%), respectively. The contents of plagioclase, calcite, dolomite, siderite, and pyrite were relatively low and at 0–12%, 0–8%, 0–21%, 0–10% and 0–6% respectively. Clay minerals include kaolinite, chlorite, illite, and mixed–layer of illite-smectite (I-Sm). I-Sm accounted for a large proportion, ranging from 48% to 74%. The illite content ranged between 14% and 38%. The contents of chlorite and kaolinite were lower than those of I-Sm and illite, ranging from 1% to 10% and 0% to 25%, respectively. The mineral compositions of the samples were different, which indicated that the spatial distribution of shales was strongly heterogeneous (Table 1).

Pore–fractures distribution

The pore system of shales comprises inorganic and organic pores and fractures. As observed in the scanning electron microscopy (SEM) images, large inorganic pores and fractures were developed in the shales; these include shrinkage fractures, intergranular pores, intragranular and intergranular fractures, and dissolved pores (Figure 2).

Figure 2.

Se images of inorganic pores and fractures in the Taiyuan-Shanxi samples. (a) Shrinkage fractures of clay, Z-10, 10k, SE mode, Taiyuan Formation; (b) Intragranular pores of pyrite, Z-9, 5k, SE mode, Taiyuan Formation; (c) Intergranular pores of quartz, Z-11, 10k, SE mode, Taiyuan Formation; (d) Intragranular and intergranular fractures and dissolved pores of calcite, Z-4, 10k, SE mode, Shanxi Formation.

Although the number of inorganic pores and fractures in the sample was large, there were also some organic pores (Figure 3(a)), intergranular fractures of OM (Figure 3(b)) and organic shrinkage fractures developed in the OM or at the edge of OM in contact with clay minerals (Figure 3). The porosity of the samples was between 1.26% and 2.43% (1.99% on average) (Table 1).

Figure 3.

Se images of organic pores and fractures in the Taiyuan-Shanxi samples, Z-10, 20k, SE mode, Taiyuan formation. (a) Organic pores and shrinkage fractures of OM (b) Intragraunular fractures of OM, Z-7, 20k, SE mode, Shanxi Formation.

Key mechanical properties

The Young's moduli of Z-9, Z-10, Z-11, Z-13, and Z-14, which belong to the Taiyuan Formation, ranged from 35.14 GPa to 36.83 GPa, whereas that of the other samples, which belong to the Shanxi Formation, ranged from 27.5 GPa to 33.58 GPa. The Poisson's ratio of the Taiyuan and Shanxi Formation samples ranged from 0.15 to 0.16 and from 0.16 to 0.18 (Table 2).

Table 2.

Young's modulus and Poisson's ratio of Taiyuan-Shanxi samples.

Samples	Shanxi Formation				Taiyuan Formation
Samples	Z-4	Z-5	Z-6	Z-7	Z-9	Z-10	Z-11	Z-13	Z-14
Young's modulus E (GPa)	30.12	27.5	28.94	31.25	29.12	33.58	36.83	36.2	35.14
Poisson's ratio (μ)	0.17	0.18	0.16	0.17	0.16	0.15	0.15	0.16	0.15

Discussion

Evaluation of triangle method

Previous studies have focused on the calculation of the BI (Huo et al., 2018; Jin et al., 2015; Mews et al., 2019; Rickman et al., 2008; Rybacki et al., 2016; Zhang et al., 2016), discussing the BI method under different conditions and evaluating the fracability of the samples. However, a few studies have focused on using the triangle method to evaluate the fracability of samples. In this study, we established the triangle method based on the Young's modulus and Poisson's ratio for each shale composition.

The components of shales, such as minerals and OM have their own Young's modulus and Poisson's ratio, indicating that different mineral types and content influence shale fracability differently (Huo et al., 2018). As typical brittle minerals, quartz and pyrite have strong fracability (Chen et al., 2021b; Gholami et al., 2016; Jin et al., 2015; Simmons and Birch, 1963), whereas clay minerals and OM have poor fracability (Lawal et al., 2021; Mews et al., 2019; Walles, 2004; Yasin et al., 2017). Calcite, dolomite, and siderite have similar Young's moduli and Poisson's ratios, are non-brittle minerals, and contribute moderately to fracability (Mathia et al., 2016; Christensen, 1972). The plagioclase is generally classified as a brittle mineral. However, the Young's modulus and Poisson's ratio of plagioclases is different from that of quartz and similar to the that of carbonate, which demonstrates that plagioclases have moderate fracability and are non-brittle minerals (Huo et al., 2018; Woeber et al., 1963).

The types of pore-fractures and the contact types between minerals also influence the fracability of reservoirs. Under strong compaction, ductile minerals, such as OM and clay, are squeezed; and intragranular pores and cracks, shrinkage fractures of clay, and OM pores and fractures close gradually in contrast to those under concave–convex contact with adjacent particles of ductile minerals (He and Hayatdavoudi, 2018); this is not conducive to shale fracturing. Also, some intergranular and intragranular pores and fractures in quartz and dissolved pores in carbonate, positively affect the shale fracability. However, as shown in Figure 4, there is a weak positive relationship between porosity and clay, a weak negative relationship between porosity and carbonate, and no relationship between porosity and quartz, indicating that clay is the major contributor to porosity. The pores and fractures of clay are not conducive to fracturing. Meanwhile, transitional shale, especially the shale of the Shanxi and Taiyuan Formation has a higher clay content, and the average clay content is higher than that of quartz. The effect of clay on shale fracability is greater than that of quartz for clay-rich transitional shale (Han et al., 2022; Li et al., 2021). Therefore, the porosity of transitional shale will be classified as not conducive to fracturing (Oluwadebi et al., 2018; Renard et al., 2018; Yue et al., 2018).

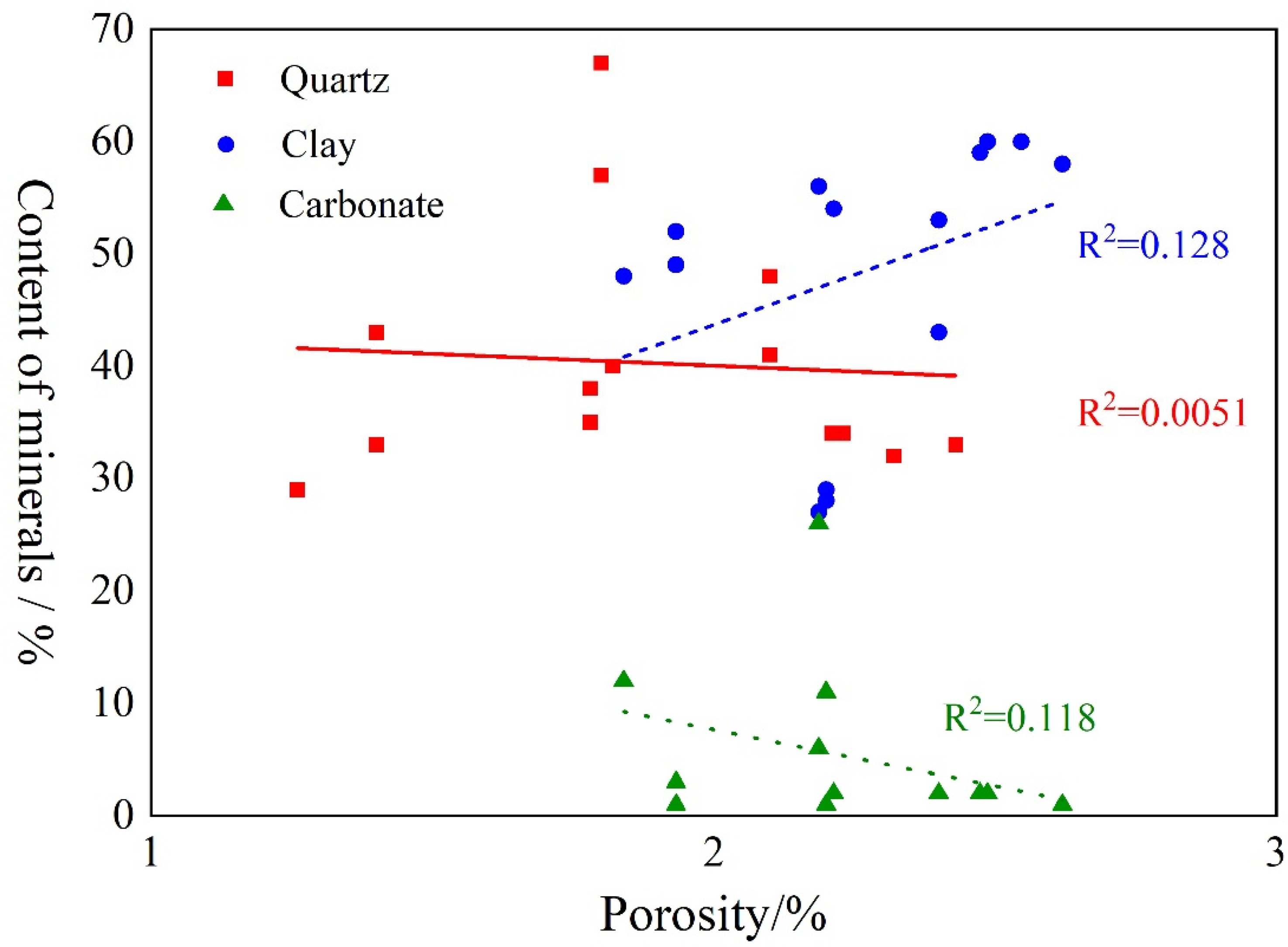

Figure 4.

Relationship between porosity and carbonate, quartz and clay.

In summary, quartz and pyrite were integrated as one endpoint of the triangle method. Carbonate, siderite, and plagioclase were integrated as another endpoint, and clay, porosity, and TOC were placed as the last endpoints of the triangle method (Figure 5). The triangle method was divided into four levels based on the shale composition: strong (I), moderate (II), weak (III), and poor (IV) fracability. Samples with high quartz and pyrite contents have strong fracability. Samples with higher clay content, TOC content and porosity have poor fracability and samples with high carbonate, plagioclase and siderite contents have moderate fracability. To classify the grades of fracability more accurately, we divided each level into four sub-categories; best, better, poor, and worst, which facilitates the comparison of fracability in different samples.

Figure 5.

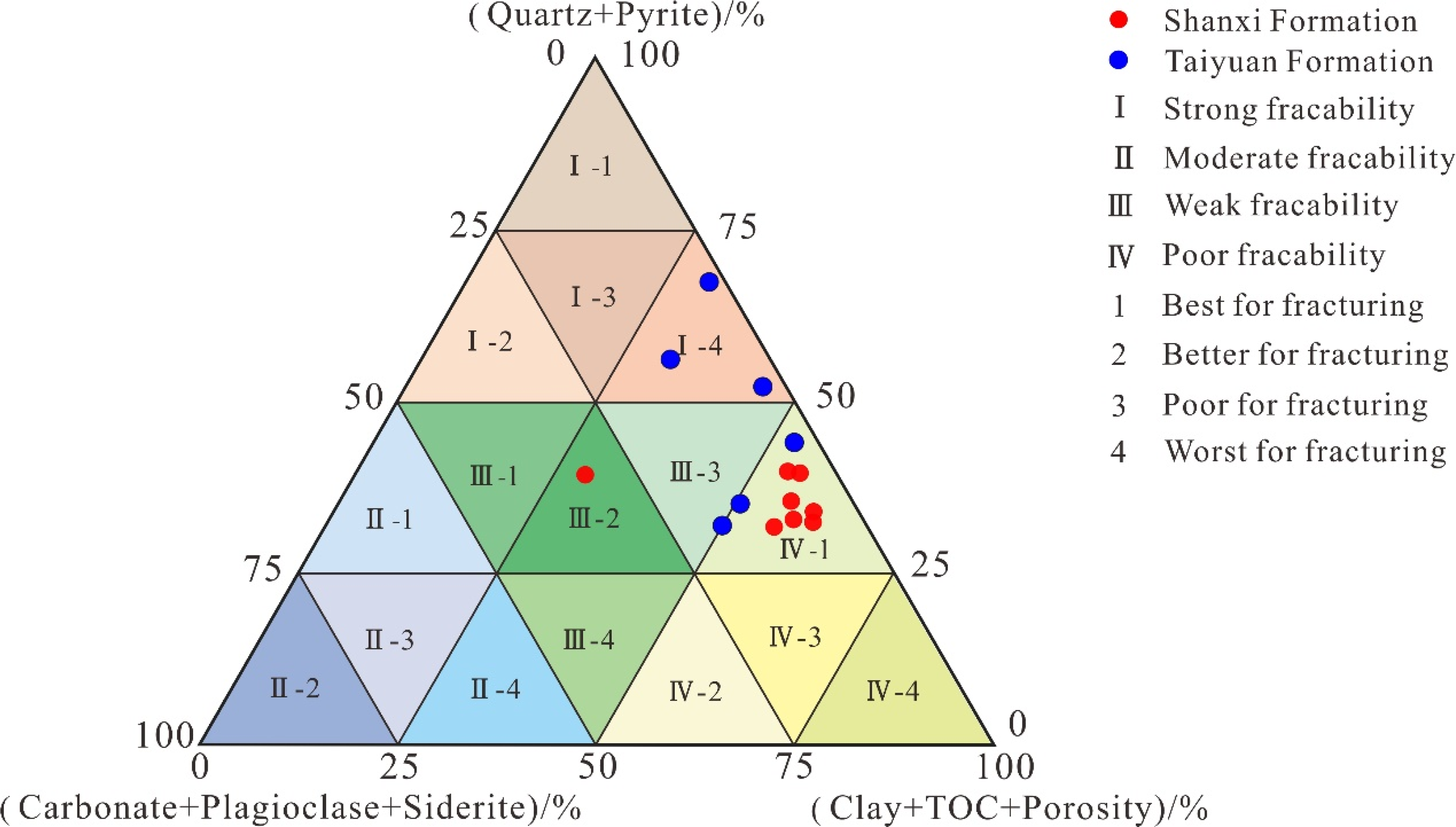

Triangle plot classification for fracability evaluation.

Using the triangle method method to evaluate the fracability of shale samples from SNCB (Figure 5), it is indicated that most shale samples of the Taiyuan Formation have strong fracability and belong to grade I-4, whereas other samples belong to grade IV-1. However, most shale samples of the Shanxi Formation belong to the grade I-4, suggesting the worst fracability, and only one sample belongs to grade III-2. It is suggested that the shales fracability in the Taiyuan Formation is better than that in the Shanxi Formation, which enables complex networks and enhances the effect of reservoir reconstruction.

Main factors controlling fracability evaluation

Organic matter

OM is a typical ductile material with an extremely low Young's modulus (6.2 GPa) (Carmichael, 1989; Huo et al., 2018; Mavko et al., 1998). The SEM images showed some OM filled between the mineral particles in a tortuous shape (Figure 6), revealing excellent ductility, which is not conducive to fracturing and the evaluation of fracability. As shown in Table 1, the TOC content of IV-1 shales of the Shanxi Formation has a large distribution range, ranging from 0.21% to 4.47% (1.89% on average). The average TOC content of IV-1 shales of the Taiyuan Formation is slightly higher than that of others. However, the TOC content in the samples was very low, which contributed less to the fracability evaluation.

Figure 6.

Curved organic matter of sample Z-10 in Taiyuan formation, 1.5k, SE mode (a) and sample Z-6 in Shanxi formation (b), 5k, SE mode.

Minerals

Brittle minerals

As a brittle mineral, quartz has a high Young's modulus and low Poisson's ratio. As shown in Figure 7(a), the quartz content of Z-11, Z-13, and Z-14, which belong to the I-4 grade, was higher than that of samples belonging to grades III-2 and IV-1. The average quartz content of I-4 samples was the highest (mean 57.34%), and it was approximately 1.64 and 1.61 times higher than those of IV-1 shales of the Taiyuan and Shanxi Formation shales, respectively. The difference in the pyrite content was more obvious than that in quartz between I-4, III-2, and IV-1. Six shale samples from the Taiyuan Formation, which belong to grades I-4 or IV-1, had similar pyrite content, with an average of 3.33% and 3%, respectively. However, the average content of pyrite in the I-4 and IV-1 shales of the Taiyuan Formation was 11 times higher than that of IV-1 shales of the Shanxi Formation (Figure 7(b)). Therefore, the brittle mineral contents of I-4 shales were higher than those of III-2 and IV-1 shales. Concerning brittle minerals, the fracability of I-4 shales was better than that of III-2 and IV-1 shales.

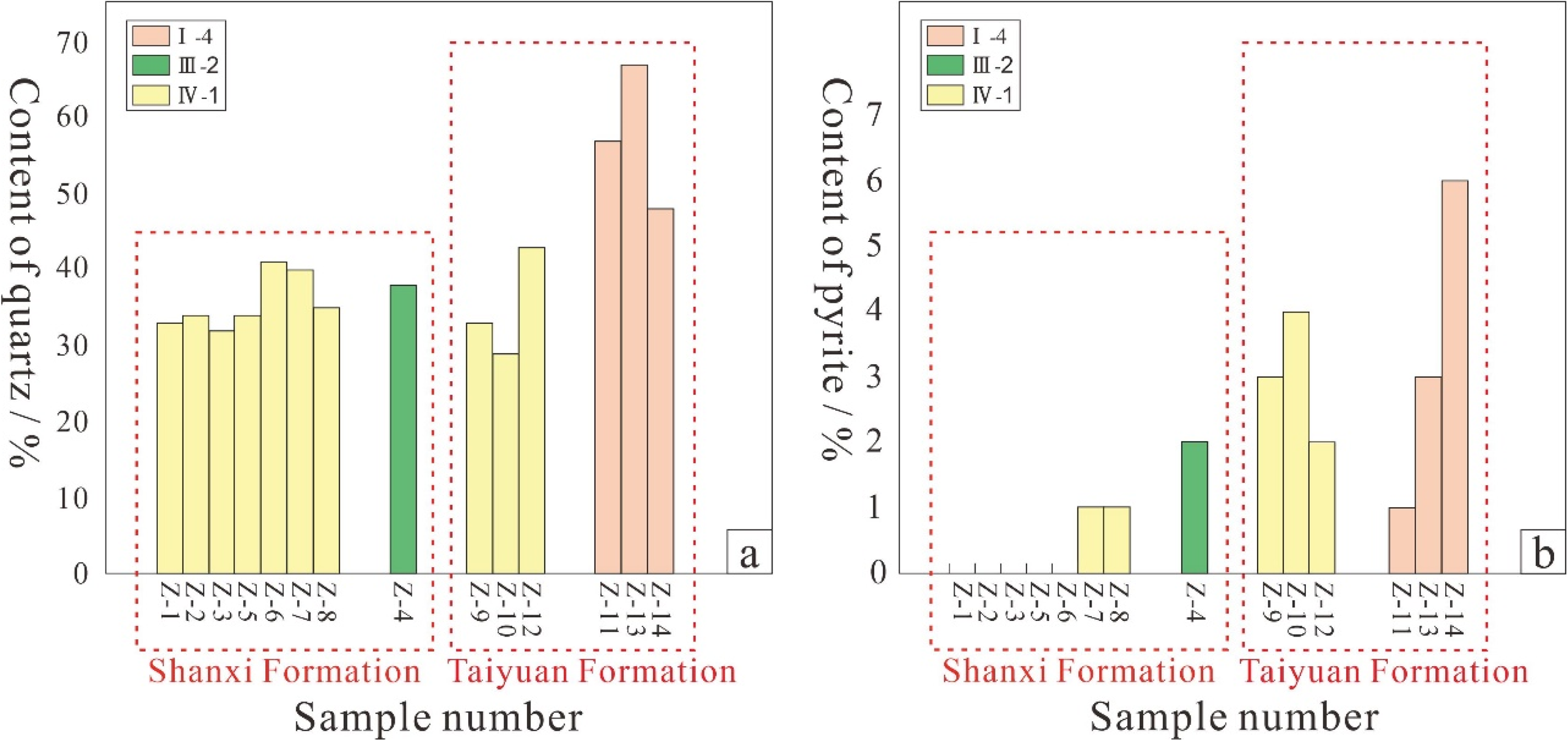

Figure 7.

Content of quartz and pyrite in Taiyuan-Shanxi shale samples. The distribution of quartz content (a) and pyrite content (b).

Non-brittle minerals

Carbonate, siderite, and plagioclase are defined as non-brittle minerals based on the Young's modulus and Poisson's ratio. Although non-brittle minerals contribute less to fracturing than brittle minerals, they can also positively impact fracturing and the fracability evaluation. The carbonate content of III-2 shales was the highest, followed by those of I-4 and IV-1 shales of the Taiyuan Formation; the carbonate content of the IV-1 shales of the Shanxi Formation was the lowest The calcite contents of I-4 shales, IV-1 shales of the Taiyuan Formation, and III-2 shales were higher than that of IV-1 shales of the Shanxi Formation (Figure 7(a)). The dolomite content of the III-2 shale was higher than that of the I-4 and IV-1 shales (Figure 8(b)).

Figure 8.

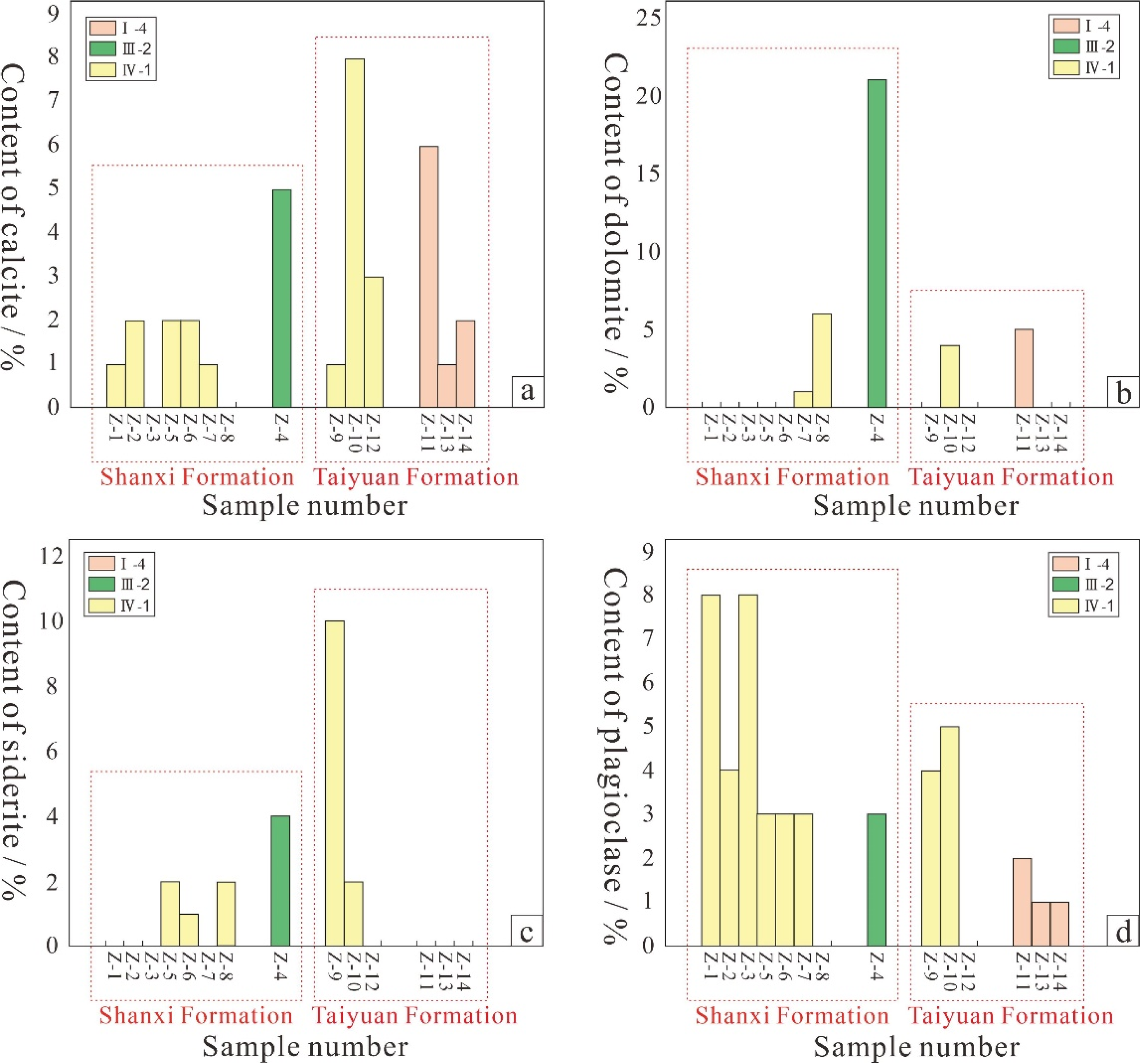

Content of non-brittle minerals in Taiyuan-Shanxi shale samples. The distribution of calcite content (a), dolomite content (b), siderite content(c), and plagioclase content (e).

The distribution of siderite in all shales was consistent with that of carbonate. The siderite content of IV-1 shales of the Taiyuan Formation was the highest; specifically, it was five times higher than that of IV-1 shales of the Shanxi Formation. The I-4 shales either did not contain siderite, or the siderite content was extremely low (Figure 8(c)). However, the plagioclase content showed the opposite trend. The average plagioclase content of IV-1 shales of the Shanxi Formation was the highest, and that of the I-4 shales was the lowest The IV-1 shales of Taiyuan Formation and III-2 shale had a similar plagioclase content, which was lower than that of IV-1 shales (Figure 8(d)).

Ductile minerals

Clay minerals are typical ductile materials with a high Poisson's ratio (0.34) and low Young's modulus (24.1 GPa), showing poor fracturing. The IV-1 shales had the highest clay mineral content, which was far greater than that of the other shales. The IV-1 shales of the Taiyuan Formation had a higher clay mineral content than those of the Shanxi Formation (Figure 9(a)). Clay minerals include illite, kaolinite, chlorite, and I-Sm. I-Sm has a low Young's modulus and high Poisson's ratio, indicating better ductility and poor fracability. I-4, III-2, and IV-1 had a similar I-Sm content, which accounted for the highest proportion of clay minerals (Figure 9(b)). The Young's moduli and Poisson's ratios of kaolinite and illite exhibited the same trends. As shown in Figure 9(c) and (d), the IV-1 shales of the Shanxi Formation and III-2 shale had a higher illite content than that of I-4 and IV-1 shales of the Taiyuan Formation. Also, the average kaolinite content of IV-1 shale of the Taiyuan Formation was the highest, followed by that of I-4 shale; the IV-1 samples of the Shanxi Formation and the III-2 sample had the lowest kaolinite content. Among clay minerals, chlorite has a low Poisson's ratio and high Young's modulus. The III-2 sample had a high chlorite content, followed by that of the IV-1 samples, contributing differently to sample fracturing (Figure 9(e)). The clay mineral content accounts for a large proportion of the shale composition, which can greatly influence the fracability of shale reservoirs. The higher the clay mineral content, the more unfavorable are fracturing and the fracability evaluation.

Figure 9.

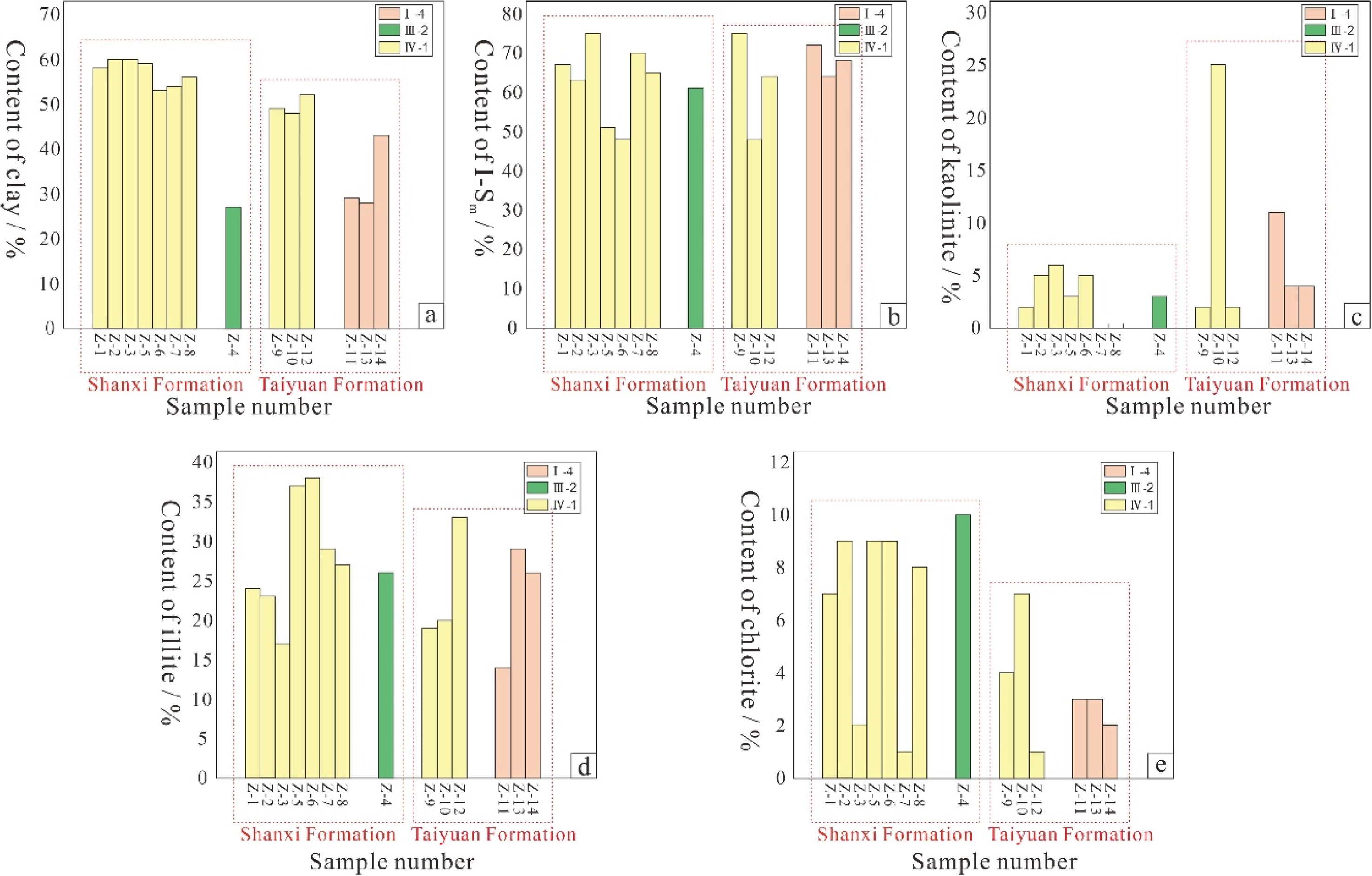

Content of different clay minerals in Taiyuan-Shanxi shale samples. The distribution of total clay content (a), I-Sm content (b), kaolinite content (c), illite content (d), and chlorite content (e).

Pores and fractures

The transitional shale reservoir contains many pores and fractures related to clay. However, when the reservoir is compacted, these pores and fractures are squeezed and gradually closed, which is not conducive to fracturing and fracability.

Types of pores

As mentioned in Section ‘Composition characteristics’, the pore types of all transitional shales include organic pores, inorganic pores, and natural fractures. Many intragranular pores and shrinkage fractures of clay develop in transitional shales (Figures 2(a), Figure 10).

Figure 10.

Se images of shrinkage fractures and pores of the clay in Taiyuan-Shanxi samples. (a) Shrinkage fractures in clay minerals, Z-3, 10k, SE mode, Shanxi Formation; (b) Shrinkage fractures in clay minerals, Z-5, 10k, SE mode, Shanxi Formation; (c) Along with bedding shrinkage fractures of shales, Z-9, 20k, SE mode, Taiyuan Foramtion; (d) Intragranular pores and shrinkage fractures in clay minerals, Z-6, 5k, SE mode, Shanxi Formation.

Furthermore, many intragranular and shrinkage fractures of clay and OM were developed in the IV-1 shales, and a few OM pores developed in all types of shales (Figures 2(a), 3, and 9), which indicated the negative effect on shale fracability. In addition, a few intergranular pores of quartz (Figure 2(c)), intragranular pores of pyrite (Figure 2(b)), and dissolved pores of calcite (Figure 2(d)) were developed, which positively affect shale fracability to a certain extent. As mentioned in Section ‘Evaluation of triangle method’, clay is the major contributor to porosity, and its content is high; therefore, the weak effect of pores and fractures of quartz on the fracability of transitional shale can be ignored.

Porosity

The intergranular pores and intercrystalline cracks of clay and intercrystalline pores of pyrite were the main contributors to porosity. When the reservoir is squeezed by compaction, ductile minerals, such as clay, deform, and related pores and fractures are closed; this reduces the effect of reconstruction during fracturing. The average porosities of I-4 shales, IV-1 shales of the Shanxi Formation, and III-2 shales were similar at 1.9%, 2.12%, and 1.78%, respectively. The IV-1 shale of the Taiyuan Formation had a lower porosity of 1.35% (Figure 11). The difference in the porosity of all samples was small, which implied that the porosity of transitional shales is not a major factor in the evaluation of fracability.

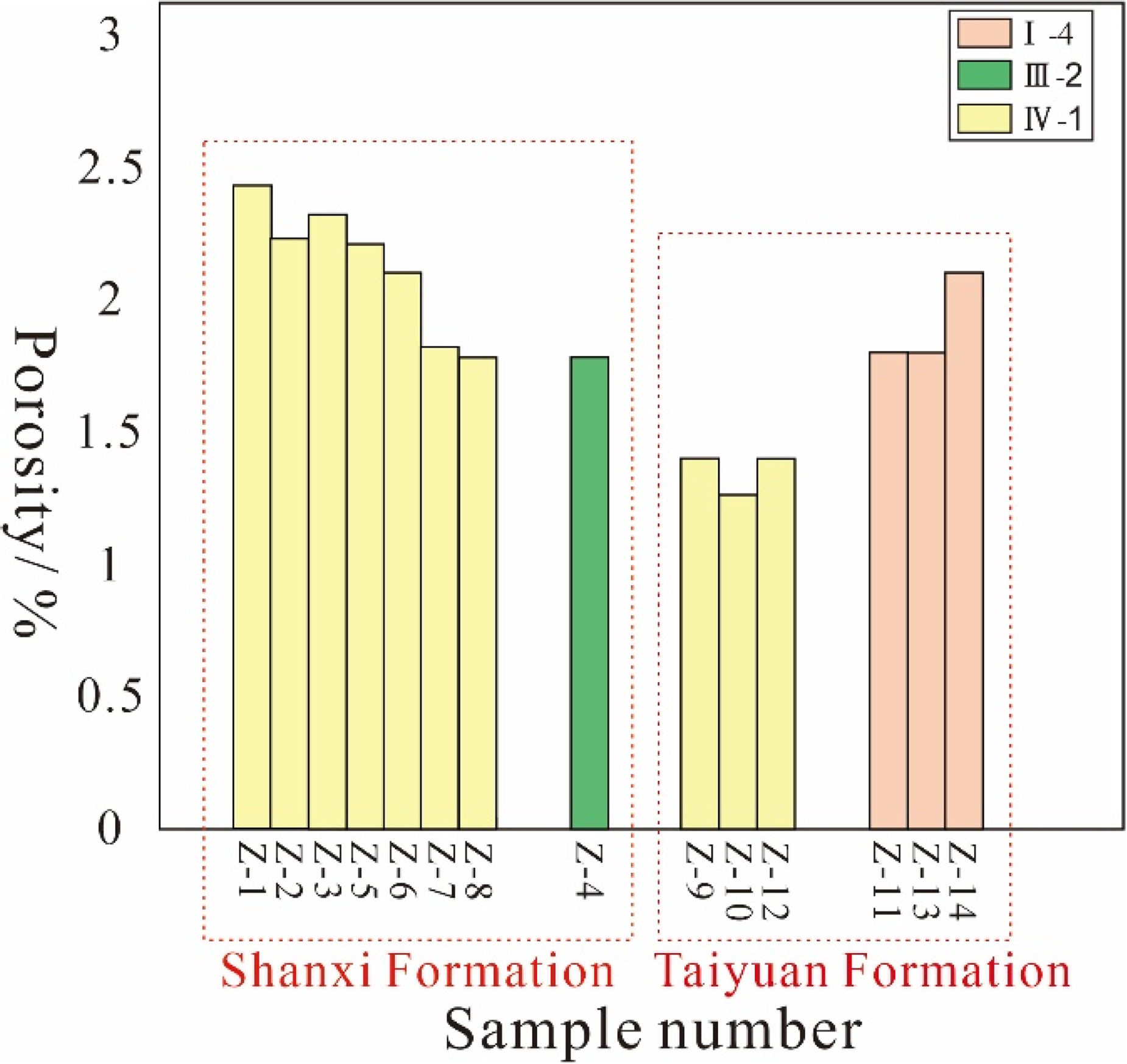

Figure 11.

Porosity distribution of Taiyuan-Shanxi shales.

Young's modulus and Poisson's ratio

The Young's modulus and Poisson's ratio can reflect the mechanical properties of the shales, which can be used to evaluate fracability. The Young's modulus and Poisson's ratio of all I-4 shales of the Taiyuan Formation were greater than 35 GPa and lower than 0.16, respectively (Figure 12), which indicated ‘better’ fracability. However, the IV-1 shales of the Shanxi Formation showed the opposite trend, with the lowest average Young's modulus (29.23 GPa) and the highest Poisson's ratio (0.17), showing the worst fracability. IV-1 shales of Taiyuan Formation and III-2 shales had a moderate Young's modulus and Poisson's ratio, showing moderate fracability.

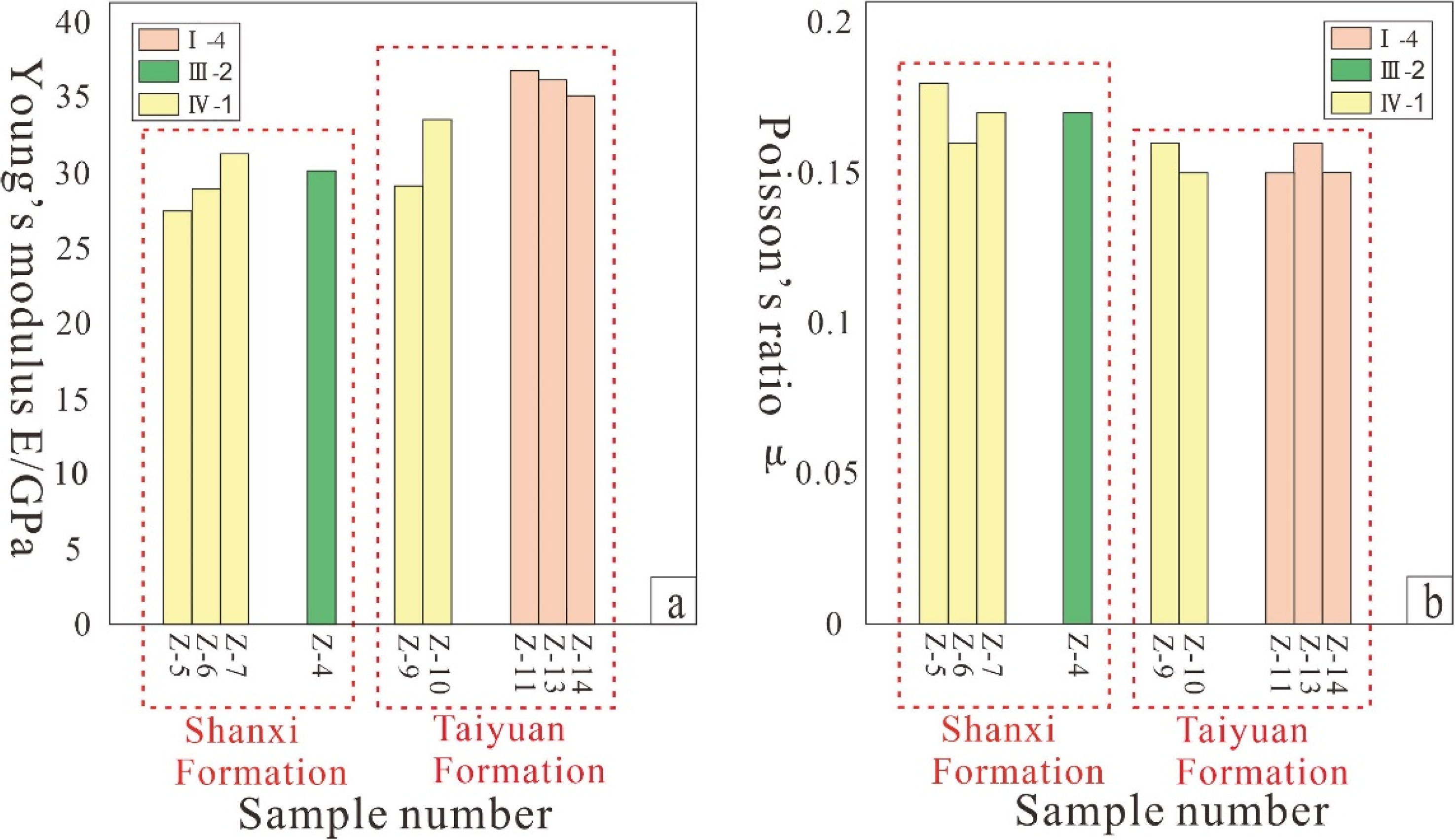

Figure 12.

Young's modulus (a) and Poisson's ratio (b) of Taiyuan-Shanxi shale samples.

The Young's modulus of shales from the Taiyuan Formation (35.14–36.83 GPa) was greater than that of the Shanxi Formation (27.5–33.58 GPa). However, the Poisson's ratio of the Taiyuan Formation shales ranged from 0.15 to 0.16, which was lower than that of the Shanxi Formation (0.16–0.18).

Fracability evaluation of transitional shale

Fracability evaluation of transitional shale by the triangle method

The IV-1 included shale of the Taiyuan and Shanxi Formations (Figure 5). Sample Z12, which was collected from the Taiyuan Formation, had the highest quartz and pyrite contents in IV-1 and lower clay content, TOC content, and porosity than other shales collected from the Shanxi Formation, showing ‘better’ fracability. The Z9 and Z10 samples collected from the Taiyuan Formation had a similar quartz content with that of most IV-1 samples collected from the Shanxi Formation; however, they had a lower clay content, TOC content, and porosity and higher carbonate, plagioclase, and siderite contents than most IV-1 samples collected from the Shanxi Formation. Meanwhile, all I-4 shales were collected from the Taiyuan Formation. Therefore, based on the triangle method, the fracability of the Taiyuan Formation was better than that of the Shanxi Formation.

Quartz and clay are the main components of shale (Table 1), and they significantly affected fracability. Quartz, a brittle mineral, can improve fracability, whereas clay, which is a ductile mineral, negatively affects it. As shown in Figure 13(a), the shales of the Taiyuan Formation had the highest quartz content and the lowest clay content, and they showed the best fracability. However, the shales of the Shanxi Formation showed the opposite trend with poor fracability. After normalizing the illite, kaolinite, chlorite, and I-Sm contents, we found that the contents of I-Sm and illite of the Shanxi Formation were higher than those of the Taiyuan Formation. I-Sm and illite are typical ductile minerals and are moderately present in shale; thus, they have a negligible effect on fracability evaluation.

Figure 13.

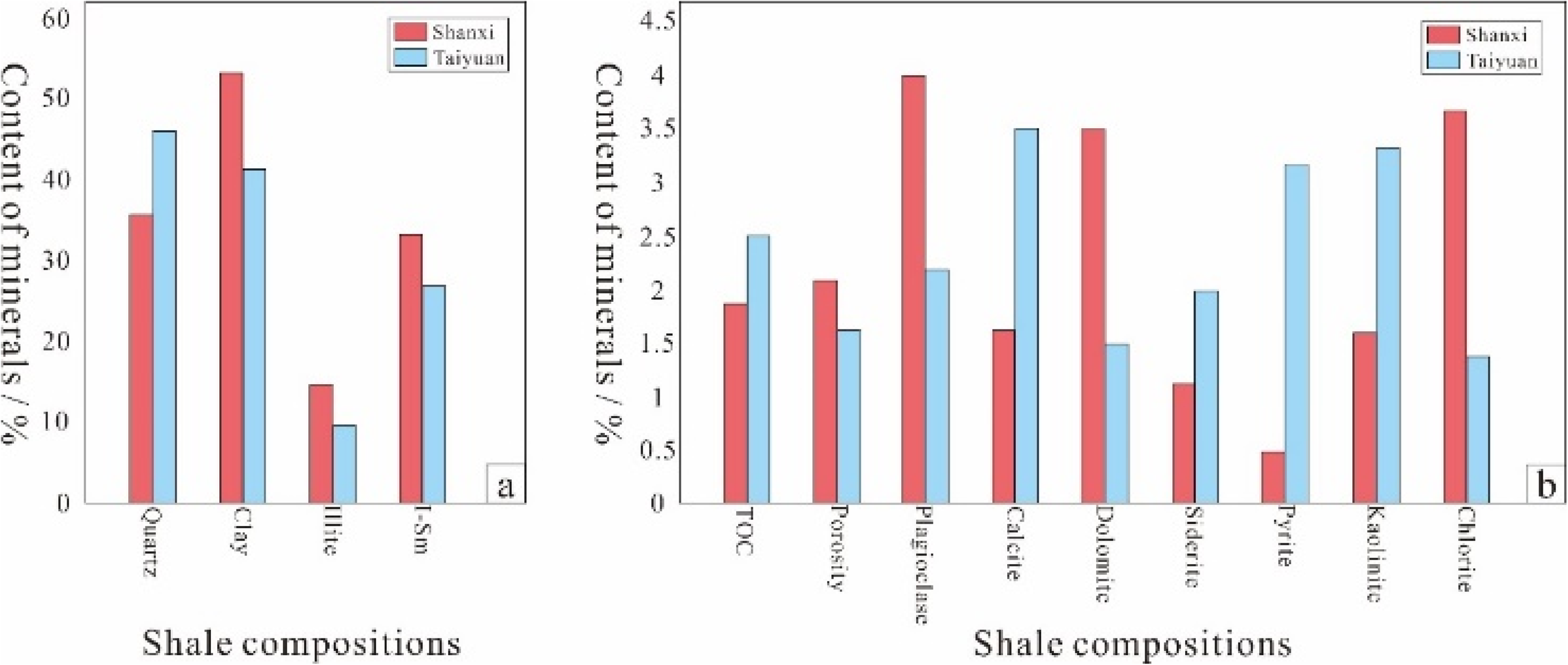

Compositions of Taiyuan-Shanxi shale samples. (a) The content of quartz, clay, illite and I-Sm; (b) The content of plagioclase, calcite, dolomite, siderite, pyrite, kaolinite and chlorite, and TOC and porosity.

The other components of shale do not contribute significantly to reservoir fracability, but they can still affect the fracability evaluation. The contents of calcite, siderite, and pyrite in the shale of the Taiyuan Formation were higher than those of the Shanxi Formation. Calcite and siderite are non-brittle minerals, whereas pyrite is brittle. The pyrite content of the Taiyuan Formation shale was six times that of the Shanxi Formation shale, which made the Taiyuan Formation shale more fracable. The TOC and kaolinite contents of the Taiyuan Formation shale were slightly higher than those of the Shanxi Formation shale; however, the content and difference were small, and the impact can be ignored. The dolomite and plagioclase contents and porosity of the Shanxi Formation were slightly higher than those of the Taiyuan Formation shale (Figure 13(b)). Because clay has a greater influence on the fracability evaluation, the fracability of the Shanxi Formation shale was poorer than that of the Taiyuan Formation shale, which is mainly influenced by the quartz and clay contents.

Comparison with the conventional method

There is no unified standard method for the evaluation of shale brittleness; the BI is used to evaluate shale brittleness and fracability based on the mineral composition or mechanical parameters. The BI can usually be calculated using the Young's modulus and Poisson's ratio, brittle mineral content, and mechanical properties of different minerals and their mineral content. Three methods were used to calculate the BIs of all samples. The BIs of the Taiyuan Formation samples were mostly greater than those of the Shanxi Formation (Table 3). Rickman et al. (2008) stated that the critical value of the BI for evaluating the fracability of samples is 0.4. When the BI is greater than 0.4, the sample is conducive to fracturing and forming a complex network, which has better fracability. Meanwhile, if the BI of the sample is greater than 0.6, there is higher brittleness and the best fracability. The BI of the Taiyuan Formation shales was mostly higher than 0.4 and even higher than 0.6 in some samples; however, the BI of most samples of the Shanxi Formation was lower than 0.4. Therefore, the shale fracability of the Taiyuan Formation was better than that of the Shanxi Formation.

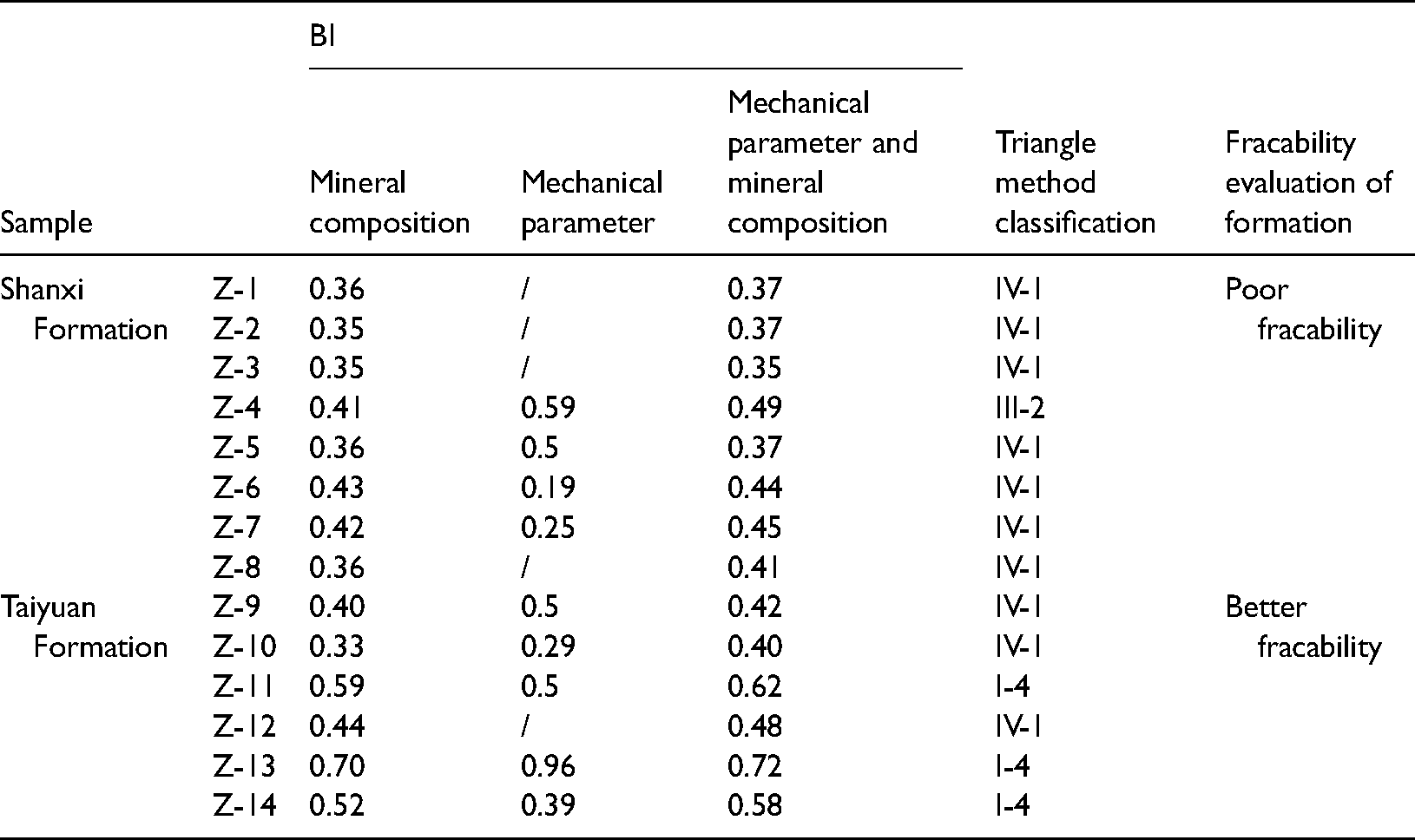

Table 3.

The BI and fracability evaluation results of Taiyuan-Shanxi shales based on the different methods.

Sample		BI			Triangle method classification	Fracability evaluation of formation
Sample		Mineral composition	Mechanical parameter	Mechanical parameter and mineral composition	Triangle method classification	Fracability evaluation of formation
Shanxi Formation	Z-1	0.36	/	0.37	IV-1	Poor fracability
	Z-2	0.35	/	0.37	IV-1
	Z-3	0.35	/	0.35	IV-1
	Z-4	0.41	0.59	0.49	III-2
	Z-5	0.36	0.5	0.37	IV-1
	Z-6	0.43	0.19	0.44	IV-1
	Z-7	0.42	0.25	0.45	IV-1
	Z-8	0.36	/	0.41	IV-1
Taiyuan Formation	Z-9	0.40	0.5	0.42	IV-1	Better fracability
	Z-10	0.33	0.29	0.40	IV-1
	Z-11	0.59	0.5	0.62	I-4
	Z-12	0.44	/	0.48	IV-1
	Z-13	0.70	0.96	0.72	I-4
	Z-14	0.52	0.39	0.58	I-4

According to the above analysis, the fracability evaluation results of the triangle and conventional methods are consistent (Table 3), which proves the accuracy and reliability of the triangle method. Furthermore, the triangle method is simpler and more reasonable and effective than the conventional evaluation methods. The fracability of different samples and the difference in fracability between samples can be shown intuitively. The triangle method divides the fracability evaluation grades of shales more specifically, which enhances the accuracy and reliability of the fracability evaluation and provides theoretical support for reservoir reconstruction. In the future, it would be valuable to examine rock brittleness and fracability in other areas.

Conclusion

We established a novel triangle method for evaluating fracability. The shale composition was separated into best fracability and mechanically strong (quartz + pyrite), moderate fracability (carbonate + plagioclase + siderite), and poor fracability (clay + TOC + porosity). Mineral data are given in vol% and normalized to 100 vol%, considering the TOC content and porosity of the shale samples.

The triangle method was divided into four fracability evaluation grades: strong (I), moderate (II), weak (III), and poor (IV) fracability. Each fracability evaluation grade was evenly divided into four secondary evaluation grades: best (1), better (2), poor (3), and worst (4) for fracturing.

The triangle method for evaluating fracability is simpler and more reasonable and effective than the conventional method. The fracability of different samples and the difference in fracability between samples can be shown intuitively. In addition, the triangle method divides the fracability evaluation grades of shales more specifically, which enhances the accuracy and reliability of the evaluation and provides theoretical support for reservoir reconstruction.

The fracability of shales collected in the Taiyuan Formation from the SNCB was greater than that of the shales collected in the Shanxi Formation, which indicates that the Taiyuan Formation is more conducive to fracturing, forming a complex network, and enhancing the effect of reservoir reconstruction.

Highlights

A novel triangle method was established to evaluate the shale fracability.

2.The triangle method was divided into four fracability evaluation grades: strong (I), moderate (II), weak (III), and poor (IV) fracability.

Each fracability evaluation grade was evenly divided into four secondary evaluation grades: best (1), better (2), poor (3), and worst (4) for fracturing.

The triangle method for evaluating fracability is simpler and more reasonable and effective than the conventional method
