Abstract

A new method is proposed based on temperature-controlled self-reaction to generate and release inhibitors in the form of foam at a specific temperature, which can overcome the disadvantages of short effective time and low efficiency in the inhibition of the spontaneous combustion of coal when inhibitors are released in advance, and greatly increase the action range of inhibitor through foam diffusion. The proposed temperature-controlled foaming system was prepared with hollow spheres as solution carriers, NaHCO₃ and acetic acid as basic reactants, reaction-generated CO₂ as foaming gas, sodium dodecyl sulfate and sodium carboxymethyl cellulose as foaming additives, NaCl, MgCl₂ and CaCl₂ as additives to enhance inhibition effect, and temperature sensitive paraffin as insulating material to generate and release inhibitor foam. The effects of releasing foam on restraining the spontaneous combustion of coal were studied based on the experimental analysis of the optimum ratio of reactants and additives, hollow sphere parameters, released temperature of the foam and variation rule of CO generated by coal oxidation. The obtained results showed that the released temperature of foam was 59–61°C and the covered area of pulverized coal by inhibitor foam was 12.9–13.9 times higher than when it was directly wetted by inhibitor solution. The total effects of inhibition and inerting were achieved after pulverized coal was wetted with inhibitor foam and the efficiency of restraining the spontaneous combustion of coal reached 88.51–97.06% when temperature was increased to 160°C.

Keywords

Coal spontaneous combustion inhibitor chemical reaction controlled release foam

Introduction

In major coal producing countries, such as China, the United States, Australia and India, coal fire disasters are very common and are considered as a global disaster problem (Havva, 2007; James et al., 2009; Kong et al., 2017; Mohalik et al., 2017; Parsa et al., 2017; Wang et al., 2018; Yang and Qiu, 2019). More than 95% of Chinese collieries perform underground coal mining, in which fire accidents due to spontaneous coal combustion account for more than 90% of the total number of mine fires (Deng et al., 2008; Fan et al., 2020, 2019). Especially, certain amounts of coal are left in goafs after mining as broken accumulations. Due to air leakage and oxygen supplement, slow oxidation and spontaneous combustion of coal can take place in goafs generating toxic gases which diffuse to working faces and seriously threaten the health of workers (Chu et al., 2017; Taraba and Zdeněk, 2011; Yuan and Smith, 2008). If coal contains high amounts of pyrite, it is more prone to spontaneous combustion (Yang et al., 2019).

Restraining the spontaneous combustion of coal with inhibitors is one of the common fire prevention methods. According to the inhibition mechanism of spontaneous coal combustion, inhibitors can be divided into two groups of physical and chemical inhibitors (Li et al., 2012a). Physical inhibitors are mostly water-absorbing salts such as CaCl₂, MgCl₂ and NaCl (Ma et al., 2015; Wang et al., 2015; Xiao et al., 2017). On the other hand, chemical inhibitors, such as antioxidant and ionic liquids, can react with active molecules and free radicals generated by coal at low temperatures, thus interrupting free radical reaction chain of oxidized coal (Li et al., 2017, 2018; Wang et al., 2014). Due to the low cost, high availability and simple operation process of physical inhibitors, they are much more commonly applied in collieries than chemical inhibitors. Many research works have been conducted on the inhibition mechanism of physical inhibitors and their effects on restraining coal oxidation. Smith et al. (1988) evaluated the performance of ten inhibitors in the inhibition of the spontaneous combustion of bituminous coal and found that NaNO₃, NaCl and CaCO₃ were the most effective inhibitors, followed by NH₄H₂PO₄, CaCl₂, NH₄Cl, NaAc and KCl, while HCOONa and H₃PO₄ enhanced spontaneous coal combustion. Zhan et al. (2011) found that Na₃PO₄ improved the thermal stability of coal and effectively inhibited the generation of free radicals. Watanabe and Zhang (2001) experimentally studied seven inhibitors and found that NaCl, CaCl₂ and Mg(Ac)₂ inhibited the low-temperature oxidation reactions of coal while Ca(Ac)₂ was only slightly effective. Václav and Taraba (2012) carried out thermoanalytical studies on the influence of CaCl₂ and urea on coal oxidation and concluded that both inhibitors decreased oxidation heat at 100–250°C. Gao et al. (2012) showed that NaHCO₃, KHCO₃ and NH₄HCO₃ had good resistance to spontaneous coal combustions.

In the early stages of inhibitory action on coal, inhibitors play an important role in restraining spontaneous coal combustion. However, they have a certain effective resistance duration. With the loss of water, their inhibition efficiency is greatly decreased (Li et al., 2012b). In maintaining the high efficiency of inhibiting spontaneous coal combustion, the application of temperature sensitive materials as coating to allow the release of inhibitors at a specific temperature was investigated (Cui et al., 2017; Li et al., 2016a; Ma et al., 2016, 2017; Qi et al., 2016). However, they did not consider the effect of diffusion and action range of inhibitors, and it was found that the covered area of coal was extremely limited after solid or liquid inhibitors were released. The uncoated coal was still normally oxidized.

To solve the above-mentioned problems, a new method has been proposed in this paper for the spontaneous release of inhibitor solutions in the form of foam at a specific temperature through temperature-controlled self-reaction. Using hollow spheres as inhibitor solution carriers, foaming and stabilizing agents were added into the solution and the inert gas needed for foaming was generated by self-reaction. The effects of reactant concentration, temperature and halogenated salt additives on the foaming and stabilizing properties of the foam were evaluated through the chemical reactions of foaming. The optimum values of volume and placement angle of hollow spheres were determined by the release efficiency of inhibitor foam. Through temperature programmed experiments, the efficiency of inhibitor foam on restraining spontaneous coal combustion was found to be higher than unfoamed inhibitors.

Materials and methods

Experimental materials

Experimental coal samples were collected from Tashan colliery, Datong, China. Table 1 lists the proximate analysis of coal. The collected coal samples were ground and sieved to particle size of 0.18–0.38 mm and were kept under an inert atmosphere.

Table 1.

Proximate analysis (air-dried basis) of the coal sample.

Moisture content (wt%)	Ash content (wt%)	Volatile matter (wt%)	Fixed carbon (wt%)
1.51	22.56	35.82	40.11

NaHCO₃ and acetic acid (HAc) were selected as basic reactants. The chemical equation of the reaction of NaHCO₃ and HAc is shown in equation (1). Both NaAc and H₂O in the reaction products could be used for the inhibition of spontaneous coal combustion. In addition to being used as foaming gas, CO₂ also effectively inerted the atmosphere. The reaction was endothermic, avoiding the traditional exothermic reaction of carbonate and acid which promoted coal oxidation.

{NaHCO}_{3} + HAc = NaAc + {CO}_{2} ↑ + H_{2} O (heat absorption)

(1)

Polytetrafluoroethylene (PTFE) hollow spheres were used as solution carrier and circular paraffin slice was used to isolate the two reactants inside hollow spheres (Figure 1). 52# paraffin wax with melting point 52°C was used in all experiments. The diameter of circular paraffin slice was equal to that of hollow spheres and its thickness was 1.5 mm. Paraffin slice was melted at a certain temperature causing the contact and reaction of NaHCO₃ and HAc. Then, a large amount of CO₂ was generated and hollow spheres were split under high pressure, releasing the inhibitor. The wall thickness of hollow spheres was 2 mm and they were split into hemispheres A and B from the middle. Hemisphere B was used to hold HAc solution and cement paraffin slice. The cementation surface of hemisphere B was engraved with argyle to increase the cementing stability of paraffin slice. Hemisphere A was used to hold NaHCO₃ solution and merged into the whole hollow sphere with hemisphere B. The interface of hemispheres was sealed with polyvinyl alcohol (PVAL) liquid adhesive.

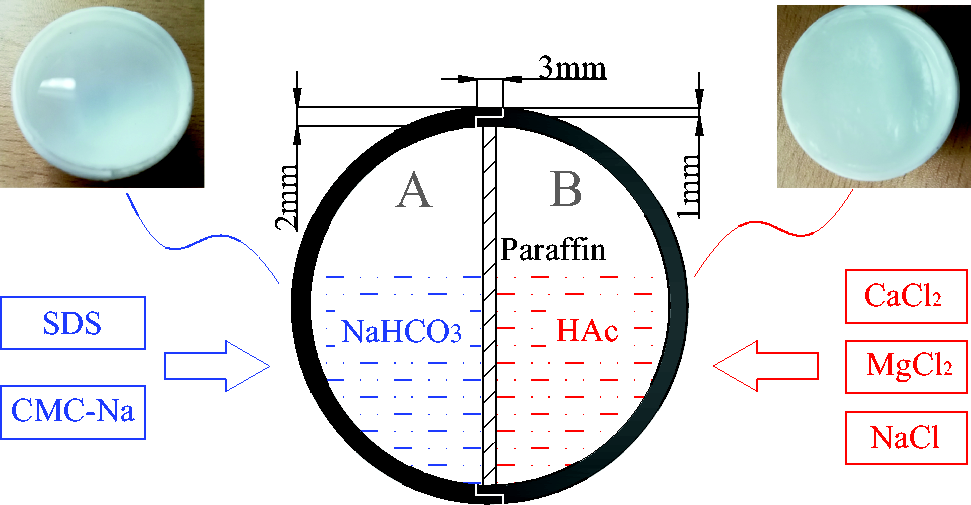

Figure 1.

Temperature-controlled inhibitor forming system.

Different additives were added into the solutions of NaHCO₃ and HAc to achieve the desirable foaming reaction and improve inhibition efficiency. 0.6% sodium dodecyl sulfate (SDS) as foaming agent and 0.5% sodium carboxymethyl cellulose (CMC-Na) as foam stabilizing agent were added into NaHCO₃ solution (Liu et al., 2009). NaCl, MgCl₂ and CaCl₂ as inhibitors were added into HAc solution.

Experimental system

Measuring cylinders of 5, 50, and 250 ml were used to measure the volumes of solutions and foams generated by their reaction. The half-life of foam was the main indicator for the evaluation of foam stability, which was measured by stopwatch. An electronic scale was used to measure the masses of the additives added into the solution. Thermostatic water bath was used to heat the solution to specific temperatures to evaluate the effect of temperature on foam stability. In a round glass petri dish with diameter 150 mm and height 33 mm, pulverized coal with thickness 10 mm was uniformly dispersed to measure the diffusion and wetting area of foam after it was released. The following two experimental tests were also conducted:

Test system for the inhibition efficiency of foam

The experimental system used for the evaluation of the inhibition effect of foam on spontaneous coal combustion is shown in Figure 2. 100 g pulverized coal was put into cylindrical reaction vessel with diameter × height of 100 × 100 mm and the vessel was placed in a temperature programmed chamber. Hollow spheres filled with reaction solution were placed on a wire mesh with hole diameter of 10 mm above the pulverized coal. Air flow of 100 ml/min was supplied from an external air system to the bottom of reaction vessel through preheating tube. The gas discharged from reaction vessel flowed into gas detection system equipped with O₂, CO₂ and CO sensors and detection signals were transmitted to PC. Temperature probes were set inside temperature programmed chamber and pulverized coal. The temperature signal collector was connected to PC and values were recorded in real time. Once the inhibitor foam was released at the specific temperature, CO₂ was discharged from reaction vessel due to the continuous supplement of air and the inhibitory effect of foam on the oxidation of pulverized coal was measured.

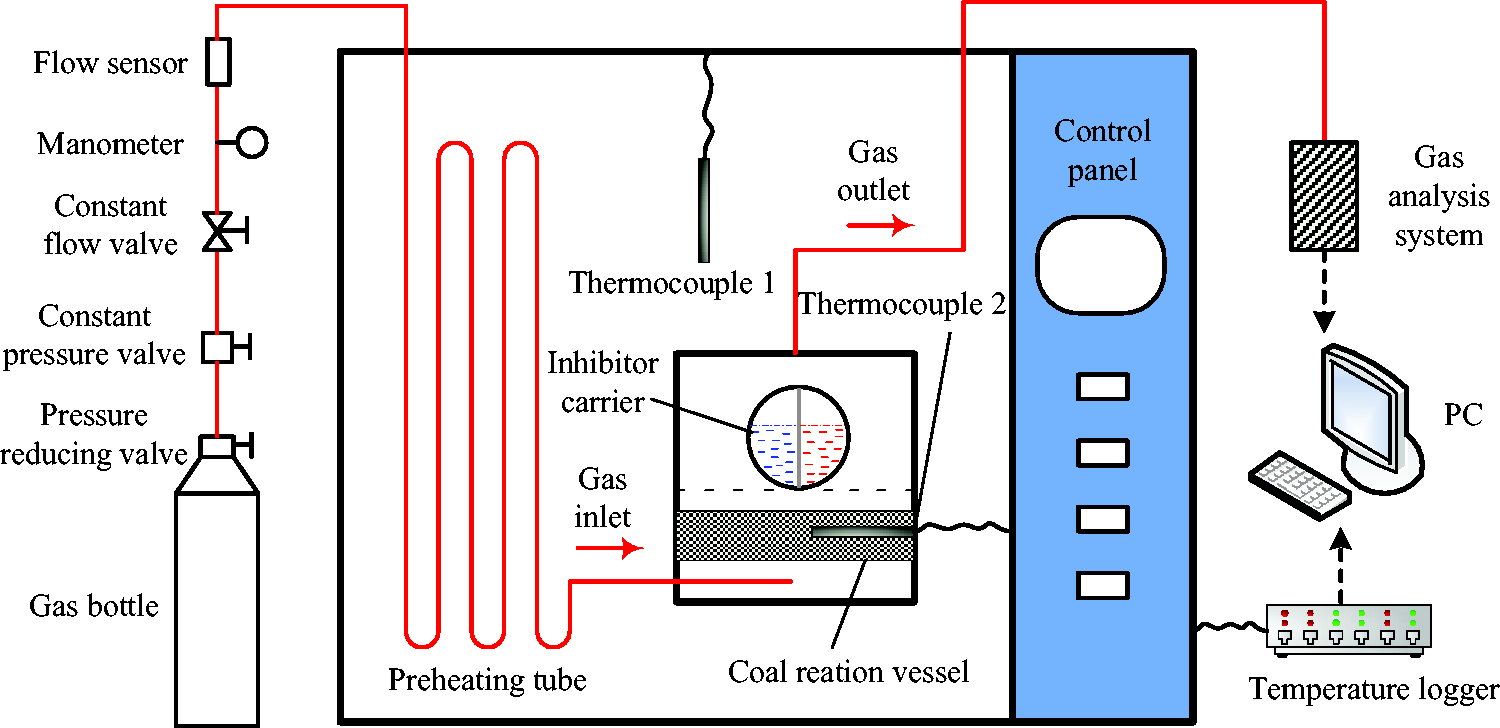

Figure 2.

Test system for inhibition effect of foam.

Test system for inhibition and inerting efficiency of foam

The experimental system shown in Figure 2 was modified to a closed circulation system and used for the evaluation of the comprehensive inhibition and inerting effects of foam on coal oxidation (Figure 3). External air supply system was eliminated and air supply tube was connected to a miniature air pump. The gas discharged from the reaction vessel was pressurized by a miniature air pump and injected into preheating tube and then, it was fed into the reaction vessel again. After the release of inhibitor foam at the specific temperature, CO₂ was not expelled, but inerted the air inside the reaction vessel.

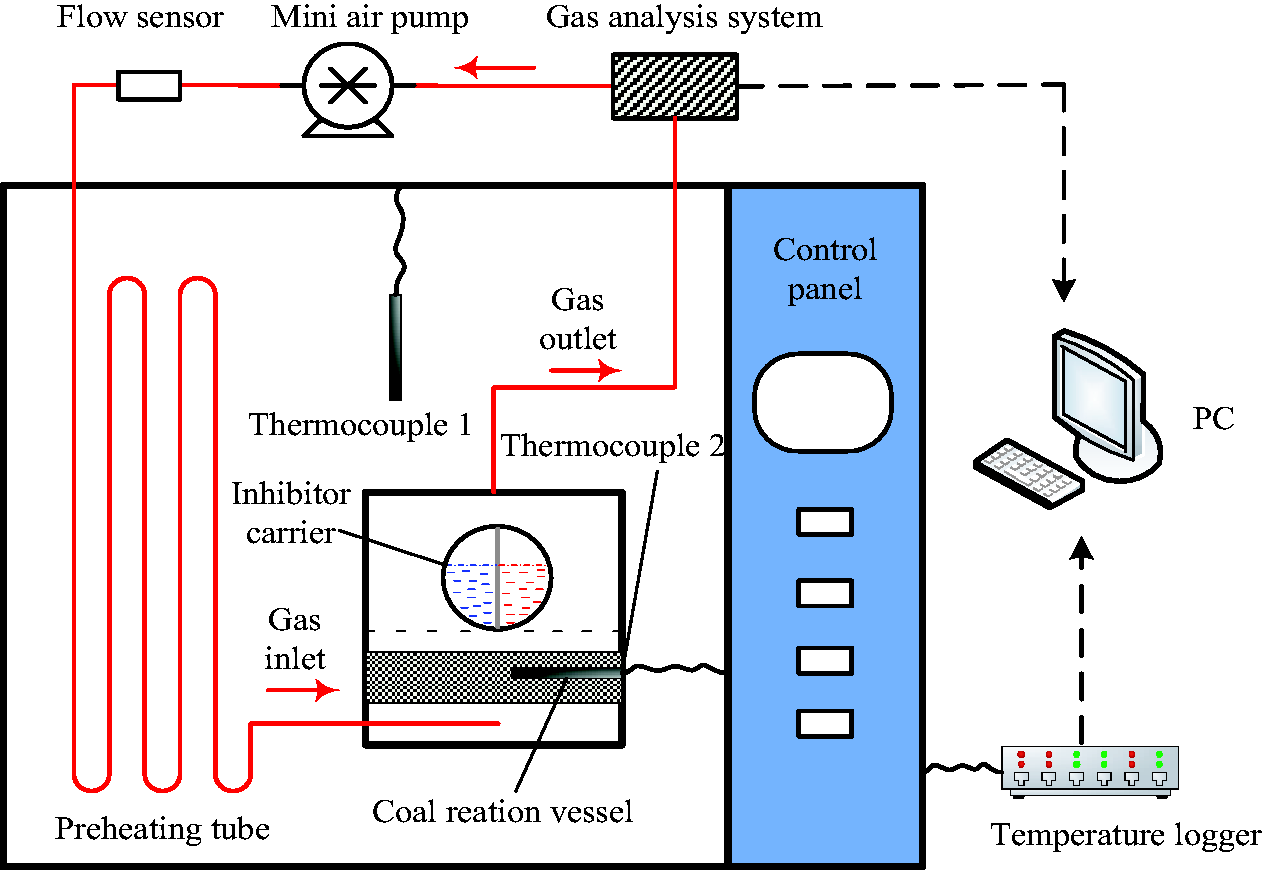

Figure 3.

Test system for inhibition and inerting effects of foam.

Experimental methods

Experiment on the foaming and foam stability of the reaction system

Both NaHCO₃ and HAc solutions of 10 ml were used. NaHCO₃ solutions of 1 to 12% were prepared at the interval of 1% and the concentrations of HAc solution fully reacted with NaHCO₃ were 0.72–9.8%. After the addition of SDS and CMC-Na into NaHCO₃ solution, the mixture was mixed with HAc in a 250 ml measuring cylinder. The test was repeated three times and the change rule of volume and half-life of foam were evaluated to determine the optimum reactant concentrations.

NaCl, MgCl₂ and CaCl₂ powders of 0.1–1.5 g were added into HAc solution. The NaHCO₃ reaction test was repeated three times and the effects of halogenated salts on the volume and half-life of foam were investigated to determine the optimum masses of additives.

Measuring cylinders containing NaHCO₃ (with SDS and CMC-Na) and HAc (with or without NaCl, MgCl₂ and CaCl₂) solutions were placed in thermostatic water bath in the temperature range of 20 to 70°C. The temperature interval was 5°C and the solutions were heated for 5 minutes. The reactions were carried out with three replications in constant temperature chamber at temperatures set according to that of the solution. The influence of temperature on the volume and half-life of foam were analyzed to determine the allowable upper temperature limit.

Experiment of the effects of hollow sphere parameters on foam release

Hollow spheres of 24.4, 28.7, 36.1, 44.6 and 50.9 ml with diameters 40, 42, 45, 48 and 50 mm, respectively, were used in experiments. Hollow spheres filled with 20 ml reaction solution were placed at the center of a pulverized coal sample in a glass petri dish and heated in the temperature programmed chamber at the rate of 1°C/min. The temperature at which hollow spheres released the inhibitor foam was recorded. The wetted area of pulverized coal was measured after three repeated tests to determine foam diffusion.

In the system shown in Figure 3, the concentration of CO₂ released from hollow spheres was measured to calculate the ratio of solution reactions using equation (2).

R = \frac{C_{1}}{C_{0}}

(2)

where R is reaction ratio (%), C₁ is the measured concentration of CO₂ (%), and C₀ is the concentration of CO₂ when the reactants were completely reacted (%).

From experiments (a) and (b), hollow spheres with optimum diameter were selected as reaction solution carrier.

c. Another major factor affecting foam release is the angle at which hollow spheres are placed. When paraffin slice was placed along horizontal direction (hemisphere A at the top and hemisphere B at the bottom), the angle was considered to be 0°. The spheres were rotated by 15° until the angle reached 180° (hemisphere A at the bottom and hemisphere B at the top). Through temperature programmed experiments, the volumes of residual solution in hemispheres A and B were measured using a 5 ml high-precision measuring cylinder after the release of foam. Based on residual solution volume, the release ratios of foam at different placement angles of hollow spheres were calculated using equation (3) to determine the optimum angle.

S = \frac{W_{0} - W_{1}}{W_{0}}

(3)

where S is the release ratio of inhibitor foam (%), W₁ is the volume of residual solution (ml), and W₀ is the volume of reaction solution which was 20 ml in this work.

Experiment on restraining spontaneous coal combustion by inhibitor foam

Temperature-programmed experiments were carried out by the system shown in Figure 2 to study the change of temperature increase rate of pulverized coal. CO, which was generated by raw coal and coal covered with inhibitor foam, was used as an index gas and its concentration was monitored. The inhibition efficiency of foam on coal oxidation was calculated based on equation (4).

Z = \frac{X_{0} - X_{1}}{X_{0}}

(4)

where Z is the inhibition efficiency of foam (%), X₁ is the concentration of CO generated by the coal which was covered by inhibitor foam (ppm), and X₀ is the concentration of CO generated by raw coal (ppm).

b. In the experimental system shown in Figure 3, changes of the concentrations of O₂ and CO₂ in reaction vessel were recorded before and after the release of foam. The concentration changes of the CO generated by raw coal and coal covered with inhibitor foam were compared to evaluate the comprehensive inhibition and inerting effects of foam on coal oxidation.

Results and discussion

Foaming reaction and foam stability

Foaming properties of reactants at different concentrations

When 10 ml NaHCO₃ and 10 ml HAc solutions were directly mixed, they violently reacted and a large volume of CO₂ was generated. NaAc solution of 20 ml was formed and the volume of solution was not significantly changed during the whole reaction process (Figure 4(a)). The addition of SDS into NaHCO₃ solution significantly enhanced the foaming capacity of the reaction but it was immediately decreased after reaching the highest point (Figure 4(b) and (c)). As an anionic surfactant with excellent performance, SDS effectively reduced the surface tension of the liquid and created a double electron layer on liquid film surface to surround CO₂ gas (Li et al., 2016b). Bubbles were finally formed and joined together creating foam. However, the formation of foam was unstable. It had a decay process due to liquid film drainage and gas diffusion. Therefore, it was necessary to add a stabilizing agent to slow foam decay. CMC-Na is a typical thickener which can effectively improve the intensity of liquid film and slow down drainage time. Moreover, CMC-Na is resistant to high temperatures and preserves its high viscosity after heating to 150°C (Wang and Du, 2008).

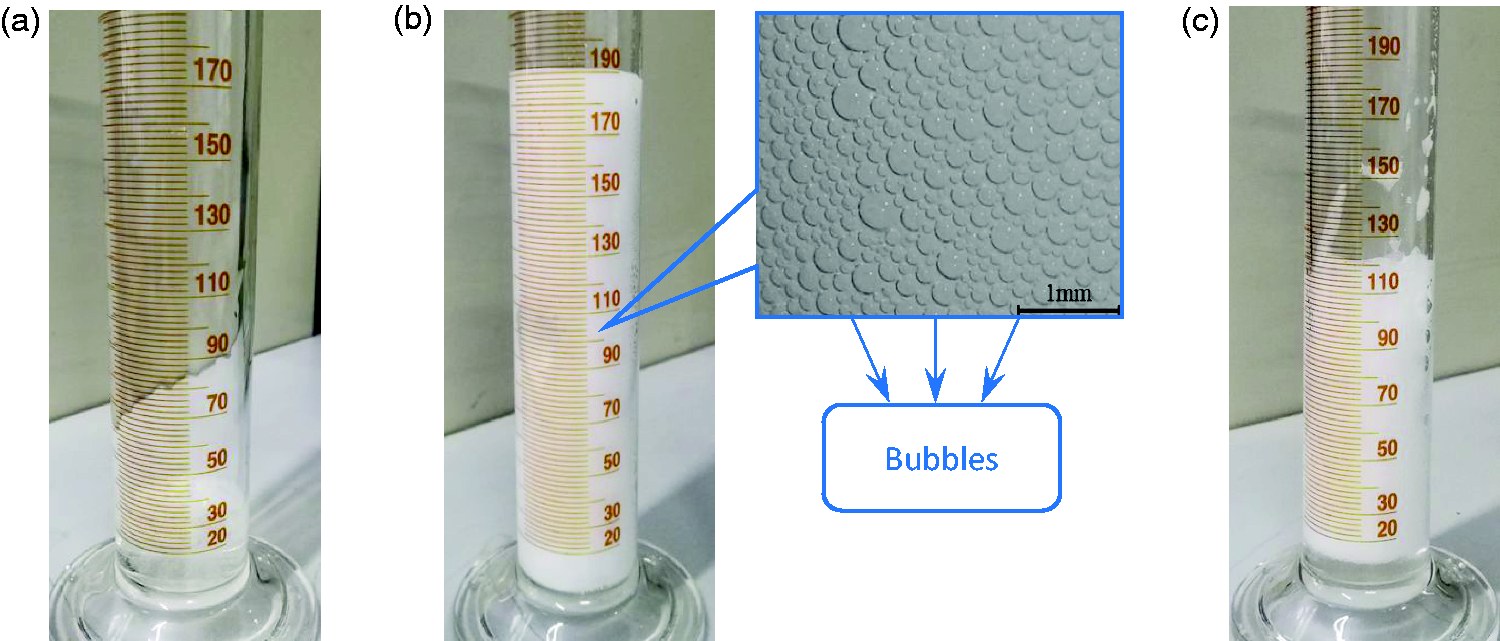

Figure 4.

(a) Non-foaming; (b) complete foaming; (c) defoaming.

Figure 5 shows the foaming effects of reaction with HAc solution after the addition of 0.6% SDS and 0.5% CMC-Na into NaHCO₃ solution. At NaHCO₃ concentrations of below 4%, the amount of CO₂ generated by the reaction was not high enough to completely foam 20 ml of solution. At the concentration of 4%, the solution reached fully foaming state with the CO₂ volume of 111.2 ml, foam volume of 78 ml and the foaming multiple of 3.9. Moreover, the generated foam had a good compactness and its half-life reached 39 seconds. As the concentration was gradually increased from 4% to 12%, the amount of the CO₂ generated by the reaction was increased from 111.2 to 363 ml, leading to the continuous increase of foam volume with maximum value of 206 ml. However, foam half-life was first increased and then decreased. At the concentration of 8%, the maximum foam half-life of 95 seconds and foam volume of 166 ml were obtained with bubbles of uniform sizes and the highest stability. By increasing concentration from 9% and 10%, foam volume was also increased but its half-life was slightly decreased. By further increase of concentration from 11% and 12%, foam half-life was significantly and rapidly decreased to 65 seconds. During foaming process, some large bubbles were created and foam uniformity was decreased. The main reason for this was the very high volume of CO₂, which increased gas diffusion ability through foam liquid film and decreased foam stability. Considering foam volume and half-life as well as the amount of CO₂ generated by the reaction, 10% NaHCO₃ was chosen as the optimum concentration. Also, the optimum volumes of foam and CO₂, half-life of foam, and concentration of NaAc were 190 ml, 294.2 ml, 92 seconds and 5.3%, respectively.

Figure 5.

Effects of different NaHCO₃ concentrations on foaming and foam stability.

Effects of adding halogenated salts on foaming and foam stability

The volume of foam generated by the reaction was less affected by NaCl, MgCl₂ and CaCl₂ and the main effective factor on the volume of foam was the amount of CO₂, but the stability of foam was significantly fluctuated by increasing the mass of additives, as shown in Figure 6. Low amounts of halogenated salts, especially NaCl and CaCl₂, promoted foam stability. By increasing the amount of these additives from 0.1 to 0.4 g, foam half-life was increased from 91 and 89 seconds to 124 and 122 seconds, respectively. The reason for this observation was that, the addition of inorganic salts compressed the double electric layer of bubbles and increased electrostatic repulsion between bubbles. The merging of bubbles was restrained and their size was reduced (Shen, 2018). As the amount of the additives was further increased, salting-out effect on the foam was witnessed continuously decreasing foam half-life. NaCl was the most effective additive, followed by CaCl₂ and MgCl₂. In order to ensure stable diffusion time of foam, half-life of 50 seconds was taken as the lower limit index (considering subsequent effects of temperature) and the optimal masses of NaCl, MgCl₂ and CaCl₂ added into NaHCO₃ solution were found to be 0.9, 1.1 and 1.4 g, respectively. After mixed reaction of the solutions, the concentrations of the above halogenated salts were 4.1, 5.0 and 6.2%, respectively.

Figure 6.

Effects of adding halogenated salts on foam stability.

Effects of temperature on foaming and foam stability

The volume of foam was not significantly changed at different temperatures and the main factor affecting foam volume was still the amount of CO₂. However, foam half-life continued to sharply decrease, as shown in Figure 7.

Figure 7.

Effects of temperature on foam stability.

At temperatures of above 30°C, foam half-life began to rapidly decrease and reached 14 seconds at 70°C. By adding NaCl, MgCl₂ and CaCl₂, foam stabilization times became even shorter with foam half-life decreasing to 7, 6 and 10 seconds, respectively, at 70°C. This indicated that, temperature was the main factor affecting foam stability, except the salting-out effect of halogenated salts. By increasing temperature, the thermal motion of molecules was intensified and the interaction between the hydrophilic groups of surfactants were weakened decreasing liquid film intensity which made it difficult for the foam to remain stable for a long time. Half-life of 10 seconds was taken as the lower limit index to ensure the stable diffusion time of foam. The upper temperature limit was set at 70°C in the absence of halogenated salts and the corresponding values were changed to 65, 65 and 70°C after the addition of NaCl, MgCl₂ and CaCl₂ into the reaction mixture, respectively. Therefore, 52# paraffin wax with melting point 52°C was reasonably selected as the temperature-sensitive insulating material inside hollow spheres.

Release and diffusion of foam from hollow spheres

Effect of the volume of hollow spheres on foam release and diffusion

The critical temperature of foams released from hollow spheres was in the range of 58–59°C. Figure 8 shows the wetted area of pulverized coal. The wetted regions were roughly circular with the areas of 50.2, 75.4, 98.5, 98.5 and 102.1 cm² for hollow spheres with diameters 40, 42, 45, 48 and 50 mm, respectively. Compared with the area of 7.1 cm² when 20 ml solution wetted pulverized coal directly, increase multiples were 7.1, 10.6, 13.9, 13.9 and 14.4, respectively. Therefore, foam diffusion effect was very remarkable.

Figure 8.

Coverage area of foam released by hollow spheres.

The concentrations of CO₂ released by hollow spheres with different diameters were evaluated in the system shown in Figure 3. CO₂ concentration was recorded every 5 seconds from 58°C and the obtained results are shown in Figure 9. The time nodes of releasing CO₂ from hollow spheres were slightly delayed with the increase of sphere diameter and concentration change trend was transformed from sudden surge to slow increase, which was stabilized after 25–30 seconds. This indicated that a part of CO₂ was wrapped in the foam in the early stage of foam release and was completely released in 25–30 seconds time range. Then, foam was disappeared and coal body was wetted. If the mixture of NaHCO₃ and HAc reached the state of complete reaction, the theoretical volume of CO₂ would be 294.2 ml and the concentration of CO₂ in the reaction vessel would be C₀ = 29.40%. The actual measured concentrations C₁ of CO₂ released from hollow spheres with diameters 40, 42, 45, 48 and 50 mm were 15.01, 20.71, 27.30, 27.69 and 28.17%, respectively. From equation (2), the reaction ratios R of solutions in hollow spheres were 51.1, 70.4, 92.9, 94.2 and 95.8%, respectively.

Figure 9.

Concentration change of CO₂ released by hollow spheres.

The obtained results showed that reactants were released before adequately reacting inside hollow spheres with diameters 40 and 42 mm, which led to lower reaction ratios and wetting areas of pulverized coal. Therefore, hollow spheres with diameter 45 mm were selected as the optimum solution carriers due to their proper volume, large coverage areas and high reaction ratios. At this time, solution occupied 55.4% of the space volume and the remaining 44.6% was used as reaction foaming space.

Effect of the placement angle of hollow spheres on foam release

Figure 10 shows the residual volumes of solution in hemispheres A and B after foam release from hollow spheres placed with different angles. At 0° angle, residual solution was mainly in the lower hemisphere B with volume W₁ of 1.6 ml. According to equation (3), the release ratio S of foam was calculated to be 92%. With the increase of angle, the volume of residual solution was decreased. At 90° angle, W₁ was decreased to a minimum value of 0.2 ml and the release ratio of foam was increased to the maximum value of 99%. By further increase of angle, the volume of residual solution maintained its increasing trend. At 180° angle, the residual solution was mainly located in the lower hemisphere A with volume W₁ increasing to 1.5 ml and the release ratio S of foam decreasing to 92.5%. This demonstrated that, the release ratio of foam was maximum when the paraffin slice inside the hollow spheres was in vertical state. All experiments carried out in this paper were performed at 90° placement angle of hollow spheres.

Figure 10.

Foam release at different placement angles of hollow spheres.

Effect of halogenated salts on foam release

After the addition of halogenated salts into the solution, the release temperature of foam was slightly increased as shown in Table 2. The main reason was that, the addition of halogenated salts reduced the thermal conductivity of the solution, which delayed the melting of paraffin and further increased foam release temperature maximum by 2°C. At the same time, foam stability was reduced due to the salting-out action of halogenated salts, leading to a slight decrease in the area of wetted coal by foam. However, it was still 12.9 times larger than the area of coal directly wetted by 20 ml solution.

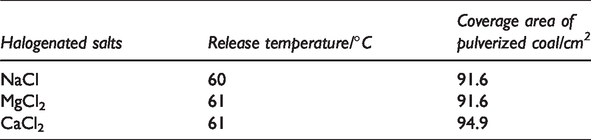

Table 2.

Release parameters of foam under the action of halogenated salts.

Halogenated salts	Release temperature/°C	Coverage area of pulverized coal/cm²
NaCl	60	91.6
MgCl₂	61	91.6
CaCl₂	61	94.9

Restraining effect of spontaneous coal combustion

Inhibition effect of foam on spontaneous coal combustion

Figure 11 shows the temperature changes of pulverized coal during temperature programmed process. The temperature of raw coal was always lower than ambient temperature in the chamber until it reached crossing point temperature (CPT), which was 152°C. The average temperature increase rate of coal was only 0.67°C/min before 70°C, which was lower than the programmed temperature increase rate of 1°C/min. However, temperature increase rate of coal was basically consistent with the programmed temperature increase rate from 70 to 110°C. Above 110°C, coal temperature was rapidly increased with the rate of 1.52°C/min until 152°C. This indicated that, when coal temperature reached 110°C, it began to enter the stage of intense oxidation where the processes of coal oxidation and self-heating were accelerated. After the pulverized coal was wetted by the foam released from hollow spheres at the specific temperature, the thermal conductivity of coal was increased and its temperature was slightly higher than that of raw coal before 100°C. However, the rate of temperature increase was slowed down after 100°C due to the inhibition effects on coal oxidation and continuous water evaporation. Coal CPT never appeared within the programmed temperature up to 160°C. The highest temperature of the coal wetted by pure foam and foam containing NaCl, MgCl₂, CaCl₂ were 140.1, 130.2, 125.4 and 122.2°C, respectively. The obtained results showed that temperature and temperature increase rate of coal wetted by inhibitor foam were effectively reduced.

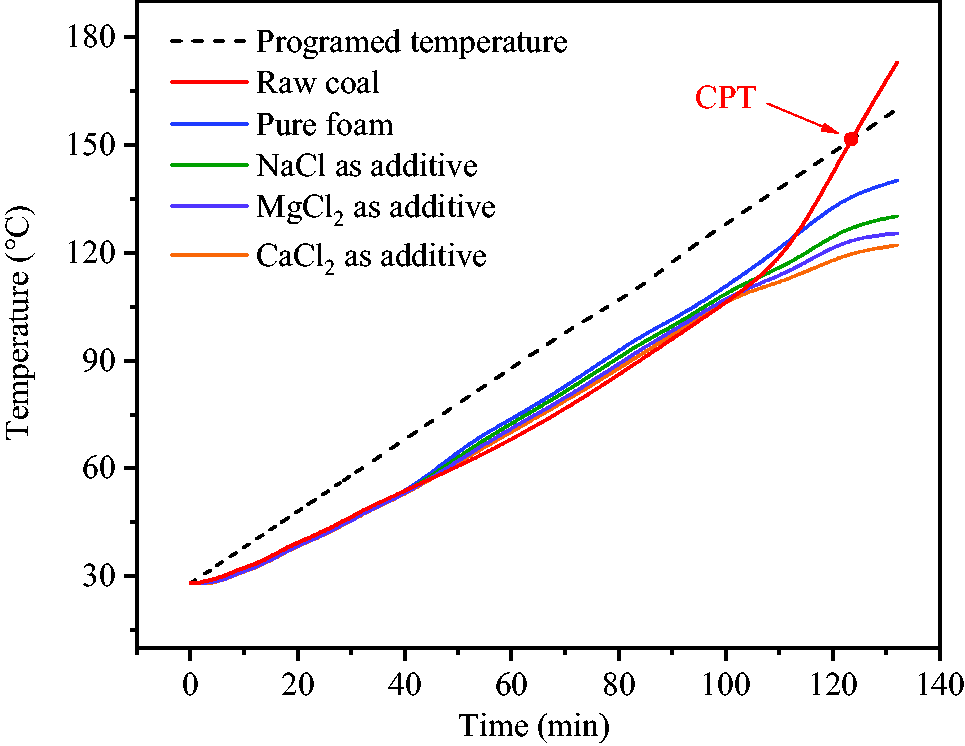

Figure 11.

Temperature variations of coal during temperature programmed process.

Figure 12 shows the concentration change of CO generated by coal oxidation. At the programed temperature of 90°C, the concentration of CO generated by raw coal began to steadily increase from 24 ppm and rapidly increased from 281 ppm to 1480 ppm by increasing temperature from 130°C to 160°C. Although NaAc solution could be released to wet coal body at 59°C without needing SDS and CMC-Na in hollow spheres, the coverage area of coal was very limited under this condition, such that the concentration of CO generated by coal oxidation was only slightly lower than that due to raw coal oxidation. After the addition of SDS and CMC-Na, NaAc was released in the form of foam which could completely cover and wet the coal body. The concentration of CO was very low at temperatures below 100°C. Above 120°C, however, there was a significant release of CO at the concentration of 43 ppm and the highest value was 490 ppm which was achieved when the programed temperature reached 160°C. The obtained results showed that inhibition effect was greatly increased by releasing inhibitor solution in the form of foam. After the addition of halogenated salts, the inhibitory efficiency of foam was further increased. Due to different inhibition abilities of NaCl, MgCl₂, and CaCl₂ and their different added mass, 6.2% CaCl₂ in the foam had the strongest effect in inhibiting coal oxidation, followed by 5.0% MgCl₂ and 4.1% NaCl.

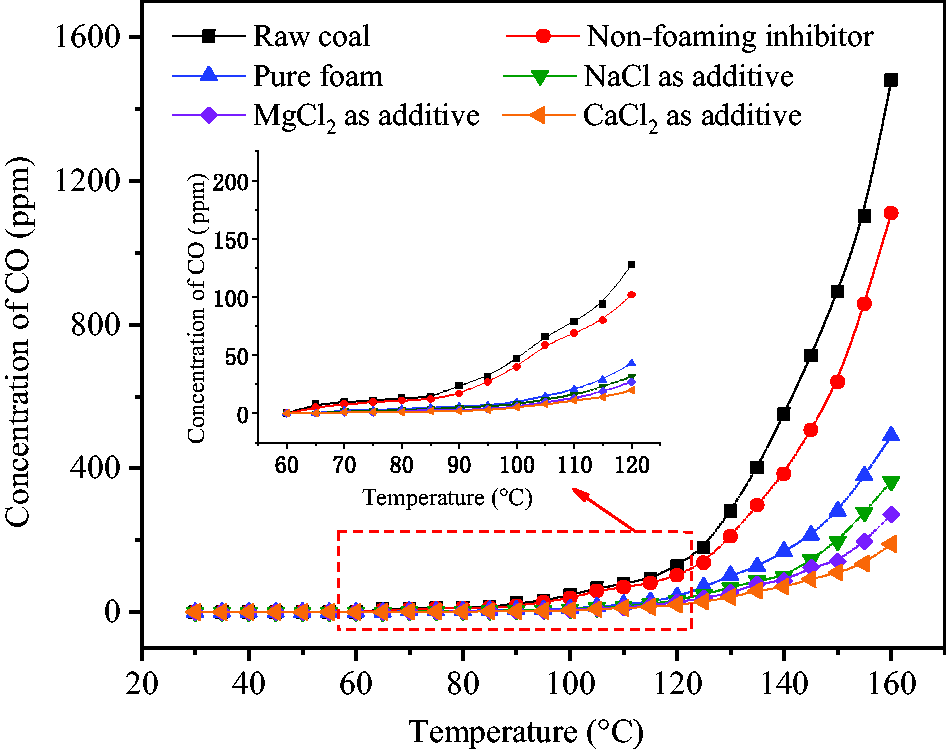

Figure 12.

Concentration variations of CO generated by coal oxidation.

The highest inhibition efficiencies Z were calculated by equation (4) to be 91.6% for CaCl₂, 87.5% for MgCl₂, 82.9% for NaCl and 78.7% for NaAc alone when the programed temperature reached 90–100°C. At this time, the temperature of pulverized coal reached 70–85°C which was at the key point of the early stage of oxidation. Temperature-controlled foam release can accurately inhibit coal oxidation, which is difficult to achieve by the traditional method of wetting coal by inhibitor solution in advance. With continuous temperature increase and water evaporation, inhibition efficiency was slightly decreased and coal began to resume oxidation. Based on the concentration of CO generated by wetted coal at 160°C and comparing with the temperature at which the same concentration of CO was generated by raw coal, it was found that coal oxidation was postponed by 35°C (CaCl₂ as additive), 31°C (MgCl₂ as additive), 27°C (NaCl as additive) and 22°C (NaAc alone).

Inhibition and inerting effects of foam on spontaneous coal combustion

Figures 13 and 14 show the concentration changes of CO₂ and O₂ in the reaction vessel after foam release. CO₂ was released at 59°C from hollow spheres without SDS and CMC-Na. Due to uneven gas distribution in reaction vessel, the initial release concentration of CO₂ was slightly higher with the value of 29.1%. After 20 seconds, the final stable concentration was 27.25% and the corresponding concentration of O₂ was reduced from 20.6 to 14.8%. When inhibitor was released in the form of foam, the concentration of CO₂ was suddenly increased to 16.51–16.84%, and then to 27.1–27.3% since a part of the gas was wrapped in foam and slowly released. The corresponding concentration of O₂ was decreased and stabilized at 14.8–14.85%. This indicated that the release of foam effectively reduced the concentration of O₂ in the reaction vessel and played an inerting role in air.

Figure 13.

Concentration variations of CO₂ in reaction vessel.

Figure 14.

Concentration variations of O₂ in reaction vessel.

Figure 15 shows the concentration change of CO generated by coal oxidation due to the inhibition and inerting effects of foam. Raw coal was partially wetted by inhibitor foam in the absence of SDS and CMC-Na in the solution of hollow spheres, but the release of CO₂ effectively inerted the air which led to the concentration of CO generated by coal oxidation to be significantly lower than that of the mere action of inhibition. With the addition of SDS and CMC-Na, inhibitor solution was released in the form of foam. Due to the joint inhibition and inerting actions of foam, only low amounts of CO were generated at temperatures below 130°C and it showed a slow increasing trend with the increase of temperature. According to equation (4), at 160°C, the inhibitory effect of foam on coal oxidation was 97.06% (CaCl₂ as additive), 95.46% (MgCl₂ as additive), 92.06% (NaCl as additive) and 88.51% (NaAc alone). Therefore, under the combined action of inhibition and inerting, the restraining effect of foam on coal oxidation was more significant.

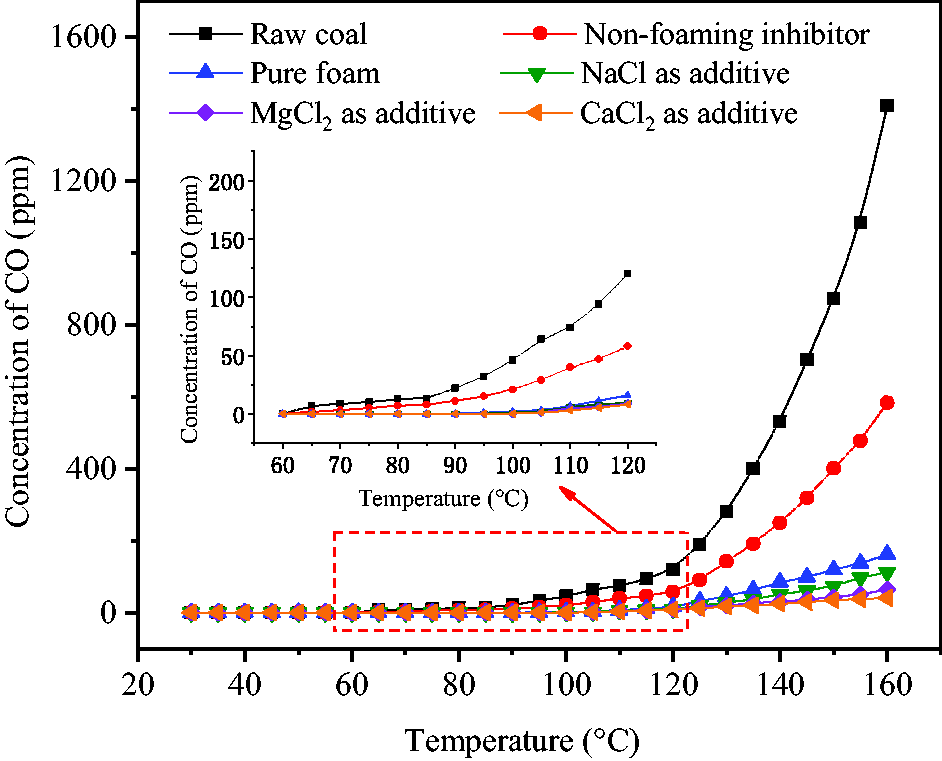

Figure 15.

Concentration variations of CO generated by coal oxidation under the action of inhibition and inerting.

Conclusion

In this paper, a new method was proposed for releasing inhibitor solution in the form of foam at a specific temperature. Using temperature-controlled self-reaction of two solutions, a large amount of CO₂ was released, which could be used as the gas source of inhibitor foam. It could effectively expand the action scope of inhibitors and reduce the concentration of O₂, playing an important role in inhibition and inerting efficiency.

With SDS as foaming and CMC-Na as foam stabilizing agents, the optimum concentrations of NaHCO₃ and HAc solutions were 10 and 7.9%, and the optimum concentrations of NaCl, MgCl₂ and CaCl₂ were 4.1, 5.0 and 6.2%, respectively, with the upper limit of temperature set at 65–70°C. Hollow spheres with diameter 45 mm were selected as the carrier of 20 ml solution and sphere placement angle of 90° was found to be the optimum angle when paraffin slice was in vertical state. Foam release temperature was 59–61°C and the covered area of pulverized coal was 12.9–13.9 times higher than that by directly wetting coal with solution. The generation and release of foam by temperature-controlled self-reaction provided high release efficiency of inhibitor at a specific temperature and large wetting area of coal body.

After the release of inhibitor foam, oxidation heating rate of coal was effectively suppressed with maximum inhibition efficiency of 78.7–91.6% and the process of coal oxidation was delayed by 22–35°C. Under the joint action of inhibition and inerting of foam, the efficiency of restraining coal oxidation reached 88.51–97.06% at 160°C, which was significant.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (51604144, 51774171), and the Natural Science Foundation of Liaoning Province in China (20170540430).

ORCID iD

Xun Zhang

References

Chu

Chao

, et al. (2017) Bulking coefficient evolution characteristics and mechanism of compacted broken coal. Journal of China Coal Society 42(12): 3182–3188.

Cui

Jiang

Zhang

(2017) Experimental study on the effect of a thermoresponsive secundine inhibitor on coal spontaneous combustion. Energy & Fuels 31(12): 14262–14269.

Deng

Wang

Zhang

, et al. (2008) Reaction mechanism of ethylene production during spontaneous combustion of coal. Journal of China Coal Society 33(3): 299–303.

Fan CJ, Luo MK, Li S, et al. (2019) A thermo-hydro-mechanical-chemical coupling model and its application in acid fracturing enhanced coalbed methane recovery simulation. Energies 12(4): 626.

Fan CJ, Li S, Elsworth D, et al. (2020) Experimental investigation on dynamic strength and energy dissipation characteristics of gas outburst prone coal. Energy Science & Engineering. 8(4): 1015–1028.

Gao

Huang

Zhang

, et al. (2012) Experimental study on the mechanism of inhibiting spontaneous combustion of residual coal with bicarbonate retardant. Mining Research and Development 32(1): 64–68.

Havva

(2007) Role of coal in sustainable energy development. Energy Exploration & Exploitation 25(3): 151–174.

James

Kevin

Jennifer

, et al. (2009) The Tiptop coal-mine fire, Kentucky: Preliminary investigation of the measurement of mercury and other hazardous gases from coal-fire gas vents. International Journal of Coal Geology 80(1): 63–67.

Kong

Yang

, et al. (2017) A review on the mechanism, risk evaluation, and prevention of coal spontaneous combustion in China. Environmental Science and Pollution Research 24: 23453–23470.

10.

Yang

, et al. (2017) Inhibitive effects of antioxidants on coal spontaneous combustion. Energy & Fuels 31(12): 14180–14190.

11.

Yang

, et al. (2018) Laboratory study on the inhibitory effect of free radical scavenger on coal spontaneous combustion. Fuel Processing Technology 171: 350–360.

12.

Wang

, et al. (2012a) Analysis on inhibition mechanism of preventing spontaneous combustion of coal. Mining Safety & Environmental Protection 39(2): 71–72.

13.

(2012b) Coal spontaneous combustion prevention and cure with chemical retarder as well as analysis on retarding mechanism. Coal Science and Technology 40(1): 50–53.

14.

Wang

(2016a) Experimental study of the stabilization of CO₂ foam by SDS and hydrophobic nanoparticles. Industrial & Engineering Chemistry Research 55(5): 1243–1253.

15.

Guo

(2016b) Study on action mechanism and inhibition effect of magnesium chloride microcapsules foam. Journal of Safety Science and Technology 12(6): 54–58.

16.

Liu

Zhang

(2009) Experimental study of high-performance foam – A separate chemical agent carrier for coal spontaneous combustion. Mining Safety & Environmental Protection 36(5): 3–5.

17.

Ren

, et al. (2015) Experimental study on the impact of the chloride inhibitor upon the limited parameters of the coal spontaneous combustion. Journal of Safety and Environment 15(4): 83–88.

18.

Wang

, et al. (2016) Experimental investigation on a sustained release type of inhibitor for retarding the spontaneous combustion of coal. Energy & Fuels 30(11): 8904–8914.

19.

Wang

, et al. (2017) Synchronous thermal analyses and kinetic studies on a caged-wrapping and sustained-release type of composite inhibitor retarding the spontaneous combustion of low-rank coal. Fuel Processing Technology 157: 65–75.

20.

Mohalik

Lester

Lowndes

(2017) Review of experimental methods to determine spontaneous combustion susceptibility of coal-Indian context. International Journal of Mining Reclamation and Environment 31(5): 301–332.

21.

Parsa

Tsukasaki

Perkins

, et al. (2017) The effect of densification on brown coal physical properties and its spontaneous combustion propensity. Fuel 193: 54–64.

22.

Wei

, et al. (2016) Controlled-release inhibitor for preventing the spontaneous combustion of coal. Natural Hazards 82(2): 891–901.

23.

Shen

(2018) Experiment study on the high efficient foam extinguishing agent for coal spontaneous combustion. Master’s Thesis, China University of Mining and Technology, Xuzhou, China.

24.

Smith

Miron

Lazzara

(1988) Inhibition of spontaneous combustion of coal. United States Bureau of Mines: Washington, D.C. Report of Investigations 9196.

25.

Taraba

Zdeněk

(2011) Effect of longwall face advance rate on spontaneous heating process in the gob area – CFD modelling. Fuel 90: 2790–2797.

26.

Václav

Taraba

(2012) Urea and CaCl₂ as inhibitors of coal low-temperature oxidation. Journal of Thermal Analysis and Calorimetry 110(1): 363–367.

27.

Wang

Dou

Zhong

, et al. (2014) An experimental approach to selecting chemical inhibitors to retard the spontaneous combustion of coal. Fuel 117: 218–223.

28.

Wang

(2008) Experimental study of foam properties affected by stabilizing agent in laboratory. Inner Mongolia Petrochemical Industry 34(22): 4–5.

29.

Watanabe

Zhang

(2001) The effect of inherent and added inorganic matter on low-temperature oxidation reaction of coal. Fuel Processing Technology 74(3): 145–160.

30.

Wang

Deng

Sun

, et al. (2015) Study of inhibition effect of Ca²⁺ on sulfur contained active groups in coal. Computers and Applied Chemistry 32(5): 534–538.

31.

Wang

Luo

Vieira

(2018) Experimental technique and modeling for evaluating heat of rewetting effect on coals propensity of spontaneous combustion based on adiabatic oxidation method. International Journal of Coal Geology 187: 1–10.

32.

Xiao

Lyu

Deng

, et al. (2017) Progress on inhibition mechanism and application technology for coal spontaneous combustion. Safety and Environmental Engineering 24(1): 176–182.

33.

Yang

Lai

Song

(2019) Determination of the influence of pyrite on coal spontaneous combustion by thermodynamics analysis. Process Safety and Environmental Protection 129: 163–167.

34.

Yang

Qiu

(2019) Exploring coal spontaneous combustion by bibliometric analysis. Process Safety and Environmental Protection 132: 1–10.

35.

Yuan

Smith

(2008) Numerical study on effects of coal properties on spontaneous heating in longwall gob areas. Fuel 87: 3409–3419.

36.

Zhan

Wang

Song

, et al. (2011) Role of an additive in retarding coal oxidation at moderate temperatures. Proceedings of the Combustion Institute 33(2): 2515–2522.
