Abstract

To improve the performance of the PID controller for a steel strip deviation control system (SSDCS), an enhanced artificial bee colony algorithm (EABC) is proposed to optimize PID controller gains (EABC-PID). The proposed EABC changes the candidate solution equation to balance its explorative and exploitative capabilities. The experiment presents a detailed comparison of EABC-PID and four bio-inspired algorithms based PID controllers considering four types of objective functions. Simulation results show that EABC-PID proves to be superior for SSDCS compared to four bio-inspired algorithms based PID controller in terms of convergence, dynamic adjustment, and robustness.

Keywords

PID controller gains optimization artificial bee colony algorithm steel strip deviation control system control method

Introduction

Steel strip deviation is an unavoidable phenomenon in the strip steel production process since it brings a lot of failures and inconvenience to the steel strip production. On the one hand, it may cause steel strip to bend or to rub and collide with the edge of rolls, which seriously affects the normal production and damages unit equipment, or even causes the steel strip to break, posing a threat to the workshop staff; On the other hand, it will affect the processing accuracy and quality of steel strip, resulting in higher production costs and steel waste. Therefore, control of the deviation is an important issue that needs to be urgently addressed.

A steel strip deviation control system (SSDCS) is widely used to adjust the position of steel strips. The SSDCS is mainly composed of a position sensor, a controller, an electro-hydraulic servo valve, a hydraulic cylinder, a rack, and a hydraulic station, shown in Figure 1. When the steel strip is not of deviation, it is in the center of the position sensor. If the strip is of deviation, a position deviation signal will be detected by the position sensor and transmitted to the controller, which will output a control current to the electro-hydraulic servo valve after analysis of the controller. According to the control current, the electro-hydraulic servo valve will drive the hydraulic cylinder pushing the rack to adjust the position of the strip.

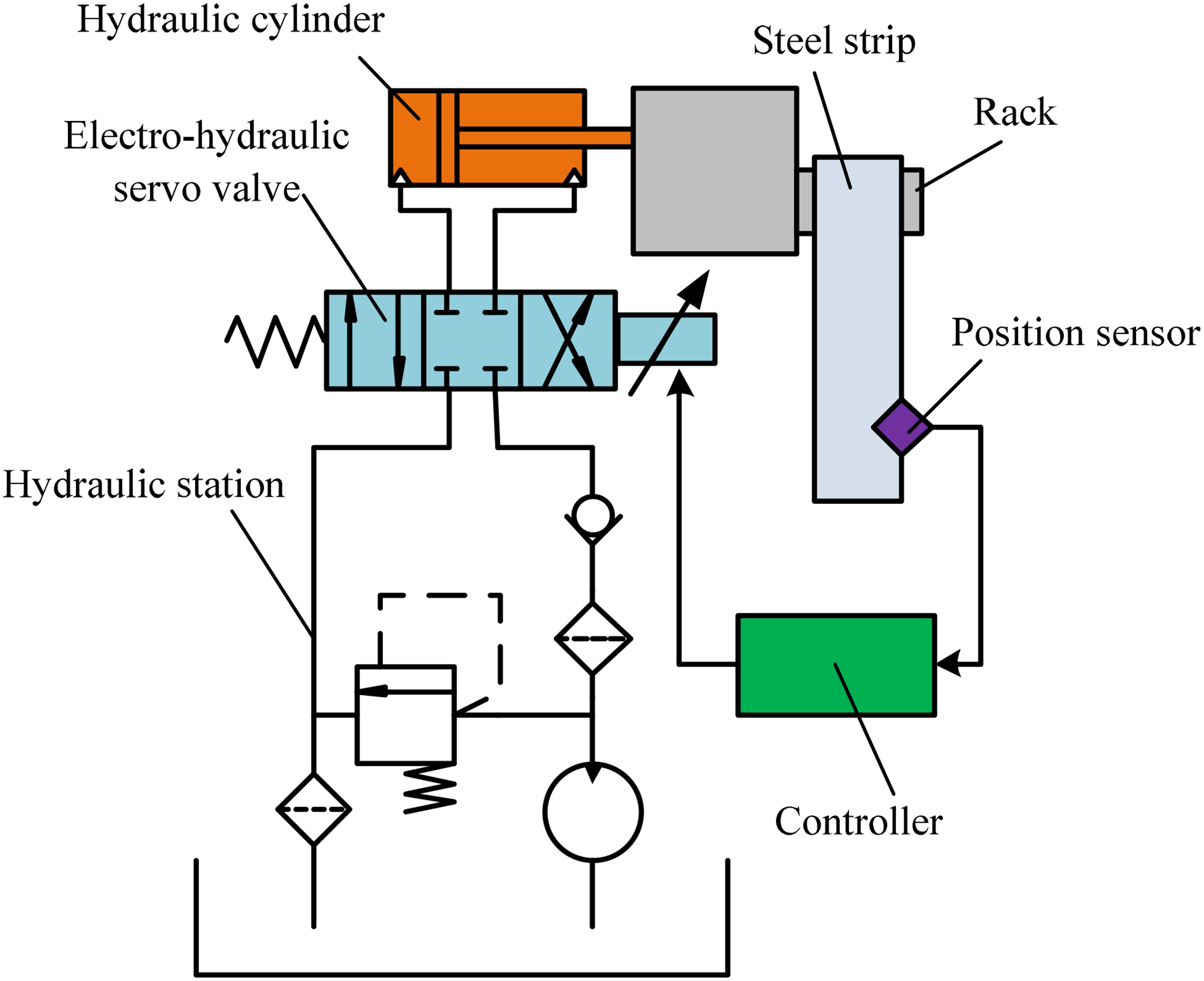

Figure 1.

Configuration of the steel strip deviation control system.

It is difficult to establish a precise mathematical model for the SSDCS because of its nonlinearity and time-variable parameters,^1,2 so determining the optimal control strategy for the SSDCS is still a major concern for a significant amount of studies. Traditional PID controller is often used in the SSDCS,³ but it is difficult to meet the requirements for high precision and speed.⁴ To further improve the control performance of the PID controller, many PID controllers that combine with intelligent methods such as PID - neural network⁵ and PID – sliding mode control⁶ have been proposed for investigating and controlling the SSDCS.

Bio-inspired optimization algorithms, such as bacterial foraging (BF), genetic algorithms (GA), differential evolution (DE), particle swarm optimization (PSO), future search algorithm (FSA) etc., have been developed for optimizing PID parameters in recent years.^7–12 They use their respective adjustment mechanisms to search for the optimal (global) solution of a given problem in parallel throughout the search space. Generally, a population consists of a large number of candidate solutions. Then the candidate solutions are adjusted to generate new progeny populations with better performance than the current generation. This process continues until the stopping criterion is met.

The artificial bee colony (ABC) algorithm is also one of the bio-inspired optimization algorithms firstly proposed by Karaboga.¹³ ABC algorithm has shown its outstanding performance on various kinds of practical problems, due to its ease in structure, implementation followed by well-organized exploitation and exploration mechanisms.¹⁴ Based on the ABC algorithm, many applications including wireless sensor networks,¹⁵ big data,¹⁶ image processing,¹⁷ deep learning,¹⁸ etc., have been successively developed. ABC remained to be the best contender for existing bio-inspired optimization algorithms. A comprehensive view of recent developments and real-world applications can be found in the literature.¹⁹

Several ABC algorithms have been utilized for optimizing PID gains as specified by the literature.^20–22 However, in general, prior ABC algorithms for optimizing PID parameters take no consideration of the robustness. In addition, the ABC algorithm based PID controller for the SSDCS has rarely been reported. In summary, some of the contributions of this paper are as follows:

EABC-PID controller is proposed and applied to solve the control performance problem of the SSDCS.

Comparison is made among EABC-PID controller, ABC-PID controller, PSO-PID controller, DE- PID controller and GA-PID controller.

Investigation is performed to verify the robustness of the proposed controller.

The rest of the paper is organized as follows. In Section ‘The SSDCS model’, the SSDCS model is presented in detail. In Section ‘ABC algorithm based PID controller design’, we first introduce the basic concept and some central components of the ABC algorithm, and then based on this algorithm a complete design guideline of the PID controller is presented for the SSDCS. Section ‘Simulation and discussion’ will show various tests for a proposed controller and some simulation comparisons with the other controllers are also given. Finally, a brief conclusion is addressed in Section ‘Conclusion’.

The SSDCS model

The design of stabilizing controllers used in the SSDCS has been extensively studied in recent years. The objective of the controller is to keep the position of the steel strip following the desired position as precisely as possible. To design an effective control strategy for the SSDCS, it is necessary to establish the SSDCS model.

The block diagram of the SSDCS is shown in Figure 2. In the Figure, $ε_{d}$ denotes the desired position of steel strip, $ε$ stands for the actual position of steel strip, E is the error between the desired position of steel strip and desired position of steel strip, I denotes the control signal, and Q is the output flow of the servo valve. The transfer function for each component of the SSDCS is presented as follows.

Figure 2.

Block diagram of the SSDCS.

The following assumptions need to be made when building the electro-hydraulic servo valve model: the electro-hydraulic servo valve is a three-way four-way valve; the inherent frequency of the electro-hydraulic servo valve is close to the inherent frequency of the hydraulic system. The electro-hydraulic servo valve can be approximated as a first-order transfer function:²³

\frac{Q (s)}{I (s)} = \frac{k_{e}}{τ_{e} s + 1}

(1)

Where

k_{e}

is the gain of the electro-hydraulic servo valve,

τ_{e}

is the time constant of the electro-hydraulic servo valve.

The following assumptions need to be made when modeling the hydraulic cylinder: the hydraulic fluid source is at constant pressure; the hydraulic servo valve is a zero-opening accurate centering valve; leaks and the effect of leaks on the system are ignored. The hydraulic cylinder can be approximated as a second-order transfer function.²⁴

\frac{ε (s)}{Q (s)} = \frac{k_{h}}{s (τ_{h} s + 1)}

(2)

Where

k_{h}

is the gain of the hydraulic cylinder,

τ_{h}

is the time constant of the hydraulic cylinder.

Without considering the PID controller, the closed-loop transfer function of SSDCS can be expressed as follows

G_{S S D C S} (s) = \frac{k_{e} k_{h}}{τ_{e} τ_{h} s^{3} + (τ_{e} + τ_{h}) s^{2} + s + k_{e} k_{h}}

(3)

The basic equation for PID controller in the Laplace domain is given by equation (4).

\frac{I (s)}{E (s)} = k_{p} + \frac{k_{i}}{s} + k_{d} s

(4)

Where

k_{p}

is the proportional gain,

k_{i}

is the integral gain,

k_{d}

is the derivative gain. After considering the PID controller, the closed-loop transfer function of the SSDCS is expressed as follows

G_{P I D - S S D C S} (s) = \frac{k_{e} k_{h} k_{d} s^{2} + k_{e} k_{h} k_{p} s + k_{e} k_{h} k_{i}}{τ_{e} τ_{h} s^{4} + (τ_{e} + τ_{h}) s^{3} + (k_{e} k_{h} k_{d} + 1) s^{2} + k_{e} k_{h} k_{p} s + k_{e} k_{h} k_{i}}

(5)

The poles of a transfer function of the SSDCS are responsible for the improvement of transient and steady-state responses of the SSDCS. The location of poles majorly depends on the values of the gain parameter of the PID controller. Appropriate variation in PID controller gains will move the poles to the desired location. This is required to choose a proper optimizing method for PID controller in such a way that transient and steady-state responses of the SSDCS will be improved. ABC algorithm is used to optimize the PID controller gains, which is described in the subsequent section.

ABC algorithm based PID controller design

The SSDCS's ABC algorithm-optimized PID (ABC-PID) control schematic description is demonstrated in Figure 3. From Figure 3, the ABC-PID includes three parts: ACB algorithm, objective function, and PID controller. The following section describes the basic ABC algorithm, the objective function, and the ABC-PID controller.

Figure 3.

SSDCS's ABC-optimized PID control scheme.

Basic ABC algorithm

In the framework of the artificial bee colony algorithm, the location of the food source represents the possible candidate solutions of the problem to be optimized, the number of nectar in the food source represents the fitness corresponding to the candidate solutions; and the size of the bee colony is equal to the number of solutions. The basic structure of the ABC algorithm can be divided into the following four stages:

Initial stage: ABC algorithm randomly generates a matrix X = [x_ij] _N _×D, N is the population size and represents the number of candidate solutions, D is the number of solution parameters, i∈(1,2,…, N), j∈(1,2,…, D). D-dimensional vector X _i = [x_i₁, x_i₂, …, x_iD] is one of the candidate solutions. x_ij are randomly generated by

x_{i j} = x_{j}^{min} + ran d_{j} (x_{j}^{max} - x_{j}^{min})

(6)

Where

x_{j}^{max}

and

x_{j}^{min}

are the upper and lower bound constraints of the jth variable of X _i , respectively, and rand _j is a uniformly distributed random number within the range [0, 1].

Employed bee stage: An employed bee is to modify and generate a new candidate solution based on the currently collected information, as well as to calculate its fitness. If the fitness of the new candidate solution is higher than the fitness of the original candidate solution, the new candidate solution replaces the original candidate solution; otherwise, the original candidate solution is retained. After all employed bees complete the search task; they share the information on the location of the food source (candidate solution) and the amount of nectar (fitness) they found with onlooker bees. The new candidate solutions are generated by

v_{i j} = x_{i j} + φ_{i j} (x_{i j} - x_{k j})

(7)

Where k and j are randomly chosen indexes, k≠i.

φ_{i j}

is a random number in the range [ − 1, 1]. The fitness of a solution can be defined as:

f i t (X_{i}) = {\begin{matrix} \begin{matrix} \frac{1}{1 + f (X_{i})} & if f (X_{i}) > 0 \end{matrix} \\ \begin{matrix} 1 + | f (X_{i}) | & if f (X_{i}) \leq 0 \end{matrix} \end{matrix}

(8)

Where

f (X_{i})

is the objective function value of the ith candidate solution.

Onlooker bee stage: onlooker bees assess the fitness of candidate solutions passed from the employed bee, and then select food sources based on the probability corresponding to the amount of nectar. In this case, the onlooker bee updates the candidate solution based on the original candidate solution and calculate its fitness, if the fitness of the new candidate solution is higher than the original candidate solution, the new candidate solution replaces the original candidate solution; otherwise, the original candidate solutions are retained. The probability of a food source chosen by an onlooker bee can be calculated by

p_{i} = \frac{f i t (X_{i})}{\sum_{i = 1}^{N} f i t (X_{i})}

(9)

Scout bee stage: If the nectar of the discovered food source is too inferior to find better solutions several times in a row (“limit” is denoted as the maximum number of times), it will be replaced by a new food source that a scout bee randomly found, and then the new food source is generated by equation (6).

Objective functions

A key step in applying optimization methods is the selection of objective functions that estimate the fitness value. The optimal gains of the PID controller are obtained by minimizing the objective functions which are given by equation (10)–(13).

I T S E = \int_{0}^{T} t E {(t)}^{2} d t

(10)

I S E = \int_{0}^{T} E {(t)}^{2} d t

(11)

I T A E = \int_{0}^{T} t | E (t) | d t

(12)

I A E = \int_{0}^{T} | E (t) | d t

(13)

Where ITSE is the integral of time multiplied by squared error, ISE is the integral of the squared error, ITAE is the integral of time multiplied by absolute error, IAE is the integral of absolute error, E(t) is the control system error.

Proposed controller

The basic ABC algorithm is good at exploration but badly in exploitation.²⁵ Therefore, an enhanced ABC algorithm (EABC) is used to balance explorative and exploitative for optimizing the PID controller gains.

To ensure better development and utilization of nectar source, the global NS operator derived from DNSPSO²⁶ is introduced to the basic ABC algorithm in the stage of employed bees and onlooker bees. The candidate solutions are randomly generated by

v_{i j} = r_{1} x_{i j} + r_{2} x_{b e s t} + r_{3} (x_{a j} - x_{b j})

(14)

Where r₁, r₂, and r₃ are three mutually exclusive numbers which are randomly chosen from (0, 1), and they have to meet another condition: r₁ + r₂ + r₃ = 1; x_best is the global best solution of the entire population; the indices a and b are mutually exclusive integers randomly chosen from (1, 2,…, N), and different from the base index i.

It is necessary to point out that r₁, r₂, and r₃ are generated anew in each generation, but they are kept the same for all dimensions in each generation. Once the trial solution is generated, its associated food source has to compete with it for entering the next generation. It implies that the one with a better fitness value has the chance to survive. The pseudo-code of the EABC algorithm optimizing PID controller gains (EABC-PID) is given in Table 1.

Table 1.

Pseudo code of EABC algorithm optimizing PID controller gains.

1: Set the number of solution parameters (D), the number of populations (N), the maximum number of cycles (MNC), and “limit” value; randomly generate candidate solutions (K = [k_ij] _N _×D); Choose one of ITSE, ISE, ITAE and IAE as the objective function.
2: Calculate the fitness value of the initial solution

f i t (K_{i})

using equation (8), Record the optimal solution

K_{b e s t}

3: cycle = 0, count = 0,
4: while (cycle < = MNC)
5: *Employed bee stage*
6: for i = 1 to N
7: Generated the new candidate solution

V_{i}

using equation (14). Calculate the fitness value of the new solution

f i t (V_{i})

using equation (8).
8: if

f i t (V_{i}) > f i t (K_{i})

, then

K_{i} = V_{i}

, count = 0;
9: else count = count + 1;
10: end if
11: Record the optimal solution

K_{b e s t}

;
12: end for
13: Calculate the fitness values of nectar sources and probability p_i by using equation (9)
14: *Onlooker bee stage*
15: m = 0, n = 0
16: while (m < N)
17: Generate a random number rand between 0 and 1
18: if rand < p_i, then m = m + 1; repeat employed bee stage;
19: end if
20: n = n + 1
21: if n > N then n = 1;
22: end if
23: end while
24: * Scout bee stage *
25: for i = 1 to N
26: if count > = limit, then Generated the new candidate solution

V_{i}

using equation (6).
27: end if
28: Record the optimal solution

K_{b e s t} = [k_{p}, k_{i}, k_{d}]

;
29: end for
30: cycle = cycle + 1;
31: end while
32: output

K_{b e s t} = [k_{p}, k_{i}, k_{d}]

Simulation and discussion

To verify the effectiveness of the proposed EABC-PID controller for SSDCS, simulation experiments were conducted in terms of convergence, dynamic adjustment, and robustness, respectively, and each simulation experiment was run 30 times independently. The parameters of the SSDCS are as follows: $k_{e} = 5$ , $k_{h} = 2$ , $τ_{e} = 0.1$ , $τ_{h} = 0.2$ . The simulation platform chosen for the experiments is MATLAB R2018b.

Convergence simulation

To illustrate the convergence, equation (10)–(13) are used as objective functions. In addition, the basic ABC-PID, the PSO-PID, the DE-PID, and the GA-PID are employed to compare with the EABC-PID. Although, numerous ABC improvement algorithms or some related intelligent optimization methods are currently mentioned in the literature. Given the research focus of this paper and the limitation of space, they are not repeated here. The parameters of the EABC-PID, the basic ABC-PID, the PSO-PID, the DE-PID, and the GA-PID are shown in Table 2. Before the comparison, the parameter settings of each algorithm have been optimal by comparing different parameter settings.

Table 2.

Parameters for five controllers.

Parameter	EABC-PID	basic ABC-PID	PSO-PID	DE-PID	GA-PID
N	50
MNC	50
Search range	[10,−10]
Limit	0.6 × D × N		—	—	—
Weight factor	—	—	0.9	—	—
Acceleration constants	—	—	2	—	—
Scaling factor	—	—	—	0.85	—
Crossover probability	—	—	—	0.8	0.7
Mutation probability	—	—	—	—	0.3

Figures 4–7 shows the convergence curve of four objective functions under unit step input. The convergence ability of the five controllers can be visually analyzed by Figure 4. From Figure 4, the EABC-PID has a better optimization effect than the basic ABC-PID, the PSO-PID, the DE-PID, and the GA-PID. This further shows that the idea of improving the optimization performance of the EABC-PID by improving the generation equation of the candidate solution of the basic ABC is feasible, and the simulation experimental results achieve the expected goal. The experimental results illustrate that the EABC-PID controller can give better k_p, k_i, k_d than other controllers with the objective functions of ITSE, ISE, ITAE, and IAE.

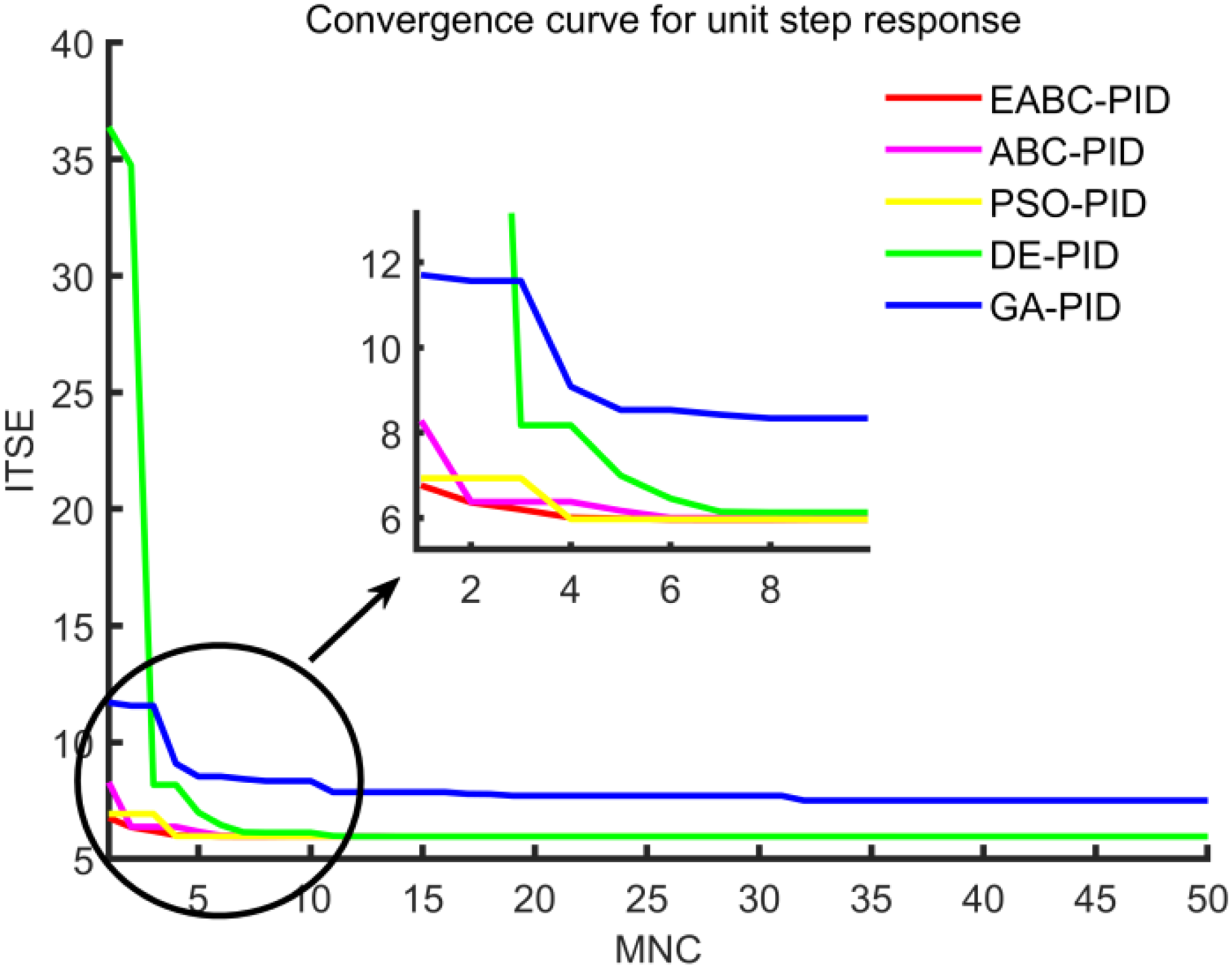

Figure 4.

Convergence comparison of ITSE for unit step response.

Figure 5.

Convergence comparison of ISE for unit step response.

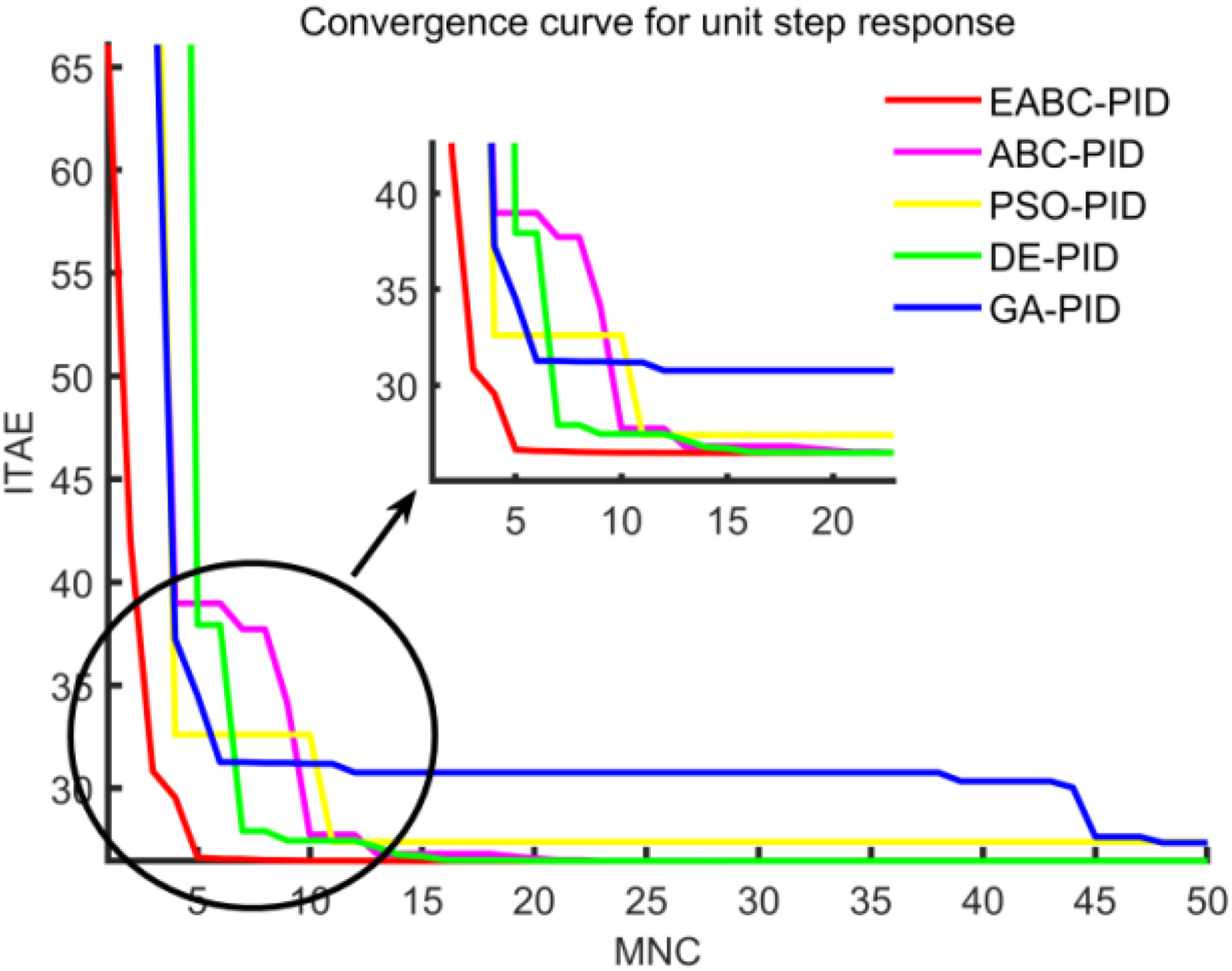

Figure 6.

Convergence comparison of ITAE for unit step response.

Figure 7.

Convergence comparison of IAE for unit step response.

Dynamic adjustment simulation

In this subsection, dynamic adjustment comparisons of five controllers are presented. The control outputs of the five controllers for the SSDCS under unit step input are shown in Figures 8–11. The following features can be seen in Figures 8–11. First, the control output of the EABC-PID for the SSDCS is less significantly different from the other four controllers. Second, the control outputs of all controllers for the SSDCS have oscillations within 1 s, and all control outputs are basically consistent with the unit step input after 1 s. Third, all controllers have larger overshoot with ITSE and have larger steady-state error with ISE.

Figure 8.

Control output comparisons of the five controllers with ITSE.

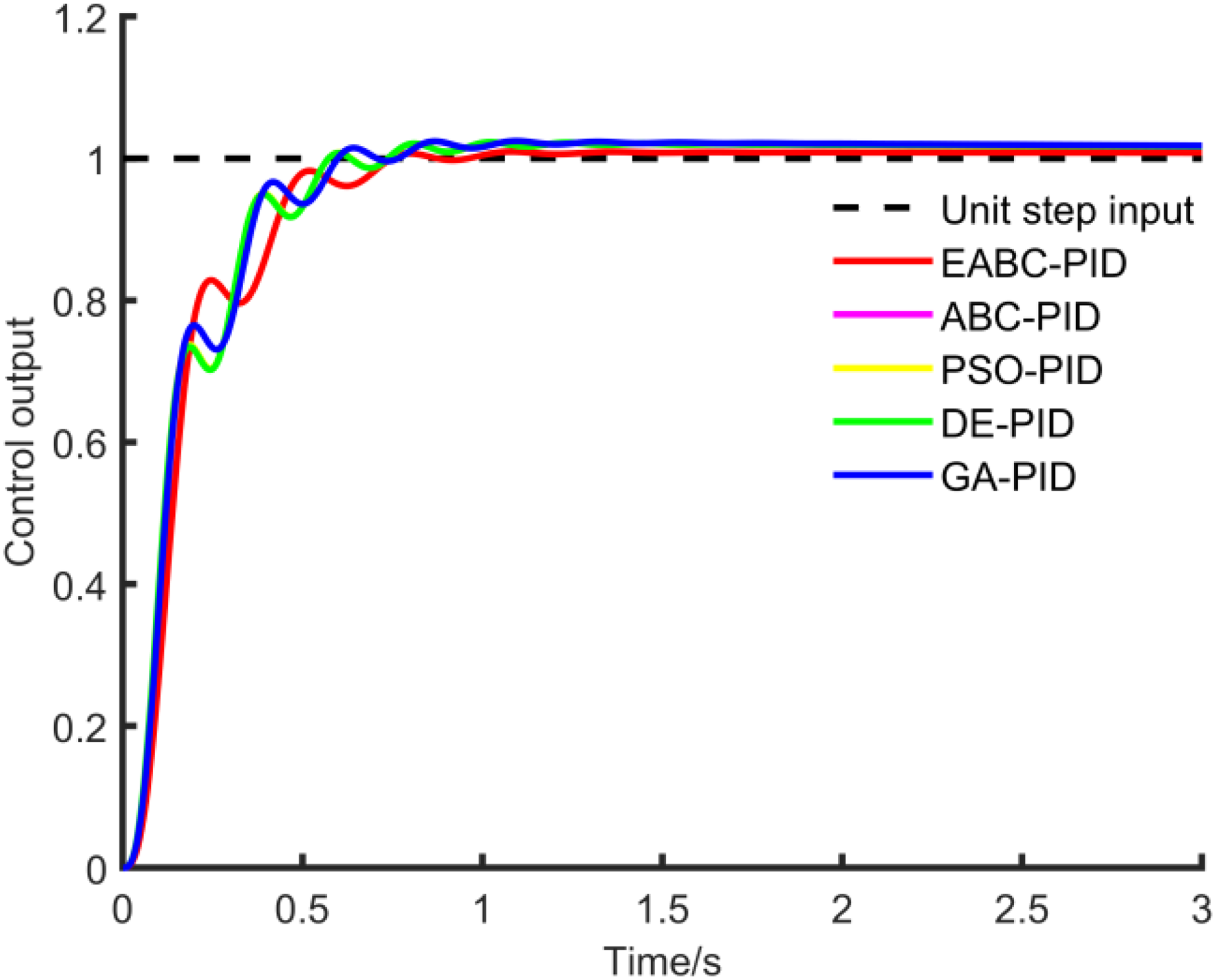

Figure 9.

Control output comparisons of the five controllers with ISE.

Figure 10.

Control output comparisons of the five controllers with ITAE.

Figure 11.

Control output comparisons of the five controllers with IAE.

To quantitatively analyze the influence of different controllers on dynamic adjustment performance, overshoot, steady-state error, settling time, and rise time are chosen as evaluation indexes. The rise time can evaluate the response speed of the controllers, the overshoot can evaluate the damping degree of the controllers, and the settling time reflects the combination of response speed and damping degree of the controllers. Tables 3–6 show the quantitative comparison of the five controllers, and also verify the results observed in Figures 8–11. Further analysis of Tables 3–6 shows that EABC-PID controller possesses minimum overshoot and maximum rise time with ITSE and ISE, maximum overshoot and minimum rise time with ITAE, and minimum overshoot and minimum rise time with IAE. It is worth noting that the EABC-PID has the minimum settling time regardless of which objective function is used, which means that EABC-PID has a better dynamic adjustment performance. In summary, the simulation results show that the EABC-PID controller improving the dynamic adjustment performance for the SSDCS is feasible.

Table 3.

Quantitative comparison of the five controllers with ITSE.

	EABC-PID	ABC-PID	PSO-PID	DE-PID	GA-PID
Steady state error	0	0	0	0	0
Overshoot (%)	4.655	6.095	5.741	6.095	5.236
Rise time(s)	0.202	0.164	0.166	0.164	0.180
Setting time(s)	0.83	0.953	0.943	0.953	0.816
k _p	5.064	10	10	10	7.561
k _i	0.003	0.127	0.145	0.127	0.289
k _d	0.733	1.320	1.332	1.320	1.049

Table 4.

Quantitative comparison of the five controllers with ISE.

	EABC-PID	ABC-PID	PSO-PID	DE-PID	GA-PID
Steady state error	0.01	0.02	0.02	0.02	0.02
Overshoot (%)	0.140	0.588	0.588	0.588	0.654
Rise time(s)	0.428	0.352	0.352	0.352	0.366
Setting time(s)	0.714	0.729	0.73	0.729	0.753
k _p	5.642	10	10	10	8.79
k _i	0.272	1.281	1.263	1.281	1.223
k _d	1.059	1.809	1.801	1.809	1.587

Table 5.

Quantitative comparison of the five controllers with ITAE.

	EABC-PID	ABC-PID	PSO-PID	DE-PID	GA-PID
Steady state error	0	0	0	0	0
Overshoot (%)	1.808	1.700	1.720	1.787	1.324
Rise time(s)	0.249	0.359	0.363	0.349	0.388
Setting time(s)	0.620	0.805	0.813	0.785	0.657
k _p	3.226	9.290	9.067	10	7.548
k _i	0.003	0.000	0.024	0.000	−0.003
k _d	0.554	1.431	1.395	1.530	1.199

Table 6.

Quantitative comparison of the five controllers with IAE.

	EABC-PID	ABC-PID	PSO-PID	DE-PID	GA-PID
Steady state error	0	0	0	0	0
Overshoot (%)	1.009	1.393	1.563	1.402	1.569
Rise time(s)	0.229	0.369	0.349	0.368	0.214
Setting time(s)	0.748	0.814	0.779	0.813	0.665
k _p	5.407	8.619	10	8.689	7.461
k _i	0.007	0.001	−0.002	0.001	0.042
k _d	0.906	1.360	1.552	1.370	1.165

Robustness simulation

The robustness of the controllers can be tested by the effect of suppressing the disturbance. A unit step disturbance is added to the SSDCS at the 2 s moment and the response of the five controllers to the disturbance is shown in Figures 12–15. From Figures 12–15, the five controllers can effectively suppress disturbances. However, it is not difficult to find that all the controllers suppress the disturbance for more than 1 s with ITSE, ISE, and IAE, while all the controllers suppress the disturbance for about 1 s with ITAE. ITAE for the SSDCS is an optimal choice to suppress the disturbances rapidly. Table 7 shows the ITAE values and suppression times of all the controllers under unit step disturbance. From Table 7, the ITAE value obtained by the EABC-PID is the smallest and the suppression time of the disturbance is also the shortest The simulation results show that the robustness of the EABC-PID for the disturbances is better than the other four controllers

Figure 12.

Comparison of the five controllers for suppressing disturbance with ITSE.

Figure 13.

Comparison of the five controllers for suppressing disturbance with ISE.

Figure 14.

Comparison of the five controllers for suppressing disturbance with ITAE.

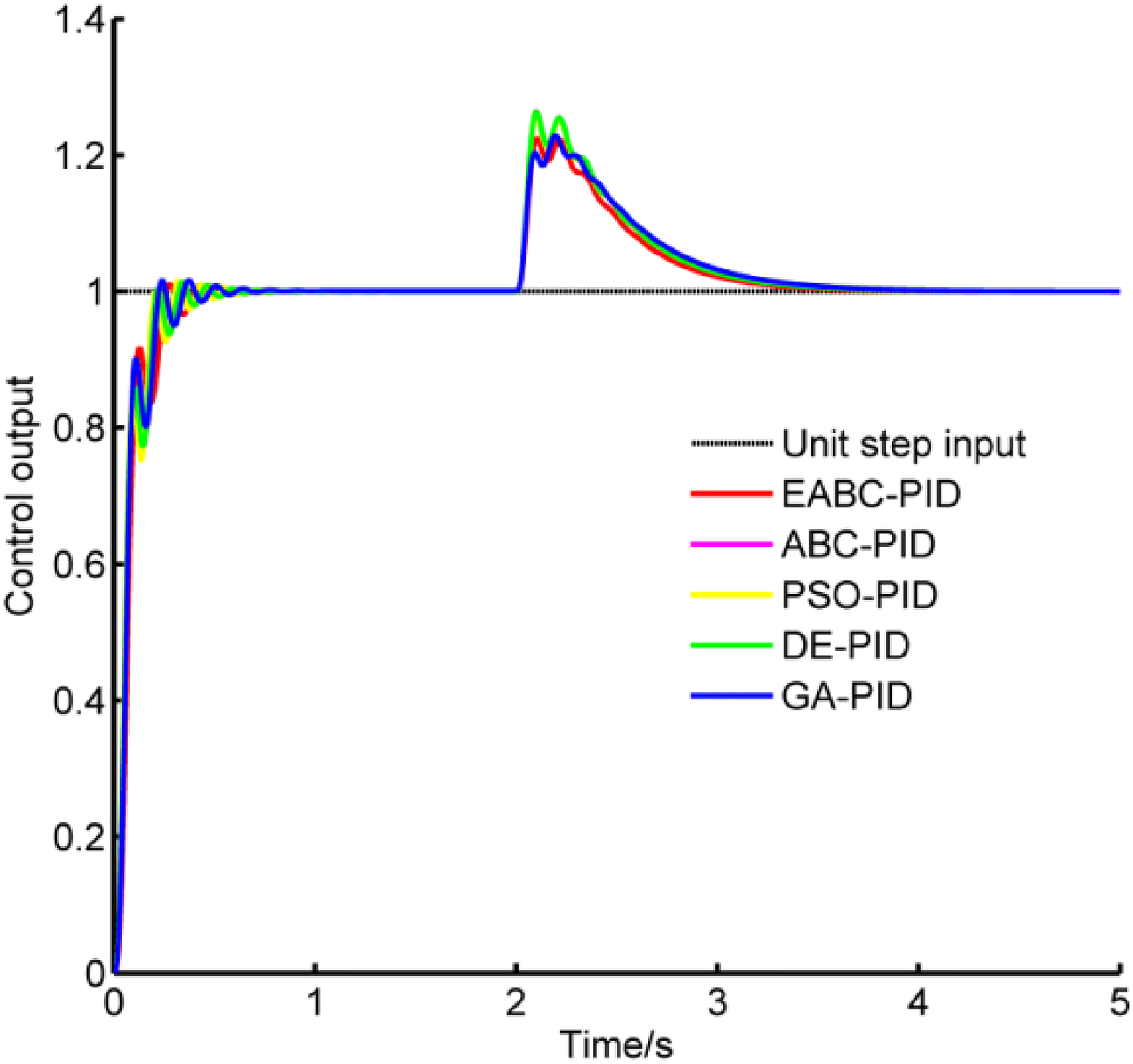

Figure 15.

Comparison of the five controllers for suppressing disturbance with IAE.

Table 7.

Quantitative analysis of the five controllers for suppressing disturbance with ITAE.

	EABC-PID	ABC-PID	PSO-PID	DE-PID	GA-PID
ITAE value	31.651	32.547	34.176	33.896	33.535
Suppression time (s)	0.952	0.986	0.974	0.957	1.142

A good controller is not only able to suppress disturbances, but also to cope with changes in system parameters. Figures 16–19 shows the dynamic adjustment of the EABC-PID with ITAE when the SSDCS parameters are varied. From Figures 16–19, as the SSDCS parameters change, the control outputs of the EABC-PID change in a small range within 1.5 s, and the control outputs are consistent with the unit step input after 1.5 s. That means the change in the SSDCS parameters has little effect on the performance of the EABC-PID controller, which is also verified by Tables 8–11. The simulation results show that EABC-PID has good robustness to changes in the SSDCS parameters.

Figure 16.

Control output for EABC-PID under the variation of k_e.

Figure 17.

Control output for EABC-PID under the variation of k_h.

Figure 18.

Control output for EABC-PID under the variation of τ_e.

Figure 19.

Control output for EABC-PID under the variation of τ_h.

Table 8.

Quantitative analysis for EABC-PID under the variation of k_e.

k_e	Overshoot (%)	Rise time(s)	Setting time(s)
7.5	1.7753	0.250	0.617
6.25	2.5285	0.222	0.823
3.75	1.3634	0.270	0.664
2.5	2.0118	0.318	0.783

Table 9.

Quantitative analysis for EABC-PID under the variation of k_h.

k_h	Overshoot (%)	Rise time(s)	Setting time(s)
3.2	2.8619	0.208	0.767
2.6	2.3501	0.271	0.684
1.4	1.8940	0.271	0.675
0.8	1.5979	0.385	0.885

Table 10.

Quantitative analysis for EABC-PID under the variation of τ_e.

τ_e	Overshoot (%)	Rise time(s)	Setting time(s)
0.15	2.0739	0.266	0.921
0.125	1.8525	0.254	0.891
0.075	0.3926	0.294	0.689
0.05	3.1179	0.202	0.499

Table 11.

Quantitative analysis for EABC-PID under the variation of τ_h.

τ_h	Overshoot (%)	Rise time(s)	Setting time(s)
0.32	2.4044	0.263	0.966
0.26	1.8381	0.235	0.814
0.14	1.8306	0.209	0.730
0.08	3.4688	0.198	0.501

Conclusion

The purpose of the current study was to optimize PID controller gains for SSDCS by an enhanced ABC algorithm. One of the more significant findings to emerge from this study was that there was much stronger robustness against disturbances and parameter variation with EABC-PID controller than with the other four bio-inspired algorithm based PID controllers, namely ABC-PID, PSO-PID, DE-PID, and GA-PID, for SSDCS. The second major finding was that the EABC-PID controller also outperformed other controllers in terms of convergence and dynamic adjustment. Another finding was that ITAE as an objective function to suppress disturbances was superior to ITSE, ISE, and IAE for SSDCS.

This EABC-PID controller differs from previous controllers since EABC uses a new search equation introduced a global NS operator, instead of the original search equation for candidate solutions. The application of the ABC algorithm to the SSDCS is also a new attempt, especially in terms of robustness, which is not considered in the previous ABC algorithm based PID controllers. The findings of this investigation complement those of earlier studies.

This study was limited by the absence of using state-of-the-art bio-inspired algorithms for comparison. The exploration and exploitation capabilities of the state-of-the-art bio-inspired algorithms may be better than the EABC algorithm proposed in this paper. Despite its limitations, this study offers valuable insights into ABC algorithm based PID controllers. In future work, we hope to use the proposed EABC to optimize the gain of another competitive controller, the fractional order PID controller (FOPID). We also hope that the proposed EBAC-FOPID controller can be applied to the control of higher-order systems.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study is fully supported by Liaoning Provincial Department of Education Basic Research Projects for Higher Education Institutions, China (grant number：LJKZ0301); The Scientific Research Foundation of the Education Department of Liaoning Province, China (grant number: 2017LNQN22); Young Teachers Foundation of University of Science and Technology Liaoning, China (grant number: 2017QN04).

ORCID iD

He Wang

Author biographies

He Wang, Associate Professor, has been working in the field of intelligent detection and control.

Hualong Du, postgraduate student, is currently interested in intelligent optimization of PID parameters.

Qiuyu Cui, postgraduate student, is currently interested in robot path planning based on heuristic methods.

Hua Song, Professor, is mainly engaged in the research of metallurgical equipment design and process control simulation.

References

Park

Hwang

. Tension control in hot strip process using adaptive receding horizon control. J Mater Process Technol 2009; 209: 426–434.

Knohl

Unbehauen

. Adaptive position control of electrohydraulic servo systems using ANN. Mechatronics (Oxf) 2000; 10: 127–143.

Cen

, et al. Study on integral-separate PID improved predictive control for electro-hydraulic control system of strip steel CPC. Adv Mater Res 2011; 422: 250–256.

Liu

. The design of check control system of strip steel deviation correction and the heat structure coupling analysis on relative sensor. Sens Transducers 2013; 156: 123.

Kou

. Application of PID control based on RBF neural network in electro-hydraulic servo system for steel strip deviation. Adv Mater Res 2012; 468: 434–438.

Choi

Lee

. PID Sliding mode control for steering of lateral moving strip in hot strip rolling. Int J Control Autom Syst 2009; 7: 399–407.

Goher

Fadlallah

. Bacterial foraging-optimized PID control of a two-wheeled machine with a two-directional handling mechanism. Robotics Biomim 2017; 4: 1–19.

Elsisi

. New variable structure control based on different meta – heuristics algorithms for frequency regulation considering nonlinearities effects. Int T Electr Energy 2020; 30: e12428.

Chao

Sutarna

Chiou

, et al. An optimal fuzzy PID controller design based on conventional PID control and nonlinear factors. Appl Sci 2019; 9: 1224.

10.

Ajithapriyadarsini

Mary

Iruthayarajan

. Automatic generation control of a multi-area power system with renewable energy source under deregulated environment: adaptive fuzzy logic-based differential evolution (DE) algorithm. Soft Comput 2019; 23: 12087–12101.

11.

Saleem

Rizwan

Zeb

, et al. Online adaptive PID tracking control of an aero-pendulum using PSO-scaled fuzzy gain adjustment mechanism. Soft Comput 2020; 24: 10629–10643.

12.

Elsisi

Soliman

. Optimal design of robust resilient automatic voltage regulators. ISA Trans 2021; 108: 257–268.

13.

Karaboga

Akay

. A comparative study of artificial Bee colony algorithm. Appl Math Comput 2009; 214: 108–132.

14.

Karaboga

Basturk

. On the performance of artificial bee colony (ABC) algorithm. Appl Soft Comput 2008; 8: 687–697.

15.

Wang

Ding

, et al. An energy efficient routing protocol based on improved artificial Bee colony algorithm for wireless sensor networks. IEEE Access 2020; 8: 133577–133596.

16.

Aslan

. A comparative study between artificial bee colony (ABC) algorithm and its variants on big data optimization. Memet Comput 2020; 12: 129–150.

17.

Huo

Sun

Ren

. Multilevel image threshold segmentation using an improved Bloch quantum artificial bee colony algorithm. Multimed Tools Appl 2020; 79: 2447–2471.

18.

Banharnsakun

. Towards improving the convolutional neural networks for deep learning using the distributed artificial bee colony method. Int J Mach Learn Cybern 2019; 10: 1301–1311.

19.

Karaboga

. Artificial bee colony algorithm. Scholarpedia 2010; 5: 6915.

20.

Bijani Vahid Khosravi , et al. Robust PID controller design based on H infinity theory and a novel constrained artificial bee colony algorithm. Trans Inst Meas Control 2018; 40: 202–209.

21.

Eslami

Shayesteh

Pourahmadi

, et al. Optimal design of fractional order fuzzy PID controller using an intelligent hybrid algorithm for nonlinear power system. J Intell Fuzzy Syst 2019; 37: 7865–7882.

22.

Elsisi

Soliman

Aboelela

MAS

, et al. ABC Based design of PID controller for two area load frequency control with non-linearities. Ind J Electr Eng Inf 2015; 16: 55–64.

23.

Wang

, et al. Dynamic modeling and tracking control simulation for large electro-hydraulic servo system. Appl Mech Mater 2013; 416: 811–816.

24.

Yang

Chen

, et al. Research on energy transmission mechanism of the electro-hydraulic servo pump control system. Energies 2021; 14: 4869.

25.

Zhou

Wang

, et al. Enhancing the modified artificial bee colony algorithm with neighborhood search. Soft Comput 2017; 21: 2733–2743.

26.

Wang

Sun

, et al. Diversity enhanced particle swarm optimization with neighborhood search. Inf Sci 2013; 223: 119–135.

Artificial bee colony algorithm based PID controller for steel stripe deviation control system

Abstract

Keywords

Introduction

The SSDCS model

ABC algorithm based PID controller design

Basic ABC algorithm

Objective functions

Proposed controller

Simulation and discussion

Convergence simulation

Dynamic adjustment simulation

Robustness simulation

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

Author biographies

References
