Abstract

A geometric error determines the quality and function of a product to a certain extent. Cylindricity error is an important indicator of the geometric error of form parts. In recent years, with the development of geometric product verification and specification (GPS), the specification of the cylindricity error and high-precision detection have become the focus in the field of industrial metrology. In this paper, by analyzing the existing cylindricity evaluation strategy, a new method for cylindricity error evaluation based on increment-simplex algorithm is proposed. The purpose is to improve the efficiency of cylindricity error analysis on the basis of ensuring the accuracy requirements. First, according to the GPS specification, the characteristics and applications of the circular section method, the helicoid line method, the generatrix line method, and the bird-cage method for the extraction operation are analyzed. And for the fitting operation, the mathematical models of the cylindricity fitting for the least squares cylinder, minimum circumscribed cylinder, maximum inscribed cylinder, and minimum zone cylinder in cartesian and cylindrical coordinate systems are constructed. Second, a new method of cylindricity error optimization evaluation based on the incremental optimization method is proposed. A theoretical analysis of the new method is made with the circular section method as an example, and the specific steps of cylindricity error analysis based on the circular section method of the new method are given. Finally, experiments and analysis are carried out, and the accuracies and evaluation efficiencies of the cylindricity error of the different cylindricity measurement and evaluation strategies are compared and analyzed. The results and operating efficiency of the increment-simplex algorithm and the traditional algorithms are compared, and the effectiveness and feasibility of the new method are proved.

Keywords

Cylindricity error error evaluation GPS incremental optimization method operational operator

Introduction

Cylindricity is a category of form tolerance. Form tolerance refers to the amount of variation of a measured element relative to the ideal element. The ideal element is used to represent the minimum criteria, that is, the maximum variation of the measured element relative to the ideal element should be minimal. The cylindricity error is a comprehensive index for controlling the roundness, straightness, and parallelism of the longitudinal and transverse sections of a cylinder and its axis. Cylindrical tolerance refers to the radius difference between two coaxial cylinders containing the actual surface with the smallest radius. Many important components require strict tolerances in precision manufacturing systems, so a reliable strategy is required to accurately evaluate the error. GPS achieves the standardization of product formation and the optimal allocation of resources, promotes the formation and optimization of the design, manufacturing, and measurement certification systems with the product quality and efficiency as the core, and supports and realizes the digitization and standardization of product geometric precision design and measurement certification.

GPS solves the problems of systemic, integrated, poor operability, and arbitrariness that have long been based on geometric-based technical standards.¹ Chen et al.² pointed out that in practical applications, due to the simple mathematical model of the least squares method, it is often applied to calculate the cylindricity error. Other evaluation methods were not evaluated, and the problem of the least squares accuracy was ignored. Zheng et al. made various attempts^3–8 to evaluate the cylindricity error to improve the efficiency. Zaimovic-Uzunovic and Lemes compared the influence of different extraction methods on the cylindricity error through experiments and suggested that different extraction methods had different sensitivities to the probe used in the measurements.⁹ Souza et al. studied the fitting model and evaluation system of the roundness and cylindricity^10–13 and concluded that although the roundness and cylindricity were evaluated using similar methods, they had different mathematical models and evaluation systems due to their different properties and working principles. Collins et al.¹⁴ discussed the advantages and disadvantages of three measurement schemes—the helicoid line method, Hamspi method, and pie chart method—when measuring the form error with coordinate measuring machines (CMMs). Summerhays et al.¹⁵ studied the optimal distribution of the extracted discrete points on the surface of an inner cylinder with symmetrical shape deviations. Badar et al.¹⁶ proposed an adaptive sampling step for the surface machining error distribution and a path optimization search method for reducing the number of sampling points. Stepien^17–20 studied the cylindrical profile to analyze the parameters of the cylinder and explained the parameter measurement method. Dovica and Vegh²¹ used different evaluation methods to compare the cylindricity deviations. Vrba et al.²² reported that the extraction method had a greater influence on the cylindricity error than the evaluation method. Zhang et al.^23–26 provided the theory of the GPS, GPS operation, and operator. Fengxia et al.^27–34 studied various problems in the geometric processing of products according to the GPS. ISO 1101³⁵ and ANSI Y14.5³⁶ also developed a related method for the evaluation of cylindricity errors.

In summary, most scholars’ discussions on cylindricality are still under a single measurement and extraction method or a single fitting method. There is no effective comparison between different extraction strategies in depth, and few studies on new cylindricality method of error evaluation. A new method for cylindricity error evaluation based on increment-simplex algorithm is proposed based on the next-generation GPS and ISO standards in this paper. Experiments and analysis are carried out, and the accuracies and evaluation efficiencies of the cylindricity error of the different cylindricity measurement and evaluation strategies are compared and analyzed.

Cylindricity measurement strategy based on new generation GPS

Figure 1 shows the framework for the digital measurements based on the GPS geometric error. The evaluation of the cylindricity error involves the following basic operations. First, the separation operation is used to obtain a cylindrical surface to be studied from the surface model of the workpiece. Second, the cylindrical surface obtained by the separation is extracted by the extraction operation using a certain method to digitally represent the non-ideal cylindrical surface. Third, the fitting cylinder is used to obtain the ideal cylindrical surface that approximates the non-ideal surface according to a particular criterion. Finally, the maximum distance between the ideal and non-ideal surfaces is obtained by the evaluation operation, and the cylindricity error is obtained. The combination of the operations—separation, extraction, fitting, and evaluation—can be called the inspection operation operator for the cylindricity error evaluation.

Figure 1.

Framework for digital measurement based on GPS geometric error.

The extraction strategy is to restrict the path and the method under the condition of ensuring that the extracted surface information is not distorted. The effective expression of a non-ideal surface model is simplified and limited points are selected to reflect the real features of the contour to the greatest extent.

Due to the different directions and numbers of extraction paths, the extraction method is different in its ability to reflect the harmonic components of the surface profile. For the cylindricity measurement extraction, the bird-cage and helicoid line methods can be used for extraction in the axial and circumferential directions respectively, which can achieve high-density coverage of the extraction surface and provide harmonic components in multiple directions. The circular section method can only obtain information for several circular sections, and the generatrix line method can only obtain information parallel to the axial direction. Based on the selection of geometric features, the bird-cage and helicoid line methods have slightly higher priorities than the circular section and generatrix line methods. The point method is suitable for the extraction of most of the geometrical features due to its particularity and is also applicable to the extraction of cylindricity measurements.

Among the above sampling methods, as shown in Figure 2(a), the bird-cage extraction method can obtain the most cylindrical contour information, and thus, it is theoretically the most appropriate scheme for measuring the cylindricity. However, in actual operation, the bird-cage method involves a complex process and exhibits low measurement efficiency. As shown in Figure 2(b), the helicoid line method is similar to the bird-cage method in that more cylindrical contour information is also obtained. However, in actual operation, the process is complex and difficult to perform. As shown in Figure 2(c), the generatrix line method extracts the generatrix direction and loses the circumference contour information. As shown in Figure 2(d), if there are too few sampling points, there will be problems with filtering, and the sampling operation process will be difficult. As shown in Figure 2(e), the circular section method obtains a plurality of discrete circumferential contours. Since the measuring equipment conditions are easily achieving and the economy is high, the existing cylindricity measuring machines and the roundness measuring machines mostly utilize the circular section method.

Figure 2.

Extraction method. (a) Bird-cage method; (b) helicoid line method; (c) generatrix line method; and (d) points method (e) circular section method.

The GPS standard³⁷ for cylindricity measurements does not directly give specific implementation requirements for the number of sampling points, but the standard clarifies that the theoretical sampling points can be determined according to the Nyquist theorem, that is, at least seven sampling points for each cutoff wavelength are required. However, under different extraction methods, because of the different sampling requirements, the sampling density of each method is also inconsistent at the time of sampling. Existing cylindrical measurement instruments widely use the circular contour method sampling method. In practical applications, the determination of sampling points usually follows the GPS standard requirements of roundness measurements,³⁸ whereas for axial sampling, 3–15 sections are usually selected based on experience and equal spacing.

Cylindricity fitting and evaluation operation

During the fitting operation, the data points obtained from the extraction operation are processed and the ideal surface is obtained through a certain fitting criterion. The cylindricity error is the difference of the actual cylindrical contour surface relative to the ideal cylinder and it can fully reflect the error of the cylindrical parts. The determination of the ideal cylinder position should satisfy the principle of the minimum condition, that is, the maximum variation of the measured actual element relative to the ideal element is a minimum. As shown in Figure 3, according to different ideal cylinder association methods, the evaluation methods for the cylindricity error include the least squares cylinder (LSC), the minimum circumscribed cylinder (MCC), the maximum inscribed cylinder (MIC), and the minimum zone cylinder (MZC) methods. As shown in Figure 3, C is the ideal element and S is the actual element under testing. The fitting requirement is that the maximum variation, t, between S and C should be minimized, where t is the cylindricity error.

Figure 3.

Cylindricity error evaluation geometric model. (a) LSC. (b) MCC. (c) MIC. (d) MZC.

Based on the different coordinate systems selected by the measurements, the cylindricity error includes two basic measurement methods: the cartesian coordinate method and the cylindrical coordinate method.

The cartesian coordinate method can be further divided into manual and automatic measurement methods. During the measurements, several measurement points are selected on the measured contour, the three-dimensional coordinates of each point are measured one by one, the data is processed, and the cylindricity error is determined. At present, this method is mostly used in the cylindrical measurements of CMMs. The mathematical model for the cylindricity error evaluation in the cartesian coordinate system is as follows.

The position vector of the intersection point of an ideal cylinder axis L and coordinate plane XOY is denoted $\vec{A} = {a, b, 0}$ , and the direction vector of axis L is denoted as $\vec{S} = {p, q, 1}$ . The equation of the axis is as follows:

\frac{x - a}{p} = \frac{y - b}{q} = \frac{z}{1}

(1)

The sampling point coordinates on the measured cylinder are denoted as $P_{i} (x_{i}, y_{i}, z_{i})$ $i = 1, 2, . . ., n$ , that is, ${\vec{P}}_{i} = {x_{i}, y_{i}, z_{i}}$ , and n is the number of sampling points. The distance $d_{i}$ from the sampling point to the ideal axis L can be expressed as follows:

d_{i} = \frac{| (\vec{P} - \vec{A} \times \vec{S}) |}{| \vec{S} |} = \frac{| (x_{i} - a, y_{i} - b, z_{i}) \times (p, q, 1) |}{\sqrt{p^{2} + q^{2} + 1}}

(2)

When using the LSC to evaluate the cylindricity error, according to the least squares principle, the ideal cylinder is determined, and the sum of squares between the discrete sampling points and the ideal cylinder is a minimum. The radius of the least square cylinder is denoted as $R_{f}$ , and the distance from each discrete sampling point to the least square cylinder is as follows:

d_{i} = \frac{| (\vec{P} - \vec{A} \times \vec{S}) |}{| \vec{S} |} - R_{f} = \frac{| (x_{i} - a, y_{i} - b, z_{i}) \times (p, q, 1) |}{\sqrt{p^{2} + q^{2} + 1}} - R_{f}

(3)

From the evaluation of the geometric model of the cylindricity shown in Figure 3(a), the cylindricity error is the difference between the maximum and minimum distance of the measured element to the least squares ideal cylinder. The objective function of the least squares cylinder used to evaluate the cylindricity deviation can be expressed as follows:

\begin{matrix} LSC : \\ F (a, b, p, q, R_{f}) = min {\sum_{i = 1}^{n} {(D_{i})}^{2}} \end{matrix}

(4)

According to Figure 3 and the fitting requirements, the objective functions of the three inclusive fitting criteria can be obtained as follows:

\begin{matrix} MCC : \\ F (a, b, p, q) = min {max [d_{i}]} \end{matrix}

(5)

\begin{matrix} MIC : \\ F (a, b, p, q) = - max {min [d_{i}]} \end{matrix}

(6)

\begin{matrix} MZC : \\ F (a, b, p, q) = min {max [d_{i}] - min [d_{i}]} \end{matrix}

(7)

At present, this method is mostly used for cylindricity measuring machines and the roundness measuring machines. In practical operation, the installation eccentricity is usually required to be small, the number of sampling points is even, and uniform sampling is required. The method comprehensively considers the data measured from the sections of multiple parts using an appropriate mathematical model, and the cylindricity error of the parts is obtained.

The circular section method is usually adopted in the cylindrical coordinate system. As shown in Figure 4, the coordinates of each point of the actual measured cylinder are denoted as $P_{i} (R_{i}, θ_{i}, z_{i})$ , and the axis of measuring rotation $\bar{OO'}$ is the Z axis. The $\bar{OO'}$ axis is the evaluation datum cylinder axis L. Its eccentricity in the XOY plane is (a, b), and the inclination angle of axis L relative to Z is $γ$ . The projected components on the XOZ and YOZ planes are $γ_{X}$ and $γ_{Y}$ , respectively. The parametric equation of an ideal cylinder can be expressed as follows:

\begin{matrix} X = R \cos θ + a + Z \tan λ_{X} \\ Y = R \sin θ + b + Z \tan γ_{Y} \\ Z = Z \end{matrix}}

(8)

Figure 4.

Measurement geometric model of the cylindrical coordinate.

The distance between each measurement point on the actual cylinder and the evaluation datum axis can be expressed as follows:

r = \sqrt{(R \cos θ + a + Z \tan γ_{X})^{2} + {(R \sin θ + b + Z \tan γ_{Y})}^{2}}

(9)

By expanding equation (9) as a Taylor series and omitting the higher order terms, the model can be simplified as follows, where $p = \tan γ_{X}$ and $q = \tan γ_{Y}$ :

r = R + (a + Zp) \cos θ + (b + Zq) \sin θ

(10)

With L as the axis, all of the measured data points are contained between two cylinders with radii $r_{max}$ and $r_{min}$ . According to the definitions of the four cylindricity error fitting criteria, the axis L is continuously adjusted to find the axis with the optimal position and direction. The problem to be solved is an extreme value problem. The cylindricity error can be obtained by determining the variables (a, b, p, q) according to the known measurement data point set {Pi} and inserting them into equation (10). The standardized linear programming model requires that all variables are greater than 0. Due to the variables in the evaluation model should be greater or less than 0, we need to standardize the model. The standardization method is to set the parameter a₁, a₂, b₁, b₂, p₁, p₂, q₁, q₂ to be greater than 0, and a = a₁−a₂, b = b₁−b₂, p = p₁−p₂, q = q₁–q₂. The standardized linear programming model are as follows:

\begin{matrix} LSC : \\ \begin{matrix} F = r_{max} - r_{min} \\ a = - \frac{2}{n} \sum_{i = 1}^{n} R_{i} \cos θ_{i}; b = - \frac{2}{n} \sum_{i = 1}^{n} R_{i} \sin θ_{i} \\ p = \frac{2 \sum_{i = 1}^{n} R_{i} Z_{i} \sin θ_{i}}{\sum_{i = 1}^{n} {Z_{i}}^{2}}; q = \frac{- 2 \sum_{i = 1}^{m} R_{i} Z_{i} \cos θ_{i}}{\sum_{i = 1}^{n} {Z_{i}}^{2}} \end{matrix}} \end{matrix}

(11)

\begin{matrix} MCC : \\ \begin{matrix} min F = r_{max} \\ s . t . \\ r_{max} \geq R_{i} - (a_{1} - a_{2}) \cos θ_{i} - (b_{1} - b_{2}) \sin θ_{i} - (p_{1} - p_{2}) Z_{i} \sin θ_{i} + (q_{1} - q_{2}) Z_{i} \cos θ_{i} \\ a_{1}, a_{2}, b_{1}, b_{2}, p_{1}, p_{2}, q_{1}, q_{2} \geq 0; i = 1, 2, . . ., n \end{matrix}} \end{matrix}

(12)

\begin{matrix} MIC : \\ \begin{matrix} min F = - r_{min} \\ s . t . \\ r_{min} \leq R_{i} - (a_{1} - a_{2}) \cos θ_{i} - (b_{1} - b_{2}) \sin θ_{i} - (p_{1} - p_{2}) Z_{i} \sin θ_{i} + (q_{1} - q_{2}) Z_{i} \cos θ_{i} \\ a_{1}, a_{2}, b_{1}, b_{2}, p_{1}, p_{2}, q_{1}, q_{2} \geq 0; i = 1, 2, . . ., n \end{matrix}} \end{matrix}

(13)

\begin{matrix} MZC : \\ \begin{matrix} min F = r_{max} - r_{min} \\ s . t . \\ r_{max} \geq R_{i} - (a_{1} - a_{2}) \cos θ_{i} - (b_{1} - b_{2}) \sin θ_{i} - (p_{1} - p_{2}) Z_{i} \sin θ_{i} + (q_{1} - q_{2}) Z_{i} \cos θ_{i} \\ r_{min} \leq R_{i} - (a_{1} - a_{2}) \cos θ_{i} - (b_{1} - b_{2}) \sin θ_{i} - (p_{1} - p_{2}) Z_{i} \sin θ_{i} + (q_{1} - q_{2}) Z_{i} \cos θ_{i} \\ a_{1}, a_{2}, b_{1}, b_{2}, p_{1}, p_{2}, q_{1}, q_{2} \geq 0; i = 1, 2, . . ., n \end{matrix}} \end{matrix}

(14)

Thus, the essence of the evaluation of the cylindricity error is to obtain the ideal axis parameters of evaluation based on the mathematical programming model of the fitting criterion. According to the definition of the cylindricity error, the value of the cylindricity error is obtained. The basic idea of the LSC criterion is “adjustment,” which is an approximate method and does not conform to the principle of minimum conditions. However, it has the advantages of a rapid calculation speed and simple calculation procedure. The last three fitting criteria are inclusive fitting criteria. These use the ideal inclusion element (isometric graph of ideal element) to contain the actual element and minimize the characteristic parameters of the inclusion field. The inclusive fitting criteria is often used in the evaluation of high-precision error. In practical applications, the LSC criterion is usually used as the default criterion for association, and the MZC criterion is only used for high precision requirements or arbitration.

The mathematical model of the cylindricity error fitting evaluation based on the cartesian and cylindrical coordinate systems are established above. They are based on certain criteria, and the variation of the objective function is used to obtain the differences of the actual measured element relative to the ideal element. Therefore, the importance of optimization theory for the cylindricity error evaluation is important. The optimization solution is an iterative process. It is necessary to study the inherent rules between different fitting criteria and different optimization methods. It is also important to determine the optimization method of the fitting criterion when the extraction operation is constant. The structural cylindricity error evaluation mathematical model can be considered to be linear programming problem.

The mathematical model of linear programming includes three parts: decision variables, objective functions, and constraints. Decision variables can be continuous or discrete. The objective function can require maximization or minimization. Constraints can be either equality constraints or inequality constraints. Although mathematical problems are complex, they can all be expressed in standard form. The standard form of a linear programming problem with m constraints and n decision variables is shown in formula (15).

min Z = \sum_{j = i}^{n} c_{j} x_{j}

(15)

s . t . {\begin{matrix} \sum_{j = 1}^{n} a_{ij} x_{j} = b_{i} i = 1, 2, \dots, m \\ x_{j} \geq 0 j = 1, 2, \dots, n \end{matrix}

(16)

Among them, formula (15) is called the objective function. $x_{j}$ is the non-negative decision variable to be determined, and $c_{j}$ is the price coefficient corresponding to the decision variable. Formula (16) is called the constraint condition, $a_{ij}$ is the technical coefficient, and $b_{i}$ is the right term coefficient.

Using vector representation, the standard linear programming can be written as:

min C^{T} X

(17)

s . t . AX \geq b, X \geq 0

(18)

Among them, $C =$ $(c_{1}, c_{2}, \dots, c_{n})^{T}$ is called value vector. $X =$ $(x_{1}, x_{2}, \dots, x_{n})^{T}$ is called the decision variable vector. $A$ = $(a_{ij})_{m \times n}$ is called the constraint coefficient matrix. $b$ = $(b_{1}, b_{2}, \dots, b_{m})^{T}$ is the right term vector.

The basic idea of the simplex algorithm^39,40 to solve the linear programming model is that determine the correspondence between the poles of the feasible region and the basic feasible solution under certain conditions. First find a pole and check whether the pole is optimal. Otherwise, find another pole that can improve the value of the objective function, and perform iterative calculations to obtain the optimal solution. The mathematical model of the simplex algorithm is analyzed as follows.

Turn the linear programming problem into a standard form.

According to the standard form of the linear programming problem, determine the initial basic variables and the initial feasible basis $B$ , find the inverse matrix $B^{- 1}$ of the initial feasible basis, and obtain the initial basic feasible solution, $X_{B} = B^{- 1} b$ , $X_{N}$ = 0.

Calculate the simplex multiplier $π = C_{B} B^{- 1}$ to get the current value $Z = C_{B} B^{- 1} b = π b$ of the objective function.

Calculate the non-base variable test number $σ_{N} = C_{N} - C_{B} B^{- 1} N$ . If $σ_{N} \geq 0$ the current basic feasible solution is the optimal solution, and the operation ends. Otherwise go to the next step.

Determine variable $x_{k}$ according to $σ_{k} = min {σ_{j} | σ_{j} < 0, m + 1 \leq j \leq n}$ and calculate $B^{- 1} P_{k}$ . If $B^{- 1} P_{m + k} \leq 0$ , there is no finite optimal solution for the linear programming problem, and the operation ends. Otherwise go to the next step.

According to $\frac{{(B^{- 1} b)}_{e}}{{(B^{- 1} P_{m + k})}_{e}}$ = min ${\frac{{(B^{- 1} b)}_{i}}{{(B^{- 1} P_{m + k})}_{i}} | {(B^{- 1} P_{m + k})}_{i} > 0, 1 \leq i \leq m}$ , determine the base variable $x_{e}$ as the swap-out variable.

Use $P_{k}$ instead of $P_{e}$ to get the new basis $B_{1}$ , calculate the inverse matrix $B_{1}^{- 1}$ of the new basis, find the new basic feasible solution $X_{B} = B_{1}^{- 1} b$ , $X_{N}$ =0, and repeat steps 3 to 7 until the optimal solution is obtained.

Simplex algorithm is widely used in linear programming problems. However, there are many constraints in the geometric error evaluation. For the MZC criterion, the number of constraints is twice the number of all measuring points, which makes the feasible region complicated and the number of poles in the feasible region is large. The process of solving the planning model by the simplex algorithm is the process of iteratively calculating the poles. Therefore, when there are a large number of measuring points, the simplex algorithm will take a long time to solve the model and may not meet the needs of the project. A new method for cylindricity error evaluation based on increment-simplex algorithm is proposed to improve the evaluation efficiency.

The new method for cylindricity error evaluation based on increment-simplex algorithm

Application of incremental method in error evaluation

Given the subset S′ of the point set S and its minimum containment zone, the point P is a point in the set S that does not belong to the set S′ and is outside the minimum containment zone of the set S′, the point P and the set S′ compose a new set S″, then the point P must be on the boundary of the smallest containment zone of the set S″, and the geometric error t″ of the set S″ must be greater than the geometric error t′ of the set S′. Then increase the point P to n points to compose a set Sn. The geometric error of Sn must also be greater than the geometric error of the set S′. It can be deduced from the above that the points outside the minimum containment zone of the subset S′ are replaced with the points inside the minimum zone of the subset S′ to compose a new set Sn. The geometric error of Sn must be greater than the geometric error of subset S′. Because when the minimum containment zone of the subset S′ contains the point set S, the minimum containment zone of the point set S is the minimum containment zone of the point set S′. Therefore, in the process of geometric error evaluation, as long as a subset S′ of the set S is found, the smallest containment zone of the subset S′ contains the point set S, and the smallest containment zone of the point set S can be obtained. If the minimum containment zone of the subset S′ does not contain all the points of the set S, a number of points outside the minimum containment zone of the subset S′ will be substituted for the points inside the minimum area of the subset S′ to obtain a new subset. The geometric error of the new subset must be greater than the geometric error of the old subset. Therefore, after several iterations, a minimum containment zone containing a subset S′ of all the points of the point set S must be found. In this way, the minimum containment zone and geometric error of the set S are obtained.

Application of increment-simplex algorithm in cylindricity error evaluation

The incremental method is to use the idea of increment to delete the collection points that have less impact on the evaluation results, then the evaluation efficiency will be improved.

Taking the circular section extraction method and MZC criterion evaluation as an example, it is assumed that the number of collected sections is M, the number of points collected by each section is N, and the point set of each section is recorded as S1, S2 …, SM. The feature points of each section are obtained, and all the feature points of the sections are substituted into the cylindricity error evaluation model to obtain the cylindricity error. Then the problem is transformed into a problem of obtaining the feature points of each section by the incremental method.

The feature points are the effective contact points between the two concentric circles and the measured contour when the two concentric circles contain the actual boundary of the measured contour and the difference between the two concentric circles’ radius is minimum. The minimum zone is only related to the feature points. No matter how the measurement points other than the feature points change within the minimum area, it will not affect the minimum containment area. Taking the first section S1 as an example, the minimum containment zone and feature points of the section are obtained.

First select n points of the set S1 to obtain a subset S1′. When finding the feature points, first find the center of the circle corresponding to any two points $m (x_{m}, y_{m})$ , $s (x_{s}, y_{s})$ in S1′. Since this center is not the center of the smallest containment zone, it is just the center of the circle used to solve the two feature points. It is the virtual circle center, denoted as (a, b). Taking this circle center as the containment circle of the measurement point set S1′, a set of internal and external feature points k and l can be obtained. Iterate through S1′ to find the centers of all circles corresponding to m and s, find the group with the smallest difference in the radius of the containing circle, and get the first two feature points. The method of finding the corresponding virtual circle center is shown below.

Set the distance from the point $P (x_{p}, y_{p})$ to the center of the circle as $f_{p}$ .

f_{p} = \sqrt{{(x_{p} - a)}^{2} + {(y_{p} - b)}^{2}}

(19)

The median circle radius $f^{*}$ given by formula (20)

f^{*} = \frac{f_{m} + f_{s}}{2} = \frac{\sqrt{{(x_{m} - a)}^{2} + {(y_{m} - b)}^{2}} + \sqrt{{(x_{s} - a)}^{2} + {(y_{s} - b)}^{2}}}{2}

(20)

\begin{matrix} min \sum_{p}^{n} [{(f_{p} - f^{*})}^{2}] \\ = min [{(\sqrt{{(x_{p} - a)}^{2} + {(y_{p} - b)}^{2}} - \frac{\sqrt{{(x_{m} - a)}^{2} + {(y_{m} - b)}^{2}} + \sqrt{{(x_{s} - a)}^{2} + {(y_{s} - b)}^{2}}}{2})}^{2}] \end{matrix}

(21)

Suppose N is equal to the formula (22)

N = \sum_{p}^{n} [{(\sqrt{{(x_{p} - a)}^{2} + {(y_{p} - b)}^{2}} - \frac{\sqrt{{(x_{m} - a)}^{2} + {(y_{m} - b)}^{2}} + \sqrt{{(x_{s} - a)}^{2} + {(y_{s} - b)}^{2}}}{2})}^{2}]

(22)

It is required to take the minimum value of N, first find the partial derivative of N, as shown in formula (23).

\frac{\partial N}{\partial a} = 0, \frac{\partial N}{\partial b} = 0

(23)

Since the derivation of (23) is complicated, it is difficult to obtain the solution about a and b. Therefore, it is considered that it is easier to calculate in the cylindrical coordinate system, and the partial derivative is calculated in the cylindrical coordinate system, where $ρ, θ$ are the center information.

Δ^{2} = \sum_{p}^{n} [{(f_{p} - f^{*})}^{2}]

(24)

\frac{\partial Δ^{2} (ρ, θ)}{\partial ρ} = 0, \frac{\partial Δ^{2} (ρ, θ)}{\partial θ} = 0

(25)

Solve formula (25) to get the corresponding $ρ_{m, s}, θ_{m, s}$

ρ_{m, s} = \frac{(\sum {[x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2}]}^{2}) \sqrt{1 + \tan^{2} θ_{m, s}}}{2 \sum {(x - \frac{\sum_{m, s} x}{2}) + (y - \frac{\sum_{m, s} y}{2}) \tan θ_{m, s}] \cdot [x^{2} + y^{2} - (\frac{\sum_{m, s} (x^{2} + y^{2})}{2})]}}

(26)

\tan θ_{m, s} = [- \frac{k_{2}}{2 k_{1}} \pm \sqrt{1 + {(\frac{k_{2}}{2 k_{1}})}^{2}}]

(27)

Where:

\begin{matrix} k_{1} = \sum [(x - \frac{\sum_{m, s} x}{2}) (x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})] \\ \cdot \sum [(y - \frac{\sum_{m, s} y}{2}) (x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})] \\ - [(x - \frac{\sum_{m, s} x}{2}) (y - \frac{\sum_{m, s} y}{2})] \cdot \sum {(x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})}^{2} \end{matrix}

(28)

\begin{array}{l} k_{2} = {[\sum (\frac{x - \sum_{m, s} x}{2}) (x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})]}^{2} \\ - {[\sum (y - \frac{\sum_{m, s} y}{2}) (\frac{x^{2} + y^{2} - \sum_{m, s} (x^{2} + y^{2})}{2})]}^{2} \end{array}

\begin{matrix} - \sum {(\frac{x - \sum_{m, s} x}{2})}^{2} \cdot \sum {(x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})}^{2} \\ + \sum {(y - \frac{\sum_{m, s} x}{2})}^{2} \cdot \sum {(x^{2} + y^{2} - \frac{\sum_{m, s} (x^{2} + y^{2})}{2})}^{2} \end{matrix}

(29)

The virtual circle center coordinates are as in formula (30),

a = ρ_{m, s} \cos θ_{m, s} b = ρ_{m, s} \sin θ_{m, s}

(30)

In this way, the virtual circle center coordinate formula is obtained. For each group of m, s, there is a group of virtual circle centers corresponding to it

R_{p} = f_{p} = \sqrt{{(x_{p} - a)}^{2} + {(y_{p} - b)}^{2}}

(31)

The two feature points k and l are found as the formula (32).

Solution (k, l) = i, j / min_{m, s} [max_{i, j} (| R_{i} - R_{j} |)]

(32)

Search according to formula (32). For each virtual circle center make the inner and outer containment circles. And find the group with the smallest difference between the inner and outer containment circle radius. Then get the first two feature points.

The remaining two feature points are among the n-2 points except the two feature points that have been found. Take two points $r (x_{r}, y_{r})$ , $t (x_{t}, y_{t})$ . For each group of r and t, the circle center $(a_{r, t}, b_{r, t})$ of the corresponding situation can be obtained according to the Figure 5.

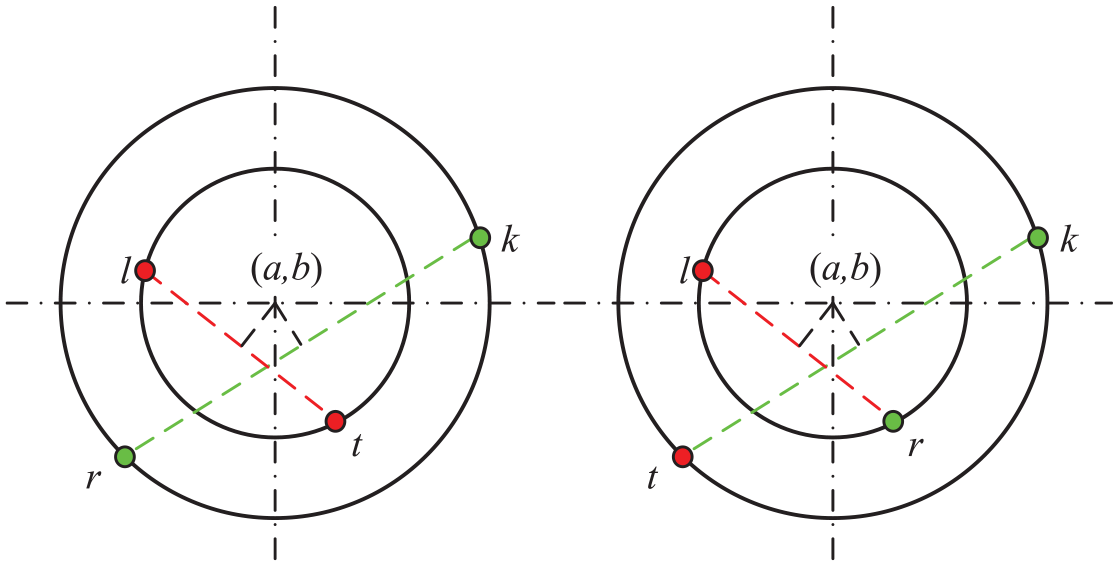

Figure 5.

Distribution of feature points.

When r and k are in the same circle and t and l are in the same circle, the coordinates of the center of the circle are as in formula (33) and (34).

a_{r, t} = \frac{({x_{k}}^{2} - {x_{l}}^{2}) (y_{r} - y_{k}) - ({x_{r}}^{2} - {x_{t}}^{2}) (y_{k} - y_{l}) + ({y_{k}}^{2} - {y_{l}}^{2}) (y_{r} - y_{k}) - ({y_{r}}^{2} - {y_{t}}^{2}) (y_{k} - y_{l})}{2 (x_{k} - x_{l}) (y_{r} - y_{t}) - (x_{r} - x_{t}) (y_{k} - y_{l})}

(33)

b_{r, t} = \frac{({y_{k}}^{2} - {y_{l}}^{2}) (x_{r} - x_{k}) - ({y_{r}}^{2} - {y_{t}}^{2}) (x_{k} - x_{l}) + ({x_{k}}^{2} - {x_{i}}^{2}) (x_{r} - x_{t}) - ({x_{r}}^{2} - {x_{t}}^{2}) (x_{k} - x_{l})}{2 (y_{k} - y_{l}) (x_{r} - x_{t}) - (y_{r} - y_{t}) (x_{k} - x_{l})}

(34)

When r and l are in the same circle and t and k are in the same circle.

a_{r, t} = \frac{({x_{l}}^{2} - {x_{k}}^{2}) (y_{r} - y_{l}) - ({x_{r}}^{2} - {x_{t}}^{2}) (y_{l} - y_{k}) + ({y_{l}}^{2} - {y_{k}}^{2}) (y_{r} - y_{t}) - ({y_{r}}^{2} - {y_{t}}^{2}) (y_{l} - y_{k})}{2 (x_{l} - x_{k}) (y_{r} - y_{t}) - (x_{r} - x_{t}) (y_{l} - y_{k})}

(35)

b_{r, t} = \frac{({y_{l}}^{2} - {y_{k}}^{2}) (x_{r} - x_{l}) - ({y_{r}}^{2} - {y_{t}}^{2}) (x_{l} - x_{k}) + ({x_{l}}^{2} - {x_{k}}^{2}) (x_{r} - x_{t}) - ({x_{r}}^{2} - {x_{t}}^{2}) (x_{l} - x_{k})}{2 (y_{l} - y_{k}) (x_{r} - x_{t}) - (y_{r} - y_{t}) (x_{l} - x_{k})}

(36)

For each group of r and t, there are two corresponding circle centers. The circle centers can be calculated by formula (33)–(36). Exclude configurations that do not meet the cross criterion. After removing points k and l, use these centers to make the containment circles. The group with the smallest radius difference between the inner and outer containment circles is obtained. The points locate on the inner and outer containment circles is the other two feature points.

All four feature points have been obtained. Check whether the feature points meet the crossover criterion and whether all points of the set S1 are included. If the conditions are met, record the feature points of the section and wait for the next calculation. Otherwise, delete some points closest to the median circle of the smallest inner and outer containment circle in the subset S1′, and add some points farthest from the median circle in the points outside the smallest inner and outer containment circle of the set S1. A new subset S1′ is formed, and the feature points are calculated again until the feature points of the section are obtained. After obtaining all the feature points of the sections according to this method, since the cylindricality error model is different from the roundness error model, more points need to be substituted into the calculation. In order to express the characteristics of the cylinder, after finding the sections feature points, the part points closer to the feature points are substituted into the cylindricality error evaluation model (14). And calculate the results using the simplex algorithm described in section “Cylindricity fitting and evaluation operation.” In this way, the cylindricality error of the MZC criterion is obtained through the new method. The flowchart of this method is shown in Figure 6.

Figure 6.

Flowchart of the new method.

Experiment and analysis

The accuracy judgment of the Increment-Simplex algorithm

In order to verify the effectiveness of the proposed cylindricity error evaluation algorithm, the algorithm is compared with the known algorithm according to the existing experimental data set. Using the same experimental data as the following authors, the cylindricity of the experimental method is evaluated by using different fitting criteria. The results of MCC, MIC and MZC calculated by the algorithm proposed in this paper are basically consistent with those published previously. Therefore, the validity of the proposed algorithm can be verified and can be effectively applied to the cylindricity error evaluation. The comparison results are shown in Table 1.

Table 1.

Experimental results of different methods.

Method	Author	Sections	Points	Cylindricity error
LSC (CMM)	Lei et al.⁴¹	5	16	0.0366
MCC (CMM)	Lei et al.⁴¹	5	16	0.0335
MIC (CMM)	Lei et al.⁴¹	5	16	0.0367
MZC (CMM)	Lei et al.⁴¹	5	16	0.0324
GOS	Lei et al.⁴¹	5	16	0.0319
HS	Yang et al.⁴²	5	16	0.0320
his	Yang et al.⁴²	5	16	0.0319
KGOA	Zheng et al.³	5	16	0.0319
MCC (ISA)	Liu et al.⁵	5	16	0.0335
MIC (ISA)	Liu et al.⁵	5	16	0.0368
MZC (ISA)	Liu et al.⁵	5	16	0.0323

Comparison of calculation results among incremental-simplex algorithm and traditional algorithms

For the same extraction operation, section “Cylindricity fitting and evaluation operation” shows that the three fitting methods for the MCC, MIC, and MZC use inclusive fitting criteria. The different fitting methods are analyzed separately for the simplex algorithm(SA), genetic algorithm(GA) and incremental-simplex algorithm(ISA). The following experiments are performed using the circular section method to extract 3, 6, 9, 12, and 15 sections, each section includes 1164 points. The measuring system is the DTP-1000 produced by Wilson Company, as shown in Figure 7. The processor of the data processing device is Intel(R)Core(TM)i7-9750H CPU@2.60 GHz, and the memory is 8.00 GB.

Figure 7.

Measuring system.

In order to understand the evaluation of cylindricity error, taking the circular section method as an example, the 3D simulation diagram of each evaluation criterion is shown in the Figures 8 and 9.

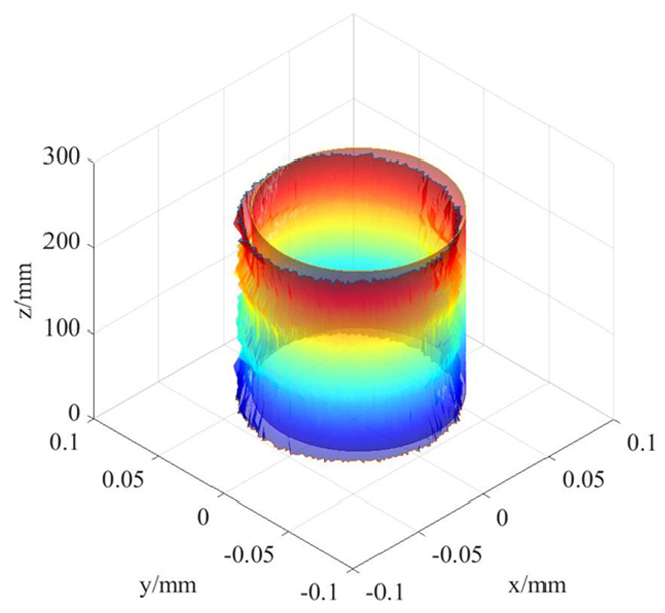

Figure 8.

LSC criterion fitting 3D simulation.

Figure 9.

Inclusive criteria fitting 3D simulation. (a) MCC. (b) MIC. (c) MZC.

Tables 2 and 3 show that when using the algorithm for the optimal solution. As the number of sampling sections increases, the cylindricity error of the four fitting methods increase. When the number of sections is same, the radius of the fitting cylinder obtained by traditional algorithms and the ISA is almost the same, and the error between the methods decreases rapidly with the increase of the number of sections. This shows that the local search optimal solution obtained by the ISA is enough to replace the global optimal solution obtained by the traditional algorithms when the number of cross sections is enough. It can be concluded that the incremental-simplex algorithm has good accuracy and stability.

Table 2.

Fitting evaluation parameters of different fitting criteria.

Criterion	Sections	a (mm)	b (mm)	p (rad)	q (rad)	R (mm)
LSC	15	0.0040	2.6845 × 10⁻⁴	−4.8683 × 10⁻⁷	1.1667 × 10⁻⁶	74.7545
MCC (SA)	15	−0.0064	−0.0010	5.7070 × 10⁻⁶	−5.5846 × 10⁻⁶	74.7691
MCC (GA)	15	−0.0051	0.0019	−1.6233e × 10⁻⁵	2.2779e × 10⁻⁶	74.7694
MCC (ISA)	15	−0.0061	−9.7208 × 10⁻⁴	5.3257 × 10⁻⁶	−3.2078 × 10⁻⁶	74.7691
MIC (SA)	15	−0.0030	4.5813 × 10⁻⁴	1.3252 × 10⁻⁶	4.3599 × 10⁻⁶	74.7428
MIC (GA)	15	−0.0032	0.0022	−1.2092 × 10⁻⁵	3.3495 × 10⁻⁶	74.7427
MIC (ISA)	15	−0.0020	−8.8655 × 10⁻⁵	3.7966 × 10⁻⁶	8.5218 × 10⁻⁶	74.7428
MZC (SA)	15	−0.0037	0.0027	−8.5796 × 10⁻⁶	2.1727 × 10⁻⁶	74.7704/74.7425
MZC (GA)	15	−0.0056	−0.0048	2.6244 × 10⁻⁵	−3.6491 × 10⁻⁶	74.7700/74.7402
MZC (ISA)	15	−0.0034	0.0031	−1.0562 × 10⁻⁵	2.5876 × 10⁻⁶	74.7704/74.7425

Table 3.

Inclusive criteria optimization error. Unit: mm.

SectionsCriterion	3	6	9	12	15
MCC(SA)	0.0216	0.0238	0.0275	0.0284	0.0284
MCC(GA)	0.0209	0.0247	0.0278	0.0282	0.0286
MCC(ISA)	0.0216	0.0244	0.0279	0.0284	0.0283
MIC(SA)	0.0226	0.0267	0.0258	0.0276	0.0283
MIC(GA)	0.0257	0.0268	0.0278	0.0282	0.0283
MIC(ISA)	0.0266	0.0264	0.0256	0.0269	0.0286
MZC(SA)	0.0213	0.0228	0.0248	0.0269	0.0279
MZC(GA)	0.0204	0.0270	0.0255	0.0273	0.0298
MZC(ISA)	0.0213	0.0226	0.0248	0.0264	0.0279

Comparison of calculation time among incremental-simplex algorithm and traditional algorithms

Figure 10 shows that when using the algorithm for the optimal solution, the optimization time of the MZC criterion is significantly higher than those for the other two fitting criteria, and the time used for the optimization increased with the number of sampling sections. The comparison with the incremental-simplex algorithm and the traditional algorithms shows that using the incremental-simplex algorithm to calculate the cylindricity of the inclusive criteria can improve the processing speed. According to the experiments in section “Comparison of calculation results among incremental-simplex algorithm and traditional algorithms,” it can be known that the calculation results can be also guaranteed. It can be concluded that the incremental-simplex algorithm proposed in this paper can well meet the requirements of high-precision and high-speed cylindricity evaluation. The optimization rate of SA and ISA is shown in Table 4.

Figure 10.

Comparison of calculation time. (a) MCC. (b) MIC. (c) MZC.

Table 4.

Optimization rate.

SectionsCriterion	3	6	9	12	15
MCC	0.88%	30.25%	56.90%	70.40%	58.12%
MIC	7.25%	45.72%	49.20%	39.25%	50.92%
MZC	8.75%	22.49%	22.57%	54.93%	38.45%

Conclusion

The new method for cylindricity error evaluation based on increment-simplex algorithm is proposed based on the next-generation GPS and ISO standards in this paper. The new method solves the problem of low efficiency of the existing cylindricality error evaluation. The mathematical models of the cylindricity fitting for the least squares cylinder, minimum circumscribed cylinder, maximum inscribed cylinder, and minimum zone cylinder in cartesian and cylindrical coordinate systems are constructed. The theoretical analysis of the new method is made with the circular section method as an example, and the specific steps of cylindricity error analysis based on the circular section method of the new method are given. Experimental verification and analysis are carried out. The experimental data show that the new method for calculating the cylindricity under the inclusive criteria can improve the processing speed while ensuring the accuracy of the cylindricity. The optimization effect for the MZC is most significant. The method can be applied to the cylindricity measuring device, and can effectively improve the evaluation efficiency. This method can also be extended to the evaluation of roundness and flatness errors. It can also improve the evaluation efficiency.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research has been supported by the National Natural Science Foundation of China (no. 51775515) and National Key Research and Development Program of China (no. 2017YFF0206501).

ORCID iD

Peng Zheng

Author biographies

Dongliang Liu obtained his B.S. in Automotive Engineering from Shanghai University of Engineering Science, Shanghai, China. He is currently a Ph.D. candidate at the School of Mechanical and Power Engineering in Zhengzhou University. He focus on the areas of active measurement technology and mechanical optimization design.

Peng Zheng received his B.S. and M.S. degree in Mechanical Engineering from Zhengzhou University, Zhengzhou, China. He then received his Ph.D. degree in Mechanical and Electronic Engineering from Shanghai University, Shanghai, China. Dr. Zheng is currently a professor of Mechanical and Power Engineering at Zhengzhou University. His research interests are in the areas of precision measurement technology and process quality control.

Jianghao Wu obtained his B.S. in Engineering from North China University of Water Resources and Electric Power, Henan, China. He is currently a Postgraduates candidate at the School of Mechanical and Power Engineering in Zhengzhou University. He focus on the areas of Digital precision instrument.

Haotian Yin obtained his B.S. in Machine Manufacturing from Henan University of Science and Technology, Henan, China. He is currently a Postgraduates candidate at the School of Mechanical and Power Engineering in Zhengzhou University. He focus on the active measurement of form and position error.

Linna Zhang received her B.S. and M.S. degree in Mechanical Engineering from Zhengzhou University, Zhengzhou, China. She is currently a professor of Mechanical and Power Engineering at Zhengzhou University. Her research interests are in the areas of process quality control and geometric product specifcation.

References

Zhang

Zhao

, et al. Theoretical basis and key technology research of modern product geometric technical specification (GPS) system. Mech Strength 2004; 26(5): 547–551.

Chen

Tao

, et al. Cylindricity error measuring and evaluating for engine cylinder bore in manufacturing procedure. Adv Mater Sci Eng. Epub ahead of print 22 March 2016. DOI: 10.1155/2016/4212905.

Zheng

Liu

Zhao

, et al. An efficient method for minimum zone cylindricity error evaluation using kinematic geometry optimization algorithm. Measurement 2019; 135: 886–895.

Zheng

Liu

Zhao

, et al. Statistical evaluation method for cylindricity deviation using local least squares cylinder. Int J Precis Eng Man 2019; 20(8): 1347–1360.

Liu

Zeng

Liu

, et al. Four-point error separation technique for cylindricity. Meas Sci Technol. Epub ahead of print 29 May 2018. DOI: 10.1088/1361-6501/aac15b.

Fei

Dan

Lin

, et al. Sampling strategy and error estimation for evaluation of quadratic form error using Cartesian coordinate data. IET Sci Meas Technol 2017; 11(7): 839–846.

Sun

Liu

, et al. A cylindricity evaluation approach with multi-systematic error for large rotating components. Metrologia. Epub ahead of print 19 March 2020. DOI: 10.1088/1681-7575/ab55c4.

Wang

BS.

Evaluation of cylindricity geometrical error based on calculational geometry. Appl Mech Mater 2015; 722: 359–362.

Zaimovic-Uzunovic

Lemes

Cylindricity measurement on a coordinate measuring machine. In: Hamrol

Ciszak

Legutko

, et al. (eds) Advances in manufacturing. Cham: Springer, 2017, pp. 825–835.

10.

Souza

Arencibia

Costa

, et al. A contribution to the measurement of circularity and cylindricity deviations. ABCM Symp Ser Mechatron 2012; 5: 791.

11.

Calvo

Gómez

Accurate evaluation of functional roundness from point coordinates. Measurement 2015; 73: 211–225.

12.

Srinivasu

Venkaiah

Minimum zone evaluation of roundness using hybrid global search approach. Int J Adv Manuf Tech 2017; 92(5–8): 2743–2754.

13.

George

Manu

Mathew

Multi-objective optimization of roundness, cylindricity and areal surface roughness of Inconel 825 using TLBO method in wire electrical discharge turning (WEDT) process. J Braz Soc Mech Sci Eng. Epub ahead of print 27 August 2019. DOI: 10.1007/s40430-019-1880-y.

14.

Collins

Fay

Aguirre-Cruz

, et al. Alternate methods for sampling in coordinate metrology. Proc IMechE, Part B: J Engineering Manufacture 2007; 221(6): 1041–1052.

15.

Summerhays

Henke

Baldwin

, et al. Optimizing discrete point sample patterns and measurement data analysis on internal cylindrical surface with systematic form deviations. Precis Eng 2002; 26(1): 105–121.

16.

Badar

Raman

Pulat

PS.

Experimental verification of manufacturing error pattern and its utilization in form tolerance sampling. Int J Mach Tools Manuf 2005; 45(1): 63–73.

17.

Stepien

In situ measurement of cylindricity-problems and solutions. Precis Eng 2014; 38(3): 697–701.

18.

Stepien

Janecki

Adamczak

On the cylindricity measurement by the V-block method. In: Katalinic

(ed.) DAAAM international scientific book. Vienna: DAAAM International, 2012, pp. 27–44.

19.

Stepien

Janecki

Adamczak

. Investigating the influence of selected factors on results of V-block cylindricity measurements [J]. Measurement 2011; 44(4): 767–777.

20.

Stepien

An analysis of errors of the cylidnricity measurements by the V-block method. PhD Dissertation, Kielce University of Technology, Kielce, Poland, 2006.

21.

Dovica

Vegh

Comparison of the cylindricity deviation using different evaluation methods. Am J Mech Eng 2013; 1(7): 339–342.

22.

Vrba

Palencar

Hadzistevic

, et al. The influence of the sampling strategy and the evaluation method on the cylindricity error on a coordinate measurement machine. J Prod Eng 2013; 16(2): 53–56.

23.

Zhang

Chang

Zhao

, et al. Operational technology based on duality in geometrical technical specifications (GPS) of modern products and its application. J Mech Strength 2005; 27(5): 655–660.

24.

Zhang

Sun

Gao

, et al. Research on linear size measurement and authentication technology based on GPS. J Mech Strength 2006; 28(4): 547–551.

25.

Yuanping

Zhijie

Xiangqian

, et al. Developing a knowledge-based system for complex geometrical product specification (GPS) data manipulation. Knowl-Based Syst 2011; 24(1): 10–22.

26.

Wen

Zhu

Zhao

, et al. Flatness error evaluation and verification based on new generation geometrical product specification (GPS). Precis Eng 2012; 36(1): 70–76.

27.

Fengxia

Kunpeng

Linna

, et al. Research on the intelligent annotation technology of geometrical tolerance based on geometrical product specification (GPS). Procedia CIRP 2015; 27: 254–259.

28.

Anselmetti

Chavanne

Yang

, et al. Quick GPS: A new CAT system for single-part tolerancing [J]. Comput Aided Des 2010; 42(9): 768–780.

29.

Scott

Jiang

, et al. A hierarchical category model for geometrical product specifications (GPS). Procedia CIRP 2016; 43: 214–219.

30.

Ricci

Scott

Jiang

A categorical model for uncertainty and cost management within the geometrical product specification (GPS) framework. Precis Eng 2013; 37(2): 265–274.

31.

Wen

, et al. Monte Carlo method for the uncertainty evaluation of spatial straightness error based on new generation geometrical product specification. Chinese J Mech Eng 2012; 25(5): 875–881.

32.

Zheng

Guo

Zhang

Metrology method of cylindricity error based on new geometrical product specification. In: Proceedings of the international conference on experimental mechanics 2008 (ICEM 2008), Nanjing, 25 August 2009. International Society for Optics and Photonics. https://doi.org/10.1117/12.839314.

33.

Heping

Xiangqian

Evaluation and management procedure of measurement uncertainty in new generation geometrical product specification (GPS). Measurement 2008; 42(5): 653–600.

34.

Durakbasa

Osanna

Afjehi-Sadat

A general approach to workpiece characterization in the frame of GPS (Geometrical Product Specification and Verification). Int J Mach Tools Manuf 2001; 41(13–14): 2147–2151.

35.

ISO 1101:2017. Geometrical product specification (GPS) – geometrical tolerancing— tolerances of form, orientation, location and run-out, https://www.iso.org/obp/ui/#iso:std:iso:1101:ed-4:v1:en

36.

ANSI. Dimensioning and tolerancing, http://webstore.ansi.org/RecordDetail.aspx?sku=ASME+Y14.52-2017.html

37.

ISO 12180-2:2011. Geometrical product specifications (GPS) – Cylindricity – Part 2: Specification operators, https://www.iso.org/standard/53612.html

38.

ISO 12181-2:2011: Geometrical product specifications (GPS) – Roundness – Part 2: Specification operators, https://www.iso.org/standard/53621.html

39.

Zhong

Jia

Zhao

, et al. A revised simplex method of solving degenerate fuzzy number linear programming problems. J Intell Fuzzy Syst 2015; 29(5): 2139–2146.

40.

Huangfu

Hall

JJ.

Parallelizing the dual revised simplex method. Math Program Comput 2018; 10(1): 119–142.

41.

Lei

Song

Xue

, et al. Method for cylindricity error evaluation using geometry optimization searching algorithm. Measurement 2011; 44(9): 1556–1563.

42.

Yang

Wang

, et al. Cylindricity error evaluation based on an improved harmony search algorithm. Sci Program. Epub ahead of print 19 July 2018. DOI: 10.1155/2018/2483781.
