Multiple refinements to the anaesthetic protocol for laparoscopic orthotopic kidney auto-transplantation in a pig model

Abstract

Fifty-four pigs (Sus scrofa, Large White cross) from a commercial pig farm were anaesthetised over a six-year period from October 2011. The procedural stages included initial instrumentation for intra-operative monitoring, laparoscopic nephrectomy, preparation of the kidney graft, orthotopic auto-transplantation by either a laparoscopic approach or an open surgical approach, and ligation of the contralateral ureter. During the evolution and establishment of this pig model multiple refinements were introduced: (1) a heat pad was changed to a circulating warm air blanket; (2) routine administration of anticholinesterase and antimuscarinic drugs for reversal of neuromuscular blockade; (3) a technique for urethral catheterisation was developed; (4) ultrasound guidance for placement of a central venous line was learned; (5) intravenous infusions of morphine and ketamine were instituted for a more stable and balanced anaesthetic protocol; and (6) post-operative monitoring was performed by two technical staff for at least the first six hours after extubation of the trachea. The combination of refinements to the anaesthesia protocol for laparoscopic orthotopic kidney auto-transplantation over the first 54 pigs has translated to improved outcomes. This conclusion is entirely subjective as accurate measurement of the impact of each refinement is impossible. Nevertheless, refinement is a continuous process and should be applied to the entire range of procedures involved in animal use for scientific purposes.

Introduction

An innovative surgical technique for laparoscopic kidney transplantation has been developed in a pig model over the last six years ¹ with the ultimate goal of translating a method for laparoscopic orthotopic kidney grafting to human patients. ² The development of this technique in a pig model has presented a number of challenges to the research team as the surgery involved two procedures: laparoscopic donor nephrectomy followed by laparoscopic kidney auto-transplantation. In addition, the pigs recovered from surgery for up to one month. Multiple anaesthetic refinements have been incorporated during this six-year period.

Application of the principle of refinement is a continuous process incorporating methods that avoid or minimise potential pain and distress, and enhance animal wellbeing. ³ This concept applies to all aspects of animal care from basic husbandry to major surgical procedures. In this project there have been many opportunities to introduce refinements, particularly in the peri-operative period. Herein is a brief description of six such refinements, and their perceived value, applied to this pig model.

Materials and methods

Animals

The surgical project was approved over three consecutive applications by the Animal Ethics Committee of the University of Western Australia in accordance with the guidelines of the National Health and Medical Research Council’s Australian Code for the Care and Use of Animals for Scientific Purposes. ³ A pig model was chosen for the comparable (to humans) anatomy of the abdominal organs. Female pigs were utilised in this study, as catheterisation of the urethra was required for the management of bladder filling during the prolonged anaesthesia.

This retrospective review details procedural refinements introduced as 54 pigs (Sus scrofa, Large White cross) were anaesthetised for the establishment of a laparoscopic technique for orthotopic kidney transplantation. ¹ The pigs were anaesthetised in a six-year period from October 2011. The pigs were 14–17 weeks of age and weighed 47.5 (SD ± 9.6) (95% CI 44.8–50.2) kg. The husbandry conditions of the pigs have been previously described. ⁴ In brief, the pigs had been sourced commercially as ‘bacon pigs’ (CM Farms, Nambeelup, Western Australia) and acclimatised to the Large Animal Facility at the University of Western Australia for 2 weeks prior to surgery. The pigs were housed in raised communal pens (4 × 5 m), fed a maintenance diet (Pig Grower, West Feeds Pty Ltd, Australia) with fresh pumpkin and apples and allowed free access to tap water. Environmental enrichment was provided with music during the day, various toys for play and daily positive human interaction. The room was maintained at 22 ± 2℃ and a 12:12 h light:dark cycle. Prior to general anaesthesia food was withheld for 12 h but free access to water was allowed. The pigs were clinically normal prior to surgery when examined by a veterinarian.

The procedural stages for each pig included initial instrumentation for intra-operative monitoring, laparoscopic nephrectomy, ⁵ preparation of the graft, orthotopic auto-transplantation by either a laparoscopic (n = 44) approach or a conventional open (n = 10) surgical approach, and ligation of the contralateral ureter when perfusion of the graft was judged adequate by observing the colour of the kidney after reperfusion. ¹ After the first 10 pigs underwent surgery a recovery period of 1–4 weeks was introduced to the protocol.

Anaesthesia

During the course of the project the drugs for anaesthesia have not changed per se. The basic regime included: the induction of anaesthesia with a combination of zolazepam and tiletamine (2 mg/kg each) with xylazine (2 mg/kg) by intramuscular injection; propofol (1–2 mg/kg) by intravenous injection if required to achieve an adequate depth of anaesthesia for oral tracheal intubation with a 6.5–8.0 mm cuffed endotracheal tube; and maintenance of anaesthesia with isoflurane (0.5–2%) in 100% oxygen (1–2 l/min) delivered through a circle breathing system. ⁴ The pigs were mechanically ventilated in either volume (10–15 ml/kg) or pressure-cycled modes throughout the procedure (Datex Ohmeda ADU anaesthetic machine, GE Healthcare, Sweden, 1999). Positive end-expiration pressure was set at 5 cmH₂O. Alterations to the ventilator settings were made to maintain normocapnia (expired CO₂ ∼40 mmHg) by changing the tidal volume or target pressure and/or the respiratory rate. Intra-operative monitoring included invasive arterial blood pressure from a catheter in an auricular artery connected to a pressure transducer, central venous pressure from a central venous catheter in an external jugular vein, oxyhaemoglobin saturation and pulse rate from a pulse oximeter placed on a pinna, capnography and expired agent monitoring, pharyngeal temperature and electrocardiography (Surgivet V9203 multivariable monitor, Polymount GCX corporation, USA. and Carescape B650 Anaesthetic Monitor, GE Healthcare, Finland for capnography and agent monitoring). These parameters were measured continuously and recorded every 5 min on a paper anaesthetic record. Neuromuscular blockade was achieved with pancuronium (0.1 mg/kg IV) or atracurium (0.5 mg/kg IV) and monitored with a peripheral nerve stimulator to the facial nerve using a train-of-four (TOF) pattern.

Multi-modal analgesia was provided from tiletamine, xylazine, local anaesthetic, opioids and tramadol. ⁴ Bupivacaine (maximum dose 2 mg/kg SC) was injected at each of the surgery sites at the end of surgery. Opioids were administered in the peri-operative period: morphine prior to the start of surgery (0.1–0.2 mg/kg IV) and as intermittent bolus doses or as an IV infusion (0.2 mg/kg/h) during surgery; and morphine (0.2–0.5 mg/kg IM) every 6–8 h after surgery for 1-2 days. Ketamine was administered to some pigs during surgery (0.3 mg/kg/h IV). Tramadol (2–4 mg/kg IM) was also administered every 12 h after surgery for 3 days.

Post-procedural monitoring in the first six hours involved observation and scoring of six parameters: body temperature (normal, 39.8–41℃, >41℃); ventilation (normal, slightly/intermittently laboured, moderately laboured); capillary refill time (normal, slightly increased, moderately increased); mucous membrane colour (normal, slightly pale, moderately pale or cyanotic); demeanour (normal, slightly or intermittently deviated from normal, moderately or consistently deviated from normal given the pig was recovering from anaesthesia and had received analgesic drugs); and other presenting clinical signs. These parameters were scored 0 (normal) to a maximum of 2 and summed to generate a total score. Interventions were triggered by the summed score with prompt euthanasia required if the score was >6.

Post-procedural monitoring from days 1 to 28 after surgery was performed twice daily for the first 14 days and once daily for the subsequent 14 days. Observation and scoring of 10 parameters was performed: ventilation as described above; gait (normal, intermittent or slight lameness or paresis, moderate lameness or paresis); secretions from eyes/nose (normal, mildly increased, moderately increased); demeanour (normal, slight or intermittent malaise, moderate malaise); appetite (normal, reduced feed intake, no feed intake); thirst (normal, no drinking); urination (normal, not observed and dry flooring); faecal output and texture (normal, reduced or soft, no output or watery consistency); wound appearance (normal, slightly inflamed, moderately inflamed with or without discharge); and other presenting clinical signs. These parameters were scored 0 (normal) to a maximum of 2 and summed to generate a total score. Interventions were triggered by the summed score, with veterinary assessment required if the score was >1 and prompt euthanasia required if the score was >8.

Experimental refinements

During the evolution and establishment of this pig model multiple refinements were introduced: (1) a heat pad was changed to a circulating warm air blanket to safely minimise the severity of intra-operative hypothermia; (2) routine administration of anticholinesterase (neostigmine 0.04 mg/kg IV) and antimuscarinic (glycopyrrolate 0.01 mg/kg IV) drugs for reversal of neuromuscular blockade was introduced; (3) a technique for urethral catheterisation for measurement of intra-operative urine output was developed and described; ⁶ (4) ultrasound guidance for placement of a central line for measurement of central venous pressure and administration of intravenous mannitol and other therapies was learned; (5) intravenous infusions of morphine and ketamine were instituted for a more balanced anaesthetic protocol; and (6) post-operative monitoring was performed by two technical staff for at least the first six hours after extubation of the trachea.

Results

Following the administration of zolazepam, tiletamine and xylazine, propofol was administered to 27 pigs to achieve a depth of anaesthesia for oral tracheal intubation. The time between IM injection of zolazepam, tiletamine and xylazine and the IV injection of propofol (n = 27) was 12.8 (SD ± 4.4) (95% CI 11.1–14.6) minutes. The pigs were placed in sternal recumbency for tracheal intubation. Total anaesthesia time was 8.8 (SD ± 1.1) (95% CI 8.5–9.1) h. Anaesthesia was uneventful in all the pigs, but two pigs developed acute respiratory distress in the immediate post-operative period and were euthanased. One pig was euthanased six days after surgery due to failure of the kidney graft.

Refinement (1) was introduced after pig 12 when a pattern of erythema matching the heat coils of the head pad was visible after surgery where a heat pad was used; refinement (2) was introduced after pig 22 when concern over residual neuromuscular blockade contributing to acute respiratory distress after recovery from anaesthesia was raised; refinement (3) was introduced after pig 28 when the procedure of urethral catheterisation was more challenging than expected; refinement (4) was introduced after pig 34 when the value of non-invasive placement of a central venous catheter was considered; refinement (5) was introduced after pig 36 when resources permitted; and refinement (6) was introduced after pig 45 when resources permitted. The specific impact of each refinement could not be measured objectively but the perceived impact of each is summarised in Table 1.

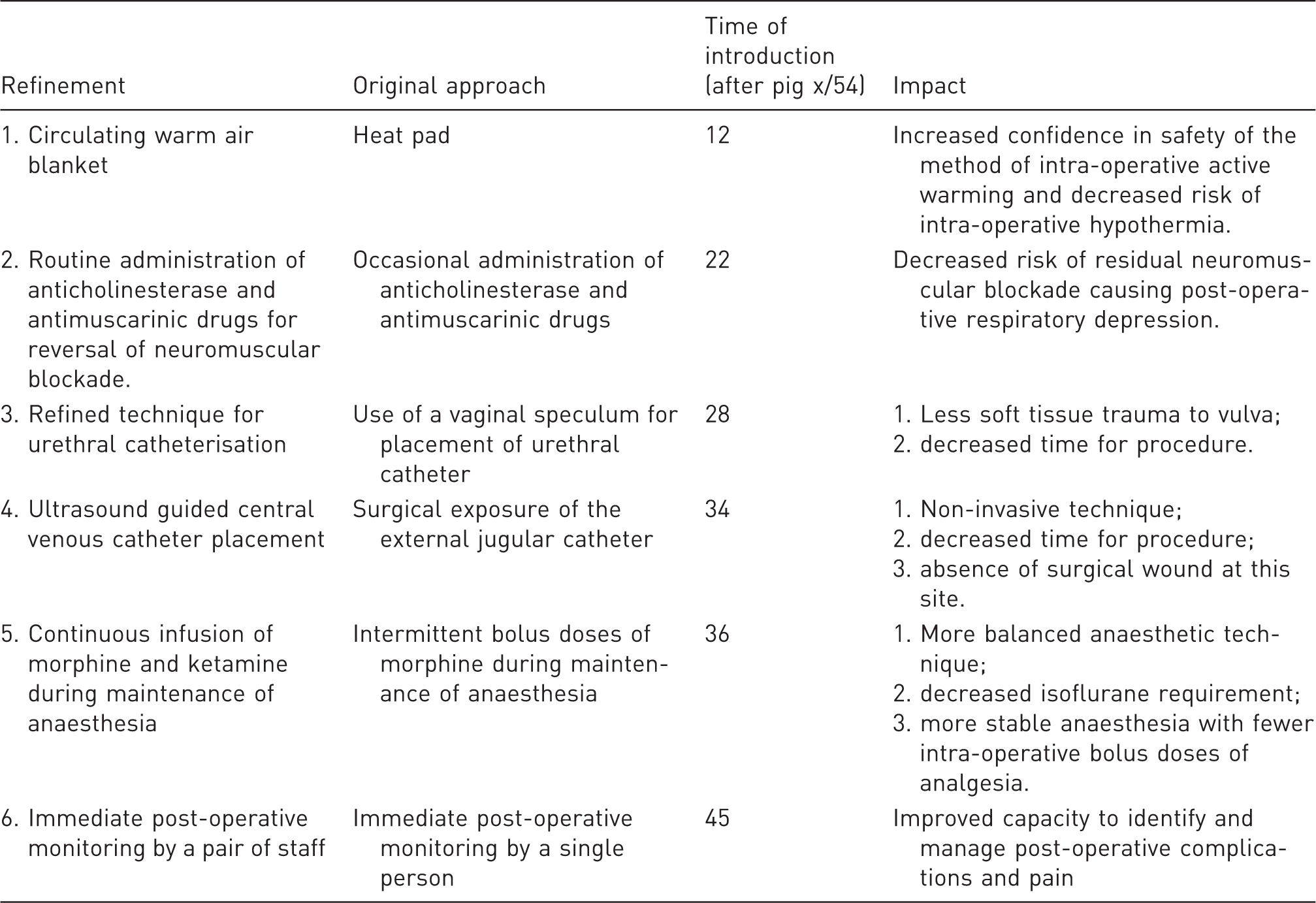

Table 1.

Summary of the refinement and its perceived impact.

Refinement	Original approach	Time of introduction (after pig x/54)	Impact
1. Circulating warm air blanket	Heat pad	12	Increased confidence in safety of the method of intra-operative active warming and decreased risk of intra-operative hypothermia.
2. Routine administration of anticholinesterase and antimuscarinic drugs for reversal of neuromuscular blockade.	Occasional administration of anticholinesterase and antimuscarinic drugs	22	Decreased risk of residual neuromuscular blockade causing post-operative respiratory depression.
3. Refined technique for urethral catheterisation	Use of a vaginal speculum for placement of urethral catheter	28	1. Less soft tissue trauma to vulva; 2. decreased time for procedure.
4. Ultrasound guided central venous catheter placement	Surgical exposure of the external jugular catheter	34	1. Non-invasive technique; 2. decreased time for procedure; 3. absence of surgical wound at this site.
5. Continuous infusion of morphine and ketamine during maintenance of anaesthesia	Intermittent bolus doses of morphine during maintenance of anaesthesia	36	1. More balanced anaesthetic technique; 2. decreased isoflurane requirement; 3. more stable anaesthesia with fewer intra-operative bolus doses of analgesia.
6. Immediate post-operative monitoring by a pair of staff	Immediate post-operative monitoring by a single person	45	Improved capacity to identify and manage post-operative complications and pain

Discussion

The six anaesthetic refinements were introduced to the anaesthetic management of pigs undergoing orthotopic kidney auto-transplantation when an opportunity for improvement and efficiency was identified. The aims of these refinements were to decrease total anaesthesia time, morbidity and mortality. Measurement of the impact of the refinements is difficult as they were not always introduced in isolation and were not always recognised specifically as a refinement until after the fact. Nevertheless, after the completion of 54 pigs, six specific refinements have been identified, and are believed to have contributed to greater efficiencies during anaesthesia and lower morbidity and mortality.

Intra-operative hypothermia is a common contributor to post-operative morbidity and active warming is required to prevent the expected decrease in temperature associated with anaesthesia.^7,8 The decision to change from a heat pad to a warm air blanket was made when the safety of the heat pad was questioned after one pig was noticed to have a pattern of erythema on the skin in the shape of the heat coils within the pad at the end of the procedure. Purchasing a warm air blanket mitigated the safety risk of using a heat pad for the long procedure. Subsequent to this purchase intra-operative severe hypothermia was avoided, without adverse events.

Neuromuscular blockade during laparoscopy is used to improve the quality of the surgical field. ⁹ The introduction of TOF monitoring with a peripheral nerve stimulator was acknowledged to provide limited information on the depth of neuromuscular blockade, but was ultimately used to ensure that the reversal agent was administered when there was evidence of spontaneous recovery based on observations following TOF stimulation. ¹⁰ Routine reversal of neuromuscular blockade with intravenous neostigmine (0.04 mg/kg) and glycopyrrolate (0.01 mg/kg) was implemented after the 22nd pig as recommended. ¹⁰ Prior to this standardised approach, neuromuscular blockade was not always reversed, especially if the most recent dose was administered more than 1 h prior to the end of anaesthesia. The risk of residual neuromuscular blockade has therefore been mitigated.

Catheterisation of the urethra was necessary in this study to allow drainage of the bladder during the long procedure and intra-operative assessment of urine output. Initially the procedure for insertion of the catheter took up to an hour. At the time, reference to the literature for a description of the technique in pigs between 40 and 50 kg was largely unrewarding. Hence, the vagina and urethra were dissected from six pigs and the urethral diverticulum was identified. Following these dissections an eight-point list of tips to aid placement of a urethral catheter in female pigs was published. ⁶ The presence of a urethral diverticulum was identified, and implementation of these tips substantially reduced soft tissue trauma to the vagina and the time for placement of the urethral catheter.

The placement of a central venous line using the Seldinger technique was initially performed by surgically exposing the internal jugular vein in a similar approach to that described previously. ¹¹ Access to an ultrasound machine enabled the veterinary anaesthetist (GCM) to use ultrasound guidance to identify the internal jugular vein and place a central venous catheter within 30 minutes. The technique was similar to that described elsewhere, ¹² although it did not require two veterinarians as Izer et al. report. This refinement has negated the requirement for an additional surgical procedure and decreases the time involved in instrumentation of the pig prior to surgery.

Supplemental intravenous anaesthesia or analgesia is used to describe a combination of intravenous and inhalational anaesthesia as a technique of ‘balanced anaesthesia’. ¹³ Intermittent bolus injection of drugs produces peaks and troughs of plasma concentration and clinical effect so a constant or variable rate infusion of drugs to supplement inhalational anaesthesia was introduced from the 37th pig. The drugs were morphine (0.2 mg/kg/h) and ketamine (0.3 mg/kg/h) and the intravenous infusions commenced prior to surgery. A bolus of morphine was given initially (0.1 mg/kg). Prior to this refinement intermittent boluses of morphine were administered as deemed necessary and the isoflurane vapouriser setting was altered more frequently. In dogs the infusion of morphine and ketamine will decrease isoflurane requirements, ¹⁴ although this effect is not reported in pigs the requirement for isoflurane was lower once this regime was introduced.

Initially the immediate post-procedural monitoring was performed by a single person, which limited their capacity to manage any issues that arose. The aim at that point was to simply ensure the pig was comfortable. From the 47th pig two people were responsible for the post-procedural care, which enabled the continuation of intravenous fluid therapy and a greater capacity to provide comfort and nursing care. This refinement ensures that the provision of post-operative analgesia is more targeted to the individual animal’s requirements and the morning after surgery the pigs appeared more comfortable and were more active.

There are limitations to this retrospective account of multiple refinements introduced to a pig model. Objective assessment of the impact of some of the refinements is very difficult, even in a prospective study design, so the commentary is somewhat speculative. Furthermore, in some instances, measurements, for example the time taken to place a urethral catheter, were not taken so comparisons pre- and post-refinement are not possible. Finally, the sample size for assessment of refinements is small in such a complex model with numerous variables. Targeted studies to determine the positive or negative effects of refinements are warranted in pigs, until which time extrapolation from other species with a basis in evidence to the refinements is required.

The refinements to the anaesthesia protocol for laparoscopic orthotopic kidney auto-transplantation over the first 54 pigs have translated to improved outcomes for the pigs in the post-procedural period. This conclusion is somewhat subjective as accurate measurement of the impact of each refinement is impossible. Nevertheless, refinement is a continuous process and should be applied to the entire range of procedures involved in animal use for scientific purposes. Engagement and consistency of personnel involved in such projects is essential to ensure meaningful refinements can be identified, introduced and evaluated.
