Abstract

This paper addresses the path following problem of an underactuated autonomous underwater vehicle (AUV) with the aim of dealing with parameter uncertainties and current disturbances. An adaptive robust control system was proposed by employing fuzzy logic, backstepping and sliding mode control theory. Fuzzy logic theory is adopted to approximate unknown system function, and the controller was designed by combining sliding mode control with backstepping thought. Firstly, the longitudinal speed was controlled, then the yaw angle was made as input of path following error to design the calm function and the change rate of path parameters. The controller stability was proved by Lyapunov stable theory. Simulation and outfield tests were conducted and the results showed that the controller is of excellent adaptability and robustness in the presence of parameter uncertainties and external disturbances. It is also shown to be able to avoid the chattering of AUV actuators.

Keywords

Underactuated AUV Path Following Fuzzy Logic Backstepping Sliding Mode Control Robustness

1. Introduction

The autonomous underwater vehicle (AUV) plays an important role in the exploration of ocean resource and military affairs [1 –4]. To achieve these tasks, the AUV needs the ability of accurate path following [5–6]. The paths are described by curve parameters which are usually not relevant to time. There are not lateral and vertical thrusters for most AUVs, and only longitudinal speed, yawing and pitching angle speed are controlled directly. Therefore, the AUV is a typical underactuated system which makes path following more difficult.

The path following problem of an underactuated AUV has been addressed in a large number of publications. Approaches based on the Line-of-Sight (LOS) guidance principle are very popular, by which horizontal path following in two dimensions (2D) of underactuated marine vessels was achieved in [7–8]. Moreover, Walter Caharija [9] introduced an integral LOS guidance for path following controller of underactuated AUVs in the presence of ocean currents. Advanced nonlinear control techniques were adopted in [10] to control the yaw rate of an underactuated marine vessel and hold a desired course. Yu Jiancheng [11] conducted horizontal path following experiments by direct adaptive control method based on neural network. Tang Xudong [12] put forward a process neuron control model. Repoulias Filoktimon [13] designed a horizontal path following controller based on Lyapunov stability theorem and backstepping method. Xiao Liang [14] proposed a novel method based on Lyapunov stability theorem and feedback gain backstepping to reduce the complexity of controller and improve adjustability of the controller parameters. Zaopeng Dong [15] proposed a state feedback based backstepping control algorithm to address the horizontal path following problem of an underactuated marine vessel. Jian Gao [16] proposed a global path following method for the AUV based on the same coordinates to achieve global asymptotic stability of the following error. Zhou et al. [17] designed three adaptive neural network controllers which are based on the Lyapunov stability theorem to estimate uncertain parameters of the vehicle's model and unknown current disturbances. These controllers are designed to guarantee that all the error states in the path following system are asymptotically stable. Lapierre [18] designed a kinematic controller and extended it to cope with vehicle dynamics by resorting to backstepping and Lyapunov-based techniques. As mentioned above, the control algorithms for AUVs have been advanced significantly. However, when it comes to solve the disturbance problems of exterior interfere and uncertain model of AUV, the above control algorithm is incapable of achieving high performance [19].

In recent years, fuzzy modeling and control algorithm have obtained a rapid development and applied to practice due of its function approximation ability [20 –22]. Backstepping technology has obtained widespread application in AUV motion control [14,15]. To avoid the explosion of complexity in backstepping design which is caused by differentiation at each step, researchers have proposed some methods to eliminate the problem in some studies [23 –25]. In this paper, we propose to adopt fuzzy backstepping sliding mode control to solve the problems of nonlinearity, uncertainties and external disturbances in the horizontal path following of underactuated AUVs. Firstly, we adopt fuzzy logic system to approximate unknown nonlinear function in the AUV model and fuzzy method to serialize the switching items of sliding mode controller to reduce the chattering of AUV actuators. Then, the system stability is proved by Lyapunov stable theory. Finally, simulation and outfield tests are conducted to verify the feasibility and superiority of the novel approach.

2. Problem Description

For ease of problem description, this paper establishes two kinds of coordinate system according to the glossary of ITTC and SNAME, fixed coordinate system $E - ξ η ζ$ and moving coordinate system O-xyz. The fixed coordinate system is inertial reference system whose origin is a fixed point in the horizontal plane. The origin of moving coordinate system is located in the center of gravity B of AUV, and the coordinates of point B in fixed coordinate system is $(ξ_{B}, η_{B}, ζ_{B})$ . Assuming u, v and r represent the AUV longitudinal speed, transversal speed and yawing speed in O-xyz respectively. ψ is the yawing angle of AUV, which is defined as the turning angle from O-xyz to $E - ξ η ζ$ [26] This paper only considers path following in the horizontal plane, so heave, roll, and trim are ignored. The AUV kinematic equations in horizontal plane can be expressed as

{\begin{cases} {\dot{ξ}}_{B} = u \cos ψ - v \sin ψ \\ {\dot{η}}_{B} = u \sin ψ + v \cos ψ \\ \dot{ψ} = r \end{cases}

(1)

The AUV dynamic equations can be expressed as

{\begin{cases} (m - X_{\dot{u}}) \dot{u} - (m - Y_{\dot{v}}) v r - (X_{u} + X_{u | u |} | u |) u = X + f_{u} \\ (m - Y_{\dot{v}}) \dot{v} - (m - X_{\dot{u}}) u r - (Y_{v} + Y_{v | v |} | v |) v = f_{v} \\ (I_{z} - N_{\dot{r}}) \dot{r} + (X_{\dot{u}} - Y_{\dot{v}}) u v - (N_{r} + N_{r | r |} | r |) r = N + f_{r} \end{cases}

(2)

where m is the weight of the AUV, and I_z is the moment of inertia around z axis. X{•}, Y{•} and N{•} represent the AUV hydrodynamic coefficients. f{•} is unknown disturbances assuming |f{•}|≤F{•}. X is the longitudinal thrust provided by tail propellers of AUV. N is the torque around z axis produced under the joint action of thrusters and rudders.

The AUV is a complex nonlinear dynamic system and its dynamic model precision can be affected by external disturbances and load change. (2) are simplified equations which ignore higher-order hydrodynamic coefficients, so the horizontal kinematic equations based on (2) are not precise. However, they can be used as nominal model in simulation. Without affecting the generality, the horizontal kinematic equations of AUV can be expressed as

{\begin{cases} \dot{u} = f_{1} (υ, t) + b_{1} (υ, t) X + d_{1} (t) \\ \dot{v} = f_{2} (υ, t) + d_{2} (t) \\ \dot{r} = f_{3} (υ, t) + b_{3} (υ, t) N + d_{3} (t) \end{cases}

(3)

where υ =[u v r]^T. As shown in Figure 1, an AUV is moving in the horizontal plane ζ and its reference path Ω is a free curve which is described by the parameter s. P is a free reference point in path Ω and on point P, we can establish {SF} coordinate system ξ_sfη_sf which consists of tangent vector and normal vector. ξ_sf axis goes along tangential direction at point P and η_sf axis goes along normal direction at point P. Reference point P moves along path Ω at a speed of U_p and the included angle between ξ_sf axis and ξ axis is ψ_p. The coordinates of point B in {SF} coordinate system are $(τ_{e}, n_{e})$ which is the path following error.

The path curve is described by parameter s and the reference point P(ξ(s), η(s)) is determined by s only. The moving speed of point P can be expressed as $U_{P} = \sqrt{{ξ^{'}}_{P}^{2} (s) + {η^{'}}_{P}^{2} (s)} \dot{s}$ .

The included angle between ξ_sf axis and ξ axis is $ψ_{P} = \arctan ({η^{'}}_{P} (s) / {ξ^{'}}_{P} (s))$ . The curve angular rate is

r_{P} (s) = \frac{\partial ψ_{P}}{\partial s} \dot{s} = \frac{{ξ^{'}}_{P} (s) {η^{″}}_{P} (s) - {η^{'}}_{P} (s) {ξ^{″}}_{P} (s)}{{ξ^{'}}_{P}^{2} (s) + {η^{'}}_{P}^{2} (s)} \dot{s}

(4)

Figure 1.

Diagram of AUV path following

The kinematic equations of path following error can be expressed as

{\begin{cases} {\dot{τ}}_{e} = - U_{P} + r_{P} n_{e} + u \cos ψ_{e} - v \sin ψ_{e} \\ {\dot{n}}_{e} = - r_{P} τ_{e} + u \sin ψ_{e} + v \cos ψ_{e} \\ {\dot{ψ}}_{e} = r - r_{P} \end{cases}

(5)

where ψ_e is the following error of yaw angle, ψ_e =ψ–ψ_p. Therefore, the problem discussed in this paper can be described as: In the presence of model uncertainty and external disturbances, we set the path Ω to follow and the desired longitudinal motion speed u_d according to the kinematic and dynamic model of the AUV. The AUV seeks for longitudinal force X, turning stem torque N and the changing rate of curve parameter s from any initial position. In this way, we expect the following error $τ_{e}, n_{e}$ to converge to zero, and the longitudinal speed u to converge to desired speed u_d, that is,

\lim_{t \to \infty} τ_{e} = 0, \lim_{t \to \infty} n_{e} = 0, \lim_{t \to \infty} (u - u_{d}) = 0

3. Fuzzy Backstepping Sliding Mode Control

Consider the n order nonlinear controlled object

{\begin{cases} {\dot{x}}_{i} = x_{i + 1} \\ {\dot{x}}_{n} = f (x, t) + b (x, t) u + d (t) \\ y = x_{1} \end{cases}

(6)

where f( x ,t), b( x ,t) are unknown nonlinear functions, x =[x₁,x₂,…,x_n]^T∈Rⁿ is system state vector. u∈R is control input, and y∈R is the system output. d(t) is unknown disturbances and |d(t)|≤D+η=D_η D is the maximum value of absolute value of $d (t)$ , η is a small positive number. The purpose is to design proper sliding mode control law based on backstepping method and to make the system output $y = x_{1}$ and desired output y_d and all signals kept bounded.

3.1. Controller design

The controller is designed into three parts: the first is backstepping algorithm, and the second is sliding mode control, and the third is fuzzy logic system.

Step 1 Backstepping algorithm

The first step:

Define following error

z_{1} = y - y_{d}

(7)

then

{\dot{z}}_{1} = \dot{y} - {\dot{y}}_{d} = {\dot{x}}_{1} - {\dot{y}}_{d} = x_{2} - {\dot{y}}_{d}

(8)

Define virtual control value

α_{1} = - k_{1} z_{1} + {\dot{y}}_{d}

(9)

where k₁>0.

Define

z_{2} = x_{2} - α_{1}

(10)

V_{1} = \frac{1}{2} z_{1}^{2}

(11)

then

{\dot{V}}_{1} = z_{1} {\dot{z}}_{1} = z_{1} (x_{2} - {\dot{y}}_{d}) = z_{1} (z_{2} + α_{1} - {\dot{y}}_{d})

(12)

Substitute (9) into (12) and we can obtain

{\dot{V}}_{1} = - k_{1} z_{1}^{2} + z_{1} z_{2}

(13)

The second step:

Define Lyapunov function

V_{2} = V_{1} + \frac{1}{2} z_{2}^{2}

(14)

then

\begin{array}{l} {\dot{V}}_{2} = V_{1} + z_{2} {\dot{z}}_{2} = - k_{1} z_{1}^{2} + z_{1} z_{2} + z_{2} ({\dot{x}}_{2} - {\dot{α}}_{1}) \\ = - k_{1} z_{1}^{2} + z_{1} z_{2} + z_{2} (x_{3} - {\dot{α}}_{1}) \end{array}

(15)

Define virtual control value

α_{2} = - k_{2} z_{2} + {\dot{α}}_{1} - z_{1}

(16)

where $k_{2} > 0$ .

Define

z_{3} = x_{3} - α_{2}

(17)

then

\begin{array}{l} {\dot{V}}_{2} = - k_{1} z_{1}^{2} + z_{1} z_{2} + z_{2} (x_{3} - {\dot{α}}_{1}) \\ = - k_{1} z_{1}^{2} - k_{2} z_{2}^{2} + z_{2} z_{3} \end{array}

(18)

The n–1 step:

\begin{array}{l} {\dot{V}}_{n - 1} = - k_{1} z_{1}^{2} - \dots - k_{n - 1} z_{n - 1}^{2} + z_{n - 1} z_{n} \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} \end{array}

(19)

where $z_{n} = x_{n} - α_{n - 1}$ , $α_{n - 1} = - k_{n - 1} z_{n - 1} + {\dot{α}}_{n - 2} - z_{n - 2}$ .

Step 2 Sliding mode control

The n step: Considering the strong robustness of sliding mode control, we can modify the backstepping algorithm and introduce sliding mode control in the last step of backstepping. Then the sliding mode surface can be designed as follows.

S = c_{1} z_{1} + \dots + c_{n - 1} z_{n - 1} + z_{n}

(20)

Select constant c₁,c₂…c_n–₁ and make polynomial P(p)=p⁽ ⁿ ⁻¹⁾+c_n–₁ p⁽ ⁿ ⁻²⁾ +…+c₂p+c₁ as Hurwitz stability, and p is Laplace operator.

Define Lyapunov function

V_{n} = V_{n - 1} + \frac{1}{2} S^{2}

(21)

then

\begin{array}{l} {\dot{V}}_{n} = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S \dot{S} = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} \\ + z_{n - 1} z_{n} + S (c_{1} {\dot{z}}_{1} + \dots + c_{n - 1} {\dot{z}}_{n - 1} + {\dot{z}}_{n}) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (\sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i} + {\dot{x}}_{n} - {\dot{α}}_{n - 1}) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (\sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i} + f (x, t) \\ + b (x, t) u + d (t) - {\dot{α}}_{n - 1}) \end{array}

(22)

If f( x ,t), b( x ,t) are both known, the sliding mode control law can be designed as follows.

u = \frac{1}{b (x, t)} (- f (x, t) + {\dot{α}}_{n - 1} - D_{η} sgn (S) - h S - \sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i})

(23)

where h is a positive constant.

Step 3 Adaptive fuzzy logic system

Control law (23) is not applicable when f( x ,t), b( x ,t) are unknown. Besides, switching item D_ηsgn(S) is easy to cause the chattering. To solve these problems, we will use fuzzy logic systems $\hat{f}$ , $\hat{b}$ and $\hat{d}$ to respectively approximate f, b and d.

We will use product inference engine, single value fuzzy unit and center average defuzzifier to design fuzzy logic systems. The output of system [27] is

y (x) = \frac{\sum_{m = 1}^{M} χ^{m} (\prod_{i = 1}^{n} μ_{A}_{i}^{m} (x_{i}))}{\sum_{m = 1}^{M} (\prod_{i = 1}^{n} μ_{A}_{i}^{m} (x_{i}))} = χ^{Τ} Ω (x)

(24)

where χ=[χ¹,…,χ ^m ,…,χ ^M ]^T, Ω(x)=[Ω¹,…,Ω ^m ,…, Ω ^M ]^T, $Ω^{m} (x) = \frac{\prod_{i = 1}^{n} μ_{A}_{i}^{m} (x_{i})}{\sum_{m = 1}^{M} (\prod_{i = 1}^{n} μ_{A}_{i}^{m} (x_{i}))}$ , $μ_{A}_{i}^{m} (x_{i})$ are the membership functions of x_i. The control law can be designed as

u = \frac{1}{\hat{b} (x, t)} (- \hat{f} (x, t) + {\dot{α}}_{n - 1} - \hat{d} (S, t) - (h + β) S - \sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i})

(25)

where $\hat{f} (x | χ_{f}) = χ_{f}^{T} Ω_{1} (x)$ , $\hat{b} (x | χ_{b}) = χ_{b}^{T} Ω_{2} (x)$ , $\hat{d} (S | χ_{d}) = χ_{d}^{T} Ω_{3} (S)$ is the output of fuzzy system in (25), and β is positive constant. As external disturbance d(t) is continuous changing, so is $\hat{d} (S, t)$ . In this way, we can avoid the chattering caused by D_ηsgn(S). Adaptive law can be designed as follows,

{\begin{cases} {\dot{χ}}_{f} = γ_{1} S Ω_{1} (x) \\ {\dot{χ}}_{b} = γ_{2} S Ω_{2} (x) u \\ {\dot{χ}}_{d} = γ_{3} S Ω_{3} (S) \end{cases}

(26)

3.2. Stability proving

Define optimal parameters:

{\begin{cases} χ_{f}^{*} = \arg \min_{χ_{f} \in Φ_{f}} (\sup_{x \in R^{n}} | \hat{f} (x | χ_{f}) - f (x | t) |) \\ χ_{b}^{*} = \arg \min_{χ_{b} \in Φ_{b}} (\sup_{x \in R^{n}} | \hat{f} (x | χ_{b}) - b (x | t) |) \\ χ_{d}^{*} = \arg \min_{χ_{d} \in Φ_{d}} (\sup_{S \in R} | \hat{d} (S | χ_{d}) - d (t) |) \end{cases}

(27)

where Φ _f , Φ _b and Φ _d are the collections of χ _f , χ _b and χ _d .

Define minimum approximation error:

\begin{array}{l} ε = f (x, t) - \hat{f} (x | χ_{f}^{*}) + d (t) - \hat{d} (S | χ_{d}^{*}) \\ + (b (x, t) - \hat{b} (x | χ_{b}^{*})) u \end{array}

(28)

According to universal approximation theorem, there are small positive number ε₁, ε₂ and ε₃ satisfying the following conditions,

\begin{array}{l} | f (x, t) - \hat{f} (x | χ_{f}^{*}) | \leq ε_{1} \\ | b (x, t) - \hat{b} (x | χ_{b}^{*}) | \leq ε_{2} \\ | d (t) - \hat{d} (S | χ_{d}^{*}) | \leq ε_{3} \end{array}

(29)

There are small positive number ε_max AND γ satisfy

\begin{array}{l} ε \leq | f (x, t) - \hat{f} (x | χ_{f}^{*}) | + | (b (x, t) - \hat{b} (x | χ_{b}^{*})) u | \\ + | d (t) - \hat{d} (S | χ_{d}^{*}) | \leq ε_{1} + ε_{2} | u | + ε_{3} = ε_{\max} \leq γ | S | \end{array}

(30)

Substitute (25) and (28) into (22), we can obtain

\begin{array}{l} {\dot{V}}_{n} = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (\sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i} + f (x, t) \\ + b (x, t) u + d (t) - {\dot{α}}_{n - 1}) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (\sum_{i = 1}^{n - 1} c_{i} {\dot{z}}_{i} + f (x, t) \\ + \hat{b} (x, t) u - \hat{b} (x, t) u + b (x, t) u + d (t) - {\dot{α}}_{n - 1}) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (f (x, t) - \hat{f} (x, t) + \\ b (x, t) u - \hat{b} (x, t) u + d (t) - \hat{d} (S, t) - (h + β) S) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (\hat{f} (x | χ_{f}^{*}) - \hat{f} (x, t) \\ + \hat{b} (x | χ_{b}^{*}) u - \hat{b} (x, t) u + \hat{d} (S | χ_{d}^{*}) \\ - \hat{d} (S, t) + ε - (h + β) S) \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (θ_{f}^{T} Ω_{1} (x) + θ_{b}^{T} Ω_{2} (x) u \\ + θ_{d}^{T} Ω_{3} (S) + ε - (h + β) S) \end{array}

(31)

where $θ_{f} = χ_{f}^{*} - χ_{f}$ , $θ_{b} = χ_{b}^{*} - χ_{b}$ , $θ_{d} = χ_{d}^{*} - χ_{d}$ .

Define Lyapunov function

V = V_{n} + \frac{1}{2} (\frac{1}{γ_{1}} θ_{f}^{T} θ_{f} + \frac{1}{γ_{2}} θ_{b}^{T} θ_{b} + \frac{1}{γ_{3}} θ_{d}^{T} θ_{d})

(32)

then

\begin{array}{l} \dot{V} = {\dot{V}}_{n} + \frac{1}{γ_{1}} θ_{f}^{T} {\dot{θ}}_{f} + \frac{1}{γ_{2}} θ_{b}^{T} {\dot{θ}}_{b} + \frac{1}{γ_{3}} θ_{d}^{T} {\dot{θ}}_{d} \\ = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S (θ_{f}^{T} Ω_{1} (x) + θ_{b}^{T} Ω_{2} (x) u \\ + θ_{d}^{T} Ω_{3} (S) + ε - h S) + \frac{1}{γ_{1}} θ_{f}^{T} {\dot{θ}}_{f} + \frac{1}{γ_{2}} θ_{b}^{T} {\dot{θ}}_{b} + \frac{1}{γ_{3}} θ_{d}^{T} {\dot{θ}}_{d} \\ = S θ_{f}^{T} Ω_{1} (x) + \frac{1}{γ_{1}} θ_{f}^{T} {\dot{θ}}_{f} + S θ_{b}^{T} Ω_{2} (x) u \\ + \frac{1}{γ_{2}} θ_{b}^{T} {\dot{θ}}_{b} + S θ_{d}^{T} Ω_{3} (S) + \frac{1}{γ_{3}} θ_{d}^{T} {\dot{θ}}_{d} \\ - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} + S ε - (h + β) S^{2} \\ = \frac{1}{γ_{1}} θ_{f}^{T} (γ_{1} S Ω_{1} (x) + {\dot{θ}}_{f}) + \frac{1}{γ_{2}} θ_{b}^{T} (γ_{2} S Ω_{2} (x) u + {\dot{θ}}_{b}) \\ + \frac{1}{γ_{3}} θ_{d}^{T} (γ_{3} S Ω_{3} (S) + {\dot{θ}}_{d}) - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} \\ + z_{n - 1} z_{n} + S ε - (h + β) S^{2} \end{array}

(33)

where ${\dot{θ}}_{f} = - {\dot{χ}}_{f}$ , ${\dot{θ}}_{b} = - {\dot{χ}}_{b}$ , ${\dot{θ}}_{d} = - {\dot{χ}}_{d}$ .

Substitute (26) into (33), we can obtain

\dot{V} = - \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} + z_{n - 1} z_{n} - (h + β) S^{2} + S ε

(34)

take

Q = (\begin{matrix} k_{1} + h c_{1}^{2} & h c_{1} c_{2} & \dots & h c_{1} \\ h c_{1} c_{2} & k_{2} + h c_{2}^{2} & \dots & ⋮ \\ ⋮ & ⋮ & ⋱ & h c_{n - 1} - \frac{1}{2} \\ h c_{1} & \dots & h c_{n - 1} - \frac{1}{2} & h \end{matrix})

(35)

\begin{array}{l} z^{T} Qz = [z_{1} z_{2} \dots z_{n}] Q {[z_{1} z_{2} \dots z_{n}]}^{T} \\ = \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} - z_{n - 1} z_{n} + h {(c_{1} z_{1} + \dots + c_{n - 1} z_{n - 1} + z_{n})}^{2} \\ = \sum_{i = 1}^{n - 1} k_{i} z_{i}^{2} - z_{n - 1} z_{n} + h S^{2} \end{array}

(36)

(34) can be rewriten as ${\dot{V}}_{n} = - z^{T} Qz + S ε - β S^{2}$ . Substitute (30) into the above formula, we can obtain

\begin{array}{l} {\dot{V}}_{n} \leq - z^{T} Qz + | S | | ε | - β S^{2} \leq - z^{T} Qz + γ {| S |}^{2} - β S^{2} \\ = - z^{T} Qz + γ S^{2} - β S^{2} = - z^{T} Qz - (β - γ) S^{2} \end{array}

(37)

Because γ is a small positive constant, there is β≥γ satisfying ${\dot{V}}_{n}$ ≤ $z^{T} Qz$ . We can make |Q|>0 and Q a positive definite matrix by selecting the values of h, c_i, k_i, then ${\dot{V}}_{n}$ ≤0.

4. Design of Path Following Controller of the AUV

4.1. Longitudinal speed controller

According to (25), longitudinal speed controller can be designed as follows,

X = \frac{1}{{\hat{b}}_{1} (υ, t)} (- {\hat{f}}_{1} (υ, t) - {\hat{d}}_{1} (S_{1}, t) - (h_{1} + β_{1}) S_{1})

(38)

where ${\hat{f}}_{1} (υ, t) = χ_{f 1}^{T} Ω_{f 1} (υ)$ , ${\hat{b}}_{1} (υ, t) = χ_{b 1}^{T} Ω_{b 1} (υ)$ ,

S₁=u–u_d, the corresponding membership function is selected as

μ_{1}^{m} (υ_{i}) = \exp [- {((υ_{i} + \frac{ρ_{1}}{4} - (m - 1) \frac{ρ_{1}}{8}) / σ_{1})}^{2}]

(39)

where m=1,2…5, but ${\hat{d}}_{1} (S_{1}, t) = χ_{d 1}^{T} Ω_{d 1} (S)$ , the corresponding membership function is selected as

μ_{1}^{m} (S_{1}) = \exp [- {((S_{1} + ρ_{1} - (m - 1) ρ_{1}) / σ_{1})}^{2}]

(40)

where m=1,2,3.

There are 125 fuzzy rules that can be used to approximate f₁( x ,t) and b₁( x ,t) and 3 fuzzy rules can be used to approximate d₁(t). The corresponding adaptive control laws are

{\begin{cases} {\dot{χ}}_{f 1} = γ_{f 1} S_{1} Ω_{f 1} (υ) \\ {\dot{χ}}_{b 1} = γ_{b 1} S_{1} Ω_{b 1} (υ) X \\ {\dot{χ}}_{d 1} = γ_{d 1} S_{1} Ω_{d 1} (S_{1}) \end{cases}

(41)

To make the following error of longitudinal speed convergent, we can select the value of h₁ to make |Q₁|>0. In this way, we can ensure that the longitudinal speed will converge to the expected value and at that time Q₁=h₁.

4.2. Yaw angle controller

Control the yaw angle and the longitudinal speed simultaneously. Define sideslip angle relative to longitudinal speed β_d=arctan(v/u), then (5) can be rewritten into

{\begin{cases} {\dot{τ}}_{e} = - U_{P} + r_{P} n_{e} + U_{d} \cos Ψ \\ {\dot{n}}_{e} = - r_{P} τ_{e} + U_{d} \sin Ψ \end{cases}

(42)

where $U_{d} = \sqrt{u^{2} + v^{2}}$ , $Ψ = ψ_{e} + β_{d}$ .

Design calm function as $Ψ_{d} = - \arctan (k_{n} n_{e})$ , $Ψ_{d} \in (- π /2, π /2)$ . The goal is to make Ψ converge to $Ψ_{d}$ , that is to make yaw angle ψ converge to $Ψ_{d} + ψ_{p} - β_{d}$ .

Define $ψ_{d} = Ψ_{d} + ψ_{p} - β_{d}$ , the yaw controller can be designed according to (25)

N = \frac{1}{{\hat{b}}_{3} (υ, t)} (- {\hat{f}}_{3} (υ, t) - c_{1} {\dot{z}}_{1} + {\dot{α}}_{1} - {\hat{d}}_{3} (S_{2}, t) - (h_{2} + β_{2}) S_{2})

(43)

where z₁=ψ–ψ_d, $α_{1} = - k_{1} z_{1} + {\dot{ψ}}_{d}$ , z₂=r–α₁, S₂=c₁z₁+z₂.

The corresponding membership function of ${\hat{f}}_{3} (υ, t) = χ_{f 3}^{T} Ω_{f 3} (υ)$ and ${\hat{b}}_{3} (υ, t) = χ_{b 3}^{T} Ω_{b 3} (υ)$ is selected as

μ_{2}^{m} (υ_{i}) = \exp [- {((υ_{i} + \frac{ρ_{2}}{4} - (m - 1) \frac{ρ_{2}}{8}) / σ_{2})}^{2}]

(44)

where m=1,2…5, and ${\hat{d}}_{3} (S_{2}, t) = χ_{d 3}^{T} Ω_{d 3} (S)$ . The corresponding membership function is selected as

μ_{2}^{m} (S_{2}) = \exp [- {((S_{2} + ρ_{2} - (m - 1) ρ_{2}) / σ_{2})}^{2}]

(45)

where m=1,2,3.

Thus, there are 125 fuzzy rules that can be used to approximate f₃( x ,t) and b₃( x ,t), and 3 fuzzy rules can be used to approximate d₃(t). The corresponding adaptive control laws are:

{\begin{cases} {\dot{χ}}_{f 3} = γ_{f 3} S_{2} Ω_{f 3} (υ) \\ {\dot{χ}}_{b 3} = γ_{b 3} S_{2} Ω_{b 3} (υ) N \\ {\dot{χ}}_{d 3} = γ_{d 3} S_{2} Ω_{d 3} (S_{2}) \end{cases}

(46)

To make the following error of yaw angle convergent, we can select the value of h₂, c₁ and k₁ to make |Q₂|>0. In this way, we can ensure that the yaw angle converge to the expected value. At that time,

Q_{2} = (\begin{matrix} k_{1} + h_{2} c_{1}^{2} & h_{2} c_{1} - \frac{1}{2} \\ h_{2} c_{1} - \frac{1}{2} & h_{2} \end{matrix})

4.3. Stability analysis

If $Ψ \equiv Ψ_{d}$ , (46) can be rewrite into

{\begin{cases} {\dot{τ}}_{e} = - U_{P} + r_{P} n_{e} + U_{d} \cos Ψ_{d} \\ {\dot{n}}_{e} = - r_{P} τ_{e} + U_{d} \sin Ψ_{d} \end{cases}

(47)

Define Lyapunov function $V = \frac{1}{2} (τ_{e}^{2} + n_{e}^{2})$ , and the derivative is

\begin{array}{l} \dot{V} = τ_{e} (- U_{P} + r_{P} n_{e} + U_{d} \cos Ψ_{d}) + n_{e} (- r_{P} τ_{e} + U_{d} \sin Ψ_{d}) \\ = - τ_{e} (U_{P} - U_{d}) + n_{e} U_{d} \sin Ψ_{d} + τ_{e} U_{d} (\cos Ψ_{d} - 1) \end{array}

(48)

Select the moving speed U_P =U_d+k_ττ_e of point P in reference path and consider

{\begin{cases} \sin Ψ_{d} = - \frac{k_{n} n_{e}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ | \cos Ψ_{d} - 1 | \leq | \sin Ψ_{d} | \end{cases}

(49)

then

\begin{array}{l} \dot{V} \leq - k_{τ} τ_{e}^{2} - U_{d} k_{n} \frac{n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} + U_{d} k_{n} \frac{| τ_{e} | | n_{e} |}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ = - \frac{k_{τ} τ_{e}^{2} \sqrt{1 + {(k_{n} n_{e})}^{2}}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} - U_{d} k_{n} \frac{n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ + U_{d} k_{n} \frac{| τ_{e} | | n_{e} |}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ = - \frac{k_{τ} τ_{e}^{2} \sqrt{1 + {(k_{n} n_{e})}^{2}} - U_{d} k_{n} | τ_{e} | | n_{e} | + U_{d} k_{n} n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ \leq - \frac{k_{τ} τ_{e}^{2} - U_{d} k_{n} | τ_{e} | | n_{e} | + U_{d} k_{n} n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \end{array}

(50)

Make control parameter $k_{τ} \geq \frac{1}{4} U_{d} k_{n}$ and substitute it into (50), we can obtain

\begin{array}{l} \dot{V} \leq - \frac{k_{τ} τ_{e}^{2} - U_{d} k_{n} | τ_{e} | | n_{e} | + U_{d} k_{n} n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ \leq - \frac{\frac{1}{4} U_{d} k_{n} τ_{e}^{2} - U_{d} k_{n} | τ_{e} | | n_{e} | + U_{d} k_{n} n_{e}^{2}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} \\ \leq - \frac{U_{d} k_{n}}{\sqrt{1 + {(k_{n} n_{e})}^{2}}} {(\frac{1}{2} | τ_{e} | - | n_{e} |)}^{2} \leq 0 \end{array}

(51)

5. Simulation

To verify the feasibility of fuzzy backstepping sliding mode controller proposed in this paper, we conduct simulation research for an underactuated AUV WL-II developed by Harbin Engineering University in China [28 –30].

Figure 2.

WL-II underactuated AUV

The initial values of parameter estimations ${\hat{f}}_{1} (υ, t)$ and ${\hat{f}}_{3} (υ, t)$ are both 0. Initial values of ${\hat{b}}_{1} (υ, t)$ and ${\hat{b}}_{3} (υ, t)$ are both 0.1. Initial values of disturbances estimations ${\hat{d}}_{1} (S_{1}, t)$ and ${\hat{d}}_{3} (S_{2}, t)$ are both 0.

The original state of AUV is ξ_B(0)=0, η(0)=10m, u(0)=0.05m/s, v(0)=r(0)=ψ(0)=0 and the desired speed of AUV is u_d=1m/s. Choose straight line and circle respectively as following path by using the control parameters in Table 1. To verify the robustness of controller, we set the parameters to be 1.2 times of the nominal value, then take it as the controlled object. We also assume that the AUV is affected by white noise disturbances which have the largest amplitude of ω=5(N/N m). To verify the performance of the controller designed in this paper, we compare and analyze the simulation results of AUV path following through PID control system. What needs to be pointed out that the path following error in Figure 3 and 7 is $\sqrt{τ_{e}^{2} + n_{e}^{2}}$ .

Table 1.

Control parameters of AUV path following

Model parameter	value	Model parameter	value	Model parameter	value
h1	1	h2	0.2	γf1	2
β1	0.1	β2	0.1	γb1	0.1
ρ1	1	ρ2	2π/3	γd1	1
σ1	0.25	σ2	π/24	γf3	π/6
c1	3	kτ	0.5	γf3	π/24
k1	5	kn	0.1	γf3	π/12

The parameter equation Ω of straight path is

{\begin{cases} ξ_{p} = \sqrt{2} s / 2 \\ η_{p} = \sqrt{2} s / 2 \end{cases}

Figure 3.

Straight path following

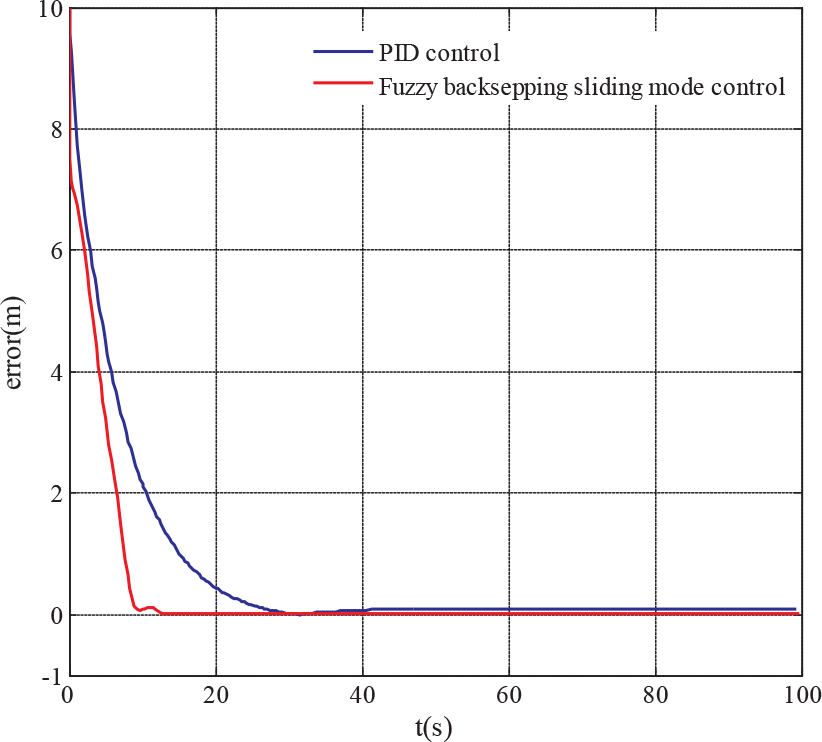

Figure 4.

Path following errors

Figure 5.

Longitudinal speed following

Figure 6.

Longitudinal force and turn torque

The parameter equation Ω of circle path is

{\begin{cases} ξ_{P} = 50 \cos s \\ η_{P} = 50 \sin s \end{cases}

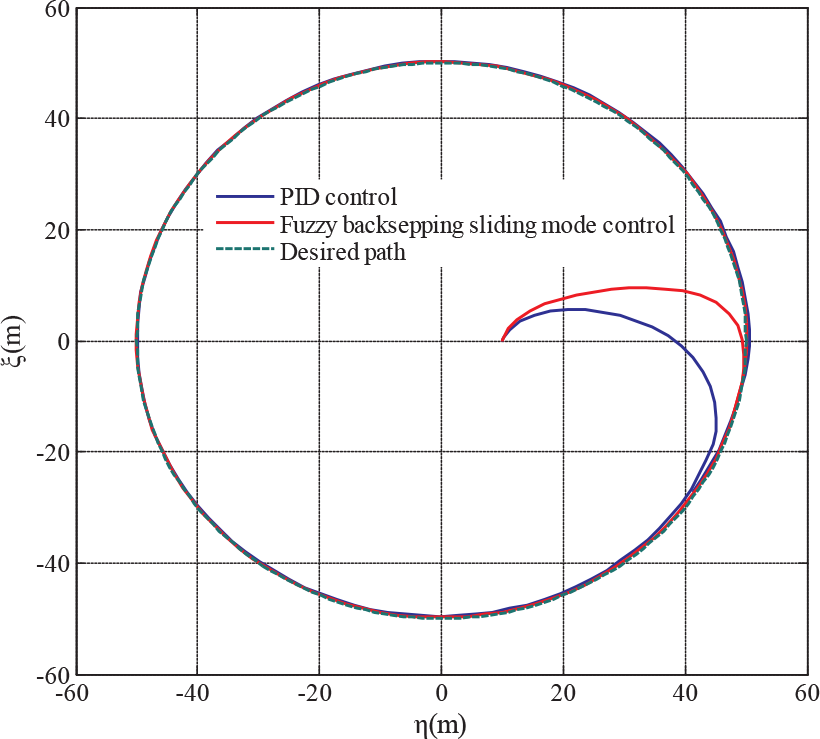

Figure 7.

Circle path following

Figure 8.

Path following errors

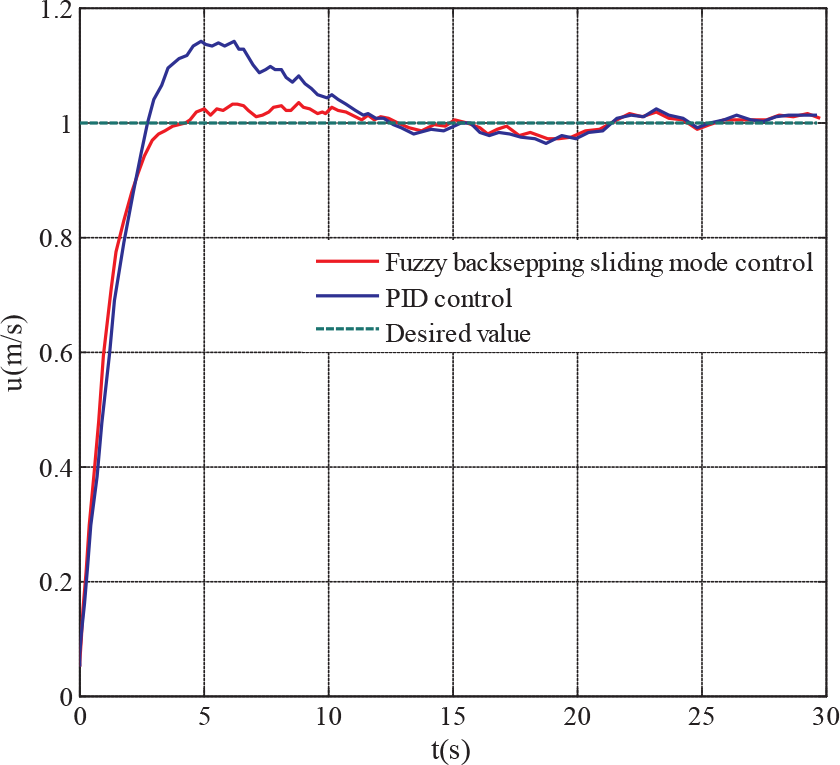

Figure 9.

Longitudinal speed following

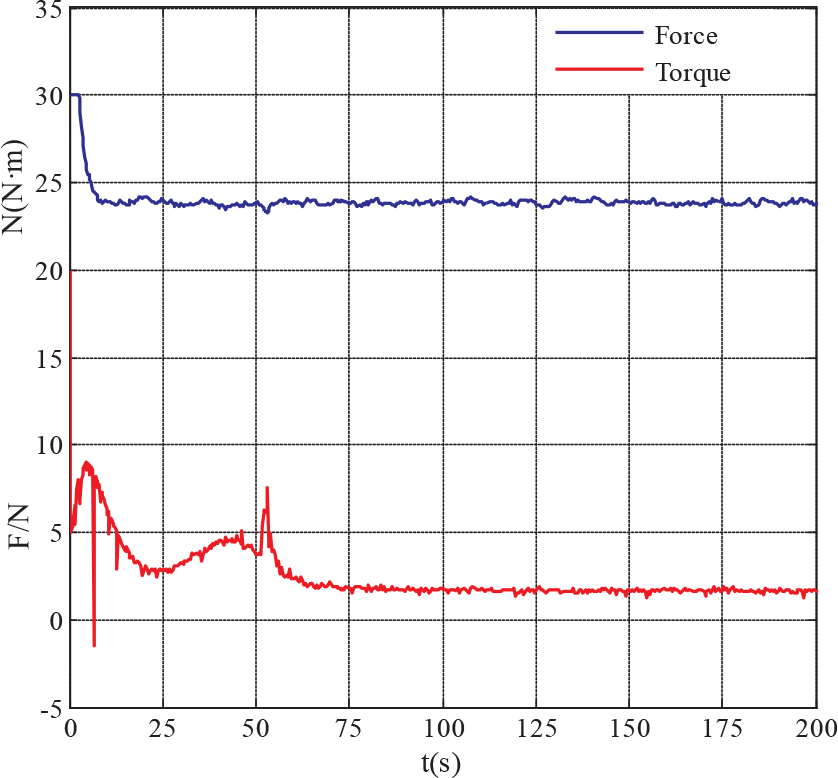

Figure 10.

Longitudinal force and turn torque

As shown in Figure 2 to 9, in the presence of model perturbation and unknown disturbances, both controllers can achieve straight and circle path following of underactuated AUV. However, As can be seen from Figure 3 and 7, the path following error based on fuzzy backstepping sliding mode control converges obviously faster than that under PID control. There is steady-state error in path following under PID control, But the path following error under fuzzy backstepping sliding mode control eventually converges to 0, which indicates the fuzzy backstepping sliding mode controller is of strong robustness. As can be seen from Figure 4 and 8, the longitudinal speed control in PID controller has an overshoot at about 10%, but fuzzy backstepping sliding mode controller can control the longitudinal speed of underactuated AUV fast, gently and without overshoot. As shown in Figure 5 and 9, actuator can continuously output and the fuzzy backstepping sliding mode controller doesn't show chattering phenomenon which usually happens.

To verify the feasibility of the approach further, outfield test is conducted on WL-II AUV in Hilongjiang River, China. The result show that the AUV can follow the reference path exactly enough, as shown in Figure 10.

Figure 11.

Outfield test result of path following of WL-II AUV

In conclusion, the fuzzy backstepping sliding mode controller designed in this paper can make longitudinal speed of AUV converge to desired speed fast and without overshoot. The results show that the controller has following advantages:

It has good rapidity, that is the AUV can quickly follow the desired path.

It doesn′t need precise mathematical model of AUV and is not sensitive to uncertainties like model perturbation and external disturbances.

For different following paths, it can use the same control parameters and has good adaptability and strong robustness.

6. Conclusion

This paper considered the problems of path following for the underactuated autonomous underwater vehicle (AUV) in the presence of parameter uncertainties and external current disturbances. Considering kinematic and dynamic equations of AUV, we designed a fuzzy backstepping sliding mode controller which can not only restrain external unknown disturbances, but also avoid the chattering of AUV actuators. This paper theoretically proved the feasibility of the designed controller. Further work is to conduct an extension from horizontal path following to three dimensional space description.

Footnotes

7. Acknowledgements

This work is supported by the National Natural Science Foundation of China (Grant No. 51579022, 51579023, 51209025, 51379026) and Fundamental Research Funds for the Central Universities of China (Grant No. 3132016215, 3132015083).

References

Monique

(2009) Autonomous Underwater Vehicles. Ocean Engineering. 36 (1): 1–2.

Wynn

Russell B.

Huvenne

Veerle A.I.

(2014) Autonomous Underwater Vehicles (AUVs): Their past, present and future contributions to the advancement of marine geoscience. Marine Geology. 352 (1): 451–468.

Villar

S.A.

Acosta

G.G.

(2014) Evaluation of an efficient approach for target tracking from acoustic imagery for the perception system of an autonomous underwater vehicle. International Jounal of Advanced Robotic Systems. 11:1–13.

Wynn

R.B.

Huvenne

V.A.

(2014) Autonomous underwater vehicles: Their past, present and future contributions to the advancement of marine geoscience. Marine Geology. 352(SI): 451–468.

Y.R.

Xiao

(2007) Technology development of autonomous ocean vehicle. Journal of Automation. 33(5): 518–521.

Y.R.

Pang

Y.J.

Gan

(2006). AUV-state-of-the-art and prospect. CAAI Transactions on Intelligent Systems. 1(1): 9–16.

Fossen

T.I.

Breivik

Skjetne

(2003) Line-of-Sight path following of underactuated marine craft. The 6th IFAC Conference on Manoeuvring and Control of Marine Craft. pp. 244–249.

Breivik

Fossen

T.I.

(2004) Path following of straight lines and circles for marine surface vessels. The 6th IFAC Conference on Control Applications in Marine Systems. pp. 65–70.

Caharija

Pettersen

Gravdahl

(2012) Integral LOS guidance for horizontal path following of underactuated autonomous underwater vehicles in the presence of vertical ocean currents. American Control Conference. pp. 5427–5435.

10.

Indiveri

Aicardi

Casalino

(2000) Robust global stabilization of an underactuated marine vehicle on a linear course by smooth timeinvariant feedback. The 39th IEEE conference on Decision and Control. pp. 2156–2161.

11.

J.C.

Zhang

A.Q.

(2008) Neural network adaptive control for underwater vehicles. Control Theory and Applications. 25(1), 9–13.

12.

Tang

X.D.

Pang

Y.J.

, (2010). Chaotic process neuron control for AUVs. Control and Decision. 25(2), 213–217.

13.

Repoulias

Papadopoulos

(2007) Planar trajectory planning and tracking control design for underactuated AUVs. Ocean Engineering. 34(7), 1650–1667.

14.

Liang

Hua

X.J.

L.F.

(2015) Path following control for underactuated AUV based on feedback gain backstepping. Technical Gazette. 22(4), 829–835.

15.

Dong

Z.P.

Wan

Y.M.

(2015) Trajectory tracking control of underactuated USV based on modified backstepping approach. International Journal of Naval Architecture and Ocean Engineering. 7(5), 817–832.

16.

Gao

Yan

W.S.

Zhao

N.N.

(2010) Global Path following for Unmanned Underwater Vehicles. The 29th Chinese Control Conference., pp. 3188–3192.

17.

Zhou

J.J.

Tang

Z.D.

Zhang

H.H.

(2013) Spatial path following for AUVs using adaptive neural network controllers. Mathematical Problems in Engineering, Article ID 749689.

18.

Lapierre

Jouvencel

(2008) Robust nonlinear path-following control of an AUV. IEEE Journal of Oceanic Engineering. 33(2), 89–102.

19.

R.H.

T.S.

R.X.

(2013) Active disturbance rejection with sliding mode control based course and path following for underactuated ships. Mathematical Problems in Engineering, Article ID 743716.

20.

Liu

Y.J.

Tong

S.C.

(2015) Adaptive fuzzy control for a class of unknown nonlinear dynamical systems. Fuzzy Sets and Systems. 263(15): 49–70.

21.

Liu

Y.J.

Tong

S.C.

(2016) Fuzzy approximation based adaptive backstepping optimal control for a class of nonlinear discrete-time systems with dead-zone. Fuzzy Sets and Systems. 24(1): 16–28.

22.

Gao

Liu

Y. J.

(2016) Adaptive fuzzy optimal control using direct heuristic dynamic programming for chaotic discrete-time system. Journal of Vibration and Control. 22(2): 595–603.

23.

Shi

Yang

(2014) Composite Neural Dynamic Surface Control of a Class of Uncertain Nonlinear Systems in Strict-Feedback Form. IEEE Transactions on Cybernetics. 44(12): 2626–2634.

24.

Guo

Yuan

(2016) Fault Tolerant Control using Command Filtered Adaptive Backstepping Technique: Application to Hypersonic Longitudinal Flight Dynamics. International Journal of Adaptive Control and Signal Processing. 30: 553–577.

25.

Yang

Pan

(2015) Global Neural Dynamic Surface Tracking Control of Strict-feedback Systems with Application to Hypersonic Flight Vehicle. IEEE Transactions on Neural Networks and Learning Systems. 26(10): 2563–2575.

26.

Mao

Y.F.

Pang

Y.J.

(2010) Using a velocity vector coordinate method for dynamic obstacle avoidance of autonomous underwater vehicles. Journal of Harbin Engineering University. 31(2): 159–164.

27.

F.Y.

Zhang

J.Z.

Wei

Y.J.

(2010) Robust position tracking control design for underactuated AUVs. Journal of Harbin Institute of Technology. 42(11): 1690–1695.

28.

Wang

Wan

(2010) A survey on development of motion control for underactuated AUV. Shipbuilding of China. 51(2): 227–241.

29.

Cui

S.P.

(2013) Motion Control for Mini Autonomous Underwater Vehicle. Harbin: Harbin Engineering University.

30.

Liang

Peng

Z.H.

(2016) Nonlinear dynamics modelling and performance prediction for underactuated AUV with fins. Nonlinear Dynamics. 84(1), 237–249.

Path following of an Underactuated AUV Based on Fuzzy Backstepping Sliding Mode Control

Abstract

Keywords

1. Introduction

2. Problem Description

3. Fuzzy Backstepping Sliding Mode Control

3.1. Controller design

3.2. Stability proving

4. Design of Path Following Controller of the AUV

4.1. Longitudinal speed controller

4.2. Yaw angle controller

4.3. Stability analysis

5. Simulation

6. Conclusion

Footnotes

7. Acknowledgements

References
