Abstract

The thermomechanial properties of polymeric nanocomposites are related to the quality of the adhesion between matrix and nanoparticle. Since the adhesion is related to the nature of the materials and the surface available for chemical, electrostatic and mechanical interactions among these materials, weak bonding forces between alumina (inorganic) and polymer matrices (organic) were expected. Furthermore, using nanoparticles with greater diameters means that the specific surface area reduction will have an adverse impact on the adhesive process. For epoxy matrices reinforced with alumina nanoparticles, different volume fractions and sizes were observed by differential scanning calorimetry (DSC): a relation between the glass transition temperature (Tg) and the nanoparticle size. This observation was tested by dynamic mechanical analysis (DMA) and the cross-link density was calculated. In addition, the thermal stability enhanced by alumina addition to organic resins and the quality of the adhesion was observed by thermogravimetric analysis (TGA).

Keywords

polymers metallic nanoparticles Tg DSC DMA TGA

1. Introduction

Nanocomposite materials can be described as materials consisting of nanoparticles or nanopores embedded in a solid matrix, polymers, for example. They are considered suitable for various applications as their properties can be tuned by varying the particle material, shape, size and concentration. A growing interest in nano-sized reinforced polymers for high technological applications, such as coatings, electronic devices and adhesives, was also observed in automotive and aerospace industries [1 -3].

Polymeric nanocomposites composed of an organic matrix and inorganic nanoparticles makes a useful union of the polymer's functionalities, such as low weight and malleability, with the good mechanical, thermal and electrical properties of the nanofillers [4]. In this way, nanocomposites have the advantage of adapting to the properties of the polymer according to the application of the correct nanoparticle.

The possibilities using nanoparticles to improve mechanical or thermal properties, and developing a new material, have found applications in both academia and industry. The thermal stabilization of polymer nanocomposites is considered an important factor and its study provides the required information about the period of applicability for such nanocomposites [5].

An adverse effect of the inorganic nanofillers is the strong possibility of agglomeration. Therefore, the use of surface modifiers, such as silane for example, to improve the dispersion stability of the nanoparticle and develop the interfacial interactions between inorganic nanofiller and organic matrix is well known [4].

Epoxy networks (ER) are considered the most useful thermoset polymer. It can be applied as an adhesive in the electronics industry, as a fastener component in structural joints [6]. To produce a composite material, epoxy polymer has commonly been modified by the addition of inorganic fillers. As with the combination of any materials with different chemical natures, problems related to particle adhesion have been reported [7]. Debonding and particle agglomeration are major themes in the fabrication of polymeric nanocomposites, causing the most problems in nanocomposite research [8].

The quantitative study of solid state transformation in various kinds of materials by means of differential scanning calorimetry (DSC) and dynamic mechanical analysis (DMA) has been widely discussed [9 -13]. While DSC elucidates the kinetics of polymer degradation and decomposition steps [13], DMA provides a sensitive testing system for the rapid determination of thermo-mechanical properties, such as a function of frequency, temperature or time [9].

A property that has been widely used to predict a change in the mechanical properties of these materials as a function of temperature is the glass transition temperature (Tg), a second-order pseudo transition that constitutes a highly interesting parameter of amorphous and semi-crystalline materials [14]. The basis of the Tg is the onset of coordinated molecular motion in the polymer chain. In the region of Tg, the polymer softens, the modulus drops three orders of magnitude and the polymer becomes rubbery [15]. In essence, if the addition of a particle to an amorphous polymer leads to a change in the Tg, the resultant effect on the composite's properties would be considered a “nano-effect”. In addition, the temperature-dependent elastic modulus of a composite material is an important material parameter in structural analysis and design, especially for stiffness-based design. Elastic modulus represents the material stiffness and, in polymer-based composites, the temperature will significantly influence the materials' rigidity.

Epoxies are thermosetting polymers that exhibit a high glass transition temperature when compared with other polymers that can be used as a nanocomposite matrix [16]. In addition, nanoparticles presented better interfacial interactions with the matrix when compared with conventional microparticles [17]. Many studies have investigated the influence of nano-sized fillers on solid polymeric materials [18 -26]. The purpose of this study is to investigate experimentally how the effective thermal-physical properties are influenced by the addition of alumina (Al₂O₃) nanoparticles to an epoxy matrix, in multiple volume fractions and particle sizes.

2. Experimental

2.1 Nanocomposites' Fabrication

An epoxy polymer matrix and metal oxide Al₂O₃ nanoparticles as fillers were used to compose the nanocomposite materials for this study.

The employed polymers were RR515 (provided by SILAEX®), and an epoxy resin (ER) based on diglycidylether of bisphenol A. This resin was polymerized by the addition of an aliphatic amine hardener in a portion of 25 phr by weight. Its properties, according to the manufacturer, are presented in Table 1.

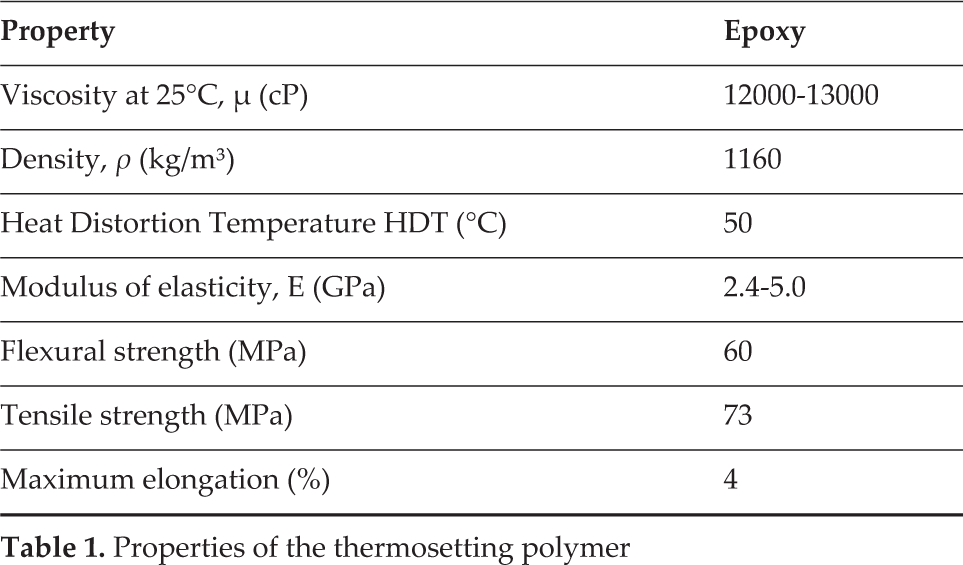

Table 1.

Properties of the thermosetting polymer

Property	Epoxy
Viscosity at 25°C, μ (cP)	12000–13000

Density, ρ (kg/m³)	1160

Heat Distortion Temperature HDT (°C)	50

Modulus of elasticity, E (GPa)	2.4–5.0

Flexural strength (MPa)	60

Tensile strength (MPa)	73

Maximum elongation (%)	4

The nanoparticles employed as filler were spherical alpha aluminium nanoparticles with mean diameters of 35nm, 150nm and 200nm, provided by NanoAmor®. The nanoparticles' properties, according to the manufacturer, are summarized in Table 2.

Table 2.

Al₂O₃ nanoparticles' properties

Property	Al₂O₃
Particle size (nm)	30–40 (A)	150 (B)	200 (C)

Modulus of elasticity, E (GPa)	300	300	300

True Density (kg/m³)	3700	3700	3700

Morphology	Spherical	Spherical	Spherical

Specific surface area, SSA (m²/kg)	35000	5000–15000	3900

Purity	≥99.9%	≥99.9%	≥99.9%

The samples were manufactured by adding different quantities of nanoparticles — from 0% to 10% of the total mixture's volume — to the liquid resin. The nanoparticles' volume fractions were calculated based on the true densities data provided by the manufacturers and the rule of mixtures. The nanoparticles were previously dried at 120ºC for 24 hours before being added to the liquid resin. Homogenization by planetary ball milling was performed for 1h at 200rpm. After mixing, the hardener was added and the resulting blends were manually homogenized and poured into the mould, which was composed of a metal frame. The specimens were cured at room temperature for 24 hours. The demoulding of the samples occurred after the first 24 hours, and the samples underwent a post-cure process at room temperature for seven days. After this period, the samples were prepared for DSC and DMA analyses.

2.2 Experimental Setup

The glass transition temperature of the manufactured nanocomposites was measured by DSC (NETZSCH®, DSC F3 MAIA) at temperatures ranging from 30–150°C, at a heating rate of 10ºC/min in a nitrogen atmosphere according to ASTM D3418 [27]. The temperature range was chosen after a previous scan of up to 500°C to observe the thermal stability and decomposition for each nanocomposite.

The glass transition temperature as defined by the endothermic change in the DSC trace indicates a significant change of viscosity, marking an alteration from a glassy solid phase to a super-cooled liquid state. In DSC measurements, Tg is recognized from the baseline change in the DSC signal.

A dynamic mechanical analyser (NETZSCH® DMA 242D) was used for measuring the temperature dependent elastic modulus of all the studied formulations of the nanocomposites. Tests were conducted with three-point bending mode and the support span was 40 mm, according to ASTM D7028 [28]. Temperature scanning from low to high was performed with a heating rate of 10°C/min, from 30°C to 180°C at an oscillation frequency of 1 Hz. The oscillation amplitude of displacement was kept at 40mm for most specimens, unless otherwise specified.

One of the main reasons to modify a polymer with oxide nanoparticles is to enhance the material's thermal and mechanical properties. DMA was frequently used in nanocomposites' characterizations since it allows the measurement of two different moduli of the nanocomposites, a storage modulus (E′) and a loss modulus (E'′). The first is related to the ability of the material to return or store mechanical energy and the second is related to the ability of the material to dissipate energy as a function of temperature.

2.3 Statistic Analysis

The glass transition temperature, storage modulus and the thermal stabilization temperatures (T_stb) have been established for the following composites: pure ER, ER/2.5% Al₂O₃, ER/5.0% Al₂O₃, ER/7.5% Al₂O₃ and ER/10.0% Al₂O₃ for each particle size, resulting in 12 different nanocomposites and 45 tests (DSC, DMA and TGA).

The results were analysed using the software Portable Statistica 8 (StatSoft Inc./DELL) which uses the analysis of variance (ANOVA) of the data with the Tg, E′ and for the nanocomposite materials was done with the objective of analysing the influence of the matrix/particle interactions, the volume fraction of the nanoparticle and the mean diameter of the nanoparticle.

3. Results and Discussion

3.1 Thermomechanical Analyses

As observed by Tanaka et al. [16], the organic-inorganic bonding force seems to be relatively weak in epoxy/alumina nanocomposites. Some authors, such as Zhang and Singh [17], are studying the addition of silane as a treatment to improve the particle (inorganic)/matrix (organic) adhesion. The glass transition data for nanocomposites with epoxy resins shown in Table 4 are according to what have apparently been obtained recently for nanocomposites without silane treatment.

Table 3.

Al₂O₃/ER Nanocomposites' DSC results

DSC – Tg(°C)

Samples	Al₂O₃	Al₂O₃	Al₂O₃
Samples	(A)	(B)	(C)
Pure ER	70.3	70.3	70.3

nano-Al₂O₃/ER – 2.5%	78.1	59.8	70.6

nano-Al₂O₃/ER – 5.0%	70.9	60.2	79.3

nano-Al₂O₃/ER – 7.5%	75.9	56.7	76.2

nano-Al₂O₃/ER – 10%	76.8	52.2	74.1

Table 4.

DMA results

Sample	Al₂O₃ 30–40nm			Al₂O₃ 150nm			Al₂O₃ 200nm

	Tr (°C)	Er (MPa)	v_e (mol/m³)	Tr (°C)	Er (MPa)	v_e (mol/m³)	Tr (°C)	Er (MPa)	v_e (mol/m³)
Pure ER	113.9	57.6	6784.3	113.9	57.6	6784.3	113.9	57.6	6784.3

nano-Al₂O₃/ER – 2.5%	106.0	43.7	4620.5	109.0	23.3	2445.7	107.9	46.8	4920.0

nano-Al₂O₃/ER – 5.0%	113.4	40.3	4181.9	104.7	18.1	1915.3	106.4	54.4	5745.5

nano-Al₂O₃/ER – 7.5%	105.2	43.5	4606.2	103.8	22.3	2371.3	104.7	65.2	6915.5

nano-Al₂O₃/ER – 10%	107.4	61.9	6517.0	99.2	28.4	3060.4	107.0	72.8	7682.7

The larger the particle diameter used, the smaller the increase in the Tg is expected, since the adhesion forces between the nanoparticles and the matrix are directly proportional to the specific surface area.

As it is seen in Table 3, the Tg of the nanocomposites varied with the particles' diameters. The increase in Tg is related to the decreased mobility chain of the matrix, and for these nanocomposites, better mechanical and thermal properties are expected, as a result of the Van der Waals forces and electrostact forces between the epoxy matrix and alumina nanoparticles.

In general, the addition of alumina in ER polymers promotes an increase in the glass transition temperature. Only the sample nano-Al₂O₃/ER 5% v/v did not present a result consistent with the literature and the responses of the other samples. This is probably because during demoulding and milling for the manufacture of DSC samples, the presence of bubbles inside the nanocomposite was observed. Such bubbles can be regarded as points of concentration of alumina which interfere adversely in DSC analysis.

Moreover, Table 3 showed no variation in the glass transition temperature on the addition of different volume fractions of nanofiller. The higher Tg for nano-Al₂O₃ (A)/ER 2.5% v/v can be attributed to overall bonding forces (Van der Waals and possible electrostatic interactions) increasing [29].

The effect of nanofillers in epoxy and polyester resins on dynamic mechanical properties, the glass transition temperature of the nanocomposite and each neat matrix were observed using a DMA analyser.

As observed by Zabihi et al. [30], a strong compositional effect on Tg, as measured by DMA, was observed as a result of the nanoparticles' addition in epoxy polymer, resulting in higher Tg values than those obtained in DSC analyses. The same behaviour was observed for the polyester matrix.

The effect of Al₂O₃ nanoparticles on the viscoelastic properties of cross-linked epoxy nanocomposites has been investigated by DMA, estimating the effect of each nanoparticle in each matrix by calculating the cross-link density using the equation below [30]:

υ = \frac{E_{r}}{3 R T_{r}}

(1)

where υ_e is the cross-link density, Er is equal to the rubber modulus at Tr, R is the universal gas constant and Tr = Tg + 30.

The result of alumina nanoparticles' effect on the viscoelastic properties of cross-linked epoxy composites was observed by DMA, as can be seen in Fig.1.

Figure 1.

Storage modulus versus temperature curves for Al₂O₃ A (a), Al₂O₃ B (b) and Al₂O₃ C (c) nanocomposites

It was expected that the chain motion would change due to the interactions in the interface area around the nanoparticle. As can be noticed in Fig. 1, which shows the effect of the nanoparticle additions in volume fractions for Al₂O₃ A (a), Al₂O₃ B (b) and Al₂O₃ C (c), the nanofiller has an adverse effect on storage modulus and this effect appears to be different according to the particle size. The amplitude of storage modulus in the rubbery plateau's region does not vary significantly on the addition of nanoparticles. This unexpected result can be explained by reference to the weak adhesion forces between the nanofiller and the polymer matrix, since inorganic-organic interactions are very weak without the use of some inorganic surface modifier, as silane.

Table 4 shows the results obtained using DMA for pure epoxy and its alumina systems. The results show that the nanoparticle with a lower SSA has the best results of υ_e and that for all nanocomposites the concentration of nanofiller has a quadratic effect on cross-link density.

To conclude, the thermogravimetry showed that the alumina nanoparticle addition increased the onset degradation temperature in approximately 70°C. Although alumina and epoxy resin presented weak bonding forces, the interaction between polymer chains and metal oxide nanoparticles also contributed to the high value of reside for the nanocomposites, as can be seen in Table 5.

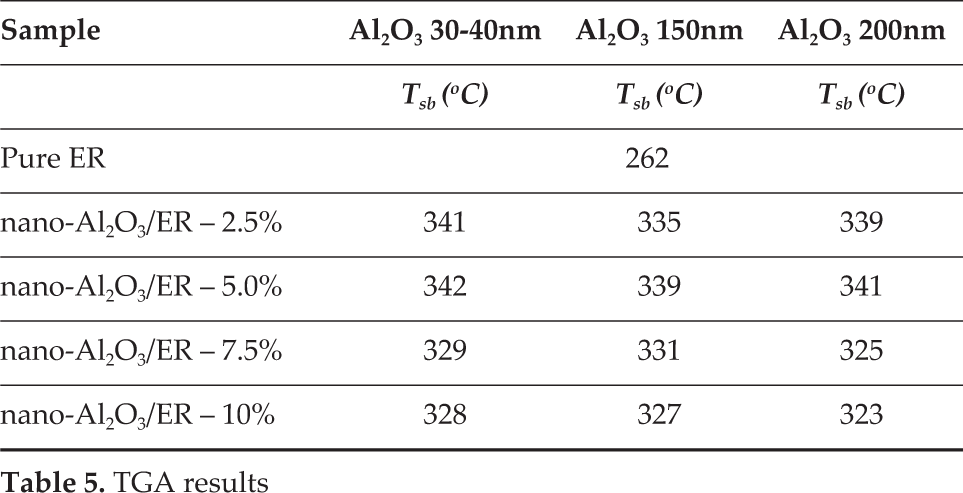

Table 5.

TGA results

Sample	Al₂O₃ 30–40nm	Al₂O₃ 150nm	Al₂O₃ 200nm

	T_sb (°C)	T_sb (°C)	T_sb (°C)
Pure ER	262

nano-Al₂O₃/ER – 2.5%	341	335	339

nano-Al₂O₃/ER – 5.0%	342	339	341

nano-Al₂O₃/ER – 7.5%	329	331	325

nano-Al₂O₃/ER – 10%	328	327	323

3.2 Statistical Analysis

The glass transition temperature, storage modulus and thermal stabilization temperatures have been established for each nanocomposite, resulting in 28 different nanocomposites and 240 tests (DSC, DMA and TGA).

The statistical analyses were carried out to analyse the influence of the matrix/particle interactions, volume fraction of the nanoparticle and mean diameter of the nanoparticle on T_g, E′ and T_sb. The mean values of each parameter and each sample were compared by applying one-way analysis of variance ANOVA with a 0.05 significance level.

The ANOVA for T_g measured by DSC confirmed the quality of the results in normality distribution and homogeneity of variance in the Shapiro-Wilks and Cochran-Bartlet tests, respectively. For this variable, a strong influence of the nanoparticle's size was observed, while the effect of the filler's volume fraction was the least important of the mean effects (Fig.2)

Figure 2.

Statistical analysis of DSC results

The second dependent variable analysed by ANOVA was the storage modulus of the nanocomposites manufactured. As demonstrated in the section above, the adverse effect of the addition of filler was observed as a mean effect. However, in Figure 3, statistic analyses showed that the nanoparticle volume fraction had no significant effect.

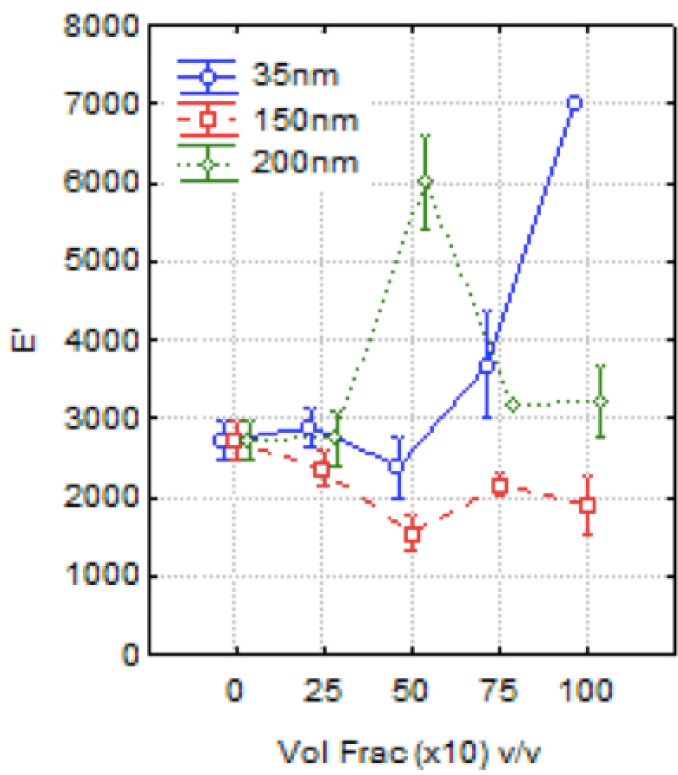

Figure 3.

Statistical analysis of DMA-E′ results

Finally, for the stabilization temperature measured by TGA, T_stb statistical analysis showed no significant effect of the size of the nanoparticle, even for the volume fraction used to produce the nanocomposite, as displayed in Figure 4.

Figure 4.

Statistical analysis of TGA results

4. Conclusions

The influence on thermo-mechanical properties by alumina nanoparticles' addition in epoxy resin was observed using DSC and DMA analyses. The results indicate that different interactions exist for different matrix/nanoparticle size combinations. The influence of the nanoparticle size on thermo-physical properties of alumina/epoxy was demonstrated as the mean factor in this kind of composite. The cross-link density calculated by DMA data has a quadratic behaviour with the nanofiller volume fraction increase. The DSC analyses showed different impacts on glass transition temperature according to the nanoparticle's size, indicating that the SSA is an important factor in organic-inorganic interactions and the adhesion forces between nanoparticles and the matrix. Finally, the nanofillers improved the thermal resistance of the neat epoxy.

Footnotes

5. Acknowledgements

The financial support of Rio de Janeiro State Funding, FAPERJ, the Research and Teaching National Council, CNPq, the Coordination for the Improvement of Higher Level Personnel, CAPES and CEFET/RJ is acknowledged with gratitude.

References

Jiang

Jin

Park

(2012) Thermo-mechanical Behaviors of Epoxy Resins Reinforced with Nano-Al₂O₃ Particles. J. Ind. Eng. Chem. 18:594–596.

McGrath

Parnas

King

Schroeder

Fischer

Lenhart

(2008) Investigation of the Thermal, Mechanical, and Fracture Properties of Alumina–epoxy Composites. Polym. 49:999–1014.

Omrani

Rostami

(2009) Understanding the Effect of Nano- Al₂O₃ addition upon the Properties of Epoxy-based Hybrid Composites. Mater. Sci. Eng. A-Struct. 517:185–190.

Kango

Kalia

Celli

Njuguna

Habibi

Kumar

(2013) Surface modification of Inorganic Nanoparticles for Development of Organic-inorganic Nanocomposites – A review. Prog. Pol. Sci. 38:1232–1261.

Mansour

Sh A

(2013) Study of Thermal Stabilization for Polystyrene/Carbon Nanocomposites via TG/DSC Techniques. J. Therm. Anal. Calorim. 112:579–583.

Soares

Silva

Sollymossy

Braga

Duchet

(2013) Assessing the Nanoscale Structure of Clay Epoxy Nanocomposites by Tuning the Physicochemical and Processing Conditions. App. Clay. Sci. 83–84:244–252.

Kawaguchi

Pearson

(2003) The Effect of Particle-matrix Adhesion on the Mechanical Behavior of Glass Filled Epoxies: Part 1. A Study on Yield Behavior and Cohesive Strength. Polym. 44:4229–4238.

Zhang

Tang

Zhang

Friedrich

Sprenger

(2008) Fracture behaviors in situ Silica Nanoparticle-filled Epoxy at Different Temperatures. Polym. 49:3816–3825.

Shiqiang

Meng

Lin

(2007) Temperature-dependent Elastic Moduli of Epoxies Measured by DMA and Their Correlations to Mechanical Testing Data. Polym. Test. 26:803–913.

10.

Peterson

J D

Vyazovkin

Wight

C A

(2001) Kinetics of the Thermal and Thermo-oxidative Degradation of Polystyrene, Polyethylene and Poly(propylene). Macromol. Chem. Phys. 202:775–784.

11.

Yan

Huang

(2005) Complex Primary Crystallization Kinetics of Amorphous Finemet Alloy. J. Non-Cryst. Solids. 351:3320–3324.

12.

Kotkata

M F

Mansour

Sh A

(2011) Study of Glass Transition Kinetics of Selenium Matrix Alloyed with up to 10 % Indium. J. Therm. Anal. Calorim. 103:555–561.

13.

Kotkata

M F

Mansour

Sh A

(2011) Crystallization Process Analysis for Se0.95In0.05 and Se0.90In0.10 chalcogenide Glasses Using the Contemporary Isoconversional Models. J. Therm. Anal. Calorim. 103:957–965.

14.

Garcia-Fernández

Gómez-Barreiro

López-Beceiro

Saavedra

Tarrío J

Naya

Artiaga

(2010) Comparative Study of the Dynamic Glass Transition Temperature by dma and dsc. Polym. Test. 29:1002–1006.

15.

Sperling

L H

(2006) Introduction to Physical Polymer Science. New York: John Wiley and Sons.

16.

Tanaka

Kosako

Ohki

Kohtoh

Okabe

(2005) Various Characteristics of Epoxy/Alumina Nanocomposite Processed in Laboratory Scale. Proceedings of the International Conference on Electrical Engineering (ICEE). paper 447.

17.

Zhang

Singh

(2004) Mechanical Reinforcement of Unsaturated Polyester by Al₂O₃ Nanoparticles. Mater. Lett. 58:408–412.

18.

Moreira

D C

Sphaier

L A

Reis

J M L

Nunes

L C S

(2012) Determination of Young's Modulus in Polyester- Al₂O₃ and Epoxy- Al₂O₃ Nanocomposites using the Digital Image Correlation Method. Compos. Part. A Appl. S. 43:304–309.

19.

Etienne

Becker

Ruch

Grignard

Cartigny

Detrembleur

Calberg

Jerome

(2007) Effects of Incorporation of Modified Silic Nanoparticles on the Mechanical and Thermal Properties of PMMA. J. Therm. Anal. Calorim. 87:101–104.

20.

Lagashetty

Vijayanand

Basavaraja

M S

Bedre

Venkataraman

(2010) Preparation, Characterization, and Thermal Studies of γ-Fe2O3 and CuO Dispersed Polycarbonate Nanocomposites. J. Therm. Anal. Calorim. 99:577–581.

21.

Banerjee

Kumar

Sujatha

D P

(2011) Preparation of Nanoparticles of Oxides by the Citrate–Nitrate Process. J. Therm. Anal. Calorim. 104:859–867.

22.

Zabihi

Omrani

Rostami

A A

(2012) Thermo-oxidative degradation kinetics and mechanism of the System Epoxy Nanocomposite Reinforced with nano-Al₂O₃ J. Therm. Anal. Calorim. 108:1251–1260.

23.

Małecka

Rajska

(2010) Characterization of Gold Supported on Al₂O₃–CuO–Mn₂O₃ Catalysts Obtained by Thermal Decomposition of Aerosols. J. Therm. Anal. Calorim. 99:965–971.

24.

Guo

Liang

Pereira

Scaffaro

Hahn

H T

(2007) CuO Nanoparticle Filled Vinyl-ester Resin Nanocomposites: Fabrication, Characterization and Property Analysis. Compos. Sci. Technol. 67:2036–2044.

25.

Guo

Liang

Pereira

Scaffaro

Hahn

H T

(2009) A Comparison of the Role of Boehmite (AlOOH) and Alumina (Al₂O₃) in the Thermal Stability and Flammability of Poly(methyl methacrylate). Polym. Degrad. Stabil. 94:1373–1378.

26.

Sudirman Anggaravidya

Budiantoa

Gunawan

(2012) Synthesis and Characterization of Polyester-Based Nanocomposite. Procedia. Chem. 4:107–113.

27.

ASTM D3418–08. (2008) Standard Test Method for Transition Temperatures and Enthalpies of Fusion and Crystallization of Polymers by Differential Scanning Calorimetry.

28.

ASTM D7028–07. (2007) Standard Test Method for Glass Transition Temperature (DMA Tg) of Polymer Matrix Composites by Dynamic Mechanical Analysis (DMA).

29.

Zabihi

Aghaie

Zare

(2013) Study on a Novel Thermoset Nanocomposites form DGEBA-Cycloaliphatic Diamine and Metal Nanoparticles. J. Therm. Anal. Calorim. 111:703–710.

30.

Zabihi

Ghasemlou

(2012) Nano-CuO/Epoxy Composites: Thermal Characterization and Thermo-oxidative Degradation. International Journal of Polymer Anal. Charact. 17:108–121
