Abstract

In this paper, a rotating flexible link impacting a granular media is studied. The influences of initial impact velocity and impact angle are examined. The resistance forces are expressed as the sum of a dynamic frictional force (velocity-dependent) and a static resistance force (depth dependent). The penetrating angle increases with initial impact velocity as expected. However, the stopping time decreases with initial impact velocity for all initial impact angles for the considered system.

Keywords

Impact Rotating Link Granular Media Stopping Time

1. Introduction

The impact with a granular media is a very interesting phenomenon because of the characteristics of granular materials which are similar to a solid with a flow which is similar to a fluid. The focus of recent works has been observations of low speed impact and the correlation between initial velocity and stopping time in the granular media [1].

In [2], the penetration of large projectiles into dry granular media is studied. The authors proposed the resistance force model as a velocity-dependent drag force and depth-dependent friction force. The depth-dependent friction force models have been developed for horizontal motion in [3 –6] and for vertical motion in [7, 8]. Researchers analysed the impact results including the impact cratering, the impact depth, and the stopping time based on their model of resistance force. In [9], the stopping time is a function of the geometry and the initial velocities.

The time dependence of the velocity of the projectiles is studied in [10]. The authors found that this dependence is not a linear function of the time and the granular media have a similar behaviour to a fluid during initial impact.

[1] has sparked new interest in the field of vertical impact with a granular matter. The resistance force model proposed by [2] is applied and verified for the motion of a rigid sphere with the help of a line-scan digital CCD camera. They analysed how rapidly a sphere impacting a granular media slows upon collision.

Li et al. examine the performance of a legged robot on granular media [11]. The properties of the medium, the limb frequency and the gait are analysed. The authors give a detailed discussion of a rotary walking locomotion model. The vertical component of the granular media force acting on the leg is a function of depth and leg-shaft angle.

The performance of a small legged robot on a granular media is systematically studied in [12]. A new anisotropic granular penetration force that can predict the speed is introduced. A predictive model for legged robots is developed.

The granular materials are ubiquitous and the impact with a granular medium can take place in various areas such as robotics, human and animal locomotion, tracked vehicles, heavy duty construction equipments and extraterrestrial explorations. Multi-legged robots cannot avoid continuous impact with the granular materials.

This study will provide developments that would be applicable in the design of impacting systems such as: walking machines, variable geometry wheeled and tracked vehicles, active cord mechanisms, and legged robots.

In this study we focus on modelling, simulation and experiments of the kinematic links impacting a granular medium using the resistance force model as the sum of a velocity-dependent drag force and a depth-dependent resistance force. We also analysed the relation among initial impact velocities, stopping time and penetrating depth based on the experimental and simulation results. To the best of our knowledge this is the first time a mathematical model has been proposed, analysed and experimentally verified for the impact of kinematic links impacting into a granular matter.

2. Force analysis

The resistance force of the granular medium on the body from the moment of impact until the body stops is very important. There are different models for the granular resistance forces that act upon a body during the penetration process. For viscous drag Bingham's model F_R = F₀ + bv, where v is the velocity of the body relative to a medium and b is a coefficient, has been utilized. This model was originated for viscoplastic materials that behave as a solid at low stress and as a viscous fluid at high stress. Using this model, [13] calculated the penetration of spheres into a loose granular material and Bingham's equation has recently been advocated for granular impact. Poncelet's model F_R = F₀ + cv², where c is a drag coefficient, originated from high speed impact and has been used for ballistics applications [9]. [14, 15] suggested a force model including Bingham's and Poncelet's models, as F_R = Av² + Bv + C for the study of projectile penetrating sand, where A is a classical fluid dynamic drag parameter, B is a parameter due to kinetic fiction, and C is a deceleration force. Recent research studies [3 –8] indicate the static resistance force, defined as a constant for Bingham's and Poncelet's models, depends linearly or nonlinearly on the depth of penetration. In [16], the resistance force made up only by static force F_R = kz is considered where z is the penetrated depth and k is a constant.

[2] proposed a resistance force based on Poncelet's model and on the static force considered in [6]. The total resistance forces acting on a moving body into a granular matter can be generalized as the sum of the static force characterized by a depth-dependent friction force as well as the dynamic frictional force characterized by a velocity-dependent drag force

F_{R} = F_{s} (z) + F_{d} (v),

(1)

where F_s is the static resistance force and F_d is the dynamic frictional force. With this approach the resistance force model incorporates the solid-like and fluid-like characteristics simultaneously.

2.1. Dynamic frictional force F_d

The dynamic frictional force F_d is conceptually the same force as the “drag” used in fluid dynamics. When the external driving forces (including tilting and shaking) exceed the stationary condition the individual grains lose the stationary state in their contacts and the granular material begins to fluidize. From this fluid-like behaviour of the granular matter the resistance force is assumed to be a drag force impeding the body motion [17 –21]. Once the body penetrates the granular matter after impact, the matter contacting with the moving body partly acts like a fluid and the resistance force begins to be generated. The dynamic frictional force is a velocity-dependent force, starts when the link touches the granular matter and ends when the link is at rest. The dynamic frictional force F_d has been modelled as a linear drag force or a quadratic drag force. Bingham's model (linear drag) has been used for low speed granular impact and Poncelet's model (quadratic drag) has been used for high speed applications [9].

The research results using a dilute granular flow condition which is not affected by the static resistance force [17, 19, 21] and the studies at low speed impact [1, 2] show that the quadratic drag force model is better for the dynamic frictional force F_d than the linear equation model even at a relatively low speed. The dynamic frictional force can be modelled as

F_{d} = - u_{v} η_{d} ρ_{g} A_{r} v \cdot v,

(2)

where u_v = v/ v, η_d is an experimental drag coefficient, ρ_g is the density of the granular medium, and A_r is the reference area of the body. The dynamic frictional force is opposed to the velocity vector v.

2.2. Static resistance force F_s

This static resistance force does not depend on the velocity or the acceleration of a body and acts as an internal stress. Therefore this force acts as a main resistance force when a body penetrates a granular medium at low speed. The presence of this force not existing in a fluid can be observed easily. When a body is put on a granular material, the body starts to penetrate vertically through the granular material and does not sink beyond a certain depth. The body stops penetrating the material due to this static resistance force. In an ordinary fluid the body will sink without limit.

In spite of the fact that this resistance force plays an important role for a body penetrating a granular material, the force had not been highlighted in earlier studies. Most models, including the Bingham and Poncelet models, have considered this force as a mere constant. The theoretical modelling of this force originated from the characteristics of a granular material even in a stationary state but it is not that easily determined. Various research results explain the origin of this resistance force as a network of forces generated from contacts between granules [22 –27]. For a penetrating body there are interactions between the granules in the vicinity of the body and the other granules located in the container, and in this way a force chain will be created. The force is transmitted following granular medium movement as a chain reaction beginning with displacements of granules placed in the path of the moving body and ending with large scale reorganization of granules in the container. The forces and their spatial correlations do not represent a fixed structure and the force chains are connected or disconnected continuously until the rest of penetration takes place. This process is strongly influenced by the properties of a granular matter, the external shape of a body, the packaging state of the medium, and even the form of the medium container [5, 28]. Any changes during the penetration can increase the uncertainties of the propagation chain. These uncertainties in a real impact problem make the forces not propagate uniformly through the granular matter and localize along certain directions. This irregular propagation force and the chaotic particle reorganization cause fluctuations of the static resistance force in direction and magnitude [3, 5, 29 –31]. Due to this complicated process of transmitting the force, there are few studies that completely describe the static resistance force [7]. In our research we will consider the horizontal and vertical static resistance forces developed by theoretical and empirical approaches.

2.3. Horizontal static resistance force F_sh

The horizontal static force is defined as an internal resistance force acting on the horizontal direction. When a body penetrates a granular material, it is not easy to separate and measure this force individually without the effect of dynamic force F_d. The experiments on horizontal static resistance forces have been performed at very slow speeds such as 0.04 – 1.4 mm/s [4 –6].

[6] applied a probability approach to model this resistance force. They used the force chain model developed by [22] in order to find the mean horizontal static resistance force. According to the chain model of [22], the force chains transmitting the propagation of contact forces are built up based on the force fractions that act on a given particle of the matter. The force fraction is unequally split and transmitted to the adjacent particles. The calculated minimum force F for a vertically immersed cylinder type body is F = η_hg ρ_g H² d_c, where g is the gravitational acceleration, H is the immersed length of the cylinder, d_c is the diameter of the cylinder, and η_h is an experimental constant [6]. The horizontal static resistance force of the cylinder including the state of immersion, at any slope, can be generalized as

F_{s h} = - \frac{v_{h}}{| v_{h} |} η_{h} g ρ_{g} z_{T}^{2} d_{c},

(3)

where v_h is the horizontal velocity vector of a body and z_T is the depth of the immersed cylinder tip. Equation (3) shows that the horizontal static resistance force is a function of the granular properties, the immersed surface area, and the depth. The previous equation does not consider the periodic force fluctuation, such as stick and slip phenomena, which were confirmed in some real cases. Experimental data show that the equation can be applied for the static resistance force model not only in the case of limited fluctuation but also for large fluctuation [3, 5]. The calculated force represents an average static force of fluctuation. In this approach, the friction forces between the granules and the body surface in contact make a negligible contribution to the horizontal static resistance force. Any body with the same shape can cause almost the same results regardless of the surface friction and the body's density.

2.4. Vertical static resistance force F_sv

The vertical static force is defined as an internal resistance acting on the vertical axis. Simple models consider this force as a constant [9, 13] or as a linear function of the immersed depth of the body [1, 16]. The vertical static force is also modelled as a nonlinear function of the immersion depth [7, 8]. Experiments show the granules contacts increase exponentially with the external force [24, 25]. The effects of the container bottom boundary increase the nonlinearity of this resistance force [8, 28].

[7] suggested an empirical equation with coefficients calculated from the experimental data as

F_{s v} = - \frac{v_{v}}{| v_{v} |} η_{v} {(z_{T} / l)}^{λ} g ρ_{g} V,

(4)

where v_v is the vertical velocity vector of a body, V is the immersed volume of the body, and l is the lateral dimension. +The coefficients η_v and λ depend on the shape of the body, the properties of the granular matter, the shape of the medium container, and the moving direction such as plunging and withdrawing.

Experimental data show that the inclination of the body has little effect on the vertical static resistance force, but the moving directions drastically change this force [7]. For a cylinder type body, whether the axis is vertical or horizontal, η_v = 10, λ = 1.4 for plunging motion and η_v = 0.5, λ = 1.7 for withdrawing motion.

3. Dynamics of a rotating link

In the case of a cantilevered elastic link composed of one end supported by a rigid body as shown in Figure 1, the boundary conditions for the flexible link are cantilevered at one end and free at the other end.

Figure 1.

Cantilevered elastic link

As shown in Figure 1, the cantilevered elastic link applied to the modelling is supported by rigid bodies RB₁ and RB₂. The rigid body RB₁ has the diameter d_p1 and the length L_p1 . The rigid body RB₂ has the diameter d_p2 and the length L_p2. The flexible part of the bar, B, has an uniform flexible link of the length L_p3 = L_B = L, the diameter dp₃ = d_c, the cross sectional area A_c=πd_c²/4, the flexural rigidity EI, and density ρ_c. The length from the origin to the rigid body end is L_RB = d_p1 /2 + L_p2 and the density of the rigid bodies is the same as that of the elastic link. To characterize the instantaneous configuration of the elastic link, the generalized coordinates q₁ and q_i+1 are employed. The generalized coordinate q₁ denotes the radian measure of the rotation angle between the undeformed link and the horizontal axis. The generalized coordinate q_i+1 denotes the deformation of the elastic link part of the pendulum. A fixed reference frame (0) of unit vectors [i₀, j₀, k₀] and a mobile reference frame (1) of unit vectors [i, j, k] are considered.

3.1. Kinematics

The deformations of the cantilevered elastic rotating link can also be discussed in terms of the elastic displacement x(z, t) of a generic point P on the elastic part B of the pendulum. The point P is situated at a distance z from the point at the first end of the elastic link B. The displacement x can be expressed as

x (z, t) = \sum_{i = 1}^{n} Φ_{i} (z) q_{1 + i} (t),

where Φ_i (z) is a shape function of the elastic link by z, the elastic generalized coordinate q_1+i (t) is a function of time t, and i is any positive integer.

The position of the mass centre of the rigid body RB₁ is the origin point O and the position vector from the origin O to the mass centre of the rigid body RB₂, C_RB2, is represented as

r_{C_{R B 2}} = \frac{d_{p_{1}} + L_{p_{2}}}{2} (\sin q_{1} i_{0} + \cos q_{1} k_{0}) .

(5)

The position vector from the origin point O to a generic point P of the link B, in the mobile reference frame of unit vectors [i, j, k] and in the fixed reference frame (0) of unit vectors [i₀, j₀,k₀], is

\begin{array}{l} r_{P} = x 1 + (L_{R B} + z) k \\ = [(\sum_{i = 1}^{n} Φ_{i} (z) q_{1 + i}) i + (L_{R B} + z) k] \\ = [\sum_{i = 1}^{n} Φ_{i} (z) q_{1 + i} \cos q_{1} + (L_{R B} + z) \sin q_{1}] i_{0} \\ + [- \sum_{i = 1}^{n} Φ_{i} (z) q_{1 + i} \sin q_{1} + (L_{R B} + z) \cos q_{1}] k_{0} . \end{array}

(6)

The velocity vector of the generic point P of the elastic link B is calculated in the fixed reference frame (0) and has the value

\begin{array}{l} v_{P} = \frac{d}{d t} r_{P} \\ = [\sum_{i = 1}^{n} (Φ_{i} (z) {\dot{q}}_{1 + i} \cos q_{1} - Φ_{i} (z) q_{1 + i} {\dot{q}}_{1} \sin q_{1}) \\ + (L_{R B} + z) {\dot{q}}_{1} \cos q_{1}] i_{0} \\ + [- \sum_{i = 1}^{n} (Φ_{i} (z) {\dot{q}}_{1 + i} \sin q_{1} + Φ_{i} (z) q_{1 + i} {\dot{q}}_{1} \cos q_{1}) \\ - (L_{R B} + z) {\dot{q}}_{1} \sin q_{1}] k_{0} . \end{array}

The acceleration vector of the point P in the fixed reference frame (0), of unit vectors [i₀, j₀,k₀], is

\begin{array}{l} a_{P} = \frac{d}{d t} v_{P} \\ = [\sum_{i = 1}^{n} Φ_{i} (z) ({\overset{..}{q}}_{1 + i} \cos q_{1} \\ - 2 {\dot{q}}_{1 + i} {\dot{q}}_{1} \sin q_{1} - q_{1 + i} {\overset{..}{q}}_{1} \sin q_{1} - q_{1 + i} {\dot{q}}_{1}^{2} \cos q_{1}) \\ + z {\overset{..}{q}}_{1} \cos q_{1} - z {\dot{q}}_{1}^{2} \sin q_{1}] i_{0} \\ + [- \sum_{i = 1}^{n} Φ_{i} (z) ({\overset{..}{q}}_{1 + i} \sin q_{1} + 2 {\dot{q}}_{1 + i} {\dot{q}}_{1} \cos q_{1} \\ + q_{1 + i} {\overset{..}{q}}_{1} \cos q_{1} - q_{1 + i} {\dot{q}}_{1}^{2} \sin q_{1}) \\ - z {\overset{..}{q}}_{1} \sin q_{1} - z {\dot{q}}_{1}^{2} \cos q_{1}] k_{0} . \end{array}

(7)

The angular acceleration of the link in the reference frame (0) in terms of the fixed unit vector J₀, is

α = \dot{ω} = {\overset{..}{q}}_{1} j_{0} .

(8)

3.2. Equations of motion

Newton-Euler equations can be used to find the differential equation of motion. A moment equation before impact can be written as

\begin{array}{l} I_{R B} {\overset{..}{q}}_{1} + \int_{0}^{L} (r_{P} \times ρ_{c} A_{c} a_{P}) d z \\ = r_{C_{R B 2}} \times G_{R B 2} + r_{C} \times G_{B}, \end{array}

(9)

where I_RB is the mass moment of inertia of the rigid body and the gravity forces G _{RB
2} and G _B are acting on the mass centre of the rigid body RB₂ and on the flexible link B respectively. The vector r_C is the position vector from origin point O to the mass centre C of the flexible link (r_C = r_p(z = 0.5L)). There is one more governing equation of motion regarding deformation of the link

\begin{array}{l} E I L {(\frac{λ_{i}}{L})}^{4} q_{1 + i} (t) + \int_{0}^{L} ρ_{c} A_{c} a_{P} \cdot i Φ_{i} (z) d z \\ = \int_{0}^{L} F_{e x t} \cdot i Φ_{i} (z) d z . \end{array}

(10)

Because the external forces acting on the elastic link of the pendulum are the gravity force G_B and the joint reaction force F _{RB
2} from the rigid body RB₂, the external force F_ext can be written as G_B δ(z − 0.5L) + F_RB2 δ(z) when the external force F_ext is supposed to be concentrated on the pendulum. Therefore the right hand side of Eq. (10) becomes G_B ·i Φ_i (0.5L) + F_O · i Φ_i (0). Because the value of Φ_i (0) is always zero in the model, Eq. (10) becomes

\begin{array}{l} E I L {(\frac{λ_{i}}{L})}^{4} q_{1 + i} (t) + \int_{0}^{L} ρ_{c} A_{c} a_{P} \cdot i Φ_{i} (z) d z \\ = G_{B} \cdot i Φ_{i} (\frac{L}{2}) . \end{array}

(11)

Differential equations (9) and (11) represent the equations of motion for the cantilevered elastic link before impact.

While impacting a granular medium, an additionally added external force is restricted to the resistance force F_R. The equations of motion for the cantilevered elastic link during impacting are given as

\begin{array}{l} I_{R B} {\overset{..}{q}}_{1} + \int_{0}^{L} (r_{P} \times ρ_{c} A_{c} a_{P}) d z \\ = r_{C} \times G + r_{E} \times F_{R}, \\ E I L {(\frac{λ_{i}}{L})}^{4} q_{1 + i} (t) + \int_{0}^{L} ρ_{c} A_{c} a_{P} \cdot i Φ_{i} (z) d z \\ = G_{B} \cdot i Φ_{i} (\frac{L}{2}) + F_{R} \cdot i Φ_{i} (L_{E}), \end{array}

(12)

where r_E = r_p(z = L_E) is the position vector from the origin point O to the resistance force application point E. The length from the origin point O to the resistance force application point E, L_E, is calculated as

L_{E} = L - \frac{z_{T}}{2 \cos q_{1}} .

(13)

The immersed depth z_T, the vertical component of the position vector of the end point τ, is calculated by as Z_T = r_p (z = L) · k₀ The dynamic frictional force F_d is

F_{d} = - v_{E} η_{d} ρ_{g} A_{r} | v_{E} |,

(14)

where the velocity vector v_E is the velocity of the resistance force acting point E and this vector calculated as v_E = v_p (z = L_E). The reference area A_r is represented as

A_{r} = \frac{d_{c} z_{T}}{\cos q_{1}} .

(15)

The horizontal and vertical static resistance forces, F_sh and F_vh, are

\begin{array}{l} F_{s h} = \\ - sign [\sum_{i = 1}^{n} (Φ_{i} (L_{E}) {\dot{q}}_{1 + i} \cos q_{1} - Φ_{i} (L_{E}) q_{1 + i} {\dot{q}}_{1} \sin q_{1}) \\ + (L_{R B} + L_{E}) {\dot{q}}_{1} \cos q_{1}] η_{h} g ρ_{g} z_{T}^{2} d_{c} i_{0}, \end{array}

(16)

\begin{array}{l} F_{s v} = \\ - sign [- \sum_{i = 1}^{n} (Φ_{i} (L_{E}) {\dot{q}}_{1 + i} \sin q_{1} + Φ_{i} (L_{E}) q_{1 + i} {\dot{q}}_{1} \cos q_{1}) \\ - (L_{R B} + L_{E}) {\dot{q}}_{1} \sin q_{1}] η_{v} {(\frac{z_{T}}{d_{c}})}^{λ} g ρ_{g} V k_{0}, \end{array}

(17)

where the immersed volume V is calculated as

V = \frac{π d_{c}^{2}}{4} \frac{z_{T}}{\cos q_{1}} .

(18)

The resistance force F_R, the sum of the dynamic frictional force vector F_d and the static resistance force vector F_s, are represented as the sum of Eqs. (14), (16), and (17).

3.3. Simulation results

The symbolic Mathematica was used to find the ordinary differential nonlinear equations of motion. To solve numerically the equations of motion a Runge-Kutta Mathematica function was utilized. For the ODE problem the instants of the specific events are important to detect the time at which the normal and tangential velocity are zero. The Mathematica EventLocator function was used to handle the moments when the velocity is changing the sign.

The flexural rigidity of the link is EI = 15.1642 N m². The simulations are performed for different impact angles and different initial impact angular velocities (q̇₁(0) = −1.75, −3.38, and −4.66 rad/s for q(0) = 22°, q̇₁ (0) = −3.31, −6.24, and −8.41 rad/s for q(0) = 31°, q̇₁ (0) = −2.66, −6.47, and −9.06 rad/s for q(0) = 45^o, and q̇₁ (0) = −2.70, −6.54, and −9.17 rad/s for q(0) is 61.5^o). Table 1 shows the stopping time results for the elastic model, t_s. The stopping time is measured from the impact moment until the angular velocity of the link q̇₁ becomes zero. Only the first mode of the shape function is considered. As shown in Table 1, the pendulum stops more quickly when the system impacts the granular medium with high velocity. The results show that the faster the impact velocity, the sooner the link stops. The initial impact angle, q₁ (0), is the angle when the link hits the ground first.

The displacement showing the maximum elastic deformation of the link becomes larger when the initial impact velocity and the initial impact angle increase as shown in Figure 2. The values of the elastic deformations are very small. The body flexibility is not an issue and both simulations (rigid and flexible) should not differ significantly for this specific impact. The elastic deformation is an issue for the hard surface impact (and definitely more mode shapes are needed). For the impact on sand, the body flexibility is negligible for this specific application.

Figure 2.

Maximum elastic displacement for the initial impact angle q₁ (0) = 22°, 31, 45°, 61.5°

Table 1.

Simulation stopping time for the cantilevered elastic link

q₁ (0) (·)	q̇₁ (0) (rad/s)	t_s (s)

22	-1.75	0.107366

	-3.38	0.0861761

	-4.66	0.0774967

31	-3.31	0.0610354

	-6.24	0.0485343

	-8.41	0.0438373

45	-2.66	0.046748

	-6.47	0.0333414

	-9.06	0.029574

61.5	-2.70	0.0345101

	-6.54	0.0245555

	-9.17	0.021729

3.4. Experimental set up

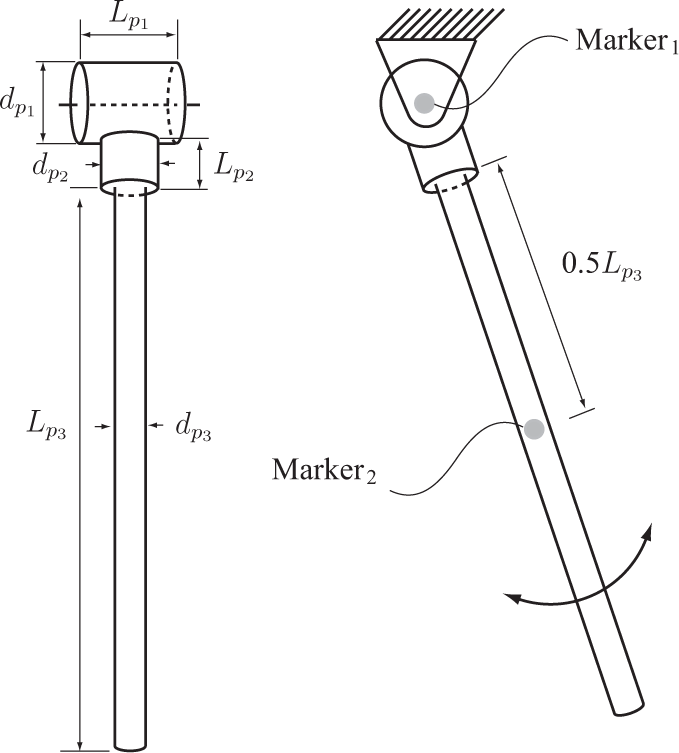

Figure 3 shows the compound pendulum with the following dimensions: the length L_p1 = 0.019812 m, L_p2 = 0.01524 m, L_p3 = 0.23876 m, the diameter d_p1 = 0.01905 m, d_p2 = 0.01524 m, and d_p3 = 0.00635 m. The density of the link is 7.7 × 10³ kg/m³. The infra red (I.R.) markers are located on the rotational joint point and the centre of the Lp₃.

Figure 3.

Geometry of the rotating link for experiments

In this study, as the motion capturing system to measure and digitize the position of the impact objects, a Northern Digital Inc. (NDI) optotrak 3020 system is used. This system is composed of a position sensor, a control unit, a stroboscope, I.R. markers, and a PC as shown in Figure 4. The system can measure the position of the markers within the RMS accuracy of 0.1 mm and can track up to 256 markers simultaneously with a sample up to 3500 markers/s. The system does not require a calibration process. The motions of the rigid link are recorded using the two I.R. markers. The position sensor captures the position of the I.R. markers attached to the bodies at constant sample rates and measures 3D position data. The elastic deformation of the link is negligible. The PC is used for the operating software controlling the hardware system, and saving and transforming the measured data. In the experiments, the positions were measured using a 3D data Cartesian coordinate system at 500 frames/s.

Figure 4.

Motion measurement system

Many kinds of granular materials exist. These include grains such as rice, soils including sand, and artificial granules such as fertilizer, glass beads and ball bearings. The applied density of a granular medium for the simulations, ρ_g, is 2.5 × 10³ kg/m³. The numerical value of the density is originated from the physical property of the granular medium, “Play sand” (Quikrete 1113-51) utilized in the impact experiments. The resistance force coefficients are: the dynamic frictional force coefficient η_d = 6.5, the horizontal static resistance force coefficient η_h = 8, and the vertical static resistance force coefficients η_v = 22 and λ = 1.1. These coefficients were determined from experimental data. The gravitational acceleration g is applied as 9.81 m/s². The field of low speed impact with a granular medium is related to developing multi-body kinematic chain systems such as multi-legged robots for surveillance or carrying, and these systems cannot avoid slow impact with diversified outfield granular materials including soil and sand. From this view point, sand is considered more appropriate and beneficial than glass beads or other artificial granular medium. The dimensions of the impact test box are 0.45 m×0.32 m×0.09 m (W×L×H) and the height of the sand in the test bed is 0.075 m.

Figures 5, 6, 7, and 8 represent the penetrating angle q₁ and the angular velocity q̇₁ of the experimental and the simulation results for the impact of the link. The experiments and the simulations are performed for different impact angles and different initial impact angular velocities (q̇₁(0) = −1.75, −3.38, and −4.66 rad/s for q₁ (0) = 22°, q̇₁(0) = −3.31, −6.24, and −8.41 rad/s for q₁ (0) = 31°, q̇₁(0) = −2.66, −6.47, and −9.06 rad/s for q₁(0) ≈ 45°, and q̇₁(0) = −2.70, −6.54, and −9.17 rad/s for q₁(0) is 61.5°) from the impact moment until the angular velocity of the pendulum, q̇, becomes zero. The thick lines show the results of experiments and the black lines represent the simulation results. The resistance force coefficients are the same for all the simulations of the impact of the link.

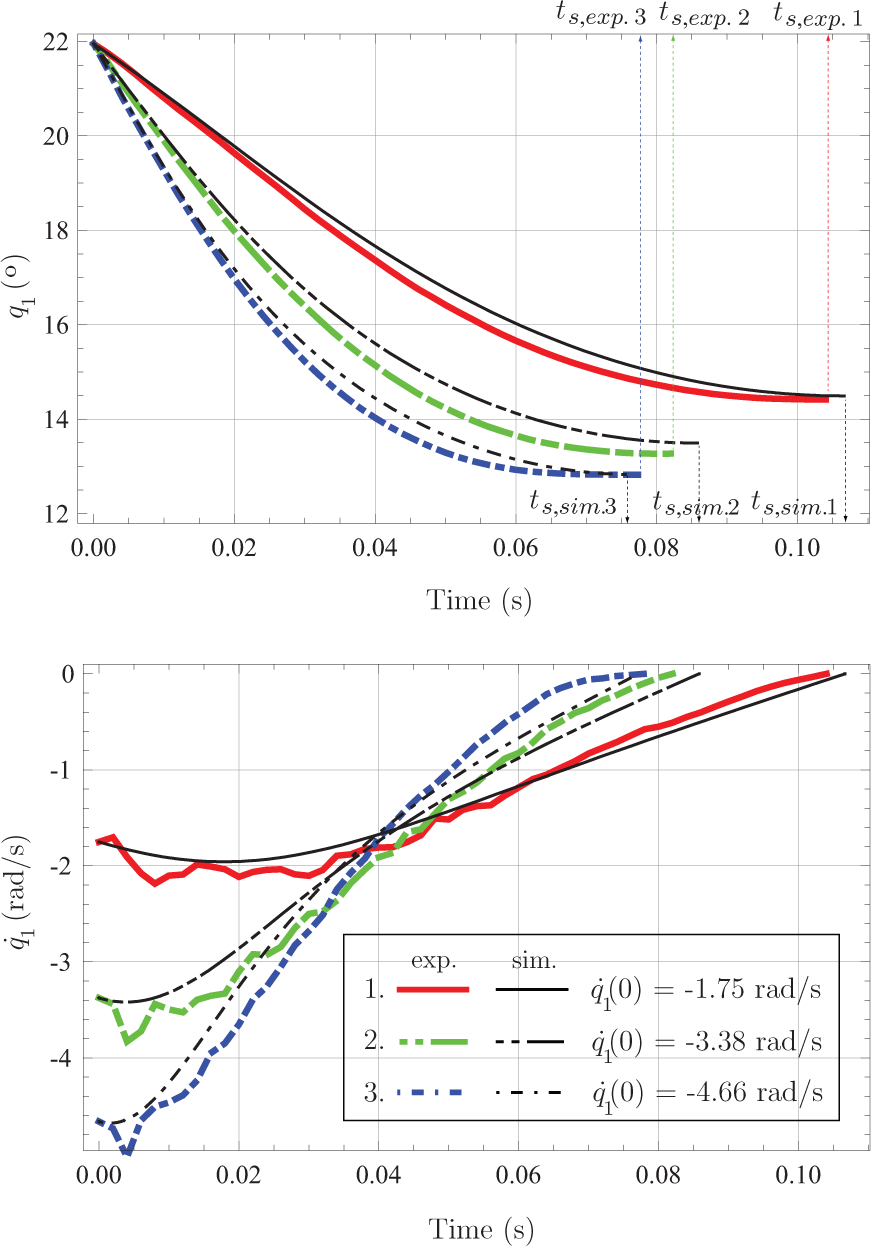

Figure 5.

Experimental and simulation results for q(0) = 22°

Figure 6.

Experimental and simulation results for q(0) = 31°

Figure 7.

Experimental and simulation results for q(0) = 45°

Figure 8.

Experimental and simulation results for q(0) = 61.5°

4. Experimental results

The penetrating angle of the link increases with the initial angular velocity for all the cases as shown in Figures 5, 6, 7, and 8. The experimental results also show that the stopping time of the link decreases when the initial impact velocity increases. In these experiments and simulations, the stopping time is defined as the time period starting from the moment of impact and ending when the velocity of the object into the granular matter is zero. The experimental and the simulation results of the compound pendulum show the decrease of the stopping time for different oblique impacts with a granular medium. The phenomenon that the impact of a rigid body stops more rapidly as the initial impact velocity increases (having been confirmed by the experiments and the simulation results) is observed for the impact of the rotating link.

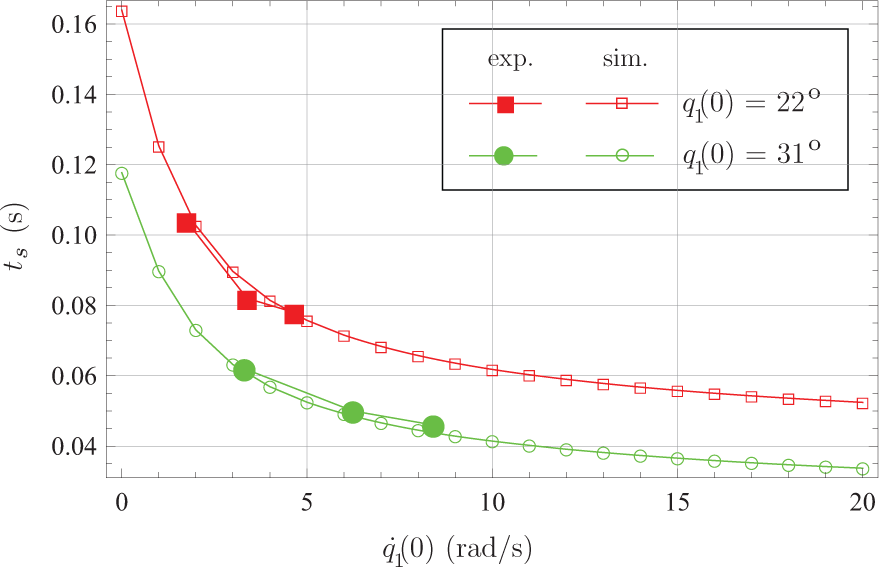

Figure 9 shows the stopping time of the rotating link for two impact angles. The large markers represent the experimental results and the small markers depict the simulation results. The stopping time decreases when the initial impact angular velocity increases. However, the decrease of the stopping time diminishes for higher values of the angular velocity.

Figure 9.

Stopping time results

5. Conclusions

In this study the dynamics of an impact with a granular medium is studied. Even though granular mediums are ubiquitous and the phenomenon of impact with them takes place frequently whether artificially or naturally in industry and nature, studies related to low speed impact with a granular medium have not been sufficient for understanding the dynamics of the impact. At present, most studies are restricted to the impact in the vertical direction and have been limited to experiments using a spherical shape. In this study the resistance force generated by the granular medium is a velocity-dependent, dynamic frictional force, and a depth-dependent, static resistance force.

For the impact on sand, the body flexibility is negligible for this specific application. The simulation results show that the stopping time decreases when the initial velocity of the impact object increases. It is confirmed that for an oblique impact with a granular medium the stopping time decreases when the initial impact velocity increases. Even though the stopping time decreases, the penetrating distance of the body increases as the initial impact velocity increases for all cases.

The simulation and experimental results performed for initial impact angles (22, 31, 45, 61.5°) and for initial impact angular velocities (−1.75 ˜ −9.17 rad/s) show how fast the impact velocity of the rotating link is - the sooner it stops, the deeper it penetrates. There is a good agreement between the simulation results and the experimental results.

Future studies will analyse the impact of complicated geometrical links and kinematics chains with multiple contacts. This will require an understanding of the physics related to the granular penetration. A realistic expression of the contact force can generate better control strategies and robot link designs.

References

Katsuragi

Durian

(2007) Unified Force Law for Granular Impact Cratering. Nature physics. 3:420–423.

Tsimring

Volfson

(2005) Modeling of Impact Cratering in Granular Media. In: Garciá Rojo

Herrmann

McNamara

Editors. Powders and Grains. Rotterdam: A.A. Balkema. pp. 1215–1223.

Albert

Sample

Morss

(2001) Granular Drag on a Discrete Object: Shape Effects on Jamming. Physical review E. 64:061303(4).

Albert

Tegzes

Kahng

(2000) Jamming and Fluctuations in Granular Drag. Physical review letters. 84:5122–5125.

Albert

Tegzes

Albert

(2001) Stick-Slip Fluctuations in Granular Drag. Physical review E. 64:031307(9).

Albert

Pfeifer

Barabási

(1999) Slow Drag in a Granular Medium. Physical review letters. 82: 205–208.

Hill

Yeung

Koehler

(2005) Scaling Vertical Drag Force in Granular Media. Europhysics letters. 72:137–142.

Stone

Barry

Bernstein

(2004) Local Jamming via Penetration of a Granular Medium. Physical review E. 70:041301(10).

Ambroso

Kamien

Durian

(2005) Dynamics of Shallow Impact Cratering. Physical review E. 72:041305(4).

10.

Hou

Peng

Liu

(2005) Dynamics of a Projectile Penetrating in Granular Systems. Physical review E. 72:062301(4).

11.

Umbanhowar

Komsuoglu

(2009) Sensitive Dependence of the Motion of a Legged Robot on Granular Media. Proceedings of the National Academy of Sciences. 106(9):3029–3034.

12.

Umbanhowar

Komsuoglu

(2010) The Effect of Limb Kinematics on the Speed of a Legged Robot on Granular Media. Experimental mechanics. 50(9):383–1393.

13.

de Bruyn

R.J

Walsh

(2004) Penetration of Spheres into Loose Granular Media. Canadian journal of physics 82:439–446.

14.

Allen

Mayfield

Morrison

(1957) Dynamics of a Projectile Penetrating Sand. Journal of applied physics. 28:370–376.

15.

Allen

Mayfield

Morrison

(1957) Dynamics of a Projectile Penetrating Sand. Part II. Journal of applied physics. 28:1331–1335.

16.

Lohse

Rauhe

Bergmann

(2004) Creating a Dry Variety of Quicksand. Nature. 432: 689–690.

17.

Buchholtz

Pöschel

(1998) Interaction of a Granular Stream with an Obstacle. Granular matter. 1:33–41.

18.

Rericha

Bizon

Shattuck

(2002) Shocks in Supersonic Sand. Physical review letters. 88(1):014302(4).

19.

Wassgren

Cordova

Zenit

(2003) Dilute Granular Flow Around an Immersed Cylinder. Physics of fluids. 15(11):3318–3330.

20.

Geng

Behringer

(2005) Slow Drag in Two-Dimensional Granular Media. Physical review E. 71:011302(19).

21.

Bharadwaj

Wassgren

Zenit

(2006) The Unsteady Drag Force on a Cylinder Immersed in a Dilute Granular Flow. Physics of fluids. 18:043301(7).

22.

Coppersmith

Liu

Majumdar

(1996) Model for Force Fluctuations in Bead Packs. Physical review E. 53:4673–4685.

23.

Nguyen

Coppersmith

(2000) A Scalar Model of Inhomogeneous Elastic and Granular Media. Physical review E. 62:5248–5262.

24.

Mueth

Jaeger

Sidney Nagel

(1998) Force Distribution in a Granular Medium. Physical review E. 57:3164–3169.

25.

Blair

Mueggenburg

Marshall

(2001) Force Distributions in 3D Granular Assemblies: Effects of Packing Order and Inter-Particle Friction. Physical review E 63:041304(9).

26.

Tkachenko

Witten

(1999) Stress Propagation through Frictionless Granular Material. Physical review E. 60:687–698.

27.

Majmudar

Behringer

(2005) Contact Force Measurements and Stress-Induced Anisotropy in Granular Materials. Nature. 425:1079–1072.

28.

Nelson

Katsuragi

Durian

(2008) Projectile Interactions in Granular Impact Cratering. Physical review letters. 101(6):068001(4).

29.

Kahng

Albert

Schiffer

(2001) Modeling Relaxation and Jamming in Granular Media. Physical review E. 64:051303(4).

30.

Majmudar

Sperl

Luding

(2007) Jamming Transition in Granular Systems. Physical review letters. 98:058001(4).

31.

Behringer

Daniels

Majmudar

(2008) Fluctuations, Correlations and Transitions in Granular Materials: Statistical Mechanics for a Non-Conventional System. Philosophical transactions of the royal society A. 366:493–504.
