Abstract

A supervisory Adaptive Network-based Fuzzy Inference System (SANFIS) is proposed for the empirical control of a mobile robot. This controller includes an ANFIS controller and a supervisory controller. The ANFIS controller is off-line tuned by an adaptive fuzzy inference system, the supervisory controller is designed to compensate for the approximation error between the ANFIS controller and the ideal controller, and drive the trajectory of the system onto a specified surface (called the sliding surface or switching surface) while maintaining the trajectory onto this switching surface continuously to guarantee the system stability. This SANFIS controller can achieve favourable empirical control performance of the mobile robot in the empirical tests of driving the mobile robot with a square path. Practical experimental results demonstrate that the proposed SANFIS can achieve better control performance than that achieved using an ANFIS controller for empirical control of the mobile robot.

Keywords

ANFIS Control Mobile robot control Supervisory

1. Introduction

The Adaptive Network-based Fuzzy Inference System (ANFIS) has been cited many times in recent research. The ANFIS reveals an efficient learning network and its applications can be found in [1 -6]. However, when using the ANFIS controller alone, a large amount of trial and error should be done to achieve satisfactory control performance. In addition, this must be based on experienced human knowledge.

In this paper, an intelligent method called Supervisory ANFIS (SANFIS) is developed for the design of the mobile robot square path control. This SANFIS controller comprises an ANFIS controller and a supervisory controller [7 -9]. The ANFIS controller is used to mimic an ideal controller and the supervisory controller is designed to compensate for the approximation error between the ANFIS controller and the ideal controller. The ANFIS controller is a suitable off-line hybrid learning procedure to serve as a basis for constructing a set of fuzzy if-then rules with appropriate membership functions to generate the stipulated Fuzzy Associated Memory (FAM) input-output pairs and fuzzy rules. Then Fuzzy Inference System (FIS) matrices can be achieved. By using these FIS matrices, a reliable controller can be designed, but the good performance that will be generated must come from human knowledge following repeated trial and error. To solve this problem, a supervisory controller is added. In addition, to relax the requirement for the uncertain bound in the supervisory controller, an estimation mechanism is employed to observe the uncertain bound. Thus, the chattering phenomena of the control efforts can be relaxed. Finally, a comparison of mobile robot system design between the ANFIS and the proposed SANFIS is presented to illustrate the effectiveness of the proposed design method. Practical experiments for the mobile robot running for square path control also verifies that the proposed design method can achieve better control performance than that with an independent ANFIS controller.

2. SANFIS controller design

Consider a system:

\dot{x} (t) = A (x (t), t) + B (x (t), t) u (t) + d (t)

(1)

where x(t) = [x₁(t), x₂(t),···,x_n(t)] ^T ∈ Rⁿ denotes the state vector, u(t) = [u₁(t), u₂(t),···,u_n(t)] ^T ∈ R^m denote the control input, d(t) = [d₁(t), d₂(t),···, d_n(t)] ^T ∈ Rⁿ denotes the unknown disturbance with a known upper bound ‖d(t)‖ ≤ d_ub and system uncertainties; ‖·‖ denotes the induced norm, and A(x(t),t) and B(x(t),t) depend on x(t).

Since the system parameters may be unknown or perturbed, the ideal controller u _id cannot be implemented. To overcome this, an ANFIS controller will be designed to approximate this ideal controller. In addition, a supervisory controller is designed to compensate for the approximation error between the ANFIS controller and the ideal controller, and to overcome the disturbances.

Suppose that an integrated sliding function is defined as [10 -13].

s (t) = \dot{x} (t) + k_{1} x (t) + k_{2} \int_{0}^{t} x (τ) d τ .

(2)

Then

\dot{s} (t) = \ddot{x} (t) + k_{1} \dot{x} (t) + k_{2} x (t)

(3)

where k₁ and k₂ are positive constants. The control law is defined as

u_{i} (t) = u_{s a n f i s} (t) = u_{a n f i s} (t) + u_{s p} (t)

(4)

where u_anfis(t) is the ANFIS controller and u_sp(t) is the supervisory controller.

Thus, the SANFIS system is shown in Fig. 1 where the inputs of the SANFIS controller are s(t) and its derivative ṡ(t).

Figure 1.

The SANFIS control algorithm

2.1 ANFIS Controller Design

The Adaptive Network-based Fuzzy Inference System (ANFIS) [1] is a suitable off-line hybrid learning procedure to serve as a basis for constructing a set of fuzzy if-then rules with appropriate membership functions to generate the stipulated Fuzzy Associated Memory (FAM) input-output pairs. The principle of ANFIS is briefly described as follows.

R_{i} : If x is A_{1} … and y is B_{1}

then

h_{1} = p_{1} x + q_{1} y + r_{1}

(5)

where R_i denotes the ith fuzzy rules, i=1, 2,..,r; A_i is the fuzzy set in the antecedent associated with the kth input variable at the ith fuzzy rule, and p_i1,…, p_in, r_i are the fuzzy consequent parameters.

Based on the weighted averaged method of defuzzification. The output u can be calculated as

\begin{array}{l} h = \frac{w_{1}}{w_{1} + w_{2}} h_{1} + \frac{w_{2}}{w_{1} + w_{2}} h_{2} \\ = {\bar{w}}_{1} u_{1} + .. + {\bar{w}}_{2} u_{n} \end{array}

(6)

where w_i is the ith node output firing strength of the ith rule, and ${\bar{w}}_{1} = \frac{w_{1}}{w_{1} + .. + w_{n}}$ ${\bar{w}}_{n} = \frac{w_{n}}{w_{1} + .. + w_{n}}$ .

Because the fuzzy inference system is a Takagi-Sugeno type, i.e., h_i = p_ix + q_iy + r_i, Eq. (6) can be rewritten as

\begin{array}{c} h = {\bar{w}}_{1} h_{1} + {\bar{w}}_{2} h_{2} \\ = ({\bar{w}}_{1} x_{1}) p_{i 1} + .. + ({\bar{w}}_{1} x_{n}) p_{i n} + ({\bar{w}}_{1}) r_{1} \\ + \\ ⋮ \\ + ({\bar{w}}_{n} x_{1}) p_{i 1} + .. + ({\bar{w}}_{n} x_{n}) p_{i n} + ({\bar{w}}_{n}) r_{n} \end{array}

(7)

The hybrid learning algorithm developed in [1] can be applied to Eq. (7) directly. A two-input one-output ANFIS is shown in Fig. 2. In the forward pass of the hybrid algorithm, functional signals go forward until layer 4 of Fig. 2 and the consequent parameters p_i, q_i, r_i are identified by the Least Squares Estimate (LSE) approach. In the backward pass, the error rates propagate backward and the premise parameters x, y are updated by the gradient descent approach. As the values of these parameters change, the membership functions vary accordingly; thus exhibits various forms of membership functions on linguistic labels A_i and B_i.

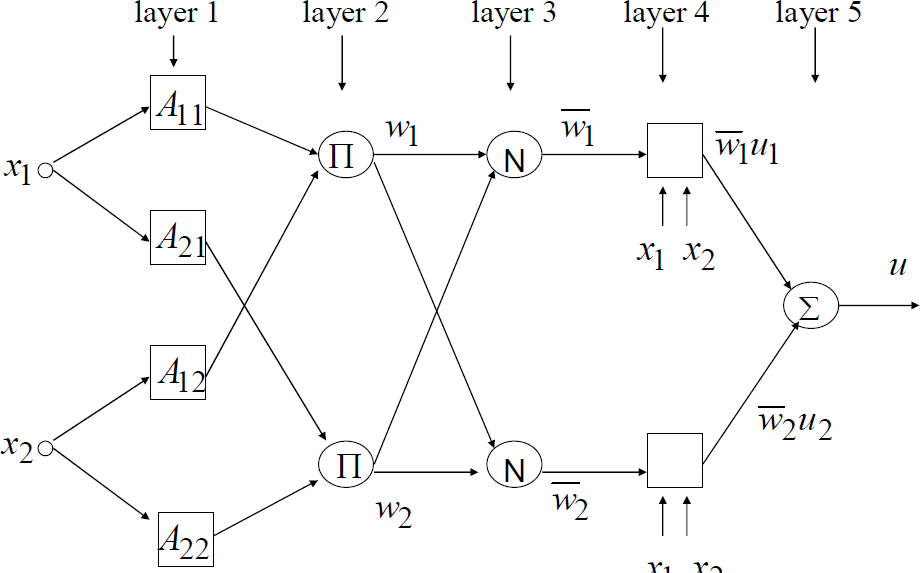

Figure 2.

A two-input one-output ANFIS architecture

2.2 Supervisory Controller Design

The most useful property of a neural network is its ability to approximate linear or nonlinear mapping through learning. According to the universal approximation theorem, there exists an optimal ANFIS such that

u_{i d} (t) = u_{a n f i s} ({\bar{w}}_{i} ​^{*}, t) + ε (t)

(8)

where ${\bar{w}}_{i} ^{*} = {[\begin{matrix} {\bar{w}}_{1}^{*} & {\bar{w}}_{2}^{*} & \dots & {\bar{w}}_{n}^{*} \end{matrix}]}^{T}$ is the ideal weight vector of the ANFIS, ε(t) denotes the approximation error and is assumed to be bounded by 0 ≤ |ε(t)| ≤ E where E is a positive constant. The error bound is assumed to be a constant during the observation, however, it is difficult to measure in practical applications. Therefore, a bound estimation is developed to observe the bound of the approximation error. Define the estimation error of the bound

\tilde{E} (t) = E - \hat{E} (t)

(9)

where Ê(t) is the estimated error bound. The supervisory controller is designed to compensate for the effect of approximation error and is chosen as

u_{s p} (t) = \hat{E} (t) sgn (s (t)) .

(10)

After some straightforward manipulation, the error equation governing the system can be obtained as follows:

\dot{s} (t) = \ddot{x} (t) + k_{1} \dot{x} (t) + k_{2} x (t) = u_{i d} (t) - u_{a n f i s} ({\bar{w}}_{i} ​^{*}, t) - u_{s p} (t) .

(11)

Define a Lyapunov function as

V_{2} (s (t), \tilde{E} (t)) = \frac{1}{2} s^{2} (t) + \frac{1}{2 η_{E}} {\tilde{E}}^{2} (t)

(12)

where η_E is the learning rate with a positive constant. Differentiating (12) with respect to time and using (8), (9) and (10), it is obtained such that

\begin{array}{c} {\dot{V}}_{2} (s (t), \tilde{E} (t)) = s (t) \dot{s} (t) + \tilde{E} (t) \dot{\tilde{E}} (t) / η_{E} = s (t) (ε (t) - u_{s p} (t)) + \tilde{E} (t) \dot{\tilde{E}} (t) / η_{E} \\ = ε (t) s (t) - \hat{E} | s (t) | + \tilde{E} (t) \dot{\tilde{E}} (t) / η_{E} \end{array}

(13)

If the adaptive law for the supervisory controller is chosen as

\dot{\tilde{E}} (t) = - \dot{\hat{E}} (t) = - η_{E} | s (t) |

(14)

then (13) can be rewritten as

\begin{array}{c} {\dot{V}}_{2} (s (t), \tilde{E} (t)) = ε (t) s (t) - \hat{E} | s (t) | - (E - \hat{E} (t)) | s (t) | \\ = ε (t) s (t) - E | s (t) | \leq | ε (t) | | s (t) | - E | s (t) | \\ = - (E - | ε (t) |) | s (t) | \leq 0. \end{array}

(15)

Since V̇₂(s(t), E˜(t)) is negative semi-definite, that is V₂(s(t), E˜(t)) ≤ V(s(0), E˜(0)), it implies that s(t) and E˜(t) are bounded. Let function Ω(t) ≡ (E –|ε(t)|)|s(t)| ≤ –V̇₂(s(t), E˜(t)), and integrate Ω(t) with respect to time, then it is obtained that

\int_{0}^{t} Ω (τ) d τ \leq V_{2} (s (0), \tilde{E} (0)) - V_{2} (s (t), \tilde{E} (t)) .

(16)

Because V₂(s(0), E˜(0)) is bounded and V₂(s(t), E˜(t)) is non-increasing and bounded, the following result can be obtained:

\underset{t \to \infty}{l i m} \int_{0}^{t} Ω (t) d τ < \infty .

(17)

Also, $\dot{Ω} (t)$ is bounded, so by Barbalat's lemma [11], it can be obtained that $\underset{t \to \infty}{l i m} Ω (t) = 0$ . That is, s(t) → 0 as t → ∞. As a result, the SANFIS control system is asymptotically stable.

3. Empirical control results

In practical experiments, the Pololu 3pi mobile robot is used to verify the performances of SANFIS. The robot is shown in Fig. 3. The Pololu 3pi robot is a complete, high-performance mobile platform featuring two micro metal gear motors, five infrared (IR) light sensors, an 8×2 character LCD, a buzzer and three user pushbuttons, all connected to a C-programmable ATmega328 microcontroller with 20Mhz. The radius of the wheel is 0.67 inch which is able to achieve a speed exceeding 3 feet per second [14, 15]. The development tool is AVR Studio which is a free open resource. For Windows users, these tools are made available as the WinAVR distribution. It is also recommended the AVR Studio development environment which may be downloaded free of charge from the Atmel company. A similar research of mobile robot control for path can be seen from [16] which is considering the coupled effect between two wheels diameter. Their robot is a big mobile robot, but in this paper, a small mobile robot is considered.

Figure 3.

Pololu 3pi Mobile robot photograph

A SANFIS is designed to control the mobile robot. The design purpose is that the mobile robot can be controlled to track a desired path. The SANFIS takes the tracking sliding functions of robot velocity and azimuth angle (s_v, s_φ), and their derivative values (ṡ_v, ṡ_φ) as input variables, and u₀, u_φ as output variables; where u_v and u_φ are the torques implemented to mobile robot to get desired velocity (v_d) and azimuth angle (φ_d), respectively. Based on the SANFIS design concept, u_v and u_φ both include the ANFIS and supervisory control inputs, that is

u_{v} = u_{a n f i s 1} + u_{s p 1}

(18)

u_{φ} = u_{a n f i s 2} + u_{s p 2} .

(19)

The controlled terms of mobile robot are v and φ, and the control torques u_l, u_r and u_l, u_rare implemented to left and right wheels. From the property of a mobile robot with two independent driving wheels, the following relation equations are considered:

u_{l} = u_{v} - u_{φ} .

(20)

u_{r} = u_{v} + u_{φ}

(21)

The first step is to design the ANFIS controllers off-line to roughly tune the weightings to get favourable tracking performance, then to design the supervisory controllers to control the tracking errors converging to zero. There are two ANFIS controllers that need to be designed. One is for the velocity (that is u_anfis1) and the other is for the angle (that is u_anfis2). In order to construct a set of fuzzy if-then rules with appropriate membership functions to serve as a controller, a suitable stipulated FAM input-output pairs is required to serve as an off-line training data. The membership functions, fuzzy inference surface and fuzzy rules of ANFIS training results are shown in Fig. 4. The angle range is from −2π to 2π. The velocity range is from-60 to 60.

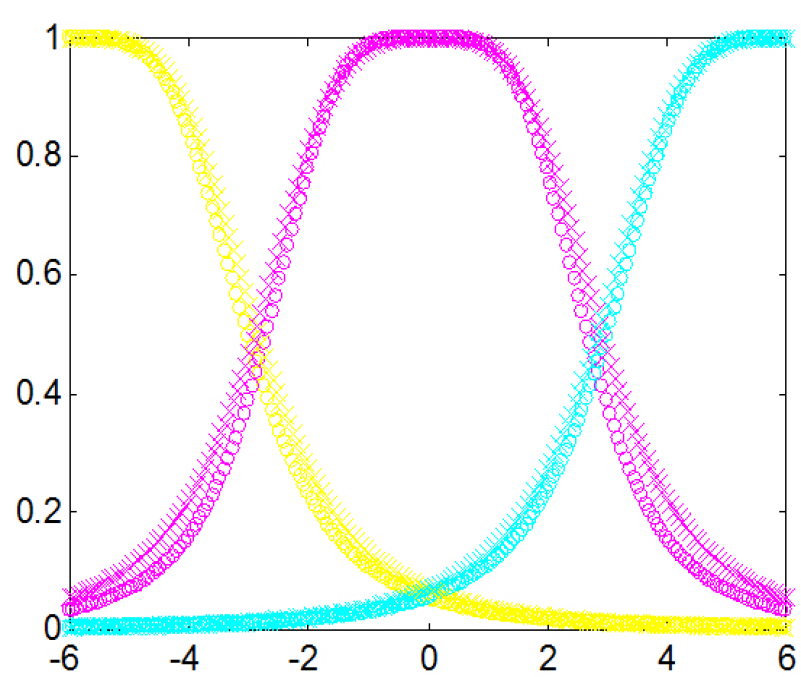

Figure 4 (a).

Membership functions of the trained ANFIS controller

Figure 4 (b).

Fuzzy inference surface of the trained ANFIS controller

Figure 4 (c).

Fuzzy rules of the trained ANFIS controller

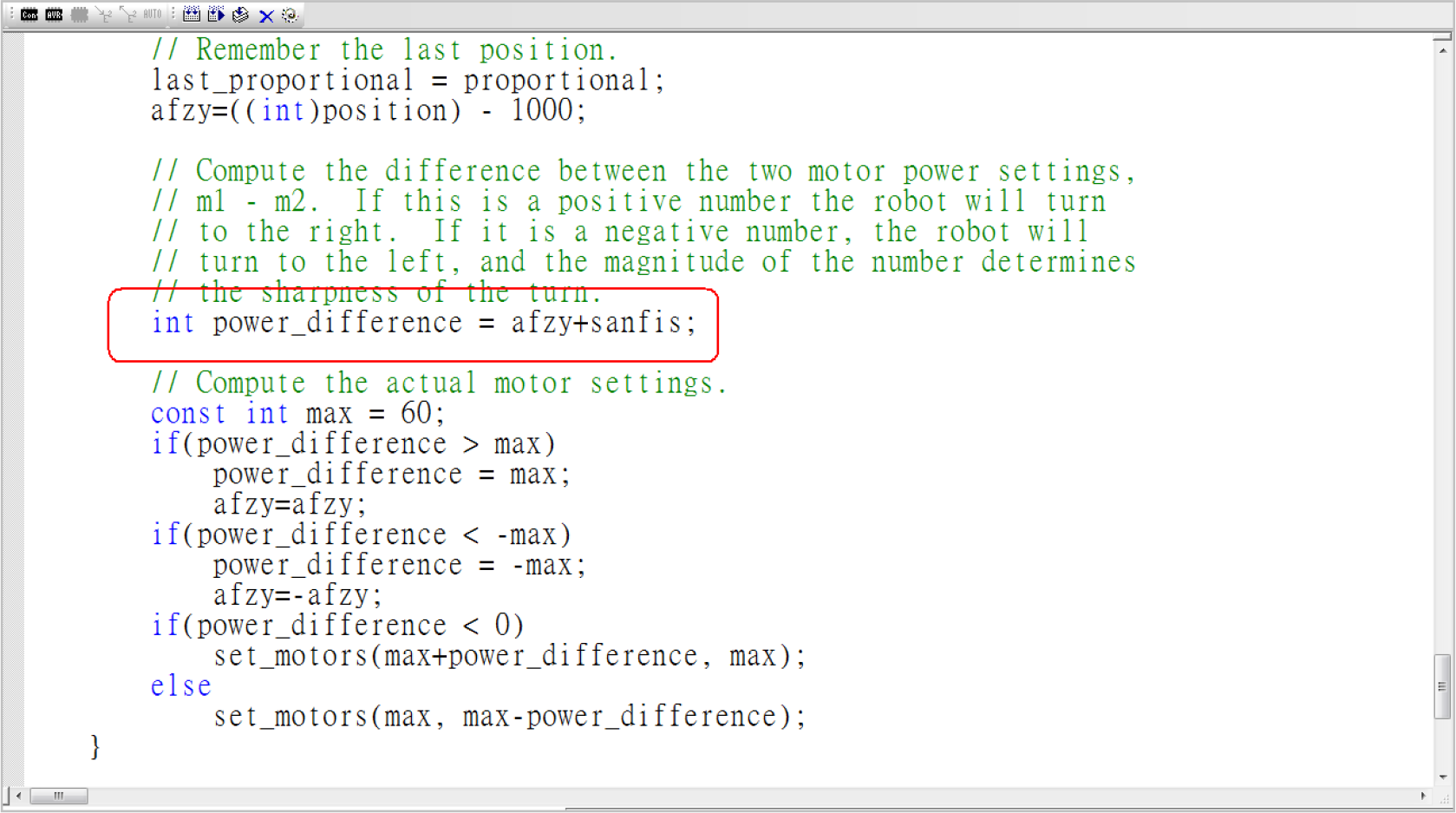

The C language programming result of a mobile robot using SANFIS is shown in Fig. 5. After the program has been compiled, then the machine code can be burned onto the flash memory of the mobile robot to do the empirical square path test of the mobile robot. We capture the experimental movie of the mobile robot moving trajectories as some continuous graphics to demonstrate the results of the empirical mobile robot control. The square path experimental result of ANFIS is shown in Fig. 6. The mobile robot will oscillate in the moment of moving after left 90 degree turn. The square path experimental result of SANFIS is shown in Fig. 7. It shows that the mobile robot will move very smooth, especially after a left 90 degree turn which is equivalent to the corresponding step response. Comparing the proposed design method of SANFIS with the ANFIS method, it is revealed that the performances are considerably improved.

Figure 5.

The diagram of the AVR Studio development tool for the mobile robot using SANFIS

Figure 6.

Trajectory of the mobile robot using ANFIS

Figure 7.

Trajectory of the mobile robot using SANFIS

4. Conclusions

This paper considers the control of a mobile robot system following a square path. A SANFIS controller is developed. It is composed of an ANFIS controller and a supervisory controller. The goal of the ANFIS controller is used to converge the trajectories of the system into zero and the supervisory controller is used to drive the trajectory quickly onto a switching surface and maintain the trajectory on this surface continuously to guarantee system stability. In practical experiments, this SANFIS is employed to deal with the square path control. A comparison of the ANFIS control and the proposed SANFIS control is presented, revealing the effectiveness and good performances of the designed SANFIS method.

Footnotes

5. Acknowledgments

The author wants to give thanks to the Editor and Reviewers for their valuable comments and help. This research is partially funded by the teachers' research and cooperation with company research project of the Taoyuan Innovation Institute of Technology and supported by the SOC project of the Ministry of Education, Taiwan, R. O. C.

References

Jang

J. S. R.

, “ANFIS: Adaptive-network-based fuzzy inference system,” IEEE Transactions on Systems, Man and Cybernetics, vol. 23, pp. 665–685, 1993.

Mon

Y. J.

, “Airbag controller designed by Adaptive-Network-Based Fuzzy Inference System (ANFIS),” Fuzzy Sets and Systems, vol. 158, pp. 2706–2714, 2007.

Buragohain

and Mahanta

, “A novel approach for ANFIS modelling based on full factorial design,” Applied Soft Computing, vol. 8, pp. 609–625, 2008.

Cardenas-Maciel

S. L.

Castillo

Aguilar

L. T.

and Castro

J. R.

, “A T-S Fuzzy logic controller for biped robot walking based on adaptive network fuzzy inference system,” The 2010 International Joint Conference on Neural Networks (IJCNN), pp. 1–8, 2010.

Castillo

and Melin

, “Intelligent adaptive model-based control of robotic dynamic systems with a hybrid fuzzy-neural approach. Applied Soft Computing, vol. 3, pp. 363–378, 2003.

Melin

and Castillo

, “Intelligent control of a stepping motor drive using an adaptive neuro-fuzzy inference system,” Information Sciences, vol. 170, pp. 133–151, 2005.

Lin

F. J.

and Wai

R. J.

, “Hybrid control using recurrent fuzzy neural network for linear-induction motor servo drive,” IEEE Transactions on Fuzzy Systems, vol. 9, 102–115, 2001.

Lin

C. M.

and Hsu

C. F.

, “Recurrent neural network adaptive control of wing-rock motion,” Journal of Guidance, Control, and Dynamics, vol. 25, pp. 1163–1165, 2002.

Mon

Y. J.

Lin

C. M.

and Leng

C. H.

, “Recurrent fuzzy neural network control for MIMO nonlinear systems,” Intelligent Automation and Soft Computing, vol. 14, pp. 395–415, 2008.

10.

Mon

Y. J.

and Lin

C. M.

, “Fuzzy Sliding PDC Control for Some Non-linear Systems,” Int. J. Modelling, Identification and Control, Vol. 16, No. 4, pp.372–379, 2012.

11.

Slotine

J. J. E.

and Li

W. P.

, Applied Nonlinear Control, Prentice-Hall, Englewood Cliffs, NJ, 1991.

12.

Utkin

V.I.

, Sliding Modes in Control and Optimization, Springer Verlag, Berlin, 1992.

13.

Yan

X. G.

Spurgeon

S. K.

and Edwards

, “Sliding mode control for time-varying delayed systems based on a reduced-order observer,” Automatica, vol. 46, pp. 1354–1362, 2010.

14.

Pololu AVR C/C++ Library User's Guide. (http://www.pololu.com)

15.

Pololu AVR Library Command Reference. (http://www.pololu.com)

16.

Jung

and Chung

, “Calibration of Kinematic Parameters for Two Wheel Differential Mobile Robots by Using Experimental Heading Errors,” International Journal of Advanced Robotic Systems, Vol. 8, pp. 134–142, 2011.
